Reusable Polymer-Supported Terpyridine Palladium Complex for Suzuki-Miyaura, Mizoroki-Heck, Sonogashira, and Tsuji-Trost Reaction in Water

2.1. Preparation of PS-PEG Resin-Bound Terpyridine Palladium Complex

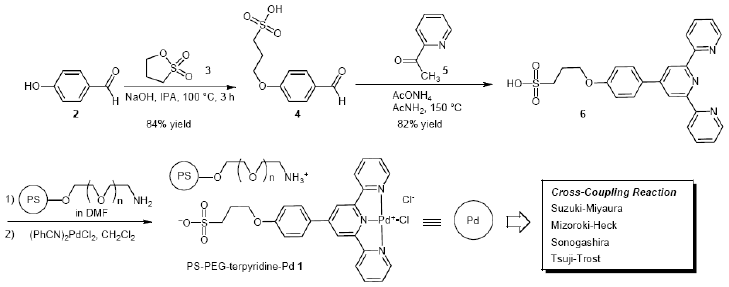

The amphiphilic PS-PEG resin-bound terpyridine ligand was prepared from p-hydroxybenzaldehyde (2), propane sultone (3), 2-acetylpyridine (5), and PS-PEG-NH₂ resin, and the coordination of the synthesized polymeric terpyridine ligand with palladium species proceeded to give the PS-PEG resin-supported terpyridine palladium complex 1, which exhibited good catalytic activity for the cross-coupling reaction. Thus, the reaction of p-hydroxybenzaldehyde (2) with propane sultone (3) in isopropyl alcohol (IPA) at 100 °C for 3 h under alkaline conditions followed by treatment of the obtained 3-(4-formylphenoxy)propane-1-sulfonic acid (4) with 2-acetylpyridine (5) and AcONH₄ in acetamide at 150 °C for 5 h gave terpyridine ligand 6 in a 68% yield in two steps. Immobilization of terpyridine ligand 6 onto an amphiphilic PS-PEG resin through ionic bonds to the sulfonate group was performed in DMF at room temperature for 1 h and the complexation of an amphiphilic PS-PEG resin-bound terpyridine ligand and Pd(II) occurred in CH₂Cl₂ to give PS-PEG-terpyridine-Pd(II) complex 1 as a brown solid [23-26].

2.2. Suzuki-Miyaura Cross-Coupling Reaction Using Polymer-Supported Terpyridine Palladium Complex

The scope of aryl halides and arylboronic acids was examined for the Suzuki-Miyaura cross-coupling reaction in water using the PS-PEG-terpyridine-Pd(II) complex 1 under aerobic conditions. Representative results are summarized in Table 1. PS-PEG resin-supported terpyridine palladium(II) complex 1 efficiently catalyzed the coupling of iodobenzene (7a) with phenylboronic acid (8a). Thus, the Suzuki-Miyaura cross-coupling reaction of 7a with 8a was carried out with K₂CO₃ (2 equiv.) in the presence of polymeric catalyst 1 (5 mol% Pd) in water to give the biphenyl (9a) in a 93% yield (Table 1, entry 1). The Suzuki-Miyaura cross-coupling reaction of phenylboronic acid (8a) with iodobenzene derivatives 7b–d bearing electron donating and withdrawing substituents at their para-positions gave the 4-methylbiphenyl (9b), 4-methoxybiphenyl (9c), and 4-trifluoromethylbiphenyl (9d) in 82%, 92%, and 93% yields, respectively (Table 1, entries 2–4). The coupling reaction of meta-and ortho-substituted iodobenzene derivatives 7e–g having meta-alkyl and ortho-alkyl groups took place with phenylboronic acid (8a) to give the 2-methylbiphenyl (9e), 3-methylbiphenyl (9f), and 1-phenylnaphthalene (9g) in 80%, 93%, and 98% yields, respectively (Table 1, entries 5–7). The coupling reaction of bromoarenes 7h–k with 8a was also performed to give the corresponding biaryls 9a–d in 74%, 85%, 69%, and 82% yields, respectively (Table 1, entries 8-11). The reactivity of several boronic acids 8b–g was also examined under similar conditions to furnish the coupling products 9b and 9e–i in 91%, 87%, 90%, 92%, 99%, and 96% yields, respectively (Table 1, entries 12–17).

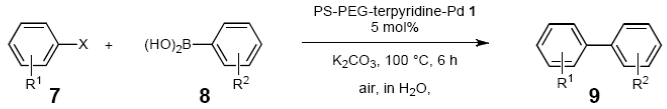

Table 1. Suzuki-Miyaura coupling reaction using polymeric catalyst 1 in water a, b.

2.3. Mizoroki-Heck Reaction Using Polymer-Supported Terpyridine Palladium Complex

The scope of suitable aryl halides and styrenes for the Mizoroki-Heck reaction in water using catalyst 1 was also examined (Table 2). The general process was to conduct the reaction of an aryl halide and a styrene with 1,8-diazabicyclo[5.4.0]undec-7-ene (DBU) (2 equiv.) in the presence of catalyst 1 (5 mol% Pd) in water to afford the corresponding products. The results for various aryl halides and styrenes are as follows. For aryl halides 7a–g in reaction with styrene 10a, iodobenzene (7a) gave 1,2-diphenylethene (11a) in a 90% yield (Table 2, entry 1); iodobenzene derivatives 7b–d bearing electron donating and withdrawing substituents at their para-positions gave 1-methyl-4-styrylbenzene (11b), 1-methoxy-4-styrylbenzene (11c), and 1-trifluoromethyl-4-styrylbenzene (11d) in 78%, 88%, and 76% yields, respectively (Table 2, entries 2–4); in addition, meta- and ortho-substituted iodobenzene 7e–g having meta-methyl and ortho-methyl groups gave 1-methyl-2-styrylbenzene (11e), 1-methyl-3-styrylbenzene (11f), and 1-styrylnaphthalene (11g) in 60%, 90%, and 99% yields, respectively (Table 2, entries 5–7). Bromoarenes 7h–k in reaction with 10a, carried out over longer reaction times (24 h), gave the corresponding stilbene derivatives 11a–d in 80%, 57%, 75%, and 87% yields, respectively (Table 2, entries 9–12). Styrenes 10b and 10c under similar conditions gave 11b and 11h in 80% and 77% yields, respectively (Table 2, entries 13 and 14).

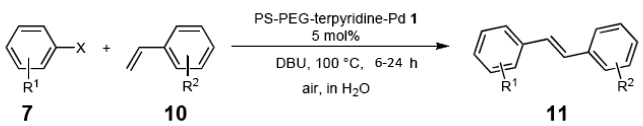

Table 2. Mizoroki-Heck reaction using polymeric catalyst 1 in water a, b, ^c.

2.4. Sonogashira Coupling Reaction Using Polymer-Supported Terpyridine Palladium Complex

The palladium-catalyzed coupling of an aryl halide with a terminal alkyne, the so-called Sonogashira reaction, is recognized as the most successful method for forming an sp² carbon-sp³ carbon bond. Since its discovery by Sonogashira and co-workers in 1975, a vast amount of research has been devoted to the synthetic application as well as the improvement of the reaction efficiency. Our continuing interest in the catalytic utility of PS-PEG-terpyridine-Pd(II) complex 1 led us to examine the Sonogashira coupling reaction in water with the PS-PEG-terpyridine-Pd(II) complex 1 under copper-free conditions. Thus, the copper-free Sonogashira coupling was examined with several haloarenes in the presence of catalyst 1 in water under aerobic conditions. The representative results are summarized in Table 3. The coupling of iodobenzene (7a) with phenylacetylene (12) took place smoothly in water at 60 °C in the presence of 3 equiv. of Et₃N and 5 mol% palladium of the PS-PEG-terpyridine-Pd(II) complex 1 to give a 78% yield of diphenylacetylene (13a) (Table 3, entry 1). The Sonogashira coupling reaction of p-methyliodobenzene (7b) bearing electron donating groups at their para-positions gave the corresponding biarylacetylene 13b in a 65% yield (Table 3, entry 2). p-(Trifluoromethyl)iodobenzene (7d) and p-(methoxycarbonyl)iodobenzene (7l) having electron deficient aromatic rings also underwent the Sonogashira coupling with phenylacetylene under similar conditions to afford the corresponding biarylacetylenes 13c and 13d in 82% and 69% yields, respectively (Table 3, entries 3 and 4). The coupling of meta- and ortho-substituted iodobenzenes 7e–g, m, n having meta-methyl, meta-chloro, ortho-methyl, and ortho-chloro groups took place with phenylacetylene to give the corresponding products 13e–i in 51%, 51%, 72%, 83%, and 76% yields, respectively (Table 3, entries 5–9). However, Bromoarene 7h in reaction with 12, carried out over longer reaction times (24 h) and at a higher temperature (100 °C), gave the corresponding stilbene 13a in a low yield (<5% yield) (Table 3, entry 11).

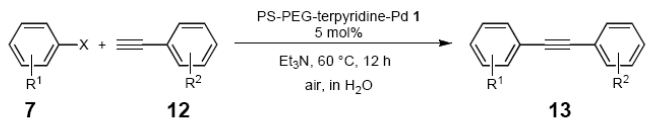

Table 3. Sonogashira coupling reaction using polymeric catalyst 1 in water a, b.

2.5. Tsuji-Trost Reaction Using Polymer-Supported Terpyridine Palladium Complex

The palladium-catalyzed allyl esters via π-allylpalladium intermediates, the so-called Tusji-Trost reaction, are a powerful synthetic means for forming carbon-carbon as well as carbon–nitrogen bonds. While extensive research has been devoted to the π-allylic alkylation and amination, research on π-allylic azidation has been limited to isolated reports. We also describe herein our preliminary results demonstrating that allylic azidation of several allyl esters with sodium azide proceeded in water in the presence of a polymeric catalyst 1. Thus, the coupling of allyl acetate 14a an 14b with sodium azide 15 took place smoothly in water at 70 °C in the presence of 5 mol% palladium of the PS-PEG-terpyridine-Pd(II) complex 1 to give the allyl azides 16a and 16b in 78% and 36% yields, respectively (Table 4, entries 1 and 2). The Tsuji-Trost reaction of 1-tolylallyl acetate (14c) bearing electron donating groups at their para-positions gave the 3-(p-tolyl)allyl azide (16c) in a 65% yield (Table 4, entry 3). 1-(4-(trifluoromethyl)phenyl)allyl acetate (14d) having electron deficient aromatic rings also underwent the Tsuji-Trost reaction with sodium azide under similar conditions to afford the 3-(p-trifluoromethylphenyl)allyl azide (16d) in an 18% yield (Table 4, entry 4).

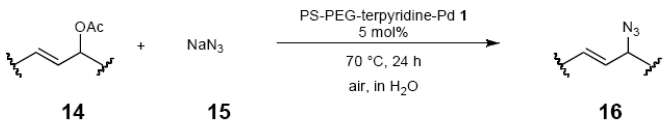

Table 4. Tsuji-Trost reaction using polymeric catalyst 1 in water a,b.

2.6. Recycling Experiments for Cross-Coupling Reaction in Water

The recyclability of the PS-PEG-terpyridine-Pd(II) complex 1 was also tested for the Suzuki-Miyaura, Mizoroki-Heck, Sonogashira, and Tsuji-Trost coupling reaction, respectively. Thus, after the first reaction, which gave a good yield of the coupling product 9a, 11g, 13h, and 16a (Table 1, entry 1 (93% yield); Table 2, entry 7 (99% yield); Table 3, entry 8 (83% yield); and Table 4, entry 1 (78% yield)), the catalyst beads were recovered by simple filtration and directly applied for the reaction under the similar conditions to afford 9a, 11g, 13a, and 16a in high yields (Scheme 2), during which palladium residue could hardly be detected by inductively coupled plasma atomic emission spectroscopy (ICP-AES) analysis (detection limit of Pd: <3 μg/L) from aqueous nor organic filtrates, excluding the Mizoroki-Heck reaction (leaching of Pd: 5 ppm).

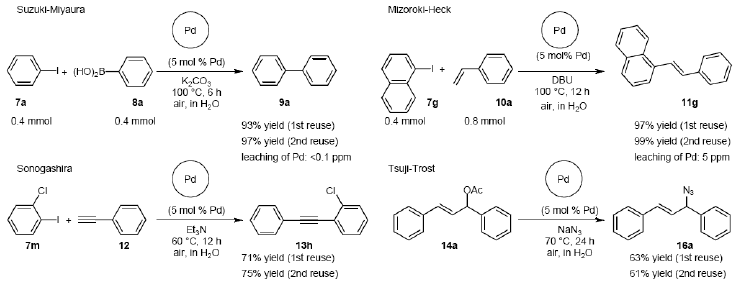

Scheme 2. Recycling experiments for cross-coupling reaction in water.

3.1. General Methods

All manipulations were carried out under aerobic conditions. Water was deionized with a Millipore MilliQ gradient A10 as Milli-Q grade. NMR spectra were recorded on a BURKER AVANCE spectrometer (500 MHz for ¹H and 125 MHz for ¹³C) and NMR spectra were recorded on a BURKER AVANCE spectrometer (400 MHz for ¹H and 100 MHz for ¹³C), and HITACHI R1900 spectrometer (90 MHz for ¹H and 22 MHz for ¹³C). ¹H and ¹³C NMR spectra were recorded in CDCl₃ or dimethyl sulfoxide-d₆ (DMSO-d₆) at 25 °C. Chemical shifts of ¹³C NMR were given relative to CDCl₃ and DMSO-d₆ as an internal standard (δ 77.0 ppm and 39.7 ppm). Mass spectral data were measured on a JEOL JMS-T100GCv MS detector (GC-MS) and a JEOL JMS-T100LP MS detector (LC-MS); the abbreviation ‘bp’ is used to denote the base peak. GC analysis was performed on a Shimadzu GC-2014. IR analysis was performed on a JASCO FTIR-410. ICP-AES spectral data were measured on a Shimadzu ICPE-9000.

3.2. Materials

PS-PEG-supported terpyridine-palladium complex (PS-PEG-terpyridine-Pd) 1 was prepared from PS-PEG amino-resin (Tenta Gel S NH₂, average diameter 90 mm, 1% divinylbenzene cross-linked, loading value of amino residue 0.31 mmol/g; purchased from Rapp Polymer), polymeric terpyridine ligand, and (C₆H₅CN)₂PdCl₂ according to the reported procedures [22]. The loading level of Pd in polymeric catalyst 1 was 0.25 mmol/g.

3.3. Suzuki-Miyaura Cross-Coupling Reaction

To a mixture of the polymeric catalyst 1 (80 mg, 0.020 mmol), K₂CO₃ (110 mg, 0.8 mmol), and iodobenzene (7a; 81 mg, 0.4 mmol) in H₂O (3.0 mL) was added phenyl boronic acid (8a; 97 mg, 0.8 mmol). The reaction mixture was shaken at 100 °C for 6 h and filtered. The recovered resin beads were rinsed with H₂O and extracted three times with EtOAc (6 mL). The EtOAc layer was separated and the aqueous layer was extracted with EtOAc (3 mL). The combined EtOAc extracts were washed with brine (2 mL), dried over MgSO₄, and concentrated in vacuo. The resulting residue was chromatographed on silica gel (hexane) to give 57 mg (93% yield) of biphenyl (9a).

3.4. Spectral and Analytical Data for the Biaryls

3.5. Mizoroki-Heck Reaction

The general procedure to obtain Mizoroki-Heck reaction products 11a–h is as described here for 11a. Styrene (11a; 83 mg, 0.8 mmol) was added to a mixture of polymeric catalyst (1; 80 mg, 0.020 mmol), base DBU (121 mg, 0.8 mmol), and iodobenzene (7a; 81 mg, 0.4 mmol) in H₂O (3.0 mL). The reaction mixture was shaken at 100 °C for 12 h and then filtered. The recovered resin beads were rinsed with H₂O and extracted three times with EtOAc (6 mL). The EtOAc layer was separated and the aqueous layer was extracted with EtOAc (3 mL). The combined EtOAc extracts were washed with brine (2 mL), dried over MgSO₄, and concentrated in vacuo. The resulting residue was chromatographed on silica gel (hexane) to give 64.8 mg (90% yield) of (E)-1,2-diphenylethene (11a).

3.6. Spectral and Analytical Data for the Stilbenes

3.7. Sonogashira Coupling Reaction

The general procedure to obtain Sonogashira coupling reaction products 13a–g is as described here for 13a. phenylacetylene (12; 81.7 mg, 0.8 mmol) was added to a mixture of polymeric catalyst (1; 80 mg, 0.024 mmol), base Et₃N (121 mg, 1.2 mmol), and iodobenzene (7a; 81.6 mg, 0.4 mmol) in H₂O (3.0 mL). The reaction mixture was shaken at 60 °C for 12 h and then filtered. The recovered resin beads were rinsed with H₂O and extracted three times with EtOAc (6 mL). The EtOAc layer was separated and the aqueous layer was extracted with EtOAc (3 mL). The combined EtOAc extracts were washed with brine (2 mL), dried over MgSO₄, and concentrated in vacuo. The resulting residue was chromatographed on silica gel (hexane/AcOEt:100/1) to give 55.3 mg (77% yield) of diphenylacetylene (13a).

3.8. Spectral and Analytical Data for the Biarylacetylenes

3.8.2. 1-Phenly-2-(p-tolyl)acetylene (13b)

¹H NMR (CDCl₃) δ 7.52 (dd, J = 8.1, 1.9 Hz, 2 H), 7.43 (d, J = 8.1 Hz, 2 H), 7.38–7.30 (m, 3 H), 7.15 (d, J = 7.8, 2 H), 2.36 (s, 3 H): ¹³C NMR (CDCl₃) δ 138.3, 134.8, 131.5, 131.4, 129.1, 128.3, 128.0, 127.7, 120.1, 89.5, 21.5. MS (EI): m/z (rel%) 192 (bp, M⁺), 165 (27), 39 (21). IR (ATR): (cm⁻¹) ν 3052, 3029, 2215, 1594, 1509, 1441, 1380.

CAS registry number: 185817-85-0.

3.9. Tsuji-Trost Coupling Reaction

The general procedure to obtain Tsuji-Trost reaction products 16a–d is as described here for 16a. 1,3-Diphenyl-2-propenyl acetate (14a; 100 mg, 0.4 mmol) was added to a mixture of polymeric catalyst (1; 80 mg, 0.024 mmol), and sodium azide (15; 39 mg, 0.6 mmol) in H₂O (3.0 mL). The reaction mixture was shaken at 70 °C for 24 h and then filtered. The recovered resin beads were rinsed with H₂O and extracted three times with EtOAc (6 mL). The EtOAc layer was separated and the aqueous layer was extracted with EtOAc (3 mL). The combined EtOAc extracts were washed with brine (2 mL), dried over MgSO₄, and concentrated in vacuo. The resulting residue was chromatographed on silica gel (hexane) to give 72.7 mg (77% yield) of 1,3-diphenyl-2-propenyl azide (16a).

3.10. Spectral and Analytical Data for the Allyl Azide

3.11. Recycling Experiments for Cross-Coupling Reaction

The general procedure for recycling experiments to obtain cross-coupling coupling reaction products is as described here for 13a (Suzuki-Miyaura coupling product). To a mixture of the polymeric catalyst 1 (80 mg, 0.020 mmol), K2CO3 (110 mg, 0.8 mmol), and iodobenzene (7a; 81 mg, 0.4 mmol) in H₂O (3.0 mL) was added phenylboronic acid (8a; 97 mg, 0.8 mmol). The reaction mixture was shaken at 100 °C for 6 h and filtered. The recovered resin beads were rinsed with H₂O and extracted three times with EtOAc (6 mL). The EtOAc layer was separated and the aqueous layer was extracted with EtOAc (3 mL). The combined EtOAc extracts were washed with brine (2 mL), dried over MgSO₄, and concentrated in vacuo. The resulting residue was chromatographed on silica gel (hexane) to give 57 mg (93% yield) of biphenyl (9a). After first rus, the recovered resin beads were dried in vacuo and directly applied in the next reaction under similar conditions. The reaction of iodobenzene (7a; 81 mg, 0.4 mmol) and phenylboronic acid (8a; 48 mg, 0.4 mmol) with the recovered catalyst 1 took place in K2CO3 (110 mg, 0.8 mmol) aqueous solution (3.0 mL) to give the biphenyl in 57 mg (93% yield) of biphenyl (9a). For second and third runs, these reaction conditions and procedures were also the same as first reuse procedures.
