Interactions between Plants and Plant-Soil in Functionally Complex Mixtures including Grass Pea, Faba Bean and Niger, Intercropped with Oilseed Rape

Abstract

Winter oilseed rape (OSR) can be grown intercropped with frost-sensitive service plant mixtures. This practice may reduce weed pressure and contribute to providing N for OSR after service plant freezing. However, there is little knowledge of how plants interact together and with the soil in diverse annual crop mixtures. To assess these interactions, two contrasting legume service plants were selected: faba bean and grass pea, as well as a non-legume, the niger plant. OSR and the legumes were then grown in mesocosms alone or intercropped in mixtures of two to four species. The biomass, N contents, N₂ fixation, and soil substrate-induced respiration were measured. A single species mostly drove the total dry biomass and the amount of N accumulated by the cover, OSR and faba bean for dry weight and N contents, respectively. Grass pea was highly sensitive to competition with OSR, and its N₂ fixation was lower than that of faba bean. The addition of niger did not lead to additional N₂ fixation of legumes or total N accumulation and contributed to reducing OSR biomass. The specific composition of the plant mixture did not explain the soil microorganism activity.

1. Introduction

Oilseed rape (Brassica napus L.) is the second most cultivated oilseed globally and in Europe [1]. Rapeseed is highly sensitive to weeds and insect pests, and receives large amounts of herbicides and insecticides [2]. It also requires substantial amounts of N and P fertilisers to sustain high yields [3,4]. The use of these chemical inputs causes environmental and health damage [5,6,7,8]. Introducing functional biodiversity in agroecosystems is a means to use biotic interactions to reduce the reliance of agricultural systems on chemicals and enhance ecosystem services [9,10,11]. Service plants can help achieve such a goal; they are sown to provide ecosystem services to the cash crops and/or to the cropping system, and not to be harvested [12]. Following this aim, intercropping winter oilseed rape (OSR) with frost-sensitive service plants (either legumes or legume-based mixtures) is a practice that has recently shown a fast increase in Switzerland and, to a certain extent, some European countries, such as France.

Intercropping consists of simultaneously growing two crop species or more in the same field during at least a part of their cycles [13]. During the past two decades, a number of studies have highlighted the nature of crop interspecific interactions within intercrops, more often a cereal grown with a legume, and relationships with crop performance at harvest and its environmental impact [14,15,16,17]. Such practices involve three kinds of interactions between the different species, depending on their traits, growth stages, available resources, and interactions with other organisms, especially microbial communities [14,15,18,19,20]: (i) competition for resources, (ii) niche complementarity and/or (iii) facilitation. In grain-legume-cereal intercrops, which have been largely investigated, it has been shown that niche complementarity was a key process to explain the benefits of this practice on crop nitrogen status and yields [14,15]. In greenhouse experiments, the same trends were observed in OSR-legume mixtures [21,22,23]. Indeed, in annual crops, during the simultaneous growth of the two companion crops, complementarity for N use better explains the beneficial results of intercropping than the facilitation process through nitrogen transfer, which has been shown to be effective in forage species pluriannual mixtures [23,24,25,26]. Related to niche complementarity for N sharing and root interactions, an increase in legume N₂ fixation, with positive soil fertility consequences, was also evidenced [27,28,29,30].

Service plants intercropped with OSR or other Brassicaceae can provide several ecosystem services. For instance, frost sensitive faba bean or lentil could allow a 20 to 40 kg·ha⁻¹ N fertilizer reduction without OSR yield loss [12,31]. Service plants can also contribute to weed [12,32], or insect pests control for instance by favouring their natural enemies [33,34,35,36]. Studies focusing on OSR-service plant intercropping have mainly focused on simple mixtures including only legumes [12,31,32]. However, farmers may choose to grow more complex mixtures to achieve multiple ecosystem services or to limit the risk of failure [37,38,39]. Thus, in Switzerland, over 90% of the service plant mixtures grown with OSR consist of 5 to 11 species, with more than two legumes, such as lentils, vetch, berseem clover, grass pea, fenugreek or faba bean, and at least one non-legume species, such as niger or buckwheat [40].

In such diversified mixtures, the complexity of interactions between plant species and with the soil is high and there is a lack of knowledge on the functional roles of the different plant species. For instance, legumes are often considered as a homogenous functional group based on their ability to fix N₂ through symbiosis with rhizobia, and most studies focus on a few model species [30,41]. However, a large diversity within legumes results in large differences among species regarding their ability to fix nitrogen, their sensitivity to environmental conditions, and their effect on the soil [30,42,43,44,45,46,47,48]. The species traits of legume and non-legume service plants are keys to explaining ecosystem services. Lorin et al. [48] suggested that legume traits favourable to nitrogen provision in frost-sensitive legumes are antagonistic with traits favourable to weed control.

In a large-scale field experiment, Verret et al. [12] highlighted faba bean as one of the most efficient service plants for increasing OSR yield under low fertilization conditions. However, the drivers of the positive effects of faba bean remain unclear, and the potential of this species to enhance ecosystem services within mixtures intercropped with OSR may be underestimated. Presently, in Switzerland, Baux and Schumacher [40] showed that faba bean was only grown in less than 10% of the mixtures sown with OSR and at a very low density. In addition to complementarity and niche separation processes for N acquisition, faba bean can benefit the cash crop by improving rhizospheric microbial activity, as shown by Drut et al. [21] in substitutive intercrop designs with OSR or wheat. Rhizosphere microbial communities are shaped by plant cover through rhizodeposition [49,50], which depends on crop species, cultivars, growth stage, and soil properties [51,52], and plays a major role in the interaction network, affecting plant nutrient availability and acquisition [53]. In their review, Richardson et al. [54] underlined that rhizosphere microbial communities might affect plant N acquisition through the following processes: (i) the increase in the surface or the structure of the root system; (ii) the increase in nutrient availability due to N₂ fixation; (iii) the displacement of sorption equilibrium or transformation of nutrients between different pools such as nitrification inhibitors; (iv) the turnover of microorganisms; or (v) the priming effect. In faba bean–wheat intercrops, Wahbi et al. [55] showed better N and P accumulation in wheat than in sole crops in relation to soil microorganisms.

This study aims to improve knowledge about the functional roles of legumes in service plant mixtures sown with OSR. First, from a preliminary greenhouse experiment using species (and the same cultivars) commonly used in Swiss service plant mixtures, we sought to identify those with a potential impact on soil microbial activity. Second, based on the assumption that legumes are key species for enhancing multiple ecosystem services in low-input systems, we selected two of those species with contrasting above ground traits for a second greenhouse experiment. Using mesocosms filled with soil, we compared their effects when they were grown either (i) alone, (ii) together with OSR, or (iii) in the presence of a non-legume service plant. Thus, we investigated the plant–plant and plant–soil interactions, biomass production, and N and P status of OSR.

2. Materials and Methods

2.1. Species Choice

Based on the preliminary greenhouse experiment results in which different species found in the Swiss service plant mixtures were grown in pots (see Supplementary Materials S1, Figure S1), information provided by farmers and literature, two legumes and one Asteraceae were selected for our experiment in mesocosms. The first legume, faba bean (Vicia faba L. cv Fanfare), was chosen for its high capacity to enhance soil microbial activity compared to other crops [21] (Figures S1 and S2) and its high ability to fix N₂ [42,43]. Faba bean is also known to produce high biomass [43], but its thick and erected above ground parts do not favour quick degradability after freezing, which is essential to make N available to the OSR before flowering [48]. The second selected legume, grass pea (Lathyrus sativus L. cv Merkur), had among the lowest capacity to enhance soil microbial activity by the MicroResp^TM technique (Figures S1 and S2), a good symbiotic N₂ fixing capacity [42], and climbing or prostrate shoots supposed to be more degradable than that of faba bean after freezing. The last service plant selected was niger (Guizotia abyssinica (L.f.) Cass.), a non-N-fixing species with contrasting growing habits, and root and shoot traits, compared to Brassicaceae, and the ability to enhance soil microbial activity [46,47] (Figures S1 and S2). Niger is also found in over 90% of Swiss service plant mixtures [40]. The OSR (Brassica napus L.) cultivar was the hybrid Avatar, often used in Switzerland.

2.2. Experimental Design

The greenhouse experiment was undertaken from 26 March to 6 June 2019 in Angers, France (47°28′0′′ N, 0°47′31′′ W; average temperature 19.2 ± 2.7 °C). Mesocosms (12.5 L, 20 cm diameter, 40 cm height [56]) were filled with 15.6 kg of fresh sandy soil (6.8% clay, 16.4% silt, 75% sand, 1.7% organic matter), sieved at 11 mm, and carefully mixed with 200 mL of a labelling solution containing 7.7 g·L⁻¹ NH₄NO₃ enriched in ¹⁵N (0.063 atom% ¹⁵Nexcess). The resulting mineral composition was 22.02 mg N-NH₄⁺·kg⁻¹, 2.49 mg N-NO₃⁻·kg⁻¹, 98 mg P·kg⁻¹ (Olsen), 381 mg K·kg⁻¹, 205 mg Mg·kg⁻¹, less than 0.1 mg CaCO₃·kg⁻¹, pH_H2O 7.2, and 15.1% humidity. Mesocosm height allowed for root architecture complementarity expression in the early growth, and limitation of competition for soil resource before legume nodulation and nitrogen fixation. A water solution with Rhizobium leguminosarum bv viciae strain P221 [57] was added to each mesocosm (>2.10⁸ cells·mesocosm⁻¹) to ensure the nodulation of grass pea and faba bean. After inoculation, a 2.5 cm layer of N-free pure sand was added at the top of each mesocosm to limit evaporation and avoid algae. During the experiment, the soil moisture was maintained between 12 and 17% humidity to prevent any water deficit and nutrient leaching.

In the mesocosms, plants were grown either in pure species or in mixtures (Figure 1). The seeds were pre-germinated at 20 °C before sowing. One to five plants were sown per mesocosm to obtain eight modalities (n = 4; Figure 1): (i) 1 OSR with 1 grass pea (RG), (ii) 1 OSR with 1 faba bean (RF), (iii) 1 OSR with 1 grass pea and 1 faba bean (RFG), (iv) 2 OSRs with 2 nigers (2R2Ni), (v) 1 OSR with 2 nigers and 1 grass pea (RG2Ni), (vi) 1 OSR with 2 nigers and 1 faba bean (RF2Ni), (vii) 1 OSR with 2 nigers, 1 grass pea and 1 faba bean (RGF2Ni), and (viii) 1 grass pea with one faba bean (GF). Six kinds of control treatments were added: (i) 1 OSR (R), (ii) 2 OSRs (2R), (iii) 3 OSRs (3R), (iv) 2 grass peas (2G), (v) 2 faba beans (2F), and (vi) mecososm without plants (0P). The use of two niger plants in 2R2Ni, RG2Ni, RF2Ni, and RGF2Ni was based on the proportions of this species in the Swiss mixtures. These 14 treatments were arranged in four complete randomized blocks on culture tables in the same greenhouse.

2.3. Plant and Soil Sampling and Chemical Analyses

The plants were harvested once at the end of the experiment, 72 days after sowing. In each mesocosm, the shoot of each plant was harvested separately before pooling per species. As roots were intermingled and difficult to sort by species, they were pooled in a single sample. All plant samples were oven-dried for 72 h at 60 °C before weighing. Then, they were ground into a fine powder and prepared for ¹⁵N:¹⁴N and %N analyses with a mass spectrometer (IsoPrim, Elementar, Hanau, Germany) and elemental analyser (EA3000 EuroVector, Milan, Italy). OSR shoot %P was measured using a coupled plasma optical emission spectrometer (ICP-OES; Thermo Fisher Scientific iCAP 7400, Waltham, MA, USA).

At harvest, after gentle shaking of the roots, two kinds of soil samples were collected: the soil adherent to the roots (AS) and the non-adherent soil, hereafter called bulk soil (BS). Only for 2G was the amount of AS too low to collect valuable samples for analyses. The mineral nitrogen concentrations (N-NO₃⁻ and N-NH₄⁺) were measured within BSs using a segmented flow analysis (SKALAR SA3000, Breda, The Netherlands). The pH_H2O of both ASs and BSs was also measured (pH meter Orion 2-star model, Thermo Fisher Scientific, Waltham, MA, USA).

2.4. Soil Microbial Activity

The catabolic activity of the soil microbial communities was assessed using the MicroResp^TM method. The ASs and BSs were dried at 30 °C for 96 h and stored at 4 °C. Before analysis, the soil was re-humidified and left at 20 °C without light for 7 days to re-activate the soil microbial communities. Then, the MicroResp^TM method was applied as described by Campbell et al. [58] to assess the quantity of CO₂ produced by a given mass of soil reacting for 6 h at 28 °C with a fixed quantity of a given substrate, also called substrate-induced respiration (SIR). Substrates used in this study were selected from the literature as parts of the classical crop root exudates [59,60,61,62]. They included glucose, arabinose, cellulose, trehalose, aspartate, butyric acid, glutamate, malate, and phytate. Glucose-induced respiration was used as an indicator of active microbial biomass [63,64,65]. Glucose was also used in association with bronopol and streptomycin as an indicator of active fungal biomass [21,65].

In addition to microbial respiration, the nitrification potential was measured using the method described by Hart et al. [66] on fresh soil stored for 5 days at 4 °C. This method aims to evaluate the potential of a given soil to transform NH₄⁺ into NO₃⁻ under optimal conditions. It consists of mixing 15 g of fresh soil and 100 mL of a solution containing 15 mM NH₄⁺, 1 mM PO₄³⁻, and a pH of 7.2 in an Erlenmeyer. The solution was homogenised continuously with a magnetic agitator for 24 h at 20 °C in the obscurity. After 2, 6, 20, and 24 h of incubation, 15 mL of the solution was sampled, centrifuged, and stored at −18 °C for subsequent analysis of N-(NO₃⁻-NO₂) contents using a segmented flow analyser (SKALAR SA3000, Breda, The Netherlands). Nitrification potential was obtained by fitting a simple linear model using the least square method between 2 and 24 h of incubation, resulting in a value expressed in mg N-(NO₃⁻-NO₂)·kg dry soil⁻¹·h⁻¹.

2.5. Calculations

2.5.1. Percentage of Nitrogen Derived from Fixation (%Ndfa)

In our experiment, we mitigated the spatial ¹⁵N:¹⁴N ratio homogeneity by using sieved soil carefully mixed with a ¹⁵N-enriched labelling solution. Nitrogen derived from biological N₂ fixation (%Ndfa) was thus assessed using the isotopic dilution method [67], using (1):

$$\%\mathrm{Ndfa}=\left(1-\frac{{\mathrm{atom}\%}^{15}\mathrm{N}\mathrm{excess}\mathrm{legume}}{{\mathrm{atom}\%}^{15}\mathrm{N}\mathrm{excess}\mathrm{reference}\mathrm{plant}}\right) \times 100$$

(1)

where pure OSRs (R, 2R, 3R) were used as non-fixing reference plants and atom%¹⁵N excess of a sample following (2):

$${\mathrm{atom}\%}^{15}{\mathrm{N}\mathrm{excess}\mathrm{sample}=\mathrm{atom}\%}^{15}\mathrm{N}\mathrm{sample} \times 100-0.3663$$

(2)

in which 0.3663 is the abundance of ¹⁵N atoms as a percentage of the total N in the atmosphere, and atom %¹⁵N sample is the abundance of ¹⁵N atoms as a percentage of the total nitrogen in the sample.

2.5.2. Competition Index

The relative interaction intensity index (RII) [68] was used to compare the effect of intra- vs. interspecific competition within the plurispecific mesocosms for a given species [69]. RII values range from −1 to +1, with a −1 value corresponding to maximum competition. RII was measured using (3):

$$\mathrm{RII}=\frac{{{B}}_{\text{inter}}-{{B}}_{\text{pure}}}{{{B}}_{\text{inter}}+{{B}}_{\text{pure}}}$$

(3)

where B_pure is the mean dry weight (DW) of individuals measured in monospecific mesocosm and B_inter is the mean DW of individuals measured in intercropping. RII was also calculated for the N and P amounts within the shoots.

2.6. Statistical Analysis

All statistical analyses and figures were obtained from R software [70]. The results presented in tables and figures are the means ± standard deviations (SDs) of four replicates. One- or two-way analysis of variance (ANOVA) followed by Tukey’s honestly significant difference (HSD) post hoc test was performed. In the case of non-normality of residuals or strong heterogeneity of variance, either outlier was removed, or analysis was undertaken using the Kruskal–Wallis test followed by the Conover post hoc test [71]. Thus, one of the reps of the R treatment with a leverage > 4 was removed from the root dry weight ANOVA of Figure 2a. The FG treatment was also removed from the amount of N in the root ANOVA of Figure 2b due to its much higher SD compared to other treatments. No transformation of data was applied except for the soil mineral N content, which was log-transformed prior to analysis of variance. One-sample Student’s t-test was also used to assess whether the RIIs were significantly greater or lower than 0.

3. Results

3.1. Dry Weight and N Accumulated per Mesocosm

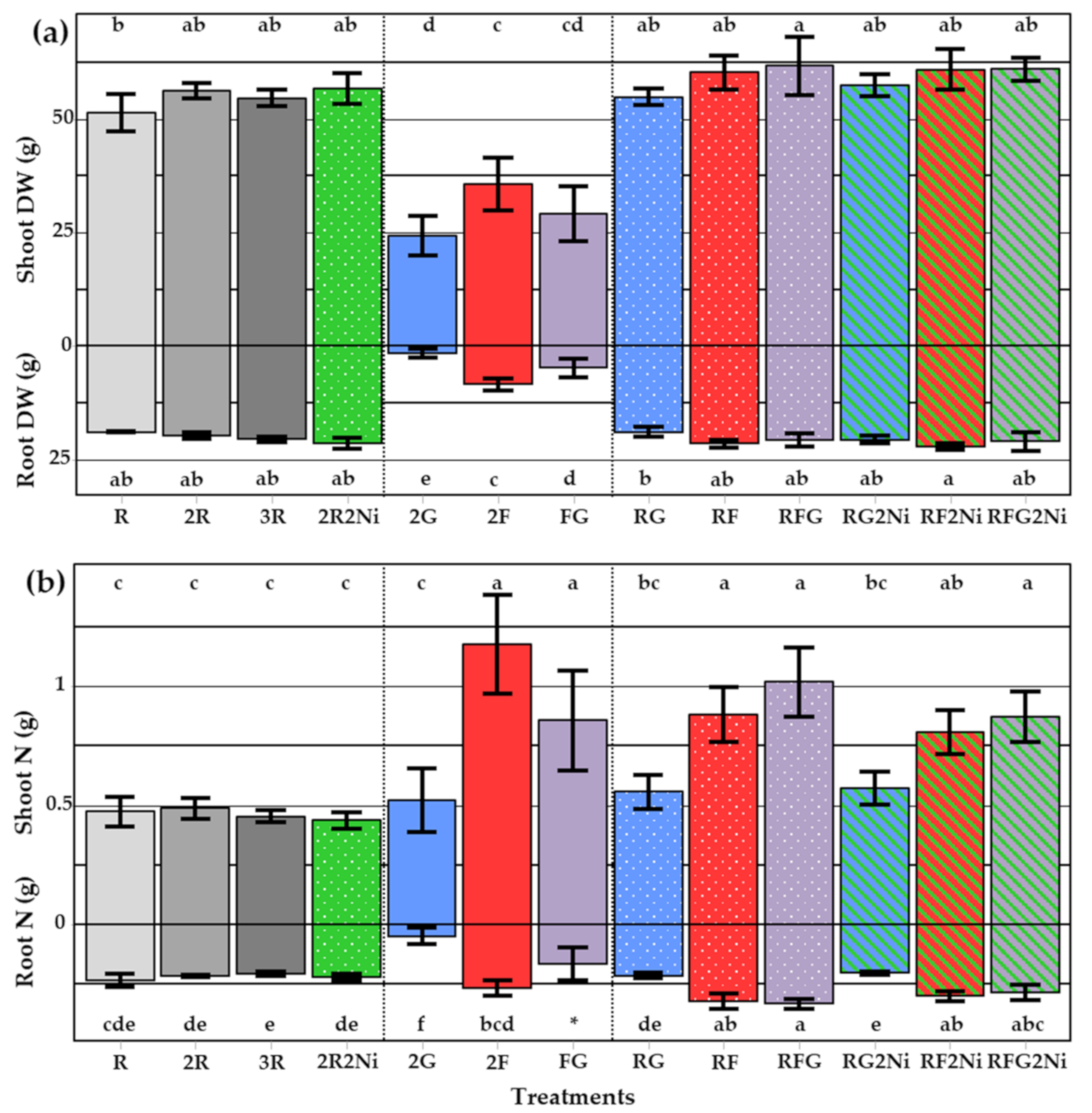

The plant DWs ranged from 25.9 to 83.1 g·mesocosm⁻¹ in 2G and RF2Ni, respectively (Figure 2a, p < 0.001). Total shoot and root DW per mesocosm differed significantly across treatments (p < 0.001 for shoots and roots). There were no significant differences between either total shoot or root DW per mesocosm between pure OSR (R, 2R, 3R) and treatments mixing OSR with other species (p > 0.05). Treatments with legumes only (2G, 2F, FG) accumulated 30 to 61% less DW in shoots and 55 to 93% less DW in roots than those including OSR (Figure 2a, p < 0.001 for shoots and p < 0.001 for roots). This was especially clear for pure grass pea (2G), which had the lowest root biomass.

More variability across treatments was observed for N accumulated per mesocosm. The presence of faba bean significantly increased the total shoot N compared with pure OSR (Figure 2b, p < 0.05). The total root N was less contrasted; however, the RF and RFG treatments accumulated significantly more N in roots than the pure OSR (p > 0.05). Globally, regarding the amount of N in the plant shoots and roots, the treatments including OSR and faba bean accumulated from 1.11 to 1.35 g N·mesocosm⁻¹ in RF2Ni and RFG, respectively. This value was significantly greater than that in treatments with pure OSR or OSR intercropped without faba bean, which reached 0.65 to 0.78 g N·mesocosm⁻¹ for 2R2Ni and RG2Ni, respectively (Figure 2b, p < 0.001). Adding nigers to the mixtures RF and RFG tended to decrease the total shoot and root N (p = 0.0504).

3.2. Dry Weight, Total N and N Derived from Fixation in Service Plant Species

3.2.1. Shoot Dry Weights and Shoot N per Species

The effect of legume species (faba bean or grass pea) and the plant–plant interactions on the legume shoot biomass and N was assessed through two-way ANOVA. Here, plant–plant interactions were defined as a factor with three levels: (i) two legume individuals grown together (2F or 2G), (ii) legume OSR intercropping (RF or RG), and (iii) legume grown with OSR and nigers (RF2Ni or RG2Ni). The plant–plant interaction significantly affected legume shoot DWs and N amounts (p < 0.01,

Table 1. Effect of legume choice (Leg) and plant-plant interaction (Pl-pl inter)—analysis of variance.

Source of Variance	Legume Biomass			Legume N			Amount of N Derived from Biological Fixation
	Df	F-Value	p-Value	Df	F-Value	p-Value	Df	F-Value	p-Value
Leg	1	41.77	<0.001 ***	1	69.49	<0.001 ***	1	74.946	<0.001 ***
Pl-pl inter	2	8.088	<0.01 **	2	7.063	<0.01 **	2	2.073	0.155
Leg × Pl-pl inter	2	1.153	0.338	2	0.372	0.694	2	0.424	0.661
Residuals	18			18			18

Leg (factor with two levels): Faba bean and Grass pea. Pl-pl inter (factor with three levels): two legume individuals grown together (FF or GG), legume–OSR intercropping (RF or RG) and legume grown with OSR and nigers (RF2Ni or RG2Ni). Asterisks indicate the significance of either factor or interaction of effects.

). The effect of legume species was also significant (p < 0.001 for DWs and N amounts, Table 1). Grown in mixtures, the faba bean tended to accumulate approximately 2- to 3-fold more DW (Figure 3a,b) and 3- to 5-fold more N in the shoots than grass pea (Figure 3d,e). The interaction between the two factors (legume species and the plant–plant interactions) was not significant (p > 0.05, Table 1).

Grass pea above ground DW was markedly reduced in complex mixtures, including more than two species (from 12.1 g DW·plant⁻¹ in 2G to 3.7 g DW·plant⁻¹ in RFG2Ni, p < 0.05, Figure 3a). The same trend was observed with N accumulation (p < 0.05, Figure 3d). For faba bean, we did not find any significant differences in above ground DWs or N amounts across modalities (p > 0.05, Figure 3b,e).

Niger DW ranged from 4.4 to 7.1 g·plant⁻¹ in 2R2Ni and RG2Ni, equivalent to 15.8 and 24.7% of the total mixture DW, respectively. No significant differences were found for niger shoot DW across the mixtures in which it was included (Figure 3c, p > 0.05). Nevertheless, the niger benefited from the presence of the grass pea, but not of that of faba bean, with an amount of N in shoot 2-fold higher in RG2Ni than in mixtures 2R2Ni (Figure 3c, p < 0.01). Regardless of the mixture, the niger had a very low N concentration and accumulated from 0.03 to 0.05 g N·plant⁻¹ (Figure 3c,f). As mixtures with niger always comprised two individuals, they represented 0.06 to 0.1 g N·mesocosm⁻¹ and 13.6 to 17.8% of the accumulated N of the total mesocosm shoots in treatments without faba bean. This proportion was smaller than that of the treatments including faba bean: 9.2% for both RF2Ni and RFG2Ni.

3.2.2. Nitrogen Derived from Biological Fixation in the Legumes

In faba bean, the amount of nitrogen derived from biological fixation was significantly higher than that of grass pea (p < 0.001, Table 1). We did not find a significant effect of the plant–plant interactions on the amount of nitrogen fixed by legumes (p = 0.155, Table 1).

When grass pea or faba bean was intercropped with OSR, the %Ndfa tended to increase for both legume species compared to the pure legume treatment (2G and 2F). Pure grass pea %Ndfa was 14% compared to 51–65% in treatments with OSR (RG, RFG, RG2Ni and RFG2Ni). However, these differences were significant only between 2G and the most complex mixture, including grass pea: RFG2Ni (p < 0.05,

Table 2. Percentage of nitrogen derived from biological fixation (%Ndfa) in legumes service plants.

	2F/2G	FG	RF/RG	RFG	RF2Ni/RG2Ni	RFG2Ni	p-Value
Grass pea	14 ± 13.9 b	16 ± 5.9 ab	63 ± 20.8 ab	52 ± 31.9 ab	51 ± 35.3 ab	65 ± 12.5a	<0.05 *
Faba bean	54 ± 8.7 c	71 ± 8.3 bc	90 ± 0.9 a	90 ± 2.2 a	89 ± 1.6 ab	88 ± 0.9 ab	<0.001 **

R: OSR (Brassica napus L. cv Avatar), F: Faba bean (Vicia faba L. cv Fanfare), G: Grass pea (Lathyrus sativus L. cv Merkur) and Ni: Niger (Guizotia abyssinica (L.f.) Cass.). Figures are means of four replicates ± SD. The p-value results from one-way ANOVA and Kruskal–Wallis tests for grass pea and faba bean, respectively. Asterisks indicate the significance of either factor or interaction of effects. Different letters: a, b, and c indicate significant differences across treatments according to Tukey HSD test for grass pea and Conover post hoc test for faba bean.

). For faba bean, the %Ndfa was clearly higher in intercrops than in 2F but was similar across the mixtures, including OSR (p < 0.01, Table 2), from 54% (in 2F) to 88–90% (in RF, RFG, RF2Ni, and RFG2Ni, p < 0.05). The variance in %Ndfa was much higher for grass pea than for faba bean when the legume was intercropped (12.5 ≤ SDs ≤ 35.3% for grass pea and 0.9 ≤ SDs ≤ 2.2% for faba bean, Table 2).

3.2.3. Oilseed Rape Dry Weight and N, P Status

The greater the number of OSR plants (R, 2R, 3R), the lower the shoot DW, N, and P accumulation per plant (p < 0.05, Figure 4). In our experiment, the addition of a single legume to OSR had a non-significant impact on OSR shoot DW and P (p > 0.05). Conversely to more complex mixtures, OSR shoot DW and P accumulation decreased first with the addition of the two legume species, second with the addition of the niger plants, and third, with the addition of the grass pea and the two niger plants (p < 0.05). Regarding the shoot N, grass pea had no impact on OSR, but faba bean alone reduced the amount of N accumulated by OSR (p < 0.05). RFG2Ni was the only mixture in which OSR shoots did not significantly accumulate more DW, N, and P than 2R (p > 0.05, Figure 4).

When treatments with a similar number of components were compared, the substitution of a non-legume species (one OSR or two nigers) by a legume led to a significant increase in DW, N, and P per OSR plant. The addition of two nigers to a mixture led to a significant decrease in DW and P accumulation (p < 0.05, Figure 4a,c). Regarding N, the difference was only significant for RFG, where the addition of nigers (RFG2Ni) led to a drop of 23% of the N accumulation per OSR plant (p < 0.05, Figure 4a).

3.2.4. Interactions between Plants

The relative interaction indexes (RIIs) assess the strength of interspecific competition compared to intraspecific competition. The OSR RII was significantly higher than 0 for the DW, N, and P when a legume plant was substituted for an OSR plant (p < 0.001). The strength of interspecific competition did not significantly differ when the OSR was intercropped with either faba bean or grass pea, except for P, where grass pea had a significantly higher RII than faba bean (0.25 and 0.29, respectively; p < 0.01).

The RII standard deviation values of OSR were much less variable (0.01 < SDs < 0.06) than those of legumes, for which competition strength was much more variable; for faba bean and grass pea, SDs ranged from 0.16 to 0.27 and 0.16 to 0.31, respectively. For grass pea, the strength of intraspecific competition was significantly lower than that of interspecific competition with OSR (RII < 0, p < 0.05 for DW and N). The competition strength of faba bean intercropped with OSR did not significantly differ from that of pure stands, as the RII was not significantly smaller than 0 (p > 0.05 for DW and N).

3.3. Soil Properties

3.3.1. Chemical Analyses

At harvest, the remnant mineral N in the BSs ranged from 1 to 1.3 mg N-(NH₄⁺, NO₃⁻)·kg⁻¹ dry soil and did not differ among the treatments with OSR (p > 0.05). The soil mineral N was greater in 2G, 2F and FG than in mesocosms with OSR, with values between 10.8 and 4.7 mg N-(NH₄⁺, NO₃⁻)·kg⁻¹ of dry soil for 2G and 2F, respectively (p < 0.05, Table S2). The pH of ASs and BSs did not vary across treatments (p > 0.05), except the pH of control bare soil (0P), which was lower than any other BS treatment pH (p < 0.001, Table S2).

3.3.2. Soil Microbial Activity

PCAs summarizing the substrate-induced respiration (SIR) values of ASs and BSs (Figure 5) showed that in both cases, the control soil (0P) tended to have a lower SIR than the other treatments. In the control bare soil (0P), the glucose-induced respiration differed significantly from the bulk soil samples of the mesocosms with OSR and faba bean (RF, RFG, RF2Ni, and RFG2Ni), in addition to those including grass pea, niger, and OSR (RG2Ni, p < 0.01). No significant differences were found for any other substrate (Table S1). The tests of the linear correlation between plant DW and glucose-induced respiration were positive and significant for both AS and BS, with r² values of 0.26 and 0.23, respectively (p < 0.001, Figure S3). The same was true for glucose-induced respiration with the addition of antibiotics, with r² values of 0.32 and 0.19 for AS and BS, respectively (p < 0.001, Figure S3).

The nitrification potential did not follow a clear pattern. We observed that the higher density of OSR with two or three plants tended to have a higher potential for nitrification than one plant. These results also suggest that the FG and RG treatments had a lower nitrification potential, but these differences were non-significant (Table S2).

4. Discussion

4.1. Drivers of DW and N Accumulation in the Service Plant Mixtures

In our study, the highest total plant biomass was achieved in treatments with OSR. The addition of multiple species to OSR led to only marginal and non-significant increases in biomass. Regarding the total N accumulated in the shoots, the treatments with faba bean reached the highest values. This result is consistent with the greenhouse experiment presented in Freund et al. [72], who compared two component mixtures made of pea, mustard, and oat in a substitutive design and observed that the mixtures’ total DW and N were mostly driven by a single species: pea. The field study of Schappert et al. [73], who compared three-component cover crop mixtures with pure stands in a substitutive design, observed that none of the mixtures reached a higher DW than pure stands. In our experiment, the total DW and N accumulation were both driven mainly by a single species: either OSR or faba bean. This result emphasizes the fact that two different species can contribute to shaping plant community traits and functioning, here through DW and accumulation of N by plants.

Consequently, different species can contribute to achieving different ecosystem services, which is one of the goals of mixing multiple species in agro-ecosystems to increase primary production and community stability [74,75]. We neither observed relationships between species diversity and total DW or N, nor transgressive overyielding in the current experiment, even though the species had contrasting traits. This was observed when the treatments were compared from either a substitutive or an additive standpoint. However, additive or substitutive legume–Brassicaceae intercropping has often been reported to increase the total plant biomass in field experiments [74,75]. These differences can probably be explained by the growing conditions of the experiment that are addressed later in this discussion.

4.2. Grass Pea and Faba Bean: Two Contrasting Legumes

Grass pea and faba bean are two contrasting legumes grown either in pure stands or intercropped. Grown alone, grass pea produced lower biomass than faba bean; this was especially true for root biomass. In our experiment, both legume species tended to have a higher %Ndfa when intercropped with OSR compared to pure stands. The increase in legume N₂ fixation under low mineral nitrogen conditions or in intercropping has been widely documented [29,30,76,77,78]. Conversely to our original hypothesis, the addition of niger to the OSR–legume mixture did not lead to a further increase in legume %Ndfa.

Faba bean %Ndfa in pure stands was 54%, compared to 14% for grass pea. The high ability of faba bean to fix nitrogen under non-limiting mineral nitrogen conditions is consistent with the observations of Guinet et al. [44], Turpin et al. [79], and Dayoub et al. [43]. The trends for grass pea suggest that the %Ndfa of this species is more sensitive to mineral nitrogen than faba bean. Moreover, the %Ndfa of grass pea was much more variable than that of faba bean. Many factors could explain this variability, including less adapted rhizobium strength or microbial consortia, even if the inoculation came in addition to the naturally occurring microbial community of a freshly gathered agricultural soil. Several authors demonstrated the impact of this factor and the mineral composition of the soil on the legume %Ndfa [79,80]. It is interesting to acknowledge that the biomass and N accumulated by grass pea also followed the same pattern as %Ndfa within a modality, which was not the case for faba bean. This species had a higher and less variable %Ndfa.

The relationships between the legume %Ndfa and legume DW make clear that niche complementarity for N nutrition is a key interaction to explain the ability of a legume to produce biomass in intercropping with OSR, which is a plant with a high ability to absorb soil mineral nitrogen. If we compare the intensity of competition (RII) across studies, it is interesting to see that the RII of faba bean intercropped with OSR ranged from −0.11 to 0.06 in Jamont et al. [23], Drut et al. [21], and our experiment, when Génard et al. [22] obtained values ranging from −0.28 to −0.49 for other legumes, and we obtained −0.23 for grass pea.

4.3. Consequences of Service Plants on Winter Oilseed Rape Growth

In our experiment, the addition of either both faba bean and grass pea or niger decreased the OSR biomass. This result is consistent with the study of Verret et al. [12] on winter OSR–service plant intercropping that showed an OSR biomass reduction of 18% when intercropped with legume service plants and 56% with non-legume in early winter. However, the intraspecific competition was stronger than that of service plants. One legume and two niger plants had a significantly lower impact than another OSR on OSR DW. Treatment with OSR, faba bean, grass pea, and nigers also tended to show higher biomass than the modality with two OSR plants.

In faba bean–OSR intercropping, Jamont et al. [23] noted that before faba been nodules start to fix N_2, and thus, feed on another N pool than that of the soil, the two species harbour complementary root architecture limiting competition for the soil resource. Our experiment was thus undertaken in 40 cm-tall mesocosms to allow better expression of root architectures in early growth before nodulation, to enhance niche separation and limit competition between plant species. However, in these conditions, the rooting depth is limited to 40 cm for the later stages, and niche separation such as that observed in pea–barley intercropping grown in the field [81,82] cannot occur in such a mesocosm system. Nevertheless, in field conditions OSR could also be grown in soil as shallow as 30 cm, where the rooting depth is also limited. At harvest, in the mesocosms, as root systems were intermingled, it was not possible to sort them for N and ¹⁵N:¹⁴N ratio measurements. As a consequence, plant N status and N derived from biological fixation were assessed based on values measured from the shoots, which is consistent with methods usually used in the field.

Plant–plant and plant–microorganism interactions are both highly dependent on growing conditions and especially on resource availability e.g., [83,84,85,86]. At the end of our experiment, the soil mineral nitrogen concentration was very low in the treatments with OSR (less than 1.5 mg·kg⁻¹ dry soil), and the total amount of N of pure OSR at different densities remained stable, meaning that N was a strong limiting factor. The OSR biomass per plant was higher than that in other similar studies, even if the thermal time of the current experiment was lower [21,22,23]. This emphasizes the fact that even if soil mineral N availability limited the growing conditions, our experiment was more favourable to OSR growth. This is also the case for faba bean growth, to a lesser extent. As a result, OSR intraspecific competition was much higher in our experiment than in the other experiments, explaining the difference in RII between our experiment (0.22 and 0.25 for OSR intercropped with faba bean and grass pea, respectively) compared to values that ranged from 0.05 to 0.13 in other studies [21,22,23].

4.4. Microbial Activity

We did not observe any significant change in the soil microbial activity between the different treatments, which is not consistent with Drut et al. [21], who found a significant positive effect of faba bean on soil SIR in pure stands, in addition to intercropping with either OSR or wheat. The difference could be linked to the cultivars we used, as root exudates and their impact on soil microorganisms depend on the genotype [87,88]. The soil characteristics could also explain this different result, as competition for N between plant and soil microorganisms is a key process that contributes to shaping microbial communities [89,90]. Even if differences between sole crops and intercropping have often been reported [19,54,91], it is important to see that these differences are context dependent. Regardless of the species mixture composition, we did observe a correlation between plant biomass and glucose SIR, which is an indicator of soil microbial active biomass (Figure S3).

4.5. Which Species to Mix for Which Services?

Farmers who mix several species could target different goals, such as maximizing the level of one ecosystem service, optimizing trade-offs between services/dis-services in order to achieve more than one ecosystem service or reduce the risk of service plant growth failure [23,37,38,39].

Under our growing conditions, grass pea did not increase the total biomass or N accumulation and only fixed a small amount of nitrogen. This species is likely to provide little if any N supply service when the competition with the cash crop is high. Finding that accessions or breeding cultivars with a higher ability to fix N₂ and a higher capacity to sustain high biomass under low N conditions could contribute to making this species a more efficient service plant for both weed control and N provision to OSR in spring. It would also allow us to take advantage of the growing habit complementarity between faba bean and grass pea. In addition, it is interesting to underline that faba bean did not accumulate more soil N than grass pea but fixed much more nitrogen. The low sensitivity to competition of faba bean and its limited impact on OSR could explain why this species was reported as particularly interesting in field experiments [12]. Faba bean also provides extra-floral nectar, which can be an important food source for female parasitoids, thus enhancing those natural enemies’ fitness [36]. As a result, it seems appropriate to introduce faba bean more frequently in mixtures of service species associated with OSR.

As non-legume, niger relies on the soil mineral N. This trait enhances competition with OSR, as observed in our experiment. However, competition for soil mineral N could also be a key factor for weed control, and non-legumes are often more efficient than legumes to achieve this goal [12,92,93]. Non-legume service plants such as camelina or buckwheat can drastically reduce OSR biomass and grain yield [12]. In our experiment, niger impacted OSR biomass but not strongly, probably due to its low %N and late development in the very early stage.

The three service plants studied here have different effects on N fluxes and resource sharing, and could also potentially combine one or several other ecosystem services, such as weed control, pollinator feeding, or contribution to insect pest regulation, due to a more favourable environment for their natural enemies or a confusion effect, which we did not assess in this study.

5. Conclusions

OSR intercropped with single or multiple service plant species in limiting N conditions showed that the mixture growth was mostly driven by a single species, either OSR for DW or faba bean for N accumulation. This result highlights the fact that a species that does not dominate the biomass can shape the plant cover traits. Our results emphasize that legume service species should not be considered to be a homogenous functional group and can potentially combine several ecosystem services. Grass pea was significantly more impacted by competition with non-legume species. It produced a small amount of biomass and fixed a low quantity of N₂. The %Ndfa of legumes was increased when intercropped with OSR compared to pure stands. However, another non-legume addition did not lead to a further increase in %Ndfa and tended to decrease the total N accumulation of service plants. The results from this experiment can thus contribute to better understand plant–plant interaction mechanisms at the early stage of such intercropping, which are key to selecting the relevant species to compose a mixture according to targeted ecosystem services and local conditions. The results also provide references for improving the genetics of service plants with the aim of increasing the efficiency of mixtures intercropped with OSR or other cash crops in a context of chemical input limitation and climate change.
