A Simple, Cost-Effective, and Green HPTLC Method for the Estimation of Ascorbic Acid in Solvent and Ultrasound-Assisted Extracts of Phyllanthus emblica, Capsicum annuum, and Psidium guajava

by
Ahmed I. Foudah
1,*,
Prawez Alam
1,
Faiyaz Shakeel
2,
Aftab Alam
1,
Mohammad A. Salkini
1,
Sultan Alshehri
2,
Mohammed M. Ghoneim
3 and
Samir A. Ross
4,5
1
Department of Pharmacognosy, College of Pharmacy, Prince Sattam Bin Abdulaziz University, P.O. Box 173, Al-Kharj 11942, Saudi Arabia
2
Department of Pharmaceutics, College of Pharmacy, King Saud University, P.O. Box 2457, Riyadh 11451, Saudi Arabia
3
Department of Pharmacy Practice, College of Pharmacy, AlMaarefa University, P.O. Box 71666, Ad Diriyah 13713, Saudi Arabia
4
National Center for Natural Products Research, University of Mississippi, Oxford, MS 38677, USA
5
Department of Biomolecular Sciences, School of Pharmacy, University of Mississippi, Oxford, MS 38677, USA
*
Author to whom correspondence should be addressed.
Agronomy 2022, 12(5), 1016; https://doi.org/10.3390/agronomy12051016
Submission received: 29 March 2022 / Revised: 19 April 2022 / Accepted: 21 April 2022 / Published: 23 April 2022
(This article belongs to the Special Issue Extraction and Analysis of Bioactive Compounds in Crops)
Browse Figures
Versions Notes

Abstract

:
Greener analytical methodologies for the estimation of ascorbic acid (AA) are poorly reported in the literature. Furthermore, the green indexes of the literature’s analytical assays of AA estimation have not been assessed. As a consequence, the aim of this research is to invent and validate a simple, cost-effective, and green reverse-phase “high-performance thin-layer chromatography (HPTLC)” method for the estimating AA in the solvent extracts (SE) and ultrasound-assisted extracts (UAE) of Phyllanthus emblica, Psidium guajava, and Capsicum annuum. The greener mobile phase for AA estimation was a binary mixture of water and ethanol (70:30, v/v). At a wavelength of 265 nm, the detection of AA was carried out. The greener HPTLC technique was linear in the 25–1200 ng/band range. In addition, the method was simple, cost-effective, accurate, precise, robust, sensitive, and green. The amount of AA was highest in the SE and UAE of P. emblica compared to the SE and UAE of P. guajava and C. annuum. The amount of AA in the SE of P. emblica, P. guajava, and C. annuum was found to be 491.16, 168.91, and 144.30 mg/100 g, respectively. However, the amount of AA in the UAE of P. emblica, P. guajava, and C. annuum was found to be 673.02, 218.71, and 199.30 mg/100 g, respectively. Using the “analytical GREEnness (AGREE)” methodology, the greenness index for the developed method was calculated to be 0.88, showing that the developed method has an excellent green profile. When it came to extracting AA, the UAE method outperformed the SE method. These findings suggested that the developed method might be used to estimate the AA in a variety of vegetable crops, plant-based extracts, and commercial formulations. Furthermore, because of the use of greener solvent systems against the commonly utilized hazardous solvent systems for AA determination, this technique is also safe and sustainable.

1. Introduction

Ascorbic acid (AA), also known as vitamin C or ascorbate, is a water-soluble vitamin [1]. It is involved in several biological processes and is mainly synthesized by plants [2]. It is found in several fruits and vegetable crops [3]. It is abundantly found in fresh fruits and leafy vegetable crops such as Phyllanthus emblica or Emblica officinalis (family: Phyllanthaceae, common name: amla), Psidium guajava (family: Myrtaceae, common name: guava), Capsicum annuum (family: Solanaceae, common name: capsicum), Mangifera indica (family: Anacardiaceae, common name: mango), Carica papaya (family: Caricaceae, common name: papaya), Brassica oleracea (family: Brassicaceae, common name: cabbage), Brassica juncea leaves (family: Brassicaceae, common name: mustard), and Spinacea oleracea leaves (family: Amaranthaceae, common name: spinach) [2,3,4]. The content of AA in different fruits and vegetable crops varies depending on the species, variety, and climate conditions [1]. AA has been reported as a potent antioxidant and is also present in various commercial formulations [2,3]. As a result, the qualitative and quantitative standardization of AA is necessary for commercial formulations and plant extracts.
Several analytical methods have been proposed to estimate AA either alone or in combination with other compounds in commercial formulations, plant extracts, and physiological fluids. Some titration-based assays have been reported for AA estimation in plant extracts [5,6]. The wide range of “high-performance liquid chromatography (HPLC)” methods are reported to estimate AA in the variety of fruits and vegetable crops [6,7,8,9,10,11,12]. An HPLC method has also been reported to estimate AA in human milk samples and infant milk formulas [13]. Various “high-performance thin-layer chromatography (HPTLC)” methods are also reported to estimate AA in various fruits, vegetable crops, and commercial formulations [14,15,16,17,18]. A variety of electrochemical methods have been reported for the simultaneous determination of AA, dopamine, and uric acid in different samples [19,20,21,22,23,24,25,26,27]. Biosensor, electro-oxidation, and electrochemical methods have also been used to estimate AA in plant extracts and pharmaceutical formulations [28,29,30,31]. Some other methods such as Folin–Ciocalteu assay, voltammetry, and ultra-performance liquid chromatography methods have also been used to estimate AA in plant extracts and pharmaceutical formulations [32,33,34].
A single green HPTLC methodology has been used to determine AA in fruit juices and pharmaceutical formulations [15]. However, its greenness index was not estimated. After conducting a literature review, we discovered that the safety and environmental profiles of reported analytical methods for estimating AA were not evaluated. Greener HPTLC technologies have a number of benefits over traditional liquid chromatography—such as HPLC and TLC—methods [35,36]. These benefits include simplicity, economy, low operation costs, fast analysis, the parallel detection of multiple samples, sharp detection, and reduced environmental pollution [35,36,37,38]. As a result, the greener reverse-phase HPTLC method for measuring AA was chosen in this investigation. There have been several methodologies for determining the greenness of various analytical procedures [37,38,39,40,41,42]. Only the “analytical GREEnness (AGREE)” approach for greenness assessment employs all twelve principles of “green analytical chemistry (GAC)”. As a result, the greenness index of the greener HPTLC method was determined using the “AGREE methodology” [41]. The present research aims to invent and validate a simple, cost-effective, accurate, precise, robust, sensitive, and green reverse-phase HPTLC method to estimate AA in its bulk form, solvent extract (SE), and ultrasound-assisted extract (UAE) of P. emblica, P. guajava, and C. annuum, based on these ideas. The greener HPTLC approach for estimating AA was validated using the “International Council for Harmonization (ICH)” Q2-(R1) requirements [43].

2. Materials and Methods

2.1. Materials

The standard AA was procured from “Sigma Aldrich (New Delhi, India)”. The HPLC grade ethanol (EOH) and water (WTR) were obtained from “E-Merck (Darmstadt, Germany)”. Other solvents and reagents used were of analytical grade and obtained from “E-Merck (Darmstadt, Germany)”. The fresh fruits of P. emblica (amla), P. guajava (guava), and C. annuum (capsicum) were procured from a supermarket in “Al-Kharj, Saudi Arabia”.

2.2. Chromatography and Instrumentation

The estimation of AA in its bulk form (pure drug or standard), SE, and UAE of P. emblica, P. guajava, and C. annuum was performed using the “HPTLC CAMAG TLC system (CAMAG, Muttenz, Switzerland)”. The HPTLC estimation of AA in reverse-phase conditions was conducted on “10 cm × 20 cm glass plates pre-coated with RP silica gel 60 F254S plates (E-Merck, Darmstadt, Germany)”. The solutions were spotted as the 6 mm bands with the help of a “CAMAG Automatic TLC Sampler 4 (ATS4) Sample Applicator (CAMAG, Geneva, Switzerland)”. The “CAMAG microliter Syringe (Hamilton, Bonaduz, Switzerland)” was linked with the sample applicator. The application rate for estimating AA was fixed to 150 nL/s. Under linear ascending mode, the TLC plates were developed in a “CAMAG automated developing chamber 2 (ADC2) (CAMAG, Muttenz, Switzerland)” at a distance of 80 mm. The greener solvent system/mobile phase was a binary mixture of WTR-EOH (70:30, v/v). For 30 min at 22 °C, the development chamber was saturated with vapors of WTR-EOH (70:30, v/v). The bands in TLC plates were visualized under a UV cabinet at different wavelengths. Finally, the detection of AA was carried out at a wavelength of 265 nm. The slit size (band length × width) and scanning rate were set to 4 mm × 0.45 mm and 20 mm/s, respectively. Each estimation was performed in three or six replicates. The software used was “WinCAT’s (v1.4.3.6336, CAMAG, Muttenz, Switzerland)”.

2.3. AA Calibration Curve and Quality Control (QC) Samples

AA is freely soluble in WTR. Hence, the needed quantity of AA (10 mg) was dispensed in 5 mL of WTR and the volume was increased to 100 mL by diluting with methanol (95 mL) to obtain a stock solution of 100 μg/mL. Variable quantities of this stock solution were diluted again with methanol to achieve AA concentrations in the 25–1200 ng/band range. The resultant AA solutions were spotted in various concentrations on reverse-phase HPTLC plates. The HPTLC response for AA was measured using the greener HPTLC method at each AA concentration. Graphing the AA concentrations vs. the measured TLC response produced the AA calibration curve. Furthermore, low QC (LQC; 100 ng/band), middle QC (MQC; 400 ng/band), and high QC (HQC; 1200 ng/band) samples were created individually for the validation evaluation of the developed method.

2.4. Sample Preparation for the Estimation of AA in SE of P. emblica, P. guajava, and C. annuum

The fresh fruits of P. emblica, P. guajava, and C. annuum were obtained from the market. The fruits were crushed and 1.0 g of each fruit was dispersed in 20 mL of WTR. The obtained dispersions were dried via a lyophilization process using a “Lyophilizer (Freezone® 2.5 model 76530, Labconco Corp., Kansas, MO, USA)” for 40 h and then stored at 20 °C until further use. The lyophilized samples of crushed fruits were extracted by maceration with WTR (3 × 100 mL) at room temperature. Each sample was filtered using Whatman filter paper (No. 41). The filtered samples were dried again via the lyophilization process. The extract of lyophilized samples was initially dissolved in 5 mL of WTR and the volume was maintained at 100 mL using methanol. This solution was used to determine the AA content using the developed analytical method.

2.5. Sample Preparation for the Estimation of AA in the UAE of P. emblica, P. guajava, and C. annuum

The fresh fruits of P. emblica, P. guajava, and C. annuum were obtained from the market. The fruits were crushed and 1.0 g of each fruit was dispersed in 20 mL of WTR. The obtained dispersions were dried via a lyophilization process using a “Lyophilizer (Freezone® 2.5 model 76530, Labconco Corp., Kansas, MO, USA)” for 40 h and then stored at 20 °C until further use. The UAE was performed using ultrasonic vibrations with the help of an ultrasonic probe type (Ultrasonic processor-200 Ht, power 200 W, Darmstadt, Germany) at low frequency (26 kHz), power (30%), duration (20 min), and temperature (25 °C). The probe used for extraction has a vibrating horn diameter of 7 mm which was directly immersed in the solvent-containing sample, which was then irradiated with the ultrasonic waves generated from the tip of the probe. Approximately 1 g of each crushed fruit was separately extracted with 20 mL of WTR using the above apparatus. The residue obtained was dissolved in 5 mL of WTR and volume was maintained at 50 mL using methanol. The obtained samples were used to determine the AA content using the developed analytical method.

2.6. Validation Parameters

The developed method for determining AA content was tested for multiple validation settings using the ICH-Q2-R1 criteria [43]. The linearity of AA was tested by graphing its concentrations vs. its recorded TLC response. The AA linearity was determined in the 25–1200 ng/band range for the developed method. To evaluate the system suitability parameters for the developed method, the “retardation factor (Rf), tailing factor (As), and theoretical plates number per meter (N/m)” were employed. The “Rf, As, and N/m” were calculated using the formulae provided [44].
The accuracy of the developed method was determined using % recovery. The % recovery was assessed at LQC, MQC, and HQC for the greener HPTLC method.
The intra/interday precision of the developed method was estimated. The intraday fluctuation was determined by measuring AA at LQC, MQC, and HQC on the same day. The interday precision was determined by measuring AA at LQC, MQC, and HQC on three consecutive days [43].
The method’s robustness was evaluated by introducing some planned alterations in the greener solvent systems. The original WTR-EOH (70:30, v/v) greener solvent system was altered to WTR-EOH (72:28, v/v) and WTR-EOH (68:32, v/v) systems, and the necessary changes in chromatographic response and Rf values were recorded [43].
Using the standard deviation method of blank, the sensitivity of the proposed method was determined as “limit of detection (LOD) and limit of quantification (LOQ)”. The “LOD and LOQ” for AA were calculated using regular formulae previously reported [43,44].
The method specificity was determined by comparing the Rf values and overlaid UV-absorption spectra of AA in the TE and UAE of P. emblica, P. guajava, and C. annuum with those of standard AA.

2.7. Estimation of AA in the SE and UAE of P. emblica, P. guajava, and C. annuum

On reverse-phase TLC plates, the TLC responses of the obtained SE and UAE solutions of P. emblica, P. guajava, and C. annuum were recorded. The AA content of all of these samples was determined using the developed method’s AA calibration curve.

2.8. Greenness Assessment

The developed method’s greenness index was assessed using the “AGREE metric approach” [41]. The AGREE index (0.0–1.0) of the developed method was calculated using the “AGREE: The Analytical Greenness Calculator (v0.5, Gdansk University of Technology, Gdansk, Poland, 2020)”.

3. Results and Discussion

3.1. Method Development

In the literature, the greener analytical methodologies for determining AA are poorly reported. Accordingly, the aim of this research was to invent and validate a simple, cost-effective, sensitive, and greener reverse-phase HPTLC method for estimating AA in the SE and UAE of P. emblica, P. guajava, and C. annuum.
For the AA determination using the greener HPTLC method, different proportions of WTR and EOH, including WTR-EOH (30:70, v/v), WTR-EOH (40:60, v/v), WTR-EOH (50:50, v/v), WTR-EOH (60:40, v/v), WTR-EOH (70:30, v/v), WTR-EOH (80:20, v/v), and WTR-EOH (90:10, v/v) were investigated as the greener solvent systems for the development of a suitable band for the estimation of AA in SE and UAE of P. emblica, P. guajava, and C. annuum. The greener solvent system, which was developed under chamber saturation conditions, is depicted in Figure 1.
The greener solvent compositions and different chromatographic parameters are included in Table 1.
The findings indicated that the WTR-EOH (30:70, v/v), WTR-EOH (40:60, v/v), WTR-EOH (50:50, v/v), WTR-EOH (60:40, v/v), WTR-EOH (80:20, v/v), and WTR-EOH (90:10, v/v) greener solvent systems offered a poor densitogram of AA with a high value of As (As = 1.120–1.290) (Table 1). However, the WTR-EOH (70:30, v/v) greener solvent system showed an intact and well-resolved peak of AA at Rf = 0.8600 ± 0.0200 with an acceptable As value (As = 1.070 ± 0.0300), as illustrated in Figure 2. As a consequence, for the estimation of AA in the SE and UAE of P. emblica, P. guajava, and C. annuum, the WTR-EOH (70:30, v/v) greener solvent system was selected as the final solvent system. The chromatogram for the suggested analytical method was densitometrically determined, and the highest chromatographic response for the proposed analytical method was observed at 265 nm. Accordingly, the entire estimation of AA was performed at 265 nm.

3.2. Validation Parameters

The developed method for estimating AA was validated for different parameters using the ICH-Q2-R1 criteria [43]. The results for the linear regression analysis of the calibration curve of AA are included in Table 2. The AA calibration curve was linear in the 25–1200 ng/band range for the developed method. The values of the “determination coefficient (R2)” and “regression coefficient (R)” for AA were determined to be 0.9956 and 0.9977, respectively, for the developed method. These results revealed a solid linear relationship between AA concentrations and TLC response.
Table 1 lists the results of the system suitability parameters for the developed method. For the developed method, the “Rf, As, and N/m” were determined to be 0.8600 ± 0.0200, 1.070 ± 0.0300, and 5378 ± 2.980, respectively. These results revealed that the developed method was suitable for estimating AA in the SE and UAE of P. emblica, P. guajava, and C. annuum.
Table 3 lists the findings of the accuracy assessment for the developed method. The % recovery of AA for the developed method was determined to be 100.26%, 99.05%, and 101.28%, respectively, at LQC, MQC, and HQC. These % recovery results illustrate the accuracy of the developed method for estimating AA in the SE and UAE of P. emblica, P. guajava, and C. annuum.
The precision assessment results for the developed method were calculated in the percent of the coefficient of variation (% CV), and the results are shown in Table 4. The % CVs of AA for the developed method were 0.68%, 0.56%, and 0.53% at LQC, MQC, and HQC, respectively, for intraday precision. The % CVs of AA for the developed method at LQC, MQC, and HQC, respectively, were estimated to be 0.81%, 0.61%, and 0.54% for interday precision. These findings suggested the precision of the developed method for estimating AA in the SE and UAE of P. emblica, P. guajava, and C. annuum.
The findings of the robustness assessment for the developed method are listed in Table 5. The % CVs for the robustness assessment were evaluated to be 0.73–0.77% for the developed method. The Rf values of AA were determined to be 0.85–0.87 using the developed method. The robustness of the developed method for estimating AA in the SE and UAE of P. emblica, P. guajava, and C. annuum was demonstrated by minor fluctuations in Rf values of AA and low CVs.
The developed method’s “LOD and LOQ” values were determined, and the results are shown in Table 1. For estimating AA, the developed method’s “LOD and LOQ” were calculated to be 8.630 ± 0.1600 and 25.89 ± 0.3900 ng/band, respectively. The sensitivity of the developed method for estimating AA in the SE and UAE of P. emblica, P. guajava, and C. annuum was revealed by these “LOD and LOQ” values.
By comparing the overlaid UV-absorption spectra of AA in the SE and UAE of P. emblica, P. guajava, and C. annuum with those of standard AA, the method specificity was determined. Figure 3 represents the overlaid UV spectra of standard AA and AA in the SE and UAE of P. emblica, P. guajava, and C. annuum. For the developed method, the maximum chromatographic response for AA in standard AA and AA in the SE and UAE of P. emblica, P. guajava, and C. annuum was measured at 265 nm. The specificity of the developed method was revealed by the identical UV spectra, Rf values, and wavelengths of AA in standard AA and AA in the SE and UAE of P. emblica, P. guajava, and C. annuum.

3.3. Estimation of AA in the SE and UAE of P. emblica, P. guajava, and C. annuum

The developed method was used for the estimation of AA contents in the SE and UAE of P. emblica, P. guajava, and C. annuum. The HPTLC chromatogram of AA from the SE and UAE of P. emblica, C. annuum, and P. guajava were identified by comparing their single TLC band at Rf = 0.86 ± 0.02 with that of a standard AA for the developed method. The representative HPTLC densitogram of AA in the UAE of P. emblica, C. annuum, and P. guajava is presented in Figure 4, which showed an identical peak of AA with that of standard AA. In addition, four, six, and ten additional peaks were also detected in the UAE of P. emblica (Figure 4A), P. guajava (Figure 4B), and C. annuum (Figure 4C), respectively. The detection of additional peaks in the UAE of P. emblica, C. annuum, and P. guajava suggested that the developed method can be efficiently used in the estimation of AA in the presence of impurities/other phytoconstituents.
The calibration curve of AA was used to determine the amount (mg/100 g) of AA in all samples, and the findings are shown in Table 6. The amount of AA in the SE of P. emblica, P. guajava, and C. annuum was determined to be 491.16 ± 2.34 mg/100 g, 168.91 ± 1.41 mg/100 g, and 144.30 ± 1.17 mg/100 g, respectively. However, the amount of AA in the UAE of P. emblica, P. guajava, and C. annuum was determined to be 673.02 ± 3.16 mg/100 g, 218.71 ± 1.67 mg/100 g, and 199.30 ± 1.32 mg/100 g, respectively. The amount of AA was computed as higher in the SE and UAE of P. emblica compared to the SE and UAE of P. guajava, and C. annuum. Furthermore, the amount of AA in all UAE samples was considerably greater than the respective SE (p < 0.05). Based on these observations and results, the UAE method for extracting the AA in P. emblica, P. guajava, and C. annuum is superior to the SE method of extraction. Overall, our results showed that the developed method may be utilized to assess AA in a variety of food and pharmaceutical samples with AA as one of the constituents.

3.4. Greenness Assessment

For the quantitative estimation of the greenness of analytical methods, various methodologies have been used [37,38,39,40,41,42]. Only the “AGREE methodology”, on the other hand, applies all twelve GAC principles [41]. As a consequence, the developed analytical method’s greenness index was determined using the “AGREE methodology”. Figure 5 depicts the calculated AGREE index for the developed analytical method using the twelve GAC principles. The overall AGREE index for the developed analytical method was 0.88, demonstrating that the developed analytical method was extremely green for determining the AA in studied samples. A single green HPTLC technique has been applied in the determination of AA in fruit juices and pharmaceutical formulations. The quaternary combination of ethyl acetate–acetone–WTR–formic acid was used as the green solvent system in this study [15]. However, the greenness index of this method has not been reported. As a consequence, the greenness index of the present HPTLC methodology could not compare with the reported HPTLC technique of AA estimation.

3.5. Comparison with Reported HPTLC Methods

The developed HPTLC method of AA estimation was compared with reported HPTLC methods of AA estimation. The findings of the comparative analysis are included in Table 7. Three different validation parameters, such as “linearity, accuracy, and precision”, in addition to the solvent system and environmental toxicity of the developed HPTLC method, were compared with reported HPTLC methods. The linearity range, accuracy, and precision of a reported HPLC method have been reported as 200–800 ng/band, 98.25–99.12%, and 0.60–1.30%, respectively [15]. The linearity range of this method was much inferior to the present HPTLC method. The solvent system used in this study was green (ethyl acetate–acetone–WTR–formic acid), but the greener index of this method was not estimated using any of the reported quantitative approaches [15].
The accuracy and precision of other literature HPTLC methods were within the limit of ICH guidelines and hence similar to the present HPTLC method [16,17,18]. However, the linearity range of all these methods was much inferior to the present HPTLC method. In addition, the solvent systems of all these methods, such as chloroform–acetone–trifluoroacetic acid, ethyl acetate–methanol–formic acid, and toluene–ethyl acetate–methanol–acetic acid were environmentally toxic compared with the greener solvent systems (WTR–EOH) of the present HPTLC method [16,17,18]. Overall, the present HPTLC method to estimate AA was found to be superior to all reported HPTLC methods of AA analysis.

4. Conclusions

The goal of this study was to invent and validate a simple, cost-effective, sensitive, and green reverse-phase HPTLC method for measuring AA in the SE and UAE of P. em-blica, P. guajava, and C. annuum, due to the scarcity of greener analytical methodologies for determining AA in the literature. The developed analytical method for estimating AA is simple, cost-effective, sensitive, accurate, precise, robust, and green. The UAE of P. emblica, P. guajava, and C. annuum had much more AA than their corresponding SE. As a result, it is recommended that the UAE process be used to extract AA from P. emblica, P. guajava, and C. annuum. The calculated overall AGREE index indicated the excellent green profile of the developed method for AA analysis. The present HPTLC method was found to be superior to other reported HPTLC methods of AA analysis. These findings indicate that the developed HPTLC method can be used to estimate AA in a variety of food, plants, and pharmaceutical products containing AA as one of the ingredients.

Author Contributions

Conceptualization, A.I.F. and S.A.R.; methodology, P.A., M.A.S., A.A. and A.I.F.; software, M.M.G.; validation, S.A. and A.I.F.; formal analysis, M.M.G.; investigation, P.A., A.A. and S.A.; resources, A.I.F.; data curation, M.M.G.; writing—original draft preparation, F.S.; writing—review and editing, S.A., P.A. and S.A.R.; visualization, A.I.F.; supervision, A.I.F. and S.A.R.; project administration, A.I.F.; funding acquisition, A.I.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Deputyship for Research & Innovation, Ministry of Education in Saudi Arabia through the project number-IF-PSAU-2021/03/17778, and The APC was funded by IF-PSAU.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

This study did not report any data.

Acknowledgments

The authors extend their appreciation to the funder—the Deputyship for Research & Innovation, Ministry of Education in Saudi Arabia—for funding this research work through the project number-IF-PSAU-2021/03/17778.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Jacob, R.A.; Sotoudeh, G. Vitamin C function and status in chronic disease. Nutr. Clin. Care 2002, 5, 66–74. [Google Scholar] [CrossRef] [PubMed]
  2. Levine, M.; Dhariwal, K.R.; Welch, R.W.; Wang, Y.; Park, J.B. Determination of optimal vitamin C requirements in humans. Am. J. Clin. Nutr. 1995, 62, 347S–1356S. [Google Scholar] [CrossRef] [PubMed]
  3. Li, Y.; Schellhorn, H.E. New developments and novel therapeutic perspectives for vitamin C. J. Nutr. 2007, 137, 2171–2184. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Willcox, B.J.; Curb, J.D.; Rodriguez, B.L. Antioxidants in cardiovascular health and disease: Key lessons from epidemiologic studies. Am. J. Cardiol. 2008, 101, 75D–86D. [Google Scholar] [CrossRef] [PubMed]
  5. Dinesh, B.; Yadav, B.; Reddy, R.D.; Padma, A.S.; Sukumaran, M.K. Determination of ascorbic acid content in some Indian spices. Int. J. Curr. Microbiol. Appl. Sci. 2015, 4, 864–868. [Google Scholar]
  6. Said, M.A.M.; Radzi, Z.; Yakub, I.; Amin, M.A.M. Extraction and quantitative determination of ascorbic acid from banana peel Musa acuminata ‘Kepok’. IIUM Eng. J. 2016, 17, 103–114. [Google Scholar] [CrossRef]
  7. Nojavan, S.; Khalilian, F.; Kiaie, F.M.; Rahimi, A.; Arabanian, A.; Chalavi, S. Extraction and quantitative determination of ascorbic acid during different maturity stages of Rosa canina L. fruit. J. Food Compos. Anal. 2008, 21, 300–305. [Google Scholar] [CrossRef]
  8. Tarrago--Trani, M.T.; Phillips, K.M.; Cotty, M. Matrix-specific method validation for quantitative analysis of vitamin C in diverse foods. J. Food Compos. Anal. 2012, 26, 12–25. [Google Scholar] [CrossRef]
  9. Stan, M.; Soran, M.L.; Marutoiu, C. Extraction and HPLC determination of ascorbic acid content of three indigenous spice plants. J. Anal. Chem. 2014, 69, 998–1002. [Google Scholar] [CrossRef]
  10. Fatariah, Z.; Tengku Zulkhairuazha, T.Y.; Wan Rosli, W.I. Ascorbic acid quantification in Benincasa hispida fruit extracted using different solvents. Int. Food Res. J. 2015, 22, 208–212. [Google Scholar]
  11. Cefali, L.C.; Maia, L.D.O.; Stahlschimidt, R.; Ataide, J.A.; Tambourgi, E.B.; Rosa, P.C.P.; Mazzola, P.G. Vitamin C in acerola and red plum extracts: Quantification via HPLC in vitro antioxidant activity, and stability of their gel and emulsion formulations. J. AOAC Int. 2018, 101, 1461–1465. [Google Scholar] [CrossRef] [PubMed]
  12. Damasceno, E.T.S.; Almeida, R.R.; Pires, B.C.; Dutra, F.V.A.; Borges, K.B.; Guimaraes, L.G.L. Determination of the content of ascorbic acid and antioxidant capacity of fruit Buchenavia tomentosa Eichler. Rev. Virt. Quim. 2019, 11, 771–784. [Google Scholar] [CrossRef]
  13. Francis, J.; Rogers, K.; Brewer, P.; Dickton, D.; Pardini, R. Comparative analysis of ascorbic acid in human milk and infant formula using varied milk delivery systems. Int. Breastfeed. J. 2008, 3, 19. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Pradhan, K.; Nandi, A.; Das, A.; Sahu, N.; Senapati, N.; Mishra, S.P.; Patnaik, A.; Pandey, G. Quantification of capsaicin and ascorbic acid content in twenty four Indian genotypes of chilli (Capsicum annuum L.) by HPTLC and volumetric method. Int. J. Pure Appl. Biosci. 2018, 6, 1322–1327. [Google Scholar] [CrossRef]
  15. Alam, P.; Kamal, Y.T.; Alqasoumi, S.I.; Foudah, A.I.; Alqarni, M.H.; Yusufoglu, H.S. HPTLC method for simultaneous determination of ascorbic acid and gallic acid biomarker from freeze dry pomegranate juice and herbal formulation. Saudi Pharm. J. 2019, 27, 975–980. [Google Scholar] [CrossRef]
  16. Abdelwahab, N.S.; Abdelaleem, E.A.; Abdelrahman, M.M. HPTLC-densitometric method for determination of ascorbic acid, paracetamol and guaifenesin in presence of their toxic impurities. J. Chromatogr. Sci. 2019, 57, 149–155. [Google Scholar] [CrossRef]
  17. Singh, M.; Kumar, D.; Naman, S.; Madhavi, N.; Singh, P.A.; Bajwa, N.; Baldi, A. And validation of Hptlc method for simultaneous estimation of ascorbic acid and gallic acid in amla juice preparation. J. Drug Deliv. Ther. 2019, 9, 227–231. [Google Scholar]
  18. Kilaje, S.V.; Shirsat, M.K. Simultaneous estimation of ascorbic acid and gallic acid in triphala ghrita formulation by Hptlc. Nat. Vol. Essent. Oils 2021, 8, 3240–3249. [Google Scholar]
  19. Fu, L.; Wang, A.; Lai, G.; Su, W.; Malherbe, F.; Yu, J.; Lin, C.-T.; Yu, A. Defects regulation of graphene ink for electrochemical determination of ascorbic acid, dopamine and uric acid. Talanta 2018, 180, 248–253. [Google Scholar] [CrossRef]
  20. Zhang, W.; Liu, L.; Li, Y.; Wang, D.; Ma, H.; Ren, H.; Shi, Y.; Han, Y.; Ye, B.-C. Electrochemical sensing platform based on the biomass-derived microporous carbons for simultaneous determination of ascorbic acid, dopamine, and uric acid. Biosens. Bioelectron. 2018, 121, 96–103. [Google Scholar] [CrossRef]
  21. Demirkan, B.; Bozkurt, S.; Savk, A.; Cellat, K.; Gulbagca, F.; Nas, M.S.; Alma, M.H.; Sen, F. Composites of bimetallic platinum-cobalt alloy nanoparticles and reduced graphene oxide for electrochemical determination of ascorbic acid, dopamine, and uric acid. Sci. Rep. 2019, 9, 12258. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Zhao, Y.; Zhou, J.; Jia, Z.; Huo, D.; Liu, Q.; Zhong, D.; Hu, Y.; Yang, M.; Bian, M.; Hou, C. In-situ growth of gold nanoparticles on a 3D-network consisting of a MoS2/rGO nanocomposite for voltammetric determination of ascorbic acid, dopamine and uric acid. Microchem. Acta 2019, 186, 92. [Google Scholar] [CrossRef] [PubMed]
  23. Wang, M.; Cui, M.; Liu, W.; Liu, X. Highly dispersed conductive polypyrrole hydrogels as sensitive sensor for simultaneous determination of ascorbic acid, dopamine and uric acid. J. Electroanal. Chem. 2019, 832, 174–181. [Google Scholar] [CrossRef]
  24. Wu, Y.; Deng, P.; Tian, Y.; Feng, J.; Xiao, J.; Li, J.; Liu, J.; Li, G.; He, Q. Simultaneous and sensitive determination of ascorbic acid, dopamine and uric acid via an electrochemical sensor based on PVP-graphene composite. J. Nanobiotechnol. 2020, 18, 112. [Google Scholar] [CrossRef]
  25. Kunpatee, K.; Traipop, S.; Chailapakul, O.; Chuanuwatanakul, S. Simultaneous determination of ascorbic acid, dopamine, and uric acid using graphene quantum dots/ionic liquid modified screen-printed carbon electrode. Sens. Actuator B. 2020, 324, 128059. [Google Scholar] [CrossRef]
  26. Arroquia, A.; Acosta, I.; Armada, M.P.G. Self-assembled gold decorated polydopamine nanosheres as electrochemical sensor for simultaneous determination of ascorbic acid, dopamine, uric acid and tryptophan. Mater. Sci. Eng. C 2020, 109, 110602. [Google Scholar] [CrossRef]
  27. Zhang, L.; Liu, C.; Wang, Q.; Wang, X.; Wang, S. Electrochemical sensor based on an electrode modified with porous graphite carbon nitride nanosheets (C3N4) embedded graphene oxide for simultaneous determination of ascorbic acid, dopamine and uric acid. Microchem. Acta 2020, 187, 149. [Google Scholar] [CrossRef]
  28. Fatibello-Filho, O.; Vieira, I.D.C. L-ascorbic acid determination in pharmaceutical formulations using a biosensor based on carbon paste modified with crude extract of zucchini (Cucurbita pepo). J. Braz. Chem. Soc. 2000, 11, 412–418. [Google Scholar] [CrossRef]
  29. Zhang, Y.; Zhang, H.; Fu, L. Preparation gold nanoparticles using herb leaf extract for electro-oxidation determination of ascorbic acid. Inorg. Nanometal Chem. 2018, 48, 449–453. [Google Scholar] [CrossRef]
  30. Luo, X.; Zhang, W.; Han, Y.; Chen, X.; Zhu, L.; Tang, W.; Wang, J.; Yue, T.; Li, Z. N,S co-doped carbon dots based fluorescent “on-off-on” sensor for determination of ascorbic acid in common fruits. Food Chem. 2018, 258, 214–221. [Google Scholar] [CrossRef]
  31. Tulli, F.; Lemos, M.L.; Gutierrez, D.R.; Rodriguez, S.D.C.; de Mishima, B.A.L.; Zanini, V.I.P. Electrochemical and spectrophotometric methods for polyphenol and ascorbic acid determination in fruit and vegetable extracts. Food Technol. Biotechnol. 2020, 58, 183–191. [Google Scholar] [CrossRef] [PubMed]
  32. Shivembe, A.; Ojinnaka, D. Determination of vitamin C and total phenolic in fresh and freeze dried blueberries and antioxidant capacity of their extracts. Integr. Food Nutr. Metab. 2017, 4, 1–5. [Google Scholar] [CrossRef] [Green Version]
  33. Amayreh, M.; Hourani, W.; Hourani, M.K. Voltammetric determination of ascorbic acid in pharmaceutical formulations using iodine-coated platinum electrode. J. Vit. 2021, 28, 346228. [Google Scholar] [CrossRef]
  34. Cotrut, R.; Badulescu, L. UPLC rapid quantification of ascorbic acid in several fruits and vegetables extracted using different solvents. Agric. Agric. Sci. Proced. 2016, 10, 160–166. [Google Scholar] [CrossRef] [Green Version]
  35. Foudah, A.I.; Shakeel, F.; Alam, P.; Alqarni, M.H.; Abdel-Kader, M.S.; Alshehri, S. A sustainable reversed-phase HPTLC method for the quantitative estimation of hesperidin in traditional and ultrasound-assisted extracts of different varieties of citrus fruit peels and commercial tablets. Agronomy 2021, 11, 1744. [Google Scholar] [CrossRef]
  36. Alqarni, M.H.; Alam, P.; Alam, A.; Ali, A.; Foudah, A.I.; Alshehri, S.; Ghoneim, M.M.; Shakeel, F. A greener HPTLC approach for the determination of β-carotene in traditional and ultrasound-based extracts of different fractions of Daucus carota (L.) and Ipomea batatas (L.), and commercial formulation. Agronomy 2021, 11, 2443. [Google Scholar] [CrossRef]
  37. Ibrahim, F.A.; Elmansi, H.; Fathy, M.E. Green RP-HPLC method for simultaneous determination of moxifloxacin combinations: Investigation of the greenness for the proposed method. Microchem. J. 2019, 148, 151–161. [Google Scholar] [CrossRef]
  38. Abou-Taleb, N.H.; Al-Enany, N.M.; El-Sherbiny, D.T.; El-Subbagh, H.I. Digitally enhanced thin layer chromatography for simultaneous determination of norfloxacin tinidazole with the aid of Taguchi orthogonal array and desirability function approach: Greenness assessment by analytical eco-scale. J. Sep. Sci. 2020, 43, 1195–1202. [Google Scholar] [CrossRef]
  39. Foudah, A.I.; Shakeel, F.; Alqarni, M.H.; Ali, A.; Alshehri, S.; Ghoneim, M.M.; Alam, P. Determination of thymol in commercial formulations, essential oils, traditional, and ultrasound-based extracts of Thymus vulgaris and Origanum vulgare using a greener HPTLC approach. Molecules 2022, 27, 1164. [Google Scholar] [CrossRef]
  40. Alam, P.; Shakeel, F.; Ali, A.; Alqarni, M.H.; Foudah, A.I.; Aljarba, T.M.; Alkholifi, F.K.; Alshehri, S.; Ghoneim, M.M.; Ali, A. Simultaneous determination of caffeine and paracetamol in commercial formulations using greener normal-phase and reversed-phase HPTLC methods: A contrast of validation parameters. Molecules 2022, 27, 405. [Google Scholar] [CrossRef]
  41. Pena-Pereira, F.; Wojnowski, W.; Tobiszewski, M. AGREE-Analytical GREEnness metric approach and software. Anal. Chem. 2020, 92, 10076–10082. [Google Scholar] [CrossRef]
  42. Nowak, P.M.; Koscielniak, P. What color is your method? Adaptation of the RGB additive color model to analytical method evaluation. Anal. Chem. 2019, 91, 10343–10352. [Google Scholar] [CrossRef]
  43. Validation of analytical procedures–text and methodology, Q2 (R1). In Proceedings of the International Conference on Harmonization (ICH), Geneva, Switzerland, 1–13 November 2005.
  44. Foudah, A.I.; Shakeel, F.; Alqarni, M.H.; Alam, P. A rapid and sensitive stability-indicating RP-HPTLC method for the quantitation of flibanserin compared to green NP-HPTLC method: Validation studies and greenness assessment. Microchem. J. 2021, 164, 105960. [Google Scholar] [CrossRef]
Agronomy 12 01016 g001 550
Figure 1. Developed thin-layer chromatography (TLC) plate for standard ascorbic acid (AA), P. emblica extract, C. annuum extract, and P. guajava extract developed using water-ethanol (70:30 v/v) as the mobile phase for the greener “high-performance thin-layer chromatography (HPTLC)” method.
Figure 1. Developed thin-layer chromatography (TLC) plate for standard ascorbic acid (AA), P. emblica extract, C. annuum extract, and P. guajava extract developed using water-ethanol (70:30 v/v) as the mobile phase for the greener “high-performance thin-layer chromatography (HPTLC)” method.
Agronomy 12 01016 g001
Agronomy 12 01016 g002 550

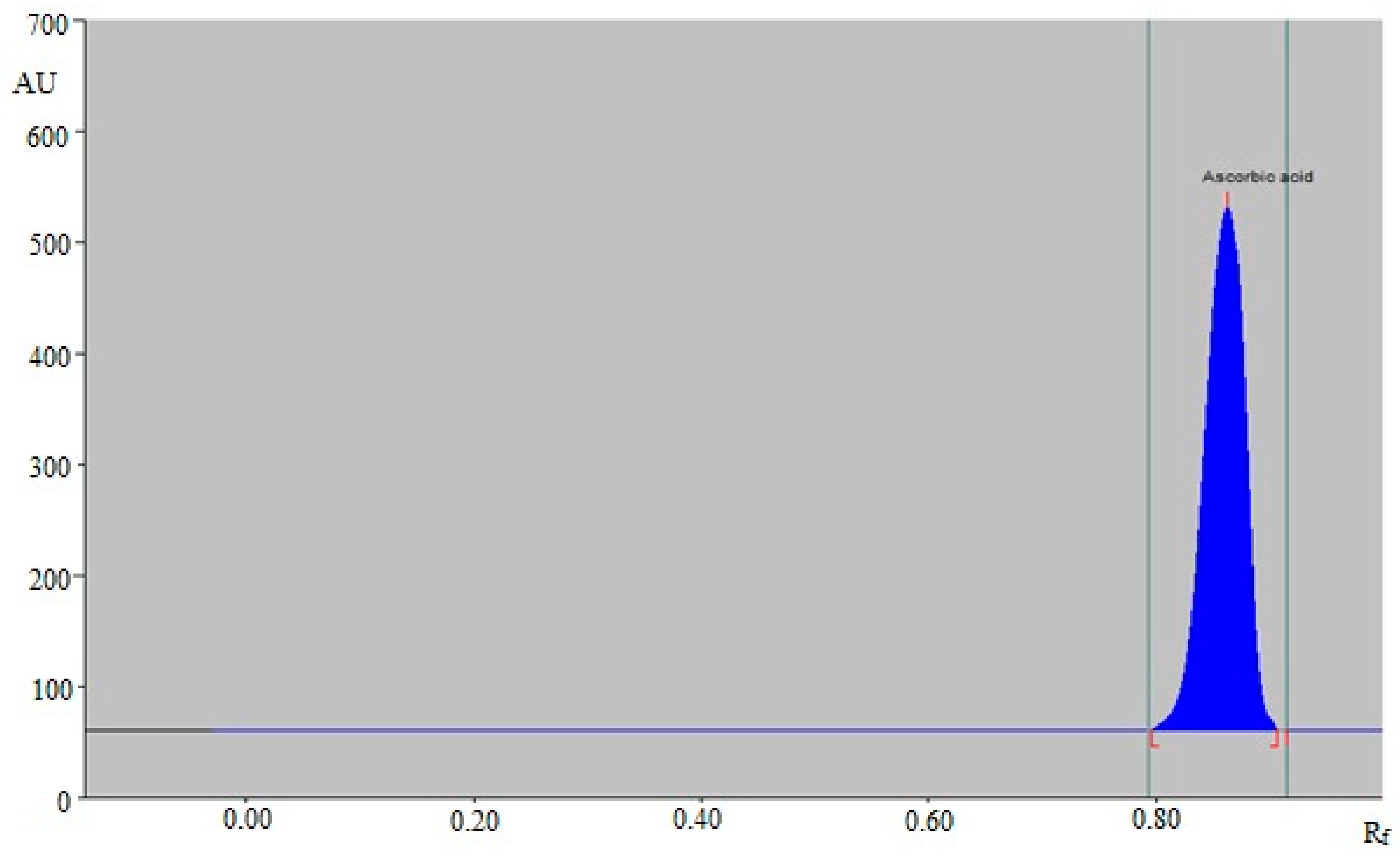

Figure 2. Representative HPTLC densitogram of standard AA for the greener HPTLC method.
Figure 2. Representative HPTLC densitogram of standard AA for the greener HPTLC method.
Agronomy 12 01016 g002
Agronomy 12 01016 g003 550

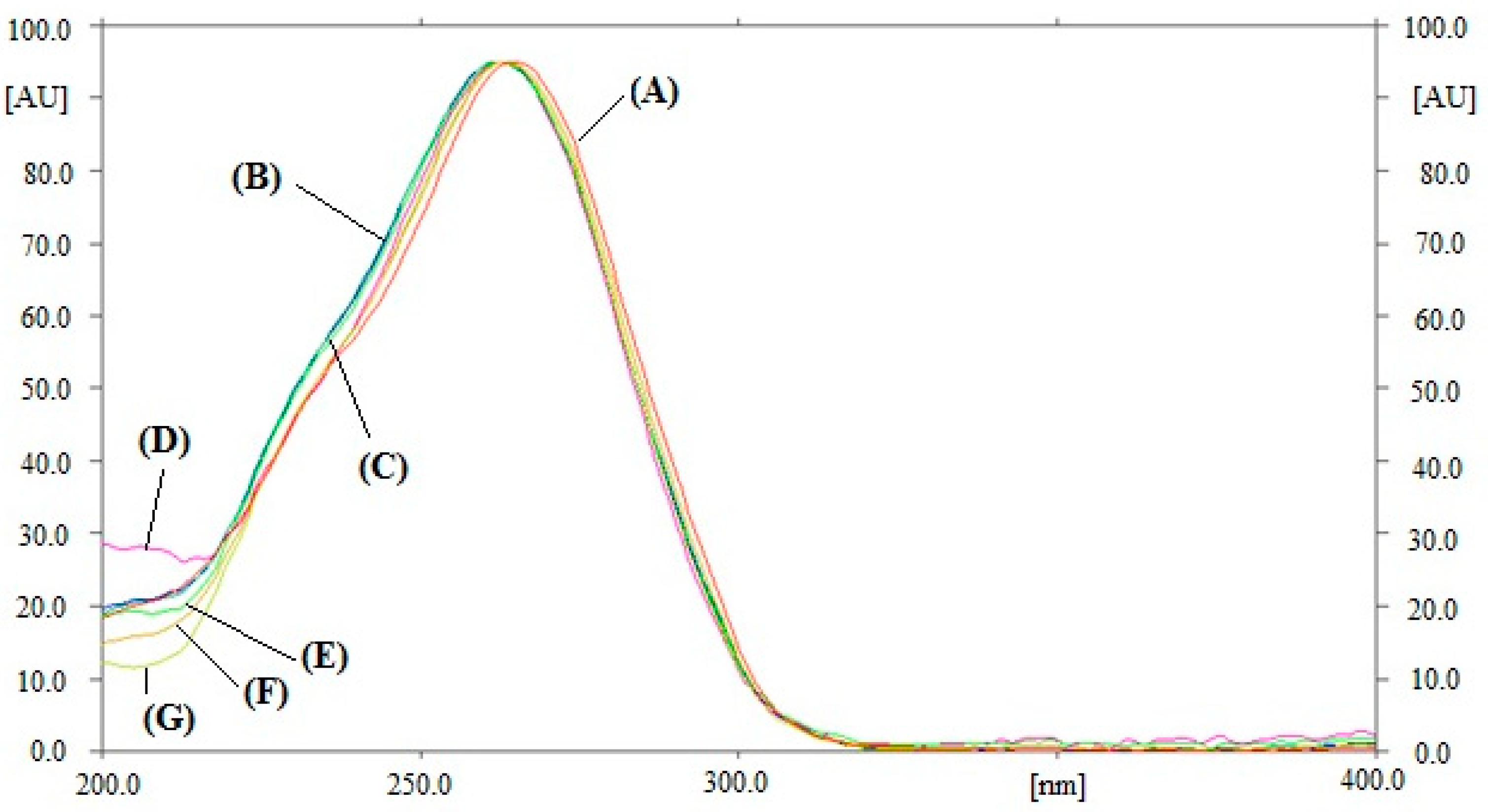

Figure 3. Overlaid UV-absorption spectra of (A) standard AA, (B) the UAE of P. emblica, (C) the SE of P. emblica, (D) the UAE of P. guajava, (E) the SE of P. guajava, (F) the UAE of C. annuum, and (G) the SE of C. annuum.
Figure 3. Overlaid UV-absorption spectra of (A) standard AA, (B) the UAE of P. emblica, (C) the SE of P. emblica, (D) the UAE of P. guajava, (E) the SE of P. guajava, (F) the UAE of C. annuum, and (G) the SE of C. annuum.
Agronomy 12 01016 g003
Agronomy 12 01016 g004 550
Figure 4. Representative HPTLC densitograms of AA in the UAE of (A) P. emblica, (B) P. guajava, and (C) C. annuum.
Figure 4. Representative HPTLC densitograms of AA in the UAE of (A) P. emblica, (B) P. guajava, and (C) C. annuum.
Agronomy 12 01016 g004
Agronomy 12 01016 g005 550

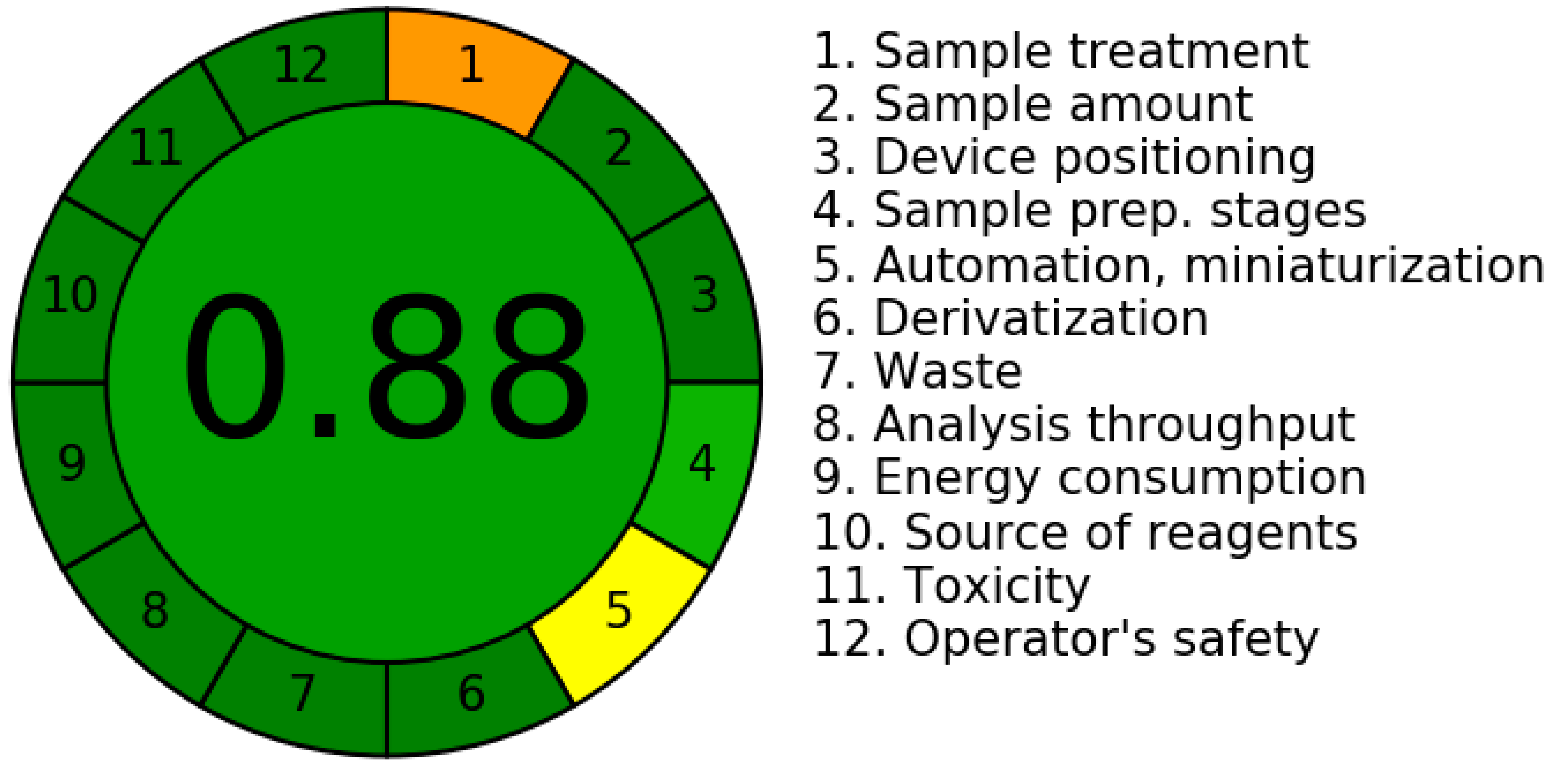

Figure 5. “Analytical GREEnness (AGREE)” index for the developed method.
Figure 5. “Analytical GREEnness (AGREE)” index for the developed method.
Agronomy 12 01016 g005
Table
Table 1. The optimization of the greener solvent systems and chromatographic conditions of ascorbic acid (AA) estimation for the greener high-performance thin-layer chromatography (HPTLC) method a.
Table 1. The optimization of the greener solvent systems and chromatographic conditions of ascorbic acid (AA) estimation for the greener high-performance thin-layer chromatography (HPTLC) method a.
Mobile PhaseAs N/mRf
WTR-EOH (30:70, v/v)1.290 ± 0.02001653 ± 1.9120.7800 ± 0.0300
WTR-EOH (40:60, v/v)1.280 ± 0.02001871 ± 1.9420.8000 ± 0.0200
WTR-EOH (50:50, v/v)1.270 ± 0.02001945 ± 2.0210.8200 ± 0.0300
WTR-EOH (60:40, v/v)1.260 ± 0.03002067 ± 2.1230.8400 ± 0.0200
WTR-EOH (70:30, v/v)1.070 ± 0.03005378 ± 2.9800.8600 ± 0.0200
WTR-EOH (80:20, v/v)1.120 ± 0.03004143 ± 2.4320.8800 ± 0.0200
WTR-EOH (90:10, v/v)1.160 ± 0.03003243 ± 2.1210.9000 ± 0.0200
a Mean ± SD; n = 3; WTR: water; EOH: ethanol; Rf: retardation factor; As: asymmetry factor; N/m: theoretical plates number per meter.
Table
Table 2. Results of the regression analysis for the estimation of AA using the greener HPTLC method a.
Table 2. Results of the regression analysis for the estimation of AA using the greener HPTLC method a.
ParametersValues
Linearity range (ng/band)25–1200
Regression equationy = 31.78x + 1974
R20.9956
R0.9977
SE of slope0.3919
SE of intercept9.959
95% CI of slope30.10–33.47
95% CI of intercept1931–2017
LOD ± SD (ng/band)8.630 ± 0.1600
LOQ ± SD (ng/band)25.89 ± 0.3900
a Mean ± SD; n = 6; R2: determination coefficient; R: regression coefficient; CI: confidence interval; LOD: limit of detection; LOQ: limit of quantification.
Table
Table 3. Determination of the accuracy of AA for the greener HPTLC method a.
Table 3. Determination of the accuracy of AA for the greener HPTLC method a.
Conc. (ng/Band)Conc. Found (ng/Band) ± SDRecovery (%)CV (%)
5050.13 ± 0.61100.261.21
400396.21 ± 3.7199.050.93
12001215.45 ± 10.58101.280.87
a Mean ± SD; n = 6.
Table
Table 4. Determination of the intra/inter-day precision of AA for the greener HPTLC method a.
Table 4. Determination of the intra/inter-day precision of AA for the greener HPTLC method a.
Conc.
(ng/Band)		Intraday PrecisionInterday Precision
Conc. (ng/Band) ± SDSECV (%)Conc. (ng/Band) ± SDSECV (%)
5049.89 ± 0.340.130.6850.24 ± 0.410.160.81
400407.41 ± 2.320.940.56409.12 ± 2.521.020.61
12001187.43 ± 6.412.610.531184.74 ± 6.482.640.54
a Mean ± SD; n = 6.
Table
Table 5. Robustness analysis for AA for the greener HPTLC method a.
Table 5. Robustness analysis for AA for the greener HPTLC method a.
Conc.
(ng/Band)		Mobile Phase Composition (Water-Ethanol, v/v)Results
OriginalUsedLevelConc. (ng/Band) ± SDCV (%)Rf
72:28+2.0393.54 ± 2.890.730.85
40070:3070:300.0398.71 ± 2.980.740.86
68:32−2.0404.61 ± 3.120.770.87
a Mean ± SD; n = 6.
Table
Table 6. Application of the greener HPTLC method for the estimation of AA in the SE and UAE of P. emblica, P. guajava, and C. annuum a.
Table 6. Application of the greener HPTLC method for the estimation of AA in the SE and UAE of P. emblica, P. guajava, and C. annuum a.
SamplesSEUAE
Amount of AA (mg/100 g)
P. emblica (Amla)491.16 ± 2.34673.02 ± 3.16
P. guajava (Guava)168.91 ± 1.41218.71 ± 1.67
C. annuum (Capsicum)144.30 ± 1.17199.30 ± 1.32
a Mean ± SD; n = 3.
Table
Table 7. Comparative assessment of the greener HPTLC method with reported HPTLC methods of AA analysis.
Table 7. Comparative assessment of the greener HPTLC method with reported HPTLC methods of AA analysis.
Analytical MethodLinearity RangeAccuracy (% Recovery)Precision (% CV)Solvent SystemEnvironmental ToxicityRef.
HPTLC200–800 (ng/band)98.25–99.120.60–1.30Ethyl acetate–acetone–water–formic acidNon-toxic/green[15]
HPTLC400–2400 (ng/band)100.410.98–1.11Chloroform–acetone–trifluoroacetic acidToxic[16]
HPTLC400–1400 (ng/band)99.25–99.970.18–0.23Ethyl acetate–methanol–formic acidToxic[17]
HPTLC1000–15,000 (ng/band)100.10–101.580.48–1.77Toluene–ethyl acetate–methanol–acetic acidToxic[18]
HPTLC25–1200 (ng/band)99.05–101.280.53–0.81Water–ethanolNon-toxic/greenerPresent work
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Foudah, A.I.; Alam, P.; Shakeel, F.; Alam, A.; Salkini, M.A.; Alshehri, S.; Ghoneim, M.M.; Ross, S.A. A Simple, Cost-Effective, and Green HPTLC Method for the Estimation of Ascorbic Acid in Solvent and Ultrasound-Assisted Extracts of Phyllanthus emblica, Capsicum annuum, and Psidium guajava. Agronomy 2022, 12, 1016. https://doi.org/10.3390/agronomy12051016

AMA Style

Foudah AI, Alam P, Shakeel F, Alam A, Salkini MA, Alshehri S, Ghoneim MM, Ross SA. A Simple, Cost-Effective, and Green HPTLC Method for the Estimation of Ascorbic Acid in Solvent and Ultrasound-Assisted Extracts of Phyllanthus emblica, Capsicum annuum, and Psidium guajava. Agronomy. 2022; 12(5):1016. https://doi.org/10.3390/agronomy12051016

Chicago/Turabian Style

Foudah, Ahmed I., Prawez Alam, Faiyaz Shakeel, Aftab Alam, Mohammad A. Salkini, Sultan Alshehri, Mohammed M. Ghoneim, and Samir A. Ross. 2022. "A Simple, Cost-Effective, and Green HPTLC Method for the Estimation of Ascorbic Acid in Solvent and Ultrasound-Assisted Extracts of Phyllanthus emblica, Capsicum annuum, and Psidium guajava" Agronomy 12, no. 5: 1016. https://doi.org/10.3390/agronomy12051016

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
