Phenotypic and Genetic Evidence for a More Prominent Role of Blood Glucose than Cholesterol in Atherosclerosis of Hyperlipidemic Mice

by
Ashley M. Abramson
,
Lisa J. Shi
,
Rebecca N. Lee
,
Mei-Hua Chen
and
Weibin Shi
*
Department of Radiology and Medical Imaging, University of Virginia, Charlottesville, VA 22908, USA
*
Author to whom correspondence should be addressed.
Cells 2022, 11(17), 2669; https://doi.org/10.3390/cells11172669
Submission received: 24 May 2022 / Revised: 16 August 2022 / Accepted: 25 August 2022 / Published: 28 August 2022
(This article belongs to the Special Issue The Role of Inflammation in Atherosclerosis and Coronary Artery Disease)
Browse Figures
Review Reports Versions Notes

Abstract

:
Hyperlipidemia and type 2 diabetes (T2D) are major risk factors for atherosclerosis. Apoe-deficient (Apoe−/−) mice on certain genetic backgrounds develop hyperlipidemia, atherosclerosis, and T2D when fed a Western diet. Here, we sought to dissect phenotypic and genetic relationships of blood lipids and glucose with atherosclerotic plaque formation when the vasculature is exposed to high levels of cholesterol and glucose. Male F2 mice were generated from LP/J and BALB/cJ Apoe−/− mice and fed a Western diet for 12 weeks. Three significant QTL Ath51, Ath52 and Ath53 on chromosomes (Chr) 3 and 15 were mapped for atherosclerotic lesions. Ath52 on proximal Chr15 overlapped with QTL for plasma glucose, non-HDL cholesterol, and triglyceride. Atherosclerotic lesion sizes showed significant correlations with fasting, non-fasting glucose, non-fasting triglyceride, and body weight but no correlation with HDL, non-HDL cholesterol, and fasting triglyceride levels. Ath52 for atherosclerosis was down-graded from significant to suggestive level after adjustment for fasting, non-fasting glucose, and non-fasting triglyceride but minimally affected by HDL, non-HDL cholesterol, and fasting triglyceride. Adjustment for body weight suppressed Ath52 but elevated Ath53 on distal Chr15. These results demonstrate phenotypic and genetic connections of blood glucose and triglyceride with atherosclerosis, and suggest a more prominent role for blood glucose than cholesterol in atherosclerotic plaque formation of hyperlipidemic mice.

1. Introduction

Atherosclerosis and type 2 diabetes (T2D) are two major health problems worldwide. The former is the pathological cause of coronary heart disease, ischemic stroke, and peripheral arterial disease. The latter is a chronic metabolic disorder featured by chronic hyperglycemia that results from concomitant insulin sensitivity and beta-cell impairment [1]. The two disorders share many risk factors, including high-fat and carbohydrate diet, sedentary lifestyle, obesity or overweight, older age, smoking, air pollution, hypertension, and dyslipidemia [2,3], and tend to co-occur [4]. Their comorbidity has led to speculation that the two disorders share genetic factors and pathways [4]. A few rare gene mutations result in both early coronary heart disease and T2D that are observable as Mendelian traits segregating in families, and these genes include LRP6 [5], ABCA1 [6,7], LIPE [8], LPL [9], and APOB [10]. The common forms of atherosclerosis and T2D involve many genes and exhibit significant gene–environment interactions. Human genome-wide association studies (GWAS) have shown positive genetic correlations between coronary heart disease and T2D, but few shared loci have been found [11]. The major hurdles to such studies in humans include small effect sizes of the loci, genetic heterogeneity, and environment variation. Mouse models provide a unique complimentary tool as genetic heterogeneity can be minimized by using inbred strains and environmental factors be strictly controlled. Moreover, when a locus for a complex trait or disease is found, genetic and genomic tools are available for confirming its existence, narrowing down its confidence interval, and validating underlying causal genes.
Apoe null (Apoe−/−) mice develop spontaneous hyperlipidemia and atherosclerosis on a chow diet, which are accelerated on a high fat diet [12]. We have found that Apoe−/− mice on certain genetic backgrounds, such as C57BL/6, C3H/HeJ, and SWR/J, develop T2D (fasting plasma glucose >250 mg/dL) after a prolonged exposure to a Western diet [13,14]. In multiple intercrosses derived from Apoe−/− mouse strains, we have observed colocalization of QTL for atherosclerotic lesions with QTL for blood glucose [15,16,17]. The colocalization of QTL for two different traits in the confidence interval provides a genetic means for inferring causal connections between them. This analysis is based on the speculation that if two traits are causally linked, phenotypical variation in one trait will affect the other; otherwise unlikely [18]. BALB/cJ (BALB) and LP/J (LP) are among the 16 mouse strains whose genomes have been sequenced and sequence variant data are publicly accessible [19]. The two strains display variations in atherosclerosis susceptibility and metabolic traits [20,21]. In this study, we constructed a segregating F2 population from BALB and LP Apoe−/− mice to partition phenotypic and genetic connections between atherosclerosis and T2D.

2. Materials and Methods

2.1. Mice

LP and BALB Apoe−/− mouse strains were created in our laboratory as reported [14]. F2 mice were generated from an intercross between male LP-Apoe−/− mice and female BALB-Apoe−/− mice. Male mice were fed 12 weeks of Western diet containing 21% fat, 34.1% sucrose, 0.15% cholesterol, and 19.5% casein (TD 88137, Envigo, Dublin, VA, USA), starting at 6 weeks of age. Both male and female Apoe−/− mice develop atherosclerosis and T2D on the Western diet [22,23,24]. Our current focus on male mice reduced workload by half when compared to the design involving both sexes of mice. Mice were bled three times: once before the start of the Western diet, once without fasting at the 11th week of Western diet, and once after overnight fast at the end of the Western diet. Retro-orbital venous blood was drawn when mice were anesthetized through isoflurane inhalation and prepared as described [16]. All procedures were performed according to an animal protocol approved by the Institutional Animal Care and Use Committee (protocol #: 3109).

2.2. Measurement of Atherosclerotic Lesions

Atherosclerotic lesions in the aortic root were quantified as reported with minor modifications [15,25]. In brief, the vasculature of mice was first flushed with saline and then perfused with 10% formalin through the left ventricle of the heart. The aortic root and adjacent heart were dissected, embedded in a cutting medium (Tissue-Tek, Torrance, CA, USA), and cut in 10-μm thickness. Frozen sections were stained with oil red O and hematoxylin, and atherosclerotic lesions were measured using Zeiss AxioVision 4.8 software. Lesion areas on five sections with the largest readings were averaged for each mouse, and this value was used for QTL mapping.

2.3. Glucose Assay

Plasma concentrations of glucose were measured using a Sigma kit (Cat. # GAHK20) as reported [26]. Briefly, 6 µL diluted plasma samples (3× in H2O), standards, and controls were added in a 96-well plate, incubated with assay reagent for 30 min at 30 °C, and absorbance at 340 nm measured using a Molecular Devices plate reader.

2.4. Lipid Assays

Plasma levels of total, HDL, non-HDL cholesterol, and triglyceride were measured by enzymatic assays as reported [26,27].

2.5. Genotyping

DNA was extracted from tails of mice using a QIAGEN DNeasy kit. Genotyping was done at Neogen (Lansing, MI, USA) with miniMUGA SNP arrays harboring 11,000 probes. Controls (parental and F1 DNA) were included for each array. Uninformative SNP markers as well as informative ones that did not show the expected genotypes for control samples were excluded. We checked genotyping errors using the “calc errorlod” function of R/qtl. 2611 SNP markers passed the test and were used for QTL analysis.

2.6. Statistical Analysis

QTL analysis was carried out using R/qtl and Map Manager QTX as reported [17,28,29]. 1000 permutation tests were performed to define genome-wide LOD (logarithm of odds) score thresholds for significant and suggestive QTL with each phenotype. QTL with a genome-wide p value < 0.05 were significant, and those with a genome-wide p value < 0.63 were suggestive [30]. For interval mapping using QTX, redundant markers were excluded so that every marker had a unique genotyping result for the entire F2 cross.

2.7. Causal Inference from Deep Analysis of Overlap QTL

When coincident QTL for two complex traits were found, further analysis was performed to infer likely causal relationships between them as described [17,31]. Residuals resulting from linear regression analysis of two related traits were subject to genome-wide QTL scan as a new phenotype. The QTL detected from residual variation in one trait would be independent of variation in the other.

2.8. Prioritization of Candidate Genes

We used bioinformatics resources to prioritize candidate genes for significant atherosclerosis QTL. Genetic variants among mouse strains were searched using the Sanger Mouse Genomes Project (https://www.sanger.ac.uk/sanger/Mouse_SnpViewer/rel-1505, accessed on 4 May 2022). Those genes containing one or more missense SNPs or SNP(s) in upstream regulatory regions within the confidence interval of a QTL were considered probable candidates as described [32,33,34]. SIFT (Sorting Intolerant From Tolerant) score was queried through the Ensembl Genome Browser (https://useast.ensembl.org/index.html, accessed on 4 May 2022) and used to estimate the impact of a nonsynonymous variant on protein function [35].

3. Results

3.1. Atherosclerotic Lesion Analysis

Atherosclerotic lesion areas in the aortic root were measured after male F2 mice were fed the Western diet for 12 weeks. Cryosections were stained with oil red O and hematoxylin (Figure 1). The F2 mice exhibited a wide range lesion distribution with a 26-fold difference between the mouse having the largest lesion (361,448 µm2/section) and the mouse having the smallest lesion (14,140 μm2/section). The lesion area values of F2 mice approached a normal distribution.

3.2. QTL Analysis

A genome-wide scan revealed three significant QTL on Chr3 and Chr15 and one suggestive QTL on Chr13 for atherosclerotic lesion sizes (Figure 2A). Details of these QTL, such as locus name, LOD score, peak marker, confidence interval, high allele, mode of inheritance, and allelic effect are showed in Table 1. The Chr3 QTL, named Ath51, had a significant LOD score of 4.35 and peaked at 94.5 Mb. The BALB allele increased lesion size and the LP allele decreased lesion size at the locus (Table 1). This QTL is partially overlapping with Ascla4 (55 cM or 110 Mb), previously mapped in B6 × FVB Ldlr−/− F2 mice [36].
LOD score plot for Chr15 revealed two distinct peaks, indicating the existence of two QTL for atherosclerosis (Figure 2A,B): The proximal QTL, named Ath52, had a significant LOD score of 5.42 and peaked at 43.1 Mb, and the distal QTL, named Ath53, had a significant LOD score of 4.17 and peaked at 99.0 Mb. For both QTL, the LP allele was associated with larger lesion size and the BALB allele associated with smaller lesion size (Table 1). A significant (Ath33) and a suggestive atherosclerosis QTL (Ath23) were mapped to Chr15: 79 cM (~158 Mb) and Chr15: 68 Mb from B × H and AKR × DBA/2 Apoe−/− F2 intercrosses [37,38], but neither is coincident with the QTL we mapped in this study.
A suggestive QTL for atherosclerosis was mapped to Chr13: 103.6 Mb and had a LOD score of 2.74 (Figure 2A,B). The LP allele was associated with larger lesion size. This QTL replicates Ath32 mapped in a B × H Apoe−/− F2 intercross [38].

3.3. Coincident QTL for Atherosclerotic Lesions, Plasma Glucose and Lipids

Interval mapping plots for Chr15 show the coincidence of the proximal atherosclerosis QTL (Ath52) with QTL for fasting, non-fasting plasma glucose (Bglu20), LDL cholesterol and triglyceride levels (Nhdlq18) (Figure 3A–G). Details on Bglu20 and Nhdlq18 and the characterization of plasma lipids and glucose in the F2 mice have been reported [16,39]. The LP allele was associated with larger atherosclerotic lesion size and higher plasma levels of glucose, non-HDL cholesterol and triglyceride, while the BALB allele had opposite effects on these traits (Table 1).

3.4. Associations of Atherosclerotic Lesion Sizes with Plasma Glucose, Lipid Levels and Body Weight

Atherosclerotic lesion sizes showed significant correlations with plasma levels of fasting (r = 0.203; p = 0.015), non-fasting glucose (r = 0.165; p = 0.049), non-fasting triglyceride (r = 0.20; p = 0.016), and body weight (r = −0.236; p = 0.004) (Figure 4A–I). A trend toward correlation was observed with fasting triglyceride (r = 0.115; p = 0.173) and non-fasting non-HDL cholesterol levels (r = 0.116; p = 0.168). No correlation was found with fasting non-HDL (r = 0.116; p = 0.168), fasting (r = 0.080; p = 0.34) and non-fasting HDL cholesterol levels (r = 0.080; p = 0.34).

3.5. Causal Associations of Atherosclerotic Lesion Sizes with Plasma Glucose, Triglyceride and Body Weight

As the QTL for atherosclerotic lesions (Ath52) was coincident with QTL for plasma glucose (Bglu20) and lipid levels (Nhdlq18) on Chr15, we examined their potential causal relationships. Residuals from regression analysis of atherosclerotic lesion sizes with each of the fasting, non-fasting glucose and lipid traits were analyzed to find QTL contributing to residual variation in atherosclerotic lesion sizes. When residuals from analysis with fasting or non-fasting glucose were analyzed, both Chr15 QTL for atherosclerosis showed reductions in LOD score (proximal QTL: 4.0, distal QTL: 3.5 for fasting glucose; proximal QTL: 3.75, distal QTL: 3.72 for non-fasting glucose) (Figure 5B,C), implying a causal role for blood glucose in atherosclerotic lesion formation.
When residuals from regression analysis with fasting non-HDL cholesterol level were analyzed, both Chr15 QTL for atherosclerosis showed little change in their LOD scores (proximal QTL: 5.28, distal QTL: 4.04) (Figure 5D). After adjustment for non-fasting LDL, both Chr15 QTL showed a slight reduction in LOD score (proximal QTL: 4.31, distal QTL: 3.8) (Figure 5E).
The proximal Chr15 QTL for atherosclerosis showed a slight reduction in LOD score (4.79) after adjusting fasting triglyceride level but a noticeable reduction (4.03) after adjusting non-fasting triglyceride level (Figure 5F,G). Distal Chr15 QTL showed little change in LOD score after adjustment of fasting (3.9) or non-fasting triglyceride levels (4.0).
Both atherosclerosis QTL on Chr15 showed little change in LOD score after adjustment of fasting or non-fasting HDL cholesterol levels (Figure 5H,I).
After adjustment of body weight, the proximal Chr15 QTL for atherosclerosis showed a reduced LOD score (4.3) but the distal QTL had an increased LOD score (4.82) (Figure 5J).
To determine the influence of atherosclerotic lesions on plasma glucose levels, we performed genome-wide scans on residuals from regression analysis of glucose versus atherosclerotic lesions. After adjustment for atherosclerotic lesions, the peak LOD score of the Chr15 QTL for fasting glucose dropped from a significant (5.36) to suggestive level (3.72). For nonfasting glucose, the peak LOD value of the Chr15 QTL dropped from 7.03 to 5.21 (Figure 6), suggesting the existence of genetic connection between atherosclerosis and T2D on the chromosome.

3.6. Prioritization of Candidate Genes for Significant QTL

A significant QTL for atherosclerosis on Chr3 near Ath51 has been mapped in B6 × FVB Ldlr−/− F2 mice [36]. At the QTL, the BALB and B6 alleles increased atherosclerosis whereas the LP and FVB alleles reduced it. Over 30 genes within the confidence interval of Ath51 (89.8–121.8 Mb) contain one or more missense SNPs or SNP(s) in upstream regulatory regions that are shared by high allele strains but different from SNPs shared by low allele strains (Table 2). Of them, Hrnr, Tchhl1, Fcgr1, Hsd3b2, Wars2, Mab21l3, and Bcas2 contain one or more missense variants with a low SIFT score predicted to affect protein function.
For proximal Chr15 QTL (Ath52), probable candidate genes include Erich5, Vps13b, Rgs22, Fbxo43, Snx31, Baalc, Oxr1, Tmem74, Pkhd1l1, Sybu, and Trmt12 (Supplementary Table S1). Endou, Hdac7, Senp1, Olfr286, Olfr285, Nckap5l, Smarcd1, Lima1, Fam186a, and Espl1 are probable candidate genes for distal Chr15 atherosclerosis QTL (Ath53). These positional candidate genes contain one or more missense SNPs that have low SIFT scores predicted to affect protein function in either of the two parental strains.

4. Discussion

In the present study, we have identified three significant QTL on chromosomes 3 and 15 for atherosclerosis and observed overlapping of the QTL for aortic atherosclerosis with those for non-HDL cholesterol, triglyceride, and glucose on Chr15 in male F2 mice derived from two Apoe−/− mouse strains. The proximal QTL for atherosclerosis on Chr15 was down-graded after eliminating variation in fasting, non-fasting glucose, non-fasting triglyceride levels, or body weight but was minimally affected by eliminating variation in fasting, non-fasting HDL and non-HDL cholesterol levels. Moreover, atherosclerotic lesion sizes showed significant correlations with plasma levels of fasting, non-fasting glucose, non-fasting triglyceride, and body weight but not with fasting, non-fasting HDL, and non-HDL cholesterol levels among the F2 population.
We identified a significant QTL Ath51 for atherosclerosis on chromosome 3 at 94.5 Mb that partially overlaps in the confidence interval with Ascla4 (55 cM or 110 Mb), a significant atherosclerosis QTL previously mapped in a B6 × FVB Ldlr−/− intercross [36]. In that intercross, a significant atherosclerosis QTL, Ascla3, was also mapped to distal chromosome 3 region at 79 cM or 160 Mb. A suggestive atherosclerosis QTL, Ath23, was mapped to a more proximal region (68 Mb) than Ath51 in an AKR × DBA/2 Apoe−/− F2 cross [37]. As Ath51 and Ascla4 have been mapped in two crosses derived from different parental strains, we were able to use DNA sequence variant data to prioritize positional candidate genes containing one or more missense SNPs or SNP(s) in upstream regions that segregate between the high allele strains (BALB, B6) and low allele strains (LP, FVB). Since 97% of the genetic variants between common mouse strains are ancestral [40], it is almost certain that QTL genes are those that contain polymorphisms shared among mouse strains. Hrnr, Tchhl1, Fcgr1, Hsd3b2, Wars2, Mab21l3, and Bcas2 were identified as top candidate genes, with each containing one or more missense SNPs of low SIFT scores that are predicted to impact protein function. Fcgr1 deficiency has shown protection against atherosclerosis in Apoe−/− mice [41].
We identified two significant QTL for atherosclerosis on chromosome 15 at 43.1 and 99 Mb. Previously, two significant atherosclerosis QTL, Ath22 and Ath33, have been mapped to chromosome 15 at 20 and 71 Mb using an AKR × DBA/2 and two B × H Apoe−/− F2 intercrosses [37,38,42]. However, neither was coincident with the atherosclerosis QTL, Ath52 and Ath53 that we had identified in this study.
An intriguing finding of this study was the coincidence of atherosclerosis QTL (Ath52) with QTL for plasma glucose (Bglu20), non-HDL cholesterol (Nhdlq18), and triglyceride on chromosome 15 in the current cross. This enables for elucidating the likely causal relationship between the traits. Using a causal inference test through excluding the influence of variation in plasma glucose, non-HDL cholesterol, or triglyceride levels, we were able to demonstrate the dependence of the atherosclerosis QTL on plasma glucose and triglyceride but not on non-HDL cholesterol levels. Indeed, after adjustment for fasting or non-fasting glucose, both Chr15 atherosclerosis QTL were downgraded from significant to suggestive ones. Thus, the current findings offer genetic evidence that hyperglycemia plays a causal role in the development of atherosclerosis.
We found that the peak LOD score of the Chr15 QTL for either fasting or non-fasting glucose levels (Bglu20) dropped after adjustment for atherosclerotic lesion areas. The bi-direction of genetic effects from the Chr15 QTL further supports the existence of genetic connection between atherosclerosis and glucose metabolism. Atherosclerotic plaques may have little influence on glucose hemostasis, but concomitant inflammation developed on a high fat diet increases insulin resistance and impairs beta-cell function [14,43]. In addition, mice fed a high-fat diet display marked increases in tissue resident macrophages, which uptake and consume more glucose than many normal tissues and organs [44].
Plasma insulin was not measured for this cross; thus HOMA-IR (Homeostatic Model Assessment for Insulin Resistance) and the role of insulin resistance in the etiology of type 2 diabetes and atherosclerosis were unable to be determined. However, we previously demonstrated that impaired insulin secretion rater than insulin resistance underlies the development of Western diet-induced type 2 diabetes in Apoe−/− mouse strains [14,43]. Diabetes is defined by fasting hyperglycemia while plasma insulin levels were found poorly correlated with plasma glucose levels in a segregating F2 population derived from Apoe−/− mouse strains that developed type 2 diabetes on the Western diet [13].
The proximal but not distal Chr15 atherosclerosis QTL was downgraded from significant to suggestive after adjustment for non-fasting triglyceride levels. In contrast, the influence of fasting triglyceride on the Chr15 atherosclerosis QTL was much smaller. This finding lends support to the notion that non-fasting lipid profile is superior to fasting in predicting cardiovascular risk [45]. The proximal Chr15 atherosclerosis QTL was only slightly down graded after adjustment for non-fasting but not fasting non-HDL cholesterol levels. This finding is unexpected with regard to the crucial role of LDL in foam cell formation but is consistent with the notion that lipid levels may not accurately reflect the numbers of LDL particles, a measure that provides a better estimate of atherogenicity and cardiovascular events [46,47].
The causal connection of QTL effects within the Chr15 region is parallel to the correlations that we found between the affected traits. Indeed, we had observed causal connections of Chr15 atherosclerosis QTL with QTL for fasting, non-fasting glucose and non-fasting triglyceride, so observed were the significant correlations of atherosclerotic lesion sizes with the traits. On the other hand, the Chr15 atherosclerosis QTL had shown no causal connection with QTL for fasting, non-fasting non-HDL and fasting triglyceride, so no correlations of atherosclerotic lesion sizes were observed with these traits.
In this study, we found that atherosclerotic lesion sizes were poorly correlated with plasma levels of HDL, non-HDL cholesterol, and triglyceride among the F2 mice with hyperlipidemia. Similar findings have also been reported in other F2 crosses with hyperlipidemia [28,34,48]. As above discussed, lipid levels are unable to accurately reflect the numbers of LDL particles, which are a better measure of atherogenicity. Another possible explanation for our findings is that all F2 mice have severe hyperlipidemia that exceeds the levels necessary for atherogenesis and thus, any further increase may not contribute to plaque growth.
A significant inverse correlation between atherosclerotic lesion sizes and body weight was observed in F2 mice from the current cross. This inverse correlation is likely due to genetic loci harboring variants that have opposing effects on atherosclerosis and body weight. Indeed, the distal Chr15 atherosclerosis QTL (Ath53) was elevated and the proximal QTL (Ath52) was suppressed after adjustment for body weight. In female F2 mice from the current cross, we identified a significant QTL on Chr15 for body weight that was coincident to Ath52 [49]. Although no significant or suggestive QTL for body weight was mapped to the Chr15 region harboring Ath52 in the male F2 mice, multiple markers with LOD scores above 2.0 were detected for body weight. Body length was not measured for the current cross and thus body mass index (BMI) could not be calculated. Nevertheless, our previous study of a congenic strain and its background strain with magnetic resonance imaging has shown that visceral and subcutaneous fat rather than other tissues underlies the variation in body weight [50]. Visceral and subcutaneous fat is a major contributor to insulin resistance and low-grade systemic inflammation, both of which play a role in type 2 diabetes and atherosclerosis.
In conclusion, the present study is the first to demonstrate the causal relationship between T2D risk and atherosclerosis in a cohort of dyslipidemic F2 mice. Phenotypically, atherosclerotic lesion sizes were significantly correlated with plasma glucose but not HDL and non-HDL cholesterol levels under both fasting and non-fasting conditions. Genetically, Chr15 QTL for atherosclerosis was coincident with QTL for plasma glucose and non-HDL cholesterol levels and suppressed after adjustments for glucose but not HDL and non-HDL cholesterol levels. These findings suggest a more prominent role for glucose than cholesterol in atherosclerotic plaque formation of hyperlipidemic mice. Thus, there is a clear medical need for glucose control besides lipid-lowering therapy for patients with coronary heart disease who have both hyperglycemia and hypercholesterolemia.

Supplementary Materials

All data reported in this article can be downloaded at: https://www.mdpi.com/article/10.3390/cells11172669/s1.

Author Contributions

Conceptualization, A.M.A. and W.S.; methodology, A.M.A., L.J.S., R.N.L., M.-H.C. and W.S.; validation, A.M.A. and W.S.; formal analysis, A.M.A. and W.S.; investigation, A.M.A., L.J.S., R.N.L., M.-H.C. and W.S.; resources, W.S.; data curation, A.M.A., L.J.S., R.N.L., M.-H.C. and W.S.; resources, W.S.; writing—original draft preparation, A.M.A. and W.S.; writing—review and editing, A.M.A. and W.S.; visualization, A.M.A. and W.S.; supervision, W.S.; project administration, W.S.; funding acquisition, W.S. All authors have read and agreed to the published version of the manuscript.

Funding

R01 DK116768/NIDDK NIH HHS/United States.

Institutional Review Board Statement

All procedures were performed according to an animal protocol approved by the Institutional Animal Care and Use Committee (protocol #: 3109).

Informed Consent Statement

Not applicable.

Data Availability Statement

All data reported are included in Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Stumvoll, M.; Goldstein, B.J.; Haeften, T.W. van Type 2 Diabetes: Principles of Pathogenesis and Therapy. Lancet 2005, 365, 1333–1346. [Google Scholar] [CrossRef]
  2. Martín-Timón, I.; Sevillano-Collantes, C.; Segura-Galindo, A.; del Cañizo-Gómez, F.J. Type 2 Diabetes and Cardiovascular Disease: Have All Risk Factors the Same Strength? World J. Diabetes 2014, 5, 444–470. [Google Scholar] [CrossRef] [PubMed]
  3. Bellou, V.; Belbasis, L.; Tzoulaki, I.; Evangelou, E. Risk Factors for Type 2 Diabetes Mellitus: An Exposure-Wide Umbrella Review of Meta-Analyses. PLoS ONE 2018, 13, e0194127. [Google Scholar] [CrossRef] [PubMed]
  4. De Rosa, S.; Arcidiacono, B.; Chiefari, E.; Brunetti, A.; Indolfi, C.; Foti, D.P. Type 2 Diabetes Mellitus and Cardiovascular Disease: Genetic and Epigenetic Links. Front. Endocrinol. 2018, 9, 2. [Google Scholar] [CrossRef] [PubMed]
  5. Mani, A.; Radhakrishnan, J.; Wang, H.; Mani, A.; Mani, M.A.; Nelson-Williams, C.; Carew, K.S.; Mane, S.; Najmabadi, H.; Wu, D.; et al. LRP6 Mutation in a Family with Early Coronary Disease and Metabolic Risk Factors. Science 2007, 315, 1278–1282. [Google Scholar] [CrossRef]
  6. Bodzioch, M.; Orso, E.; Klucken, J.; Langmann, T.; Bottcher, A.; Diederich, W.; Drobnik, W.; Barlage, S.; Buchler, C.; Porsch-Ozcurumez, M.; et al. The Gene Encoding ATP-Binding Cassette Transporter 1 Is Mutated in Tangier Disease. Nat. Genet. 1999, 22, 347–351. [Google Scholar] [CrossRef]
  7. Saleheen, D.; Nazir, A.; Khanum, S.; Haider, S.R.; Frossard, P.M. R1615P: A Novel Mutation in ABCA1 Associated with Low Levels of HDL and Type II Diabetes Mellitus. Int. J. Cardiol. 2006, 110, 259–260. [Google Scholar] [CrossRef]
  8. Albert, J.S.; Yerges-Armstrong, L.M.; Horenstein, R.B.; Pollin, T.I.; Sreenivasan, U.T.; Chai, S.; Blaner, W.S.; Snitker, S.; O’Connell, J.R.; Gong, D.W.; et al. Null Mutation in Hormone-Sensitive Lipase Gene and Risk of Type 2 Diabetes. N. Engl. J. Med. 2014, 370, 2307–2315. [Google Scholar] [CrossRef]
  9. Hu, Y.; Ren, Y.; Luo, R.Z.; Mao, X.; Li, X.; Cao, X.; Guan, L.; Chen, X.; Li, J.; Long, Y.; et al. Novel Mutations of the Lipoprotein Lipase Gene Associated with Hypertriglyceridemia in Members of Type 2 Diabetic Pedigrees. J. Lipid Res. 2007, 48, 1681–1688. [Google Scholar] [CrossRef]
  10. Pulai, J.I.; Latour, M.A.; Kwok, P.Y.; Schonfeld, G. Diabetes Mellitus in a New Kindred with Familial Hypobetalipoproteinemia and an Apolipoprotein B Truncation (ApoB-55). Atherosclerosis 1998, 136, 289–295. [Google Scholar] [CrossRef]
  11. Goodarzi, M.O.; Rotter, J.I. Genetics Insights in the Relationship Between Type 2 Diabetes and Coronary Heart Disease. Circ. Res. 2020, 126, 1526–1548. [Google Scholar] [CrossRef] [PubMed]
  12. Nakashima, Y.; Plump, A.S.; Raines, E.W.; Breslow, J.L.; Ross, R. ApoE-Deficient Mice Develop Lesions of All Phases of Atherosclerosis throughout the Arterial Tree. Arterioscler. Thromb. A J. Vasc. Biol./Am. Heart Assoc. 1994, 14, 133–140. [Google Scholar] [CrossRef] [PubMed]
  13. Su, Z.; Li, Y.; James, J.C.; Matsumoto, A.H.; Helm, G.A.; Lusis, A.J.; Shi, W. Genetic Linkage of Hyperglycemia, Body Weight and Serum Amyloid-P in an Intercross between C57BL/6 and C3H Apolipoprotein E-Deficient Mice. Hum. Mol. Genet. 2006, 15, 1650–1658. [Google Scholar] [CrossRef] [PubMed]
  14. Liu, S.; Li, J.; Chen, M.H.; Liu, Z.; Shi, W. Variation in Type 2 Diabetes-Related Phenotypes among Apolipoprotein E-Deficient Mouse Strains. PLoS ONE 2015, 10, e0120935. [Google Scholar] [CrossRef]
  15. Zhang, Z.; Rowlan, J.S.; Wang, Q.; Shi, W. Genetic Analysis of Atherosclerosis and Glucose Homeostasis in an Intercross between C57BL/6 and BALB/CJ Apolipoprotein E-Deficient Mice. Circulation. Cardiovasc. Genet. 2012, 5, 190–201. [Google Scholar] [CrossRef]
  16. Shi, L.J.; Chagari, B.; An, A.; Chen, M.-H.; Bao, Y.; Shi, W. Genetic Connection between Hyperglycemia and Carotid Atherosclerosis in Hyperlipidemic Mice. Genes 2022, 13, 510. [Google Scholar] [CrossRef]
  17. Fuller, D.T.; Grainger, A.T.; Manichaikul, A.; Shi, W. Genetic Linkage of Oxidative Stress with Cardiometabolic Traits in an Intercross Derived from Hyperlipidemic Mouse Strains. Atherosclerosis 2019, 293, 1–10. [Google Scholar] [CrossRef]
  18. Li, Y.; Tesson, B.M.; Churchill, G.A.; Jansen, R.C. Critical Reasoning on Causal Inference in Genome-Wide Linkage and Association Studies. Trends Genet. 2010, 26, 493–498. [Google Scholar] [CrossRef]
  19. Lilue, J.; Doran, A.G.; Fiddes, I.T.; Abrudan, M.; Armstrong, J.; Bennett, R.; Chow, W.; Collins, J.; Collins, S.; Czechanski, A.; et al. Sixteen Diverse Laboratory Mouse Reference Genomes Define Strain-Specific Haplotypes and Novel Functional Loci. Nat. Genet. 2018, 50, 1574–1583. [Google Scholar] [CrossRef]
  20. Parks, B.W.; Sallam, T.; Mehrabian, M.; Psychogios, N.; Hui, S.T.; Norheim, F.; Castellani, L.W.; Rau, C.; Pan, C.; Phun, J.; et al. Genetic Architecture of Insulin Resistance in the Mouse. Cell Metab. 2015, 21, 334–346. [Google Scholar] [CrossRef] [Green Version]
  21. Bennett, B.J.; Davis, R.C.; Civelek, M.; Orozco, L.; Wu, J.; Qi, H.; Pan, C.; Packard, R.R.; Eskin, E.; Yan, M.; et al. Genetic Architecture of Atherosclerosis in Mice: A Systems Genetics Analysis of Common Inbred Strains. PLoS Genet. 2015, 11, e1005711. [Google Scholar] [CrossRef] [PubMed]
  22. Shi, W.; Wang, Q.; Choi, W.; Li, J. Mapping and Congenic Dissection of Genetic Loci Contributing to Hyperglycemia and Dyslipidemia in Mice. PLoS ONE 2016, 11, e0148462. [Google Scholar] [CrossRef]
  23. Shi, W.; Li, J.; Bao, K.; Chen, M.-H.; Liu, Z. Ldlr-Deficient Mice with an Atherosclerosis-Resistant Background Develop Severe Hyperglycemia and Type 2 Diabetes on a Western-Type Diet. Biomedicines 2022, 10, 1429. [Google Scholar] [CrossRef] [PubMed]
  24. Wang, Q.; Grainger, A.T.; Manichaikul, A.; Farber, E.; Onengut-Gumuscu, S.; Shi, W. Genetic Linkage of Hyperglycemia and Dyslipidemia in an Intercross between BALB/CJ and SM/J Apoe-Deficient Mouse Strains. BMC Genet. 2015, 16, 133. [Google Scholar] [CrossRef] [PubMed]
  25. Qiao, J.H.; Xie, P.Z.; Fishbein, M.C.; Kreuzer, J.; Drake, T.A.; Demer, L.L.; Lusis, A.J. Pathology of Atheromatous Lesions in Inbred and Genetically Engineered Mice. Genetic Determination of Arterial Calcification. Arterioscler. Thromb. A J. Vasc. Biol. Am. Heart Assoc. 1994, 14, 1480–1497. [Google Scholar] [CrossRef] [PubMed]
  26. Shi, L.J.; Tang, X.; He, J.; Shi, W. Hyperlipidemia Influences the Accuracy of Glucometer-Measured Blood Glucose Concentrations in Genetically Diverse Mice. Am. J. Med. Sci. 2021, 362, 297–302. [Google Scholar] [CrossRef]
  27. Tian, J.; Pei, H.; James, J.C.; Li, Y.; Matsumoto, A.H.; Helm, G.A.; Shi, W. Circulating Adhesion Molecules in ApoE-Deficient Mouse Strains with Different Atherosclerosis Susceptibility. Biochem. Biophys. Res. Commun. 2005, 329, 1102–1107. [Google Scholar] [CrossRef]
  28. Grainger, A.T.; Jones, M.B.; Li, J.; Chen, M.-H.; Manichaikul, A.; Shi, W. Genetic Analysis of Atherosclerosis Identifies a Major Susceptibility Locus in the Major Histocompatibility Complex of Mice. Atherosclerosis 2016, 254, 124–132. [Google Scholar] [CrossRef]
  29. Joner, M.; Morimoto, K.; Kasukawa, H.; Steigerwald, K.; Merl, S.; Nakazawa, G.; John, M.C.; Finn, A.V.; Acampado, E.; Kolodgie, F.D.; et al. Site-Specific Targeting of Nanoparticle Prednisolone Reduces in-Stent Restenosis in a Rabbit Model of Established Atheroma. Arterioscler. Thromb. Vasc. Biol. 2008, 28, 1960–1966. [Google Scholar] [CrossRef]
  30. Abiola, O.; Angel, J.M.; Avner, P.; Bachmanov, A.A.; Belknap, J.K.; Bennett, B.; Blankenhorn, E.P.; Blizard, D.A.; Bolivar, V.; Brockmann, G.A.; et al. The Nature and Identification of Quantitative Trait Loci: A Community’s View. Nat. Rev. Genet. 2003, 4, 911–916. [Google Scholar] [CrossRef] [Green Version]
  31. Delpero, M.; Arends, D.; Sprechert, M.; Krause, F.; Kluth, O.; Schürmann, A.; Brockmann, G.A.; Hesse, D. Identification of Four Novel QTL Linked to the Metabolic Syndrome in the Berlin Fat Mouse. Int. J. Obes. 2022, 46, 307–315. [Google Scholar] [CrossRef] [PubMed]
  32. Jones, M.B.; An, A.; Shi, L.J.; Shi, W. Regional Variation in Genetic Control of Atherosclerosis in Hyperlipidemic Mice. G3 (Bethesda) 2020, 10, 4679–4689. [Google Scholar] [CrossRef] [PubMed]
  33. Grainger, A.T.; Pilar, N.; Li, J.; Chen, M.-H.; Abramson, A.M.; Becker-Pauly, C.; Shi, W. Identification of Mep1a as a Susceptibility Gene for Atherosclerosis in Mice. Genetics 2021, 219, iyab160. [Google Scholar] [CrossRef] [PubMed]
  34. Garrett, N.E., 3rd; Grainger, A.T.; Li, J.; Chen, M.H.; Shi, W. Genetic Analysis of a Mouse Cross Implicates an Anti-Inflammatory Gene in Control of Atherosclerosis Susceptibility. Mamm. Genome Off. J. Int. Mamm. Genome Soc. 2017, 28, 90–99. [Google Scholar] [CrossRef]
  35. Vaser, R.; Adusumalli, S.; Leng, S.N.; Sikic, M.; Ng, P.C. SIFT Missense Predictions for Genomes. Nat. Protoc. 2016, 11, 1–9. [Google Scholar] [CrossRef] [PubMed]
  36. Teupser, D.; Tan, M.; Persky, A.D.; Breslow, J.L. Atherosclerosis Quantitative Trait Loci Are Sex- and Lineage-Dependent in an Intercross of C57BL/6 and FVB/N Low-Density Lipoprotein Receptor-/- Mice. Proc. Natl. Acad. Sci. USA. 2006, 103, 123–128. [Google Scholar] [CrossRef]
  37. Smith, J.D.; Bhasin, J.M.; Baglione, J.; Settle, M.; Xu, Y.; Barnard, J. Atherosclerosis Susceptibility Loci Identified from a Strain Intercross of Apolipoprotein E-Deficient Mice via a High-Density Genome Scan. Arterioscler. Thromb. Vasc. Biol. 2006, 26, 597–603. [Google Scholar] [CrossRef] [PubMed]
  38. Wang, S.S.; Schadt, E.E.; Wang, H.; Wang, X.; Ingram-Drake, L.; Shi, W.; Drake, T.A.; Lusis, A.J. Identification of Pathways for Atherosclerosis in Mice: Integration of Quantitative Trait Locus Analysis and Global Gene Expression Data. Circ. Res. 2007, 101, e11–e30. [Google Scholar] [CrossRef]
  39. Shi, L.J.; Tang, X.; He, J.; Shi, W. Genetic Evidence for a Causal Relationship between Hyperlipidemia and Type 2 Diabetes in Mice. Int. J. Mol. Sci. 2022, 23, 6184. [Google Scholar] [CrossRef]
  40. Wiltshire, S.; Hattersley, A.T.; Hitman, G.A.; Walker, M.; Levy, J.C.; Sampson, M.; O’Rahilly, S.; Frayling, T.M.; Bell, J.I.; Lathrop, G.M.; et al. A Genomewide Scan for Loci Predisposing to Type 2 Diabetes in a U.K. Population (the Diabetes UK Warren 2 Repository): Analysis of 573 Pedigrees Provides Independent Replication of a Susceptibility Locus on Chromosome 1q. Am. J. Hum. Genet. 2001, 69, 553–569. [Google Scholar] [CrossRef] [Green Version]
  41. Hernández-Vargas, P.; Ortiz-Muñoz, G.; López-Franco, O.; Suzuki, Y.; Gallego-Delgado, J.; Sanjuán, G.; Lázaro, A.; López-Parra, V.; Ortega, L.; Egido, J.; et al. Fcgamma Receptor Deficiency Confers Protection against Atherosclerosis in Apolipoprotein E Knockout Mice. Circ. Res. 2006, 99, 1188–1196. [Google Scholar] [CrossRef] [PubMed]
  42. Rowlan, J.S.; Li, Q.; Manichaikul, A.; Wang, Q.; Matsumoto, A.H.; Shi, W. Atherosclerosis Susceptibility Loci Identified in an Extremely Atherosclerosis-Resistant Mouse Strain. J. Am. Heart Assoc. 2013, 2, e000260. [Google Scholar] [CrossRef] [PubMed]
  43. Li, J.; Wang, Q.; Chai, W.; Chen, M.H.; Liu, Z. Hyperglycemia in Apolipoprotein E-Deficient Mouse Strains with Different Atherosclerosis Susceptibility. Cardiovasc. Diabet 2011, 10, 123. [Google Scholar] [CrossRef]
  44. Zhang, Y.; Kundu, B.; Zhong, M.; Huang, T.; Li, J.; Chen, M.-H.; Pan, D.; He, J.; Shi, W. PET Imaging Detection of Macrophages with a Formylpeptide Receptor Antagonist. Nucl. Med. Biol. 2015, 42, 381–386. [Google Scholar] [CrossRef]
  45. Langsted, A.; Nordestgaard, B.G. Nonfasting versus Fasting Lipid Profile for Cardiovascular Risk Prediction. Pathology 2019, 51, 131–141. [Google Scholar] [CrossRef] [PubMed]
  46. Superko, H.R.; Gadesam, R.R. Is It LDL Particle Size or Number That Correlates with Risk for Cardiovascular Disease? Curr. Atheroscler. Rep. 2008, 10, 377–385. [Google Scholar] [CrossRef] [PubMed]
  47. Pichler, G.; Amigo, N.; Tellez-Plaza, M.; Pardo-Cea, M.A.; Dominguez-Lucas, A.; Marrachelli, V.G.; Monleon, D.; Martin-Escudero, J.C.; Ascaso, J.F.; Chaves, F.J.; et al. LDL Particle Size and Composition and Incident Cardiovascular Disease in a South-European Population: The Hortega-Liposcale Follow-up Study. Int. J. Cardiol. 2018, 264, 172–178. [Google Scholar] [CrossRef]
  48. Rowlan, J.S.; Zhang, Z.; Wang, Q.; Fang, Y.; Shi, W. New Quantitative Trait Loci for Carotid Atherosclerosis Identified in an Intercross Derived from Apolipoprotein E-Deficient Mouse Strains. Physiol. Genom. 2013, 45, 332–342. [Google Scholar] [CrossRef]
  49. Chagari, B.; Shi, L.J.; Dao, E.; An, A.; Chen, M.-H.; Bao, Y.; Shi, W. Genetic Connection of Carotid Atherosclerosis with Coat Color and Body Weight in an Intercross between Hyperlipidemic Mouse Strains. Physiol Genom. 2022, 54, 166–176. [Google Scholar] [CrossRef]
  50. Grainger, A.T.; Tustison, N.J.; Qing, K.; Roy, R.; Berr, S.S.; Shi, W. Deep Learning-Based Quantification of Abdominal Fat on Magnetic Resonance Images. PLoS ONE 2018, 13, e0204071. [Google Scholar] [CrossRef]
Cells 11 02669 g001 550
Figure 1. Atherosclerotic lesion analysis in male F2 mice fed 12 weeks of Western diet. (A,B): Representative images from 2 individual mice. Cross-sections of the aortic root were stained with oil red O and hematoxylin. Arrows point at lesions. (C): Atherosclerotic lesion area distribution among F2 mice. The x axis: Lesion areas in µm2.
Figure 1. Atherosclerotic lesion analysis in male F2 mice fed 12 weeks of Western diet. (A,B): Representative images from 2 individual mice. Cross-sections of the aortic root were stained with oil red O and hematoxylin. Arrows point at lesions. (C): Atherosclerotic lesion area distribution among F2 mice. The x axis: Lesion areas in µm2.
Cells 11 02669 g001
Cells 11 02669 g002 550
Figure 2. QTL analysis of atherosclerotic lesion sizes in the aortic root of male F2 mice. (A) Genome-wide scan to identify loci for atherosclerotic lesions. The x-axis shows the chromosomal position and the y-axis shows the LOD score. Each short vertical bar on the x chromosome represents a marker. Two horizontal lines represent the genome-wide thresholds for p = 0.05 (black) and p = 0.63 (green). (B) Interval mapping plots for chromosomes 3, 13 and 15 harboring atherosclerosis QTL. The black line denotes LOD score, the blue and red lines, respectively, denote dominant and additive regression coefficients. Yellow histograms denote the confidence interval of QTL calculated by the bootstrap test. Two vertical green lines represent genome-wide significance thresholds at p = 0.63 and p = 0.05 from left to right. Genetic markers are shown on the left of each plot.
Figure 2. QTL analysis of atherosclerotic lesion sizes in the aortic root of male F2 mice. (A) Genome-wide scan to identify loci for atherosclerotic lesions. The x-axis shows the chromosomal position and the y-axis shows the LOD score. Each short vertical bar on the x chromosome represents a marker. Two horizontal lines represent the genome-wide thresholds for p = 0.05 (black) and p = 0.63 (green). (B) Interval mapping plots for chromosomes 3, 13 and 15 harboring atherosclerosis QTL. The black line denotes LOD score, the blue and red lines, respectively, denote dominant and additive regression coefficients. Yellow histograms denote the confidence interval of QTL calculated by the bootstrap test. Two vertical green lines represent genome-wide significance thresholds at p = 0.63 and p = 0.05 from left to right. Genetic markers are shown on the left of each plot.
Cells 11 02669 g002
Cells 11 02669 g003a 550Cells 11 02669 g003b 550
Figure 3. Interval mapping plots show the overlapping of QTL for atherosclerosis (A), fasting plasma glucose (B), non-fasting glucose (C), fasting LDL (D), non-fasting LDL cholesterol (E), fasting triglyceride (F), and non-fasting triglyceride (G) on chromosome 15. Plots were created using the interval mapping function of Map Manager QTX. The yellow histograms denote confidence intervals estimated through the bootstrap test. Two vertical green lines denote genome-wide significance thresholds at p = 0.63 and p = 0.05, respectively.
Figure 3. Interval mapping plots show the overlapping of QTL for atherosclerosis (A), fasting plasma glucose (B), non-fasting glucose (C), fasting LDL (D), non-fasting LDL cholesterol (E), fasting triglyceride (F), and non-fasting triglyceride (G) on chromosome 15. Plots were created using the interval mapping function of Map Manager QTX. The yellow histograms denote confidence intervals estimated through the bootstrap test. Two vertical green lines denote genome-wide significance thresholds at p = 0.63 and p = 0.05, respectively.
Cells 11 02669 g003aCells 11 02669 g003b
Cells 11 02669 g004a 550Cells 11 02669 g004b 550

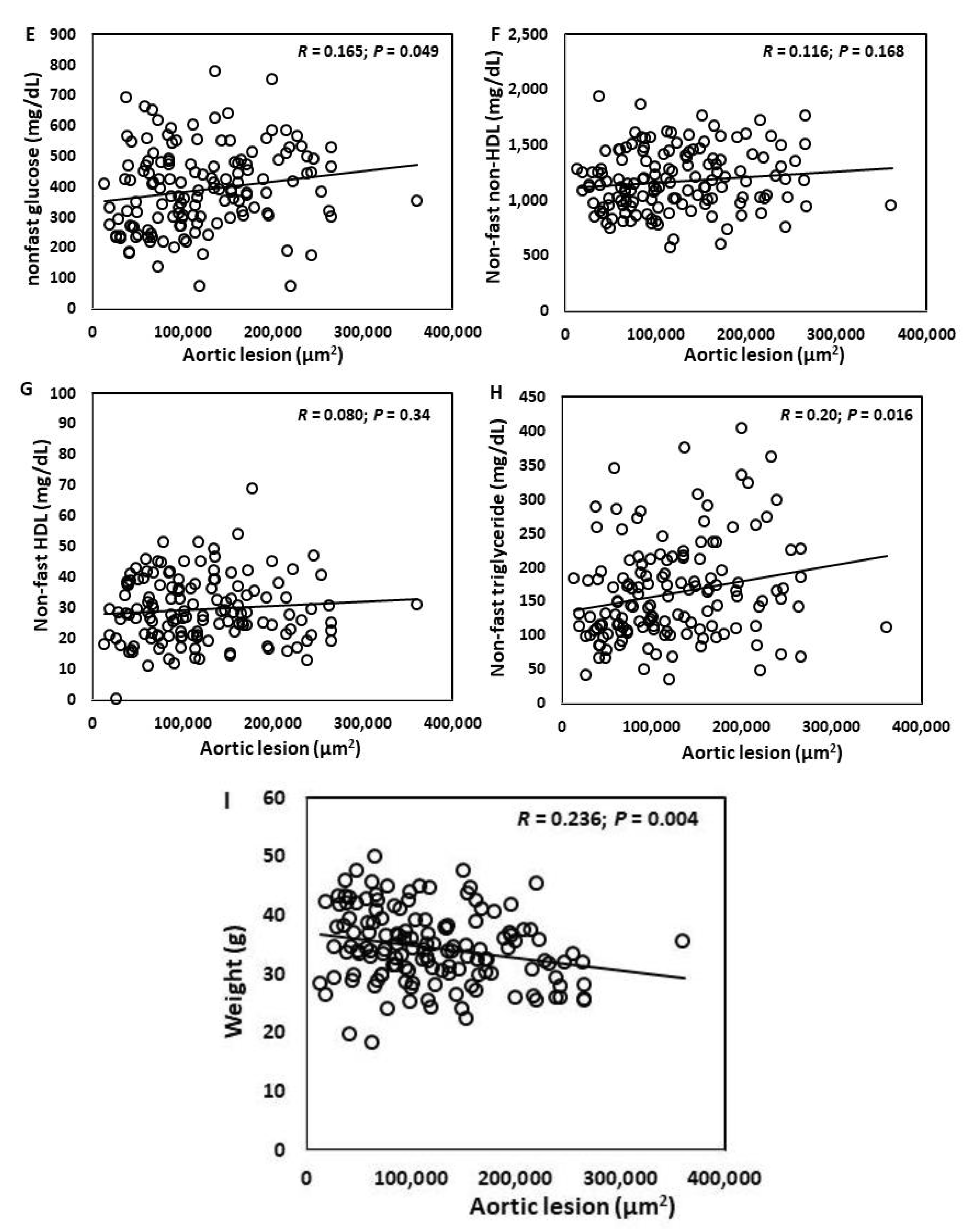

Figure 4. Regression analysis of associations of atherosclerotic lesion sizes with fasting plasma glucose (A), non-HDL (B), HDL cholesterol (C), triglyceride (D), non-fasting glucose (E), non-HDL (F), HDL cholesterol (G), triglyceride (H), and body weight (I) among male F2 mice. Each symbol represents values of a F2 mouse. Correlation coefficient (r) and significance (p) values are shown in each figure.
Figure 4. Regression analysis of associations of atherosclerotic lesion sizes with fasting plasma glucose (A), non-HDL (B), HDL cholesterol (C), triglyceride (D), non-fasting glucose (E), non-HDL (F), HDL cholesterol (G), triglyceride (H), and body weight (I) among male F2 mice. Each symbol represents values of a F2 mouse. Correlation coefficient (r) and significance (p) values are shown in each figure.
Cells 11 02669 g004aCells 11 02669 g004b
Cells 11 02669 g005a 550Cells 11 02669 g005b 550

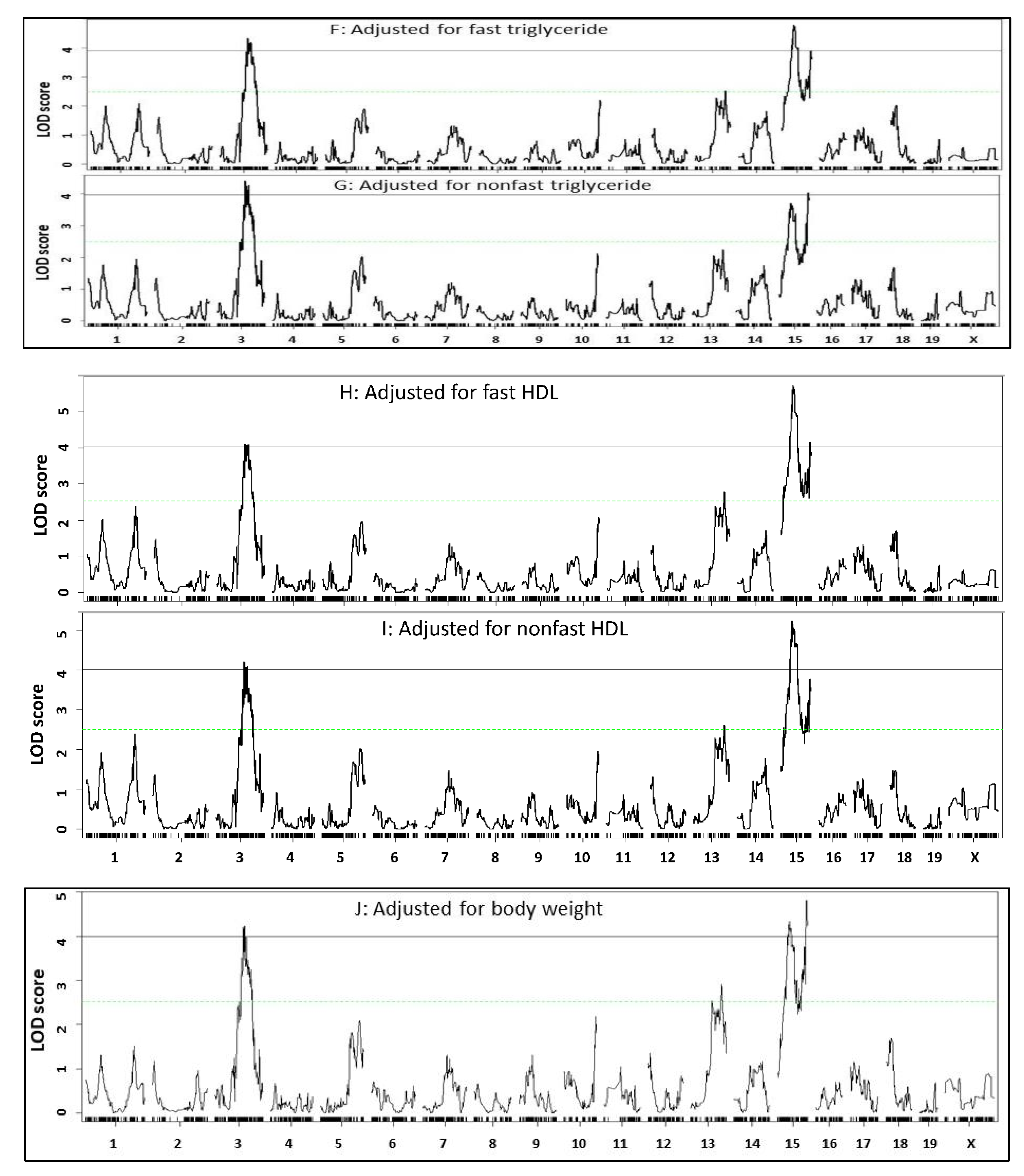

Figure 5. Whole genome scans to evaluate dependence of atherosclerosis QTL (A) on fasting glucose (B), non-fasting glucose (C), fasting LDL (D), non-fasting LDL (E), fasting triglyceride (F), non-fasting triglyceride (G), fasting HDL (H), non-fasting HDL (I), and body weight (J). Residuals from regression analysis of atherosclerotic lesion sizes with each measure were analyzed. Note the reduced magnitude of the Chr15 QTL for atherosclerosis after adjustment for fasting, non-fasting glucose, and non-fasting triglyceride, but not fasting, non-fasting LDL, and fasting triglyceride.
Figure 5. Whole genome scans to evaluate dependence of atherosclerosis QTL (A) on fasting glucose (B), non-fasting glucose (C), fasting LDL (D), non-fasting LDL (E), fasting triglyceride (F), non-fasting triglyceride (G), fasting HDL (H), non-fasting HDL (I), and body weight (J). Residuals from regression analysis of atherosclerotic lesion sizes with each measure were analyzed. Note the reduced magnitude of the Chr15 QTL for atherosclerosis after adjustment for fasting, non-fasting glucose, and non-fasting triglyceride, but not fasting, non-fasting LDL, and fasting triglyceride.
Cells 11 02669 g005aCells 11 02669 g005b
Cells 11 02669 g006 550
Figure 6. Genome-wide scans to evaluate the influence of atherosclerotic lesions on QTL for fasting glucose (B) and non-fasting glucose (D). (A) Genome-wide scan for fasting glucose without adjustment; (C), genome-wide scan for nonfasting glucose without adjustment. Note the peak LOD score drop of Chr15 QTL for fasting and nonfasting glucose levels after adjustment for atherosclerotic lesions.
Figure 6. Genome-wide scans to evaluate the influence of atherosclerotic lesions on QTL for fasting glucose (B) and non-fasting glucose (D). (A) Genome-wide scan for fasting glucose without adjustment; (C), genome-wide scan for nonfasting glucose without adjustment. Note the peak LOD score drop of Chr15 QTL for fasting and nonfasting glucose levels after adjustment for atherosclerotic lesions.
Cells 11 02669 g006
Table
Table 1. Significant and suggestive QTL for atherosclerotic lesion sizes mapped with male F2 mice derived from LP and BALB Apoe−/− mice.
Table 1. Significant and suggestive QTL for atherosclerotic lesion sizes mapped with male F2 mice derived from LP and BALB Apoe−/− mice.
Locus NameChrLOD aPeak (Mb)Closest Marker95%CI (Mb) bHigh AlleleMode of InheritanceAllelic Effect c
BBH LL
Ath5134.3594.5gUNC577393489.8–121.8BBAdditive165964 ± 67352115155 ± 7083299626 ± 45297
Ath32132.74103.6S1L13412334871.6–117.6LLAdditive98310 ± 54368121463 ± 72885153891 ± 62109
Ath52155.4243.1SSR15172402334.2–99.0LLAdditive69437 ± 48256128597 ± 63798150222 ± 68151
Ath53154.1799.0mUNC2620378595.6–102.4LLAdditive91703 ± 61572121455 ± 63792156986 ± 69456
a LOD scores were obtained from genome-wide QTL analysis using R/qtl. Significant QTL and LOD score were highlighted in bold. b 95% Confidence interval (CI) in Mb for significant or suggestive QTL estimated by R/qtl. c BB: homozygous for the BALB allele; LL: homozygous for the LP allele; H: Heterozygous for both BALB and LP alleles. Unit for carotid lesion: µm2. Allelic effects at each specific QTL were expressed as means ± SD.
Table
Table 2. Candidate genes for Ath51 determined by haplotype analysis.
Table 2. Candidate genes for Ath51 determined by haplotype analysis.
ChrPositionGenedbSNPRefBALB_cJLP_JFVB_NJCsqAAAA CoordSIFT
393323402Hrnrrs31474194C-AAmissense_variantQ/K3160.07
393323777Hrnrrs214354165T-AAmissense_variantS/T4410.01
393332492Hrnrrs33030796G-CCmissense_variantG/R31690.23
393332617Hrnrrs30076287A-TTmissense_variantR/S32100
393332685Hrnrrs30991551G-AAmissense_variantR/K34100.35
393471541Tchhl1rs33037297G-TTmissense_variantE/D5170.03
393796525Tdpoz4rs243361353T-CCmissense_variantL/P430.51
394317417Them4rs30700506C-TTmissense_variantR/C340.21
394364230C2cd4drs47866915A-GGmissense_variantS/G2680.27
394488171Celf3rs33065732C-TTmissense_variantP/S2910.25
394697430Selenbp2rs31664384G-CCmissense_variantM/I1000.45
394761419Cgnrs387494032C-TTmissense_variantD/N11730.13
394770138Cgnrs47306886C-TTmissense_variantV/M6930.16
396245528Hist2h2aa2rs31428119G-Tt5_prime_utr_variantref as H2ac19
396269739Hist2h2bbrs30653282G-AA5_prime_utr_variantre as H2bc18--
396285904Fcgr1rs31034407G-AAmissense_variantA/V2590.22
396285911Fcgr1rs31666647C-GGmissense_variantA/P2570.24
396292495Fcgr1rs51306537G-AAmissense_variantA/V230
396723591Polr3crs31519177C-GGmissense_variantR/P450.28
398160914Adam30rs36577954A-TTmissense_variantH/L210.7
398713577Hsd3b2rs13477282A-TTmissense_variantI/N540.02
398716526Hsd3b2rs30748766C-TTmissense_variantG/E120.01
398716527Hsd3b2rs31516234C-TTmissense_variantG/R120.07
398806183Hsd3b6rs8245793C-TTmissense_variantD/N2670.3
398880505Hao2rs33195243A-TTmissense_variantS/T2030.42
399216497Wars2rs45786206T-GGmissense_variantF/C990.02
3101815179Mab21l3rs47531228C-TTmissense_variantR/H3770.03
3101823288Mab21l3rs31248078C-AAmissense_variantV/L2120.19
3103171686Bcas2rs51633916G-AA5_prime_utr_variant---
3103173240Bcas2rs48371516T-CCmissense_variantS/P650
3104638700Slc16a1rs240468071G-CC5_prime_utr_variant---
3104638781Slc16a1rs216996680G-TT5_prime_utr_variant---
3104804630Mov10rs13459070T-CCmissense_variantH/R2150.59
3104825463Capza1rs46436792T-CCmissense_variantI/V2220.32
Chr: chromosome; Position: in bp; dbSNP: Single nucleotide polymorphism database; Ref: Reference or C57BL/6J SNP; Csq: SNP consequences. AA: Amino acid; AA coord: Amino acid coordinate. Likely candidate genes and intolerant SNPs are highlighted in bold. “-” same as reference SNP. Some upstream variants are not shown due to space limitation.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Abramson, A.M.; Shi, L.J.; Lee, R.N.; Chen, M.-H.; Shi, W. Phenotypic and Genetic Evidence for a More Prominent Role of Blood Glucose than Cholesterol in Atherosclerosis of Hyperlipidemic Mice. Cells 2022, 11, 2669. https://doi.org/10.3390/cells11172669

AMA Style

Abramson AM, Shi LJ, Lee RN, Chen M-H, Shi W. Phenotypic and Genetic Evidence for a More Prominent Role of Blood Glucose than Cholesterol in Atherosclerosis of Hyperlipidemic Mice. Cells. 2022; 11(17):2669. https://doi.org/10.3390/cells11172669

Chicago/Turabian Style

Abramson, Ashley M., Lisa J. Shi, Rebecca N. Lee, Mei-Hua Chen, and Weibin Shi. 2022. "Phenotypic and Genetic Evidence for a More Prominent Role of Blood Glucose than Cholesterol in Atherosclerosis of Hyperlipidemic Mice" Cells 11, no. 17: 2669. https://doi.org/10.3390/cells11172669

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
