Direct and Indirect Effects of Urease and Nitrification Inhibitors on N2O-N Losses from Urea Fertilization to Winter Wheat in Southern Germany

by
Yuncai Hu
*,
Manuela P. Gaßner
,
Andreas Weber
†,
Martine Schraml
‡ and
Urs Schmidhalter
*
Department of Plant Science, Technical University of Munich, D-85354 Freising, Germany
*
Authors to whom correspondence should be addressed.
†
Present address: Bayerische Düngekalk Werbe- und Marketing GmbH, 93092 Barbing, Germany.
‡
Present address: Yara International, Research Center Hanninghof, 48249 Dülmen, Germany.
Atmosphere 2020, 11(8), 782; https://doi.org/10.3390/atmos11080782
Submission received: 26 June 2020 / Revised: 17 July 2020 / Accepted: 22 July 2020 / Published: 24 July 2020
(This article belongs to the Special Issue Advances in Understanding, Inventoring and Mitigating N2O Emissions from Managed Land)
Browse Figures
Versions Notes

Abstract

:
Urea (U) is the most important nitrogen (N) fertilizer in agriculture worldwide, and as N fertilizer can result in large gaseous losses of NH3 and N2O. Thus, urease inhibitors (UIs) and nitrification inhibitors (NIs) have been coupled with U fertilizers to mitigate NH3 and N2O emissions. However, it is still unclear whether adding NIs and/or UIs to U stimulates other pollutants, while reducing one pollutant. Furthermore, part of the NH3 deposition to earth is converted to N2O, leading to indirect N2O emission. To estimate direct and indirect effect of UIs and NIs on the N2O-N and NH3-N losses from U; therefore, we analyzed multi-year field experiments from the same site during 2004 to 2005 and 2011 to 2013. The field experiments with U fertilization with or without UI (IPAT, N-isopropoxycarbonyl phosphoric acid triamide) and NI (DCD/TZ, Dicyandiamide/1H-1, 2, 4-Triazol) in winter wheat and with calcium ammonium nitrate (CAN) were conducted in southern Germany. Fluxes of NH3 or N2O emissions were determined following each split N fertilization in separate experiments on the same site. Our results showed that U with NIs considerably reduced N2O emissions, and adding UIs decreased NH3 emissions. However, the effect on N2O emissions exerted by (U + UIs) or (U + UIs + NIs) was inconsistent. In contrast to the treatment of (U + UIs + NIs), the addition of NIs alone to U stimulated NH3 emission compared to treatment with U. When 1% indirect N2O emission from NH3 (IPCC emission factor (EF4)) was considered to estimate the indirect N2O emission, total N2O emissions from (U + NIs) were approximately 29% compared to that from U alone and 36% compared to that from (U + UI), indicating that indirect N2O emission from NH3 induced by NIs may be negligible.

1. Introduction

Over the past century, a large quantity of mineral nitrogen (N) fertilizer was produced using the Haber–Bosch process that converts atmospheric N2 to ammonia (NH3) in order to meet the rapid increase in population for food production [1]. In mineral N fertilizer production, the use of urea (U) as an N fertilizer has dramatically increased during the past decades due to its advantages of a high N content, low cost, and safe and easy transportation. Urea is now the most important N fertilizer in the world, accounting for 55% of mineral N fertilizer production in 2018, and U is expected to increase to 70% during the next five years [2]. However, there are problems resulting from large gaseous losses using U as an N fertilizer, which are due to the increase in pH resulting from U hydrolysis.
In Germany, U is currently the second most used N fertilizer after calcium ammonium nitrate (CAN) with a market share of 25% [3]. Although there is consensus regarding the higher ammonia emissions resulting from U fertilization compared to those of CAN, there are contrasting reports regarding N2O losses of these fertilizers [4]. Thus, there is a need to further compare N2O emissions from U to those of CAN.
To mitigate NH3 and N2O emissions from U fertilization, urease and nitrification inhibitors have been coupled with U fertilizers. Urease inhibitors (UIs) slow the hydrolysis of U into NH3 or NH4+. In addition to incorporating U into soil, the addition of UIs is another best practice to avoid NH3 volatilization, and had a significant effect on NH3 emissions and reduced NH3 losses by 26–83% and 24–32%, respectively, of the applied urea-N on average [5,6]. Starting from 2020, the new German fertilizer ordinance requires the application of either UIs or the immediate incorporation of U into soils. The main working principle of UIs is slowing down the hydrolysis of U, and thus giving more time for the U to increase its dispersion into the soil [6].
Nitrification is a key process of N transformation with two steps: the ammonia oxidizing bacteria such as Nitrosomonas or Nitrosospira convert NH4+ to nitrite (NO2−), and then the nitrite oxidizing bacteria such as Nitrobacter or Nitrospira convert NO2− to NO3− [7]. NIs act by depressing the activity of the principal exponent of this first step (Nitrosomonas spp.); thereby, delaying the oxidation process. Depending on the soil conditions and seasons, UIs or NIs can delay hydrolysis of U or nitrification of NH4+ from week to months.
The Intergovernmental Panel on Climate Change IPCC [8] has recommended nitrification inhibitors (NIs) as a potential mitigation option for agricultural N2O emission. Recent meta-analyses have indicated that NI decreased N2O emissions by 31–48% across diverse agricultural ecosystems, including upland, grassland, and paddy fields [9,10]. The use of NIs, however, prolongs the retention of NH4+ in soil, which could increase NH3 emission [11]. The application of the NI dicyandiamide (DCD) has been found to increase NH3 emissions by 18–29% [12,13] and by up to 38% [14]. However, Ni et al. [5,15] reported that there was no effect of NIs on NH3 emissions from U fertilization. Therefore, there is now a concern regarding if (U + UIs) or (U + NIs) results in a reduction in the loss of one pollutant but leads to an increase in another. In contrast to (U + NI), several recent studies have indicated the existence of inconsistencies in the impact of (U + UIs) on N2O emission [16]. For instance, after a meta-analysis of 113 field experiments, Akiyama et al. [9] found that UI tended to reduce N2O emissions by 10% on average, though this was not significant. In soils from New Zealand, van der Weerden et al. [17] found that NBPT (N-(n-butyl) thiophosphoric triamide) had no effect on the overall N2O emissions from U. For reduction of both NH3 and N2O emissions, a combination of UIs and NIs for U, i.e., (U + UIs + NIs), has been recommended [18]. Beyond reducing N losses via inhibitors, recent studies have found that NI uses can also simplify fertilization in intensive crop production to save labour and machinery costs, mainly by allowing a reduction in split N application by three to two times, while without affecting the agricultural crop yield [19].
According to the IPCC guidelines [8,20], approximately 1% (a range of 0.2–5%) of the emitted NH3 is converted to N2O after its deposition (IPCC emission factor EF4, (kg N2O-N [kg NH3-N + NOx-N volatilized]−1)). Furthermore, although the studies on the effects of NIs on NH3 and N2O emissions are available in literature [16,20], there is still lack of information about their effects in cereal crops grown under temperate field conditions. To evaluate the potential of NIs to mitigate agricultural greenhouse gas emissions, this indirect N2O emission should therefore also be included.
Therefore, the main objectives of this study were to investigate the effect of NI and UI on N2O and NH3 emissions from winter wheat with U in southern Germany, to evaluate whether adding NIs and UIs to U stimulates NH3 or N2O emissions, while they reduce one pollutant, and to estimate indirect effect of urease and nitrification inhibitors on the N2O-N losses of uU based on the IPCC emission factor EF4.

2. Experiments

2.1. Experimental Site and Design

Five-year field experiments with winter wheat, from 2004 to 2005 and from 2011 to 2013, which was sown at the beginning of October with a seed density of 350 seeds m−2 and was harvested at the end of July, were conducted at the experimental station of the Technical University of Munich at Dürnast in Germany (11°41′60″ E, 48°23′60″ N). The experimental site is characterized by a temperate climate with a mean annual temperature of 7.8 °C and an average annual precipitation of 821 mm (14.2 °C and 557 mm from March to September, respectively). Daily meteorological data were obtained from a weather station from Deutscher Wetterdienst (DWD), which is approximately 500 m from the experimental site.
The soil is a mostly homogeneous Cambisol of a silty clay loam texture (IUSS Working Group WRB, 2007). Based on the guideline of VDLUFA (Association of German Agricultural Analytic and Research Institutes) for soil sampling and analysis [21], 16 representative soil samples are required for an experimental site, and were collected from the experimental site (0–0.3 m) and analyzed (Table 1). The sampling area was homogenous. As a rule in Germany, there is no requirement to have standard deviation for soil analysis, since the samples are already composited. Soil pH was determined following Schofield and Taylor [22] (0.01 M CaCl2). Soil textural analysis was conducted in compliance with ISO (2002). Organic carbon (Corg) and total-nitrogen (Ntotal) were analyzed using the Dumas procedure (combustion at 1100 °C) [21].
At the beginning of spring, all plots received a compound fertilizer consisting of 25 kg P ha−1, 100 kg K ha−1, 10 kg Mg ha−1, and 40 kg S ha−1, respectively. The fertilizer was surface-applied using a plot fertilizer distributor. The nitrogen (N) fertilizer treatments and the strategies for fertilizer application are listed in Table 2. Before the first N split application, soil NO3-N in the top layer (0–60 cm) was determined and was around 20 kg N ha−1. The UI, IPAT (N-isopropoxycarbonyl phosphoric acid triamide), at 0.4% w/w (SKW Stickstoffwerke Piesteritz GmbH, Lutherstadt-Wittenberg, Germany) and the NI, DCD/TZ (DCD/TZ: Dicyandiamide/1H-1,2,4-Triazol), at 2% w/w (SKW Stickstoffwerke Piesteritz GmbH, Lutherstadt-Wittenberg, Germany) were added to the urea. According to the fertilizer recommendation, the total N supplied was 180 kg N ha−1, and based on the common fertilization practices, there were 3× split applications for fertilizer treatments without NI during the growing season and 2× split applications for treatments with NI since NI is able to maintain soil NH4+ for a longer time (Table 2).
For the simultaneous comparison of the effect of the fertilization treatments on N2O emission under field conditions, the five fertilization treatments were randomly assigned to 10 plots (2 × 10 m) in 2004 and 2005. In 2012, since the treatment (U + UI) was omitted, only four treatments were randomly assigned to 12 plots. For studying the effect of fertilization treatments on NH3 emission, 15 plots (2 × 10 m) in 2011 and 2013 were randomized with three replicates, and additional 3 plots (2 × 10 m) were as control treatment with zero N fertilizer in 2011 and 2013. The distance between the neighboring plots was 2 m.
In this study, the measurements of N2O and NH3 emission were not parallel. This is because, in our long-term study on N2O and NH3 emission, fertilization treatments with UI or NI varied with years. The comparable fertilization treatments including U, U + NI, U + UI, and U + NI + UI altogether were present only in the years from 2004 to 2005, and 2010 to 2012 (Table 2). Furthermore, our long-term studies on N2O emissions have shown that averaged N2O emissions over many years were consistent (back to the 1990s, e.g., [23,24,25,26]). In particular, NH3 emission from U from 2001 to 2010 were much less variable with years and were limited to a small range of 1–3.4% of urea-N applied during the growing seasons of winter wheat [6,25,26,27,28,29]. A simulation study on modeling NH3 emissions across Germany [30] showed that NH3 emissions (% urea N applied) were in a range of 0–10% in strong contrast to the averaged 24% for European arable soils assumed by EMEP/EEA [31].

2.2. N2O Flux Measurements

The measurements of N2O fluxes were carried out using the closed-chamber method according to Hutchinson and Mosier [32] (Figure 1) and are described briefly as follows. Before the first-time sampling, four metal rings with an inner diameter of 0.3 m and a height of 0.15 m were installed in a depth of 0.08 m in the middle of each plot (Figure 1a). In order to sample the same area, the rings within the plots remained until the last measurements were completed. Nitrous flux rates were determined by placing a closed chamber over the permanently installed rings in each plot and taking three gas samples from the chamber’s atmosphere with sampling intervals of 20 min, i.e., at 0, 20, and 40 min after opening the each chamber were collected between 11:00 a.m. and 12:00 p.m. An overview of the N2O measurements in a 3-year study in 2004, 2005, and 2012 is summarized in Table 3.
At sampling time, a volume of 20 mL of gas was collected using an air-tight syringe from the headspace (Figure 1b) and injected into a vacuum serum tube fitted with butyl rubber stopper to keep the gas under pressure. Gas samples were analyzed for N2O within a week using an automated gas chromatograph (Varian Star 3400, Varian, Walnut Creek, California, USA) equipped with electron capture and thermal-conductivity detectors. Computer software Star Chemstation (Varian, Walnut Creek, California, USA) was used to calculate N2O concentrations. N2O content was determined using a gas chromatography system (Varian Star 3400, Varian, Walnut Creek, California, USA). Two calibration curves, i.e., for both low and high concentrations, were used [33].
For each measurement day, the N2O emission flux rate (FN) (µg N2O-N m−2 h−1) was calculated for each chamber based on a linear model as reported by Flessa et al. [34]:
FN = [V/A·ΔC/Δt)] × ρN
where V is the volume of the chamber in L; ΔC is the difference of the N2O concentration (µL L−1) before closure (t0) and at the end of closure (t1 or t2); A is the ground area enclosed by the chamber in m2; Δt is the time interval between t0 and t1 or between t1 and t2 in h; and ρN is the mass percentage of N in N2O (1.25 µg N µL−1).
The N2O emission flux rate at a given day was averaged from those at t1 and at t2. To avoid the high spatial heterogeneity within a plot, four measurements of N2O fluxes per plot were averaged at each time. The area of the closed-chamber covered 0.01131 m2, and the volume was 1.787 dm−3 (Figure 1b). Thus, the measured area (4 × 0.01131 m2) in each plot accounted for approximately 0.23% of the area of a plot (20 m2).
Flux rates of each plot were integrated over three or two periods of N2O-N emissions to calculate cumulative N2O-N emissions (g N2O-N ha−1), i.e., the amount of N2O-N emissions between two subsequent split N fertilizations was estimated by “averaged N2O-N emission rate (g ha−1 d−1) × duration (days)”.

2.3. NH3 Measurements

Ammonia emissions were measured by a combination of the Dräger Tube Method (DTM) with modified passive samplers [35,36,37,38] (Figure 2a,b). Briefly, the passive sampler gives semi-quantitative results of NH3 emission (NH3-N ppm, sum), which properly reflects the relative difference between treatments. For the absolute flux values (kg NH3-N ha−1) from passive sampler measurements (Figure 2b), a transfer coefficient is required. The DTM (Figure 2a), a calibrated dynamic chamber method, is employed to obtain a transfer coefficient for converting the semi-quantitative NH3 emission of the passive sampler to quantitative units (kg N ha−1) [37,38]. For N fertilizer treatments, a control treatment without N fertilizers should be included as well. The DTM is a variant of dynamic chamber technique and adjusted to actual meteorological conditions by a calibration equation [36]. The principle is firstly obtaining primary flux during a short measurement interval (~1 min) in the chamber with a fast reading indicator of NH3 concentration, and then scaling the primary flux into actual ambient flux using temperature and wind speed outside of the chamber through an empirical calibration equation. This method has been shown to be well-suited for NH3 measurements in multi-plot filed trials [35,36,37,38].
To measure NH3 emission in the field, a passive sampler with 20 mL of absorption solution (0.05 M H2SO4) was installed in the center of each plot at 0.15 m above plant canopy [35,36,37,38]. The gaseous NH3 in the air was absorbed by H2SO4 solution in the passive samplers to form (NH4)2SO4. The absorption solution from the passive samplers was exchanged daily for all treatments, except during rainy days. On rainy days, the solution in samplers was replaced at the day after the rain stopped. An overview of NH3 measurements in a 2-year study in 2011 and 2013 is shown in Table 4.
The NH4+ concentration from each passive ampler was subsequently analyzed in the laboratory using the standard distillation method. Briefly, the samples collected from passive samplers were firstly mixed with 10 mL 10 M NaOH solution. During distillation, NH3 was released and, as the gas cooled down, NH4OH formed was collected in an Erlenmeyer flask. After the distillation was completed, titration with 0.005 M H2SO4 was done to determine the amount of NH3 in the distillate. 1 mL 0.005 M H2SO4 corresponded to 0.14 mg N.
The DTM requires much fewer frequent measurements than the passive sampler measurements. However, a recent study [37] suggested that the range of valid calibration conditions has to be kept in mind when applying the DTM. To obtain reliable transfer coefficients for the same treatment at given time, the measurements for the transfer coefficients by the DTM were carried out simultaneously with the passive sampling for all treatments during the growing seasons. Ambient air was sucked through four soil chambers (height of 0.105 m, diameter of 0.115 m, and surface area of 0.0415 m2) using a manual pump (Drägerwerk AG & Co., KGaA, Lübeck, Germany). NH3 concentrations in the air passing through the chamber system of the DTM were instantaneously measured with indicator tubes (Drägerwerk AG & Co., KGaA, Lübeck, Germany). Due to the low air-exchange rate in the chambers, the NH3-flux values need to be corrected by means of a calibration approach proposed by Pacholski et al. [37]. For more details on the DTM method and the calculation of transfer coefficients see Gericke et al. [37] and Pacholski [38].
The cumulative NH3-N emissions (kg NH3-N ha−1) were the sum of daily NH3-N emissions from the beginning up to the end of the NH3 measurements.

2.4. Estimation for Considering NH3 as an Indirect N2O Emission

Estimation for considering NH3 as an indirect N2O emission was based on the IPCC guidelines [8,19], i.e., 1% of the emitted NH3 (N2O-N + 1% × NH3-N) is converted to N2O after its deposition.

2.5. Statistical Analysis

Depending on the number of replicates of treatments, Tukey’s (HSD) post hoc (>2 replicates) and the nonparametric (Kruskal–Wallis-H-test) (2 replicates) statistical tests were used to test for differences between the fertilization treatments in terms of N2O and NH3 emissions using SPSS software (Proc. Mixed, SPSS ver. 26, IBM). The statistical significance of all tests was evaluated at the 0.05 level.

3. Results and Discussion

3.1. N2O Flux Pattern and Cumulative N2O-N during Growth Periods under Different Fertilization Treatments

The spatial and temporal variability of N2O fluxes with weather conditions was notably high after the N applications (Figure 3, Figure 4 and Figure 5). For all three years, our results showed a general pattern of N2O fluxes, such as an increase in the N2O flux rate followed both N fertilization and rainfall events (Figure 3, Figure 4 and Figure 5). For example, the first peak of N2O flux rate was 100–600 g N2O-N ha−1 d−1 on 9 April 2004, 10–50 g N2O-N ha−1 d−1 on 11 April 2005, and 15–60 g N2O-N ha−1 d−1 on 9 April 2012, respectively. In particular, the first highest peak of N2O in 2005 appeared two weeks after the first N application following a heavy rainfall. Similar patterns of N2O emissions from arable soils with increased flux rates following N fertilization and rainfall have been reported, e.g., for winter wheat [39] and for oilseed rape [40,41]. This type of pattern is induced by the main drivers of N2O emission from N fertilization and precipitation, and thus could be explained by enhanced denitrification due to (i) an increase in the availability of nitrate as a substrate for N2O production [33]; (ii) formation of anaerobic conditions as a result of lower gas diffusivity in soil water, and thus reduced O2 diffusion into the soil combined with O2 consumption by soil microbes [42,43,44]; and (iii) soil drying and rewetting. As the content of available organic matter in soils may increase with soil drying, organic substrates for soil microorganisms, which may promote denitrification and thus N2O release, may be highly available when the soil is rewetted [39]. A meta-analysis study [45] showed that rewetting can increase N2O fluxes by nearly five times in cropland following a drying period. Figure 3a shows that, although N2O emission in (U + NI) and (U + UI + NI) treatments was lower at most measurement dates compared with the treatment of U alone, N2O emission on 9 April 2004 was higher in (U + NI) and (U + UI + NI) treatments than that of U alone, which could still not be explained. Furthermore, it was unusual to observe the negative N2O flux on 15 May 2005. This may have been due to a longer dry period, resulting in no N2O emissions on the day when the measurement was taken.
In this study, a rapid drop in air temperature followed a peak of N2O flux on 9 April 2004 and 8 April 2012 (Figure 3 and Figure 6). Since the temperature drop in April lasted only a very short time and the temperate was still above 0 °C, effects of frozen-thawing cycles on N2O flux probably did not occur. A number of studies on the effect of frozen-thawing cycles on N2O flux in arable soils in Germany have shown that the distinct frozen-thawing cycles occur mainly during winter season, i.e., from January to February or March (e.g., [39,40,41,42,43,46]). As described earlier, the N2O flux pattern in this study was therefore probably induced by the main drivers from N2O emission resulting from N fertilization and wet–dry fluctuation, i.e., precipitation.
The cumulative N2O emission during the wheat growth period ranged from 2133 to 3614 g ha−1 in 2004, from 596 to 1217 g ha−1 in 2005, and from 622 to 1179 g ha−1 in 2012, corresponding to an emission factor of the applied N (%): 2.1–3.7% in 2004, 0.3–1.2% in 2005, and 0.4–0.9% in 2012, (Figure 6 and Table 5). Early reports for different winter cereal fields in Germany showed that annual N2O emissions ranged from 1700 g to 4000 g N2O-N ha−1 a−1 [39,47,48]. However, N2O emission post-harvest or during winter may account for approximately 50% of the total annual N2O emission [47]. Thus, N2O emissions during the winter wheat growth season from our experiment in southern Germany were of the same order of magnitude as previously reported.
Accumulative N2O emission during the growth season varied considerably according to the tested year (Figure 6). For example, N2O emission from fertilization with U alone in 2004 was nearly three times higher than that in 2005 and 2012, and that from U with NIs in 2004 was nearly four times higher than that in 2005 and 2012. A consistently higher emission was observed between the first and second applications compared to that during the later growth period (Figure 6). For example, the N2O emissions after the first two N applications were approximately 87–94% in 2004, 55–76% in 2005, and 48–64% in 2012, respectively, of the total emission during the growth period of winter wheat. A high variation in N2O fluxes with growth season and year has often been reported in field studies with N2O measurements [40,49], as well as in modelling approaches from sites with different climatic conditions [50,51]. Despite a uniform management approach (N fertilization and crop type), annual N2O emission varied by up to a factor of seven between single experimental years. Different rainfall frequencies, i.e., the interval of drying and rewetting periods, could explain the difference in N2O emission between 2004 and 2012 (Figure 3 and Figure 5). Although a similar rainfall frequency, particularly between the first and second split N applications (Figure 3 and Figure 4), the difference in N2O emissions between 2004 and 2005 was still considerable.
Between the fertilization treatments with U alone and CAN, N2O losses during the growth period of winter wheat were 1394 g N2O-N ha−1 and 510 g N2O-N ha−1 higher for U alone than for CAN in 2004 and 2012, respectively, whereas there was no difference in N2O emissions between these two N forms in 2005 (Figure 6). Lebender et al. [52] reported there was a difference in N2O emissions between U and CAN during the growth period from March to the end of July for winter wheat. The higher N2O-N losses from U might be due to an increase in pH from U hydrolysis, leading to a higher N2O emission. Bremner and Blackmer [53] reported that nitrification, which produces N2O as a by-product, generally increases under higher soil pH (>6) conditions. Denitrification has been reported to occur naturally over a wide range of soil pH (5.0–8.0) [54]. As an alkaline-hydrolyzing N fertilizer, U influences nitrification through a transient rise in pH with subsequent denitrification leading to the formation and release of larger amounts of N2O [45,55,56]. A recent study by Wrage-Monnig et al. [57] showed that high pH may favor nitrifier denitrification that accounts for up to 100% of nitrous oxide emissions from ammonium (NH4+) in soils.
A decrease in N2O fluxes via the use of NIs has already been confirmed across climates, soil types, and soil characteristics [9,24,33,39,44]. Recent meta-analyses indicated that NIs decreased N2O emissions by 31–48% across diverse agricultural ecosystems, including upland, grassland, and paddy fields [9,10]. Weiske et al. [58] reported a reduction of 49% during the cropping season for measurements in southern Germany. Our study confirmed these previous findings. For example, compared to U alone, the cumulative N2O emission of U with NIs during the winter wheat growth season was reduced by 24% in 2004, 30% in 2005, and 44% in 2012. Because the number of split N application was reduced from 3 to 2 times, the results of this study further suggest that beyond reducing N2O-N losses by NIs, the use of NIs can also simplify fertilization in intensive crop production to save labour and machinery costs, which is in keeping with the results of our previous report [19].
In contrast, the effect of (U + UIs) and/or the interactive effect of (U + UIs) and (U + NIs) on N2O emissions from U fertilization was inconsistent. A meta-analysis of the effect of UIs on N2O emissions from U fertilization by Akiyama et al. [9] showed that (U + UIs) did not reduce N2O emissions. Figure 6 shows that N2O emissions from (U + UIs) or (U + UIs + NIs) decreased, increased, or did not change compared to those of U alone. Compared to U alone, the cumulative N2O emission of (U+ UIs) remained nearly unchanged in 2004 and increased by 36%, while that for (U + UIs + NIs) decreased by 11% in 2004, 13% in 2005, and 47% in 2012. This result is probably observed because unlike the nitrification process, U hydrolysis is not directly related to N2O emissions. The use of UIs only delays U hydrolysis, and all U will eventually be hydrolyzed to become NH4+. With the use of NIs, if plant uptake of N in the form of NH4+ does not significantly increase, a similar amount of NH4+ will eventually undergo nitrification and subsequent denitrification compared to U alone [9].

3.2. Cumulative NH3 Emissions during Growth Periods under Different Fertilization Treatments and Added Inhibitor Effect on NH3 Emissions

The cumulative NH3 emissions from a two-year study in 2011 and 2013 are shown in Figure 7. The cumulative NH3 emissions from U alone were 12.7 kg N ha−1 in 2011 and 7.1 kg N ha−1 in 2013, which corresponded to an emission factor of 11.5% and 3.9% of the applied N during 2011 and 2013, respectively (Table 6). On average, during the two-year study, NH3-N losses amounted to 7.7% of the applied urea N, which was similar to recent findings (i.e., 8%) reported by Ni et al. [5]. Generally, the emissions observed in this study were relatively low compared to the NH3 losses of up to 64% reported in the literature [13] and of 16% assumed for the calculation of the national emissions inventory for Germany [31]. Among many factors affecting soil NH3 emissions, air temperature, precipitation, and soil moisture and pH are the key factors. However, the major reasons leading to low NH3 emission in southern Germany may be due to low pH values of the investigated soils together with increased cation exchange capacity, and low temperature prevailing in April and frequent precipitation events after N application. However, the 7.7% of the applied urea N from NH3-N losses was higher than the 0.1–2.7% in southern Germany reported by Schraml et al. [6]. This discrepancy may be attributable to the higher pH at the experimental site of this study (pH = 6.7).
Compared to the NH3 loss associated with U treatment, NH3 loss from CAN has been less intensively studied in the past [4]. The results in this study showed an emission factor of 4.5% of the applied N based on the average of a two-year study (Table 6), which was lower than the NH3 emission from U. Ni et al. [5] reported that the average NH3 losses from CAN were approximately 2.1% of the applied N, which was near the EEA emission factor of 2%. The lower NH3 emissions of CAN could be explained by the lower NH4+ concentration in CAN and its considerably smaller effect on soil pH.
Addition of the UIs to U caused a significant reduction in NH3 emissions and reduced NH3 losses by 26–83% and 24–32%, respectively, of the applied urea-N [5,6]. Our study showed that (U + UIs) reduced NH3 losses by 52% in 2011 and 54% in 2013, respectively, compared to those observed with U treatment alone. Similarly, (U + UIs + NIs) reduced NH3 losses by 50% in 2011 compared to those of U alone, but there was a considerably greater reduction in 2013, i.e., 89%, compared to that of the NH3 losses from U alone. This finding may suggest that (U + UIs + NIs) might be a potential approach to minimizing the negative environmental effects of U application under agro-ecological conditions.
In contrast to (U + UIs + NIs), the addition of (U + NIs) in this study stimulated NH3 emissions compared to treatment with U alone (Figure 6 and Table 6). The cumulative NH3 emission from (U + NIs) was highest in both 2011 and 2013 among all N fertilization treatments, which corresponded to an emission factor of 14.1% and 5.9% of the applied N, respectively (Table 6). This result may be due to the retention of NH4+ in the soil during the use of NIs, which could increase NH3 emissions [11]. The application of an NI (DCD) has been found to increase NH3 emissions by 18–29% [11,13], and by up to 38% [14]. However, previous studies have found inconsistent results, e.g., stimulating [13], neutral [5,15], and retarding [59] effects of NIs on NH3 emissions, which may also depend on soil properties. For example, the study [45] showed that the effect of NIs was positively correlated with soil pH and negatively correlated with CEC.

3.3. Estimation of NH3 as an Indirect N2O Emission Based on the Default Value of EF4

According to the IPCC guidelines [8], approximately 1% of the emitted NH3 is converted to N2O through nitrification and denitrification processes [20], which is referred to as an indirect N2O emission from NH3 deposition (IPCC emission factor EF4, (kg N2O-N (kg NH3-N + NOx-N volatilized)−1)). Direct N2O emissions and the estimation of indirect N2O emissions under treatments of U with inhibitors and U alone are shown in Table 7. Although the current studies on N2O and NH3 emission were not parallel, and the indirect N2O emission derived from NH3 was not measured, further evidences that may support the assumption of estimation above are that the experiments for NH3 measurements were conducted in the same sites, and that the results of NH3 were in close agreement with long term experiments done on these sites [6,24,29,60,61].
The results in Table 7 demonstrate that the indirect N2O emission from NH3 was lowest from CAN and (U + UI). Although (U + NI) caused a higher indirect N2O emission, NIs decreased overall N2O emissions, i.e., totally 1.4 kg N2O-N ha−1 from direct and indirect N2O emissions, compared to 3.9 kg N2O-N ha−1 from (U + UI) and 4.9 kg N2O-N ha−1 from U alone (Table 7), which was only locally deposited NH3 on the same agricultural field and did not include further deposition. Lam et al. [16] suggested that the beneficial effect of NIs in decreasing direct N2O emissions can be outweighed by an increase in NH3 volatilization. In contrast, our study may indicate that considering indirect N2O emissions from NH3 induced by NIs may be negligible for winter wheat in southern Germany.

4. Conclusions

This field study on winter wheat in southern Germany confirms that U added with NIs greatly reduced N2O emissions, and additive UIs decreased NH3 emissions. Compared to U alone, the cumulative N2O emissions of U with NIs during the winter wheat growth season decreased by 24–44%, and UIs added to U reduced NH3 losses by as much as 52–54%. The difference in the effect of UIs or (UIs + NIs) on N2O emissions from U fertilization may suggest that the combined use of UIs and NIs might be a potential approach to minimizing negative environmental effects of U application under agro-ecological conditions. Furthermore, in contrast to the treatment of (U + UIs + NIs), (U + NIs) stimulated NH3 emissions compared to the treatment with U alone. According to the IPCC guidelines for emission factor EF4 [8,20], approximately 1% (a range of 0.2–5%) of the emitted NH3 is converted to N2O after its deposition. The results of the indirect N2O emissions from NH3 estimated based on the emission factor EF4 by IPCC showed that total N2O emissions from (U + NIs) were approximately 2.8–3.5 times lower than those from U and (U + UI), which may suggest that indirect N2O emission from NH3 induced by NIs may be negligible.

Author Contributions

A.W., M.S., M.P.G., and U.S. conceived and designed the experiments and performed the experiments; Y.H. analyzed the data; and Y.H. and U.S. wrote the paper. All authors have read and agreed to the published version of the manuscript.

Funding

The research work was partly supported by funds of the Federal Ministry of Food and Agriculture (BMEL) based on a decision of the Parliament of the Federal Republic of Germany via the Federal Office for Agriculture and Food (BLE) under the innovation support program for the project 28-1-B3.030-16.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Xu, R.; Tian, H.; Pan, S.; Prior, S.A.; Feng, Y.; Batchelor, W.D.; Chen, J.; Yang, J. Global ammonia emissions from synthetic nitrogen fertilizer applications in agricultural systems: Empirical and process-based estimates and uncertainty. Glob. Chang. Biol. 2019, 25, 314–326. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. IFA. Fertilizer outlook 2019–2023. In Proceedings of the IFA Annual Conference, Montreal, QC, Canada, 11–13 June 2019. [Google Scholar]
  3. Statistisches Bundesamt. Produzierendes Gewerbe, Düngemittelversorgung im Wirtschaftsjahr 2018/19. Statistisches Bundesamt, Wiesbaden. 2019. Available online: https://www.destatis.de (accessed on 10 January 2020).
  4. Harty, M.A.; Forrestal, P.J.; Watson, C.J.; McGeough, K.L.; Varolan, R.; Elliot, C.; Krol, D.; Laughlin, R.J.; Richards, K.G.; Lanigan, G.J. Reducing nitrous oxide emissions by changing N fertilizer use from calcium ammonium nitrate (CAN) to urea based formulations. Sci. Total Environ. 2016, 563–564, 576–586. [Google Scholar] [CrossRef] [Green Version]
  5. Ni, K.; Pacholski, A.; Kage, H. Ammonia volatilization after application of urea to winter wheat over 3 years affected by novel urease and nitrification inhibitors. Agric. Ecosyst. Environ. 2014, 197, 184–194. [Google Scholar] [CrossRef]
  6. Schraml, M.; Weber, A.; Heil, K.; Gutser, R.; Schmidhalter, U. Ammonia losses from urea applied to winter wheat over four consecutive years and potential mitigation by urease inhibitors. J. Plant Nutr. Soil Sci. 2018, 181, 914–922. [Google Scholar] [CrossRef]
  7. Norton, J.; Ouyang, Y. Controls and Adaptive Management of Nitrification in Agricultural Soils. Front. Microbiol. 2019, 10, 1931. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. IPCC. Climate Change 2014: Mitigation of Climate Change. Contribution of Working Group III to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change; Cambridge University Press: Cambridge, UK; New York, NY, USA, 2014. [Google Scholar]
  9. Akiyama, H.; Yan, X.Y.; Yagi, K. Evaluation of effectiveness of enhanced-efficiency fertilizers as mitigation options for N2O and NO emissions from agricultural soils: Meta-analysis. Glob. Chang. Biol. 2010, 16, 1837–1846. [Google Scholar] [CrossRef]
  10. Qiao, C.L.; Liu, L.L.; Hu, S.J.; Compton, J.E.; Greaver, T.L.; Li, Q.L. How inhibiting nitrification affects nitrogen cycle and reduces environmental impacts of anthropogenic nitrogen input. Glob. Chang. Biol. 2015, 21, 1249–1257. [Google Scholar] [CrossRef]
  11. Zaman, M.; Nguyen, M.L. How application timings of urease and nitrification inhibitors affect N losses from urine patches in pastoral system. Agric. Ecosyst. Environ. 2012, 156, 37–48. [Google Scholar] [CrossRef]
  12. Zaman, M.; Nguyen, M.L.; Blennerhassett, J.D.; Quin, B.F. Reducing NH3, N2O- and NO3-N losses from a pasture soil with urease or nitrification inhibitors and elemental S-amended nitrogenous fertilizers. Biol. Fertil. Soil 2008, 44, 693–705. [Google Scholar] [CrossRef]
  13. Soares, J.R.; Cantarella, H.; Menegale, M.L.D. Ammonia volatilization losses from surface-applied urea with urease and nitrification inhibitors. Soil Biol. Biochem. 2012, 52, 82–89. [Google Scholar] [CrossRef]
  14. Pan, B.B.; Lam, S.K.; Mosier, A.; Luo, Y.Q.; Chen, D.L. Ammonia volatilization from synthetic fertilizers and its mitigation strategies: A global synthesis. Agric. Ecosyst. Environ. 2016, 232, 283–289. [Google Scholar] [CrossRef]
  15. Ni, K.; Kage, H.; Pacholski, A. Effects of novel nitrification and urease inhibitors (DCD/TZ and 2-NPT) on N2O emissions from surface applied urea: An incubation study. Atmos. Environ. 2018, 175, 75–82. [Google Scholar] [CrossRef]
  16. Lam, S.K.; Suter, H.; Davies, R.; Bai, M.; Mosier, A.R.; Sun, J.; Chen, D.L. Direct and indirect greenhouse gas emissions from two intensive vegetable farms applied with a nitrification inhibitor. Soil Biol. Biochem. 2018, 116, 48–51. [Google Scholar] [CrossRef]
  17. Van der Weerden, T.J.; Luo, J.; Di, H.J.; Podolyan, A.; Phillips, R.L.; Saggar, S.; de Klein, C.A.M.; Cox, N.; Ettema, P.; Rys, G. Nitrous oxide emissions from urea fertiliser and effluent with and without inhibitors applied to pasture. Agric. Ecosyst. Environ. 2016, 219, 58–70. [Google Scholar] [CrossRef]
  18. Chien, S.H.; Prochnow, L.I.; Cantarella, H. Recent developments of fertilizer production and use to improve nutrient efficiency and minimize environmental impacts. Adv. Agron. 2009, 102, 267–322. [Google Scholar]
  19. Hu, Y.; Schraml, M.; von Tucher, S.; Li, F.; Schmidhalter, U. Influence of nitrification inhibitors on yields of arable crops: A meta-analysis of recent studies in Germany. Int. J. Plant Prod. 2014, 8, 33–50. [Google Scholar]
  20. De Klein, C.A.M.; Smith, L.C.; Monaghan, R.M. Restricted autumn grazing to reduce nitrous oxide emissions from dairy pastures in Southland, New Zealand. Agric. Ecosyst. Environ. 2006, 112, 192–199. [Google Scholar] [CrossRef]
  21. VDLUFA Method A 4.1.3.1. Bestimmung von organischem Kohlenstoff durch Verbrennung und Gasanalyse (Differenzmethode). In VDLUFA-Methods Book Vol. I “Analysis of Soil”; VDLUFA (Ed.) VDLUFA: Darmstadt, Germany, 2016. [Google Scholar]
  22. Schofield, R.K.; Taylor, A.W. The measurement of soil pH. Soil Sci. Soc. Am. J. 1955, 19, 164–167. [Google Scholar] [CrossRef]
  23. Klilian, A.; Gutser, R.; Claasen, N. N2O-emission following long-term organic fertilization at different levels. Agribiol. Res. 1998, 51, 27–35. [Google Scholar]
  24. Linzmeier, W.; Gutser, R.; Schmidhalter, U. Nitrous oxide emission from soil and from a nitrogen-15-labelled fertilizer with the new nitrification inhibitor 3, 4-dimethylpyrazole phosphate (DMPP). Biol. Fertil. Soil 2001, 34, 103–108. [Google Scholar]
  25. Weber, A.; Gutser, R.; Schmidhalter, U. Effect of new urease inhibitors on gaseous N emissions (NH3, NOx, N2O) following surface application to arable soils. In Proceedings of the International Conference, Greenhouse Gas Emissions from Agriculture—Mitigation Options and Strategies, Leipzig, Germany, 10–12 February 2004; pp. 271–272. [Google Scholar]
  26. Weber, A.; Gutser, R.; Schmidhalter, U. Field emissions of NH3 and NOx following urea application to wheat. In Food Security and Sutainability in Agro-Econsystem, 14th International Plant Nutrition Colloquium Hannover; Walter, J., Horst, M.K., Schenk, A., Bürkert, N., Claassen, H., Flessa, W.B., Goldbach, F.H., Hans-Werner Olfs, V., Römheld, B., Sattelmacher, U., et al., Eds.; Kluwer Academic Publishers: Dordrecht, The Netherlands, 2001; Volume 92, pp. 884–885. [Google Scholar]
  27. Schmidhalter, U.; Schraml, M.; Weber, A.; Gutser, R. Ammoniakemissionen aus Mineraldüngern—Versuchsergebnisse auf mitteleuropäischen Standorten. KTBL-Schrift 2010, 483, 93–102. [Google Scholar]
  28. Schraml, M.; Gutser, R.; Maier, H.; Schmidhalter, U. Ammonia loss from urea in grassland and its mitigation by the new urease inhibitor. Agric. Sci. 2016, 154, 1453–1462. [Google Scholar] [CrossRef] [Green Version]
  29. Schmidhalter, U. Referencing ammonia losses from fertilizer application. In NIFLUM – Nitrogen Flux Method Evaluation – Outcomes and Recommendations of an International Expert Workshop; Doehler, H., Kaupenjohann, M., Schmidhalter, U., Eds.; German Federal Environmental Agency: Dessau-Roßlau, Germany, 2018; Volume 44, pp. 53–55. [Google Scholar]
  30. Pacholski, A.; Doehler, J.; Schmidhalter, U.; Kreuter, T. Scenario modeling of ammonia emissions from surface applied urea under temperate conditions: Application effects and model comparison. Nutr. Cycle Agroecosyst. 2017, 110, 177–193. [Google Scholar] [CrossRef]
  31. EEA. EMEP/EEA Pollutant Emission Inventory Guidebook—Technical Guidance to Prepare National Emission Inventories; EEA Report No. 21/2016; European Environment Agency: Brussels, Belgium, 2016.
  32. Hutchinson, G.L.; Mosier, A.R. Improved soil cover method for field measurement of nitrous oxide fluxes. Soil Sci. Soc. Am. J. 1981, 45, S311–S316. [Google Scholar] [CrossRef]
  33. Khalil, M.I.; Gutser, R.; Schmidhalter, U. Effects of urease and nitrification inhibitors added to urea on nitrous oxide emissions from a loess soil. J. Plant Nutr. Soil Sci. 2009, 172, 651–660. [Google Scholar] [CrossRef]
  34. Flessa, H.; Wild, U.; Klemisch, M.; Pfadenhauer, J. Nitrous oxide and methane fluxes from organic soils under agriculture. Eur. J. Soil Sci. 1998, 49, 327–335. [Google Scholar]
  35. Pacholski, A.; Cai, G.X.; Nieder, R.; Richter, J.; Fan, X.H.; Zhu, Z.L.; Roelcke, M. Calibration of a simple method for determining ammonia volatilization in the field - comparative measurements in Henan Province, China. Nutr. Cycl. Agroecosyst. 2006, 74, 259–273. [Google Scholar] [CrossRef]
  36. Pacholski, A.; Cai, G.X.; Fan, X.H.; Ding, H.; Chen, D.L.; Nieder, R.; Roelcke, M. Comparison of different methods for the measurement of ammonia volatilization after urea application in Henan Province, China. J. Plant Nutr. Soil Sci. 2008, 171, 361–369. [Google Scholar] [CrossRef]
  37. Gericke, D.; Pacholski, A.; Kage, H. Measurement of ammonia emissions in multi-plot field experiments. Biosyst. Eng. 2011, 108, 164–173. [Google Scholar] [CrossRef]
  38. Pacholski, A. Calibrated Passive Sampling—Multi-plot Field Measurements of NH3 Emissions with a Combination of Dynamic Tube Method and Passive Samplers. JOVE-J. Vis. Exp. 2016, 109, e53273. [Google Scholar]
  39. Guzman-Bustamante, I.; Winkler, T.; Schulz, R.; Muller, T.; Mannheim, T.; Bayas, J.C.L.; Ruser, R. N2O emissions from a loamy soil cropped with winter wheat as affected by N-fertilizer amount and nitrification inhibitor. Nutr. Cycl. Agroecosyst. 2019, 114, 173–191. [Google Scholar] [CrossRef]
  40. Vinzent, B.; Fuss, R.; Maidl, F.X.; Hulsbergen, K.J. Efficacy of agronomic strategies for mitigation of after-harvest N2O emissions of winter oilseed rape. Eur. J. Agron. 2017, 89, 88–96. [Google Scholar] [CrossRef]
  41. Ruser, R.; Fuss, R.; Andres, M.; Hegewald, H.; Kesenheimer, K.; Kobke, S.; Rabiger, T.; Quinones, T.S.; Augustin, J.; Christen, O.; et al. Nitrous oxide emissions from winter oilseed rape cultivation. Agric. Ecosyst. Environ. 2017, 249, 57–69. [Google Scholar] [CrossRef]
  42. Kaiser, E.A.; Kohrs, K.; Kucke, M.; Schnug, E.; Heinemeyer, O.; Munch, J.C. Nitrous oxide release from arable soil: Importance of N-fertilization, crops and temporal variation. Soil Biol. Biochem. 1998, 30, 1553–1563. [Google Scholar] [CrossRef]
  43. Flessa, H.; Dorsch, P.; Beese, F. Seasonal-variation of N2O and CH4 fluxes in differently managed arable soils in southern Germany. J. Geophys. Res. Atmos. 1995, 100, 23115–23124. [Google Scholar] [CrossRef]
  44. Ruser, R.; Schulz, R. The effect of nitrification inhibitors on the nitrous oxide (N2O) release from agricultural soils-a review. J. Plant Nutr. Soil Sci. 2015, 178, 171–188. [Google Scholar] [CrossRef]
  45. Kim, D.G.; Saggar, S.; Roudier, P. The effect of nitrification inhibitors on soil ammonia emissions in nitrogen managed soils: A meta-analysis. Nutr. Cycl. Agroecosyst. 2012, 93, 51–64. [Google Scholar] [CrossRef]
  46. Ruser, R.; Flessa, H.; Schilling, R.; Beese, F.; Munch, J.C. Effect of crop-specific field management and N fertilization on N2O emissions from a fine-loamy soil. Nutr. Cycl. Agroecosyst. 2001, 59, 177–191. [Google Scholar] [CrossRef]
  47. Kaiser, E.A.; Ruser, R. Nitrous oxide emissions from arable soils in Germany - An evaluation of six long-term field experiments. J. Plant Nutr. Soil Sci. 2000, 163, 249–259. [Google Scholar] [CrossRef]
  48. Jungkunst, H.F.; Freibauer, A.; Neufeldt, H.; Bareth, G. Nitrous oxide emissions from agricultural land use in Germany - a synthesis of available annual field data. J. Plant Nutr. Soil Sci. 2006, 169, 341–351. [Google Scholar] [CrossRef]
  49. Pfab, H.; Palmer, I.; Buegger, F.; Fiedler, S.; Muller, T.; Ruser, R. Influence of a nitrification inhibitor and of placed N-fertilization on N2O fluxes from a vegetable cropped loamy soil. Agric. Ecosyst. Environ. 2012, 150, 91–101. [Google Scholar] [CrossRef]
  50. Leip, A.; Busto, M.; Corazza, M.; Bergamaschi, P.; Koeble, R.; Dechow, R.; Monni, S.; de Vries, W. Estimation of N2O fluxes at the regional scale: Data, models, challenges. Curr. Opin. Environ. Sustain. 2011, 3, 328–338. [Google Scholar] [CrossRef]
  51. Ben Aoun, W.; El Akkari, M.; Flenet, F.; Jacquet, F.; Gabrielle, B. Recommended fertilization practices improve the environmental performance of biodiesel from winter oilseed rape in France. J. Clean. Prod. 2016, 139, 242–249. [Google Scholar] [CrossRef]
  52. Lebender, U.; Senbayram, M.; Lammel, J.; Kuhlmann, H. Effect of mineral nitrogen fertilizer forms on N2O emissions from arable soils in winter wheat production. J. Plant Nutr. Soil Sci. 2014, 177, 722–732. [Google Scholar] [CrossRef]
  53. Bremner, J.M.; Blackmer, A.M. Terestrial nitrification as a source of atmospheric nitrous oxide. In Denitrification, Nitrification and Atmospheric Nitrous Oxide; Delwiche, C.C., Ed.; John Wiley & Sons: New York, NY, USA, 1981; pp. 151–170. [Google Scholar]
  54. Mulvaney, R.L.; Khan, S.A.; Mulvaney, C.S. Nitrogen fertilizers promote denitrifications. Biol. Fertil. Soils 1997, 24, 211–220. [Google Scholar] [CrossRef]
  55. Khalil, M.I.; Rosenani, A.B.; Von Cleemput, O.; Shamshuddin, J.; Fauziah, C.I. Nitrous oxide production from an ultisol treated with different nitrogen sources and moisture regimes. Biol. Fertil. Soils 2002, 36, 59–65. [Google Scholar]
  56. Tierling, J.; Kuhlmann, H. Emissions of nitrous oxide (N2O) affected by pH-related nitrite accumulation during nitrification of N fertilizers. Geoderma 2018, 310, 12–21. [Google Scholar] [CrossRef]
  57. Wrage-Monnig, N.; Horn, M.A.; Well, R.; Muller, C.; Velthof, G.; Oenema, O. The role of nitrifier denitrification in the production of nitrous oxide revisited. Soil Biol. Biochem. 2018, 123, A3–A16. [Google Scholar] [CrossRef]
  58. Weiske, A.; Benckiser, G.; Ottow, J.C.G. Effect of the new nitrification inhibitor DMPP in comparison to DCD on nitrous oxide (N2O) emissions and methane (CH4) oxidation during 3 years of repeated applications in field experiments. Nutr. Cycl. Agroecosyst. 2001, 60, 57–64. [Google Scholar] [CrossRef]
  59. Rodgers, G.A. Effect of dicyandiamide on ammonia volatilization from urea in soil. Fertil. Res. 1983, 4, 361–367. [Google Scholar] [CrossRef]
  60. Khalil, M.I.; Schmidhalter, U.; Gutser, R. N2O, NH3 and NOx emissions as a function of urea granule size and soil type under aerobic conditions. Water Air Soil Pollut. 2006, 175, 127–148. [Google Scholar] [CrossRef] [Green Version]
  61. Schmidhalter, U.; Frank, M.; Parzefall, S.; Gassner, M.; Lehmeyer, F.; Pardeller, M.; Buchhart, C. Ammonia losses after urea and slurry fertilization. VDLUFA-Schriftenreihe 2017, 74, 208–215. [Google Scholar]
Atmosphere 11 00782 g001 550

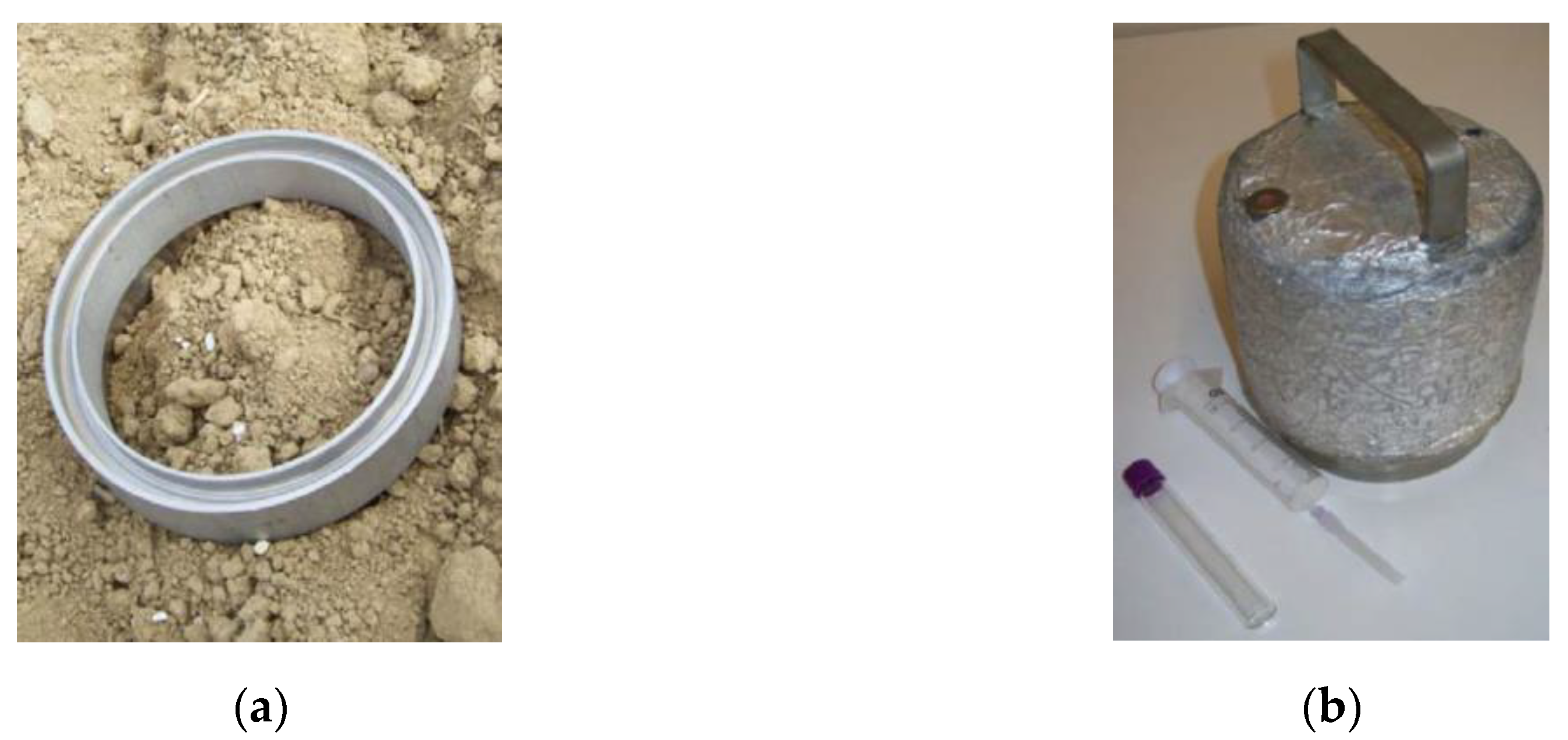

Figure 1. Metal ring permanently installed on the field (a) and closed-chamber, air syringe with needle, and vacuum test tube (b).
Figure 1. Metal ring permanently installed on the field (a) and closed-chamber, air syringe with needle, and vacuum test tube (b).
Atmosphere 11 00782 g001
Atmosphere 11 00782 g002 550

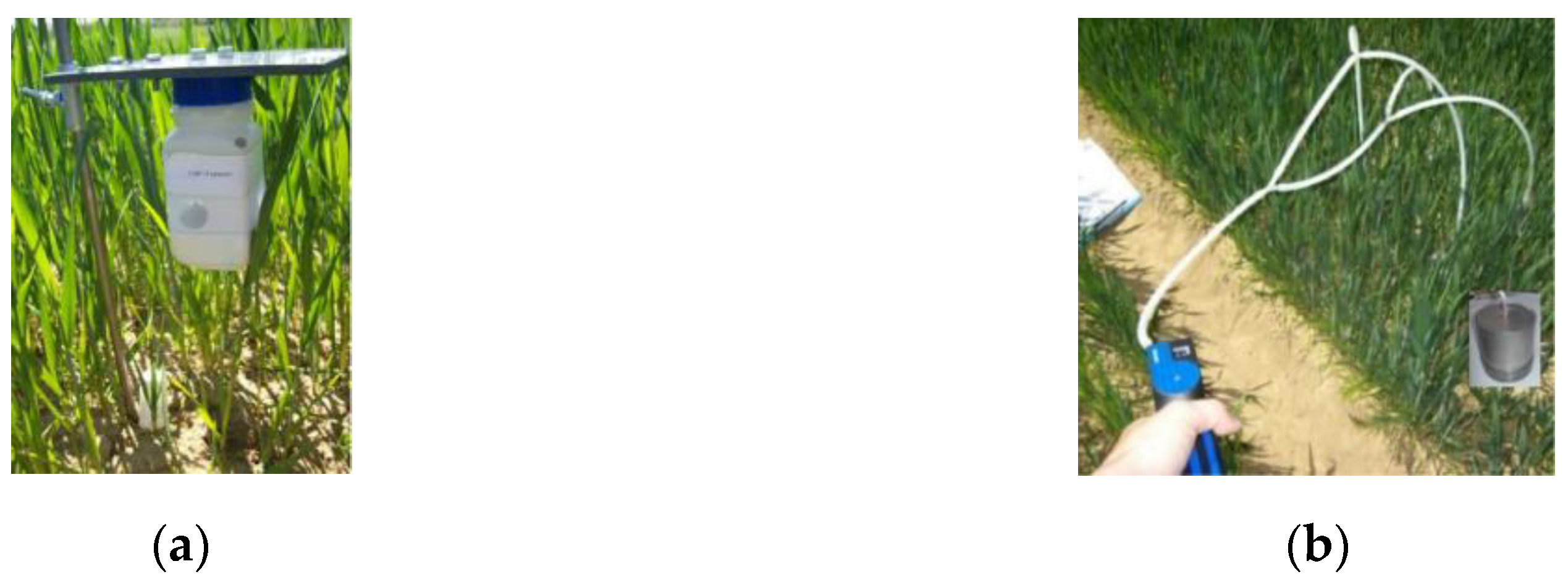

Figure 2. Passive-flux-collector from a square bottle with a modified acid trap for NH3 (a) and Dräger-Tuber method (DTM) with Teflon tubes for hand pumping (b).
Figure 2. Passive-flux-collector from a square bottle with a modified acid trap for NH3 (a) and Dräger-Tuber method (DTM) with Teflon tubes for hand pumping (b).
Atmosphere 11 00782 g002
Atmosphere 11 00782 g003 550

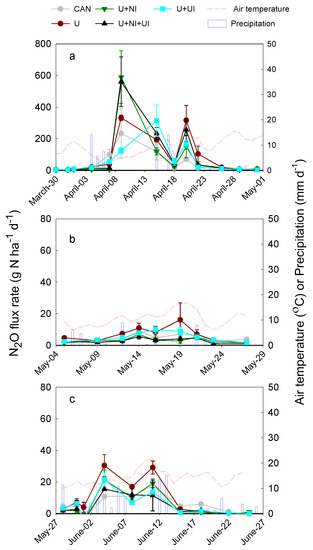

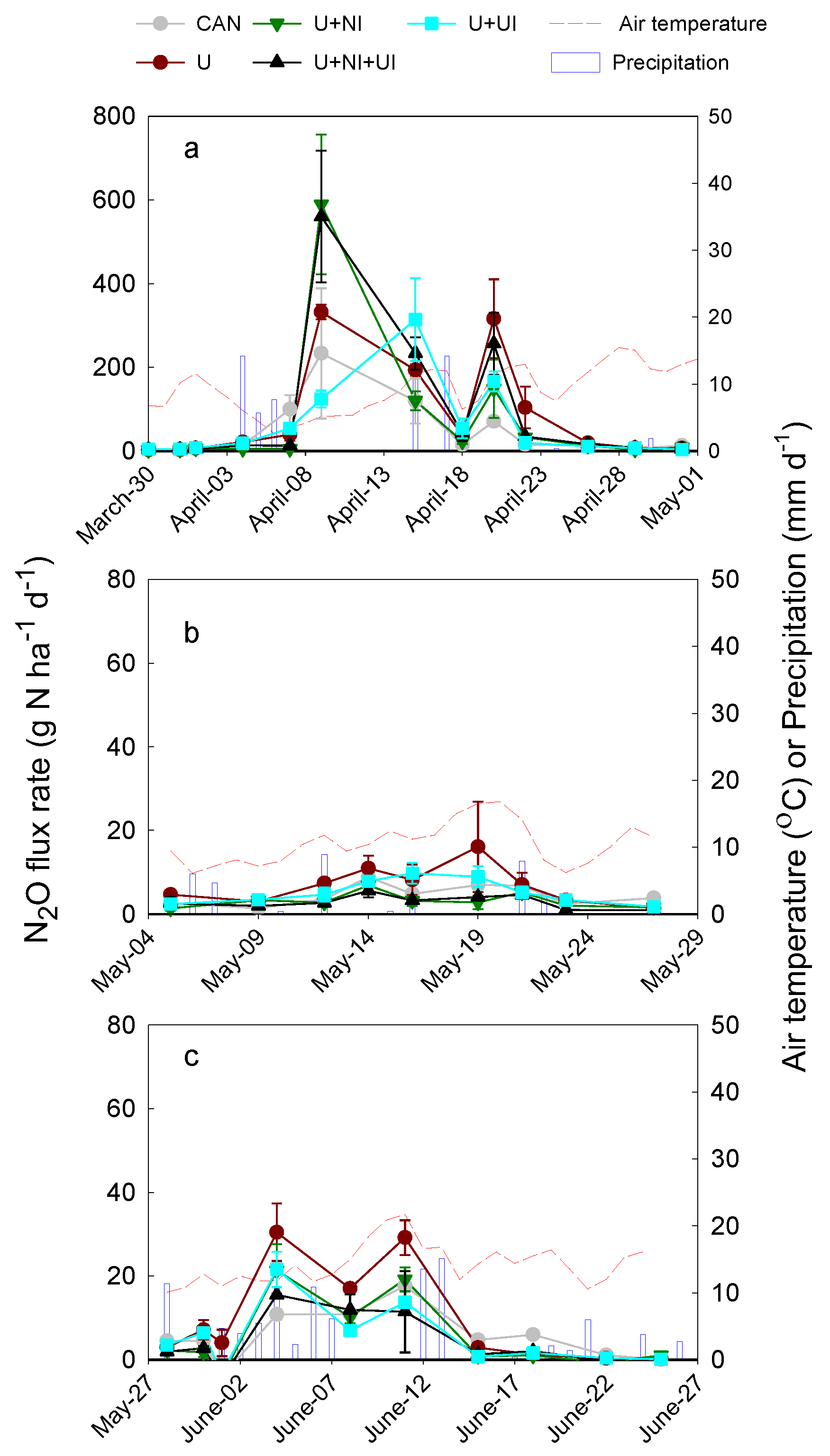

Figure 3. N2O flux rate (left vertical axis) and air temperature or precipitation (right vertical axis) for the fertilization treatments (CAN: calcium ammonium nitrate; U: urea; NI: nitrification inhibitor; and UI: urease inhibitor) after the 1st (a), 2nd (b), and 3rd (c) split N application in 2004. The vertical bars indicate the standard deviation of the mean (n = 2).
Figure 3. N2O flux rate (left vertical axis) and air temperature or precipitation (right vertical axis) for the fertilization treatments (CAN: calcium ammonium nitrate; U: urea; NI: nitrification inhibitor; and UI: urease inhibitor) after the 1st (a), 2nd (b), and 3rd (c) split N application in 2004. The vertical bars indicate the standard deviation of the mean (n = 2).
Atmosphere 11 00782 g003
Atmosphere 11 00782 g004 550

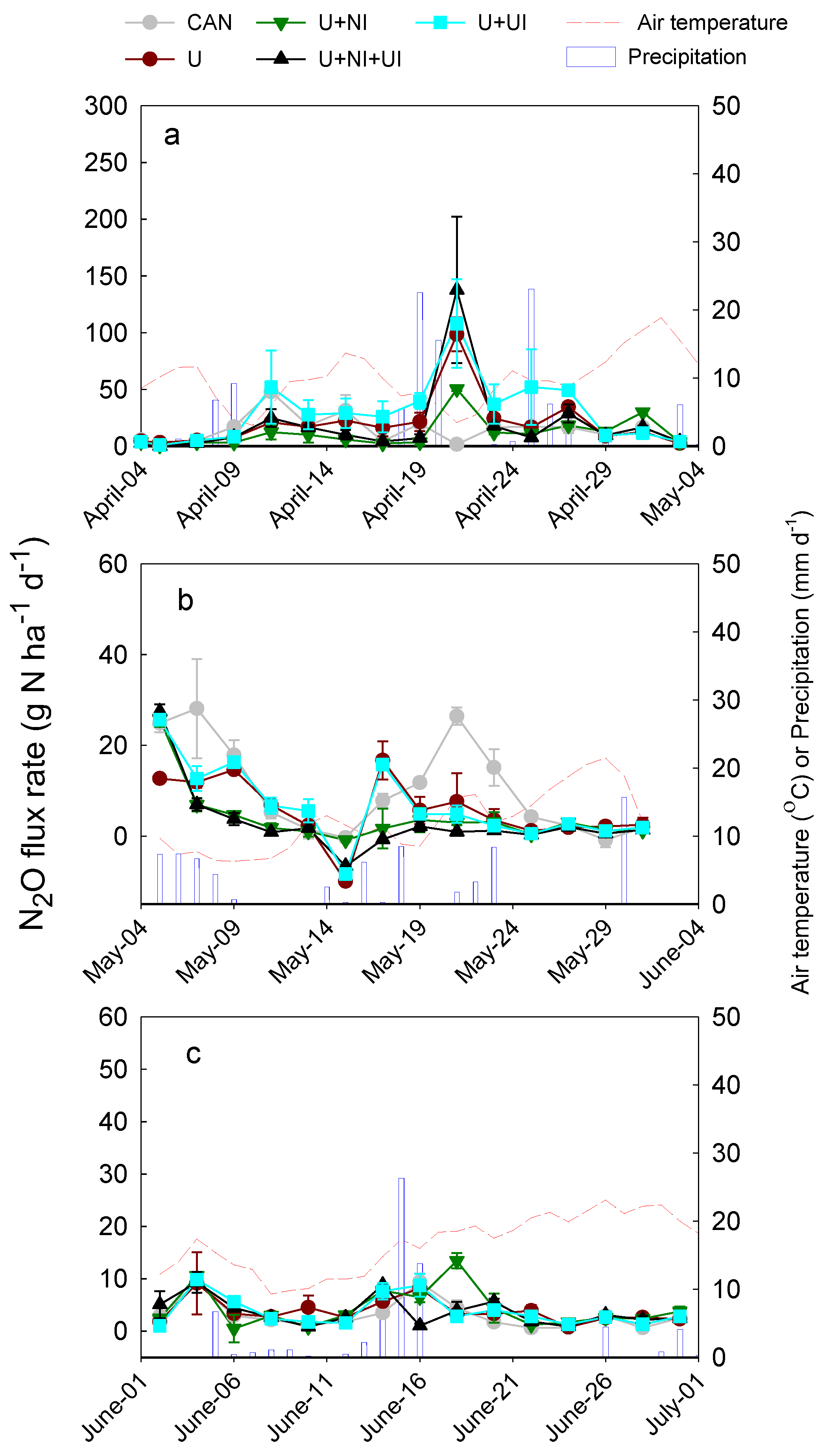

Figure 4. N2O flux rate (left vertical axis) and air temperature or precipitation (right vertical axis) for the fertilization treatments (CAN: calcium ammonium nitrate; U: urea; NI: nitrification inhibitor; and UI: urease inhibitor) after the 1st (a), 2nd (b), and 3rd (c) split N application in 2005. The vertical bars indicate the standard deviation of the mean (n = 2).
Figure 4. N2O flux rate (left vertical axis) and air temperature or precipitation (right vertical axis) for the fertilization treatments (CAN: calcium ammonium nitrate; U: urea; NI: nitrification inhibitor; and UI: urease inhibitor) after the 1st (a), 2nd (b), and 3rd (c) split N application in 2005. The vertical bars indicate the standard deviation of the mean (n = 2).
Atmosphere 11 00782 g004
Atmosphere 11 00782 g005 550

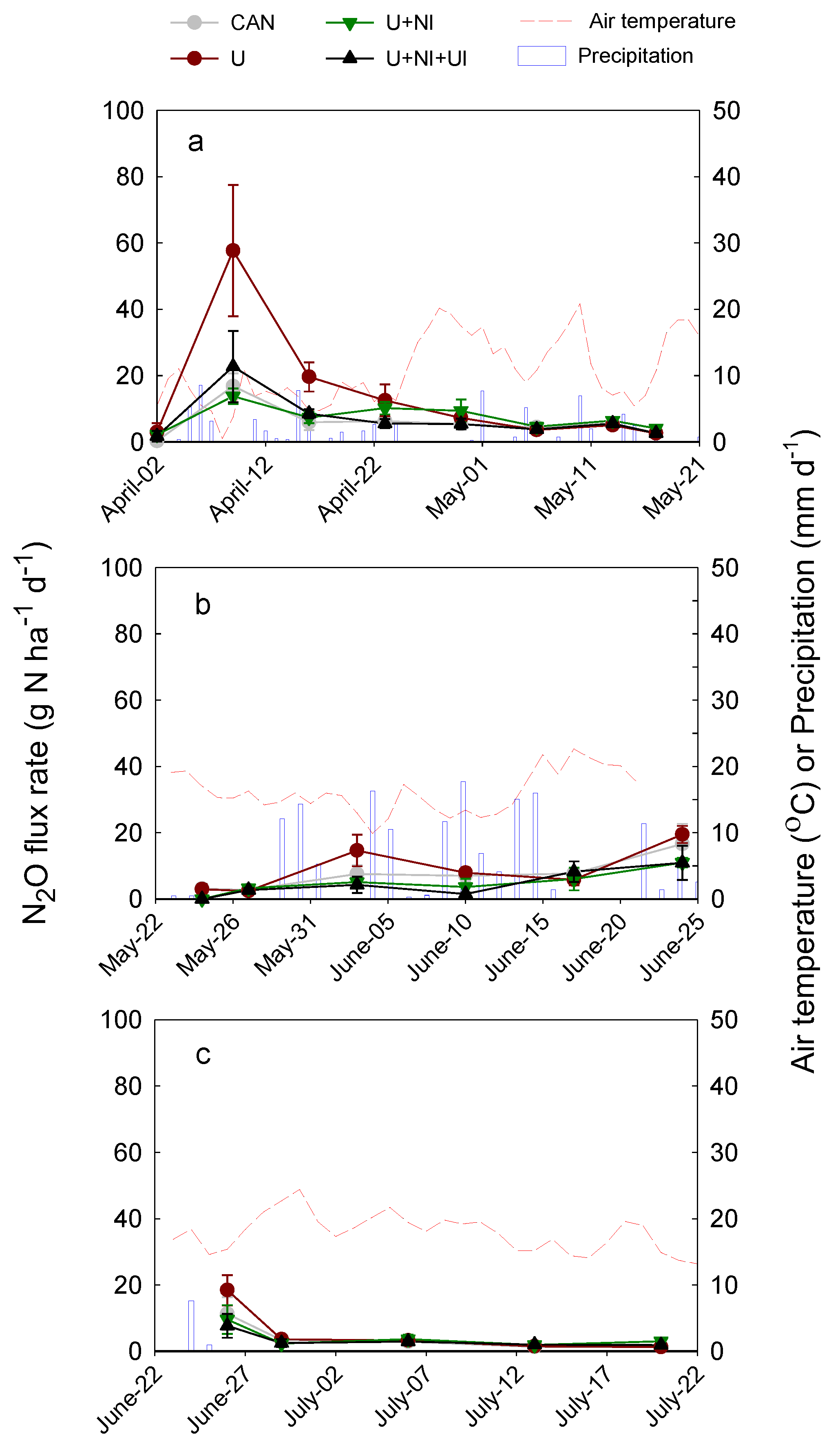

Figure 5. N2O flux rate (left vertical axis) and air temperature or precipitation (right vertical axis) for the fertilization treatments (CAN: calcium ammonium nitrate; U: urea; NI: nitrification inhibitor; and UI: urease inhibitor) after the 1st (a), 2nd (b), and 3rd (c) split N application in 2012. The vertical bars indicate the standard deviation of the mean (n = 3).
Figure 5. N2O flux rate (left vertical axis) and air temperature or precipitation (right vertical axis) for the fertilization treatments (CAN: calcium ammonium nitrate; U: urea; NI: nitrification inhibitor; and UI: urease inhibitor) after the 1st (a), 2nd (b), and 3rd (c) split N application in 2012. The vertical bars indicate the standard deviation of the mean (n = 3).
Atmosphere 11 00782 g005
Atmosphere 11 00782 g006 550

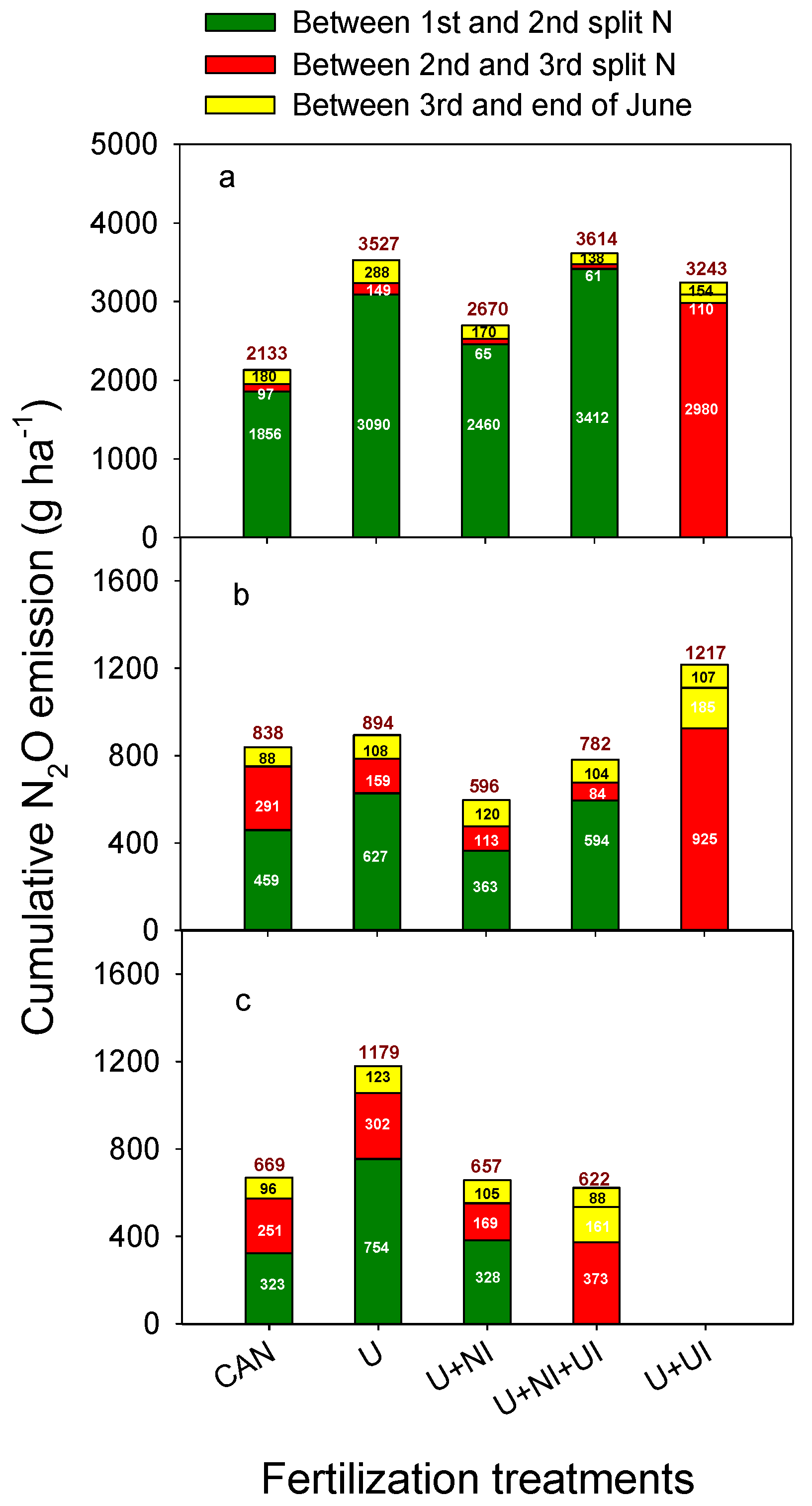

Figure 6. Cumulative N2O emission of different fertilization treatments of winter wheat (CAN: calcium ammonium nitrate; U: urea; NI: nitrification inhibitor; and UI: urease inhibitor) with and without an NI in 2004 (a), 2005 (b), and 2012 (c). Kruskal–Wallis-H test indicates no significant difference between fertilization treatments in 2004 (a), 2005 (b), and 2012 (c) at p < 0.05.
Figure 6. Cumulative N2O emission of different fertilization treatments of winter wheat (CAN: calcium ammonium nitrate; U: urea; NI: nitrification inhibitor; and UI: urease inhibitor) with and without an NI in 2004 (a), 2005 (b), and 2012 (c). Kruskal–Wallis-H test indicates no significant difference between fertilization treatments in 2004 (a), 2005 (b), and 2012 (c) at p < 0.05.
Atmosphere 11 00782 g006
Atmosphere 11 00782 g007 550

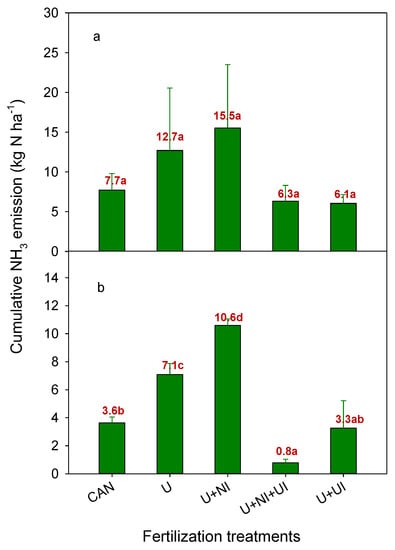

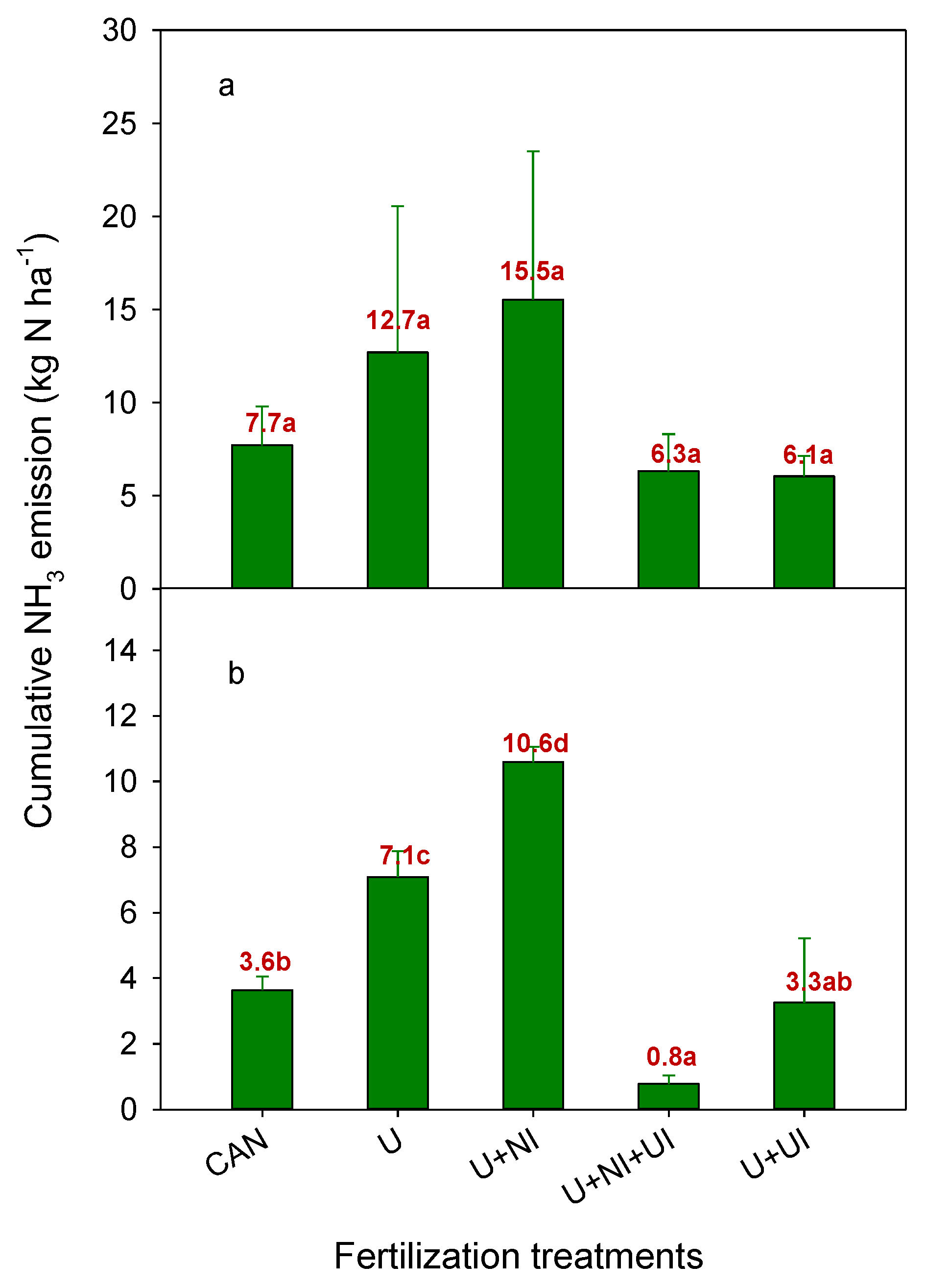

Figure 7. Cumulative NH3 emissions of different fertilization treatments (CAN: calcium ammonium nitrate; U: urea; NI: nitrification inhibitor; and UI: urease inhibitor) of winter wheat during 2011 (a) and 2013 (b). The vertical bars indicate the standard deviation of the mean (n = 3). A mean comparison between fertilization treatments from Tukey´s HSD-test indicates a significant difference at p < 0.05. The same letters indicate groups that were not significantly different from one another.
Figure 7. Cumulative NH3 emissions of different fertilization treatments (CAN: calcium ammonium nitrate; U: urea; NI: nitrification inhibitor; and UI: urease inhibitor) of winter wheat during 2011 (a) and 2013 (b). The vertical bars indicate the standard deviation of the mean (n = 3). A mean comparison between fertilization treatments from Tukey´s HSD-test indicates a significant difference at p < 0.05. The same letters indicate groups that were not significantly different from one another.
Atmosphere 11 00782 g007
Table
Table 1. Soil characteristics of the experimental site from 2004 to 2005 and 2011 to 2013.
Table 1. Soil characteristics of the experimental site from 2004 to 2005 and 2011 to 2013.
YearSoil TypepH (CaCl2)ClaySiltSandNtotalCorg
%% DM *
2004–2005Cambisol5.724.754.920.40.191.43
2011–20136.52361160.141.17
* DM = Dry matter.
Table
Table 2. Nitrogen fertilization strategies (CAN: calcium ammonium nitrate; U: urea; NI: nitrification inhibitor; and UI: urease inhibitor) for field experiments in 2004, 2005, and 2012 for N2O measurements and in 2011 and 2013 for NH3 measurements, respectively.
Table 2. Nitrogen fertilization strategies (CAN: calcium ammonium nitrate; U: urea; NI: nitrification inhibitor; and UI: urease inhibitor) for field experiments in 2004, 2005, and 2012 for N2O measurements and in 2011 and 2013 for NH3 measurements, respectively.
Fertilization Treatments3-Year Study for N2O Measurements2-Year Study for NH3 Measurements
2004 and 2005201220112013
N FertilizersNitrification or Urease InhibitorsVegetation BeginningStem ElongationBootingVegetation BeginningStem ElongationAnthesisVegetation BeginningStem ElongationAnthesisVegetation BeginningStem ElongationAnthesis
1st2nd3rd1st2nd3rd1st2nd3rd1st2nd3rd
N Supplied (kg N ha−1 time−1)
CAN--805050806040807040806040
U--805050806040807040806040
UUI (IPAT)805050---807040806040
UNI (DCD/TZ)120-60100-80110-80100-80
UNI + UI (IPAT + DCD/TZ)120-60100-80110-80100-80
Table
Table 3. Overview of N2O measurements in a 3-year study in 2004, 2005, and 2012.
Table 3. Overview of N2O measurements in a 3-year study in 2004, 2005, and 2012.
200420052012
Number of measurement points per plot4
Position of measurement points in plotsPlot center
Period of measurements30 March to 25 June4 April to 30 June2 April to 23 July
Measurement frequencyEvery other day for the first two weeks and then twice a weekEvery other dayWeekly
Table
Table 4. Overview of NH3 measurements in a 2-year study in 2011 and 2013.
Table 4. Overview of NH3 measurements in a 2-year study in 2011 and 2013.
20112013
Number of Measurement Points Per PlotPassive Sampler1
Dräger Tube Method4
Position of Measurement Points in PlotsPlot center
Period of Measurements8 April to 12 July15 April to 7 July
Measurement FrequencyDaily except during rainy days *
* (i) On rainy days, the passive solution samplers were replaced at the day after the rain stopped. (ii) Between two subsequent N fertilizer applications, the measurements were stopped after NH3 emission was zero for three days.
Table
Table 5. Relative cumulative N2O-N losses (% of applied N; Mean ± SD) of different fertilization treatments (CAN: calcium ammonium nitrate; U: urea; NI: nitrification inhibitor; and UI: urease inhibitor) in 2004, 2005, and 2012. Kruskal–Wallis-H test indicates no significant difference between fertilization treatments in 2004, 2005, and 2012 at p < 0.05.
Table 5. Relative cumulative N2O-N losses (% of applied N; Mean ± SD) of different fertilization treatments (CAN: calcium ammonium nitrate; U: urea; NI: nitrification inhibitor; and UI: urease inhibitor) in 2004, 2005, and 2012. Kruskal–Wallis-H test indicates no significant difference between fertilization treatments in 2004, 2005, and 2012 at p < 0.05.
Fertilization TreatmentsRelative Cumulative N2O-N Losses (% of Applied N)
2004200520123-Year Average
MeanSDMeanSDMeanSD
CAN2.31.30.60.20.40.01.1
U3.90.10.80.10.90.31.9
U + NI2.10.40.30.00.40.10.9
U + NI + UI2.80.90.50.20.40.11.2
U + UI3.71.41.20.6 2.4
Table
Table 6. Relative cumulative NH3-N losses (% of applied N; Mean ± SD) of different fertilization treatments (CAN: calcium ammonium nitrate; U: urea; NI: nitrification inhibitor; and UI: urease inhibitor) during 2011 and 2013. A mean comparison between fertilization treatments from Tukey´s HSD-test with different letters indicates a significant difference at p < 0.05. The same letters in the same column indicate groups that were not significantly different from one another.
Table 6. Relative cumulative NH3-N losses (% of applied N; Mean ± SD) of different fertilization treatments (CAN: calcium ammonium nitrate; U: urea; NI: nitrification inhibitor; and UI: urease inhibitor) during 2011 and 2013. A mean comparison between fertilization treatments from Tukey´s HSD-test with different letters indicates a significant difference at p < 0.05. The same letters in the same column indicate groups that were not significantly different from one another.
Fertilization TreatmentsRelative Cumulative NH3 Loss (% of Applied N)
201120132-Year Average
Mean±SD Mean±SD
CAN7.0±1.9a2.0±0.2b4.5
U11.5±7.1a3.9±0.4c7.7
U + NI14.1±7.2a5.9±0.3d10.0
U + NI + UI5.8±1.8a0.4±0.1a3.1
U + UI5.5±1.0a1.8±1.1ab3.7
Table
Table 7. Combined effect of N2O-N and NH3-N losses on N2O emissions for urea (U) with nitrification inhibitors (NIs) and urease inhibitors (UIs) during the growth season of winter wheat estimated according to IPCC emission factor EF4.
Table 7. Combined effect of N2O-N and NH3-N losses on N2O emissions for urea (U) with nitrification inhibitors (NIs) and urease inhibitors (UIs) during the growth season of winter wheat estimated according to IPCC emission factor EF4.
Fertilization Treatments3-Year Average2-Year AverageEF4: 1% HN3-NTotal N2O-N
N2O-N kg ha−1NH3-N kg ha−1N2O-N kg kg−1 NH3-Nkg ha−1
CAN1.215.650.061.3
U4.819.900.104.9
U + NI1.3113.050.131.4
U + NI + UI1.673.550.041.7
U + UI3.854.700.053.9

Share and Cite

MDPI and ACS Style

Hu, Y.; Gaßner, M.P.; Weber, A.; Schraml, M.; Schmidhalter, U. Direct and Indirect Effects of Urease and Nitrification Inhibitors on N2O-N Losses from Urea Fertilization to Winter Wheat in Southern Germany. Atmosphere 2020, 11, 782. https://doi.org/10.3390/atmos11080782

AMA Style

Hu Y, Gaßner MP, Weber A, Schraml M, Schmidhalter U. Direct and Indirect Effects of Urease and Nitrification Inhibitors on N2O-N Losses from Urea Fertilization to Winter Wheat in Southern Germany. Atmosphere. 2020; 11(8):782. https://doi.org/10.3390/atmos11080782

Chicago/Turabian Style

Hu, Yuncai, Manuela P. Gaßner, Andreas Weber, Martine Schraml, and Urs Schmidhalter. 2020. "Direct and Indirect Effects of Urease and Nitrification Inhibitors on N2O-N Losses from Urea Fertilization to Winter Wheat in Southern Germany" Atmosphere 11, no. 8: 782. https://doi.org/10.3390/atmos11080782

APA Style

Hu, Y., Gaßner, M. P., Weber, A., Schraml, M., & Schmidhalter, U. (2020). Direct and Indirect Effects of Urease and Nitrification Inhibitors on N2O-N Losses from Urea Fertilization to Winter Wheat in Southern Germany. Atmosphere, 11(8), 782. https://doi.org/10.3390/atmos11080782

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
