Toward Three-Loop Feynman Massive Diagram Calculations

1
Institute of Physics, University of Silesia, 40-007 Katowice, Poland
2
PRISMA Cluster of Excellence, Institut für Physik, Johannes Gutenberg-Universität Mainz, D-55099 Mainz, Germany
*
Author to whom correspondence should be addressed.
Symmetry 2021, 13(6), 975; https://doi.org/10.3390/sym13060975
Submission received: 5 May 2021 / Revised: 23 May 2021 / Accepted: 25 May 2021 / Published: 31 May 2021

Abstract

:
There are many methods of searching for traces of the so-called new physics in particle physics. One of them, and the main focus of this paper, is athe study of the Z-boson decay in e + e collisions. An improvement in the precision of calculations of the Standard Model (SM) electroweak pseudo-observables, such as scattering asymmetries, effective weak mixing angles, and decay widths, related to the Z-boson will meet severe experimental requirements at the planned e + e colliders and will increase the chance to detect non-standard effects in experimental analysis. To reach this goal, one has to calculate the next order of perturbative SM theory, namely three-loop Feynman integrals. We discuss the complexity of the problem, as well as the methods crucial for completing three-loop calculations. We show several numerical solutions for some three-loop Feynman integrals using sector decomposition, Mellin–Barnes (MB), and differential equation methods.

1. Introduction

The search for non-standard effects can be conducted in various ways, from which the study of Z-boson decay in  e + e collisions is discussed in this paper. This process was essential in the LEP era, leading to the precise knowledge of essential parts of the Standard Model (SM) [1,2]. A few successors of this experiment are planned: ILC [3,4], CLIC [5,6], CEPC [7,8] and FCC-ee  [9,10,11,12,13]. Up to 5 × 10 12 Z-boson decays are planned to be observed at the Z-boson resonance with the FCC-ee collider, which is about six orders of magnitude more than at LEP. This will lead to very accurate experimental measurements of the so-called Electro-Weak Pseudo-Observables (EWPOs), if the systematic experimental errors can be kept appropriately small.
This level of accuracy is sensitive to virtual beyond-the-standard-model (BSM) effects from particles with multi-TeV masses and/or very feeble interactions. The interpretations of EWPOs in terms of BSM physics requires accurate predictions of these observables within the SM. To match the precision offered by FCC-ee, at least one additional order of perturbation theory has to be included beyond what is known today. For Z-boson decays, the complete two-loop SM corrections are currently known [14,15,16], whereas three-loop corrections will be required for the FCC-ee program.
The three-loop challenge is very demanding since no universal methods exist for the calculations. The methods and corresponding tools have to be further developed so that all the contributing Feynman integrals can be efficiently calculated. A subset of leading fermionic third order corrections to electroweak and mixed EW-QCD observables was recently accomplished in [17,18]; however, these corrections did not require the evaluation of genuine three-loop integrals.

2. Progress in Three-Loop Calculations for Z-Boson Observables

To match the accuracy offered by the upcoming FCC-ee collider for the Z-boson observables, three-loop corrections have to be included. This is a tough challenge from a mathematical and computational point of view. At first, self-energy integrals are discussed. The goal is to calculate all of the integrals up to eight-digit accuracy where possible, aiming for  10 5 accuracy of the whole result of the combined contributions.

2.1. Three Loop Z-Boson Self-Energy Integrals

The initial step to address three-loop calculations is to compute self-energy contributions. Those integrals are, in general, simpler than the vertices, and therefore it is a natural follow-up after completing two-loop calculations. Lacking a universal method for numerical evaluation of loop integrals, we can track the strong and weak points of the available software, which leads to further development of these programs.
In total, there are 546 integrals that have to be calculated, spanning in between five to eight propagators, zero to three inverse propagators-leading to up to rank 6 tensor integrals and zero to seven massive propagators.
The next step is to include three-loop Z-boson vertices.

2.2. Three Loop Z-Boson Vertices

For the case of vertex diagrams, the following initial classifications are introduced. Bosonic diagrams refer to diagrams with no fermionic loops inside, and EW-QCD diagrams are with/without gluons inside. No tadpoles or products of lower loop diagrams are included. One can easily see a huge increase in the number of diagrams between two and three loops from around two thousands to nearly half a million in the Z b b ¯ process.
Next, the current status of the calculations is discussed for three-loop self-energy diagrams, which is the first step in our calculations toward solving vertex integrals connected with diagrams in Table 1. All calculations are performed for the SM masses scaled to the  M Z mass, namely
M Z = 1 , M W = 0.78 , M H = 1.88 , M t = 3.6 .
Additionally, for Euclidean region  s = M Z 2 and s = M Z 2 in case of Minkowskian kinematics. Recently, the numerical evaluation of planar-type three-loop self-energy integrals with arbitrary masses was discussed in  [19].

3. Current Status of Numerical Results—Examples

3.1. PySecDec

PySecDec works very well for multiscale Feynman integrals [20,21]. Results in Euclidean kinematics obtained with various integrators that were available in pySecDec for the three-loop self-energy diagram in Figure 1 are presented in Table 2. The Monte-Carlo integrators are used, since they typically offer better accuracy for the results of high dimensional integrals compared to deterministic algorithms with the same number of calculation points. As one can see from Table 2, even in the Euclidean case, a comparison of different integrators and methods is needed for precise accuracy control.
One can also use pySecDec for the calculation of integrals below the threshold (the contour deformation option in pySecDec is not needed in this case) in Minkowskian kinematics. If we aim at  10 5 accuracy for the combined result, in the case of  O ( 10 3 ) three-loop self-energy diagrams, a rough estimation is that  10 8 accuracy for single integrals is needed. Equation (2) provides a result for such an individual integral calculated with the QMC integrator and 10 7 points, s = 1
0.0255102498599 ± 6.23 × 10 10 .
A corresponding diagram is shown in Figure 2.
Unfortunately, it appears much worse in the case of integrals with one or two internal masses, and above the threshold, even without the highest number of propagators. For the diagram with seven propagators in Figure 3, the result calculated with 10 7 points, s = 1 , is
1.9779024373062 3.1707021356232 i ± ( 0.00069572988945 + 0.00056233082827 i ) .
Even in this case, where we have seven propagators, we already lack accuracy, and,  the case of scalar integrals with eight propagators using the same number of points leads to, at best, ∼5% accuracy. These results can eventually serve as a cross-check result for other methods.
In the case of tensor integrals, for the ones with loop momenta not only in the denominator but also in the numerator, a similar discussion can be held. The complexity of tensor integrals lies in their rank and, thereby, in how many loop momenta appear in the numerator. The more of loop momenta, the more complex integral. In the case of pySecDec, the bottleneck is the available RAM memory. Memory usage grows very fast with the increased rank of tensor integrals. Most of the integrals below the threshold can be calculated even with rank 6 tensors.
However, when going above the threshold, even most of the rank 4 integrals are problematic and not always possible to calculate with the available computational resources. Concerning accuracy, there is not much difference from the scalar case. Since many tensor integrals cannot be calculated with pySecDec up to the desired accuracy, or even at all, one needs another approach. One such approach is the well-known integration by parts (IBP) method, which is further discussed.

3.2. Differential Equations and IBP Methods

In the context of the well known integration-by-parts (IBP) reductions [25] and differential equations method [26,27,28,29] for Feynman integrals, we present an improved strategy that is capable of computing an arbitrary three-loop self-energy diagram, which is needed for this project. The IBP reductions with Kira [30,31] based on the Laporta algorithm [32] are computationally demanding if the number of loops and scales increases. The three-loop self-energy diagrams require several days for a successful reduction if we keep the relevant kinematic invariants and masses generic.
If we set all masses to physical numerical values and keep only the external kinematics in symbolic form, this reduces the reduction time to few minutes. IBP identities help us to relate a large set of Feynman integrals to a smaller basis of integrals, which are typically called ‘master integrals’. We may derive a linear system of differential equations for the master integrals, from which we can solve the master integrals. In order to solve the master integrals from their differential equations, we provide a numerical set of boundary values obtained through pySecDec as an expansion in the dimensional regulator ϵ = ( 4 D ) / 2 .
With the help of series expansions of the system of differential equations implemented in DiffExp [33], we may transport the boundary terms to any other point in phase-space. In our approach, we choose the kinematic point at which we compute boundary values such that the numerical evaluation of pySecDec is stable and fast, and then we transport it to the physical region using DiffExp. First, we use the method of analytic regularization that was introduced in [34,35,36,37] to change to a finite basis of Feynman integrals. The resulting integrals typically have multiple dots and shifted dimensions. They can be related to the original basis by using IBP and momentum-shift identities. Secondly, we compute our boundary terms in the Euclidean region. Both simplify the numerical evaluation of master integrals due to the absence of contour deformation and the need to resolve the divergences of Feynman integrals with pySecDec.
Thus, we obtain stable and fast numeric convergence for all master integrals with pySecDec. Using DiffExp, we may transport these boundary values to physical points in phase-space, which works by iteratively expanding and solving the differential equations in terms of series expansions. The numerical accuracy of the results in Euclidean kinematics typically propagates to the Minkowskian kinematic point, which we may check by deriving two different sets of boundary conditions in the Euclidean region, and transporting them to the same physical point, after which the error is obtained by taking the difference in the resulting expressions.
The tensor integrals are a by-product of the method described above, since any tensor integral is a sum of master integrals. We are optimistic regarding the computations of the arbitrary three-loop self-energy diagrams needed for this project by applying the aforementioned method because the IBP reductions and the PySecDec numerical evaluations simplify a great deal, and these were the previous bottlenecks of three-loop computations.
We demonstrate the application of this method with the following example (Figure 4):
I M e r c [ D , { a i } , s , M W 2 ] = d D q 1 i π D / 2 d D q 2 i π D / 2 d D q 3 i π D / 2 [ ( p 1 + q 1 ) 2 ] a 1 [ ( q 1 q 2 ) 2 ] a 2 [ q 2 2 ] a 3 [ M W 2 + ( q 2 q 3 ) 2 ] a 4 [ ( q 1 q 3 ) 2 ] a 5 [ q 3 2 ] a 6 [ q 1 2 ] a 7 [ ( p 1 + q 2 ) 2 ] a 8 [ ( p 1 + q 3 ) 2 ] a 9 ,
with p 1 2 = s . To define the Feynman integral we follow the same conventions as in [38]. For a shorter notation, we suppress the Feynman i δ prescription. The functions in the square brackets[...] are the so called inverse propagators. The exponents a i are the propagator powers, which we treat as integer numbers. In further discussion, we study I M e r c [ D , { a i } , s , M W 2 ] integrals with a i > 0 , i = 1, ..., 6 and a j 0 , j = 7, 8, 9. With IBP and dimension raising identities, we manage to write these integrals as a linear combination of eight master integrals in different dimensions by exploiting [39,40,41] in the intermediate steps:
m a s t e r s = { I M e r c [ D + 4 , { 3 , 3 , 3 , 5 , 0 , 0 , 0 , 0 , 0 } ] / ϵ 2 , I M e r c [ D + 4 , { 3 , 0 , 3 , 4 , 3 , 0 , 0 , 0 , 0 } ] / ϵ 2 , I M e r c [ D + 4 , { 3 , 0 , 3 , 5 , 3 , 0 , 0 , 0 , 0 } ] / ϵ 2 , I M e r c [ D + 2 , { 2 , 2 , 2 , 3 , 1 , 0 , 0 , 0 , 0 } ] , I M e r c [ D + 2 , { 2 , 2 , 2 , 0 , 2 , 2 , 0 , 0 , 0 } ] / ϵ 2 , I M e r c [ D + 2 , { 0 , 2 , 2 , 2 , 2 , 2 , 0 , 0 , 0 } ] / ϵ 2 , I M e r c [ D , { 1 , 1 , 1 , 2 , 1 , 1 , 0 , 0 , 0 } ] , I M e r c [ D , { 1 , 1 , 1 , 3 , 1 , 1 , 0 , 0 , 0 } ] } .
Here, we have omitted the explicit mass scales notation. The system of differential equations with respect to the integrals in  m a s t e r s and the integrals in the set m a s t e r s are finite in the dimensional regulator parameter expansion  ϵ = ( 4 D ) / 2 around 0. We evaluate with PySecDec these integrals in the Euclidean point with e u c l i d e a n 1 = { s = 4 , M W = 0.78 } up to the first order in the  ϵ expansion. With the tool DiffExp, we transport to the desired Minkowski point m i n k o w s k i = { s = 1 , M W = 0.78 } , which leads to the numeric values for the integrals in  m a s t e r s :
m a s t e r s [ 1 ] = ( 0.0346758 0.0632853 i ) 0.00333868 ϵ 2 ( 0.0100722 + 0.0209775 i ) ϵ + ( 0.145509 0.0581786 i ) ϵ ,
m a s t e r s [ 2 ] = ( 0.16772 + 0.190894 i ) ( 0.00813811 + 0.00158389 i ) ϵ 2 ( 0.0326871 + 0.0251144 i ) ϵ ( 0.114929 + 0.913393 i ) ϵ ,
m a s t e r s [ 3 ] = ( 0.111853 + 0.245297 i ) + ( 0.0033199 + 0.00359974 i ) ϵ 2 + ( 0.00578857 + 0.0452637 i ) ϵ ( 1.02476 0.629932 i ) ϵ ,
m a s t e r s [ 4 ] = ( 0.230024 + 0.431755 i ) ( 1.8778 1.27956 i ) ϵ ,
m a s t e r s [ 5 ] = ( 23.7712 40.2283 i ) 1 ϵ 2 ( 4.26835 + 9.42478 i ) ϵ + ( 131.033 55.0182 i ) ϵ ,
m a s t e r s [ 6 ] = 17.4032 + 0.641026 ϵ 2 + 2.89342 ϵ + 58.7097 ϵ ,
m a s t e r s [ 7 ] = ( 6.59241 + 5.50072 i ) + ( 12.6453 31.3415 i ) ϵ ,
m a s t e r s [ 8 ] = ( 2.3054 + 4.17386 i ) ( 9.17972 22.7285 i ) ϵ .
The numeric result in the point m i n k o w s k i is verified by a second computation starting with the second Euclidean point in  e u c l i d e a n 2 = { s = 2 , M W = 0.78 } and transporting to the desired m i n k o w s k i point with DiffExp. Printed here are only the significant digits.

3.3. Mellin–Barnes Method

In this part, we will show perspectives of the MB method [42] for the calculation of three-loop integrals mentioned in Section 3. As was discussed in [14], the MB method works very well for one-scale problems at the two-loop level. In going to three-loop diagrams, the situation remains the same. A natural application of the MB method is a single-scale problem and, in the case discussed in this article, these are three-loop self-energy integrals with one or two equal masses inside. Planar diagrams corresponding to the problem have at most six-dimensional MB representations. Let us show several examples of this type.
The first example is the diagram in Figure 1, and the corresponding numerical result is presented in Table 2. The MB representation for this diagram is 5-dimensional and has the following form
I = 1 ( s ) 2 + 3 ϵ i + i i = 1 5 d z i M W 2 s z 1 Γ ( z 1 ) Γ ( ϵ z 12 ) Γ ( z 2 ) Γ ( ϵ z 13 ) Γ ( 1 2 ϵ ) Γ ( 1 2 ϵ z 1 ) × Γ ( 1 + z 123 ) Γ ( 1 + ϵ + z 123 ) Γ ( ϵ z 4 ) Γ ( z 4 ) Γ ( 1 ϵ + z 24 ) Γ ( ϵ z 5 ) Γ ( ϵ z 2345 ) Γ ( 1 z 24 ) Γ ( 1 z 35 ) Γ ( 2 2 ϵ + z 2345 ) × Γ ( z 3 ) Γ ( z 5 ) Γ ( 1 ϵ + z 35 ) Γ ( 1 + z 45 ) Γ ( 1 + ϵ + z 45 ) ,
where we abbreviated z i j k = z i + z j + z k and omitted ( 2 π i ) factors as in the AMBRE package [42,43], available at [23], used for automatic derivation of this and the following representations.
The numerical result in Table 2 was obtained using the MB package [44] (http://projects.hepforge.org/mbtools/ (accessed on 30 May 2021)) with the Cuhre integrator [24] and 10 8 integration points. Increasing the number of points by one order did not increase the integration time. Due to the compact form of the integral, the integration time remained at the same level as for the Sector Decomposition (SD) method. The accuracy is also compatible with that obtained with the SD approach.
For the next example, we chose a diagram in Figure 5 with one less propagator. The MB representation for this diagram is 4-dimensional and is shown in Equation (15).
I = 1 ( s ) 1 + 3 ϵ i + i i = 1 4 d z i M W 2 s z 3 Γ ( ϵ z 1 ) Γ ( z 1 ) Γ ( 1 + 2 ϵ + z 1 ) Γ ( 1 2 ϵ ) Γ ( 1 3 ϵ z 1 ) × Γ ( 2 ϵ z 12 ) Γ ( 1 ϵ + z 2 ) Γ ( 1 + z 12 ) Γ ( 1 + ϵ + z 12 ) Γ ( 1 + 3 ϵ + z 3 ) Γ ( 1 ϵ z 4 ) Γ ( 1 z 2 ) Γ ( 2 + ϵ + z 12 ) × Γ ( ϵ z 2 ) Γ ( z 2 ) Γ ( 1 + z 3 z 4 ) Γ ( z 4 ) Γ ( z 3 + z 4 ) Γ ( 3 ϵ z 3 + z 4 ) Γ ( 1 4 ϵ z 3 ) Γ ( 2 + 2 ϵ + z 3 z 4 ) .
This example is very representative. After expansion in  ϵ and simplifications by the barnesroutines.m package [45], we obtained only the 1-dimensional MB representation as shown in Equation (16).
I = 3 s i 17 28 + i 17 28 d z 3 M W 2 s z 3 Γ ( 1 z 3 ) Γ ( z 3 ) ( Γ ( 1 z 3 ) Γ ( z 3 ) Γ ( 2 z 3 ) ) Γ ( 1 + z 3 ) Γ ( 2 z 3 ) × Γ ( 1 + z 3 ) ψ ( 2 ) ( 1 ) .
The obtained representation can be easily integrated in both Euclidian and Minkowskian kinematic regimes. In Table 3, a numerical result calculated by the MBnumerics package [14,44,46,47,48], which is available at [23], is compared with the SD result.
The last example in this section represents one of the most complicated cases for considered one-scale planar self-energy three-loop electroweak diagrams. The MB representation for a diagram in Figure 6 in a form that comes directly from the AMBRE package is 7-dimensional.
I = 1 ( s ) 2 + 3 ϵ i + i i = 1 7 d z i M W 2 s z 4 Γ ( ϵ z 1 ) Γ ( z 1 ) Γ ( ϵ z 2 ) Γ ( z 2 ) Γ ( 1 2 ϵ ) Γ ( 1 z 1 ) Γ ( 3 ϵ z 24 ) × Γ ( z 3 ) Γ ( 1 + ϵ + z 123 ) Γ ( z 5 ) Γ ( 1 ϵ + z 235 ) Γ ( 1 + z 456 ) Γ ( z 6 ) Γ ( z 4 + z 6 ) Γ ( z 7 ) Γ ( 1 z 235 ) Γ ( 2 + ϵ + z 12345 z 6 ) × Γ ( 1 2 ϵ z 2345 + z 6 ) Γ ( ϵ z 2357 ) Γ ( ϵ + z 1 z 67 ) Γ ( 1 ϵ + z 7 ) Γ ( 1 z 1 + z 345 ) Γ ( 1 z 7 ) Γ ( 2 2 ϵ + z 2357 ) × Γ ( 1 + z 12 ) Γ ( 2 + 2 ϵ + z 23457 ) .
It is not difficult to check that, after the transformation  z 5 z 5 z 3 , one can simplify this representation by integrating over z 3 with the help of the so-called first Barnes lemma (details about Barnes lemmas can be found, for example, in [42]). This also can be done by barnesroutines.m after ϵ expansion. In this way, the final representation is 6-dimensional.
The result obtained by the MBnumerics in Minkowskian kinematics with s = 1 is
I = 22.5213 + 4.74442 i ± ( 0.001 + 0.001 i ) .
The accuracy, in this case, is not high in comparison to the 4-dimensional 2-loop vertex cases considered in [14,15,16]. Nevertheless, it can be used for crosschecks and some preliminary results. The SD result for this integral has only an accuracy of about 5–10% with the setup discussed in Section 3.2.

3.4. Reduction of Scales Using Taylor Expansion

Since, for both IBP and MB methods, it is highly desirable to have as few scales in the integral as possible, one can think of a way to reduce their number. A simple way to do that is to Taylor-expand, as discussed and applied in more general contexts in [49,50]. We apply a Taylor-expansion to the diagram depicted in Figure 7. The integrand can be expanded at e.g., M W = M Z and the expanded propagator takes the following form
1 k 2 M W 2 = 1 k 2 M Z 2 + ( M W 2 M Z 2 ) ( k 2 M Z 2 ) 2 + ( M W 2 M Z 2 ) 2 ( k 2 M Z 2 ) 3 + ( M W 2 M Z 2 ) 3 ( k 2 M Z 2 ) 4 + .
As the result, one can calculate more but, in principle, simpler integrals. This can be applied recursively in order to reduce the number of scales in the integral. Below are two exemplary plots for a three-loop Z boson self-energy integral in Figure 8 and Figure 9 that were calculated using the Taylor expansion. The results show how the integrals converge when including more terms. Calculations were made in Minkowskian kinematics, and thus for s = 1 . Each point represents the value of the integral after adding another order of expansion.
The first integral, with M W inside, converges faster than the other where, instead of M W , we have M H for two reasons. First, the difference between squares of M W and M Z is smaller than for M H and M Z . Second, the difference Δ H Z M H 2 M Z 2 is negative, and the terms in this series are positive for even powers of Δ H Z and negative for odd powers, which makes it an alternating series. More explicitly, for the first integral including nine terms in expansion already leads to 10 8 accuracy, while the other one reached 10 4 accuracy with 21 terms taken into account.

4. Conclusions

The SD and MB methods served well at the two-loop level of EWPOs calculations [14,15,16]. In this work, we discussed the present capabilities of these methods with suitable three-loop examples. Preliminary studies based on the present implementations of the SD and MB methods in available packages showed that these methods are insufficient for the current challenges. Then, we sketched another very promising approach based on differential equations, presenting the first three-loop examples that can push the calculations on.
The minimum set of master integrals required for the efficient evaluation of differential equations relies on catching all relations between the Feynman integrals. Therefore, we choose Kira which implements as well as PySecDec the so-called Alexey Pak algorithm to detect all relevant symmetry relations in all computations. With the method of Taylor expansion, we were able to enrich the number of relations between the Feynman integrals and, in this way, simplify the computations as well.
Since the studies at the three-loop level are dominantly numerical, it is highly desired to have a few independent methods available and, thereby, the possibility to cross-check the results. Merging all the presented methods, we hope to fulfil the theoretical requirements for future Z-boson factories.

Author Contributions

Conceptualization, I.D., K.G. and J.U.; methodology, I.D., K.G. and J.U.; software, I.D., K.G. and J.U.; validation, I.D., K.G. and J.U.; writing – original draft preparation, I.D., K.G. and J.U.; writing – review and editing, I.D., K.G. and J.U. All authors have read andagreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We thank Janusz Gluza, Ayres Freitas, and Martijn Hidding for useful discussions. The research was supported by the Polish National Science Center (NCN) under grant 2017/25/B/ST2/01987, COST (European Cooperation in Science and Technology) Action CA16201 PARTICLEFACE and the research activities co-financed by the funds granted under the Research Excellence Initiative of the University of Silesia in Katowice.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Electroweak; The SLD; Heavy Flavour Groups; ALEPH Collaboration; DELPHI Collaboration; L3 Collaboration; OPAL Collaboration; SLD Collaboration; LEP Electroweak Working Group; The SLD Electroweak; et al. Precision electroweak measurements on the Z resonance. Phys. Rept. 2006, 427, 257–454. [Google Scholar] [CrossRef] [Green Version]
  2. Bardin, D.; Hollik, W.; Passarino, G. (Eds.) Reports of the Working Group on Precision Calculations for the Z Resonance; Yellow Report CERN 95-03 (1995), Parts I to III; CERN: Geneva, Switzerland, 1995; 410p, Available online: http://cds.cern.ch/record/280836/files/CERN-95-03.pdf (accessed on 30 May 2021). [CrossRef]
  3. Djouadi, A.; Lykken, J.; Mönig, K.; Okada, Y.; Oreglia, M.; Yamashita, S. International Linear Collider Reference Design Report Volume 2: Physics at the ILC. arXiv 2007, arXiv:0709.1893. [Google Scholar]
  4. Kiyo, Y.; Olive, K.; Simon, F.; Uwer, P.; Wackeroth, D.; Zerwas, P.M.; Arbey, A.; Asano, M.; Bagger, J.; Bechtle, P.; et al. Physics at the e+e- Linear Collider. Eur. Phys. J. C 2015, 75, 371. [Google Scholar] [CrossRef] [Green Version]
  5. Linssen, L.; Miyamoto, A.; Stanitzki, M.; Weerts, H. Physics and Detectors at CLIC: CLIC Conceptual Design Report; CERN: Meyrin, Switzerland, 2012. [Google Scholar] [CrossRef]
  6. CLIC. Compact Linear International Collider Project, CERN. Available online: https://clicdp.web.cern.ch (accessed on 30 May 2021).
  7. CEPC Study Group. CEPC Conceptual Design Report: Volume 1—Accelerator. arXiv 2018, arXiv:1809.00285. [Google Scholar]
  8. CEPC. Circular Electron Positron Collider Project, China. Available online: http://cepc.ihep.ac.cn/ (accessed on 30 May 2021).
  9. Abada, A. FCC-ee: The Lepton Collider. Eur. Phys. J. ST 2019, 228, 261–623. [Google Scholar] [CrossRef]
  10. Blondel, A.; Freitas, A.; Gluza, J.; Riemann, T.; Heinemeyer, S.; Jadach, S.; Janot, P. Theory Requirements and Possibilities for the FCC-ee and other Future High Energy and Precision Frontier Lepton Colliders. arXiv 2019, arXiv:1901.02648. [Google Scholar]
  11. Blondel, A. Standard Model Theory for the FCC-ee Tera-Z Stage: Mini Workshop on Precision EW and QCD Calculations for the FCC Studies: Methods and Techniques; CERN Yellow Reports: Monographs; CERN: Geneva, Switzerland, 2018; Volume 3. [Google Scholar] [CrossRef]
  12. Blondel, A.; Gluza, J.; Jadach, S.; Janot, P.; Riemann, T. Theory for the FCC-ee: Report on the 11th FCC-ee Workshop Theory and Experiments; Blondel, A., Gluza, J., Jadach, S., Janot, P., Riemann, T., Eds.; CERN Yellow Reports: Monographs; CERN: Geneva, Switzerland, 2019; Volume 3/2020. [Google Scholar] [CrossRef]
  13. FCC. Future Circular Collider, Conceptual Design Report. Available online: https://fcc-cdr.web.cern.ch/ (accessed on 30 May 2021).
  14. Dubovyk, I.; Freitas, A.; Gluza, J.; Riemann, T.; Usovitsch, J. The two-loop electroweak bosonic corrections to sin2 θ eff b . Phys. Lett. B 2016, 762, 184–189. [Google Scholar] [CrossRef] [Green Version]
  15. Dubovyk, I.; Freitas, A.; Gluza, J.; Riemann, T.; Usovitsch, J. Complete electroweak two-loop corrections to Z boson production and decay. Phys. Lett. B 2018, 783, 86–94. [Google Scholar] [CrossRef]
  16. Dubovyk, I.; Freitas, A.; Gluza, J.; Riemann, T.; Usovitsch, J. Electroweak pseudo-observables and Z-boson form factors at two-loop accuracy. J. High Energy Phys. 2019, 8, 113. [Google Scholar] [CrossRef] [Green Version]
  17. Chen, L.; Freitas, A. Leading fermionic three-loop corrections to electroweak precision observables. J. High Energy Phys. 2020, 7, 210. [Google Scholar] [CrossRef]
  18. Chen, L.; Freitas, A. Mixed EW-QCD leading fermionic three-loop corrections at O(αsα2) to electroweak precision observables. J. High Energy Phys. 2021, 3, 215. [Google Scholar] [CrossRef]
  19. Bauberger, S.; Freitas, A.; Wiegand, D. TVID 2: Evaluation of planar-type three-loop self-energy integrals with arbitrary masses. J. High Energy Phys. 2020, 1, 24. [Google Scholar] [CrossRef] [Green Version]
  20. Borowka, S.; Heinrich, G.; Jahn, S.; Jones, S.P.; Kerner, M.; Schlenk, J.; Zirke, T. pySecDec: A toolbox for the numerical evaluation of multi-scale integrals. Comput. Phys. Commun. 2018, 222, 313–326. [Google Scholar] [CrossRef] [Green Version]
  21. Borowka, S.; Heinrich, G.; Jahn, S.; Jones, S.P.; Kerner, M.; Schlenk, J. A GPU compatible quasi-Monte Carlo integrator interfaced to pySecDec. Comput. Phys. Commun. 2018. [Google Scholar] [CrossRef]
  22. Bielas, K.; Dubovyk, I.; Gluza, J.; Riemann, T. Some Remarks on Non-planar Feynman Diagrams. Acta Phys. Polon. B 2013, 44, 2249–2255. [Google Scholar] [CrossRef]
  23. AMBRE. Available online: http://prac.us.edu.pl/~gluza/ambre (accessed on 30 May 2021).
  24. Hahn, T. CUBA: A library for multidimensional numerical integration. Comput. Phys. Commun. 2005, 168, 78–95. [Google Scholar] [CrossRef] [Green Version]
  25. Chetyrkin, K.; Tkachov, F. Integration by Parts: The Algorithm to Calculate β Functions in 4 Loops. Nucl. Phys. B 1981, 192, 159–204. [Google Scholar] [CrossRef]
  26. Kotikov, A. Differential equations method: New technique for massive Feynman diagrams calculation. Phys. Lett. B 1991, 254, 158–164. [Google Scholar] [CrossRef]
  27. Kotikov, A. Differential equations method: The Calculation of vertex type Feynman diagrams. Phys. Lett. B 1991, 259, 314–322. [Google Scholar] [CrossRef]
  28. Kotikov, A.V. Differential equation method: The Calculation of N point Feynman diagrams. Phys. Lett. B 1991, 267, 123–127. [Google Scholar] [CrossRef]
  29. Gehrmann, T.; Remiddi, E. Differential equations for two-loop four-point functions. Nucl. Phys. B 2000, 580, 485–518. [Google Scholar] [CrossRef] [Green Version]
  30. Maierhöfer, P.; Usovitsch, J.; Uwer, P. Kira—A Feynman integral reduction program. Comput. Phys. Commun. 2018, 230, 99–112. [Google Scholar] [CrossRef] [Green Version]
  31. Klappert, J.; Lange, F.; Maierhöfer, P.; Usovitsch, J. Integral Reduction with Kira 2.0 and Finite Field Methods. Comput. Phys. Commun. 2021, 266. [Google Scholar] [CrossRef]
  32. Laporta, S. High precision calculation of multiloop Feynman integrals by difference equations. Int. J. Mod. Phys. A 2000, 15, 5087–5159. [Google Scholar] [CrossRef]
  33. Hidding, M. DiffExp, a Mathematica package for computing Feynman integrals in terms of one-dimensional series expansions. arXiv 2020, arXiv:2006.05510. [Google Scholar]
  34. Panzer, E. Feynman integrals and hyperlogarithms. arXiv 2015, arXiv:1506.07243. [Google Scholar]
  35. Von Manteuffel, A.; Panzer, E.; Schabinger, R.M. A quasi-finite basis for multi-loop Feynman integrals. J. High Energy Phys. 2015, 2015. [Google Scholar] [CrossRef] [Green Version]
  36. Von Manteuffel, A.; Panzer, E.; Schabinger, R.M. Computation of form factors in massless QCD with finite master integrals. Phys. Rev. D 2016, 93. [Google Scholar] [CrossRef] [Green Version]
  37. Von Manteuffel, A.; Studerus, C. Reduze 2-Distributed Feynman Integral Reduction. arXiv 2012, arXiv:1201.4330. [Google Scholar]
  38. Borowka, S.; Heinrich, G.; Jones, S.; Kerner, M.; Schlenk, J.; Zirke, T. SecDec-3.0: Numerical evaluation of multi-scale integrals beyond one loop. Comput. Phys. Commun. 2015, 196, 470–491. [Google Scholar] [CrossRef] [Green Version]
  39. Tarasov, O.V. Connection between Feynman integrals having different values of the space-time dimension. Phys. Rev. D 1996, 54, 6479–6490. [Google Scholar] [CrossRef] [Green Version]
  40. Lee, R.N. Calculating multiloop integrals using dimensional recurrence relation and D-analyticity. Nucl. Phys. B Proc. Suppl. 2010, 205–206, 135–140. [Google Scholar] [CrossRef] [Green Version]
  41. Lee, R.N. LiteRed 1.4: A powerful tool for reduction of multiloop integrals. J. Phys. Conf. Ser. 2014, 523, 012059. [Google Scholar] [CrossRef]
  42. Gluza, J.; Kajda, K.; Riemann, T. AMBRE—A Mathematica package for the construction of Mellin–Barnes representations for Feynman integrals. Comput. Phys. Commun. 2007, 177, 879–893. [Google Scholar] [CrossRef] [Green Version]
  43. Gluza, J.; Kajda, K.; Riemann, T.; Yundin, V. Numerical Evaluation of Tensor Feynman Integrals in Euclidean Kinematics. Eur. Phys. J. C 2011, 71, 1516. [Google Scholar] [CrossRef] [Green Version]
  44. Czakon, M. Automatized analytic continuation of Mellin–Barnes integrals. Comput. Phys. Commun. 2006, 175, 559–571. [Google Scholar] [CrossRef] [Green Version]
  45. Kosower, D. Mathematica Program Barnesroutines.m, Version 1.1.1. July 2009. Available online: http://projects.hepforge.org/mbtools/ (accessed on 30 May 2021).
  46. Usovitsch, J. Numerical Evaluation of Mellin–Barnes Integrals in Minkowskian Regions and Their Application to Two-Loop Bosonic Electroweak Contributions to the Weak Mixing Angle of the Z b ¯ b-vertex. Ph.D. Thesis, Humboldt-Universität, Berlin, Germany, 2018. [Google Scholar] [CrossRef]
  47. Dubovyk, I.; Gluza, J.; Riemann, T.; Usovitsch, J. Numerical integration of massive two-loop Mellin–Barnes integrals in Minkowskian regions. PoS 2016, LL2016, 34. [Google Scholar] [CrossRef] [Green Version]
  48. Usovitsch, J.; Dubovyk, I.; Riemann, T. MBnumerics: Numerical integration of Mellin–Barnes integrals in physical regions. PoS 2018, LL2018, 46. [Google Scholar] [CrossRef] [Green Version]
  49. Smirnov, V.A. Asymptotic expansions in momenta and masses and calculation of Feynman diagrams. Mod. Phys. Lett. A 1995, 10, 1485–1500. [Google Scholar] [CrossRef] [Green Version]
  50. Misiak, M.; Steinhauser, M. Three loop matching of the dipole operators for bsγ and bsg. Nucl. Phys. B 2004, 683, 277–305. [Google Scholar] [CrossRef] [Green Version]

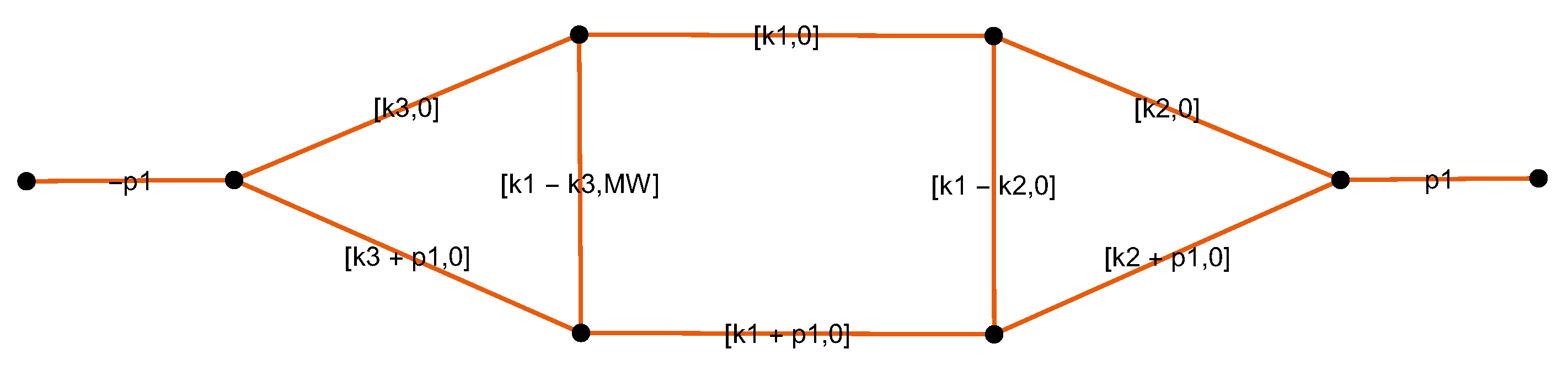

Figure 1. List of propagators: PR[k1, 0, n1] PR[k1 − k2, 0, n2] PR[k2, 0, n3] PR[k1 − k3, MW, n4] PR[ k3, 0, n5] PR[k1 + p1, 0, n6] PR[k2 + p1, 0, n7] PR[k3 + p1, 0, n8] where PR[k,M,n] stands for  ( k 2 M 2 ) n . In this and the following numerical examples, all powers of propagators are equal to 1. This and the next figures were generated using PlanarityTest [22], which is available at [23].
Figure 1. List of propagators: PR[k1, 0, n1] PR[k1 − k2, 0, n2] PR[k2, 0, n3] PR[k1 − k3, MW, n4] PR[ k3, 0, n5] PR[k1 + p1, 0, n6] PR[k2 + p1, 0, n7] PR[k3 + p1, 0, n8] where PR[k,M,n] stands for  ( k 2 M 2 ) n . In this and the following numerical examples, all powers of propagators are equal to 1. This and the next figures were generated using PlanarityTest [22], which is available at [23].
Symmetry 13 00975 g001

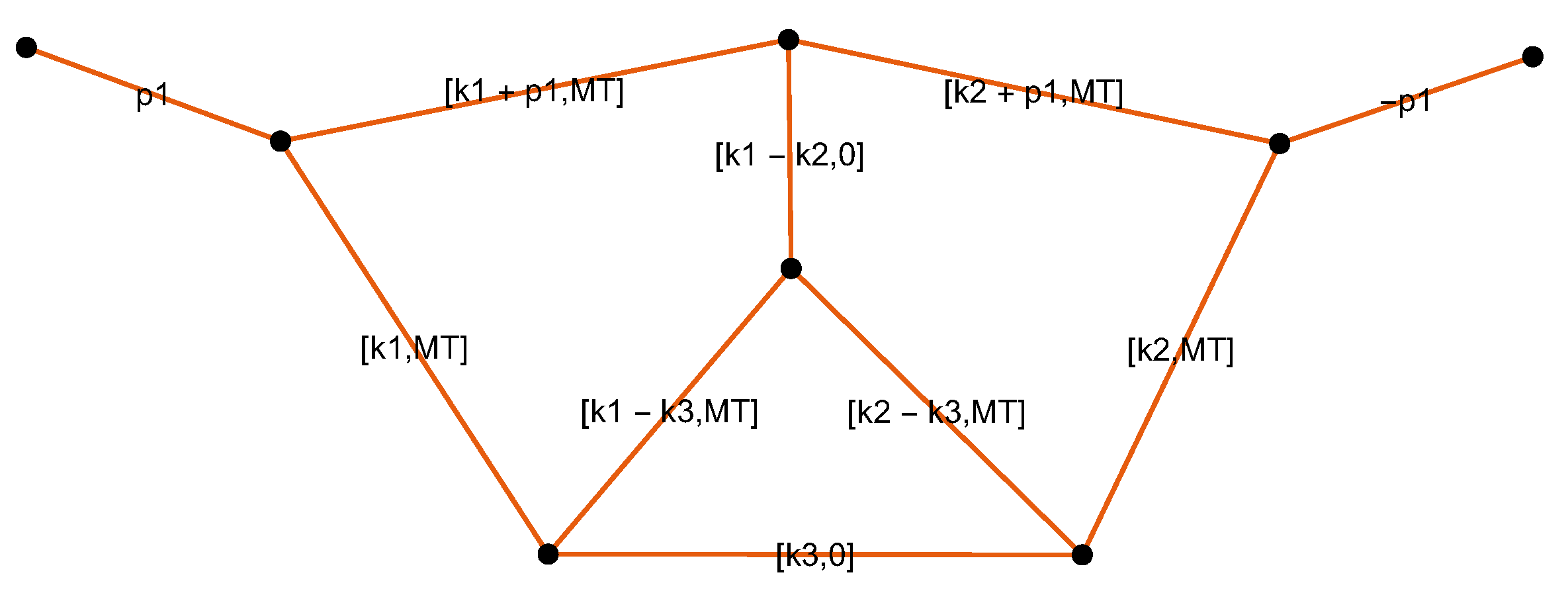

Figure 2. A self-energy three-loop diagram with propagators: PR[k1, MT, n1] PR[k1 − k2, 0, n2] PR[k2, MT, n3] PR[k1 − k3, MT, n4] PR[k2 − k3, MT, n5] PR[k3, 0, n6] PR[k1 + p1, MT, n7] PR[k2 + p1, MT, n8].
Figure 2. A self-energy three-loop diagram with propagators: PR[k1, MT, n1] PR[k1 − k2, 0, n2] PR[k2, MT, n3] PR[k1 − k3, MT, n4] PR[k2 − k3, MT, n5] PR[k3, 0, n6] PR[k1 + p1, MT, n7] PR[k2 + p1, MT, n8].
Symmetry 13 00975 g002

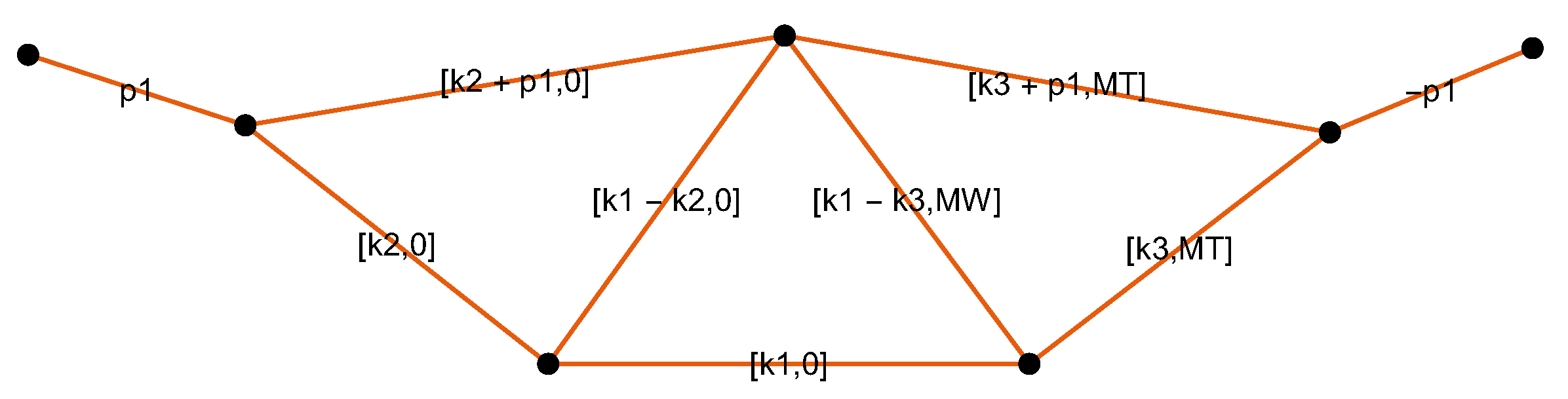

Figure 3. A self-energy three-loop diagram with propagators: PR[k1, 0, n1] PR[k1 − k2, 0, n2] PR[k2, 0, n3] PR[k1 − k3, MW, n4] PR[k3, MT, n5] PR[k2 + p1, 0, n6] PR[k3 + p1, MT, n7].
Figure 3. A self-energy three-loop diagram with propagators: PR[k1, 0, n1] PR[k1 − k2, 0, n2] PR[k2, 0, n3] PR[k1 − k3, MW, n4] PR[k3, MT, n5] PR[k2 + p1, 0, n6] PR[k3 + p1, MT, n7].
Symmetry 13 00975 g003

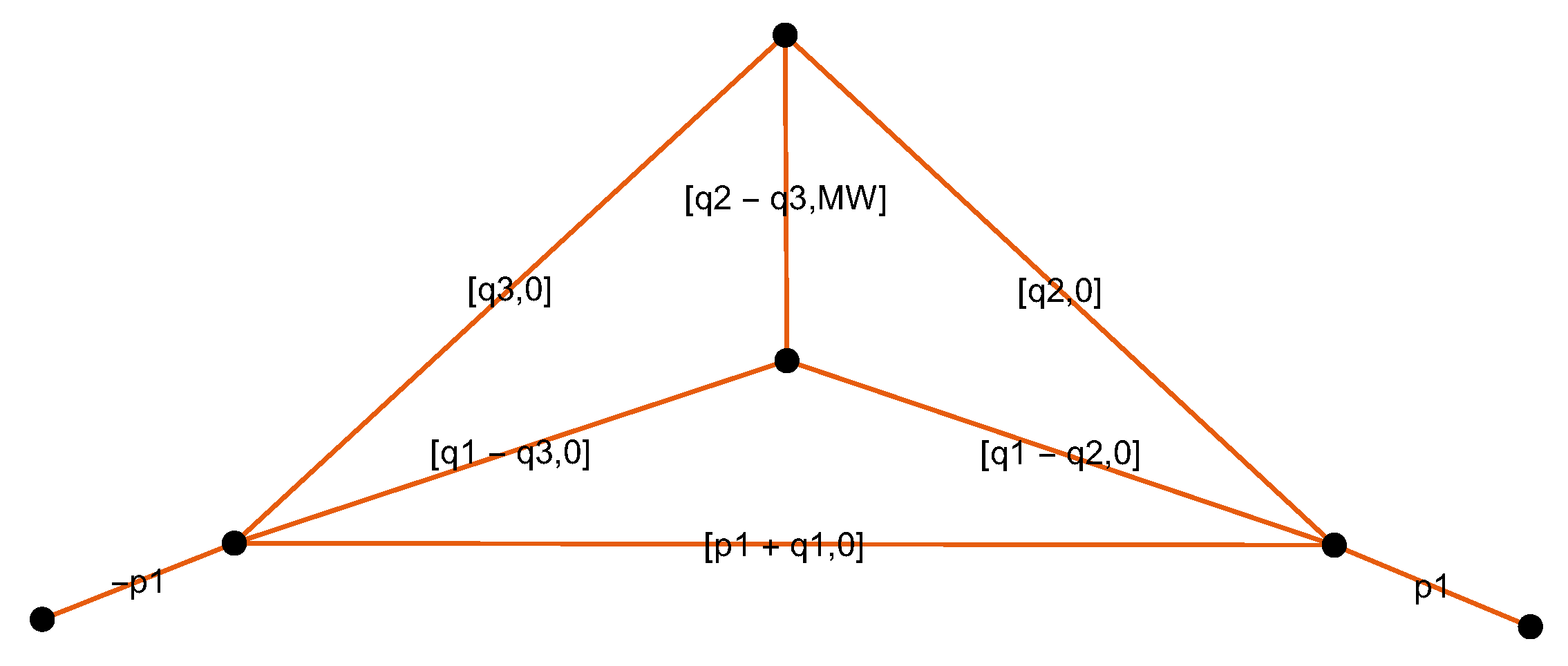

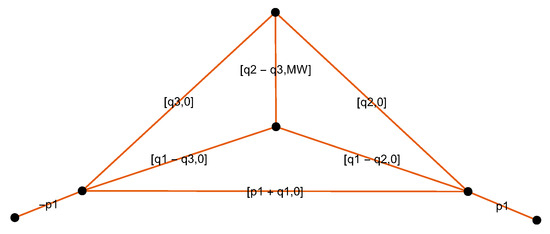

Figure 4. A diagram that corresponds to the integral in Equation (4).
Figure 4. A diagram that corresponds to the integral in Equation (4).
Symmetry 13 00975 g004

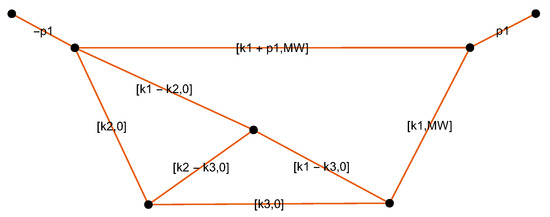

Figure 5. A diagram corresponding to the integral in Equation (15).
Figure 5. A diagram corresponding to the integral in Equation (15).
Symmetry 13 00975 g005

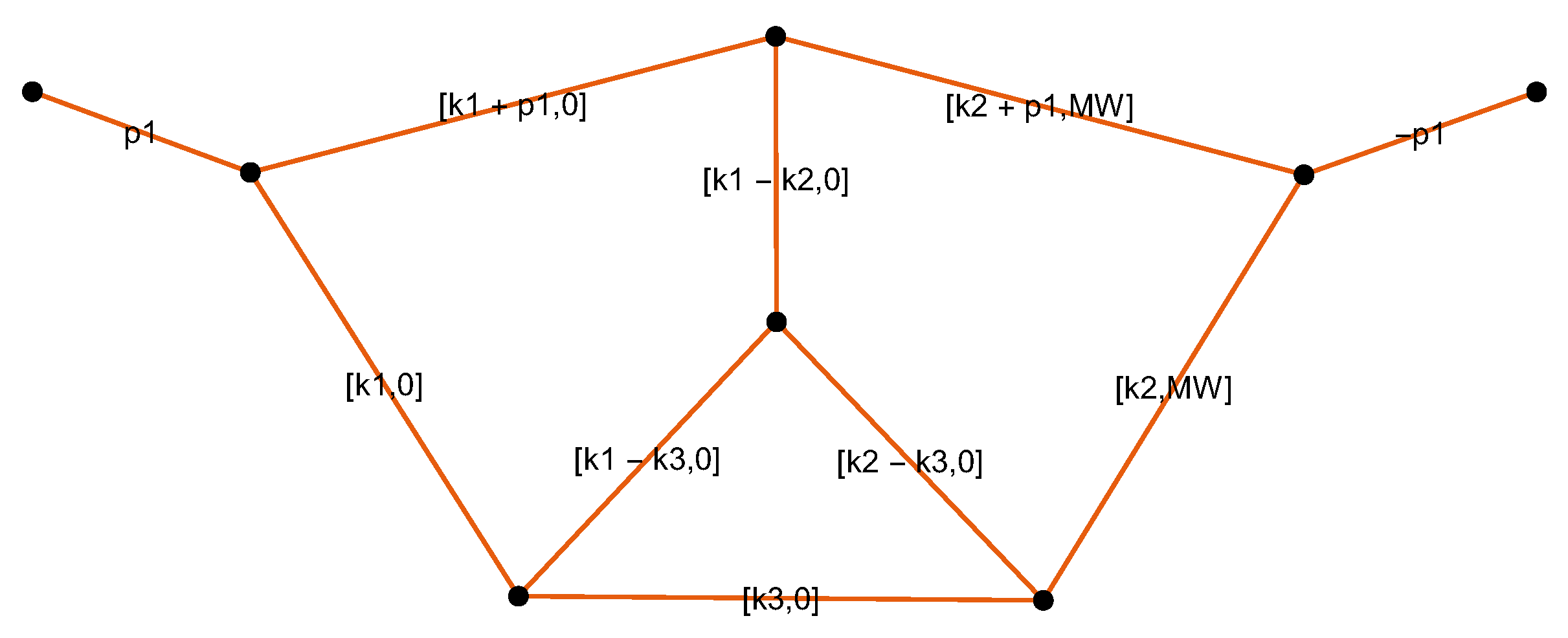

Figure 6. A diagram corresponding to the integral in Equation (17).
Figure 6. A diagram corresponding to the integral in Equation (17).
Symmetry 13 00975 g006
Figure 7. The diagram represents an exemplary integral for which the propagator with M W has been expanded as presented in Equation (19). An artificial integral is also considered where, instead of M W , the mass of propagator is equal to M H and then expanded in M H = M Z .
Figure 7. The diagram represents an exemplary integral for which the propagator with M W has been expanded as presented in Equation (19). An artificial integral is also considered where, instead of M W , the mass of propagator is equal to M H and then expanded in M H = M Z .
Symmetry 13 00975 g007

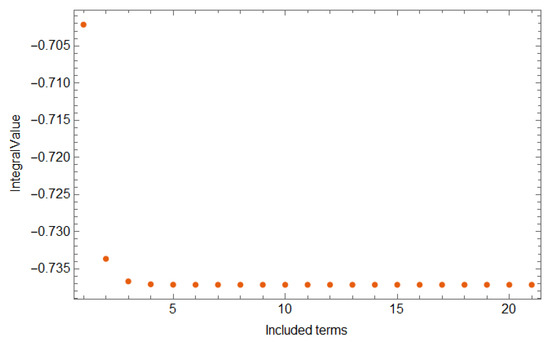

Figure 8. Evaluation of the integral corresponding to the diagram in Figure 7 at M W = M Z , including the sequential terms of expansion presented in Equation (19).
Figure 8. Evaluation of the integral corresponding to the diagram in Figure 7 at M W = M Z , including the sequential terms of expansion presented in Equation (19).
Symmetry 13 00975 g008

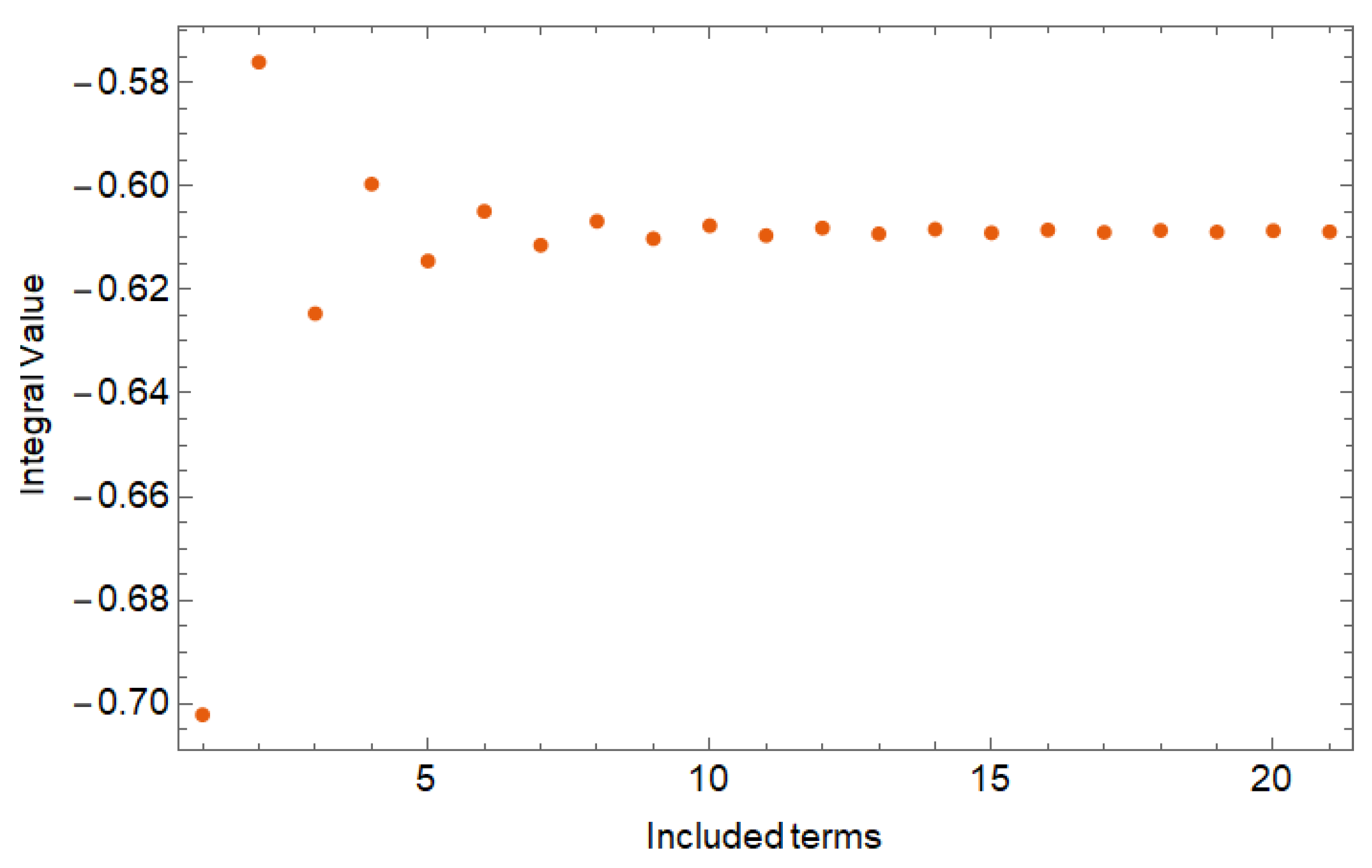

Figure 9. Evaluation of the integral corresponding to the diagram in Figure 7 with M W replaced by M H , expanded at M H = M Z , including sequential terms of expansion analogous to the one presented in Equation (19).
Figure 9. Evaluation of the integral corresponding to the diagram in Figure 7 with M W replaced by M H , expanded at M H = M Z , including sequential terms of expansion analogous to the one presented in Equation (19).
Symmetry 13 00975 g009
Table 1. The number of two and three loop vertex topologies and diagrams for the  Z e + e process. In brackets, we give the number of topologies in which those diagrams appear. QCD stands for diagrams with gluons, and EW is the remaining part. Bosonic means no fermionic loops inside. A similar table for the  Z b b ¯ process can be found in [11].
Table 1. The number of two and three loop vertex topologies and diagrams for the  Z e + e process. In brackets, we give the number of topologies in which those diagrams appear. QCD stands for diagrams with gluons, and EW is the remaining part. Bosonic means no fermionic loops inside. A similar table for the  Z b b ¯ process can be found in [11].
Z → e +   e
Number of topologies2 loops3 loops
14211
Number of diagrams2012397,690
Bosonic1711305,293
Fermionic301 (4)92,397 (82)
QCD11228
EW2011396,462
Planar1914 (13)350,709 (183)
Non-planar98 (1)46,981 (28)
Table 2. Comparison of three of the integrators available in pySecDec, each evaluated using 10 7 points for the integral corresponding to the diagram shown in Figure 1 in Euclidean kinematics, s = 1 . The MB result is also given; for details, see Section 3.3.
Table 2. Comparison of three of the integrators available in pySecDec, each evaluated using 10 7 points for the integral corresponding to the diagram shown in Figure 1 in Euclidean kinematics, s = 1 . The MB result is also given; for details, see Section 3.3.
IntegratorResultAbsolute Error
QMC [21]8.629885284.99 ×   10 6
Divonne [24]8.629954725.31 ×   10 5
Vegas [24]8.629902602.17 ×   10 4
MB8.629953649.77 ×   10 6
Table 3. A comparison of the MB and SD methods for the integral corresponding to the diagram in Figure 5 in Minkowskian kinematics with s = 1 .
Table 3. A comparison of the MB and SD methods for the integral corresponding to the diagram in Figure 5 in Minkowskian kinematics with s = 1 .
MethodResultAbsolute Error
SD + QMC 18.787167067 6.384327811 i0.0093 + 0.0097 i
MBnumerics 18.779406962 6.390785027 i 10 9 + 10 9 i
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Dubovyk, I.; Usovitsch, J.; Grzanka, K. Toward Three-Loop Feynman Massive Diagram Calculations. Symmetry 2021, 13, 975. https://doi.org/10.3390/sym13060975

AMA Style

Dubovyk I, Usovitsch J, Grzanka K. Toward Three-Loop Feynman Massive Diagram Calculations. Symmetry. 2021; 13(6):975. https://doi.org/10.3390/sym13060975

Chicago/Turabian Style

Dubovyk, Ievgen, Johann Usovitsch, and Krzysztof Grzanka. 2021. "Toward Three-Loop Feynman Massive Diagram Calculations" Symmetry 13, no. 6: 975. https://doi.org/10.3390/sym13060975

APA Style

Dubovyk, I., Usovitsch, J., & Grzanka, K. (2021). Toward Three-Loop Feynman Massive Diagram Calculations. Symmetry, 13(6), 975. https://doi.org/10.3390/sym13060975

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
