The Crystal Chemistry of Voltaite-Group Minerals from Post-Volcanic and Anthropogenic Occurrences

Abstract

Five samples of voltaite-group minerals from post-volcanic occurrences (geothermal fields and solfatara at pyroclastic flow) and from pseudofumaroles born by coal fires are characterized by single-crystal X-ray diffraction, scanning electron microscopy and electron microprobe analysis. The studied minerals include ammoniomagnesiovoltaite, ammoniovoltaite, voltaite and magnesiovoltaite. The quadrilateral of chemical compositions is determined by monovalent cations such as (NH₄)⁺ and K⁺ and divalent cations such as Fe²⁺ and Mg²⁺. Minor Al can occur in the Fe³⁺ site. Minor amounts of P, V can occur in the S site. Ammonium members are described from geothermal fields, expanding the mineral potential of this type of geological environment. All minerals are cubic, space group Fd-3c, a = 27.18–27.29 Å, V = 20079–20331 ų, Z = 16. No clear evidence of symmetry lowering (suggested for synthetic voltaites) is observed despite the chemical variation in the studied samples. Ammonium species tend to have a larger a lattice parameter than potassium ones due to longer <A–O> distances (A = N or K). The systematically shorter <Me²⁺–ϕ>_obs (Me²⁺ = Fe, Mg; ϕ = O, H₂O) in comparison to <Me²⁺–ϕ>_calc bond lengths can be explained as a consequence of mean bond length variation due to significant bond length distortion in Me²⁺ϕ₆ octahedra Me2–O2—2.039–2.055 Å; Me2–O4—2.085–2.115 Å; and Me2–Ow5—2.046–2.061 Å, with bond length distortion estimated as from 0.008 to 0.014 for different samples.

1. Introduction

The voltaite group includes hydrous sulfate minerals with the general formula A₂Me2₅M1₃Al(SO₄)₁₂(H₂O)₁₈, where species-defining cations are A = (NH₄)⁺, K; Me2 = Fe²⁺, Mg, Zn; M1 = Fe³⁺ or Fe³⁺ combined with Mg [1,2,3,4,5,6]. Synthetic voltaite-like sulfates were reported with A = (NH₄)⁺, K, Tl, Rb and Me2 = Fe²⁺, Mg, Zn, Cd, Co and Mn [7,8,9,10,11,12,13,14].

The crystal structure of voltaite consists of krönkite-like chains in which Me²⁺ϕ₆ (ϕ = O, H₂O) octahedra are corner-shared to sulfate tetrahedra that, in turn, are corner-shared with M1O₆ (M1 = Fe³⁺) octahedra. The three-dimensional arrangement of such chains produces the framework, with two types of cavities occupied by A-site cations and Al(H₂O)₆ octahedra [12,15] (Figure 1). Most of the voltaite-group minerals are cubic, Fd-3c, with the exception of pertlikite which is tetragonal, I4₁/acd, as the result of symmetry lowering due to Fe-Mg ordering in one crystallographic site [3,4,12,16,17,18]. For synthetic samples [12], cubic and tetragonal modifications were observed forming even sectorial crystals. The estimation of information-based structural complexity using crystal structure data [19] shows that the voltaite-group minerals are very complex with structural complexity per atom (I_G) and per unit cell (I_G,total) being 4.160 bit/atom and 3177.944 bit/cell, as calculated for one published voltaite model [17]. The high complexity of the voltaite framework is the combination of topological information (~30%); interstitial structure (~20%) and hydrogen bonding network (>50%) with some authors [19] suggesting even higher complexity for the ammonium representatives of the voltaite group. In that work [19], the authors note the high complexity of the general voltaite framework and suggest that this is responsible for the high structural complexity.

The formation of voltaite-group minerals tends to occur under acid leaching conditions at temperatures typically not higher than 100 °C. In nature, these are mainly conditions like low-temperature volcanic fumaroles (solfatares), gas-steam jets of hydrothermal activity at geothermal fields and the oxidation zone of sulfide ores, commonly in arid regions. The coal fires with exhalations deposited around pseudofumaroles have “near-natural”, or anthropogenic (technogenic) origin, while voltaite formation in acid mine drainage (AMD) settings is definitely the result of an anthropogenic process [12].

Recently, Tl-bearing voltaite was described from the Apuan Alps (Tuscany, Italy) [17], expanding the chemical composition of natural species. This is important from an environmental point of view since Tl-bearing voltaites could be the long-term source and sink of Tl in surface environments [20]. At the same time, the findings of ammonium members of the voltaite group reflect rather unusual geochemical features of a mineral formation system. Recently ammoniovoltaite, (NH₄)₂Fe²⁺₅Fe³⁺₃Al(SO₄)₁₂(H₂O)₁₈, has been described as a new mineral from the Severo-Kambalny geothermal field (Kamchatka, Russia) [6] that isdeposited around steam-gas jets and has not been described from other localities yet. A similar situation is observed for ammoniomagnesiovoltaite, first described from anthropogenic pseudofumaroles at the burning dumps of coal mines in 2009 [4] and that has a couple of confirmed findings worldwide. This somewhat contrasts with the findings of potassium voltaites, which are tens of times more numerous. Interestingly, “ordinary” potassium voltaite, i.e., potassic voltaite, has been described from the Geysers geothermal system, California, USA [21] where many ammonium minerals were also reported.

Ammonium-dominant group species are still described very scarcely in terms of their crystal structure (one structure refinement using single-crystal XRD data [6]) and abundance. The present work is intended to provide the chemical composition and crystal structure data for five samples of voltaite-group minerals and an analysis of their geometrical parameters. Separately, we note that voltaite-group minerals are rather common for post-volcanic environments, however they are rarely described in detail from this type of occurrence.

2. Materials and Methods

2.1. Materials

This paper presents a study of voltaite-group minerals from the objects of two different genetic types: (a) natural conditions related to acid leaching, with water solutions or fumarolic gases in the area of active volcanism and (b) natural or anthropogenic coal fire.

Regarding voltaite-group minerals from post-volcanic occurrences, the four samples presented here occur from four volcanos (all located at Kamchatka, Far East Russia): Koshelev, Bolshoi Semiachik, Mutnovsky and Shiveluch. The temperature of mineral formation in all cases is estimated as not higher than 100 °C. The minerals formed around steam-gas jets and at the surface of geothermal fields (Figure 2).

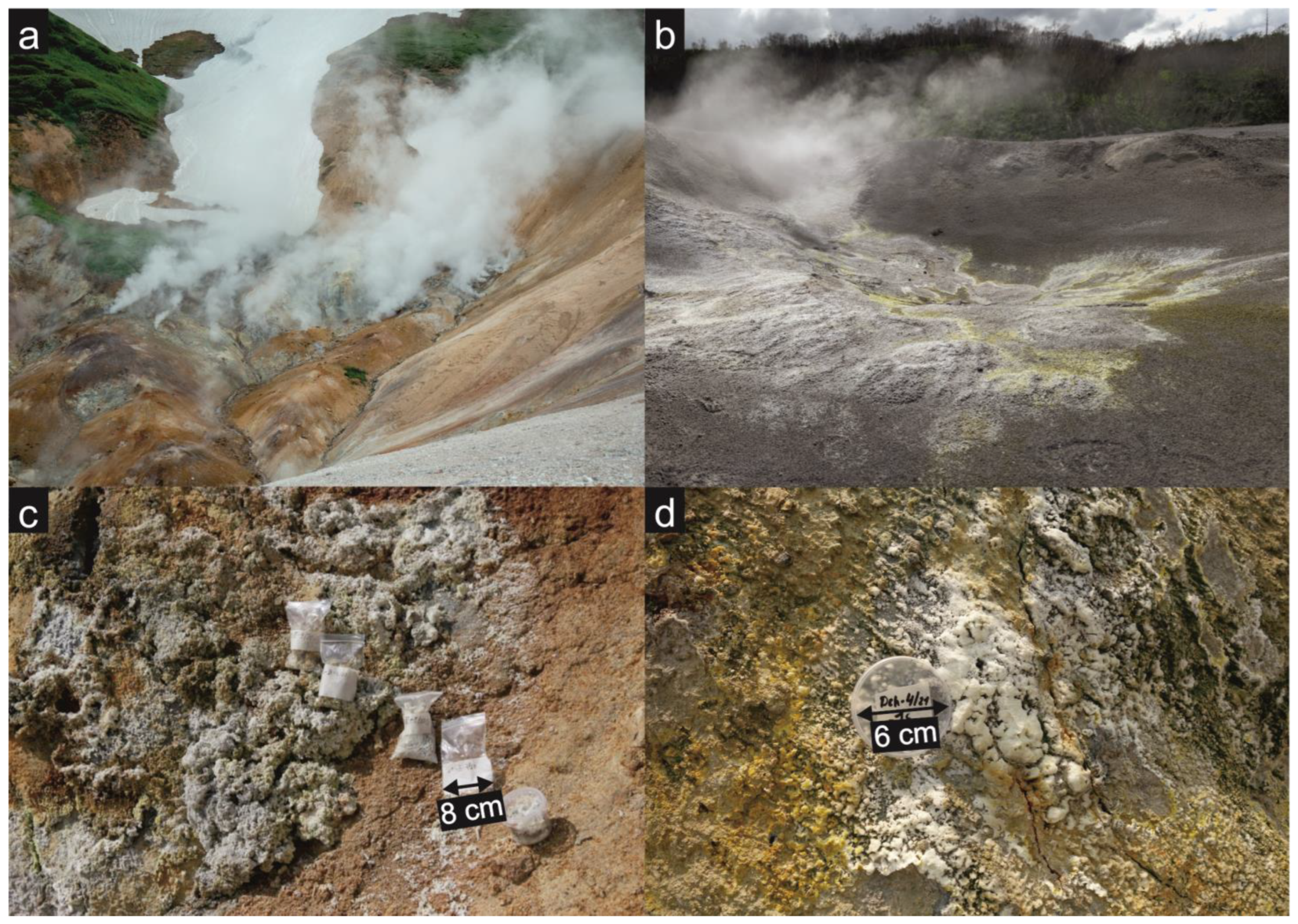

The samples from geothermal fields were well-shaped isometric crystals of voltaite-group minerals up to 0.13 mm or clusters of smaller isometric crystals of black, dark-green, oil-green or grey colour occuring in intimate association with halotrichite and/or alunogen (Figure 2c,d). The samples from geothermal fields are denoted as the following (abbreviation—name of thermal field): VK—Verkhne-Koshelev (Koshelev volcano); Dch—Dachnoe (Muntnovsky volcano); SCC—Severny (=North) Crater of Centralny (=Central) Semiachik (Bolshoi Semiachik volcanic complex). Some chemical and structural features of halotrichite, alunogen, alunite-group and alum-group members and other minerals found in association with voltaite-group sulfates from these localities were discussed recently [22,23,24].

At Schiveluch volcano, voltaite-group minerals were formed in low-temperature sulfate fumaroles (solfatares) at pyroclastic deposits that appeared after a strong volcanic eruption in April 2023 (Figure 2b). In the sample Shiv-8030, magnesiovoltaite occurs as well-shaped grey crystals up to 0.1 mm across, formed by {110}, {100} and {111} faces, and with clusters associated with pickeringite, godovikovite, alunogen, tamarugite, Fe-bearing kieserite, mascagnite, adranosite, and boussingaultite.

Anthropogenic voltaite studied in this work is represented by the sample collected in 1988 at the burning terricon of the Yuriy Gagarin coal mine located in Nikitovka, Donetsk Oblast of the Ukrainian SSR. Voltaite forms open-work aggregates of green-black cuboctahedral crystals up to 0.05 mm closely associated with colourless alunogen in sublimates of a pseudofumarole.

2.2. Methods

2.2.1. Scanning Electron Microscopy (SEM) and Electron Microprobe Analysis (EMPA)

Voltaite-group minerals were prepared for analysis in two ways: (i) deposited on carbon tape, then carbon coated and (ii) immersed into epoxy resin that was polished after hardening and finally carbon coated. The samples were studied using SEM and EMPA (energy-dispersive spectroscopy (EDS) mode). EDS, but not wavelengths-dispersive spectroscopy (WDS), was used due to the possibility of (1) performing analyses with low beam current which is necessary due to the instability of the highly hydrous minerals under electron beam and (2) in situ control of the sample condition during the spectrum acquisition, as well as the analysis of small-sized grains of distinct minerals found in intimate association [25,26].

The chemical composition of voltaite-group minerals was analysed using electron microscopes at three locations: (i) the “Geomodel” Resource Centre of the Scientific Park of St. Petersburg State University, which has a scanning electron microscope Hitachi S-3400N (Hitachi Ltd., Tokyo, Japan) equipped with an energy-dispersive spectrometer Oxford X-Max 20 (Oxford Instruments Ltd., Abingdon, UK), operating at an accelerating voltage of 20 kV and a probe current of 0.5 nA with various electron beam diameters of minimum 5 μm due to possible dehydration under the electron beam; (ii) the Laboratory of Volcanogenic Ore Formation of the Institute of Volcanology and Seismology FEB RAS, which has a scanning electron microscope Tescan Vega 3 LMH (Tescan Ltd., Prague, Czech Republic) equipped with an energy-dispersive spectrometer Oxford X-Max 80 mm² (Oxford Instruments Ltd., UK), operating at an accelerating voltage of 20 kV, current intensity of 0.9 nA and beam size of 220 nm, with analyses carried out in areas of about 5 × 5 µm; (iii) the Laboratory of Local Methods of Matter Investigation, Faculty of Geology, Moscow State University, which has a Jeol JSM-6480LV scanning electron microscope equipped with an energy-dispersive spectrometer X-Max 50, at an acceleration voltage of 20 kV, a beam current of 0.7 nA, and a 5 μm beam diameter. The scanning electron microscope Hitachi S-3400N was calibrated against a series of natural standards (MAC). For the scanning electron microscope Tescan Vega 3 LMH system, calibration was performed on Ni. The following standards were used: pure metals (Fe, Cu), corundum (Al), herzenbergite (S), sanidine (K, Na, Si), periclase (Mg). For the analysis on Jeol JSM-6480LV the following standards were used: orthoclase (K), diopside (Mg), Al₂O₃ (Al), Ti (Ti), FeS (Fe), and BaSO₄ (S). The resulting data were processed using the AZtec program package in all cases.

2.2.2. Single-Crystal X-ray Diffraction

Single-crystal X-ray diffraction analysis was carried out for voltaite-group minerals using Rigaku XtaLAB Synergy-S (Rigaku corporation, Akishima, Japan) operated with monochromated MoKα radiation (source: MoKα, λ = 0.71073 Å) at 50 kV and 1.0 mA and equipped with a CCD HyPix-6000HE detector (Rigaku corporation, Japan). The conditions of data collection are given in

Table 1. Crystal chemical data, data collection and refinement parameters for voltaite-group minerals.

Sample	VK4-09	Dch-9-21-5s	Ni4225	SCCIII-14-20s	Shiv-8030
Crystal Chemical Data
Crystal system	Cubic	Cubic	Cubic	Cubic	Cubic
Space group	Fd-3c	Fd-3c	Fd-3c	Fd-3c	Fd-3c
a (Å)	27.2933 (5)	27.2464 (3)	27.2364 (6)	27.1801 (2)	27.1921 (2)
V (Å3)	20,331.4 (11)	20,226.8 (7)	20,204.6 (13)	20,079.5 (4)	20,106.0 (3)
Z	16	16	16	16	16
Calculated density (g/cm3)	2.454	2.498	2.511	2.540	2.525
Absorption coefficient (mm−1)	2.124	2.325	2.272	2.294	2.194
Size, mm	0.09 × 0.09 × 0.09	0.05 × 0.05 × 0.05	0.06 × 0.06 × 0.06	0.08 × 0.10 × 0.12	0.09 × 0.09 × 0.09
Colour	Green	Dark grey	Black	Black	Grey
Data collection
Temperature (K)	293	293	293	293	293
Radiation, wavelength (Å)	MoKα, 0.71073
Range of data collection, 2θ (°)	7.314–66.79	7.326–67.596	7.33–66.948	7.344–67.38	7.34–70.92
h, k, l ranges	−38 → 29, -41 → 23, −14 → 37	−30 → 41, −42 → 34, −30 → 30	−15 → 37, −24 → 41, −38 → 29	−42 → 42, −37 → 41, −40 → 41	−27 → 34, −35 → 44, −43 → 19
Total reflection collected	8961	12,822	9942	84,994	23,593
Unique reflections (Rint)	1481 (0.0572)	1488 (0.0361)	1477 (0.0493)	1632 (0.0672)	1814 (0.0286)
Number of unique reflections F > 2σ(F)	1185	1204	1229	1208	1630
Data completeness (%)	99.5	99.5	99.6	99.6	99.6
Structure refinement
Refinement method	Full-matrix least-squares on F2
Weighting coefficients a, b	0.0394, 474.1972	0.0386, 64.5360	0.0112, 365.3476	0.0448, 423.1603	0.0445, 48.4126
Data/restrain/parameters	1481/2/95	1488/2/95	1477/2/95	1632/2/95	1814/2/94
R1 [F > 2σ(F)], wR2 [F > 2σ(F)]	0.0590, 0.1237	0.0331, 0.0758	0.0521, 0.0991	0.0507, 0.1144	0.0250, 0.0727
R1 all, wR2 all	0.0777, 0.1324	0.0478, 0.0806	0.0665, 0.1024	0.0847, 0.1480	0.0293, 0.0743
Goodness-of-fit on F2	1.176	1.092	1.257	1.238	1.152
Largest diff. peak and hole (ēÅ−3)	0.63/−0.93	0.45/−0.30	0.47/−0.52	0.75/−0.55	0.51/−1.13

. The CrysAlisPro [27] software package was used to process the data; an empirical absorption correction was calculated based on spherical harmonics implemented in the SCALES ABSPACK algorithm. The structures were solved and refined using the ShelX program package [28] incorporated into the Olex2 software shell [29].

3. Results

3.1. Crystal Structure

As an initial structure model for the refinement, the atomic coordinates were taken from 6 for ammoniovoltaite. The H atoms of the H₂Ow5 molecule coordinating Me2 site were located from the analysis of difference Fourier electron-density maps and were refined with imposed restraints of 0.9 ± 0.02 Å [30]. H-atom positions for H₂O molecules in Al(H₂O)₆ octahedra were not refined due to disordering of H₂O molecules (even O-atoms). There is a correlation between the crystal quality (that is reflected by R_int, which is the measure of equivalence of symmetry-equivalent reflections) and the disagreement index R₁ (that is equivalent to obtaining a least-squares fit between the calculated electron density and that obtained from a Fourier series based on the observed structure factors) [31]. As such, the crystal structure of better crystallized crystal is refined to lower disagreement indexes. However, all disagreement indexes are rather low.

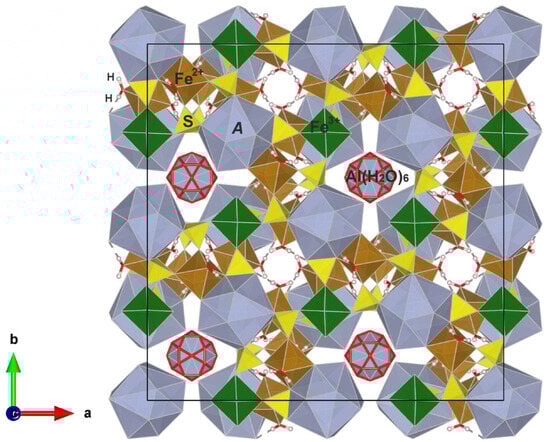

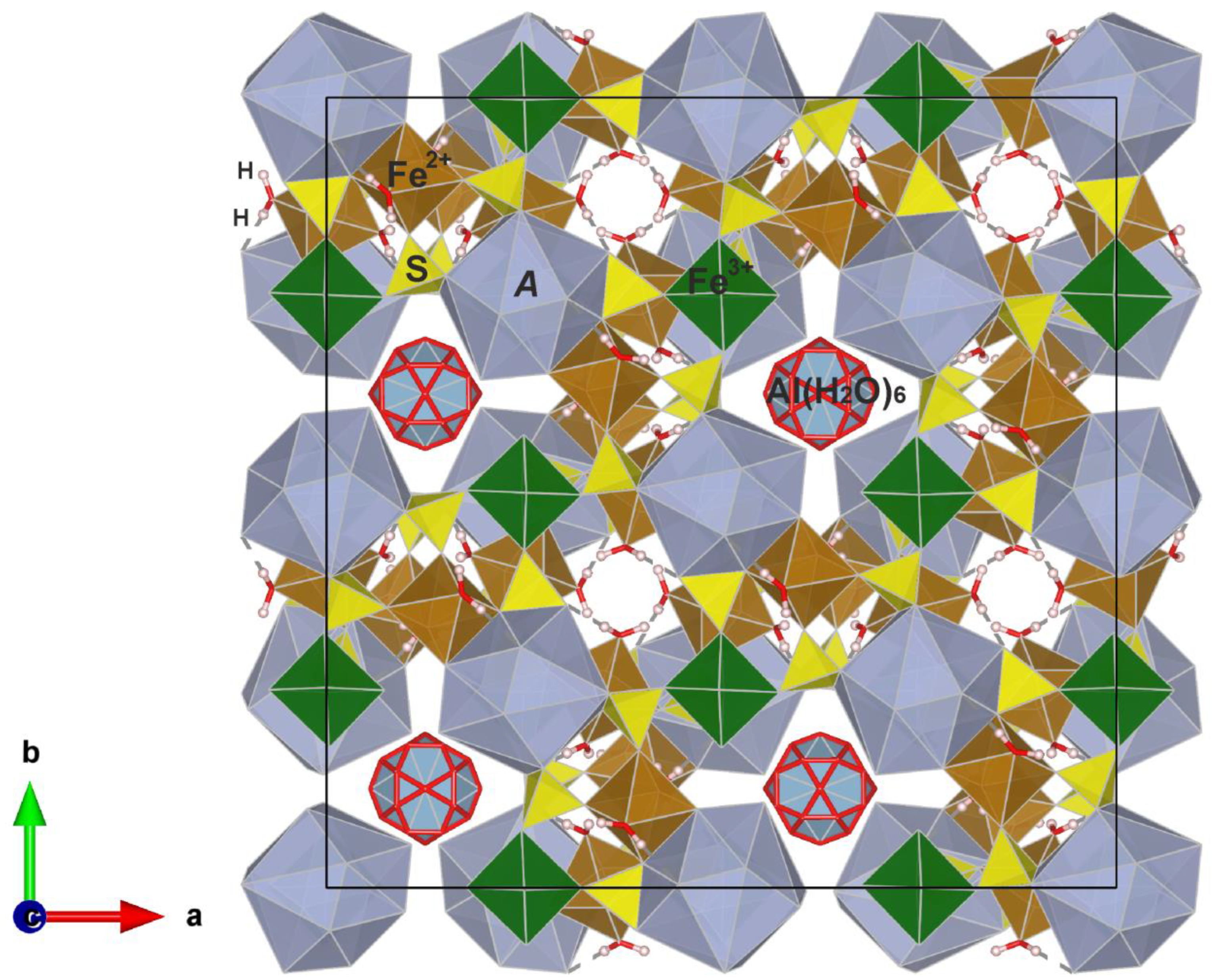

The crystal structure of the voltaite-group minerals consists of an A site occupied by monovalent cations, either N (of NH₄) or K, in different proportions (

Table 2. Atom coordinates, equivalent isotropic displacement parameters and site occupancies for the voltaite-group minerals.

Atom	x	y	z	Ueq	s.o.f.	x	Y	Z	Ueq	s.o.f.
VK4-09						Dch-9-21-5s
N1	¼	¼	¼	0.033(3)	0.893(17)	¼	¼	¼	0.044(2)	0.850(11)
K1	¼	¼	¼	0.033(3)	0.107(17)	¼	¼	¼	0.044 (2)	0.150(11)
Fe1	¼	¼	0	0.0136(2)	1	¼	¼	0	0.0183(2)	1
Fe2	0.35294(3)	¼	0.14706(3)	0.0151(3)	0.501(8)	0.35239(2)	¼	0.14761(2)	0.0191(2)	0.617(4)
Mg2	0.35294(3)	¼	0.14706(3)	0.0151(3)	0.499(8)	0.35239(2)	¼	0.14761(2)	0.0191(2)	0.383(4)
Al *	1/8	1/8	1/8	0.0128(6)	1	1/8	1/8	1/8	0.0164(4)	1
S1	0.23786(3)	0.27576(3)	0.11789(3)	0.0135(2)	1	0.23727(2)	0.27579(2)	0.11778(2)	0.01879(12)	1
O1	0.24970(11)	0.24707(10)	0.07325(9)	0.0194(5)	1	0.24988(5)	0.24698(5)	0.07337(5)	0.0239(3)	1
O2	0.22506(12)	0.32628(10)	0.10434(11)	0.0252(6)	1	0.22530(7)	0.32639(6)	0.10411(6)	0.0315(4)	1
O3	0.19572(12)	0.25413(12)	0.14254(13)	0.0305(7)	1	0.19410(7)	0.25448(6)	0.14133(7)	0.0359(4)	1
O4	0.28047(11)	0.27504(12)	0.15080(10)	0.0243(6)	1	0.27932(6)	0.27485(7)	0.15154(5)	0.0335(4)	1
OW5	0.32848(13)	0.18105(12)	0.12829(12)	0.0283(7)	1	0.32845(7)	0.18079(6)	0.12877(7)	0.0337(4)	1
H5A	0.305(2)	0.170(2)	0.147(2)	0.07(2)	1	0.306(1)	0.171(1)	0.150(1)	0.08(1)	1
H5B	0.333(4)	0.169(4)	0.098(2)	0.14(4)	1	0.319(2)	0.182(2)	0.098(1)	0.17(3)	1
OW6	0.1036(4)	0.1795(4)	0.0890(4)	0.021(2)	0.234(2)	0.1031(2)	0.1790(2)	0.0890(2)	0.0272(13)	0.247(2)
OW7	0.1460(5)	0.1802(4)	0.0892(5)	0.020(3)	0.215(2)	0.1467(2)	0.1797(2)	0.0886(2)	0.0260(13)	0.234(2)
OW8	1/8	0.1938(11)	1/8	0.007(5)	0.102(3)	1/8	0.1954(12)	1/8	0.002(7)	0.039(3)
Ni4225						SCCIII-14-20s
N1	¼	¼	¼	0.0309(10)	0.365(14)	¼	¼	¼	0.0368(8)	0.088(16)
K1	¼	¼	¼	0.0309(10)	0.635(14)	¼	¼	¼	0.0368(8)	0.912(16)
Fe1	¼	¼	0	0.0129(2)	1	¼	¼	0	0.0196(3)	1
Fe2	0.35271(2)	¼	0.14729(2)	0.0131(3)	0.531(7)	0.35285(3)	¼	0.14715(3)	0.0206(3)	0.508(8)
Mg2	0.35271(2)	¼	0.14729(2)	0.0131(3)	0.469(7)	0.35285(3)	¼	0.14715(3)	0.0206(3)	0.492(8)
Al*	1/8	1/8	1/8	0.0110(6)	1	1/8	1/8	1/8	0.0184(6)	1
S1	0.23721(3)	0.27563(3)	0.11809(3)	0.0140(2)	1	0.23771(3)	0.27550(3)	0.11851(3)	0.0196(2)	1
O1	0.24991(10)	0.24658(10)	0.07366(8)	0.0210(5)	1	0.24965(10)	0.24674(10)	0.07374(9)	0.0248(5)	1
O2	0.22476(11)	0.32620(9)	0.10386(10)	0.0268(6)	1	0.22520(12)	0.32608(10)	0.10454(11)	0.0318(6)	1
O3	0.19474(11)	0.25399(11)	0.14222(12)	0.0339(7)	1	0.19498(12)	0.25411(12)	0.14296(13)	0.0367(7)	1
O4	0.27942(11)	0.27529(12)	0.15157(9)	0.0271(6)	1	0.28025(11)	0.27474(12)	0.15191(10)	0.0307(6)	1
OW5	0.32894(11)	0.18130(11)	0.12831(11)	0.0258(6)	1	0.32873(12)	0.18079(11)	0.12810(12)	0.0330(6)	1
H5A	0.3230(30)	0.1830(30)	0.0970(9)	0.110(30)	1	0.3070(20)	0.1720(30)	0.1510(20)	0.090(20)	1
H5B	0.3080(20)	0.1720(30)	0.1510(20)	0.100(30)	1	0.3130(40)	0.1870(50)	0.1000(30)	0.190(60)	1
OW6	0.1035(4)	0.1787(4)	0.0886(4)	0.021(2)	0.2446(16)	0.1029(4)	0.1792(4)	0.0900(5)	0.027(2)	0.218(2)
OW7	0.1464(4)	0.1795(4)	0.0883(4)	0.023(2)	0.2349(16)	0.1470(4)	0.1800(5)	0.0893(4)	0.024(2)	0.205(2)
OW8	1/8	0.1980(20)	1/8	0.009(13)	0.041(3)	1/8	0.1927(8)	1/8	0.022(4)	0.154(3)
Shiv-8030
K1	¼	¼	¼	0.0321(2)	1
Fe1	¼	¼	0	0.0133(1)	1
Fe2	0.35279(1)	¼	0.14721(1)	0.0129(1)	0.437(3)
Mg2	0.35279(1)	¼	0.14721(1)	0.0129(1)	0.563(3)
Al *	1/8	1/8	1/8	0.0104(2)	1
S1	0.23782(1)	0.27564(1)	0.11838(1)	0.01191(8)	1
O1	0.24965(3)	0.24682(3)	0.07356(3)	0.0181(2)	1
O2	0.22529(4)	0.32643(4)	0.10467(4)	0.0232(2)	1
O3	0.19520(4)	0.25414(4)	0.14301(5)	0.0301(2)	1
O4	0.28035(4)	0.27477(4)	0.15163(3)	0.0236(2)	1
OW5	0.32866(4)	0.18092(4)	0.12827(4)	0.0256(2)	1
H5A	0.3048(9)	0.1721(11)	0.1474(10)	0.067(9)	1
H5B	0.3185(16)	0.1839(17)	0.0985(9)	0.123(17)	1
OW6	0.1035(2)	0.17934(15)	0.0892(2)	0.0198(8)	0.222(1)
OW7	0.1469(2)	0.1803(2)	0.0890(2)	0.0197(8)	0.214(1)
OW8	1/8	0.1943(3)	1/8	0.0138 (18)	0.127(3)

* Al position is spited into Al1, Al2 and Al3 positions, related to OW6, OW7 and OW8, respectively (by the command PART), the sum of Al1 + Al2 + Al3 is equal to 1 for each sample; atom coordinates of Al1, Al2, Al3 are the same.

). The Me2 site accommodates mainly Fe and Mg cations in different proportions (Table 2). Selected bond distances for the voltaite-group minerals are provided in

Table 3. Selected bond distances for the voltaite-group minerals.

Atom1	Atom2	Bond Distance in Å
		VK4-09	Dch-9-21-5s	Ni4225	SCCIII-14-20s	Shiv-8030
Fe1	O1	2.001(2) × 6	2.0007(14) × 6	2.008(2) × 6	2.006(2) × 6	2.002(1) × 6
<Fe1–O>		2.001	2.008	2.006	2.006	2.002
Me2	O2	2.049(3) × 2	2.0543(16) × 2	2.055(3) × 2	2.047(3) × 2	2.039(1) × 2
Me2	O4	2.095(3) × 2	2.1056(17) × 2	2.115(3) × 2	2.088(3) × 2	2.085(1) × 2
Me2	OW5	2.061(3) × 2	2.0605(16) × 2	2.046(3) × 2	2.058(3) × 2	2.055(1) × 2
<Me2–O>		2.068	2.073	2.072	2.064	2.060
Al (1)	OW6	1.876(11) × 12	1.865(6) × 12	1.860(10) × 12	1.853(11) × 12	1.864(4) × 12
Al	OW7	1.885(12) × 12	1.886(6) × 12	1.882(10) × 12	1.880(12) × 12	1.890(4) × 12
Al	OW8	1.88(3) × 6	1.92(3) × 6	1.99(7) × 6	1.84(2) × 6	1.886(9) × 6
<Al–OW>		1.880	1.884	1.895	1.862	1.879
S1	O1	1.484(3)	1.4828(14)	1.487(3)	1.482(3)	1.484(1)
S1	O2	1.470(3)	1.4651(16)	1.471(3)	1.466(3)	1.470(1)
S1	O3	1.457(3)	1.4583(16)	1.455(3)	1.459(3)	1.460(1)
S1	O4	1.470(3)	1.4696(16)	1.467(3)	1.470(3)	1.468(1)
<S1–O>		1.470	1.469	1.470	1.469	1.471
A (2)–O4 A–O3		2.914(3) × 6 3.288(4) × 6	2.8798(15) × 6 3.331(2) × 6	2.882(3) × 6 3.301(4) × 6	2.870(3) × 6 3.273(4) × 6	2.8782(9) × 6 3.2687(14) × 6
<A–O>		3.101	3.105	3.091	3.071	3.073

⁽¹⁾ Al position is spited into Al1, Al2 and Al3 positions, related to OW6, OW7 and OW8, respectively (by the command PART), the sum of Al1 + Al2 + Al3 is equal to 1 for each sample; atom coordinates of Al1, Al2, Al3 are the same. ⁽²⁾ A = N or K.

. The analyses of bond lengths show that variation in them is negligible in Fe³⁺-centered polyhedra (in the range 2.001–2.008 Å) and prominent in Me2 (Fe/Mg-centered) octahedra (2.064–2.073 Å), reflecting wide isomorphism of the divalent cation.

The check-cif report notes the short contact (~2.58 Å) between the O3 atoms of SO₄ tetrahedra and the O atoms of Al(H₂O)₆ octahedra (O6w, O8w). The Al site is coordinated by O6w, O7w and O8w that are low-occupied due to disordering (Table 3). The O6w, O7w and O8w atoms are donors of hypothetical H atoms (because ideally Al is coordinated by six H₂O molecules) that have not been localized due to disorder, while the O3 atoms are acceptors of these hydrogen bonds. Taking into account the O3^…O6w (or O3^…O8w) distances and the geometry of H₂O molecules, we can estimate H^…O3 (hydrogen-acceptor) distance as ~2.12 Å, which seems to be crystal chemically reasonable.

3.2. Chemical Composition

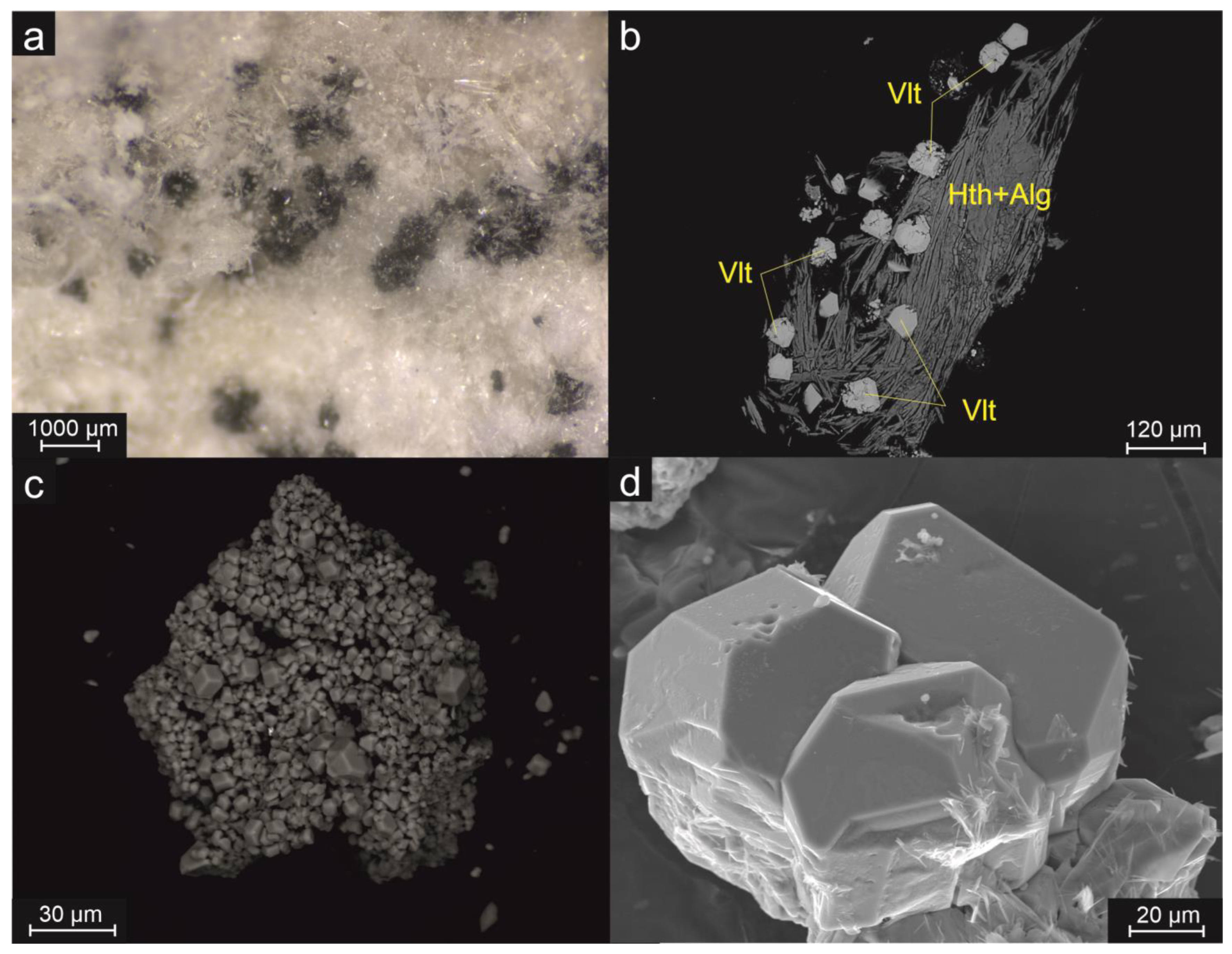

The morphology of voltaite-group minerals is shown in Figure 3. The empirical chemical formulae of voltaite-group minerals under study were calculated on the basis of [(S,P,V)O₄] = 12 per formula unit (pfu); the Fe²⁺:Fe³⁺ ratio was calculated by charge balance; H₂O content was calculated by stoichiometry, for 18 H₂O molecules pfu. The results are given in

Table 4. Chemical composition of the voltaite-group minerals studied in this work.

Sample	VK4-09	VK4-09	Dch-9-21-5s	Ni4225	SCCIII-14-20s	Shiv-8030
n 1	17	10	16	9	20	5
wt. %
(NH4)2O 2	2.55	2.53	2.69	0.15	0.19	n.d.
Na2O	n.d.	n.d.	n.d.	0.11	0.06	n.d.
K2O	0.39	0.36	n.d.	2.04	2.08	4.57
MgO	6.47	8.13	2.12	4.86	5.32	8.14
FeO	7.25	4.79	14.48	10.19	9.59	4.35
Fe2O3	12.07	12.42	10.72	11.32	11.55	11.99
Al2O3	3.21	3.13	3.77	3.66	3.33	3.20
TiO2	n.d.	n.d.	n.d.	n.d.	n.d.	0.42
SO3	50.89	51.60	47.23	50.60	50.33	51.39
P2O5	n.d.	n.d.	1.57	n.d.	0.48	n.d.
V2O5	n.d.	n.d.	0.92	n.d.	n.d.	n.d.
H2Ocalc	17.17	17.04	16.51	17.07	17.07	17.34
Total 3	100.00	100.00	100.00	100.00	100.00	101.40
formula calculated based on [(S,P,V)O4]12(H2O)18
NH4	1.85	1.81	2.0	0.11	0.14	-
Na	-	-	-	0.07	0.04	-
K	0.16	0.14	-	0.82	0.84	1.81
Mg	3.03	3.76	1.03	2.29	2.51	3.78
Fe2+	1.90	1.24	3.96	2.69	2.54	1.13
Fe3+	2.85	2.90	2.64	2.69	2.75	2.81
Al	1.19	1.14	1.45	1.36	1.24	1.18
Ti	-	-	-	-	-	0.10
S	12	12	11.59	12	11.94	12
P	-	-	0.22	-	0.06	-
V	-	-	0.20	-	-	-
H2O	18	18	18	18	18	18
Mineral	Ammoniomagnesiovoltite		Ammoniovoltaite	Voltaite		Magnesiovoltaite
(NH4)/K	92/8	90/10	100/0	12/88 4	14/84	0/100
Fe2+/Mg	38/62	25/75	80/20	54/46	50/50	23/77
Component’s ratio according to structure refinement
(NH4)/K	89/11		85/15	37/63	9/91	0/100
Fe2+/Mg	50/50		60/40	50/50	50/50	57/43
a, Å	27.29		27.25	27.24	27.18	27.19

n.d.—not detected. ¹ n—number of analyses averaged. ² A considerable amount of N is detected in EDS spectra, however, N content is determined with wide deviations. Thus, (NH₄)₂O is recalculated as sum of univalent cations equal to 2.00. ³ The total has been normalized per 100 wt. % for samples VK4-09, Dch9-21-5s, Ni4225, SKCIII-14-20s since analyses were performed from unpolished samples. ⁴ Excluding Na.

. In total, five samples are represented by four voltaite-group minerals: ammoniomagnesiovoltaite, ammoniovoltaite, voltaite and magnesiovoltaite; some of samples have near equal Mg and Fe content in the Me2 site, according to structure refinement (Table 2), but the chemical composition (Table 4) allows unambiguous mineral identification. Noteworthy is the admixture of P and V in ammoniovoltaite from the Dachnoe geothermal field and the P admixture in samples from Bolshoi Semiachik, although their contents are still too low to be detected by X-ray diffraction analysis.

4. Discussion

In this work, four mineral species belonging to the voltaite group were studied: ammoniovoltaite, ammoniomagnesiovoltaite, voltaite and magnesiovoltaite. This quadrilateral is due to Fe²⁺ ↔ Mg and (NH₄)⁺ ↔ K substitutions; while trivalent cations do not show significant isomorphism. The S⁶⁺ (in SO₄ tetrahedra) can be substituted by small amounts of V⁵⁺ and P⁵⁺. In the present study, ammonium members are reported from the geothermal fields together with potassium members. Potassium members are described from coal fires and solfatares at pyroclastic (volcanic) deposits, although the abundance of ammonium in these occurrences suggests that ammonium-dominant varieties can also be present there. In geothermal fields, the distribution of ammonium is local; NH₃ is carried out by steam-gas jets and then concentrated in some parts. In ammonium-depleted areas, where the acidic leaching process still takes place, potassium members may form. The study shows that ammonium members of the voltaite group are not so rare, but this is true for certain geochemical environments, such as those associated with post-volcanic processes. However, since ammonium- and potassium-dominant species are visually undistinguishable, they can be properly identified only by analytical investigation. The colour change in voltaite crystals is believed to be due to divalent cations [12]. In our collection, magnesiovoltaite is light grey to dark grey, and ammoniomagnesiovoltaite is greenish-grey, while Fe²⁺-dominant members are black.

The crystal structures of all studied voltaite-group minerals were processed and refined in an Fd-3c space group since no clear evidence of symmetry reduction was observed. All minerals are isotypic and differ only in site occupancies and corresponding bond distances. The geometrical parameters of synthetic voltaites have been described in detail by [12]. However, the crystal chemical comparison of geometrical parameters for natural voltaites is lacking. For example, before this work, for ammoniomagnesiovoltaite only powder XRD data were reported [4] and the crystal structures of some of voltaite-group representatives were obtained only as part of the new mineral description. Below we discuss some geometrical parameters relative to the chemical composition of the voltaite-group minerals.

The average S–O bond lengths of SO₄ tetrahedra are in the range 1.469–1.471 Å that agrees with the theoretical value of 1.47 Å [32] and with the range in S–O bond lengths of 1.470–1.474 Å obtained for synthetic samples [12]. Some small P and V contents were observed in the chemical composition of the voltaite-group minerals. Here we note that P admixture has been previously reported for alunite-supergroup minerals, alum-(Na) and amarillite formed at the geothermal (Dachnoe) and fumarole (Donnoe) fields of the Mutnovsky volcano [33]. The P- and V-bearing ammoniovoltaite from the Dachnoe geothermal field extends this trend.

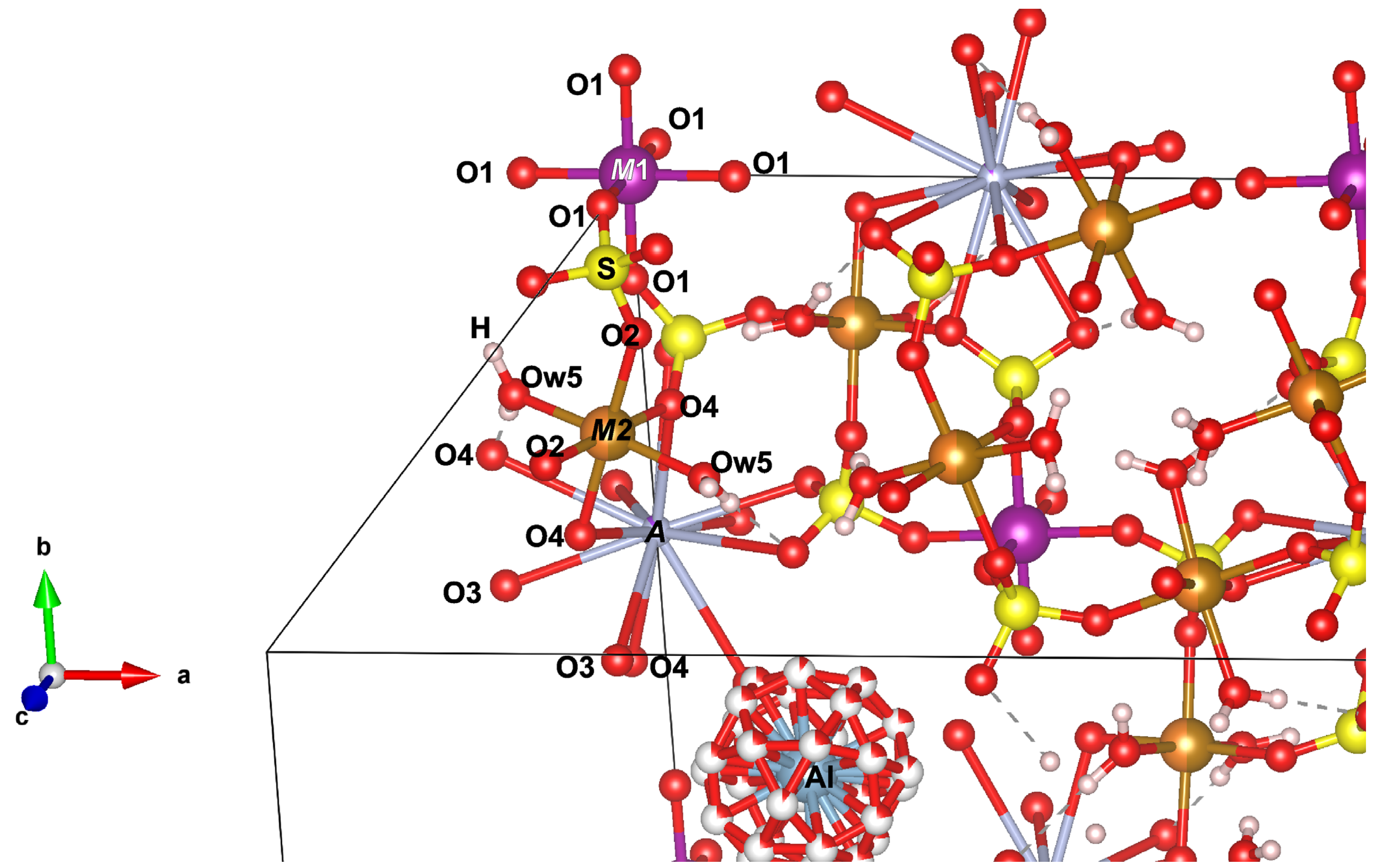

In the M1O₆ octahedra the M1–O bond distances (Figure 4) vary from 2.001 to 2.008 Å, whereas theoretical Fe³⁺–O distance calculated as the sum of ionic radii of high-spin Fe³⁺ [12] and O²⁻ is 2.005 Å [32]. As such, very minor substitution can be observed in this site.

In the Al(H₂O)₆ polyhedra (disordered octahedral, see Figure 4), the Al–O bond lengths vary from 1.85 to 1.99 Å (Table 3) and this is likely due to strong disordering of O atoms (donors of H₂O molecules) rather than any difference in the site occupancy.

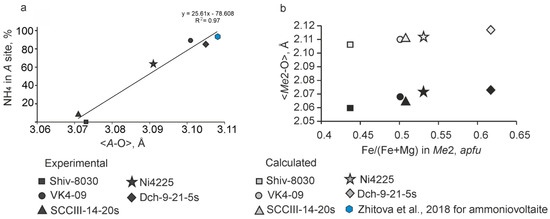

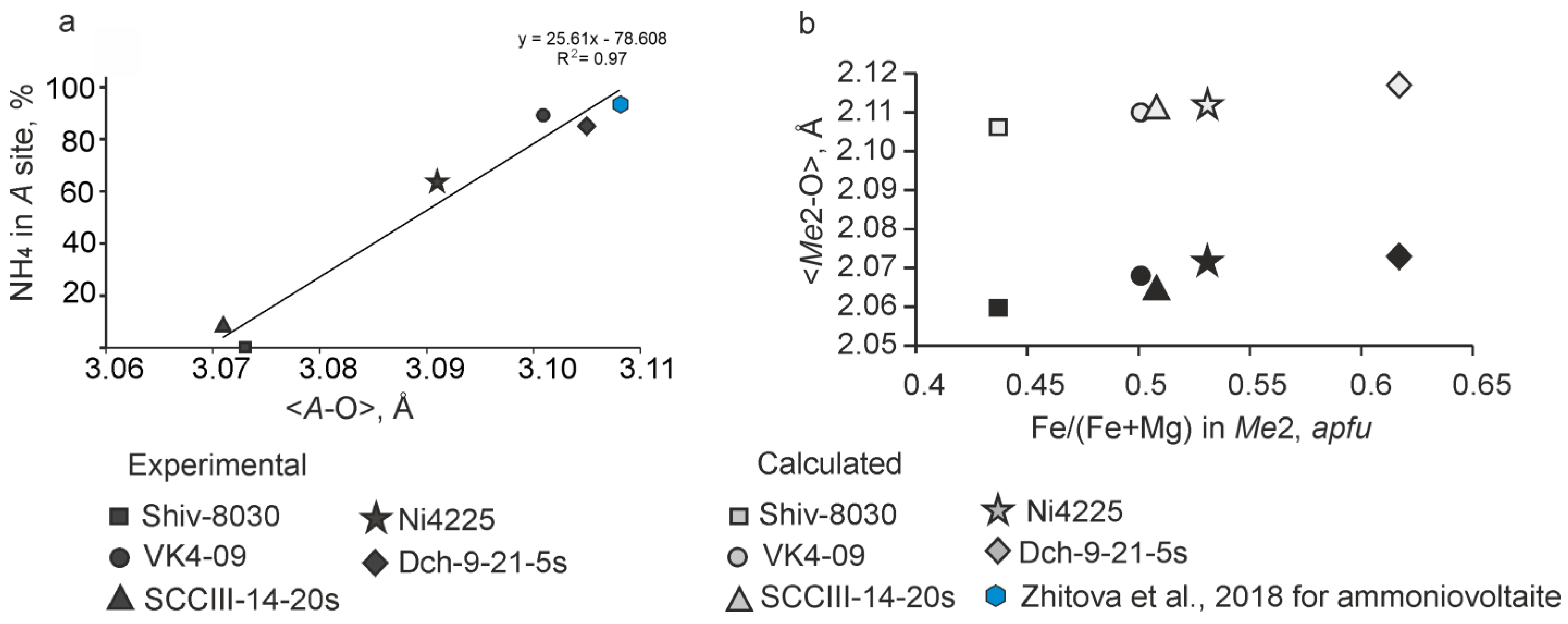

The most prominent isomorphism is observed in sites A and Me2.

The A site is surrounded (neglecting possible H atoms that should be surrounding N, but were impossible to localize) by six O4 atoms (at a distance 2.87–2.91 Å) and six O3 atoms (at a distance 3.27–3.33 Å). Previously, J. Majzlan and coauthors [12] noticed that ammonium voltaites have larger lattice parameters than potassium ones. The structure refinement of ammoniovoltaite [6] indirectly confirmed this since <A–O> for ammoniovoltaite was reported as 3.12 Å while potassium voltaites have <A–O> in the range 3.02–3.08 Å. The present work confirms that the incorporation of ammonium instead of potassium results in longer <A–O> distances (see values in Table 3), expanding the unit cell lattice as well (Figure 5a). The present study shows that ammonium members indeed have larger a unit cell parameters (27.25–27.29 Å) than potassium members (27.18–27.24 Å). For ammoniomagnesiovoltaite and ammoniovoltaite, the a parameter was reported as 27.26 [4] and 27.32 Å [6], respectively. The ammonium and potassium members of the voltaite group should differ in the a unit cell parameter and can hypothetically be distinguished from each other. However, the a parameter is also determined by the size of the divalent cation, so this is still not the most reliable indicator.

In the Me2ϕ6 octahedra, a considerable Me2–ϕ bond lengths range is observed from 2.060 to 2.073 Å (Table 3), as well as Fe²⁺-Mg isomorphic substitution. In general, longer bonds correspond to Fe²⁺-dominant species, while shorter Me2–ϕ bonds are characteristic for Mg-dominant members. However, the calculation of theoretical Me2–ϕ bond lengths using site occupancies (or chemical composition) and ionic radii of atoms shows that experimental values are rather significantly shorter than theoretical ones; the same was observed for synthetic voltaites [12]. The Me2–ϕ bond lengths (2.060–2.073 Å) observed in this work (Figure 5b) agree with those reported for synthetic voltaites with Me2~Fe²⁺_0.6Mg_0.4 [12], although the calculated value using ionic radii (of high-spin Fe²⁺ and Mg) is 2.116 Å. One possible explanation of this phenomenon could be the presence of Fe³⁺ in the Me2 site, however, the calculations show that the amount of Fe³⁺ should have been too considerable (as 1–1.5 apfu) to account for such bond length reduction, and at the same time such Fe³⁺ content is unrealistic from the position of charge compensation. For example, for sample Shiv-8030, Me2 = Mg_0.77Fe_0.23 (Table 3) and <Me2–ϕ>_obs = 2.060 Å, while <Me2–ϕ>_calc = 2.094 Å (Fe = Fe²⁺) and 2.063 Å (Fe = Fe³⁺). If we follow the variant with Fe³⁺, then 5 apfu of M²⁺ turns to ~M²⁺₄M³⁺₁ producing extra charge 1+ without any clear mechanism of charge compensation. A similar issue with <Me2–ϕ>_obs being shorter than <Me2–ϕ>_calc is reported for synthetic voltaites [12]: “At the nominal M²⁺ site, the bond length calculations indicate consistently high degree of mixing, with 30–50% of Fe³⁺ at this site. We note that we did not constrain these calculations with the requirement of charge sum at the two sites and therefore the results should be considered semi-quantitative”. We propose that based on the data for synthetic and natural voltaites, the mechanism of systematic shortening of <Me2–ϕ> bonds cannot be explained by Fe³⁺ in the Me2²⁺ site due to the requirements of chemical formula electro-neutrality. The most realistic option is that the mean <Me2-ϕ6>_obs bond length is shorter due to bond lengths distortion [34]. The Me2 site (Me2 = Fe, Mg) is coordinated by three symmetrically independent O atoms, O2, O4 and hydroxylated Ow5 atom (donor of two H atoms) (Figure 4), with Me2–O2 in the range 2.039–2.055 Å, Me2–O4 in the range 2.085–2.115 Å and Me2–Ow5 in the range 2.046–2.061 Å. The Me2ϕ₆ octahedra are indeed characterized by significant bond lengths distortion, which is estimated by Vesta [35] as from 0.008 to 0.014, where the distortion of M1O₆ (M1 = Fe³⁺) octahedra is 0. Thus, for voltaite-type structures, the shortening of observed Me²⁺-ϕ bonds relative to theoretical values based on ionic radii is possibly due to significant bond lengths distortion at that site. In this case, the correlation of observed M²⁺-ϕ bonds to those previously reported for other voltaite-type structures seems to be more correct than to theoretical values. This also leads to an assumption that for voltaite-type structures, a calculation of the Fe²⁺/Fe³⁺ ratio taking into account M²⁺-ϕ bond lengths and theoretical ionic radii would not be realistic. However, such estimations based on empirical correlations built for voltaite-group minerals should give more correct values.
