Shape Features (n = 14) | GLDM, GLCM & GLRLM Texture Features (n = 14) | First Order Statistics (n = 18) |
---|---|---|
Voxel_Volume | Gray_Level_Variance | Interquartile_Range |
Maximum_3D_Diameter | High_Gray_Level_Emphasis | Skewness |
Mesh_Volume | Dependence_Entropy | Uniformity |
Major_Axis_Length | Dependence_Non_Uniformity | Median |
Sphericity | Gray_Level_Non_Uniformity | Energy |
Least_Axis_Length | Small_Dependence_Emphasis | Robust_Mean_Absolute_Deviation |
Elongation | Small_Dependence_High_Gray_Level_Emphasis | Mean_Absolute_Deviation |
Surface_Volume_Ratio | Dependence_Non_Uniformity_Normalized | Total_Energy |
Maximum_2D_Diameter_Slice | Large_Dependence_Emphasis | Maximum |
Flatness | Large_Dependence_Low_Gray_Level_Emphasis | Root_Mean_Squared |
Surface_Area | Dependence_Variance | 90 Percentile |
Minor_Axis_Length | Large_Dependence_High_Gray_Level_Emphasis | Minimum |
Maximum_2D_Diameter_Column | Small_Dependence_Low_Gray_Level_Emphasis | Entropy |
Maximum_2D_Diameter_Row | Low_Gray_Level_Emphasis | Range |
Joint_Average | Variance | |
Sum_Average | 10 Percentile | |
Joint_Entropy | Kurtosis | |
Cluster_Shade | Mean | |
Maximum_Probability | ||
Idmn | ||
Joint_Energy | ||
Contrast | ||
Difference_Entropy | ||
Inverse_Variance | ||
Difference_Variance | ||
Idn | ||
Idm | ||
Correlation | ||
Auto_correlation | ||
Sum_Entropy | ||
MCC | ||
Sum_Squares | ||
Cluster_Prominence | ||
Imc2 | ||
Imc1 | ||
Difference_Average | ||
Id | ||
Cluster_Tendency | ||
Short_Run_Low_Gray_Level_Emphasis | ||
Gray_Level_Variance | ||
Low_Gray_Level_Run_Emphasis | ||
Gray_Level_Non_Uniformity_Normalized | ||
Run_Variance | ||
Gray_Level_Non_Uniformity | ||
Long_Run_Emphasis | ||
Short_Run_High_Gray_Level_Emphasis | ||
Run_Length_Non_Uniformity | ||
Short_Run_Emphasis | ||
Long_Run_High_Gray_Level_Emphasis | ||
Run_Percentage | ||
Long_Run_Low_Gray_Level_Emphasis | ||
Run_Entropy | ||
High_Gray_Level_Run_Emphasis | ||
Run_Length_Non_Uniformity_Normalized |

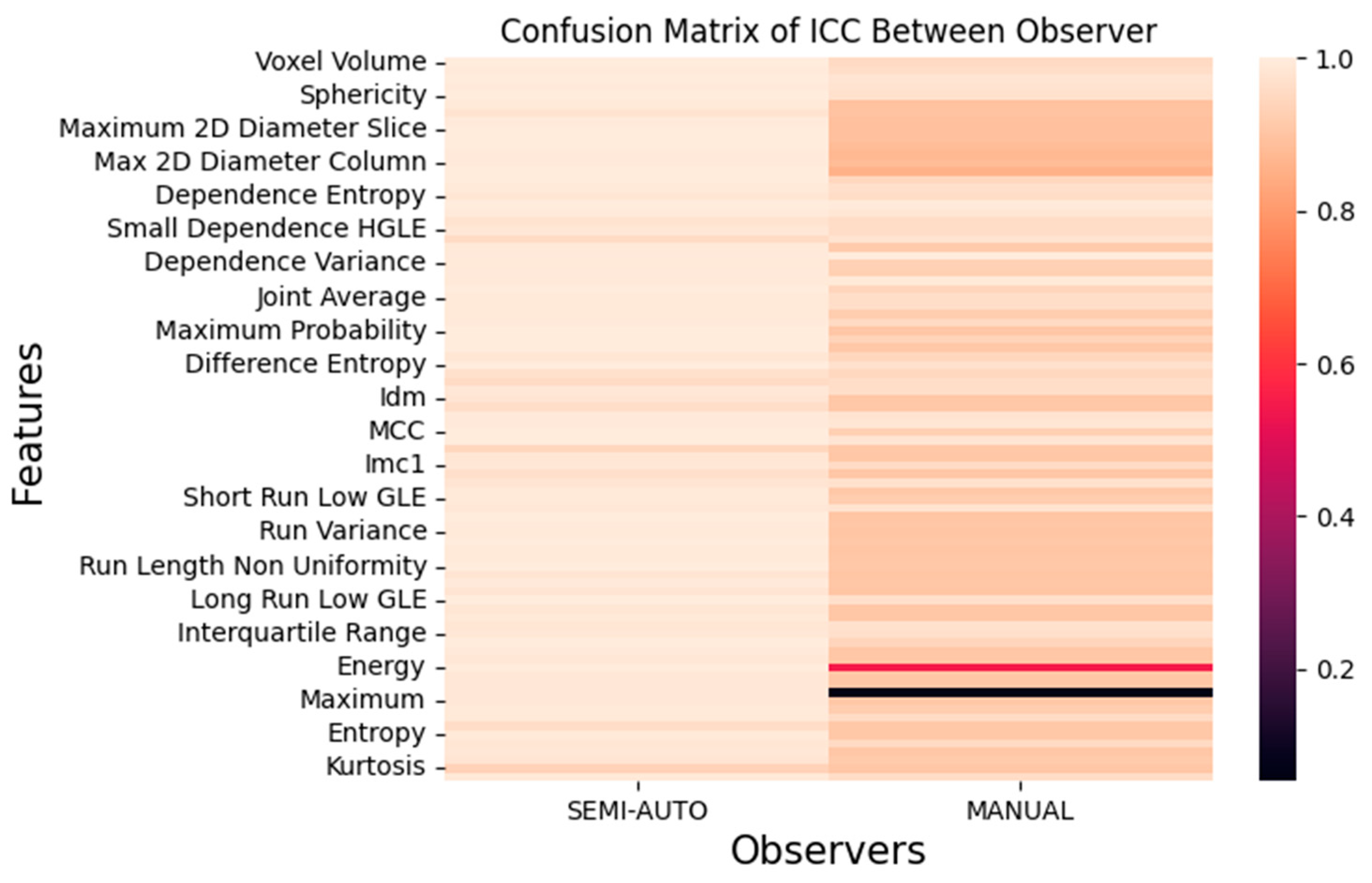

Reproducibility Groups | Semi-Automatic | Manual |
---|---|---|
High (ICC ≥ 0.8) | 86 (100%) | 84 (97.67%) |
Medium (0.8 ≥ ICC ≥ 0.5) | 0 (0%) | 1 (1.16%) |
Low (ICC < 0.5) | 0 (0%) | 1 (1.16%) |

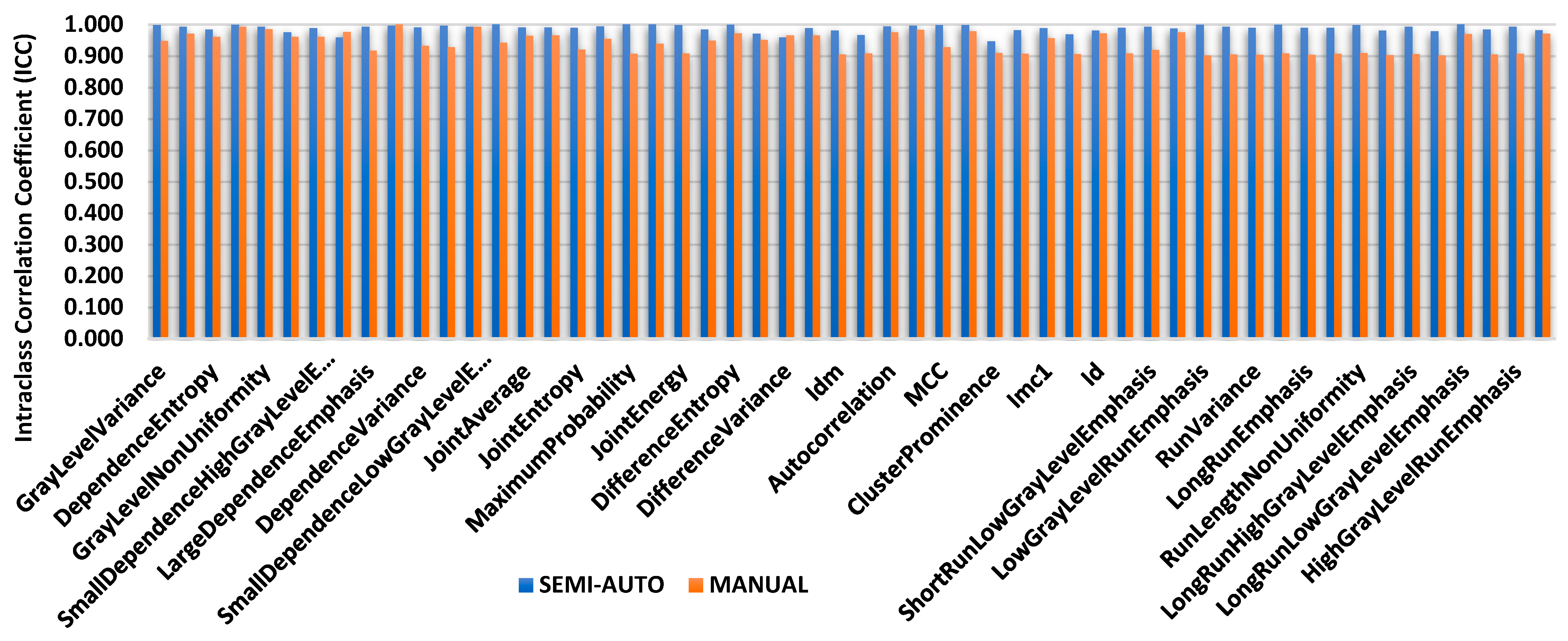

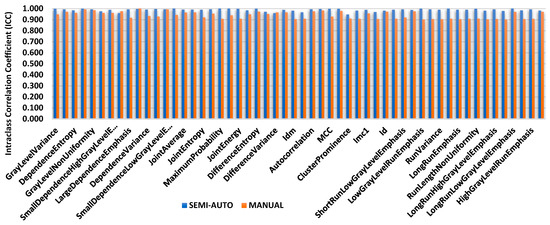

Features | Original | SEMI_1 | SEMI_2 | MANUAL |
---|---|---|---|---|

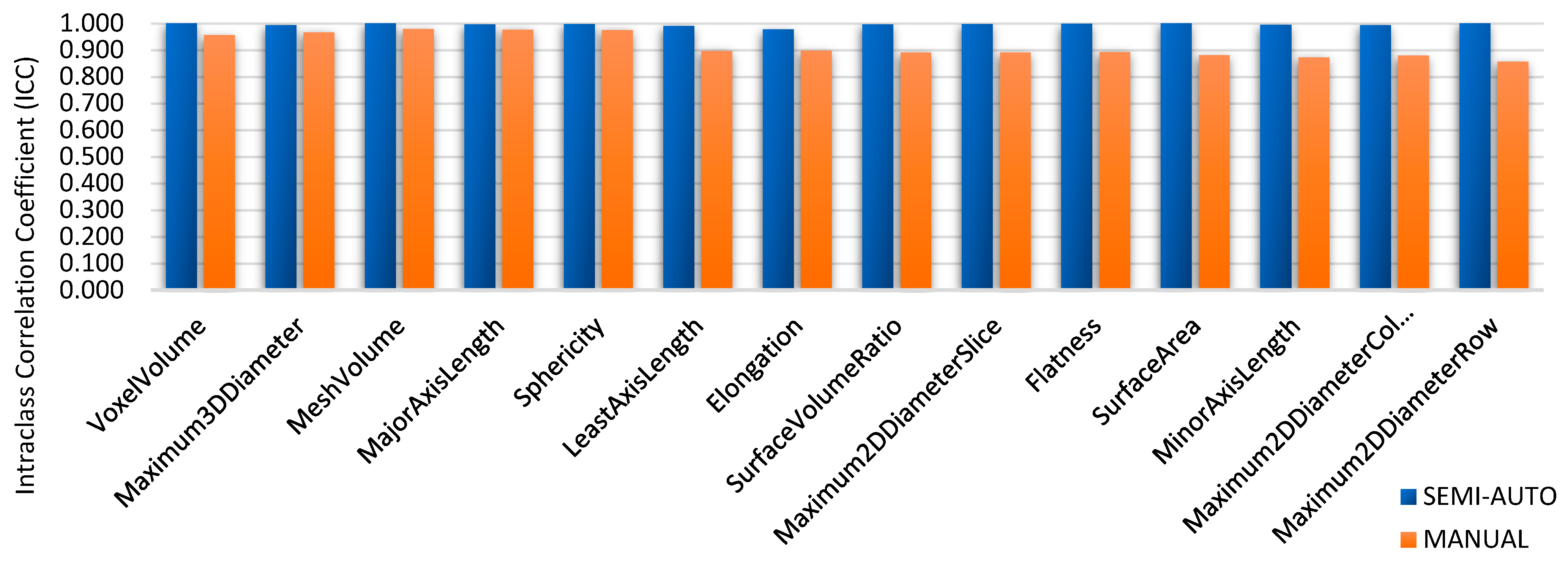

Shape | Voxel_Volume | 0.999 | 0.998 | 0.955 |
Maximum_3D_Diameter | 0.986 | 0.982 | 0.965 | |
Mesh_Volume | 0.999 | 0.998 | 0.979 | |
Major_Axis_Length | 0.998 | 0.988 | 0.976 | |
Sphericity | 0.996 | 0.926 | 0.974 | |
Least_Axis_Length * | 0.997 | 0.982 | 0.896 | |
Elongation * | 0.869 | 0.937 | 0.897 | |
Surface_Volume_Ratio | 0.979 | 0.989 | 0.89 | |
Maximum_2D_Diameter_Slice | 0.993 | 0.994 | 0.89 | |
Flatness | 0.985 | 0.989 | 0.891 | |
Surface_Area * | 0.996 | 0.998 | 0.88 | |
Minor_Axis_Length * | 0.982 | 0.988 | 0.871 | |
Maximum_2D_Diameter_ Column * | 0.983 | 0.977 | 0.878 | |
Maximum_2D_Diameter_Row * | 0.996 | 0.972 | 0.856 | |
GLDM | Gray_Level_Variance | 0.996 | 0.995 | 0.907 |
High_Gray_Level_Emphasis | 0.997 | 0.983 | 0.901 | |
Dependence_Entropy | 0.872 | 0.975 | 0.901 | |
Dependence_Non_Uniformity | 0.997 | 0.997 | 0.903 | |
Gray_Level_Non_Uniformity | 0.998 | 0.997 | 0.903 | |
Small_Dependence_Emphasis | 0.936 | 0.973 | 0.903 | |
Small_Dependence_High_ Gray_Level_Emphasis | 0.968 | 0.971 | 0.903 | |
Dependence_Non_ Uniformity_Normalized | 0.981 | 0.986 | 0.903 | |
Large_Dependence_Emphasis | 0.988 | 0.981 | 0.903 | |
Large_Dependence_Low_ Gray_Level_Emphasis | 0.989 | 0.994 | 0.903 | |
Dependence_Variance | 0.979 | 0.984 | 0.903 | |
Large_Dependence_High_ Gray_Level_Emphasis | 0.994 | 0.989 | 0.903 | |
Small_Dependence_Low_ Gray_Level_Emphasis | 0.967 | 0.973 | 0.903 | |
Low_Gray_Level_Emphasis | 0.998 | 0.999 | 0.904 | |
GLCM | Joint_Average | 0.981 | 0.971 | 0.904 |
Sum_Average | 0.981 | 0.971 | 0.915 | |
Joint_Entropy | 0.973 | 0.973 | 0.920 | |
Cluster_Shade | 0.991 | 0.981 | 0.954 | |
Maximum_Probability | 1 | 1 | 0.907 | |
Idmn | 1 | 0.997 | 0.938 | |
Joint_Energy | 0.995 | 0.997 | 0.908 | |
Contrast | 0.966 | 0.976 | 0.948 | |
Difference_Entropy | 0.988 | 0.961 | 0.912 | |
Inverse_Variance | 0.936 | 0.971 | 0.951 | |
Difference_Variance | 0.995 | 0.989 | 0.905 | |
Idn | 0.683 | 0.986 | 0.965 | |
Idm | 0.962 | 0.972 | 0.904 | |
Correlation | 0.905 | 0.972 | 0.908 | |
Autocorrelation | 0.988 | 0.989 | 0.975 | |
Sum_Entropy | 0.945 | 0.993 | 0.903 | |
MCC | 0.993 | 0.995 | 0.927 | |
Sum_Squares | 0.995 | 0.993 | 0.908 | |
Cluster_Prominence | 0.939 | 0.999 | 0.909 | |
Imc2 | 0.965 | 0.954 | 0.907 | |
Imc1 | 0.978 | 0.971 | 0.906 | |
Difference_Average | 0.991 | 0.959 | 0.906 | |
Id | 0.958 | 0.973 | 0.902 | |
Cluster_Tendency | 0.974 | 0.972 | 0.908 | |
GLRLM | Short_Run_Low_Gray_Level Emphasis | 0.983 | 0.976 | 0.919 |
Gray_Level_Variance | 0.972 | 0.963 | 0.975 | |
Low_Gray_Level_ Run_Emphasis | 0.998 | 0.999 | 0.901 | |
Gray_Level_Non_Uniformity Normalized | 0.998 | 0.997 | 0.904 | |
Run_Variance | 0.981 | 0.963 | 0.903 | |
Gray_Level_Non_Uniformity | 0.997 | 0.996 | 0.908 | |
Long_Run_Emphasis | 0.982 | 0.966 | 0.903 | |
Short_Run_High_Gray_Level Emphasis | 0.982 | 0.966 | 0.907 | |
Run_Length_Non_Uniformity | 0.994 | 0.998 | 0.909 | |
Short_Run_Emphasis | 0.996 | 0.994 | 0.902 | |
Long_Run_High_Gray_Level Emphasis | 0.986 | 0.978 | 0.905 | |
Run_Percentage | 1 | 0.969 | 0.901 | |
Long_Run_Low_Gray_Level Emphasis | 0.999 | 0.998 | 0.909 | |
Run_Entropy | 0.997 | 0.997 | 0.904 | |
High_Gray_Level_ Run_Emphasis | 0.983 | 0.976 | 0.907 | |
Run_Length_Non_Uniformity Normalized | 0.967 | 0.971 | 0.901 | |

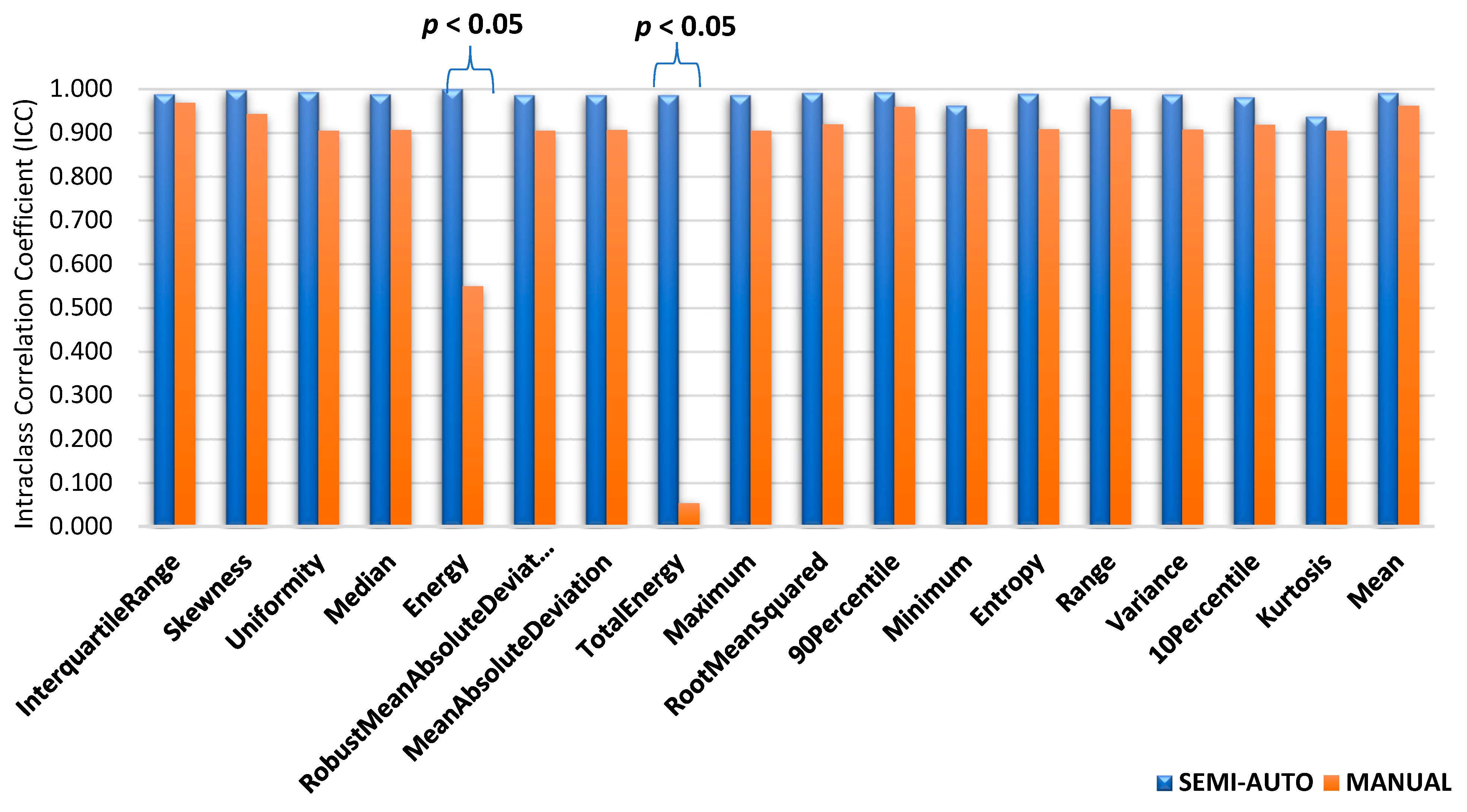

First Order Statistics | Interquartile_Range | 0.979 | 0.979 | 0.968 |
Skewness | 0.974 | 0.936 | 0.943 | |
Uniformity | 0.991 | 0.989 | 0.904 | |
Median | 0.961 | 0.978 | 0.906 | |
Energy | 0.999 | 0.999 | 0.549 | |
Robust_Mean_Absolute Deviation | 0.966 | 0.998 | 0.904 | |
Mean_Absolute_Deviation | 0.969 | 0.997 | 0.906 | |
Total_Energy * | 0.999 | 0.998 | 0.053 | |
Maximum | 0.978 | 0.944 | 0.904 | |
Root_Mean_Squared | 0.989 | 0.978 | 0.919 | |
90_Percentile | 0.999 | 0.998 | 0.859 | |
Minimum | 0.994 | 0.997 | 0.908 | |
Entropy | 0.998 | 0.967 | 0.908 | |
Range * | 0.997 | 0.991 | 0.853 | |
Variance | 0.972 | 0.963 | 0.907 | |
10_Percentile | 0.947 | 0.986 | 0.918 | |
Kurtosis | 0.988 | 0.948 | 0.904 | |
Mean * | 0.999 | 0.982 | 0.861 |
