A Comprehensive Look at Maxillofacial Traumas: On the Basis of Orbital Involvement

by
Fatma Dilek Gokharman
1,*,
Ozlem Kadirhan
2,
Ozlem Celik Aydin
3,
Arzu Gulsah Yalcin
1,
Pınar Kosar
1 and
Sonay Aydin
2
1
Department of Radiology, SBU Ankara Education and Research Hospital, Ankara 06660, Turkey
2
Department of Radiology, Erzincan University, Erzincan 24100, Turkey
3
Department of Pharmacology, Erzincan University, Erzincan 24100, Turkey
*
Author to whom correspondence should be addressed.
Diagnostics 2023, 13(22), 3429; https://doi.org/10.3390/diagnostics13223429
Submission received: 17 September 2023 / Revised: 28 October 2023 / Accepted: 10 November 2023 / Published: 11 November 2023
(This article belongs to the Special Issue Diagnosis and Management in Emergency Medicine)
Browse Figures
Review Reports Versions Notes

Abstract

Introduction: Orbital wall fractures that may develop in maxillofacial traumas (MFTs) may cause ophthalmic complications (OCs). The aim of this study is to determine the frequency of orbital fractures (OFs) accompanying MFTs and findings suspicious for orbital traumatic involvement. Materials and Methods: Computed tomography (CT) images of 887 patients who presented to the emergency department within a 1-year period with a history of MFT were retrospectively scanned. During the examination, patients with orbital wall fractures, craniofacial bone fractures, and posttraumatic soft tissue changes were recorded. Results: OF was observed in 47 (5.3%) of the patients admitted for MFT. In cases with OFs, accompanying nasal (25.5%), ethmoid (2.1%), frontal (19.1%), maxillary (38%), and zygomatic bone fracture (10.6%), sphenoid (4.3%), and soft tissue damage (55.3%) were observed. It was observed that the pathologies mentioned at these levels were significantly higher than in patients without orbital involvement (p < 0.05). In our study, mild (48.9%) and moderate-severe (2.12–4.25%) OCs accompanying OFs were observed after MFT. Conclusions: The frequency of MFT varies depending on various factors, and such studies are needed to take preventive measures. Knowing the risk and frequency of orbital damage accompanying MFTs may help reduce complications by allowing rapid and accurate diagnosis.

1. Introduction

The maxillofacial region (MFR) consists of the upper face (frontal), mid face (maxilla, nasal complex, and zygomatic), and lower face (mandible). MFR fractures are among the most common types of trauma in trauma centers worldwide [1]. It is stated that their frequency varies significantly between countries and regions within countries due to differences in demographic, socioeconomic, and environmental factors, and their prevalence varies between 17 and 69% [2]. Male gender predominance has been reported in up to 85% of maxillofacial traumas (MFTs) worldwide [3,4].
The most common causes of MFT have been reported as road traffic accidents, assaults, falls, and sports and work-related injuries. The severity of MFT varies depending on the etiology, the magnitude and duration of the impact force, and the surface area where the impact occurs [3,5]. Injuries may be isolated or may be present as part of multiple trauma, including intracranial, ocular, and spinal, which can significantly increase the mortality or morbidity of the patient [6]. In addition to being an aesthetically important region, MFR is a condition that should be approached carefully because it contains many structures necessary for life, such as speaking, seeing, and smelling [7]. Because deficiencies in diagnosis and treatment in MFTs can cause facial deformities, chewing difficulties, visual disturbances, and even death. In this respect, emergency physicians should be careful in terms of other major traumas and their complications that may change patient management in MFTs because early assessment and intervention can significantly reduce morbidity and mortality. In the literature, the incidence of minor ocular injury associated with orbital fractures (OFs) accompanying maxillofacial fractures varies between 29.03 and 98.38%, and the incidence of major ocular injury varies between 1.7 and 20% [8,9,10]. It is important to reduce the severity of the long-term effects and avoid a condition that can have serious social and legal consequences, such as blindness. In this context, rapid diagnosis of a serious ocular injury and determining the role of ophthalmologists in the initial evaluation of facial trauma are crucial.
This study mainly aims to define and comprehensively analyze the important anatomical and etiological aspects of MFTs with orbital involvement.

2. Materials and Methods

This study was approved by a tertiary hospital Ethics Committee and was conducted in accordance with the Declaration of Helsinki. It was created by the retrospective examination of patients who were admitted to the emergency department of a tertiary hospital with a history of MFT between 1 March 2020 and 1 March 2021 and underwent non-contrast maxillofacial computed tomography (MFCT) imaging by a radiologist with 10 years of experience. Informed consent was waived due to the retrospective design of the study. A total of 887 patients were included in the study. Of the cases admitted to the emergency department due to MFT, 169 (19%) were women, and 718 (81%) were men. The ages of the cases included in the study ranged from 0 to 97 years, and the average age of the cases was 29.75 ± 19.46 years. The exclusion criteria were established to exclude instances that were not related to trauma, cases with CT scans that had motion artifacts making evaluation impossible, cases with a history of previous surgery, and cases with insufficient data in their medical history.
Non-contrast MFCTs of the patients included in the study were performed on images in the axial, coronal, and sagittal planes using standard soft tissue window and bone window settings. CT images were obtained using a Philips Brilliance 16-detector MDCT system (Philips Medical Systems, Cleveland, OH, USA) with: 120 kV; 105 mA; 0.8 mm slice thickness; 0.4 mm interval; 0.75 second rotation time; 16 × 0.75 collimations; and a 512 × 512 matrix. Data acquired in the axial plane were obtained. Coronal and sagittal images were reformatted from the axial data with a 1 mm slice thickness. All three planes were used to collect study data.
During the examination, the patients’ orbital wall (medial, lateral, inferior, superior) fractures, craniofacial bones (nasal, ethmoid, sphenoid, frontal, maxillary, mandibular, zygomatic, and temporal bones) fractures, and posttraumatic soft tissue changes, trauma type (motor vehicle accidents, attacks, falls, gunshot wounds), and orbital-related complications were recorded.
Ophthalmic complications after MFT are categorized as mild, moderate, and severe. Mild complications are periorbital edema, eyelid laceration, periorbital ecchymosis, and subconjunctival; moderate complications are enophthalmos, proptosis, restricted eye mobility, diplopia, telecanthus, dystopia, and dilated pupil; severe complications are chemosis, hyphema, perforated lens, corneal abrasion, detached retina, retrobulbar hemorrhage, traumatic optic neuropathy and blindness.
Statistical analysis: The conformity of the data to the normal distribution was examined with the Shapiro–Wilk test; numerical variables with a normal distribution were represented as mean ± standard deviation values, and categorical variables as numbers (n) and percentage values (%). The Student’s t-test was used to compare the normally distributed features in two independent groups, and the Mann–Whitney U test was used to compare the non-normally distributed features in two independent groups. Relationships between two independent variables at the categorical measurement level were tested with Pearson Chi-square or Exact Chi-square. As descriptive statistics, numbers and % values for categorical variables and mean ± standard deviation for numerical variables are given as min-max. SPSS Windows version 24.0 IBM Corporation, Armonk, NY, USA) package program was used for statistical analysis, and p < 0.05 was considered statistically significant.

3. Results

In the 1-year timeline chosen for this study, 887 cases admitted to the emergency department due to MFTs were included. Of the cases admitted to the emergency department due to MFTs, 169 (19%) were female, and 718 (81%) were male. The mean age of all subjects included in the study was 29.75 ± 19.46 years. No patient was excluded from the study.
Orbital wall fracture was observed in 47 (5.3%) patients who underwent non-contrast MFCT, while orbital wall fracture was not observed in 840 (94.7%) patients. When the mean age of patients with or without orbital wall fracture was compared, it was found that the mean age of patients with orbital wall fracture (38.98 ± 19.13) was statistically significantly higher than the mean age of patients without orbital wall fracture (29.2 ± 19.36). (p < 0.001). In addition, while there is no statistically significant difference in terms of age in inferior and superior wall involvements in OFs (p > 0.05), there is a statistically significant difference in age in medial (39.96 ± 16.2) and lateral wall (54 ± 17.18) involvements. (p < 0.05) (Table 1).
In our cases, OFs accompanying MFTs were most common in the inferior wall (2.9%) and the second most common in the medial wall (2.6%). The location distribution of OFs is shown in Table 2 in detail. Some orbital wall fractures of the cases in this study are shown in Figure 1, Figure 2, Figure 3 and Figure 4.
In cases with OF, accompanying nasal (n: 12, 25.5%), ethmoid (n: 1, 2.1%), frontal (n: 9, 19.1%), maxillary (n:18, 38%), sphenoid (n: 2, 4.3%), and zygomatic (n: 5, 10.6%) fractures and soft tissue damage (n: 26, 55.3%) were observed, and the pathologies mentioned at these levels were found to be significantly higher than in patients without orbital involvement (p < 0.05). There was no significant difference in association with fractures at the mandible and temporal bone levels in patients with orbital involvement compared to those without (Table 3).
MFCT images showed periorbital tissue emphysema in twenty-six cases, periorbital edema in eighteen cases, and periorbital adipose tissue (Figure 1, Figure 3, and Figure 4) and partially accompanying extraocular muscle herniation (Figure 3) in three cases. Paresthesia was observed in four cases due to fractures contacting the infraorbital canal (Figure 3 and Figure 4). In our study, mild complications were seen at rates reaching 48.9%, while the rate of moderate-severe complications varied between 2.12 and 4.25%. Mild complications, in order of frequency, were periorbital ecchymosis, periorbital edema, subconjunctival hemorrhage, and eyelid laceration. In two cases, diplopia, enophthalmia, and limitation of eye movements were observed due to fractures affecting the base level. In one case with a fracture of the medial wall, there were signs of optic neuropathy, which was thought to be due to nerve compression, in a case with a fracture involving the telecanthus and orbital canal. The distribution of complications in the cases in the study is shown in Table 4.
The main etiology was interpersonal violence-battery in both patients with MFT (n: 397, 44.7%) and those with orbital involvement (n: 21, 44.6%). (Table 5).

4. Discussion

Traumas have been reported as the leading cause of absenteeism and death in people under the age of 40 [11]. MFT constitutes one of the most common causes of trauma admissions worldwide. Traumas in MFR are types of injuries that require comprehensive evaluation at the time of admission, as they are close to organs, which will increase mortality and morbidity [12].
Factors such as geographical location, cultural differences, population density, and socioeconomic status of the country play a role in the etiology and incidence of fractures in MFTs [12]. Given the increasing prevalence of MFTs, long-term collection and analysis of epidemiological data is essential to identify and guide the implementation of traditional preventive measures. Orbital wall fractures that may develop due to MFT pose a risk in terms of ophthalmic injury due to its close proximity to the organ of vision and related muscle planes [13]. In this context, an accurate understanding of OFs and associated injuries is critical in the early diagnosis of these patients and the reduction of complications if they are treated appropriately.
The incidence of MFT and related fractures has been reported more frequently in the 20–29 age group by some authors [14,15,16,17,18,19,20,21] or in the 30–39 age group by others [22,23,24]. In our study, the mean age of the patients who underwent extraction due to maxillofacial injury was 29.75 ± 19.46 years, which was consistent with the mean age values reported in the literature. The mean age of the cases accompanied by OFs was (38.98 ± 19.13), and it was wider, although it included the age ranges specified in the literature.
In the literature, male predominance has been reported with rates ranging from 2.9:1 to 12:1, including cases accompanied by OFs in MFTs [11,14,25,26,27]. This is due to the fact that men are more prone to interpersonal conflicts than women, are involved in physical work that requires strength, and are therefore more frequently exposed to occupational accidents [22,23,24,28,29] and are more interested in extreme-contact sports [14,15,20,30,31].
In recent years, the male/female ratio tends to decrease in developed countries, where women are as much a part of society as men [32,33,34]. In our study, this rate was 4.2 in MFTs accompanied by OF, which showed that the rate of female MFT increased compared to many studies reported in the literature. Domestic violence was the most common etiology in women, with a rate of 66% (n: 112). In the literature, it has been reported that the frequency of maxillofacial fractures in women due to domestic violence varies between 34% and 73% [35]. Considering that partner violence is increasing, it is important for healthcare providers to identify victims, report them to relevant support units, and direct the patient to domestic violence service programs.
Similar to OFs, it has been reported that the most common etiology in all maxillofacial fractures in developed countries in recent years is interpersonal violence (59.38%), the frequency of which is increasing rather than traffic accidents (8.41%) or sports injuries (3.56%) [36]. In our study, interpersonal violence/beating (%44.7) was the most common etiology in MFT and related OFs (44.6%), and the frequency of facial trauma caused by intentional injuries can be reduced with various violence prevention programs.
In studies conducted in developing regions such as India, road traffic accidents (74.7–92.16%) were reported more frequently as the most common etiology in MFTs [29,37,38,39]. In our study, road traffic accidents (25.5%) were the second most common etiology in MFTs.
Among the causes of road traffic accidents in developing countries, reasons such as poorly defined traffic rules, inadequate traffic lighting, inadequacy of signage, and uncontrolled vehicles have been reported [30,37,38,39,40,41]. However, with the increasing population density in some developed countries, it has been reported that MFTs, due to road traffic accidents caused by drivers, driving at an earlier age, increasing carelessness and non-compliance with traffic rules [23,28,29,38,42]. Increasing the penal sanctions related to non-compliance with traffic rules in regions where traffic accidents are frequent, increasing traffic lighting systems and signs, and inspecting vehicles will reduce traffic accidents and, thus, the frequency of MFT.
Another frequent cause of MFT has been reported as falling, especially in the elderly (68–87%) and pediatric age (17–71.42%) group [32,43,44]. The reason for this situation is the presence of pathologies such as osteoporosis, in which bones become prone to fracture even in small falls in the advanced age group [45]. In the pediatric age group under 10 years of age, it is more often associated with a lack of coordination [46]. In our study, fall-related MFTs (23.2%) were in the third place.
The direction and effect of the force applied during trauma and the degree of damage to the tissue determine the location and shape of the fractures. Accordingly, the most commonly reported broken bones in MFT are mandibular and zygomatic bones. Fractures of the mandible are common because of mobility and less bone support compared to other facial bones, and it is the first bone to encounter a force trajectory during trauma or attack on the lower face. The zygomatic bone, on the other hand, has high-frequency fracture rates in MFTs due to its anatomical position and is associated with reflex lateral rotation and consequent impact, as in an attack or accident [47]. Although it is less common than mandibular and zygomatic bone, two mechanisms have been reported in OFs associated with periocular trauma and injuries: sprain and hydraulic in burst-type fractures. In the buckling theory, it has been reported that the burst fracture is caused by the force transmitted from the orbital edge. In the hydraulic theory, it is stated that the fracture is caused by a force transmitted from the eyeball [48].
In one study, the frequency of maxillofacial orbital injury was reported as 23.6% after suspected facial trauma after severe trauma. In the same study, the most frequently fractured orbital wall was the inferior wall, with a rate of 66%. The most common etiology of trauma in the patients included in this study was road traffic accidents [49]. According to a study, the formation mechanism of medial wall fractures was frequently reported as exposure to attack [50]. In our study, the frequency of orbital wall involvement was 5.3% in patients who were admitted to the hospital due to MFT, and fracture localizations were located in the inferior (2.9%) and medial wall (2.6%), respectively. In addition, the main etiology of trauma in our study was interpersonal conflict most frequently and traffic accidents less frequently. In our study, the least fractured orbital wall was the lateral and then the superior wall. In the literature, orbital superior wall fractures are the least common OF localization, with a frequency of 1–9% [48,51,52,53]. In one study, female predominance was mentioned in orbital roof fractures [50], but in our study, male predominance was found in all OFs. Complex fractures occur when two or more bones in the orbit are involved. It has been stated that medial and inferior wall fractures of the orbit have a more complex fracture pattern compared to superior and lateral fractures [48,54,55,56]. The most common complex fracture in our study was the combination of maxilla and orbital floor fracture.
In cases admitted due to maxillofacial trauma, emergency service specialists or trauma surgeons should be aware of various symptoms and physical examination findings in order not to miss possible orbital wall fractures and their associated complications. Therefore, it is important to be aware of symptoms such as periorbital pain, diplopia, blurred vision, ophthalmoplegia, or findings that may be related to eyeball displacements such as telecanthus, enophthalmia, and exophthalmos [9,57]. In these patients with suspected orbital wall fracture, CT is used as an imaging method to confirm the presence of fracture and to identify various ocular injuries and extraocular muscle compression-like findings that may be associated [55,58]. The most common radiological findings accompanying orbital wall fractures are periorbital tissue emphysema, fat herniation, and trapped muscle, respectively. The frequency of the aforementioned findings has been reported to be between 15 and 30%, and it has been reported that they do not accompany every patient with OFs [55,56,58,59,60].
In our study, periorbital tissue emphysema in twenty-six cases (55.3%), periorbital edema (38.2%) in eighteen cases, periorbital fat tissue herniation in three cases (6.3%), and paresthesia in four cases (8.5%) due to fractures contacting the infraorbital canal were observed. In the literature, 29.03–98.38% mild and 1.7–20% severe ophthalmic injuries have been reported after MFT [8,9,10]. Eyeball injuries, retrobulbar hemorrhage compressing the optic nerve, or optic neuropathy due to compression from the displaced bone are potential causes for vision loss, which are rarely reported after MFT [61,62].
Globe rupture may present with suspicious CT findings such as intraocular bleeding, lens dislocation, intraocular foreign bodies, intraocular gas, globe deformity, and wall irregularity, and its diagnosis is important because it requires surgical exploration [1]. The diagnostic sensitivity of CT in globe rupture is 67–76% [63,64].
A prevalence of 44.6% has been reported for extraocular muscle entrapment associated with diplopia, enophthalmos, and limitation of eye movements, especially associated with burst fractures of the orbital floor and medial wall [65,66]. The cause of diplopia in extraocular muscle entrapment is ischemia in the ocular muscles and then permanent damage due to Volkmann’s contracture [67]. Oculocardiac reflex, which may manifest itself with bradycardia, nausea, and vomiting, may be seen due to extraocular muscle entrapment [68]. Extraocular muscle impingement is more common in pediatric patients than in adults due to increased bone flexibility [69]. In this respect, early diagnosis and treatment are even more important, especially in pediatric patients, as it can cause fatal arrhythmias.
Due to the orbital bone frame and tight anterior soft tissue cover, it is a risky area in terms of compartment syndrome, which can cause visual loss by affecting the high pressure in the orbit and related vascular nutrition in case of posterior ciliary artery injuries within the borders of the extraocular muscle. Imaging findings indicating elevation in intraocular pressure are proptosis, elongation of the optic nerve, and globe tenting [61,70].
In our study, in accordance with the literature, mild complications (48.9%) were the most common, while moderate-severe complications (2.12–4.25%) were less common. Mild complications, in order of frequency, were periorbital ecchymosis, periorbital edema, subconjunctival hemorrhage, and eyelid laceration. In two cases, diplopia, enophthalmia, and limitation of eye movements were observed due to fractures affecting the base level. One patient with a medial wall fracture had optic neuropathy findings, which was thought to be due to nerve compression, in a patient with a fracture involving the telecanthus and orbital canal.
It is important to better understand OFs and some of the potentially serious complications associated with them, to refer the patient to the relevant branch in a short time, and to consult with them in order to reduce the devastating consequences.
This study’s retrospective design constitutes a significant limitation. This is due to the fact that the data utilized is derived from the anamnesis information provided by the patient during the application process. Due to this situation, especially in situations such as interpersonal violence, victims may deliberately misreport the causes of trauma in order to avoid fear or some legal consequences, and in this case, misleading information about etiology may be obtained. This circumstance that we discussed might have generated bias. As part of the limitations of the study, we recommend that more samples be included, and observations be made with the participation of several centers in the future to gain a better understanding of facial fractures that cause ophthalmic injuries.

5. Conclusions

As a result, the frequency and localization of MFTs vary depending on the differences in demographic, socioeconomic, and environmental factors, and such studies are needed to take preventive measures. In addition, according to the data of this study, there are accompanying ophthalmic injuries in cases with orbital wall fracture due to MFT. Knowing the risk and frequency of orbital injury accompanying MFTs can increase awareness of the radiologists about the diagnosis so that prompt diagnosis and intervention can be possible and the rate of complications can reduced.

Author Contributions

Conceptualization, F.D.G., O.K. and S.A.; Methodology, F.D.G., O.K., O.C.A., A.G.Y., P.K. and S.A.; Validation, F.D.G., O.K., O.C.A., A.G.Y., P.K. and S.A.; Formal analysis, F.D.G., O.K., O.C.A., A.G.Y., P.K. and S.A.; Investigation, F.D.G., O.K., O.C.A., A.G.Y., P.K. and S.A.; Resources, F.D.G., O.K., O.C.A., A.G.Y., P.K. and S.A.; Data curation, F.D.G., O.K., O.C.A., A.G.Y., P.K. and S.A.; Writing—original draft, F.D.G., O.K., O.C.A., A.G.Y., P.K. and S.A.; Writing—review & editing, F.D.G., O.K., O.C.A., A.G.Y., P.K. and S.A.; Visualization, F.D.G., O.K., O.C.A., A.G.Y., P.K. and S.A.; Supervision, F.D.G., O.K., O.C.A., A.G.Y., P.K. and S.A.; Project administration, F.D.G., O.K. and S.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki and approved by the Institutional Review Board of EBYU-KAEK (protocol code 2022/10-011368. ED00342 on 27 October 2022).

Informed Consent Statement

Informed consent was waived due to the retrospective design of the study. However, written consent was obtained for the publication of the images of the cases included in the study after anonymization.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Passi, D.; Chandra, L.; Deepa, D.; Atri, M.; Pandey, S.M.; Goyal, J.; Sharma, A.; Gupta, U. A retrospective cross-sectional study of maxillofacial trauma in Delhi-NCR Region. J. Fam. Med. Prim. Care 2019, 8, 1453–1459. [Google Scholar] [CrossRef] [PubMed]
  2. Singaram, M.; Udhayakumar, R.K. Prevalence, pattern, etiology, and management of maxillofacial trauma in a developing country: A retrospective study. J. Korean Assoc. Oral Maxillofac. Surg. 2016, 42, 174–181. [Google Scholar] [CrossRef] [PubMed]
  3. Patil, S.G.; Kotwal, I.A.; Joshi, U.; Allurkar, S.; Thakur, N.; Aftab, A. Ophthalmological Evaluation by a Maxillofacial Surgeon and an Ophthalmologist in Assessing the Damage to the Orbital Contents in Midfacial Fractures: A Prospective Study. J. Maxillofac. Oral Surg. 2016, 15, 328–335. [Google Scholar] [CrossRef] [PubMed]
  4. Sharma, B.; Gupta, R.; Anand, R.; Ingle, R. Ocular manifestations of head injury and incidence of post-traumatic ocular motor nerve involvement in cases of head injury: A clinical review. Int. Ophthalmol. 2014, 34, 893–900. [Google Scholar] [CrossRef]
  5. Rajkumar, G.C.; Ashwin, D.P.; Singh, R.; Prashanth, R.; Rudresh, K.B. Ocular Injuries Associated with Midface Fractures: A 5 Year Survey. J. Maxillofac. Oral Surg. 2015, 14, 925–929. [Google Scholar] [CrossRef]
  6. Arangio, P.; Vellone, V.; Torre, U.; Calafati, V.; Capriotti, M.; Cascone, P. Maxillofacial fractures in the province of Latina, Lazio, Italy: Review of 400 injuries and 83 cases. J. Cranio-Maxillofac. Surg. 2014, 42, 583–587. [Google Scholar] [CrossRef] [PubMed]
  7. Patel, K.N.A.; Sneha, T.R.; Reddy, K.R.; Girish, G.; Nikhila, G. Changing Trends in the Pattern of Maxillofacial Injuries in Helmeted Motorcycle Accident Patients when Compared to Non-helmeted Motorcycle Accident Patients. J. Maxillofac. Oral. Surg. 2023, 22, 18–24. [Google Scholar] [CrossRef] [PubMed]
  8. Mittal, G.; Singh, N.; Suvarana, S.; Mittal, S. A prospective study on ophthalmic injuries related to maxillofacial trauma in Indian population. Natl. J. Maxillofac. Surg. 2012, 3, 152–158. [Google Scholar] [CrossRef] [PubMed]
  9. Ai-Ourainy, I.; Dutton, G.; Stassen, L.; Moos, K.; Ei-Attar, A. The characteristics of midfacial fractures and the association with ocular injury: A prospective study. Br. J. Oral Maxillofac. Surg. 1991, 29, 291–301. [Google Scholar] [CrossRef]
  10. Magarakis, M.; Mundinger, G.S.; Kelamis, J.A.; Dorafshar, A.H.; Bojovic, B.; Rodriguez, E.D. Ocular injury, visual impairment, and blindness associated with facial frac-tures: A systematic literature review. Plast. Reconstr. Surg. 2012, 129, 227–233. [Google Scholar] [CrossRef] [PubMed]
  11. Gassner, R.; Tuli, T.; Hächl, O.; Rudisch, A.; Ulmer, H. Cranio-maxillofacial trauma: A 10 year review of 9543 cases with 21067 injuries. J. Cranio-Maxillofa. Surg. 2003, 31, 51–61. [Google Scholar] [CrossRef] [PubMed]
  12. Gupta, P.; Bansal, S.; Sinwar, P.D.; Verma, K. A Retrospective Study of Maxillofacial Fractures at a Tertiary Care Centre in North India: A Review of 1674 Cases. J. Maxillofac. Oral Surg. 2023, 22, 641–645. [Google Scholar] [CrossRef] [PubMed]
  13. Cagatay, H.H.; Ekinci, M.; Pamukcu, C.; Oba, M.E.; Ozcan, A.A.; Karsidag, S. Retrospective Analysis Of 132 Patients With Orbital Fracture. Turk. J. Trauma Emerg. Surg. 2013, 19, 449–455. [Google Scholar] [CrossRef] [PubMed][Green Version]
  14. Boffano, P.; Roccia, F.; Zavattero, E.; Dediol, E.; Uglešić, V.; Kovačič, Ž.; Vesnaver, A.; Konstantinović, V.S.; Petrović, M.; Stephens, J.; et al. European Maxillofacial Trauma (EURMAT) project: A multicentre and prospective study. J. Cranio-Maxillofac. Surg. 2015, 43, 62–70. [Google Scholar] [CrossRef]
  15. Kostakis, G.; Stathopoulos, P.; Dais, P.; Gkinis, G.; Igoumenakis, D.; Mezitis, M.; Rallis, G. An epidemiologic analysis of 1,142 maxillofacial fractures and concomitant injuries. Oral. Surg. Oral. Med. Oral. Pathol. Oral. Radiol. 2012, 114, S69–S73. [Google Scholar] [CrossRef]
  16. Menon, S.; Shivakotee, S.; Sham, M.; Kumar, V.; Archana, S. Midface fracture pattern in a tertiary care hospital—A prospective study. Natl. J. Maxillofac. Surg. 2022, 13, 238–242. [Google Scholar] [CrossRef]
  17. Chrcanovic, B.R. Factors influencing the incidence of maxillofacial fractures. Oral Maxillofac. Surg. 2012, 16, 3–17. [Google Scholar] [CrossRef] [PubMed]
  18. Kotecha, S.; Scannell, J.; Monaghan, A.; Williams, R. A four year retrospective study of 1,062 patients presenting with maxillofacial emergencies at a specialist paediatric hospital. Br. J. Oral Maxillofac. Surg. 2008, 46, 293–296. [Google Scholar] [CrossRef] [PubMed]
  19. Zaleckas, L.; Pečiulienė, V.; Gendvilienė, I.; Pūrienė, A.; Rimkuvienė, J. Prevalence and etiology of midfacial fractures: A study of 799 cases. Medicina 2015, 51, 222–227. [Google Scholar] [CrossRef]
  20. Juncar, R.; Tent, P.; Lung, T.; Juncar, M. Midfacial fractures: A retrospective etiological study over a 10-year period in Western Romanian population. Niger. J. Clin. Pract. 2018, 21, 1570–1575. [Google Scholar] [CrossRef]
  21. Lee, C.W.; Foo, Q.C.; Wong, L.V.; Leung, Y.Y. An Overview of Maxillofacial Trauma in Oral and Maxillofacial Tertiary Trauma Centre, Queen Elizabeth Hospital, Kota Kinabalu, Sabah. Craniomaxillofac. Trauma Reconstr. 2017, 10, 16–21. [Google Scholar] [CrossRef] [PubMed]
  22. Halsey, J.N.; Hoppe, I.C.; Granick, M.S.; Lee, E.S. A Single-Center Review of Radiologically Diagnosed Maxillofacial Fractures: Etiology and Distribution. Craniomaxillofac. Trauma Reconstr. 2017, 10, 44–47. [Google Scholar] [CrossRef]
  23. Hyman, D.A.; Saha, S.; Nayar, H.S.; Doyle, J.F.; Agarwal, S.K.; Chaiet, S.R. Patterns of Facial Fractures and Protective Device Use in Motor Vehicle Collisions From 2007 to 2012. JAMA Facial Plast. Surg. 2016, 18, 455–461. [Google Scholar] [CrossRef]
  24. Roccia, F.; Savoini, M.; Ramieri, G.; Zavattero, E. An analysis of 711 victims of interpersonal violence to the face, Turin, Italy. J. Cranio-Maxillofac. Surg. 2016, 44, 1025–1028. [Google Scholar] [CrossRef] [PubMed]
  25. Sharifi, F.; Samieirad, S.; Grillo, R.; Naclério-Homem, M.D.G.; Bardideh, E.; Manafi, A.; Mohammadi, Z.; Eshghpour, M. The Causes and Prevalence of Maxillofacial Fractures in Iran: A Systematic Review. World J. Plast. Surg. 2023, 12, 3–11. [Google Scholar] [CrossRef] [PubMed]
  26. Rahman, R.A.; Ramli, R.; Rahman, N.A.; Hussaini, H.M.; Idrus, S.M.A.; Hamid, A.L.A. Maxillofacial trauma of pediatric patients in Malaysia: A retrospective study from 1999 to 2001 in three hospitals. Int. J. Pediatr. Otorhinolaryngol. 2007, 71, 929–936. [Google Scholar] [CrossRef] [PubMed]
  27. Alcalá-Galiano, A.; Arribas-García, I.J.; Martín-Pérez, M.A.; Romance, A.; Montalvo-Moreno, J.J.; Juncos, J.M.M. Pediatric Facial Fractures: Children Are Not Just Small Adults. Radiographics 2008, 28, 441–461. [Google Scholar] [CrossRef] [PubMed]
  28. Zix, J.; Schaller, B.; Lieger, O.; Saulacic, N.; Thoren, H.; Iizuka, T. Incidence, aetiology and pattern of mandibular fractures in central Switzerland. Swiss Med. Wkly. 2011, 141, w13207. [Google Scholar] [CrossRef] [PubMed]
  29. Kamath, R.A.D.; Bharani, S.; Hammannavar, R.; Ingle, S.P.; Shah, A.G. Maxillofacial Trauma in Central Karnataka, India: An Outcome of 95 Cases in a Regional Trauma Care Centre. Craniomaxillofac. Trauma Reconstr. 2012, 5, 197–204. [Google Scholar] [CrossRef]
  30. Abdullah, W.A.; Al-Mutairi, K.; Al-Ali, Y.; Al-Soghier, A.; Al-Shnwani, A. Patterns and etiology of maxillofacial fractures in Riyadh City, Saudi Arabia. Saudi Dent. J. 2013, 25, 33–38. [Google Scholar] [CrossRef]
  31. Batista, A.M.; Ferreira, F.d.O.; Marques, L.S.; Ramos-Jorge, M.L.; Ferreira, M.C. Risk factors associated with facial fractures. Braz. Oral Res. 2012, 26, 119–125. [Google Scholar] [CrossRef] [PubMed]
  32. Blumer, M.; Kumalic, S.; Gander, T.; Lanzer, M.; Rostetter, C.; Rücker, M.; Lübbers, H.T. Retrospective analysis of 471 surgically treated zygomaticomaxillary complex fractures. J. Cranio-Maxillofac. Surg. 2018, 46, 269–273. [Google Scholar] [CrossRef] [PubMed]
  33. Helgeland, E.; Dahle, I.; Leira, J.; Loro, L. Maxillofacial Fractures Surgically Managed at Aalesund Hospital between 2002 and 2009. Craniomaxillofac. Trauma Reconstr. 2015, 8, 321–325. [Google Scholar] [CrossRef] [PubMed]
  34. Jeon, E.-G.; Jung, D.-Y.; Lee, J.-S.; Seol, G.-J.; Choi, S.-Y.; Paeng, J.-Y.; Kim, J.-W. Maxillofacial Trauma Trends at a Tertiary Care Hospital: A Retrospective Study. Maxillofac. Plast. Reconstr. Surg. 2014, 36, 253–258. [Google Scholar] [CrossRef][Green Version]
  35. Arosarena, O.A.; Fritsch, T.A.; Hsueh, Y.; Aynehchi, B.; Haug, R. Maxillofacial injuries and violence against women. Arch. Facial Plast. Surg. 2009, 11, 48–52. [Google Scholar] [CrossRef] [PubMed]
  36. Juncar, M.; Tent, P.A.; Juncar, R.I.; Harangus, A.; Mircea, R. An epidemiological analysis of maxillofacial fractures: A 10-year cross-sectional cohort retrospective study of 1007 patients. BMC Oral Health 2021, 21, 128. [Google Scholar] [CrossRef]
  37. Adam, S.; Sama, H.D.; Akpoto, Y.M.; Bissa, H.; Agoda, P.; Foma, W.; Pegbessou, E.P.; Amana, B.; Boko, E.; Kpemissi, E. Orbital Floor Fractures: Epidemiological, Clinical and Therapeutical Study at Sylvanus Olympio University Teaching Hospital in Lomé about 51 Cases. Open J. Stomatol. 2021, 11, 373–386. [Google Scholar] [CrossRef]
  38. Mijiti, A.; Ling, W.; Tuerdi, M.; Maimaiti, A.; Tuerxun, J.; Tao, Y.Z.; Saimaiti, A.; Moming, A. Epidemiological analysis of maxillofacial fractures treated at a university hospital, Xinjiang, China: A 5-year retrospective study. J. Cranio-Maxillofac. Surg. 2014, 42, 227–233. [Google Scholar] [CrossRef]
  39. Businger, A.; Krebs, J.; Schaller, B.; Zimmermann, H.; Exadaktylos, A. Cranio-maxillofacial injuries in victims of interpersonal violence. Swiss Med. Wkly. 2012, 142, w13687. [Google Scholar] [CrossRef]
  40. Braimah, R.; Ali-Alsuliman, D.; Ibrahim, E.-H. Patterns of zygomatic complex bone fracture in Saudi Arabia. J. Emerg. Trauma Shock 2018, 11, 170–174. [Google Scholar] [CrossRef]
  41. Obimakinde, O.S.; Ogundipe, K.O.; Rabiu, T.B.; Okoje, V.N. Maxillofacial fractures in a budding teaching hospital: A study of pattern of presentation and care. Pan Afr. Med. J. 2017, 26, 621. [Google Scholar] [CrossRef]
  42. Hoonpongsimanont, W.; Ghanem, G.; Saadat, S.; Nguyen, M.; Louis, C.; Sahota, P.K.; Danishgar, L.; Carroll, C.; Barrios, C.; Lotfipour, S. Correlation between alcohol use disorders, blood alcohol content, and length of stay in trauma patients. J. Emerg. Trauma Shock 2021, 14, 42–47. [Google Scholar] [CrossRef]
  43. Kambalimath, H.V.; Agarwal, S.M.; Kambalimath, D.H.; Singh, M.; Jain, N.; Michael, P. Maxillofacial Injuries in Children: A 10 year Retrospective Study. J. Maxillofac. Oral Surg. 2013, 12, 140–144. [Google Scholar] [CrossRef] [PubMed]
  44. Emodi, O.D.; Wolff, A.D.; Srouji, H.D.; Bahouth, H.; Noy, D.D.; Abu El Naaj, I.; Rachmiel, A.D. Trend and Demographic Characteristics of Maxillofacial Fractures in Level I Trauma Center. J. Craniofacial. Surg. 2018, 29, 471–475. [Google Scholar] [CrossRef] [PubMed]
  45. Al-Qamachi, L.H.; Laverick, S.; Jones, D. A clinico-demographic analysis of maxillofacial trauma in the elderly. Gerodontology 2012, 29, e147–e149. [Google Scholar] [CrossRef]
  46. Wymann, N.M.E.; Hölzle, A.; Zachariou, Z.; Iizuka, T. Pediatric Craniofacial Trauma. J. Oral Maxillofac. Surg. 2008, 66, 58–64. [Google Scholar] [CrossRef] [PubMed]
  47. Kar, I.B.; Mahavoi, B.R. Retrospective analysis of 503 maxillo-facial trauma cases in Odisha during the period of Dec’04–Nov’09. J. Maxillofac. Oral Surg. 2012, 11, 177–1781. [Google Scholar] [CrossRef] [PubMed]
  48. Lozada, K.N.; Cleveland, P.W.; Smith, J.E. Orbital Trauma. Seminars in Plastic Surgery; Thieme Medical Publishers: New York, NY, USA, 2019. [Google Scholar]
  49. Georgouli, T.; Pountos, I.; Chang, B.Y.P.; Giannoudis, P.V. Prevalence of ocular and orbital injuries in polytrauma patients. Eur. J. Trauma Emerg. Surg. 2011, 37, 135–140. [Google Scholar] [CrossRef] [PubMed]
  50. Ray, C.N.M.; Marsh, H.D.M.; Gilmore, J.E.; Kirk, D.W.; Larumbe-Zabala, E.; Freedman, K.A. Review of 451 Patients Presenting with Orbital Wall Fractures: A Retrospective Analysis. J. Craniofacial Surg. 2023, 34, 126–130. [Google Scholar] [CrossRef]
  51. Sadashivam, S. Isolated orbital roof fracture: Can it be catastrophic? Asian J. Neurosurg. 2018, 13, 935–937. [Google Scholar] [CrossRef]
  52. Suri, A.; Mahapatra, A.K. Growing Fractures of the Orbital Roof A Report of Two Cases and a Review. Pediatr. Neurosurg. 2002, 36, 96–100. [Google Scholar] [CrossRef] [PubMed]
  53. Haug, R.H.; Van Sickels, J.E.; Jenkins, W.S. Demographics and treatment options for orbital roof fractures. Oral Surg. Oral Med. Oral Pathol. Oral Radiol. Endodontol. 2002, 93, 238–246. [Google Scholar] [CrossRef] [PubMed]
  54. Johnson, N.R.; Singh, N.R.; Oztel, M.; Vangaveti, V.N.; Rahmel, B.B.; Ramalingam, L. Ophthalmological injuries associated with fractures of the orbitozygomaticomaxillary complex. Br. J. Oral Maxillofac. Surg. 2018, 56, 221–226. [Google Scholar] [CrossRef]
  55. Cellina, M.; Floridi, C.; Panzeri, M.; Giancarlo, O. The role of computed tomography (CT) in predicting diplopia in orbital blowout fractures (BOFs). Emerg. Radiol. 2018, 25, 13–19. [Google Scholar] [CrossRef] [PubMed]
  56. Andrews, B.T.; Jackson, A.S.; Nazir, N.; Hromas, A.; Sokol, J.A.; Thurston, T.E. Orbit fractures: Identifying patient factors indicating high risk for ocular and periocular injury. Laryngoscope 2016, 126, S5–S11. [Google Scholar] [CrossRef]
  57. Zhou, P.; Chambers, C.B. Orbital Fractures. Seminars in Plastic Surgery; Thieme Medical Publishers, Inc.: New York, NY, USA, 2021. [Google Scholar]
  58. Nazimi, A.J.; Khoo, S.C.; Nabil, S.; Nordin, R.; Lan, T.H.; Rajandram, R.K.; Rajaran, J.R. Intraoperative Computed Tomography Scan for Orbital Fracture Reconstruction. J. Craniofacial Surg. 2019, 30, 2159–2162. [Google Scholar] [CrossRef]
  59. Noh, H.; Chung, J.K.; Woo, K.I.; Kim, Y.-D. Occurrence of ocular injury and orbital fracture in orbital blunt trauma patients at tertiary care center emergency room. Graefes Arch. Clin. Exp. Ophthalmol. 2021, 259, 165–171. [Google Scholar] [CrossRef]
  60. Alafaleq, M.; Roul-Yvonnet, F.; Schouman, T.; Goudot, P. A retrospective study of pure medial orbital wall fracture management. J. Français D’ophtalmologie 2019, 42, 592–596. [Google Scholar] [CrossRef]
  61. Vijayan, K.; Sundaresh, D.; Ramanujam, L.J.C. Ocular trauma in mid face fractures-an interdisciplinary approach. Clin. Exp. Ocul. Trauma Infect. 2021, 3, 2–9. [Google Scholar]
  62. Malik, A.H.; Shah, A.A.; Ahmad, I.; Shah, B.A. Ocular Injuries in Patients of Zygomatico-Complex (ZMC) Fractures. J. Maxillofac. Oral Surg. 2017, 16, 243–247. [Google Scholar] [CrossRef]
  63. Yuan, W.-H.; Hsu, H.-C.; Cheng, H.-C.; Guo, W.-Y.; Teng, M.M.-H.; Chen, S.-J.; Lin, T.-C. CT of Globe Rupture: Analysis and Frequency of Findings. Am. J. Roentgenol. 2014, 202, 1100–1107. [Google Scholar] [CrossRef] [PubMed]
  64. Hoffstetter, P.; Schreyer, A.G.; Schreyer, C.I.; Jung, E.M.; Heiss, P.; Zorger, N.; Framme, C. Multidetector CT (MD-CT) in the diagnosis of uncertain open globe injuries. In RöFo-Fortschritte auf dem Gebiet der Röntgenstrahlen und der Bildgebenden Verfahren; © Georg Thieme Verlag KG Stuttgart: New York, NY, USA, 2009. [Google Scholar]
  65. Betts, A.M.; O’brien, W.T.; Davies, B.W.; Youssef, O.H. A systematic approach to CT evaluation of orbital trauma. Emerg. Radiol. 2014, 21, 511–531. [Google Scholar] [CrossRef] [PubMed]
  66. Lee, H.-J.; Jilani, M.; Frohman, L.; Baker, S. CT of orbital trauma. Emerg. Radiol. 2004, 10, 168–1672. [Google Scholar] [CrossRef] [PubMed]
  67. Harrison, P.; Hafeji, S.; Green, A.O.; Chellappah, A.D.; Fan, K. Isolated paediatric orbital fractures: A case series and review of management at a major trauma centre in the UK. Oral Maxillofac. Surg. 2023, 27, 227–233. [Google Scholar] [CrossRef]
  68. Toyohara, Y.; Mito, N.; Nakagawa, S.; Yoshimura, K.; Sunaga, A. Asystole Due to Oculocardiac Reflex during Surgical Repair of an Orbital Blowout Fracture. Plast. Reconstr. Surg. Glob. Open 2022, 10, e4544. [Google Scholar] [CrossRef]
  69. Al-Qattan, M.M.; Al-Qattan, Y.M. “Trap door” orbital floor fractures in adults: Are they different from pediatric fractures? Plast. Reconstr. Surg. Glob. Open 2021, 9, e3537. [Google Scholar] [CrossRef]
  70. Goelz, L.; Syperek, A.; Heske, S.; Mutze, S.; Hosten, N.; Kirsch, M. Retrospective Cohort Study of Frequency and Patterns of Orbital Injuries on Whole-Body CT with Maxillofacial Multi-Slice CT. Tomography 2021, 7, 373–386. [Google Scholar] [CrossRef] [PubMed]
Diagnostics 13 03429 g001

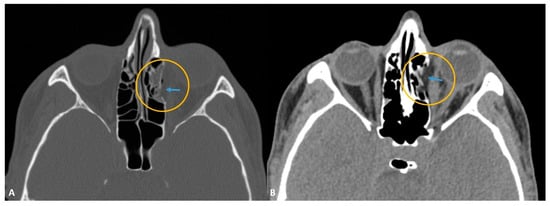

Figure 1. In the axial plane bone window (A) and parenchymal window (B) computed tomography (CT) images, there is a lamina papprisea fracture (yellow circle) in the medial wall of the orbit, and a partial orbital fatty tissue herniation (blue arrow) is seen at this level.
Figure 1. In the axial plane bone window (A) and parenchymal window (B) computed tomography (CT) images, there is a lamina papprisea fracture (yellow circle) in the medial wall of the orbit, and a partial orbital fatty tissue herniation (blue arrow) is seen at this level.
Diagnostics 13 03429 g001
Diagnostics 13 03429 g002

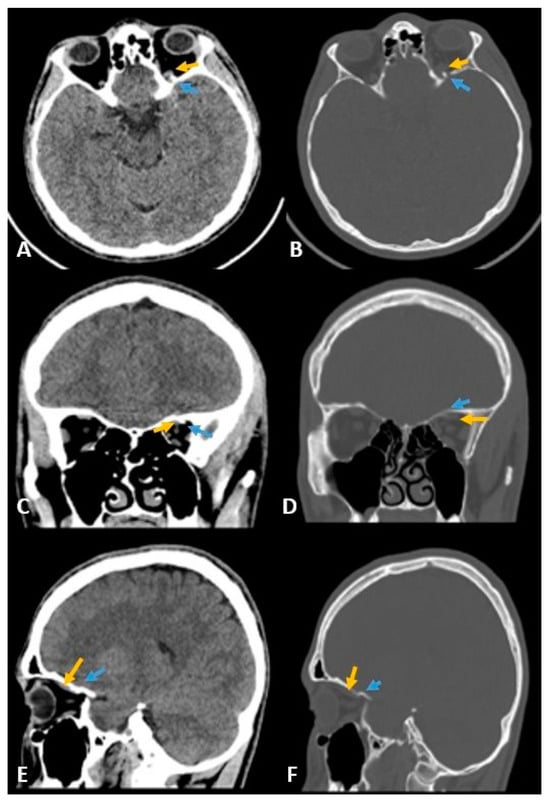

Figure 2. Axial (A), coronal (C), and sagittal (E) CT images in the parenchymal window and axial (B), coronal (D), and sagittal (F) CT images in the bone window show the contact of the millimetric bone fragment in the orbital roof (blue arrow) with the superior rectus muscle (yellow arrow).
Figure 2. Axial (A), coronal (C), and sagittal (E) CT images in the parenchymal window and axial (B), coronal (D), and sagittal (F) CT images in the bone window show the contact of the millimetric bone fragment in the orbital roof (blue arrow) with the superior rectus muscle (yellow arrow).
Diagnostics 13 03429 g002
Diagnostics 13 03429 g003

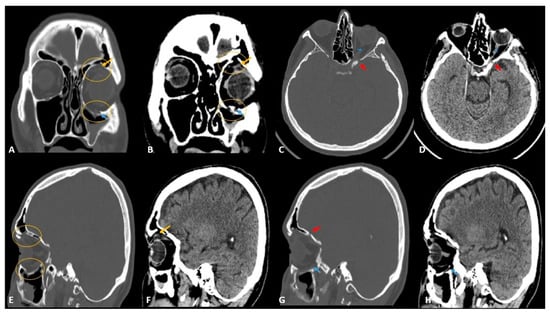

Figure 3. Coronal (A), axial (C), and sagittal (E,G) CT images in the bone window and coronal (B), axial (D), and sagittal (F,H) CT images in the parenchymal window. There are herniations of both fat (yellow circle) and superior rectus muscle (yellow arrow) due to the fracture in the roof of the orbit and fatty tissue (yellow circle) due to the fracture in the orbital floor. The fracture in the orbital roof extends into the optic canal (red arrow). The fracture in the lower wall also affects the infraorbital nerve (blue arrow).
Figure 3. Coronal (A), axial (C), and sagittal (E,G) CT images in the bone window and coronal (B), axial (D), and sagittal (F,H) CT images in the parenchymal window. There are herniations of both fat (yellow circle) and superior rectus muscle (yellow arrow) due to the fracture in the roof of the orbit and fatty tissue (yellow circle) due to the fracture in the orbital floor. The fracture in the orbital roof extends into the optic canal (red arrow). The fracture in the lower wall also affects the infraorbital nerve (blue arrow).
Diagnostics 13 03429 g003
Diagnostics 13 03429 g004

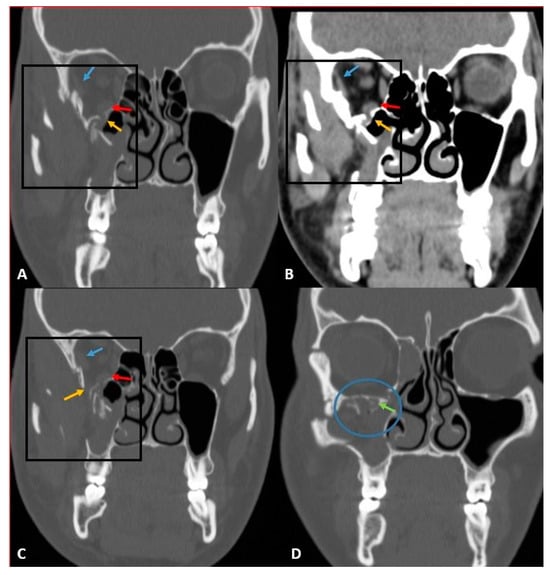

Figure 4. CT images in the coronal bone window (A,C,D) and coronal parenchyma window (B). There are multi-part displaced fracture lines on the orbital lateral, inferior, and maxillary sinus lateral wall (black square). Displaced bone fragments in the orbital inferior and lateral walls contact the inferior rectus (red arrow) and lateral rectus (blue arrow) muscles. Orbital fat tissue herniations (yellow arrow) are seen in different foci that herniate into the maxillary sinus due to inferior orbital wall fracture. The fracture line on the inferior orbital wall extends to the lateral wall of the infraorbital canal (blue circle), which contains the infraorbital nerve (green arrow).
Figure 4. CT images in the coronal bone window (A,C,D) and coronal parenchyma window (B). There are multi-part displaced fracture lines on the orbital lateral, inferior, and maxillary sinus lateral wall (black square). Displaced bone fragments in the orbital inferior and lateral walls contact the inferior rectus (red arrow) and lateral rectus (blue arrow) muscles. Orbital fat tissue herniations (yellow arrow) are seen in different foci that herniate into the maxillary sinus due to inferior orbital wall fracture. The fracture line on the inferior orbital wall extends to the lateral wall of the infraorbital canal (blue circle), which contains the infraorbital nerve (green arrow).
Diagnostics 13 03429 g004
Table 1. Comparison of the mean age of cases with or without orbital involvement.
Table 1. Comparison of the mean age of cases with or without orbital involvement.
Patient Age
Mean ± SDMin–Maxp
Orbital fracture—Yes38.98 ± 19.1311–87<0.001
Orbital fracture—None29.2 ± 19.360.33–97
Medial wall fracture—Yes39.96 ± 16.212–760.011
Medial wall fracture—None29.48 ± 19.470.33–97
Lateral wall fracture—Yes54 ± 17.1834–760.001
Lateral wall fracture—None29.56 ± 19.360.33–97
Superior wall fracture—Yes39.09 ± 19.8612–760.109
Superior wall fracture—None29.64 ± 19.440.33–97
Inferior wall fracture—Yes36.29 ± 21.2312–870.071
Inferior wall fracture—None29.54 ± 19.370.33–97
The p-value was obtained from the Student’s t-test.
Table 2. Location of orbital wall fractures.
Table 2. Location of orbital wall fractures.
Location of Orbital Wall Fractures
Yes (n = 47)None (n = 840)Total (n = 887)
n (%)n (%)n (%)
Medial wall fracture—Yes23/47 (48.9)0 (0)23/887 (2.6)
Medial wall fracture—None24/47 (51.1)840/840 (100)864/887 (97.4)
Lateral wall fracture—Yes8/47 (17)0 (0)8/887 (0.9)
Lateral wall fracture—None39/47 (83)840/840 (100)879/887 (99.1)
Superior wall fracture—Yes11/47 (23.4)0 (0)11/887 (1.2)
Superior wall fracture—None36/47 (76.6)840/840 (100)876/887 (98.8)
Inferior wall fracture—Yes26/47 (55.3)3/840 (0.4)29/887 (3.3)
Inferior wall fracture—None21 /47 (44.7)837/840 (99.6)858/887 (96.7)
Table 3. Other maxillofacial region fracture locations and soft tissue involvement in cases with and without orbital involvement.
Table 3. Other maxillofacial region fracture locations and soft tissue involvement in cases with and without orbital involvement.
Orbital Involvement
Yes (n = 47)None (n = 840)Total (n = 887)
n (%)n (%)n (%)p
Nasal bone fracture—Yes12/47 (25.5)121/840(14.4)133/887 (15)<0.001
Nazal bone fracture—None35/47 (74.5)719/840 (85.6)754/887 (85)
Soft tissue involvement—Yes26/47 (55.3)26/840 (3.1)52/887 (5.9)<0.001
Soft tissue involvement—None21/47 (44.7)814/840 (96.9)835/887 (94.1)
Ethmoid bone fracture—Yes1/47 (2.1)0/840 (0)1/887 (0.1)<0.001
Ethmoid bone fracture—None46/47 (97.9)840 /840 (100)886/887 (99.9)
Sphenoid bone fracture—Yes2/47 (4.3)0/840 (0)2/887 (0.2)0.003
Sphenoid bone fracture—None45/47 (95.7)840/840 (100)885/887 (99.8)
Frontal bone fracture—Yes9/47 (19.1)3/840 (0.4)12/887 (1.4)<0.001
Frontal bone fracture—None38/47 (80.9)837/840 (99.6)875/887 (98.6)
Maxillary bone fracture—Yes18/47 (38.3)5/840 (0.6)23/887 (2.6)<0.001
Maxillary bone fracture—None29/47 (61.7)835/840 (99.4)864/887 (97.4)
Mandibula bone fracture—Yes2/47 (4.3)5/840 (0.6)7/887 (0.8)0.059
Mandibula bone fracture—None45/47 (95.7)835/840 (99.4)880/887 (99.2)
Zygomatic bone fracture—Yes5/47 (10.6)2/840 (0.2)7/887 (0.8)<0.001
Zygomatic bone fracture—None42/47 (89.4)838/840 (99.8)880/887 (99.2)
Temporal bone fracture—Yes1/47 (2.1)0/840 (0)1/887 (0.1)0.053
Temporal bone fracture—None46/47 (97.9)840/840 (100)886/887 (99.9)
The p-value was obtained from the Chi-square or Fisher Exact test.
Table 4. Ophthalmic complication severity and distribution of related complications in cases with orbital wall fracture.
Table 4. Ophthalmic complication severity and distribution of related complications in cases with orbital wall fracture.
Ophthalmic ComplicationNumber (n)Percentage (%)
MILD
Periorbital edema1838.29
Eyelid laceration67.83
Periorbital ecchymosis2348.93
Subconjunctival hemorrhage1429.78
MODERATE
Enophthalmos24.25
Restriction of eye muscles24.25
Diplopia24.25
Telecanthus12.12
Dystopia12.12
Dilated pupil12.12
SEVERE
Corneal abrasion12.12
Traumatic optical neuropathy12.12
Table 5. Comparison of the distribution of extraction reasons in cases with and without orbital involvement.
Table 5. Comparison of the distribution of extraction reasons in cases with and without orbital involvement.
Reason for MFCT Shooting Orbital InvolvementMFT
Yes (n: 47)None (n: 840)Total (n: 887)
n (%)n (%)(%)
Interpersonal violence/beaten21/47 (44.6)376/840 (44.7)(44.7)
Traffic accident17/47 (36.1)210/840 (25)(25.5)
Fall9/47 (19.1)197/840 (23.4)(23.2)
Work accident0 (0)32/840 (3.8)(3.6)
Hitting0 (0)25/840 (2.9)(2.8)
Maxillofacial computed tomography (MFCT), maxillofacial trauma (MFT).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Gokharman, F.D.; Kadirhan, O.; Celik Aydin, O.; Yalcin, A.G.; Kosar, P.; Aydin, S. A Comprehensive Look at Maxillofacial Traumas: On the Basis of Orbital Involvement. Diagnostics 2023, 13, 3429. https://doi.org/10.3390/diagnostics13223429

AMA Style

Gokharman FD, Kadirhan O, Celik Aydin O, Yalcin AG, Kosar P, Aydin S. A Comprehensive Look at Maxillofacial Traumas: On the Basis of Orbital Involvement. Diagnostics. 2023; 13(22):3429. https://doi.org/10.3390/diagnostics13223429

Chicago/Turabian Style

Gokharman, Fatma Dilek, Ozlem Kadirhan, Ozlem Celik Aydin, Arzu Gulsah Yalcin, Pınar Kosar, and Sonay Aydin. 2023. "A Comprehensive Look at Maxillofacial Traumas: On the Basis of Orbital Involvement" Diagnostics 13, no. 22: 3429. https://doi.org/10.3390/diagnostics13223429

APA Style

Gokharman, F. D., Kadirhan, O., Celik Aydin, O., Yalcin, A. G., Kosar, P., & Aydin, S. (2023). A Comprehensive Look at Maxillofacial Traumas: On the Basis of Orbital Involvement. Diagnostics, 13(22), 3429. https://doi.org/10.3390/diagnostics13223429

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
