Assessment of Phenotypic Tools for Detection of OXA-48, KPC, and NDM in Klebsiella pneumoniae in Oman

by
Arwa AL Rujaibi
1,
Zaaima AL Jabri
1,
Amina Al Jardani
2,
Azza AL Rashdi
2,
Azza AL Mamari
1,
Sara AL Sumri
2,
Hiba Sami
3,
Zakariya Al Muharrmi
4 and
Meher Rizvi
1,*
1
Department of Microbiology and Immunology, College of Medicine and Health Sciences, Sultan Qaboos University, Muscat 123, Oman
2
Central Public Health Laboratories, Center for Disease Control and Prevention, Ministry of Health, Muscat 132, Oman
3
Department of Microbiology, Jawaharlal Nehru Medical College, Aligarh Muslim University, Aligarh 202001, India
4
Department of Microbiology and Immunology, Sultan Qaboos University and University Medical City, Muscat 123, Oman
*
Author to whom correspondence should be addressed.
Diagnostics 2025, 15(8), 949; https://doi.org/10.3390/diagnostics15080949
Submission received: 27 January 2025 / Revised: 5 March 2025 / Accepted: 26 March 2025 / Published: 8 April 2025
(This article belongs to the Special Issue Editorial Board Members' Collection Series: Molecular Diagnostics of Infectious Diseases)
Browse Figures
Versions Notes

Abstract

:
Background: The alarming increase in carbapenemase-producing Enterobacterales is a matter of grave public health concern. The most ubiquitous carbapenemases, Klebsiella pneumoniae carbapenemase (KPC)-, New Delhi metallo-β-lactamase (NDM)-, and oxacillinase (OXA-48)-like enzymes, belong to the Ambler molecular classes A, B, and D, respectively. KPC- and OXA-48-like enzymes have a serine-based hydrolytic mechanism, while NDMs are metallo-β-lactamases that contain zinc in the active site. For the judicious use of reserve drugs and promoting antimicrobial stewardship, timely detection of carbapenemases is essential. While molecular tools are the gold standard for the detection of these enzymes, many laboratories have limited access to them. This study focused on evaluating in-house tools and commercial phenotypic tests for the detection of OXA-48-, KPC-, and NDM-like enzymes in K. pneumoniae, the predominant extremely drug-resistant pathogen in Oman. Methods: In total, 80 GeneXpert/PCR-confirmed (40 OXA-48 and 20 KPC and NDM each) and 37 whole-genome-sequenced (25 OXA-232 and 6 KPC-2, plus NDM-1 and NDM-5) K. pneumoniae were subjected to screening by temocillin (30 μg disk) (MAST Diagnostica, Germany) and D71C (MASTDISCS®). Isolates resistant to temocillin (<11 mm) and D71C were subjected to four tests: an in-house tool (OXA-48 disk test) and three commercial phenotypic tests: (i) the MASTDISCS® Combi (D72C) (MAST Group Ltd., Bootle, UK); (ii) the MASTDISCS® Combi (D73C) (MAST Group Ltd., UK); and (iii) an immunochromatographic assay (ICT), which is the KPC/IMP/NDM/VIM/OXA-48 Combo test kit (Medomics, China), for the detection of OXA-48-, KPC-, and NDM-like carbapenemases. Results: Temocillin exhibited good sensitivity and specificity (100% and 97.50%) compared to D71C (70% and 100%). Among the confirmatory tests, the in-house OXA-48 disk test had 92.50% sensitivity and 100% specificity, while the commercial MAST DISC tests D72C, D73C, and ICT had 97.50%, 95.00%, and 100% sensitivity and 100%, 91.67%, and 95% specificity, respectively. Conclusions: The temocillin disk test is a good screening tool. With high sensitivity and specificity, ease of performance, short turnaround time, and low cost, we recommend the ICT format for routine diagnostic use. In resource-constrained centers, the OXA-48 disk test is an excellent alternative with high sensitivity and specificity.

1. Introduction

The emergence of carbapenemase-producing Enterobacterales (CPEs) is undoubtedly one of the most significant health challenges of the century [1]. Carbapenemases are recognized as the most versatile β-lactamases, with a hydrolytic spectrum that surpasses that of extended-spectrum and AmpC β-lactamases. According to Ambler’s classification, they are categorized into three classes: A, B, and D. Within Ambler class A, plasmid-encoded carbapenemases include KPC (KPC-1 to KPC-13), IMI (IMI-1 to IMI-3), and GES (Guiana extended spectrum) (GES-1 to GES-20), whereas chromosomally encoded carbapenemases include Not Metalloenzyme Carbapenemase A (NMC-A) and Serratia marcescens enzyme (SME). Class B carbapenemases are β-lactamases capable of hydrolyzing carbapenems but can be inhibited by ethylenediaminetetraacetic acid (EDTA), a chelator of Zn2+ and other divalent cations. Prominent metallo-β-lactamase families in this class include New Delhi metallo-β-lactamase-1 (NDM-1), imipenem-resistant Pseudomonas (IMP)-type carbapenemases, Verona integron-encoded metallo-β-lactamase (VIM), German imipenemase (GIM), and Seoul imipenemase (SIM). NDM genes are primarily found in Klebsiella pneumoniae and Escherichia coli isolates but have also been detected in association with Acinetobacter baumannii and Pseudomonas aeruginosa. Class D carbapenemases, which are serine-β-lactamases, exhibit poor inhibition by EDTA or clavulanic acid and are classified as OXA enzyme types (oxacillin carbapenemases) with limited activity against carbapenems [2].
The incidence of these enzymes is on the rise in comparison to the total infections caused by Enterobacterales. Amongst all the members of this family, CPE predominates in Klebsiella species [3,4,5,6,7]. In the Middle East, carbapenem resistance among Enterobacterales isolates is 4.3% [8]. The rapid detection of carbapenemases and the initiation of appropriate antimicrobials improve patient outcomes, strengthen antimicrobial stewardship efforts, and allow the judicious use of the reserve antibiotics [9]. Studies indicate that, as with other carbapenemases, OXA-48-producing strains are associated with poor patient outcomes. However, OXA-48 detection is rather challenging, due to low-level hydrolytic activity toward carbapenems and no intrinsic activity against expanded-spectrum cephalosporins [7]. While molecular methods are considered the gold standard for the detection of CPE, their accessibility is limited, particularly in resource-constrained settings [10]. It is important to evaluate phenotypic tests for the detection of carbapenemases. Such tests enable their detection at scale, allow the optimization of treatment, and enhance surveillance and infection prevention and control efforts. The temocillin disk test has been described in many studies as a useful tool for the detection of OXA-48, in conjunction with ertapenem or piperacillin–tazobactam [11,12]. Dijk et al. recommended the temocillin test along with carbapenemase inhibition tests (PBA and DPA) as a confirmatory tool for class A, B, and D carbapenemases in Enterobacterales [13]. Tsakris et al. recommended the OXA-48 disk test for accurate phenotypic detection of OXA-48-producing Enterobacterales [14]. The Mast group with D71, D72, and D73 is a useful tool for the detection of extended-spectrum beta lactamases (ESBLs), AmpC beta lactamases, and CPE [15]. Several good lateral flow immunoassay (LFIA) tests are available in the market, like KINVO (Medomics Medical Technology, Nanjing, Jiangsu, China), the O.K.N.V.I RESIST-5 (RESIST-5, Coris BioConcept, Gembloux, Belgium), and the NG-Test® DetecTooL CARBA 5 (CARBA-5, NG Biotech, Guipry-Messac, France). They are rapid, easy to use, and relatively cheap [16]. In this study, we assessed the temocillin disk test and D71C as screening tests and the OXA disk test, D72C, D73C, and an LFIA (Medomics) as confirmatory tests. This was carried out in an effort to identify sensitive, specific, and cost-effective tests for the detection of OXA-48, KPC, and NDM in K. pneumoniae, which may be of use in low-resource settings as well.

2. Materials and Methods

2.1. Sample Collection

A collaborative study was initiated between Sultan Qaboos University Hospital (SQUH) and the Central of Public Health Laboratories (CPHL), Oman, with the purpose of identifying a sensitive, specific, and cost-effective test for the detection of OXA-48-, KPC-, and NDM-like enzymes in K. pneumoniae which may be useful in low-resource settings as well. One thousand and fifty-five clinical isolates of K. pneumoniae obtained from SQUH and CPHL were screened for OXA-48-, KPC-, and NDM-like enzymes over a six-month period. Four hundred and thirteen consecutive, non-duplicate (i) meropenem and imipenem resistant isolates; (ii) isolates which demonstrated intermediate MICs to carbapenems; (iii) isolates with resistance to piperacillin–tazobactam; and (iv) isolates that were susceptible, intermediate, or resistant to third-generation cephalosporins [17] were subjected to genotypic confirmation by Xpert ®Carba-R, PCR, and WGS which are considered the gold standard methods for identifying CPE.

2.2. Genotypic Confirmation of Carbapenemases by Gene Xpert/PCR

The isolates were subjected to Gene Xpert ®Carba-R (Cepheid, Sunnyvale, CA, USA) in SQUH and to a standardized PCR protocol (Platinum multiplex PCR master mix, Thermofisher, Vilnius, Lithuania) in CPHL [18]. In brief, at CPHL, the molecular analysis involved testing for the presence of carbapenemase genes: blaKPC, blaNDM, blaOXA-48, blaIMP, and blaVIM-like enzymes. A pure isolate was used to extract the DNA, using QIAsymphony DSP DNA Mini Kit as per the manufacturer’s instructions. Multiplex PCR targeted blaOXA-48, blaNDM, blaKPC, blaIMP, and blaVIM [19]. The primers were obtained from Eurofins Genomics, Ebersberg, Germany, GmbH. Details are provided in Tables S1–S3 of the Supplementary File. Gel electrophoresis was used for the molecular characterization of the CPE genes.

2.3. Whole-Genome Sequencing (WGS)

Whole-genome sequencing (WGS) was performed at MicrobesNG using Illumina next-generation sequencing for representative OXA-48, KPC, and NDM in K. pneumoniae strains (https://microbesng.co.uk, accessed on 14 September 2022, Birmingham, UK). The DNA samples were prepared and sequenced according to the manufacturer’s protocol.
The extracted DNA was prepared following the manufacturer’s protocol as described on the company’s website as follows: ILLUMINA SEQUENCING (SGS and EGS) Genomic DNA libraries are prepared using the Nextera XT Library Prep Kit (Illumina, San Diego, CA, USA) following the manufacturer’s protocol with the following modifications: input DNA is increased 2-fold, and PCR elongation time is increased to 45 s. DNA quantification and library preparation are carried out on a Hamilton Microlab STAR automated liquid handling system (Hamilton Bonaduz AG, Bonaduz, Switzerland). Pooled libraries are quantified using the Kapa Biosystems Library Quantification Kit for Illumina. Libraries are sequenced using Illumina sequencers (HiSeq/NovaSeq) using a 250 bp paired-end protocol. Reads are adapter-trimmed using Trimmomatic 0.30 with a sliding window quality cutoff of Q15. Post-sequencing, the samples were assembled using the De Novo assembly by the SPAdes program [20]. The assembled contigs were annotated with Prokka [21] and uploaded to the website for further analysis. Multilocus sequence typing (MLST) v2.0.9 was determined using the MLST tool in the Center for Genomic Epidemiology (CGE) (https://www.genomicepidemiology.org/services/, accessed on September 2022) [22,23]. PlasmidFinder and ResFinder in the CGE website were used to identify plasmids and acquired antimicrobial resistance genes, respectively [24,25]. Additionally, the Comprehensive Antibiotic Resistance Database v3.2.8 (CARD) (https://card.mcmaster.ca/, accessed on December 2022) was used to detect putative antimicrobial resistance genes using the Resistance Gene Identifier (RGI) tool v6.0.3. This tool identifies the antibiotic resistome(s) as well as point mutations within the resistance-conferring genes [26]. Furthermore, the phylogeny tool in the CGE server was used to investigate the genetic relatedness between the different sequences by identifying single-nucleotide polymorphisms (SNPs).
From the above-mentioned pool, 40 OXA-48-like isolates, 20 each of NDM and KPC carbapenemase producers, and 37 whole-genome-sequenced isolates (25 OXA-232 and 6 KPC-2, plus NDM-1 and 6 NDM-5) were selected for evaluating the tests. OXA-232 harbored CTX-M-15, SHV-11, SHV-28, SHV-67, SHV-75, SHV106, and SHV-182, while the KPC-2+NDM-1 carried CTMX-65, SHV-12, SHV-12, SHV-182, and SHV-182 and NDM-5 carried CTX-M-65, TEM-1B, TEM-1C, SHV-11, SHV-12, SHV-67, and SHV-75.
CPE confirmed isolates were subjected to the following phenotypic tests for the detection of CPE.

2.4. Phenotypic Testing for Screening and Confirmation of CPE

All isolates were first screened and then subjected to four confirmatory phenotypic tests for the detection of CPE. Figure 1 shows the algorithm followed. The details of each test are mentioned below. The cost of each test is provided in Table S4, Supplementary File.

2.5. Screening Test

Temocillin and D71C Disk Test

A 30 μg temocillin disk (MAST Group Ltd., UK) and a faropenem disk from D71C (MAST Group Ltd., UK) were placed on a Mueller–Hinton plate inoculated with a fresh bacterial suspension (0.5 McFarland standard). Plates were incubated for 16 to 20 h under aerobic conditions at 35 °C. An inhibition zone diameter of 11 mm for temocillin was considered positive for OXA-48, KPC, or NDM [27,28]. The MAST® CAT-ID (D71C) was interpreted according to the manufacturer’s recommendation as follows: a clearly defined zone of inhibition was indicative of no carbapenemase activity; no zone of inhibition was indicative of MBL or KPC; and single colonies in the zone of inhibition/double zone of inhibition were considered OXA-48-positive [29] (Figure 2).

2.6. Confirmatory Tests

2.6.1. OXA-48 Disk Test

A 0.1 M ethylenediaminetetraacetic acid (EDTA) stock solution was prepared by dissolving anhydrous EDTA in distilled water [30]. From this, 10 µL (292 µg of EDTA) was dispensed onto two sets of blank paper disks. A PBA stock solution was made by dissolving phenyl boronic acid (PBA) in dimethyl sulfoxide and water at 60 mg/mL [31]. From this, 10 µL (600 µg of PBA) was added to one set of EDTA disks. The disks were dried and used within 60 min. First, a 10 µg imipenem disk was placed on a Mueller–Hinton agar plate with lawn culture of carbapenem-susceptible E. coli ATCC 25922 (0.5 McFarland turbidity). Four to six colonies of the test microorganism were applied to the EDTA and EDTA plus PBA disks, which were then placed inoculum-side down adjacent to the imipenem disk. The plate was incubated overnight at 35 °C in ambient air. After 18 h, the plates were examined for an indentation or flattening of the inhibition zone. Indentation towards both EDTA and EDTA/PBA disks indicated OXA-48 carbapenemase production. Indentation towards the EDTA disk but not the EDTA/PBA disks suggested KPC or KPC plus MBL production. No growth towards both disks indicated MßL carbapenemase production or carbapenem non-susceptibility due to ESBL/AmpC production plus porin loss [14] (Figure 3).

2.6.2. MASTDISCS® Combi (D72C): AmpC, ESBL, and Carbapenemase Detection Set

The AmpC, ESBL, and Carbapenemase Detection Set D72C (Mast Group Ltd., UK) detects ESBL, AmpC (both chromosomal- and plasmid-mediated), and the presence of CPE in Enterobacterales without specifying the CPE type. This set includes six cartridges: cartridge A (cefpodoxime 10 μg), cartridge B (cefpodoxime 10 μg + ESBL inhibitor), cartridge C (cefpodoxime 10 μg + AmpC inhibitor), cartridge D (cefpodoxime 10 μg + ESBL inhibitor + AmpC inhibitor), cartridge E (cefpodoxime 10 μg + ESBL inhibitor + AmpC inducer), and cartridge F (penem antibiotic). The procedure was performed, and the results were analyzed in accordance with the manufacturer’s instructions [32].

2.6.3. MASTDISCS® Combi Carba Plus (D73C)

The Carba plus (D73C) (Mast Group Ltd., UK) detects the CPE type in Enterobacterales. This set includes five cartridges: cartridge A (penem), cartridge B (penem + MßL inhibitor), cartridge C (penem + KPC inhibitor), cartridge D (penem + AmpC inhibitor), and cartridge E (Temocillin + MßL inhibitor). The procedure was executed, and the results were analyzed in accordance with the manufacturer’s instructions.

2.6.4. Immunochromatographic Assay (ICT)

The KPC/IMP/NDM/VIM/OXA-48 Combo test kit (Medomics, Nanjing, China) is a lateral flow colloidal gold immunochromatographic assay (LFIA) designed to specifically detect the five most common carbapenemases (KPC, IMP, NDM, VIM, and OXA-48) using a double-antibody sandwich method [33,34,35]. The procedure was carried out and the results were interpreted according to the manufacturer’s guidelines (Figure 4).

2.7. Statistical Analysis

Data analysis was carried out by IBM SPSS Statistics for Windows Version 25.0. (IBM Corp., 2017, Chicago, IL, USA). A chi-square test was used to compare categorical data between two groups. Cross-tabulation was used, taking WGS, Xpert ®Carba-R, and PCR as gold standards to determine the sensitivity and specificity. Positive predictive values (PPVs) and negative predictive values (NPVs) were calculated using the following formulae: PPV = [True Positives (TPs)/[True Positives (TPs) + False Positives (FPs)]] × 100, NPV = [True Negatives (TNs)/[True Negatives (TNs) + False Negatives (FNs)]] × 100. PPV represents the proportion of positive test results that are true positives, while NPV represents the proportion of negative test results that are true negatives [36].

3. Results

The screening and confirmatory tests were evaluated against Xpert ®Carba-R/PCR and WGS confirmed carbapenemase (OXA-48-, KPC-, and NDM-like enzymes)-producing strains.

3.1. Screening Tests

D71C identified all except one isolate as a carbapenemase producer. The temocillin disk test identified OXA-48 in all 40 (100%) OXA-48-positive strains. KPC and NDM were identified in 18/20 (90%) strains each. (Table 1) All OXA-232 were also identified as OXA-48, while 4/6 isolates co-harboring KPC-2 and NDM-1 were identified as KPC. Only one out of six NDM-5 isolates was identified as NDM (Table 2). OXA-48-like producers demonstrated complete temocillin resistance (inhibition zone: 6 mm), far below the cutoff of 11 mm. It was observed that the KPCs and NDMs also demonstrated inhibition zones below the cutoff values, but near 11 mm [17].

3.2. Confirmatory Tests

3.2.1. OXA-48 Disk Test

This test correctly identified 38/40 (95%) isolates as OXA-48-like, exhibiting high sensitivity (100% and 92.5%) and specificity (91.67% and 100%) with WGS and Xpert ®Carba-R/PCR as gold standards, respectively, as seen in Table 3. The negative predictive value (NPV) was 100% for WGS and 93.02% for Xpert ®Carba-R/PCR. Two false-positive isolates producing OXA-48 that tested negative for OXA-232 were identified as OXA-48 in 22/25 (88%) cases. It correctly identified all NDMs and KPCs. Five of the six isolates co-harboring NDM-1 and KPC-2 were identified as KPC, and all NDM-5s were identified as NDM. Overall, the OXA-48 disk test showed high sensitivity across all groups: OXA-48: 38/40 (95%); KPC and NDM: 20/20 (100%).

3.2.2. D72C Test

The D72C test detected the presence of a carbapenemase in 79/80 (OXA-48-, KPC-, and NDM-like) isolates as well as 25 OXA-232, 6 NDM-5, and 6 isolates co-carrying NDM-1 and KPC-2, missing only one OXA-48-like K. pneumoniae. It had high sensitivity (100% with WGS as the gold standard and 97.50% with Xpert ®Carba-R/PCR). Specificity and PPV were 100% for both, while NPV was 100% and 97.5% for both.

3.2.3. D73C Test

D73C showed slightly higher sensitivity (95%) compared to the OXA-48 disk test (92.5%) with Xpert ®Carba-R/PCR but lower (96%) with WGS. In comparison to the OXA-48 disk test, D73C had lower specificity (91.67%) across both gold standards. PPV was 96.15% and 95%, and NPV was 91.67% for both gold standards. Similar to the OXA-48 disk test, this test missed one OXA-232 and one isolate, which co-harbored NDM-1 and KPC-2.

3.2.4. ICT Test

ICT detected all OXA-48-like isolates but missed one KPC and one NDM each. It demonstrated 100% sensitivity and NPV against both gold standards and showed 92% and 95% specificity with 96.15% and 95.24% for PPV. Among the sequenced strains, it missed one isolate that co-harbored NDM-1 and KPC-2 but identified all OXA-232 and NDM-5.

4. Discussion

The alarming increase in CPE is a major public health concern worldwide. For the judicious use of reserve drugs and promoting antimicrobial stewardship, timely detection of carbapenemases is essential. Balkhair et al. reported an overall prevalence rate of 10.8 (95% CI: 9.3–12.4) of multidrug-resistant Gram-negative bacteria cases per 1000 admissions [37]. The large-scale use of carbapenems in the management of extended-spectrum beta-lactamase-producing Enterobacterales has cascaded into the emergence of CPE [2,38]. The relative increase in CPE compared to the other resistance markers can have catastrophic implications for healthcare. Cloacae carried blaNDM, blaOXA48-like, and, to a lesser extent, blaVIM carbapenemases [39]. Initially reported in Turkey, OXA-48 prevalence has spread globally, with increasing reports in Europe, Asia, and North America [40,41]. In Oman, CPE was reported for the first time in 2011 among Klebsiella pneumoniae harboring NDM-1 and OXA-181 carbapenemases [42]. Other reports have described the molecular epidemiology of CPE in the country, including Klebsiella pneumoniae, Escherichia coli, and Enterobacter. Recent studies have reported the emergence of blaOXA-48, blaOXA-181, blaOXA-232, blaNDM-1, and blaNDM-5 genes [43,44,45,46]. The KPC-producing Enterobacterales were rarely reported in the GCC and Eastern Mediterranean Region, with minor incidents being reported from Saudi Arabia, Kuwait, and Qatar. In Oman, KPC producing K. pneumoniae were first reported in 2019. Co-carriage of blaKPC-2 and NDMs emerged soon after [47] (unpublished data).
Thus, identifying the precise carbapenemase enzyme is essential for optimizing patient care and promoting appropriate antimicrobial stewardship efforts. In many parts of the world, and particularly the Middle East, OXA-48-like carbapenemases predominate, followed by NDM and KPC [41]. Amongst them, the phenotypic detection of OXA-48-like carbapenemase is particularly challenging. The low-level carbapenem resistance makes it especially difficult to identify, and the diagnostic microbiology laboratories usually do not detect OXA-48-like enzymes. This leads to not only an underestimation of the incidence of OXA-48-like-producing CPE, but it also leads to inappropriate treatment. While Xpert ®Carba-R/PCR and WGS are standard tools for detecting them, they are expensive and not readily available in most diagnostic laboratories, particularly in the low- and medium-income countries (LMICs). In this study, we tested commercial and in-house screening and confirmatory tests of varying costs and assessed their utility in detecting different carbapenemases with a particular focus on OXA-48-like genes.
The temocillin disk test proved to be a good, simple, and cheap screening test for carbapenemases, with a good discriminatory index in detecting OXA-48. It exhibited 100% sensitivity for OXA-48 detection and 90% for KPCs and NDMs [28]. The expression of high-level temocillin resistance along with a lack of inhibition by boronic acid, dipicolinic acid, and EDTA is a cheap and effective way to identify OXA-48-like carbapenemases [48]. On the other hand, D71C achieved 100% sensitivity for the latter two and 97.5% for OXA-48-like carbapenemases [35].
This study reveals that the OXA-48 disk test is a reliable and cost-effective method for detecting carbapenemases, in general, and OXA-48 in particular. With high sensitivity (100% and 92.5%) and specificity (91.67% and 100%) when compared to two gold standards—WGS and Xpert ®Carba-R/PCR—the OXA-48 disk test is a valuable tool for detecting OXA-48, KPC, and NDM carbapenemases. This test can be easily validated and implemented in clinical laboratories. Others have reported this test to be an excellent tool in resource-constrained settings for promoting antimicrobial stewardship [31]. Tsakris et al. reported a 96.3% sensitivity and 97.7% specificity [31]. However, Koroska et al. reported a lower sensitivity of 53.6%, which improved to 98.8% when a high inoculum was used [35]. In this study, too, a higher inoculum (4–6 colonies) yielded better results. However, the OXA-48 disk test needs to be validated in individual laboratories, which may be time-consuming, and correct interpretations would require experience. This test is based on the utilization of EDTA to permeabilize bacterial cells, releasing β-lactamases into the environment. EDTA also inhibits MBL carbapenemases, while PBA inhibits KPCs. A poor detection rate of the co-carriage of dual carbapenemases is another limitation of this test [35].
While the D72C test is an excellent tool for detecting ESBL, AmpC, and carbapenemases with good reproducibility and discrimination, it does not identify the type of carbapenemase, which is a disadvantage. For detecting carbapenemases in general, it had high sensitivity (100% and 97.50%) with WGS and GeneXpert gold standards, with 100% specificity. Another study reported a lower sensitivity (90%) for carbapenemase detection [14]. In a comparative evaluation of various phenotypic tests, the D72C test achieved an accuracy of 95.4% for detecting AmpC and carbapenemase production [15].
Multi-disk diffusion tests, based on the synergy between β-lactamase inhibitors and carbapenems, effectively distinguish between various carbapenemases. The inhibitor for the detection of KPC is boronic acid, and dipicolinic acid or ethylenediaminetetraacetic acid (EDTA) is used for MBL detection. Clavulanate (an inhibitor of ESBL), cloxacillin (an inhibitor of AmpC), and avibactam (NXL104) are useful for OXA-48 detection. The D73C test supersedes D71C entirely, and if used in conjunction with D72C, which detects ESBL and AmpC as well, it could promote antimicrobial stewardship considerably. Although the combination of these two tests (D71C and D72C) does increase the cost, the benefit of identifying ESBL and AmpC and instituting appropriate antimicrobials may outweigh the incurred cost. However, ESBL and AmpC can be detected by cheap, excellent, and easy in-house tests as well. Al Mamari et al. demonstrated that D73C was slightly inferior to the OXA-48 disk test with 96% sensitivity and 100% specificity with WGS as the gold standard [15]. However, it has an advantage over D71C and D72C in that it identifies the carbapenemase types. Al-Zahrani et al. (2018) [49] reported that this method demonstrated a good discriminatory index in identifying KPC and MBL among K. pneumoniae, but it was not satisfactory in distinguishing between OXA-48-type genes and different MBL genes such as NDM, VIM, and IMP. All (100%) OXA-48 and OXA-232 were identified as OXA-48-like. They demonstrated high sensitivity (97.5% for OXA-48 and 100% for NDM) and 91.67% specificity, making them highly accurate. The negative predictive values were comparable, although they were lower in D73C (91.67%), indicating that while both tests are effective, the OXA-48 disk test may offer more reliable results overall, once appropriately standardized.
ICT, with 100% sensitivity and 95% specificity, surpassed both the in-house OXA-48 disk test and the D73C in performance, making it the gold standard among phenotypic tests. Compared to Xpert ®Carba-R, ICT is superior in specificity but slightly weaker in sensitivity. With other commercial phenotypic tests being time-consuming, ICT provides rapid results within 20 min at a moderate cost. However, it must be borne in mind that the time to detection of CPE will be a minimum of 24 h and may extend to 48 h if the isolate is not pure for ICT and GeneXpert, while it will take a minimum of 48 h for the other phenotypic tests. Molecular tests with comparable sensitivities and specificities are expensive and not widely available in most parts of the world [17]. Several good ICTs are available in the market, like the NG-Test® DetecTooL (CARBA-5, NG Biotech, Guipry-Messac, France, KINVO (Medomics Medical Technology, Nanjing, Jiangsu, China), the O.K.N.V.I RESIST-5 (RESIST-5, Coris BioConcept, Gembloux, Belgium), and the KPC and OXA-48 K-set. ICTs demonstrated high performance with excellent accuracy for the rapid identification of KPC and OXA-48 enzymes [16,50]. Of course, for maximal detection accuracy, WGS remains the ideal gold standard, although Xpert ®Carba-R and ICT have excellent sensitivity, specificity, reproducibility, and discrimination [51].

5. Conclusions

Overall, the phenotypic tests were cheaper and demonstrated excellent sensitivity and specificity but had a longer turnaround time. Temocillin offers a degree of discrimination of carbapenemase type, especially for OXA-48, and we recommend that it may be incorporated in the laboratory as a screening tool. ICT with excellent sensitivity and specificity, rapid results, ease of performance, and relatively low cost appears to be an excellent tool for the detection of carbapenemases in diagnostic laboratories. This test format has the potential to be a game-changer in optimizing patient care and promoting antimicrobial stewardship at scale. We report on one kit here; however, there are several validated ones on the market. ICTs should be further evaluated for their post-market performance and lot-by-lot variation. The OXA-48 disk test is an excellent tool too and will serve well in resource-constrained centers. We believe that in-house screening tools and confirmatory tests are both as equally sensitive and specific as the commercial tests. Hence, depending on the resources, laboratories may exercise their discretion and adopt appropriate tests to identify the carbapenemase types and promote antimicrobial stewardship and optimum patient management.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/diagnostics15080949/s1: Table S1. Preparation of Multiplex PCR, Table S2. Positive Controls Used for the CRE Genes, Table S3. PCR Conditions, Table S4. Comparison of cost of tests per isolate.

Author Contributions

Conceptualization, M.R. and A.A.R. (Arwa AL Rujaibi); data curation, A.A.R. (Arwa AL Rujaibi) and Z.A.J.; formal analysis, M.R. and A.A.R. (Azza AL Rashdi); investigation, A.A.R. (Arwa AL Rujaibi), S.A.S. and Z.A.J.; methodology, M.R.; writing—original draft preparation, M.R. and A.A.R. (Arwa AL Rujaibi); writing—review and editing, A.A.R. (Arwa AL Rujaibi), Z.A.M., A.A.J., A.A.R. (Azza AL Rashdi), A.A.M., S.A.S., Z.A.M., H.S. and M.R.; supervision, M.R. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by the Ministry of Higher Education, Research and Innovation (MoHERI) under the Block-Funding program (RC/GRG-MED/MICR/21/01).

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki and approved by the Ethics Committee of the College of Medicine and Health Sciences, Sultan Qaboos University, Muscat, Oman (MREC#2428, dated 30 April 2021).

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article/Supplementary Materials. Further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors have no conflicts of interest to declare.

References

  1. Bakthavatchalam, Y.D.; Anandan, S.; Veeraraghavan, B. Laboratory Detection and Clinical Implication of Oxacillinase-48 like Carbapenemase: The Hidden Threat. J. Glob. Infect. Dis. 2016, 8, 41–50. [Google Scholar] [CrossRef] [PubMed]
  2. Codjoe, F.S.; Donkor, E.S. Carbapenem Resistance: A Review. Med. Sci. 2017, 6, 1. [Google Scholar] [CrossRef] [PubMed]
  3. Nordmann, P.; Cuzon, G.; Naas, T. The real threat of Klebsiella pneumoniae carbapenemase-producing bacteria. Lancet Infect. Dis. 2009, 9, 228–236. [Google Scholar] [CrossRef] [PubMed]
  4. Pitout, J.D.D.; Nordmann, P.; Poirel, L. Carbapenemase-producing Klebsiella pneumoniae, a key pathogen set for global nosocomial dominance. Antimicrob. Agents Chemother. 2015, 59, 5873–5884. [Google Scholar] [CrossRef]
  5. Barguigua, A.; Zerouali, K.; Katfy, K.; El Otmani, F.; Timinouni, M.; Elmdaghri, N. Occurrence of OXA-48 and DM-1 carbapenemase-producing Klebsiella pneumoniae in a Moroccan university hospital in Casablanca, Morocco. Infect. Genet. Evol. 2015, 31, 142–148. [Google Scholar] [CrossRef]
  6. Solgi, H.; Badmasti, F.; Giske, C.G.; Aghamohammad, S.; Shahcheraghi, F. Molecular epidemiology of NDM-1-and OXA-48-producing Klebsiella pneumoniae in an Iranian hospital: Clonal dissemination of ST11 and ST893. J. Antimicrob. Chemother. 2018, 73, 1517–1524. [Google Scholar] [CrossRef]
  7. Stewart, A.; Harris, P.; Henderson, A.; Paterson, D. Treatment of infections by OXA-48-producing Enterobacteriaceae. Antimicrob. Agents Chemother. 2018, 62, e01195-18. [Google Scholar] [CrossRef]
  8. Kanapathipillai, R.; Malou, N.; Hopman, J.; Bowman, C.; Yousef, N.; Michel, J.; Hussein, N.; Herard, P.; Ousley, J.; Mills, C.; et al. Antibiotic resistance in conflict settings: Lessons learned in the Middle East. JAC Antimicrob. Resist. 2019, 1, dlz002. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  9. Greissl, C.; Saleh, A.; Hamprecht, A. Rapid detection of OXA-48-like, KPC, NDM, and VIM carbapenemases in Enterobacterales by a new multiplex immunochromatographic test. Eur. J. Clin. Microbiol. Infect. Dis. 2019, 38, 331–335. [Google Scholar] [CrossRef]
  10. Van Der Zee, A.; Roorda, L.; Bosman, G.; Fluit, A.C.; Hermans, M.; Smits, P.H.M.; Van Der Zanden, A.G.M.; Witt, R.; Van Es, L.; Van Coppenraet, B.; et al. Multi-centre evaluation of real-time multiplex PCR for detection of carbapenemase genes OXA-48, VIM, IMP, NDM and KPC. BMC Infect. Dis. 2014, 14, 27. [Google Scholar] [CrossRef]
  11. Fernández-Caso, B.; Lumbreras-Iglesias, P.; Rodicio, M.R.; Fernández, J.; Rodríguez-Lucas, C. Usefulness of inclusion of ertapenem and temocillin screening breakpoints in the EUCAST rapid antimicrobial susceptibility testing (RAST) for rapid detection of OXA-48-producing Klebsiella pneumoniae directly from positive blood cultures. J. Antimicrob. Chemother. 2024, 79, 462–466. [Google Scholar] [CrossRef] [PubMed]
  12. Cohen Stuart, J.; Leverstein-Van Hall, M.A. Dutch Working Party on the Detection of Highly Resistant Microorganisms. Guideline for phenotypic screening and confirmation of carbapenemases in Enterobacteriaceae. Int. J. Antimicrob. Agents 2010, 36, 205–210. [Google Scholar] [CrossRef] [PubMed]
  13. Van Dijk, K.; Voets, G.M.; Scharringa, J.; Voskuil, S.; Fluit, A.C.; Rottier, W.C.; Leverstein-Van Hall, M.A.; Cohen Stuart, J.W. A disc diffusion assay for detection of class A, B and OXA-48 carbapenemases in Enterobacteriaceae using phenyl boronic acid, dipicolinic acid and temocillin. Clin. Microbiol. Infect. Off. Publ. Eur. Soc. Clin. Microbiol. Infect. Dis. 2014, 20, 345–349. [Google Scholar] [CrossRef]
  14. Tsakris, A.; Poulou, A.; Bogaerts, P.; Dimitroulia, E.; Pournaras, S.; Glupczynski, Y. Evaluation of a new phenotypic OXA-48 disk test for differentiation of OXA-48 carbapenemase-producing Enterobacteriaceae clinical isolates. J. Clin. Microbiol. 2015, 53, 1245–1251. [Google Scholar] [CrossRef]
  15. Noubam-Tchatat, C.C.; Maurin, E.; Proust, S.; Beyrouthy, R.; Bonnet, R.; Robin, F. MAST® D72C test: A novel option for ESBL, AmpC and carbapenemase detection. Eur. J. Clin. Microbiol. Infect. Dis. 2024, 43, 1181–1192. [Google Scholar] [CrossRef]
  16. Cuffari, S.; Aiezza, N.; Antonelli, A.; Giani, T.; Rossolini, G.M. Evaluation of three commercial lateral flow immunoassays for the detection of KPC, VIM, NDM, IMP and OXA-48-like carbapenemases. J. Antimicrob. Chemother. 2024, 79, 2724–2727. [Google Scholar] [CrossRef]
  17. Koroska, F.; Göttig, S.; Kaase, M.; Steinmann, J.; Gatermann, S.; Sommer, J.; Wille, T.; Plum, G.; Hamprecht, A. Comparison of Phenotypic Tests and an Immunochromatographic Assay and Development of a New Algorithm for Detection of OXA-48-like Carbapenemases. J. Clin. Microbiol. 2017, 55, 877–883. [Google Scholar] [CrossRef]
  18. Baeza, L.L.; Pfennigwerth, N.; Greissl, C.; Göttig, S.; Saleh, A.; Stelzer, Y.; Gatermann, S.G.; Hamprecht, A. Comparison of five methods for detection of carbapenemases in Enterobacterales with proposal of a new algorithm. Clin. Microbiol. Infect. Off. Publ. Eur. Soc. Clin. Microbiol. Infect. Dis. 2019, 25, 1286.e9–1286.e15. [Google Scholar] [CrossRef]
  19. Doyle, D.; Peirano, G.; Lascols, C.; Lloyd, T.; Church, D.L.; Pitout, J.D. Laboratory detection of Enterobacteriaceae that produce carbapenemases. J. Clin. Microbiol. 2012, 50, 3877–3880. [Google Scholar] [CrossRef]
  20. Nurk, S.; Bankevich, A.; Antipov, D.; Gurevich, A.A.; Korobeynikov, A.; Lapidus, A.; Prjibelsky, A.; Pyshkin, A.; Sirotkin, A.; Sirotkin, Y.; et al. Assembling genomes and mini-metagenomes from highly chimeric reads. Nat. Biotechnol. 2013, 31, 1084–1091. [Google Scholar] [CrossRef]
  21. Seemann, T. Prokka: Rapid prokaryotic genome annotation. Bioinformatics 2014, 30, 2068–2069. [Google Scholar] [CrossRef] [PubMed]
  22. Al-Zahrani, I.A.; Aljabri, A.; Alhazmi, W.A.; Yasir, M.; Abujamel, T.; Alghamdi, A.K.; Azhar, E.I. Genomic analysis of extensively drug resistant (XDR) Klebsiella pneumoniae high-risk clone ST14 co-harboring blaNDM and blaOXA-48 recovered from Saudi Arabia. J. Infect. Public Health 2024, 17, 669–675. [Google Scholar] [CrossRef] [PubMed]
  23. Uelze, L.; Grützke, J.; Borowiak, M.; Hammerl, J.A.; Juraschek, K.; Deneke, C.; Tausch, S.H.; Malorny, B. Typing methods based on whole genome sequencing data. One Health Outlook 2020, 2, 3. [Google Scholar] [CrossRef] [PubMed]
  24. Larsen, M.V.; Cosentino, S.; Rasmussen, S.; Friis, C.; Hasman, H.; Marvig, R.L.; Jelsbak, L.; Sicheritz-Pontéen, T.; Ussery, D.W.; Aarestrup, F.M.; et al. Multilocus sequence typing of total-genome-sequenced bacteria. J. Clin. Microbiol. 2012, 50, 1355–1361. [Google Scholar] [CrossRef]
  25. Carattoli, A.; Zankari, E.; García-Fernández, A.; Voldby Larsen, M.; Lund, O.; Villa, L.; Møller Aarestrup, F.; Hasman, H. In silico detection and typing of plasmids using PlasmidFinder and plasmid multilocus sequence typing. Antimicrob. Agents Chemother. 2014, 58, 3895–3903. [Google Scholar] [CrossRef]
  26. Bortolaia, V.; Kaas, R.S.; Ruppe, E.; Roberts, M.C.; Schwarz, S.; Cattoir, V.; Philippon, A.; Allesoe, R.L.; Rebelo, A.R.; Florensa, A.F.; et al. ResFinder 4.0 for predictions of phenotypes from genotypes. J. Antimicrob. Chemother. 2020, 75, 3491–3500. [Google Scholar] [CrossRef]
  27. Giske, C.G.; Martinez-Martinez, L.; Canton, R.; Stefani, S.; Skov, R.; Glupczynski, Y.; Nordmann, P.; Wootton, M.; Miriagou, V.; Skov Simonsen, G.; et al. EUCAST Guidelines for Detection of Resistance Mechanisms and Specific Resistances of Clinical and/or Epidemiological Importance, Version 1.0. 2013. Available online: http://www.eucast.org/fileadmin/src/media/PDFs/EUCAST_files/Resistance_mechanisms/EUCAST_detection_of_resistance_mechanisms_v1.0_20131211.pdf (accessed on 16 September 2022).
  28. Huang, T.D.; Poirel, L.; Bogaerts, P.; Berhin, C.; Nordmann, P.; Glupczynski, Y. Temocillin and piperacillin/tazobactam resistance by disc diffusion as antimicrobial surrogate markers for the detection of carbapenemase-producing Enterobacteriaceae in geographical areas with a high prevalence of OXA-48 producers. J. Antimicrob. Chemother. 2014, 69, 445–450. [Google Scholar] [CrossRef]
  29. Shaker, O.A.; Gomaa, H.E.; ElMasry, S.A.; Abdel Halim, R.M.; Abdelrahman, A.H.; Kamal, J.S. Evaluation of Combined Use of Temocillin Disk and Mastdisks Inhibitor Combination Set Against Polymerase Chain Reaction for Detection of Carbapenem-Resistant Enterobacteriaceae. Open Access Maced. J. Med. Sci. 2018, 6, 242–247. [Google Scholar] [CrossRef]
  30. Franklin, C.; Liolios, L.; Peleg, A.Y. Phenotypic detection of carbapenem-susceptible metallo-β-lactamase-producing gram-negative bacilli in the clinical laboratory. J. Clin. Microbiol. 2006, 44, 3139–3144. [Google Scholar] [CrossRef]
  31. Tsakris, A.; Kristo, I.; Poulou, A.; Themeli-Digalaki, K.; Ikonomidis, A.; Petropoulou, D.; Pournaras, S.; Sofianou, D. Evaluation of boronic acid disk tests for differentiating KPC-possessing Klebsiella pneumoniae isolates in the clinical laboratory. J. Clin. Microbiol. 2009, 47, 362–367. [Google Scholar] [CrossRef]
  32. Al Mamari, A.M.K.; Al Jabri, Z.; Sami, H.; Rizvi, S.G.A.; Chan, M.F.; Al Siyabi, T.; Al Muharrmi, Z.; Rizvi, M. Evaluation of six commercial and in-house phenotypic tests for detection of AmpC β-lactamases: Is routine detection possible? JAC Antimicrob. Resist. 2023, 5, dlad101. [Google Scholar] [CrossRef] [PubMed]
  33. Han, R.; Guo, Y.; Peng, M.; Shi, Q.; Wu, S.; Yang, Y.; Zheng, Y.; Yin, D.; Hu, F. Evaluation of the Immunochromatographic NG-Test Carba 5, RESIST-5 O.O.K.N.V., and IMP K-SeT for Rapid Detection of KPC-, NDM-, IMP-, VIM-type, and OXA-48-like Carbapenemase Among Enterobacterales. Front. Microbiol. 2021, 11, 609856. [Google Scholar] [CrossRef] [PubMed]
  34. Saleh, A.; Göttig, S.; Hamprecht, A.G. Multiplex Immunochromatographic Detection of OXA-48, KPC, and NDM Carbapenemases: Impact of Inoculum, Antibiotics, and Agar. J. Clin. Microbiol. 2018, 56, e00050-18. [Google Scholar] [CrossRef] [PubMed]
  35. Bogaerts, P.; Berger, A.S.; Evrard, S.; Huang, T.D. Comparison of two multiplex immunochromatographic assays for the rapid detection of major carbapenemases in Enterobacterales. J. Antimicrob. Chemother. 2020, 75, 1491–1494. [Google Scholar] [CrossRef]
  36. Safari, S.; Baratloo, A.; Elfil, M.; Negida, A. Evidence Based Emergency Medicine Part 2: Positive and negative predictive values of diagnostic tests. Emergency 2015, 3, 87–88. [Google Scholar]
  37. Balkhair, A.; Al-Farsi, Y.M.; Al-Muharrmi, Z.; Al-Rashdi, R.; Al-Jabri, M.; Neilson, F.; Al-Adawi, S.; El-Beeli, M.; Al-Adawi, S. Epidemiology of multi-drug resistant organisms in a teaching hospital in Oman: A one-year hospital-based study. Sci. World J. 2014, 2014, 157102. [Google Scholar] [CrossRef]
  38. Loon, K.; Holt, A.; Vos, M. A Systematic Review and Meta-Analyses of the Clinical Epidemiology of Carbapenem-Resistant Enterobacteriaceae. Antimicrob. Agents Chemother. 2017, 62, e01730-17. [Google Scholar] [CrossRef]
  39. Sonnevend, A.; Ghazawi, A.A.; Hashmey, R.; Jamal, W.; Rotimi, V.O.; Shibl, A.M.; Al-Jardani, A.; Al-Abri, S.S.; Tariq, W.U.Z.; Weber, S.; et al. Characterization of carbapenem-resistant Enterobacteriaceae with high rate of autochthonous transmission in the Arabian Peninsula. PLoS ONE 2015, 10, e0131372. [Google Scholar] [CrossRef]
  40. Zarakolu, P.; Day, K.M.; Sidjabat, H.E.; Kamolvit, W.; Lanyon, C.V.; Cummings, S.P.; Paterson, D.L.; Akova, M. Evaluation of a new chromogenic medium, chromID OXA-48, for recovery of carbapenemase-producing Enterobacteriaceae from patients at a university hospital in Turkey. Eur. J. Clin. Microbiol. Infect. Dis. 2014, 34, 519–525. [Google Scholar] [CrossRef]
  41. Boyd, S.E.; Holmes, A.; Peck, R.; Livermore, D.M.; Hope, W. OXA-48-Like β-Lactamases: Global Epidemiology, Treatment Options, and Development Pipeline. Antimicrob. Agents Chemother. 2022, 66, e00216-22. [Google Scholar] [CrossRef]
  42. Poirel, L.; Al Maskari, Z.; Al Rashdi, F.; Bernabeu, S.; Nordmann, P. NDM-1-producing Klebsiella pneumoniae isolated in the Sultanate of Oman. J. Antimicrob. Chemother. 2011, 66, 304–306. [Google Scholar] [CrossRef] [PubMed]
  43. Dortet, L.; Poirel, L.; Al Yaqoubi, F.; Nordmann, P. NDM-1, OXA-48 and OXA-181 carbapenemase-producing Enterobacteriaceae in Sultanate of Oman. Clin. Microbiol. Infect. 2012, 18, E144–E148. [Google Scholar] [CrossRef] [PubMed]
  44. Al-Farsi, H.M.; Camporeale, A.; Ininbergs, K.; Al-Azri, S.; Al-Muharrmi, Z.; Al-Jardani, A.; Giske, C.G. Clinical and molecular characteristics of carbapenem non-susceptible Escherichia coli: A nationwide survey from Oman. PLoS ONE 2020, 15, e0239924. [Google Scholar] [CrossRef]
  45. AL-Quraini, M.; Rizvi, M.; AL-Jabri, Z.; Sami, H.; AL-Muzahmi, M.; AL-Muharrmi, Z.; Taneja, N.; AL-Busaidi, I.; Soman, R. Assessment of In-Vitro Synergy of Fosfomycin with Meropenem, Amikacin and Tigecycline in Whole Genome Sequenced Extended and Pan Drug Resistant Klebsiella pneumoniae: Exploring A Colistin Sparing Protocol. Antibiotics 2022, 11, 153. [Google Scholar] [CrossRef]
  46. Al-Muzahmi, M.; Rizvi, M.; Al-Quraini, M.; Al-Muharrmi, Z.; Al-Jabri, Z. Comparative Genomic Analysis Reveals the Emergence of ST-231 and ST-395 Klebsiella pneumoniae Strains Associated with the High Transmissibility of blaKPC Plasmids. Microorganisms 2023, 11, 2411. [Google Scholar] [CrossRef]
  47. Al-Balushi, M.A.; Kumar, R.; Al-Rashdi, A.; Ratna, A.; Al-Jabri, A.; Al-Shekaili, N.; Rani, R.; Sumri, S.A.; Al-Ghabshi, L.; Al-Abri, S.; et al. Genomic analysis of the emerging carbapenem-resistant Klebsiella pneumoniae sequence type 11 harbouring Klebsiella pneumoniae carbapenemase (KPC) in Oman. J. Infect Public Health 2022, 15, 1089–1096. [Google Scholar] [CrossRef] [PubMed]
  48. Hartl, R.; Widhalm, S.; Kerschner, H.; Apfalter, P. Temocillin and meropenem to discriminate resistance mechanisms leading to decreased carbapenem susceptibility with focus on OXA-48 in Enterobacteriaceae. Clin. Microbiol. Infect. 2013, 19, E230–E232. [Google Scholar]
  49. Al-Zahrani, I.A.; Alasiri, B.A. The emergence of carbapenem-resistant Klebsiella pneumoniae isolates producing OXA-48 and NDM in the Southern (Asir) province, Saudi Arabia. Saudi Med. J. 2018, 39, 23. [Google Scholar]
  50. Glupczynski, Y.; Evrard, S.; Ote, I.; Mertens, P.; Huang, T.D.; Leclipteux, T.; Bogaerts, P. Evaluation of two new commercial immunochromatographic assays for the rapid detection of OXA-48 and KPC carbapenemases from cultured bacteria. J. Antimicrob. Chemother. 2016, 71, 1217–1222. [Google Scholar]
  51. Josa, M.D.; Leal, R.; Rojas, J.; Torres, M.I.; Cortés-Muñoz, F.; Esparza, G.; Reyes, L.F. Comparative Evaluation of Phenotypic Synergy Tests Versus RESIST-4 O.K.N.V. and NG Test Carba 5 Lateral Flow Immunoassays for the Detection and Differentiation of Carbapenemases in Enterobacterales and Pseudomonas aeruginosa. Microbiol. Spectr. 2022, 10, e0108021. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
Diagnostics 15 00949 g001

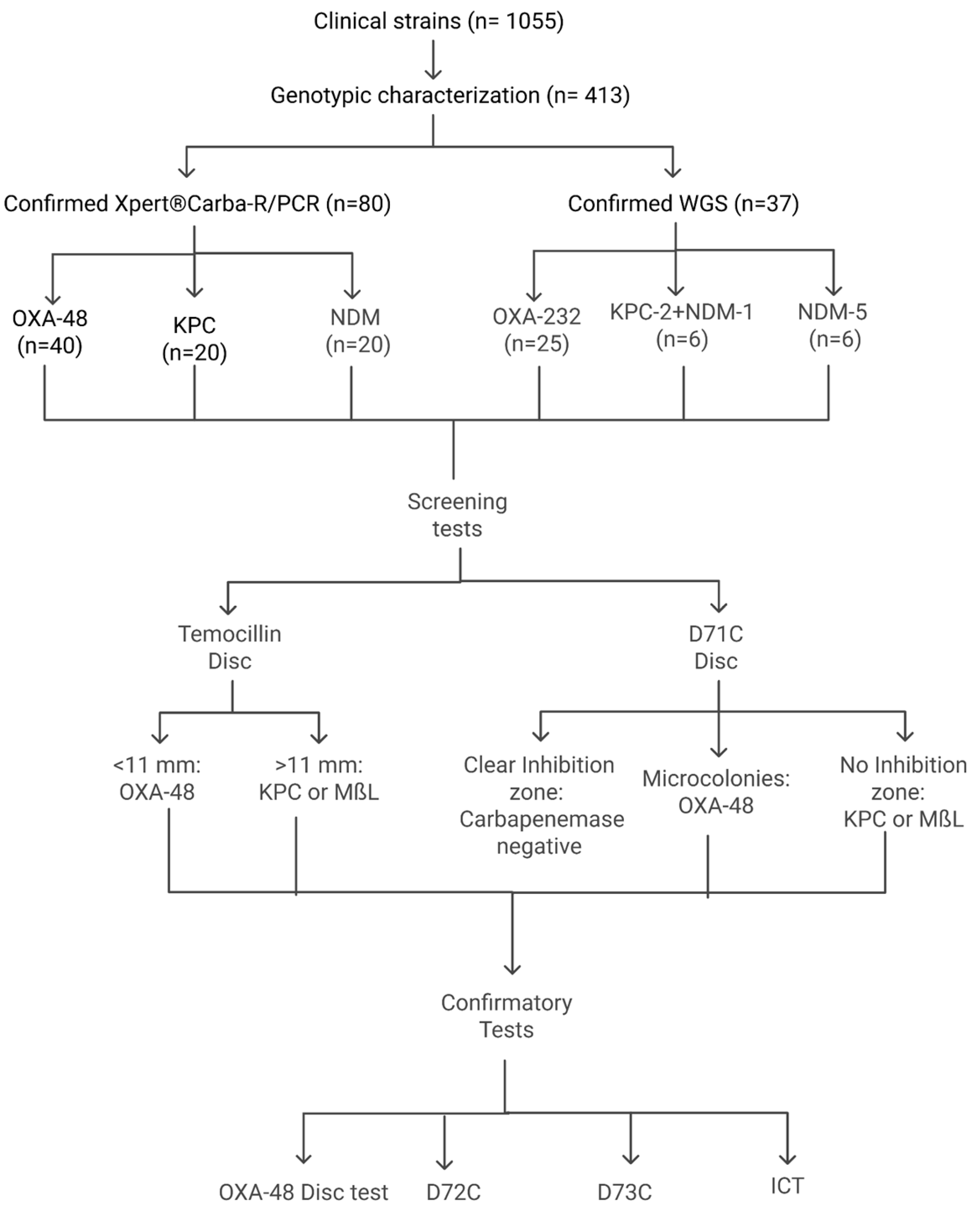

Figure 1. Algorithm for screening and confirmation of carbapenemases.
Figure 1. Algorithm for screening and confirmation of carbapenemases.
Diagnostics 15 00949 g001
Diagnostics 15 00949 g002

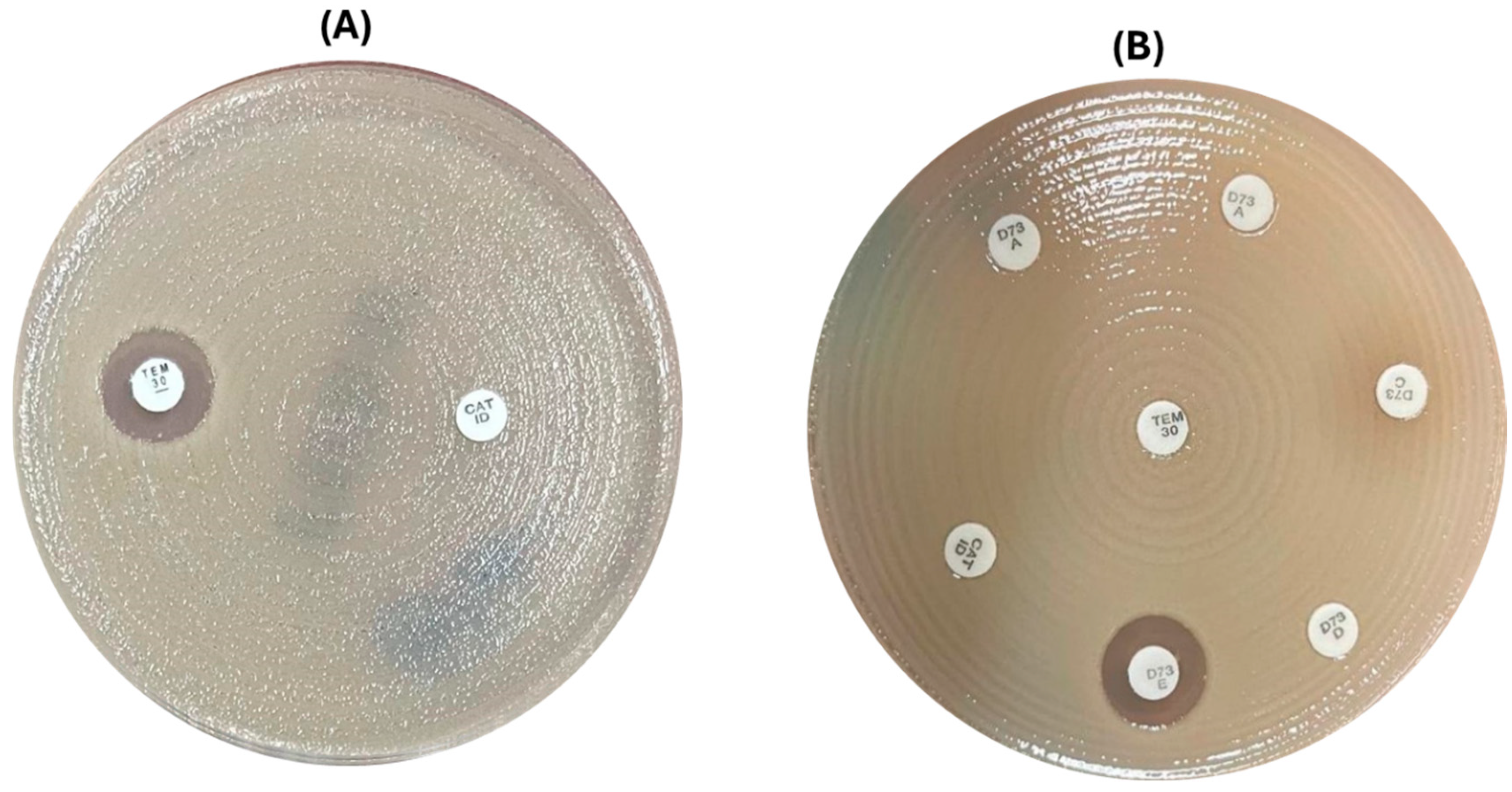

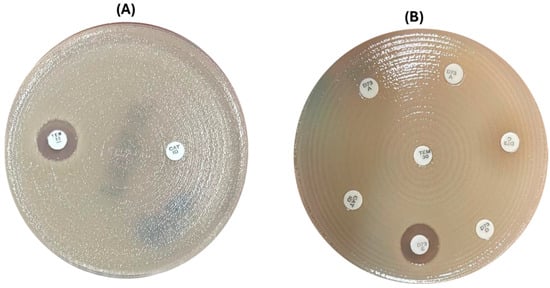

Figure 2. Phenotypic tests used for the detection of CPE. (A) The screening tests (temocillin and D71C), where the temocillin inhibition zone was >11 mm with no zone of inhibition around D71C (which was indicative of MBL or KPC). (B) Screening plus confirmatory tests for NDM detection: temocillin < 11 mm with no zone of inhibition around D71C, and the confirmatory D73C was positive for NDM.
Figure 2. Phenotypic tests used for the detection of CPE. (A) The screening tests (temocillin and D71C), where the temocillin inhibition zone was >11 mm with no zone of inhibition around D71C (which was indicative of MBL or KPC). (B) Screening plus confirmatory tests for NDM detection: temocillin < 11 mm with no zone of inhibition around D71C, and the confirmatory D73C was positive for NDM.
Diagnostics 15 00949 g002
Diagnostics 15 00949 g003

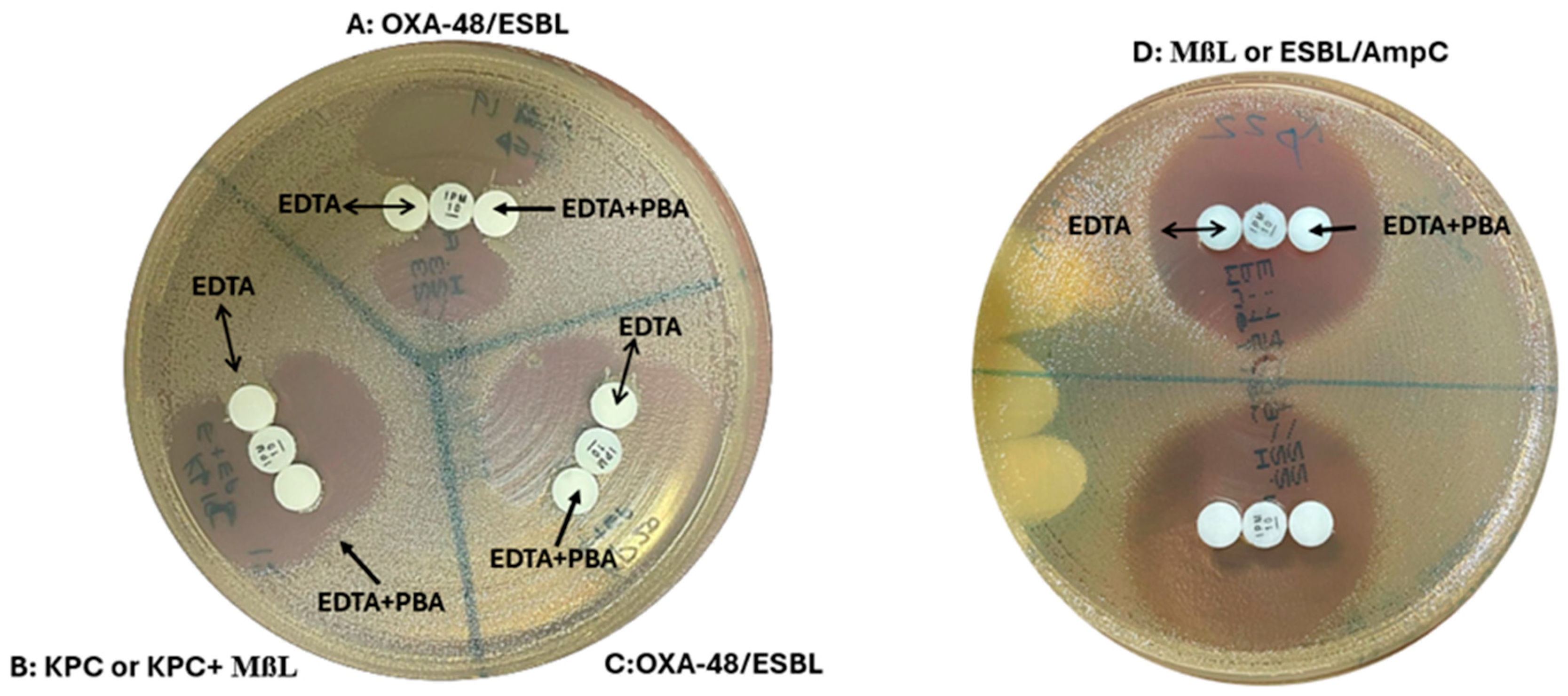

Figure 3. OXA-48 disk test. (A,C) Indentation towards both EDTA and EDTA/PBA disks indicated OXA-48 carbapenemase production. (B) Indentation towards the EDTA disk but not the EDTA/PBA disks suggested KPC or KPC plus MBL production. (D) No growth towards both disks indicated MßL carbapenemase production or carbapenem non-susceptibility due to ESBL/AmpC production plus porin loss.
Figure 3. OXA-48 disk test. (A,C) Indentation towards both EDTA and EDTA/PBA disks indicated OXA-48 carbapenemase production. (B) Indentation towards the EDTA disk but not the EDTA/PBA disks suggested KPC or KPC plus MBL production. (D) No growth towards both disks indicated MßL carbapenemase production or carbapenem non-susceptibility due to ESBL/AmpC production plus porin loss.
Diagnostics 15 00949 g003
Diagnostics 15 00949 g004

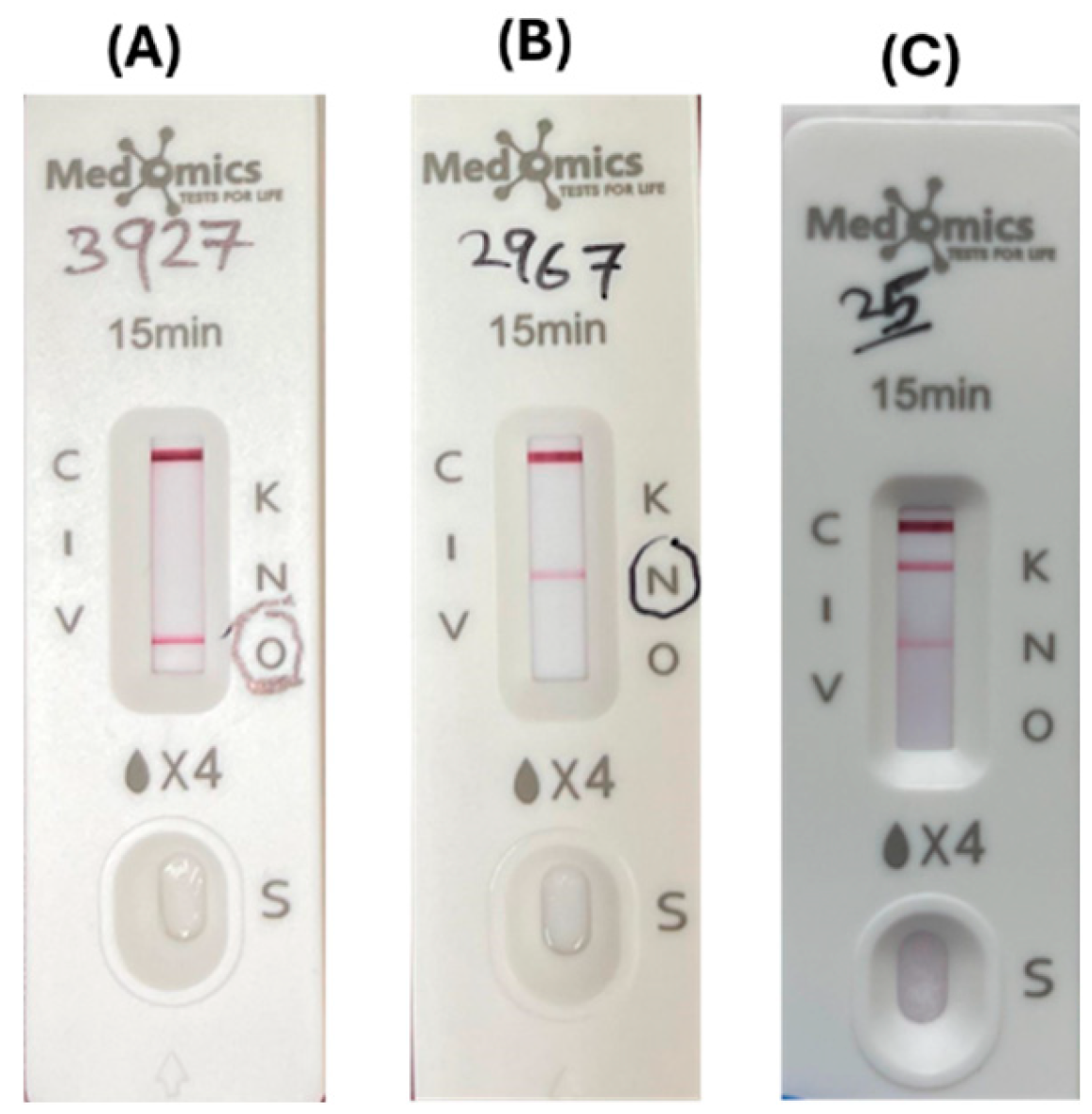

Figure 4. Immunochromatographic assay (ICT): (A) O line indicated positive result for OXA-48 carbapenemase; (B) N line indicated positive result for NDM carbapenemase; and (C) K line and N line indicated positive results for both KPC + NDM.
Figure 4. Immunochromatographic assay (ICT): (A) O line indicated positive result for OXA-48 carbapenemase; (B) N line indicated positive result for NDM carbapenemase; and (C) K line and N line indicated positive results for both KPC + NDM.
Diagnostics 15 00949 g004
Table 1. Assessment of phenotypic tests for detection of OXA-48, KPC and NDM in Klebsiella pneumoniae using Xpert ®Carba-R/PCR as gold standard.
Table 1. Assessment of phenotypic tests for detection of OXA-48, KPC and NDM in Klebsiella pneumoniae using Xpert ®Carba-R/PCR as gold standard.
CarbapenemaseGold StandardScreening Test Confirmatory Tests
In-HouseCommercial Tests
Xpert Carba-R/PCRTemocillin Disc TestD71COXA-48 Disk TestD72CD73C (n = 32)ICT
N (%)N (%)N (%)N (%)N (%)N (%)N (%)
OXA-48 (n = 40)40 (100%)40 (100%)39 (97.5%)38 (95%)39 (97.5%)19 (95%) *40 (97.5%)
KPCs (n = 20)20 (100%)18 (90%)20 (100%)20 (100%)20 (100%)5 (83.3%) **19 (95%)
NDM (n = 20)20 (100%)18 (90%)20 (100%)20 (100%)20 (100%)6 (100%) ***19 (95%)
* Total number of OXA-48 tested by D73 C were 20 isolates. ** Total number of KPCs tested by D73C were 6 isolates. *** Total number of NDMs tested by D73C were 6 isolates.
Table 2. Assessment of phenotypic tests for detection of OXA-232, KPC-2+NDM-1 and NDM-5 in Klebsiella pneumoniae using WGS as gold standard.
Table 2. Assessment of phenotypic tests for detection of OXA-232, KPC-2+NDM-1 and NDM-5 in Klebsiella pneumoniae using WGS as gold standard.
CarbapenemaseGold StandardScreening TestConfirmatory TestsExtended Spectrum β-Lactam Genes
In-HouseCommercial Tests
WGSTemocillin Disk TestD71COXA-48 Disk TestD72CD73C (n = 32)ICTXpert Carba-R/PCR
N (%)N (%)N (%)N (%)N (%)N (%)N (%)N (%)
OXA-232 (n = 25)25 (100%)25 (100%)25 (100%)22 (88%)25 (100%)19 (95%) *20 (100%)25 (100%)CTX-M-15, SHV-11, SHV-28, SHV-67, SHV-75. SHV106, SHV-182
KPC-2+NDM-1 (n = 6)6 (100%)2 (33.3%)6 (100%)5 (83.3%)6 (100%)5 (83.3%) **5 (83.3%)6 (100%)CTMX-65, SHV-12, SHV-12 and SHV-182 and SHV-182
NDM-5 (n = 6)6 (100%)1 (20%)6 (100%)6 (100%)6 (100%)6 (100%) ***6 (100%)6 (100%)CTX-M-65, TEM-1B, TEM1C, SHV-11, SHV-12, SHV-67, SHV-75
* Total number of OXA-48 tested by D73 C were 20 isolates. ** Total number of KPCs tested by D73C were 6 isolates. *** Total number of NDMs tested by D73C were 6 isolates.
Table 3. Sensitivity and specificity of phenotypic tests for detection of OXA-48 like, KPC and NDM using WGS, Xpert ®Carba-R and ICT as the gold standards.
Table 3. Sensitivity and specificity of phenotypic tests for detection of OXA-48 like, KPC and NDM using WGS, Xpert ®Carba-R and ICT as the gold standards.
Gold StandardsScreening Test (%)Confirmatory Tests (%)
In-House TestCommercial Tests
TemocillinD71COXA-48 DiskD72CD73CICT
WGS (n = 37)SN (%)10010010010096.15100
SP (%)76.9210091.6710091.6792.31
PPV (%)89.2910095.6510096.1596.15
NPV (%)10010010010091.67100
X-pert Carba-R/PCR (n = 80)SN (%)10097.592.597.595100
SP (%)7010010010091.6795
PPV (%)76.921001001009595.24
NPV (%)10097.5693.0297.5691.67100
SN = Sensitivity; SP = Specificity; PPV = Positive predictive value; NPV = Negative predictive value.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Rujaibi, A.A.; Jabri, Z.A.; Jardani, A.A.; Rashdi, A.A.; Mamari, A.A.; Sumri, S.A.; Sami, H.; Muharrmi, Z.A.; Rizvi, M. Assessment of Phenotypic Tools for Detection of OXA-48, KPC, and NDM in Klebsiella pneumoniae in Oman. Diagnostics 2025, 15, 949. https://doi.org/10.3390/diagnostics15080949

AMA Style

Rujaibi AA, Jabri ZA, Jardani AA, Rashdi AA, Mamari AA, Sumri SA, Sami H, Muharrmi ZA, Rizvi M. Assessment of Phenotypic Tools for Detection of OXA-48, KPC, and NDM in Klebsiella pneumoniae in Oman. Diagnostics. 2025; 15(8):949. https://doi.org/10.3390/diagnostics15080949

Chicago/Turabian Style

Rujaibi, Arwa AL, Zaaima AL Jabri, Amina Al Jardani, Azza AL Rashdi, Azza AL Mamari, Sara AL Sumri, Hiba Sami, Zakariya Al Muharrmi, and Meher Rizvi. 2025. "Assessment of Phenotypic Tools for Detection of OXA-48, KPC, and NDM in Klebsiella pneumoniae in Oman" Diagnostics 15, no. 8: 949. https://doi.org/10.3390/diagnostics15080949

APA Style

Rujaibi, A. A., Jabri, Z. A., Jardani, A. A., Rashdi, A. A., Mamari, A. A., Sumri, S. A., Sami, H., Muharrmi, Z. A., & Rizvi, M. (2025). Assessment of Phenotypic Tools for Detection of OXA-48, KPC, and NDM in Klebsiella pneumoniae in Oman. Diagnostics, 15(8), 949. https://doi.org/10.3390/diagnostics15080949

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
