Ultrasound-Guided Needle Aspiration of Peritonsillar Abscesses: Utility of Transoral Pharyngeal Ultrasonography

Abstract

A peritonsillar abscess is a common deep infection that is usually related to acute tonsillitis. Needle aspiration is often performed for diagnosis and treatment, but several complications, including puncture of the carotid artery, may occur, even when performed by properly trained physicians. The utility of transoral pharyngeal ultrasonography (TOPU) equipped with a biopsy adaptor for safe and full aspiration is presented. A 19-year-old man was admitted to our hospital because of a peritonsillar abscess. TOPU showed the abscess and a branch of the carotid artery, and an otolaryngologist performed puncture through the biopsy adaptor with the aid of the ultrasound image. Needle aspiration was accomplished by avoiding arterial puncture and monitoring the shrinkage of the abscess. TOPU-guided needle aspiration is useful in the safe drainage of peritonsillar abscesses.

1. Introduction

Transoral ultrasonography is a well-known technique for examining the carotid artery [1,2,3,4], known as “transoral carotid ultrasonography” (TOCU). Transoral ultrasonography is also useful in the field of otolaryngology, in addition to angiology [5,6,7]. In transoral ultrasonography, a transvaginal probe is inserted into the mouth and then placed on the wall of the pharynx. For otolaryngology, we have termed this technique “transoral pharyngeal ultrasonography” (TOPU) [8] to distinguish it from TOCU. A peritonsillar abscess is a common infectious disease, with an incidence of 30/100,000 people per year in the United States [9]. Surgical management is indicated in a case of complicated peritonsillar abscess, consisting of early treatment with antibiotics and drainage of the pus [10]. Otolaryngologists usually perform needle aspiration blindly, but several insertions of the needle at different points might be needed. Needle aspiration may not always be successful, especially when the volume of pus could be small. TOPU can show the locations of the abscess and arteries, and it might improve the safety of drainage. A case of peritonsillar abscess is presented, illustrating the utility of TOPU-guided needle aspiration.

2. Case Report

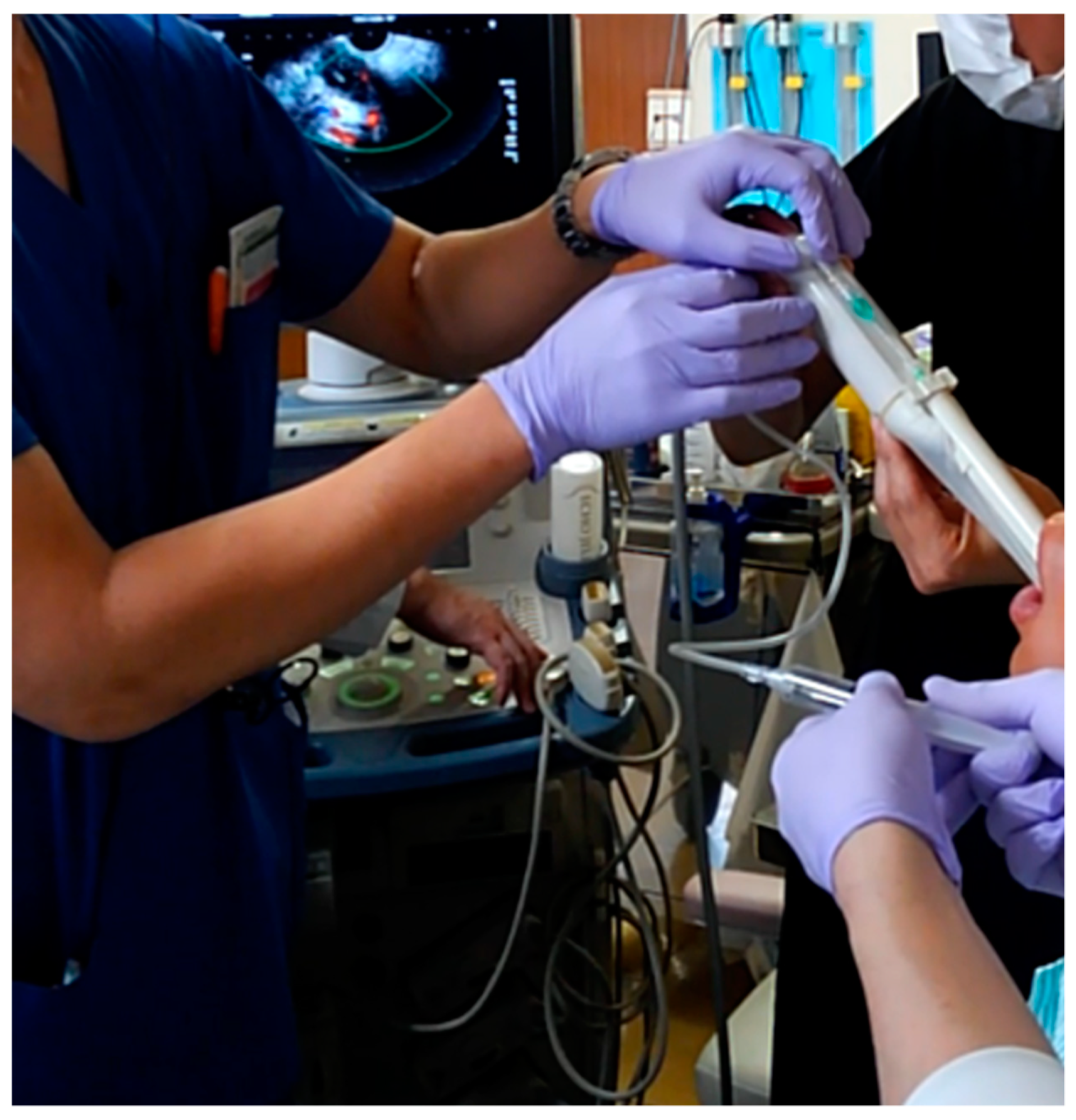

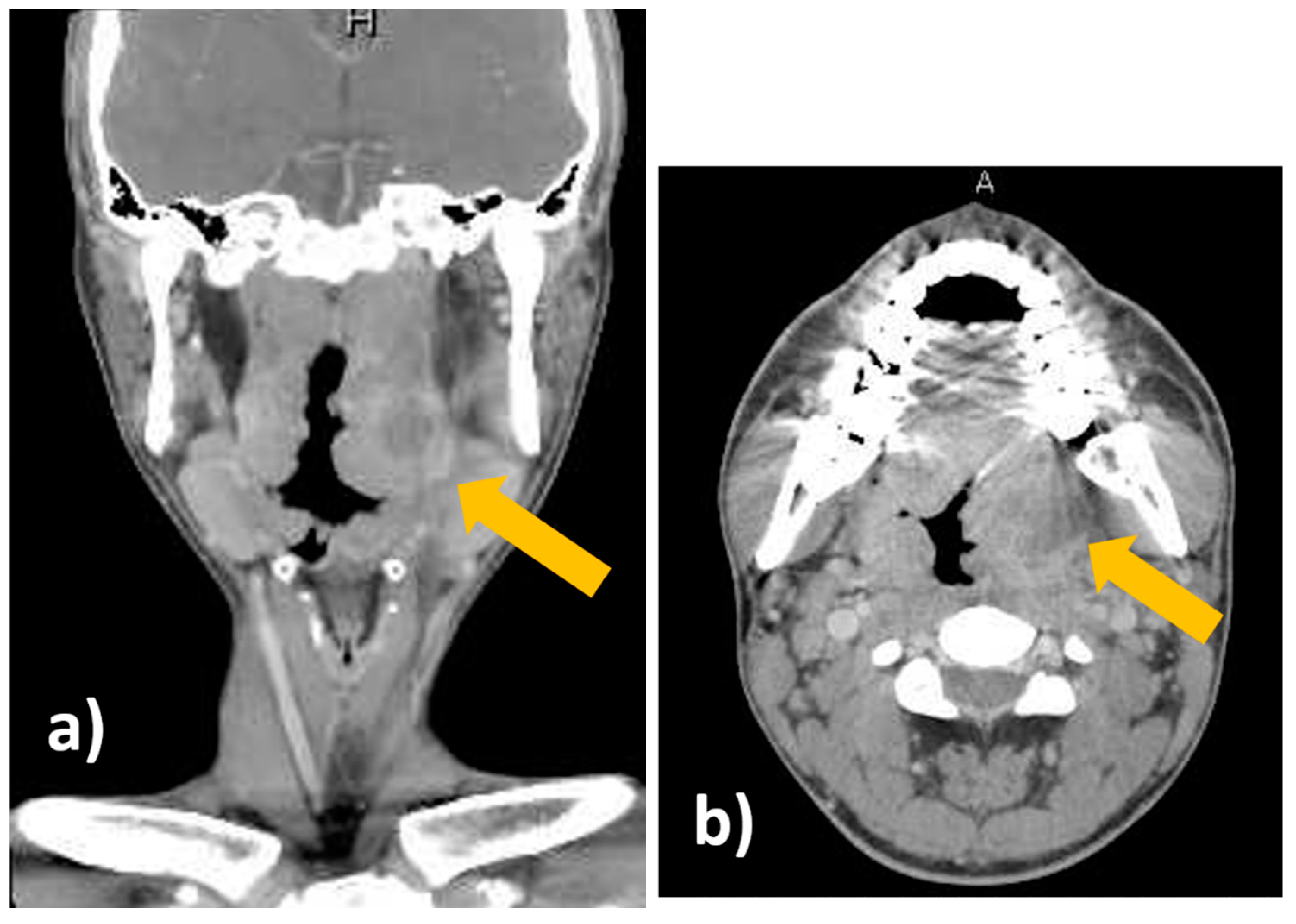

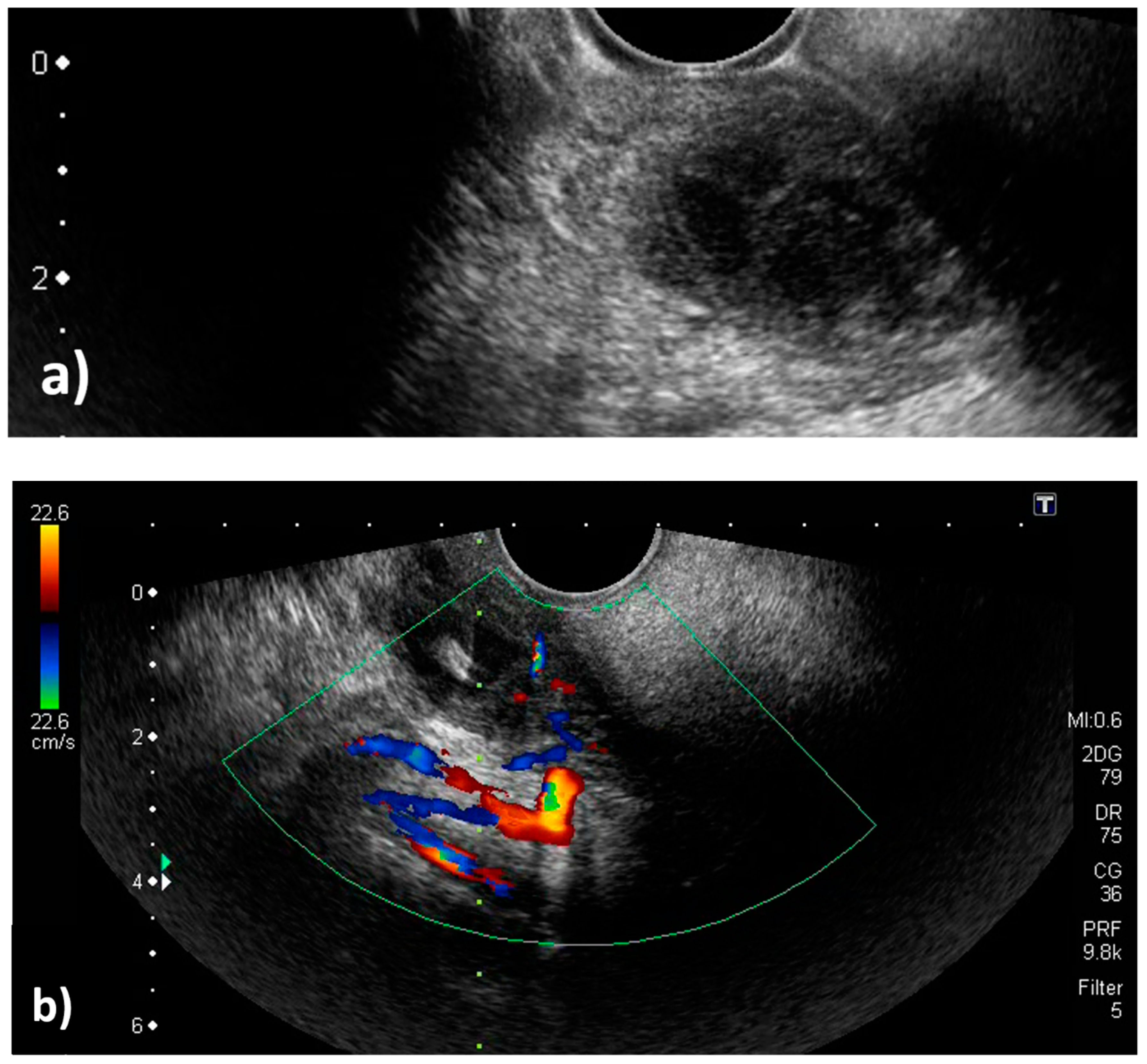

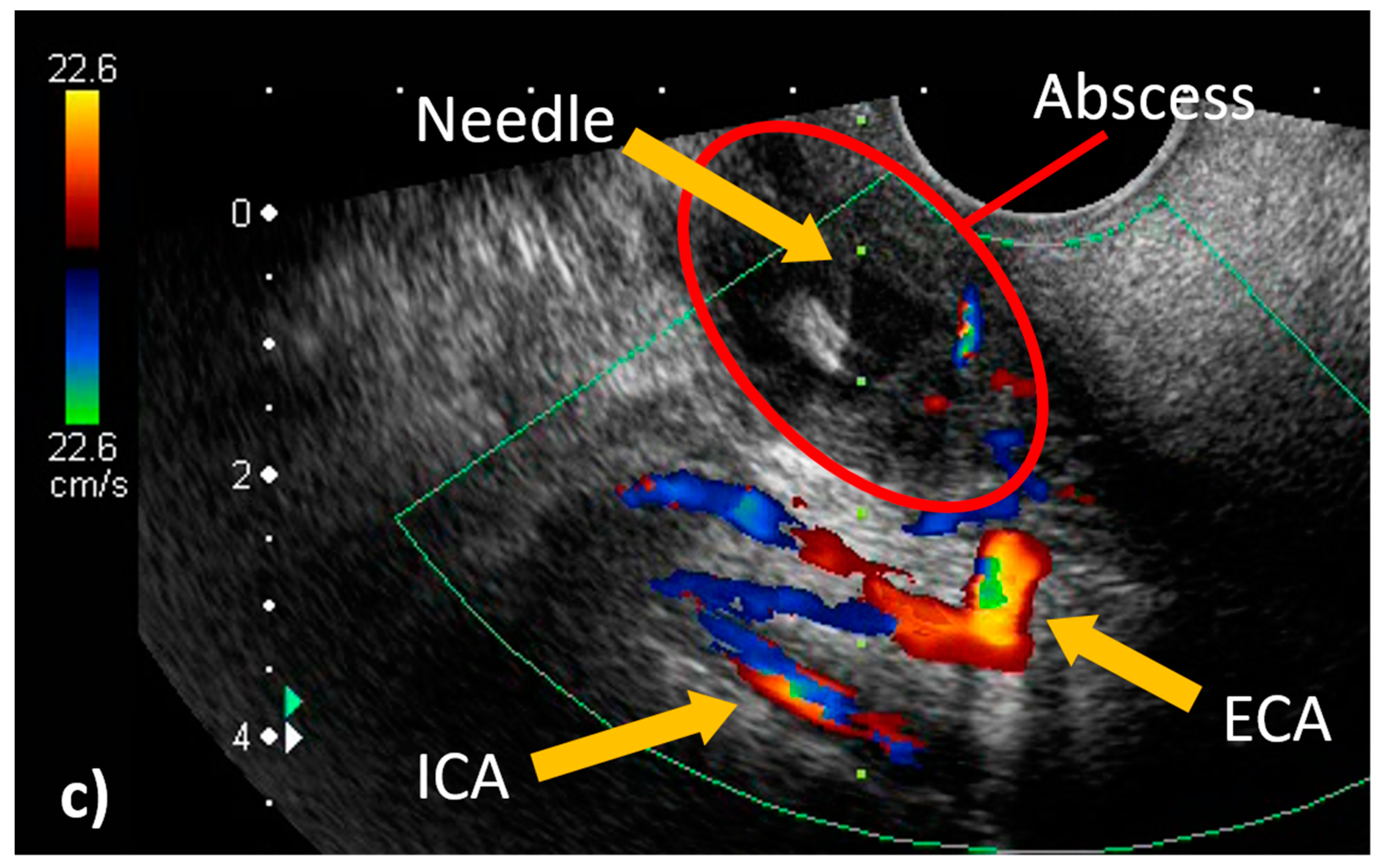

A 19-year-old man was admitted to our hospital because of pharyngeal pain with fever. A peritonsillar abscess was detected on contrast-enhanced computed tomography on the left side of the palatine tonsil (Figure 1). An otolaryngologist tried to perform needle aspiration of the abscess blindly, but it was unsuccessful. Otolaryngologists then decided to perform needle aspiration of the abscess and then consulted us for evaluation by transoral ultrasonography. TOPU was performed while using a biopsy adaptor (UAGV-024A, Canon Medical Co., Tochigi, Japan) and a custom-ordered 21-gauge/25-cm needle (Figure 2a,b), similar to a percutaneous transhepatic gallbladder aspiration needle. An Ultrasound Aplio500 (Canon Medical Co.) and a 6-MHz transvaginal probe were used for ultrasound examination. A long needle was prepared for drainage since the length of the probe was 20 cm. The patient was placed in the sitting position during TOPU. Under local anesthesia of the pharynx, the probe was inserted into the mouth while avoiding the tongue and pressed softly against the anterior palatine arch (Figure 3). TOPU showed the locations of the abscess and the carotid arteries (Figure 4a). The needle was clearly visualized on the images, and the otolaryngologist inserted the needle into the center of the abscess while avoiding arterial puncture (Figure 4b,c, and video S1). Another otolaryngologist aspirated the pus by the syringe that was connected to the needle with an extension tube until the hypoechoic area disappeared on the image. In total, 2.4 mL of pus was aspirated, and the otolaryngologist made an incision at the puncture point for further drainage. The patient’s severe throat pain and speech disturbance improved shortly after the aspiration, and the patient had a good clinical course without recurrence.

3. Discussion

Previously, we reported TOPU as a tool for determining the direction and depth of puncture for peritonsillar abscesses [8]. In this patient, TOPU equipped with a biopsy adaptor specially designed for biopsy of uterine appendages was used. This system has the advantage of having a large field of view and depicting a guided line system for the needle in the images. In blind puncture of the pharynx, mistaken puncture of the carotid arteries is one of the serious complications. It has also been reported that blind puncture often does not result in insertion into the space with the pus; therefore, blind puncture was reported to have a false-negative rate for the diagnosis of peritonsillar abscess of 10–24% [11,12]. The space, including the pus in a peritonsillar abscess, is demonstrated as a low echoic space on transoral ultrasound; therefore, the operator can precisely puncture the pus. The abscess, needle, and arteries should be simultaneously demonstrated on one image during ultrasonography to achieve safe and accurate drainage. TOPU was developed based on TOCU, which is useful for evaluating the carotid arteries; therefore, TOPU can show the abscess and needle, in addition to the carotid artery and its branches, at the same time.

Blaivas et al. reported ultrasound-guided drainage of peritonsillar abscesses while using an endocavity probe [6,7]. The Blaivas technique clearly depicts peritonsillar abscesses by ultrasound. The advantage of TOPU over the Blaivas technique is that the operator can insert the needle parallel to the probe through the biopsy attachment in TOPU, which might be useful for inexperienced operators. The utility of transoral ultrasonography for the drainage of peritonsillar abscesses using a pencil-shaped Burr-Hole transducer and a 10-MHz small linear probe (hockey stick probe) has been demonstrated in other reports [13,14]. The attachment of a needle guide similar to the present TOPU method was used in the report of the pencil-shaped Burr-Hole transducer method [13]. These methods might have difficulty visualizing deep structures due to the narrow field of view in the image. Although the low-frequency endocavity (transvaginal) probe decreases axial image resolution as compared to a high-frequency probe, such as a hockey stick probe, the low-frequency probe is suitable for the observation of deep structures, such as the carotid arteries, providing a large field of view in the image.

The hockey stick probe and the Burr-Hole probe may be suitable for a surgical procedure due to the small probe size. As patients with a peritonsillar abscess may have trismus, a smaller probe suitable for needle aspiration is appropriate in such cases.

TOPU-guided needle aspiration appears to be useful for safe drainage of peritonsillar abscesses.
