Host Plant Species of Bemisia tabaci Affect Orientational Behavior of the Ladybeetle Serangium japonicum and Their Implication for the Biological Control Strategy of Whiteflies

by
Mi Tian
1,
Lili Xu
1,
Jun Jiang
1,
Shize Zhang
1,*,
Tongxian Liu
1 and
Yongyu Xu
2
1
State Key Laboratory of Crop Stress Biology for Arid Areas, Northwest A&F University, Yangling 712100, China
2
College of Plant Protection, Shandong Agricultural University, Taian 271018, China
*
Author to whom correspondence should be addressed.
Insects 2020, 11(7), 434; https://doi.org/10.3390/insects11070434
Submission received: 27 May 2020 / Revised: 8 July 2020 / Accepted: 10 July 2020 / Published: 11 July 2020
Browse Figures
Versions Notes

Abstract

:
Serangium japonicum Chapin (Coleoptera: Coccinellidae) is a predominant predator with a preference for Bemisia tabaci (Gennadius) (Hemiptera: Aleyrodidae). To date, the orientational behavior of S. japonicum toward B. tabaci-infested plants has seldom been reported. In this study, greenhouse cage experiments and bioassays with wind tunnels, a Y-tube olfactometer and B. tabaci-induced plant volatiles were executed to clarify this behavior. In greenhouse cage experiments, B. tabaci adults significantly preferred eggplant, cucumber and tobacco to cotton and tomato, whereas S. japonicum adults preferred B. tabaci-infested eggplant, cucumber and cotton to tobacco and tomato. In wind tunnel bioassays, B. tabaci showed a clear preference for eggplant, cucumber and tobacco. Compared with B. tabaci-infested eggplant, cucumber or cotton, B. tabaci-infested tobacco was rarely visited by S. japonicum. In Y-tube bioassays, S. japonicum did not distinguish between B. tabaci-infested and uninfested eggplant. Nine common plant volatiles were detected in different plant species, suggesting that these volatiles may play an important role in the process by which S. japonicum looks for prey. In light of the current results, we discuss the implications of our findings and put forward to a new strategy—i.e., an eggplant + B. tabaci + S. japonicum system—to control B. tabaci damage in the integrated management of whitefly.

1. Introduction

An agroecosystem includes the food web and infochemical web, in which pests and predators utilize chemical information to search for food resources [1]. Host plants play a bridging role among the plant‒prey–natural enemy tritrophic system. Plants provide habitat, food and refuge for pests and their natural enemies, and they also transfer basic communication information between the pests and natural enemies [2]. Plants are frequently attacked by all kinds of herbivores, including chewing–feeding and sap-feeding pests, and the pests not only result in physical wounds but also trigger underlying plant defense responses. Injured plants can release volatiles, known as herbivore-induced plant volatiles (HIPVs), to attract predators and parasitoids [3]. The primary functions and mechanisms of HIPVs in tritrophic interactions have been reviewed in detail [4].
Abundant evidence has proved that HIPVs play an important role in parasitoids locating hosts, and increasing amounts of data have also confirmed that HIPVs can attract predators. Aphid-induced plant volatiles were found to attract the ladybeetles Harmonia axyridis (Pallas) (Coleoptera: Coccinellidae), Coccinella septempunctata (L.) (Coleoptera: Coccinellidae) and Propylaea japonica (Thunberg) (Coleoptera: Coccinellidae) [5,6,7]; the emission of volatiles by citrus trees to repel P. japonica when infested simultaneously by Diaphorina citri Kuwayama (Hemiptera: Psyllidae) and Citrus Huanglongbing [8] was also detected. However, little is known about how whitefly-infested plants affect the performance of predatory ladybeetles [9].
The cotton whitefly Bemisia tabaci (Gennadius) Middle East-Asia Minor 1 (MEAM1, commonly known as B biotype) (Hemiptera: Aleyrodidae) is a major pest of many agronomic and horticultural crops, infesting more than 600 host plant species and causing great economic losses to agricultural production [10]. Bemisia tabaci has a high resistance to most pesticides, which causes concerns regarding the excessive use of insecticides. Therefore, biological control has been considered as a safe and sustainable way to alleviate the damage of B. tabaci. The biological control agents of B. tabaci include parasitoids, predatory ladybeetles, pathogenic microorganisms and so on [11,12,13]. The ladybeetle Serangium japonicum Chapin (Coleoptera: Coccinellidae) is a strong predator of whiteflies, and the adults have a lengthy longevity and high fecundity [12,14,15]; thus, the ladybeetle has drawn much attention regarding the control of B. tabaci [12,16,17,18].
Plants grow in complex multi-species communities, so natural enemies are always confronted with a mixture of plant odors. We hypothesized that different host plant species of B. tabaci might affect the orientational choice of S. japonicum as the ladybeetle locates its prey by using volatiles from their prey or prey-infested host plants, which may affect the biological control efficiency of S. japonicum against B. tabaci. Therefore, we studied (1) the preferences of B. tabaci and its natural enemy S. japonicum adults for different plants in greenhouse cage experiments, (2) the responses of B. tabaci and S. japonicum adults toward different host plants in a wind tunnel, (3) the performance of S. japonicum in a Y-tube olfactometer and (4) the volatiles collected from plants. The present work provides valuable information for the maximization of the biological control efficiency when utilizing S. japonicum to control B. tabaci in different plant species. In view of the current results, we also propose a new strategy—i.e., an eggplant + B. tabaci + S. japonicum system—to control B. tabaci damage in the integrated management of whitefly.

2. Materials and Methods

2.1. Plant Cultivation and Insect Breeding

Five different plant species, namely eggplant (Solanum melongena L. var. Xinyou zilong changqie), cucumber (Cucumis sativus L. var. Jinchun sihao), cotton (Gossypium hirsutum L. var. Luzao), tobacco (Nicotiana tabacum L. var. Qinyan 95) and tomato (Lycopersicon esculentum Mill var. Zhongshu sihao), were obtained from Yangling Nongcheng Seed Supplement Company (Yangling, Shaanxi, China). Each seed was grown separately in a potting tray containing a mixture of commercial peat mosses (60%) (Pindstrup Mosebrug A/S, Ryomgaard, Denmark), perlite (20%) and vermiculite (20%). The plants were grown inside a climate room, in which environmental conditions were maintained at 25 ± 1 °C, with 65 ± 5% RH and a 14/10 h (light/dark, L/D) photoperiod.
Bemisia tabaci and S. japonicum adults were collected by aspiration from tomato and eggplant plants, respectively, on an experimental farm of Northwest A&F University. Whitefly adults were identified as B. tabaci MEAM1 through mitochondrial cytochrome oxidase I (mtCOI) gene amplification. Potted cabbage plants (Brassica oleracea L., Qingan 70) were used for maintaining B. tabaci, and potted cabbage with mixed ages of B. tabaci was used to rear S. japonicum. All insect colonies were kept in nylon gauze cages (60 × 60 × 60 cm) in an insectary at 20–30 °C with 65 ± 5% RH and a 14/10 h L/D photoperiod.
Cabbage leaves containing fourth instar nymphs of B. tabaci were picked and placed in small Petri dishes (3 cm in diameter, 1 cm in height) to obtain newly emerged adults for subsequent tests. Newborn S. japonicum larval individuals were raised in the same-sized Petri dishes with an agar layer. Clear Petri dishes were replaced, and sufficient food was provided daily until adult emergence. Petri dishes were maintained in an incubator (25 ± 1 °C, 65 ± 5% RH, 14/10 h L/D).

2.2. Preparation of B. tabaci-Infested Plants

(a) For greenhouse experiments, two weeks after germination, seedlings were singly transplanted into plastic pots (15 × 10 cm) filled with the same substrate and plants were fertilized once every week for five weeks. The composite fertilizer contained N (15%), P2O5 (20%), and K2O (20%), which was produced by Mei Sheng’s Chemical Fertilizer Co., Ltd., Yan Tan, China. Of the five plant species, seven weeks after seeding, each plant was separately placed into a nylon cage (30 × 30 × 60 cm) and exposed to injury from 25 pairs of B. tabaci adults for seven days. The plants were used for subsequent testing after whitefly adults were removed.
(b) For wind tunnel/Y-tube olfactometer/gas chromatography–mass spectrometry (GC–MS) extract volatile bioassays, plants that had germinated for seven weeks were unable to fit into odor source bottles, so the growth duration of plants had to be shortened to five weeks after germination. Two weeks after germination, the plants were individually transplanted into plastic pots (10 × 8 cm) containing the same mixture, and water and fertilizer management were provided as described above. After three weeks, these plants were individually placed in 5 L polyethylene oil drums with nylon gauze on both sides in the incubator (25 ± 1 °C, 65 ± 5% RH, 14/10 h L/D). Fifty pairs of newly emerged B. tabaci adults were introduced into each oil drum to infest for seven days. Finally, infested plants were used in experiments after adults were removed.

2.3. Greenhouse Cage Experiments

Multiple-choice experiments were executed to evaluate the preference of B. tabaci adults for five plant species and the preference of S. japonicum adults for five B. tabaci-infested plant species.

2.3.1. Multi-Choice Experiments of B. tabaci Adults

Each replicate cage had five uninfested plant species (eggplant, cucumber, tobacco, cotton and tomato), which were uniformly placed in a circle in a nylon mesh cage (60 × 60 × 60 cm). An upended plastic pot (15 × 10 cm) with a Petri dish (9 cm in diameter, 1 cm in height) was put in the center of the cage to act as an insect release platform. Twenty-five pairs of newly emerged B. tabaci adults (<24 h) were released into the platform for ad libitum feeding. The number of B. tabaci adults on each plant was counted at 24, 72 and 120 h after release. Finally, two pieces of leaves from each plant were collected 120 h after the whiteflies were released, and then the number of B. tabaci eggs was checked by a stereoscopic microscope in one randomly selected square centimeter. The position of each plant species in the cage changed randomly during each replication. The experiments were repeated six times.

2.3.2. Multi-Choice Experiments of S. japonicum Adults to B. tabaci-Infested Plant Species

Five B. tabaci-infested plant species were placed in a nylon mesh cage (60 × 60 × 60 cm). The spatial treatment was arranged as described in Section 2.3.1, and 20 virgin adults of S. japonicum (newborn within a week) with 24 h of starvation were put into the release platform for ad libitum feeding. The number of S. japonicum adults on each plant (all leaves) was recorded at 1, 3, 6, 24, 72 and 120 h after the ladybeetle release. This experiment was repeated five times simultaneously.

2.4. Wind Tunnel Bioassays

On the basis of the results of the greenhouse experiment, the responses of B. tabaci and S. japonicum adults toward different host plants were further investigated in a wind tunnel. The wind tunnel was installed following the procedure of Feng et al. [19]. The device was cleaned with 70% alcohol and given 2 h of idle time before each experiment. An upended plastic pot (10 × 8 cm) with a Petri dish (9 cm in diameter, 1 cm in height) was applied as a release platform. Each wind tunnel device contained two different potted plants. Each plant was placed 5 cm from the edge of the air inlet, the insect release platform was placed 5 cm from the edge of the air outlet, and the two potted plants were 15 cm from the wind tunnel. Plants were left to stabilize for 30 min before the beginning of the experiment, and the positions of the plants were randomized per repetition.

2.4.1. Two-Choice Tests of B. tabaci Adults

Five different plant species were divided into preferential and non-preferential plants of B. tabaci adults according to the results of greenhouse cage experiments. The preferential plants were eggplant, cucumber and tobacco, and non-preferential plants were cotton and tomato. Uninfested plant odor sources included six different groups: (1) cotton versus eggplant, (2) cotton versus cucumber, (3) cotton versus tobacco, (4) tomato versus eggplant, (5) tomato versus cucumber and (6) tomato versus tobacco. Fifty pairs of newly emerged B. tabaci adults were put on the release platform for ad libitum choice. Thereafter, the numbers of B. tabaci adults on each plant were counted after 24 h. Each group was tested in four identical devices simultaneously.

2.4.2. Two-Choice Tests of S. japonicum Adults

Five different whitefly-infested plants were classified as preferential and non-preferential plants for S. japonicum adults on the basis of the data from greenhouse cage experiments. The preferential plants included B. tabaci-infested eggplant, cucumber and cotton, and the non-preferential plants involved B. tabaci-infested tobacco and tomato. Tomato was not considered in this experiment because it was not only the least visited by B. tabaci adults in greenhouse and wind tunnel experiments but also seldom located by S. japonicum adults in the greenhouse. Ten S. japonicum adults (newborn within a week) with 24 h of starvation were put on the release platform for random selection for each device. The total numbers of S. japonicum adults on each plant (all leaves) were recorded at 24 h after the initial release. Three groups of plant odor sources were tested: (1) B. tabaci-infested tobacco versus B. tabaci-infested eggplant, (2) B. tabaci-infested tobacco versus B. tabaci-infested cucumber and (3) B. tabaci-infested tobacco versus B. tabaci-infested cotton. At least 40 ladybeetle adults were used in each group.

2.5. Y-Tube Olfactometer Experiments

According to the results of greenhouse cage experiments and wind tunnel bioassays, the B. tabaci-infested plants—i.e., eggplant, cucumber and cotton—showed similar tendencies in terms of attracting S. japonicum adults. However, it was still unclear whether the attraction was caused by the volatiles of plants, the visual stimulation of the ladybird or a combination of the two. Accordingly, a Y-tube olfactometer was executed to evaluate whether the volatile compounds of these plant species had different effects on the performance of S. japonicum. Different odor source groups were tested: (1) uninfested eggplant versus B. tabaci-infested eggplant, (2) uninfested cucumber versus B. tabaci-infested cucumber, (3) uninfested cotton versus B. tabaci-infested cotton, (4) B. tabaci-infested cotton versus B. tabaci-infested eggplant, (5) B. tabaci-infested cotton versus B. tabaci-infested cucumber and (6) B. tabaci-infested eggplant versus B. tabaci-infested cucumber.
The Y-tube olfactometer device was installed according to Darshanee et al. [20]. Briefly, purified air generated from an air pump (Beijing BCHP Analytical Technology Institute, Beijing, China) was filtered by an activated charcoal jar and a distilled water jar, then passed through a rotor flowmeter set at a constant airflow of 200 mL/min, entered 3 L volatile source bottles and finally flowed through each branch of the Y-tube olfactometer. Each arm of the Y-tube olfactometer had a 2.5 cm internal diameter and 10 cm length, and the two side-arms were approximately 60°. A piece of gauze was used in the junction between the Y-tube olfactometer and a Teflon rubber tube to prevent the insect from entering the Teflon rubber tube. Potted plants were covered with oven bags (EasyOven polythene bags, Reynolds Kitchens, USA) and tied with Teflon tape to fence out volatiles from a pot with soil, and then they were placed into volatile source bottles. Plants were kept behind a black cloth to prevent insects from visually recognizing them during the experiment. Potted plants were put in 3 L volatile source bottles for 30 min to allow odors to stabilize before testing. All glass devices and Teflon rubber tubes were cleaned by 70% alcohol solution and deionized water. Glass devices were baked at 120 °C and tubes for at 70 °C each for 2 h.
The discrimination criterion of S. japonicum behavior was calculated to according to the definition of Harmonia axyridis [21]. The naïve ladybeetle (newborn within a week) was placed at the downwind end of the main tube. An effective choice was recorded when the individual chose and entered one arm tube, passed one-third of the length of the arm tube and remained for 30 s. If an individual did not make a decision within 5 min, it was considered a non-responsive insect. After every five ladybeetles were tested, the Y-tube was reoriented by 180° to reduce the error that could be introduced by the device position. After every 10 ladybeetles were assayed, the Y-tube was replaced with a new one to avoid odor bias from its kind. After every 20 ladybeetles were examined, the glass chambers, potted plants and Teflon tubes were replaced with new ones to avoid plant odor effects. Data were collected for 40 individual ladybeetles. The experiments were conducted between 14:00 and 18:00 on several consecutive days.

2.6. Volatile Compound Collection and Analysis

The dynamic headspace volatiles from eggplant, cucumber and cotton were collected and analyzed by a gas chromatography–mass spectrometry system (GC–MS). A solid-phase microextraction (SPME) fiber that was attached with polydimethylsiloxane–divinylbenzene (PDMS-DVB, 65 mm; Supelco, Bellefonte, PA, USA) was used to collect plant volatiles [20]. Devices were installed as described above but not connected to the Y-tube, and finally, the SPME fiber absorbed the odors from the upper exits of volatile source bottles. Prior to volatile collection, each plant was sealed for 45 min in volatile source bottles to increase the concentration of volatiles. The volatile collection had five repetitions for each odor source using a new plant sample.
The SPME fiber was inserted in a gas chromatograph (GC) injection port at 250 °C for 30 min for activation. After 30 min, the SPME fiber was inserted into the volatile source bottles with plants to absorb dynamic headspace volatiles. At the same time, a filter paper (5 × 2 mm) with 25 µL hexane solution of heptyl acetate at 10 ng/µL was added as an internal standard. The collection of volatiles was maintained for 45 min according to preliminary results. After 45 min, the SPME needle was carefully taken out and immediately inserted into the GC–MS system, and desorption was carried out for 5 min. The GC–MS analysis of headspace extracts was carried out on a GC (TRACE 1310, Thermo Fisher Scientific, Waltham, MA, USA) connected with an MS (ISQ Single Quadrupole MS, Thermo Fisher Scientific) fitted with a DB-17 MS UI capillary column (30 m, 0.25 mm i.d., 0.25 μm film, Agilent). GC conditions were consistent with those in [20]. The initial GC oven temperature was set to 40 °C for 2 min, ramped up at 8 °C min−1 to 280 °C and held for 5 min. Helium flow was carried out at a rate of 1.0 mL/min, with a transfer line at 280 °C, ion source temperature of 280 °C, electron impact ionization energy of 70 eV, emission current of 25 µA and a scan range from 45 to 500 amu.
Individual volatile compounds were tentatively identified by comparing the fragment ions to the NIST 2011 (National Institute of Standards and Technology, Washington, DC, USA) mass spectral library with the Xcalibur program (Ver.2.1, Thermo Electron Corporation, San Jose, CA, USA). Part of the result depended on a retention index, which was calculated from a homologous series of n-alkane standards (C7–C40, Sigma, Louis, MO, USA) and then compared to those of components from the literature.

2.7. Data Analysis

The number of B. tabaci adults on each uninfested plant and the numbers of S. japonicum adults on each B. tabaci-infested plant were normalized first by using the square-root transformation x + 0.5 . Then, an ANOVA followed by a Tukey’s HSD or Dunnett’s T3 test was used to analyze the data from greenhouse experiments and based on the homogeneity of variance, and an independent samples t-test was applied for the wind tunnel bioassay data to analyze the significance at p < 0.05. In Y-tube assays, the data from the choice of ladybeetle were first transformed into percentages and then analyzed by χ2 tests with one degree of freedom at p < 0.05, and the 50% probability of choice for each odor arm was assumed for each group. The original peak areas of plant volatiles were transformed according to Geiselhardt et al. [22]; i.e., Zi,j = ln [Yi,j/g(Yj) + 0.01], where Zi,j is the mean standardized area of peak i for plant j, Yi,j is the standard for the area of peak i for plant j and g(Yj) is the geometric mean of all identified peak areas for plant j. The constant 0.01 was adopted to ensure that the transformation formula was appropriate for all plants. A MANOVA with PCA was applied to analyze the significance of each volatile component [23,24]. The experimental data were analyzed using the package IBM SPSS Statistics 20 (SPSS, Inc., Chicago, IL, USA).

3. Results

3.1. Greenhouse Cage Experiments

Greenhouse cage experiments showed that the numbers of B. tabaci adults and eggs were affected by different plant species (Figure 1). The maximum number of B. tabaci adults per plant was on eggplant at 24 h (F(4, 25) = 11.763, p < 0.001), 72 h (F(4, 25) = 13.190, p < 0.001) and 120 h (F(4, 25) = 8.312, p < 0.001) (Figure 1A). Mean numbers of B. tabaci adults markedly varied from 13.2 to 6.8 per eggplant, 10.5–6.7 per cucumber, 9.8–7.0 per tobacco, 4.3–2.2 per cotton, and 0.8–1.5 per tomato from 24 to 120 h after adults were released, respectively (Figure 1A). After B. tabaci adults injured plants for 120 h, the number of eggs on eggplant was significantly higher than that on other plant species (F(4, 25) = 8.564, p < 0.001; Figure 1B).
The number of S. japonicum adults on each B. tabaci-infested plant greatly differed across plant species (Figure 2). More adults were found on eggplant, cucumber and cotton at each time interval than on other plant species (1 h: F(4, 20) = 7.813, p = 0.001; 3 h: F(4, 20) = 7.585, p = 0.001; 6 h: F(4, 20) = 10.351, p < 0.001; 24 h: F(4, 20) = 8.507, p < 0.001; 72 h: F(4, 20) = 10.726, p < 0.001; and 120 h: F(4, 20) = 3.020, p = 0.042; Figure 2). Moreover, S. japonicum adults clearly preferred eggplant during the investigation. In contrast, S. japonicum adults were only found on tomato at 72 h, and the number was lowest compared with other plant species. No S. japonicum adult was found on tobacco at 1 h, 6 h or 24 h after initial release (Figure 2).

3.2. Wind Tunnel Bioassays

The number of B. tabaci adults on eggplant was significantly higher than that on tomato when they were simultaneously offered (t6 = −3.200, p = 0.019; Figure 3A). By contrast, B. tabaci adults did not show a significant preference between cucumber and tomato (t6 = −2.256, p = 0.065) or between tobacco and tomato (t6 = −1.119, p = 0.306), although the numbers of the whitefly appeared to have been risen on cucumber and tobacco (Figure 3A).
It was an unexpected phenomenon that B. tabaci adults were more concentrated on cotton than on eggplant, but the difference was not significant (t6 = 0.742, p = 0.486; Figure 3B). Bemisia tabaci adults did not show a significant preference between cotton and cucumber (t6 = −1.811, p = 0.120) or between cotton and tobacco (t6 = −0.020, p = 0.875; Figure 3B).
When B. tabaci-infested eggplant and tobacco were offered simultaneously, S. japonicum adults markedly preferred B. tabaci-infested eggplant to tobacco (t6 = −6.309, p = 0.001; Figure 4). However, S. japonicum adults had no significant preference between B. tabaci-infested cucumber and tobacco (t6 = −1.034, p = 0.341) or between B. tabaci-infested cotton and tobacco (t6 = −0.827, p = 0.440), although the numbers of ladybeetles appeared to have risen on B. tabaci-infested cucumber or cotton (Figure 4).

3.3. Y-Tube Olfactometer Experiments

Serangium japonicum adults were able to recognize the odors emitted by B. tabaci-infested plants compared with uninfested plants in different plant species (Figure 5). More S. japonicum adults were attracted by B. tabaci-infested cotton compared with uninfested cotton (χ2 = 4.5, p = 0.043; Figure 5). Serangium japonicum adults had no obvious preference between B. tabaci-infested and uninfested eggplant (χ2 = 1.059, p = 0.303; Figure 5) or between B. tabaci-infested and uninfested cucumber (χ2 = 0.133, p = 0.715; Figure 5).
In addition, S. japonicum adults did not show an obvious response to volatiles from B. tabaci-infested cotton when presented against B. tabaci-infested eggplant (χ2 = 2, p = 0.157) and B. tabaci-infested cucumber (χ2 = 0.273, p = 0.602). When B. tabaci-infested eggplant and cucumber were presented, S. japonicum adults responded equally to both odors (χ2 = 0, p > 0.05; Figure 5).

3.4. Volatile Organic Compounds

No significant change was found in volatile composition between B. tabaci-infested and uninfested eggplant (Pillai test: F(2, 114) = 0.100, p = 0.905). The volatile Unknown 1 was only detected in eggplant (Table 1). PCA results indicated that the first and second components explained 48.78% and 28.75% of the total variability, respectively (Figure 6A). According to the component matrix in PCA, the most important compounds were 2,6,10-trimethyl-tetradecane, Tridecane and Pentadecane for PC1; however, 3-methyl pentadecane and Heptadecane were the main substances for PC2 (Figure 6A). These results are consistent with the change in the relative content of volatiles in Table 1. The volatiles of uninfested and B. tabaci-infested eggplants were not distinguished by the PCA (Figure 6A).
Fifteen volatiles were detected from uninfested and B. tabaci-infested cucumber (Table 1). The volatile composition did not vary between B. tabaci-infested and uninfested cucumber plants (Pillai test: F(2, 136) = 0.770, p = 0.926; Figure 6). The first two components of the PCA explained 62.79% of the total variability. Three components were unidentified. Unknown 2, Unknown 3 and 7-methyl-pentadecane were present in the blend of uninfested or B. tabaci-infested cucumber plants, but they were not found in eggplant or cotton. Heptadecane and tert-Hexadecanethiol had remarkable effects in terms of explaining PC2, and 2-ethenyl-1,1-dimethyl-3-methylene-cyclohexane, 2,6,10-trimethyl-tetradecane and 7-methyl-pentadecane played more important roles in explaining PC1 (Figure 6B). The volatiles of uninfested and B. tabaci-infested cucumber were not distinguished by the PCA (Figure 6B).
Cotton emitted more volatile species compared with those emitted by eggplant and cucumber plants (Table 1). There was no significant difference in volatile composition between B. tabaci-infested and uninfested cotton (Pillai test: F(2, 183) = 0.620, p = 0.539, Figure 6C). The first two components of the PCA explained 64.32% of the total variability. β-Myrcene,1-Caryophyllene, Heptadecane and Humulene had remarkable effects in terms of explaining the first components of the PCA, and Pentadecane and Benzothiazole played a more important role in explaining the second components of the PCA (Figure 6C). The volatiles of uninfested and B. tabaci-infested cotton failed to be distinguished by the PCA (Figure 6C).
PCA showed the apparent separation of plant volatiles among eggplant, cucumber and cotton, but obvious overlaps were found in uninfested and B. tabaci-infested plants of the same species (Figure 6D). The first and second PCs explained 39.94% and 24.3% of the total variance of the plant volatiles, respectively. Not all compounds could be detected in different plant species; only nine common compounds were detected in all groups in this experiment (Table 1).

4. Discussion

Most previous studies in this area have focused on the fact that plant species significantly affect the development, survival, population establishment and control efficiency of natural enemies [25,26,27], and a few works in the literature have focused on the behavior of natural enemies [28,29]. The ladybeetle S. japonicum has a great potential to suppress whitefly populations in an agricultural ecosystem. However, the locational behavior of S. japonicum toward B. tabaci-infested plants has seldom been reported. In the present study, we found support for our hypotheses that (1) B. tabaci adults are able to identify odors from different plants, and that S. japonicum adults can perceive volatile odors from different host plants of B. tabaci; and (2) uninfested and B. tabaci-infested eggplant are significantly preferred by B. tabaci and S. japonicum.
In the greenhouse experiments, B. tabaci and S. japonicum adults have clear preferences for different host plant species. Bemisia tabaci adults significantly preferred eggplant, cucumber and tobacco to cotton and tomato, and S. japonicum adults—a natural enemy of B. tabaci—preferred eggplant, cucumber, cotton, tobacco and tomato. Similar to our results, previous findings showed that eggplant was the most suitable host plant for B. tabaci and that tomato was the least suitable [30]. In addition, the survivorship from egg to adult of B. tabaci was highest on eggplant [31]. Eggplant was a suitable trapping plant to manage Trialeurodes vaporariorum (Westwood) (Hemiptera: Aleyrodidae) and Bemisia argentifolii Bellows & Perring (Hemiptera: Aleyrodidae) in poinsettia [32]. There are no earlier reports on the influence of the prey’s host plant species on the performance of S. japonicum, but cucumber was reported to be the most preferred plant by its sibling species Serangium parcesetosum Sicard (Coleoptera: Coccinellidae) compared with tomato [33]. Similarly, the predatory ladybeetle Delphastus catalinae (Horn) (Coleoptera: Coccinellidae) exhibited lower performance on B. tabaci-infested tomato [34]. Serangium japonicum laid more eggs on B. tabaci-infested eggplant and cucumber plants [35]. Interestingly, we found that uninfested tobacco plants could attract B. tabaci adults, but B. tabaci-infested tobacco plants were largely rejected by S. japonicum adults. The preference of B. tabaci for tobacco might be related to the high contents of 2-Hexenal and 3-Hexen-1-ol in tobacco [36]. Our previous data revealed that B. tabaci-infested tobacco was not an appropriate host for the development and oviposition of S. japonicum [35], but the reason that tobacco was rejected by S. japonicum was still unclear. These findings suggest that the host species of prey strongly affect the performance and fitness of predators.
In the wind tunnel experiments, eggplant plants were highly preferred by B. tabaci adults compared with tomato plants, and S. japonicum adults preferred eggplant to tobacco. The results are consistent with the findings of our greenhouse experiments. In the Y-tube olfactometer experiment, S. japonicum could recognize uninfested cotton and B. tabaci-infested cotton, but it did not successfully distinguish the odors from eggplant or cucumber plants. Furthermore, egg deposition by B. tabaci did not make eggplant and cucumber more attractive to S. japonicum adults than uninfested eggplant and cucumber. Therefore, it is suspected that S. japonicum may need other factors (vision or taste sense) to locate its prey’s host plants. Harmonia axyridis depended on its smell sense and vision when looking for prey [37]. Propylaea japonica was reported to utilize olfactory and visual cues to locate aphid-infested cotton but mainly relied on olfactory odors [7]. At the same time, an earlier article reported that the attraction behavior of H. axyridis toward Myzus persicae (Sülzer) (Hemiptera: Aphididae) infested cabbage was affected by aphid density [21]. Thus, another explanation for our results is that different host plant species process different leaf areas, and the same density of B. tabaci adults possibly results in different damage intensities. Finally, S. japonicum adults failed to identify the odors from host plants in Y-tube bioassays. In addition, the orientational behavior of S. japonicum may not only need a combination of vision and olfactory organs but also a certain learning behavior. Ponsonby and Copland (1995) reported that experienced Chilocorus nigritus (F.) (Coleoptera: Coccinellidae) adults were attracted by prey and the prey’s host plants [38]. Naïve predatory mirid bug Dicyphus hesperus Knight (Hemiptera: Miridae) had no preference between uninfested and Bactericera cockerelli Sulcer (Hemiptera: Triozidae) egg-infested tomato; however, D. hesperus females with foraging experience preferred infested tomato [39]. In addition, the morphological characteristics of plants, such as trichome, leaf color, leaf shape and so on, also affect the seeking behavior of pests and natural enemies [40,41].
Our results showed that the different host plants emitted different kinds of volatile chemicals. The constituents of volatiles were different among three plant species, and they qualitatively varied between uninfested and B. tabaci-infested plants of the same species. Cotton released the most volatile species, while eggplant emitted the least volatile species. A total of nine substances were detected in three plant species simultaneously, and it is speculated that these substances might play an important role in the host-seeking behavior of S. japonicum. Nonanal and (Z)-3-hexenyl acetate were detected in Spodoptera litura Fabricius (Lepidoptera: Noctuidae)-infested eggplant [42]. The volatile Nonanal from Sophora japonica flowers markedly attracted H. axyridis [43], and a high content of Nonanal was also found in plant odors that attracted Frankliniella occidentalis (Pergande) (Thysanoptera: Thripidae) [40]. Many alkane species were detected and even reported in other plants [43,44]. Furthermore, the present results found that four volatiles, D-limonene, β-ocimene, Caryophyllene and Benzaldehyde, were identified in plant species preferred by S. japonicum. We speculate that these four substances might play an important role in the host-seeking behavior of S. japonicum. D-Limonene and β-ocimene contents were significantly correlated with the olfactory response of P. japonica [8]; Caryophyllene and Benzaldehyde attracted predatory lacewings [45,46]. Further studies are needed to explain the function of these substances in the orientational behavior of S. japonicum. In addition, PCA results showed that different plant species could be distinguished by the content of volatiles, but the content of volatiles failed to separate the same plant species in uninfested and B. tabaci-infested conditions. However, according to the Y-tube olfactometer assays, between B. tabaci-infested and uninfested plants, S. japonicum distinguished the odor from cotton only and did not recognize the odors from eggplant or cucumber. When a pairwise combination of three different B. tabaci-infested hosts acted as odors, the orientational choice of S. japonicum showed no significance. Thus, it is suspected that other factors (such as vision sense)—not only the smell sense—play a role in the localization behavior of S. japonicum.
An “attract and reward” model can use non-target plants grown within or around the target crop to alleviate pest populations, and it also can attract more natural enemies to the crop [41,47]. Our results showed that eggplant was the favorite host plant of B. tabaci and the predatory ladybeetle S. japonicum. Thus, we propose an innovative method—i.e., an eggplant + B. tabaci + S. japonicum system—to control B. tabaci in greenhouses and fields. In this system, eggplant can act as a trap plant to attract B. tabaci and reduce its damage to target plants before the rapid increase in the S. japonicum population. Subsequently, with the increase in the number of S. japonicum, the ladybeetles actively migrate from eggplant to target crops and exert control over B. tabaci on target crops.

5. Conclusions

The present study investigated the influence of host plant species of B. tabaci on the orientational behavior of S. japonicum. Our findings suggest that the host plant species preferred by B. tabaci are not necessarily also preferred by its natural enemy S. japonicum. The eggplant plant is the most preferred host plant for B. tabaci and S. japonicum, and the ladybeetle can perceive volatile odors from different host plants of B. tabaci. Since its prey’s host plant species can affect the orientational performance of S. japonicum, plant species should be considered when designing biological control programs that utilize S. japonicum to control B. tabaci populations. Accordingly, from the present results, we propose a new pest control strategy—i.e., an eggplant + B. tabaci + S. japonicum system—to control B. tabaci injury in greenhouses and fields. Moreover, our results also provide insight into the plant–whitefly–ladybeetle tritrophic interactive relationship and demonstrate that the successful biological control of pests should integrate host plants into the control strategy.

Author Contributions

Conceptualization, S.Z., M.T. and Y.X.; Methodology, M.T., L.X. and J.J.; Software, S.Z. and M.T.; Validation, S.Z. and M.T.; Data Curation, S.Z. and M.T.; Writing—Original Draft Preparation, S.Z., M.T.; Supervision, S.Z., T.L. and Y.X.; Project Administration, S.Z.; Funding Acquisition, S.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Natural Science Foundation of China (31470484), the National Key R&D Program of China (2017YFD0201006) and the China Agriculture Research System (CARS-23-D-06).

Acknowledgments

We thank Tianyu Sun and Jiaxin Lin for helping during greenhouse work. We are grateful for the assistance of all staff members and students in the State Key Laboratory of Crop Stress Biology for Arid Areas, Northwest A&F University at Yangling, Shaanxi, China.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dicke, M.; Baldwin, I.T. The evolutionary context for herbivore-induced plant volatiles: Beyond the ‘cry for help’. Trends Plant Sci. 2010, 15, 167–175. [Google Scholar] [CrossRef]
  2. Price, P.W.; Bouton, C.E.; Gross, P.; Mcpheron, B.A.; Thompson, J.N.; Weis, A.E. Interactions among three trophic levels: Influence of plants on interactions between insect herbivores and natural enemies. Annu. Rev. Ecol. System. 1980, 11, 41–65. [Google Scholar] [CrossRef] [Green Version]
  3. Dicke, M.; van Loon, J.J.A. Multitrophic effects of herbivore-induced plant volatiles in an evolutionary context. Entomol. Exp. Appl. 2000, 97, 237–249. [Google Scholar] [CrossRef] [Green Version]
  4. Turlings, T.C.J.; Erb, M. Tritrophic interactions mediated by herbivore-induced plant volatiles: Mechanisms, ecological relevance, and application potential. Annu. Rev. Entomol. 2018, 63, 433–452. [Google Scholar] [CrossRef] [PubMed]
  5. Xiu, C.L.; Zhang, W.; Xu, B.; Wyckhuys, K.A.G.; Cai, X.M.; Su, H.H.; Lu, Y.H. Volatiles from aphid-infested plants attract adults of the multicolored Asian lady beetle Harmonia axyridis. Biol. Contr. 2019, 129, 1–9. [Google Scholar] [CrossRef]
  6. Tan, X.L.; Liu, T.X. Aphid-induced plant volatiles affect the attractiveness of tomato plants to Bemisia tabaci and associated natural enemies. Entomol. Exp. Appl. 2014, 151, 259–269. [Google Scholar] [CrossRef]
  7. Wang, P.Y.; Su, J.W.; Ouyang, F.; Ge, F. Orientation behavior of Propylaea japonica toward visual and olfactory cues from its prey–host plant combination. Entomol. Exp. Appl. 2015, 155, 162–166. [Google Scholar] [CrossRef]
  8. Lin, Y.W.; Lin, S.; Akutse, K.S.; Hussain, M.; Wang, L.D. Diaphorina citri induces Huanglongbing-infected citrus plant volatiles to repel and reduce the preference of Propylaea japonica. Front. Plant Sci. 2016, 7, 1969. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Liu, T.X.; Stansly, P.A. Functional response and plant preference of Nephaspis oculatus (Coleoptera: Coccinellidae), preying on Bemisa argentifolii (Homoptera: Aleyrodidae) in the laboratory. Entomol. Sin. 2002, 9, 1–9. [Google Scholar]
  10. Oliveira, M.R.V.; Henneberry, T.J.; Anderson, P. History, current status, and collaborative research projects for Bemisia tabaci. Crop Prot. 2001, 20, 709–723. [Google Scholar] [CrossRef] [Green Version]
  11. Gerling, D.; Alomar, O.; Arno, J. Biological control of Bemisia tabaci using predators and parasitoids. Crop Prot. 2001, 20, 779–799. [Google Scholar] [CrossRef]
  12. Ren, S.X.; Huang, Z.; Yao, S.L. Advances in studies on predator of Bemisia tabaci Gennadius. Nat. Enem. Insects 2004, 26, 34–42. [Google Scholar]
  13. Liu, T.X.; Stansly, P.A.; Gerling, D. Whitefly parasitoids: Distribution, life history, bionomics, and utilization. Annu. Rev. Entomol. 2015, 60, 273–292. [Google Scholar] [CrossRef] [PubMed]
  14. Jing, Y.; Huang, J.; Han, J.C. Predation of Serangium japonicum on Bemisia tabaci. Acta phytophylacica Sin. 2004, 31, 225–229. [Google Scholar]
  15. Yao, S.L.; Ren, S.X.; Huang, Z. The morphological characters and biology of Seragium japonicum. Nat. Enem. Insects 2004, 26, 22–27. [Google Scholar]
  16. Li, P.; Chen, Q.Z.; Liu, T.X. Effects of a juvenile hormone analog, pyriproxyfen, on Serangium japonicum (Coleoptera: Coccinellidae), a predator of Bemisia tabaci (Hemiptera: Aleyrodidae). Biol. Contr. 2015, 86, 7–13. [Google Scholar] [CrossRef]
  17. Tian, M.; Wei, Y.L.; Zhang, S.Z.; Liu, T.X. Suitability of Bemisia tabaci (Hemiptera: Aleyrodidae) biotype-B and Myzus persicae (Hemiptera: Aphididae) as prey for the ladybird beetle, Serangium japonicum (Coleoptera: Coccinellidae). Eur. J. Entomol. 2017, 114, 603–608. [Google Scholar] [CrossRef]
  18. Ma, L.J.; Zhang, S.Z.; Liu, T.X. Influences of interspecific competition between ladybeetle Serangium japonicum and parasitoid Encarsia formosa on predation of tobacco whitefly Bemisia tabaci. J. Plant Prot. 2018, 45, 1289–1295. [Google Scholar]
  19. Feng, Y.; Zhou, Z.X.; An, M.R.; Yu, X.L.; Liu, T.X. The effects of prey distribution and digestion on functional response of Harmonia axyridis (Coleoptera: Coccinellidae). Biol. Contr. 2018, 124, 74–81. [Google Scholar] [CrossRef]
  20. Darshanee, H.L.C.; Ren, H.; Ahmed, N.; Zhang, Z.F.; Liu, Y.H.; Liu, T.X. Volatile-mediated attraction of greenhouse whitefly Trialeurodes vaporariorum to tomato and eggplant. Front. Plant Sci. 2017, 8, 1285. [Google Scholar] [CrossRef] [Green Version]
  21. Yoon, C.; Seo, D.K.; Yang, J.O.; Kang, S.H.; Kim, G.H. Attraction of the predator, Harmonia axyridis (Coleoptera: Coccinellidae), to its prey, Myzus persicae (Hemiptera: Aphididae), feeding on Chinese cabbage. J. Asia-Pac. Entomol. 2010, 13, 255–260. [Google Scholar] [CrossRef]
  22. Geiselhardt, S.; Otte, T.; Hilker, M. The role of cuticular hydrocarbons in male mating behavior of the mustard leaf beetle, Phaedon cochleariae (F.). J. Chem. Ecol. 2009, 35, 1162–1171. [Google Scholar] [CrossRef] [PubMed]
  23. Chen, N.; Bai, Y.; Fan, Y.L.; Liu, T.X. Solid-phase microextraction-based cuticular hydrocarbon profiling for intraspecific delimitation in Acyrthosiphon pisum. PLoS ONE 2017, 12, e0184243. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Dias, A.M.; Pareja, M.; Laia, M.; Blassioli-Moraes, M.C.; Borges, M.; Laumann, R.A. Attraction of Telenomus podisi to volatiles induced by Euschistus heros in three different plant species. Arthropod-Plant Interact. 2016, 10, 419–428. [Google Scholar] [CrossRef] [Green Version]
  25. Luo, H.W.; Wang, Z.H.; Wang, L.D.; Huang, J. Effects of host plants on development, survival and reproduction of Delphastus catalinae (Horn), a predator of Bemisia tabaci (Gennadius). J. Fujian Agric. Univ. 2010, 39, 231–235. [Google Scholar]
  26. Razze, J.M.; Liburd, O.E.; Mcsorley, R. Preference of Bemisia tabaci biotype B on zucchini squash and buckwheat and the effect of Delphastus catalinae on whitefly populations. Pest Manag. Sci. 2016, 72, 1335–1339. [Google Scholar] [CrossRef]
  27. Kean, A.M.; Nielsen, M.C.; Davidson, M.M.; Butler, R.C.; Vereijssen, J. Host plant influences establishment and performance of Amblydromalus limonicus, a predator for Bactericera cockerelli. Pest Manag. Sci. 2019, 75, 787–792. [Google Scholar] [CrossRef]
  28. Zhang, S.Z.; Guo, J.Y.; Wan, F.H.; Zhang, F. Parasitic behavior and selectivity of Encarsia formosa (Hymenoptera: Aphelinidae) towards Bemisia tabaci (Homoptera: Aleyrodidae) on different host plants. Acta Ecol. Sin. 2005, 25, 2595–2600. [Google Scholar]
  29. Mills, N.J.; Heimpel, G.E. Could increased understanding of foraging behavior help to predict the success of biological control? Curr. Opin. Insect Sci. 2018, 27, 26–30. [Google Scholar] [CrossRef]
  30. Kakimoto, K.; Inoue, H.; Yamaguchi, T.; Ueda, S.; Honda, K.; Yano, E. Host plant effect on development and reproduction of Bemisia argentifolii Bellows et Perring (B. tabaci [Gennadius] B-biotype) (Homoptera: Aleyrodidae). Appl. Entomol. Zool. 2007, 42, 63–70. [Google Scholar] [CrossRef] [Green Version]
  31. Shah, M.M.R.; Liu, T.X. Feeding experience of Bemisia tabaci (Hemiptera: Aleyrodidae) affects their performance on different host plants. PLoS ONE 2013, 8, e77368. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Lee, D.H.; Nyrop, J.P.; Sanderson, J.P. Attraction of Trialeurodes vaporariorum and Bemisia argentifolii to eggplant, and its potential as a trap crop for whitefly management on greenhouse poinsettia. Entomol. Exp. Appl. 2009, 133, 105–116. [Google Scholar] [CrossRef]
  33. Al-Zyoud, F.; Tort, N.; Sengonca, C. Influence of host plant species of Bemisia tabaci (Genn.) (Hom., Aleyrodidae) on some of the biological and ecological characteristics of the entomophagous, Serangium parcesetosum Sicard (Col., Coccinellidae). J. Pest Sci. 2005, 78, 25–30. [Google Scholar] [CrossRef]
  34. Legaspi, J.C.; Simmons, A.M.; Legaspi, B.C., Jr. Prey preference by Delphastus catalinae (Coleoptera: Coccinellidae) on Bemisia argentifolii (Homoptera: Aleyrodidae): Effects of plant species and prey stages. Florida Entomol. 2006, 89, 218–222. [Google Scholar] [CrossRef]
  35. Tian, M.; Pumhan, N.; Liu, T.X.; Zhang, S.Z. Effect of host plant species of cotton whitefly Bemisia tabaci Middle East-Asia Minor 1 (Hemiptera: Aleyrodidae) on the development, survival and reproduction of its predaceous ladybeetle Serangium japonicum (Coleoptera: Coccinellidae). Agric. For. Entomol. 2019, 21, 417–423. [Google Scholar] [CrossRef]
  36. Li, Y.F.; Zhong, S.T.; Qin, Y.C.; Zhang, S.Q.; Gao, Z.L.; Dang, Z.H.; Pan, W.L. Identification of plant chemicals attracting and repelling whiteflies. Arthropod-Plant Interact. 2014, 8, 183–190. [Google Scholar] [CrossRef]
  37. Obata, S. The influence of aphids on the behaviour of adults of the ladybird beetle, Harmonia axyridis (Col.: Coccinellidae). Entomophaga 1997, 42, 103–106. [Google Scholar] [CrossRef]
  38. Ponsonby, D.J.; Copland, M.J.W. Olfactory responses by the scale insect predator Chilocorus nigritus (F.) (Coleoptera: Coccinellidae). Biocontrol Sci. Technol. 1995, 5, 83–93. [Google Scholar] [CrossRef]
  39. Lima-Espindola, J.; Rodríguez-Leyva, E.; Lomeli-Flores, J.R.; Velazquez-gonzalez, J.C. Does foraging experience affect the responses of the predator Dicyphus hesperus Knight to prey-induced volatiles? Neotrop. Entomol. 2018, 47, 885–891. [Google Scholar] [CrossRef]
  40. Cao, Y.; Li, C.; Yang, H.; Li, J.; Li, S.; Wang, Y.; Gao, Y.L. Laboratory and field investigation on the orientation of Frankliniella occidentalis (Thysanoptera: Thripidae) to more suitable host plants driven by volatiles and component analysis of volatiles. Pest Manag. Sci. 2019, 75, 598–606. [Google Scholar] [CrossRef]
  41. Xiao, Y.F.; Chen, J.J.; Cantliffe, D.; Mckenzie, C.; Houben, K.; Osborne, L.S. Establishment of papaya banker plant system for parasitoid, Encarsia sophia (Hymenoptera: Aphilidae) against Bemisia tabaci (Hemiptera: Aleyrodidae) in greenhouse tomato production. Biol. Contr. 2011, 58, 239–247. [Google Scholar] [CrossRef]
  42. Rim, H.; Uefune, M.; Ozawa, R.; Takabayashi, J. Olfactory response of the omnivorous mirid bug Nesidiocoris tenuis to eggplants infested by prey: Specificity in prey developmental stages and prey species. Biol. Contr. 2015, 91, 47–54. [Google Scholar] [CrossRef]
  43. Xiu, C.L.; Xu, B.; Pan, H.S.; Zhang, W.; Yang, Y.Z.; Lu, Y.H. Volatiles from Sophora japonica flowers attract Harmonia axyridis adults (Coleoptera: Coccinellidae). J. Integr. Agric. 2019, 18, 873–883. [Google Scholar] [CrossRef] [Green Version]
  44. Zhao, Q.; Zhu, J.J.; Qin, Y.C.; Pan, P.L.; Tu, H.G.; Du, W.X.; Zhou, W.F.; Baxendale, F.P. Reducing whiteflies on cucumber using intercropping with less preferred vegetables. Entomol. Exp. Appl. 2013, 150, 19–27. [Google Scholar] [CrossRef]
  45. Salamanca, J.; Souza, B.; Lundgren, J.G.; Rodriguez-Saona, C. From laboratory to field: Electro-antennographic and behavioral responsiveness of two insect predators to methyl salicylate. Chemoecology 2017, 27, 51–63. [Google Scholar] [CrossRef]
  46. Hooper, A.M.; Donato, B.; Woodcock, C.M.; Park, J.H.; Paul, R.L.; Boo, K.S.; Hardie, J.; Pickett, J.A. Characterization of (1R,4S,4aR,7S,7aR)-dihydronepetalactol as a semiochemical for lacewings, including Chrysopa spp. and Peyerimhoffina gracilis. J. Chem. Ecol. 2002, 28, 849–864. [Google Scholar] [CrossRef]
  47. Orre Gordon, G.U.S.; Wratten, S.D.; Jonsson, M.; Simpson, M.; Hale, R. ‘Attract and reward’: Combining a herbivore-induced plant volatile with floral resource supplementation—Multi-trophic level effects. Biol. Contr. 2013, 64, 106–115. [Google Scholar] [CrossRef]
Insects 11 00434 g001 550

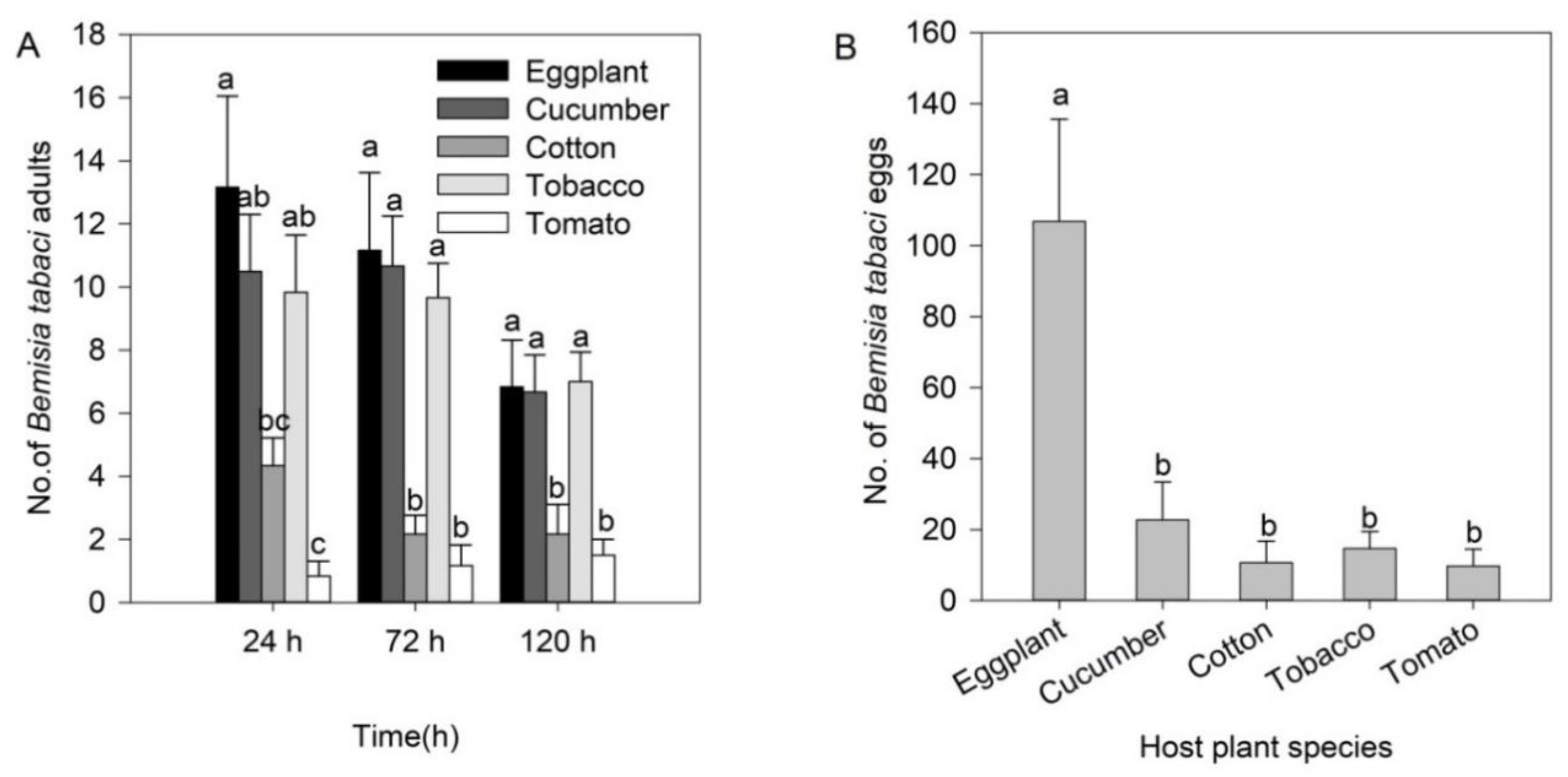

Figure 1. Numbers (mean ± SE) of Bemisia tabaci adults (A) and eggs after adults had infested plants for 120 h (B) for each plant in greenhouse cage experiments. Different lowercase letters mean significant differences among plant species at the same time at p < 0.05.
Figure 1. Numbers (mean ± SE) of Bemisia tabaci adults (A) and eggs after adults had infested plants for 120 h (B) for each plant in greenhouse cage experiments. Different lowercase letters mean significant differences among plant species at the same time at p < 0.05.
Insects 11 00434 g001
Insects 11 00434 g002 550

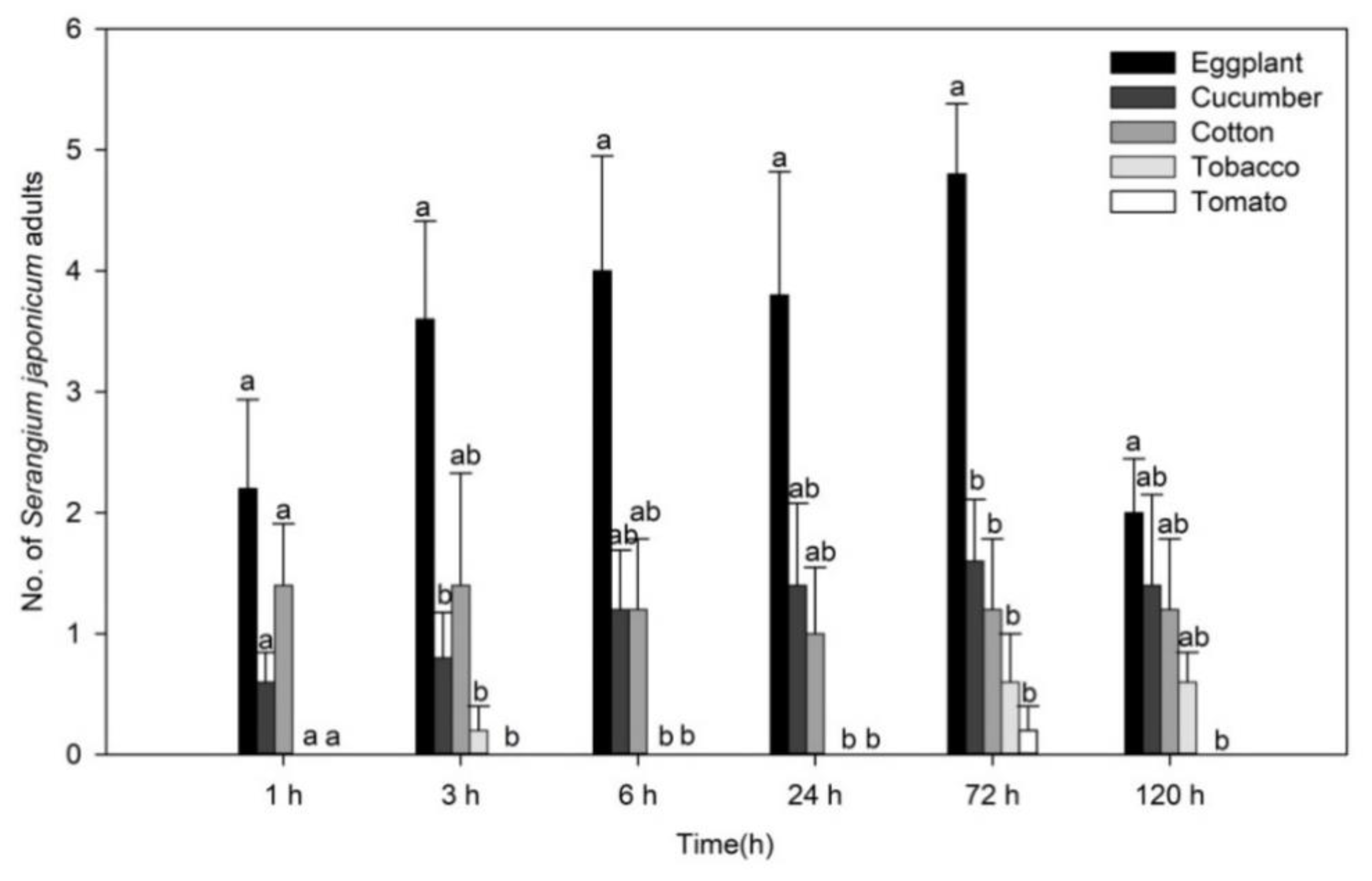

Figure 2. Numbers (mean ± SE) of Serangium japonicum adults on each plant in greenhouse cage experiments. Different lowercase letters mean significant differences among different plant species at the same time at p < 0.05.
Figure 2. Numbers (mean ± SE) of Serangium japonicum adults on each plant in greenhouse cage experiments. Different lowercase letters mean significant differences among different plant species at the same time at p < 0.05.
Insects 11 00434 g002
Insects 11 00434 g003 550

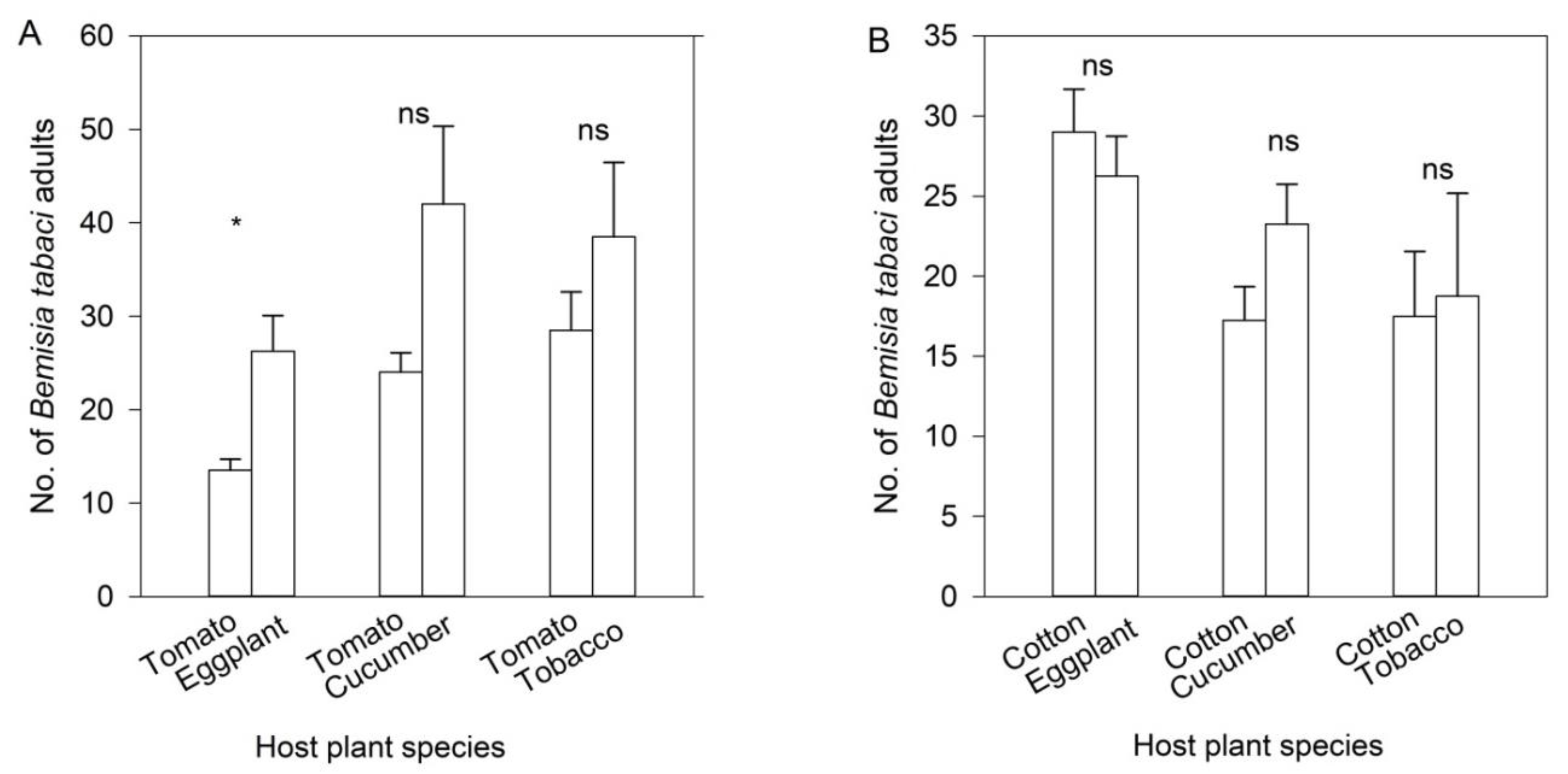

Figure 3. Numbers (mean ± SE) of Bemisia tabaci adults on each plant in the wind tunnel assays. (A) Non-preferential tomato versus preferential eggplant, cucumber and tobacco. (B) Non-preferential cotton versus preferential eggplant, cucumber and tobacco. The asterisk means significant difference and ns means no difference in each group at p < 0.05.
Figure 3. Numbers (mean ± SE) of Bemisia tabaci adults on each plant in the wind tunnel assays. (A) Non-preferential tomato versus preferential eggplant, cucumber and tobacco. (B) Non-preferential cotton versus preferential eggplant, cucumber and tobacco. The asterisk means significant difference and ns means no difference in each group at p < 0.05.
Insects 11 00434 g003
Insects 11 00434 g004 550

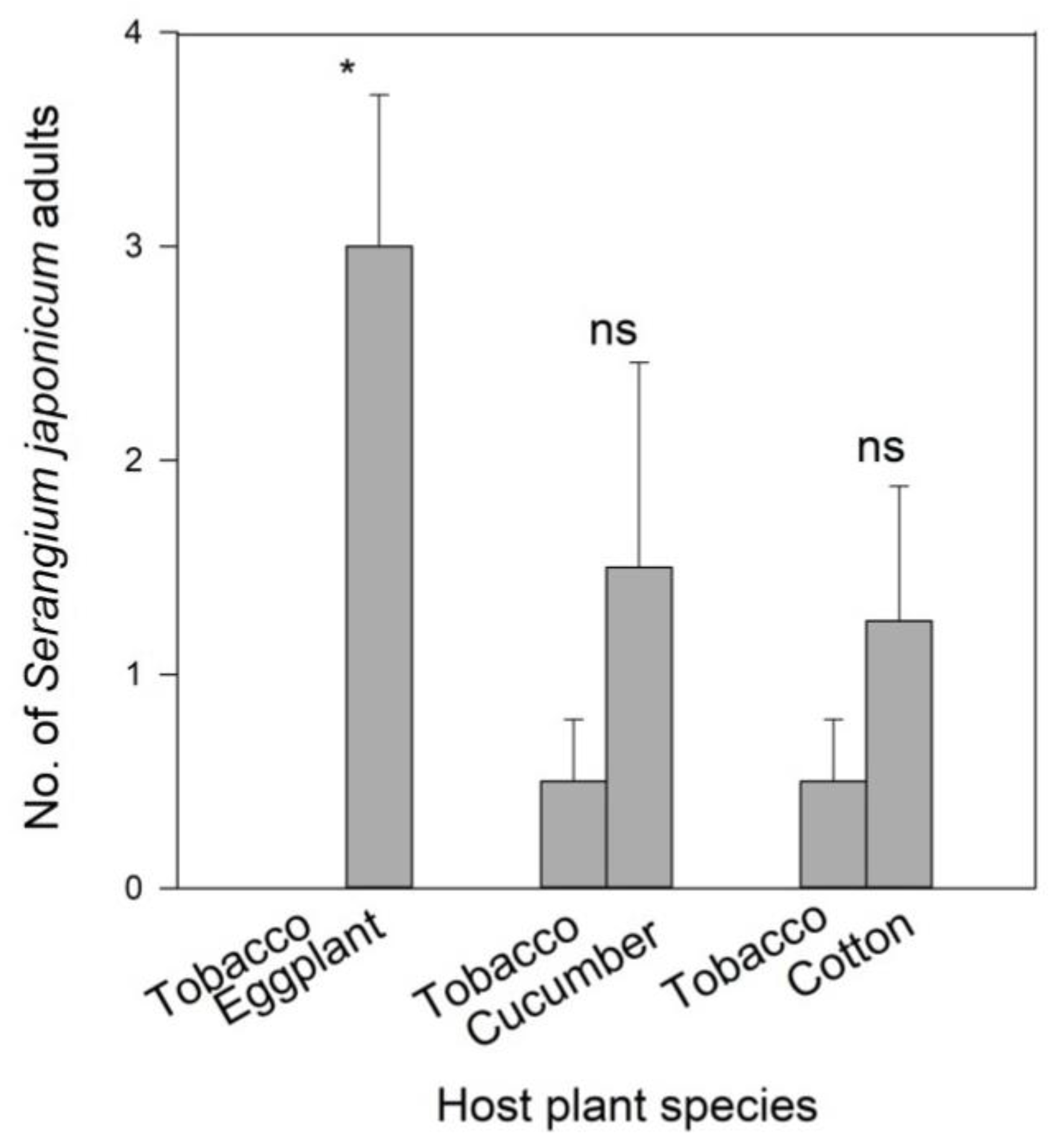

Figure 4. Numbers (mean ± SE) of Serangium japonicum adults on each plant in wind tunnel assays. The asterisk means a significant difference and ns means no difference in each group at p < 0.05.
Figure 4. Numbers (mean ± SE) of Serangium japonicum adults on each plant in wind tunnel assays. The asterisk means a significant difference and ns means no difference in each group at p < 0.05.
Insects 11 00434 g004
Insects 11 00434 g005 550

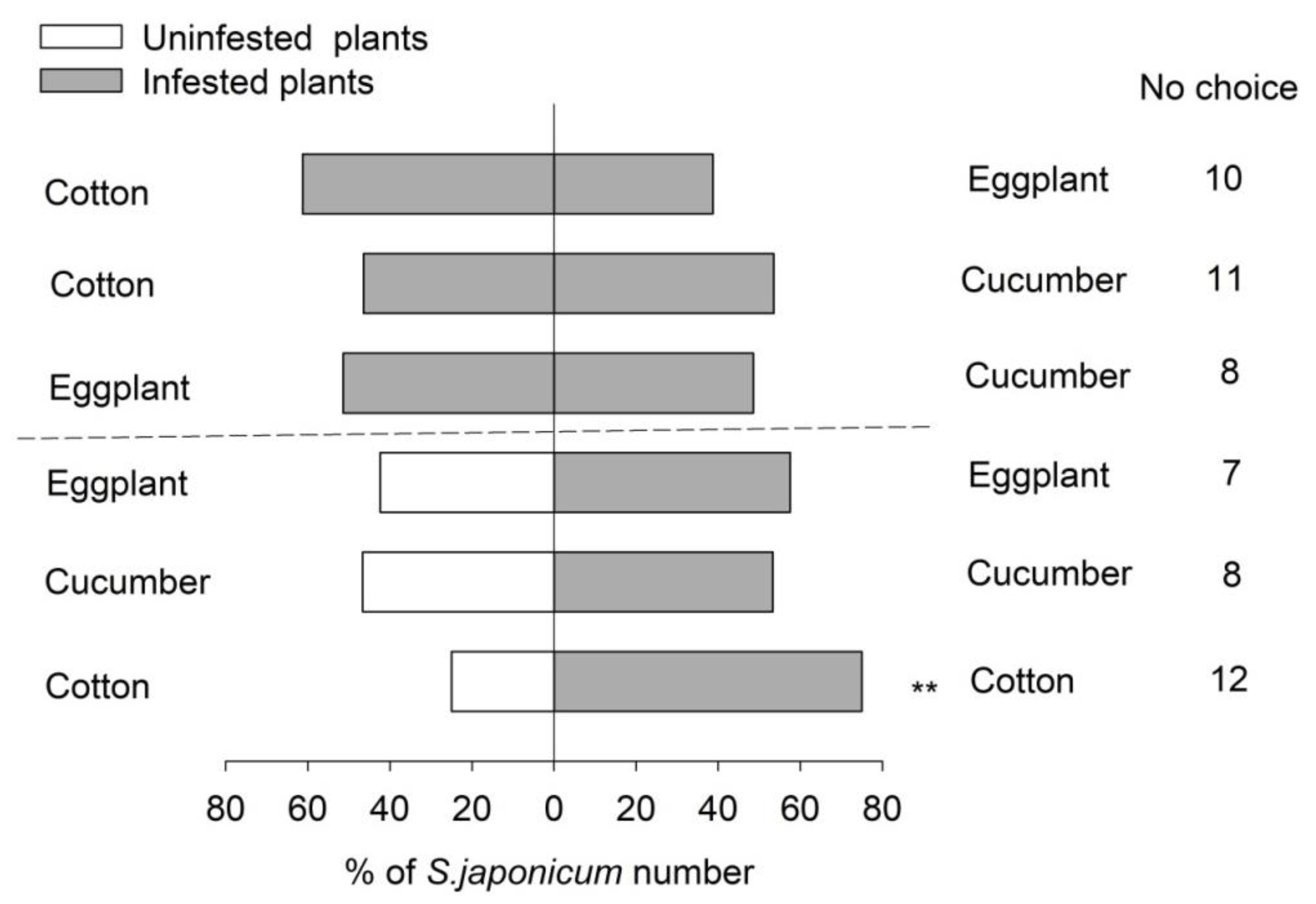

Figure 5. Two-choice assays of Serangium japonicum by Y-tube olfactometer. No choice means that the ladybeetles did not respond in the allotted time. Significance was analyzed in each group at p < 0.05. ** Represents values that were statistically significant at 0.01 > p > 0.001.
Figure 5. Two-choice assays of Serangium japonicum by Y-tube olfactometer. No choice means that the ladybeetles did not respond in the allotted time. Significance was analyzed in each group at p < 0.05. ** Represents values that were statistically significant at 0.01 > p > 0.001.
Insects 11 00434 g005
Insects 11 00434 g006 550

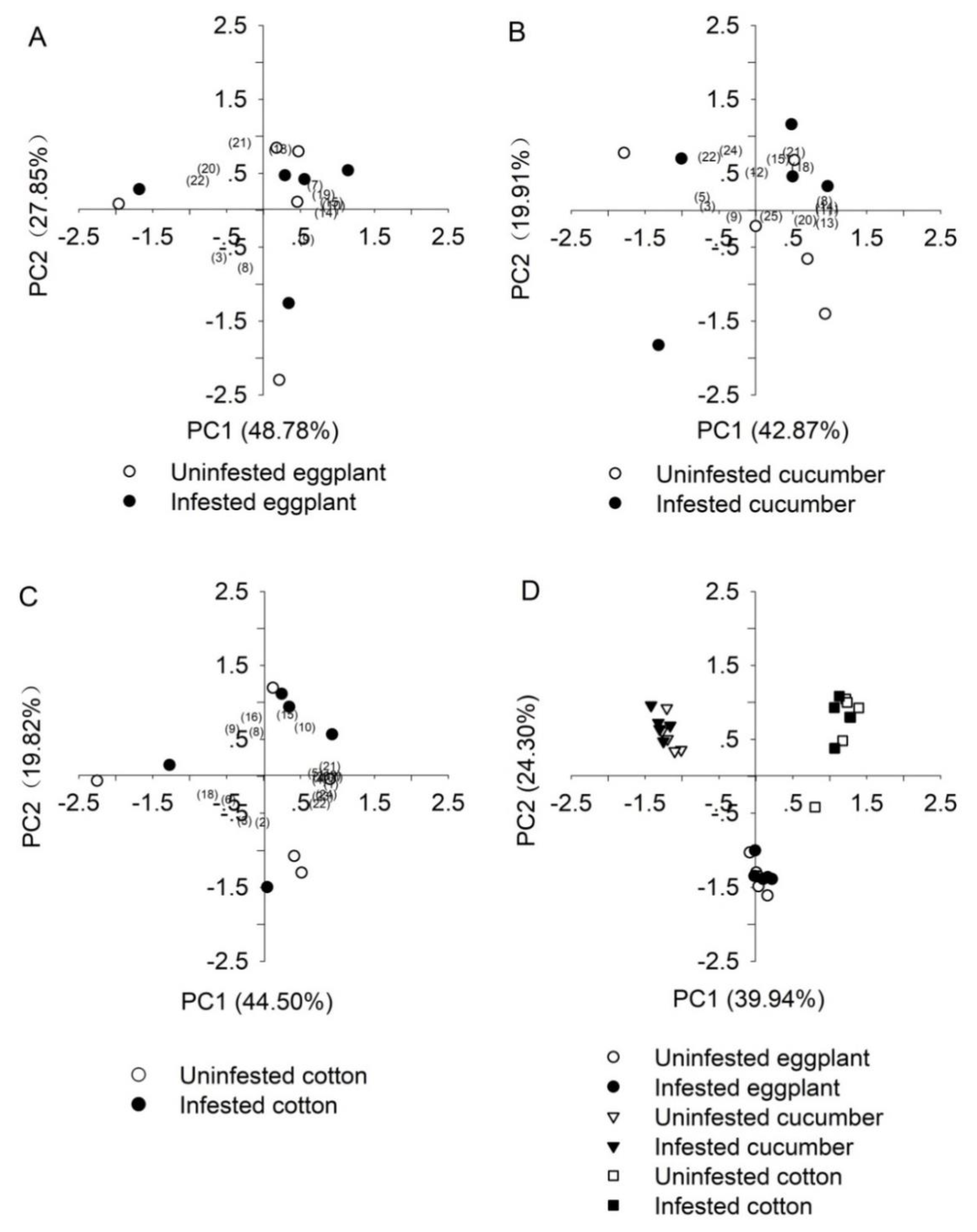

Figure 6. Principal component analysis (PCA) of volatile compounds from uninfested and Bemisia tabaci-infested host plant species. PCA with a factor loading plot was used to analyze single plant species, including eggplant (A), cucumber (B) and cotton (C). (D) PCA for three plant species, namely eggplant (circles), cucumber (triangles) and cotton (diamonds) based on the 25 identified volatile components. Score plots of PC1 and PC2 with the percentage of total variance explained by each axis are shown. Each point represents an individual plant. Compound numbers in Figure 6 correspond with compound numbers in Table 1.
Figure 6. Principal component analysis (PCA) of volatile compounds from uninfested and Bemisia tabaci-infested host plant species. PCA with a factor loading plot was used to analyze single plant species, including eggplant (A), cucumber (B) and cotton (C). (D) PCA for three plant species, namely eggplant (circles), cucumber (triangles) and cotton (diamonds) based on the 25 identified volatile components. Score plots of PC1 and PC2 with the percentage of total variance explained by each axis are shown. Each point represents an individual plant. Compound numbers in Figure 6 correspond with compound numbers in Table 1.
Insects 11 00434 g006
Table
Table 1. Relative contents (mean ± SE) of volatiles from uninfested and B. tabaci-infested plants that were preferred by Serangium japonicum.
Table 1. Relative contents (mean ± SE) of volatiles from uninfested and B. tabaci-infested plants that were preferred by Serangium japonicum.
NChemical CompoundsRelative Content (%)
Uninfested EggplantB. tabaci-Infested EggplantUninfested CucumberB. tabaci-Infested CucumberUninfested CottonB. tabaci-Infested Cotton
(1)β-Myrcene----1.17 ± 0.390.90 ± 0.33
(2)1-Decyne----14.24 ± 3.0715.82 ± 3.53
(3)d-Limonene5.59 ± 1.432.52 ± 1.079.39 ± 4.8513.47 ± 8.983.03 ± 1.193.49 ± 1.25
(4)(Z)-3-Hexenyl acetate----1.33 ± 0.331.56 ± 0.13
(5)β-Ocimene--22.66 ± 14.0611.09 ± 2.130.67 ± 0.211.17 ± 0.49
(6)Benzaldehyde----8.98 ± 3.377.67 ± 2.53
(7)Unknown15.77 ± 1.873.86 ± 1.54----
(8)2-Ethenyl-1,1-dimethyl-3-methylene-cyclohexane11.55 ± 7.2218.75 ± 9.624.94 ± 1.432.25 ± 0.6923.83 ± 12.2911.51 ± 5.17
(9)Nonanal14.30 ± 1.5316.15 ± 2.625.51 ± 1.405.01 ± 1.804.06 ± 1.196.44 ± 1.70
(10)Tridecane1.45 ± 0.321.51 ± 0.46--1.00 ± 0.121.80 ± 0.52
(11)Unknown 2--6.37 ± 1.545.69 ± 1.23--
(12)Unknown 3--1.22 ± 0.371.41 ± 0.38--
(13)7-Methyl-pentadecane --2.28 ± 0.631.75 ± 0.36--
(14)2,6,10-Trimethyl-tetradecane1.95 ± 0.612.16 ± 0.391.33 ± 0.290.85 ± 0.293.11 ± 0.625.13 ± 1.10
(15)Pentadecane3.75 ± 0.644.47 ± 1.004.16 ± 0.643.47 ± 0.612.18 ± 0.273.93 ± 0.62
(16)Benzothiazole----0.65 ± 0.161.27 ± 0.30
(17)β-Caryophyllene----15.33 ± 9.753.53 ± 1.29
(18)3-Methyl-pentadecane 1.11 ± 0.291.13 ± 0.251.03 ± 0.200.99 ± 0.442.61 ± 2.085.79 ± 3.23
(19)Humulene2.91 ± 0.842.71 ± 0.52--4.27 ± 2.800.96 ± 0.29
(20)2,6,10-Trimethyl-pentadecane10.02 ± 1.2110.00 ± 1.7614.95 ± 1.1416.32 ± 2.673.90 ± 1.457.91 ± 1.64
(21)Heptadecane14.89 ± 2.5415.70 ± 2.5713.30 ± 2.6916.87 ± 2.895.59 ± 0.799.65 ± 2.05
(22)2,6,10,14-Tetramethyl hexadecane16.67 ± 5.7612.72 ± 4.9915.56 ± 2.0721.69 ± 2.416.89 ± 2.9411.15 ± 3.45
(23)á-Bisabolol----2.04 ± 0.880.68 ± 0.24
(24)tert-Hexadecanethiol--2.23 ± 0.392.74 ± 1.851.51 ± 0.751.35 ± 0.29
(25)Unknown 4--1.27 ± 0.490.69 ± 0.07--

Share and Cite

MDPI and ACS Style

Tian, M.; Xu, L.; Jiang, J.; Zhang, S.; Liu, T.; Xu, Y. Host Plant Species of Bemisia tabaci Affect Orientational Behavior of the Ladybeetle Serangium japonicum and Their Implication for the Biological Control Strategy of Whiteflies. Insects 2020, 11, 434. https://doi.org/10.3390/insects11070434

AMA Style

Tian M, Xu L, Jiang J, Zhang S, Liu T, Xu Y. Host Plant Species of Bemisia tabaci Affect Orientational Behavior of the Ladybeetle Serangium japonicum and Their Implication for the Biological Control Strategy of Whiteflies. Insects. 2020; 11(7):434. https://doi.org/10.3390/insects11070434

Chicago/Turabian Style

Tian, Mi, Lili Xu, Jun Jiang, Shize Zhang, Tongxian Liu, and Yongyu Xu. 2020. "Host Plant Species of Bemisia tabaci Affect Orientational Behavior of the Ladybeetle Serangium japonicum and Their Implication for the Biological Control Strategy of Whiteflies" Insects 11, no. 7: 434. https://doi.org/10.3390/insects11070434

APA Style

Tian, M., Xu, L., Jiang, J., Zhang, S., Liu, T., & Xu, Y. (2020). Host Plant Species of Bemisia tabaci Affect Orientational Behavior of the Ladybeetle Serangium japonicum and Their Implication for the Biological Control Strategy of Whiteflies. Insects, 11(7), 434. https://doi.org/10.3390/insects11070434

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
