Predicting the Impact of Climate Change on the Geographical Distribution of Leafhopper, Cicadella viridis in China through the MaxEnt Model
Abstract
:Simple Summary
Abstract
1. Introduction
2. Materials and Methods

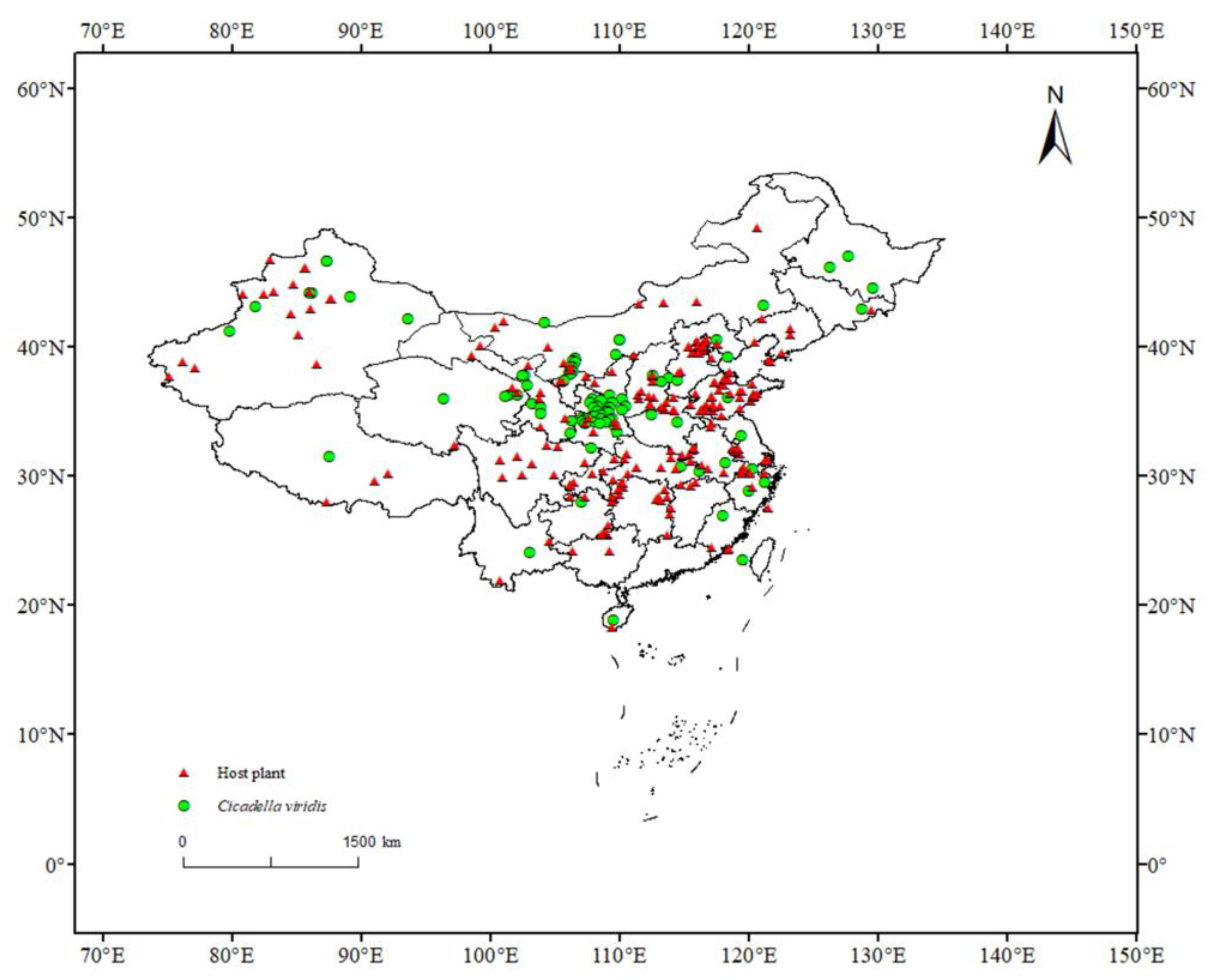

2.1. Species Presence Records
2.2. Environment Variables
2.3. Modeling Process and Statistical Analysis
3. Results

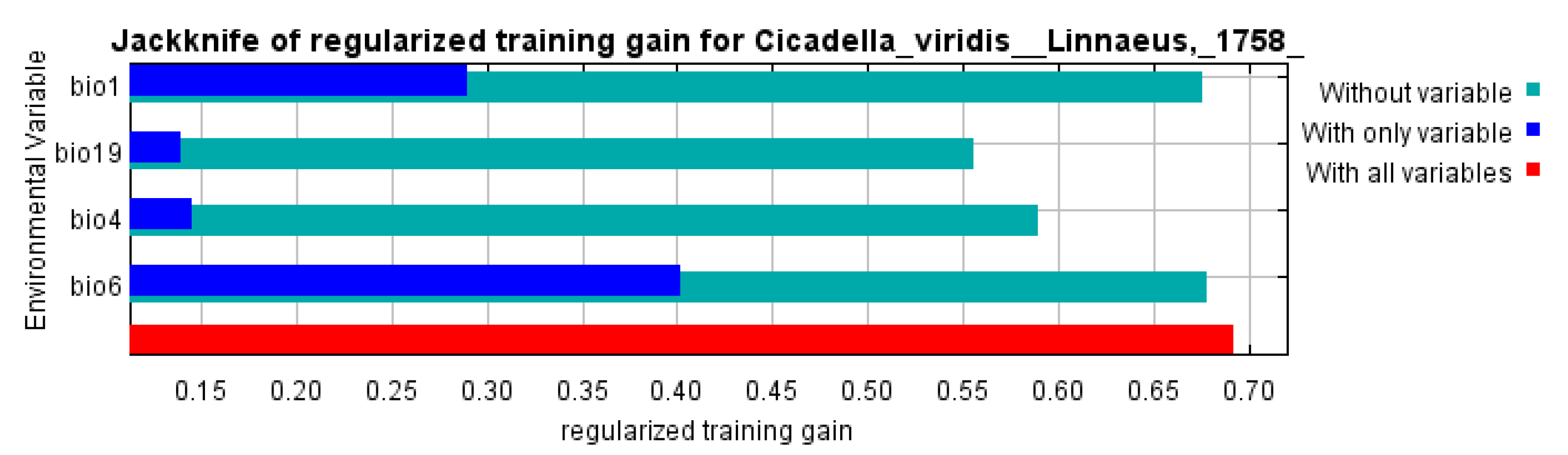

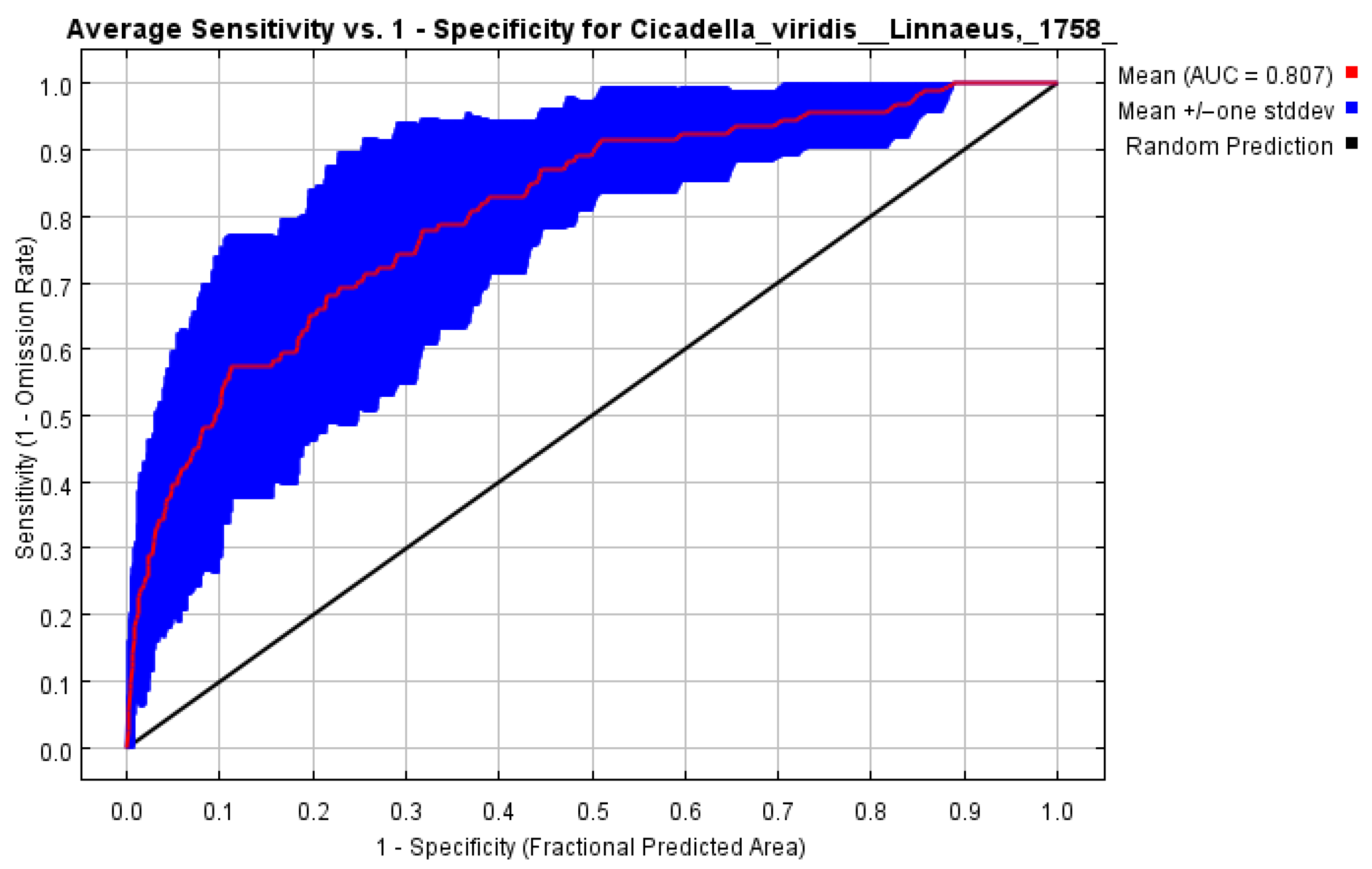

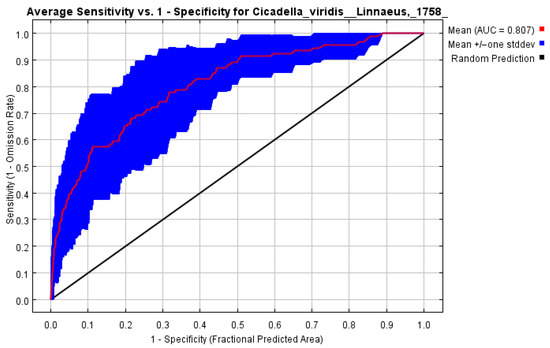

3.1. Model Performance and Variable Selection

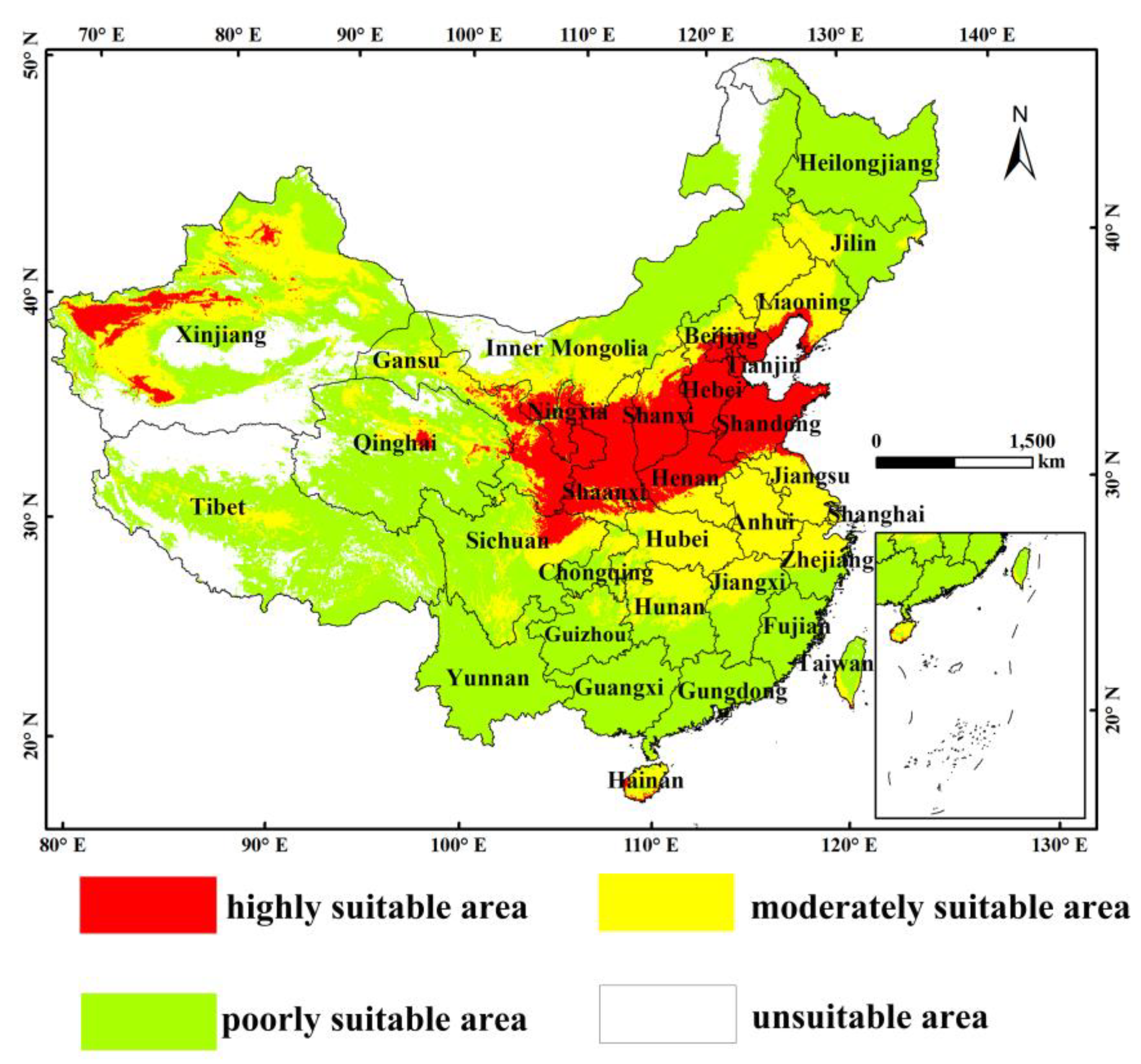

3.2. Potential Distribution of C. viridis in the Current Period

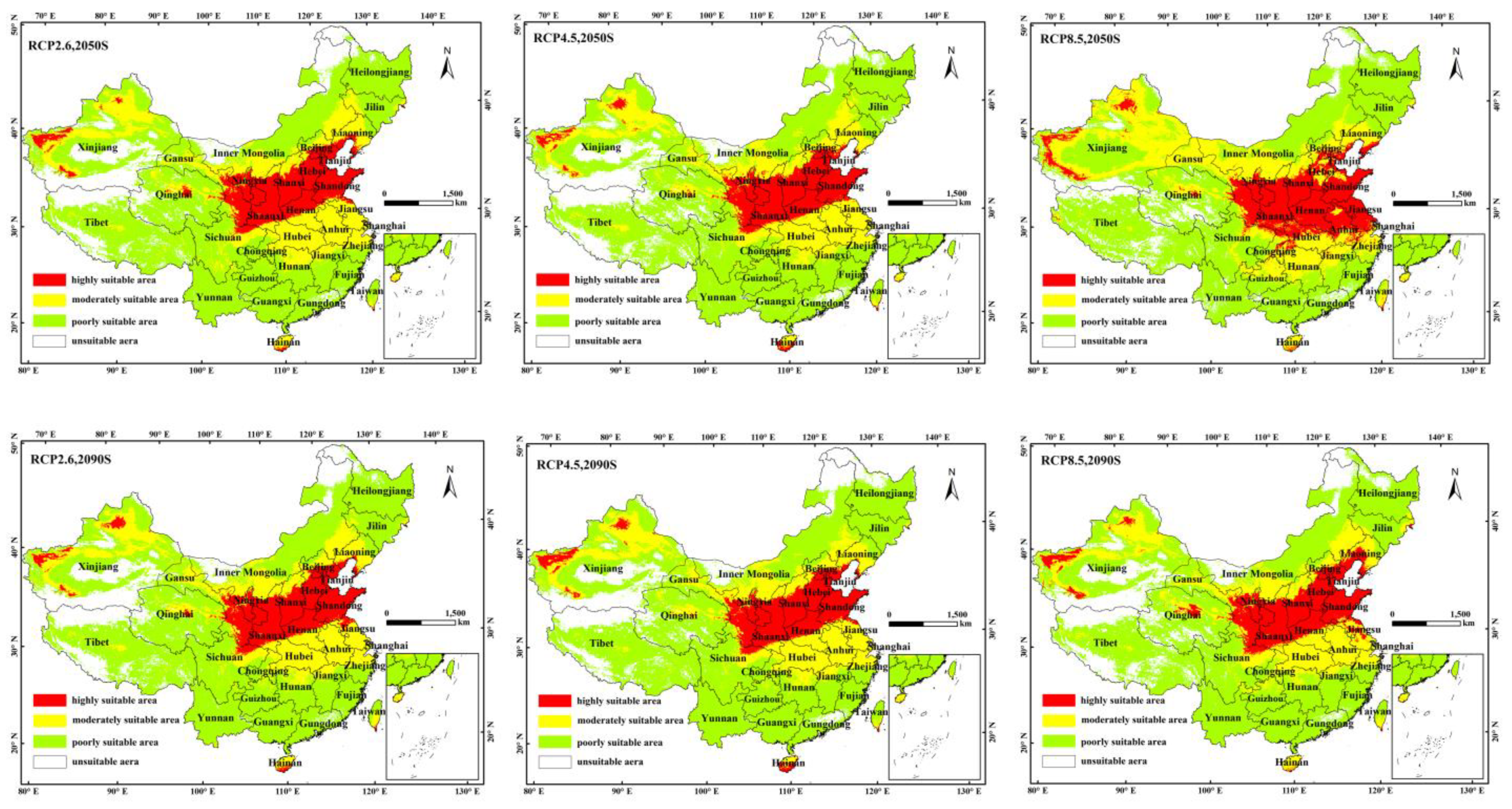

3.3. Potential Distribution of C. viridis in the Future Period

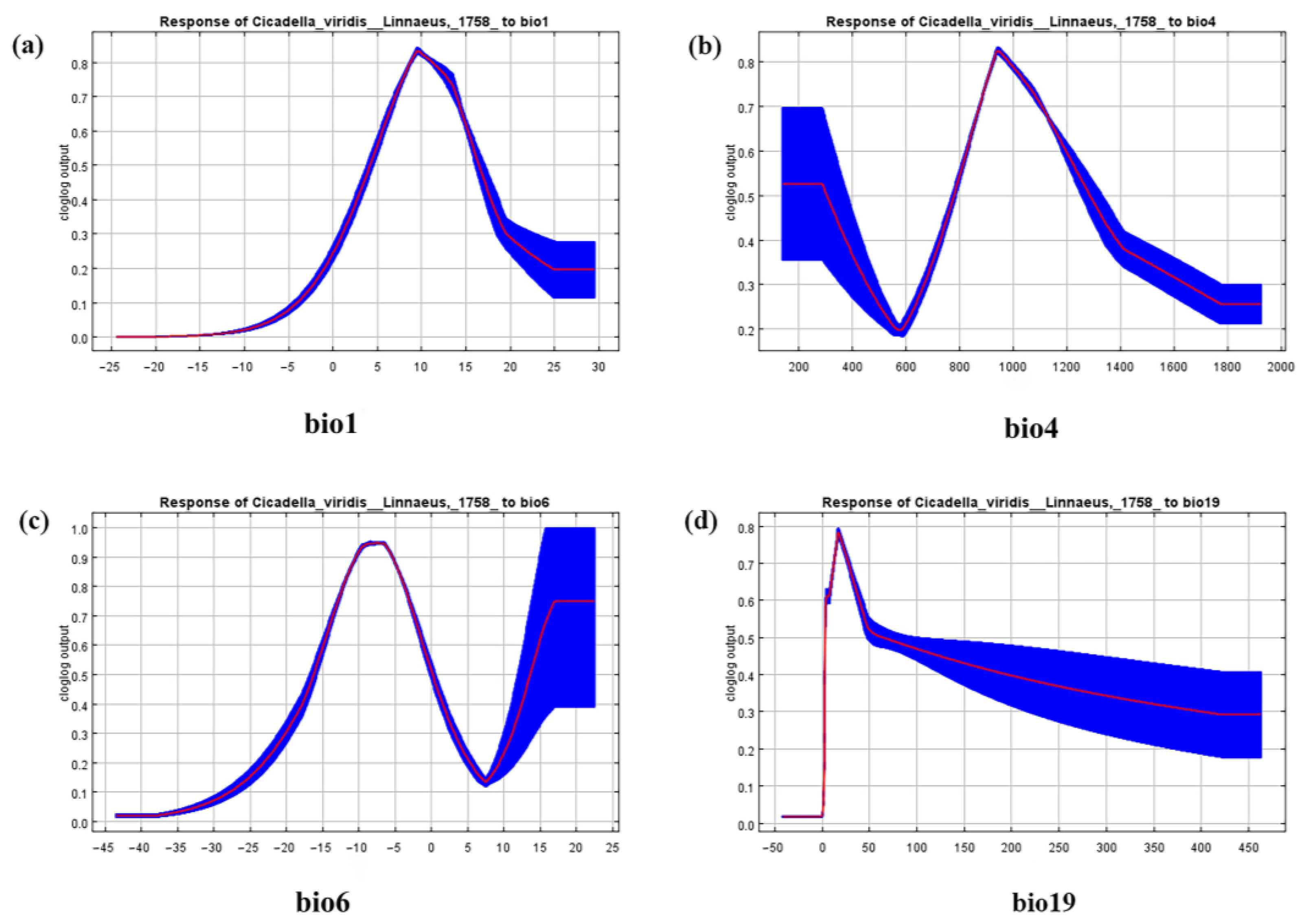

3.4. Environmental Variables Affecting the Geographical Distribution of C. viridis
4. Discussion
5. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Li, L.; Ye, Z.; Chen, J.; Zhang, C.; Huang, H.; Li, J. Characterization of Two Novel Insect-Specific Viruses Discovered in the Green Leafhopper, Cicadella Viridis. Insects 2022, 13, 378. [Google Scholar] [CrossRef] [PubMed]
- Bodino, N.; Cavalieri, V.; Saponari, M.; Dongiovanni, C.; Altamura, G.; Bosco, D. Transmission of Xylella fastidiosa subsp. pauca ST53 by the Sharpshooter Cicadella viridis From Different Source Plants and Artificial Diets. J. Econ. Entomol. 2022, 115, 1852–1858. [Google Scholar] [CrossRef] [PubMed]
- Zhong, H.; Zhang, Y.; Wei, C. Morphology of the Alimentary Canal of the Leafhopper Cicadella viridis (Hemiptera: Cicadellidae). Ann. Entomol. Soc. Am. 2015, 108, 57–69. [Google Scholar] [CrossRef]
- Michalik, A.; Jankowska, W.; Kot, M.; Gołas, A.; Szklarzewicz, T. Symbiosis in the green leafhopper, Cicadella viridis (Hemiptera, Cicadellidae). Association in statu nascendi? Arthropod Struct. Dev. 2014, 43, 579–587. [Google Scholar] [CrossRef]
- Lian, Q.; Liu, J.; Yang, M.; Han, C. Molecular identification and localization of a Rickettsia endosymbiont in the green leafhopper: Cicadella viridis (Hemiptera: Cicadellidae). J. Asia Pac. Entomol. 2016, 19, 664–695. [Google Scholar] [CrossRef]
- Zhang, B.; Dai, W. Ultrastructure of the spermatozoa of Cicadella viridis (Linnaeus) and its bearing on the phylogeny of Auchenorrhyncha. Micron 2012, 43, 978–984. [Google Scholar] [CrossRef]
- Zhao, Q.; Lin, S.; Zhulidezi, A.; Zhong, W.; Hu, H. Occurrence of Cicadella viridis and the Biology of Its Egg Parasitoids in Xinjiang. Chin. J. Biol. Control. 2022, 38, 29–41. [Google Scholar]
- Li, A. Research on Crop Pest Identification Based on MobileNet V2 Parameter Transfer Learning. Master’s Thesis, Ningxia University, Yinchuan, China, 2021. [Google Scholar]
- Song, J.; Zhang, H.; Li, M.; Han, W.; Yin, Y.; Lei, J. Prediction of Spatiotemporal Invasive Risk of the Red Import Fire Ant, Solenopsis invicta (Hymenoptera: Formicidae), in China. Insects 2021, 12, 874. [Google Scholar] [CrossRef] [PubMed]
- Wang, R.; Jiang, C.; Liu, L.; Shen, Z.; Yang, J.; Wang, Y.; Hu, J.; Wang, M.; Hu, J.; Lu, X.; et al. Prediction of the potential distribution of the predatory mite Neoseiulus californicus McGregor in China using MaxEnt. Glob. Ecol. Conserv. 2021, 29, e1733. [Google Scholar] [CrossRef]
- Marsh, C.J.; Gavish, Y.; Kuemmerlen, M.; Stoll, S.; Haase, P.; Kunin, W.E. SDM profiling: A tool for assessing the information content of sampled and unsampled locations for species distribution models. Ecol. Model. 2023, 475, 110170. [Google Scholar] [CrossRef]
- Yue, Y.; Zhang, P.; Shang, Y. The potential global distribution and dynamics of wheat under multiple climate change scenarios. Sci. Total Environ. 2019, 688, 1308–1318. [Google Scholar] [CrossRef]
- Yang, J.; Huang, Y.; Jiang, X.; Chen, H.; Liu, M.; Wang, R. Potential geographical distribution of the edangred plant Isoetes under human activities using MaxEnt and GARP. Glob. Ecol. Conserv. 2022, 38, e2186. [Google Scholar] [CrossRef]
- Waldock, C.; Stuart Smith, R.D.; Albouy, C.; Cheung, W.W.L.; Edgar, G.J.; Mouillot, D.; Tjiputra, J.; Pellissier, L. A quantitative review of abundance-based species distribution models. Ecography 2022, 2022, e5694. [Google Scholar] [CrossRef]
- Phillips, S.J.; Anderson, R.P.; Schapire, R.E. Maximum entropy modeling of species geographic distributions. Ecol. Model. 2006, 190, 231–259. [Google Scholar] [CrossRef] [Green Version]
- Xu, D.; Zhuo, Z.; Li, X.; Wang, R. Distribution and invasion risk assessment of Oryctes rhinoceros (L.) in China under changing climate. J. Appl. Entomol. 2022, 146, 385–395. [Google Scholar] [CrossRef]
- Zeng, Y.; Low, B.W.; Yeo, D.C.J. Novel methods to select environmental variables in MaxEnt: A case study using invasive crayfish. Ecol. Model. 2016, 341, 5–13. [Google Scholar] [CrossRef]
- Yoon, S.; Lee, W. Methodological analysis of bioclimatic variable selection in species distribution modeling with application to agricultural pests (Metcalfa pruinosa and Spodoptera litura). Comput. Electron. Agric. 2021, 190, 106430. [Google Scholar] [CrossRef]
- Yan, H.; Feng, L.; Zhao, Y.; Feng, L.; Wu, D.; Zhu, C. Prediction of the spatial distribution of Alternanthera philoxeroides in China based on ArcGIS and MaxEnt. Glob. Ecol. Conserv. 2020, 21, e856. [Google Scholar] [CrossRef]
- Mao, M.; Chen, S.; Ke, Z.; Qian, Z.; Xu, Y. Using MaxEnt to Predict the Potential Distribution of the Little Fire Ant (Wasmannia auropunctata) in China. Insects 2022, 13, 1008. [Google Scholar] [CrossRef] [PubMed]
- Ab Lah, N.Z.; Yusop, Z.; Hashim, M.; Mohd Salim, J.; Numata, S. Predicting the Habitat Suitability of Melaleuca cajuputi Based on the MaxEnt Species Distribution Model. Forests 2021, 12, 1449. [Google Scholar] [CrossRef]
- Bai, W.; Connor, T.; Zhang, J.; Yang, H.; Dong, X.; Gu, X.; Zhou, C. Long-term distribution and habitat changes of protected wildlife: Giant pandas in Wolong Nature Reserve, China. Environ. Sci. Pollut. Res. 2018, 25, 11400–11408. [Google Scholar] [CrossRef] [PubMed]
- Li, C.; Liao, J.; Ya, Y.; Liu, J.; Yu, G. Analysis of potential distribution of Spodoptera frugiperda in western China. J. Asia Pac. Entomol. 2022, 25, 101985. [Google Scholar] [CrossRef]
- Zhong, L.; Li, H.; Yu, X.; Yang, M. Complete mitochondrial genome sequence of Cicadella viridis (Hemiptera: Cicadellidae: Cicadellinae). Mitochondrial DNA Part B. Resour. 2019, 4, 1287–1288. [Google Scholar] [CrossRef] [Green Version]
- Li, Z.; Zhang, L.; Song, J.; Wu, Y. Molecular detection and identification of phytoplasma associated with pepper witches’ broom in China. Phytoparasitica 2013, 41, 429–434. [Google Scholar] [CrossRef]
- Zhang, B.; Zhang, C.; Dietrich, C.; Dai, W. Anatomy and Ultrastructure of Male Reproductive System in Two Leafhoppers Cicadella viridis and Kolla paulula (Hemiptera: Auchenorrhyncha: Cicadellidae). Ann. Entomol. Soc. Am. 2016, 109, 447–462. [Google Scholar] [CrossRef]
- Aidoo, O.F.; Souza, P.G.C.; Da Silva, R.S.; Júnior, P.A.S.; Picanço, M.C.; Osei-Owusu, J.; Sétamou, M.; Ekesi, S.; Borgemeister, C. A machine learning algorithm-based approach (MaxEnt) for predicting invasive potential of Trioza erytreae on a global scale. Ecol. Inform. 2022, 71, 101792. [Google Scholar] [CrossRef]
- Zhang, D.; Hu, Y.; Liu, M. Potential distribution of Spartinal alterniflora in China coastal areas based on Maxent niche model. Ch. J. Appl. Ecol. 2019, 30, 2329–2337. [Google Scholar]
- Zhang, K.; Yao, L.; Meng, J.; Tao, J. Maxent modeling for predicting the potential geographical distribution of two peony species under climate change. Sci. Total Environ. 2018, 634, 1326–1334. [Google Scholar] [CrossRef]
- Cao, X.; Chen, L.; Zhou, Y.; Duan, X. Potential distribution of Magnaporthe grisea in China and the world, predicted by MaxEnt. Plant Prot. 2011, 37, 80–83. [Google Scholar]
- Petersen, M.J. Evidence of a climatic niche shift following North American introductions of two crane flies (Diptera; genus Tipula). Biol. Invasions 2013, 15, 885–897. [Google Scholar] [CrossRef]
- Liu, X.; Li, J.; Zhao, C.; Quan, Z.; Zhao, X.; Gong, L. Prediction of potential suitable area of Ambrosia artemisiifolia L.in China based on MAXENT and ArcGIS. J. Plant Prot. 2016, 43, 1041–1048. [Google Scholar]
- Xu, D.; Zhuo, Z.; Wang, R.; Ye, M.; Pu, B. Modeling the distribution of Zanthoxylum armatum in China with MaxEnt modeling. Glob. Ecol. Conserv. 2019, 19, e691. [Google Scholar] [CrossRef]
- Xu, D.; Li, X.; Jin, Y.; Zhuo, Z.; Yang, H.; Hu, J.; Wang, R. Influence of climatic factors on the potential distribution of pest Heortia vitessoides Moore in China. Glob. Ecol. Conserv. 2020, 23, e1107. [Google Scholar] [CrossRef]
- Zhang, J.; Jiang, F.; Li, G.; Qin, W.; Li, S.; Gao, H.; Cai, Z.; Lin, G.; Zhang, T. Maxent modeling for predicting the spatial distribution of three raptors in the Sanjiangyuan National Park, China. Ecol. Evol. 2019, 9, 6643–6654. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Li, X.; Xu, D.; Jin, Y.; Zhuo, Z.; Yang, H.; Hu, J.; Wang, R. Predicting the current and future distributions of Brontispa longissima (Coleoptera: Chrysomelidae) under climate change in China. Glob. Ecol. Conserv. 2021, 25, e1444. [Google Scholar] [CrossRef]
- Zhang, Y.; Zhang, C.; Hao, J.; Gu, H. Prediction of potential suitable distribution area of invasive alien pest, Viteus vitifoliae Fitch in China. Chin. J. Ecol. 2015, 34, 1986–1993. [Google Scholar]
- Wang, R.; Li, Q.; He, S.; Liu, Y.; Wang, M.; Jiang, G. Modeling and mapping the current and future distribution of Pseudomonas syringae pv. actinidiae under climate change in China. PLoS ONE 2018, 13, e192153. [Google Scholar] [CrossRef] [Green Version]
- Zhuo, Z.; Xu, D.; Pu, B.; Wang, R.; Ye, M. Predicting distribution of Zanthoxylum bungeanum Maxim. in China. BMC Ecol. 2020, 20, 46. [Google Scholar] [CrossRef]
- Li, A.; Wang, J.; Wang, R.; Yang, H.; Yang, W.; Yang, C.; Jin, Z. MaxEnt modeling to predict current and future distributions of Batocera lineolata (Coleoptera: Cerambycidae) under climate change in China. Écoscience 2020, 27, 23–31. [Google Scholar] [CrossRef]
- Zhao, Y.; Deng, X.; Xiang, W.; Chen, L.; Ouyang, S. Predicting potential suitable habitats of Chinese fir under current and future climatic scenarios based on Maxent model. Ecol. Inform. 2021, 64, 101393. [Google Scholar] [CrossRef]
- Phillips, S.J.; Dudík, M. Modeling of Species Distributions with Maxent: New Extensions and a Comprehensive Evaluation. Ecography 2008, 31, 161–175. [Google Scholar] [CrossRef]
- Duan, J.; Zhou, G. Potential distribution of rice in china and its climate characteristics. Acta Ecol. Sin. 2011, 31, 6659–6668. [Google Scholar]
- Chen, X.; Lei, Y.; Zhang, X.; Jia, H. Effects of Sample Sizes on Accuracy and Stability of Maximum Entropy Model in Predicting Species Distribution. Sci. Silvae Sin. 2012, 48, 53–59. [Google Scholar]
- Zhu, G.; Liu, Q.; Gao, Y. Improving ecological niche model transferability to predict the potential distribution of invasive exotic species. Biodivers. Sci. 2014, 22, 223–230. [Google Scholar]
- Wang, R.; Li, Q.; Feng, C.; Shi, Z. Predicting potential ecological distribution of Locusta migratoria tibetensis in China using MaxEnt ecological niche modeling. Acta Ecol. Sin. 2017, 37, 8556–8566. [Google Scholar]
- Trotta, V.; Forlano, P.; Caccavo, V.; Fanti, P.; Battaglia, D. A survey of potential vectors of the plant pathogenic bacterium Xylella fastidiosa in the Basilicata Region, Italy. Bull. Insectology 2021, 74, 273–283. [Google Scholar]
- Rodrigues, I.; Benhadi Marín, J.; Rodrigues, N.; Baptista, P.; Pereira, J.A. Olfactory responses to volatile organic compounds and movement parameters of Philaenus spumarius and Cicadella viridis. J. Appl. Entomol. 2022, 146, 486–497. [Google Scholar] [CrossRef]
- Castex, V.; Beniston, M.; Calanca, P.; Fleury, D.; Moreau, J. Pest management under climate change: The importance of understanding tritrophic relations. Sci. Total Environ. 2018, 616, 397–407. [Google Scholar] [CrossRef]
- Sanjo, J.V.; Nameer, P.O. The expanding distribution of the Indian Peafowl (Pavo cristatus) as an indicator of changing climate in Kerala, southern India: A modelling study using MaxEnt. Ecol. Indic. 2020, 110, 105930. [Google Scholar]
- Parmesan, C.; Yohe, G. A globally coherent fingerprint of climate change impacts across natural systems. Nature 2003, 421, 37–42. [Google Scholar] [CrossRef]
- Chen, D.S.; Yang, S.X.; Ding, X.L.; Zhang, Y.K.; Hong, X.Y. Infection Rate Assay by Nested PCR and the Phylogenetic Analysis of Himetobi P Virus in the Main Pests of Rice-Wheat Cropping Systems. J. Econ. Entomol. 2015, 108, 1304–1312. [Google Scholar] [CrossRef]
- Liu, T.; Liu, H.; Wang, Y.; Yang, Y. Climate Change Impacts on the Potential Distribution Pattern of Osphya (Coleoptera: Melandryidae), an Old but Small Beetle Group Distributed in the Northern Hemisphere. Insects 2023, 14, 476. [Google Scholar] [CrossRef] [PubMed]
- Çoban, H.O.; Örücü, Ö.K.; Arslan, E.S. MaxEnt Modeling for Predicting the Current and Future Potential Geographical Distribution of Quercus libani Olivier. Sustainability 2020, 12, 2671. [Google Scholar] [CrossRef] [Green Version]
- Wang, J.; Wang, F.; Wang, R.; Zhang, J.; Zhao, X.; Yang, H.; Yang, W.; Yang, C.; Wang, Z.; Li, A. Modeling the effects of bioclimatic characteristics and distribution on the occurrence of Cyrtotrachelus buqueti in the Sichuan Basin. Glob. Ecol. Conserv. 2019, 17, e540. [Google Scholar] [CrossRef]
- Freeman, M.; Looney, C.; Orlova-Bienkowskaja, M.J.; Crowder, D.W. Predicting the Invasion Potential of the Lily Leaf Beetle, Lilioceris lilii Scopoli (Coleoptera: Chrysomelidae), in North America. Insects 2020, 11, 560. [Google Scholar] [CrossRef] [PubMed]
- Ji, W.; Han, K.; Lu, Y.; Wei, J. Predicting the potential distribution of the vine mealybug, Planococcus ficus under climate change by MaxEnt. Crop Prot. 2020, 137, 105268. [Google Scholar] [CrossRef]
- Mattia, I.; Walter, D.S.; Paola, D.A.; Giulia, C.; Maurizio, B. Investigating the Current and Future Co-Occurrence of Ambrosia artemisiifolia and Ophraella communa in Europe through Ecological Modelling and Remote Sensing Data Analysis. Int. J. Environ. Res. Public Health 2019, 16, 3416. [Google Scholar]
Variable | Percent Contribution (%) | Permutation Importance (%) |
---|---|---|
Bio6 | 30.9 | 28.2 |
Bio19 | 28.7 | 29.6 |
Bio4 | 21.9 | 19.2 |
Bio1 | 18.5 | 23 |
Variable | Environmental Variables | Unit |
---|---|---|
Bio1 | Mean annual temperature | °C |
Bio4 | Temperature seasonality | °C |
Bio6 | Minimum temperature of the coldest month | °C |
Bio19 | Precipitation of the coldest quarter | °C |
Province | Highly Suitable Area (104 km2) | Total (104 km2) * | Percentage of Highly Suitable Areas in Province (%) | Percentage of Highly Suitable Areas in China (%) |
---|---|---|---|---|
Inner Mongolia | 3.73 | 118.30 | 0.0316 | 0.0039 |
Xinjiang | 11.35 | 166.00 | 0.0684 | 0.0118 |
Jilin | 0.00 | 18.74 | 0.0002 | 0.0000 |
Liaoning | 2.27 | 14.80 | 0.1532 | 0.0024 |
Gansu | 14.58 | 45.37 | 0.3213 | 0.0151 |
Hebei | 12.39 | 18.88 | 0.6561 | 0.0129 |
Beijing | 1.58 | 1.64 | 0.9644 | 0.0016 |
Shanxi | 11.59 | 15.67 | 0.7399 | 0.0120 |
Tianjin | 1.22 | 1.19 | 1.0271 | 0.0013 |
Shaanxi | 17.28 | 15.67 | 1.1028 | 0.0179 |
Ningxia | 4.49 | 6.64 | 0.6761 | 0.0047 |
Qinghai | 1.39 | 72.1 | 0.0193 | 0.0014 |
Shandong | 14.94 | 15.80 | 0.9454 | 0.0155 |
Henan | 10.44 | 16.70 | 0.6250 | 0.0108 |
Jiangsu | 0.69 | 10.72 | 0.0643 | 0.0007 |
Anhui | 0.10 | 14.01 | 0.0069 | 0.0001 |
Sichuan | 3.17 | 48.60 | 0.0652 | 0.0033 |
Hubei | 0.68 | 18.59 | 0.0365 | 0.0007 |
Taiwan | 0.04 | 3.60 | 0.0121 | 0.0000 |
Hainan | 0.38 | 3.54 | 0.1079 | 0.0004 |
China | 112.31 | / | / | 0.1166 |
Decade Scenarios | Predicted Area (km2) | Comparison with Current Distribution (%) | |||||
---|---|---|---|---|---|---|---|
Poorly Suitable Aera | Moderately Suitable Aera | Highly Suitable Aera | Poorly Suitable Aera | Moderately Suitable Area | Highly Suitable Aera | ||
Current | 436.34 | 222.63 | 111.62 | ||||
2050s | RCP2.6 | 500.63 | 202.94 | 105.39 | 0.1473 | −0.0884 | −0.0558 |
RCP4.5 | 496.27 | 193.73 | 101.55 | 0.1373 | −0.1298 | −0.0902 | |
RCP8.5 | 472.88 | 248.64 | 133.14 | 0.0837 | 0.1168 | 0.1928 | |
2090s | RCP2.6 | 509.70 | 197.93 | 104.00 | 0.1681 | −0.1109 | −0.0683 |
RCP4.5 | 505.06 | 198.74 | 102.62 | 0.1575 | −0.1073 | −0.0806 | |
RCP8.5 | 493.97 | 195.13 | 111.20 | 0.1321 | −0.1235 | −0.0038 |
Variable | Suitable Range (°C) | Best Survival Point (°C) |
---|---|---|
Bio1 | 7.18~15.10 | 10.13 |
Bio4 | 869.89~954.27 | 954.27 |
Bio6 | −14.48~−2.20 | −9.62 |
