Article

Production of Rare-Earth-Free Iron Nitride Magnets (α″-Fe16N2)

by
Tetsuji Saito
1,*,
Hitoshi Yamamoto
2 and
Daisuke Nishio-Hamane
3
1
Graduate School of Engineering, Chiba Institute of Technology, Narashino 275-8588, Japan
2
Neoji-consul, Kyoto 604-8127, Japan
3
Institute for Solid State Physics, The University of Tokyo, Kashiwa 277-8581, Japan
*
Author to whom correspondence should be addressed.
Metals 2024, 14(6), 734; https://doi.org/10.3390/met14060734
Submission received: 1 June 2024 / Revised: 15 June 2024 / Accepted: 17 June 2024 / Published: 20 June 2024
(This article belongs to the Special Issue Advances in Magnetic Alloys)

Abstract

:
To realize rare-earth-free magnets, we studied iron nitride (α″-Fe16N2) magnets, which contain no rare-earth elements. Fe-N powder with the α″-Fe16N2 phase has a high saturation magnetization comparable to high-performance rare-earth magnets but is not stable at temperatures over 539 K. We consolidated Fe-N powder into bulk material at low temperatures by spark plasma sintering (SPS) and spark plasma sintering with dynamic compression (SPS-DC). Fe-N magnets were successfully obtained at low temperatures of 373–573 K. The magnets produced by the SPS-DC method had a higher density than those produced by the SPS method. The density of the magnets produced by the SPS-DC method increased as the consolidation temperature increased. That produced at 373 K had a saturation magnetization of 1.07 T with a coercivity of 0.20 MA/m.

1. Introduction

The industrial use of neodymium magnets composed of Nd2Fe14B is expanding rapidly and globally in automotive, robotic, industrial, medical, and consumer electrical applications [1,2,3]. The high demand for electric and hybrid vehicles is concerning owing to the shortage of rare-earth supplies, which are essential for Nd-Fe-B magnet production, being concentrated in specific countries. This concentration is driving research and development for alternative permanent magnets with less or no rare-earth elements to replace Nd-Fe-B magnets.
New rare-earth-free iron-based magnets, such as those with L10-FeNi and α″-Fe16N2 phases, are considered prospective alternatives to high-performance Nd-Fe-B magnets [4,5]. The superiority of Nd-Fe-B magnets arises from the Nd2Fe14B phase, which has a large saturation magnetization, a high anisotropy constant, and a high Curie temperature [6]. Table 1 shows the intrinsic magnetic properties of the Nd2Fe14B, L10-FeNi, and α″-Fe16N2 phases.
The L10-FeNi phase, known as tetrataenite, is found in iron meteorites [7]. It has a face-centered tetragonal structure, in which the layer of Fe atoms and the layer of Ni atoms stack alternately along the c-axis of the structure [8]. It has a high saturation magnetization similar to that of the Nd2Fe14B phase and a higher Curie temperature [9]. Although its anisotropy constant is smaller than that of the Nd2Fe14B phase, it is high enough to support a permanent magnetic material. Thus, the L10-FeNi phase is an ideal alternative for high-performance Nd-Fe-B magnets, but it cannot be easily obtained by conventional solidification techniques, because that found in iron meteorites forms naturally at an extremely slow cooling rate of 1 K/106 years. In recent years, a new technique for producing the single L10-FeNi phase has been developed [10]. Named the NITE (nitrogen insertion and topotactic extraction) method, it involves the nitriding of the FeNi phase and denitriding from the resultant FeNiN phase to the L10-FeNi phase. L10-FeNi powder prepared by the NITE method has a high saturation magnetization of 139 Am2/kg with a coercivity of 0.14 MA/m. Further work to improve the magnetic properties of the L10-FeNi powder is underway [11].
Among other alternatives for high-performance Nd-Fe-B magnets, the α″-Fe16N2 phase is the most promising candidate, since it can be prepared by the nitrogenation of iron without the need of rare metals. The crystal structure of the α″-Fe16N2 phase is the body-centered tetragonal structure, in which N occupies the interstitial sites of the body-centered cubic lattice of the α-Fe phase in an ordered manner [12]. The α″-Fe16N2 phase has a much higher saturation magnetization than the Nd2Fe14B phase (Table 1). Although the high value was first reported in 1972 [5], it was not confirmed until 1991 [13]. Its anisotropy constant is similar to that of the L10-FeNi phase but is smaller than that of the Nd2Fe14B phase. Its Curie temperature is higher than that of the Nd2Fe14B phase [14]. Thus, the α″-Fe16N2 phase is also an ideal alternative to high-performance Nd-Fe-B magnets. It cannot be easily obtained by conventional solidification techniques because it is the metastable phase. The disadvantage of the α″-Fe16N2 phase is its low decomposition temperature, but it can be obtained by (1) nitrogenation: α-Fe phase → γ-FeN phase; (2) quenching: γ-FeN phase → α’-FeN phase; and (3) long tempering: α’-FeN phase → α″-Fe16N2 phase [15]. However, it is not possible to obtain a pure α″-Fe16N2 phase in this way because the solubility of N in the γ-FeN phase is less than required (12.5%). Thus, studies of the α″-Fe16N2 phase have used various thin-film processing techniques [16,17,18,19]. α″-Fe16N2 powders have been produced by chemical synthesis, that is, the reduction of nano-sized α-Fe2O3 powders followed by the nitriding of the resulting fine α-Fe powders [20,21]. α″-Fe16N2 powder has a high saturation magnetization of 234 Am2/kg at 5 K and a magnetocrystalline anisotropy constant of 9.6 × 105 J/m3 [20]. We have recently revealed its hard magnetic properties: powder prepared by chemical synthesis has a high saturation magnetization of 168 Am2/kg with a coercivity of 0.21 MA/m [22].
Here, we aimed at producing rare-earth-free magnets of Fe-N powder with the α″-Fe16N2 phase. Nd-Fe-B magnets have been commercially produced by the conventional sintering of green compacts of Nd-Fe-B powder at high temperatures [6]. The conventional sintering process cannot be used to produce Fe-N bulk magnets, however, because the α″-Fe16N2 phase is metastable and decomposes into the α-Fe and γ-Fe4N phases at high temperatures. However, a newly developed rapid sintering technique called spark plasma sintering (SPS) can consolidate powders at lower temperatures in a short period [23]. Sm-Fe-N powder, which is unstable at high temperatures, was consolidated into bulk magnets by the SPS method [24,25,26] and at lower consolidation temperatures by the modified SPS with dynamic compression (SPS-DC) method [27]. Here, we investigated the possibility of producing rare-earth-free magnets of Fe-N powder using the SPS and SPS-DC methods. The structures and magnetic properties of the Fe-N magnets are discussed.

2. Materials and Methods

Fe-N powder with the α″-Fe16N2 phase (Future Materialz Co., Ltd., Tokyo, Japan) was prepared by the reduction of nano-sized α-Fe2O3 powder under a hydrogen atmosphere at 643–683 K for 9–12 h, followed by the nitriding of the resulting fine α-Fe powder at 408–418 K for 15 h under an ammonia atmosphere. Small amounts of the powder were poured into a carbon die and then placed in the chamber of the SPS apparatus (Plasman, S. S. Alloy, Hiroshima, Japan). Figure 1 shows the temperature–pressure–time diagram of the Fe-N magnets produced by the SPS method. In a vacuum, the temperature of the die was increased from room temperature to the consolidating temperature of 373–573 K over 300 s and then held at that temperature for 300 s by applying a pulsed electric current. A pressure of 100 MPa was applied during heating and sintering (static pressing).
In the SPS-DC method, small amounts of the powder were poured into a cemented carbide die. The temperature–pressure–time diagram of the Fe-N magnets produced by the SPS-DC method is also shown in Figure 1. In a vacuum, the temperature of the die was increased from room temperature to the consolidating temperature of 373–573 K over 300 s and then held at that temperature for 300 s by applying a pulsed electric current. A pressure of 100 MPa was cyclically applied 300–600 times to the powder during heating and sintering (repeated pressing) [28]. Bulk specimens of the Fe-N powder were taken out of the die after it had cooled to room temperature in the depressurized SPS chamber.
The densities of the magnets were measured by the Archimedes method on an electronic balance. The morphology of the specimens was examined under an optical microscope, a scanning electron microscope (SEM: JEOL, JSM-IT300LA, Tokyo, Japan), and a transmission electron microscope (TEM: JEOL, JEM-2010F, Tokyo, Japan). The crystallographic structure of the specimens was investigated by X-ray diffraction (XRD: Rigaku, MiniFlex600, Tokyo, Japan) with Cu Kα radiation. The thermal stability of the specimens was investigated by differential thermal analysis (DTA, STA7300, Hitachi-hightech, Tokyo, Japan). The magnetic properties of the specimens were examined by a vibrating sample magnetometer (VSM: Riken Denshi, BHV-525RSCM, Tokyo, Japan). In the magnetic measurements, the powder was fixed in paraffin, and the magnets were cut into rod-like specimens (0.5 × 1 × 10 mm) to avoid the need to correct for demagnetization.

3. Results and Discussion

Since the Fe-N powder was prepared by chemical synthesis from the α-Fe2O3 powder, it may contain some residual α-Fe2O3 or α-Fe powder. Thus, we examined the structures of the initial Fe-N powder by XRD analysis. Figure 2 shows the results of the XRD study. In the XRD pattern of the Fe-N powder, all of the diffraction peaks corresponded with the α″-Fe16N2 phase (body-centered tetragonal structure). No other peaks of the α-Fe or α-Fe2O3 phase are present, confirming that the Fe-N powder in this study consisted solely of the α″-Fe16N2 phase.
Figure 3 shows the hysteresis loop of the Fe-N powder. Fe-N powder has a high saturation magnetization of 1.53 T, comparable to that of Nd-Fe-B magnets [28]. Although the observed value is smaller than the expected value of the α″-Fe16N2 phase (Table 1), it is comparable to the reported saturation magnetization of Fe16N2 powder prepared by Dirba et al. The difference between the theoretical and observed values is the result of the oxidation of Fe-N powder [21]. Fe-N powder has a coercivity of 0.21 MA/m, smaller than that of Nd-Fe-B magnets but larger than that of commercial Alnico magnets. This value is slightly higher than that of the α″-Fe16N2 powder (0.18 MA/m) prepared by Dirba et al. Thus, Fe-N powder is a promising candidate for future rare-earth-free magnets.
The thermal stability of the Fe-N powder is a crucial criterion for producing bulk magnets. Thus, the thermo-magneto-gravimetric curve of the Fe-N powder was examined. The result is shown in Figure 4. In the thermo-gravimetric curve, four peaks (T1, T2, T3, and T4) are observed. The summary of the thermomagnetic studies of the Fe-N powder is shown in Table 2. The T1 peak is considered to be the decomposition temperature of the α″-Fe16N2 phase: α″-Fe16N2 → α-Fe + γ-Fe4N. Its decomposition temperature was 539 K, much lower than the Curie temperature of the α″-Fe16N2 phase (810 K) [29] but close to another reported value (523 K) [12]. The T2 peak is considered to be the Curie temperature of the γ-Fe4N phase [30]. The T3 peak is considered to be the eutectoid reaction temperature (γ-Fe → α-Fe + γ-Fe4N). The T4 peak is considered to be the Curie temperature of the α-Fe phase. This confirms that the α″-Fe16N2 phase decomposed into the Fe4N and α-Fe phases at 539 K.
Since it was found that the α″-Fe16N2 phase in the Fe-N powder decomposed into the Fe4N and α-Fe phases at 539 K, the Fe-N powder was consolidated by the SPS method at 373 K and 473 K (below the decomposition temperature of the α″-Fe16N2 phase) and 573 K (just above it).
Figure 5 shows photographs of the powder and the resulting magnet. Even at a consolidation temperature as low as 373 K, the SPS method successfully produced an Fe-N magnet. The Fe-N magnets were also obtained at 473 and 573 K by the SPS method.
Although the Fe-N powders were consolidated at low sintering temperatures, the Fe-N magnets were nevertheless successfully produced, and the results from examining their densities are shown in Figure 6. The density of the magnets increased from 5.94 Mg/m3 (relative density of 79.8%) at 373 K to 6.06 Mg/m3 (81.5%) at 573 K. This suggests that higher consolidating temperatures promote the densification of Fe-N magnets by the SPS method. However, the poor thermal stability of the α″-Fe16N2 phase prevents any further increase in temperature.
In order to increase the density of the Fe-N magnets, the SPS-DC method was applied for the production of the Fe-N magnets. In the SPS-DC method, the density of the Fe-N magnets may be increased by repeated pressing (Figure 1). A photograph of an Fe-N magnet prepared at 373 K by the SPS-DC method is shown in Figure 7. The SPS-DC method also produced Fe-N magnets.
The densities of the Fe-N magnets produced by the SPS and SPS-DC methods are compared in Figure 8. At all consolidation temperatures, the density of the Fe-N magnet was higher in the SPS-DC method than in the SPS method and increased from 6.06 Mg/m3 (relative density of 81.5%) at 373 K to 6.12 Mg/m3 (82.3%) at 573 K. The magnets produced by the SPS-DC method had a relative density of >80% even when the powder was consolidated at as low as 373 K, as confirmed by the TEM images (Figure 9), in which the amount of Fe-N powder particles, indicative of the density, seems to increase with the consolidation temperature.
There are two ways to perform the sintering process: solid-state sintering and liquid-phase sintering [31]. It is known that rare-earth magnets have been produced by liquid-phase sintering [32]. On the other hand, iron parts for machines are usually produced by solid-state sintering. Since no liquid phase is involved in the sintering of Fe-N powder, the sintering mechanism is solid-state sintering, in which the powder particles react with each other. In order to increase the density of the Fe-N magnet, it is necessary to add the additives that act as the liquid phase during the sintering.
We also examined the structures and magnetic properties of the magnets produced by the SPS-DC method. Figure 10 shows the XRD patterns of the Fe-N magnets produced by the SPS-DC method. In the XRD pattern of the magnet produced at 373 K, all of the diffraction peaks observed correspond with the α″-Fe16N2 phase. The absence of the α-Fe or Fe3O4 phase suggests that the magnet produced at 373 K consisted of the α″-Fe16N2 phase. The diffraction peaks of the α″-Fe16N2 phase are seen in the XRD pattern of the magnet produced at 473 K, along with the peaks of the Fe3O4 phase. This suggests that the magnet produced at 473 K consisted of the α″-Fe16N2 phase together with small amounts of the Fe3O4 phase. On the other hand, the peaks of the α″-Fe16N2 phase are absent in the XRD pattern of the magnet produced at 573 K, but those of the α-Fe, Fe4N, and Fe3O4 phases are present, because the consolidation temperature of 573 K was higher than the decomposition temperature of the α″-Fe16N2 phase. Therefore, it is essential to consolidate the Fe-N powder below the decomposition temperature of the α″-Fe16N2 phase.
Figure 11 shows the thermo-gravimetric curves of the Fe-N magnets produced by the SPS-DC method. These thermomagnetic curves show clear magnetic transitions (T1, T2, T3, and T4): T1 is the decomposition temperature of the α″-Fe16N2 phase, T2 is the Curie temperature of the γ-Fe4N phase, T3 is the eutectoid reaction temperature, and T4 is the Curie temperature of the α-Fe phase. These results correspond to the thermomagnetic studies of Fe-N powders (Figure 4, Table 2). In the thermomagnetic curve of the magnets produced at 373 K and 473 K, four magnetic transitions (T1, T2, T3, and T4) are observed. On the other hand, only three magnetic transitions (T2, T3, and T4) are seen in the thermomagnetic curve of the magnet produced at 573 K. This confirms that the magnet produced at 573 K did not contain the α″-Fe16N2 phase. Since the consolidation temperature of 573 K was higher than the decomposition temperature of the α″-Fe16N2 phase, the α″-Fe16N2 phase decomposed into the α-Fe and Fe4N phases during the consolidation.
Figure 12 shows the hysteresis loops of the Fe-N magnets produced by the SPS-DC method. The magnetic properties of the Fe-N magnets are summarized in Table 3. The Fe-N magnets produced at 373 K and 473 K had wide hysteresis loops, but that produced at 573 K had a narrow hysteresis loop. Since the consolidation temperature of 573 K is above the decomposition temperature of the α″-Fe16N2 phase, this narrow hysteresis loop was due to the decomposition of the α″-Fe16N2 phase during the consolidation. The magnet produced at 373 K showed a saturation magnetization of 1.07 T with a coercivity of 0.20 MA/m. In contrast, the Fe-N magnet produced at 473 K showed a saturation magnetization of 1.12 T with a coercivity of 0.17 MA/m. Although the saturation magnetization of the Fe-N powder is comparable to that of Nd-Fe-B magnets, that of the Fe-N magnet produced by the SPS-DC method was smaller than that of the Nd-Fe-B magnets, owing mainly to the lower density of the Fe-N magnets, of around 80%. Thus, the next step is to increase the density of the Fe-N magnets.

4. Conclusions

This study confirmed that the Fe-N powder with the α″-Fe16N2 phase shows a high saturation magnetization of 1.53 T with a coercivity of 0.21 MA/m. Thus, we aimed at producing rare-earth-free magnets from it. The SPS-DC method can consolidate the Fe-N powder into bulk magnets at as low as 373 K. The resultant Fe-N magnet exhibits a high saturation magnetization of 1.07 T with a coercivity of 0.20 MA/m. The achieved magnetic properties of the Fe-N magnet were not yet comparable to those of Nd-Fe-B magnets. Further work is still necessary to improve the magnetic properties of the Fe-N magnet.

Author Contributions

Conceptualization, T.S. and H.Y.; methodology, T.S. and H.Y.; formal analysis, T.S. and D.N.-H.; investigation, T.S. and D.N.-H.; resources, T.S. and H.Y.; data curation, T.S. and D.N.-H.; writing—original draft preparation, T.S.; funding acquisition, T.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Nippon Sheet Glass Foundation for Materials Science and Engineering.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors on request.

Acknowledgments

The authors would like to thank T. Ogawa of Future Materialz Co., Ltd. for providing the Fe16N2 powder. The use of the facilities of the Materials Design and Characterization Laboratory at the Institute for Solid State Physics, The University of Tokyo, is gratefully acknowledged.

Conflicts of Interest

Author Hitoshi Yamamoto was employed by the company Neoji-consul. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Bailey, G.; Mancheri, N.; Van Acker, K. Sustainability of permanent rare earth magnet motors in (H)EV industry. J. Sustain. Metall. 2017, 3, 611–626. [Google Scholar] [CrossRef]
  2. Sreenivasulu, K.V.; Srikanth, V.V.S.S. Fascinating magnetic energy storage nanomaterials: A brief review. Recent Pat. Nanotechnol. 2017, 11, 116–122. [Google Scholar] [CrossRef] [PubMed]
  3. Yue, M.; Zhang, X.Y.; Liu, J.P. Fabrication of bulk nanostructured permanent magnets with high energy density: Challenges and approaches. Nanoscale 2017, 9, 3674–3697. [Google Scholar] [CrossRef]
  4. Néel, L.; Pauleve, J.; Pauthenet, R.; Laugier, J.; Dautreppe, D. Magnetic properties of an iron—Nickel single crystal ordered by neutron bombardment. J. Appl. Phys. 1964, 35, 873–876. [Google Scholar] [CrossRef]
  5. Kim, T.K.; Takahashi, M. New magnetic material having ultrahigh magnetic moment. Appl. Phys. Lett. 1972, 20, 492–494. [Google Scholar] [CrossRef]
  6. Sagawa, M.; Horosawa, S.; Yamamoto, H.; Fujimura, S.; Matsuura, Y. Nd-Fe-B permanent magnet materials. Jpn. J. Appl. Phys. 1987, 6, 785–800. [Google Scholar] [CrossRef]
  7. Kotsugi, M.; Mitsumata, C.; Maruyama, H.; Wakita, T.; Taniuchi, T.; Ono, K.; Suzuki, M.; Kawamura, N.; Ishimatsu, N.; Oshima, M.; et al. Novel magnetic domain structure in iron meteorite induced by the presence of L10-FeNi. Appl. Phys. Express 2010, 3, 013001. [Google Scholar] [CrossRef]
  8. Woodgate, C.D.; Patrick, C.E.; Lewis, L.H.; Staunton, J.B. Revisiting Néel 60 years on: The magnetic anisotropy of L10 FeNi (tetrataenite). J. Appl. Phys. 2023, 134, 163905. [Google Scholar] [CrossRef]
  9. Li, D.; Li, Y.; Pan, D.; Zhang, Z.; Cho, C.J. Prospect and status of iron-based rare-earth-free permanent magnetic materials. J. Magn. Magn. Mater. 2019, 469, 535–544. [Google Scholar] [CrossRef]
  10. Goto, S.; Kura, H.; Watanabe, E.; Hayashi, Y.; Yanagihara, H.; Shimada, Y.; Mizuguchi, M.; Takanashi, K.; Kita, E. Synthesis of single-phase L10-FeNi magnet powder by nitrogen insertion and topotactic extraction. Sci. Rep. 2017, 7, 13216. [Google Scholar] [CrossRef]
  11. Hlova, I.Z.; Dolotko, O.; Abramchuk, M.; Biswas, A.; Mudryk, Y.; Pecharsky, V.K. Enhancement of hard magnetism and chemical order of synthetic L10-FeNi. J. Alloys Compd. 2024, 981, 173619. [Google Scholar] [CrossRef]
  12. Bhattacharyya, S. Iron nitride family at reduced dimensions: A review of their synthesis protocols and structural and magnetic properties. J. Phys. Chem. C 2015, 119, 1601–1622. [Google Scholar] [CrossRef]
  13. Sugita, Y.; Mitsuoka, K.; Komuro, M.; Hoshiya, H.; Kozono, Y.; Hanazono, M. Giant magnetic moment and other magnetic properties of epitaxially grown Fe16N2 single-crystal films. J. Appl. Phys. 1991, 70, 5977–5982. [Google Scholar] [CrossRef]
  14. Coey, J.M.D. Hard magnetic materials: A perspective. IEEE Trans. Magn. 2011, 47, 4671–4681. [Google Scholar] [CrossRef]
  15. Jack, K.H. The synthesis and characterization of bulk α″-Fe16N2. J. Alloys Compd. 1995, 222, 160–166. [Google Scholar] [CrossRef]
  16. Nakajima, K.; Okamoto, S. Nitrogen-implantation-induced transformation of iron to crystalline Fe16N2 in epitaxial iron films. Appl. Phys. Lett. 1989, 54, 2536–2538. [Google Scholar] [CrossRef]
  17. Sun, D.C.; Jiang, E.Y.; Tian, M.B.; Lin, C.; Zhang, X.X. Epitaxial single crystal Fe16N2 films grown by facing targets sputtering. J. Appl. Phys. 1996, 79, 5440–5442. [Google Scholar] [CrossRef]
  18. Sugita, Y.; Takahashi, H.; Komuro, M.; Mitsuoka, K.; Sakuma, A. Magnetic and mössbauer studies of single-crystal Fe16N2, and Fe-N martensite films epitaxially grown by molecular beam epitaxy. J. Appl. Phys. 1994, 76, 6637–6641. [Google Scholar] [CrossRef]
  19. Shinno, H.; Saito, K. Effects of film thickness on formation processes of Fe16N2 in nitrogen ion-implanted Fe films. Surf. Coat. Technol. 1998, 103, 129–134. [Google Scholar] [CrossRef]
  20. Ogawa, T.; Ogata, Y.; Gallage, R.; Kobayashi, N.; Hayashi, N.; Kusano, Y.; Yamamoto, S.; Kohara, K.; Doi, M.; Takano, M.; et al. Challenge to the synthesis of α″-Fe16N2 phase compound nanoparticle with high saturation magnetization for rare earth free new permanent magnetic material. Appl. Phys. Express 2013, 6, 073007. [Google Scholar] [CrossRef]
  21. Dirba, I.; Schwöbel, C.A.; Diop, L.V.B.; Duerrschnabel, M.; Molina-Luna, L.; Hofmann, K.; Komissinskiy, P.; Kleebe, H.-J.; Gutfleisch, O. Synthesis, morphology, thermal stability and magnetic properties of α″-Fe16N2 nanoparticles obtained by hydrogen reduction of γ-Fe2O3 and subsequent nitrogenation. Acta Mater. 2017, 123, 214. [Google Scholar] [CrossRef]
  22. Saito, T.; Yamamoto, H. Hard magnetic properties of Fe16N2 magnets. AIP Adv. 2024, 14, 015149. [Google Scholar] [CrossRef]
  23. Tokita, M. Progress of Spark Plasma Sintering (SPS) Method, Systems, Ceramics Applications and Industrialization. Ceramics 2021, 4, 160–198. [Google Scholar] [CrossRef]
  24. Saito, T. Structures and magnetic properties of Sm-Fe-N bulk magnets produced by spark plasma sintering method. J. Mater. Res. 2007, 22, 3130–3136. [Google Scholar] [CrossRef]
  25. Takagi, K.; Nakayama, H.; Ozaki, K. Microstructural behavior on particle surfaces and interfaces in Sm2Fe17N3 powder compacts during low-temperature sintering. J. Magn. Magn. Mater. 2012, 324, 2336–2341. [Google Scholar] [CrossRef]
  26. Prabhu, D.; Sepehri-Amin, H.; Mendis, C.L.; Ohkubo, T.; Hono, K.; Sugimoto, S. Enhanced coercivity of spark plasma sintered Zn-bonded Sm–Fe–N magnets. Scr. Mater. 2012, 67, 153–156. [Google Scholar] [CrossRef]
  27. Saito, T.; Kikuchi, K. Production of Sm-Fe-N bulk magnets by the spark plasma sintering with dynamic compression. J. Alloys Compd. 2016, 673, 195–198. [Google Scholar] [CrossRef]
  28. Herbst, J.F. R2Fe14B Materials: Intrinsic Properties and Technological Aspects. Rev. Mod. Phys. 1991, 63, 819–898. [Google Scholar] [CrossRef]
  29. Coey, J.M.D. Permanent magnets: Plugging the gap. Scr. Mater. 2012, 67, 524–529. [Google Scholar] [CrossRef]
  30. Peltzer y Blanca, E.L.; Christensen, N.E.; Emmerich, H.; Cottenier, S. The magnetization of γ′-Fe4N: Theory vs. experiment. Phys. Status Solidi 2009, 246, 909–928. [Google Scholar] [CrossRef]
  31. German, R. Powder Metallurgy Science, 2nd ed.; Metal Powder Industries Federation: Princeton, NJ, USA, 1994; p. 308. [Google Scholar]
  32. Liao, X.F.; Aubert, A.; Maccari, F.; Riegg, S.; Ener, S.; Adabifiroozjaei, E.; Jiang, T.; Molina-Luna, L.; Skokov, K.; Gutfleisch, O. Grain boundary engineering in Nd-based ThMn12 magnets and their nitrides: A comprehensive study of challenges and limitations. J. Alloys Compd. 2023, 950, 16993. [Google Scholar] [CrossRef]

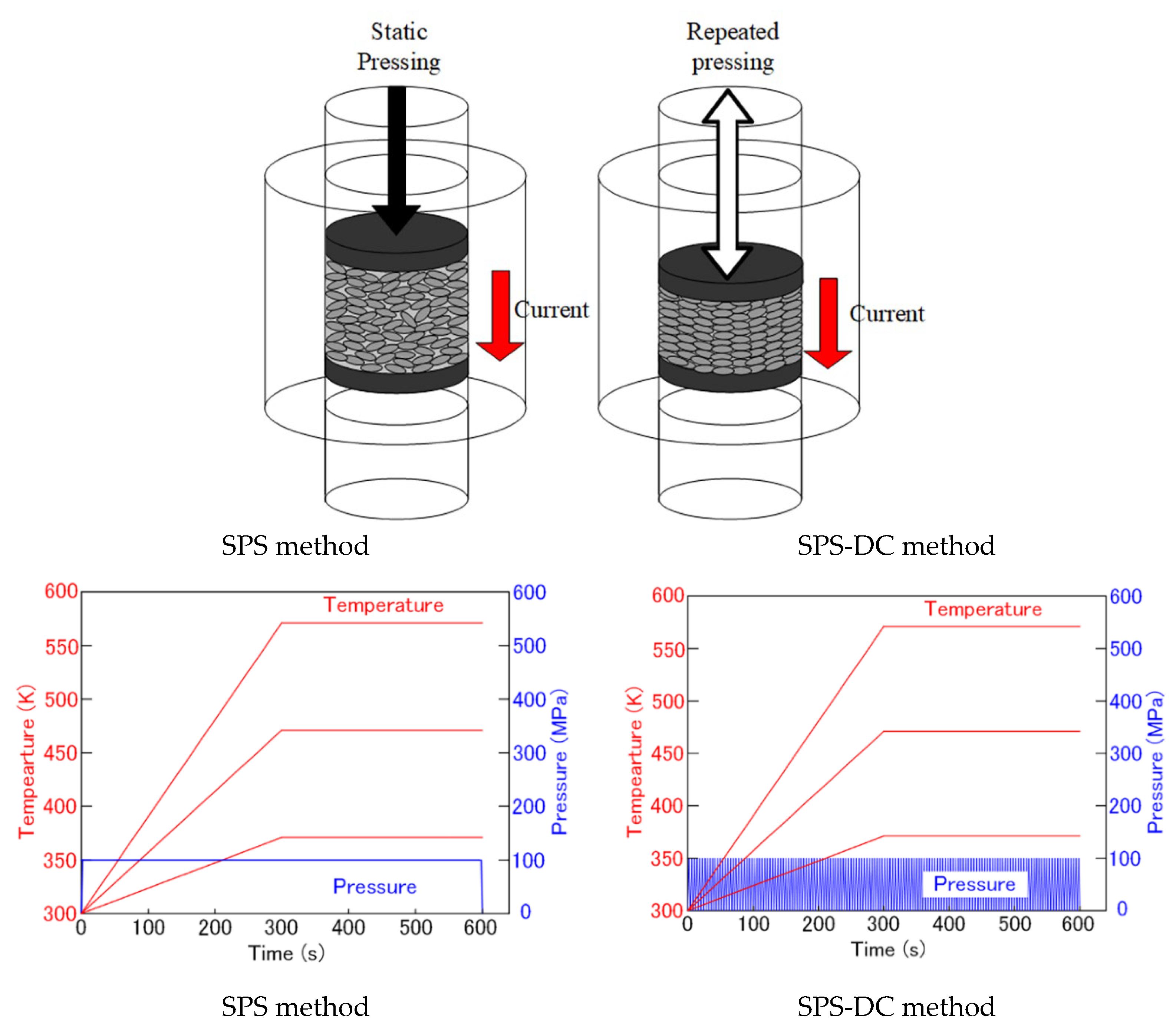

Figure 1. The temperature–pressure–time diagram of the Fe-N magnets produced by the SPS and SPS-DC methods.
Figure 1. The temperature–pressure–time diagram of the Fe-N magnets produced by the SPS and SPS-DC methods.
Metals 14 00734 g001

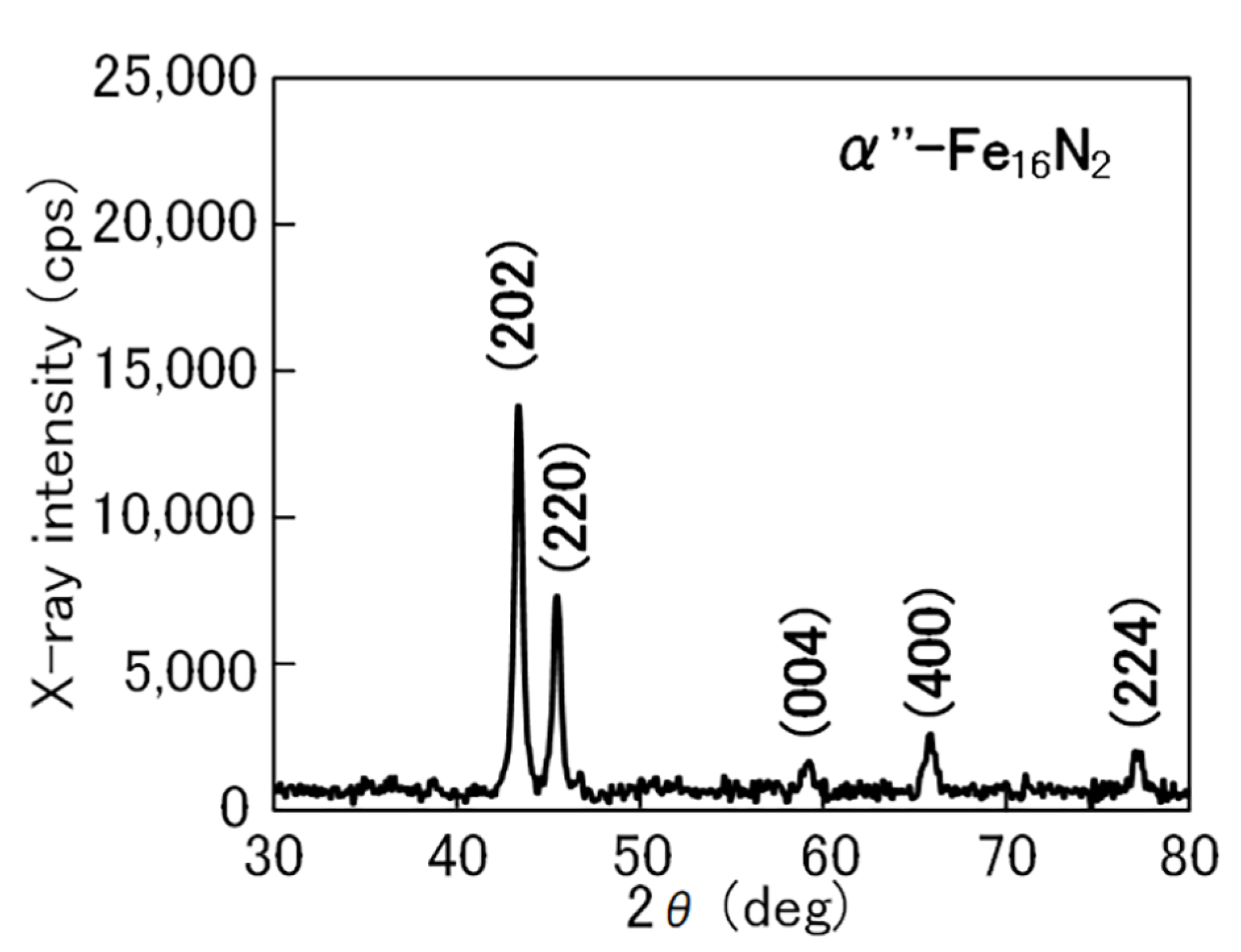

Figure 2. The XRD pattern of the Fe-N powder.
Figure 2. The XRD pattern of the Fe-N powder.
Metals 14 00734 g002

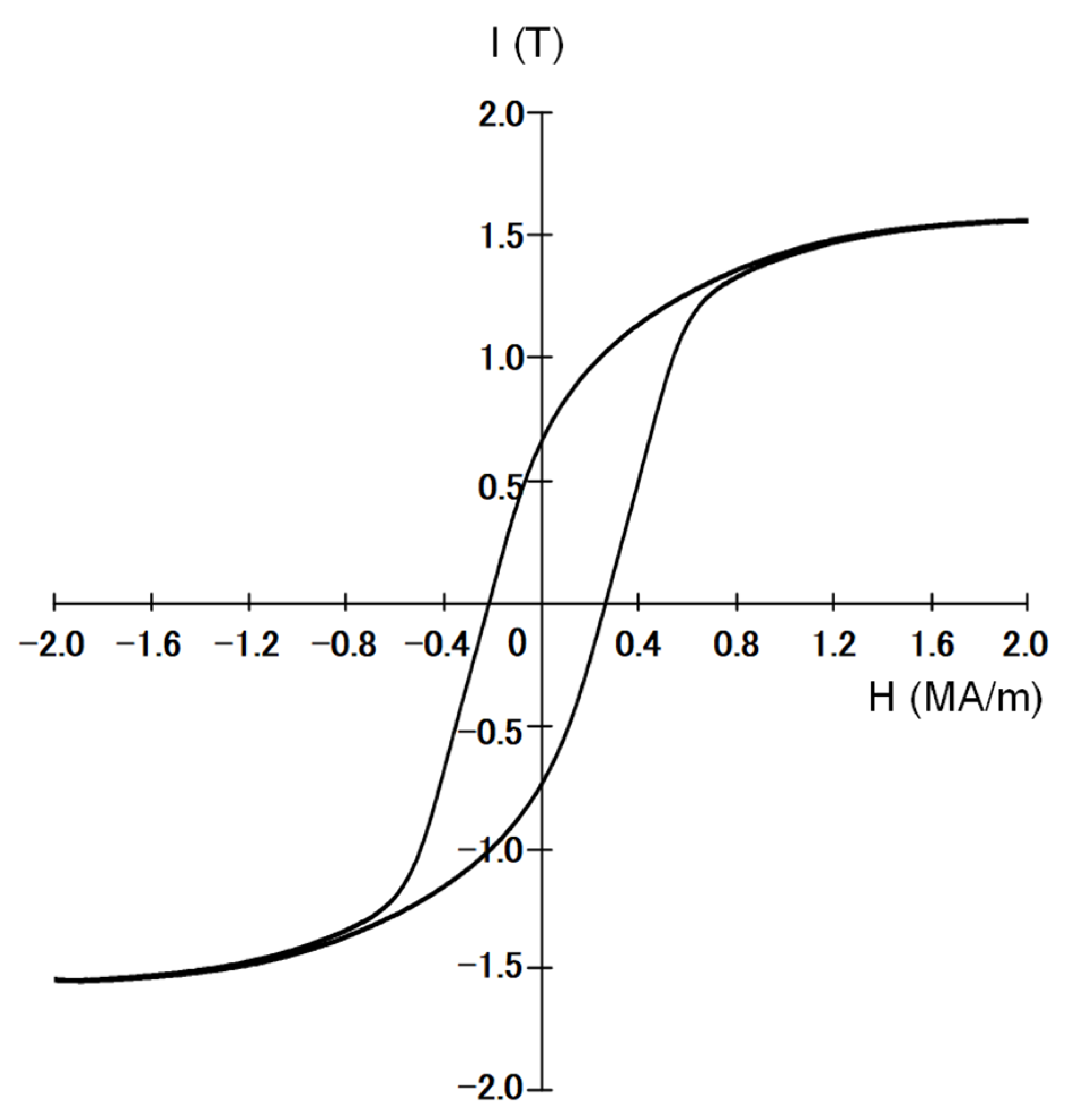

Figure 3. The hysteresis curve of the Fe-N powder.
Figure 3. The hysteresis curve of the Fe-N powder.
Metals 14 00734 g003

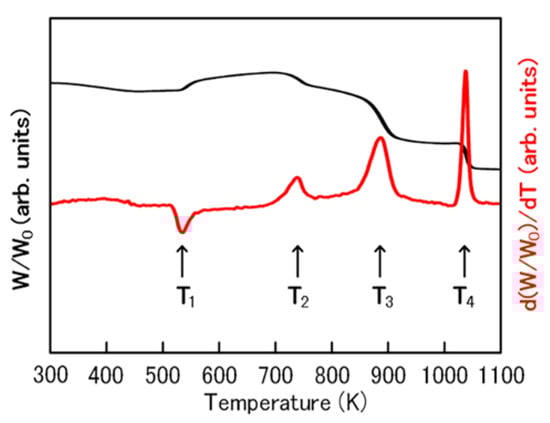

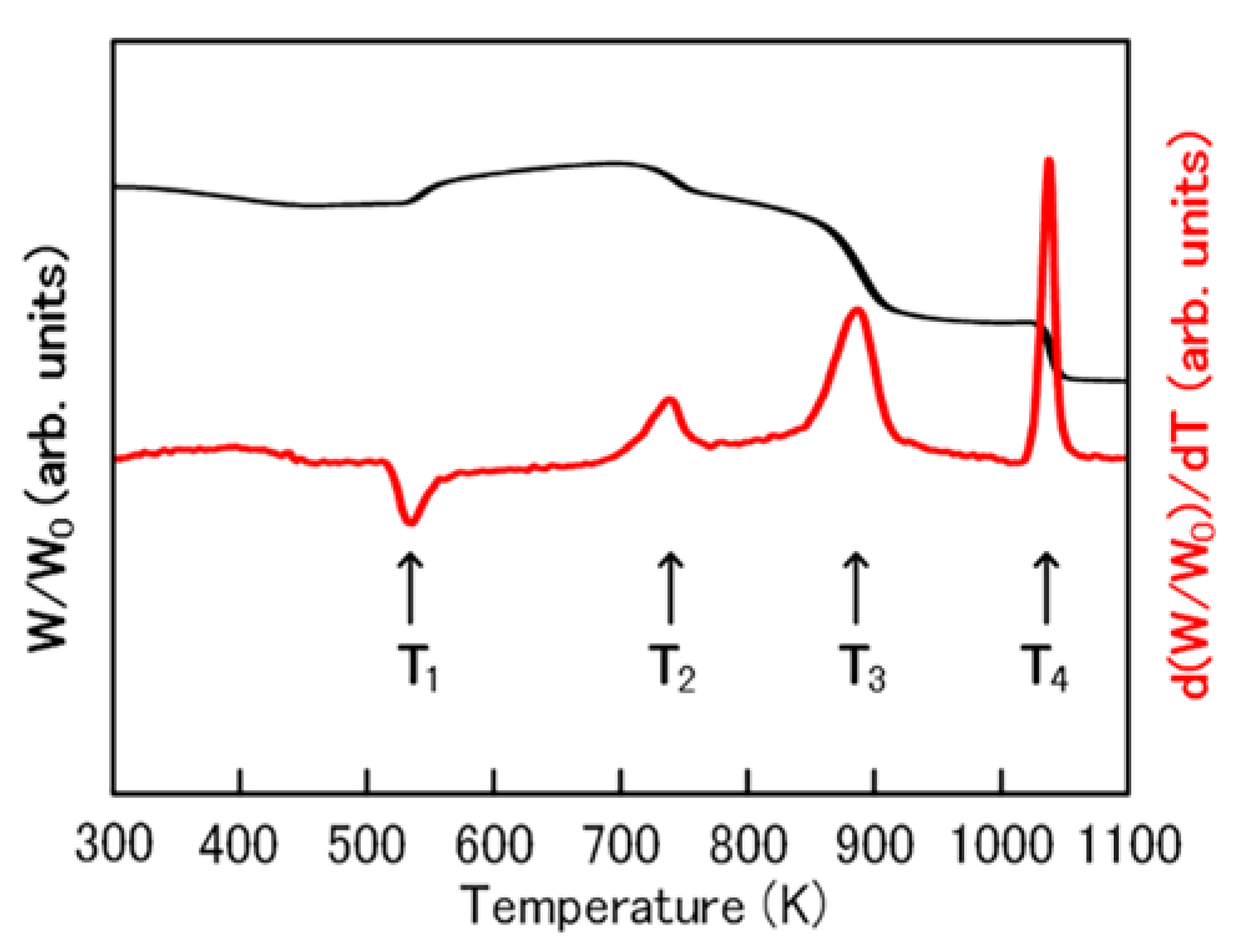

Figure 4. The thermo-gravimetric curve of the Fe-N powder.
Figure 4. The thermo-gravimetric curve of the Fe-N powder.
Metals 14 00734 g004

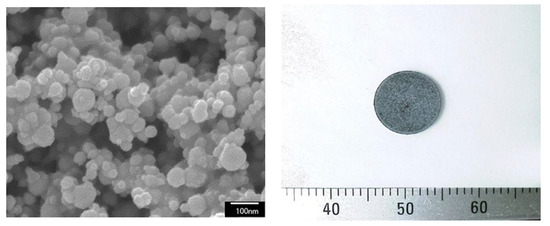

Figure 5. Photographs of the Fe-N powder (left) and the Fe-N magnet (right) produced from the Fe-N powder at 373 K by the SPS method.
Figure 5. Photographs of the Fe-N powder (left) and the Fe-N magnet (right) produced from the Fe-N powder at 373 K by the SPS method.
Metals 14 00734 g005

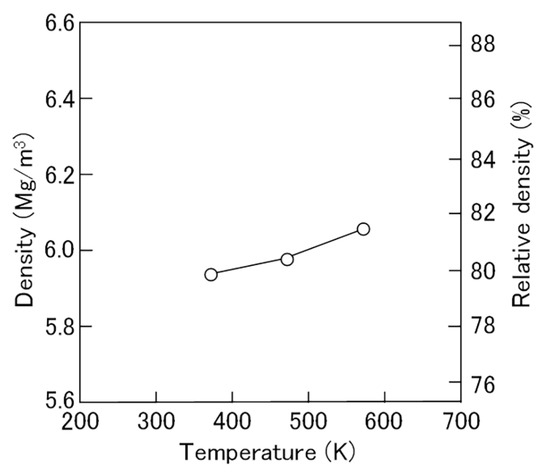

Figure 6. The dependence of the absolute density and relative density of the Fe-N magnets produced by the SPS method on the consolidation temperature.
Figure 6. The dependence of the absolute density and relative density of the Fe-N magnets produced by the SPS method on the consolidation temperature.
Metals 14 00734 g006

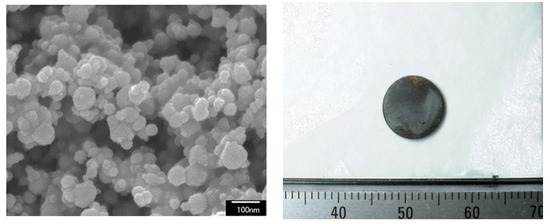

Figure 7. Photographs of the Fe-N powder (left) and the Fe-N magnet (right) produced from the Fe-N powder at 373 K by the SPS-DC method.
Figure 7. Photographs of the Fe-N powder (left) and the Fe-N magnet (right) produced from the Fe-N powder at 373 K by the SPS-DC method.
Metals 14 00734 g007

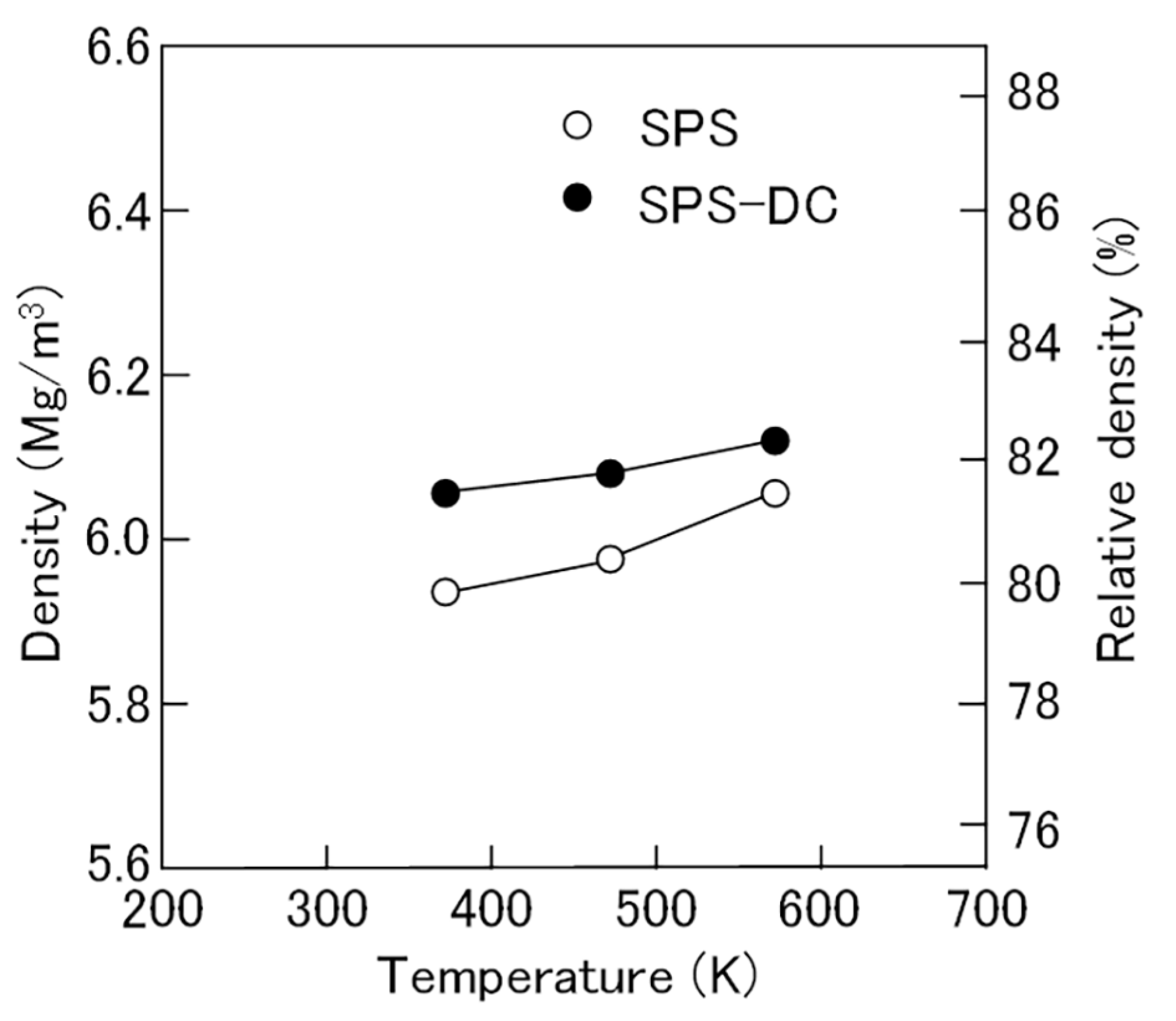

Figure 8. The dependence of the absolute density and relative density of the Fe-N magnets produced by the SPS and SPS-DC methods on the consolidation temperature.
Figure 8. The dependence of the absolute density and relative density of the Fe-N magnets produced by the SPS and SPS-DC methods on the consolidation temperature.
Metals 14 00734 g008

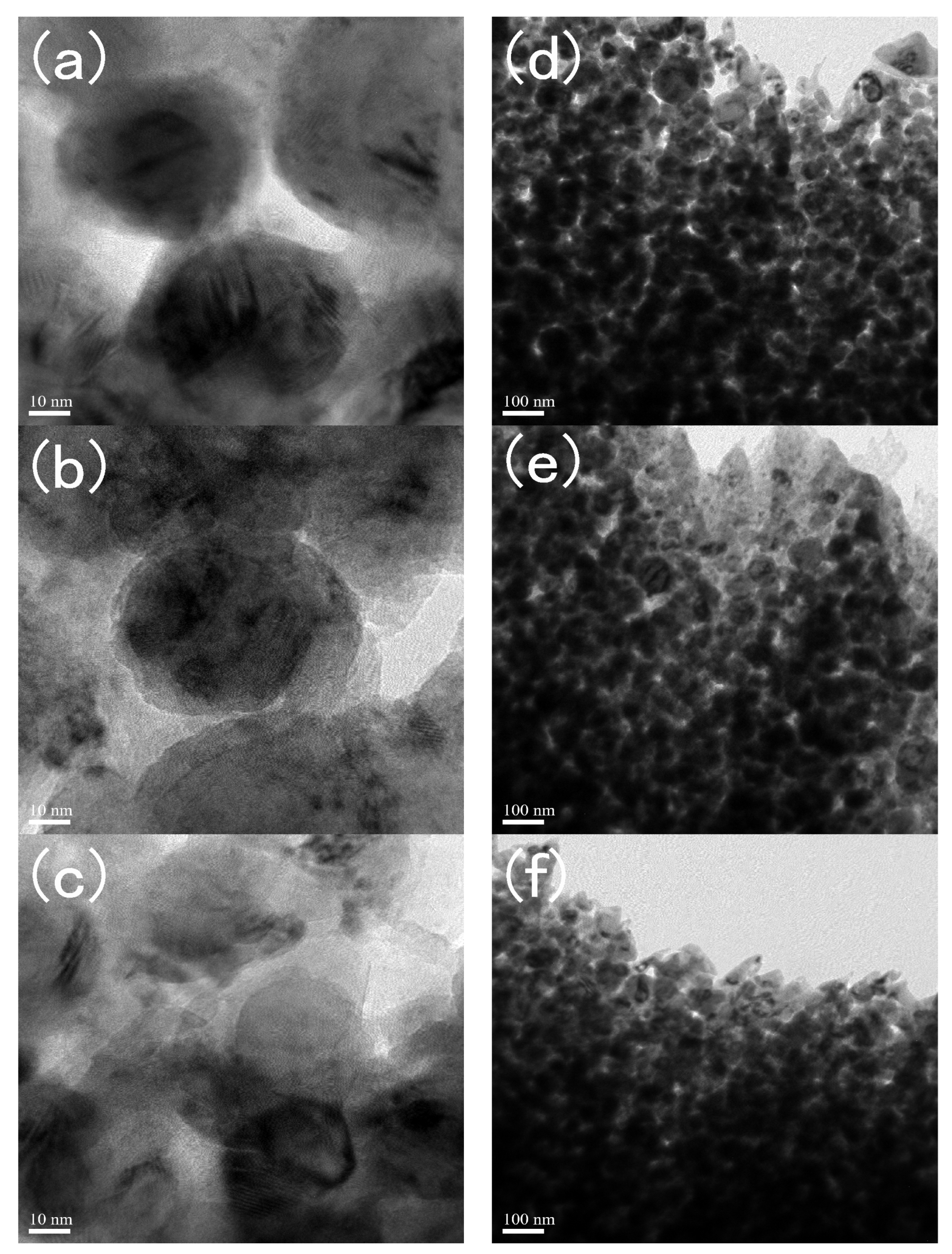

Figure 9. TEM images of the Fe-N magnets produced at (a,d) 373 K, (b,e) 473 K, and (c,f) 573 K by the SPS-DC method. The images represent the original Fe-N powder particles where the particles’ surfaces melted and bonded together.
Figure 9. TEM images of the Fe-N magnets produced at (a,d) 373 K, (b,e) 473 K, and (c,f) 573 K by the SPS-DC method. The images represent the original Fe-N powder particles where the particles’ surfaces melted and bonded together.
Metals 14 00734 g009

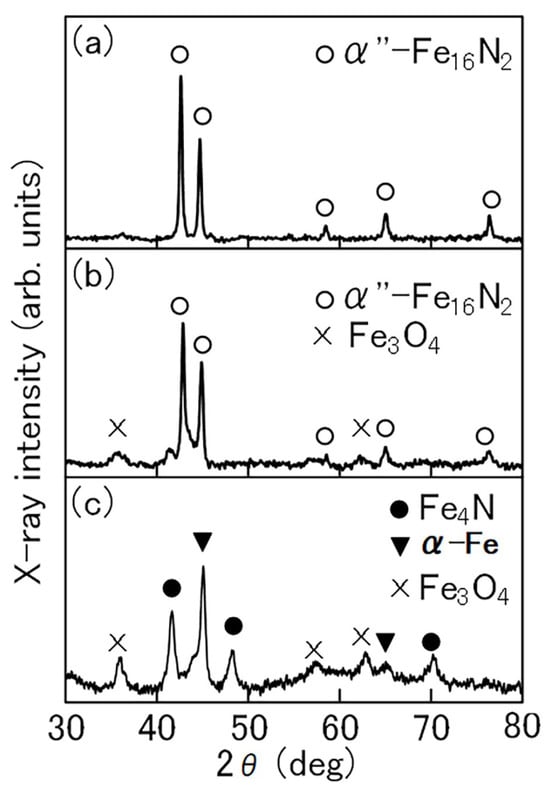

Figure 10. The XRD patterns of the Fe-N magnets produced at (a) 373 K, (b) 473 K, and (c) 573 K by the SPS-DC method.
Figure 10. The XRD patterns of the Fe-N magnets produced at (a) 373 K, (b) 473 K, and (c) 573 K by the SPS-DC method.
Metals 14 00734 g010
Figure 11. Thermo-gravimetric curves of the Fe-N magnets produced at (a) 373 K, (b) 473 K, and (c) 573 K by the SPS-DC method.
Figure 11. Thermo-gravimetric curves of the Fe-N magnets produced at (a) 373 K, (b) 473 K, and (c) 573 K by the SPS-DC method.
Metals 14 00734 g011

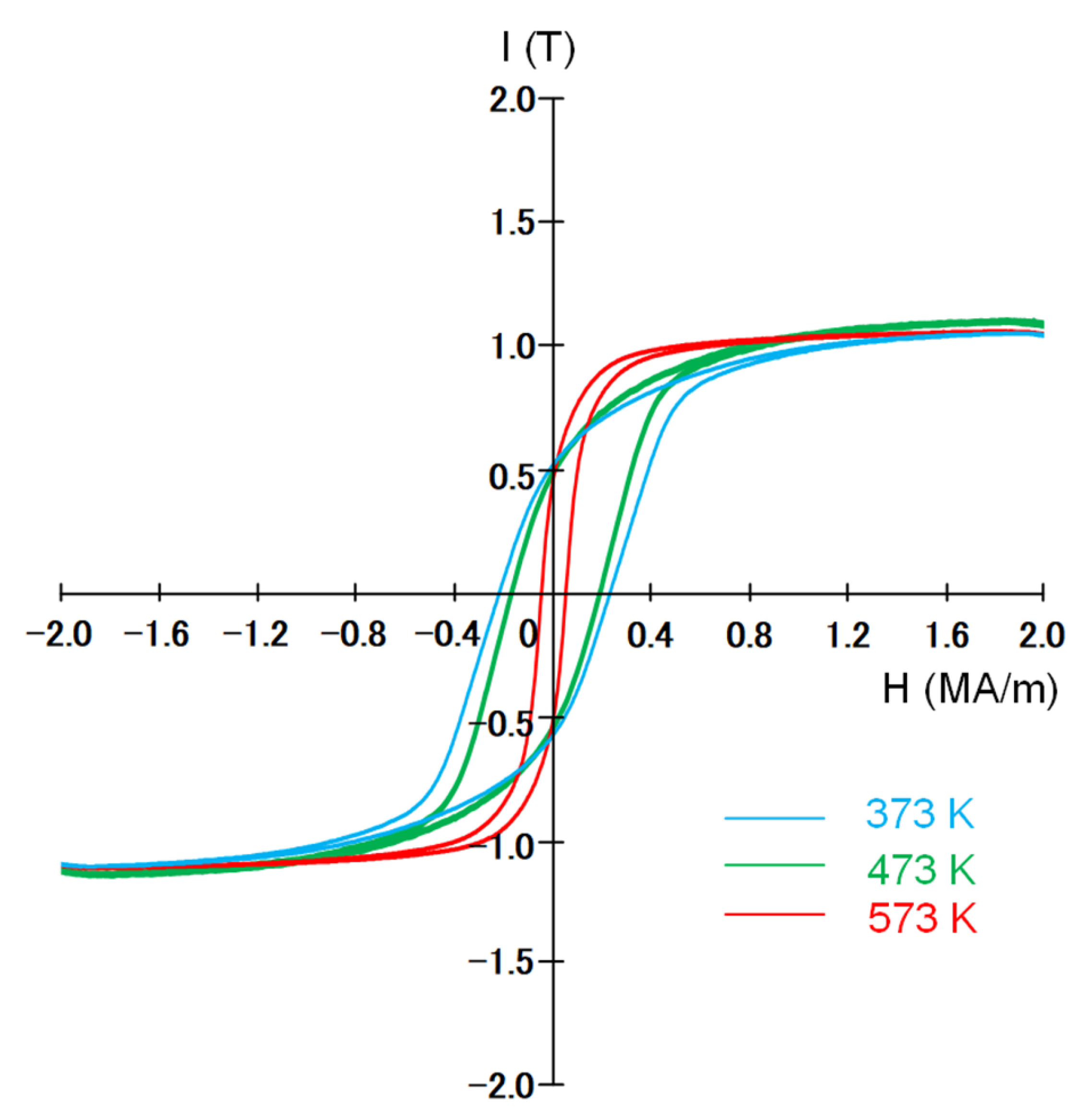

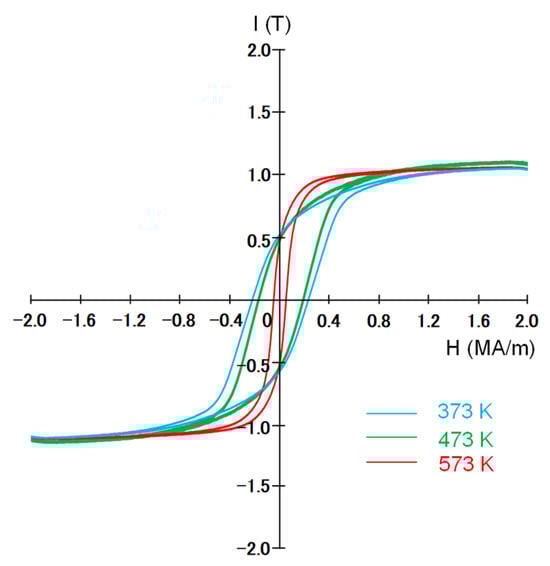

Figure 12. The hysteresis curves of the Fe-N magnets produced at 373, 473, and 573 K by the SPS-DC method.
