A Numerical Method for Solving Global Irradiance on the Facades of Building Stocks
Abstract
:1. Introduction
2. Radiation Scheme

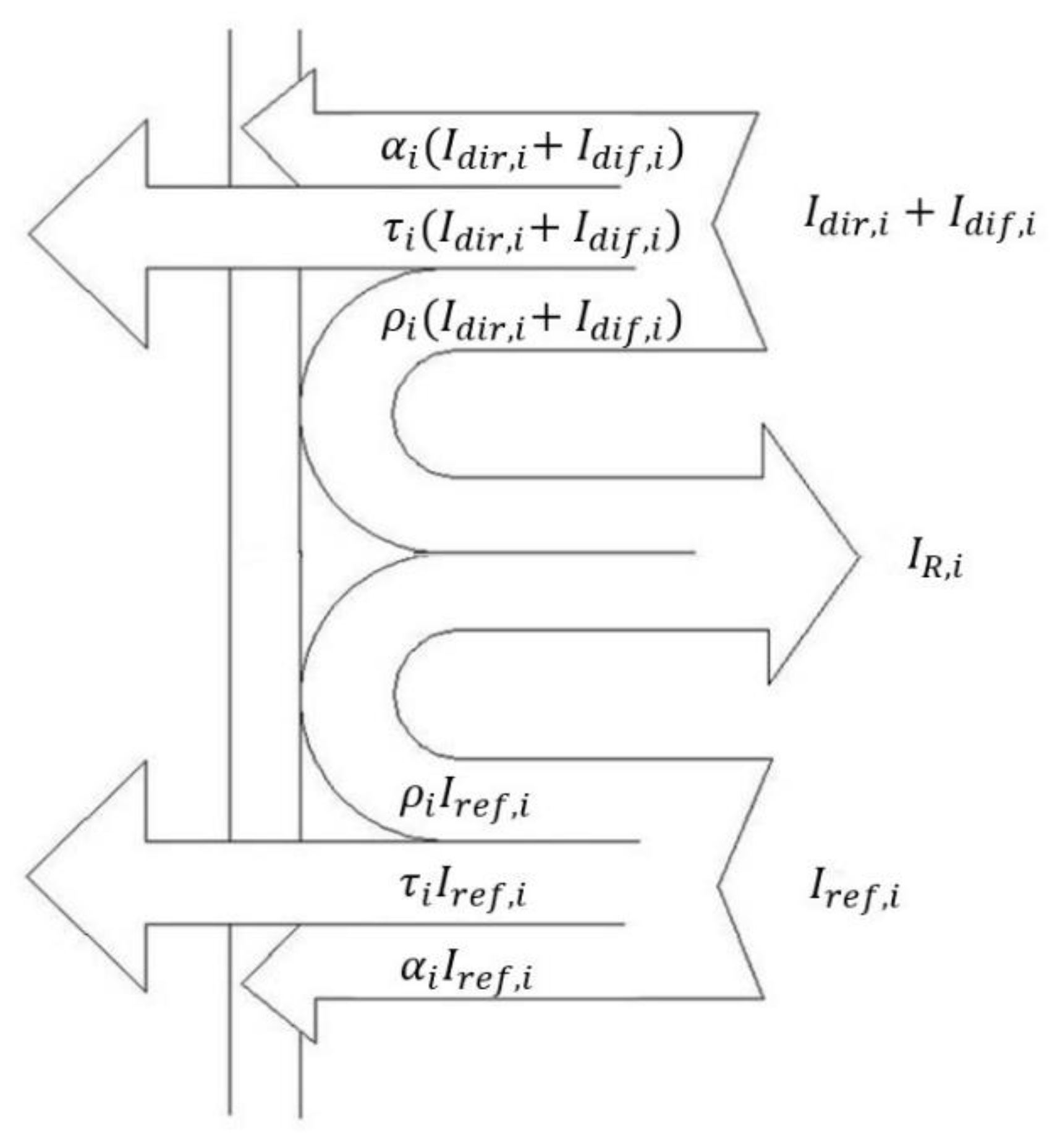

2.1. Analysis of the Radiant Energy Balance on the Building Surface
2.2. Solar Direct Irradiance on the Facades of Building Stocks
2.2.1. Calculation of the Solar Orientation

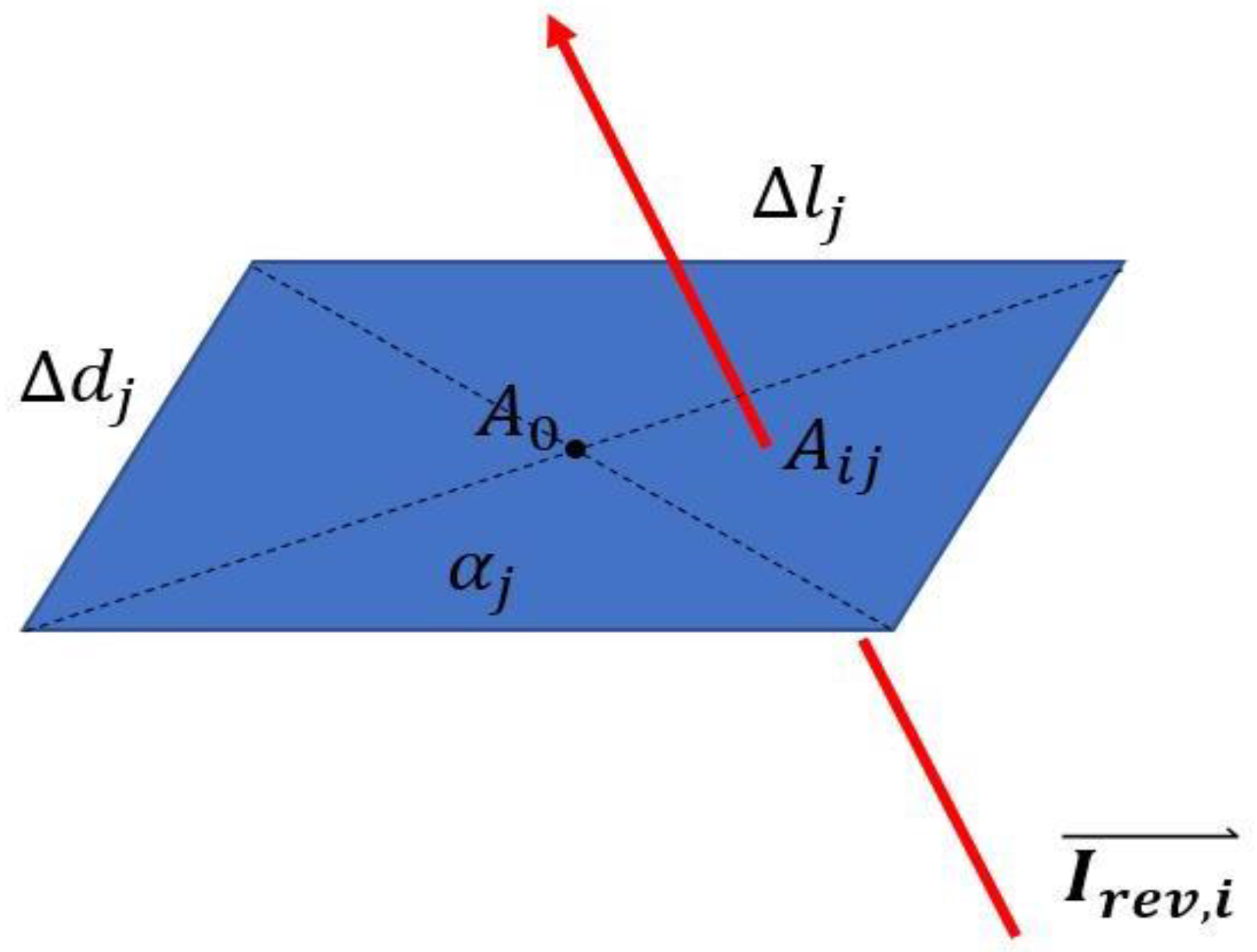

2.2.2. Judgment of Occlusion

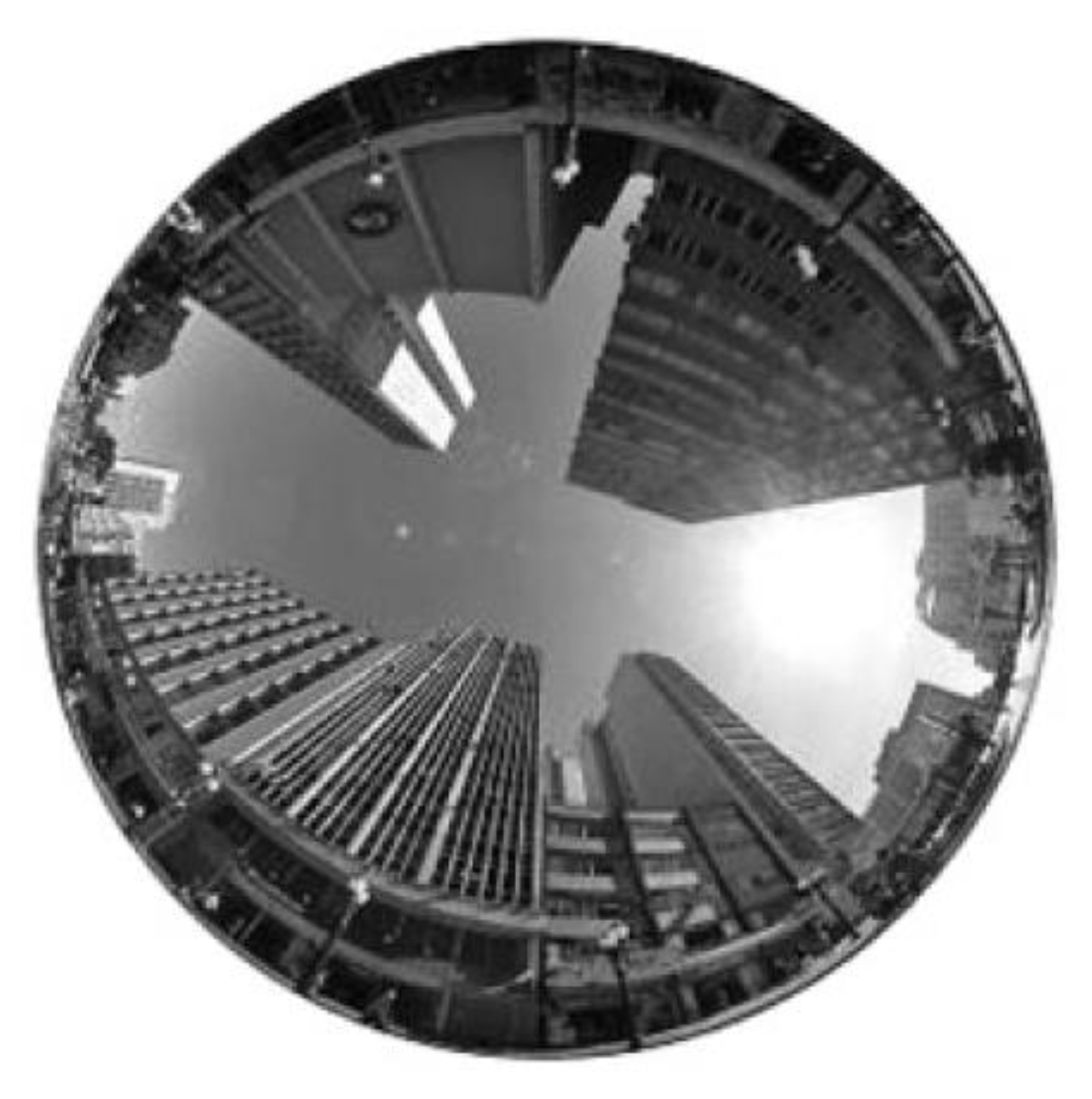

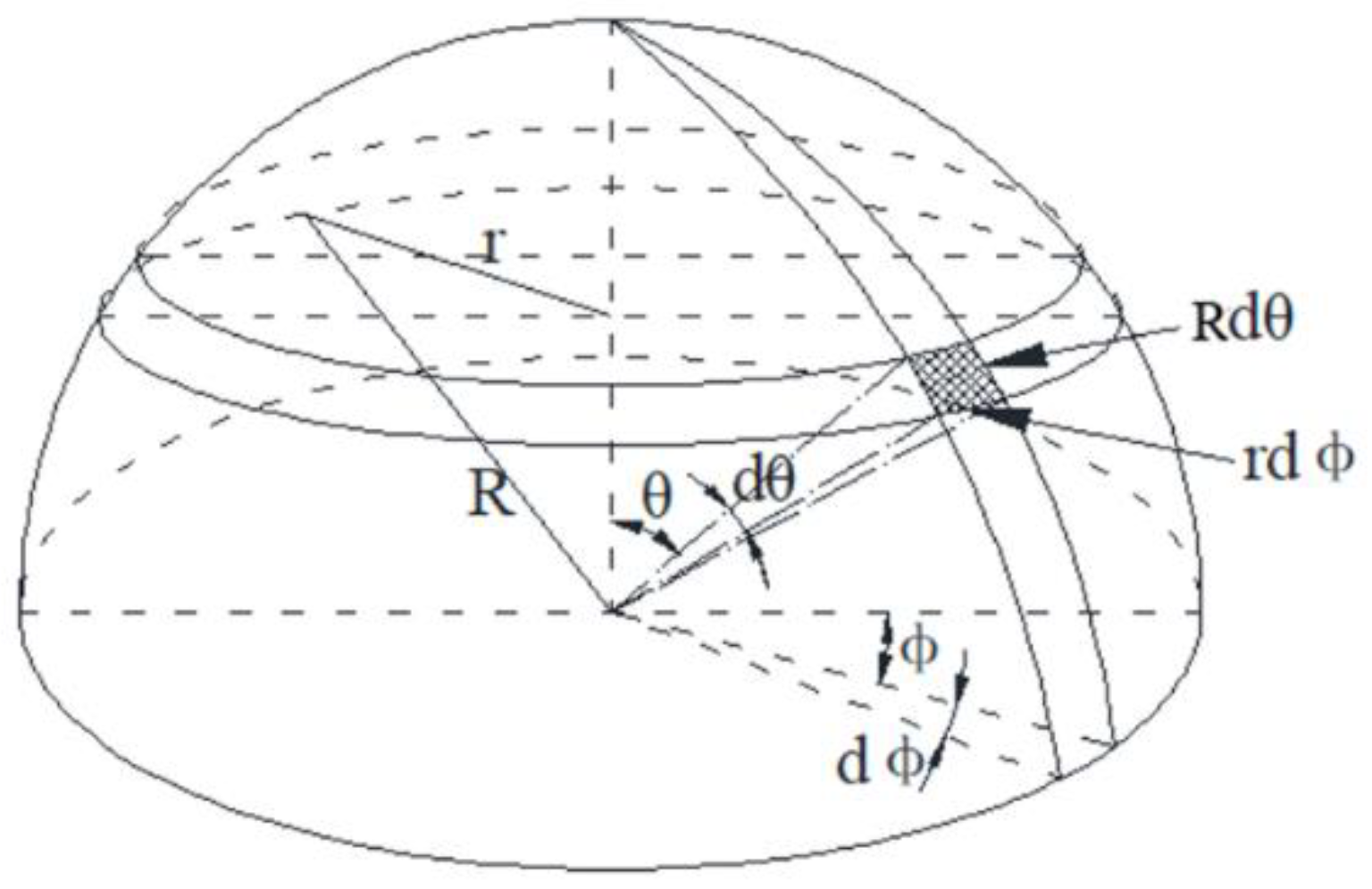

2.3. Sky Diffuse Irradiance on the Facades of Building Stocks

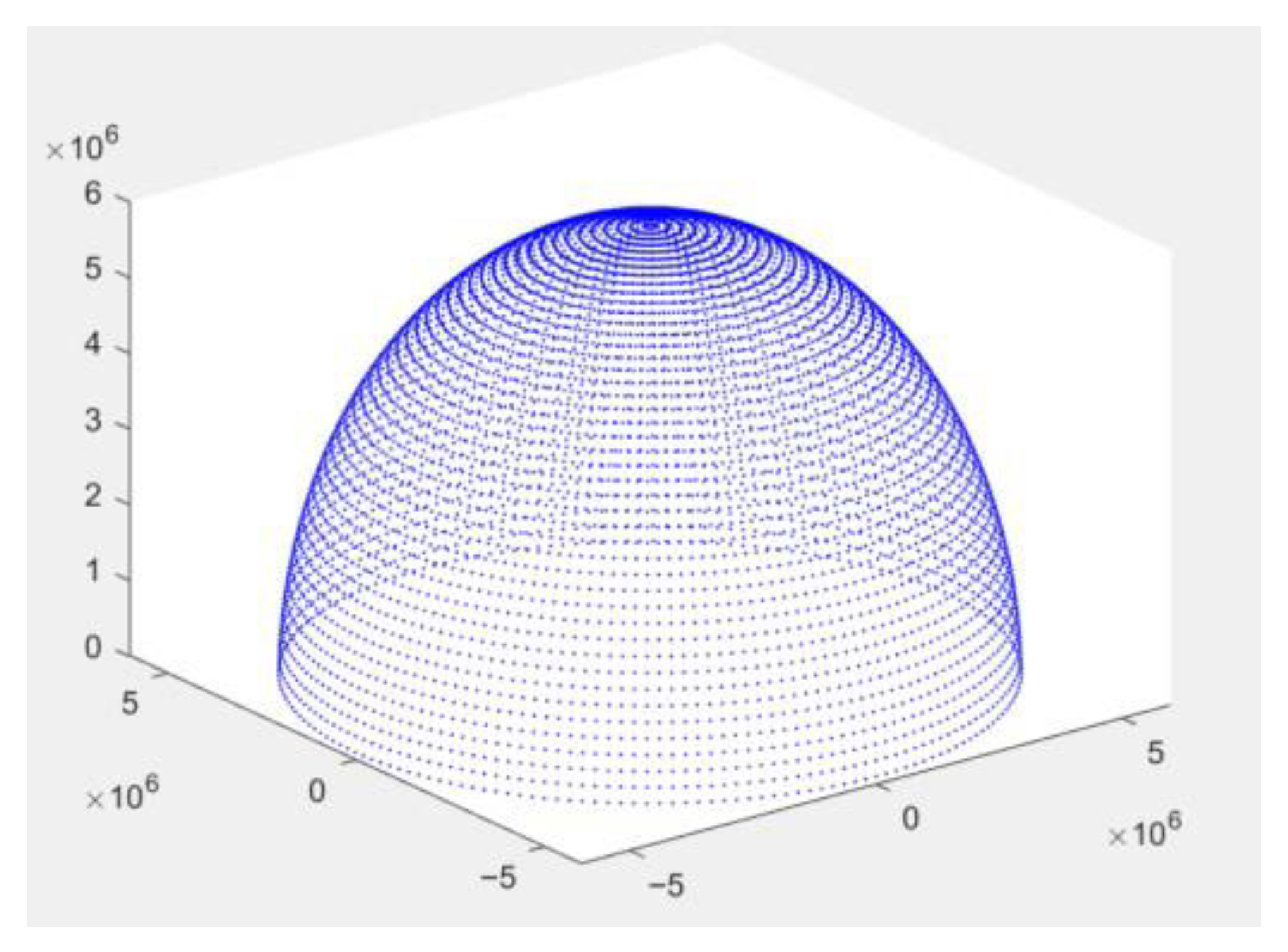

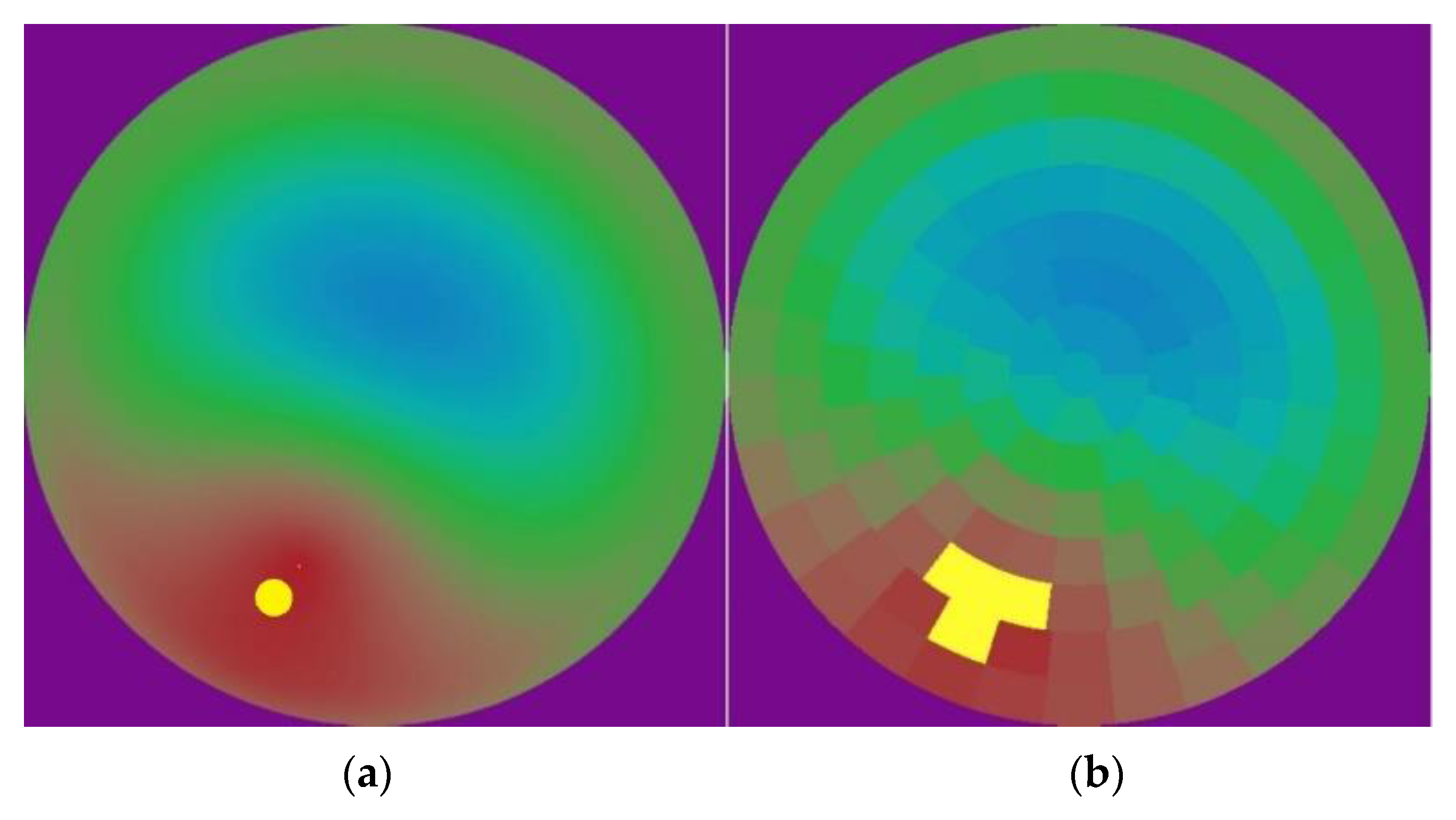

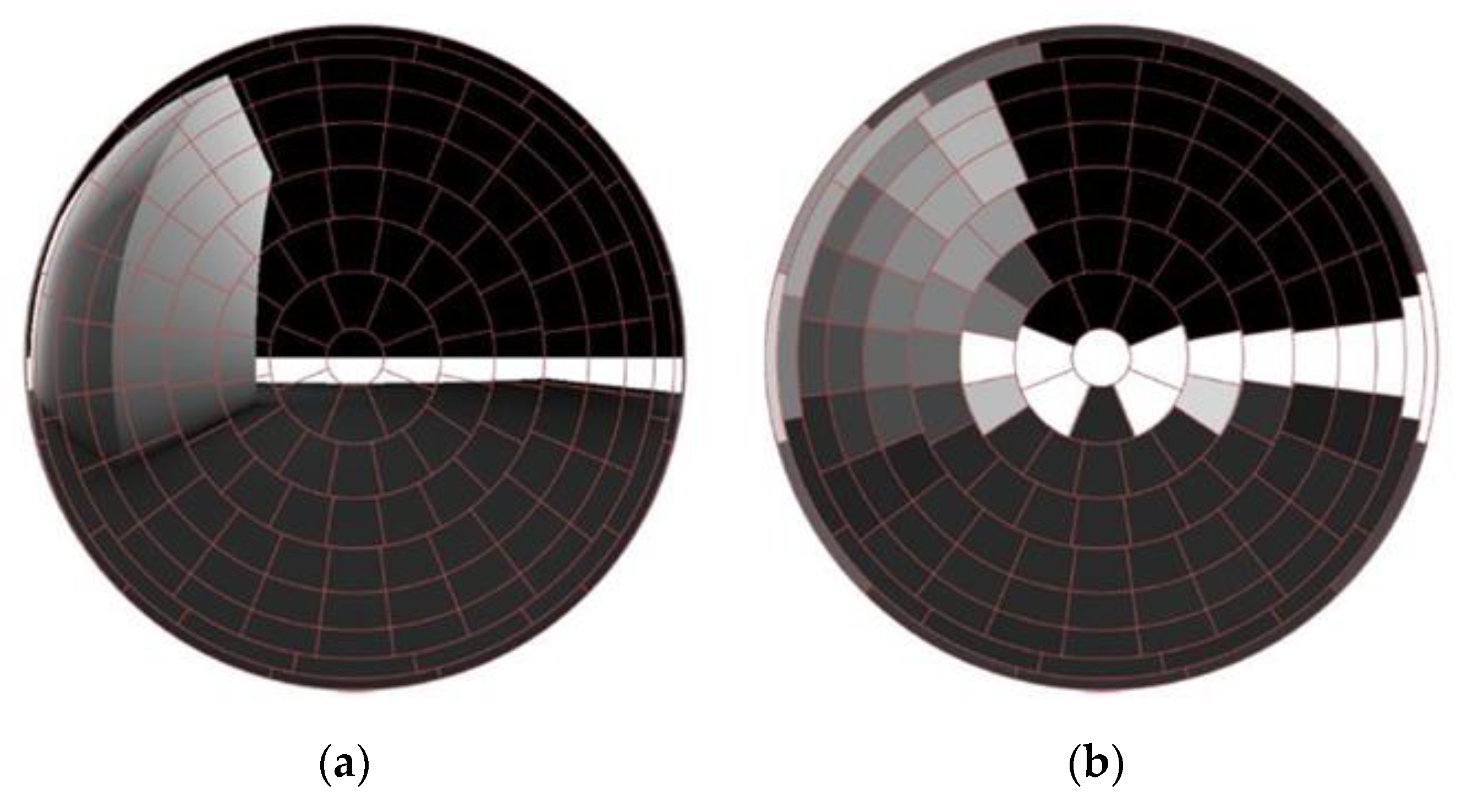

2.3.1. Determination of the Discrete Precision of the Sky Vault

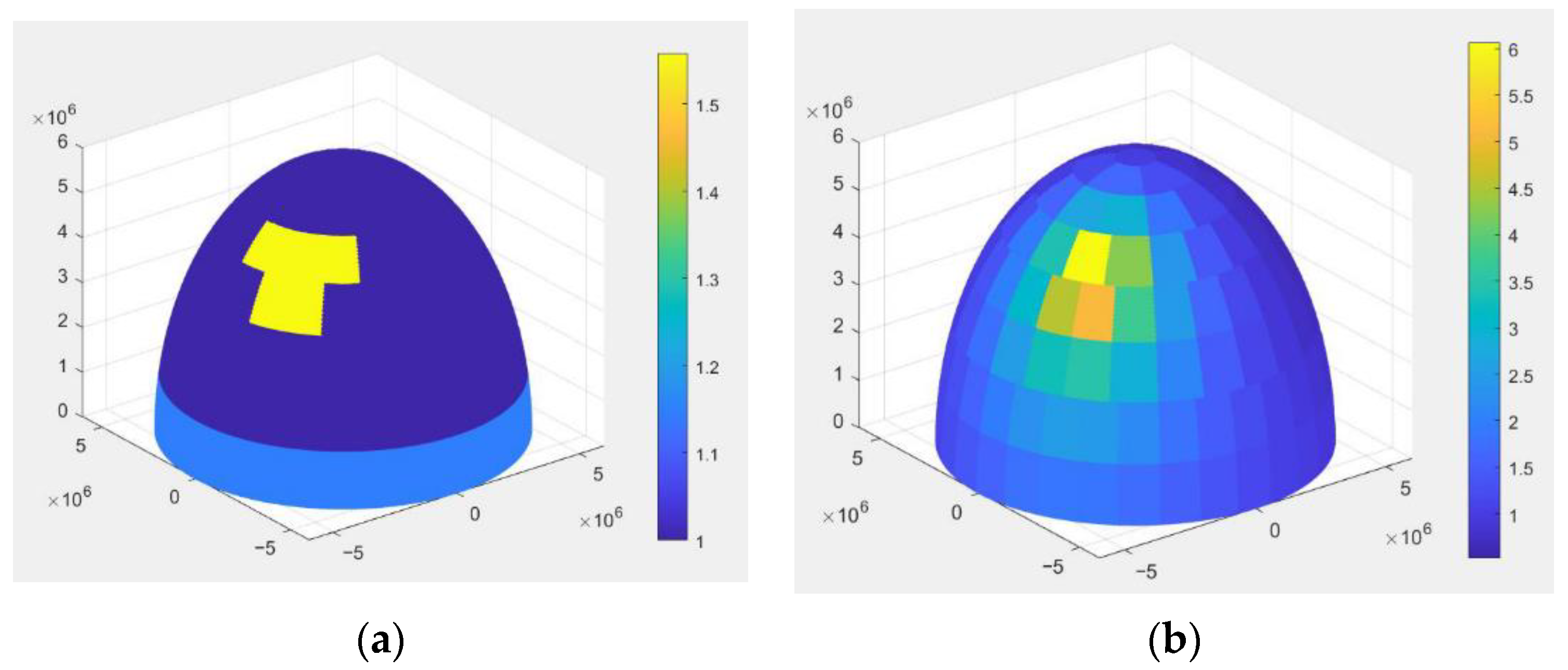

2.3.2. Determination of the Sky Diffuse Radiation Distribution Algorithm
2.4. Reflected Irradiance on the Facades of Building Stocks
3. Numerical Solution of the Radiation Scheme

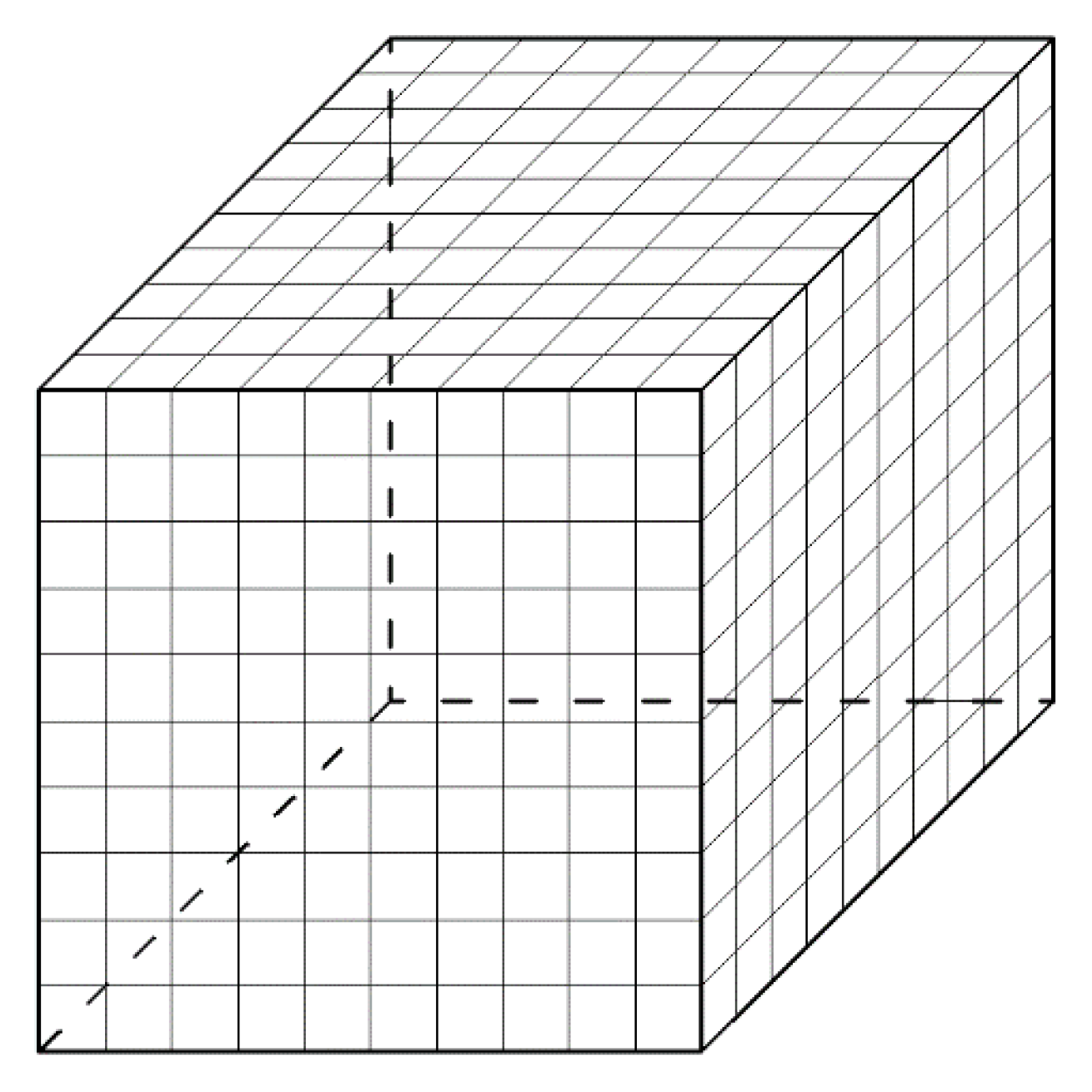

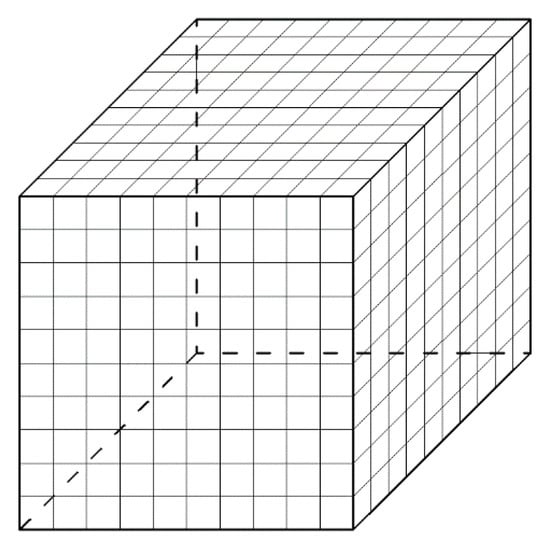

3.1. Surface Discretization
3.2. Matrix of Each Component of the Global Irradiance
3.3. Numerical Equation for the Global Irradiance Value of the Building Facades
4. Results and Discussion

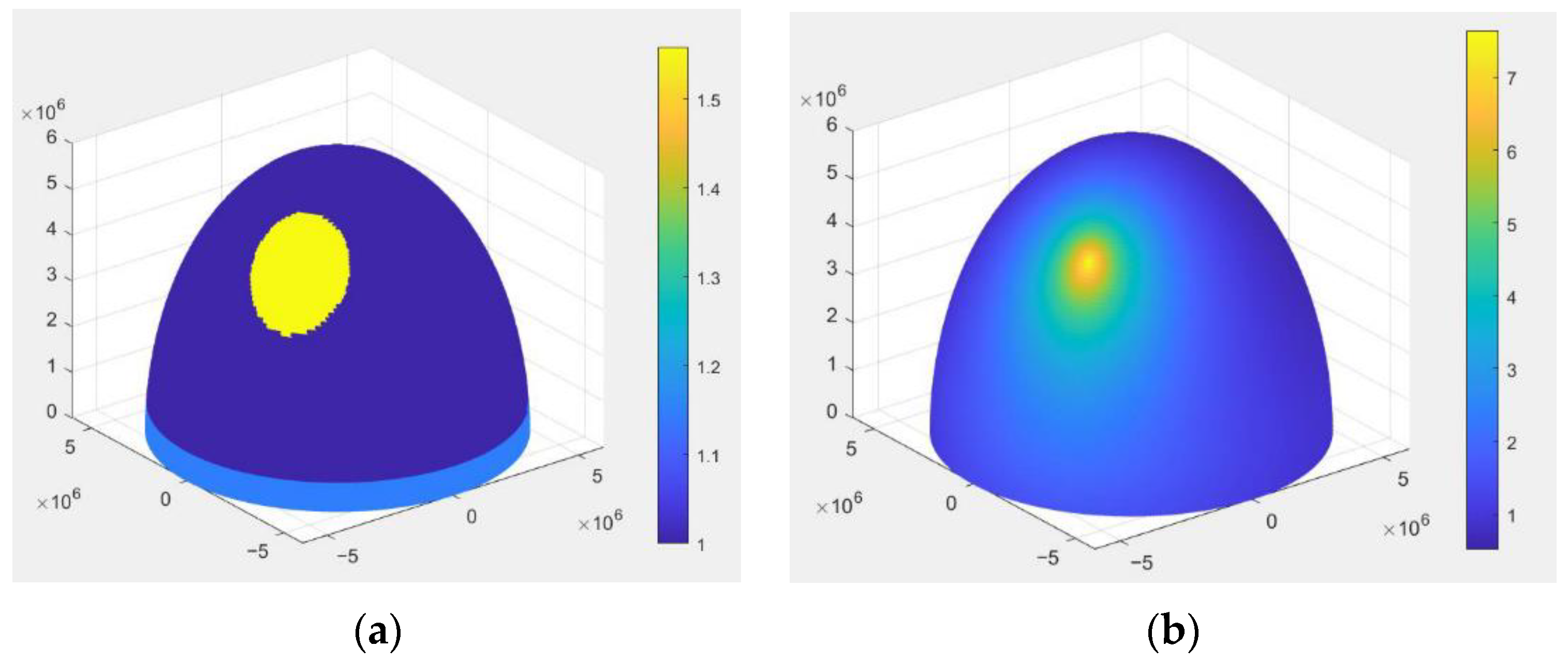

4.1. Comparison between the New Sky Diffuse Irradiance Algorithm and the Existing Algorithm

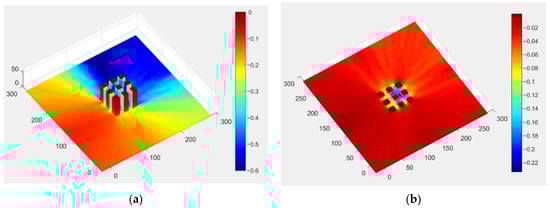

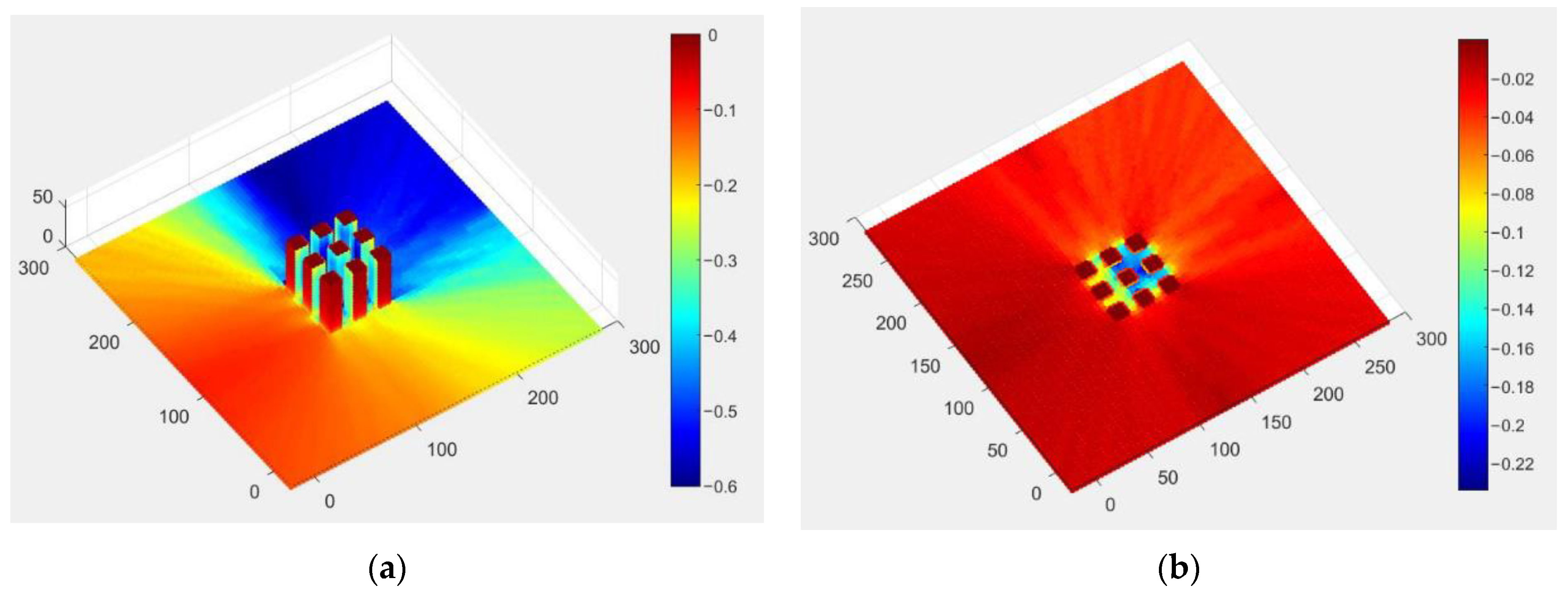

4.2. Comparison between the New Reflection Irradiance Algorithm and the Existing Algorithm
5. Conclusions
- (1)
- A model for irradiance on the facade of building stocks (IFBS Model) was constructed, based on the characteristics of the uneven surface radiation, narrow surface sky view, and the multiple reflected radiation processes of the building groups. The equation of the global irradiance value matrix is obtained. The model is based on the analysis of the radiation energy balance of the building surface after discretization, and the numerical expression of the influence of the building complex on the radiation transfer process is perfected.
- (2)
- In calculating the sky diffuse irradiance in a narrow surface sky view, the traditional solution of the sky diffuse irradiance can be improved by ascending the sky lattice discretization precision and applying a more accurate sky diffuse radiation model. It is suggested to replace the traditional Perez model with the Igawa model for the radiation intensity distribution rendering.
- (3)
- Compared with the infinite reflection algorithm, the existing mainstream one-time reflection algorithm has a significant error, especially on the surface where the radiation can reach only after multiple reflections. Such an error increases with the increase of the floor area ratio and the reflectivity of the building complex. It is recommended to use the infinite reflection algorithm, based on the net radiation analysis method in simulating the reflection irradiance of building facades. When the calculation resources are limited, the maximum error can be maintained within 5% by applying the four-time reflection algorithm.
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
Appendix A. Numerical Solution of the Reflection Irradiance Matrix
References
- Firth, S.K.; Lomas, K.J.; Wright, A. Investigating CO2 emission reductions in existing urban housing using a community domestic energy model. Proc. Build. Simul. 2009, 9, 2098–2105. [Google Scholar]
- Heiple, S.; Sailor, D.J. Using building energy simulation and geospatial modeling techniques to determine high resolution building sector energy consumption profiles. Energy Build. 2008, 40, 1426–1436. [Google Scholar] [CrossRef] [Green Version]
- Shimoda, Y.; Fujii, T.; Morikawa, T.; Mizuno, M. Residential end-use energy simulation at city scale. Build. Environ. 2004, 39, 959–967. [Google Scholar] [CrossRef]
- Dascalaki, E.G.; Droutsa, K.G.; Balaras, C.A.; Kontoyiannidis, S. Building typologies as a tool for assessing the energy performance of residential buildings—A case study for the Hellenic building stock. Energy Build. 2011, 43, 3400–3409. [Google Scholar] [CrossRef]
- Famuyibo, A.A.; Duffy, A.; Strachan, P. Developing archetypes for domestic dwellings—An Irish case study. Energy Build. 2012, 50, 150–157. [Google Scholar] [CrossRef] [Green Version]
- Caputo, P.; Costa, G.; Ferrari, S. A supporting method for defining energy strategies in the building sector at urban scale. Energy Policy 2013, 55, 261–270. [Google Scholar] [CrossRef]
- Aksoezen, M.; Daniel, M.; Hassler, U.; Kohler, N. Building age as an indicator for energy consumption. Energy Build. 2015, 87, 74–86. [Google Scholar] [CrossRef]
- Krayenhoff, E.S.; Voogt, J.A. A microscale three-dimensional urban energy balance model for studying surface temperatures. Bound.-Layer Meteorol. 2007, 123, 433–461. [Google Scholar] [CrossRef]
- Bruse, M.; Fleer, H. Simulating surface–plant–air interactions inside urban environments with a three dimensional numerical model. Environ. Modell. Softw. 1998, 13, 373–384. [Google Scholar] [CrossRef]
- Hong, T.; Jiang, Y. A new multizone model for the simulation of building thermal performance. Build. Environ. 1997, 32, 123–128. [Google Scholar]
- Nunez, M.; Oke, T.R. The energy balance of an urban canyon. J. Appl. Meteorol. 1977, 16, 11–19. [Google Scholar] [CrossRef]
- Masson, V. A physically-based scheme for the urban energy budget in atmospheric models. Bound.-Layer Meteorol. 2000, 94, 357–397. [Google Scholar] [CrossRef]
- Yang, X.; Li, Y. Development of a Three-Dimensional Urban Energy Model for Predicting and Understanding Surface Temperature Distribution. Bound.-Layer Meteorol. 2013, 149, 303–321. [Google Scholar] [CrossRef]
- Quan, S.J.; Li, Q.; Augenbroe, G.; Brown, J.; Yang, P.P.-J. Urban data and building energy modeling: A GIS-based urban building energy modeling system using the urban-EPC engine. In Planning Support Systems and Smart Cities; Springer: Berlin, Germany, 2015; pp. 447–469. [Google Scholar]
- Li, Z.; Xing, H.; Augenbroe, G. Criterion based selection of sky diffuse radiation models. Sustain. Cities Soc. 2019, 50, 101692. [Google Scholar] [CrossRef]
- Liu, B.Y.H.; Jordan, R.C. The long-term average performance of flat-plate solar-energy collectors. Sol. Energy 1963, 7, 53–74. [Google Scholar] [CrossRef]
- Perez, R.; Stewart, R.; Arbogast, C.; Seals, R.; Scott, J. An anisotropic hourly diffuse radiation model for sloping surfaces: Description, performance validation, site dependency evaluation. Sol. Energy 1986, 36, 481–497. [Google Scholar] [CrossRef]
- Perez, R.; Seals, R.; Ineichen, P.; Stewart, R.; Menicucci, D. A new simplified version of the perez diffuse irradiance model for tilted surfaces. Sol. Energy 1987, 39, 221–231. [Google Scholar] [CrossRef] [Green Version]
- Reinhart, C. Daysim, Advanced Daylight Simulation Software. 2013. Available online: http://daysim.ning.com (accessed on 27 June 2015).
- Ward, G.; Shakespeare, R. Rendering with Radiance: The art and science of lighting visualization; Morgan Kaufmann: San Francisco, CA, USA, 1998. [Google Scholar]
- Arnfield, A.J. Two decades of urban climate research: A review of turbulence, exchanges of energy and water, and the urban heat island. Int. J. Climatol. J. R. Meteorol. Soc. 2003, 23, 1–26. [Google Scholar] [CrossRef]
- Terjung, W.H.; Louie, S.S.F. A Climatic Model of Urban Energy Budgets. Geogr. Anal. 1974, 6, 341–367. [Google Scholar] [CrossRef]
- Siegel, R.; Howell, J.R. Thermal Radiation Heat Transfer; McGraw Hill: New York, NY, USA, 1972. [Google Scholar]
- Wang, B.; Liu, G. Recalculation of common astronomical parameters in solar radiation observation. J. Sol. Energy 1991, 1, 27–32. [Google Scholar]
- Yan, Q.; Zhao, Q. Heat Process in Buildings; Building Industry Press of China: Beijing, China, 1986. [Google Scholar]
- Jensen, H.W. Realistic Image Synthesis Using Photon Mapping; Ak Peters: Natick, MA, USA, 2001; Volume 364. [Google Scholar]
- Chen, C.W.; Hopkins, G.W. Ray tracing through funnel concentrator optics. Appl. Opt. 1978, 17, 1466–1467. [Google Scholar] [CrossRef]
- Daly, J.C. Solar concentrator flux distributions using backward ray tracing. Appl. Opt. 1979, 18, 2696–2699. [Google Scholar] [CrossRef]
- Leutz, R.; Annen, H.P. Reverse ray-tracing model for the performance evaluation of stationary solar concentrators. Sol. Energy 2007, 81, 761–767. [Google Scholar] [CrossRef]
- Jaffey, A.H. Solid angle subtended by a circular aperture at point and spread sources: Formulas and some tables. Rev. Sci. Instrum. 1954, 25, 349–354. [Google Scholar] [CrossRef]
- Tregenza, P.R.; Waters, I. Daylight coefficients. Light. Res. Technol. 1983, 15, 65–71. [Google Scholar] [CrossRef]
- Ng, E.; Cheng, V.; Gadi, A.; Mu, J.; Lee, M.; Gadi, A. Defining standard skies for Hong Kong. Build. Environ. 2007, 42, 866–876. [Google Scholar] [CrossRef]
- Li, D.H. A review of daylight illuminance determinations and energy implications. Appl. Energy 2010, 87, 2109–2118. [Google Scholar] [CrossRef]
- Oke, T.R. Canyon geometry and the nocturnal urban heat island: Comparison of scale model and field observations. J. Climatol. 1981, 1, 237–254. [Google Scholar] [CrossRef]
- van Esch, M.M.E.; Looman, R.H.J.; de Bruin-Hordijk, G.J. The effects of urban and building design parameters on solar access to the urban canyon and the potential for direct passive solar heating strategies. Energy Build. 2012, 47, 189–200. [Google Scholar] [CrossRef]
- Davies, J.; Hay, J. Calculation of the Solar Radiation Incident on an Inclined Surface. In Proceedings of the First Canadian Solar Radiation Data Workshop, Toronto, ON, Canada, 17–19 April 1978; Hay, J.E., Won, T.K., Eds.; 1980; pp. 32–58. [Google Scholar]
- Temps, R.C.; Coulson, K.L. Solar radiation incident upon slopes of different orientations. Sol. Energy 1977, 19, 179–184. [Google Scholar] [CrossRef]
Model or Software * | Reflection Irradiance | Sky Diffuse Irradiance |
---|---|---|
Urban Canyon Model [11] | 1 time reflection | isotropic |
ENVI-met * | 1 time reflection | isotropic |
Town Energy Balance (TEB) [12] | Infinite reflection | isotropic |
Temperature of Urban Facets in 3D (TUF-3D) [8] | Simplified multiple reflection | isotropic |
Model for Urban Surface Temperature (MUST) [13] | Simplified multiple reflection | isotropic |
DeST * | 1 time reflection | isotropic |
Fluent * + Solene * | 1 time reflection | Perez model |
TEB + EnergyPlus * | Infinite reflection | isotropic |
Citysim * | 1 time reflection | Perez model |
INSEL * + ISO model | 1 time reflection | Direct dispersion separation model |
UMI * | Simplified multiple reflection | Perez model |
Urban Energy Performance Calculator [14] | 1 time reflection | isotropic |
1 Time of Reflection | 2 X 1 | 3 X 1 | 4 X 1 | 5 X 1 | 6 X 1 | 7 X 1 | 8 X 1 | 9 X 1 | 10 X 1 | Infinite Reflections |
---|---|---|---|---|---|---|---|---|---|---|
16.4 | 28.4 | 44.0 | 64.5 | 73.8 | 91.7 | 110.9 | 128.4 | 154.9 | 167.1 | 54.2 |

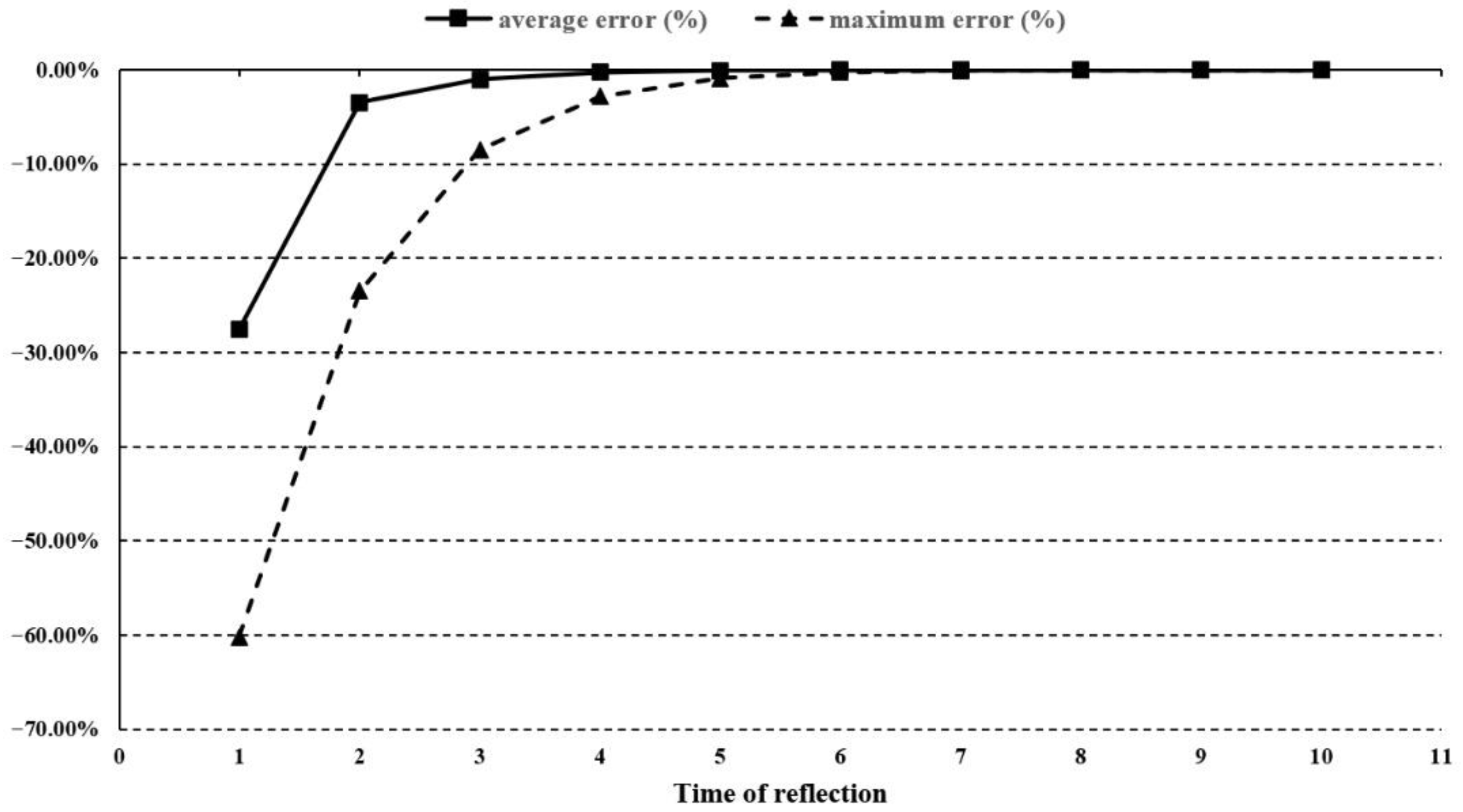

Number of Reflections | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
---|---|---|---|---|---|---|---|---|---|---|
average error (%) | −27.63 | −3.47 | −1.00 | −0.25 | −0.07 | −0.02 | −0.01 | 0.00 | 0.00 | 0.00 |
standard deviation (%) | 16.91 | 3.09 | 1.07 | 0.32 | 0.10 | 0.03 | 0.01 | 0.00 | 0.00 | 0.00 |
maximum error (%) | −60.21 | −23.47 | −8.52 | −2.82 | −0.90 | −0.28 | −0.08 | −0.03 | −0.01 | 0.00 |
25% quantile | −42.11 | −4.06 | −1.37 | −0.29 | −0.09 | −0.02 | −0.01 | 0.00 | 0.00 | 0.00 |
50% quantile | −23.40 | −2.36 | −0.62 | −0.14 | −0.04 | −0.01 | 0.00 | 0.00 | 0.00 | 0.00 |
75% quantile | −13.54 | −1.68 | −0.33 | −0.08 | −0.02 | −0.01 | 0.00 | 0.00 | 0.00 | 0.00 |
Plot Ratio | 1 X 1 | 2 X 1 | 3 X 1 | 4 X 1 | 5 X 1 | 6 X 1 | 7 X 1 | 8 X 1 | 9 X 1 | 10 X 1 |
---|---|---|---|---|---|---|---|---|---|---|
0.25 | −16.74 | −1.52 | −0.25 | −0.04 | −0.01 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 |
0.75 | −20.49 | −1.95 | −0.41 | −0.07 | −0.02 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 |
1.25 | −22.30 | −1.98 | −0.44 | −0.08 | −0.02 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 |
1.75 | −23.33 | −1.94 | −0.44 | −0.08 | −0.02 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 |
2.25 | −24.00 | −1.89 | −0.43 | −0.08 | −0.02 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 |
2.75 | −24.28 | −1.88 | −0.43 | −0.08 | −0.02 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 |
Plot Ratio | 1 X 1 | 2 X 1 | 3 X 1 | 4 X 1 | 5 X 1 | 6 X 1 | 7 X 1 | 8 X 1 | 9 X 1 | 10 X 1 |
---|---|---|---|---|---|---|---|---|---|---|
0.25 | −46.39 | −5.05 | −1.01 | −0.16 | −0.03 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 |
0.75 | −50.00 | −11.00 | −3.03 | −0.64 | −0.15 | −0.03 | −0.01 | 0.00 | 0.00 | 0.00 |
1.25 | −52.36 | −14.72 | −4.05 | −1.01 | −0.24 | −0.06 | −0.01 | 0.00 | 0.00 | 0.00 |
1.75 | −55.41 | −16.48 | −4.62 | −1.20 | −0.30 | −0.07 | −0.02 | 0.00 | 0.00 | 0.00 |
2.25 | −57.58 | −17.25 | −4.88 | −1.29 | −0.32 | −0.08 | −0.02 | 0.00 | 0.00 | 0.00 |
2.75 | −58.48 | −17.81 | −5.02 | −1.34 | −0.33 | −0.08 | −0.02 | 0.00 | 0.00 | 0.00 |
