Comparative Study on Heat Dissipation Performance of Pure Immersion and Immersion Jet Liquid Cooling System for Single Server
Abstract
:1. Introduction
2. Single Server Liquid Cooling Test Bench and Experimental Method

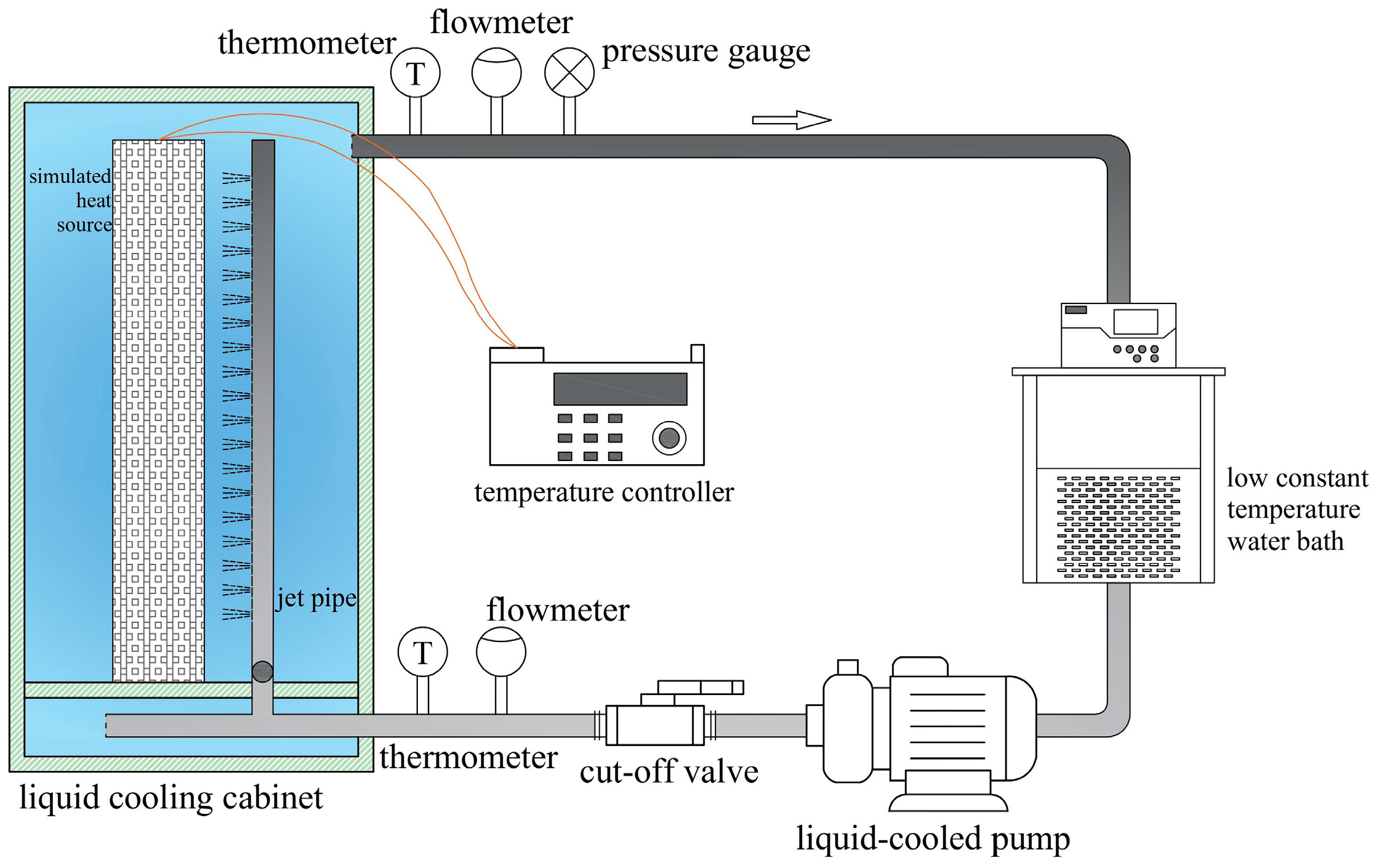

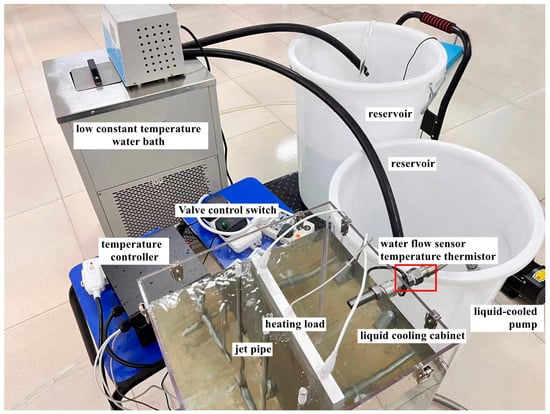

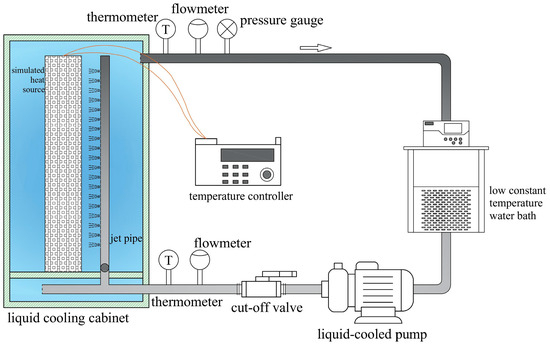

2.1. Immersion Jet Liquid Cooling Test Bench

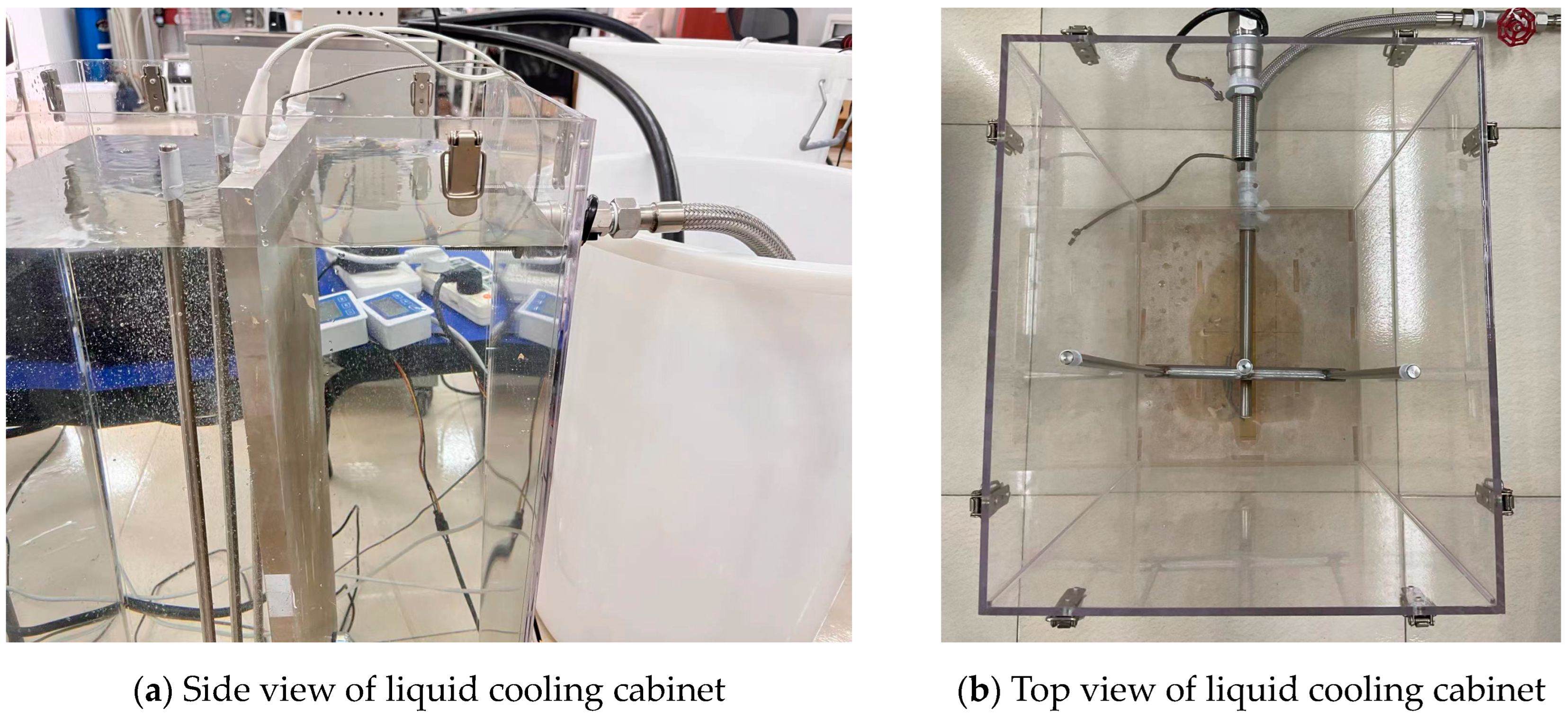

2.1.1. Immersion Part Design

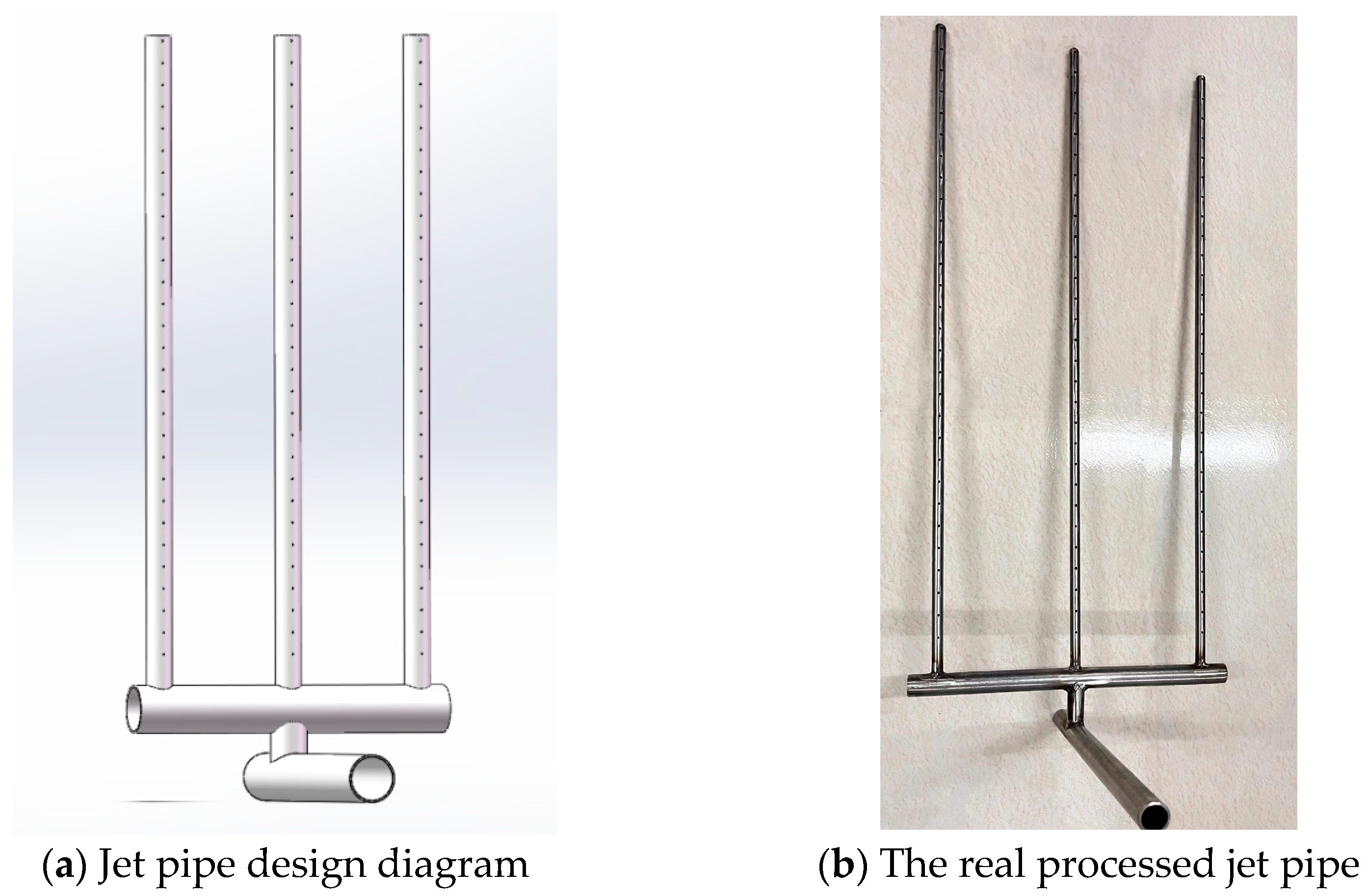

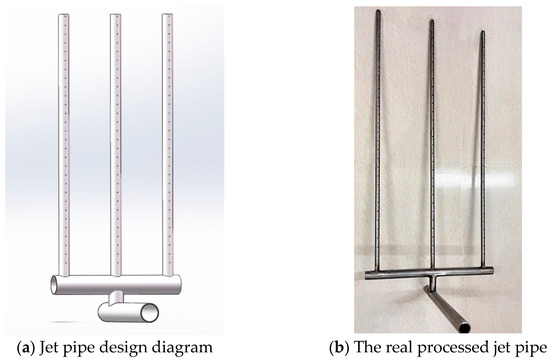

2.1.2. Jet Part Design
2.2. Experimental Method and Instrument Parameters
2.2.1. Experimental Procedure
- The ambient temperature of the laboratory was controlled at 28 ± 2 °C, and the humidity was maintained at 40 ± 5% RH. There was no significant external heat or cold source interference.
- A liquid-cooled test bench was constructed with installed pipeline systems and instrument accessories. Heating loads were positioned on the inner wall of the liquid-cooled cabinet, and a dedicated temperature controller was connected to regulate the heating plate’s temperature.
- The heating load was heated to 60 °C by the temperature controller, and the inlet water temperature of the coolant was set and adjusted using a low constant temperature water bath (18 °C, 22 °C, 27 °C). The jet distance (10 cm, 5 cm, 3 cm, 1 cm) and the inlet water flow rate (8 L/min, 13 L/min, 18 L/min) were adjusted according to the experimental design requirements.
- The experiment was initiated, and the surface temperature changes in the heating load were continuously monitored. The experiment continued until the heating load’s surface temperature achieved a steady state, defined as a temperature fluctuation within the ±0.5 °C error margin, indicating that thermal equilibrium had been attained within the system.
- Once the heating load surface temperature stabilized, the outlet temperature of the coolant, along with the temperatures at the upper, middle, and lower levels of the liquid cooler, were recorded.
- To ensure the reliability and repeatability of the experimental results, each experimental condition was repeated three times. Each experiment was performed according to the above steps, and the data were recorded separately. To reduce the influence of random error, the arithmetic mean of the corresponding temperature readings from the three experiments was taken.
- Based on the collected data, the heat dissipation capability of the immersion jet liquid cooling system was evaluated against that of the pure immersion liquid cooling system. Specific parameters such as jet distance and flow rate were evaluated to ascertain their respective impacts on system heat dissipation efficiency.

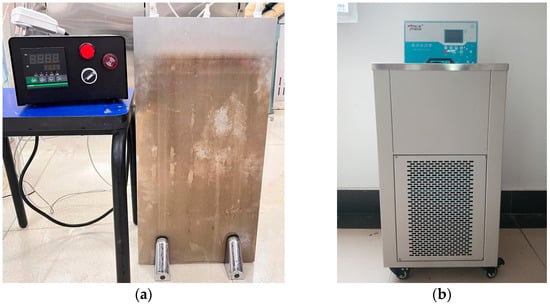

2.2.2. Laboratory Apparatus
2.3. Error Analysis
3. Experimental Results and Analysis

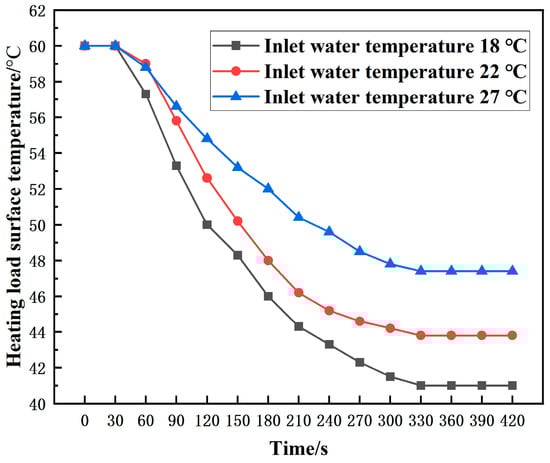

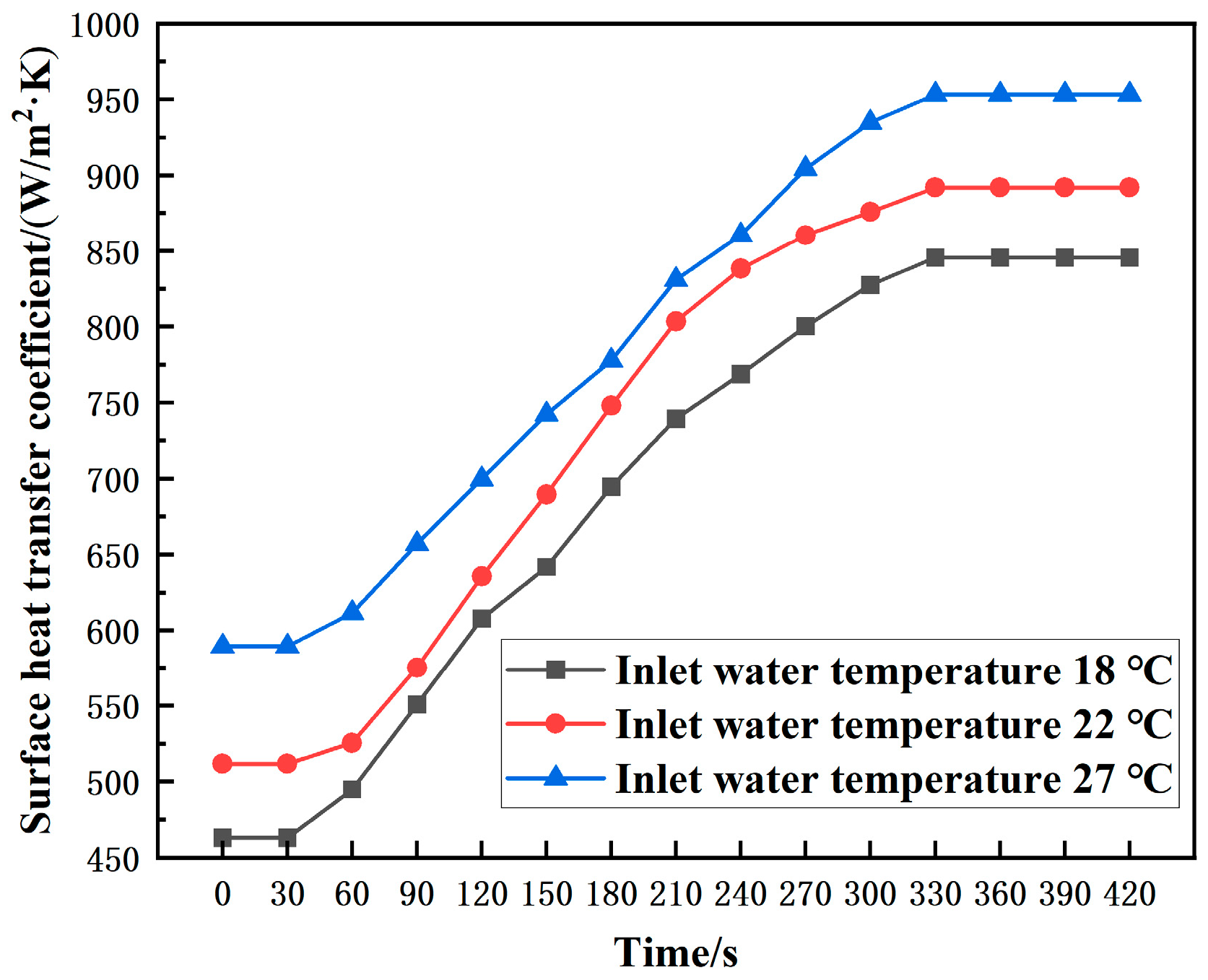

3.1. Experimental Results of Immersion Liquid Cooling System
3.2. Experimental Results of Immersion Jet Liquid Cooling System
3.2.1. Comparison of Heat Dissipation Effect of Different Jet Distance

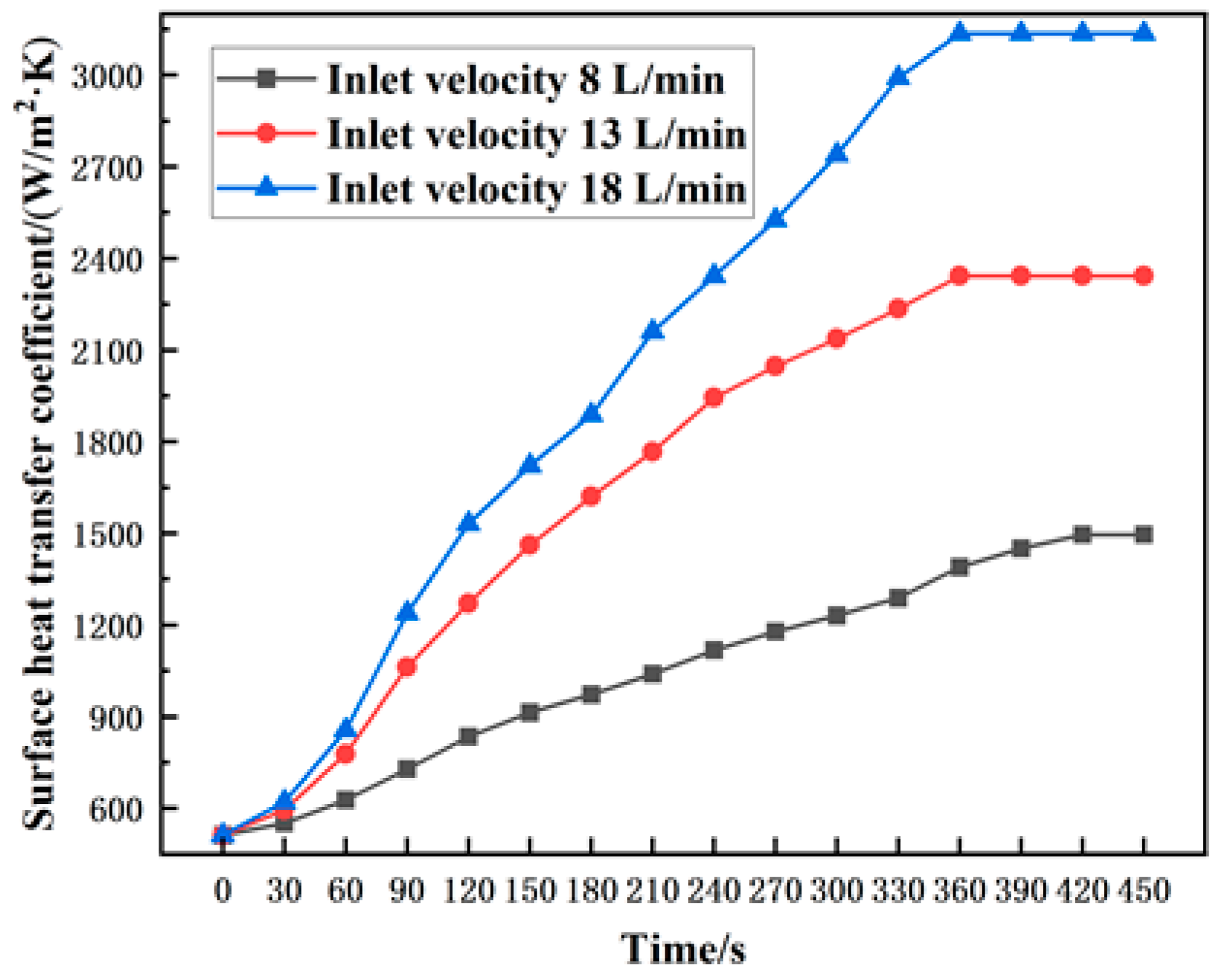

3.2.2. Comparison of Heat Dissipation Effect at Different Inlet Water Flow Rates
4. Model Dimensionless Analysis
5. Conclusions
- In the immersion liquid cooling system, reducing the inlet temperature from 27.0 °C to 18.0 °C can decrease the server’s surface stable temperature by 6.4 °C and enhance the steady-state surface heat transfer coefficient by 107.7 W/(m2·K). However, this also augments the temperature disparity between the inlet and outlet water, concurrently amplifying the internal temperature gradient of the liquid cooler by approximately 3.7 °C. To balance heat dissipation efficiency with the system’s heat load, an inlet water temperature of 22 °C was chosen. At this temperature setting, the inlet–outlet temperature difference was 6.9 °C, the internal temperature gradient was 6.5 °C, and the surface heat transfer coefficient remained stable at 891.9 W/(m2·K).
- The immersion jet liquid cooling system improves the mixing and disturbance of the coolant inside the cooler through the jet effect, achieving a more uniform temperature distribution and higher heat-carrying capacity. Compared with the pure immersion system, the surface temperature of the heating load is reduced from 43.8 °C to 30.3 °C, and the steady-state surface heat transfer coefficient is increased by 2.6 times to about 2342.7 W/(m2·K).

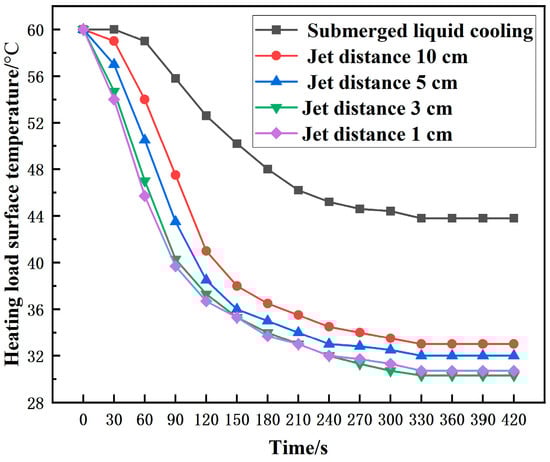

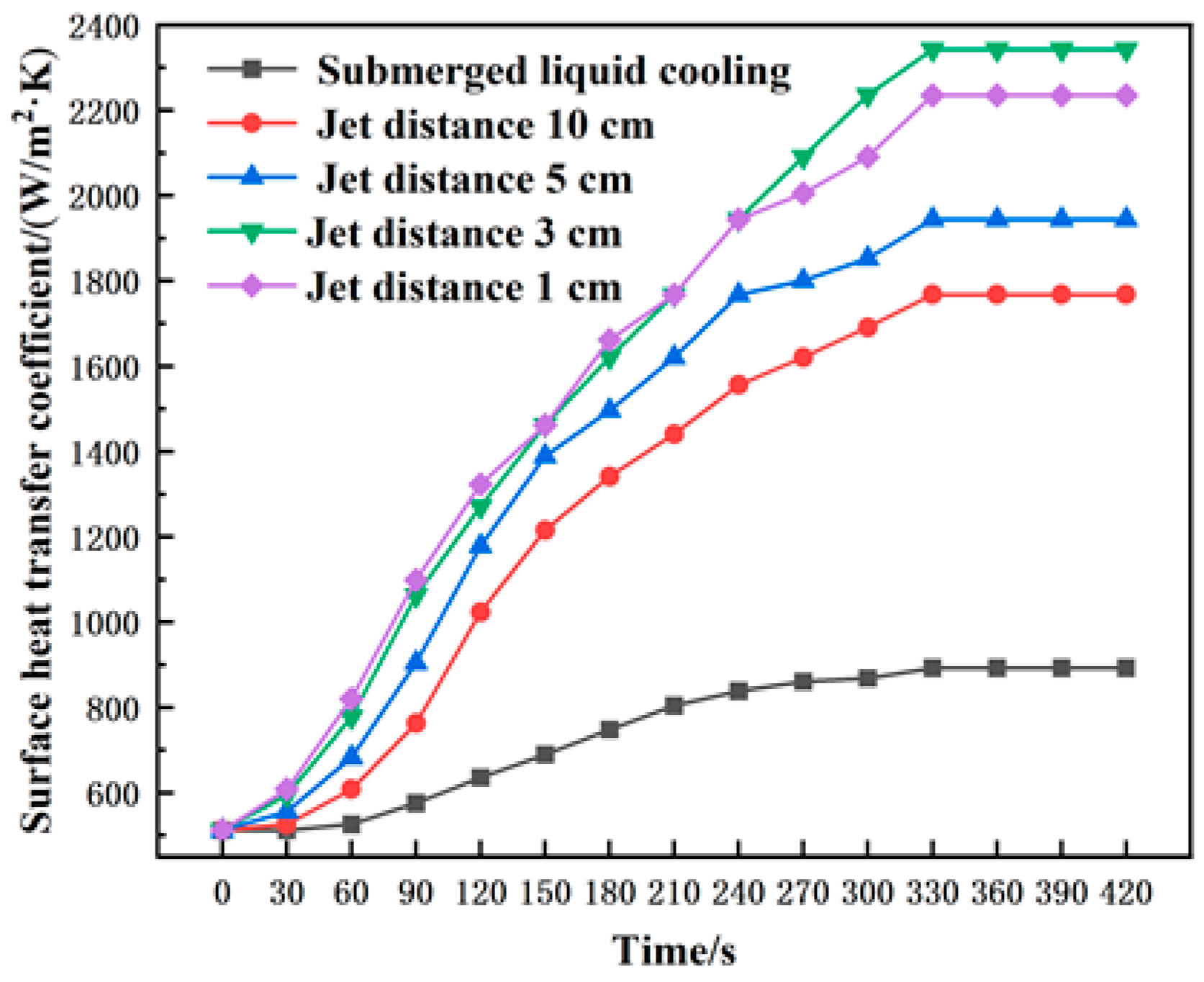

- When the jet distance decreases from 10 cm to 1 cm, the surface temperature of the heating load in the immersion jet liquid cooling system decreases by 2.7 °C, and the steady-state surface heat transfer coefficient increases by 467.3 W/(m2·K). However, the inlet–outlet temperature difference increases slightly. Compared with a jet distance of 1 cm, when the jet distance is adjusted to 3 cm, the backflow interference effect between the fluids is significantly mitigated, the system’s heat transfer capacity is enhanced by 107.7 W/(m2·K), and the temperature difference between the inlet and outlet water is lowered by 0.7 °C.

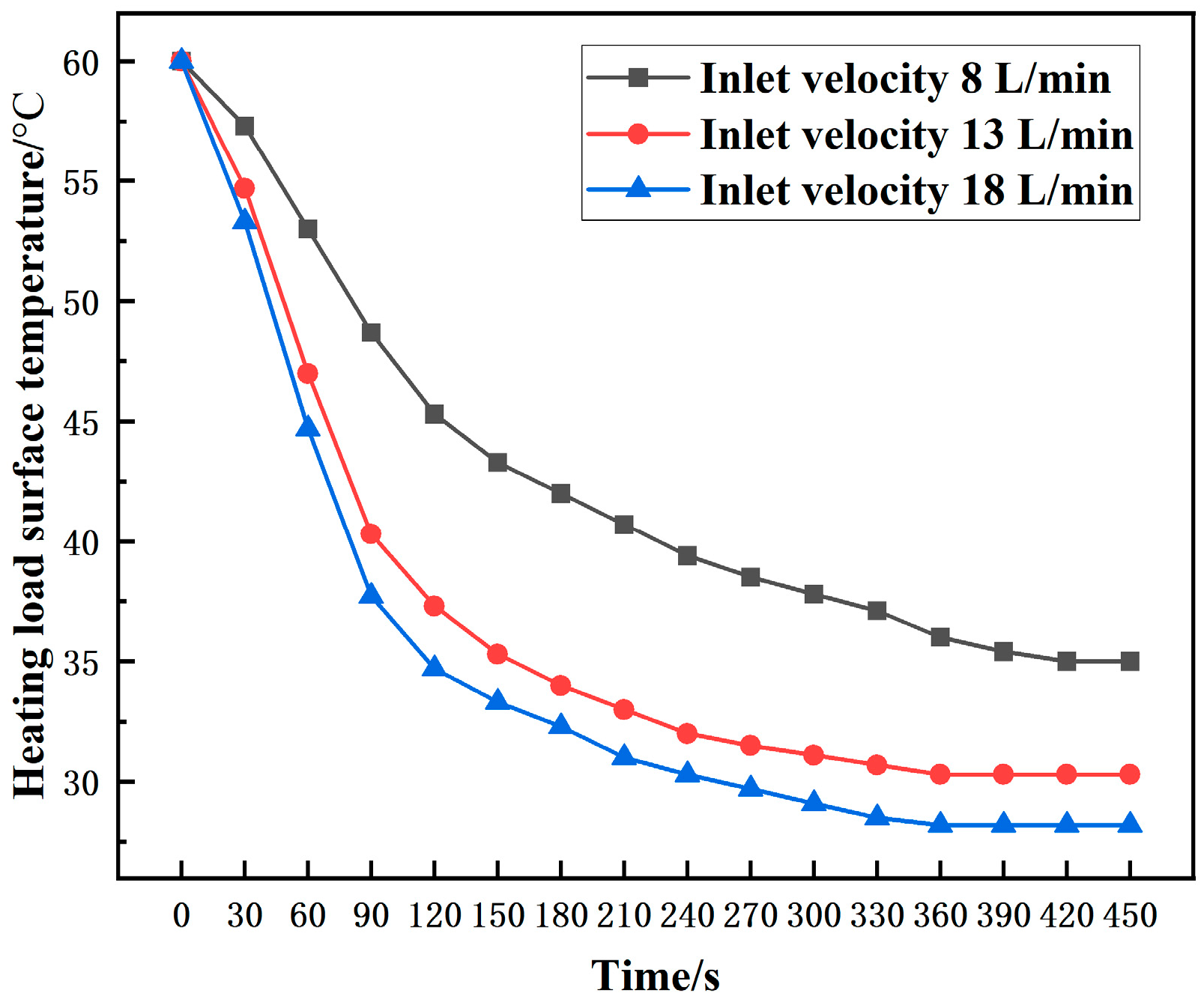

- Under the premise of an inlet water temperature of 22 °C and a jet distance of 3 cm, increasing the inlet water flow rate can reduce the temperature difference between the inlet and outlet and achieve a more even temperature distribution inside the liquid cooler. Raising the flow rate from 8 L/min to 18 L/min effectively lowers the surface temperature of the heating load from 35.0 °C to 28.0 °C while also increasing the steady-state surface heat transfer coefficient from 1495.7 W/(m2·K) to 3136.2 W/(m2·K).

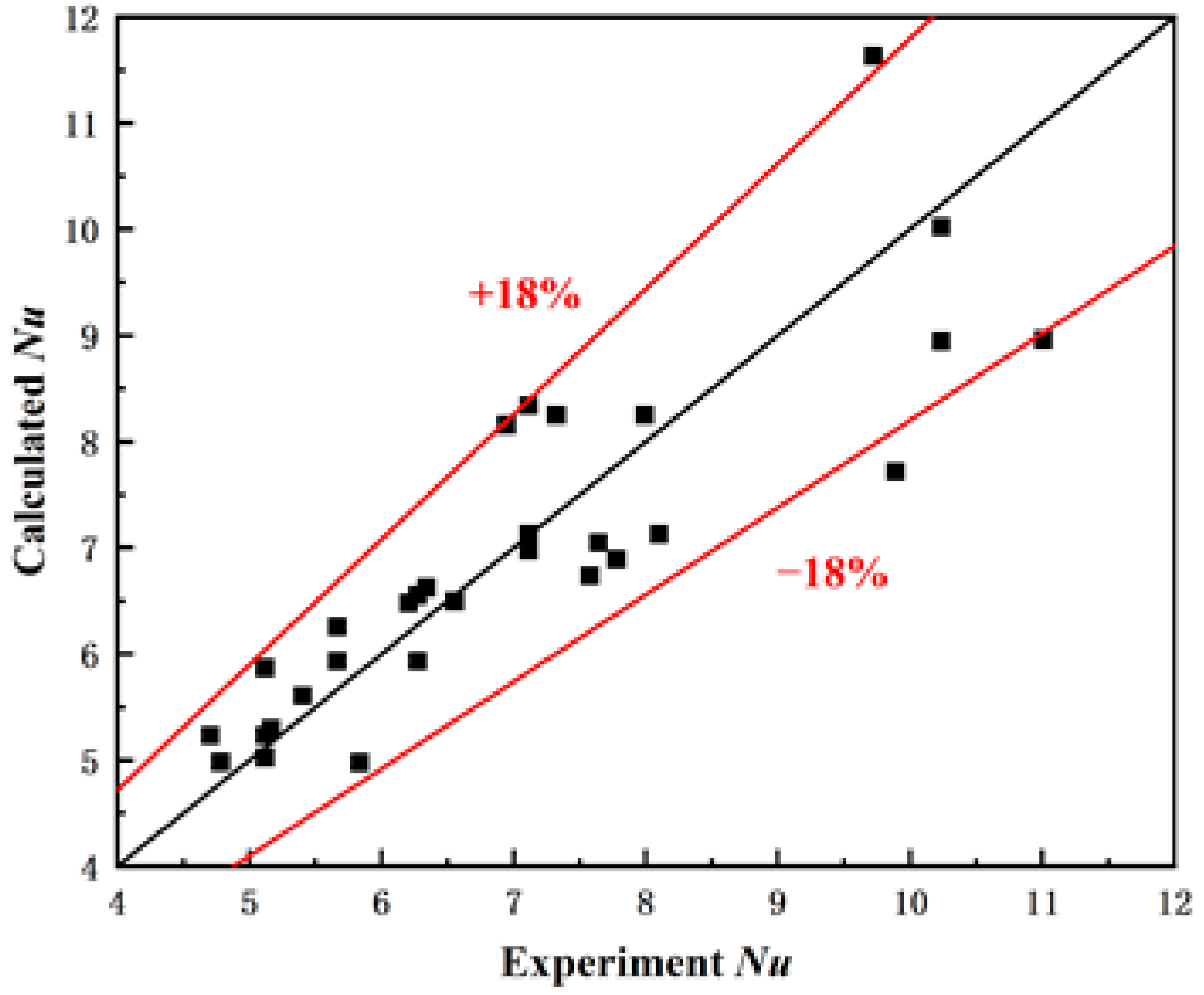

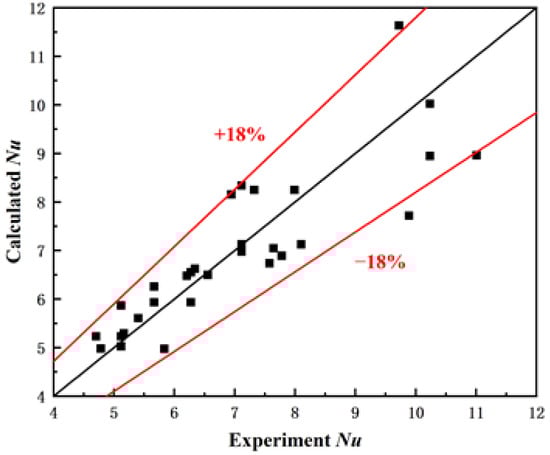

- The immersion jet liquid cooling system model was simplified through dimensional analysis, and a dimensionless relationship was established. By fitting the experimental data using the nonlinear least squares method, a heat transfer correlation with an error of no more than 18% was obtained. The analysis shows that the inlet temperature is the dominant factor, the flow rate has a positive effect, and the jet distance has a limited effect, providing guidance for system optimization.
