Review

Genomic and Pathogenicity Mechanisms of the Main Theobroma cacao L. Eukaryotic Pathogens: A Systematic Review

by
Diogo Pereira Silva de Novais
1,2,*,
Thiago Mafra Batista
3,
Eduardo Almeida Costa
1 and
Carlos Priminho Pirovani
1,*
1
Department of Biological Sciences, Center for Biotechnology and Genetics, State University of Santa Cruz (UESC), Ilhéus 45662-900, BA, Brazil
2
Bahia Federal Institute of Education, Science and Technology (IFBA), Porto Seguro 45810-000, BA, Brazil
3
Environmental Science Training Center, Federal University of Southern Bahia (UFSB), Porto Seguro 45810-000, BA, Brazil
*
Authors to whom correspondence should be addressed.
Microorganisms 2023, 11(6), 1567; https://doi.org/10.3390/microorganisms11061567
Submission received: 25 April 2023 / Revised: 7 June 2023 / Accepted: 8 June 2023 / Published: 13 June 2023
(This article belongs to the Special Issue Latest Review Papers in Plant Microbe Interactions 2023)
Browse Figures
Versions Notes

Abstract

:
A set of diseases caused by fungi and oomycetes are responsible for large losses in annual world cocoa production. Managing the impact caused by these diseases is very complex because a common solution has yet to be found for different pathogens. In this context, the systematic knowledge of Theobroma cacao L. pathogens’ molecular characteristics may help researchers understand the possibilities and limitations of cocoa disease management strategies. This work systematically organized and summarized the main findings of omics studies of T. cacao eukaryotic pathogens, focusing on the plant–pathogen interaction and production dynamics. Using the PRISMA protocol and a semiautomated process, we selected papers from the Scopus and Web of Science databases and collected data from the selected papers. From the initial 3169 studies, 149 were selected. The first author’s affiliations were mostly from two countries, Brazil (55%) and the USA (22%). The most frequent genera were Moniliophthora (105 studies), Phytophthora (59 studies) and Ceratocystis (13 studies). The systematic review database includes papers reporting the whole-genome sequence from six cocoa pathogens and evidence of some necrosis-inducing-like proteins, which are common in T. cacao pathogen genomes. This review contributes to the knowledge about T. cacao diseases, providing an integrated discussion of T. cacao pathogens’ molecular characteristics, common mechanisms of pathogenicity and how this knowledge is produced worldwide.

1. Introduction

Theobroma cacao L. (Malvaceae) is an important crop for the economy of many countries, as it is used to produce cocoa powder and cocoa butter, important raw materials for the production of foods and cosmetics [1]. Theobroma cacao is cultivated mainly in countries in South and Central America as well as in Western and Central Africa, and in some countries in Asia. Despite the large number of producers, cocoa production is continuously challenged by a considerable set of diseases that have a significant impact on the global annual yield.
Diseases caused by microorganisms have been responsible for the main losses of Theobroma cacao in different parts of the world over the last decade [2]. Three diseases have received special attention in the scientific literature: witches’ broom disease (WBD) and frosty pod rot (FPR), caused by the basidiomycete fungi Moniliophthora perniciosa and Moniliophthora roreri, respectively, as well as black pod rot (BPR) caused by Phytophthora spp. oomycetes [3,4].
Witches’ broom disease and frosty pod rot (FPR) occur in South and Central America, currently affecting almost all cocoa producers in this region [5]. Black pod root (BPR) occurs in all regions of the world and is caused by different species of Phytophthora spp. Phytophthora palmivora is distributed globally, but it does not cause the most aggressive forms of BPR. In contrast, Phytophthora megakarya only occurs in some countries in West Africa, but it causes the most aggressive losses to trees and yield [6]. In South America, Phytophthora capcisi is widespread [7], and Phytophthora theobromicola and P. palmivora are present in Brazil.
Two other fungi have attracted interest to the scientific community: the basidiomycete Ceratobasidium theobromae, which causes vascular-streak dieback (VSD) and currently causes the second-largest yield losses in Southeast Asia, and the ascomycete Ceratocystis cacaofunesta, the cause of Ceratocystis wilt disease (CWD), which can kill the host 10–30 days after infection [2].
The scientific community and cocoa farmers have been using different strategies to control T. cacao diseases, such as crop management [8], chemical and biological control [9], and the development of resistant cultivars in breeding programs [10].
An important issue is that sometimes a clone resistant to one disease is susceptible to another. For example, the CCN 51 genotype, while being resistant to witches’ broom disease, is susceptible to Ceratocystis wilt disease [11]. Therefore, some researchers have tried to develop genotypes that are simultaneously resistant to more than one disease [12].
In recent decades, some important data about T. cacao pathogens’ genomes and molecular aspects of interaction with the host during infection have been produced. The complete genomes of some pathogens, such as M. perniciosa [13,14], M. roreri [14,15], Phytophthora spp. [16,17] and C. cacaofunesta [18] have already been sequenced and are publicly available. Moreover, pathogen effectors with important roles in the plant–pathogen interaction are known, such as necrosis and ethylene-inducing proteins (NEPs) from fungi of the genus Moniliophthora [19], oomycetes of the genus Phytophthora [20], and cerato-platanin proteins (CPs) from the species M. perniciosa [21], M. roreri [15] and C. cacaofunesta [18]. In silico studies have predicted potential effectors for Moniliophthora spp. [14] and C. cacaofunesta [18] that can be targeted in future research to better understand the molecular aspects of plant–pathogen interactions.
Recent reviews about T. cacao diseases describe important aspects of symptomatology, pathogen taxonomy, management strategies and molecular aspects of plant–pathogen interaction. For WBD, Santos et al. [22] presented the evolution of different proteins of M. perniciosa in the three phases of infection: the initial secretion of effector proteins to penetrate plant tissues and CPs to overcome the initial plant immune response in the asymptomatic phase; NEPs and proteins associated with catabolic processes such as amylases, pectinases and cellulases in the green broom phase; and the presence of pectin methyl esterase and methanol oxidase proteins in the necrotrophic phase.
In another review, Jiménez et al. [23] reported important genetic aspects of the M. roreri population structure, evidencing the presence of more diverse genetic groups in Colombia and other less diverse groups that are more widespread as a consensus of molecular markers studies. This study also presents modulations of fungal gene expression, with a high expression in genes related to cell wall restructuring and the glyoxylate cycle, suggesting that the pathogen perceives and responds to the shortage of nutrients in the late infection period.
For the species of the genera Phytophthora which causes cocoa black pod rot, Marelli et al. [24] identified a larger number of genes in P. megakarya and P. palmivora genomes in comparison to other Phytophthora species, which is possibly due to whole-genome duplication events. In the genome of these pathogens, the presence of proteins commonly involved in plant–pathogen interactions, such as pectinases, proteases, elicitins, Crinklers, necrosis-inducing proteins (NLPs) and RXLRs, was observed.
To face the problem of multiple diseases occurring in the same region, it is important to understand potential solutions and limitations considering two or more pathogens simultaneously. Thus, understanding the similarities and specificities of pathogens is essential to propose and evaluate new solutions. In this context, this work aims to summarize the state of the art of molecular studies in eukaryotic cocoa pathogenic microorganisms and what is known about their mechanisms of pathogenicity. To achieve this, we systematically reviewed the available molecular literature about T. cacao fungi and oomycete pathogens, especially studies related to plant–pathogen interactions.

2. Materials and Methods

This work followed the PRISMA guidelines for reporting systematic reviews [25]. This systematic review included the steps of planning, execution, and data summarization, which were followed by a bioinformatic analysis of the collected data. During the first three steps, we used the StArt software (State of the Art through Systematic Review), Beta version 3.0.3 [26] and R software, version 4.0.3 [27], along with some specific packages mentioned further in this section, to organize the work and provide automation to repetitive tasks.

2.1. Planning

The planning started with defining the subject and its main aspects, such as the objective, research questions, paper databases, research string, and data summarization strategy. The planning step was discussed with the research group and reviewed to minimize bias of the protocol. The research questions that guided this review are presented in Table 1.
Terms associated with the research subject were chosen to gather the initial review records. Metadata were collected from primary study papers that contained the terms “cocoa” or “cacao” and “pathogen(s)” or “disease(s)” in the title, abstract or keywords. We limited the study period from 2000 to June 2022 and obtained the works from the Scopus and Web of Science databases. The search strings used in the advanced search in each database are shown in Table 2.
The complete protocol defined in the planning step can be found in Supplementary Materials Table S1.

2.2. Execution

Metadata from the studies were collected in June 2022 using advanced search tools in the Scopus and Web of Science, and were downloaded as raw text files in the Bibtex format. Given the large number of initial records obtained from the databases, a semiautomated process based on text mining was used during the screening step. In this process, papers were clustered based on similarities in their abstract content. Papers belonging to clusters not related to the subject of this work were removed from the initial records. The semiautomated record selection consisted of the following steps:
  • The structure of topics present in the records was modeled using latent Dirichlet allocation [28] with the R package textmineR, version 3.0.5 [29]. The number of topics was estimated using the R package ldatuning, version 1.0.2 [30].
  • Records were clustered based on their relation to the topic structure using affinity propagation [31] with the R package APCluster, version 1.14.10 [32]. The number of clusters was estimated with the R package NbClust, version 3.0.1 [33], which provides the most frequent best solution among a set of estimates proposed by different criteria.
  • Word clouds were generated using the R package wordcloud, version 2.6 [34] based on the paper abstracts of each cluster. This allowed for identification and exclusion of clusters not related to the subject of this review. Before excluding a cluster, some papers were randomly selected, and their titles and abstracts were read first.
  • Papers in the selected clusters were subjected to conventional screening using the StArt software.
  • After the semiautomated screening, the titles and abstracts were read, and the remaining papers obtained from the databases were read fully to select those for the next step of analysis.

2.3. Summarization

As defined in the review protocol, a dataset was collected from each selected paper. This set consisted of the title, document object identifier (doi), year of publication, genus and species studied, type of molecular analysis, genomic sequences investigated, genes related to pathogenicity or differentially expressed, and proteins differentially accumulated during the plant–pathogen interaction.
A MySQL relational database was constructed to organize the collected data, and the R package RMariaDB, version 1.2.2 [35] was used to connect R with the MySQL database. Graphics were generated using the package ggplot2, version 3.4.0 [36].
In addition to the graphics produced from the summarization of the collected data, metadata from the scientific databases were employed with the R package bibliometrix, version 4.0.1 [37] to generate a co-citation network by coupling the main references. The resulting graph was edited using the Vosviewer software, version 1.6.18 [38].
After this initial data summarization, the genes and proteins linked to the diseases were subjected to bioinformatic analysis.

2.4. Bioinformatic Analysis

The amino acid sequences of proteins associated with the diseases were obtained from the NCBI protein database [39] using the identifier provided in the corresponding papers. For genes, the corresponding protein sequences were also obtained from the NCBI database using a translated BLAST search (blastx) [40] to find proteins with high similarity ( e − v a l u e < e − 10 ). A BLAST search was also performed to retrieve protein sequences from other species included in this systematic review.
Clusters of orthologous proteins among the studied genera and species were identified by submitting the protein sequences found to the web version of the Orthovenn2 software [41], which was also used to identify common motifs in the amino acid sequences from different species belonging to the same cluster.
Selected clusters of proteins associated with pathogenicity, shared among pathogenic species, were submitted to Multiple Expectation Maximization for Motif Elicitation using the MEME suite [42,43] to detect shared motifs.

3. Results

3.1. Bibliometric Analysis

A total of 3617 records were obtained in the initial search, with 1975 records from the Scopus database and 1642 from Web of Science. After removing 1035 records detected as duplicates by the bibliometrix package, the remaining 2852 records were submitted to topic modeling, and subsequently to cluster analysis.
The ldatuning package enabled the estimation of 14 topics as the local optimal number of topics, and we used this number as a parameter for topic modeling. Then, by using the topic modeling result as an input, NbClust also estimated 14 clusters as the local optimal number of clusters, for a total set of 2852 records. After selecting records based on cluster analysis, four clusters containing a total of 841 records were formed comprising studies related to the review subject, and the remaining records were excluded. The excluded clusters were mainly related to human health, benefits of cocoa consumption, agroforestry systems, and other topics not related to the molecular studies of T. cacao pathogens. The cluster analysis word clouds for all included and excluded records are in Supplementary Materials Figure S1.
Afterward, the titles and abstracts of the 841 selected records were read, and 229 papers were selected for full reading. Finally, the full reading led to the detection of 13 duplicates, and another 67 papers were excluded because of the absence of molecular studies with T. cacao pathogens. The remaining 149 papers formed this systematic review’s database (SRDB) (Figure 1a). In Figure 1b, the initial records had a high frequency of words such as “chocolate”, “food” and “dietary”, all of which were not related to this review subject. The word cloud generated with the records after the semiautomated selection supported by data mining (Figure 1c) no longer contained those words, showing the efficacy of the semi-automated selection. Similarly, the word cloud generated with the abstract of the final selected papers presented a high frequency of words such as “perniciosa”, “moniliophthora”, “fungus”, “phytophthora”, “isolates” and others, demonstrating the efficacy of the screening process (Figure 1d).

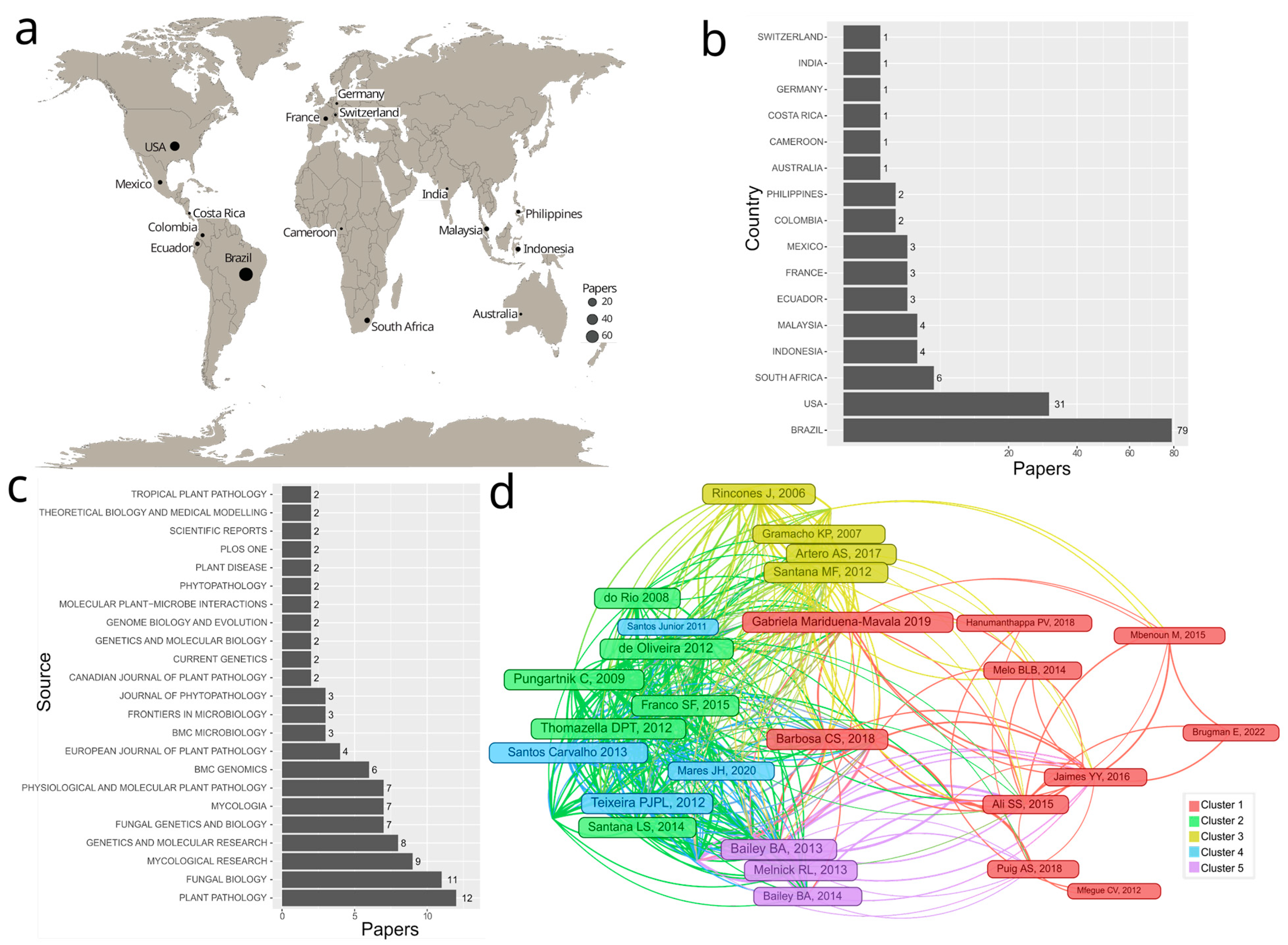

The SRDB contained studies conducted by authors from different parts of the world with Eastern Europe being the exception; however, they were mostly authored by researchers from the Americas, and mainly South and Central America (Figure 2a). Almost 80% of the SRDB studies had lead authors from Brazil (55%) and the USA (22%) out of a total of 16 countries (Figure 2b).
The selected studies were predominantly published in journals related to phytopathology and fungal genetics, as expected. Out of 71 journals, approximately 50% of the papers included in this review were published by nine journals: Plant Pathology, Fungal Biology, Mycological Research (currently Fungal Biology), Genetics and Molecular Research, Fungal Genetics and Biology, Mycologia, Physiological and Molecular Plant Pathology, BMC Genomics, and European Journal of Plant Pathology.
The most cited papers in the SRDB formed five clusters of co-citations (Figure 2d): cluster 1 contained papers discussing, among other results, the population structure or subpopulation of M. perniciosa and M. roreri pathogens [14,44,45,46] and Phytophthora spp. [47,48]; cluster 2 contained papers discussing M. perniciosa effector proteins [49,50,51]; cluster 3 contained papers based on molecular markers discussing M. perniciosa genetic diversity, which is similar to cluster 1 [52,53,54]; cluster 4 contained studies characterizing and evaluating M. perniciosa proteins interacting with T. cacao [55,56,57]; and cluster 5 contained molecular responses of M. roreri during its interaction with T. cacao [58,59].

3.2. Characterization of Studies

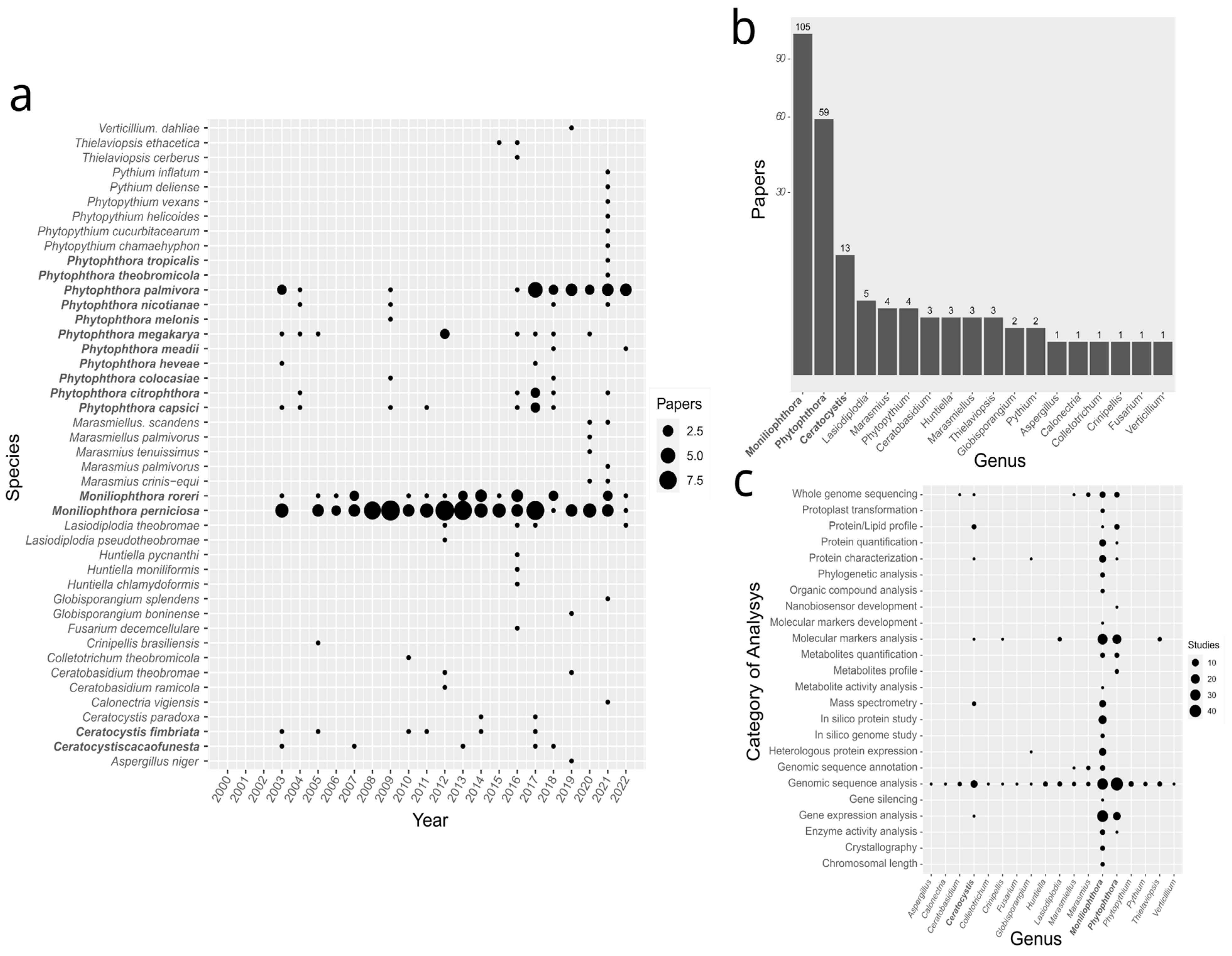

The SRDB contained analyses of 44 species distributed across 18 genera. Some species were not exact T. cacao pathogens, but were species that received new classifications during or near the time interval of the systematic review. For example, in some papers, samples of C. cacaofunesta were analyzed together with C. fimbriata, which were collected from different host species. All studies found in the scientific databases were published from 2003 to 2022, although the advanced search was set up to retrieve papers published from the first day of 2000. Papers were concentrated in a set of species, and the yearly distribution indicated an increase from 2017 to 2022 (Figure 3a).
The studies were mostly concentrated on three genera: Moniliophthora (105 studies), Phytophthora (59 studies) and Ceratocystis (13 studies). Within the genera Moniliophthora and Phytophthora, the most frequent species were M. perniciosa and P. palmivora, respectively (Figure 3b). It is important to note that the total number of studies represented in any graphic in Figure 3 exceeds the number of papers in the SRDB (149), since some individual papers contain studies of more than one species.
The studies were categorized into 78 techniques according to the type of molecular analysis and/or nature of the results, and those 78 techniques were clustered into 24 categories (Figure 3c). Some techniques were more frequent in the selected studies, such as genomic sequence analysis, molecular marker development and whole-genome sequencing. As expected, the distribution of techniques by genus followed the distribution of studies, concentrating the major number of techniques in the most frequent genera: Moniliophthora, Phytophthora and Ceratocystis, in this order.
The genomic sequence analysis category included studies containing nucleotide sequence analysis for genes from one or more species. This category included studies such as phylogenetic and population structure studies, and specific gene and gene family analysis. Some important studies proposing new species classification were found in this category: (i) the classification of the causal agents of WBD and FPR in a new lineage of Marasmiceae [60]; (ii) the classification of C. cacaofunesta as a new species in the C. fimbriata complex, which has T. cacao as a specific host [61]; and (iii) the identification of a new species, Phytophthora theobromicola, causing BPR in the Brazilian state of Bahia [62].
The molecular marker analysis category was formed by papers that developed or used existing molecular markers to investigate pathogen genomes. Molecular markers for population studies were developed for M. perniciosa [53,63,64], M. roreri [46,65] and Phytophthora spp. [46,66,67,68].
Some works in the SRDB presented gene expression profiles for pathogens in vitro or those involved in the plant–pathogen interaction. Considering the systematic review protocol, studies only analyzing the host expression were not considered. The SRDB contained studies of gene expression pathogens of the species M. perniciosa, M. roreri, P. palmivora and P. megakarya.
The differential gene expression between M. perniciosa biotrophic-like and saprotrophic mycelia was first elucidated by Rincones et al. [69] by employing an in vitro culture of isolates from infected T. cacao trees. The main results of this study were the identification of the pathogenicity-related genes associated with cell wall degradation as a possible response to carbon, and the description of nitrogen restriction during the biotrophic phase. On the other hand, saprotrophic mycelia genes related to carbon metabolism were overexpressed. Saprotrophic mycelia also overexpressed genes related to antifungal toxins that could prevent the colonization by competing fungi. In another study, Franco et al. [70] identified the presence of Thaumatin-like proteins, a type of pathogenicity-related protein with antifungal effects, in the M. perniciosa genome. They observed its expression via in vivo experiments with T. cacao.
Another study including the gene expression of M. perniciosa identified a family of cerato-platanin (CP) genes that are expressed at different moments during the plant–pathogen interaction. CP proteins usually act as phytotoxins, elicitors and allergens [21].
In samples of M. roreri collected from highly susceptible (Pound-7 and CATIE-1000) and tolerant (UF-273, CATIE-R7 and CATIE-R4) clone pods, Bailey et al. [71] demonstrated the earlier expression of genes associated with stress metabolism, responses to heat shock and anoxia in the tolerant clone samples. Genes encoding alternative oxidase proteins and transporter-like genes were among the overexpressed genes in tolerant clone pods, possibly associated with the fungus’s ability to overcome plant resistance. In another experiment, Bailey et al. [72] evaluated the in vitro gene expression of M. roreri in the biotrophic phase but obtained results that conflicted with those of in vivo experiments.
Masanto et al. [73] evaluated the relative expression of eight genes associated with pathogenicity from P. palmivora isolates obtained from T. cacao plants in Nicotiana benthamiana. Only four genes were expressed in the in planta test experiment for 24 h, 48 h, 72 h and 96 h. The isolates showed three different levels of severity through in vitro tests with apples, but the mild and severe isolates had similar gene expression profiles, under-expressing the four genes (CNR1, Pec1, Pec3 and RXLR5) in 48 h, while the moderately severe isolate had the opposite behavior.
In another study, Puig et al. [6] evaluated the metabolism and gene expression of P. palmivora and P. megakarya isolates under high- and low-temperature stress. P. palmivora showed more tolerance, which was explained by its persistence in some areas with high-temperature periods, even when plants were also affected by P. megakarya. The metabolite analyses showed a higher metabolite concentration in P. palmivora than in P. megakarya under high-temperature stress. The gene expression profile of genes associated with responses to abiotic stress presented slight differences among isolates. Only genes encoding chaperones/heat shock proteins did not have the same profile: some P. megakarya genes were found to be exclusively heat-responsive, while P. palmivora genes responded similarly to any type of temperature stress.
Seven papers presented the whole-genome sequencing (WGS) of the T. cacao pathogens discussed in this review. The SRDB included WGS and assembly studies for the following species: C. cacaofunesta (1); C. theobromae (1); M. perniciosa (2); M. roreri (2); P. palmivora (2); and P. megakarya (2) (Table 3).
Genome size varies according to genera and species. Ceratocystis cacaofunesta and C. theobromae have the lowest genome sizes at 30.5 Mb and 31.2 Mb, respectively. P. megakarya has the biggest genome size (~222 Mb), followed by P. palmivora (~135 Mb), while the genome size of Moniliophthora spp. is close to 50 Mb, with there being an exception for the first assembly published by Mondego et al. [13] (26.7 Mb). However, this same work estimated a genome size ranging from 38.7 to 39.0 Mb. The number of predicted genes for each assembly was mostly proportional to the genome size. C. cacaofunesta had the smallest number of predicted genes (7382) and P. megakarya, the biggest (~57.5 thousand).
Some studies have predicted potentially secreted proteins and/or effector-coding genes for each genome annotation. For M. perniciosa, Barbosa et al. [14] predicted 157 effector candidates in the isolate Mp 4145, and more than 100 in the other two isolates from susceptible T. cacao. They also predicted 243 effector candidates from the M. roreri isolate. Meinhardt et al. [15] identified 1535 secreted protein-coding genes and observed that 1355 among them were expressed in infected cacao pods. Ali et al. [74] identified 138 putative effectors in the C. theobromae genome. Ali et al. [16] identified 3757 (1779 transcribed) and 3865 (2633 transcribed) putative, secreted protein-coding genes in the P. megakarya and P. palmivora genomes, respectively. They also found some of these genes transcribed in RNA samples from infected T. cacao plants.

3.3. Genes and Proteins Associated with Pathogenicity

In the SRDB, nine papers conducted proteomic studies on proteins associated with pathogenicity or that were differentially accumulated during the plant–pathogen interaction. Almost all (seven) studies analyzed M. perniciosa proteins, while one studied Ganoderma boninense proteins and another studied C. cacaofunesta proteins. However, 17 other studies using molecular markers, gene expression or other nucleotide sequence analysis discussed genes potentially associated with pathogenicity in other species: M. perniciosa, M. roreri, P. megakarya and P. palmivora.
Among the M. perniciosa protein studies [75], an important work analyzed the fungal proteome from necrotrophic mycelia to basidiocarp development. Some proteins potentially associated with virulence have been found in the primordium (mycelium) and basidiocarp stages, such as aldo-keto reductases, which are associated with virulence and mushroom formation, linoleate diol synthase, leukotriene-A4 hydrolase and 3-ketoacyl-coA-thiolase, and other proteins belonging to biosynthesis pathways of lipids related to immune response and virulence in pathogenic fungi.
In another study, Silva et al. [76] discussed the proteomic response of M. perniciosa when exposed to a pathogenesis-related protein TcPR-10 recombinant from a gene isolated from T. cacao. Many proteins highly expressed are related to the stress response, such as heat shock proteins and chaperones, and some proteins are associated with defense mechanisms against cytotoxic compounds, such as oxidoreductases and proteins associated with autophagy.
The NLP-like effector of plant necrosis 2 (NEP2), a protein that induces necrosis in the host tissue, plays an important role in M. perniciosa infection. Garcia et al. [19] identified NEP1 and NEP2 and demonstrated their ability to induce necrosis by inoculating recombinant NEPs in Nicotiana tabacum leaves. The crystal structure of MpNep2 was determined by Zaparoli et al. [77], who also showed that MpNep2 is overexpressed in the stage of advanced necrosis in T. cacao tissues.
Other important proteins related to M. perniciosa pathogenicity are discussed in other papers in the SRDB. For example, PR-1 proteins were found to neutralize plant defenses and avoid competing fungi in [57]; the crystal structure of MpPR1i was determined by Baroni et al. [78]; and cerato-platanin (CP)-like proteins, another necrosis-inducing protein also found in ascomycetes, were identified by Zaparoli et al. [79].
Genome and secretome analysis of M. roreri also revealed the presence and expression of NEPS, PR-like proteins and cerato-platanin proteins [15]. In the same study, Meinhardt et al. [15] found evidence that high expression levels of chitin synthases could help fungi to overcame host defenses.
Teh et al. [80] provided a functional analysis and characterization of G. boninense NEPs. The soluble recombinant GbNEP expressed in Escherichia coli BL21(DE3)pLysS was able to induce necrosis in two model plants, Solanum lycopersicum (tomato) and Nicotiana tabaccum (tobacco). However, it was ineffective when applied to oil palm (Elaeis guineensis) leaves and root tissues.
Molano et al. [18] identified some proteins potentially associated with pathogenicity secreted by C. cacaofunesta in culture media supplemented with T. cacao xylem extracts. This set of proteins contains: 25 glycoside hydrolase (GH) proteins associated with cell wall degradation; 2 NEP2 precursors and 1 cerato-platanin protein that are phytotoxic; and 54 phosphatidylinositol (PI)-specific phospholipase Cs (PI-PLCs) among other potential effectors.
NEP-like proteins also play an important role in Phytophthora spp. infection. Bae et al. [20] identified multiple copies of the NEP1 protein in the P. palmivora genome. From nine copies, six had confirmed expression in the mycelium and one in P. megakarya zoospore-infected T. cacao leaf tissue. Necrosis-induced proteins are also found in P. palmivora genome sequences.
For all genes and proteins presented in the paper as associated with pathogenicity, available amino acid sequences were retrieved from the blastp or blastx search (for nucleotide sequences). A total of 240 retrieved sequences were submitted to Orthovenn2 orthologous cluster analysis.

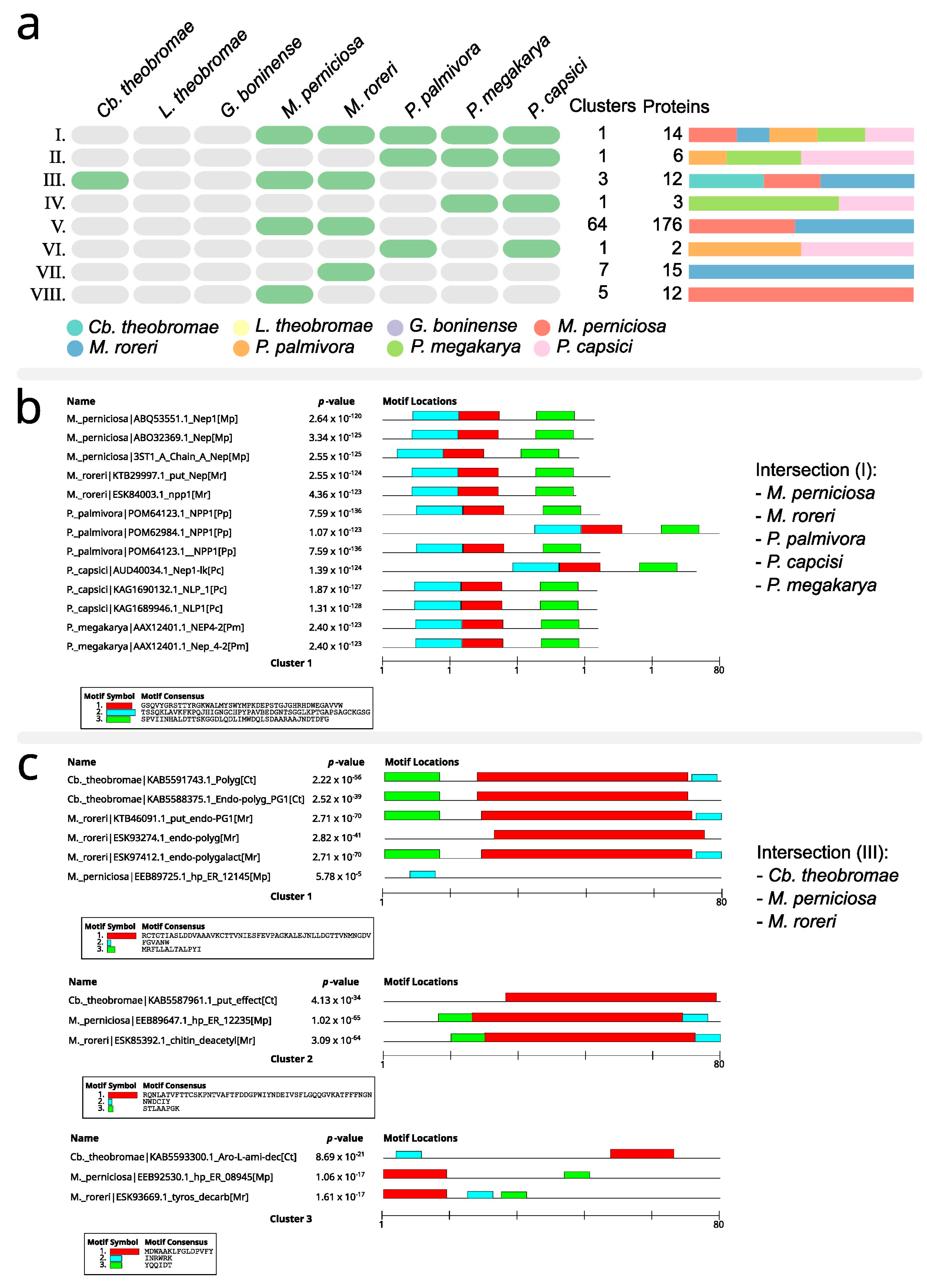

Orthovenn2 revealed 83 clusters of possible orthologous proteins among the 240 sequences for different species. Some clusters shown in Figure 4a are formed exclusively by sequences described from pathogens of only one species. These are the clusters in line VII (M. perniciosa) and line VIII (M. roreri) (Figure 4a). Other clusters are formed by sequences described in pathogens from species belonging to the same genus. These are the clusters in line II (P. palmivora, P. megakarya and P. capsici), line IV (P. megakarya and P. capsici) and line V (M. perniciosa and M. roreri). Two set of clusters include sequences from pathogens belonging to different genera: line I (M. perniciosa, M. roreri, P. palmivora, P. megakarya and P. capsici) and line II (Ceratobasidium theobromae, M. perniciosa and M. roreri). These last two sets of clusters were submitted to MEME analysis for a better description.
Line I (Moniliophthora spp. and Phytophthora spp.) consisted of a cluster of 14 proteins (Figure 4b). The MEME analysis identified three motifs shared among these proteins.
In line II (Moniliophthora spp. and C. theobromae), there were three clusters with a total of 12 proteins (Figure 4c). Cluster 1 comprised six proteins with predicted molecular function in cell wall organization, cluster 2 comprised three proteins with predicted molecular function in the carbohydrate metabolic process, and cluster 3 comprised proteins with molecular function predicted in serotonin biosynthetic process from tryptophan.

4. Discussion

4.1. Identification of Studies and Pathogens

The focus of this systematic review is on the molecular characteristics of T. cacao pathogens and diseases. However, given the widespread interest in chocolate, which is the main product produced from the raw material of T. cacao pods, it is expected that papers related to the commercial, nutritional and industrial aspects of chocolate will also appear in a scientific database search about T. cacao. As a result, the initial database retrieval for this systematic review yielded over 3500 papers. Given this large number of papers, it is useful to have a good strategy for the initial selection of papers.
Recent studies have proposed semiautomated steps carried out by machine learning to assist researchers in their initial search on scientific databases, which face a continuous increase in the amount of data [81,82]. Using a semiautomated strategy saved us time and effort by grouping papers by topics and providing an efficient way to remove papers not related to the systematic review subject. After the initial steps of semiautomated study selection, the total number of papers for title and abstract reading was reduced from 3617 to 817, from which 149 studies were selected for inclusion in the systematic review database (SRDB).
More than half of the papers included in the systematic review have the first author affiliated with a Brazilian institution. This result is consistent with a recent systematic review on the molecular biology of the interaction between cocoa and witches’ broom disease, which showed that Brazilian institutions were responsible for more than 70% of the research on this topic [22].
Cocoa is an important crop for the Brazilian economy, and the country has produced more than 250 thousand tons of cocoa beans in recent years [83]. However, Brazil was the second-largest cocoa producer in the world until the witches’ broom disease spread in the 90s [84]. Since then, much research has been conducted in Brazil, in collaboration with many institutions around the world, on witches’ broom disease and the pathogen M. perniciosa [22]. The second largest number of publications in the SRDB are from authors affiliated with American institutions. The global spread of publications does not necessarily reflect the global production of T. cacao nor the commercial interesting in the production of cocoa derivates. Despite the interest in the crop, disparities in global scientific production can concentrate a large number of publications in a small number of countries [85]. The United States and Brazil occupied the 1st and 14th positions, respectively, in the SCImago country rankings of publications in 2022 [86], with many collaborations between researchers from multiple institutions regarding T. cacao diseases [22]. These two facts together may have contributed to this large number of publications by researchers from Brazilian and American institutions.
In general, the most frequent pathogens analyzed in the SRDB studies have been causing yield losses in cocoa production worldwide in recent years and decades. In the late 1980s, Fulton [3] identified the “trilogy” of diseases caused by fungi and oomycetes in tropical regions, namely, witches’ broom, frost pod rot, and black pod diseases. More recently, the VSD caused by the basidiomycete C. theobromae has caused significant losses in cocoa production in Southeast Asia and has been the focus of research [74]. Ceratocystis wilt disease caused by the ascomycete C. cacaofunesta [2], which can kill infected plants in 10–30 days [87], has recently been studied more frequently as well. Although being beyond the scope of this review, a complex of badnavirus infecting T. cacao trees in the West Africa region, the largest T. cacao producer region in the world, is also of concern [88].
The five clusters formed by the most cited papers in the SRDB are mainly related to population structure and the genetic diversity of pathogens. Some important results of these papers have led to the recent identification of new species such as C. cacaofunesta [61] and Phytophthora theobromicola [62], and the reclassification of M. perniciosa and M. roreri into a new taxon in the Marasmiaceae family [60].
The clear comprehension of pathogen speciation can guide researchers to understand specific characteristics of T. cacao pathogens. The whole-genome sequencing of C. cacaofunesta showed a phosphatidylinositol-specific phospholipase C (PI-PLC) gene family expansion [18], which is uncommon in other closely related species of the C. fimbriata complex. This broad range of PI-PLCs may be related to the pathogens’ ability to overcome susceptible T. cacao genotypes’ initial defense [89].
Similar studies have been conducted to understand the genetic diversity of T. cacao and to identify molecular markers for disease resistance or tolerance to different diseases such as black pod rot [90,91], witches’ broom disease [92,93,94] and frosty pod rot [95]. Understanding the origin and diversity of cocoa pathogens can help in the development of biocontrol solutions based on coevolved antagonist endophytes [96,97].

4.2. Theobroma cacao Pathogens’ Molecular Characterization

Whole-genome sequencing studies were conducted for the most frequent pathogens in this review. Ceratocystis cacaofunesta has the smallest genome that is 30.5 Mb and has a few more than 3000 predicted genes, but the range and proportion of the genome size and predicted genes are compatible with other Ceratocystis species [18]. The genome size and number of genes from M. perniciosa (47.01 Mb and 14.2k genes) and M. roreri (47.1 Mb and 14.2k genes) found by Barbosa et al. [14] are consistent with the expected dimensions for these species and with the M. roreri genome size found by Meinhardt et al. [15] (52 Mb and 17.9k genes). Slight differences occur even in isolates from different subpopulations or due to different genome sequencing technologies [14]. Phytophthora palmivora and P. megakarya have the largest genomes and correspondingly the highest number of genes, but these are also consistent with the genus. Ali et al. [16] found genome sizes of 101 Mb for P. megakarya and 107 Mb for P. palmivora, with ~40k genes. However, Morales et al. [17] found significantly different genome sizes for the same species considering the mean ± SD of the sequenced isolates: 222.04 Mb ± 25.19 (57,577 ± 7904 genes) for P. megakarya and 135.32 Mb ± 17.21 (36,778 ± 4481 genes). In Phytophthora species, events of hybridization and genome duplication are common [98], and Morales et al. [17] found evidence of recent whole-genome duplications in the genome assemblies. The C. theobromae genome has 31.62 Mb (9.2k genes), which is considerably smaller than that of closely related species such as R. solani strains (56.02–36.9 Mb) and Botryobasidium botryosum (45.75 Mb) [74]. Among the genes and proteins associated with pathogenicity, necrosis-inducing proteins were more frequent in the SRDB studies: M. perniciosa [77], M. roreri [19], P. palmivora and P. megakarya [20], and G. boninense [80]. Additionally, a NEP2 precursor was also reported in C. cacaofunesta [18].
The NEP-like proteins from Moniliophthora spp. and Phytophthora spp. formed a cluster in the Orthovenn2 analysis, suggesting that they have a similar function. However, the G. boninense NEP did not establish an orthologous cluster with the analyzed proteins. This result is consistent with previous findings, which showed that MpNEP is more closely related to oomycetes than fungi, possibly because of gene acquisition for the horizontal transfer by oomycetes from a common ancestor of M. perniciosa and M. roreri [99]. Moreover, there is evidence of the horizontal acquisition of two other genes by Moniliophthora, mannitol phosphate dehydrogenase (MPDH) from actinobacteria and metallo-dependent hydrolase (MDH) from firmicutes [99], which enforces the role of lateral acquisition in the evolution of these pathogens.
Horizontal gene transference and hybridization play important roles in phytopathogens’ adaptation to new hosts or their acquisition of new mechanisms of virulence [100,101]. A comparative genome analysis of 31 Phytophthora species identified genes potentially acquired by horizontal transfer from distantly related species, with homologs associated with pathogenicity, virulence and effector genes from the Pathogen–Host Interaction database (PHI-base) [102]. Closely related species can also exchange genetic material by mobile elements or anastomosis [103,104]. Analysis of the mitogenome of Ceratocystis huliohia and Ceratocystis lukuohia, which are sexually incompatible co-occurring pathogens in sapwood, evidenced that the regions originated in C. huliohia and are actively moving to populations of C. lukuohia [105]. Considering the occurrence of many diseases in T. cacao crops in the same region such as WBD, BPR and CWT in South American countries, analyzing the evidence of horizontal gene transfer among T. cacao pathogens or their ancestors should be an issue studied in future research.
In the initial phase of WBD, M. perniciosa secretes many effector proteins [22,69], but only some of them, such as NEP and CP families, have well-understood functions in the current literature. More than 150 putative effectors have been identified in M. perniciosa whole-genome sequencing and annotation from T. cacao isolates. More than 200 putative effectors have been identified from the closely related species M. roreri [14]. Many of those putative effectors should be targeted in future research to provide a better understanding of their function in the pathogenicity of these species in T. cacao. Some genes associated with pathogenicity identified only by gene annotation require confirmations in vitro, in planta, and if possible, in field experiments. There are many possible regulations from genes to proteins, and some species have families of NEPs, including pseudogenes. Moreover, experiments with M. roreri under culture conditions have already shown conflicting results compared to field conditions [72].
Ceratocystis cacaofunesta whole-genome sequencing and annotation [18] also helped predict a considerable number of putative, secreted proteins (342) and confirmed the accumulation of 86 (24%) of them in enriched T. cacao xylem culture media. The expansion of the PI-PLC family in the C. cacaofunesta genome and its possible role in overcoming the plant initial immune response in susceptible T. cacao genotypes has already been discussed in the current literature, but research is lacking on other C. cacaofunesta effectors, their molecular functions and their structural characterization.

5. Conclusions

This work provides a compilation of important studies on the molecular aspects of T. cacao pathogens over the last two decades. The main contribution is an integrated discussion on the recently studied pathogens regarding the knowledge production, distribution and available information about these pathogens.
Research from Brazil and the USA is primarily responsible for most publications about T. cacao pathogens, and M. perniciosa is the species of cocoa pathogens with the most studies, especially those that involved isolates from cocoa. This is true in terms of the diversity of studies and available data. While some M. perniciosa proteins already had been targeted for heterologous expression for characterization, some species have yet to be studied proteomically. Despite the number of works on M. perniciosa and witches’ broom disease, there is not, currently, high-quality genome sequence and assembly data publicly available for M. perniciosa.
In summary, NEP-like protein coding genes are present in almost all T. cacao genomes, and sometimes as gene families, but their effective expression and existence in functional form needs to be confirmed by further experiments. For many T. cacao pathogens, the genome size and number of genes appear to be considerably variable, even among different isolates from the same species. In this context, new research involving genome sequencing, transcriptomics and proteomics under plant–pathogen conditions could provide a better understanding of within- and among-species diversity.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/microorganisms11061567/s1, Figure S1: Word clouds from clusters of papers by topic modeling on abstracts; Table S1: Systematic review protocol.

Author Contributions

Conceptualization and methodology: D.P.S.d.N. and C.P.P.; formal analysis and visualization: D.P.S.d.N., T.M.B. and E.A.C.; writing—original draft preparation: D.P.S.d.N.; writing—review and editing, D.P.S.d.N., C.P.P., T.M.B. and E.A.C.; funding acquisition: C.P.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Coordenação de Aperfeiçoamento de Pessoal de Nível Superior (CAPES), grant number code 001. The APC was funded by Conselho Nacional de Desenvolvimento Científico e Tecnologia (CNPq—Processes 303765/2019-4 and 421787/2021-0).

Data Availability Statement

No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Conflicts of Interest

The authors declare no conflict of interest.
