Ticks and Tick-Borne Pathogens Circulating in Peri-Domestic Areas in Mainland Portugal

by
Leonardo Moerbeck
1,2,*,
Ricardo Parreira
1,2,
Magdalena Szczotko
3,4,
Gonçalo Seixas
1,2,
Rita Velez
5,
Małgorzata Dmitryjuk
4,
Ana Sofia Santos
5,6,
Ana Domingos
1,2 and
Sandra Antunes
1,2,*
1
Instituto de Higiene e Medicina Tropical (IHMT), Universidade NOVA de Lisboa (UNL), Rua da Junqueira 100, 1349-008 Lisboa, Portugal
2
Global Health and Tropical Medicine (GHTM), Associate Laboratory in Translation and Innovation Towards Global Health (LA-REAL), Instituto de Higiene e Medicina Tropical (IHMT), Universidade NOVA de Lisboa (UNL), Rua da Junqueira 100, 1349-008 Lisboa, Portugal
3
Students’ Parasitology “Vermis” Science Club, Department of Medical Biology, Collegium Medicum, School of Public Health, University of Warmia and Mazury in Olsztyn, 10-719 Olsztyn, Poland
4
Department of Biochemistry, Faculty of Biology and Biotechnology, University of Warmia and Mazury in Olsztyn, Oczapowskiego 1A, 10-719 Olsztyn, Poland
5
Centro de Estudos de Vetores e Doenças Infeciosas Dr. Francisco Cambournac, Instituto Nacional de Saúde Doutor Ricardo Jorge (CEVDI-INSA), 2965-575 Águas de Moura, Portugal
6
Instituto de Saúde Ambiental, Faculdade de Medicina, Universidade de Lisboa, 1649-004 Lisboa, Portugal
*
Authors to whom correspondence should be addressed.
Microorganisms 2024, 12(5), 1006; https://doi.org/10.3390/microorganisms12051006
Submission received: 18 April 2024 / Revised: 10 May 2024 / Accepted: 13 May 2024 / Published: 16 May 2024
(This article belongs to the Special Issue The One Health Challenge: Zoonotic Parasites)
Browse Figures
Versions Notes

Abstract

:
Over the years, tick-borne pathogens (TBPs) have garnered significant interest due to their medical, veterinary and economic importance. Additionally, TBPs have drawn attention to how these microorganisms interact with their own vectors, increasing the risk to human and animal infection of emerging and reemerging zoonoses. In this sense, ticks, which are obligate hematophagous ectoparasites, have a key role in maintaining and transmitting TBPs among humans and animals. The aim of this study was to assess the prevalence of neglected TBPs in mainland Portugal, namely Anaplasma spp., Babesia spp., Ehrlichia spp. and Neoehrlichia mikurensis. DNA fragments were detected in questing ticks collected from five different ecological areas under investigation. To the best of the authors’ knowledge, this study reports new worldwide findings, including B. bigemina infecting Ixodes frontalis, Ixodes ricinus and Rhipicephalus sanguineus sensu lato. Additionally, it presents new findings in Portugal of N. mikurensis infecting I. ricinus and of presumably Wolbachia endosymbionts being detected in I. ricinus. Overall, there were 208 tick samples that were negative for all screened TBPs. The results herein obtained raise concerns about the circulation of neglected TBPs in mainland Portugal, especially in anthropophilic ticks, highlighting the importance of adopting a One Health perspective.

1. Introduction

Tick-borne diseases (TBDs) are emerging infections caused by a large spectrum of tick-borne pathogens (TBPs), encompassing bacteria, protozoa and viruses, which have become a global public health concern, especially because some of these pathogens cause zoonoses [1]. As these pathogens depend not only on vertebrate hosts but also on arthropod vectors, the prevalence of TBDs is closely linked to the distribution of the latter [2]. Therefore, the identification of the vector and its abundance, as well as the knowledge regarding associated pathogens, are key to assessing transmission risks and understanding disease transmission dynamics [3]. Ticks are obligate hematophagous ectoparasites that belong to the sub-order Ixodida, which is formed by two major tick families: Ixodidae, or “hard ticks”, comprising ticks with a dorsal scutum or shield, and Argasidae, or “soft ticks”, which lack this dorsal structure [4]. To date, there are approximately 900 described species from both major families, and 22 hard tick species have been reported in Portugal [5].
Since 2011, a nationwide vector surveillance network called REVIVE has been monitoring, among other arthropods, the activity of ticks and the most frequent TBP, namely Rickettsia spp. and Borrelia spp., widely describing infecting ticks in Portugal (https://www.insa.min-saude.pt/category/areas-de-atuacao/doencas-infeciosas/revive-rede-de-vigilancia-de-vetores/, accessed on 8 April 2024). However, other TBPs that have an impact on human and animal health, such as Anaplasma phagocytophilum, Ehrlichia spp., Neoehrlichia mikurensis, Babesia spp. and Coxiella burnetii, are not monitored by this surveillance network.
The agent of human granulocytic anaplasmosis (HGA), A. phagocytophilum, is a widely distributed zoonotic bacterium that is transmitted by different tick species [6,7]. In Portugal, I. ricinus has been identified as its vector, and it has also been reported to infect Ixodes ventalloi [5]. This agent causes a febrile syndrome characterized by a headache, anorexia, malaise and myalgias. Although HGA is usually regarded as a self-limited disease, it may become a severe illness and progress to human deaths, especially in individuals with comorbid conditions [8]. In addition, occasional infections in humans with Anaplasma platys, typically linked with dogs and Rhipicephalus sanguineus sensu lato, were recently reported in the USA [9].
The etiological agent of human monocytic ehrlichiosis (HME), Ehrlichia chaffeensis, causes an infection with a severe flu-like febrile syndrome, frequently showing signs similar to those of hepatitis, in patients within the USA [10]. In 1991, Portugal had its first and thus far only reported case of HME based on serological evidence [11]. Besides humans, dogs are also affected by E. chaffeensis and other Ehrlichia species. In 1992, the agent of canine granulocytic ehrlichiosis (CGE), E. ewingii, was first described, causing a new canine disease [12]. Seven years later, in the USA, it was reported to cause fevers, headaches and thrombocytopenia with or without leukopenia in four human patients [13], and it is presently the second cause of ehrlichiosis in this country [14]. E. canis, traditionally associated with a moderate-to-severe disease in dogs, has also been implicated in rare cases of human infection [15]. In addition, new human pathogens continue to arise from this taxon, such as Ehrlichia muris eauclarensis and Ehrlichia ruminatum, closely related to Panola Mountain Ehrlichia [16,17]. In the USA, these bacteria are mainly transmitted by ticks such as Amblyomma americanum (E. chaffeensis, E. ewingii and Panola Mountain Ehrlichia), R. sanguineus s. l. (E. canis) and Ixodes scapularis (E. muris) [16,17].
The bacterium Neoehrlichia mikurensis was first described infecting Ixodes ovatus and Rattus norvegicus in Japan [18]. Later, in 2009, it became a recognized zoonotic pathogen, when a 77-year-old patient was diagnosed presenting febrile episodes, an erysipela-like rash and thromboembolic complications [19]. Most recently, in 2019, this TBP was successfully cultivated and isolated [20]. The main vector of N. mikurensis in Europe is I. ricinus [21], and in Portugal, a Neoehrlichia mikurensis-like organism was found infecting I. ventalloi [22].
Human babesiosis is caused by intraerythrocytic protozoan parasites of the genus Babesia. Most reported cases of human babesiosis in Europe are caused by Babesia divergens, with fewer cases attributed to Babesia microti and Babesia venatorum [23]. Infections caused by B. divergens are characterized by septic fevers, severe anemia, hemoglobinuria and jaundice due to widespread hemolysis [23]. When comparing zoonotic infections among Babesia spp., those caused by B. microti and B. venatorum seem to be less aggressive. In addition, the primary vector of these Babesia spp. in Europe is I. ricinus [23].
Coxiella burnetii is the etiological agent of Q fever. This zoonotic bacterium is an obligate intracellular, Gram-negative, γ-proteobacteria, with a worldwide distribution [24]. First reported in Portugal in 1948 [24], the prevalence of anti-C. burnetii antibodies and the circulation of different genotypes of C. burnetii in domestic ruminants and wild animals have been investigated by several studies [25,26,27]. Furthermore, ticks were also found to be infected, showing that Ixodidae may play a role in the maintenance or in the transmission of this bacterium [22].
The epidemiology of TBPs and the distribution of ticks are intertwined, directly influenced by several factors, such as anthropophilic behavior, demographics, climate changes and wildlife population. Many TBPs are maintained in sylvatic cycles [28], and wild animals may act as reservoirs, amplifiers or even sentinel hosts for human infections [29]. The spill-over of these cycles into peri-domestic areas and the potential exposure of domestic animals and humans are particularly important. In this context, ticks with more permissive feeding behavior, such as I. ricinus, play a key role [3]. In fact, I. ricinus is not only one of the most significant tick species with vector competence and with the potential to act as reservoirs for TBPs in Europe [30], but it is also one of the primary species encountered on humans in Portugal [31]. Bearing that in mind, the objective of this study was to screen TBPs in peri-domestic and recreational areas at the interface between wild and domestic animals and humans, where I. ricinus occurs. A convenience sampling approach ensured that other tick species collected in these areas were also considered. The study was focused on TBPs that were still not actively surveilled in Portugal, such as Anaplasma spp., Ehrlichia spp., Babesia spp., N. mikurensis and C. burnetti, despite their potential relevance to both human and animal health.

2. Materials and Methods

Study site and collection of ticks—Between February 2019 and May 2021, questing ticks were collected in mainland Portugal, comprising five different ecological areas with a known background of I. ricinus circulation. Tick collection occurred in different months at different locations. The first was Grândola (38°06′19.6″ N 8°33′59.7″ W) in February 2019, an area populated by cork oak and holm oak constituting a Montado habitat, which is a heterogeneous habitat created by man by adaptation of the Mediterranean forest [32]. Located in southern Portugal, it presents a Mediterranean climate characterized by hot, dry summers and mild, wet winters. The second was Mata Nacional do Choupal (40.2223° N, 8.4439° W) in June 2019. Located in central-northern Portugal near Coimbra city, it also presents a Mediterranean climate characterized by a mixed woodland of mostly deciduous broadleaf trees [33]. The third was Parque Nacional da Peneda-Gerês (41.7282° N, 8.1626° W) in December 2019. The park is in the north of Portugal and falls within a transitional zone between the Atlantic and Mediterranean environments, characterized by cold and rainy winters and warm summers. The area supports a diversity of habitats, including agricultural, shrublands and oak forest patches [34]. The fourth was Mata do Bussaco (40.3771° N, 8.3669° W) in June 2019. This forest is in central Portugal. With a climate that is predominantly Mediterranean but that presents some Atlantic influence, it constitutes an old-growth mixed woodland [35]. Finally, Tapada Nacional de Mafra (38.9646° N, 9.3027° W) was visited in December 2019 and May 2021 (Figure 1). This last site is located in the district of Lisbon on the west coast of Portugal. A Mediterranean climate characterizes this area. It encompasses various habitats, including woodlands, meadows, wetlands and streams, which support diverse flora and fauna [36]. All ecological areas were visited once, whereas at Tapada Nacional de Mafra, two collection efforts were made. All areas were screened on behalf of project PTDC/SAU-PAR/28947/2017. Ticks were collected by flagging and dragging vegetation. Up to 20 tick specimens were placed in a single 15.0 mL tube with some green vegetation to avoid tick dehydration, and they were kept refrigerated until laboratory arrival and processing. Ticks were taxonomically classified to the species level based on morphological characteristics according to previously published taxonomic keys and descriptions related to hard ticks in Europe and North Africa [37] using a Motic SMZ171 stereomicroscope (Kowloon, Hong Kong, China).
Nucleic acid isolation—After identification, specimens were rinsed in sterile phosphate-buffered saline solution (PBS) with a pH of 7.0 and were separated according to species, development stage, sex, date and place of collection. Subsequently, ticks were either processed individually when at the adult stage (female or male) or in pools of, at most, five nymphs in a sterile 1.5 mL tube. Ticks were frozen in liquid nitrogen and crushed with sterile mortars and pestles. Both DNA and RNA were extracted using TRIzolTM Reagent (ThermoFisher Scientific, Carlsbad, CA, USA), according to the manufacturer’s protocol for the isolation of nucleic acids from tissues. Both nucleic acids were resuspended in nuclease-free water. The concentration of each sample was fluorometrically evaluated using a Qubit4 fluorometer (ThermoFisher Scientific, Carlsbad, CA, USA). To assess the absence of PCR inhibitors, 20% of all samples were randomly selected for amplification of the tick 18S rDNA gene fragment [38].
PCR screening of TBP—Conventional PCR assays used 5.0 μL of DNA samples with Piro-A (forward) and Piro-B (reverse) primers to amplify a 408 bp fragment of the small subunit of the 18S rDNA gene of the Order Piroplasmida, including Babesia spp. and Theileria spp. [39]. For Anaplasma spp. and Ehrlichia spp. detection, EHR16SD (forward) and EHR16SR (reverse) primers were used to amplify a 345 bp fragment of the 16S rRNA gene of bacteria belonging to the family Anaplasmataceae [40]. PCR assays were performed in 25.0 μL reactions with Supreme NZYTaq 2× Green Master Mix (NZYTech, Lisbon, Portugal) and 1.0 μM of each primer in a T100 thermal cycler (Bio-Rad, Hercules, CA, USA). To detect C. burnetti DNA, TaqMan real-time qPCR was performed using Cox-F (forward), Cox-R (reverse) primers and a probe (Cox-TM) to amplify a 295bp fragment of the repetitive insertion element IS1111a [41]. Reactions of 10.0 µL were performed in triplicate using NZYSupreme qPCR Probe Master Mix in a CFX Connect Real-Time PCR Detection System (Bio-Rad, Hercules, CA, USA). To detect N. mikurensis, total extracted RNA was used for cDNA synthesis using the iScript cDNA Synthesis Kit (Bio-Rad, Hercules, CA, USA) according to the user´s guide protocol. qPCR was performed using NEO_16S_F (forward) and NEO_16S_R (reverse) primers to amplify a 107 bp fragment of the 16S rRNA gene [42]. All qPCR reactions to detect N. mikurensis were prepared in 10.0 µL triplicates on a 96-well plate using iTaq Universal SYBR Green Supermix (Bio-Rad, Hercules, CA, USA) in a CFX Connect Real-Time PCR Detection System (Bio-Rad, Hercules, CA, USA). Samples that were considered positive in qPCR screening assays were those for which at least two or more of their replicates yielded a positive amplification. All primers used for pathogen detection are listed in Table 1. PCR positive controls included DNA extracted from an in-house Babesia ovis (Israeli strain) culture, A. phagocytophilum Webster strain (Focus Diagnostics, Cyperss, CA, USA), C. burnetii Nine Mile strain (Vircell Microbiologists, Granada, Spain) and a synthetized gBlocks® Gene Fragment (IDT-Integrated DNA Technologies, Leuven, Belgium) encompassing a 106 bp N. mikurensis 16S ribosomal gene.
DNA Sequencing—Amplicons from standard PCR were purified using the NZYGelpure kit (NZYtech, Lisbon, Portugal) according to the user’s guide protocol, and they were sent to StabVida (Caparica, Portugal), where Sanger sequencing was performed. All obtained sequences were aligned, compared to those deposited at the NCBI (National Center for Biotechnology Information) nucleotide database (https://blast.ncbi.nlm.nih.gov/). Obtained sequences corresponding to the 18S rDNA amplicon were deposited at GenBank under accession numbers PP346439-PP346444, and those corresponding to 16S rRNA were assigned accession numbers PP346424-PP346433.
Phylogenetic analysis—All datasets were created with reads obtained as a result of Sanger sequencing; reference sequences previously deposited in GenBank; and sequences returned from Megablast search [Nucleotide BLAST: Search nucleotide databases using a nucleotide query (nih.gov)] that demonstrated the best “query cover” and “identity percentage” rates, always from different studies. All sequences in each gene-specific given dataset were aligned using MAFFT (https://mafft.cbrc.jp/alignment/server/), with known sequences previously deposited in GenBank. Multiple alignments were edited on the online server GBlocks 0.91b (http://phylogeny.lirmm.fr/phylo_cgi/one_task.cgi?task_type=gblocks). Two different approaches were used to construct the phylogenetic trees to minimize the bias of the results by the selected method. At first, phylogenetic trees were constructed based on neighbor-joining (NJ) analysis with the Kimura two-parameter (K2P) substitution model with MEGA v.10 [43]. Afterward, another set of phylogenetic trees was constructed based on maximum likelihood (ML) analysis using the best-fit model for each sequence dataset, according to the BIC (Bayesian Information Criterion), as defined by IQ-TREE web server model selection (http://iqtree.cibiv.univie.ac.at/). The topographic representation that displayed the phylogenetic trees selected for the current study was that from the NJ analysis once the outcomes of the phylogenetic analyses using both approaches (NJ and ML) demonstrated identical topological characteristics, i.e., the same nodes, branches and bootstrap values that were obtained from 1000 randomly generated trees.

3. Results

A total of 802 questing ticks belonging to eight species were obtained: Dermacentor marginatus (n = 49), Haemaphysalis inermis (n = 31), Haemaphysalis punctata (n = 35), Hyalomma lusitanicum (n = 17), Ixodes frontalis (n = 3), I. ricinus (n = 619), R. pusillus (n = 25) and Rhipicephalus sanguineus sensu lato (n = 19) (Table 2). In addition, four Haemaphysalis spp. remained with no species identification.
For the screening of TBPs, ticks were processed in a total of 365 samples. The obtained prevalence for piroplasmids was 18.63% (n = 68), and for Anaplasmataceae microorganisms, it was 29.04% (n = 106). For N. mikurensis, 178 samples were screened, corresponding to a prevalence of 14.04% (n = 25). A total of 11 samples that were positive for N. mikurensis corresponded to I. ricinus, 4 samples corresponded to D. marginatus, 3 samples corresponded to R. pusillus, and 7 samples corresponded to R. sanguineus s. l. ticks. All samples screened for C. burnetii were negative. It is important to note that some positive samples (n = 63 for piroplasmids and n = 96 for Anaplasmataceae bacteria) were deemed positive in the context of tick infection, although with no phylogenetic resolution (Table 2).
Phylogenetic analysis based on 18S rRNA gene fragments for piroplasmids showed B. bigemina infecting three different tick species: I. frontalis (a single nymph) (PP346440), I. ricinus (pool of five nymphs) (PP346441) and R. sanguineus s. l. (one adult male) (PP346439). Babesia sp. was found infecting an I. ricinus sample (pool of five nymphs) (PP346442), and one unknown piroplasmid was found infecting a R. pusillus sample (one female) (PP346443) (Figure 2). It is important to mention that the result obtained from the Megablast analysis of this sample, unlike the others, did not return a single identity but rather several possible ones, none of which were clear. Additionally, Theileria sp. was infecting one female H. punctata (PP346444) tick (Figure 3). Phylogenetic analysis based on 16S rRNA gene sequences amplified using Anaplasmatacea bacteria-specific primers revealed the presence of Midichloria mitochondrii DNA in ten samples, with two corresponding to D. marginatus (PP346432-33), two corresponding to I. frontalis (PP346430-31) and six corresponding to I. ricinus (PP346424-29) (Figure 4). Furthermore, due to the length constraints of the obtained sequences from I. ricinus ticks, the existence of Wolbachia endosymbionts was hypothesized but unable to be confirmed.
Among positive samples, co-infections were detected in ten samples (adult ticks). Two I. ricinus from Grândola, two from TNM, one D. marginatus from Bussaco and one R. pusillus from Mata do Choupal were found positive for both N. mikurensis and piroplasmids. Three I. ricinus from TNM, two D. marginatus from Bussaco and one R. pusillus from Mata do Choupal were found positive for N. mikurensis and Anaplasmataceae. However, since it was not possible to identify piroplasmids and other Anaplasmataceae species, these associations need to be further evaluated.

4. Discussion

Eight different tick species were collected from the vegetation in the collection sites. All tick species have been previously reported in Portugal [5]. I. ricinus was not only the most prevalent tick species but also the most frequently collected among immature stages. In accordance with previous studies [5], I. ricinus can be considered a common tick since it has been recorded in eleven out of the eighteen Portuguese administrative regions (districts). It is important to highlight that the TNM area was the main contributor of this result. The high prevalence of this generalist tick in a natural reserve park, together with the circulation of human TBPs, pose a relevant health risk.
Regarding tick infections, B. bigemina was the most frequent piroplasmid detected in different tick species, namely I. frontalis, I. ricinus and R. sanguineus s. l. As observed in Figure 2, the obtained B. bigemina 18S rRNA sequences grouped with other B. bigemina reference sequences in a stable monophyletic cluster. Babesiosis caused by B. bigemina is frequently associated with cattle infection, causing fever, hemolytic anemia and even death. Together with Babesia bovis (not found in Portugal) and B. divergens, these Babesia species generate substantial economic and health losses in cattle production worldwide [44,45]. Although not recognized as a zoonotic agent, B. bigemina infection was recently reported in a 13-year-old patient with clinical signs of fever, chills, sweating, anorexia, general malaise, arthralgia, abdominal pain, myalgia and urinary incontinence with dark urine (a clinical picture of kidney failure) [46]. Such findings reinforce the importance of considering babesiosis an emerging/neglected risk to humans as well. Two other samples yielded expected detection for piroplasmids: one sample of I. ricinus (pool of five nymphs) for Babesia sp. (Figure 2) and one sample of H. punctata (female) for Theileria sp. (Figure 3). Such associations among these tick species and these TBPs have been previously reported [47,48,49,50]. Additionally, these H. punctata and I. ricinus specimens were collected at TNM and are in accordance with previous results regarding the epidemiology of both Babesia spp. and Theileria spp. within this region [36]. A significant note about Theileria spp., which are piroplasmids that belong to the apicomplexa phylum, is that these microorganisms are among the most important TBPs responsible for infecting cattle, leading to economic losses in European countries within the Mediterranean basin, but not responsible of causing any zoonosis [51]. It is noteworthy to mention that, at TNM, B. bigemina and Babesia sp. were detected infecting I. ricinus ticks, a very unusual relationship regarding the epidemiological literature, which can be explained due to the peculiar characteristics of this ecological area, as it has a rich and diverse fauna of vertebrate animals, including the fallow deer (Dama dama) and the red deer (Cervus elaphus), which are the most frequent wild hosts in nature for I. ricinus and probably influence the circulation and maintenance of these piroplasmids at this specific area [36]. Regarding the positive sample for Babesia sp. composed of a pool of five nymphs of I. ricinus, which did not reach a species level for the phylogenetic resolution, this sample was, afterward, submitted to a nested PCR assay as previously described [52], targeting a different fragment of the 18S rRNA gene. This analysis was not able to better characterize this pathogen, as the returned sequences showed a considerable number of low-quality base calls. For a better phylogenetic resolution, future and thorough studies with other markers should be carried out to clarify the result of this sample, since other samples in this study showed fine results at a species level resolution. An important finding in the present study pointed toward the infection of R. pusillus adult females, collected in Mata do Choupal, with an unknown piroplasmida microorganism (Figure 2) with identical similarity (100%) as some of the ones detected in previous studies [53,54,55]. The first Megablast hits of sequences that were obtained matched uncultured alveolates and uncultured eukaryotes from environmental samples. These studies have used generic and degenerate primers targeting different fragments of the 18S rRNA [53,54,55]. In the present study, using specific primers to detect piroplasmids, a single sequence was obtained that clustered with those of uncultured organisms, outside the Babesia monophyletic group, as displayed in the Babesia phylogenetic tree (Figure 2).
The prevalence of N. mikurensis in questing ticks reported here (14%) is within the range of previous studies that have shown a total infection rate of 0.1–24.2% regarding the analysis of questing ticks [21,56,57,58]. Ixodes ricinus is the main vector of N. mikurensis [56]. Besides this tick species, the present study also identified other tick species that, to the best of our knowledge, have not yet been reported to be infected by this bacterium (D. marginatus, R. pusillus and R. sanguineus s. l.). One of the possible explanations for these new discoveries could be that previous studies have primarily focused their efforts on collecting and screening I. ricinus, given the medical importance in Europe due to its anthropophilic behavior and its competence for the transmission of several TBP [30].
Targeting the Anaplasmatacea 16S ribosomal gene provided additional findings to the present study with the detection of M. mitochondrii, an intracellular endosymbiont bacterium of hard and soft ticks [59]. First, it was reported to be associated with free-living I. ricinus females [60]. Since then, studies based on molecular evidence have reported anthropophilic and zoophilic ticks harboring M. mitochondrii such as A. americanum, H. punctata, Ixodes holocyclus, Rhipicephalus bursa, R. sanguineus s. l. and Rhipicephalus turanicus [61,62]. Other important aspects about M. mitochondrii include its vertical transmission capacity, as the bacterium reproduces mainly in the mitochondria of ovaries in I. ricinus females and is therefore maternally inherited [60]. Most recently, Guizzo et al. [63] studied the functional integration of M. mitochondrii into the biology of I. ricinus, and their conclusions indicate that M. mitochondrii represents an intrinsic component of tick ovarian tissue, and when absent, it results in the formation of substandard larvae with reduced capacity to blood-feed. This α-proteobacterium symbiont was detected in I. ricinus and I. frontalis, as previously reported [64,65,66,67]. Additionally, it was also detected in D. marginatus, in agreement with a previous study [68]. A recent report showed that this mitochondrial-residing bacterium affects oogenesis [69], but much remains to be known regarding the impact of its presence in ticks. Although this bacterium can be transmitted through tick bites [64], another study showed no clinical signs in people exclusively infected with M. mitochondrii; however, although it may not be harmful to humans, it could play a role in TBP transmission to mammalian hosts [62], since endosymbionts like M. mitochondrii often maintain a delicate microbial balance in ticks, hindering the presence of other microbes, blocking related pathogens or even enhancing their presence. A study on tick symbiont community structure showed a strong association between Midichloria, Rickettsia and Coxiella bacteria, but more profound studies are needed to clarify the functional role of this unique symbiont [70]. Additionally, the sequencing of amplicons derived from genetic material of three other I. ricinus, using the same primers, yielded unexpected results. Despite the small length of the obtained sequences (their submission to GenBank was, therefore, not possible), the level of coverage (approximately 66%), when compared with sequences previously deposited in GenBank, returned a hit with Wolbachia spp. (ID above 95%). These results can be explained by the primers utilized to detect Anaplasmataceae bacteria, which are generic [40]. In this sense, the present study suggests that I. ricinus can potentially harbor Wolbachia endosymbionts, but more studies need to be performed. Unfortunately, due to the lack of tick genetic material, further analyses were not possible. However, it is relevant to note that these results are ecologically supported by previous studies that have reported I. ricinus nymphs being parasitized by Ixodiphagus hookeri [71]. Wolbachia spp. are intracellular, Gram-negative, α-proteobacteria that are known to infect about 60% of arthropod species [72]. In insects, these endosymbionts directly reduce viral replication for dengue and West Nile viruses and act as a manipulator of host reproduction [72,73]. Although little is known about the effects that these bacteria may cause in ticks, they have already been reported to infect at least three tick species, namely: I. ricinus, Rhipicephalus microplus and A. americanum [74,75,76]. Furthermore, a previous study identified that both Wolbachia sequences (wsp and ftsZ genes) were identical to those already reported, such as that associated with an endoparasitoid wasp named Ixodiphagus hookeri. It is noteworthy to mention that this endoparasitoid is known to emerge from engorged nymphs of I. ricinus, indicating that this tick species is not the natural host of these endosymbionts [71]. Therefore, more studies on this subject would certainly help to increase information on how Wolbachia endosymbionts would act as a possible biological control, preventing the transmission of TBPs.
Most of the positive samples screened for TBPs that belong to the Anaplasmataceae family did not yield the expected phylogenetic resolution. Such results were not expected, as Anaplasma spp. and Ehrlichia spp. have been detected in ticks using the same primers and PCR protocol [40]. Regarding the molecular marker used for screening piroplasmids, similar outcomes were achieved, albeit at a significantly lower frequency. Alveolates and eukaryotic microorganisms were detected with a distinct molecular and phylogenetic resolution. Therefore, it is recommended to use more stringent molecular markers in future studies to attain a finer resolution regarding these findings.

5. Conclusions

The present study revealed the presence of Babesia spp., Theileria spp., Neoehrlichia mikurensis and Midichloria mitochondrii DNA in ticks from five different ecological areas in mainland Portugal. The findings, supported by previous reports, include the detection of Babesia sp. and Theileria sp. in I. ricinus and H. punctata, respectively; the infection of I. ricinus by N. mikurensis; and the detection of M. mitochondrii in both I. ricinus and in I. frontalis. To the best of our knowledge, this study reports for the first time the detection of N. mikurensis infecting D. marginatus, R. pusillus and R. sanguineus s. l. Furthermore, our data suggest the possible presence of Wolbachia endosymbionts in association with I. ricinus. This is primarily due to the ecological connection between this tick species with Ixodiphagus hookeri, a parasitoid wasp specialized in parasitizing larvae and nymphs of Ixodidae ticks. As a result of this relationship, it becomes feasible to detect Wolbachia endosymbionts in I. ricinus. Some of the most interesting outcomes included the detection of B. bigemina infecting I. frontalis, I. ricinus and R. sanguineus s. l. and the detection of N. mikurensis infecting D. marginatus, R. pusillus and R. sanguineus s. l. This molecular evidence suggests that these ticks could be capable of maintaining the circulation of these TBPs in an endemic area associated with vertebrate hosts that are often parasitized by these tick species; nevertheless, it is not known whether these ticks can transmit these TBPs vertically or horizontally. Thus, studies about tick transmission capacity could elucidate some of these issues. Regarding studies that address TBP screening, the present study suggests that specific molecular markers should be applied to achieve not only clearer detection results but also a better phylogenetic resolution. Furthermore, epidemiological surveillance studies on neglected TBPs should be carried out, especially when associated with the collection of anthropophilic ticks, as they are still one of the best sources of mapping and monitoring eco-epidemiological updates, aiding medical diagnoses, the creation of risk maps and the development of predictive risk models that are constantly changing due to several biotic and abiotic factors toward a One Health perspective.

Author Contributions

Conceptualization, L.M., A.D. and S.A.; Formal analysis, L.M., R.P. and S.A.; methodology, L.M., R.P., M.D., G.S., R.V., A.S.S. and S.A.; writing—original draft preparation, L.M. and S.A.; writing—review and editing, L.M., R.P., M.S., G.S., R.V., M.D., A.S.S., A.D. and S.A.; supervision, S.A., A.D. and A.S.S.; funding acquisition, L.M., A.D. and S.A. All authors have read and agreed to the published version of the manuscript.

Funding

L.M. is a recipient of a Ph.D. grant supported by Fundação para Ciência e Tecnologia (FCT), under reference 2022.14376.BD. Partially supported by FCT project PTDC/SAU-PAR/28947/2017.

Data Availability Statement

The data presented in this study are contained within the article.

Acknowledgments

The authors would like to acknowledge the support given by the administrative and technical staff of Tapada Nacional de Mafra, Fundação Mata do Bussaco and Parque Gerês-Peneda, and also Fundação para a Ciência e a Tecnologia for funds to GHTM-UID/04413/2020 and LA-REAL–LA/P/0117/2020.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Madison-Antenucci, S.; Kramer, L.D.; Gebhardt, L.L.; Kauffman, E. Emerging Tick-Borne Diseases. Clin. Microbiol. Rev. 2020, 33, e00083-18. [Google Scholar] [CrossRef] [PubMed]
  2. Wimms, C.; Aljundi, E.; Halsey, S.J. Regional Dynamics of Tick Vectors of Human Disease. Curr. Opin. Insect Sci. 2023, 55, 101006. [Google Scholar] [CrossRef] [PubMed]
  3. Johnson, N.; Phipps, L.P.; Hansford, K.M.; Folly, A.J.; Fooks, A.R.; Medlock, J.M.; Mansfield, K.L. One Health Approach to Tick and Tick-Borne Disease Surveillance in the United Kingdom. Int. J. Environ. Res. Public Health 2022, 19, 5833. [Google Scholar] [CrossRef]
  4. Anderson, J.F.; Magnarelli, L.A. Biology of Ticks. Infect. Dis. Clin. N. Am. 2008, 22, 195–215. [Google Scholar] [CrossRef] [PubMed]
  5. Instituto Nacional de Saúde Doutor Ricardo Jorge. Culicídeos e Ixodídeos Rede de Vigilância de Vetores; ISBN: 978-989-8794-78-9 (Online). Available online: http://hdl.handle.net/10400.18/8611 (accessed on 3 January 2024).
  6. Santos, A.S.; Santos-Silva, M.M.; Almeida, V.C.; Bacellar, F.; Dumler, J.S. Detection of Anaplasma phagocytophilum DNA in Ixodes Ticks (Acari: Ixodidae) from Madeira Island and Setubal District, Mainland Portugal. Emerg. Infect. Dis. 2004, 10, 1643–1648. [Google Scholar] [CrossRef] [PubMed]
  7. Silaghi, C.; Santos, A.S.; Gomes, J.; Christova, I.; Matei, I.A.; Walder, G.; Domingos, A.; Bell-Sakyi, L.; Sprong, H.; Von Loewenich, F.D.; et al. Guidelines for the Direct Detection of Anaplasma spp. in Diagnosis and Epidemiological Studies. Vector Borne Zoonotic Dis. 2017, 17, 12–22. [Google Scholar] [CrossRef] [PubMed]
  8. MacQueen, D.; Centellas, F. Human Granulocytic Anaplasmosis. Infect. Dis. Clin. N. Am. 2022, 36, 639–654. [Google Scholar] [CrossRef] [PubMed]
  9. Maggi, R.G.; Mascarelli, P.E.; Havenga, L.N.; Naidoo, V.; Breitschwerdt, E.B. Co-Infection with Anaplasma platys, Bartonella henselae and Candidatus Mycoplasma haematoparvum in a Veterinarian. Parasit. Vectors 2013, 6, 103. [Google Scholar] [CrossRef] [PubMed]
  10. Paddock, C.D.; Childs, J.E. Ehrlichia chaffeensis: A Prototypical Emerging Pathogen. Clin. Microbiol. Rev. 2003, 16, 37–64. [Google Scholar] [CrossRef] [PubMed]
  11. David Morais, J.; Dawson, J.E.; Greene, C.; Filipe, A.R.; Galhardas, L.C.; Bacellar, F. First European Case of Ehrlichiosis. Lancet 1991, 338, 633–634. [Google Scholar] [CrossRef] [PubMed]
  12. Anderson, B.E.; Greene, C.E.; Jones, D.C.; Dawson, J.E. Ehrlichia ewingii sp. nov., the Etiologic Agent of Canine Granulocytic Ehrlichiosis. Int. J. Syst. Bacteriol. 1992, 42, 299–302. [Google Scholar] [CrossRef]
  13. Buller, R.S.; Arens, M.; Hmiel, S.P.; Paddock, C.D.; Sumner, J.W.; Rikihisa, Y.; Unver, A.; Gaudreault-Keener, M.; Manian, F.A.; Liddell, A.M.; et al. Ehrlichia ewingii, a Newly Recognized Agent of Human Ehrlichiosis. N. Engl. J. Med. 1999, 341, 148–155. [Google Scholar] [CrossRef] [PubMed]
  14. Heitman, N.; Scott Dahlgren, F.; Drexler, N.A.; Massung, R.F.; Behravesh, C.B. Increasing Incidence of Ehrlichiosis in the United States: A Summary of National Surveillance of Ehrlichia chaffeensis and Ehrlichia ewingii Infections in the United States, 2008–2012. Am. J. Trop. Med. Hyg. 2016, 94, 52–60. [Google Scholar] [CrossRef] [PubMed]
  15. Perez, M.; Bodor, M.; Zhang, C.; Xiong, Q.; Rikihisa, Y. Human infection with Ehrlichia canis accompanied by clinical signs in Venezuela. Ann. N. Y. Acad. Sci. 2006, 1078, 110–117. [Google Scholar] [CrossRef] [PubMed]
  16. Reeves, W.K.; Loftis, A.D.; Nicholson, W.L.; Czarkowski, A.G. The First Report of Human Illness Associated with the Panola Mountain Ehrlichia Species: A Case Report. J. Med. Case Rep. 2008, 2, 139. [Google Scholar] [CrossRef] [PubMed]
  17. Pritt, B.S.; Sloan, L.M.; Johnson, D.K.H.; Munderloh, U.G.; Paskewitz, S.M.; McElroy, K.M.; McFadden, J.D.; Binnicker, M.J.; Neitzel, D.F.; Liu, G.; et al. Emergence of a New Pathogenic Ehrlichia Species, Wisconsin and Minnesota, 2009. N. Engl. J. Med. 2011, 365, 422–429. [Google Scholar] [CrossRef] [PubMed]
  18. Kawahara, M.; Rikihisa, Y.; Isogai, E.; Takahashi, M.; Misumi, H.; Suto, C.; Shibata, S.; Zhang, C.; Tsuji, M. Ultrastructure and Phylogenetic Analysis of “Candidatus Neoehrlichia mikurensis” in the Family Anaplasmataceae, Isolated from Wild Rats and Found in Ixodes Ovatus Ticks. Int. J. Syst. Evol. Microbiol. 2004, 54, 1837–1843. [Google Scholar] [CrossRef] [PubMed]
  19. Welinder-Olsson, C.; Kjellin, E.; Vaht, K.; Jacobsson, S.; Wennerås, C. First Case of Human “Candidatus Neoehrlichia mikurensis” Infection in a Febrile Patient with Chronic Lymphocytic Leukemia. J. Clin. Microbiol. 2010, 48, 1956–1959. [Google Scholar] [CrossRef] [PubMed]
  20. Wass, L.; Grankvist, A.; Bell-Sakyi, L.; Bergström, M.; Ulfhammer, E.; Lingblom, C.; Wennerås, C. Cultivation of the Causative Agent of Human Neoehrlichiosis from Clinical Isolates Identifies Vascular Endothelium as a Target of Infection. Emerg. Microbes Infect. 2019, 8, 413–425. [Google Scholar] [CrossRef] [PubMed]
  21. Portillo, A.; Santibáñez, P.; Palomar, A.M.; Santibáñez, S.; Oteo, J.A. ‘Candidatus Neoehrlichia mikurensis’ in Europe. New Microbes New Infect. 2018, 22, 30–36. [Google Scholar] [CrossRef] [PubMed]
  22. Santos, A.S.; de Bruin, A.; Veloso, A.R.; Marques, C.; Pereira da Fonseca, I.; de Sousa, R.; Sprong, H.; Santos-Silva, M.M. Detection of Anaplasma phagocytophilum, Candidatus Neoehrlichia sp., Coxiella burnetii and Rickettsia spp. in Questing Ticks from a Recreational Park, Portugal. Ticks Tick. Borne Dis. 2018, 9, 1555–1564. [Google Scholar] [CrossRef] [PubMed]
  23. Hildebrandt, A.; Zintl, A.; Montero, E.; Hunfeld, K.P.; Gray, J. Human Babesiosis in Europe. Pathogens 2021, 10, 1165. [Google Scholar] [CrossRef] [PubMed]
  24. Santos, A.S.; Bacellar, F.; França, A. Medicina Interna Revista Da Sociedade Portuguesa De Medicina Interna Febre Q: Revisão de Conceitos Q Fever: A Revision of Concepts. Revista SPMFR 2007, 14, 90–99. Available online: https://www.spmi.pt/revista/vol14/vol14_n2_2007_090_099.pdf (accessed on 3 January 2024).
  25. Anastácio, S.; Tavares, N.; Carolino, N.; Sidi-Boumedine, K.; Da Silva, G.J. Serological Evidence of Exposure to Coxiella burnetii in Sheep and Goats in Central Portugal. Vet. Microbiol. 2013, 167, 500–505. [Google Scholar] [CrossRef] [PubMed]
  26. Cumbassá, A.; Barahona, M.J.; Cunha, M.V.; Azórin, B.; Fonseca, C.; Rosalino, L.M.; Tilburg, J.; Hagen, F.; Santos, A.S.; Botelho, A. Coxiella burnetii DNA Detected in Domestic Ruminants and Wildlife from Portugal. Vet. Microbiol. 2015, 180, 136–141. [Google Scholar] [CrossRef] [PubMed]
  27. Cruz, R.; Esteves, F.; Vasconcelos-Nóbrega, C.; Santos, C.; Ferreira, A.S.; Mega, C.; Coelho, A.C.; Vala, H.; Mesquita, J.R. A Nationwide Seroepidemiologic Study on Q Fever Antibodies in Sheep of Portugal. Vector Borne Zoonotic Dis. 2018, 18, 601–604. [Google Scholar] [CrossRef] [PubMed]
  28. Sormunen, J.J.; Mänttäri, J.; Vesterinen, E.J.; Klemola, T. Blood Meal Analysis Reveals Sources of Tick-Borne Pathogens and Differences in Host Utilization of Juvenile Ixodes ricinus across Urban and Sylvatic Habitats. Zoonoses Public Health 2024, 71, 442–450. [Google Scholar] [CrossRef] [PubMed]
  29. Dantas-Torres, F.; Chomel, B.B.; Otranto, D. Ticks and Tick-Borne Diseases: A One Health Perspective. Trends Parasitol. 2012, 28, 437–446. [Google Scholar] [CrossRef] [PubMed]
  30. Zając, Z.; Kulisz, J.; Bartosik, K.; Woźniak, A.; Dzierżak, M.; Khan, A. Environmental Determinants of the Occurrence and Activity of Ixodes ricinus Ticks and the Prevalence of Tick-Borne Diseases in Eastern Poland. Sci. Rep. 2021, 11, 15472. [Google Scholar] [CrossRef] [PubMed]
  31. Santos-Silva, M.M.; Beati, L.; Santos, A.S.; De Sousa, R.; Núncio, M.S.; Melo, P.; Santos-Reis, M.; Fonseca, C.; Formosinho, P.; Vilela, C.; et al. The Hard-Tick Fauna of Mainland Portugal (Acari: Ixodidae): An Update on Geographical Distribution and Known Associations with Hosts and Pathogens. Exp. Appl. Acarol. 2011, 55, 85–121. [Google Scholar] [CrossRef] [PubMed]
  32. EEM_Relatorio.pdf (cm-grandola.pt). Available online: http://planeamento.cm-grandola.pt/planos_vigor/PDM/02.REVISAO%20-%20DEZEMBRO%202017/TOMO_II_ACOMPANHAMENTO/1505_PDMREV_ANEXOS/1505_PDMREV_ANEXO_VI/EEM_Relatorio.pdf (accessed on 7 May 2024).
  33. ICNB, IP-Instituto da Conservação e da Biodiversidade. Plano de gestão florestal e orientação da utilização pública da Mata Nacional do Choupal, Reserva Natural do Paúl de Arzila. Available online: https://www.icnf.pt/api/file/doc/5df9343734da0d02 (accessed on 7 May 2024).
  34. Zuleger, A.M.; Perino, A.; Wolf, F.; Wheeler, H.C.; Pereira, H.M. Long-Term Monitoring of Mammal Communities in the Peneda-Gerês National Park Using Camera-Trap Data. Biodivers. Data J. 2023, 11, e99588. [Google Scholar] [CrossRef] [PubMed]
  35. Pereira, L.; Vasques, A.; Maia, P.; Ramos Pereira, M.J.; Fonseca, C.; Matos, M. Native and Exotic Seed Dispersal by the Stone Marten (Martes Foina): Implications for the Regeneration of a Relict Climactic Forest in Central Portugal. Integr. Zool. 2019, 14, 280–292. [Google Scholar] [CrossRef] [PubMed]
  36. Fernández, N.; Revuelta, B.; Aguilar, I.; Soares, J.F.; Zintl, A.; Gray, J.; Montero, E.; Gonzalez, L.M. Babesia and Theileria Identification in Adult Ixodid Ticks from Tapada Nature Reserve, Portugal. Pathogens 2022, 11, 222. [Google Scholar] [CrossRef] [PubMed]
  37. Estrada-Peña, A.; Mihalca, A.D.; Petney, T.N. Ticks of Europe and North Africa, 1st ed.; Springer: Cham, Switzerland, 2017; p. 404. ISBN 978-3-319-63760-0. [Google Scholar] [CrossRef]
  38. Mangold, A.; Bargues, M.; Mas-Coma, S. 18S RRNA Gene Sequences and Phylogenetic Relationships of European Hard-Tick Species (Acari: Ixodidae). Parasitol. Res. 1998, 84, 31–37. [Google Scholar] [CrossRef] [PubMed]
  39. Olmeda, A.S.; Armstrong, P.M.; Rosenthal, B.M.; Valladares, B.; Del Castillo, A.; De Armas, F.; Miguelez, M.; González, A.; Rodríguez Rodríguez, J.A.; Spielman, A.; et al. Short Report: A Subtropical Case of Human Babesiosis. Acta Trop. 1997, 67, 229–234. [Google Scholar] [CrossRef] [PubMed]
  40. Parola, P.; Roux, V.; Camicas, J.L.; Baradji, I.; Brouqui, P.; Raoult, D. Detection of Ehrlichiae in African Ticks by Polymerase Chain Reaction. Trans. R. Soc. Trop. Med. Hyg. 2000, 94, 707–708. [Google Scholar] [CrossRef] [PubMed]
  41. Klee, S.R.; Tyczka, J.; Ellerbrok, H.; Franz, T.; Linke, S.; Baljer, G.; Appel, B. Highly Sensitive Real-Time PCR for Specific Detection and Quantification of Coxiella burnetii. BMC Microbiol. 2006, 6, 2. [Google Scholar] [CrossRef] [PubMed]
  42. Sandelin, L.L.; Tolf, C.; Larsson, S.; Wilhelmsson, P.; Salaneck, E.; Jaenson, T.G.T.; Lindgren, P.E.; Olsen, B.; Waldenström, J. Candidatus Neoehrlichia mikurensis in Ticks from Migrating Birds in Sweden. PLoS ONE 2015, 10, e0133250. [Google Scholar] [CrossRef] [PubMed]
  43. Kumar, S.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K. MEGA X: Molecular Evolutionary Genetics Analysis across Computing Platforms. Mol. Biol. Evol. 2018, 35, 1547–1549. [Google Scholar] [CrossRef] [PubMed]
  44. Homer, M.J.; Aguilar-Delfin, I.; Telford, S.R.; Krause, P.J.; Persing, D.H. Babesiosis. Clin. Microbiol. Rev. 2000, 13, 451–469. [Google Scholar] [CrossRef] [PubMed]
  45. Springer, A.; Höltershinken, M.; Lienhart, F.; Ermel, S.; Rehage, J.; Hülskötter, K.; Lehmbecker, A.; Wohlsein, P.; Barutzki, D.; Gietl, C.; et al. Emergence and Epidemiology of Bovine Babesiosis Due to Babesia divergens on a Northern German Beef Production Farm. Front. Vet. Sci. 2020, 7, 649. [Google Scholar] [CrossRef] [PubMed]
  46. Calvopiña, M.; Montesdeoca-Andrade, M.; Bastidas-Caldes, C.; Enriquez, S.; Rodríguez-Hidalgo, R.; Aguilar-Rodríguez, D.; Cooper, P. Case Report: First Report on Human Infection by Tick-Borne Babesia bigemina in the Amazon Region of Ecuador. Front. Public Health 2023, 11, 1079042. [Google Scholar] [CrossRef] [PubMed]
  47. Sands, B.; Lihou, K.; Lait, P.; Wall, R. Prevalence of Babesia spp. Pathogens in the Ticks Dermacentor reticulatus and Ixodes ricinus in the UK. Acta Trop. 2022, 236, 106692. [Google Scholar] [CrossRef] [PubMed]
  48. Azagi, T.; Jaarsma, R.I.; van Leeuwen, A.D.; Fonville, M.; Maas, M.; Franssen, F.F.J.; Kik, M.; Rijks, J.M.; Montizaan, M.G.; Groenevelt, M.; et al. Circulation of Babesia Species and Their Exposure to Humans through Ixodes ricinus. Pathogens 2021, 10, 386. [Google Scholar] [CrossRef]
  49. Wilhelmsson, P.; Pawełczyk, O.; Jaenson, T.G.T.; Waldenström, J.; Olsen, B.; Forsberg, P.; Lindgren, P.E. Three Babesia Species in Ixodes ricinus Ticks from Migratory Birds in Sweden. Parasit. Vectors 2021, 14, 183. [Google Scholar] [CrossRef] [PubMed]
  50. Hornok, S.; Takács, N.; Kontschán, J.; György, Z.; Micsutka, A.; Iceton, S.; Flaisz, B.; Farkas, R.; Hofmann-Lehmann, R. Diversity of Haemaphysalis-Associated Piroplasms of Ruminants in Central-Eastern Europe, Hungary. Parasit. Vectors 2015, 8, 627. [Google Scholar] [CrossRef] [PubMed]
  51. Gomes, J.; Salgueiro, P.; Inácio, J.; Amaro, A.; Pinto, J.; Tait, A.; Shiels, B.; Pereira da Fonseca, I.; Santos-Gomes, G.; Weir, W. Population Diversity of Theileria annulata in Portugal. Infect. Genet. Evol. 2016, 42, 14–19. [Google Scholar] [CrossRef] [PubMed]
  52. Man, S.Q.; Qiao, K.; Cui, J.; Feng, M.; Fu, Y.F.; Cheng, X.J. A Case of Human Infection with a Novel Babesia Species in China. Infect. Dis. Poverty 2016, 5, 28. [Google Scholar] [CrossRef] [PubMed]
  53. Lee, H.B.; Jeong, D.H.; Cho, B.C.; Park, J.S. The Diversity Patterns of Rare to Abundant Microbial Eukaryotes Across a Broad Range of Salinities in a Solar Saltern. Microb. Ecol. 2022, 84, 1103–1121. [Google Scholar] [CrossRef] [PubMed]
  54. Belasen, A.M.; Bletz, M.C.; Leite, D.S.; Toledo, L.F.; James, T.Y. Long-Term Habitat Fragmentation Is Associated with Reduced MHC IIB Diversity and Increased Infections in Amphibian Hosts. Front. Ecol. Evol. 2019, 6, 422063. [Google Scholar] [CrossRef]
  55. Dawson, S.C.; Pace, N.R. Novel Kingdom-Level Eukaryotic Diversity in Anoxic Environments. Proc. Natl. Acad. Sci. USA 2002, 99, 8324–8329. [Google Scholar] [CrossRef] [PubMed]
  56. Szczotko, M.; Kubiak, K.; Michalski, M.M.; Moerbeck, L.; Antunes, S.; Domingos, A.; Dmitryjuk, M. Neoehrlichia mikurensis-A New Emerging Tick-Borne Pathogen in North-Eastern Poland? Pathogens 2023, 12, 307. [Google Scholar] [CrossRef] [PubMed]
  57. Boyer, P.H.; Baldinger, L.; Degeilh, B.; Wirth, X.; Kamdem, C.M.; Hansmann, Y.; Zilliox, L.; Boulanger, N.; Jaulhac, B. The Emerging Tick-Borne Pathogen Neoehrlichia mikurensis: First French Case Series and Vector Epidemiology. Emerg. Microbes Infect. 2021, 10, 1731–1738. [Google Scholar] [CrossRef] [PubMed]
  58. Ivanova, A.; Geller, J.; Katargina, O.; Värv, K.; Lundkvist, Å.; Golovljova, I. Detection of Candidatus Neoehrlichia mikurensis and Ehrlichia Muris in Estonian Ticks. Ticks Tick. Borne Dis. 2017, 8, 13–17. [Google Scholar] [CrossRef] [PubMed]
  59. Cafiso, A.; Bazzocchi, C.; De Marco, L.; Opara, M.N.; Sassera, D.; Plantard, O. Molecular Screening for Midichloria in Hard and Soft Ticks Reveals Variable Prevalence Levels and Bacterial Loads in Different Tick Species. Ticks Tick. Borne Dis. 2016, 7, 1186–1192. [Google Scholar] [CrossRef] [PubMed]
  60. Sassera, D.; Beninati, T.; Bandi, C.; Bouman, E.A.P.; Sacchi, L.; Fabbi, M.; Lo, N. “Candidatus Midichloria mitochondrii”, an Endosymbiont of the Tick Ixodes ricinus with a Unique Intramitochondrial Lifestyle. Int. J. Syst. Evol. Microbiol. 2006, 56, 2535–2540. [Google Scholar] [CrossRef] [PubMed]
  61. Ahantarig, A.; Trinachartvanit, W.; Baimai, V.; Grubhoffer, L. Hard Ticks and Their Bacterial Endosymbionts (or Would Be Pathogens). Folia Microbiol. 2013, 58, 419–428. [Google Scholar] [CrossRef] [PubMed]
  62. Sgroi, G.; Iatta, R.; Lovreglio, P.; Stufano, A.; Laidoudi, Y.; Mendoza-Roldan, J.A.; Bezerra-Santos, M.A.; Veneziano, V.; Di Gennaro, F.; Saracino, A.; et al. Detection of Endosymbiont Candidatus Midichloria mitochondrii and Tickborne Pathogens in Humans Exposed to Tick Bites, Italy. Emerg. Infect. Dis. 2022, 28, 1824–1832. [Google Scholar] [CrossRef]
  63. Guizzo, M.G.; Hatalová, T.; Frantová, H.; Zurek, L.; Kopáček, P.; Perner, J. Ixodes ricinus Ticks Have a Functional Association with Midichloria Mitochondrii. Front. Cell Infect. Microbiol. 2023, 12, 1081666. [Google Scholar] [CrossRef] [PubMed]
  64. Cafiso, A.; Sassera, D.; Romeo, C.; Serra, V.; Hervet, C.; Bandi, C.; Plantard, O.; Bazzocchi, C. Midichloria Mitochondrii, Endosymbiont of Ixodes ricinus: Evidence for the Transmission to the Vertebrate Host during the Tick Blood Meal. Ticks Tick. Borne Dis. 2019, 10, 5–12. [Google Scholar] [CrossRef] [PubMed]
  65. Epis, S.; Sassera, D.; Beninati, T.; Lo, N.; Beati, L.; Piesman, J.; Rinaldi, L.; McCoy, K.D.; Torina, A.; Sacchi, L.; et al. Midichloria mitochondrii Is Widespread in Hard Ticks (Ixodidae) and Resides in the Mitochondria of Phylogenetically Diverse Species. Parasitology 2008, 135, 485–494. [Google Scholar] [CrossRef] [PubMed]
  66. Lewis, D. The Detection of Rickettsia-like Microorganisms within the Ovaries of Female Ixodes ricinus Ticks. Z. Parasitenkd. 1979, 59, 295–298. [Google Scholar] [CrossRef]
  67. Palomar, A.M.; Portillo, A.; Santibáñez, P.; Mazuelas, D.; Roncero, L.; García-Álvarez, L.; Santibáñez, S.; Gutiérrez, O.; Oteo, J.A. Detection of Tick-Borne Anaplasma bovis, Anaplasma phagocytophilum and Anaplasma centrale in Spain. Med. Vet. Entomol. 2015, 29, 349–353. [Google Scholar] [CrossRef] [PubMed]
  68. Hornok, S.; Földvári, G.; Elek, V.; Naranjo, V.; Farkas, R.; de la Fuente, J. Molecular Identification of Anaplasma marginale and Rickettsial Endosymbionts in Blood-Sucking Flies (Diptera: Tabanidae, Muscidae) and Hard Ticks (Acari: Ixodidae). Vet. Parasitol. 2008, 154, 354–359. [Google Scholar] [CrossRef] [PubMed]
  69. Uzum, Z.; Ershov, D.; Pavia, M.J.; Mallet, A.; Gorgette, O.; Plantard, O.; Sassera, D.; Stavru, F. Three-Dimensional Images Reveal the Impact of the Endosymbiont Midichloria mitochondrii on the Host Mitochondria. Nat. Commun. 2023, 14, 4133. [Google Scholar] [CrossRef] [PubMed]
  70. Duron, O.; Binetruy, F.; Noël, V.; Cremaschi, J.; McCoy, K.D.; Arnathau, C.; Plantard, O.; Goolsby, J.; Pérez de León, A.A.; Heylen, D.J.A.; et al. Evolutionary Changes in Symbiont Community Structure in Ticks. Mol. Ecol. 2017, 26, 2905–2921. [Google Scholar] [CrossRef] [PubMed]
  71. Plantard, O.; Bouju-Albert, A.; Malard, M.A.; Hermouet, A.; Capron, G.; Verheyden, H. Detection of Wolbachia in the Tick Ixodes ricinus Is Due to the Presence of the Hymenoptera Endoparasitoid Ixodiphagus hookeri. PLoS ONE 2012, 7, e30692. [Google Scholar] [CrossRef]
  72. Bonnet, S.I.; Pollet, T. Update on the Intricate Tango between Tick Microbiomes and Tick-Borne Pathogens. Parasite Immunol. 2021, 43, e12813. [Google Scholar] [CrossRef]
  73. Thomas, S.; Verma, J.; Woolfit, M.; O’Neill, S.L. Wolbachia-Mediated Virus Blocking in Mosquito Cells Is Dependent on XRN1-Mediated Viral RNA Degradation and Influenced by Viral Replication Rate. PLoS Pathog. 2018, 14, e1006879. [Google Scholar] [CrossRef] [PubMed]
  74. Kolo, A.O.; Raghavan, R. Impact of Endosymbionts on Tick Physiology and Fitness. Parasitology 2023, 150, 859–865. [Google Scholar] [CrossRef] [PubMed]
  75. Hirunkanokpun, S.; Ahantarig, A.; Baimai, V.; Trinachartvanit, W. A New Record of Wolbachia in the Elephant Ticks from Thailand. ScienceAsia 2018, 44S, 44–47. [Google Scholar] [CrossRef]
  76. Zhang, X.; Norris, D.E.; Rasgon, J.L. Distribution and Molecular Characterization of Wolbachia Endosymbionts and Filarial Nematodes in Maryland Populations of the Lone Star Tick (Amblyomma americanum). FEMS Microbiol. Ecol. 2011, 77, 50–56. [Google Scholar] [CrossRef] [PubMed]
Microorganisms 12 01006 g001

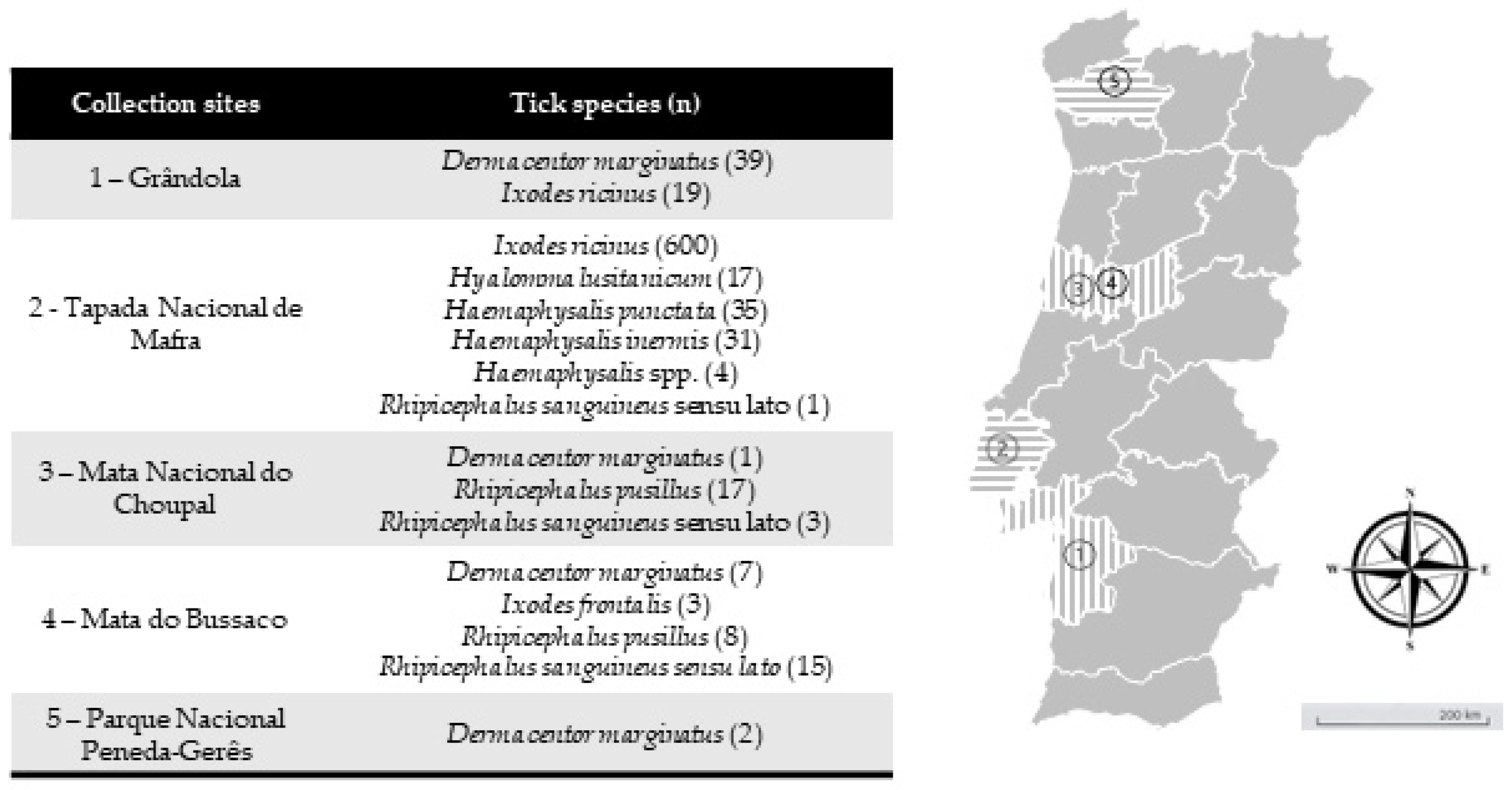

Figure 1. Collection sites of questing ticks collected in mainland Portugal. (n) = total number of tick specimens collected in a correspondent area. Map image adapted from Google Earth v.7.3.2.5491.
Figure 1. Collection sites of questing ticks collected in mainland Portugal. (n) = total number of tick specimens collected in a correspondent area. Map image adapted from Google Earth v.7.3.2.5491.
Microorganisms 12 01006 g001
Microorganisms 12 01006 g002

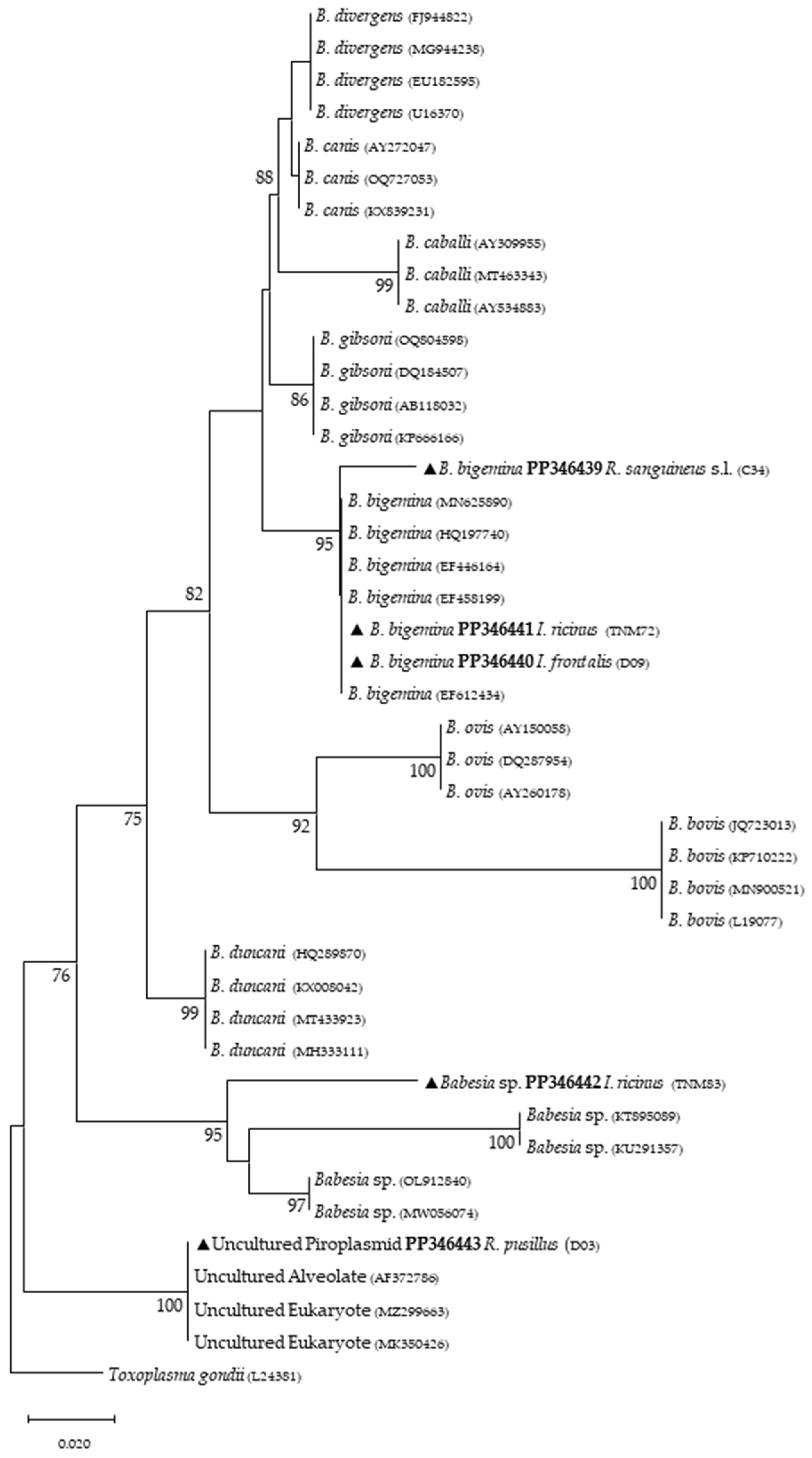

Figure 2. Phylogenetic tree constructed and displayed by the neighbor-joining method and Kimura’s two-parameter evolution model from partial sequences of the 18S rRNA gene. The same topographic representation was obtained by the maximum likelihood method and Kimura’s two-parameter + G4 evolution model from partial sequences of the 18S rRNA gene according to the BIC (Bayesian Information Criterion), as defined by IQ-TREE web server model selection. Bootstrap values were obtained from 1000 replications and are indicated at the nodes of the respective branches (only values ≥ 75%). All piroplasmid sequences obtained during this work are highlighted with a triangle and its respective accession, both in bold format.
Figure 2. Phylogenetic tree constructed and displayed by the neighbor-joining method and Kimura’s two-parameter evolution model from partial sequences of the 18S rRNA gene. The same topographic representation was obtained by the maximum likelihood method and Kimura’s two-parameter + G4 evolution model from partial sequences of the 18S rRNA gene according to the BIC (Bayesian Information Criterion), as defined by IQ-TREE web server model selection. Bootstrap values were obtained from 1000 replications and are indicated at the nodes of the respective branches (only values ≥ 75%). All piroplasmid sequences obtained during this work are highlighted with a triangle and its respective accession, both in bold format.
Microorganisms 12 01006 g002
Microorganisms 12 01006 g003

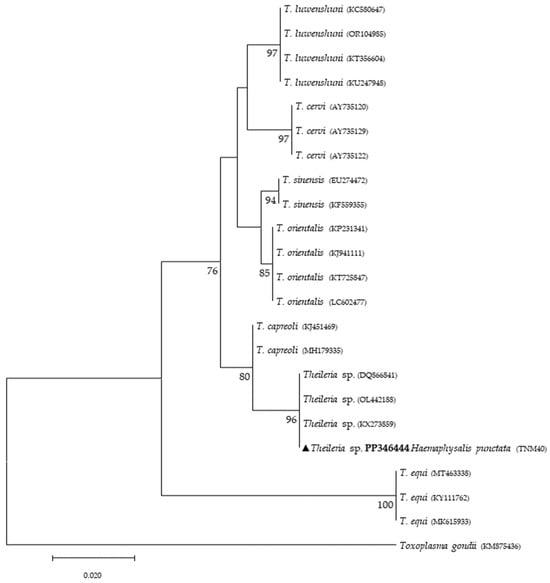

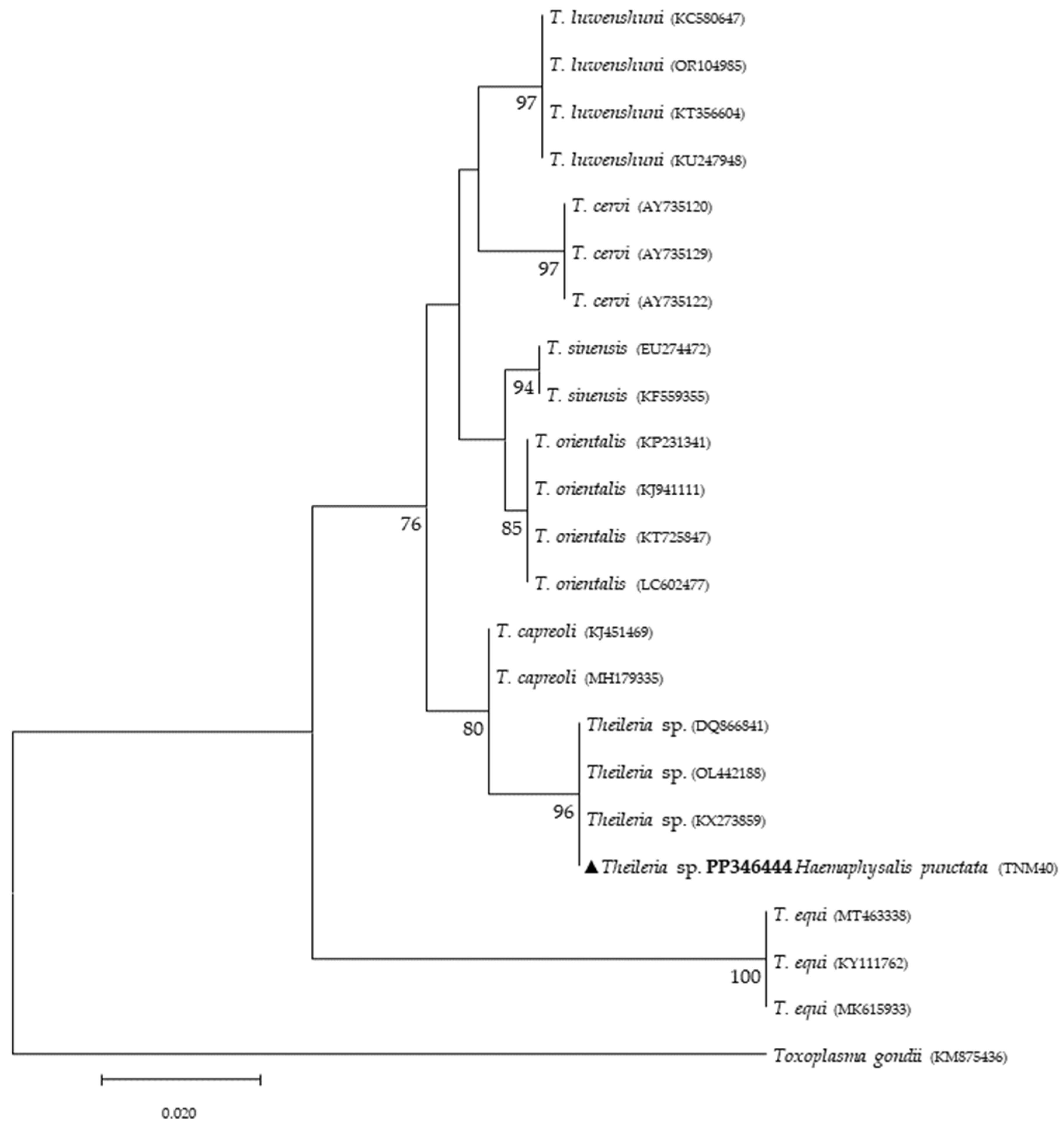

Figure 3. Phylogenetic tree constructed and displayed by the neighbor-joining method and Kimura’s two-parameter evolution model from partial sequences of the 18S rRNA gene. The same topographic representation was obtained by the maximum likelihood method and Kimura’s two-parameter + I + G4 evolution model from partial sequences of the 18S rRNA gene according to the BIC (Bayesian Information Criterion), as defined by IQ-TREE web server model selection. Bootstrap values were obtained from 1000 replications and are indicated at the nodes of the respective branches (only values ≥ 75%). The Theileria sp. sequence obtained during this work is highlighted with a triangle and its respective accession, both in bold format.
Figure 3. Phylogenetic tree constructed and displayed by the neighbor-joining method and Kimura’s two-parameter evolution model from partial sequences of the 18S rRNA gene. The same topographic representation was obtained by the maximum likelihood method and Kimura’s two-parameter + I + G4 evolution model from partial sequences of the 18S rRNA gene according to the BIC (Bayesian Information Criterion), as defined by IQ-TREE web server model selection. Bootstrap values were obtained from 1000 replications and are indicated at the nodes of the respective branches (only values ≥ 75%). The Theileria sp. sequence obtained during this work is highlighted with a triangle and its respective accession, both in bold format.
Microorganisms 12 01006 g003
Microorganisms 12 01006 g004

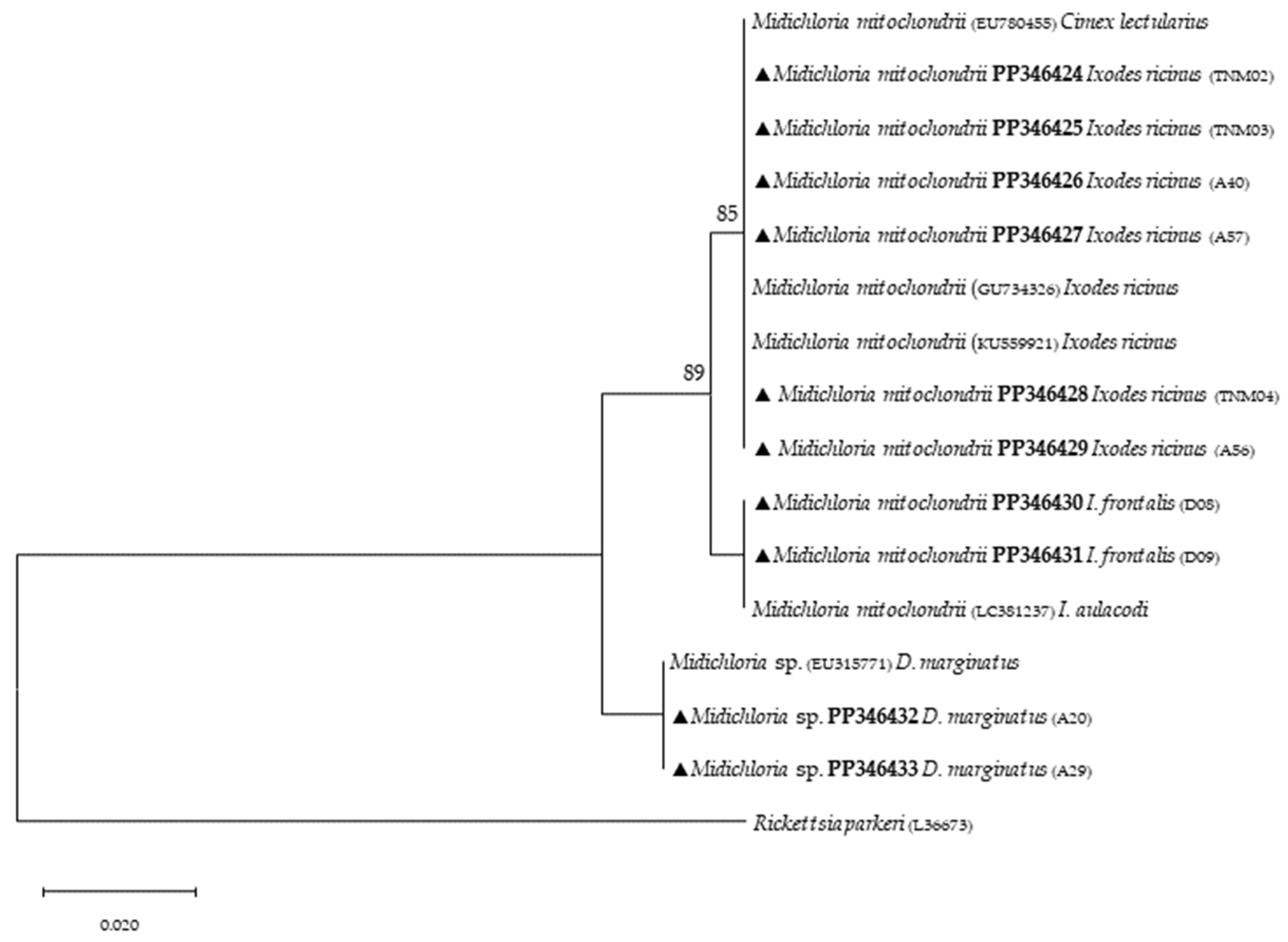

Figure 4. Phylogenetic tree constructed and displayed by the neighbor-joining method and Kimura’s two-parameter evolution model from partial sequences of the 16S rRNA gene. The same topographic representation was obtained by the maximum likelihood method and Kimura’s two-parameter evolution model from partial sequences of the 16S rRNA gene according to the BIC (Bayesian Information Criterion), as defined by IQ-TREE web server model selection. Bootstrap values were obtained from 1000 replications and are indicated at the nodes of the respective branches (only values ≥ 75%). All Midichloria spp. sequences obtained during this work are highlighted with a triangle and its respective accession, both in bold format.
Figure 4. Phylogenetic tree constructed and displayed by the neighbor-joining method and Kimura’s two-parameter evolution model from partial sequences of the 16S rRNA gene. The same topographic representation was obtained by the maximum likelihood method and Kimura’s two-parameter evolution model from partial sequences of the 16S rRNA gene according to the BIC (Bayesian Information Criterion), as defined by IQ-TREE web server model selection. Bootstrap values were obtained from 1000 replications and are indicated at the nodes of the respective branches (only values ≥ 75%). All Midichloria spp. sequences obtained during this work are highlighted with a triangle and its respective accession, both in bold format.
Microorganisms 12 01006 g004
Table 1. Primer sets used for tick-borne pathogen screening.
Table 1. Primer sets used for tick-borne pathogen screening.
MethodTarget GenePrimer/ProbeSequence 5′-3′Product Size (bp)Reference
PCR18S rRNAPIRO-AAATACCCAATCCTGACACAGGG408[39]
PIRO-BTTAAATACGAATGCCCCCAAC
PCR16S rRNAEHR16SDGGTACCYACAGAAGAAGTCC345[40]
EHR16SRTAGCACTCATCGTTTACAGC
qPCRIS1111Cox-FGTCTTAAGGTGGGCTGCGTG295[41]
Cox-RCCCCGAATCTCATTGATCAGC
Cox-TMFAM-AGCGAACCATTGGTATCGGACGTTTATGG-TAMRA
qPCR16S rRNANeo_16S_FGTAAAGGGCATGTAGGCGGTTTAA107[42]
Neo_16S_RTCCACTATCCTCTCTCGATCTCTAGTTTAA
Table 2. Hard tick species and specimens screened for Piroplasmida microorganisms and Anaplasmataceae bacteria.
Table 2. Hard tick species and specimens screened for Piroplasmida microorganisms and Anaplasmataceae bacteria.
Collection SiteTick Species (Number of Specimens/Stage *)No. of Infected Samples/No. of Tested Samples (%)
PiroplasmidaAnaplasma spp./Ehrlichia spp.N. mikurensis
GrândolaD. marginatus (39A)10/39 (25.6)4/39 (10.3)-
I. ricinus (19A)4/19 (21.1)8/19 (42.1)2/14 (14.3)
Parque Nacional GerêsD. marginatus (2A)0/2 (0)0/2 (0)0/2 (0)
Serra do BussacoD. marginatus (7A)1/7 (14.3)3/7 (42.9)4/7 (57.1)
I. frontalis (1A; 2N)1/3 (33.3)2/3 (66.7)0/3 (0)
R. pusillus (8A)1/8 (12.5)8/8 (100)0/8 (0)
R. sanguineus s. l. (15A)1/15 (6.7)3/15 (20)4/15 (26.7)
Mata do ChoupalD. marginatus (1A)1/1 (100)1/1 (100)0/1 (0)
R. pusillus (17A)5/17 (29.4)6/17 (35.3)3/17 (17.6)
R. sanguineus s. l. (3A)0/3 (0)0/3 (0)3/3 (100)
Tapada Nacional de MafraHaemaphysalis spp. (4N)1/1 (100)1/1 (100)-
H. inermis (31A)3/31 (9.7)0/31 (0)0/4 (0)
H. punctata (19A; 16N)3/22 (13.6)5/22 (22.7)0/7 (0)
H. lusitanicum (17A)0/17 (0)13/17 (76.5)-
I. ricinus (82A; 517N; 1L)37/179 (20.67)52/179 (29.05)9/97 (9.3)
R. sanguineus s. l. (1A)0/1 (0)0/1 (0)-
Total802 (262A; 118M, 144F); 539N; 1L68/365 (18.6)106/365 (29.0)25/178 (14)
* A-adult(s); M-male(s); F-female(s); N-Nymphs(s); L-larvae. D. marginatus = Dermacentor marginatus; H. inermis = Haemaphysalis inermis; H. punctata = Haemaphysalis punctata; H. lusitanicum = Hyalomma lusitanicum; I. frontalis = Ixodes frontalis; I. ricinus = Ixodes ricinus; R. pusillus = Rhipicephalus pusillus; R. sanguineus s. l. = Rhipicephalus sanguineus sensu lato.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Moerbeck, L.; Parreira, R.; Szczotko, M.; Seixas, G.; Velez, R.; Dmitryjuk, M.; Santos, A.S.; Domingos, A.; Antunes, S. Ticks and Tick-Borne Pathogens Circulating in Peri-Domestic Areas in Mainland Portugal. Microorganisms 2024, 12, 1006. https://doi.org/10.3390/microorganisms12051006

AMA Style

Moerbeck L, Parreira R, Szczotko M, Seixas G, Velez R, Dmitryjuk M, Santos AS, Domingos A, Antunes S. Ticks and Tick-Borne Pathogens Circulating in Peri-Domestic Areas in Mainland Portugal. Microorganisms. 2024; 12(5):1006. https://doi.org/10.3390/microorganisms12051006

Chicago/Turabian Style

Moerbeck, Leonardo, Ricardo Parreira, Magdalena Szczotko, Gonçalo Seixas, Rita Velez, Małgorzata Dmitryjuk, Ana Sofia Santos, Ana Domingos, and Sandra Antunes. 2024. "Ticks and Tick-Borne Pathogens Circulating in Peri-Domestic Areas in Mainland Portugal" Microorganisms 12, no. 5: 1006. https://doi.org/10.3390/microorganisms12051006

APA Style

Moerbeck, L., Parreira, R., Szczotko, M., Seixas, G., Velez, R., Dmitryjuk, M., Santos, A. S., Domingos, A., & Antunes, S. (2024). Ticks and Tick-Borne Pathogens Circulating in Peri-Domestic Areas in Mainland Portugal. Microorganisms, 12(5), 1006. https://doi.org/10.3390/microorganisms12051006

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
