Article

Evaluation of Resistance Induction Promoted by Bioactive Compounds of Pseudomonas aeruginosa LV Strain against Asian Soybean Rust

by
André Riedi Barazetti
1,
Mickely Liuti Dealis
1,
Kawany Roque Basso
1,
Maria Clara Davis Silva
1,
Leonardo da Cruz Alves
1,
Maria Eugênia Alcântara Parra
1,
Ane Stéfano Simionato
1,
Martha Viviana Torres Cely
2,
Arthur Ladeira Macedo
3,
Denise Brentan Silva
3 and
Galdino Andrade
1,*
1
Microbial Ecology Laboratory, Department of Microbiology, Universidade Estadual de Londrina, Londrina 86057-970, PR, Brazil
2
Agricultural and Environmental Sciences Institute, Federal University of Mato Grosso, Sinop 78550-728, MT, Brazil
3
Natural Products and Mass Spectrometry Laboratory (LaPNEM), Federal University of Mato Grosso do Sul, Campo Grande 79070-900, MS, Brazil
*
Author to whom correspondence should be addressed.
Microorganisms 2024, 12(8), 1576; https://doi.org/10.3390/microorganisms12081576
Submission received: 12 February 2024 / Revised: 20 June 2024 / Accepted: 11 July 2024 / Published: 2 August 2024
(This article belongs to the Special Issue Research on Natural Products against Pathogens)

Abstract

:
Pseudomonas are known as higher producers of secondary metabolites with antimicrobial properties and plant growth promoters, including resistance induction. These mechanisms should be an alternative to pesticide use in crop production. Phakopsora pachyrhizi causes Asian soybean rust, representing a high loss of yield around the world. The objective of this paper was to evaluate the application of secondary metabolites produced by Pseudomonas aeruginosa LV strain from the semi-purified fraction F4A in soybean plants to induce plant resistance against P. pachyrhizi in field conditions. The experimental design was performed in randomized blocks with three replicates using two F4A doses (1 and 10 μg mL−1) combined or not with fungicides (Unizeb Gold® or Sphere Max®). The control treatment, with Uni + Sph, saponins, flavonoids, and sphingolipids, showed higher intensities in the plants. In contrast, plants treated with the F4A fraction mainly exhibited fatty acid derivatives and some non-identified compounds with nitrogen. Plants treated with Sphere Max®, with or without F4A10, showed higher intensities of glycosylated flavonoids, such as kaempferol, luteolin, narigenin, and apigenin. Plants treated with F4A showed higher intensities of genistein and fatty acid derivatives. These increases in flavonoid compound biosynthesis and antioxidant properties probably contribute to the protection against reactive oxygen species (ROS).

1. Introduction

In the 2022/23 season, 78.5 million hectares were cultivated with soybean, and the yield was 322.8 million tons. Brazil is the one of biggest soybean producers and the fifth-largest nation in agricultural land area. In Brazil, the most widely grown crop is soybean (Glycine max L.), with 44 million ha sown and a yield of 154.6 million tons, followed by corn (Zea mays L.), with 22.6 million ha sown and a yield of 131.8 million tons in the 2022/23 season [1]. After thousands of years of use as an essential source of feed for humans and animals, soybean has emerged as one of the most significant crops on the global market and is the most important protein source for animal and human food [2].
There are some fungi causing soybean disease, such as anthracnose, stem canker, leaf blight, purple seed, downy mildew, powdery mildew, damping-off, and stem rot, and infections are caused by bacteria, viruses, and nematodes. However, none of them can match the destructive potential and economic impact of Asian soybean rust (ASR), caused by P. pachyrhizi. ASR should potentially yield losses of up to 90%, which corresponds to a billion-dollar loss on a global scale [3].
Urediniospore germination initiates the ASR infection process, which is subsequently followed by the development of germ tubes and appressoria [4,5]. The appressoria infect epidermal cells, and hypha grow through the intercellular spaces. The formation of haustoria in mesophyll cells, visible eruptions on the epidermis, and uredia occur around after 12 days, causing chlorosis and premature defoliation [6,7].
Some agricultural practices such as crop rotation, early-maturing cultivars, eliminating alternative plant hosts, and implementing sanitary voids are effective measures to mitigate the impacts of ASR. However, chemical control remains the most common and effective method to control P. pachyrhizi, preventing the secondary cycle of ASR and ensuring high productivity [8,9].
The Food and Agriculture Organization (FAO) [10] reported that in the year 2020, a significant amount of 2.7 million tons (Mt) of fungicide were used worldwide, resulting in the production of 7.2 Mt of formulated pesticide products valued at around USD 41.1 billion. The amount of fungicide used has increased 50% when compared with the levels in the 1990s. Brazil is the second largest consumer of pesticides, with a consumption of 377 kilotons (kt), closely behind the USA, which leads the use charts with 408 kt.
However, it is crucial to acknowledge that the use of pesticides carries potential risks of environmental contamination and for human and animal health. In addition, the exposure to pesticides can increase the emergence of pathogen-resistant microorganisms [11,12]. Fungal infections have been effectively controlled by site-specific fungicides like demethylation inhibitors (DMIs) and quinone outside inhibitors (QoIs) for years, but their efficiency has been decreasing [13,14].
Microorganisms such as fungi and bacteria produce several bioactive compounds, including alkaloids, steroids, terpenoids, peptides, polyketones, flavonoids, quinols, and phenols [15]. These compounds sometimes exhibit antioxidant, anti-inflammatory, and antibiotic properties. Additionally, endophytic bacteria can produce plant growth hormones, solubilize phosphate, assist in nutrient absorption, and fix N2 [15].
The challenge in agricultural research involves the identification of novel molecules, specifically bioactive compounds with antifungal activity, as these compounds show low environmental impact and low risks for human and animal health. In the last decade, innovative strategies for pest and disease management have emerged, emphasizing the use of compounds that trigger natural defense mechanisms in plants. These methods focus on mechanisms such as Inducing Systemic Resistance (ISR) or Systemic Acquired Resistance (SAR), which seek to improve plant defense response against pest and plant pathogens [16,17,18,19,20].
The Pseudomonas genera is found in the whole of the environment around the world. Some species are described as biocontrol agents, producing compounds such as phenazines, indolinones, peptides, glycopeptides, lipids, and aliphatic compounds with antimicrobial activity against fungi and bacteria pathogens for plants and humans [21,22,23,24].
Secondary metabolism compounds produced by P. aeruginosa LV strain were identified in the semi-purified fraction F4A as 1-carboxylic phenazine (CAP), with activity against Botrytis cinerea [25]; 1-carboxamide phenazine (CNP), with antimicrobial activity against Staphyloccus aureus [26]; and fluopsin C, a metaloantibiotic that controls Xanthomonas citri pv. citri [27] and X. axonopodis [28]. Also, the F4A fraction induced gene expression of β-1,3 glucanase in Citrus sinensis pv. In Valencia infected with Cancidatus Liberibacter asiaticus, the bacteria population decreased [29].
The objective of this paper was to evaluate the effect of the semi-purified fraction F4A produced by P. aeruginosa LV strain on SAR activation in soybeans infected with P. pachyrhizi by metabolomic analysis.

2. Materials and Methods

2.1. Production and Extract of Microbial Bioactive Compounds

P. aeruginosa strain LV was initially isolated from an old citrus canker lesion (Citrus sinensis cv. Valencia) in an orange leaf and is maintained in the collection of the Microbial Ecology Laboratory, Londrina, Brazil.
To produce bioactive compounds, P. aeruginosa LV strain was cultured in nutrient broth plus 5 mg L−1 CuCl2 for 10 days at 28 °C. After that, the culture was centrifuged at 9000 rpm for 15 min at 4 °C (Sorval RC-5C, Thermo Fisher Scientific, Waltham, MA, USA) and the supernatant was kept and the pellet discarded. The supernatant was reduced to 10% of its original volume in a chamber at 60 °C (SS Scientific, Londrina, Brazil). This concentrated sample was partitioned with dichloromethane (2:1, v/v) three times to obtain the dichloromethane phase (DP). DP was once concentrated with a rotatory evaporator (Büchi R-215, BUCHI Labortechnik, Flawil, Switzerland) at 45 °C at 100 rpm−1, and subsequently, it was submitted for vacuum liquid chromatography in a glass column (20 mm de diameter, 350 mm length) with silica gel 60 (0.063–0.200 mm, Merck, Darmstadt, Germany) as the stationary phase. The mobile phase applied (400 mL) was dichloromethane and ethyl acetate 1:1 (v/v) to obtain the fraction F4A [30].

2.2. Field Experiment

2.2.1. Experimental Area

The experiments were carried out at the experimental farm of the State University of Londrina, PR, Brazil (−23.341223 S, −51.213271 W), and the soil was classified as Dystroferric Red Ferralsol [31]. Its chemical analysis was pH (CaCl2) 6.44, Al3+ 0.08 cmolc kg−1, Ca2+ 8.45 cmolc kg−1, Mg2+ 2.46 cmolc kg−1, K+ 0.15 cmolc kg−1, P 15.60 cmolc kg−1, and C 12.14 cmolc kg−1. The climate is Cfa, humid subtropical [32], with an average annual temperature of 24.2 °C, and pluviometry during the experiment from November to March was 69.88 L [33].

2.2.2. Weed Control

Weed control was carried out with N (phosphonomethyl) glycine (Roundup WG, Monsanto do Brasil Ltda., Limoeiro, Brazil), and pest control was carried out with imidacloprid (Imida Gold 700 WG, UPL, Ituverava, Brazil), Thiamethoxam + Lambda-Cyalothrin (Engeo PlenoTM S, Syngenta, São Paulo, Brazil), and Spiromesifen (Oberon, Bayer S.A., São Paulo, Brazil) according to the manufacturers’ instructions.

2.2.3. Effect of F4A Fraction on Asian Soybean Rust

The experimental design was randomized from six treatments and three replicates and evaluated two concentrations of F4A (1 and 10 μg mL−1) added or not to Unizeb Gold® (Uni) (UPL, Ituverava, Brazil) and/or Sphere Max® (Sph) (Bayer S.A., São Paulo, Brazil), according to the manufacturers’ instructions, to evaluated the following treatments: F4A1, F4A1 + Uni, F4A1 + Sph, F4A10, F4A10 + Uni, and F4A10 + Sph. The positive control (Unizeb Gold® and Sphere Max®) was an additional group named Uni + Sph. The parcel had a total area of 9 m2 and ten lines.
Seeds of soybean var. NS 5959 IPRO (Nidera Seeds, São Paulo, Brazil) were treated with Metalaxyl-M, Fludioxonil (Maxim® XL, Syngenta, São Paulo, Brazil), and Imidachloprid + Thiodicarb (CropStar®, Bayer S.A, São Paulo, Brazil). Soil was fertilized with 250 kg ha−1 of NPK 10-15-15, and seeds were inoculated with Rizo Plus® (Rhizobacter, Londrina, Brazil) (Bradyrhizobium japonocum strain SEMIA 5079 and SEMIA 5080) according to the manufacturer’s instructions and Arbuscular mycorrhiza fungi R. clarus at a concentration of around 47.5 spores per gram of seeds [34].
The F4A fraction and pesticides were applied with a backpack sprayer with a CO2 cylinder (Agro Pesquisa, Campinas, Brazil) with a flow of 200 L ha−1. The application was carried out two times (A1 and A2). A1 was carried out in R5.1, right after the first symptoms of Asian soybean rust, and A2 was carried out in R6. After 24 h for each application, five leaves were collected from each parcel and frozen in dry ice.

2.3. Metabolomic Analysis

2.3.1. Sample Preparation

From the five leaves collected in the field, the healthy leaves were selected, washed, and powdered by liquid nitrogen in a pistil. From these materials, 0.2 g was extracted with 10 mL methanol and water 8:2 (v/v) in an ultrasonic bath (30 min) (Branson 1510-DTH, Marshall Scientific, Hampton, NH, USA); subsequently, the samples were centrifuged for 10 min at 6.000 rpm and 8 °C (Jouan CR3i, Thermo Fisher Scientific, Waltham, MA, USA). The supernatants were filtered by Millex syringe filters (PTFE, 0.22 mm × 13 mm, Merck Millipore, Burlington, MA, USA) and added to vials of 1.5 mL to carry out the chromatography analysis. Aliquots of 20 µL of each sample were pooled to prepare the quality control sample (QC).

2.3.2. Metabolomic Analysis

The metabolomic data analysis was carried out in an Ultra-Fast Liquid Chromatograph LC-20AD Shimadzu Prominence (Shimadzu, Kyoto, Japan) coupled to a diode array detector and mass spectrophotometer with ionization source electrospray and analyzer quadrupole and time of flight (MicrOTOF-Q III Bruker Daltonics, Billerica, MA, USA).
The samples (1 µL) were processed in the chromatographic system using a Kinetex C18 column (2.6 μm, 100 A, 150 × 2.1 mm, Phenomenex, Torrance, CA, USA). The mobile phase was composed of acetonitrile (B) and water (A), with formic acid 0.1% (v/v) added to both phases. The gradient elution profile was the following: 0–2 min 3% B, 2–25 min 3 to 25% B, 25–40 min 25 to 80% B, and 40–43 min 80% B. The flow rate was 0.3 mL min−1, and the chromatographic column was maintained at 50 °C during the analysis. Samples were analyzed in positive and negative ion mode. Nitrogen was used as a nebulizer (4 Bar) and drier (9 L/min) and collision gas. The compound annotation was based on the spectral data from UV, MS, and the fragmentation profile compared with the databases and data reported in the literature [35,36,37]. Some compound data were confirmed by the co-injection of authentic standards.
The data were initially analyzed by Data Analysis 4.2 software (Bruker Daltomics, Billerica, MA, USA)) and were subsequently aligned and reduced by the software Metalign (version 011012) and MSClust (version 300817), respectively. The statistical analyses were performed by the platform Metaboanalyst 5.0, and the data were previously normalized by median, log transformed, and auto-scaled before these analyses. The statistical analyses include hierarchical cluster heatmap (HCH) and principal component analysis (PCA).

3. Results

The dataset was composed of 129 entrances after data processing. The spectral data and annotated compounds from selected entrances obtained by statistical analyses are summarized in Table 1.
Figure 1 presents the principal component analysis (PCA) score plot from the LC-MS data of soybean leaf samples infected with Phakopsora pachyrhizi under different treatments. PCA is an unsupervised statistical technique that transforms high-dimensional data into a lower-dimensional coordinate system, preserving the highest variance in the data.
In the PCA analysis, group 1, represented by red triangles, includes the treatments Uni + Sph F4A1 + Sph, F4A10 + Sph, and F4A10, while group 2, represented by green plus symbols, comprises the treatments F4A1, F4A1 + Uni, and F4A10 + Uni. The two groups show a tendency of separation between the groups (Figure 1).
Figure 2 shows a heatmap and hierarchical clustering analysis (HCA) of soybean leaf samples infected with P. pachyrhizi under different treatments. The heatmap visualizes the relative intensity of specific compounds in the samples, where darker red colors indicate higher intensity. The HCA groups the samples based on the similarities in their metabolic profiles, highlighting four main clusters: A, B, C, and D.
The clusters C and D and the group F4A10 exhibited higher intensities of compounds such as O-di-hexosyl kaempferol (18), O-di-hexosyl luteolin (21), O-di-deoxyhexosyl hexosyl kaempferol (23), O-hexosyl kaempferol (30), O-hexosyl malonyl naringenin (45), apigenin (60), and compounds 36, 42, and 126. These compounds are glycosylated flavonoids, suggesting that the use of Sphere Max® induces the accumulation of these glycosylated flavonoids, which may be related to increased plant resistance against P. pachyrhizi. Additionally, the samples treated with F4A1, FaA1 + Uni, F4A10, and F4A10 + Uni are more similar (cluster A and B), while the treatments with F4A1 + Sph are more similar to the control.
Since the clustering did not show a pattern that could be induced by treatment with F4A, we decided to observe the heatmap grouping the samples as control and treatment with fractions F4A and with the most important 40 peaks (Figure 3). These results indicated higher intensities of O-hexosyl genistein (27), genistein (57), two fatty acid derivatives (125 and 112), and peaks 2, 64, 67, 68, 71, 72, 75, 92, 95, and 99 in all treatments and peaks 106 and 114 in treatments with F4A10 (Figure 2). The samples treated with Uni + Sph show higher intensities of some compounds, such as O-di-deoxyhexosyl kaempferol (19), O-hexosyl-malonyl apigenin (48), O-hexosyl-malonyl genistein (49), O-hexosyl malonyl afrormosin (59), sphingolipid (77), and saponin (85) (Figure 3).
The compounds with higher intensities in the control samples (Uni + Sph) were different from the induced metabolites for the plant treated with the fraction F4A (different combinations evaluated). The saponins (85, 94, 96, 103), O-glycosyl-malonylated flavonoids (36, 48, 49, 59), and the sphingolipid 77 showed higher intensities in the plants treated with Uni + Sph, while in the plants treated with the fraction F4A were mainly fatty acid derivatives (112, 125) and some non-identified compounds with nitrogen (67–68, 71, 75, 92, 106, 114).
The annotated compounds included flavonols, flavones, isoflavones, saponins, and fatty acid derivatives. The most annotated flavonoids were O-glycosides, and the UV data were useful to determine the flavonoidic classes, such as the flavonols (λmax ≈ 268 and 350 nm; peaks 15, 17–19, 23, 24, 29, 30, and 33–34), isoflavones (λmax ≈ 270 and 330/shoulder nm; peaks 13, 25, 27, 36, 40, 43, 49, 53, 56, and 59), and flavones (λmax ≈ 268 and 335 nm; peaks 21, 26, 38-39, 48, and 60). The determination of the molecular formulas was based on accurate mass considering the errors and mSigma up to 8 ppm and 30 ppm, respectively. The losses of 162, 146, 176, and 86 u suggested the hexosyl, deoxyhexosyl, glucuronyl, and malonyl substituents bound with O-linked type. For example, the compounds 40 and 43 revealed the fragment ions at m/z 271 relative to the aglycone genistein, which were yielded from the losses of 248 u compatible to losses of the hexosyl (162 u) and malonyl (86 u) groups [38]. Thus, several compounds were annotated from the samples.

4. Discussion

Unizeb Gold® is a multi-site fungicide. Its active ingredient is mancozeb, which belongs to the group of dithiocarbamates. When exposed to water, mancozeb breaks down and releases ethylene bisisothiocyanate sulfide (EBIS). This compound is then converted into ethylene bisisothiocyanate (EBI) by UV light. The mode of action is not fully elucidated; however, EBIS and EBI are believed to be toxic to enzymes containing sulfhydryl groups [39].
Sphere Max® (Bayer Co.), in turn, is a systemic fungicide containing cyproconazole and trifloxystrobin, which belongs to the groups of triazoles and strobilurins, respectively. Triazoles inhibit cytochrome P450 14α-demethylase, directly interfering in lanosterol-to-ergosterol conversion and affecting cell membrane formation, which causes disruption of cells [40,41]. Also, triazoles inhibit spore germination, appressorium formation, and mycelium growth in the host tissue [42,43]. On the other hand, strobilurins act by inhibiting the respiratory chain [44].
Those effects were observed in a field experiment on soybeans [45]. The treatments Uni + Sph, F4A1 + Sph, and F4A10 + Sph were highly effective in controlling ASR, delaying disease progression, and causing damage to the spores and hyphae of P. pachyrhizi. In the same study, Barazetti et al. [45] observed in an in vitro experiment that F4A1 and F4A10 inhibit spore germination and germinative tube growth.
Soybean treated with Sphere Max® increased production of flavonoids, which suggested that Sphere Max® induces plant defense. Strobilurins have been related as inducing priming responses in Arabidopsis [46], and the same results were observed in Nicotiana tabacum treated with pyraclostrobin, decreasing tobacco mosaic virus [47], and in cucumber treated with the same compound against mosaic virus and P. syringae pv. tomato [48].
Despite the resistance inducing effects, there is no data in the literature that associate the application of the active ingredients present in Unizeb Gold® and Sphere Max® with the biosynthesis of flavonoids as observed in our investigation.
Plants treated with Uni + Sph also exhibit higher levels of saponins. This one is part of the terpene class, mainly present in dicotyledonous species, and is related to insect and fungal attack in plants. In both cases, this activity is commonly linked to their interaction with biological membranes, forming complexes with sterols, proteins, or phospholipids. More recently, it was verified that saponins also have the potential to activate defense responses through salicylic acid induction and oxidative burst in Brassica napus against Leptosphaeria maculans [49]. Sadly, the interaction between saponin levels and P. pachyrhizi infection on soy plants is still unclear.
The F4A fraction obtained from the P. aeruginosa LV strain contains two phenazines, compounds that have been reported as biocontrol agents through antagonism to other microorganisms in the rhizosphere besides being important to control fungal crop diseases [50]. In general, phenazines, especially pyocyanin, promote the generation of ROS, which act as signaling molecules involved in growth processes, development, and defense responses against pathogens through ISR [51].
The inoculation of P. aeruginosa in rice stimulated plant defense against Magneporthe grisea, which causes blast disease, and decreased infection. Pyocyanin (PYO) was crucial as an elicitor of ISR. When rice was treated with 25 ηM, 1 ηM, and 100 ηM of PYO, the infection of M. grisea was reduced, but no effect was observed with Rhizoctonia solani [52]. The ISR should explain the effect observed on P. pachyrhizi in our experiment, where soybeans treated with 1 µg F4A increased soybean yield to 4.64 ton ha−1, 6.2% more than plants treated with Uni + Sph. Another study demonstrated that F4A activates soybean defenses, increasing the expression of phenylalanine ammonia lyase (PAL), O-methyltransferase (OMT), and pathogenesis-related protein-2 (PR-2; glucanases) defense-related genes, detected 24 and 72 h after soybean sprouts were sprayed with purified Fluopsin C, which is one of the compounds that contains the F4A fraction [53].
The enzyme PAL converts phenylalanine to trans-cinnamic acid and ammonia; the first one should be incorporated into many phenolic compounds and is present in esters, coumarins, lignin, and flavonoid formation [54]. It is largely known that flavonoids have antioxidant properties due to the presence of B-ring catechol groups and other factors which donate electron-reducing ROS [55]. The production of phytoalexin glyceollin is one of the most common responses of soybeans against phytopathogenic fungi. Silva et al. [54], studying soybean leaves inoculated and not inoculated with P. pachyrhizi, observed that this phytoalexin was only expressed in the second group. The metabolic precursor of glyceollin is daidzein, which is present in soybean plants treated with F4A. Both glyceollin and daidzein have antioxidant activity against ROS [56,57,58], as well as other compounds of the flavonoid group that were identified in plants treated with F4A, such as kaempferol [59,60], apigenin [61], and luteolin [55], and should be related to the plant protection against P. pachyrhizi observed in our results. Gupta et al. [62], studying Arabidopsis thaliana plants treated with ethylene, a hormone known to be involved in stress responses, observed that there was an increase in isoflavonoid accumulation when compared to control plants, especially genistin (2.7 fold), daidzein (21.38 fold), and genistein (7.6 fold). They also verified an increment in levels of fatty acids and flavonoids, suggesting an important role of these compounds in plant defense besides being part of the ethylene pathway.
Plants treated with F4A10 + Sph increased sphingolipid and pheophorbide synthesis. Sphingolipids are important for cell membrane structure, cell-to-cell signalization, cell wall formation, stomatal closure, and controlled cell death [63,64]. Pheophorbide A is derived from chlorophyl degradation during the natural process of leaf senescence after seed formation [65] or by biotic and abiotic stress or fungal infection as in P. pachyrhizi [7].
In general, all treatments showed the presence of fatty acids or their derivates, such as octadecatrienoic acid and eicosatetraenoic acid, which were probably related to the grain formation of soybeans during our first (R5) and second (R6) harvests. Once stored, seeds that have these lipids as their main reserve form are subjected to slow and consistent exposure to oxygen, forming hydroperoxides, other oxygenated acids, and free radicals [66].
Lipids and fatty acids can also act in defense responses to biotic and abiotic stresses. Linolenic and linoleic acids, for example, are precursors of oxylipins in plants, a product of self-oxidation or enzymatic oxidation [54].
Through the heatmaps, it is also possible to observe some variations in the production of compounds, even within the same treatments. This probably stems from the fact that the experiment was conducted under field conditions, where a series of biotic and abiotic factors, including temperature, humidity, wind, pests, and weeds, cannot be fully controlled [67].
In conclusion, our results suggest that the F4A fraction induced plant resistance against Asian soybean rust, decreasing lesion formation and increasing soybean yield.

Author Contributions

Conceptualization, A.R.B. and G.A.; Data curation, D.B.S. and G.A.; Formal analysis, A.R.B., A.S.S., and A.L.M.; Investigation, A.R.B., K.R.B., M.C.D.S., A.S.S., L.d.C.A., M.E.A.P., M.L.D., and G.A.; Methodology, D.B.S., M.V.T.C., and G.A.; Project administration, D.B.S. and G.A.; Supervision, D.B.S., M.V.T.C., and G.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Council for Scientific and Technological Development (CNPq) and Coordination for the Improvement of Higher Education Personnel (CAPES).

Data Availability Statement

The original contributions presented in the study are included in the article, further inquiries can be directed to the corresponding author.

Acknowledgments

Thanks for National Council of Scientific and Technological Development (CNPq) (Project 406016/2022-4) and Coordination for Higher Education Personnel Improvement Coordination (CAPES) for the fellowship of PIBIC, MSc., PhD, and Scientific Research Production. The authors would also thank the Foundation for Supporting the Development of Education, Science and Technology of Mato Grosso do Sul State (FUNDECT, process no. 71/032.390/2022) and the National Institute of Wetlands (INAU).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Conab. Acompanhamento da Safra Brasileira de Grãos (Monitoring the Brazilian Grain Harvest). 2023. Available online: http://www.conab.gov.br (accessed on 12 July 2024).
  2. Philis, G.; Gracey, E.O.; Gansel, L.C.; Fet, A.M.; Rebours, C. Comparing the primary energy and phosphorus consumption of soybean and seaweed-based aquafeed proteins—A material and substance flow analysis. Clean. Prod. 2018, 200, 1142–1153. [Google Scholar] [CrossRef]
  3. Langenbach, C.; Campe, R.; Beyer, S.F.; Mueller, A.N.; Conrath, U. Fighting Asian soybean rust. Front. Plant Sci. 2016, 7, 797. [Google Scholar] [CrossRef]
  4. Hoppe, H.H.; Koch, E. Defense reactions in host and nonhost plants against the soybean rust fungus (Phakopsora pachyrhizi Syd.). J. Phytopathol. 1989, 125, 77–88. [Google Scholar] [CrossRef]
  5. Koch, E.; Ebrahim Nesbat, F.; Hoppe, H. Light and electron microscopic studies on the development of soybean rust (Phakopsora pachyrhizi Syd.) in susceptible soybean leaves. Phytopathol. Z. 1983, 106, 302–320. [Google Scholar] [CrossRef]
  6. Vittal, R.; Paul, C.; Hill, C.B.; Hartman, G.L. Characterization and quantification of fungal colonization of Phakopsora pach-yrhizi in soybean genotypes. Phytopathology 2014, 104, 86–94. [Google Scholar] [CrossRef] [PubMed]
  7. Hartman, G.L.; Rupe, J.C.; Sikora, E.J.; Domier, L.L.; Davis, J.A.; Steffey, K.L. (Eds.) Compendium of Soybean Diseases and Pests, 5th ed.; The American Phytopathological Society: Saint Paul, MN, USA, 2015. [Google Scholar] [CrossRef]
  8. Zambolim, L.; Juliatti, F.C.; Guerra, W. How to cope with the vulnerability of site specific fungicides on the control of Asian soybean rust. Int. J. Res. Agron. 2021, 4, 14–25. [Google Scholar] [CrossRef]
  9. Nascimento, R.S.M.; Ferreira, L.R.; Zambolim, L.; Parreira, D.F.; da Costa, Y.K.S.; Damascena, J.F.; Cecon, P.R. Spray mixture volume in the control of Asian soybean rust. Crop Prot. 2021, 146, 105662. [Google Scholar] [CrossRef]
  10. FAO. Pesticides Use, Pesticides Trade and Pesticides Indicators. 2022. Available online: https://www.fao.org/documents/card/en?details=cc0918en (accessed on 23 April 2024).
  11. Godoy, C.V.; Flausino, A.M.; Santos, L.C.M.; del Ponte, E.M. Eficiência do controle da ferrugem asiática da soja em função do momento de aplicação sob condições de epidemia em Londrina, PR (Efficiency of Asian soybean rust control depending on the time of application under epidemic conditions in Londrina, PR). Trop. Plant Pathol. 2009, 34, 56–61. [Google Scholar] [CrossRef]
  12. Godoy, C.V.; Seixas, C.D.S.; Soares, R.M.; Marcelino-Guimarães, F.C.; Meyer, M.C.; Costamilan, L.M. Asian soybean rust in Brazil: Past, present, and future. Pesqui. Agropecu. Bras. 2016, 51, 407–421. [Google Scholar] [CrossRef]
  13. Delaney, M.; ArchMiller, A.A.; Delaney, D.P.; Wilson, A.E.; Sikora, E.J. Effectiveness of Fungicide on Soybean Rust in the Southeastern United States: A Meta-Analysis. Sustainability 2018, 10, 1784. [Google Scholar] [CrossRef]
  14. Scherm, H.; Christiano, R.S.C.; Esker, P.D.; Del Ponte, E.M.; Godoy, C.V. Quantitative review of fungicide efficacy trials for managing soybean rust in Brazil. Crop Prot. 2009, 28, 774–782. [Google Scholar] [CrossRef]
  15. Singh, M.; Kumar, A.; Singh, R.; Pandey, K.D. Endophytic bacteria: A new source of bioactive compounds. 3 Biotech 2017, 1, 315. [Google Scholar] [CrossRef] [PubMed]
  16. Chen, Z.; Silva, H.; Klessig, D.F. Active oxygen species in the induction of plant Systemic Acquired Resistance by salicylic acid. Science 1993, 262, 1883–1886. [Google Scholar] [CrossRef] [PubMed]
  17. Fritig, B.; Heitz, T.; Legrand, M. Antimicrobial proteins in induced plant defense. Curr. Opin. Immunol. 1998, 10, 16–22. [Google Scholar] [CrossRef] [PubMed]
  18. Van Loon, L.C.; Van Strien, E.A. The families of Pathogenesis-Related Proteins, their activities, and comparative analysis of PR-1 type proteins. Physiol. Mol. Plant Pathol. 1999, 55, 85–97. [Google Scholar] [CrossRef]
  19. Compant, S.; Reiter, B.; Sessitsch, A.; Nowak, J.; Clément, C.; Barka, E.A. Endophytic colonization of Vitis vinifera L. by plant growth-promoting bacterium Burkholderia Sp. strain PsJN. Appl. Environ. Microbiol. 2005, 71, 1685–1693. [Google Scholar] [CrossRef] [PubMed]
  20. Choudhary, D.K.; Prakash, A.; Johri, B.N. Induced Systemic Resistance (ISR) in plants: Mechanism of action. Indian J. Microbiol. 2007, 47, 289–297. [Google Scholar] [CrossRef] [PubMed]
  21. Castaldi, S.; Masi, M.; Sautua, F.; Cimmino, A.; Isticato, R.; Carmona, M.; Tuzi, A.; Evidente, A. Pseudomonas fluorescens showing antifungal activity against Macrophomina phaseolina, a severe pathogenic fungus of soybean, produces phenazine as the main active metabolite. Biomolecules 2021, 11, 1728. [Google Scholar] [CrossRef]
  22. Morales, D.K.; Jacobs, N.J.; Rajamani, S.; Krishnamurthy, M.; Cubillos-Ruiz, J.R.; Hogan, D.A. Antifungal mechanisms by which a novel Pseudomonas aeruginosa phenazine toxin kills Candida albicans in biofilms. Mol. Microbiol. 2010, 78, 1379–1392. [Google Scholar] [CrossRef]
  23. Clough, S.E.; Jousset, A.; Elphinstone, J.G.; Friman, V.P. Combining in vitro and in vivo screening to identify efficient Pseu-domonas biocontrol strains against the phytopathogenic bacterium Ralstonia solanacearum. Microbiologyopen 2022, 11, e1283. [Google Scholar] [CrossRef]
  24. Poveda, J.; Eugui, D. Combined use of Trichoderma and beneficial bacteria (mainly Bacillus and Pseudomonas): Development of microbial synergistic bio-inoculants in sustainable agriculture. Biol. Control 2022, 176, 105100. [Google Scholar] [CrossRef]
  25. Simionato, A.S.; Navarro, M.O.P.; Barazetti, A.R.; dos Santos, I.M.O.; Spago, F.R.; Chryssafidis, A.L.; Andrade, G. Strategies for biological control and antagonisms. Plant-Microbe Interact. Agro-Ecol. Perspect. 2017, 2, 221–244. [Google Scholar] [CrossRef]
  26. Cardozo, V.F.; Oliveira, A.G.; Nishio, E.K.; Perugini, M.R.E.; Andrade, C.G.T.J.; Silveira, W.D.; Durán, N.; Andrade, G.; Kobayashi, R.K.T.; Nakazato, G. Antibacterial activity of extracellular compounds produced by a Pseudomonas strain against methicillin-resistant Staphylococcus aureus (MRSA) strains. Ann. Clin. Microbiol. Antimicrob. 2013, 12, 12. [Google Scholar] [CrossRef] [PubMed]
  27. De Oliveira, A.G.; Spago, F.R.; Simionato, A.S.; Navarro, M.O.P.; Da Silva, C.S.; Barazetti, A.R.; Cely, M.V.T.; Tischer, C.A.; San Martin, J.A.B.; De Jesus Andrade, C.G.T.; et al. Bioactive organocopper compound from Pseudomonas aeruginosa inhibits the growth of Xanthomonas citri subsp. citri. Front. Microbiol. 2016, 7, 113. [Google Scholar] [CrossRef] [PubMed]
  28. Lopes, L.P.; Oliveira, A.G., Jr.; Beranger, J.P.O.; Góis, C.G.; Vasconcellos, F.C.S.; Martin, J.A.B.S.; Andrade, C.G.T.J.; Mello, J.C.P.; Andrade, G. Activity of extracellular compounds of Pseudomonas sp. against Xanthomonas axonopodis in vitro and bacterial leaf blight in Eucalyptus. Trop. Plant Pathol. 2012, 37, 233–238. [Google Scholar] [CrossRef]
  29. Pistori, J.F.; Simionato, A.S.; Navarro, M.O.P.; Andreata, M.F.L.; Santos, I.M.O.; Meneguim, L.; Leite Junior, R.P.; Oliveira, A.G.; Andrade, G. Low-molecular-weight metabolites produced by Pseudomonas aeruginosa as an alternative to control Huanglongbing in Citrus sinensis Cv. Valencia. Trop. Plant Pathol. 2018, 43, 289–296. [Google Scholar] [CrossRef]
  30. Munhoz, L.D.; Fonteque, J.P.; Santos, I.M.O.; Navarro, M.O.P.; Simionato, A.S.; Goya, E.T.; Rezende, M.I.; Balbi-Peña, M.I.; de Oliveira, A.G.; Andrade, G. Control of bacterial stem rot on tomato by extracellular bioactive compounds produced by Pseudomonas aeruginosa LV strain. Cogent Food Agric. 2017, 3, 1282592. [Google Scholar] [CrossRef]
  31. FAO. World Reference Base for Soil Resources 2006: A Framework for International Classification, Correlation and Communication; World Soil Resources Reports; Cambridge University Press: Cambridge, UK, 2006; Volume 43. [Google Scholar] [CrossRef]
  32. Köppen, W. Die wärmezonen der Erde, nach der dauer der heissen, gemässigten und kalten zeit und nach der wirkung der wärme auf die organische welt betrachtet (The heat zones of the Earth are considered according to the duration of the hot, temperate and cold periods and the effect of heat on the organic world). Meteorol. Z. 1884, 215–226. Available online: http://koeppen-geiger.vu-wien.ac.at/pdf/Koppen_1884.pdf (accessed on 12 July 2024).
  33. IDR-Paraná. Dados Meteorológicos Históricos e Atuais (Historical and Current Weather Data). Available online: https://www.idrparana.pr.gov.br/Pagina/Dados-Meteorologicos-Historicos-e-Atuais (accessed on 28 March 2024).
  34. Cely, M.V.T.; Siviero, M.A.; Emiliano, J.; Spago, F.R. Inoculation of Schizolobium parahyba with mycorrhizal fungi and plant growth-promoting rhizobacteria increases wood yield under field conditions. Front. Plant Sci. 2016, 7, 1708. [Google Scholar] [CrossRef]
  35. Vukics, V.; Guttman, A. Structural characterization of flavonoid glycosides by multi-stage mass spectrometry. Mass Spectrom. Rev. 2010, 29, 1–16. [Google Scholar] [CrossRef]
  36. Macedo, A.L.; Boaretto, A.G.; Silva, A.N.; Maia, D.S.; Siqueira, J.M.; Silva, D.B.; Carollo, C.A. Evaluation of the Effect of Brazilian Savanna (Cerrado) Seasons in Flavonoids and Alkaloids Accumulation: The Case of Duguetia furfuracea. J. Braz. Chem. Soc. 2021, 32, 1840–1850. [Google Scholar] [CrossRef]
  37. Savarino, P.; Demeyer, M.; Decroo, C.; Colson, E.; Gerbaux, P. Mass spectrometry analysis of saponins. Mass Spectrom. Rev. 2023, 42, 954–983. [Google Scholar] [CrossRef] [PubMed]
  38. Li, L.; Yu, Y.; Zhou, Z.; Zhou, J.M. Plant pattern-recognition receptors controlling innate immunity. Sci. China Life Sci. 2016, 59, 878–888. [Google Scholar] [CrossRef]
  39. Gullino, M.L.; Tinivella, F.; Garibaldi, A.; Kemmitt, G.M.; Bacci, L.; Sheppard, B. Mancozeb: Past, present, and future. Plant Dis. 2010, 94, 1076–1087. [Google Scholar] [CrossRef] [PubMed]
  40. Podgorski, M.N.; Coleman, T.; Giang, P.D.; Wang, R.; Bernhardt, P.V.; De Voss, J.J.; Bell, S.G. To be, or not to be, an inhibitor: A comparison of azoles interactions with and oxidation by a Cytochrome P450 enzyme. Inorg. Chem. 2022, 61, 236–245. [Google Scholar] [CrossRef]
  41. Sagatova, A.A.; Keniya, M.V.; Wilson, R.K.; Monk, B.C.; Tyndall, J.D.A. Structural insights into binding of the antifungal drug fluconazole to Saccharomyces cerevisiae lanosterol 14α-demethylase. Antimicrob. Agents Chemother. 2015, 59, 4982–4989. [Google Scholar] [CrossRef]
  42. Pontzen, R.; Scheinpflug, H. Effects of triazole fungicides on sterol biosynthesis during spore germination of Botrytis cinerea, Venturia inaequalis and Puccinia graminis f. sp. Tritici. Neth. J. Plant Pathol. 1989, 95, 151–160. [Google Scholar] [CrossRef]
  43. Twizeyimana, M.; Hartman, G.L. Sensitivity of Phakopsora pachyrhizi isolates to fungicides and reduction of fungal infection based on fungicide and timing of application. Plant Dis. 2017, 101, 121–128. [Google Scholar] [CrossRef]
  44. Venancio, W.S.; Rodrigues, M.A.T.; Begliomini, E.; Souza, N.L. Efeitos fisiológicos de fungicida do grupo das estrobirulinas sobre plantas (Physiological effects of fungicides from the strobirulin group on plants). Publ. UEPG Ci. Exatas Terra Ci. Agr. Eng. 2003, 9, 59–68. [Google Scholar]
  45. Barazetti, A.R.; Simionato, A.S.; Navarro, M.O.P.; dos Santos, I.M.O.; Modolon, F.; de Lima Andreata, M.F.; Liuti, G.; Cely, M.V.T.; Chryssafidi, A.L.; Dealis, M.L.; et al. Formulations of arbuscular mycorrhizal fungi inoculum applied to soybean and corn plants under controlled and field conditions. Appl. Soil Ecol. 2019, 142, 25–33. [Google Scholar] [CrossRef]
  46. Beckers, G.J.; Conrath, U. Priming for stress resistance: From the lab to the field. Curr. Opin. Plant Biol. 2007, 10, 425–431. [Google Scholar] [CrossRef] [PubMed]
  47. Herms, S.; Seehaus, K.; Koehle, H.; Conrath, U. A Strobilurin fungicide enhances the resistance of tobacco against Tobacco mosaic virus and Pseudomonas syringae Pv Tabaci. Plant Physiol. 2002, 130, 120–127. [Google Scholar] [CrossRef] [PubMed]
  48. Skandalis, N.; Dimopoulou, A.; Beri, D.; Tzima, A.; Malandraki, I.; Theologidis, I.; Bitivanos, S.; Varveri, C.; Klitsinaris, T.; Vassilakos, N. Effect of pyraclostrobin application on viral and bacterial diseases of tomato. Plant Dis. 2016, 100, 1321–1330. [Google Scholar] [CrossRef] [PubMed]
  49. Trdá, L.; Janda, M.; Macková, D.; Pospíchalová, R.; Dobrev, P.I.; Burketová, L.; Matušinsky, P. Dual mode of the saponin aescin in plant protection: Antifungal agent and plant defense elicitor. Front. Plant Sci. 2019, 10, 1448. [Google Scholar] [CrossRef] [PubMed]
  50. Perry, E.K.; Newman, D.K. Prevalence and correlates of phenazine resistance in culturable bacteria from a dryland wheat field. Appl. Environ. Microbiol. 2022, 88, e0232021. [Google Scholar] [CrossRef] [PubMed]
  51. Pierson, L.S.; Pierson, E.A. Metabolism and function of phenazines in bacteria: Impacts on the behavior of bacteria in the environment and biotechnological processes. Appl. Microbiol. Biotechnol. 2010, 86, 1659–1670. [Google Scholar] [CrossRef] [PubMed]
  52. De Vleesschauwer, D.; Cornelis, P.; Höfte, M. Redox-active pyocyanin secreted by Pseudomonas aeruginosa 7NSK2 triggers systemic resistance to Magnaporthe grisea but enhances Rhizoctonia solani susceptibility in rice. Mol. Plant Microbe Interact. 2006, 19, 1406–1419. [Google Scholar] [CrossRef] [PubMed]
  53. Dos Santos, I.M.O.; Abe, V.Y.; de Carvalho, K.; Barazetti, A.R.; Simionato, A.S.; de Almeida Pega, G.E.; Matis, S.H.; Cano, B.G.; Cely, M.V.T.; Marcelino-Guimarães, F.C.; et al. Secondary metabolites of Pseudomonas aeruginosa LV strain decrease Asian soybean rust severity in experimentally infected plants. Plants 2021, 10, 1495. [Google Scholar] [CrossRef] [PubMed]
  54. Silva, E.; da Graça, J.P.; Porto, C.; Martin do Prado, R.; Hoffmann-Campo, C.B.; Meyer, M.C.; de Oliveira Nunes, E.; Pilau, E.J. Unraveling Asian soybean rust metabolomics using mass spectrometry and molecular networking approach. Sci. Rep. 2020, 10, 138. [Google Scholar] [CrossRef]
  55. López-Lázaro, M. Distribution and biological activities of the flavonoid luteolin. Mini Rev. Med. Chem. 2009, 9, 31–59. [Google Scholar] [CrossRef]
  56. Kim, H.J.; Suh, H.J.; Kim, J.H.; Park, S.; Joo, Y.C.; Kim, J.S. Antioxidant activity of glyceollins derived from soybean elicited with Aspergillus sojae. J. Agric. Food Chem. 2010, 58, 11633–11638. [Google Scholar] [CrossRef]
  57. Kim, H.J.; Lim, J.-S.; Kim, W.-K.; Kim, J.-S. Soyabean glyceollins: Biological effects and relevance to human health. Proc. Nutr. Soc. 2012, 71, 166–174. [Google Scholar] [CrossRef] [PubMed]
  58. Cheng, Q.; Li, N.; Dong, L.; Zhang, D.; Fan, S.; Jiang, L.; Wang, X.; Xu, P.; Zhang, S. Overexpression of soybean isoflavone reductase (GmIFR) enhances resistance to Phytophthora sojae in soybean. Front. Plant Sci. 2015, 6, 1–11. [Google Scholar] [CrossRef] [PubMed]
  59. Wang, L.; Tu, Y.C.; Lian, T.W.; Hung, J.T.; Yen, J.H.; Wu, M.J. Distinctive antioxidant and antiinflammatory effects of flavonols. J. Agric. Food Chem. 2006, 54, 9798–9804. [Google Scholar] [CrossRef]
  60. Heijnen, C.G.M.; Haenen, G.R.M.M.; Van Acker, F.A.A.; Van Der Vijgh, W.J.F.; Bast, A. Flavonoids as peroxynitrite scavengers: The role of the hydroxyl groups. Toxicol. Vitr. 2001, 15, 3–6. [Google Scholar] [CrossRef]
  61. Fidelis, Q.C.; Faraone, I.; Russo, D.; Aragão Catunda, F.E., Jr.; Vignola, L.; de Carvalho, M.G.; de Tommasi, N.; Milella, L. Chemical and biological insights of Ouratea hexasperma (A. St.-Hil.) Baill.: A source of bioactive compounds with multifunctional properties. Nat. Prod. Res. 2018, 33, 1500–1503. [Google Scholar] [CrossRef] [PubMed]
  62. Gupta, R.; Min, C.W.; Kramer, K.; Agrawal, G.K.; Rakwal, R.; Park, K.H.; Wang, Y.; Finkemeier, I.; Kim, S.T. A multi-omics analysis of Glycine Max leaves reveals alteration in flavonoid and isoflavonoid metabolism upon ethylene and abscisic acid treatment. Proteomics 2018, 18, e1700366. [Google Scholar] [CrossRef]
  63. Lynch, D.V.; Dunn, T.M. An introduction to plant sphingolipids and a review of recent advances in understanding their metabolism and function. New Phytol. 2004, 161, 677–702. [Google Scholar] [CrossRef] [PubMed]
  64. Luttgeharm, K.D.; Chen, M.; Mehra, A.; Cahoon, R.E.; Markham, J.E.; Cahoon, E.B. Overexpression of Arabidopsis ceramide synthases differentially affects growth, sphingolipid metabolism, programmed cell death, and mycotoxin resistance. Plant Physiol. 2015, 169, 1108–1117. [Google Scholar] [CrossRef]
  65. Hörtensteiner, S.; Wüthrich, K.L.; Matile, P.; Ongania, K.H.; Kräutler, B. The key step in chlorophyll breakdown in higher plants: Cleavage of pheophorbide a macrocycle by a monooxygenase. J. Biol. Chem. 1998, 273, 15335–15339. [Google Scholar] [CrossRef]
  66. Kinney, A.J. Development of genetically engineered soybean oils for food applications. J. Food Lipids 1996, 3, 273–292. [Google Scholar] [CrossRef]
  67. Honna, P.T.; Pagliarini-Fuganti, R.; Ferreira, L.C.; Molinari, M.D.C.; Marin, S.R.R.; de Oliveira, M.C.N.; Farias, J.R.B.; Neumaier, N.; Mertz-Henning, L.M.; Kanamori, N.; et al. Molecular, physiological, and agronomical characterization, in green-house and in field conditions, of soybean plants genetically modified with AtGolS2 gene for drought tolerance. Mol. Breed. 2016, 36, 157. [Google Scholar] [CrossRef]

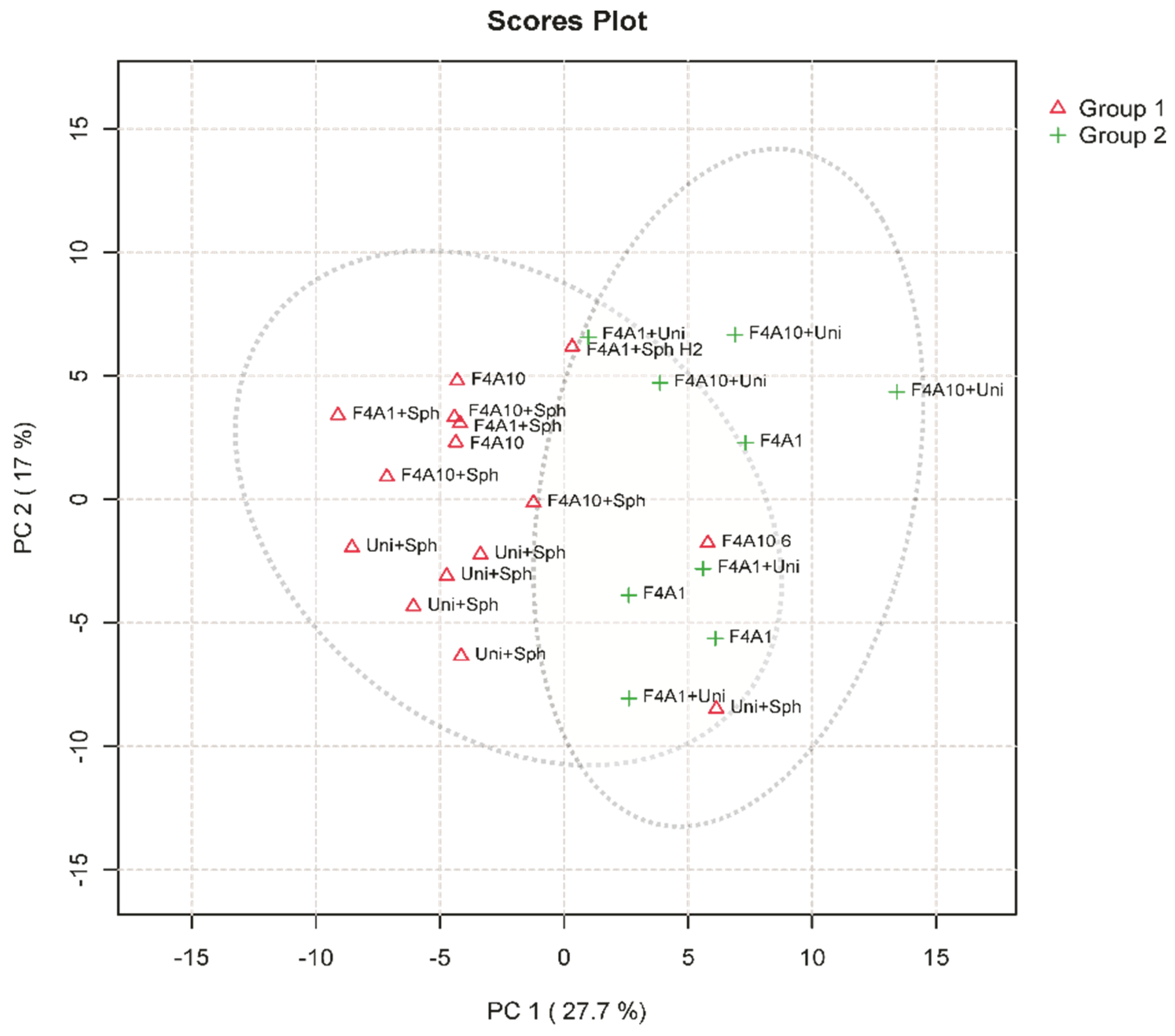

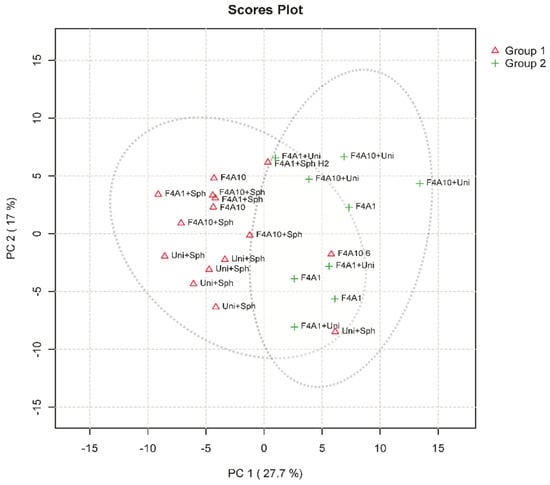

Figure 1. Principal component analysis (PCA) score plot from soybean leaf samples infected with Phakopsora pachyrhizi under different treatments. Group 1, represented by red triangles, was formed by Uni + Sph, F4A1 + Sph, F4A10 + Sph, and F4A10. Group 2, represented by green plus symbols, was formed by F4A1, F4A1 + Uni and F4A10 + Uni.
Figure 1. Principal component analysis (PCA) score plot from soybean leaf samples infected with Phakopsora pachyrhizi under different treatments. Group 1, represented by red triangles, was formed by Uni + Sph, F4A1 + Sph, F4A10 + Sph, and F4A10. Group 2, represented by green plus symbols, was formed by F4A1, F4A1 + Uni and F4A10 + Uni.
Microorganisms 12 01576 g001

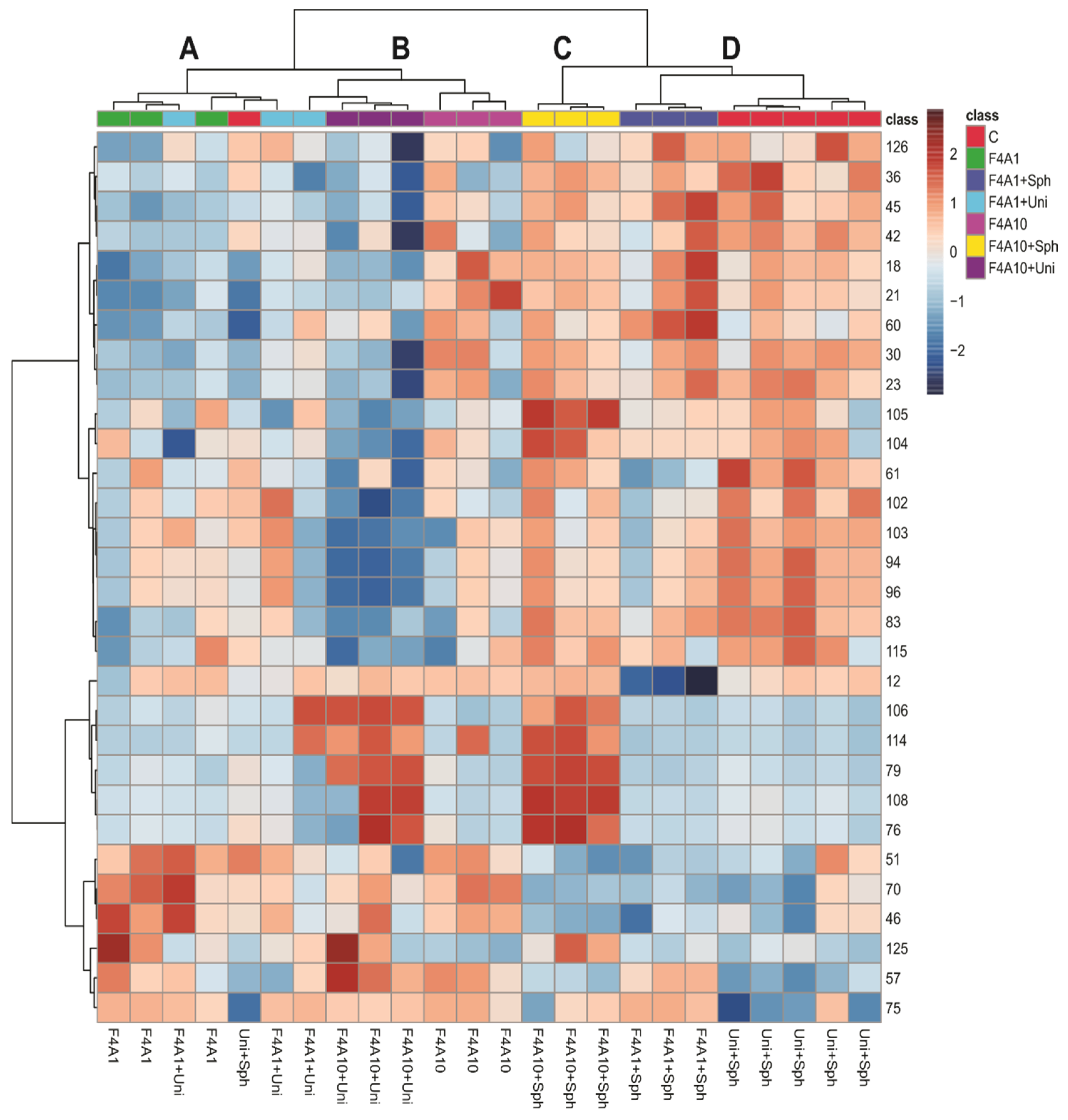

Figure 2. Heatmap and hierarchical clustering analysis (HCA) of the soybean leaf samples infected with Phakopsora pachyrhizi under different treatments. Treatments are control (C), F4A1, FAA1 + Sph, F4A1 + Uni, F4A10, F4A10 + Sph, and F4A10 + Uni. The clusters A–D were highlighted in the HCA.
Figure 2. Heatmap and hierarchical clustering analysis (HCA) of the soybean leaf samples infected with Phakopsora pachyrhizi under different treatments. Treatments are control (C), F4A1, FAA1 + Sph, F4A1 + Uni, F4A10, F4A10 + Sph, and F4A10 + Uni. The clusters A–D were highlighted in the HCA.
Microorganisms 12 01576 g002

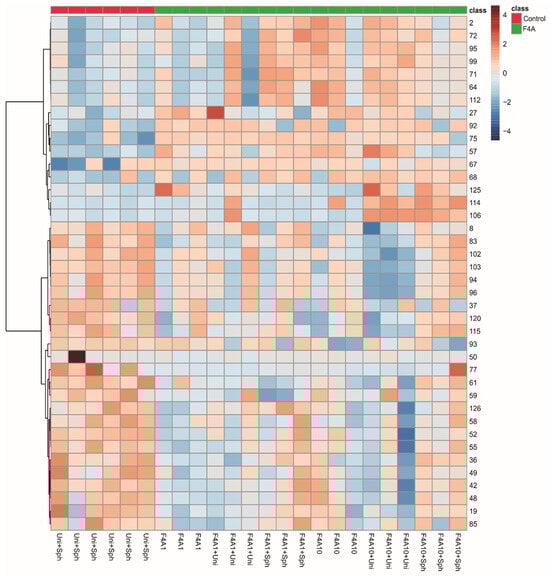

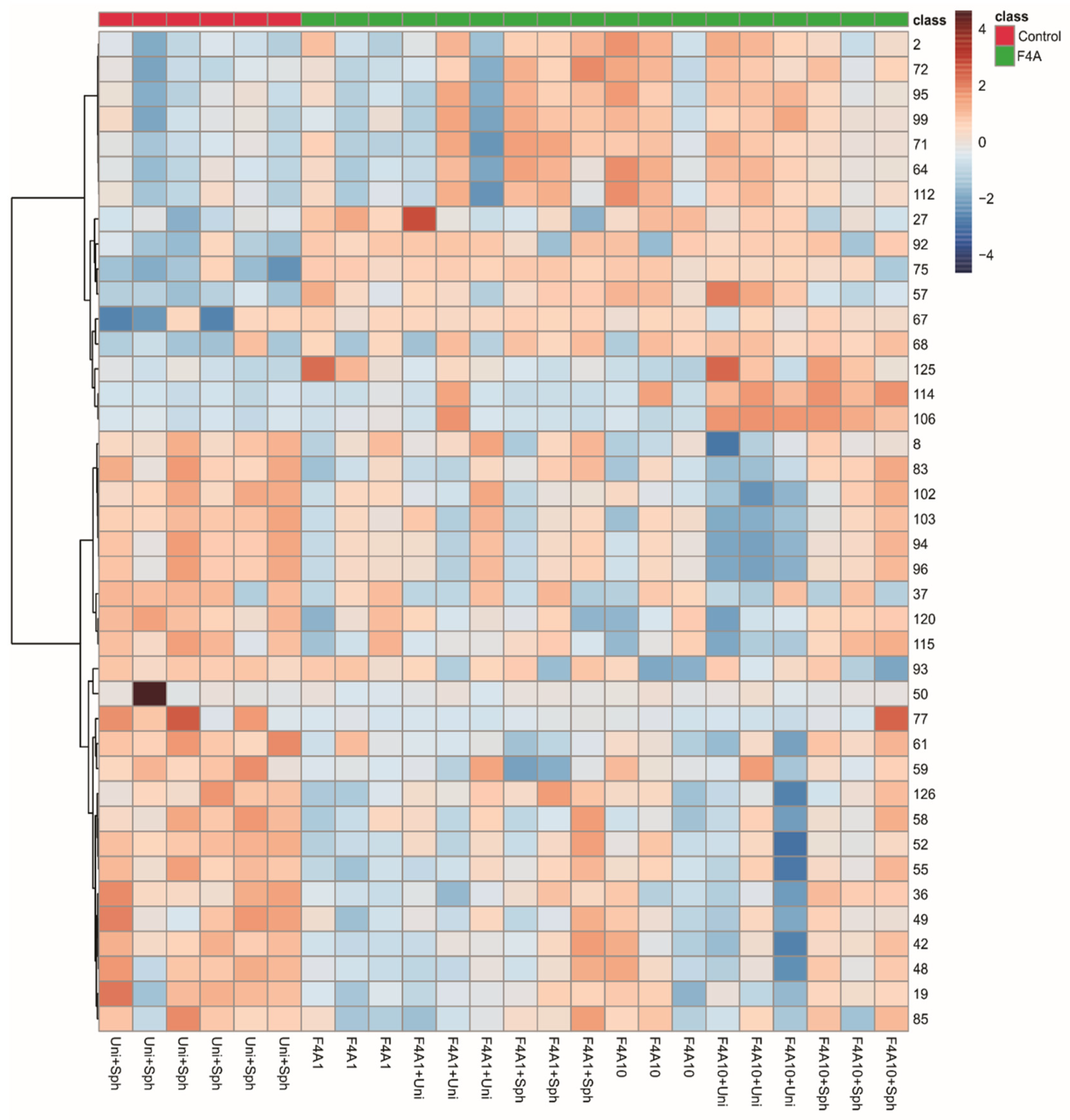

Figure 3. Heatmap of the soybean leaf samples infected with Phakopsora pachyrhizi from control (red) and the fraction F4A1 (green) treatments.
Figure 3. Heatmap of the soybean leaf samples infected with Phakopsora pachyrhizi from control (red) and the fraction F4A1 (green) treatments.
Microorganisms 12 01576 g003
Table 1. Annotated compounds from samples of controls and treatments with F4A.
Table 1. Annotated compounds from samples of controls and treatments with F4A.
PeakRT (min)CompoundUV
(nm)
MFMS (m/z)
[M + H]+
MS/MS
1316.03O-hexosyl daidzein272, 330 shC21H20O9417.1169255, 227, 199
1517.06O-deoxyhexosyl di-hexosyl kaempferol265, 348C33H40O20757.2171287
1717.40O-deoxyhexosyl di-hexosyl kaempferol265, 346C33H40O20757.2163287
1817.71O-di-hexosyl kaempferol265, 345C27H30O16611.1602449, 287
1917.75O-di-deoxyhexosyl kaempferol265, 345C21H20O11449.1088271
2118.00O-di-hexosyl luteolin268, 335C27H30O16611.1607287
2218.25NI280C13H20O2209.1529-
2318.35O-di-deoxyhexosyl hexosyl kaempferol265, 347C33H40O19741.2251595, 449, 287
2418.72O-di-deoxyhexosyl hexosyl kaempferol265, 348C33H40O19741.2245595, 449, 287
2519.03O-hexosyl-malonyl daidzein275, 330 shC24H22O12503.1203255
2619.11O-deoxyhexosyl hexosyl luteolin266, 338C27H30O15595.1678449, 287
2719.21O-hexosyl genistein260, 330 shC21H20O10433.1139271
2919.75O-deoxyhexosyl hexosyl kaempferol265, 348C27H30O15595.1655449, 287, 153
3020.28O-hexosyl kaempferol265, 347C21H20O11449.1073287
3320.76O-deoxyhexosyl hexosyl kaempferol265, 349C27H30O15595.1650449, 287, 241, 165
3421.09O-hexosyl kaempferol265, 349C21H20O11449.1090287
3621.35O-hexosyl-malonyl glycitin270, 330 shC25H24O13533.1274371, 285
3821.65O-hexosyl apigenin268, 335C21H20O10433.1147271
3921.85O-pentosyl luteolin265, 332C20H18O10419.0981287
4022.20O-hexosyl-malonyl genistein275, 330 shC24H22O13519.1113271
4223.38NI-C22H32O10457.2076439, 191, 173
4323.48O-hexosyl-malonyl genistein259,330 shC24H22O13519.1131271
4423.79NI-C22H32O10457.2061439, 191, 173
4523.85O-hexosyl-malonyl naringenin280, 330 shC24H24O13521.1286273, 153
4824.99O-hexosyl-malonyl apigenin267, 334C24H22O13519.1126271
4925.40O-hexosyl-malonyl genistein275, 330 shC24H22O13519.1131271
5327.19O-hexosyl-malonyl afrormosin278, 330 shC26H26O13547.1498299
5627.96O-hexosyl-malonyl afrormosin257, 320 shC26H26O13547.1478299
5728.52Genistein278, 330 shC15H10O5271.0611271, 215
5929.04O-hexosyl-malonyl afrormosin280, 328 shC26H26O13547.1489299
6029.35Apigenin267, 335C15H10O5271.0609271, 243, 229, 153
6430.78NI-C20H30O5351.2153275
6732.52NI-C18H23NO2286.1785-
6832.68NI-C18H25NO2288.1956270, 172, 159
7132.91NI280C10H18N2O5247.1300-
7233.05Saponin-C51H80O211029.5243
7633.22NI280, 320C16H21NO244.1693172, 159
7733.36Sphingolipid (phytosphingosine isomer)-C18H39NO3318.2995256
8233.66Saponin (soyaponin ag isomer)-C54H84O221085.5510599, 581, 563, 463, 405, 365, 217, 203
8533.72Saponin-C51H80O211029.5256
8633.87Soyasaponin I-C48H78O18943.5258599, 581, 441, 423, 405, 383, 365, 315, 247, 217, 203
8934.25Saponin C51H80O211029.5272
9134.50Saponin-C55H72O13941.5099597, 439, 421, 410, 381, 313, 273, 245, 219
9434.84Saponin (soyasaponin βg)-C54H84O211069.5546923, 761, 725, 599, 581, 567, 441, 423, 217
9534.87NI-C20H28O4333.2047-
9634.87Saponin (soyasaponin βg)-C54H84O211069.5546923, 761, 725, 599, 581, 567, 441, 423, 217
10035.26Pterocarpan280, 325 shC21H20O4337.1430279, 267
10335.46Saponin-C48H74O17923.4965-
10535.89Fatty acid derivative-C21H36O4353.2691-
11136.78Fatty acid derivative-C18H28O2277.2164-
11236.91Fatty acid derivative-C18H28O2277.2152-
11537.33Fatty acid derivative-C21H36O4353.2691-
11940.84Eicosatetraenoic acid-C20H32O2305.2496-
12241.38Octadecatrienoic acid-C18H30O2279.2295-
12542.34Fatty acid derivative-C21H36O4353.2694-
12943.34Pheophorbide A280, 410C35H36N4O5593.2751565, 533, 461
RT: retention time, sh: shoulder.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Barazetti, A.R.; Dealis, M.L.; Basso, K.R.; Silva, M.C.D.; Alves, L.d.C.; Parra, M.E.A.; Simionato, A.S.; Cely, M.V.T.; Macedo, A.L.; Silva, D.B.; et al. Evaluation of Resistance Induction Promoted by Bioactive Compounds of Pseudomonas aeruginosa LV Strain against Asian Soybean Rust. Microorganisms 2024, 12, 1576. https://doi.org/10.3390/microorganisms12081576

AMA Style

Barazetti AR, Dealis ML, Basso KR, Silva MCD, Alves LdC, Parra MEA, Simionato AS, Cely MVT, Macedo AL, Silva DB, et al. Evaluation of Resistance Induction Promoted by Bioactive Compounds of Pseudomonas aeruginosa LV Strain against Asian Soybean Rust. Microorganisms. 2024; 12(8):1576. https://doi.org/10.3390/microorganisms12081576

Chicago/Turabian Style

Barazetti, André Riedi, Mickely Liuti Dealis, Kawany Roque Basso, Maria Clara Davis Silva, Leonardo da Cruz Alves, Maria Eugênia Alcântara Parra, Ane Stéfano Simionato, Martha Viviana Torres Cely, Arthur Ladeira Macedo, Denise Brentan Silva, and et al. 2024. "Evaluation of Resistance Induction Promoted by Bioactive Compounds of Pseudomonas aeruginosa LV Strain against Asian Soybean Rust" Microorganisms 12, no. 8: 1576. https://doi.org/10.3390/microorganisms12081576

APA Style

Barazetti, A. R., Dealis, M. L., Basso, K. R., Silva, M. C. D., Alves, L. d. C., Parra, M. E. A., Simionato, A. S., Cely, M. V. T., Macedo, A. L., Silva, D. B., & Andrade, G. (2024). Evaluation of Resistance Induction Promoted by Bioactive Compounds of Pseudomonas aeruginosa LV Strain against Asian Soybean Rust. Microorganisms, 12(8), 1576. https://doi.org/10.3390/microorganisms12081576

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
