Phylogenetic Analysis, Pulse-Amplitude-Modulated (PAM) Fluorometry Measuring Parameter Optimization, and Cell Wall Disintegration of Chlorella vulgaris K-01

by
Zhenyu Zhang
1,
Xiaoli Zhang
1,
Yinqiang Wu
2,
Li-Hua Yao
1,* and
Pengcheng Fu
2,*
1
School of Life Science, Jiangxi Science & Technology Normal University, Nanchang 330013, China
2
State Key Laboratory of Marine Resource Utilization in South China Sea, Hainan University, Haikou 570228, China
*
Authors to whom correspondence should be addressed.
Microorganisms 2025, 13(4), 711; https://doi.org/10.3390/microorganisms13040711
Submission received: 30 December 2024 / Revised: 11 March 2025 / Accepted: 18 March 2025 / Published: 21 March 2025
(This article belongs to the Special Issue Beneficial Microbes: Food, Mood and Beyond, 2nd Edition)
Browse Figures
Versions Notes

Abstract

:
Chlorella is a rich source of nutrients. In addition to its nutritional value, it exhibits versatile biological activities. New strains have been extensively identified and investigated in recent years to expand the potential of Chlorella. The accurate measurement of pulse-amplitude-modulated (PAM) fluorometry parameters and effective microalgal cell lysis are foundational for advanced studies of novel Chlorella species. In this study, ribosomal small subunit (SSU)-internal transcribed spacer (ITS) phylogenetic analysis and internal transcribed spacer 2 (ITS2) secondary structure analysis were employed to identify a new Chlorella species. The dark adaptation time, the duration of the saturation pulse, the intensity of actinic light, and the duration of actinic light exposure for PAM fluorometry measurements were optimized. Different conditions of ultrasonication and high-pressure homogenization (HPH) for microalgal cell lysis were compared. Chlorella vulgaris K-01 was identified. The suitable duration for dark adaptation, the saturation pulse, and the actinic light were 15 min, 200 milliseconds, and 30 s, respectively. The suitable intensity of actinic light was 191 μE/(m2·s). For microalgal cell lysis, HPH could achieve 98.65% cell lysis efficiency at 30 kpsi (207 MPa), whereas ultrasonication attained an efficiency of 45.47% (300 W for 30 min). These results facilitate further study on the physiology and the composition of Chlorella vulgaris K-01.

1. Introduction

Microalgae are renowned for their rich composition of biochemicals, including proteins, carotenoids, and essential fatty acids, holding significant potential for human health and nutrition [1]. Their rapid growth capabilities, combined with high production efficiency and nutrient density, position microalgae as superior candidates for the large-scale cultivation of bioproducts [2,3]. The practice of incorporating microalgae into human diets extends back millennia, initially as a means to endure periods of famine [4]. Over time, the nutritional benefits of these microorganisms have become widely acknowledged [5]. In contemporary times, specific microalgae such as Spirulina (Arthrospira), Chlorella, and Haematococcus have been extensively cultivated and marketed as dietary supplements [1,6,7]. They are now supplemented into a variety of food products, ranging from noodles and chewing gum to beer, tea, bread, and soft drinks, reflecting their versatility and nutritional value [8,9,10,11,12].
First identified in 1890 by the distinguished microbiologist Dr. Martinus Willem Beijerinck, Chlorella has emerged as a microalgal species of significant interest due to its nutritional properties and resilience to adverse environmental conditions [13,14]. Chlorella stands out for its wealth of nutrients and bioactive compounds, which have the potential to improve human health and prevent a variety of diseases [15]. These attributes make Chlorella a promising natural alternative to synthetic compounds and pharmaceuticals. The variability in the levels and types of these bioactive compounds within Chlorella, influenced by cultivation conditions and specific species, has prompted ongoing research into the isolation and exploration of new Chlorella strains [16,17]. With advancements in molecular identification techniques [18,19], the understanding of Chlorella has significantly deepened with the discovery of over 20 species and more than 100 strains of Chlorella (https://www.algaebase.org/browse/taxonomy/#6964, accessed on 1 March 2025) [20,21]. Four subordinate taxa were widely studied: Chlorella vulgaris Beijerinck [13], Chlorella lobophora Andreyeva [22,23], Chlorella variabilis Shihira and Krauss [20,24], and Chlorella sorokiniana Shihira and Krauss [23,25]. In recent years, research has shed light on the potential psychoactive effects of Chlorella biomass, which include mood regulation, the enhancement of memory and learning capabilities, and stress alleviation through the modulation of brain c-fos expression and the hypothalamic–pituitary–adrenal axis [26,27]. Furthermore, Chlorella has demonstrated significant effects on the gut microbiota of both humans and animals [28,29,30]. Cell content from Chlorella biomass such as polysaccharides could modulate gut microbiota [31], positioning it as a potential source of prebiotics [32]. Despite the increasing interest in uncovering new species and biological activities within the Chlorella genus, two primary challenges impede the full utilization of Chlorella biomass: monitoring the physiological status and achieving efficient microalgal cell lysis [33,34]. The composition and nutritional value of Chlorella biomass are heavily influenced by cultivation conditions and the physiological state of the species [35,36,37]. Additionally, the cell wall content varies among Chlorella species, leading to species-specific requirements for cell content extraction [34,38,39]. To assess the physiological status of Chlorella, pulse-amplitude-modulated (PAM) fluorometry stands out as the most widely used, real-time, and non-invasive method [40,41,42]. It measures photosynthesis efficiency and chlorophyll fluorescence, both of which are indicative of the microalgae’s physiological health [43]. The measurement conditions for PAM fluorometry were empirical, leading to potentially inaccurate results [44]. For cell lysis, techniques such as high-pressure homogenization and ultrasonication are commonly employed. These methods have been widely used to break the cell walls of Chlorella, with reported variations in efficiency across different species [34]. Therefore, establishing precise measurement parameters for PAM fluorometry and refining the conditions for cell lysis are essential steps when working with newly discovered Chlorella strains. These procedures are foundational for advancing future investigative efforts and unlocking the full potential of these microalgal strains in various applications.
In previous studies, our laboratory isolated a novel chlorophyte Chlorella vulgaris K-01 [45]. Initial BLAST (https://blast.ncbi.nlm.nih.gov/Blast.cgi, accessed on 23 February 2021) analysis revealed the strain could be a member of Chlorella vulgaris, and the biomass of the strain demonstrated exceptional cadmium biosorption capacity (17.46 mg/g dry biomass) [45]. Subsequent heterotrophic cultivation experiments further revealed its robust growth kinetics and selenium bioaccumulation potential (up to 154 µg organic Se/g DW), positioning it as a promising candidate for bioremediation and nutraceutical applications [46]. However, while these studies established foundational insights into the strain’s environmental adaptability and metabolic versatility, critical taxonomic and methodological gaps remain unresolved. The original blast analysis relied on partial sequence similarity without comprehensive comparison to related taxa, leaving phylogenetic position unknown and uncertainties in identification. Furthermore, preliminary physiological assessments employed empirically adopted PAM fluorometry parameters from unrelated species, potentially compromising photosynthetic efficiency measurements. Additionally, the lack of a systematic evaluation of cell disruption methods hinders efficient extraction of intracellular components. To address these limitations, this study aims to (1) verify the identity of Chlorella vulgaris K-01 through phylogenetic analysis and ITS2 secondary structure modeling, (2) establish species-specific PAM fluorometry protocols, and (3) optimize cell wall disintegration strategies. These advancements could support further study on the physiology and composition of the strain.

2. Materials and Methods

2.1. Culture Condition and Yield of Biomass

KC medium was prepared following the protocol described by Osman et al. [47] and used for the cultivation of the microalga Chlorella vulgaris K-01. It contains KNO3 (0.405 g), NaCl (0.235 g), NaH2PO4·2H2O (0.235 g), Na2HPO4·12H2O (0.18 g), MgSO4·7H2O (0.125 g), CaCl2·7H2O (0.01 g), FeSO4·7H2O (3 mg), and Rippka-developed trace elements solution (1 mL) [48]. The microalgal cultures were maintained in flasks within incubators (ZCZY-CN Shanghai Zhichu Instrument Co., Ltd., Shanghai, China). The incubation parameters were optimized to a constant temperature of 28 °C, with agitation at 130 rpm to ensure uniform mixing. The cultures were exposed to a continuous light supply with a photon flux density of 50 μE/(m2·s) to support photosynthetic activity. Microalgal biomass was harvested via centrifugation at 5000× g for 15 min. Following centrifugation, the supernatant was carefully decanted and discarded.

2.2. Molecular Identification

The strain Chlorella vulgaris K-01 was initially obtained from the discharge stream of a salt concentration facility [45]. To extract the genomic DNA from this strain, a DNA extraction kit (Tiangen Biochemical Technology Co., Ltd., Beijing, China) specifically designed for plants was utilized. Following extraction, the genomic DNA was subjected to polymerase chain reaction (PCR) amplification using a set of primers: NS1–NS8 and ITS1–ITS4, as referenced in previous studies [18,49]. These primers were selected to amplify specific regions of the 18S rDNA (small subunit, SSU) and the internal transcribed spacer (ITS) regions. Amplification was performed using a Bio-Rad T100 PCR Gradient Thermal Cycler (Bio-Rad, Hercules, CA, USA) with the following protocol: initial denaturation at 94 °C for 3 min; 30 cycles of 94 °C for 30 s, 55 °C for 30 s, and 72 °C for 1 min; final extension at 72 °C for 5 min. The PCR products were analyzed and purified through agarose gel electrophoresis (DYY-8C, LIUYI BIOTECHNOLOGY Co., Ltd., Beijing, China), employing a DNA Gel Extraction Kit (Beyotime Biotech Inc, Shanghai, China), prior to sequencing on a 3730xl DNA analyzer (Thermo Fisher Scientific Inc., Waltham, MA, USA). For phylogenetic analysis, small subunit ribosomal RNA and internal transcribed spacer sequences from our strain and other closely related taxa, as identified through BLAST searches [50]. The phylogenetic analysis was performed using the MEGA 11 software suite [51], with Parachlorella sp. serving as the reference outgroup. Multiple alignments were performed using ClustalW (Version: 2.1) with default parameters [52]. The GTR+I+G model, which was determined to be optimal for constructing the maximum likelihood (ML) phylogenetic tree based on the Akaike information criterion from Modeltest, was selected for this analysis [53]. The robustness of the tree was evaluated by calculating bootstrap values using the ML method with 1000 iterations [54]. To discern between Chlorella and Micractinium, which are closely related in terms of genetics and morphology, the secondary structures of the ITS-2 region were predicted for both species using Mfold with default parameters [55]. Subsequently, the microalgal sequences under investigation were manually inspected and compared at the level of secondary structure to facilitate species distinction [56,57]. For comparative purposes, Chlorella vulgaris SAG 211-11b was used to represent the typical ITS2 structure of Chlorella, while Micractinium pusillum CCAP 248/5 was chosen to represent the typical ITS2 structure of Micractinium. Distinctive features between Chlorella and Micractinium were annotated based on a previous publication [56].

2.3. Optimization of PAM Fluorometry Parameters

Microalgal samples were prepared by diluting fresh biomass in phosphate-buffered saline (PBS) to a final cell density of 1 × 106 cells/mL. The diluted samples were then used to optimize the parameters for PAM fluorometry using a Dual-PAM-100 fluorometer (Heinz Walz GmbH, Effeltrich, Germany). The optimization involved varying the dark adaptation time (5, 10, 15, 20, 25, 30, and 60 min), the duration of the saturation pulse (100, 150, 200, 250, 300, 400, 500, and 600 milliseconds), the intensity of actinic light (28, 74, 101, 140, 191, 532, and 835 μE/(m2·s)), and the duration of actinic light exposure (10, 20, 30, 40, 50, and 60 s). An additional cuvette kit was used for measuring PAM fluorometry parameters specific to microalgae. All experiments were conducted at room temperature without stirring [58], following the standard operating procedures provided by the manufacturer. Chlorophyll-fluorescence-related parameters were recorded through the graphical user interface of the software (DualPAM v3.18, Heinz Walz GmbH, Effeltrich, Germany) supplied by the manufacturer. ETRmax, a, and IK were calculated with the default settings of the software (https://www.walz.com/files/downloads/pan/PAN11001.pdf, accessed on 16 July 2024).

2.4. Microalgal Cell Wall Disruption

Fresh Chlorella vulgaris K-01 biomass in the logarithmic growth period was harvested and resuspended in KC medium, after rinsing twice with PBS buffer. The concentration of Chlorella vulgaris K-01 biomass was adjusted to 0.5 g/L. The microalgal solution was dispensed into 10 mL centrifuge tubes for the optimization of cell fragmentation conditions. Two distinct physical disruption techniques were employed to achieve cell lysis: high-pressure homogenization and ultrasonication. For the HPH method, we utilized the CF1 and CF2 Cell Disruptor (Constant Systems Ltd., Daventry, UK) and set the temperature to 5 °C while varying the crushing pressures to 10, 15, 20, 30, and 35 kpsi. In contrast, ultrasonication was performed using the Scientz-IID Ultrasonic Homogenizer (Ningbo Scientz Biotechnology Co., Ltd., Ningbo, China), with two variables considered: ultrasonic power and duration. The ultrasonic power settings were 100, 200, and 300 W, while the exposure times were 10, 20, and 30 min. To control temperature and prevent thermal degradation, samples were submerged in an ice bath throughout the ultrasonication process. A pulsed sonication protocol was applied, consisting of 5 s of ultrasonication followed by a 5 s interval, with this cycle repeated for the total ultrasonication time. Following cell disruption, protein concentration in each sample was quantified using the BCA Protein Concentration Determination Kit (P0012, Shanghai Beyotime Biological Technology Co., Ltd., Shanghai, China). The sample exhibiting the highest protein yield was designated as the reference sample, and all other samples were normalized to this standard to assess the efficiency of the cell-crushing methods.

2.5. Statistical Analysis

Each experimental group was replicated a minimum of three times, with triplicate measurements taken for each assay to enhance the reliability of the results. The graphical representations include error bars that represent the mean values accompanied by their standard errors of the mean (SEM). Statistical evaluations of the data were performed using one-way analysis of variance (ANOVA) and, where necessary, multivariate analysis of variance (MANOVA). Both the statistical computations and the creation of graphical representations were facilitated by the Origin 2023 software package (OriginLab Corporation, Northampton, MA, USA).

3. Results

3.1. Phylogenetic Tree and ITS2 Secondary Structure

The compiled dataset encompassed 33 nucleotide sequences spanning 2475 nucleotide positions. The resulting ML phylogenetic tree is depicted in Figure 1. Our analysis revealed that the strain is part of the Chlorella clade, with Chlorella vulgaris KNUA007, Chlorella vulgaris CCAP211/11Q, and Chlorella vulgaris SAG 211-11b being the most closely related species.
To discern between the morphologically similar and phylogenetically closely related genera Micractinium and Chlorella, we reconstructed the secondary structure of the ITS2 region. Figure 2A illustrates the overall ITS2 secondary structure, which features four helices, with an enlargement of the upper part of helix III to facilitate the comparison of ITS2 secondary structures and to confirm the clade of our isolate. Sequence alignment differences in secondary structures were also noted (Figure 2B), with corresponding numbers indicating the nucleobase positions on the secondary structure (Figure 2C). Specifically, position 9 is a characteristic synapomorphy for Micractinium [19,59]. At this position, Chlorella vulgaris species are expected to show a G–C base pair, as exemplified by the reference strain Chlorella vulgaris SAG 211-11b. In contrast, Micractinium species are expected to show a C–G base pair, as exemplified by the reference strain Micractinium pusillum CCAP 248/5. The presence of a C–G pairing at position 9 in the newly isolated strain confirmed it belongs to the Chlorella vulgaris and was named as Chlorella vulgaris K-01. The corresponding sequence of the strain was uploaded to GenBank (accession No. MW214666).

3.2. Measuring Parameters for PAM Fluorometry

Variations in light response exist among different plant and microalgae species, which can impact the accuracy of photosynthetic response measurements. To minimize instrumental determination errors and obtain precise values for key photosynthetic parameters—namely, minimal fluorescence (Fo), maximal fluorescence (Fm), and the ratio of variable to maximum fluorescence (Fv/Fm)—we optimized the dark adaptation conditions for Chlorella vulgaris K-01. We set different dark adaptation periods of 5, 10, 15, 20, 25, 30, and 60 min and monitored the corresponding changes in Fo, Fm, and Fv/Fm, as depicted in Figure 3A. The Fo values for Chlorella vulgaris K-01 were 0.269, 0.27, 0.213, 0.204, 0.213, 0.218, and 0.204 a.u. at the respective dark adaptation times. The Fm values were 0.735, 0.737, 0.677, 0.64, 0.674, 0.69, and 0.676 a.u., while the Fv/Fm ratios were 0.633, 0.634, 0.686, 0.681, 0.684, 0.684, and 0.678, respectively. Our findings indicate that beyond 15 min of dark adaptation, Fo for Chlorella vulgaris K-01 decreased and stabilized around 0.215 a.u., Fm decreased and stabilized at approximately 0.67 a.u., and Fv/Fm increased and plateaued at approximately 0.68. Hence, 15 min of dark adaptation is enough for obtaining stable and accurate Fo, Fm, and Fv/Fm.
We further optimized the saturation pulse duration for Chlorella vulgaris K-01 by testing a range of pulse durations: 100, 150, 200, 250, 300, 400, 500, and 600 milliseconds. The outcomes of these pulse response tests are presented in Figure 3B. Initially, there was a sharp increase in chlorophyll fluorescence in response to the saturation pulse, reaching a peak value during the early phase of the pulse. When reaching this peak, the fluorescence response of the strain began to wane after it had been sustained for a certain duration. Towards the end of the saturation pulse, the fluorescence response plummeted, and then gradually returned to a stable state.
Figure 4A illustrates the photosynthetic response parameters, including initial fluorescence (F), maximal fluorescence (F’m), variable fluorescence (ΔF), and the efficiency of photosystem II photochemistry (ΔF/Fv) for Chlorella vulgaris K-01 under various actinic light intensities. These parameters were observed to vary with the intensity of the actinic light. Specifically, the ΔF/Fv ratio for Chlorella vulgaris K-01 decreased from 0.78 to 0.09 as the actinic light intensity increased from 28 to 835 μE/(m2·s). The empirical range for ΔF/Fv values, which is between 0.3 and 0.6 [60], was achieved at an actinic light intensity of 191 μE/(m2·s), establishing 191 μE/(m2·s) as the suitable actinic light intensity for evaluating the photosynthetic response parameters of this species. Figure 4B depicts the influence of varying actinic light exposure durations on the photosynthetic curve parameters of Chlorella vulgaris K-01. The parameters, including the initial slope (a), maximum electron transport rate (ETRmax), and light saturation point (IK), exhibited an initial increase followed by a stabilization as the actinic light exposure time was extended to 10, 20, 30, 40, 50, and 60 s. Notably, after 30 s of actinic light exposure, the photosynthetic curve parameters for Chlorella vulgaris K-01 entered a steady state. Consequently, an actinic light exposure time of 30 s was determined to be suitable for Chlorella vulgaris K-01, beyond which no significant changes in the photosynthetic parameters were observed.

3.3. Optimization of Microalgal Cell Fragmentation Conditions

The cell-crushing efficiency under high-pressure conditions was calibrated against a benchmark of 100% efficiency at 35 kpsi, and all subsequent data were normalized to this standard, with the results depicted in Figure 5. Under high-pressure cell crushing, the efficiency of cell disruption for Chlorella vulgaris K-01 progressively increased with escalating pressure, achieving 98.65% efficiency at 30 kpsi (207 MPa). Conversely, for ultrasonic cell crushing, the efficiency was observed to rise with both increasing ultrasonic power and duration, with an efficiency of 45.47% recorded at an ultrasonic power of 300 W and a duration of 30 min.

4. Discussion

In this paper, we present the identification of a distinct Chlorella vulgaris strain, designated as K-01, utilizing SSU-ITS phylogenetic analysis and ITS2 secondary structure assessment. Our study meticulously determined the suitable parameters for PAM fluorometry to accurately assess photosynthetic performance. Additionally, we conducted a thorough evaluation of various cell disruption techniques to enhance the extraction efficiency from microalgal cells.
Phylogenetic analysis is a critical tool in elucidating the taxonomic relationships and evolutionary trajectories of biological species. It is grounded in genetic principles, taxonomic classifications, and evolutionary biology, and it constructs a phylogenetic framework among species by analyzing DNA or protein sequence homologies. This approach is particularly valuable for classifying and identifying unknown or newly discovered species by referencing their sequence similarities to known species within the phylogenetic context [61]. The internal transcribed spacer 2 (ITS2) sequence, found within the ribosomal RNA of fungi, plants, and other eukaryotes, is renowned for its genomic variability, offering high discriminatory power at the species level. The secondary structure of ITS2 provides a wealth of information beyond the primary sequence, and it has become a pivotal tool in distinguishing between closely related species [18,62]. The genera Chlorella and Micractinium, which are morphologically similar and phylogenetically closely related, cannot be reliably differentiated based on morphology alone or on phylogenetic analysis of ribosomal small subunit sequences (SSUs) [56]. The comparison of ITS2 secondary structures enhances the precision of identification, particularly in differentiating between Micractinium and Chlorella, which are closely positioned on the phylogenetic tree [63]. Luo et al. [19] employed a combination of SSU-ITS sequence phylogeny and ITS2 secondary structure analysis to reclassify five algal species, initially identified as Dictyosphaerium, into Chlorella spp., demonstrating the enhanced accuracy of this integrated approach. Despite its proven utility, some recent studies on Chlorella isolation have overlooked this method, potentially leading to misidentifications and undermining the reliability of physiological test outcomes [64,65]. In our study, we adopted a dual approach of SSU-ITS rDNA sequence phylogenetic analysis and ITS2 secondary structure comparison to establish a robust molecular identification protocol for Chlorella species. This protocol aligns with methodologies used in previous algal classification revisions [19,66,67] and facilitates more precise classification of newly isolated Chlorella species, making it a recommended method for future research and exploitation of Chlorella resources.
PAM fluorometry is a widely recognized technique for probing the physiological conditions of microalgae, having been applied across diverse research areas. It is particularly instrumental in probing the physiological stress caused by nutrient fluctuations and the synthesis of cellular nutrients within Chlorella species [33], as well as in assessing the oxidative stress in Chlorella vulgaris triggered by exposure to hazardous substances [33]. However, the measurement conditions for PAM fluorometry, which are often derived from empirical observations, may lead to discrepancies between the measured values and the actual physiological metrics [44]. In the literature, the dark adaptation times reported for Synechocystis sp. PCC 6803 and Chlorella sorokiniana 211-8k are 30 min [44], while for Dunaliella tertiolecta CCAP 19/27, it is 10 min [68]. Our study determined that a 15 min dark adaptation period was adequate for achieving stable Fo, Fm, and Fv/Fm measurements in Chlorella vulgaris K01, with no substantial changes observed with further extension of the dark adaptation time. This finding suggests that the empirical dark adaptation times may not be appropriate for newly identified Chlorella species. Additionally, in this study, a reduced dark adaptation time could lead to a decrease in Fv/Fm, potentially leading to a misinterpretation that the test subjects are under physiological stress. These insights underscore the necessity for species-specific optimization of PAM fluorometry parameters to ensure the accuracy and reliability of physiological assessments.
For an accurate determination of photosynthetic parameters in species less studied, it is crucial that the chlorophyll response to the saturation pulse not only reaches its peak but also remains at that peak without a subsequent decline; otherwise, parameters such as Fv/Fm may not accurately reflect their true values [41]. Based on this, a saturation pulse duration of 200 milliseconds was deemed suitable for Chlorella vulgaris K-01. At this duration, the chlorophyll fluorescence of the strain reached a plateau without any subsequent decrease, ensuring the most precise measurement of its photosynthetic parameters.
In the realm of PAM fluorometry for assessing microalgal photosynthetic efficiency, the parameters of saturation pulse duration, actinic light intensity, and its duration have often been understated [69,70,71,72]. Our research has demonstrated that these factors significantly influence the precision of PAM fluorometry measurements. Consequently, it is imperative for forthcoming studies to meticulously calibrate these parameters prior to conducting device-based assessments. This attention to detail will enhance the reliability and validity of PAM fluorometry as a tool for microalgal analysis.
Microalgae exhibit variability in cell wall composition, which influences the efficiency of cell disruption methods. Tailoring the cell-crushing conditions is essential for the complete release of intracellular components such as nucleic acids, sugars, pigments, lipids, proteins, metabolites, and others, enabling subsequent physiological and functional studies of microalgae. In this investigation, Chlorella vulgaris K-01 served as the model organism to assess the efficiency of two cell-disruption techniques: high-pressure cell crushing and ultrasonic cell fragmentation. High-pressure homogenization (HPH) for cell lysis involves the use of elevated pressures to induce liquid shear stress and frictional forces to disrupt the cell walls previously described [73,74,75]. On the other hand, ultrasonication generates cavities in liquid, and they implode to release a significant amount of energy to dismantle the cell wall [76]. The efficacy of cell disruption techniques is significantly influenced by the microalgal species and the structure and composition of the cell wall, which in turn affects the efficiency of the extraction of intracellular compounds [74]. Microalgal cell walls can be categorized into two primary types based on their resistance: those with low lysis resistance and those with high lysis resistance, of which, microalgae species such as Chlorella and Scenedesmus are characterized by their highly lysis resistant cell walls [77,78]. Ultrasonication has been reported more effective for species with less lysis-resistant cell walls [79]. In the case of Chlorella, which possesses a robust cell wall, high-pressure homogenization was the most effective method, achieving 74% cell disruption, followed by chemical treatment at 33%, bead beating at 18%, and ultrasonication at only 5% [80]. In the context of our research, the application of ultrasonication for 30 min at a power level of 300 W resulted in a comparatively low microalgal cell lysis rate of 45.47%. This is significantly less than what was achieved with high-pressure cell disruption, which demonstrated an effectiveness of 98.67% in lysing microalgal cells at a pressure of 30 kpsi (207 MPa). The disparity in efficiency between these two methods suggests the superiority of high-pressure techniques in microalgal cell disruption.

5. Conclusions

In this research, we have successfully identified Chlorella vulgaris K-01 using SSU-ITS phylogenetic analysis and an assessment of the ITS2 secondary structure. The suitable parameters for the PAM fluorometry of Chlorella vulgaris K-01 were 15 min for dark adaptation, 200 milliseconds for saturation pulse, and 30 s for actinic light (191 μE/m2·s). The most suitable condition for Chlorella vulgaris K-01 cell disruption was high-pressure homogenization at 30 kpsi (207 MPa), obtaining 98.65% cell lysis efficiency. This foundational work paves the way for future comparative studies with other isolates and exploration into the potential of Chlorella vulgaris K-01 as a rich source of prebiotics and nutraceuticals. It is recommended that subsequent research focus on the extraction and characterization of bioactive compounds from this strain, which could contribute to human health and nutrition.

Author Contributions

Conceptualization, P.F. and L.-H.Y.; methodology, P.F.; software, X.Z.; validation, Y.W. and X.Z.; formal analysis, Z.Z.; investigation, Z.Z.; resources, L.-H.Y.; data curation, X.Z.; writing—original draft preparation, Z.Z.; writing—review and editing, P.F.; visualization, Z.Z.; supervision, P.F.; project administration, L.-H.Y.; funding acquisition, L.-H.Y. and P.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Research Start-Up Funds from Hainan University in China, grant number KYQD_ZR2017212, Research Start-up Fund Project, Jiangxi Science & Technology Normal University (2024BSQD30), the Science and Technology Program of Department of Education of Jiangxi Province (GJJ2401201), and Jiangxi Double Thousand Plan Cultivation Program for Distinguished Talents in Scientific and Technological Innovation (jxsq2019201011).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding authors.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Lucas, B.F.; Morais, M.G.D.; Santos, T.D.; Costa, J.A.V. Spirulina for Snack Enrichment: Nutritional, Physical and Sensory Evaluations. LWT 2018, 90, 270–276. [Google Scholar] [CrossRef]
  2. Neofotis, P.; Huang, A.; Sury, K.; Chang, W.; Joseph, F.; Gabr, A.; Twary, S.; Qiu, W.; Holguin, O.; Polle, J.E.W. Characterization and Classification of Highly Productive Microalgae Strains Discovered for Biofuel and Bioproduct Generation. Algal Res. 2016, 15, 164–178. [Google Scholar] [CrossRef]
  3. Bhushan, S.; Kalra, A.; Simsek, H.; Kumar, G.; Prajapati, S.K. Current Trends and Prospects in Microalgae-Based Bioenergy Production. J. Environ. Chem. Eng. 2020, 8, 104025. [Google Scholar] [CrossRef]
  4. Spolaore, P.; Joannis-Cassan, C.; Duran, E.; Isambert, A. Commercial Applications of Microalgae. J. Biosci. Bioeng. 2006, 101, 87–96. [Google Scholar] [CrossRef]
  5. Bishop, W.M.; Zubeck, H.M. Evaluation of Microalgae for Use as Nutraceuticals and Nutritional Supplements. J. Nutr. Food Sci. 2012, 2, 1–6. [Google Scholar] [CrossRef]
  6. Widyaningrum, D.; Prianto, A.D. Chlorella as a Source of Functional Food Ingredients: Short Review. IOP Conf. Ser. Earth Environ. Sci. 2021, 794, 012148. [Google Scholar] [CrossRef]
  7. Zheng, Y.; Li, Z.; Tao, M.; Li, J.; Hu, Z. Effects of Selenite on Green Microalga Haematococcus pluvialis: Bioaccumulation of Selenium and Enhancement of Astaxanthin Production. Aquat. Toxicol. 2017, 183, 21–27. [Google Scholar] [CrossRef]
  8. Csatlos, N.-I.; Simon, E.; Teleky, B.-E.; Szabo, K.; Diaconeasa, Z.M.; Vodnar, D.-C.; Ciont Nagy, C.; Pop, O.-L. Development of a Fermented Beverage with Chlorella vulgaris Powder on Soybean-Based Fermented Beverage. Biomolecules 2023, 13, 245. [Google Scholar] [CrossRef]
  9. Gouveia, L.; Batista, A.P.; Miranda, A.; Empis, J.; Raymundo, A. Chlorella vulgaris Biomass Used as Colouring Source in Traditional Butter Cookies. Innov. Food Sci. Emerg. Technol. 2007, 8, 433–436. [Google Scholar] [CrossRef]
  10. Beheshtipour, H.; Mortazavian, A.M.; Mohammadi, R.; Sohrabvandi, S.; Khosravi-Darani, K. Supplementation of Spirulina platensis and Chlorella vulgaris Algae into Probiotic Fermented Milks. Compr. Rev. Food Sci. Food Saf. 2013, 12, 144–154. [Google Scholar] [CrossRef]
  11. Dantas, D.M.M.; Cahú, T.B.; Oliveira, C.Y.B.; Abadie-Guedes, R.; Roberto, N.A.; Santana, W.M.; Gálvez, A.O.; Guedes, R.C.A.; Bezerra, R.S. Chlorella vulgaris Functional Alcoholic Beverage: Effect on Propagation of Cortical Spreading Depression and Functional Properties. PLoS ONE 2021, 16, e0255996. [Google Scholar] [CrossRef]
  12. Pulz, O.; Gross, W. Valuable Products from Biotechnology of Microalgae. Appl. Microbiol. Biotechnol. 2004, 65, 635–648. [Google Scholar] [CrossRef]
  13. Beyerinck, M.W. Culturversuche mit Zoochlorellen, Lichenengonidien und anderen niederen Algen. Bot. Ztg. 1890, 48, 729. [Google Scholar]
  14. Balaji Prasath, B.; Elsawah, A.M.; Liyuan, Z.; Poon, K. Modeling and Optimization of the Effect of Abiotic Stressors on the Productivity of the Biomass, Chlorophyll and Lutein in Microalgae Chlorella pyrenoidosa. J. Agric. Food Res. 2021, 5, 100163. [Google Scholar] [CrossRef]
  15. Ru, I.T.K.; Sung, Y.Y.; Jusoh, M.; Wahid, M.E.A.; Nagappan, T. Chlorella vulgaris: A Perspective on Its Potential for Combining High Biomass with High Value Bioproducts. Appl. Phycol. 2020, 1, 2–11. [Google Scholar] [CrossRef]
  16. Canelli, G.; Tarnutzer, C.; Carpine, R.; Neutsch, L.; Bolten, C.J.; Dionisi, F.; Mathys, A. Biochemical and Nutritional Evaluation of Chlorella and Auxenochlorella Biomasses Relevant for Food Application. Front. Nutr. 2020, 7, 168. [Google Scholar] [CrossRef]
  17. Ward, V.C.A.; Rehmann, L. Fast Media Optimization for Mixotrophic Cultivation of Chlorella vulgaris. Sci. Rep. 2019, 9, 19262. [Google Scholar] [CrossRef]
  18. Heeg, J.S.; Wolf, M. ITS2 and 18S rDNA Sequence-Structure Phylogeny of Chlorella and Allies (Chlorophyta, Trebouxiophyceae, Chlorellaceae). Plant Gene 2015, 4, 20–28. [Google Scholar] [CrossRef]
  19. Luo, W.; Pröschold, T.; Bock, C.; Krienitz, L. Generic Concept in Chlorella related Coccoid Green Algae (Chlorophyta, Trebouxiophyceae). Plant Biol. 2010, 12, 545–553. [Google Scholar] [CrossRef]
  20. Hoshina, R.; Iwataki, M.; Imamura, N. Chlorella variabilis and Micractinium reisseri sp. nov. (Chlorellaceae, Trebouxiophyceae): Redescription of the Endosymbiotic Green Algae of Paramecium bursaria (Peniculia, Oligohymenophorea) in the 120th Year. Phycol. Res. 2010, 58, 188–201. [Google Scholar] [CrossRef]
  21. Krienitz, L.; Huss, V.A.R.; Bock, C. Chlorella: 125 Years of the Green Survivalist. Trends Plant Sci. 2015, 20, 67–69. [Google Scholar] [CrossRef]
  22. Santhosh Kumar, K.; Prasanthkumar, S.; Ray, J.G. Biomass Yield, Oil Productivity and Fatty Acid Profile of Chlorella lobophora Cultivated in Diverse Eutrophic Wastewaters. Biocatal. Agric. Biotechnol. 2017, 11, 338–344. [Google Scholar] [CrossRef]
  23. Darienko, T.; Gustavs, L.; Mudimu, O.; Menendez, C.R.; Schumann, R.; Karsten, U.; Friedl, T.; Pröschold, T. Chloroidium, a Common Terrestrial Coccoid Green Alga Previously Assigned to Chlorella (Trebouxiophyceae, Chlorophyta). Eur. J. Phycol. 2010, 45, 79–95. [Google Scholar] [CrossRef]
  24. Blanc, G.; Duncan, G.; Agarkova, I.; Borodovsky, M.; Gurnon, J.; Kuo, A.; Lindquist, E.; Lucas, S.; Pangilinan, J.; Polle, J.; et al. The Chlorella variabilis NC64A Genome Reveals Adaptation to Photosymbiosis, Coevolution with Viruses, and Cryptic Sex. Plant Cell 2010, 22, 2943–2955. [Google Scholar] [CrossRef] [PubMed]
  25. Song, K.; Zhou, Z.; Huang, Y.; Chen, L.; Cong, W. Multi-Omics Insights into the Mechanism of the High-Temperature Tolerance in a Thermotolerant Chlorella sorokiniana. Bioresour. Technol. 2023, 390, 129859. [Google Scholar] [CrossRef]
  26. Souza Queiroz, J.; Marín Blasco, I.; Gagliano, H.; Daviu, N.; Gómez Román, A.; Belda, X.; Carrasco, J.; Rocha, M.C.; Palermo Neto, J.; Armario, A. Chlorella vulgaris Reduces the Impact of Stress on Hypothalamic—Pituitary—Adrenal Axis and Brain c-Fos Expression. Psychoneuroendocrinology 2016, 65, 1–8. [Google Scholar] [CrossRef]
  27. McCarthy, B.; O’Neill, G.; Abu-Ghannam, N. Potential Psychoactive Effects of Microalgal Bioactive Compounds for the Case of Sleep and Mood Regulation: Opportunities and Challenges. Mar. Drugs 2022, 20, 493. [Google Scholar] [CrossRef]
  28. García-Márquez, J.; Álvarez-Torres, D.; Cerezo, I.M.; Domínguez-Maqueda, M.; Acién, G.; Alarcón-López, F.J.; Figueroa, F.L.; Martínez-Manzanares, E.; Abdala-Díaz, R.T.; Béjar, J.; et al. Effects of Chlorella fusca-Supplemented Diet on Intestinal Microbiota and Gene Expression Related to Metabolism, Stress, and Immune Response in Chelon labrosus. Algal Res. 2024, 77, 103362. [Google Scholar] [CrossRef]
  29. Martins, C.F.; Trevisi, P.; Coelho, D.F.; Correa, F.; Ribeiro, D.M.; Alfaia, C.M.; Pinho, M.; Pestana, J.M.; Mourato, M.P.; Almeida, A.M.; et al. Influence of Chlorella vulgaris on Growth, Digestibility and Gut Morphology and Microbiota of Weaned Piglet. Sci. Rep. 2022, 12, 6012. [Google Scholar] [CrossRef]
  30. De Medeiros, V.P.B.; De Souza, E.L.; De Albuquerque, T.M.R.; Da Costa Sassi, C.F.; Dos Santos Lima, M.; Sivieri, K.; Pimentel, T.C.; Magnani, M. Freshwater Microalgae Biomasses Exert a Prebiotic Effect on Human Colonic Microbiota. Algal Res. 2021, 60, 102547. [Google Scholar] [CrossRef]
  31. Lv, K.; Yuan, Q.; Li, H.; Li, T.; Ma, H.; Gao, C.; Zhang, S.; Liu, Y.; Zhao, L. Chlorella pyrenoidosa Polysaccharides as a Prebiotic to Modulate Gut Microbiota: Physicochemical Properties and Fermentation Characteristics In Vitro. Foods 2022, 11, 725. [Google Scholar] [CrossRef] [PubMed]
  32. Hyrslova, I.; Krausova, G.; Smolova, J.; Stankova, B.; Branyik, T.; Malinska, H.; Huttl, M.; Kana, A.; Doskocil, I.; Curda, L. Prebiotic and Immunomodulatory Properties of the Microalga Chlorella vulgaris and Its Synergistic Triglyceride-Lowering Effect with Bifidobacteria. Fermentation 2021, 7, 125. [Google Scholar] [CrossRef]
  33. White, S.; Anandraj, A.; Bux, F. PAM Fluorometry as a Tool to Assess Microalgal Nutrient Stress and Monitor Cellular Neutral Lipids. Bioresour. Technol. 2011, 102, 1675–1682. [Google Scholar] [CrossRef]
  34. Krishnamoorthy, A.; Rodriguez, C.; Durrant, A. Optimisation of Ultrasonication Pretreatment on Microalgae Chlorella vulgaris & Nannochloropsis oculata for Lipid Extraction in Biodiesel Production. Energy 2023, 278, 128026. [Google Scholar] [CrossRef]
  35. Gojkovic, Ž.; Vílchez, C.; Torronteras, R.; Vigara, J.; Gómez-Jacinto, V.; Janzer, N.; Gómez-Ariza, J.-L.; Márová, I.; Garbayo, I. Effect of Selenate on Viability and Selenomethionine Accumulation of Chlorella sorokiniana Grown in Batch Culture. Sci. World J. 2014, 2014, 401265. [Google Scholar] [CrossRef] [PubMed]
  36. Karlander, E.P.; Krauss, R.W. Responses of Heterotrophic Cultures of Chlorella vulgaris Beyerinck to Darkness and Light. I. Pigment and pH Changes. Plant Physiol. 1966, 41, 1–6. [Google Scholar] [CrossRef] [PubMed]
  37. María De Lourdes, F.M.; María Dolores Josefina, R.R.; Cuauhtémoc Ulises, M.M.; Alfredo De Jesús, M.R. Tolerance and Nutrients Consumption of Chlorella vulgaris Growing in Mineral Medium and Real Wastewater under Laboratory Conditions. Open Agric. 2017, 2, 394–400. [Google Scholar] [CrossRef]
  38. Hildebrand, G.; Poojary, M.M.; O’Donnell, C.; Lund, M.N.; Garcia-Vaquero, M.; Tiwari, B.K. Ultrasound-Assisted Processing of Chlorella vulgaris for Enhanced Protein Extraction. J. Appl. Phycol. 2020, 32, 1709–1718. [Google Scholar] [CrossRef]
  39. Weber, S.; Grande, P.M.; Blank, L.M.; Klose, H. Insights into Cell Wall Disintegration of Chlorella vulgaris. PLoS ONE 2022, 17, e0262500. [Google Scholar] [CrossRef]
  40. Camargo, E.C.; Rossi, R.A.; Silva, J.C.; Miwa, A.C.P.; Prášil, O.; Do Carmo Calijuri, M.; Lombardi, A.T. Comparing Pulse Amplitude Modulated (PAM) Fluorometry with Radiocarbon Technique for Determination of Inorganic Carbon Fixation in Chlorella vulgaris (Trebouxiophyceae, Chlorophyta). Eur. J. Phycol. 2022, 57, 18–28. [Google Scholar] [CrossRef]
  41. Simis, S.G.H.; Huot, Y.; Babin, M.; Seppälä, J.; Metsamaa, L. Optimization of Variable Fluorescence Measurements of Phytoplankton Communities with Cyanobacteria. Photosynth. Res. 2012, 112, 13–30. [Google Scholar] [CrossRef] [PubMed]
  42. Higo, S.; Maung-Saw-Htoo-Thaw; Yamatogi, T.; Ishida, N.; Hirae, S.; Koike, K. Application of a Pulse-Amplitude-Modulation (PAM) Fluorometer Reveals Its Usefulness and Robustness in the Prediction of Karenia mikimotoi Blooms: A Case Study in Sasebo Bay, Nagasaki, Japan. Harmful Algae 2017, 61, 63–70. [Google Scholar] [CrossRef]
  43. Stock, W.; Blommaert, L.; Daveloose, I.; Vyverman, W.; Sabbe, K. Assessing the Suitability of Imaging-PAM Fluorometry for Monitoring Growth of Benthic Diatoms. J. Exp. Mar. Biol. Ecol. 2019, 513, 35–41. [Google Scholar] [CrossRef]
  44. Schuurmans, R.M.; Van Alphen, P.; Schuurmans, J.M.; Matthijs, H.C.P.; Hellingwerf, K.J. Comparison of the Photosynthetic Yield of Cyanobacteria and Green Algae: Different Methods Give Different Answers. PLoS ONE 2015, 10, e0139061. [Google Scholar] [CrossRef]
  45. Wang, L.; Liu, J.; Filipiak, M.; Mungunkhuyag, K.; Jedynak, P.; Burczyk, J.; Fu, P.; Malec, P. Fast and Efficient Cadmium Biosorption by Chlorella vulgaris K-01 Strain: The Role of Cell Walls in Metal Sequestration. Algal Res. 2021, 60, 102497. [Google Scholar] [CrossRef]
  46. Zhang, Z.; Zhang, Y.; Hua, Y.; Chen, G.; Fu, P.; Liu, J. Heterotrophic Selenium Incorporation into Chlorella vulgaris K-01: Selenium Tolerance, Assimilation, and Removal through Microalgal Cells. Foods 2024, 13, 405. [Google Scholar] [CrossRef]
  47. Osman, M.E.H. Unlocking the Potential of Microalgae Cultivated on Wastewater Combined with Salinity Stress to Improve Biodiesel Production. Environ. Sci. Pollut. Res. 2023, 30, 114610–114624. [Google Scholar] [CrossRef]
  48. Rippka, R.; Herdman, M.; Waterbury, J.B. Generic Assignments, Strain Histories and Properties of Pure Cultures of Cyanobacteria. Microbiology 1979, 111, 1–61. [Google Scholar] [CrossRef]
  49. Arbefeville, S.; Harris, A.; Ferrieri, P. Comparison of Sequencing the D2 Region of the Large Subunit Ribosomal RNA Gene (MicroSEQ®) versus the Internal Transcribed Spacer (ITS) Regions Using Two Public Databases for Identification of Common and Uncommon Clinically Relevant Fungal Species. J. Microbiol. Methods 2017, 140, 40–46. [Google Scholar] [CrossRef] [PubMed]
  50. Altschul, S.F.; Gish, W.; Miller, W.; Myers, E.W.; Lipman, D.J. Basic Local Alignment Search Tool. J. Mol. Biol. 1990, 215, 403–410. [Google Scholar] [CrossRef]
  51. Tamura, K.; Stecher, G.; Kumar, S. MEGA11: Molecular Evolutionary Genetics Analysis Version 11. Mol. Biol. Evol. 2021, 38, 3022–3027. [Google Scholar] [CrossRef] [PubMed]
  52. Larkin, M.A.; Blackshields, G.; Brown, N.P.; Chenna, R.; McGettigan, P.A.; McWilliam, H.; Valentin, F.; Wallace, I.M.; Wilm, A.; Lopez, R.; et al. Clustal W and Clustal X Version 2.0. Bioinformatics 2007, 23, 2947–2948. [Google Scholar] [CrossRef] [PubMed]
  53. Felsenstein, J. Evolutionary Trees from DNA Sequences: A Maximum Likelihood Approach. J. Mol. Evol. 1981, 17, 368–376. [Google Scholar] [CrossRef]
  54. Felsenstein, J. Confidence Limits on Phylogenies: An Approach Using the Bootstrap. Evolution 1985, 39, 783–791. [Google Scholar] [CrossRef]
  55. Zuker, M. Mfold Web Server for Nucleic Acid Folding and Hybridization Prediction. Nucleic Acids Res. 2003, 31, 3406–3415. [Google Scholar] [CrossRef]
  56. Luo, W.; Pflugmacher, S.; Pröschold, T.; Walz, N.; Krienitz, L. Genotype versus Phenotype Variability in Chlorella and Micractinium (Chlorophyta, Trebouxiophyceae). Protist 2006, 157, 315–333. [Google Scholar] [CrossRef] [PubMed]
  57. Lobakova, E.S.; Selyakh, I.O.; Semenova, L.R.; Scherbakov, P.N.; Fedorenko, T.A.; Chekanov, K.A.; Chivkunova, O.B.; Baulina, O.I.; Vasilieva, S.G.; Solovchenko, A.E.; et al. Hints for Understanding Microalgal Phosphate-Resilience from Micractinium Simplicissimum IPPAS C-2056 (Trebouxiophyceae) Isolated from a Phosphorus-Polluted Site. J. Appl. Phycol. 2022, 34, 2409–2422. [Google Scholar] [CrossRef]
  58. Cosgrove, J.; Borowitzka, M. Applying Pulse Amplitude Modulation (PAM) Fluorometry to Microalgae Suspensions: Stirring Potentially Impacts Fluorescence. Photosynth. Res. 2006, 88, 343–350. [Google Scholar] [CrossRef]
  59. Jo, S.-W.; Do, J.-M.; Kang, N.S.; Park, J.M.; Lee, J.H.; Kim, H.S.; Hong, J.W.; Yoon, H.-S. Isolation, Identification, and Biochemical Characteristics of a Cold-Tolerant Chlorella vulgaris KNUA007 Isolated from King George Island, Antarctica. J. Mar. Sci. Eng. 2020, 8, 935. [Google Scholar] [CrossRef]
  60. Lichtenthaler, H.K.; Buschmann, C.; Knapp, M. How to Correctly Determine the Different Chlorophyll Fluorescence Parameters and the Chlorophyll Fluorescence Decrease Ratio RFd of Leaves with the PAM Fluorometer. Photosynthetica 2005, 43, 379–393. [Google Scholar] [CrossRef]
  61. Germond, A.; Hata, H.; Fujikawa, Y.; Nakajima, T. The Phylogenetic Position and Phenotypic Changes of a Chlorella-like Alga during 5-Year Microcosm Culture. Eur. J. Phycol. 2013, 48, 485–496. [Google Scholar] [CrossRef]
  62. Acharya, G.C.; Mohanty, S.; Dasgupta, M.; Sahu, S.; Singh, S.; Koundinya, A.V.V.; Kumari, M.; Naresh, P.; Sahoo, M.R. Molecular Phylogeny, DNA Barcoding, and ITS2 Secondary Structure Predictions in the Medicinally Important Eryngium Genotypes of East Coast Region of India. Genes 2022, 13, 1678. [Google Scholar] [CrossRef] [PubMed]
  63. Luo, W.; Krienitz, L.; Pflugmacher, S.; Walz, N. Genus and Species Concept in Chlorella and Micractinium (Chlorophyta, Chlorellaceae): Genotype versus Phenotypical Variability under Ecosystem Conditions. SIL Proc. 1922–2010 2005, 29, 170–173. [Google Scholar] [CrossRef]
  64. Koh, H.G.; Kang, N.K.; Kim, E.K.; Suh, W.; Park, W.-K.; Lee, B.; Chang, Y.K. Isolation and Characterization of Novel Chlorella Species with Cold Resistance and High Lipid Accumulation for Biodiesel Production. J. Microbiol. Biotechnol. 2019, 29, 952–961. [Google Scholar] [CrossRef]
  65. Chiellini, C.; Guglielminetti, L.; Sarrocco, S.; Ciurli, A. Isolation of Four Microalgal Strains from the Lake Massaciuccoli: Screening of Common Pollutants Tolerance Pattern and Perspectives for Their Use in Biotechnological Applications. Front. Plant Sci. 2020, 11, 607651. [Google Scholar] [CrossRef] [PubMed]
  66. Hoshina, R.; Fujiwara, Y. Molecular Characterization of Chlorella Cultures of the National Institute for Environmental Studies Culture Collection with Description of Micractinium inermum sp. nov., Didymogenes sphaerica sp. nov., and Didymogenes soliella sp. nov. (Chlorellaceae, Tr: Taxonomic Revision of NIES Chlorella. Phycol. Res. 2013, 61, 124–132. [Google Scholar] [CrossRef]
  67. Huss, V.A.R.; Frank, C.; Hartmann, E.C.; Hirmer, M.; Kloboucek, A.; Seidel, B.M.; Wenzeler, P.; Kessler, E. Biochemical Taxonomy and Molecular Phylogeny of the Genus Chlorella Sensu Lato (Chlorophyta). J. Phycol. 1999, 35, 587–598. [Google Scholar] [CrossRef]
  68. Sjollema, S.B.; Van Beusekom, S.A.M.; Van Der Geest, H.G.; Booij, P.; De Zwart, D.; Vethaak, A.D.; Admiraal, W. Laboratory Algal Bioassays Using PAM Fluorometry: Effects of Test Conditions on the Determination of Herbicide and Field Sample Toxicity. Environ. Toxicol. Chem. 2014, 33, 1017–1022. [Google Scholar] [CrossRef]
  69. Dai, Y.; Guo, Z.; Guo, X.; Deng, R.; Li, L.; Fan, T.; Cui, K.; Pan, T. Plastic Particles and Fluorescent Brightener Co-Modify Chlorella pyrenoidosa Photosynthesis and a Machine Learning Approach Predict Algae Growth. J. Hazard. Mater. 2024, 477, 135406. [Google Scholar] [CrossRef]
  70. Lai, J.W.S.; Lim, P.E.; Wong, C.Y.; Phang, S.M.; Beardall, J. Photosynthetic Response and DNA Mutation of Tropical, Temperate and Polar Chlorella under Short-Term UVR Stress. Polar Sci. 2019, 20, 35–44. [Google Scholar] [CrossRef]
  71. Singh, R.; Upadhyay, A.K.; Singh, D.V.; Singh, J.S.; Singh, D.P. Photosynthetic Performance, Nutrient Status and Lipid Yield of Microalgae Chlorella vulgaris and Chlorococcum humicola under UV-B Exposure. Curr. Res. Biotechnol. 2019, 1, 65–77. [Google Scholar] [CrossRef]
  72. Malapascua, J.; Jerez, C.; Sergejevová, M.; Figueroa, F.; Masojídek, J. Photosynthesis Monitoring to Optimize Growth of Microalgal Mass Cultures: Application of Chlorophyll Fluorescence Techniques. Aquat. Biol. 2014, 22, 123–140. [Google Scholar] [CrossRef]
  73. Corrêa, P.S.; Morais Júnior, W.G.; Martins, A.A.; Caetano, N.S.; Mata, T.M. Microalgae Biomolecules: Extraction, Separation and Purification Methods. Processes 2020, 9, 10. [Google Scholar] [CrossRef]
  74. Günerken, E.; D’Hondt, E.; Eppink, M.H.M.; Garcia-Gonzalez, L.; Elst, K.; Wijffels, R.H. Cell Disruption for Microalgae Biorefineries. Biotechnol. Adv. 2015, 33, 243–260. [Google Scholar] [CrossRef]
  75. Gomes, T.A.; Zanette, C.M.; Spier, M.R. An Overview of Cell Disruption Methods for Intracellular Biomolecules Recovery. Prep. Biochem. Biotechnol. 2020, 50, 635–654. [Google Scholar] [CrossRef]
  76. Wang, M.; Chen, S.; Zhou, W.; Yuan, W.; Wang, D. Algal Cell Lysis by Bacteria: A Review and Comparison to Conventional Methods. Algal Res. 2020, 46, 101794. [Google Scholar] [CrossRef]
  77. Němcová, Y.; Kalina, T. Cell Wall Development, Microfibril and Pyrenoid Structure in Type Strains of Chlorella vulgaris, C. kessleri, C. sorokiniana Compared with C. luteoviridis (Trebouxiophyceae, Chlorophyta). Algol. Stud. Für Hydrobiol. Suppl. Vol. 2000, 100, 95–105. [Google Scholar] [CrossRef]
  78. Dunker, S.; Wilhelm, C. Cell Wall Structure of Coccoid Green Algae as an Important Trade-Off Between Biotic Interference Mechanisms and Multidimensional Cell Growth. Front. Microbiol. 2018, 9, 719. [Google Scholar] [CrossRef]
  79. Alhattab, M.; Kermanshahi-Pour, A.; Brooks, M.S.-L. Microalgae Disruption Techniques for Product Recovery: Influence of Cell Wall Composition. J. Appl. Phycol. 2019, 31, 61–88. [Google Scholar] [CrossRef]
  80. Halim, R.; Harun, R.; Danquah, M.K.; Webley, P.A. Microalgal Cell Disruption for Biofuel Development. Appl. Energy 2012, 91, 116–121. [Google Scholar] [CrossRef]
Microorganisms 13 00711 g001

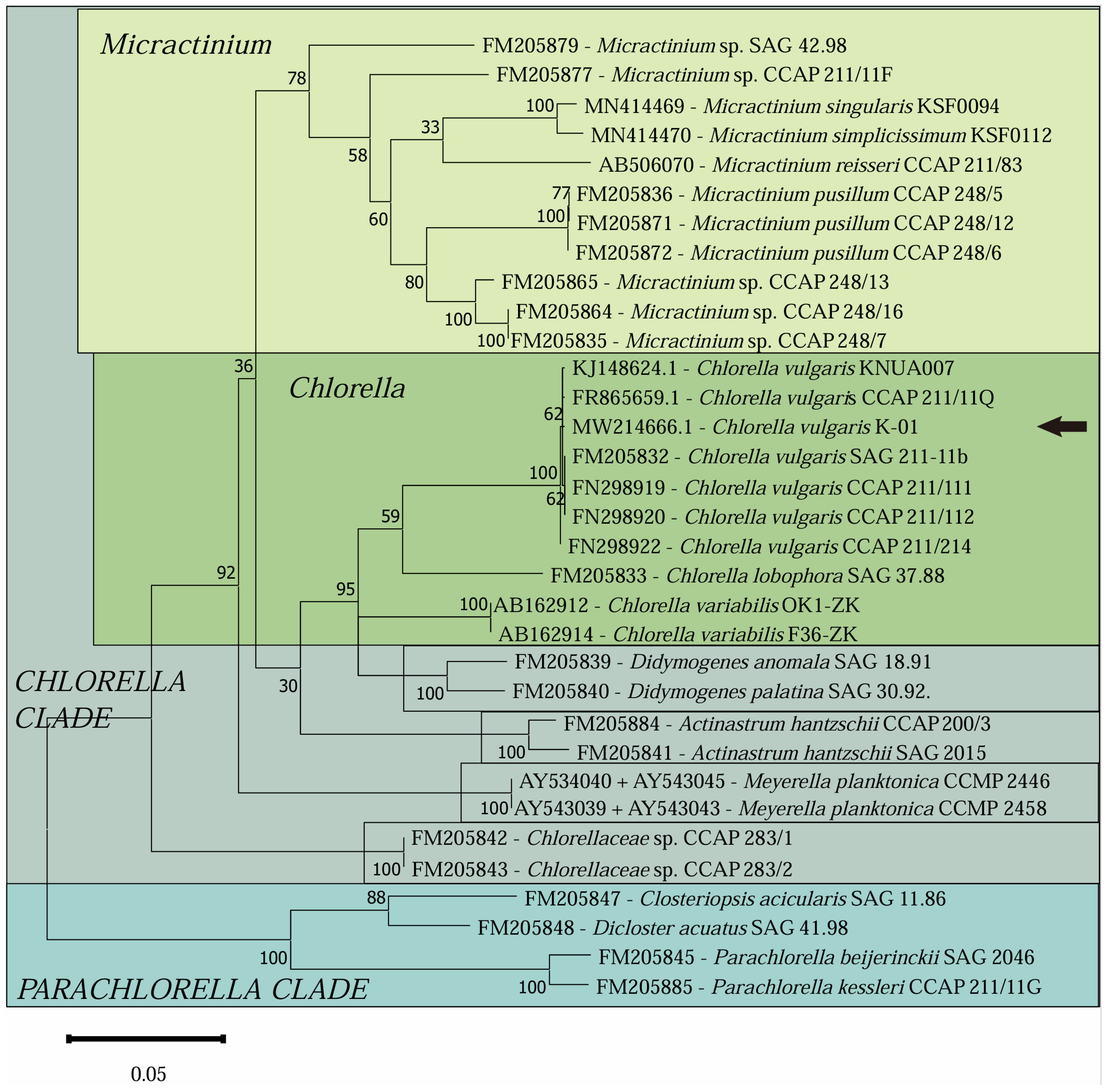

Figure 1. Maximum likelihood (ML) phylogenetic tree of Chlorella vulgaris K-01 constructed by SSU-ITS rDNA sequence alignments. The strain characterized in the current investigation is highlighted by a black arrow. This tree is scaled, with branch lengths representing the number of nucleotide substitutions per site. The numbers near the nodes are bootstrap values.
Figure 1. Maximum likelihood (ML) phylogenetic tree of Chlorella vulgaris K-01 constructed by SSU-ITS rDNA sequence alignments. The strain characterized in the current investigation is highlighted by a black arrow. This tree is scaled, with branch lengths representing the number of nucleotide substitutions per site. The numbers near the nodes are bootstrap values.
Microorganisms 13 00711 g001
Microorganisms 13 00711 g002
Figure 2. (A) Diagrammatic representation of the typical ITS2 secondary structure, with all helices designated by Roman numerals; (B) comparative analysis of Helix III within the ITS2 secondary structures for the verification of the isolated strain. The strain Chlorella vulgaris SAG 211-11b is utilized to depict the prototypical ITS2 structure characteristic of Chlorella, while Micractinium pusillum CCAP 248/5 is used to represent the canonical ITS2 structure of Micractinium. Distinctive features distinguishing Chlorella and Micractinium are annotated based on prior research by Luo et al. [56]; (C) linear sequence alignment of nucleobases within Helix III of the ITS2 secondary structures. The numbers annotated beneath the aligned sequences correspond to the specific positions on Helix III of the ITS2 secondary structures.
Figure 2. (A) Diagrammatic representation of the typical ITS2 secondary structure, with all helices designated by Roman numerals; (B) comparative analysis of Helix III within the ITS2 secondary structures for the verification of the isolated strain. The strain Chlorella vulgaris SAG 211-11b is utilized to depict the prototypical ITS2 structure characteristic of Chlorella, while Micractinium pusillum CCAP 248/5 is used to represent the canonical ITS2 structure of Micractinium. Distinctive features distinguishing Chlorella and Micractinium are annotated based on prior research by Luo et al. [56]; (C) linear sequence alignment of nucleobases within Helix III of the ITS2 secondary structures. The numbers annotated beneath the aligned sequences correspond to the specific positions on Helix III of the ITS2 secondary structures.
Microorganisms 13 00711 g002
Microorganisms 13 00711 g003

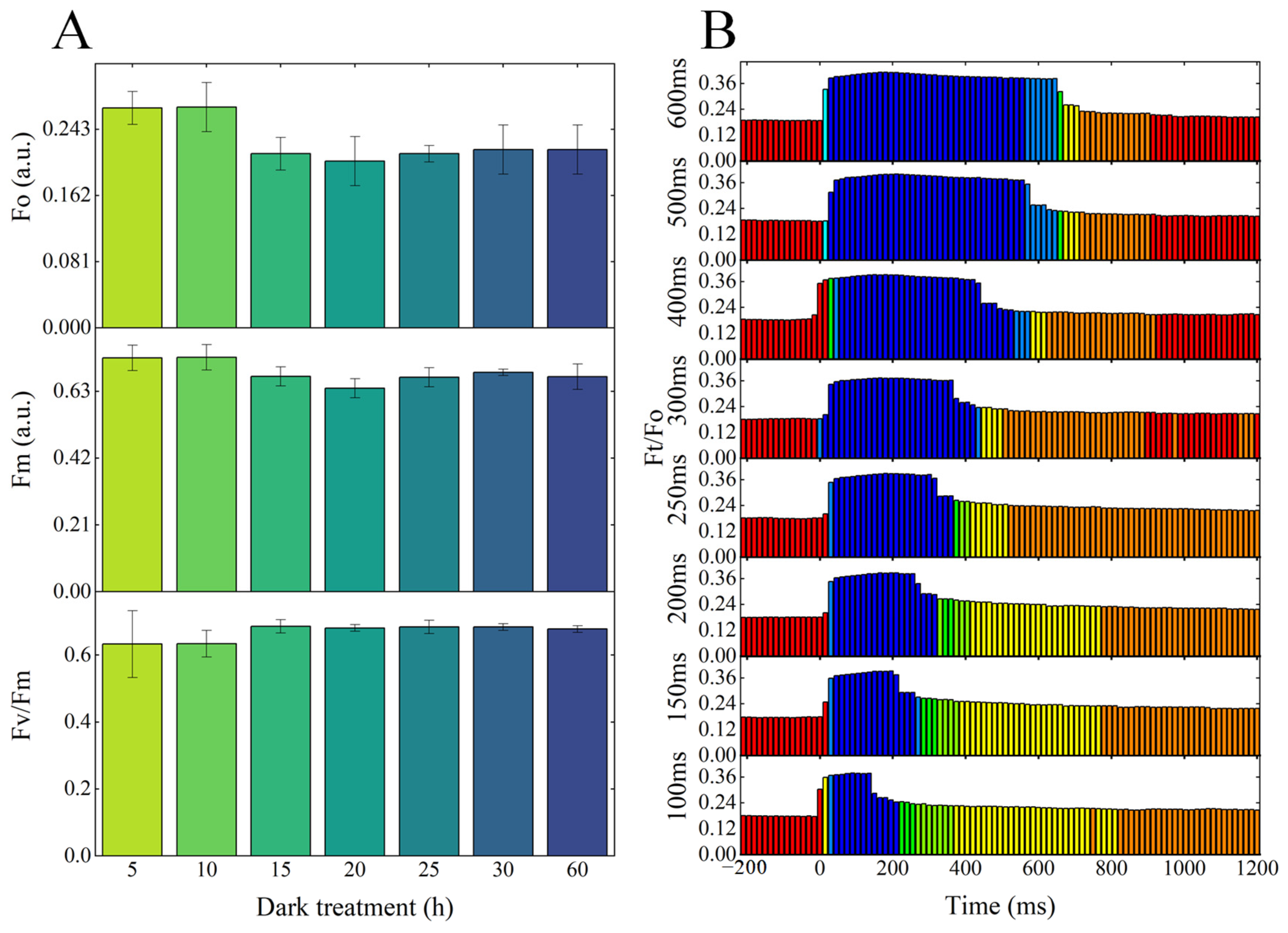

Figure 3. Optimization of dark treatment time and saturation pulse time for the determination of photosynthetic parameters of Chlorella vulgaris K-01. (A) Photosynthetic parameters of Chlorella vulgaris K-01 under different dark adaptation times; (B) chlorophyll-fluorescence response of Chlorella vulgaris K-01 at different saturation pulse times. The initial state of chlorophyll fluorescence, without saturation pulse excitation, is indicated by the red bars, while the excited state with saturation pulse excitation is denoted by the blue bars.
Figure 3. Optimization of dark treatment time and saturation pulse time for the determination of photosynthetic parameters of Chlorella vulgaris K-01. (A) Photosynthetic parameters of Chlorella vulgaris K-01 under different dark adaptation times; (B) chlorophyll-fluorescence response of Chlorella vulgaris K-01 at different saturation pulse times. The initial state of chlorophyll fluorescence, without saturation pulse excitation, is indicated by the red bars, while the excited state with saturation pulse excitation is denoted by the blue bars.
Microorganisms 13 00711 g003
Microorganisms 13 00711 g004

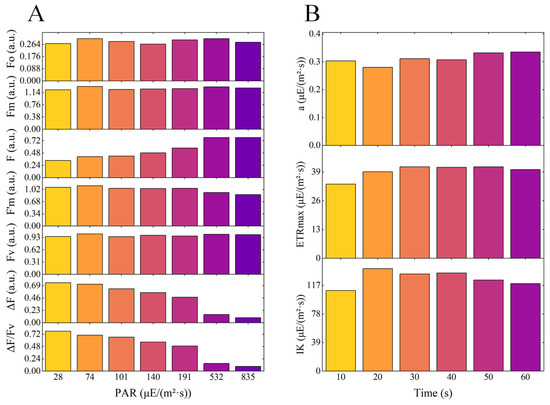

Figure 4. Optimization of the intensity (A) and the duration (B) of actinic light. α: initial slope of the RLC and ETR of the PS II (ETR (II) max) (μE/(m2·s)). ETRmax: maximum relative electron transport rate (μE/(m2·s)). Ik: light saturation point (μE/(m2·s)).
Figure 4. Optimization of the intensity (A) and the duration (B) of actinic light. α: initial slope of the RLC and ETR of the PS II (ETR (II) max) (μE/(m2·s)). ETRmax: maximum relative electron transport rate (μE/(m2·s)). Ik: light saturation point (μE/(m2·s)).
Microorganisms 13 00711 g004
Microorganisms 13 00711 g005

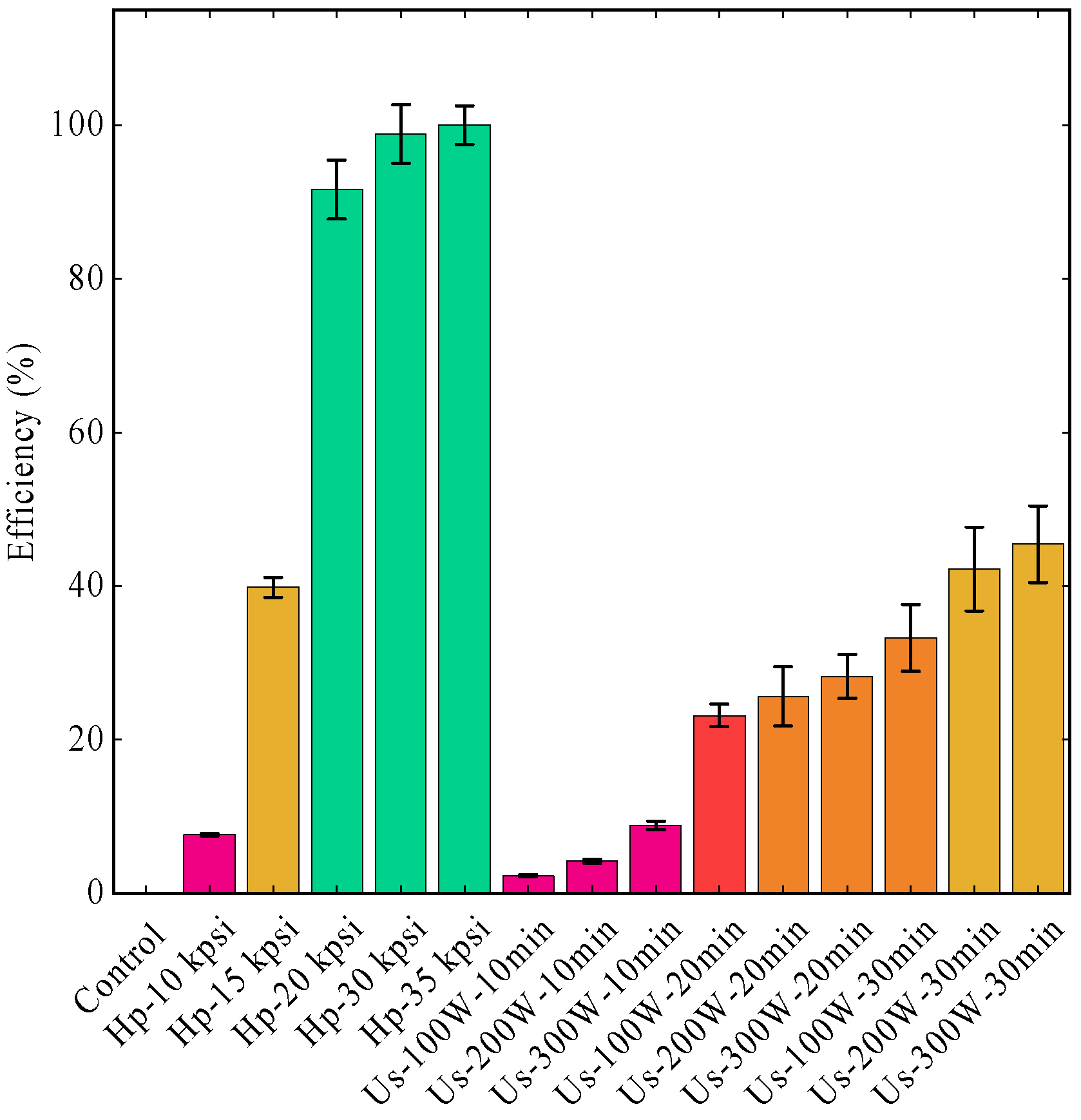

Figure 5. Cell disruption efficiency under different high pressure (Hp) or ultrasonic (Us) conditions.
Figure 5. Cell disruption efficiency under different high pressure (Hp) or ultrasonic (Us) conditions.
Microorganisms 13 00711 g005
