Article

Quantitative Biofacies Analysis to Identify Relationships and Refine Controls on Paleosol Development, Prince Creek Formation, North Slope Alaska, USA

by
James R. Bonelli, Jr.
1,* and
Peter P. Flaig
2
1
Exploration North America, Repsol USA, The Woodlands, TX 77381, USA
2
Bureau of Economic Geology, Jackson School of Geosciences, University of Texas at Austin, Austin, TX 78758, USA
*
Author to whom correspondence should be addressed.
Geosciences 2021, 11(11), 460; https://doi.org/10.3390/geosciences11110460
Submission received: 8 September 2021 / Revised: 30 October 2021 / Accepted: 2 November 2021 / Published: 8 November 2021
(This article belongs to the Special Issue Terrestrial Paleoclimatology and Paleohydrology of the Cretaceous Greenhouse World)
Browse Figures
Versions Notes

Abstract

:
Late Cretaceous coastal plain deposits of the Prince Creek Formation (PCF) offer a rare glimpse into an ancient, high-latitude, arctic greenhouse ecosystem for which there is no modern analog. Here, we employ quantitative biofacies analysis to explore the spatio-temporal variability in PCF palynomorph and microbiota assemblages from nine paleosol horizons exposed along the Colville River, North Slope, Alaska. Biofacies results provide insight into paleoenvironmental controls on the coastal plain ecosystem. Cluster and ordination analyses recognize five biofacies and the following two assemblage types: (1) fern and moss dominated assemblages and (2) algae dominated assemblages. Ordination arrays biofacies along environmental gradients related to soil moisture and marine influence. Fern and moss dominated biofacies from regularly water-logged paleosols along lake and swamp margins on the lower delta plain clearly segregated from algae dominated assemblages of periodically drier levee-overbank paleosols. These results support previous interpretations from the sedimentology, paleopedology, and geochemistry of PCF paleosols that suggest that fluctuations in the water table, related to seasonal river discharge and variations in topography and drainage, controlled soil development and vegetation growth across the coastal plain. This quantitative biofacies-based approach provides an independent predictive tool and cross-check for interpreting environmental conditions along any ancient coastal ecosystem.

1. Introduction

The Upper Cretaceous (Maastrichtian) Prince Creek Formation (PCF) of northern Alaska (Figure 1) offers a rare glimpse into an ancient, high-latitude, arctic greenhouse ecosystem. Previous studies of the PCF have yielded a wealth of information on its constituent vertebrate fauna, flora, paleoecology, and paleoclimate [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20]. The PCF contains the richest concentration of dinosaur fossils of any high latitude location across the globe. Non-avian dinosaurs including small therapods, hypsilophodontids, pachycephalosaurs, ceratopsians, and hadrosaurs thrived along the PCF coastal plain in association with coniferous and broad-leaf deciduous forests and an angiosperm shrub dominated understory. This ecosystem persisted under profound seasonality, a polar light regime, and a cool temperate paleoclimate for which there is no modern analog [21,22].
The stratigraphic and paleoenvironmental framework of the PCF coastal plain has been established through studies of continental through shallow marine deposits exposed along the Colville River [13,21,22,23]. PCF sediments were shed off the Brooks Range to the south and west of the study area (Figure 2) and are composed of conglomerate, sandstone, siltstone, mudstone, carbonaceous shale, coal, bentonite, and tuff. The PCF comprises the most proximal deposits of a Late Cretaceous to Paleocene progradational succession [24,25,26] and becomes younger to the north in the study area (down river) based upon the relative dating of paleosols, regional 40Ar/39AR dating [27], regional dip, palynology [28,29,30,31,32], and the presence of Paleocene (Danian) ostracods and mollusks in overlying strata [23,33,34]. Recent studies on the exposed paleosols of the PCF combined observations on their micromorphology, paleontology, geochemistry, and stratigraphic context to suggest that the PCF coastal plain represents a low gradient, muddy, ash-covered, tidally modified system, influenced by seasonally fluctuating water table levels and floods [15,21,22,35]. Despite the collection of a large palynological dataset of species abundances within sampled PCF paleosol horizons, a robust quantitative analysis of similarities and differences in paleosol biofacies is lacking. Previous examinations of Prince Creek palynomorph assemblages and microbiota have mainly been used for chronostratigraphic purposes to identify significant age diagnostic taxa from presence–absence or semi-quantitative data [28,29,30,31,32]. Palynomorphs provide a basis for biochronology, as well as a wealth of paleoenvironmental information. Moreover, the three-dimensional stratigraphic distribution of palynomorphs in a sedimentary body is linked to the stratigraphic architecture of enclosing sediments and, by inference, to the occurrence of paleoenvironments [36,37,38,39,40,41,42,43,44,45,46,47,48,49].
The purpose of this study is to quantitatively analyze palynomorph and microbiotic assemblages contained within the PCF paleosol horizons described previously by Flaig et al. [22]. Biofacies are defined using a multivariate analytical workflow and biotic variation is quantified within and among PCF localities, soil horizons, and depositional environments. Environmental drivers of biofacies variability are interpreted through the integration of biotic data with published observations on paleosol sedimentology, paleopedology, and geochemistry. We suggest that this integrated approach to ecosystem analysis improves the confidence of interpretations, suggests refinements, and aids in identifying underlying physical controls on ecosystems. These quantitative techniques can be applied broadly to examine variability among a host of geologic attributes that may not have been previously considered as candidates for multivariate analysis.

2. Materials and Methods

Palynomorph and microbiota abundance data were collected from nine paleosol successions by P. Flaig during July–August of 2005–2007. These successions crop out at four exposures along the Colville River and include the Liscomb Bonebed (LBB), Kikiakrorak River Mouth (KRM), Sentinel Hill (SH), and North Kikak-Tegoseak localities (Figure 2). No single locality exposes all nine of the paleosol horizons analyzed in this study. Figure 3 displays measured stratigraphic sections at each locality, the locations of the sampled paleosols within those successions, and their relative stratigraphic relationships to each other based on location along the Colville River, bedding dip, and dating of ash beds and fauna. Bulk and in situ hand samples were gathered from deeply trenched outcrops at 15 to 30 cm intervals from representative paleosols. Raco brand metal electrical boxes, measuring roughly 11.5 cubic inches in dimension, were hammered into the outcrops to collect in situ samples. Prior to use, each box’s screw holder tabs were removed to make sediment collection more efficient. The boxes were oriented vertically with respect to bedding and the tops and bottoms of specimens were identified. Samples were dried out for several months and later impregnated with epoxy resin. Petrographic thin sections were later prepared by Spectrum Petrographics (Vancouver, WA, USA). Additional sample material was sent to Sue Matthews at Palynological Laboratory Services where all fossiliferous material was identified and tabulated from selected soil horizons.
The final dataset examined in this study includes 29 samples and 6620 fossil elements comprising 107 taxa (see Table S1 in Supplementary Material). Fossil counts vary among samples from 185 to 262 fossil elements (mean = 228 elements). Table 1 summarizes the final sample inventory parsed by paleosol horizon and environment. The sampling of depositional environments from some paleosols is incomplete because these environments were not exposed at outcrop. Fossils include in situ and reworked dinocysts and acritarchs, brackish and freshwater algae, exotic projectate pollen, lowland tree and herb pollen, bisaccate pollen, fern and moss spores, and fungal hyphae. The analyses were all carried out at the genus level. Prior to performing the statistical analyses, taxon abundances were log transformed to emphasize the relative contributions of all taxa, effectively increasing the weight of rare elements [50]. Then, sample counts were percent transformed to alleviate any potential impact of sample size differences. Finally, Euclidean distances [50] were computed between each pair of samples and captured in a distance matrix to assess differences in their biotic composition.
Two multivariate statistical methods were used to summarize and graphically display distance relationships among samples and taxa, and to interpret gradients of biotic change among PCF localities, horizons, and depositional environments; these include: (1) hierarchical agglomerative cluster analysis (HCA) with ward’s method and (2) detrended correspondence analysis (DCA) ordination. These methods excel at summarizing large quantitative datasets, extracting dominant patterns, and plotting trends in clear intuitive displays. HCA and DCA have been used successfully for decades in many disciplines, but especially so in paleobiology and ecology where they reveal similarities and differences in the composition of biotas through space and time, and aid in interpreting environmental controls on species distributions [51,52,53,54,55,56,57,58,59,60]. HCA is a classification tool that iteratively partitions samples into groups based on differences in their fossil assemblages. Initially, the HCA algorithm links the two samples with the shortest distances into a group. Next, a new distance matrix is computed from the remaining samples. The sample with the shortest distance to the first group is linked to it. This procedure repeats until all samples are combined into groups and the groups are fused into clusters [50,61]. In this way, each cluster represents a set of samples with similar palynological compositions. The most similar samples will have the lowest Euclidean distances. DCA [62] is a popular ordination technique for detecting gradients of ecological change and relating this variability to underlying environmental factors [63,64,65,66,67]. The relative position of samples within DCA space reflects their biotic similarity. Samples that plot close to one another have more similar biotic compositions than samples that plot far from one another. DCA captures the primary biotic variation along DCA axis 1. Subsequent axes explain smaller amounts of variation. This quantitative approach to biofacies definition permits the fossil data to reveal significant relationships that tell their own story unconstrained by implications from other data. The resulting biofacies are direct products of the statistical analyses, based upon the degree of dissimilarity in fossil composition among samples as measured by the Euclidean distance coefficient. An advantage of this strategy is that the interpretation of external controls on biotic variability is relatively straightforward and achieved through overlaying environmental information onto the cluster dendrogram and ordination plot [47]. A link between biotic patterns and environmental controls is established when the environmental data maps convincingly onto the biofacies interpretations. If there is not a good match between the interpreted biofacies and environmental data, then, the environmental data likely had little influence over biofacies composition. We coded the samples in the ordination by locality, cluster membership, time horizon, paleosol type, and depositional environment to aid in interpreting controls on biotic variability. A second advantage of this approach is that samples and taxa can be plotted together within the same ordination space. Samples that plot close to a particular taxon typically have the greatest abundances of that taxon [47]. This makes it easy to visualize the taxa that characterize each biofacies, and to interpret gradients in biotic composition that can ultimately be related to environmental gradients. All multivariate analyses were performed using the R environment for statistical computing [68]. HCA was performed using the AGNES function from the CLUSTER package [69]. DCA was performed using the DECORANA function from the VEGAN package.
Analytic rarefaction [70,71,72,73,74,75] was used to compare taxonomic diversity (e.g., richness) among the biofacies, localities, paleosol horizons, and depositional environments studied. Rarefaction computes estimates of taxonomic richness and 95% confidence intervals at a standardized, scaled down sampling effort so that comparisons can be made among samples of different sizes. Rarefaction was performed using the program Analytic Rarefaction version 1.3 [76]. In this study, sampling effort is defined by the number of fossil individuals contained within each pooled sample grouping for comparisons among biofacies, localities, paleosol horizons, or depositional environments.

3. Results

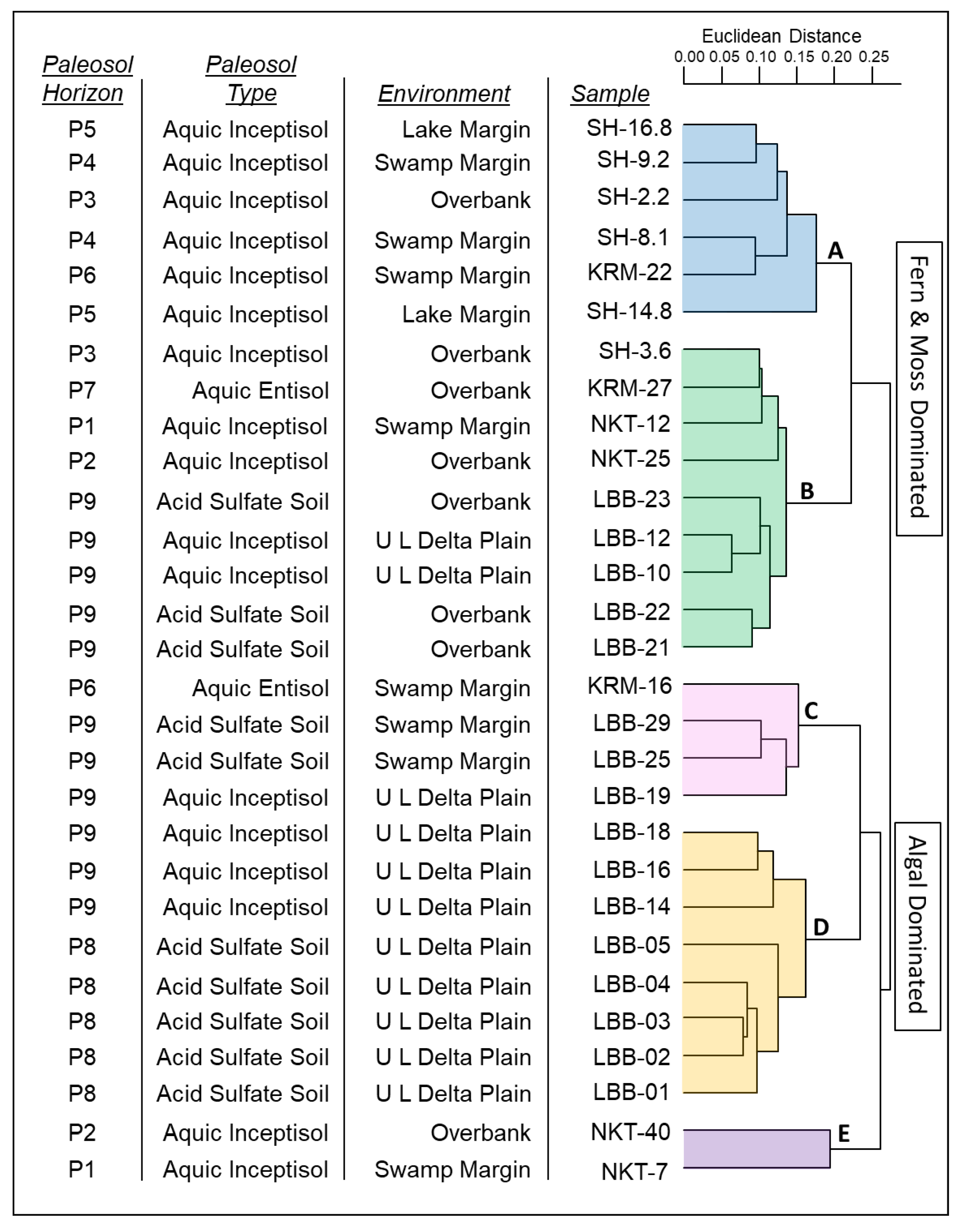

3.1. Hierarchical Agglomerative Cluster Analysis (HCA)

  • Five clusters, referred to as biofacies A–E are interpreted in the cluster dendrogram (see Figure 4).
  • A significant branch point at a Euclidean distance of 0.25 separates biofacies A and B from biofacies C, D, and E (Figure 4). This branch reflects a major break in biotic composition, from the fern and moss dominated samples of biofacies A and B to the brackish and freshwater algae dominated assemblages of biofacies C, D, and E.
  • In general, clusters tend to differentiate samples among the localities and the depositional environments from which they were collected, although overlap exists. The clusters do not cleanly segregate samples of different paleosol types or from different paleosol horizons, although loose groupings are observed (see Figure 4).
  • Biofacies A mainly comprises swamp and lake margin samples from the P3 through P6 paleosol horizons of the Sentinel Hill and Kikiakrorak River Mouth localities. Fern and moss spores dominate, especially Psilatriletes, and comprise 56% of the biofacies. Brackish and freshwater algae, including Sigmapollis, are common and comprise 19% of the total counts in the biofacies (see Figure 4 and Table 2).
  • Biofacies B mainly contains samples from overbank facies of the P2, P3, P7, and P9 paleosol horizons from all four localities. Similar to biofacies A, biofacies B is also dominated by fern and moss spores (43%) and algae (25%). Unlike biofacies A, Psilatriletes is rarely encountered. Instead, the spore Laevigatosporites is the most abundant genus (15%) (see Figure 4 and Table 2).
  • Biofacies C mainly contains samples from swamp margins from the P6 and P9 paleosols of the Liscomb Bonebed and Kikiakrorak River Mouth localities. Brackish and freshwater algae (39%) and exotic pollen (26%) are dominant. Diagnostic taxa include Sigmapollis and the pollen genus Aquilapollenites (see Figure 4 and Table 2).
  • Biofacies D is characterized by samples from the undifferentiated lower delta plain from the P8 and P9 paleosols of the Liscomb Bonebed. Biofacies D contains a high abundance of brackish and freshwater algae (50%) and fern and moss (22%) genera. Sigmapollis is dominant, composing nearly 40% of the biofacies (see Figure 4 and Table 2).
  • Biofacies E comprises two samples from overbank and swamp margin deposits of the P1 and P2 paleosols from the North Kikak-Tegoseak locality. It contains the highest proportion of algae genera (70%) observed. Unlike the other algae dominated samples from biofacies C and D, in biofacies E Botryococcus algae, not Sigmapollis, is diagnostic (see Figure 4 and Table 2).

3.2. Detrended Correspondence Analysis

  • Coding the samples by biofacies membership reveals that the DCA results largely support the results of the cluster analysis.
  • Samples from each individual biofacies (A through E) tend to plot cohesively in ordination space, although some overlap exists (see Figure 5A). This suggests that biofacies share aspects of their biotic compositions, as show in Table 2.
  • The major segregation between fern and moss dominated biofacies (A and B) and algae dominated biofacies (C, D, and E) is clearly observable (see Figure 5A). Algae dominated samples have low axis 2 scores, while fern and moss dominated samples have intermediate to high axis 2 scores. The DCA scores of select algae genera (Sigmapollis and Botryococcus) and fern and moss genera (Psilatriletes, Aquilapollenites, Deltoidospora, and Laevigatosporites), as well as the average scores of all taxa from these two respective ecological groups, support the separation of algae from fern and moss dominated assemblages.
  • One algae dominated sample from biofacies E plots outside the main cloud of algae dominated samples. Its high axis 1 score is driven by elevated abundances of the algae Botryococcus, a genus that is less common in other algae dominated samples (see Figure 5A and Table 2).
When coded by locality, samples from the Liscomb Bonebed, Sentinel Hill, and Kikiakrorak River Mouth plot with low axis 1 scores. These samples largely separate from the North Kikak-Tegoseak samples, which have intermediate to high axis 1 scores. Along axis 2, samples from the Liscomb Bonebed and North Kikak-Tegoseak localities display low scores and separate from the Sentinel Hill and Kikiakrorak River Mouth localities, which plot with higher scores (see Figure 5B). Variations in the abundances of ecological groups and individual taxa among localities are shown in Table 3.
Geosciences 11 00460 g005 550

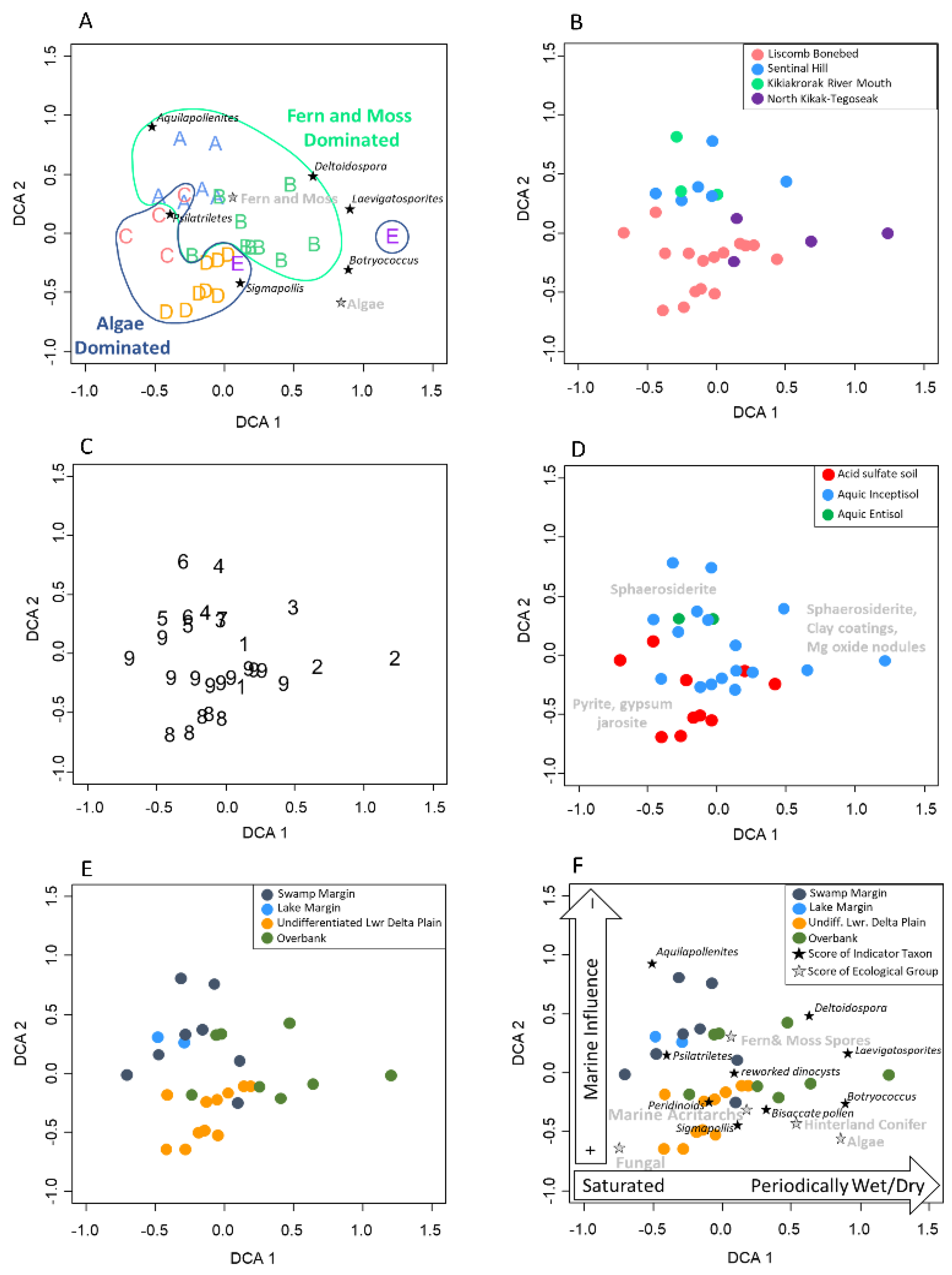

Figure 5. Ordination results with samples coded by: (A) Cluster; (B) locality; (C) paleosol horizon; (D) paleosol type; (E,F) environment. Select genus scores are overlain in (A,F) with black stars and text. Select ecological group scores are shown with grey stars and text. Select paleosol characteristics are labeled with grey text in (D).
Figure 5. Ordination results with samples coded by: (A) Cluster; (B) locality; (C) paleosol horizon; (D) paleosol type; (E,F) environment. Select genus scores are overlain in (A,F) with black stars and text. Select ecological group scores are shown with grey stars and text. Select paleosol characteristics are labeled with grey text in (D).
Geosciences 11 00460 g005
  • Coding the samples by paleosol horizon reveals no easily generalized temporal trend, although samples from each individual horizon tend to plot closely in space (see Figure 5C). Samples from P4, P5, P6, P7, P8, and P9 have low to intermediate axis 1 scores, samples from P1 and P3 have intermediate axis 1 scores, and samples from P2 have the highest axis 1 scores. The P1, P2, P8, and P9 samples separate from the P3, P4, P5, P6, and P7 samples along axis 2.
  • When samples are coded by paleosol taxonomy, a weak separation is observed between samples from acid sulfate soils (horizons P8 and P9 from the Liscomb Bonebed) and the aquic entisols and inceptisols that characterize all other samples (see Figure 5D).
  • Coding samples by depositional environment reveals that swamp and lake margin samples tend to have low and intermediate axis 1 scores and intermediate to high axis 2 scores; the undifferentiated lower delta plain samples tend to have low and intermediate axis 1 and low axis 2 scores; overbank samples display intermediate to high axis 1 scores and intermediate axis 2 scores (see Figure 5E).
  • Swamp margin, lake margin, and overbank facies are dominated by fern and moss genera, which comprise nearly 40% of each environment’s biota (see Table 3). Swamp and lake margin samples share many common and abundant genera, including Psilatriletes and Sigmapollis. Variation in the abundances of the lowland tree/shrub Taxodiaceaepollenites and the algae Pediastrum differentiate the swamp and lake margin (see Table 4). Plotting the scores of taxa within DCA space corroborates these compositional trends. The average score of fern and moss taxa plots closely to swamp and lake margin samples and nearby to overbank samples, indicating they are common elements of these environments.
Table
Table 4. Summary of the biotic composition of depositional environments. Abundance of ecological groups shown for groups with 2% or greater abundance. Generic abundances displayed for taxa comprising 75% of total fossil counts of each environment.
Table 4. Summary of the biotic composition of depositional environments. Abundance of ecological groups shown for groups with 2% or greater abundance. Generic abundances displayed for taxa comprising 75% of total fossil counts of each environment.
LocalityPalynomorph Abundance Generic Abundance
Swamp MarginFerns & Mosses39Psilatriletes (F&M)16Taxodiaceaepollenites (LTS)4
Algae29Sigmapollis (A)16Leiospheres (A)3
Exotic Projectate16Aquilapollenites (EP)13Osmundacidites (F&M)3
Lowland Tree/Shrub11Botryococcus (A)7Bisaccate pollen (HC)3
Hinterland Conifer3Laevigatosporites (F&M)6
Deltoidospora (F&M)5
Lake MarginFerns & Mosses42Taxodiaceaepollenites (LTS)16Botryococcus (A)6
Algae29Psilatriletes (F&M)14Osmundacidites (F&M)5
Lowland Tree/Shrub20Sigmapollis (A)9Leiospheres (A)4
Exotic Projectate4Pediastrum (A)9
Hinterland Conifer3Laevigatosporites (F&M)7
Deltoidospora (F&M)6
OverbankFerns & Mosses38Sigmapollis (A)15Deltoidospora (F&M)5
Algae31Laevigatosporites (F&M)12Osmundacidites (F&M)5
Lowland Tree/Shrub11Bisaccate pollen (HC)8Aquilapollenites (EP)4
Hinterland Conifer9Taxodiaceaepollenites (LTS)6Lycopodiumsporites (F&M)4
Exotic Projectate5Botryococcus (A)6Psilatriletes (F&M)3
Prasinophyceae (A)5Stereisporites (F&M)3
Undiff. Lower Delta PlainAlgae44Sigmapollis (A)34Prasinophyceae (A)3
Ferns & Mosses28Laevigatosporites (F&M)11Leiospheres (A)3
Lowland Tree/Shrub14Taxodiaceaepollenites (LTS)5Psilatriletes (F&M)3
Hinterland Conifer5Osmundacidites (F&M)4Bisaccate pollen (HC)2
Exotic Projectate3Porocolpopollenites (LTS)4Liliacidites (LTS)2
Stereisporites (F&M)3Deltoidospora (F&M)2
  • Overbank samples are dominated by Sigmapollis and Laevigatosporites; Psilatriletes is rare. The overbank contains a higher proportion of hinterland conifer pollen, reworked dinocysts (~1%), and marine acritarchs and peridinoids (~1%) than the lake and swamp margins (see Table 4).
  • The undifferentiated lower delta plain samples are dominated primarily by brackish and freshwater algae and secondarily by fern and moss genera. Sigmapollis is the most abundant taxon at 34% abundance (see Table 4). This environment contains the highest proportions of in situ and reworked marine elements (dinocysts and acritarchs) observed in the study (~3%), and these tend to plot close to undifferentiated lower delta plain samples in ordination space (see Figure 5E).

3.3. Analytic Rarefaction Analysis

  • Rarefaction curves displaying richness at different sampling efforts are shown in Figure 6A–D.
  • Biofacies B has a significantly higher taxonomic richness (61.4 taxa) as compared with other biofacies at the lowest common sampling effort (420 individuals). This is largely due to increased diversity of fern and moss and lowland tree and shrub taxa (see Table 5). Biofacies A, C, and D have lower and overlapping richness values (47.7, 45.1, and 49.1 taxa, respectively). Biofacies E has the lowest richness value (36.5 taxa) overall (see Figure 6A).
  • The Liscomb Bonebed, North Kikak-Tegoseak, and Sentinel Hill localities display statistically indistinguishable richness values (66.3, 62.9, and 63.2 taxa, respectively) at the lowest common sampling effort (720 individuals). The Kikiakrorak River Mouth locality has significantly lower richness (57.2 taxa) (see Figure 6B and Table 6).
  • The P9, P8, P7, P4, and P3 horizons have the highest and statistically overlapping richness values (40.8, 36.4, 42.1, 37.0, and 39.1 taxa, respectively) at the lowest common sampling effort (200 individuals). The P2 and P1 horizons have lower richness values (36.7 and 36.3 taxa, respectively), while the P6 and P5 display the lowest richness values (32.2 and 30.4 taxa, respectively) related to diminished diversity of algae, fern and moss, and lowland tree and shrub taxa (see Figure 6C and Table 7).
Geosciences 11 00460 g006 550

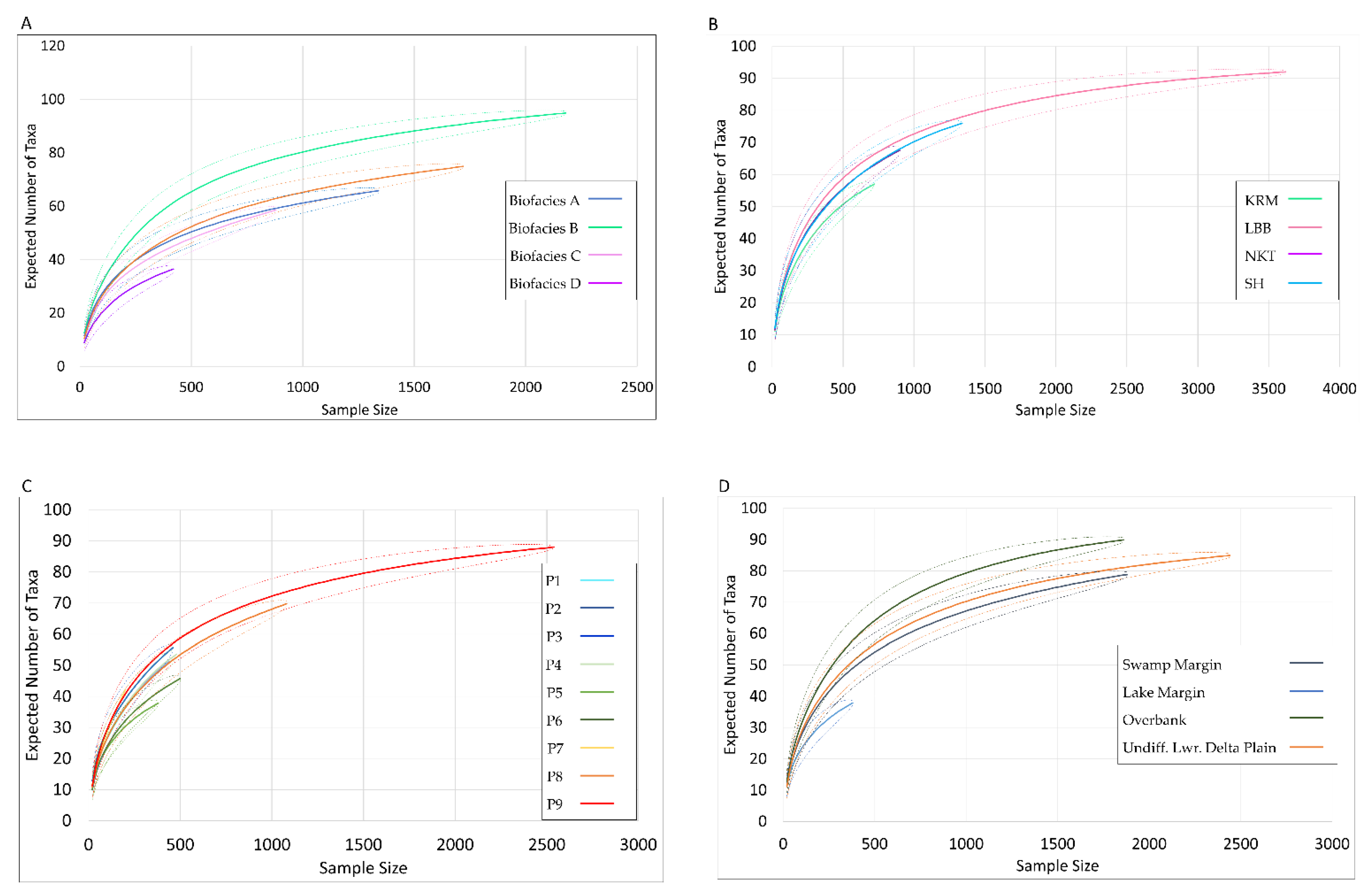

Figure 6. Comparison of taxonomic diversity among: (A) biofacies; (B) localities); (C) paleosol horizons; and (D) environments using. Dashed lines are 95% confidence limits around the expected number of taxa.
Figure 6. Comparison of taxonomic diversity among: (A) biofacies; (B) localities); (C) paleosol horizons; and (D) environments using. Dashed lines are 95% confidence limits around the expected number of taxa.
Geosciences 11 00460 g006
  • Overbank environments have the richest assemblage (57.8 taxa) of any environment at the lowest common sampling effort (380 individuals). This is attributed to greater diversity of algae, fern and moss, hinterland conifer, lowland tree and shrub, and reworked marine taxa. The undifferentiated lower delta plain and swamp margin environments display overlapping and intermediate levels of richness (57.7 and 55.3 taxa, respectively); the lake margin has the lowest sampled richness (37.9 taxa) (see Figure 6D and Table 8).

4. Discussion

4.1. Environmental Controls on Biofacies Composition and Paleosol Development through Space

Prince Creek biofacies vary along gradients that reflect moisture level (drainage) and marine influence (see Figure 5F). Biofacies A, C, and D occur within the predominantly saturated soils of lake margin, swamp margin, and undifferentiated lower delta plain environments, while biofacies B and E tend to occur in overbank soils that, while still wet, were subject to periodically drier conditions [17,22]. In general, samples from the intermittently drier extreme of the gradient record significantly higher abundances of bisaccate pollen from hinterland conifers. Bisaccate pollen are transported from the uplands and delivered by the river system to the raised and intermittently drier, proximal levees of the overbank setting. Independent evidence for drier overbank conditions come from common occurrences of ferruginous features and Mn oxides, higher bioturbation intensities (reflective of stable soils), the absence of aggregated, zoned soil structures (peds), and increasing Fe/Al geochemical ratios indicative of oxidized and better drained soils [22]. Alternatively, samples from the predominantly wet end of the gradient, which include swamp and lake margins of the lower delta plain, have markedly reduced abundances of hinterland conifer pollen. The lower delta plain is situated in a topographically lower position than overbank environments more proximal to channels, and receives proportionately less bisaccate pollen from the uplands. As noted above, lake margin, swamp margin, and undifferentiated lower delta plain environments tend to be dominated by fern and moss (Psilatriletes), and algae (Sigmapollis and Botryococcus) assemblages and are indicative of wetter habitat conditions that are possibly dystrophic where Botryococcus dominates [77]. Marine taxa, including in situ peridinoid dinocysts and acritarchs, attain their highest abundances in the undifferentiated lower delta plain, lending additional support for the interpretation of wetter conditions along this portion of the gradient and proximity to the coastline. Furthermore, the presence of horizons with high total organic carbon (TOC), pyrite, gypsum, jarosite, Fe-depletion features, drab-soil colors, carbonaceous plant fragments, and a lack of bioturbation in these soils are suggestive of more poorly drained conditions near the coast [17,22].
The gradient along DCA axis 1 also roughly reflects an associated change from the distal (lowland) coastal plain, represented by the low axis 1 scores of Liscomb Bonebed samples, to the more proximal (upland) position of samples from North Kikak-Tegoseak. Indeed, evidence from previous stratigraphic and paleontologic studies suggest that the North Kikak-Tegoseak locality is situated in the most updip position in the study, in a more proximal position relative to the Brooks Range orogenic belt and the fluvial systems that delivered sediment to the distal delta plain, while the Liscomb Bonebed is located in one of the most distal locations along the lower coastal plain or delta plain near the non-marine to shallow-marine transition zone [13,15,17,18,19,21,22]. Lowland and more distal coastal plain or delta plain localities would be subject to prolonged waterlogging, possibly due to lower topographic relief, a higher water table, seasonal river flooding, annual changes in water table position, and marine transgressions [13,17,21,22,78,79]. Topographically higher positions in more proximal parts of the coastal plain likely experienced better drainage and remained drier for relatively longer periods of time [13,22,78,80]. This interpretation of paleosol-type relationship to topographic gradient corroborates findings from the analysis of stable oxygen isotopes in dinosaur tooth enamel [14]. Suarez et al. [14] concluded that enamel from Pachyrhinosaurus fossils of the North Kikak-Tegoseak dinosaur bonebed locality were enriched in δ18O because they foraged on enriched upland conifers. Alternatively, enamel from Edmontasaurus dinosaur fossils of the Liscomb Bonebed was depleted in δ18O because Edmontasaurs consumed isotopically depleted plants from along the distal coastal plain.
Biofacies change along axis 2 is controlled by marine influence. The increased presence of in situ marine and brackish palynomorphs, ostracodes [34], Nucula clams [18], as well as pyrite, gypsum, and jarosite [22] suggest that samples with lower axis 1 scores were at times influenced by the input of brackish/marine groundwater near the shoreline. Pyrite formation occurs in soils due to the interaction of iron with sulfate within pore waters [81]. Sulfate commonly occurs within marine, rather than freshwater settings [82]. Jarosite and gypsum are both oxidation products of pyrite [82,83], again suggesting increasing marine influence in paleosols that contain these minerals in abundance. The relative absence of marine and brackish taxa from samples with higher axis 2 scores, coupled with the presence of sphaerosiderite, suggests these samples experienced dominantly fresh ground waters. Unlike pyrite, sphaerosiderite tends to precipitate only when dissolved sulfur concentrations are low and pore waters are fresh [84,85,86,87]. Stratigraphic studies of the Prince Creek Formation at Sling Point, the Liscomb Bonebed, Ocean Point, and nearby localities suggest that this stratigraphy records increasing marine conditions up section, prior to apparent transgression recorded in shallow-marine deposits of the overlying tongue of the Schrader Bluff Formation evidenced at Ocean Point [15,19,21,23].

4.2. Environmental Controls on Biofacies Composition and Paleosol Development through Time

Within the confines of the current sampling effort, it is challenging to characterize and quantitatively compare biotic gradients among the studied paleosol horizons. As shown in Table 1, the sampling of depositional environments within each horizon is largely incomplete. In fact, there is no single horizon from which all four depositional environments have been sampled. Likewise, each horizon is represented by only a small number of samples that may not be adequate to estimate or compare the constituent biotas of each paleosol individually. Finally, although the relative ages and updip–downdip relationships of the studied paleosols are relatively well understood [13,15,17,18,19,21,27,28,29,30,31,32,34,88], the correlation of paleosol horizons over broad areas is extremely difficult since the extent of any one paleosol horizon is limited due to truncation by channel deposits, the semicontinuous nature of outcrop exposures, and lack of well and seismic control [22]. Despite these challenges to accurate, statistically sound temporal comparisons, the ordination of samples coded by paleosol horizon (Figure 5C) corroborates the interpretation of a transition toward greater marine influence in younger Prince Creek stratigraphy exposed near the site of the Liscomb Bonebed [15,21,23]. Samples from the youngest sampled horizons, P8 and P9, tend to separate from the older P2 through P7 horizons.

4.3. Future Research Directions

The multivariate statistical approach advocated in this study can be used to address many remaining questions about the nature of the Prince Creek ecosystem, how it varies geographically and temporally, and whether this variation is typical of coastal plain settings in general:
  • How much biotic turnover is typical among depositional environments within a paleosol horizon? Does the level of between habitat variability change through time?
  • Does each paleosol horizon contain a unique palynological/microbiotic signature, or does the biota tend to recur with only slight variations through time?
  • What does any observed biotic variability tell us about the evolution of the coastal plain ecosystem and if/how physical environmental factors vary though time?
  • How does the degree of biotic and environmental change observed compare to that in lower latitude Maastrichtian settings, where high frequency, seasonal changes may not be as evident?
  • How similar are patterns of palynofacies variability and interpreted environmental controls in other marginal marine settings outside of the PCF?
To address these questions, future field research could focus on collecting closely spaced replicate samples from each PCF soil horizon to permit nested statistical comparisons of soils at multiple scales. In this way variability can be examined among replicate samples within each horizon, environment, or locality. A detailed understanding of within-horizon variability is crucial so that a statistical baseline of change can be established, and then used to evaluate the significance of variability among horizons, environments, or localities [58,65,89,90,91,92]. With greater sampling intensity, additional multivariate techniques including analysis of similarity (ANOSIM) [56] can be used to test statistically for differences within and among multiple test levels to address the above questions. In addition to field sampling, efforts can be made to compile previously published quantitative palynomorph data from the PCF, for example, [93], to expand the scope of future studies. Finally, we suggest that more quantitative studies of palynofacies in coastal plain ecosystems are needed to better understand whether the variability we observed is typical of these marginal marine settings. The answers to the above questions can be integrated with existing observations from stratigraphy, sedimentology, paleopedology, and geochemistry to provide a more highly resolved view of the Prince Creek ecosystem in Alaska, marginal marine systems elsewhere, and establish well-supported links between environmental and biotic variability.

4.4. Additional Uses of Quantiative Biofacies Analysis/Multivariate Statistical Tools

This quantitative approach to biofacies analyses can be used for other purposes, as well as in stratigraphic intervals outside of the PCF of Alaska. Because stratigraphic architecture and environmental change affect fossil assemblages in predictable ways [37,40,47], a biofacies analysis with HCA, DCA, or other ordination techniques provides a useful tool for building interpretations of stratigraphic and environmental architecture [46,48,60] and for regional and intraregional correlation of horizons [64] that are independent of lithological, geochemical, or other data. Although a quantitative biofacies analysis tends to be more common in academic studies, it can also prove useful in building predictive stratigraphic, depositional, and reservoir models for industry purposes [94].
Multivariate statistical analyses can be applied broadly whenever one seeks to summarize quantitative multivariate data, classify groups based on shared similarities of properties, or relate and display statistical relationships among multiple objects. Due to the advent of “big data”, tools such as cluster analysis, ordination, and others are increasingly used by geologists to extract patterns from subsurface data. Multiple examples are published that provide illustrative cases. For example, in areas where regional correlation is challenging due to a lack of biostratigraphic data, surface exposures, or seismic data, cluster and ordination analyses can be used to develop chemostratigraphic correlations based on similarities in geochemical, elemental, and isotopic signatures [95,96]. These tools are also useful for analyzing biomarker and other geochemical data to characterize oil families and understand regional differences in petroleum systems [97,98]. Geophysicists are turning to principal component analysis (PCA) and artificial neural networks to evaluate which combinations of attributes extracted from 3D seismic data best reflect hydrocarbon bearing reservoirs [99]. Additionally, development geologists and engineers use multivariate and artificial intelligence tools to understand which reservoir properties are most important in driving both production performance [100,101] and variability across hydrocarbon producing trends.

5. Conclusions

Cluster and ordination analyses reveal that palynomorph and microbiota of the PCF coastal plain can be categorized into two main assemblage types: (1) fern and moss dominated biofacies characterized by the typically water-logged lake margin, swamp margin, and lower delta plain paleosols, and (2) algae dominated biofacies comprising periodically drier overbank paleosols. Biofacies are arrayed along environmental gradients reflecting moisture level (degree/frequency of water-logged conditions) and marine influence. These findings broadly support previously published depositional models of the Prince Creek coastal plain based on paleosol pedology, geochemistry, and stratigraphy [22]. One of the strengths of this study, and a key difference from previous work, is the application of a robust statistical methodology to define biofacies, visualize biotic variation within and between depositional environments, and link biotic change to habitat change. Comparisons of within-habitat biotic variability suggest that the Prince Creek coastal plain was a dynamic ecosystem subject to frequent fluctuations in environmental conditions. These fluctuations are not only manifested in the sedimentologic and geochemical record, but also reflected in the variable biofacies compositions recorded within and between coastal plain depositional environments. A quantitative biofacies analysis provides an additional independent tool for interpreting changes in ecosystems through space and time, and understanding the stratigraphic, environmental, and evolutionary processes effecting these changes.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/geosciences11110460/s1, Table S1: Raw data matrix displaying sample (rows) and taxonomic (column) data.

Author Contributions

Conceptualization, J.R.B.J. and P.P.F.; methodology, J.R.B.J.; software, J.R.B.J.; validation, J.R.B.J. and P.P.F.; formal analysis, J.R.B.J.; investigation, J.R.B.J. and P.P.F.; data curation, J.R.B.J.; writing—original draft preparation, J.R.B.J.; writing—review and editing, J.R.B.J. and P.P.F. All authors have read and agreed to the published version of the manuscript.

Funding

The initial paleosols project of Flaig et al., 2013 was funded through the National Science Foundation Office of Polar Programs grants OPP-425636 to Paul J. McCarthy and OPP-424594 to Anthony R. Fiorillo. That project provided the data analyzed in the current study.

Data Availability Statement

The raw data presented in this study are available as Supplementary Data.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Davies, K.L. Duck-billed dinosaurs (Hadrosauridae: Ornithischia) from the North Slope of Alaska. J. Paleontol. 1983, 61, 198–200. [Google Scholar] [CrossRef]
  2. Parrish, M.J.; Parrish, J.T.; Hutchinson, J.H.; Spicer, R.A. Late Cretaceous vertebrate fossils from the North Slope of Alaska and implications for dinosaur ecology. PALAIOS 1987, 2, 377–389. [Google Scholar] [CrossRef]
  3. Spicer, R. Late Cretaceous floras and terrestrial environments of northern Alaska. In Alaska North Slope Geology; Taillur, I., Weimer, P., Eds.; Society of Economic Paleontologists and Mineralogists: Fullerton, CA, USA; The Alaska Geological Society: Anchorage, AK, USA, 1987; Volume 1, pp. 497–512. [Google Scholar]
  4. Parrish, J.T.; Spicer, R.A. Late Cretaceous terrestrial vegetation: A near-polar temperature curve. Geology 1988, 16, 22–25. [Google Scholar] [CrossRef]
  5. Spicer, R. Changing climate and biota. In The Cretaceous World; Skelton, P., Ed.; Cambridge University Press: Bakersfield, CA, USA; Cambridge, UK, 2003; pp. 85–162. [Google Scholar]
  6. Spicer, R.A.; Parrish, J. Late Cretaceous-early Tertiary paleoclimates of northern high latitudes: A quantitative view. Geol. Soc. Lond. 1990, 147, 329–341. [Google Scholar] [CrossRef]
  7. Rich, T.H.; Gangloff, R.A.; Hammer, W.H. Polar Dinosaurs. In Encyclopedia of Dinosaurs; Academic Press: San Diego, CA, USA, 1997; pp. 562–573. [Google Scholar]
  8. Fiorillo, A.R.; Gangloff, R.A. Theropod teeth from the Prince Creek Formation (Cretaceous) of northern Alaska, with speculations on arctic dinosaur paleoecology. J. Vertebr. Paleontol. 2000, 20, 675–682. [Google Scholar] [CrossRef]
  9. Rich, T.H.; Gangloff, R.A.; Hammer, W.H. Polar Dinosaurs. Science 2002, 295, 979–980. [Google Scholar] [CrossRef] [PubMed]
  10. Fiorillo, A.R.; Gangloff, R.A. Preliminary note on the taphonomic and paleoecologic setting of a Pachyrhinosaurus bonebed in northern Alaska. J. Vertebr. Paleontol. 2003, 23, 50A. [Google Scholar]
  11. Gangloff, R.A.; Fiorillo, A.R.; Norton, D.W. The first Pachycephalosaurine (Dinosauria) from the Paleo-Arctic and its paleogeographic implications. J. Paleontol. 2005, 79, 997–1001. [Google Scholar] [CrossRef]
  12. Fiorillo, A.R.; Tykoski, R.; Currie, P.; McCarthy, P.J.; Flaig, P.P. Description of two Troodon braincases from the Prince Creek Formation (Upper Cretaceous) North Slope, Alaska. J. Vertebr. Paleontol. 2009, 29, 178–187. [Google Scholar] [CrossRef]
  13. Fiorillo, A.R.; McCarthy, P.J.; Flaig, P.P.; Bandlen, E.; Norton, D.W.; Zippi, P.; Jacobs, L.; Gangloff, R.A. Paleontology and paleoenvironmental interpretation of the Kikak-Tegoseak Quarry (Prince Creek Formation: Late Cretaceous), northern Alaska: A multi-disciplinary study of a high-latitude ceratopsian dinosaur bonebed. In New Perspectives on Horned Dinosaurs; Ryan, M.J., Chinnery-Allgeier, B.J., Eberth, D.A., Eds.; Indiana University Press: Bloomington, IN, USA, 2010; pp. 456–477. [Google Scholar]
  14. Suarez, C.A.; Ludvigson, G.A.; Gonzalez, L.A.; Fiorillo, A.R.; Flaig, P.P.; McCarthy, P.J. Use of multiple oxygen isotope proxies for elucidating Arctic Cretaceous paleohydrology. In Isotopic Studies in Cretaceous Research; Bojar, A.V., Melmonte-Dobrinescu, M.C., Smit, J., Eds.; Geological Society of London, Special Publication: London, UK, 2013; Volume 382, pp. 185–202. [Google Scholar] [CrossRef] [Green Version]
  15. Flaig, P.P.; Fiorillo, R.A.; McCarthy, P.J. Dinosaur-bearing hyperconcentrated flows of Cretaceous Arctic Alaska: Recurring catastrophic event beds on a distal paleopolar coastal plain. PALAIOS 2014, 29, 594–611. [Google Scholar] [CrossRef]
  16. van der Kolk, D.A.; Flag, P.P.; Hasiotis, S.T. Paleoenvironmental reconstruction of a Late Cretaceous, muddy, river-dominated polar deltaic system: Schrader Bluff—Prince Creek Formation transition, Shivugak Bluffs, North Slope of Alaska, U.S.A. J. Sediment. Res. 2014, 85, 903–936. [Google Scholar] [CrossRef]
  17. Fiorillo, R.A.; McCarthy, P.J.; Flaig, P. A multi-disciplinary perspective on habitat preferences among dinosaurs in a Cretaceous Arctic greenhouse world, North Slope, Alaska (Prince Creek Formation: Lower Maastrichtian). Palaeogeogr. Palaeoclimatol. Palaeoecol. 2016, 441, 377–389. [Google Scholar] [CrossRef]
  18. Suarez, C.A.; Flaig, P.P.; Ludvigson, G.A.; Gonzalez, L.A.; Tian, R.; Zhou, H.; McCarthy, P.J.; van der Kolk, D.A.; Fiorillo, A.R. Reconstructing the paleohydrology of a Cretaceous Alaskan paleopolar coastal plain from stable isotopes of bivalves. Palaeogeogr. Palaeoclimatol. Palaeoecol. 2016, 441, 339–351. [Google Scholar] [CrossRef]
  19. Flaig, P.P.; Hasiotis, S.T.; Fiorillo, A.R. A paleopolar dinosaur track site in the Cretaceous (Maastrichtian) Prince Creek Formation of Arctic Alaska: Track characteristics and probable trackmakers. Ichnos 2018, 25, 208–220. [Google Scholar] [CrossRef]
  20. Chiarenza, A.A.; Fiorillo, A.R.; Tykoski, R.S.; McCarthy, P.J.; Flaig, P.P.; Conteras, D.L. The first juvenile dromaeosaurid (Dinosuaria, Theropoda) from Arctic Alaska. PLoS ONE 2020, 15, e0235078. [Google Scholar] [CrossRef]
  21. Flaig, P.P.; McCarthy, P.J.; Fiorillo, A.R. A tidally-influenced, high-latitude coastal plain: The Upper Cretaceous (Maastrichtian) Prince Creek Formation, North Slope, Alaska. In From River to Rock Record: The Preservation of Fluvial Sediments and Their Subsequent Interpretation; Davidson, S.K., Leleu, S., North, C.P., Eds.; Society for Sedimentary Geology, Special Publication: Tulsa, OK, USA, 2011; Volume 97, pp. 233–264. [Google Scholar] [CrossRef]
  22. Flag, P.P.; McCarthy, P.J.; Fiorillo, A.R. Anatomy, evolution and paleoenvironmental interpretation of an ancient Arctic coastal plain: Integrated paleopedology and palynology from the Upper Cretaceous (Maastrichtian) Prince Creek Formation, North Slope, Alaska, USA. In New Frontiers in Paleopedology and Terrestrial Paleoclimatology: Paleosols and Soil Surface Analogue Systems; Driese, S.G., Nordt, L.C., Eds.; Society for Sedimentary Geology, Special Publication: Tulsa, OK, USA, 2013; Volume 104, pp. 179–230. [Google Scholar]
  23. Phillips, R.L. Depositional environments and processes in Upper Cretaceous nonmarine and marine sediments, Ocean Point dinosaur locality, North Slope, Alaska. Cretac. Res. 2003, 24, 499–523. [Google Scholar] [CrossRef]
  24. Mull, C.G.; Houseknecht, D.W.; Bird, K.J. Revised Cretaceous and Tertiary stratigraphic nomenclature in the Colville Basin, northern Alaska. U.S. Geol. Surv. Prof. Pap. 2003, 1673, 1–51. [Google Scholar] [CrossRef] [Green Version]
  25. Garrity, C.P.; Houseknecht, D.W.; Bird, K.J.; Potter, C.J.; Moore, T.E.; Nelson, P.H.; Schenk, C.J. Oil and Gas resource assessment of the central North Slope, Alaska: Play maps and results. In U.S. Geological Survey Open File Report 2005-1182; U.S. Geological Survey: Reston, VA, USA, 2005; pp. 1–29. [Google Scholar] [CrossRef]
  26. Decker, P.L.; LePain, D.L.; Wartes, M.A.; Gillis, R.J.; Mongrain, J.R.; Kirkham, R.A.; Schellenbaum, D.P. Sedimentology, stratigraphy, and subsurface expression of Upper Cretaceous strata in the Sagavanirktok River area, east central North Slope, Alaska. In Preliminary Results of Recent Geologic Field Investigations in the Brooks Range Foothills and North Slope, Alaska; Wartes, M.W., Decker, P.L., Eds.; Alaska Division of Geologic and Geophysical Surveys: Fairbanks, AK, USA, 2009. [Google Scholar] [CrossRef] [Green Version]
  27. Conrad, J.E.; McKee, E.H.; Turrin, B.D. Age of Tephra Beds at the Ocean Point dinosaur locality, North Slope, Alaska, Based on K-Ar and 40Ar/39Ar Analyses. In U.S. Geological Survey Bulletin 1990-C; U.S. Geological Survey: Denver, CO, USA, 1990; pp. C1–C12. [Google Scholar]
  28. Frederiksen, N.O. Pollen Zonation and Correlation of Maastrichtian Marine Beds and Associated STRATA, Ocean Point dinosaur Locality, North Slope, Alaska. In U.S. Geological Survey Bulletin 1990-E; U.S. Geological Survey: Denver, CO, USA, 1991; pp. E1–E24. [Google Scholar]
  29. Frederiksen, N.O.; Sheen, T.P.; Ager, T.A.; Collett, T.S.; Fouch, T.D.; Franczyk, K.J.; Johnson, M. Palynomorph biostratigraphy of Upper Cretaceous to Eocene samples from the Sagavinirktok Formation in its type region, North Slope of Alaska. In U.S. Geological Survey Open File Report 96-84; U.S. Geological Survey: Reston, VA, USA, 1996; pp. 1–44. [Google Scholar] [CrossRef]
  30. Frederiksen, N.O.; Andrle, V.A.; Sheehan, T.P.; Ager, T.A.; Collett, T.S.; Fouch, T.D.; Franczyk, K.J.; Johnson, M. Palynological dating of Upper Cretaceous to Middle Eocene strata in the Sagavinirktok and Canning Formations, North Slope of Alaska. In U.S. Geological Survey Open File Report 98-471; U.S. Geological Survey: Reston, VA, USA, 1998; pp. 1–51. [Google Scholar] [CrossRef]
  31. Frederiksen, N.O.; McIntyre, D.J. Palynomorph biostratigraphy of mid(?)-Campanian to Upper Maastrichtian strata along the Colville River, North Slope of Alaska. In U.S. Geological Survey Open File Report 00-493; U.S. Geological Survey: Reston, VA, USA, 2000; pp. 1–36. [Google Scholar] [CrossRef]
  32. Frederiksen, N.O.; McIntyre, D.J.; Sheehan, T.P. Palynological dating of some Upper Cretaceous to Eocene outcrop and well samples from the region extending from the easternmost part of NPRA in Alaska to the West of ANWR, North Slope of Alaska. In U.S. Geological Survey Open File Report 02-405; U.S. Geological Survey: Reston, VA, USA, 2002; pp. 1–37. [Google Scholar] [CrossRef] [Green Version]
  33. Marincovich, L. Danian mollusks from the Prince Creek Formation, northern Alaska, and implications for Arctic Ocean paleogeography. Paleontol. Soc. Mem. 1993, 67, 1–35. [Google Scholar] [CrossRef]
  34. Brouwers, E.M.; De Deckker, P. Late Maastrichtian and Danian ostracode faunas from northern Alaska: Reconstructions of environment and paleogeography. PALAIOS 1993, 8, 140–154. [Google Scholar] [CrossRef]
  35. Salazar Jaramillo, S.; McCarthy, P.J.; Trainor, T.P.; Fowell, S.J.; Fiorillo, A.R. Origin of clay minerals in alluvial paleosols. Prince Creek Formation, North Slope, Alaska, U.S.A.: Influence of volcanic ash on pedogenesis in the Late Cretaceous Arctic. J. Sediment. Res. 2015, 85, 192–208. [Google Scholar] [CrossRef]
  36. Brett, C.E. Sequence stratigraphy, biostratigraphy, and taphonomy in shallow marine environments. PALAIOS 1995, 10, 597–616. [Google Scholar] [CrossRef]
  37. Holland, S.M. The stratigraphic distribution of fossils. Paleobiology 1995, 21, 92–109. [Google Scholar] [CrossRef]
  38. Brett, C.E.; Baird, G.C. Paleontological Events: Stratigraphic, Ecological, and Evolutionary Implications; Columbia University Press: New York, NY, USA, 1997; pp. 1–616. [Google Scholar]
  39. Brett, C.E. Sequence stratigraphy, paleoecology, and evolution: Biotic clues and responses to sea-level. PALAIOS 1998, 13, 241–262. [Google Scholar] [CrossRef]
  40. Holland, S.M. The quality of the fossil record- a sequence stratigraphic perspective. In Deep Time: Paleobiology’s Perspective; Erwin, D.H., Wing, S.L., Eds.; The Paleontological Society: Lawrence, KS, USA, 2000; pp. 148–168. [Google Scholar]
  41. Patzkowsky, M.E. Extinction, invasion, and sequence stratigraphy: Patterns of faunal change in the Middle and Upper Ordovician of the eastern United States. In Paleozoic Sequence Stratigraphy: Views from the North American Craton; Witzke, B.J., Ludvigson, G.A., Day, J.E., Eds.; Geological Society of America Special Paper 306: Boulder, CO, USA, 1996; pp. 131–142. [Google Scholar]
  42. Holland, S.M.; Patzkowsky, M.E. Stratigraphic variation in the timing of first and last occurrences. PALAIOS 2002, 17, 134–146. [Google Scholar] [CrossRef]
  43. Koppelhus, E.B.; Dam, G. Palynostratigraphy and palaeoenvironments of the Raevekloft, Gule Horn, and Ostreaelv Formations (Lower-Middle Jurassic), Neill Klinter Group, Jameson Land, East Greenland. Geol. Surv. Den. Greenl. Bull. 2003, 1, 723–775. [Google Scholar] [CrossRef] [Green Version]
  44. Brett, C.E.; Hendy, A.J.; Bartholomew, A.J.; Bonelli, J.R., Jr.; McLaughlin, P.I. Response of shallow marine biotas to sea-level fluctuations: A review of faunal replacement and the process of habitat tracking. PALAIOS 2007, 22, 228–244. [Google Scholar] [CrossRef]
  45. Holland, S.M.; Patzkowsky, M.E. The stratigraphic distribution of fossils in a tropical carbonate setting: Ordovician Bighorn Dolomite, Wyoming, USA. PALAIOS 2009, 25, 303–317. [Google Scholar] [CrossRef]
  46. Garzon, S.; Warny, S.; Bart, P.J. A palynological and sequence-stratigraphic study of Santonian-Maastrichtian strata from the Upper Magdalena Valley basin in central Colombia. Palynology 2012, 36, 112–133. [Google Scholar] [CrossRef]
  47. Patzkowsky, M.E.; Holland, S.M. Stratigraphic Paleobiology, 1st ed.; The University of Chicago Press: Chicago, IL, USA, 2012; pp. 1–259. [Google Scholar]
  48. Stukins, S.; Jolley, D.W.; McIlroy, D.; Hartley, A.J. Middle Jurassic vegetation dynamics from allochthonous palynological assemblages: An example from a marginal marine depositional setting; Lajas Formation, Neuquén Basin, Argentina. Palaeogeogr. Palaeoclimatol. Palaeoecol. 2013, 392, 117–127. [Google Scholar] [CrossRef]
  49. Stukins, S.; McIlroy, D.; Jolley, D.W. Refining palaeoenvironmental analysis using integrated quantitative granulometry and palynology. Pet. Geosci. 2017, 23, 395–402. [Google Scholar] [CrossRef]
  50. McCune, B.; Grace, J.B. Analysis of Ecological Communities; MJM Software Design: Gleneden Beach, OR, USA, 2002; pp. 1–300. [Google Scholar]
  51. Whittaker, R.H. Vegetation of the Great Smokey Mountains. Ecol. Monogr. 1956, 26, 1–80. [Google Scholar] [CrossRef]
  52. Bray, J.R.; Curtis, J.T. An ordination of the upland forest communities in southern Wisconsin. Ecol. Monogr. 1957, 27, 325–349. [Google Scholar] [CrossRef]
  53. Mello, J.F.; Buzas, M.A. An application of cluster analysis as a method of determining biofacies. J. Paleontol. 1968, 42, 747–758. [Google Scholar]
  54. Cisne, J.L.; Rabe, B. Coenocorrelation: Gradient analysis of fossil communities and its applications in stratigraphy. Lethaia 1978, 11, 341–364. [Google Scholar] [CrossRef]
  55. Miller, A.I. Spatial resolution in subfossil molluscan remains: Implications for paleobiological analyses. Paleobiology 1988, 14, 91–103. [Google Scholar] [CrossRef]
  56. Clarke, K.R. Non-parametric multivariate analyses of changes in community structure. Aust. J. Ecol. 1993, 18, 117–143. [Google Scholar] [CrossRef]
  57. Patzkowsky, M.E. Gradient analysis of Middle Ordovician brachiopod biofacies: Biostratigraphic, biogeographic, and macroevolutionary implications. PALAIOS 1995, 10, 154–179. [Google Scholar] [CrossRef]
  58. Bonelli, J.R.; Brett, C.E.; Miller, A.I.; Bennington, J.B. Testing for faunal stability across a regional biotic transition: Quantifying stasis and variation among recurring coral-rich biofacies in the Middle Devonian Appalachian Basin. Paleobiology 2006, 32, 20–37. [Google Scholar] [CrossRef]
  59. Bonelli, J.R.; Patzkowsky, M.E. How are global patterns of faunal turnover expressed at regional scales? Evidence from the Upper Mississippian (Chesterian Series), Illinois Basin, USA. PALAIOS 2008, 23, 760–772. [Google Scholar] [CrossRef]
  60. Danise, S.; Holland, S.M. Faunal response to sea-level and climate change in a short-lived seaway: Jurassic of the Western Interior, USA. Palaeontology 2017, 60, 213–232. [Google Scholar] [CrossRef] [Green Version]
  61. Legendre, P.; Legendre, L. Numerical Ecology, 2nd ed.; Elsevier Science BV: Amsterdam, The Netherlands, 1998; pp. 1–853. [Google Scholar]
  62. Hill, M.O.; Gauch, H.G. Detrended correspondence analysis, an improved ordination technique. Vegetatio 1980, 42, 47–48. [Google Scholar] [CrossRef]
  63. Shi, G.R. Multivariate data-analysis in paleoecology and paleobiogeography: A review. Palaeogeogr. Palaeoclimatol. Palaeoecol. 1993, 105, 199–234. [Google Scholar] [CrossRef]
  64. Miller, A.I.; Holland, S.M.; Meyer, D.L.; Dattilo, B.F. The use of faunal gradient analysis for interregional correlation and assessment of changes in sea-floor topography in the type Cincinnatian. J. Geol. 2001, 109, 603–613. [Google Scholar] [CrossRef]
  65. Holland, S.M. The signature of patches and gradients in ecological ordinations. PALAIOS 2005, 20, 573–580. [Google Scholar] [CrossRef]
  66. Holland, S.M.; Patzkowsky, M.E. Reevaluating the utility of detrended correspondence analysis and nonmetric multidimensional scaling for ecological ordinations. Geol. Soc. Am. Abstr. Program 2006, 38, 88. [Google Scholar]
  67. Correa-Metrio, A.; Dechnik, Y.; Lozano-Garcia, S.; Caballero, M. Detrended correspondence analysis: A useful tool to quantify ecological changes from fossil data sets. Bol. Soc. Geol. Mex. 2014, 66, 135–143. [Google Scholar] [CrossRef]
  68. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2021; Available online: https://www.R-project.org/ (accessed on 6 August 2021).
  69. Maechler, M.; Rousseeuw, P.; Struyf, A.; Hubert, M.; Hornik, K. Cluster Analysis Basics and Extensions. R Package Version 2.1.2. Available online: https://CRAN.R-project.org/package=cluster (accessed on 6 August 2021).
  70. Hurlbert, S.H. The nonconcept of species diversity: A critique and alternative parameters. Ecology 1971, 52, 577–585. [Google Scholar] [CrossRef]
  71. Simberloff, D.S. Properties of the rarefaction diversity measurement. Am. Nat. 1972, 106, 414–418. [Google Scholar] [CrossRef]
  72. Heck, K.L.; van Belle, G.; Simberloff, D. Explicit calculation of the rarefaction diversity measurement and the determination of sufficient sample size. Ecology 1975, 56, 1459–1461. [Google Scholar] [CrossRef]
  73. Raup, D.M. Taxonomic diversity estimation using rarefaction. Paleobiology 1975, 1, 333–342. [Google Scholar] [CrossRef]
  74. Tipper, J.C. Rarefaction and rarefiction—The use and abuse of a method in paleontology. Paleobiology 1979, 5, 423–434. [Google Scholar] [CrossRef]
  75. Hughes, J.B.; Hellman, J.J. The application of rarefaction techniques to molecular inventories of microbial diversity. Methods Enzymol. 2005, 397, 292–308. [Google Scholar] [CrossRef]
  76. Holland, S.M. Analytic Rarefaction, Version 1.3. Hunt Mountain Software. Available online: www.huntmountainsoftware.com (accessed on 6 August 2021).
  77. Jankovska, V.; Komarek, J. Indicative value of Pediastrum and other coccal green algae in paleoecology. Folia Geobot. 2000, 35, 59–82. [Google Scholar] [CrossRef]
  78. McCarthy, P.J.; Plint, A.G. Spatial variability of paleosols across Cretaceous interfluves in the Dunvegan Formation, NE British Columbia, Canada: Paleohydrological, paleogeomorphological, and stratigraphic implications. Sedimentology 2003, 50, 1187–1220. [Google Scholar] [CrossRef]
  79. McCarthy, P.J.; Plint, A.G. A pedostratigraphic approach to nonmarine sequence stratigraphy: A three-dimensional paleosol-landscape model from the Cretaceous (Cenomanian) Dunvegan Formation, Alberta and British Columbia, Canada. In New Frontiers in Paleopedology and Terrestrial Paleoclimatology: Paleosols and Soil Surface Analog Systems; Driese, S.G., Nordt, L.C., Eds.; SEPM Society for Sedimentary Geology Special Publication: Tulsa OK, USA, 2013; Volume 104, pp. 179–230. [Google Scholar]
  80. Ufner, D.F.; González, L.A.; Ludvigson, G.A.; Brenner, R.L.; Witzke, B.J.; Leckie, D. Reconstructing a mid-Cretaceous landscape from paleosols in western Canada. J. Sediment. Res. 2005, 75, 984–996. [Google Scholar] [CrossRef]
  81. Sweeny, R.E.; Kaplan, I.R. Pyrite framboid formation: Laboratory synthesis and marine sediments. Econ. Geol. 1973, 68, 618–634. [Google Scholar] [CrossRef]
  82. Wright, V.P. Pyrite formation and the drowning of a paleosol. Geol. J. 1986, 21, 139–149. [Google Scholar] [CrossRef]
  83. Kraus, M.J. Development of potential acid sulfate paleosols in Paleocene floodplains, Bighorn Basin, Wyoming, USA. Palaeogeogr. Palaeoclimatol. Palaeoecol. 1998, 144, 203–224. [Google Scholar] [CrossRef]
  84. Curtis, C.D. Diagenetic iron minerals in some British carboniferous sediments. Geochem. Cosmochim. Acta 1967, 31, 2109–2123. [Google Scholar] [CrossRef]
  85. Berner, R.A. A new geochemical classification of sedimentary environments. J. Sediment. Petrol. 1981, 51, 359–365. [Google Scholar] [CrossRef]
  86. Curtis, C.D.; Coleman, M.L. Pore water evolution during sediment burial from isotopic and mineral chemistry of calcite, dolomite, and siderite concretions. Geochem. Cosmochim. Acta 1986, 50, 2321–2334. [Google Scholar] [CrossRef]
  87. Stonecipher, S.A. Genetic characteristics of glauconite and siderite: Implications for the origin of ambiguous isolated marine sandbodies. In Isolated Shallow Marine Sand Bodies: Sequence Stratigraphic Analysis and Sedimentologic Interpretation; Bergman, K.M., Snedden, J.W., Eds.; SEPM Society for Sedimentary Geology Special Publication: Tulsa, OK, USA, 1999; Volume 64, pp. 191–204. [Google Scholar] [CrossRef]
  88. Flores, R.M.; Myers, M.D.; Houseknecht, D.W.; Stricker, G.D.; Brizzolara, D.W.; Ryherd, T.J.; Takahaski, K.I. Stratigraphy and facies of Cretaceous Schrader Bluff and Prince Creek Formations in Colville River Bluffs, North Slope, Alaska. U.S. Geol. Surv. Prof. Pap. 2007, 1748, 1–52. [Google Scholar]
  89. Hayek, L.C.; Buzas, M.A. Surveying Natural Populations; Columbia University Press: New York, NY, USA, 1997; pp. 1–616. [Google Scholar] [CrossRef]
  90. Bennington, J.B.; Rutherford, S.D. Precision and reliability in paleocommunity comparisons based on cluster confidence intervals: How to get more statistical bang for your sampling buck. PALAIOS 1999, 18, 22–33. [Google Scholar] [CrossRef]
  91. Webber, A.J. The effects of spatial patchiness on the stratigraphic signal of biotic composition (Type Cincinnatian Series, Upper Ordovician). PALAIOS 2005, 20, 37–50. [Google Scholar] [CrossRef]
  92. Currano, E.D. Patchiness and long-term change in early Eocene insect feeding damage. Paleobiology 2008, 35, 484–498. [Google Scholar] [CrossRef]
  93. Brandlen, E. Paleoenvironmental Reconstruction of the Late Cretaceous (Maastrichtian) Prince Creek Formation, Near the Kikak Tegoseak Dinosaur Quarry, North Slope, Alaska. Unpublished. Master’s Thesis, University of Alaska Fairbanks, Fairbanks, AK, USA, 2008. [Google Scholar]
  94. Bonelli, J.R.; Armitage, D.A. Interpreting the Environmental Signature of the Nanushuk Formation Using Quantitative Palynofacies Analysis, Pikka Unit, North Slope Alaska, USA. In Proceedings of the AAPG Annual Convention and Exhibition, Denver, CO, USA, 26 September–1 October 2021. [Google Scholar]
  95. Eisenberg, R.A.; Harris, P.M. Application of chemostratigraphy and multivariate statistical analysis to differentiating bounding stratigraphic surfaces. In Carbonate Facies and Sequence Stratigraphy: Practical Applications of Carbonate Models; 95-36; Pausé, P.H., Candelaria, M.P., Eds.; SEPM Society for Sedimentary Geology Special Publication: Tulsa, OK, USA, 1995; pp. 83–102. [Google Scholar]
  96. Ordónez-Calderón, J.C.; Gelcich, S.; Fiaz, F. Lithogeochemistry and chemostratigraphy of the Rosemont Cu-Mo-Ag skarn deposit, SE Tuscon Arizona: A simplicial geometry approach. J. Geochem. Explor. 2017, 180, 35–51. [Google Scholar] [CrossRef]
  97. Bernardo, L.M.; Bonelli, J.R. Unraveling the Caribbean Petroleum Habitat. In Proceedings of the AAPG Annual Conference and Exhibition, Salt Lake City, UT, USA, 20–23 May 2018. [Google Scholar]
  98. Wang, Y.-P.; Zou, Y.-R.; Shi, J.-T.; Shi, J. Review of the chemometrics application in oil-oil and oil-source rock correlations. J. Nat. Gas Geosci. 2018, 3, 217–232. [Google Scholar] [CrossRef]
  99. Roden, R.; Smith, T.; Sacrey, D. Geologic pattern recognition from seismic attributes: Principal component analysis and self-organizing maps. Interpretation 2015, 3, SAE59–SAE83. [Google Scholar] [CrossRef]
  100. Eburi, S.; Jones, S.; Houston, T.; Bonelli, J. Analysis and interpretation of Haynesville Shale subsurface properties, completion variables, and production performance using ordination, a multivariate statistical technique. In Proceedings of the Society of Petroleum Engineers Annual Technical Conference and Exhibition, Amsterdam, The Netherlands, 27–29 October 2014. [Google Scholar] [CrossRef]
  101. Syed, F.I.; Muther, T.; Dahaghi, A.K.; Negahban, S. AI/ML assisted shale gas production performance evaluation. J. Pet. Explor. Prod. Technol. 2021, 11, 3509–3519. [Google Scholar] [CrossRef]
Geosciences 11 00460 g001 550

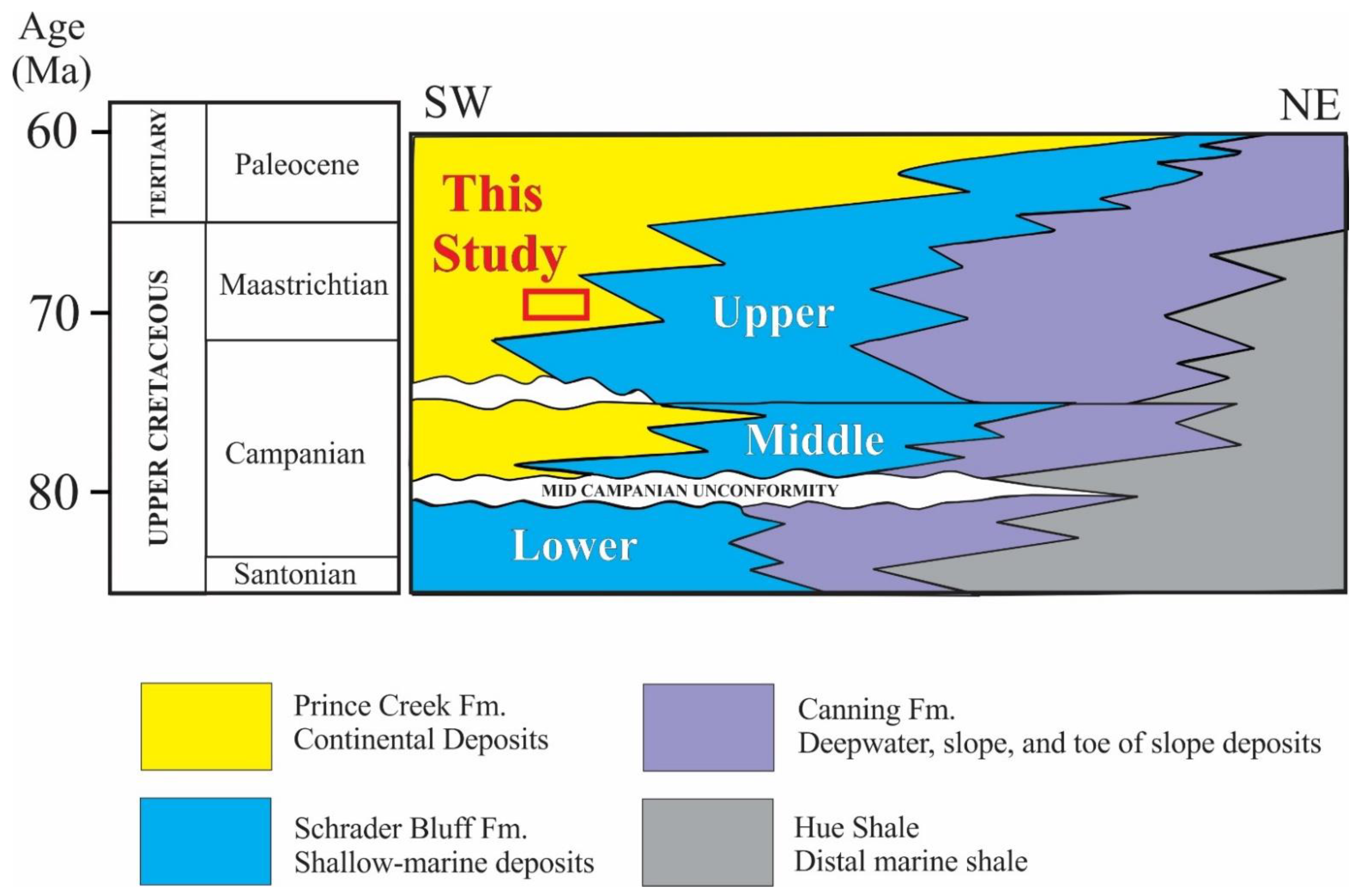

Figure 1. Generalized chronostratigraphic diagram of the North Slope, Alaska. Solid box indicates stratigraphic position of study area. Revised from [23,24,25,26].
Figure 1. Generalized chronostratigraphic diagram of the North Slope, Alaska. Solid box indicates stratigraphic position of study area. Revised from [23,24,25,26].
Geosciences 11 00460 g001
Geosciences 11 00460 g002 550

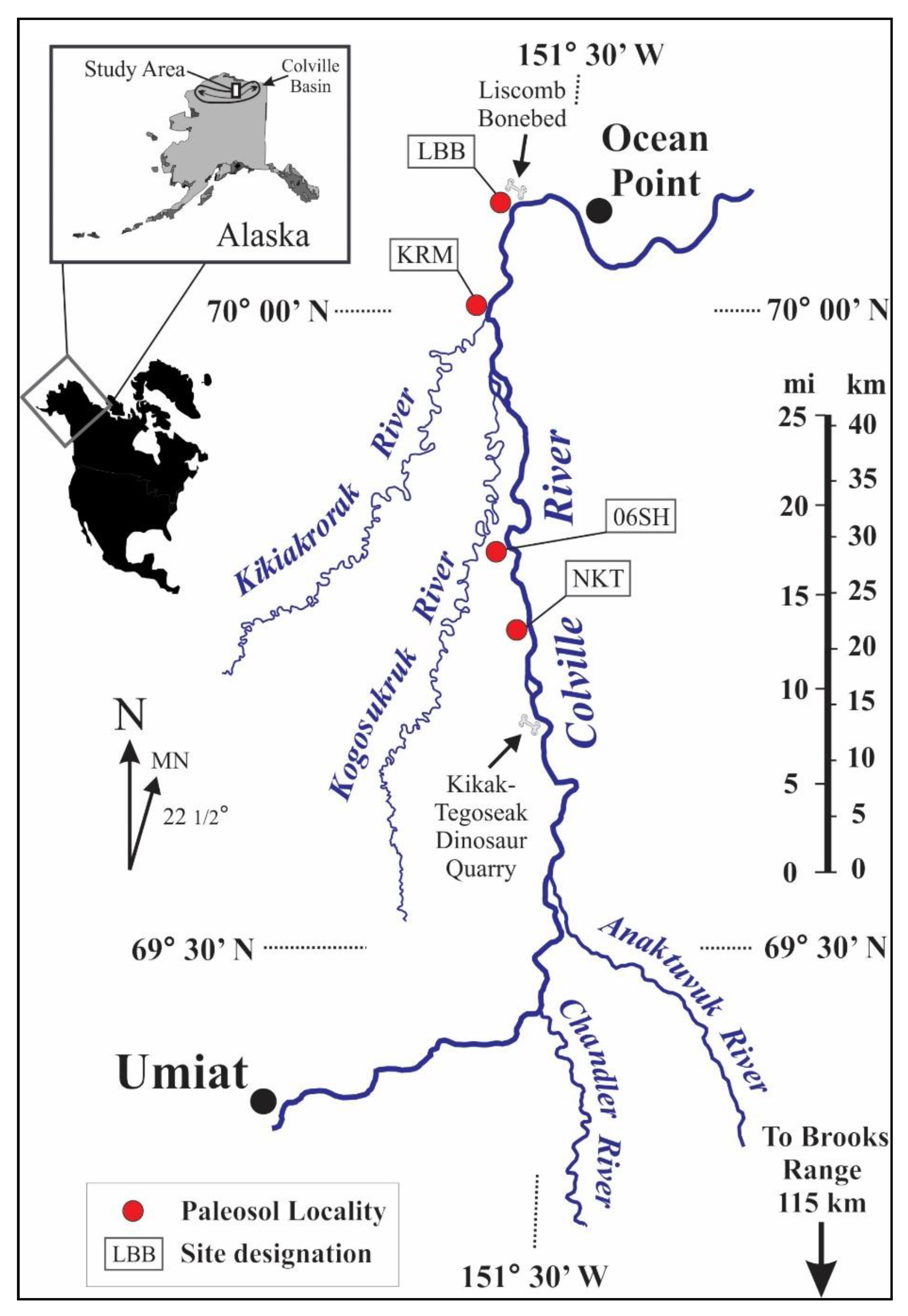

Figure 2. Map of the study area (modified from Flaig et al. [22]) including the four sampled outcrop locations examined in this study: North Kikak-Tegoseak (NKT); Sentinel Hill (SH); Kikiakrorak River Mouth (KRM); and Liscomb Bonebed (LBB).
Figure 2. Map of the study area (modified from Flaig et al. [22]) including the four sampled outcrop locations examined in this study: North Kikak-Tegoseak (NKT); Sentinel Hill (SH); Kikiakrorak River Mouth (KRM); and Liscomb Bonebed (LBB).
Geosciences 11 00460 g002
Geosciences 11 00460 g003a 550Geosciences 11 00460 g003b 550

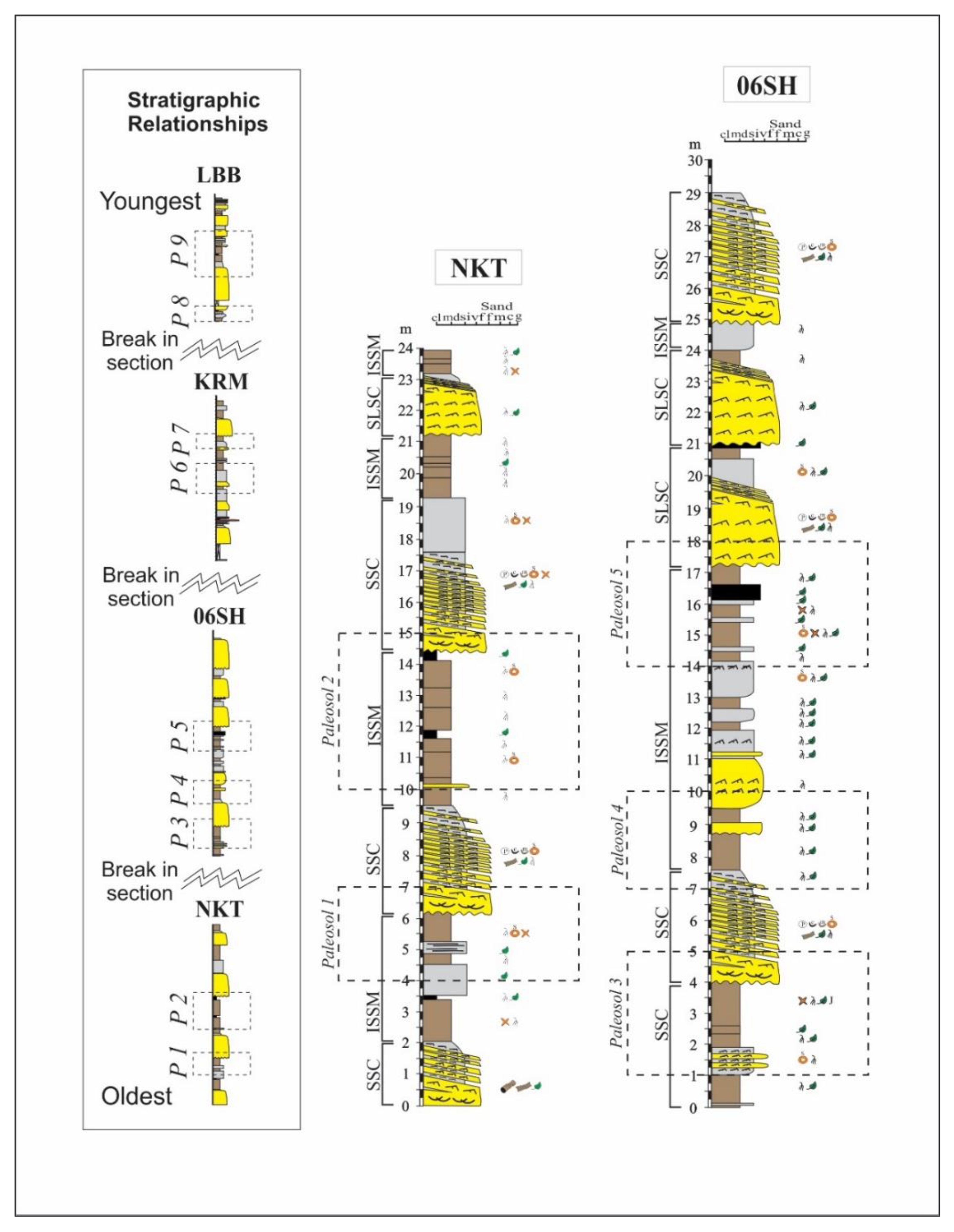

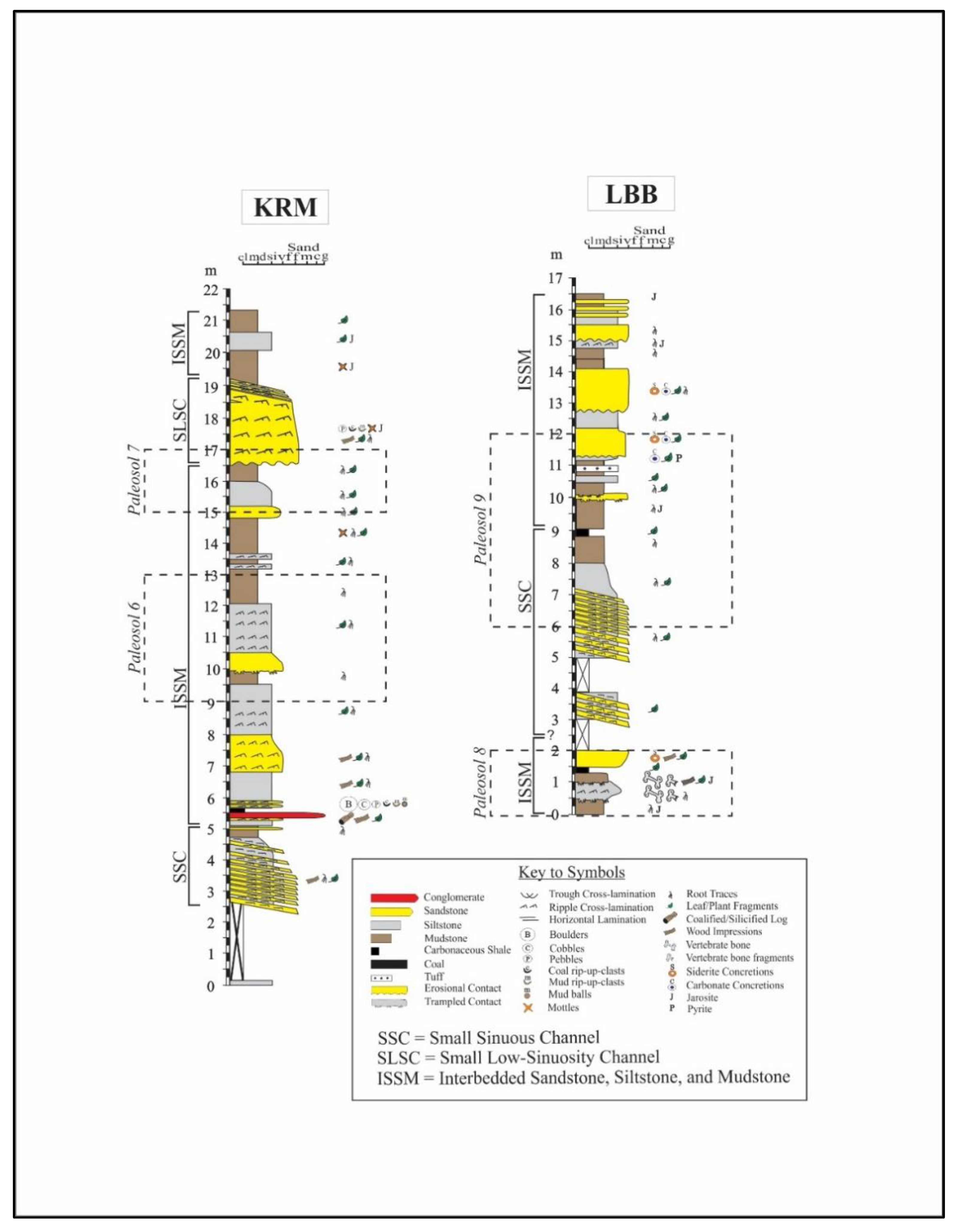

Figure 3. Measured stratigraphic sections at NKT, 06SH, KRM, and LBB. Sections include facies association interpretations from Flaig et al. [22] and the stratigraphic location of Paleosol 1 through Paleosol 9. Inset shows the relative stratigraphic (age) relationships of paleosols to one another as determined from regional 40Ar/39AR dating [27], structural dip, and biochronology [23,28,29,30,31,32,33,34]. Paleosols are ordered in the inset from oldest (P1) to youngest (P9) and generally young toward the north; refer to text and Figure 1 for further details. Revised after [22].
Figure 3. Measured stratigraphic sections at NKT, 06SH, KRM, and LBB. Sections include facies association interpretations from Flaig et al. [22] and the stratigraphic location of Paleosol 1 through Paleosol 9. Inset shows the relative stratigraphic (age) relationships of paleosols to one another as determined from regional 40Ar/39AR dating [27], structural dip, and biochronology [23,28,29,30,31,32,33,34]. Paleosols are ordered in the inset from oldest (P1) to youngest (P9) and generally young toward the north; refer to text and Figure 1 for further details. Revised after [22].
Geosciences 11 00460 g003aGeosciences 11 00460 g003b
Geosciences 11 00460 g004 550
Figure 4. Dendrogram of samples from cluster analysis. Interpreted clusters are labeled A through E.
Figure 4. Dendrogram of samples from cluster analysis. Interpreted clusters are labeled A through E.
Geosciences 11 00460 g004
Table
Table 1. Number of samples in each examined paleosol horizon and depositional environment.
Table 1. Number of samples in each examined paleosol horizon and depositional environment.
Swamp MarginLake MarginOverbank EnvironmentsUndifferentiated Lower Delta PlainTotal Samples
P92 3611
P8 55
P7 1 1
P62 2
P5 2 2
P42 2
P3 2 2
P2 2 2
P12 2
Total8281129
Table
Table 2. Summary of the biotic composition of palynofacies from cluster analysis. Abundance of ecological groups shown for groups with 2% or greater abundance. Generic abundances displayed for taxa comprising 75% of total fossil counts in each cluster.
Table 2. Summary of the biotic composition of palynofacies from cluster analysis. Abundance of ecological groups shown for groups with 2% or greater abundance. Generic abundances displayed for taxa comprising 75% of total fossil counts in each cluster.
ClusterPalynomorph Abundance Generic Abundance
AFerns & Mosses56Psilatriletes (F&M)26Osmundacidites (F&M)4
Algae19Sigmapollis (A)8Botryococcus (A)4
Lowland Tree/Shrub13Laevigatosporites (F&M)7Pediastrum (A)3
Exotic Projectate7Taxodiaceaepollenites (LTS)7Lycopodiumsporites (F&M)2
Hinterland Conifer2Deltoidospora (F&M)7Leiospheres undiff. (A)2
Fungal2Aquilapollenites (EP)4
BFerns & Mosses43Laevigatosporites (F&M)15Deltoidospora (F&M)5
Algae25Sigmapollis (A)14Lycopodiumsporites (F&M)4
Lowland Tree/Shrub10Bisaccate pollen (HC)9Prasinophyceae indet (A)4
Hinterland Conifer10Osmundacidites (F&M)6Botryococcus (A)4
Exotic Projectate6Taxodiaceaepollenites (LTS)5Stereisporites (F&M)3
Triporate Tree/Shrub2Aquilapollenites (EP)5Psilatriletes (F&M)3
CAlgae39Sigmapollis (A)30Periporopollenites (LTS)2
Exotic Projectate26Aquilapollenites (EP)23Botryococcus (A)2
Ferns & Mosses17Leiospheres (A)5Lycopodiumsporites (F&M)2
Lowland Tree/Shrub14Taxodiaceaepollenites (LTS)5
Hinterland Conifer3Laevigatosporites (F&M)4
Liliacidites (LTS)3
DAlgae50Sigmapollis (A)38Liliacidites (LTS)4
Ferns & Mosses22Laevigatosporites (F&M)7Osmundacidites (F&M)3
Lowland Tree/Shrub17Botryococcus (A)6Deltoidospora (F&M)2
Hinterland Conifer5Taxodiaceaepollenites (LTS)5Leiospheres (A)2
Porocolpopollenites (LTS)5
Bisaccate pollen (HC)4
EAlgae70Botryococcus (A)28
Ferns & Mosses20Sigmapollis (A)23
Lowland Tree/Shrub5Prasinophyceae (A)8
Laevigatosporites (F&M)8
Deltoidospora (F&M)6
Algal Cysts (A)5
Table
Table 3. Summary of the biotic composition of localities. Abundance of ecological groups shown for groups with 2% or greater abundance. Generic abundances displayed for taxa comprising 75% of total fossil counts of each locality.
Table 3. Summary of the biotic composition of localities. Abundance of ecological groups shown for groups with 2% or greater abundance. Generic abundances displayed for taxa comprising 75% of total fossil counts of each locality.
LocalityPalynomorph Abundance Generic Abundance
Sentinal HillFerns & Mosses51Psilatriletes (F&M)19Botryococcus (A)4
Algae20Taxodiaceaepollenites (LTS)10Bisaccate pollen (HC)3
Lowland Tree/Shrub17Laevigatosporites (F&M)9Aquilapollenites (EP)3
Exotic Projectate6Sigmapollis (A)8Pediastrum (A)3
Hinterland Conifer4Deltoidospora (F&M)6Lycopodiumsporites (F&M)2
Fungal2Osmundacidites (F&M)5Stereisporites (F&M)2
Kikiakrorak River MouthFerns & Mosses43Aquilapollenites (EP)20Deltoidospora (F&M)6
Exotic Projectate24Psilatriletes (F&M)15Bisaccate pollen (HC)4
Lowland Tree/Shrub14Sigmapollis (A)8Liliacidites (LTS)3
Algae13Osmundacidites (F&M)7
Hinterland Conifer4Taxodiaceaepollenites (LTS)6
Laevigatosporites (F&M)6
North Kikak-TegoseakAlgae50Botryococcus (A)16Aquilapollenites (EP)4
Ferns & Mosses26Sigmapollis (A)15Leiospheres (A)4
Hinterland Conifer10Prasinophyceae (A)10Osmundacidites (F&M)3
Lowland Tree/Shrub7Laevigatosporites (F&M)9Taxodiaceaepollenites (LTS)2
Exotic Projectate5Bisaccate pollen (HC)8
Deltoidospora (F&M)5
Liscomb BonebedAlgae41Sigmapollis (A)31Osmundacidites (F&M)3
Ferns & Mosses30Laevigatosporites (F&M)10Lycopodiumsporites (F&M)3
Lowland Tree/Shrub15Bisaccate pollen (HC)5Deltoidospora (F&M)3
Hinterland Conifer6Botryococcus (A)4Leiospheres (A)3
Exotic Projectate5Aquilapollenites (EP)4Stereisporites (F&M)3
Taxodiaceaepollenites (LTS)4Porocolpopollenites (LTS)3
Table
Table 5. Raw taxonomic richness (number of genera) in each biofacies.
Table 5. Raw taxonomic richness (number of genera) in each biofacies.
Biofacies ABiofacies BBiofacies CBiofacies DBiofacies E
Algae797910
Exotic Pollen67572
Fern & Moss2332222413
Fungi10010
Hinterland Conifer16542
Low. Tree/Shrub202717208
Marine Acritarch34131
Marine Peridinoid22131
Marine Reworked38040
Total6695587537
Table
Table 6. Raw taxonomic richness (number of genera) at each locality.
Table 6. Raw taxonomic richness (number of genera) at each locality.
Kikiakrorak River MouthLiscomb BonebedNorth Kikak-TegoseakSentinal
Hill
Algae610118
Exotic Pollen6746
Fern & Moss19332327
Fungi0101
Hinterland Conifer4562
Lowland Tree/Shrub16231520
Marine Acritarch3424
Marine Peridinoid0322
Marine Reworked3656
Total57926876
Table
Table 7. Raw taxonomic richness (number of genera) of each paleosol horizon.
Table 7. Raw taxonomic richness (number of genera) of each paleosol horizon.
P1P2P3P4P5P6P7P8P9
Algae6116665499
Exotic Pollen423445556
Fern & Moss202020211516172232
Fungi001000010
Hinterland Conifer452014345
Lowland Tree/Shrub1361616814101923
Marine Acritarch222311234
Marine Peridinoid210120032
Marine Reworked156201346
Total525256533746447087
Table
Table 8. Raw taxonomic richness (number of genera) of each depositional environment.
Table 8. Raw taxonomic richness (number of genera) of each depositional environment.
Swamp MarginLake MarginOverbankUndiff. Lower Delta Plain
Algae86910
Exotic Pollen5567
Fern & Moss28153229
Fungi0011
Hinterland Conifer5154
Lowland Tree/Shrub2382322
Marine Acritarch3143
Marine Peridinoid3213
Marine Reworked4076
Total79388885
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Bonelli, J.R., Jr.; Flaig, P.P. Quantitative Biofacies Analysis to Identify Relationships and Refine Controls on Paleosol Development, Prince Creek Formation, North Slope Alaska, USA. Geosciences 2021, 11, 460. https://doi.org/10.3390/geosciences11110460

AMA Style

Bonelli JR Jr., Flaig PP. Quantitative Biofacies Analysis to Identify Relationships and Refine Controls on Paleosol Development, Prince Creek Formation, North Slope Alaska, USA. Geosciences. 2021; 11(11):460. https://doi.org/10.3390/geosciences11110460

Chicago/Turabian Style

Bonelli, James R., Jr., and Peter P. Flaig. 2021. "Quantitative Biofacies Analysis to Identify Relationships and Refine Controls on Paleosol Development, Prince Creek Formation, North Slope Alaska, USA" Geosciences 11, no. 11: 460. https://doi.org/10.3390/geosciences11110460

APA Style

Bonelli, J. R., Jr., & Flaig, P. P. (2021). Quantitative Biofacies Analysis to Identify Relationships and Refine Controls on Paleosol Development, Prince Creek Formation, North Slope Alaska, USA. Geosciences, 11(11), 460. https://doi.org/10.3390/geosciences11110460

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
