Experimental Study of Nanosecond Laser-Generated Plasma Channels

1
Institute of Physics of the CAS, ELI Beamlines, Na Slovance 2, 18221 Prague, Czech Republic
2
Consiglio Nazionale delle Ricerche, Istituto Nazionale di Ottica, Via G. Moruzzi 1, 56124 Pisa, Italy
3
Faculty of Nuclear Sciences and Physical Engineering, Czech Technical University in Prague, Brehova 7, 115 19 Praha 1, Czech Republic
4
HiLASE Centre, Institute of Physics, Czech Academy of Sciences, Za Radnicí 828, 25241 Dolní Břežany, Czech Republic
5
Centre for Plasma Physics, Queen’s University of Belfast, Belfast BT7 1NN, UK
*
Author to whom correspondence should be addressed.
Appl. Sci. 2020, 10(12), 4082; https://doi.org/10.3390/app10124082
Submission received: 8 May 2020 / Revised: 4 June 2020 / Accepted: 11 June 2020 / Published: 13 June 2020

Abstract

:
Generation of plasma-channels by interaction of gas targets with nanosecond laser beams was investigated experimentally. Such laser-generated plasma channels are very promising for subsequent guiding of high peak power femtosecond laser pulses, over several tens of centimeters, as required in laser wake field electron-acceleration (LWFA). The experimental setup was based on the use of a cylindrical lens (100 mm of focal length) with the aim of proposing a technical solution easy to be integrated into a compact experimental setup for acceleration of multi-GeV electron beams using high peak-power laser systems. A pilot experiment, showing production of asymmetric plasma channels over a length of several millimeters in N and Ar targets with initial neutral-gas atomic density around 5 × 1019 cm−3, is reported. Plasma effective threshold formation was estimated, along with future optimization of the optical setup for a symmetrization of such plasma channel. Scalability of this concept to several tens of centimeters is preliminarily discussed, along with the corresponding critical requirements for an optimal LWFA scheme.

1. Introduction

After the advent of the laser chirped pulse amplification (CPA) technique [1] giving rise to high peak power femtosecond pulses, the laser wake field acceleration (LWFA) concept [2] has become a routinely used experimental technique to generate electron beams by means of such ultrashort laser pulses [3]. The main advantage in LWFA is represented by the presence of ultrahigh electric fields (GV/m–TV/m) generated by a plasma-wave, known as “wakefield”, which is a result of ponderomotive forces generated by a driving short laser pulse during its propagation into a pre-formed under-dense plasma. Electrons injected in such a wave can easily reach relativistic energies by being in phase with the wakefield and propagating behind the laser pulse, thus be accelerated to multi-GeV energies until the process is sustained.
In recent decades, various methods have been proposed and experimentally tested to extend maximum plasma length over which the acceleration process takes place [4,5,6,7,8,9]. In fact, as it is well known, a focused laser pulse can sustain its peak intensity only within the “Rayleigh length” determined by the given focusing optics, thus such a length limits the maximum distance over which an efficient acceleration occurs and, as a consequence the maximum energy gain of the accelerated electrons. Guiding a short laser pulse well beyond its Rayleigh length is possible by using plasma densities that allow laser self-focusing in the ionized gas. However, such a process is sensitive to plasma instabilities [3].
On the other hand, stable plasma guiding methods have been demonstrated experimentally, and allowed to accelerate electron bunches up to 8 GeV, as described in [10,11]. This experimental technique is based on the use of a capillary–discharge gas target in combination with a laser heater, which allows the generation of a parabolic plasma-channel used, in turn, to guide an additional driving high peak-power laser pulse over a distance of about 10 cm. Nevertheless, a disadvantage of such a discharge capillary target is represented by the experimental limitation in terms of optical probing of the plasma and bunch dynamics, due to the presence of the capillary walls. Additionally, the capillary input region can rapidly deteriorate due to the incoming high intensity laser pulse, even if such an effect is mitigated by the use of the laser heater. Various studies focus on peculiar aspects of such capillary–discharge based approaches [12,13,14]. The basic idea is that, by means of the electric discharge, energy is released on the main cylindrical axis of the capillary–discharge-target to produce a cylindrical expansion that generates a lower density profile in proximity of the plasma axis.
A different approach consists in using an axicon lens and a femtosecond laser beam to release energy into the cylindrical plasma axis and produce plasma-channels, as reported in the literature [15]. The advantages of using all-optical techniques for generating the required plasma-channel characteristics are absence of target deterioration effects, and possibility of optical probing of the plasma density evolution during laser-plasma interaction. Moreover, the all-optical approach allows for a more sophisticated release of the energy in time, in principle up to the femtosecond scale, by using different laser pulses or a time-modulated one. The time dependence of the energy release is of high importance for the hydrodynamic plasma evolution to explore new parameter ranges. The experimental approach presented here investigates the possibility of generating plasma-channels in an all-optical geometry by using a cylindrical lens and a nanosecond laser pulse with moderate intensity. In future experiments, time-modulated nanosecond laser pulse may be considered. The cylindrical lens is used to release the energy into the main plasma axis, similarly to the discharge-capillary target. The nanosecond energy release produces a cylindrical expansion with a hydrodynamic evolution potentially favorable for femtosecond laser guiding and LWFA. Ad-hoc numerical modeling confirming this concept and discussing its limitations are reported in the literature [16]. For instance, a clear challenge of this approach for future LWFA setups is the generation of plasma channels with cylindrical symmetry in the transverse plane with respect to the femtosecond laser propagation axis. Such symmetry is intrinsic in the case of a capillary–discharge-target. This pilot experiment aims to investigate on the parameters required to overcome such asymmetrization effects in a realistic scenario. In such a setup an elongated focus or knife-like focus (high-aspect-ratio), having the same length of the required plasma-channel is produced. Such method has been proposed as an additional guiding solution for the high repetition-rate user experimental platform High-energy electrons by laser light (HELL) at ELI-Beamlines (Extreme Light Infrastructure in the Czech Republic) [17].

2. Concept of Elongated Focus for Plasma-Channel Generation

The idea of using a cylindrical lens to generate an elongated laser focus is applied to generate a high-aspect-ratio in the transverse focal plane (shown as x-y plane, see Figure 1C) with respect to the longitudinal nanosecond laser optical axis (shown as z-axis, see Figure 1C). For the use of a plasma channel in LWFA a femtosecond laser traveling on the x-axis needs to be focused into the plasma channel for guiding over the entire channel length. Figure 1C illustrates this concept. The femtosecond laser interaction is not considered here.
Considering the available laser parameters of 5 J, 10 ns, 22 × 22 mm2 beam size, and a desired plasma-channel length of about 5 mm, it was necessary to use a 200-mm plano-convex lens in combination with the cylindrical lens (100-mm focal length), in order to increase the laser intensity up to 1012 W/cm2. The optical scheme used for the elongated focus generation (shown in Figure 1C), also called “knife-like” focus, was already considered and reported for an ad-hoc numerical study on plasma hydrodynamic effects [16]. The measured spatial distribution of the Bivoj nanosecond laser is shown in Figure 1A, and the simulated one in Figure 1B. The resulting simulated high-aspect-ratio shape of the laser focus is shown in Figure 2. Corresponding measurements performed at low laser power are shown in Figure 3. Numerical simulations performed by the Virtual Lab Fusion software show a peak intensity of 1.7 × 1012 W/cm2 sustained over 5 mm [18]. The simulated diameter of the focus along the y-axis was 6 µm full-width-half-maximum (FWHM) and the measured one 7 µm FWHM, calculated by averaging it over 100 µm of the x-axis, as shown in Figure 3-bottom. The measured full length of the focal distribution along the x-axis was 5.3 mm (10% variations of the intensity value). An example of the spatial profile, measured in a limited region of 2 mm due to field-of-view limit, is shown in Figure 3-top.
In general, an optimal guiding process requires a symmetric plasma channel in the z-y plane. This is an important feature of the intensity distribution on the z-y plane, i.e., the transverse plane with respect to the propagation direction (x-axis) of a subsequent femtosecond laser beam. Figure 4 illustrates such a geometry (Figure 4a) and the corresponding numerical simulation (Figure 4b). As clearly shown by numerical simulations, the region of high laser intensity is strongly asymmetric for the given optical configuration: the focus width is about 6 µm FWHM along the y-axis and 200 µm FWHM along the z-axis. A shorter focal-length of the cylindrical lens would be required if one wanted to improve the symmetry of the focus in the z-y plane. As an example, reducing by a factor of 2 the focal lengths of the two lenses would give a FWHM along the z-axis of about 120 µm. Additional improvement can be reached using a telescope to increase the laser beam transverse dimensions. In this case reducing the f/number of the system would improve the symmetry without any reduction of the focal length of the cylindrical lens, thus maintaining a reasonable distance from the plasma source and preventing potential deterioration. However, in a first approximation, a certain degree of asymmetry (or unwanted optical artifacts) will remain compared to the ideal configuration of perfectly cylindrical symmetry laser fields. Additionally, considering laser intensity distribution and phase front fluctuations, even an ideal cylindrical laser field geometry could fail to generate shot-to-shot reproducible symmetric plasma channels. In principle, all these unwanted effects can be mitigated by a proper control of the nanosecond laser intensity range (upper and lower limits) within a confined radial region around the cylindrical axis, which is smaller than the desired channel diameter resulting from the hydrodynamic cylindrical expansion.
The main goal of the experiment was to investigate such laser intensity threshold and proper range (upper and lower limits) for the future generation and control of symmetric plasma channels in gas targets of interest for LWFA. In the following, we will refer to the term significant-intensity-threshold. Such threshold can be estimated generating simpler elongated plasma structures (asymmetric channels). This experimental threshold depends critically on the gas atomic species and on the operational backing pressure of the gas target (i.e., gas density). The present experimental work was focused on investigation of the conditions for reproducible elongated plasma structures using various gases and pressures. The laser significant-intensity-threshold was estimated without any attempt to generate symmetric plasma channels.
The laser significant-intensity-threshold required to generate a shot-to-shot reproducible plasma from a gas target is a key parameter, also if one aims to extend the plasma channel length over tens of centimeters and beyond. From this point of view, in our experimental conditions, gases with higher atomic species are favorable due to a required lower laser energy per unit length of the channel and to a lower plasma radial expansion velocity. Consequently, we have used Ar and N having the same specific heat ratio with respect to He and H gases (key parameter from a gas dynamic point of view), which are more frequently used in LWFA. It is worth mentioning that estimation of the significant-intensity-thresholds for given gas species and pressure conditions provide a rough indication of the behavior of different gas species based on ionization potentials and laser absorption processes, if the ultimate goal remains to confine the nanosecond laser energy within a certain volume, thus leading to the generation of a symmetric cylindrical plasma expansion.
Standard laser-target experimental conditions were used in the experiment: 10 ns, 5-J laser pulse with gas target pressure in the range 20–60 bar. A relatively high pressure was used for two reasons. First, the hydrodynamic expansion generates a density drop of 1–2 order of magnitudes in proximity of the axis. Second, a low gas neutral density would lead to an excessively high plasma expansion velocity, thus limiting the future scalability of this experimental concept to longer plasma channels. In fact, future availability of the 100-J beamline of the Bivoj laser at the HiLASE (High average power pulsed LASErs) research center is considered to extend this work to formation of plasma channels with lengths of several tens of cm [19,20]. This study is limited to the generation of ns-plasma elongated structures and no investigation of fs-laser pulse propagation is presented.

3. Experimental Setup

As sketched in Figure 5, a 10-ns laser pulse operating at a wavelength of 1030 nm with variable energy in the range 1–5 J was focused into a gas-jet target. The laser focus was located 1 mm above the 6.8 mm × 1.26 mm rectangular pulsed supersonic gas nozzle. The nozzle was operated with Nitrogen (N) or Argon (Ar) gas. The valve backing pressure was varied in the range of 20–64 bar, corresponding to a gas density in the range 2–6 × 1019 atoms/cm3 (1 mm above the nozzle). The gas density profile was measured experimentally and simulated using the FLUENT code (details are available in [21]). The gas density profile was uniform along the 1.26-mm side (or z-axis) for the Ar case, while for the N case two peaks were present at the boundaries with density increase of 1.15 times the density at the center. Along the 6.8-mm side (or x-axis), two large peaks on the boundaries were present for the Ar case with a density increase of a factor 2 with respect the center, while for the N case a similar profile was present with a factor of 1.4. As already mentioned, Ar and N have a specific heat ratio equivalent to helium (He) and hydrogen (H) (1.66 for Argon and Helium and 1.4 for Nitrogen and Hydrogen), thus producing very similar neutral gas density profiles. In order to characterize the generated plasma during laser irradiation, a portion of the main laser beam (a leak from one of the turning mirrors) was used as optical probe beam (45°-incidence angle with respect to the optical axis). A shadowgraphy technique was used, as shown in Figure 5 (CAM2). Additionally, a top-view imaging system was setup to provide complementary information on plasma generation through emission of plasma light in the optical window as sketched in Figure 5 (CAM1), integrated over 10 µs, hence, also collecting the late phase of the plasma light emission.
A proper delay between the main and the probe beam was chosen to optimize the plasma shadowgraphy raw images. The laser energy level was gradually reduced to determine the minimum value of energy required to generate a fully continuous plasma column along the gas-jet length, as well as a fully continuous optical emission. These results were used to estimate as the above mentioned laser significant-intensity-threshold. These values can be considered as a laser intensity upper threshold (overestimation) for local plasma formation (ionization threshold).
Measurements of the elongated focus carried out in the experimental campaign demonstrated that the main laser beam was focused approximately into a 7 µm × 5.3 mm elongated structure, as shown in Figure 3. This was in good agreement with the optical simulations presented in Figure 2. In the conditions of minimum laser intensity for uniform plasma formation (the significant-intensity-threshold), the elongated plasma structure inner diameter was measured experimentally both for Ar and N targets (see Section 4) in the x-y plane. Since the hydrodynamic evolution of the plasma structure was not constant during the 10 ns laser probe duration, the inner radius measurement must be considered an average value and is presented here only for a quantitative estimation of the significant-intensity-threshold. This cannot be considered for an absolute estimation of the inner plasma structure dimensions. In fact, the latter could be measured only using an optical probe with a shorter pulse duration, along with an interferometric method to estimate the channel inner density profile that is out of the scope of the present work.
It is worth mentioning that the optical probe beam propagated through the plasma channel on the same plane of the main laser axis, i.e., through the elongated focus (45° incidence angle). Consequently, shadowgraphy images could provide only an averaged estimation of the channel inner diameter, which was transverse to such a plane (x-y plane). Thus, any channel asymmetry occurring along the longitudinal direction (z-axis) could not be measured. In fact, as mentioned above, estimation of the significant-intensity-thresholds was the main aim of this experimental work and no additional shadowgraphy line was setup.

4. Experimental Results and Discussion

Various high-aspect-ratio plasma structures were produced. Figure 6b shows the structure of the elongated plasma in the shadowgraphy image. Figure 6a shows the top-view of the optical plasma emission for the same shot in Ar at a baking pressure of 51.2 bar and a laser energy of about 2.5 J. In these experimental conditions, a fully continuous elongated plasma structure and optical plasma emission is clearly visible along the entire long focus.
Figure 7 summarizes results obtained in Ar at 51.2 bar and different laser energies. Figure 7a shows the shadowgraphy profiles along the y-axis, averaged over 1 mm of the structure in the x-axis. Figure 7b shows the optical plasma emission averaged along the entire z-axis. At 0.9 J, no plasma is generated. In the 1.67-J case a plasma is generated, however the entire elongated plasma structure is not uniform, but roughly reproduces the gas-jet density profile, as detected by optical plasma emission. In this specific case, a similar profile is present in the shadowgraphy. At the value of 2.5 J an entirely formed elongated plasma structure, with an improved degree of uniformity, is present both in the shadowgraphy and in the optical plasma emission.
Figure 8b shows the structure of the elongated plasma in the shadowgraphy image. Figure 8a shows the top-view of the optical plasma emission for the same shot in N at a backing pressure of 64 bar and a laser energy of about 5 J. In these experimental conditions, a fully continuous elongated plasma structure and optical plasma emission is clearly visible along the entire long focus. Figure 9 summarizes the results obtained with Nitrogen at a backing pressure of 64 bar for different laser energy. Figure 9a shows the shadowgraphy profiles along the y-axis, averaged over 1 mm of the structure in the x-axis. Figure 9b shows optical plasma emission averaged along the entire z-axis.
In the 4.2-J case a plasma channel is created, but this presents a low degree of uniformity through its entire length, as detected by optical plasma emission. In the 3.3-J case, no plasma is generated, as confirmed by the absence of optical plasma emission. Based on shadowgraphy images and plasma optical emission, various kinds of uniformities can be seen. This information is taken into account for an estimation of the laser-significant intensity-threshold—and for considerations of the best laser focusing conditions—with the aim to localize the incoming laser energy within a region that evolves symmetrically during the hydrodynamic expansion.
In summary, elongated plasma structures of about 5-mm long and 50-µm wide were measured in Argon, while 3.7-mm long and 90-µm wide were estimated in the Nitrogen case. Such quantities were measured after 10 ns from the arrival of the laser pulse by using a probe beam which was 10 ns long and using an integration time of 10 µs for the cameras.
The significant-intensity-threshold estimation is a conservative estimation (upper threshold) of the laser intensity for localized plasma formation. In fact, the plasma ionization threshold can occur in localized region where local laser intensity or local gas density levels are favorable for plasma formation, but this does not occur along the entire elongated plasma structure.
For a quantitative estimation of the significant-intensity-threshold upper and lower bound, we studied the optical plasma emission dependence on the laser energy. The optical plasma emission is measured by calculating the blue-channel value integrated over the gas-jet area in the plasma top-view images. The minimum energy value allowing an optical plasma emission is recorded when a small localized plasma is generated. Increasing the laser energy, the optical plasma emission signal increases, until it reaches a saturation level. Such saturation value resulted to be higher than the energy level corresponding to the generation of an entirely elongated plasma structure in the shadowgraphy images. Consequently, one can deduce that the significant-intensity-threshold, in a first approximation not considering density profile modulations, is confined within such an optical emission dynamic range. A simple threshold model was used to fit the experimental data in the following form:
a · ( atan ( k ( E l a s e r E s . i . t . ) ) c o s t )
where Elaser is the laser energy, Es.i.t. is the energy corresponding to the upper boundary of the significant-intensity-threshold range, a, k and cost are the other free parameters of the fit.
Figure 10 shows the dependence of the plasma optical emission (blue-channel) on the laser energy for both Ar (52.1 bar pressure) and N(64 bar) gas targets.
The laser energy range for plasma generation is 3.5–5 J in the case of N gas target and 0.9–2.5 J in the Ar case. The lower boundary corresponds to a local plasma formation (plasma ionization threshold). The upper boundary corresponds to the formation of an entirely elongated plasma structure, both in the optical and in the shadowgraphy images, thus independently from the gas-jet density profile variations. It is worth mentioning that to avoid an excessive radial plasma extension from the cylindrical axis, beyond the radial extension required to have a symmetric hydrodynamic expansion, such density variations will be important in future, thus a lower boundary level is preferable for our considerations. For this reason, we rely on the Es.i.t. value obtained from the data fit, i.e., 1.7 J for Ar and 4.2 J for N. Moreover, to determine the significant-intensity-threshold, it is important to take into account the variations of plasma generation coming from laser energy fluctuations (total energy fluctuations or longitudinally local variations) or from gas density fluctuations. Such variations can be mitigated more easily if one operates in a laser/energy intensity range where the curves shown in Fig.10 present a smaller slope.
Based on these considerations, we can conclude that the laser significant-intensity-threshold falls in the energy range of 3–4 J (corresponding to a peak intensity 5–6.7 × 1011 W/cm2) for a N-gas at the backing pressure of 64 bar (6 × 1019 atoms/cm3 neutral density) and 0.9–1.5 J (corresponding to 1.4–2.7 × 1011 W/cm2) for an Ar-gas at the backing pressure of 51.2 bar (5 × 1019 cm3 atomic density). Such estimations are in agreement with similar estimations present in literature [22,23].

5. Conclusions

The use of a nanosecond laser pulse for generation of 5-mm long and tens of microns wide elongated plasma structures in a gas-jet was demonstrated experimentally. Estimation of the significant intensity threshold formation useful for a future symmetrization of the plasma channel is reported for Ar and N. The results indicate that further investigation is needed for the symmetrization of the channels and that such laser-plasma interaction conditions are accessible with joule-class, nanosecond lasers. Moreover, such results establish an optimal energy/intensity working range for future studies focused on symmetrization issues, along with a preliminary assessment on needed adjustment of the focusing optics, as well as use of additional plasma diagnostics. In particular, this experimental technique will require a second probe beam to measure the degree of symmetry of the plasma channel. Additionally, a shorter laser probe pulse will be required to measure the instantaneous density profile inside the plasma channel, as well as monitoring its expansion velocity. This approach allows to use time-modulated energy release (temporally shaped laser pulse) with additional control of the cylindrical hydrodynamic evolution over a wider space of parameters.
This work represents an important step towards future implementation of such potentially innovative experimental approach for generation of symmetric plasma-channels with required lengths, both in a single stage and in a multi-stage LFWA scheme, thus potentially promising for implementation of future compact accelerators aimed to produce high-energy electrons by laser light.

Author Contributions

Conceptualization, T.L.; Data curation, T.L., M.N., M.F.N. and F.G.; Investigation, T.L., M.N., M.F.N., H.Z., J.P., M.H. and M.D.; Project administration, T.L., L.G. and A.L.; Software, T.L., M.N. and M.F.N.; Supervision, T.M. and D.M.; Validation, T.L., L.G., A.L., T.M. and D.M.; Writing—original draft, T.L., M.N. and M.F.N.; Writing—review & editing, L.G., F.G., H.Z., J.P., M.H., M.D., A.L., T.M. and D.M. All authors have read and agreed to the published version of the manuscript.

Funding

This work was carried out within the Particle Acceleration by Laser Research Program (RP3) at ELI-Beamlines. This work was supported by the European Regional Development Fund, by the Ministry of Education, Youth and Sports of the Czech Republic (Project No. LQ1606) and by the project “Advanced Research Using High Intensity Laser Produced Photons and Particles” (CZ.02.1.01/0.0/0.0/16_019/0000789). The work was co-financed by the European Regional Development Fund and the state budget of the Czech Republic (project HiLASE CoE: Grant No. CZ.02.1.01/0.0/0.0/15_006/0000674) and also supported by the Ministry of Education, Youth and Sports of the Czech Republic (Programmes NPU I Project No. LO1602 and Large Research Infrastructure Project No. LM2015086).

Acknowledgments

The authors gratefully acknowledge Rachael Jack for the support provided to improve the readability of the manuscript, along with Daniele Del Sarto and Gabriele Cristoforetti for fruitful discussions.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Strickland, D.; Mourou, G. Compression of amplified chirped optical pulses. Opt. Commun. 1985, 56, 219–221. [Google Scholar]
  2. Tajima, T.; Dawson, J.M. Laser Electron Accelerator. Phys. Rev. Lett. 1979, 43, 267–270. [Google Scholar] [CrossRef] [Green Version]
  3. Esarey, E.; Schroeder, C.; Leemans, W.P. Physics of laser-driven plasma-based electron accelerators. Rev. Mod. Phys. 2009, 81, 1229–1285. [Google Scholar] [CrossRef]
  4. Durfee, C.G.; Milchberg, H. Light pipe for high intensity laser pulses. Phys. Rev. Lett. 1993, 71, 2409–2412. [Google Scholar] [CrossRef]
  5. Volfbeyn, P.; Esarey, E.; Leemans, W.P. Guiding of laser pulses in plasma channels created by the ignitor-heater technique. Phys. Plasmas 1999, 6, 2269–2277. [Google Scholar] [CrossRef]
  6. Geddes, C.G.R.; Tóth, C.; Van Tilborg, J.; Esarey, E.; Schroeder, C.; Brühwiler, D.; Nieter, C.; Cary, J.; Leemans, W.P. High-quality electron beams from a laser wakefield accelerator using plasma-channel guiding. Nature 2004, 431, 538–541. [Google Scholar] [CrossRef]
  7. Geddes, C.G.R.; Tóth, C.; Van Tilborg, J.; Esarey, E.; Schroeder, C.; Cary, J.; Leemans, W.P. Guiding of Relativistic Laser Pulses by Preformed Plasma Channels. Phys. Rev. Lett. 2005, 95, 145002. [Google Scholar] [CrossRef] [Green Version]
  8. Hosokai, T.; Kinoshita, K.; Ohkubo, T.; Maekawa, A.; Uesaka, M.; Zhidkov, A.; Yamazaki, A.; Kotaki, H.; Kando, M.; Nakajima, K.; et al. Observation of strong correlation between quasimonoenergetic electron beam generation by laser wakefield and laser guiding inside a preplasma cavity. Phys. Rev. E 2006, 73, 036407. [Google Scholar] [CrossRef] [PubMed]
  9. Hafz, N.A.M.; Jeong, T.M.; Choi, I.W.; Lee, S.K.; Pae, K.H.; Kulagin, V.V.; Sung, J.H.; Yu, T.J.; Hong, K.-H.; Hosokai, T.; et al. Stable generation of GeV-class electron beams from self-guided laser–plasma channels. Nat. Photon. 2008, 2, 571–577. [Google Scholar] [CrossRef]
  10. Leemans, W.P.; Gonsalves, A.J.; Mao, H.-S.; Nakamura, K.; Benedetti, C.; Schroeder, C.; Tóth, C.; Daniels, J.; Mittelberger, D.E.; Bulanov, S.S.; et al. Multi-GeV Electron Beams from Capillary-Discharge-Guided Subpetawatt Laser Pulses in the Self-Trapping Regime. Phys. Rev. Lett. 2014, 113, 245002. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Gonsalves, A.J.; Nakamura, K.; Daniels, J.; Benedetti, C.; Pieronek, C.; De Raadt, T.C.H.; Steinke, S.; Bin, J.; Bulanov, S.S.; Van Tilborg, J.; et al. Petawatt Laser Guiding and Electron Beam Acceleration to 8 GeV in a Laser-Heated Capillary Discharge Waveguide. Phys. Rev. Lett. 2019, 122, 084801. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Bagdasarov, G.A.; Sasorov, P.V.; Gasilov, V.A.; Boldarev, A.; Olkhovskaya, O.G.; Benedetti, C.; Bulanov, S.S.; Gonsalves, A.; Mao, H.-S.; Schroeder, C.B.; et al. Laser beam coupling with capillary discharge plasma for laser wakefield acceleration applications. Phys. Plasmas 2017, 24, 083109. [Google Scholar] [CrossRef]
  13. Bagdasarov, G.; Sasorov, P.; Boldarev, A.; Olkhovskaya, O.; Gasilov, V.; Gonsalves, A.J.; Barber, S.; Bulanov, S.S.; Schroeder, C.; Van Tilborg, J.; et al. Plasma equilibrium inside various cross-section capillary discharges. Phys. Plasmas 2017, 24, 053111. [Google Scholar] [CrossRef] [Green Version]
  14. Bagdasarov, G.A.; Bobrova, N.; Boldarev, A.; Olkhovskaya, O.G.; Sasorov, P.V.; Gasilov, V.A.; Barber, S.K.; Bulanov, S.S.; Gonsalves, A.J.; Schroeder, C.B.; et al. On production and asymmetric focusing of flat electron beams using rectangular capillary discharge plasmas. Phys. Plasmas 2017, 24, 123120. [Google Scholar] [CrossRef] [Green Version]
  15. Shalloo, R.; Arran, C.; Picksley, A.; Von Boetticher, A.; Corner, L.; Holloway, J.; Hine, G.; Jonnerby, J.; Milchberg, H.M.; Thornton, C.; et al. Low-density hydrodynamic optical-field-ionized plasma channels generated with an axicon lens. Phys. Rev. Accel. Beams 2019, 22, 041302. [Google Scholar] [CrossRef] [Green Version]
  16. Sasorov, P.V.; Bobrova, N.A.; Olkhovskaya, O.G.; Bagdasarov, G.; Boldarev, A.; Gasilov, V.A.; Bulanov, S.S.; Gonsalves, A.J.; Schroeder, C.; Esarey, E.; et al. Simulations of plasma channel formation by knife-like nanosecond laser beam. Keldysh Inst. Prepr. 2018, 48, 39. [Google Scholar] [CrossRef]
  17. Levato, T.; Bonora, S.; Grittani, G.; Lazzarini, C.M.; Nawaz, M.F.; Nevrkla, M.; Goncalves, L.V.; Ziano, R.; Bassanese, S.; Bobrova, N.; et al. HELL: High-Energy Electrons by Laser Light, a User-Oriented Experimental Platform at ELI Beamlines. Appl. Sci. 2018, 8, 1565. [Google Scholar] [CrossRef] [Green Version]
  18. VirtualLab Fusion: Optical Design Software from LightTrans. Available online: https://www.lighttrans.com/ (accessed on 20 March 2020).
  19. Mason, P.D.; Divoký, M.; Ertel, K.; Pilař, J.; Butcher, T.; Hanuš, M.; Banerjee, S.; Phillips, J.; Smith, J.; De Vido, M.; et al. Kilowatt average power 100 J-level diode pumped solid state laser. Optica 2017, 4, 438. [Google Scholar] [CrossRef]
  20. Novák, O.; Miura, T.; Smrž, M.; Chyla, M.; Nagisetty, S.S.; Muzik, J.; Linnemann, J.; TurČiČová, H.; Jambunathan, V.; Slezak, O.; et al. Status of the High Average Power Diode-Pumped Solid State Laser Development at HiLASE. Appl. Sci. 2015, 5, 637–665. [Google Scholar] [CrossRef]
  21. Lorenz, S.; Grittani, G.; Chacon-Golcher, E.; Lazzarini, C.M.; Limpouch, J.; Nawaz, F.; Nevrkla, M.; Vilanova, L.; Levato, T. Characterization of supersonic and subsonic gas targets for laser wakefield electron acceleration experiments. Matter Radiat. Extremes 2019, 4, 015401. [Google Scholar] [CrossRef] [Green Version]
  22. Davis, J.P.; Smith, A.L.; Giranda, C.; Squicciarini, M. Laser-induced plasma formation in Xe, Ar, N_2, and O_2 at the first four Nd:YAG harmonics. Appl. Opt. 1991, 30, 4358. [Google Scholar] [CrossRef] [PubMed]
  23. Nassef, O.A.; Gamal, Y. Role of Loss Mechanisms in the Breakdown of Argon Irradiated with IR Laser Radiation. Arab. J. Nucl. Sci. Appl. 2018, 51, 1–8. [Google Scholar] [CrossRef] [Green Version]

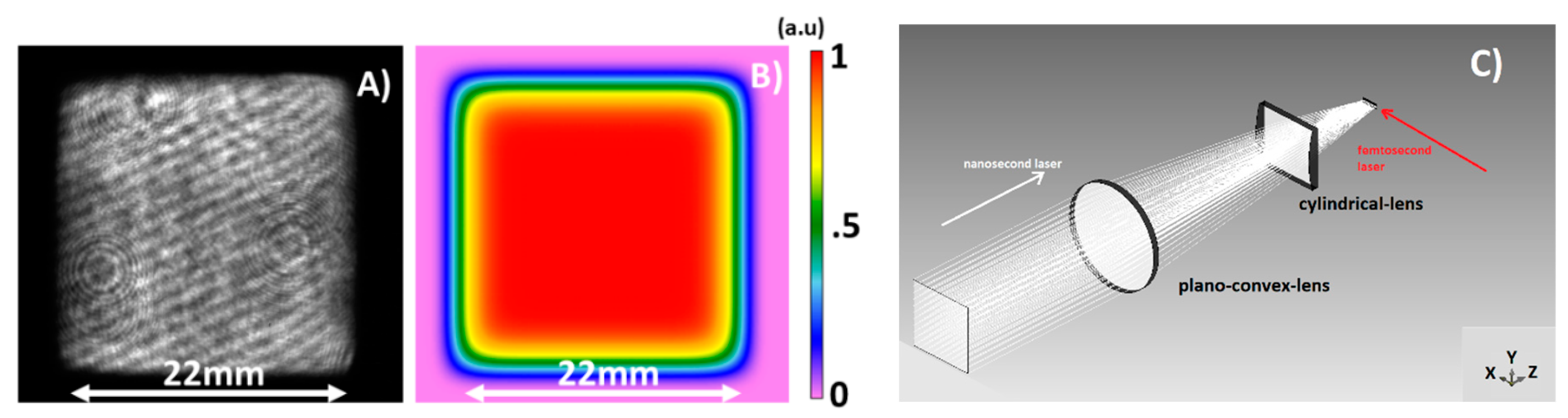

Figure 1. (A) Measured transverse distribution of the Bivoj nanosecond laser; (B) simulated transverse distribution of the Bivoj laser; (C) 3D-axis and optical scheme used to produce a knife-like focus: a 200-mm-focal-length plano-convex lens coupled with a 100-mm-focal-length cylindrical lens.
Figure 1. (A) Measured transverse distribution of the Bivoj nanosecond laser; (B) simulated transverse distribution of the Bivoj laser; (C) 3D-axis and optical scheme used to produce a knife-like focus: a 200-mm-focal-length plano-convex lens coupled with a 100-mm-focal-length cylindrical lens.
Applsci 10 04082 g001

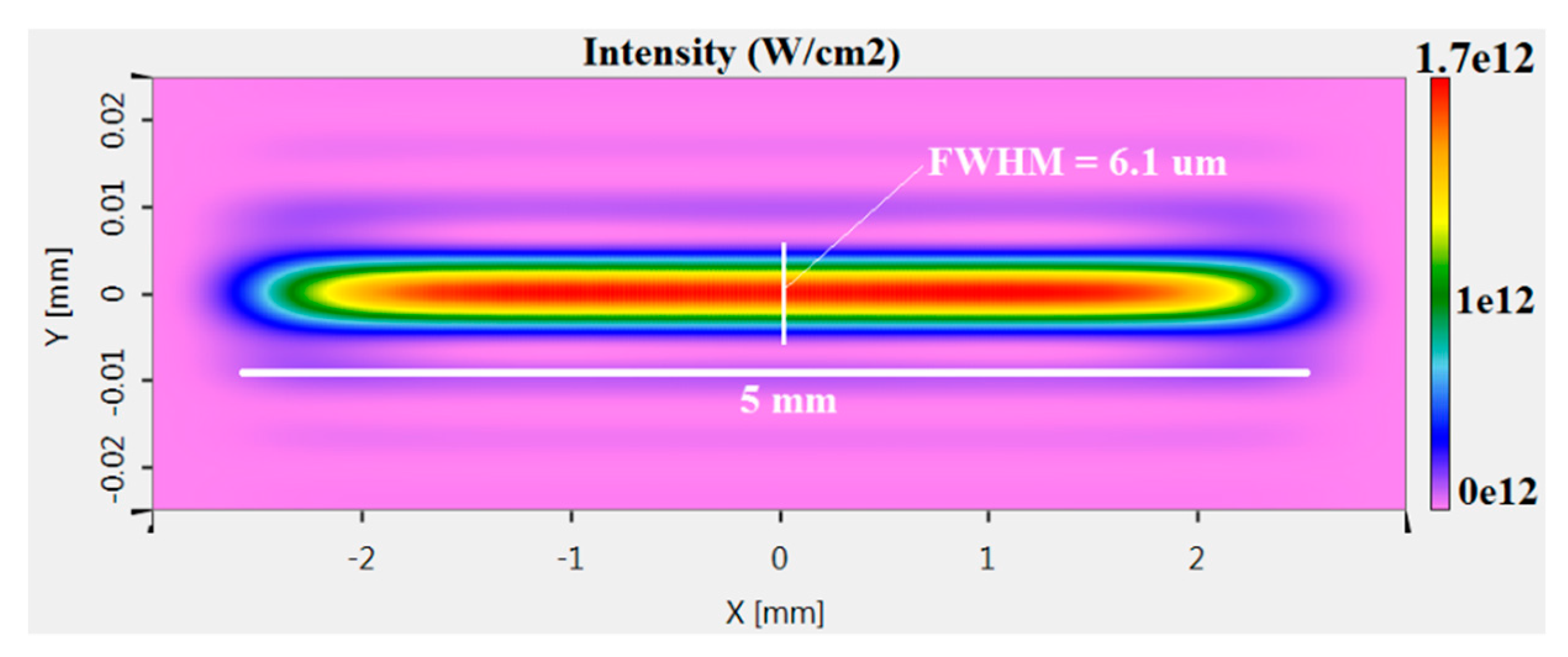

Figure 2. Simulated high-aspect ratio focal distribution (transverse plane) obtained by the combination of a 200-mm plano-convex and a 100-mm cylindrical lens.
Figure 2. Simulated high-aspect ratio focal distribution (transverse plane) obtained by the combination of a 200-mm plano-convex and a 100-mm cylindrical lens.
Applsci 10 04082 g002

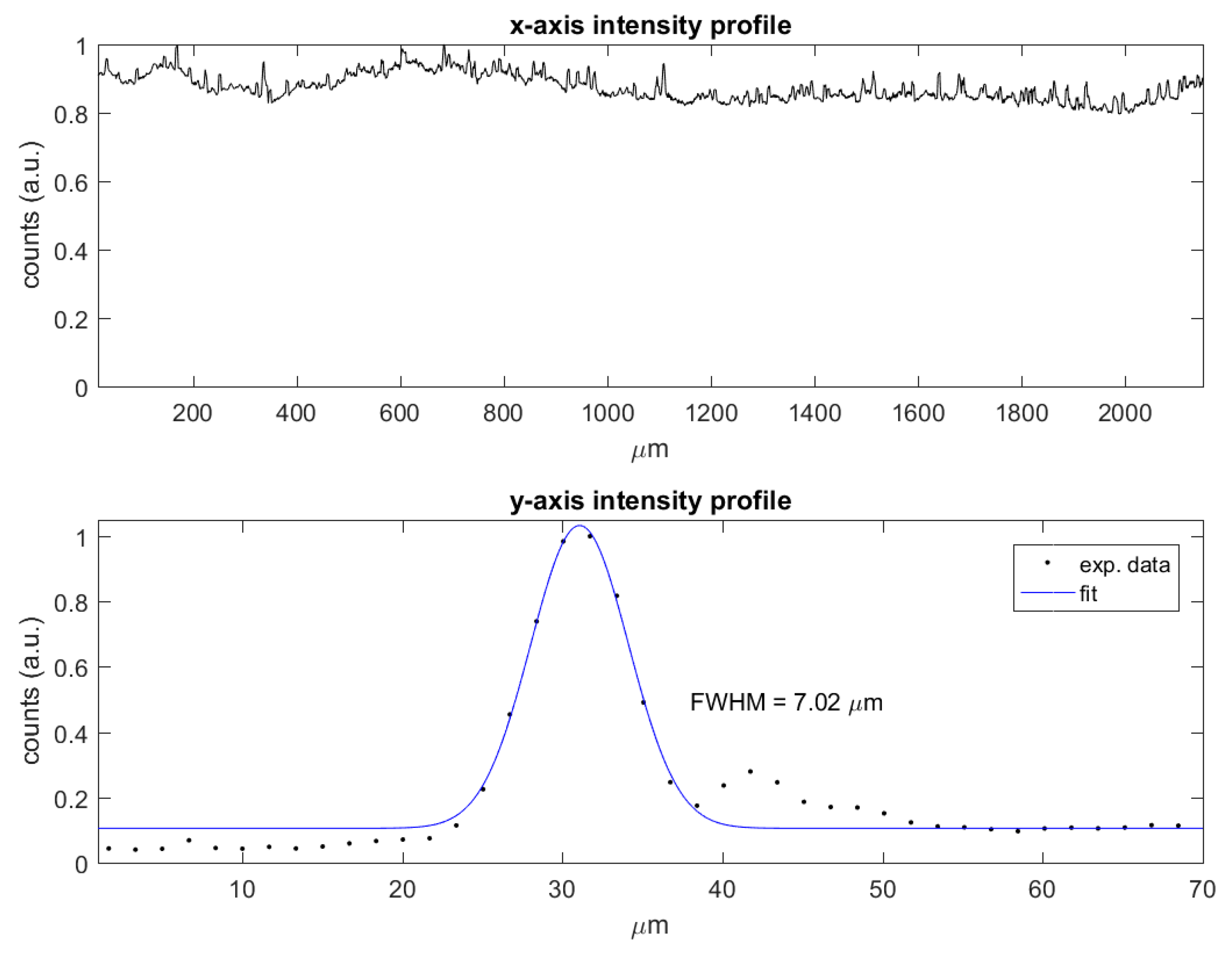

Figure 3. Measured focal distribution, (bottom) y-axis profile averaged over 100 µm on the x-axis and (top) 2-mm portion of the x-axis profile averaged over the full y-axis.
Figure 3. Measured focal distribution, (bottom) y-axis profile averaged over 100 µm on the x-axis and (top) 2-mm portion of the x-axis profile averaged over the full y-axis.
Applsci 10 04082 g003

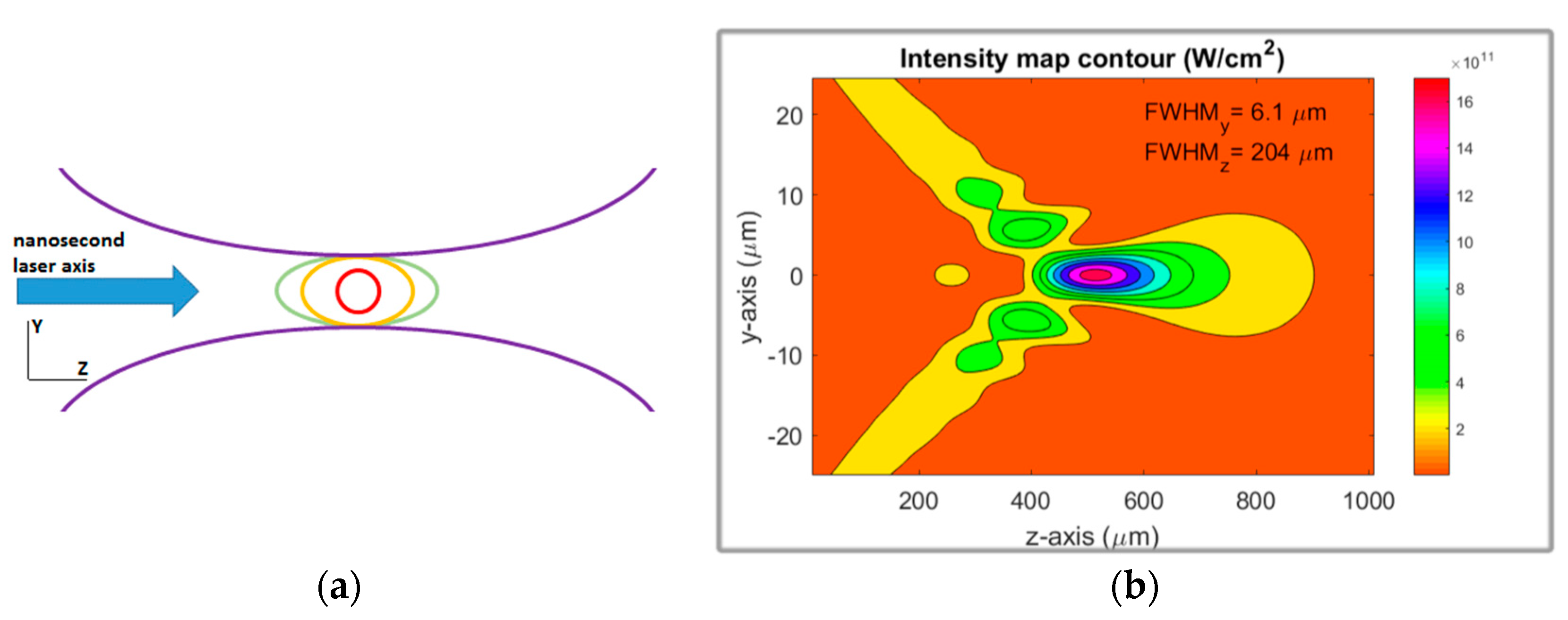

Figure 4. (a) Conceptual sketch of laser intensity distribution desired for an optimal laser wake field electron-acceleration (LWFA) in the transverse plane with respect to the nanosecond laser axis (or “z-axis”) in the focal region. The colored lines represent constant intensity zones. Red indicates maximum, orange medium and green low intensities; (b) y-z plane numerical simulation of the laser intensity distribution in W/cm2 by the combination of a 200-mm plano-convex and a 100-mm cylindrical lens (a strong asymmetry is shown).
Figure 4. (a) Conceptual sketch of laser intensity distribution desired for an optimal laser wake field electron-acceleration (LWFA) in the transverse plane with respect to the nanosecond laser axis (or “z-axis”) in the focal region. The colored lines represent constant intensity zones. Red indicates maximum, orange medium and green low intensities; (b) y-z plane numerical simulation of the laser intensity distribution in W/cm2 by the combination of a 200-mm plano-convex and a 100-mm cylindrical lens (a strong asymmetry is shown).
Applsci 10 04082 g004

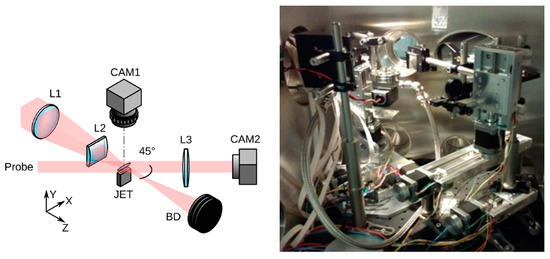

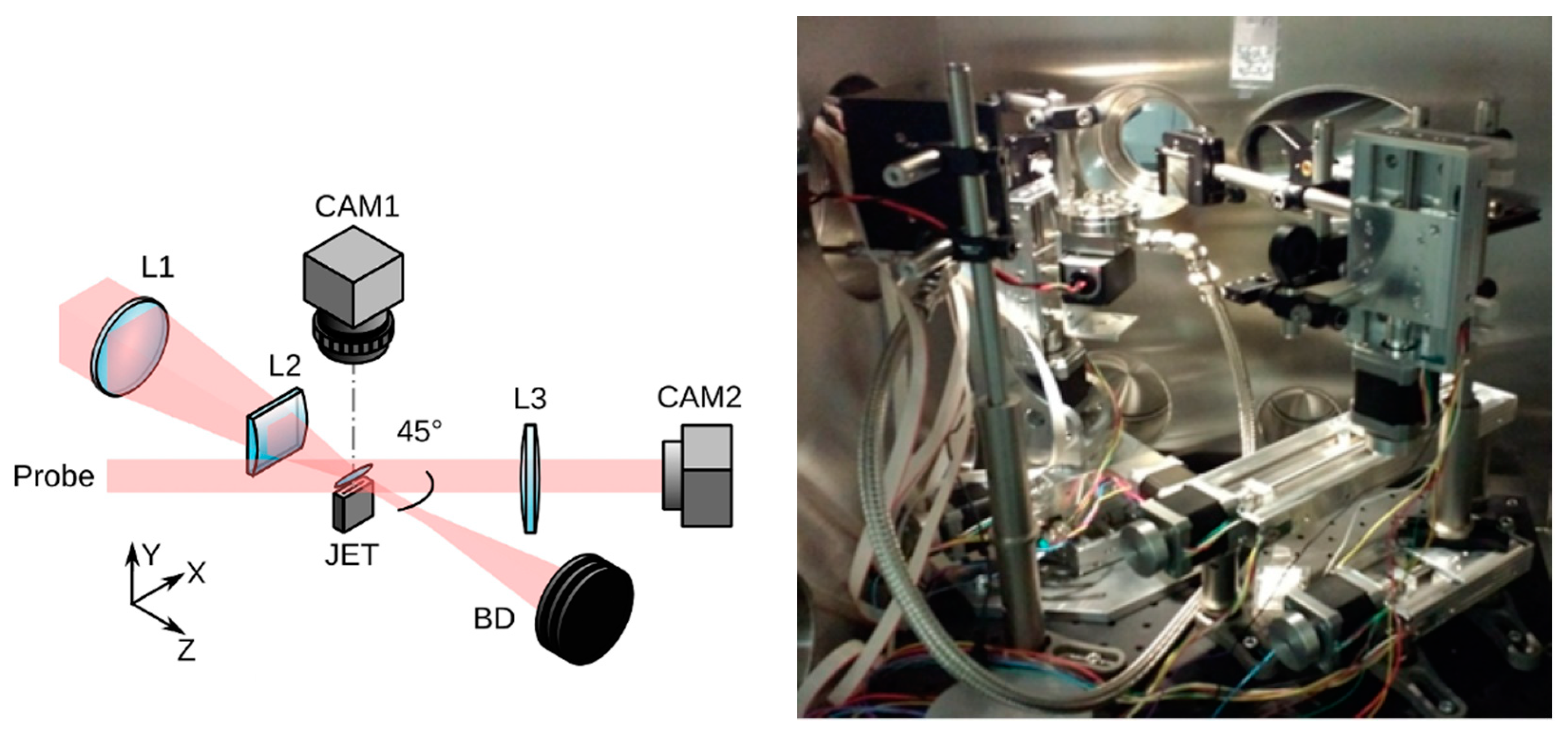

Figure 5. Experimental setup. A laser pulse of 1–5-joule and 10-ns time duration with a 1030-nm wavelength, is sent towards an optical system based on a plano-convex and a cylindrical lens to generate an elongated focus in a gas jet target. A portion of the main laser pulse is used as optical probe. L1 is an f = 200-mm plano-convex lens, L2 is an f = 100-mm cylindrical lens. L3 is an f = 150-mm plano-convex lens used for shadowgraphy on CAM2. CAM1 is used as top-view image of the optical plasma emission. BD is a beam-dump.
Figure 5. Experimental setup. A laser pulse of 1–5-joule and 10-ns time duration with a 1030-nm wavelength, is sent towards an optical system based on a plano-convex and a cylindrical lens to generate an elongated focus in a gas jet target. A portion of the main laser pulse is used as optical probe. L1 is an f = 200-mm plano-convex lens, L2 is an f = 100-mm cylindrical lens. L3 is an f = 150-mm plano-convex lens used for shadowgraphy on CAM2. CAM1 is used as top-view image of the optical plasma emission. BD is a beam-dump.
Applsci 10 04082 g005

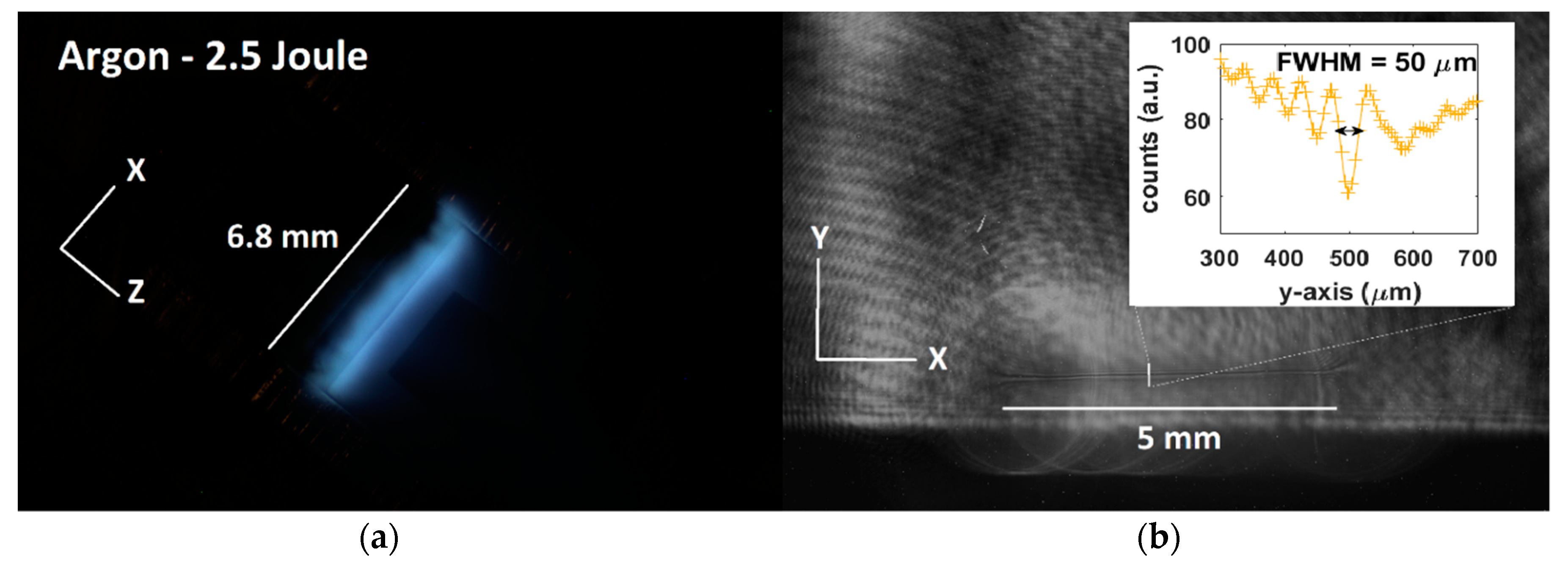

Figure 6. Experimental measurement of plasma formation in Ar gas target at 51.2 bar backing pressure and 2.5-J laser energy. (a) Top-view image of the optical plasma emission (the gas nozzle is visible in the background); (b) shadowgraphy image of the elongated plasma structure and inner diameter measurement on the x-y plane.
Figure 6. Experimental measurement of plasma formation in Ar gas target at 51.2 bar backing pressure and 2.5-J laser energy. (a) Top-view image of the optical plasma emission (the gas nozzle is visible in the background); (b) shadowgraphy image of the elongated plasma structure and inner diameter measurement on the x-y plane.
Applsci 10 04082 g006

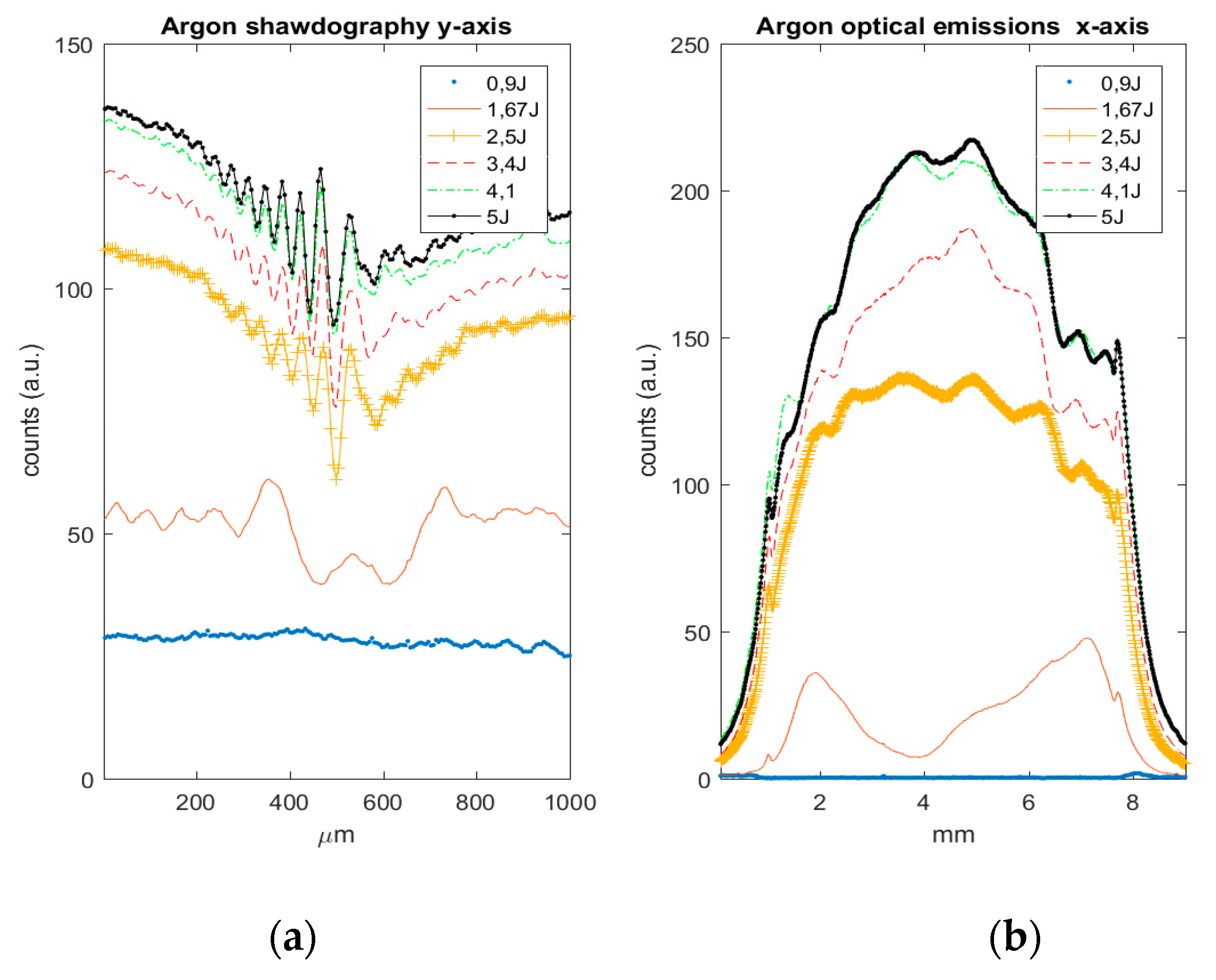

Figure 7. Experimental measurements obtained with an Ar target at 51.2 bar for different laser energy values; (a) Shadowgraphy profiles of the elongated plasma structures in the y-axis, averaged over 1 mm in the x-axis; (b) top-view profiles of the optical plasma emission along the x-axis, averaged along the entire z-axis.
Figure 7. Experimental measurements obtained with an Ar target at 51.2 bar for different laser energy values; (a) Shadowgraphy profiles of the elongated plasma structures in the y-axis, averaged over 1 mm in the x-axis; (b) top-view profiles of the optical plasma emission along the x-axis, averaged along the entire z-axis.
Applsci 10 04082 g007

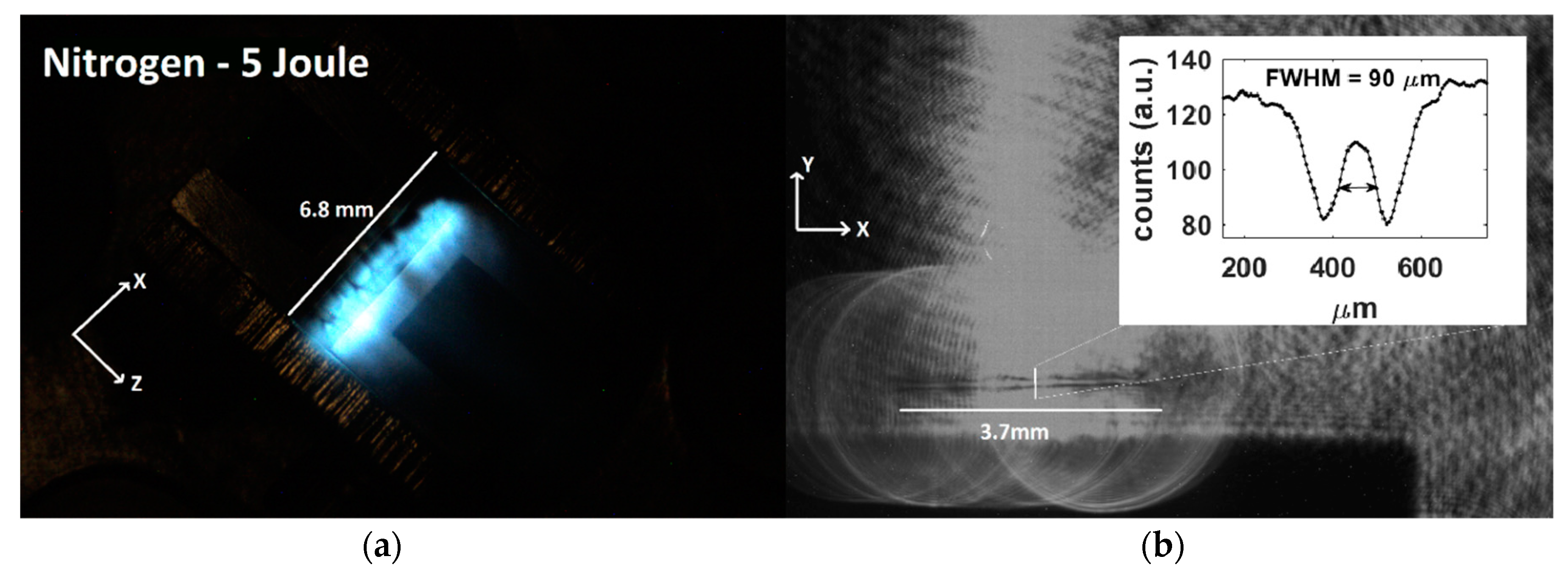

Figure 8. Experimental measurements obtained with N at 64 bar and 5 J. (a) Top view of the gas-nozzles and optical plasma emission; (b) shadowgraphy of the plasma channel and inner diameter measurement.
Figure 8. Experimental measurements obtained with N at 64 bar and 5 J. (a) Top view of the gas-nozzles and optical plasma emission; (b) shadowgraphy of the plasma channel and inner diameter measurement.
Applsci 10 04082 g008

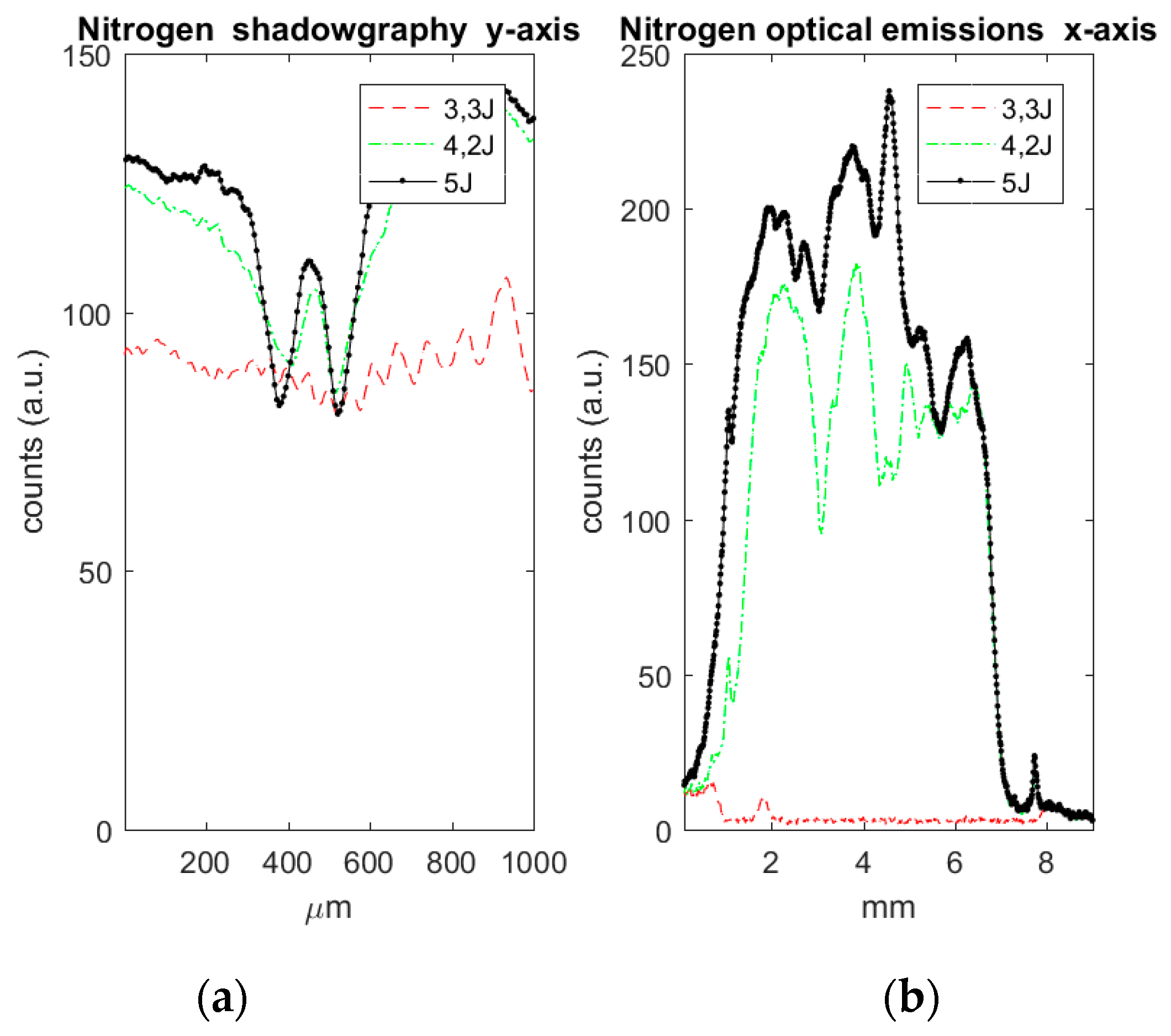

Figure 9. Experimental measurements obtained with N at 64 bar for different laser energies. (a) Shadowgraphy profiles of the elongated plasma structures in the y-axis, averaged over 1 mm in the x-axis; (b) top-view profiles of the optical plasma emission along the x-axis, averaged along the entire z-axis.
Figure 9. Experimental measurements obtained with N at 64 bar for different laser energies. (a) Shadowgraphy profiles of the elongated plasma structures in the y-axis, averaged over 1 mm in the x-axis; (b) top-view profiles of the optical plasma emission along the x-axis, averaged along the entire z-axis.
Applsci 10 04082 g009

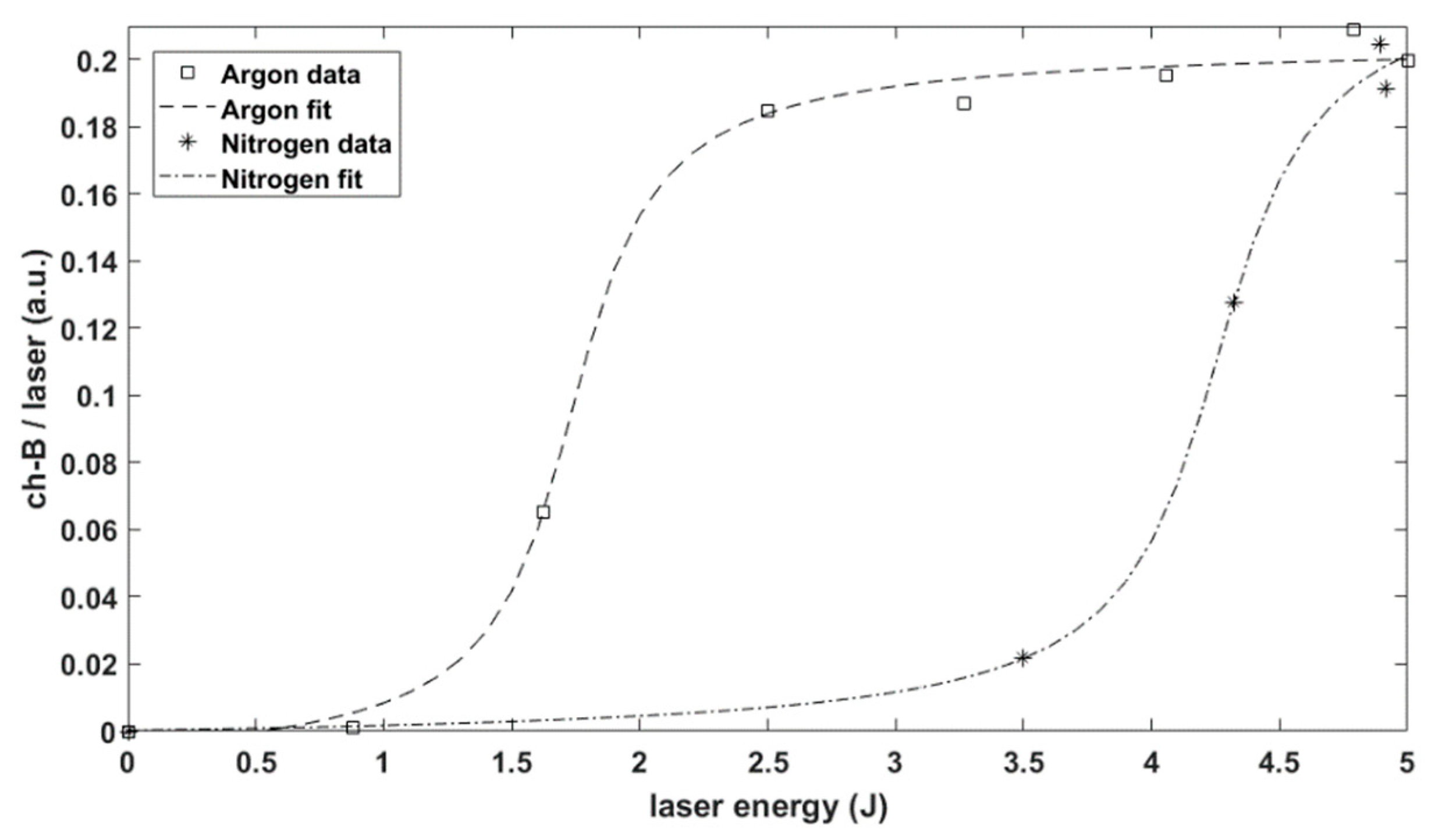

Figure 10. Optical plasma emission signal (blue-channel) vs laser energy for Ar and N gas targets.
Figure 10. Optical plasma emission signal (blue-channel) vs laser energy for Ar and N gas targets.
Applsci 10 04082 g010
