Feasibility Study and Prospects of Rock Fragmentation Using Ultrasonic Vibration Excitation
Abstract
:1. Introduction
2. Overview of Rock Breakage Methods
3. The Theoretical Feasibility of Ultrasonic Rock Breakage
3.1. Mechanisms of Ultrasonic Action on Rock Mass
3.2. Ultrasonic Vibration Excitation Mechanisms for Rock Breakage
4. Engineering Application and Progress of Ultrasonic Excitation of Coal and Rock Mass

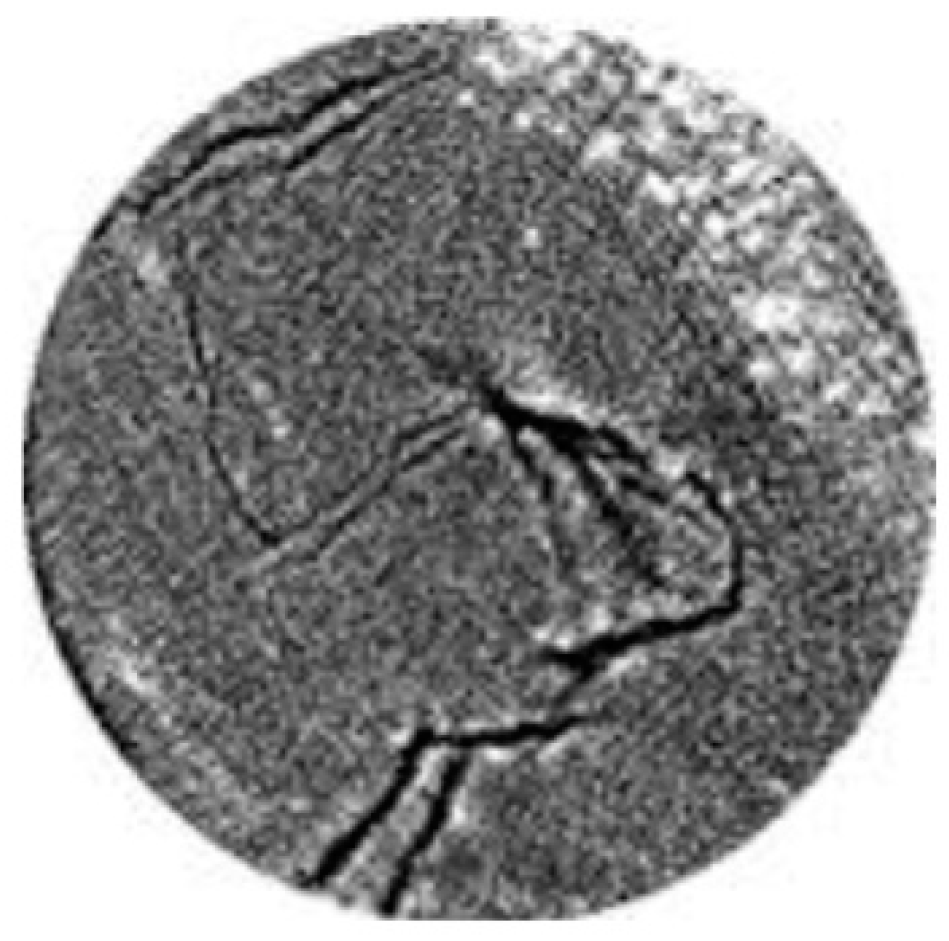

4.1. Application of Power Ultrasound in Underground Mining Engineering

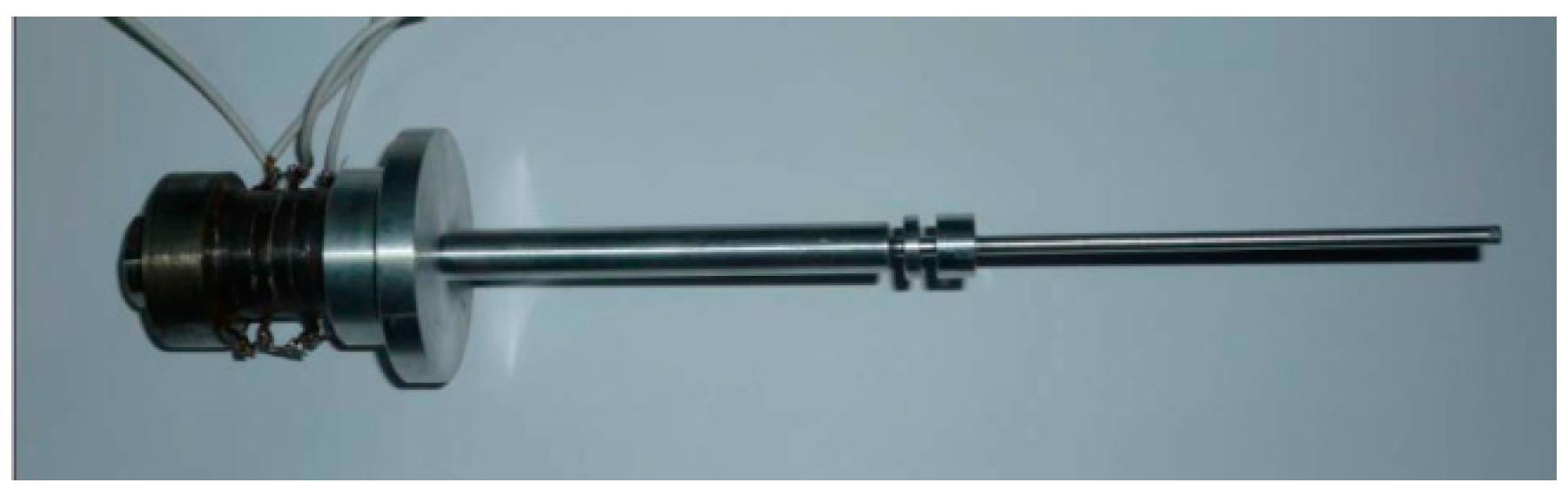

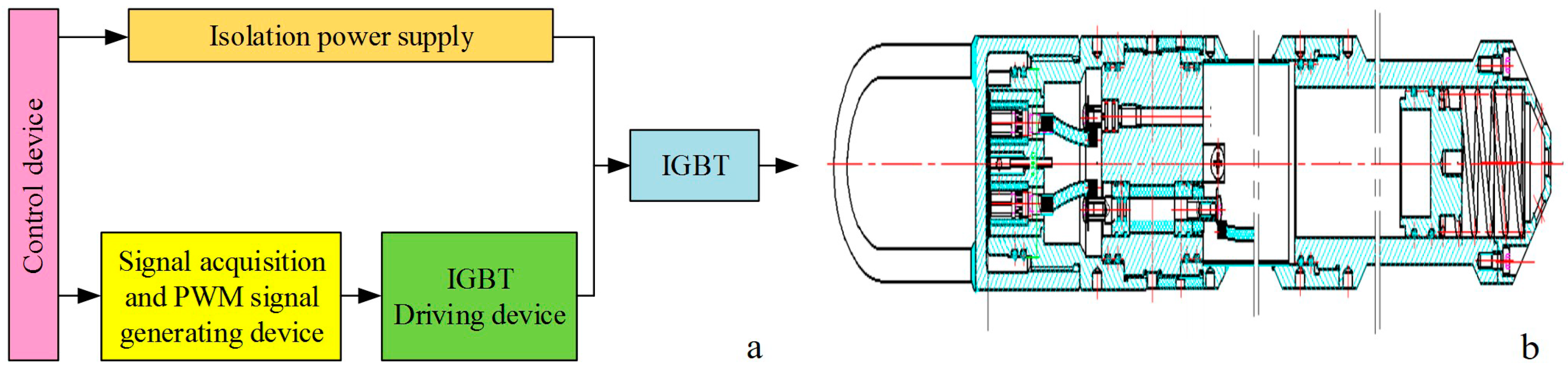

4.2. High-Power Ultrasound Equipment

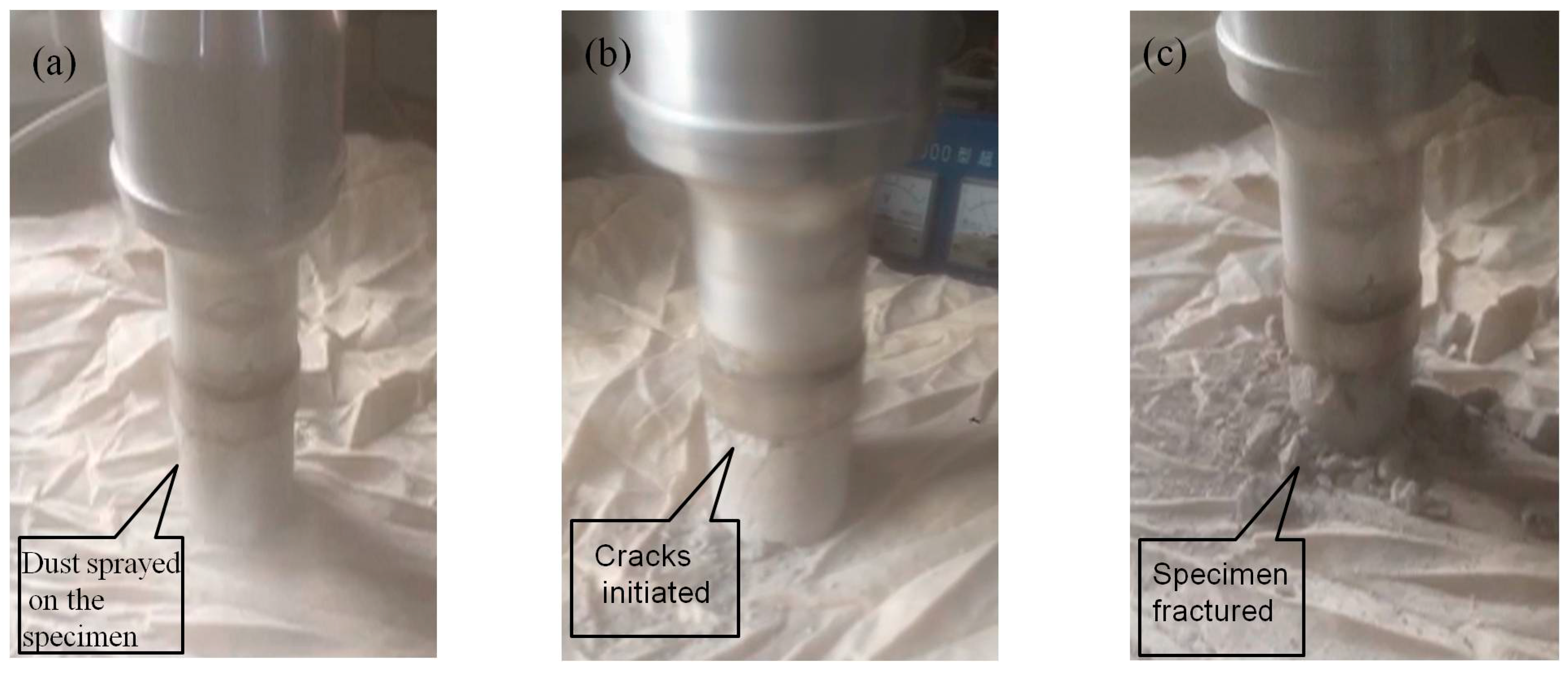

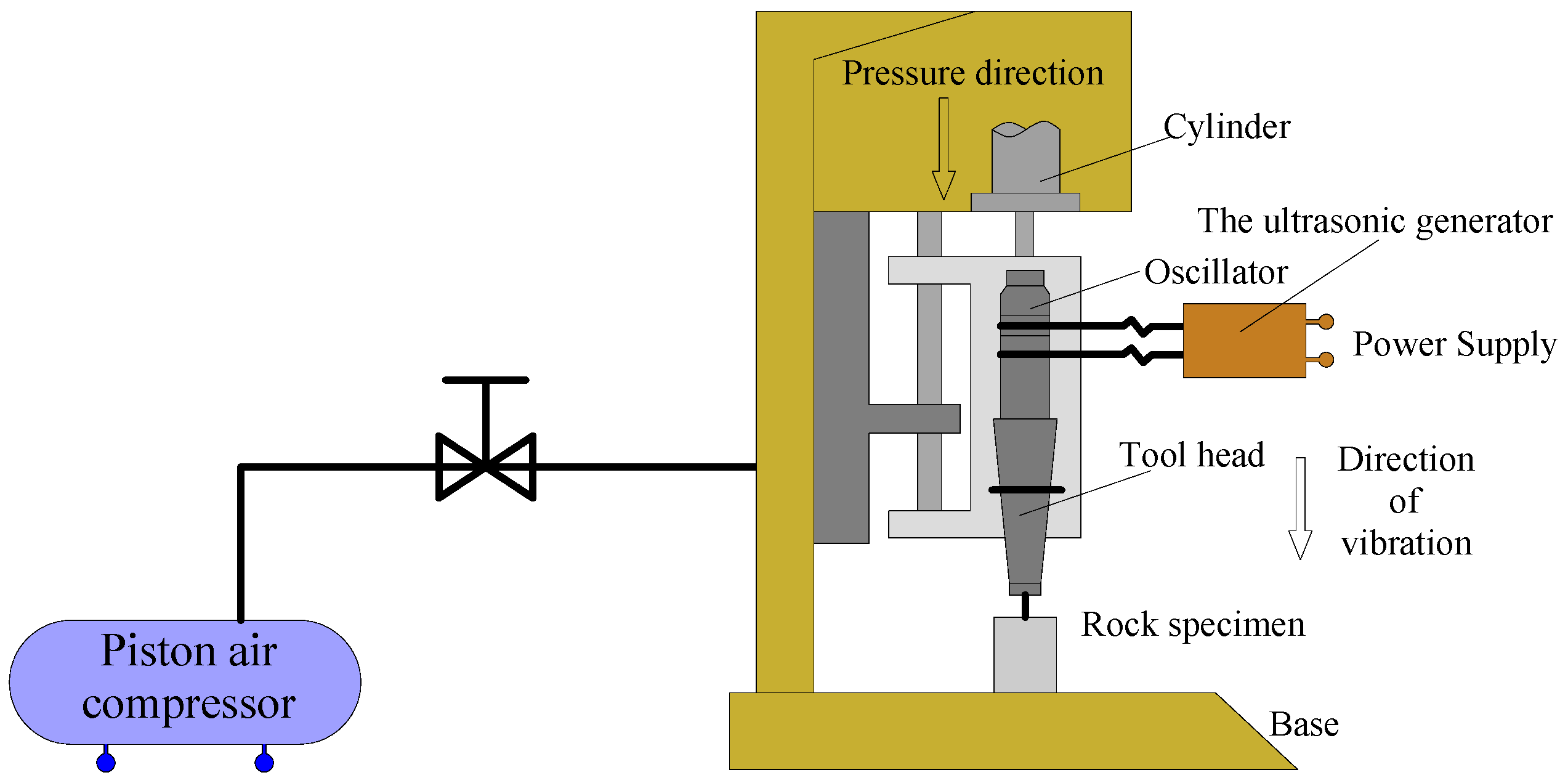

4.3. Rock Breakage Test Using Ultrasonic Excitation

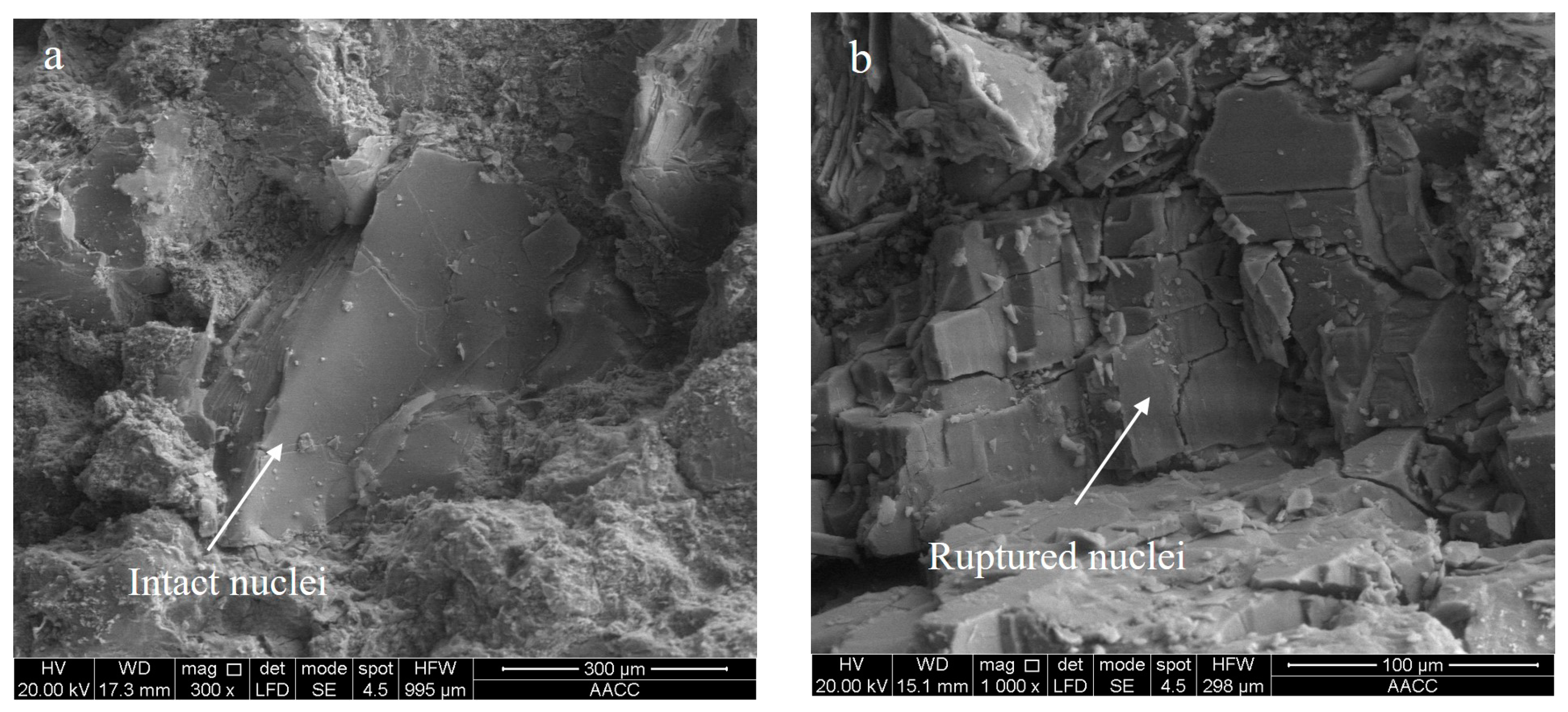

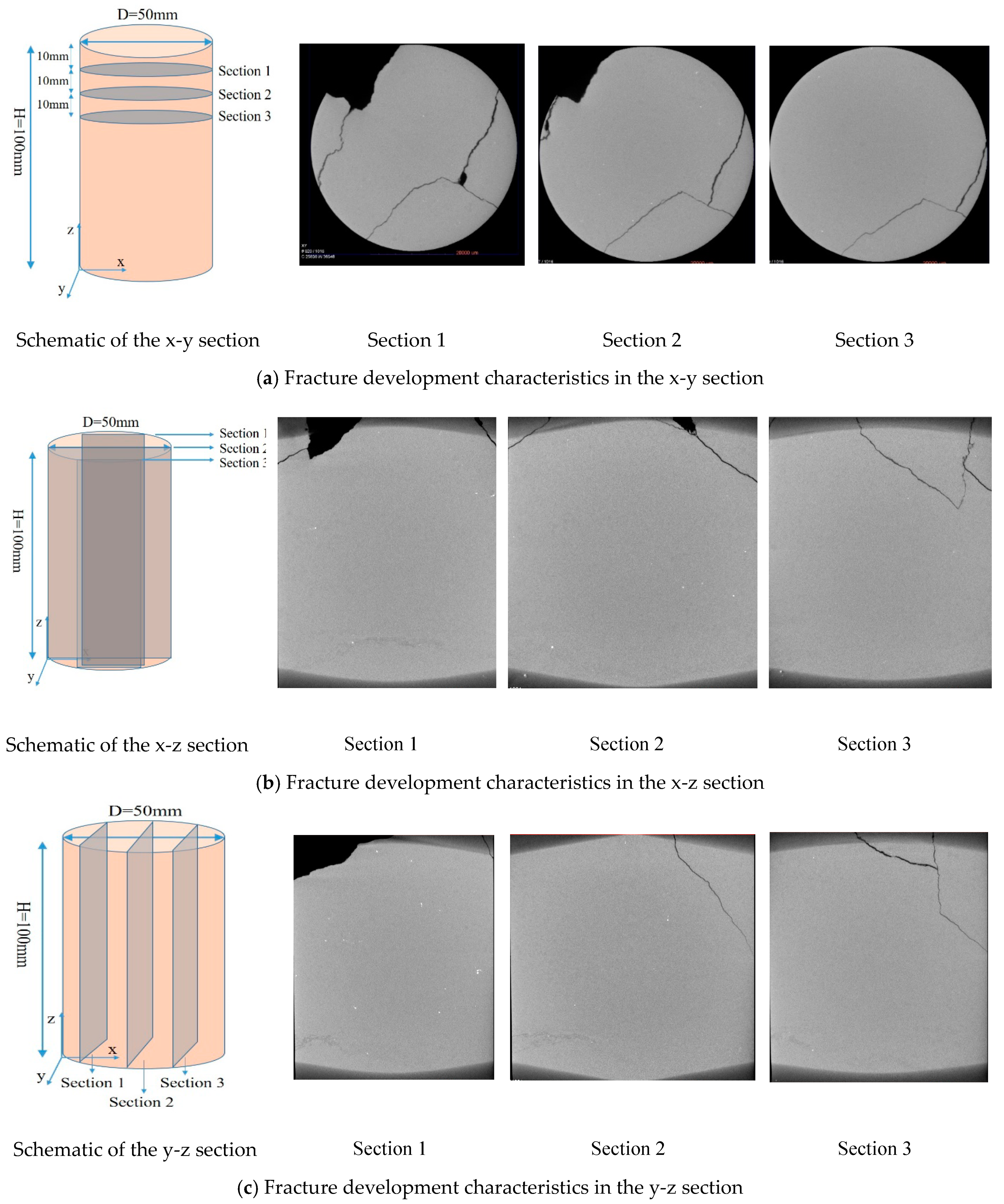

4.4. Evolution Characteristics of Microcracks in Specimens under Ultrasonic Excitation

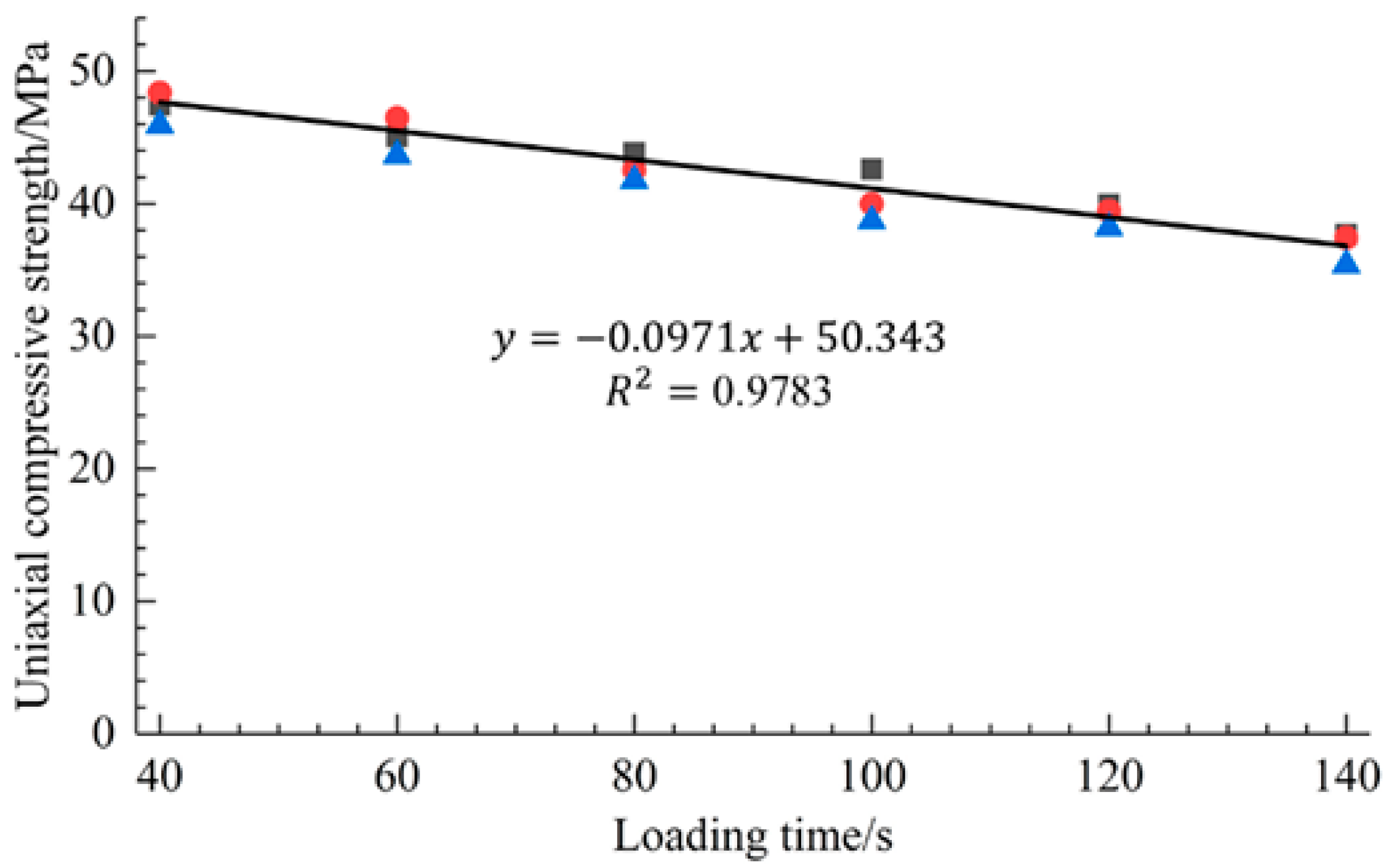

4.5. Strength Characteristics of Specimen after Ultrasonic Vibration Excitation
5. Future Development and Prospects
6. Conclusions
- Ultrasonic excitation experiments were designed and performed on different rock types. Microcracks generate and cause the failure of the specimen in relatively short experimental time and under a relatively low axial stress, due to ultrasonic excitation. The fracture length and the fracture propagation speed under ultrasonic excitation are rock-type dependent. The granite specimen and the limestone specimen have the minimum “average maximum fracture length” and the maximum “average maximum fracture length”, respectively. The granite specimen has the shortest failure duration. All four rock types show the characteristics of “no macroscopic fracture-fracture generation-steady fracture propagation”.
- Energy continuously accumulates in the rock specimen as the time of ultrasonic excitation increases. This phenomenon not only leads to the generation of macroscopic fractures, but also causes the formation of microcracks that propagate along crystal boundaries and penetrate crystals. The development of these microcracks notably decreases the compressive strength of the rock specimens. The experimental results show that the compressive strength of red sandstone specimens decreases by 45.6 % after 140 s of ultrasonic excitation.
- Traditional rock breakage technology has the disadvantages of high energy consumption, high costs, and low efficiency. Ultrasonic excitation will become one of the important approaches to the effective breakage of hard rocks. It is highly significant to further investigate the mechanism of ultrasonic excitation and to develop relevant equipment in order to apply the mechanism to high-speed construction involving hard rock breakage.
