An Audio-Based Method for Assessing Proper Usage of Dry Powder Inhalers
Abstract
:1. Introduction
2. Methodology
2.1. Data Collection

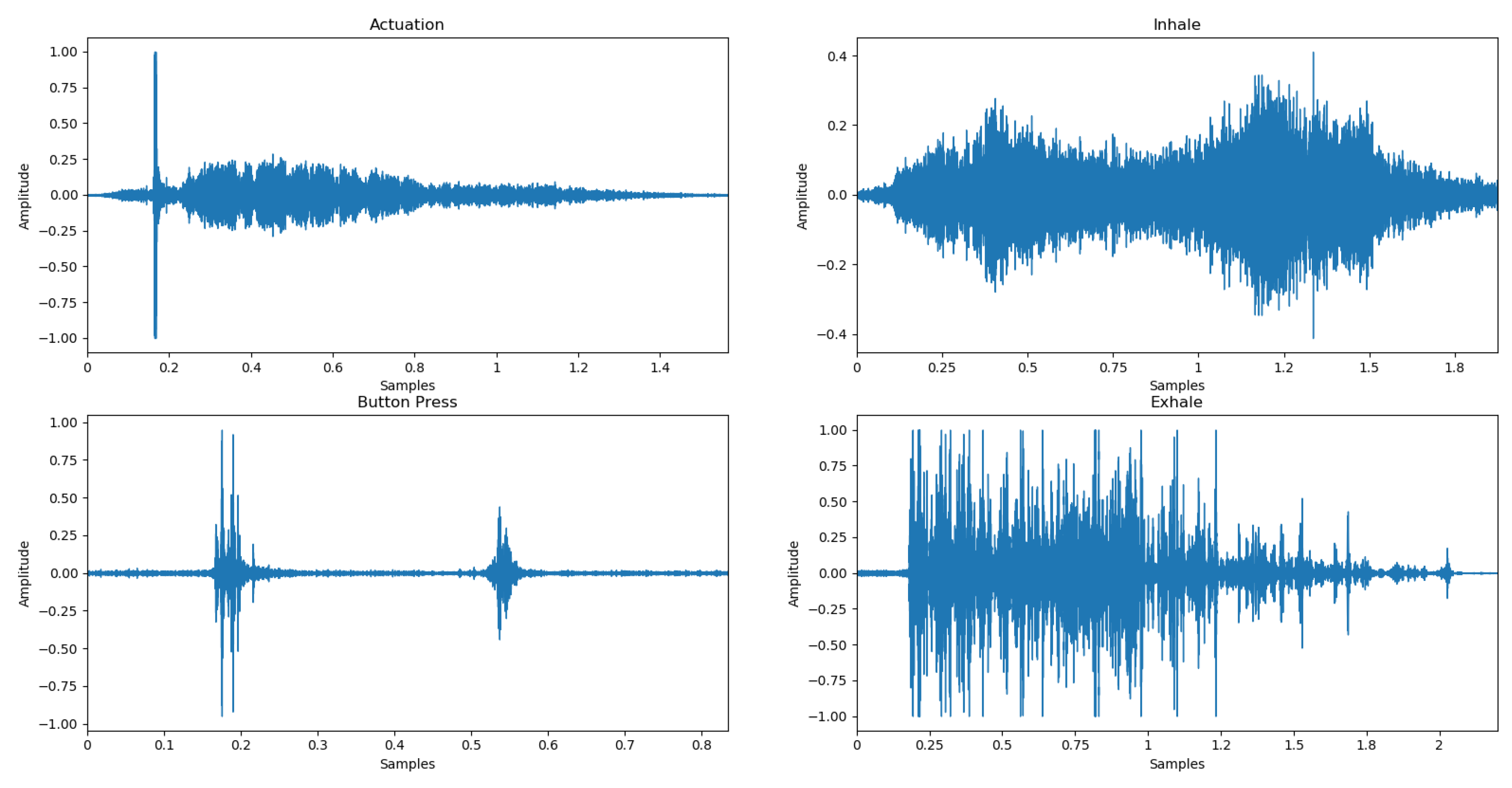

- Actuation: inhalation using the device when hearing the “click” and indicating the correct intake of the drug.
- Inhale: inhalation using the device without releasing the drug (absence of the “click” sound) either due to pure inhalation or non-arming of the device and indicating the wrong intake of the drug.
- Button Press: sound produced when button is pressed.
- Exhale: exhaling of the patient away from the inhaler.
Data Pre-Processing
2.2. Silence Removal
2.3. Feature Extraction
2.3.1. Mel Frequency Cepstral Coefficients
2.3.2. Zero Crossing Rate
2.3.3. Root Mean Square Energy
- The signal is divided into windows.
- For each window, each sample value is squared (multiplied by itself).
- The average is obtained.
- Calculate the square root of the mean.
2.3.4. Spectral Flatness
2.3.5. Spectral Centroid
2.3.6. Spectral Roll-Off
3. Results
3.1. Classification
3.2. Post-processing

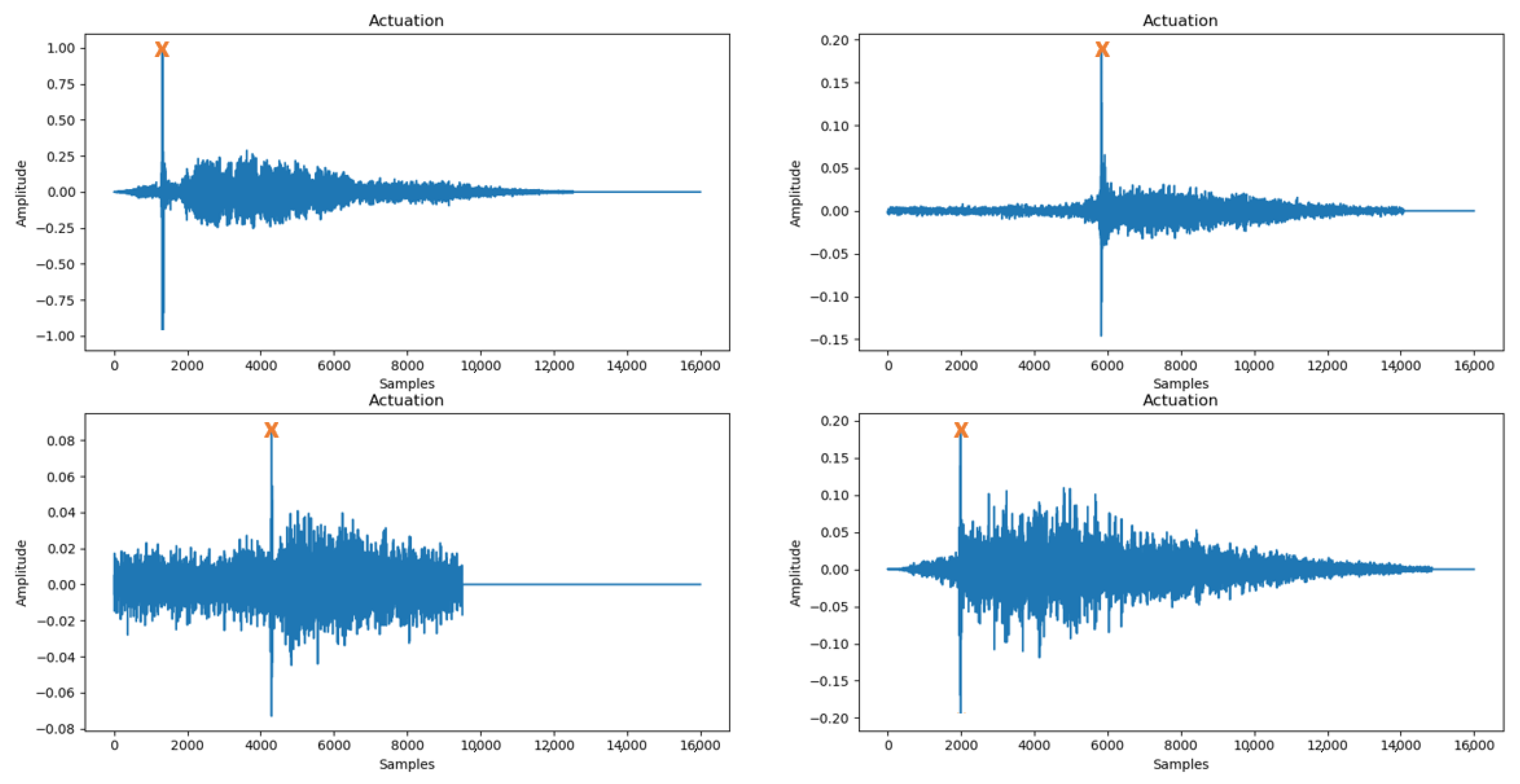

- Take as input the segments classified as Actuation or Inhale.
- Calculate the average signal width.
- Detect peaks in the first 0–8000 samples of the signal.
- Find the maximum peak.
- Perform a comparison between the maximum peak value detected in the range of the samples and the average width of the signal. If (maximum peak—average width) is greater than 90% then the event is classified as Actuation. Otherwise as Inhale.
3.3. Inference Times
4. Discussion
5. Conclusions
6. Future Work
