Inference of Drawing Elements and Space Usage on Architectural Drawings Using Semantic Segmentation

Abstract

Artificial intelligence presents an optimized alternative by performing problem-solving knowledge and problem-solving processes under specific conditions. This makes it possible to creatively examine various design alternatives under conditions that satisfy the functional requirements of the building. In this study, in order to develop architectural design automation technology using artificial intelligence, the characteristics of an architectural drawings, that is, the architectural elements and the composition of spaces expressed in the drawings, were learned, recognized, and inferred through deep learning. The biggest problem in applying deep learning in the field of architectural design is that the amount of publicly disclosed data is absolutely insufficient and that the publicly disclosed data also haves a wide variety of forms. Using the technology proposed in this study, it is possible to quickly and easily create labeling images of drawings, so it is expected that a large amount of data sets that can be used for deep learning for the automatic recommendation of architectural design or automatic 3D modeling can be obtained. This will be the basis for architectural design technology using artificial intelligence in the future, as it can propose an architectural plan that meets specific circumstances or requirements.

1. Introduction

The use arrangement of a building space is created based on the expertise and experience of a design expert, and is a complex result of a wide variety of factors related to the use, scale, environment, and regulations of the building itself [1]. Therefore, automating architectural design has a lot of difficulties because it has a deep relationship with humans own creative domain. This is because it is difficult to describe and express architectural drawings with a few simple rules because very complex knowledge and experience must be combined.

As a modern machine learning method, deep learning is increasingly used to achieve the state-of-the-art performance in many fields including computer vision, natural language processing and bioinformatics [2]. Recently, with the rapid development of artificial intelligence technology, there are increasing attempts to apply artificial intelligence technology to urban and architectural design [3]. However, in the field of architecture, research such as design automation has been continuing for a long time, but it is difficult to find remarkable growth or development announcements [4]. Artificial intelligence presents an optimized alternative by performing problem-solving knowledge and problem-solving processes under specific conditions. This makes it possible to creatively examine various design alternatives under conditions that satisfy the functional requirements of the building [5]. In this study, in order to develop an architectural design automation technology using artificial intelligence, the characteristics of architectural drawings, that is, the architectural elements and the composition of spaces expressed in the drawings, were learned, recognized, and inferred through deep learning.

Classification, localization/detection, and segmentation are image-related techniques most widely used in computer vision. Classification is a task of predicting a label for an input, Localization/detection provides information by drawing a bounding box at the spot where the object is located predicting the label for an object. Semantic segmentation supports many computer vision applications across multiple domains, as the identification of the region of interest increases the accuracy of the final result.

Semantic segmentation has been one of the leading research interests in computer vision recently [6]. Semantic segmentation does not represent an object in a static range such as a bounding box but predicts the object in pixels and separates the target pixel area into meaningful units when detecting an object in an image. It not only checks which object exists in the image in a semantic unit, but also identifies the spatial feature of the object and reflects it in the segmentation result [7]. Therefore, in the case of drawings representing architectural spaces with many symbolic expressions, semantic segmentation is considered to be a suitable technique for grasping the relationship between space and space or between drawing elements.

Many semantic segmentation approaches are based on CNNs (convolutional neural network) and FCN (fully convolution network). CNNs are at the core of an FCN, which employs forward skip connections from the downsampling layers to the upsampling layers to offset the downsampling effect and thus avoid feature deterioration and enhance the inference process. But, FCN shows limitations with time, such as mismatched relationships, and unclear classes. To avoid the limitations of FCN resolution, Deeplab consider two types of neural networks that use spatial pyramid pooling module or encoder-decoder structure for semantic segmentation, where the former one captures rich contextual information by pooling features at different resolution while the latter one is able to obtain sharp object boundaries [8,9].

The biggest problem in applying deep learning in the field of architectural design is that the amount of publicly disclosed data is absolutely insufficient and that the publicly disclosed data also has a wide variety of forms [10]. Using the technology proposed in this study, it is possible to quickly and easily create labeling images of drawings, so it is expected that a large amount of data sets that can be used for deep learning for automatic recommendation of architectural design or automatic 3D modeling can be obtained.

2. Related Works

As part of the literature review, this paper analyzes some architecture-related articles published in top-ranked international journals claiming high Impact Factors. The present analysis of related works is focused on top three journals covering architecture, design, BIM (Building information modeling), computing technology, construction, and engineering among top ten journals. Specifically, a total of 43 articles on AI, machine learning and deep learning applications published over the past three years (January 2018~May 2020) in the field of architecture are analyzed. Specifically, a total of 43 articles on AI, machine learning and deep learning applications published over the past 3 years (January 2018~May 2020) in the field of architecture are analyzed. As shown in

Table 1. Journal information and number of articles analyzed in this study.

NO	Journal	Publisher	Field	IF	Number of Articles Analyzed in This Study
1	computer-aided civil and infrastructure engineering	WILEY	Development and application of computing technology	5.4	10
2	Automation in construction	ELSEVIER SCIENCE BV	Construction automation	4.0	25
3	Advanced Engineering informatics	ELSEVIER SCIENCE BV	Engineering application	3.7	8

, the scholarly articles published in the following top three journals are analyzed.

In this paper, Section 2.1 analyzesd prior research related to artificial intelligence, machine learning, and deep learning technologies in the construction field, and Section 2.2 analyzesd prior research related to the architectural design phase.

2.1. Field of Engineering and Construction

Previous studies applying artificial intelligence technology in the field of construction was have been a lot significantly related to safety and can be divided into construction safety and structural safety.

2.1.1. Construction Safety

Among the scholarly articles published over the past three years, the largest number of articles explored the application of AI, machine learning and deep learning techniques to construction safety. Mostly, the previous studies concerned the recognition of actions involving human behavior identification, vehicle detection, and structure detection on construction sites and proposed some object detection techniques for safety monitoring. In relation to the safety prediction with the recognition of actions in computer vision, a study observed and identified unsafe actions on construction sites from 2D images to predict safety [11]. As for the safety monitoring, a study proposed a collision monitoring system, which recognized the 3D spatial correlation between workers and large vehicles [12]. Notably, Saeed Arabi et al. [13] experimentally demonstrated an accuracy of over 90% in identifying the types of vehicles through image recognition with deep learning using a dataset of construction vehicle images. Also, Ling Chena et al. [14] performed an efficient detection of semantic domains through the image labeling boxes for a real-time event detection on construction sites. Taken together, the previous studies on safety monitoring mostly proposed the methods of object detection.

2.1.2. Structural Safety

Most structure safety studies analyzed here explored the bridge cracks in civil engineering. A study used a convolutional autoencoder to detect the defects on concrete structures [15]. Another study used the real-time object detection technique YOLOv3 for surface damage detection [16]. Both reports may be extended to the field of architecture using concrete structures. Particularly, a study on architecture-related structure safety identified the roof surface damage information relevant to historic buildings by using 100 roof images for training with the Mask R-CNN and convolutional networks, and verified the viability for the automatic measurement of damaged areas and ratios [17]. Also, Lichen Wang et al. [18] used 1953 ceiling images and the CNN for training to measure the contour of damaged domains. Thus, the previous studies on architecture-related structure safety mostly experimentally demonstrated if deep learning techniques could address the limitations of visual inspection.

2.2. Field of Architectural Design

Applying AI, machine learning and deep learning techniques to architectural design was rarely documented in the past. By contrast, according to the present analysis of the previous studies on image recognition published in the field of architectural design over the past three years, lots of relevant articles have been published in 2020. The previous studies on image recognition published over the past three years in the field of architectural design largely delved into four themes, i.e., ‘automatic plane generation’, ‘space generation and space recognition’, ‘recognition of structural members’, and ‘recognition of elevation.’

2.2.1. Automated Floor Plan Design

Abdullah AlOmani et al. [19] performed the segmentation of natural images and used an algorithm that analyzed the image segments to extract their domains and borders in order to automatically generate initial and optimal architectural layouts in accordance with designers’ requirements (area and room adjacency). Also, Nitant Upasani et al. [20] proposed a methodology of using deep learning to automatically compose the RFP of rectangular floor plans in line with user-defined initial space dimensionality and adjacency requirements. Both studies applied the image segmentation to automatically generate rough planes at an early stage of design.

2.2.2. Space Generation/Space Recognition

Along with the foregoing studies on automatic plane generation, studies on space generation and space recognition have been published in recent times. Fan Yang et al. [21] reconstructed 3D interior models with laser scanning and enabled the recognition of the architectural element constraints through deep learning for the segmentation and recognition of the semantic structure of interior space. Salman Khalili-Araghia et al. [22] developed a customized housing system which uses BIM to learn about the constraints of stratified object relations and dimensionality and tested the proposed automatic house design plans. This is the first study that applied both the automatic plane generation and space generation techniques to propose an AI-based automatic design.

2.2.3. Recognition of Structural Members

Thomas Czerniawski et al. [23] explored a methodology of visual object recognition for automating the digital modeling by recognizing the class information of BIM including walls, ceilings, doors and windows. Also, with scanning techniques utilized in design, many studies extracted objects from scanned data and automated the identification of structural members through image recognition. Yujie Wei et al. [24] proposed a method of recognizing the objects in interior space through scanning, automatically classifying them with semantic mapping, and applying the results to the maintenance of facilities. Therefore, the previous studies on the recognition of structural members indicate the research trend has developed toward the integration of diverse data involving BIM data, scan data, virtual reality, and augmented reality.

2.2.4. Recognition of Elevation

It is hard to find previous studies on elevation image recognition, except one intended to propose the automatic facade design and reflecting it in practical design. Fatemeh Hamid-Lakzaeian [25] applied the segmentation technique to enable the recognition of the openings and overhangs of historic buildings from their facade scan data, and generated virtual facade design plans.

The aforementioned analysis of previous studies concerning the image recognition in design shows that relevant research is still in its early stage, which underscores the need for further descriptive studies. With the rapid advancement of artificial intelligence technology, new technological development is now viable rather than the automation of simple modeling based on existing rules and logics. Hence, it is essential for architectural design to make use of AI-based image recognition techniques such as GAN (generative adversarial network), CNN, and reinforcement learning for intelligent studies, so as to generate and propose diverse design plans.

3. Model Structure of Semantic Segmentation

Semantic segmentation refers to predicting objects’ pixel units to sort their pixel domains into meaningful units, not representing them as static ranges such as bounding boxes, when detecting objects in images. To add to the performance of segmentation, it is crucial not only to determine the objects in images in terms of semantic units, but also to identify the objects’ spatial features and reflect them in the results of image segmentation. In this study, among the segmentation network models, we conducted experiments with DeepLabV3+, which has the best performance compared to other networks in both the image dataset (Camvid) taken by car and the pascal voc dataset, which is widely used as data for computer vision challenge [26]. DeepLabV3+ can obtain multi-scale information when the object scale of the image is varied by grafting the encoder-decoder structure to the atrous convolution.

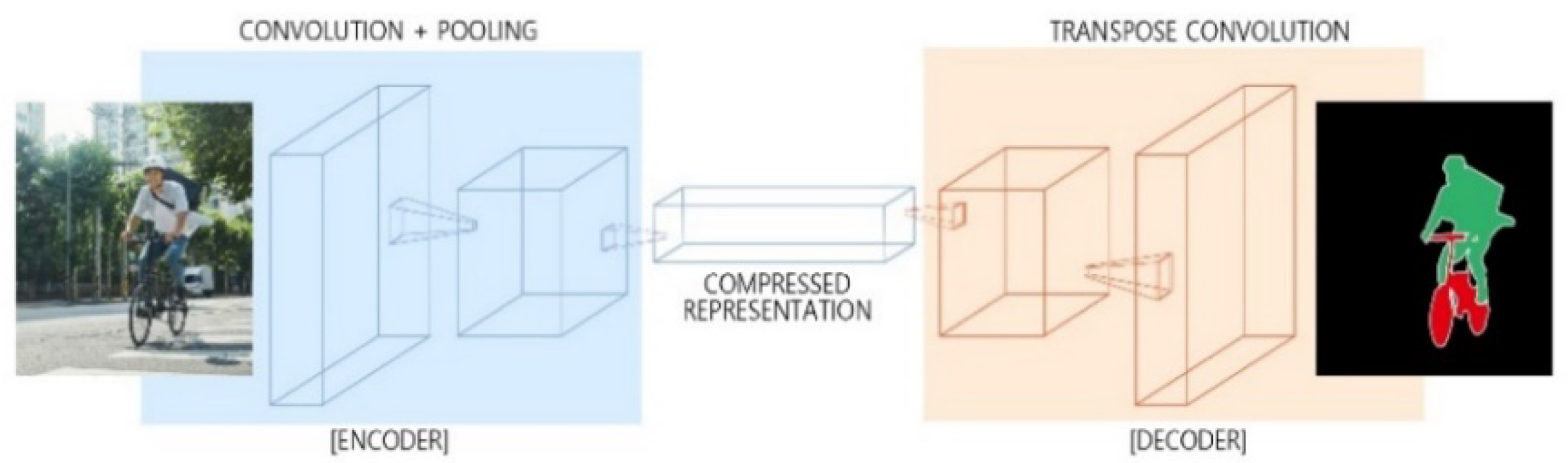

3.1. Encoder-Decoder

Deep neural networks widely used for classification, such as AlexNet and VGG (Visual Geometry Group), are not suitable for semantic segmentation, since those models have a layer, which reduces the number and dimensionality of parameters, causing the loss of detailed location information. To address the challenge, semantic segmentation models usually have downsampling & upsampling [27]. This concept is shown in Figure 1.

Downsampling reduces the dimensionality for the sake of a deep convolution with less memory. A convolution with two or more strides or pooling is often used. Information about features is lost in downsampling [28]. At the end of downsampling, a fully connected network (FCN) is usually used without inserting a fully-connected layer. Since the FCN model suggested the foregoing method, most models have used this method. Upsampling is a process of increasing the dimensionality of the result received from the downsampling to the same dimensionality as that of inputs. In upsampling, FCN, SegNet, and UNet are well-known models that have the encoder-decoder types.

3.2. Atrous Convolution

Atrous convolution is an effective technique to enlarge the field-of-view of filters at any convolutional layer. This structure catches more features without adding to the computation [29]. Atrous convolution uses another parameter called the dilation rate, which defines the spacing placed between values to be used in a kernel. In an ordinary convolution where a kernel has no spacing, the dilation rate is defined to be one. When a 3 × 3 kernel has a dilation rate of two, its actual field of view becomes equivalent to that of a 5 × 5 kernel. In this way, a wider field of view is secured at the same computational cost.

Atrous convolution delivers better performance than the downsampling-convolution-upsampling process. Still, if a fixed rate is applied when using the atrous convolution, the filter size is fixed and only limited features can be found among other various features. To address this challenge, different sizes of rates are used, which is called the atrous spatial pyramid pooling, or ASPP [30]. DeepLabV3+ is a model where those two structures are incorporated. The encoder properly uses the atrous convolution, and the resultant feature map is placed in the decoder.

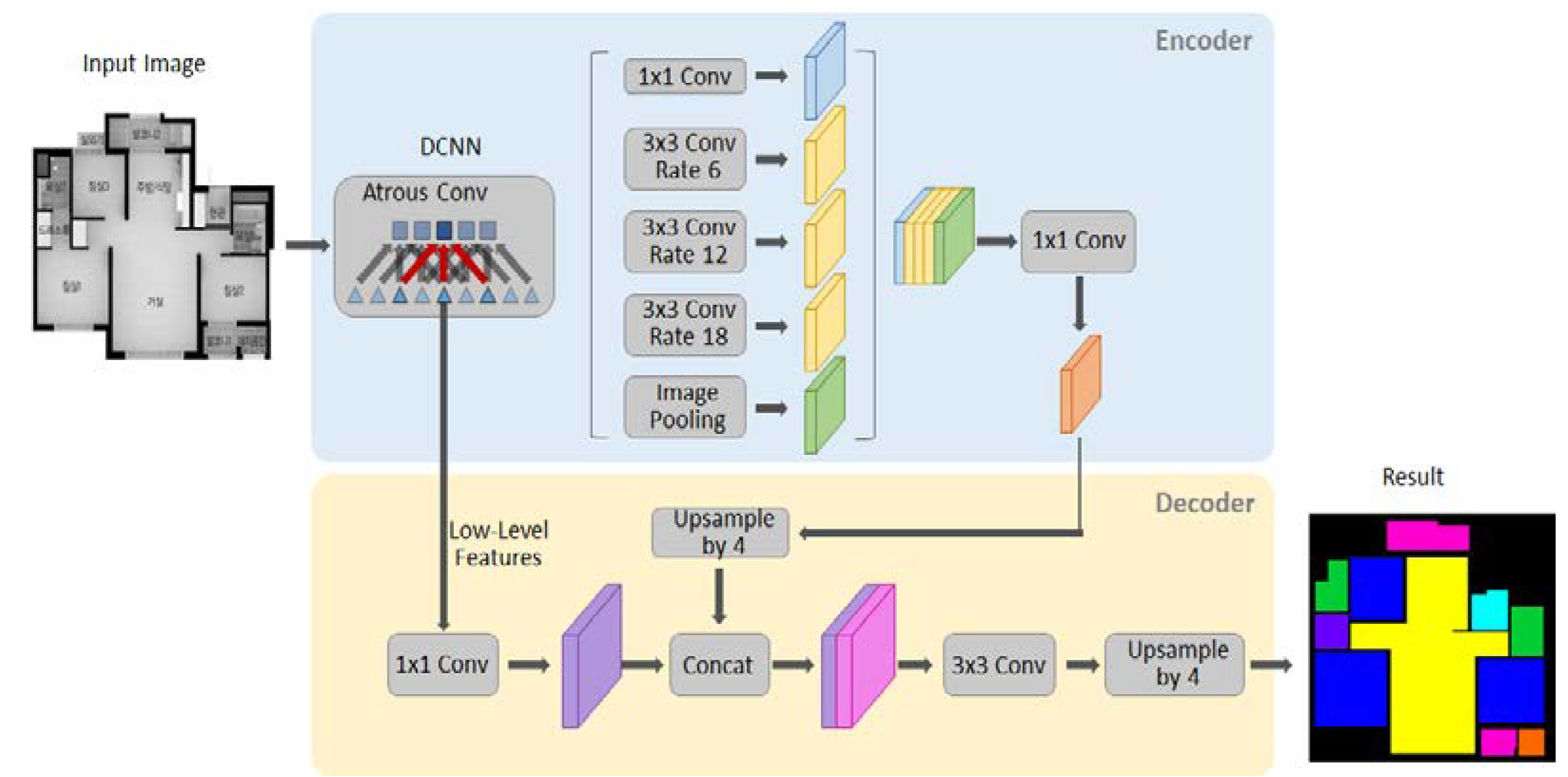

3.3. DeeplabV3+

The resolution of the feature map gained from the encoder is 16 times lower than that of the original image. (Output Stride: 16). In the decoding for an effective recovery of image details, low-level features are included. 16 was selected as it was a good trade-off point of velocity and accuracy based on the experimental results. The ‘rate’ in the ASPP structure means the dilation rate of the atrous convolution. The 1 × 1 Conv is applied to the low-level features to reduce the output from the encoder and channels. Given 48 channels were experimentally proved to deliver the best result, 48 channels are applied to the low-level features. The 3 × 3 Conv is lastly performed in the decoder to bring a sharper result to the edge of the object. In the last part of the encoder, the 1 × 1 convolution is performed for upsampling followed by the dimensionality reduction and then concat. This is similar to the U-Net structure [8,28,30,31].

The backbone networks used in DeepLab v3+ are Xception and ResNet-101. In this study, despite not much difference in performance found between the two networks, Xception performed marginally better when its structure was slightly altered. To apply the atrous separable convolution, all pooling was replaced with the depth-wise separable convolution, and following each 3 × 3 depth-wise convolution, batch normalization and ReLU function were added. DeepLab V3 uses the ResNet pre-trained on ImageNet as the default feature extractor. In the final block of ResNet, the atrous convolution with multiple dilation rates is used to extract different sizes of features. Also, the atrous spatial pyramid pooling (ASPP), which was introduced in the earlier Deeplab version, is used. It is not a new idea but a model where the attributes of high-performance models are incorporated. The convolution uses kernels with diverse dilation rates in parallel. [8,28,30,31]

4. Experiment

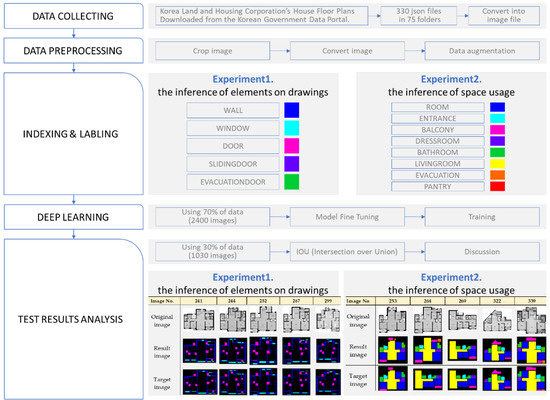

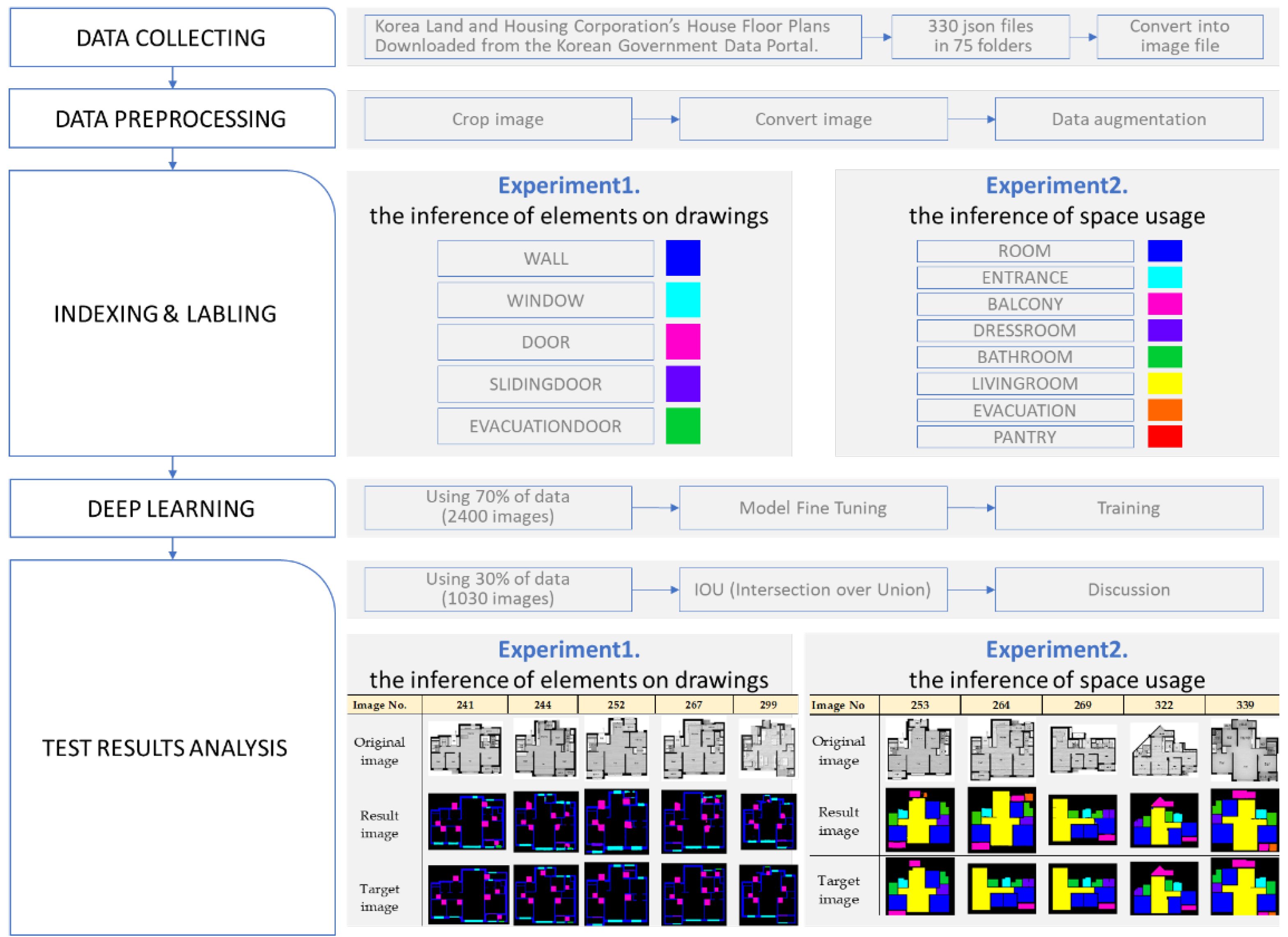

This study used DeepLabV3+ to conduct an experiment on the automatic recognition and inference of the drawing elements and space usage on architectural drawings. Given the varying purposes or sizes of buildings and the resultant differences in the composition of planes, this study was limited to apartment houses. The elements on architectural drawings were classified into five types, viz. walls, windows, hinged doors, sliding doors, and evacuation doors, and the space usage into 8 types, viz. rooms, entrances, balconies, dress rooms, bathrooms, living rooms, evacuation space, and pantries (with backgrounds excluded). The experiment process is shown in Figure 2.

4.1. Data Collecting

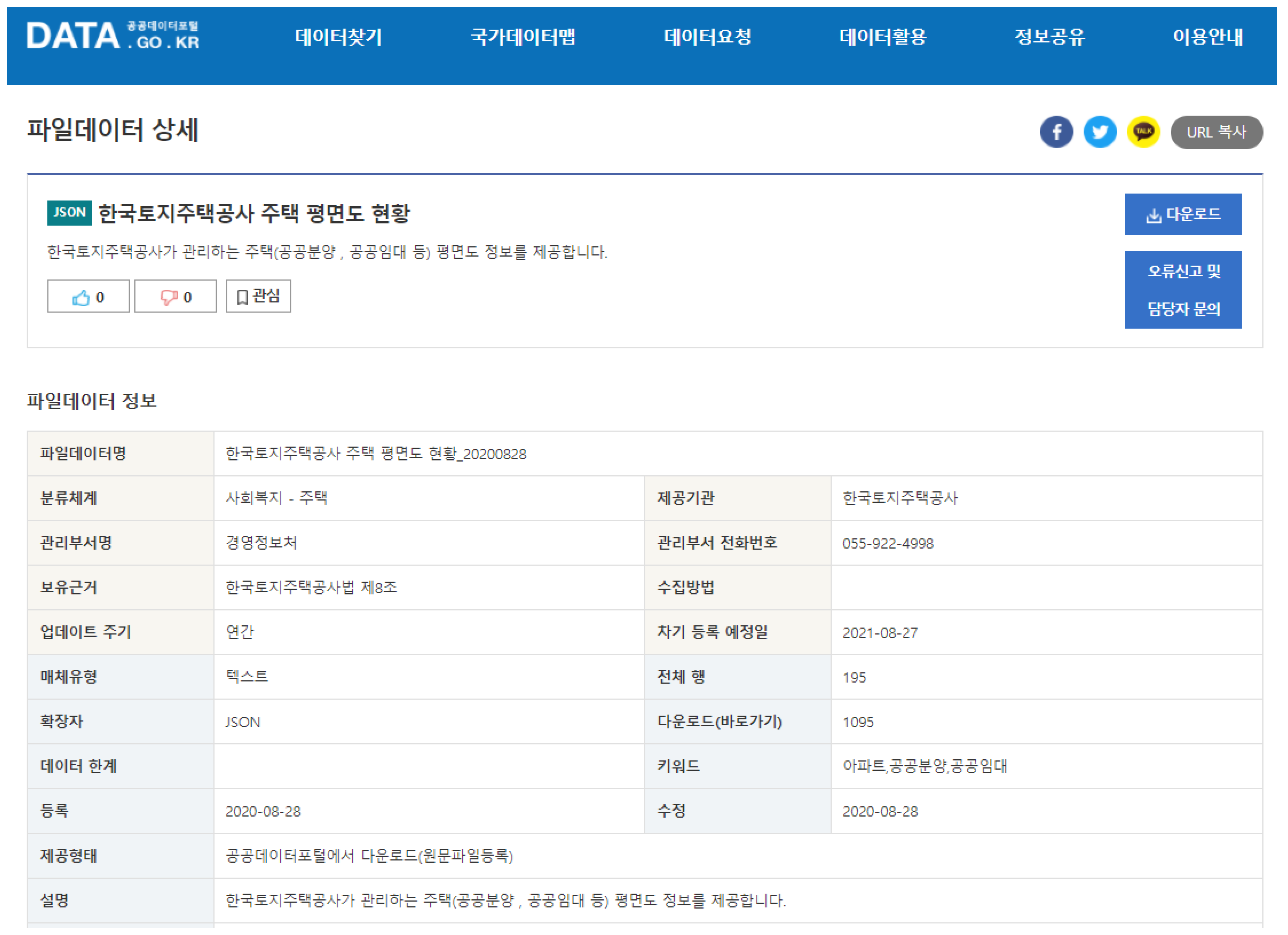

As shown in Figure 3, Korea Land and Housing Corporation’s House Floor Plans (August 2019) published in the json file format on data.go.kr was used as the data for this study. The data includes 330 json files in 75 folders. The json (JavaScript Object Notation) file format is an open standard format using human readable texts to deliver the data objects composed of attribute–value pairs and array data types (or any other serializable value) or “key-value pairs.” Carrying minimal connotative information, the format is characterized by lightweight volumes and fast parsing. Therefore, it is often used for bulk data interchange. The json data files are uploaded on the government data portal (https://www.data.go.kr/).

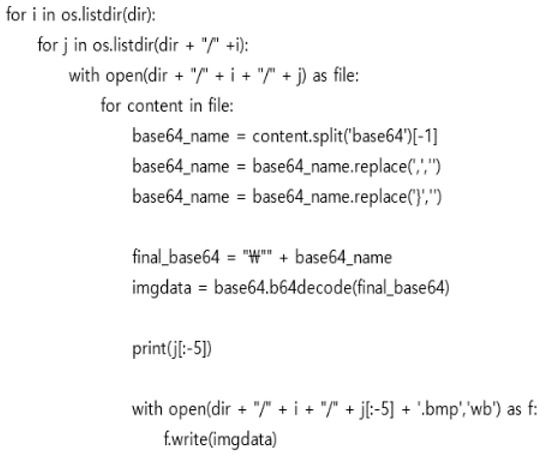

As shown in Figure 4, Python was used to convert the collected files to 330 image files which included 368 floor plans. Excluding nine 3D, not 2D, isometric drawings and 16 drawings whose resolution was too low for learning, 343 image files of floor plans were obtained.

4.2. Data Preprocessing and Labeling

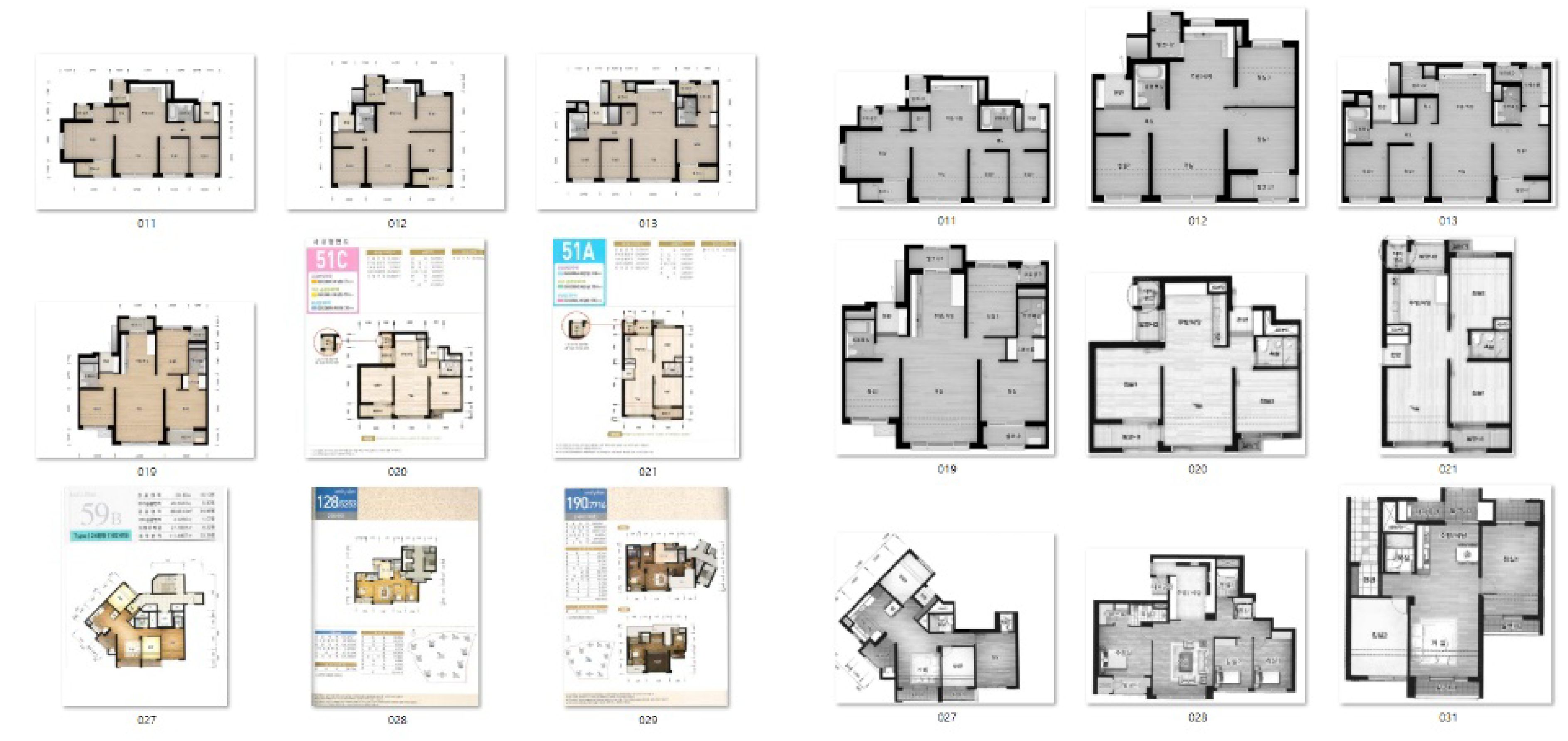

The image preprocessing process for learning is shown in Figure 5 below. The images were cut in a way that a single image carried a single drawing. Each drawing was placed at the center so that any elements other than the drawing were not included in each image. Then, to prevent the colored drawing from hindering the learning, the entire images were converted into black and white ones.

In deep learning, insufficient data are likely to cause overfitting, in which case a model generated based on training performs the image segmentation smoothly with the existing data but not with new data. To avoid overfitting, the data augmentation [32] was adopted in this experiment. The data augmentation helps improve the performance of a model by adding fake data when the dataset to be used for training the model is insufficient. A few operations including flipping, brightness variation, coordinate translation, rotation and zooming may be used to augment the data. In the present experiment, given the formulaic characteristics of drawings, the pixel shifting was applied to the original and target data, with ten pixels moved up and down and to the left and right.

When the histogram of an image is concentrated too much on a certain domain, it is far from a good image due to the low contrast. The contrast evenly distributed across all domains makes a good image. Therefore, as the image processing technique ensuring a good image, the histogram equalization was applied. In the process, to avoid extreme darkness or brightness, the CLAHE (contrast limited adaptive histogram equalization, which controls the contrast by imposing limits) was applied to the original images. Thus, 3430 pieces of data, which were ten times more than the original data, were obtained, with 70% (2400) and 30% (1030) used as the training and test data, respectively.

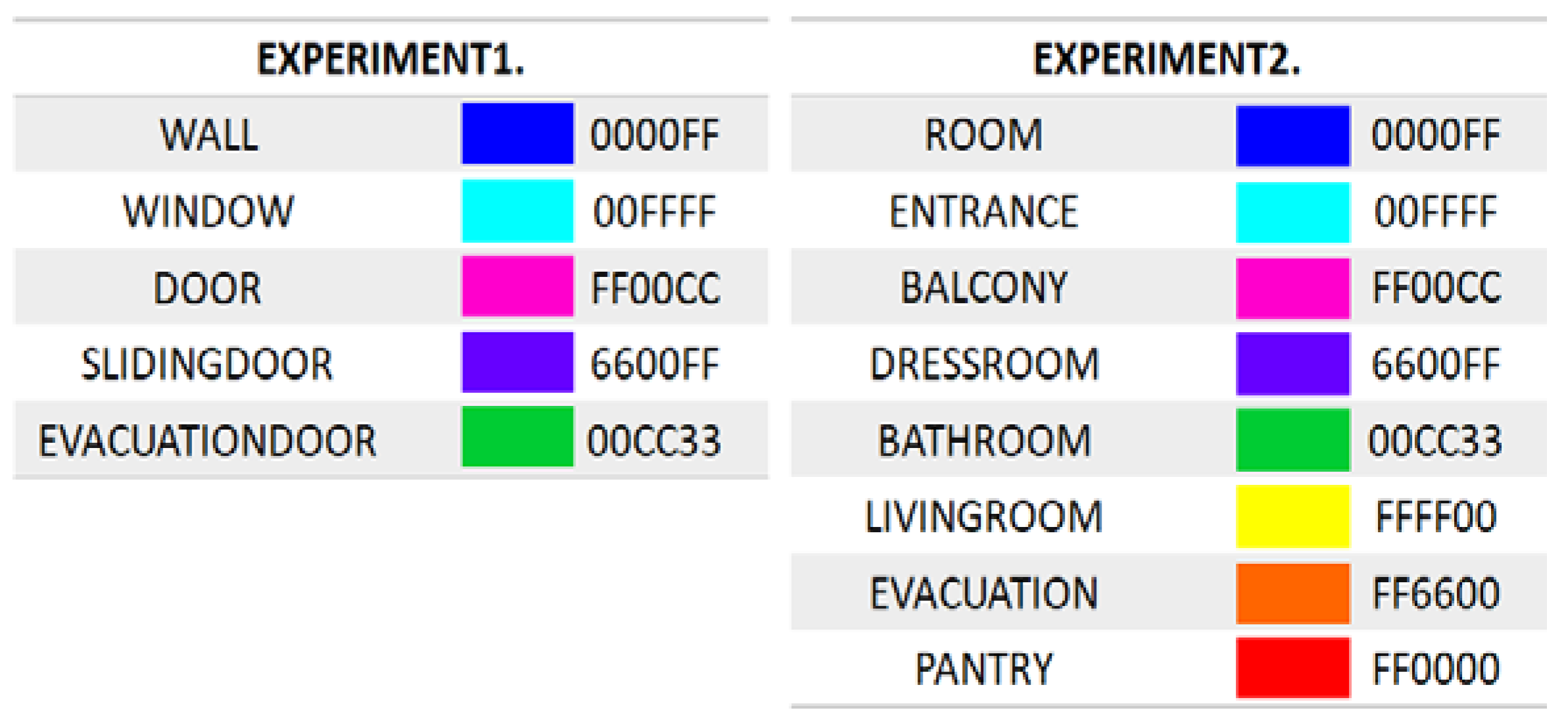

The experiment largely comprised two parts. The first part concerned the recognition of such elements as walls, doors, windows on drawings, while the second part concerned the recognition of such space as rooms, living rooms and bathrooms. The elements on architectural drawings were classified into five elements, i.e., walls, windows, hinged doors, sliding doors and evacuation doors. The space usage was classified into seven types, i.e., rooms, entrances, balconies, dress rooms, bathrooms, living rooms, evacuation space, and pantries.

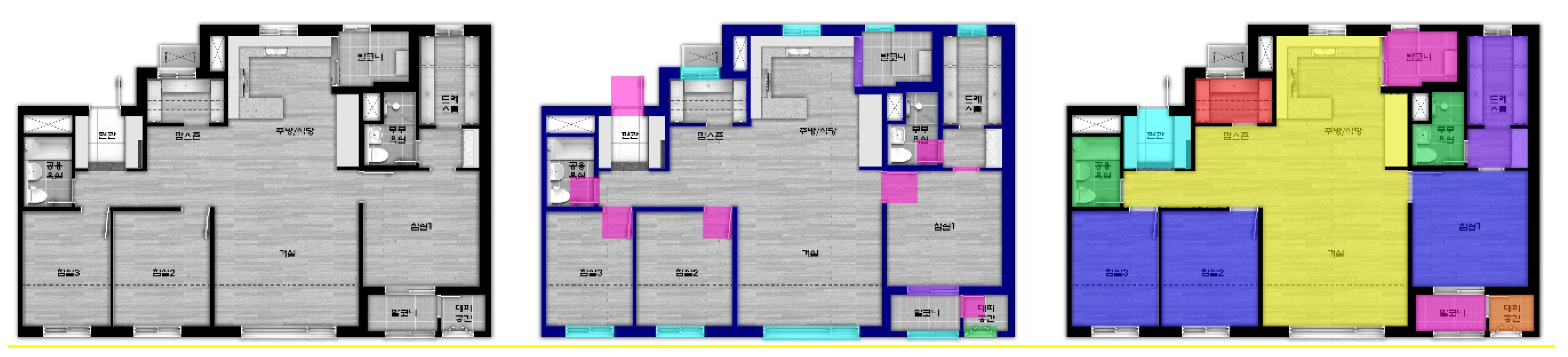

As shown in the Figure 6 below, each of the 343 images of drawings to be used for the training and test underwent the labeling (Figure 7) based on the foregoing indexing.

4.3. Customization of Deep Learning Model

In this study, we built a network that infers drawing elements and usage of space through ‘transfer learning’ that re-learns by changing a specific layer to an existing learned model, rather than creating a new layer from scratch. Transfer learning is transferred to a target network and fine-tuned, and the remaining weights in the target network are set with the available training dataset, offers one means of overcoming the problem of limited data. Fine-tuning [33] begins with copying (transferring) the weights from a pre-trained network to the network we wish to train. The exception is the last fully connected layer whose number of nodes depends on the number of classes in the dataset. Transfer [34] learning can be implemented quickly and easily by using a pretrained network as a starting point. By training the network on a new data set, it has the advantage of fine-tuning the deeper layers of the network.

The original layer architecture of Deeplab was maintained in our implementation. In the last layer and output part of the decoder part, the class has been modified to fit 9 element recognition and 6 spatial use recognition. As input data, 2400 image files, 70% of the 3430 image data, were used for training, and 1030 data corresponding to the remaining 30% were used for testing. The training process is shown in Figure 8 [8]. In the encoder, it is first bilinearly upsampled to quadruple bilinear and then linked to the corresponding lower-level features of the network backbone with the same spatial resolution. Then, because lower-level features can contain many channels that can generally make training more difficult, another convolution is applied to lower-level features to reduce the number of channels. The feature is then reconstructed by applying several 3 × 3 convolutions, and another simple bilinear upsampling is quadrupled. The explanation for this is shown in Figure 8.

5. Result Analysis

The drawing elements inference result and the space usage inference result were separated and analyzed, and MIOU (mean intersection over union) was used as the accuracy evaluation index. Intersect over union (IOU) is a metric that allows to evaluate how similar a predicted bounding box is to a Ground Truth bounding box. The IOU is very intuitive to interpret because the ratio of the area where the two boxes overlap is compared to the total combined area of the two boxes.

A score of 1 means that the predicted bounding box exactly matches the actual bounding box, and a score of 0 means that the predicted and actual bounding boxes do not overlap at all. The MIOU is the mean-iou, referring to the mean IOU of all classes in an image.

5.1. Results of Recognition and Inference of Drawing Elements & Analysis of Accuracy

Firstly, the experimental results of the inference of drawing elements are outlined in the

Table 2. Original image, result image, target image of experiment1.

Image No.	241	244	252	267	299
Original image
Result image
Target image

below. Overall, the inferred images parallel the target images, with doors, windows, and sliding doors inferred as well.

The experimental results are shown in

Table 3. IOU of experiment1.

NO.	CLASS	IOU
1	WALL	0.9374
2	DOOR	0.9070
3	WINDOW	0.7864
4	SLIDINGDOOR	0.8025
5	EVACUATIONDOOR	0.4489
	BACKGROUND	0.9585
	MIOU	0.8068
	Average excluding EVACUATIONDOOR	0.8783

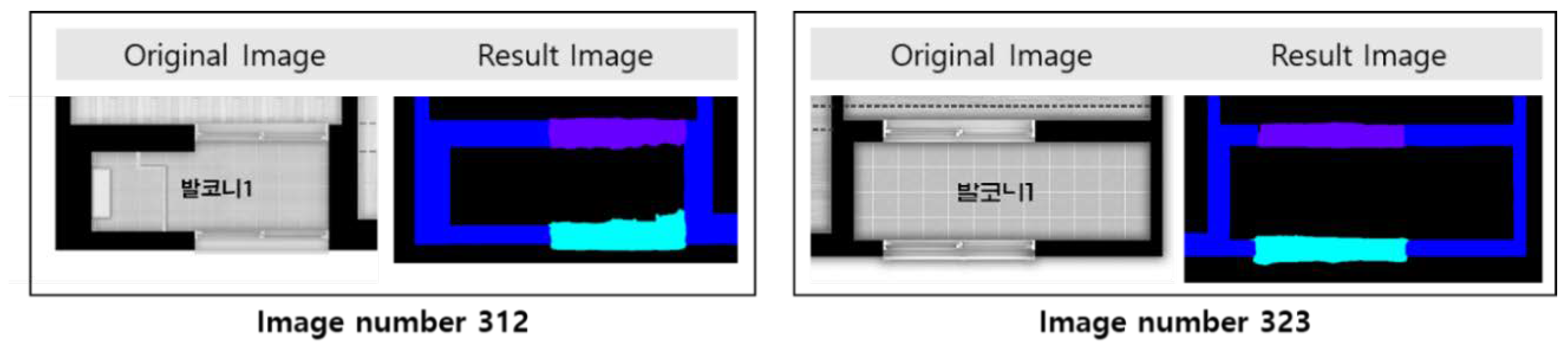

. The notably high IOU of the EVACUATIONDOOR class is attributable to the fact that evacuation doors are represented on less than 50% of all the drawing image data for the training and test, which may have led to an absolute lack of learning, impeding the inference. Except the EVACUATIONDOOR class, the mean IOU is 0.8783. Also, in that the sliding doors are distinguished from the windows despite the difference between the two on the drawings being hardly visible to the naked eye, as shown in the figure below, the semantic segmentation allows not only the recognition of the objects in the images at the level of their semantic units, but also the detection of their spatial features. (Figure 9).

5.2. Results of Recognition and Inference of Space Usage & Analysis of Accuracy

Secondly, the experiment on the inference of space usage returned the following

Table 4. Original image, result image, target image of experiment2.

Image No	253	264	269	322	339
Original image
Result image
Target image

results.

In

Table 5. IOU of experiment2.

NO.	CLASS	IOU
1	LIVINGROOM	0.9708
2	ROOM	0.9390
3	BATHROOM	0.9542
4	BALCONY	0.9235
5	DRESSROOM	0.7937
6	ENTRANCE	0.9071
7	EVACUATION	0.4556
8	PANTRY	0.4553
	BACKGROUND	0.9580
	MIOU	0.8175
	Average excluding EVACUATION and PANTRY	0.9209

, the accuracy of the inference of pantries and evacuation space is notably low, which may be explained by the fact that the pantries and evacuation space are represented on some, not all, drawings, as in the case of the evacuation doors in the experiment on the inference of drawing elements. Except the pantries and evacuation space, the overall MIOU is 0.9209.

6. Conclusions

This study was intended to obtain large quantities of datasets by using deep learning for the automatic training with architectural drawings and enabling the automatic recognition, inference and labeling of the drawing elements and space usage represented on architectural drawings. To that end, GOOGLE DeepLabV3+ was used with the floor plans of apartment houses in the experiment. As a result, the accuracy of the inference of such elements as walls, doors, windows and sliding doors from the floor plan images reached 87.83%, while the accuracy of the inference of such space as living rooms, rooms, bathrooms, balconies, and entrances was 92.09%.

The low accuracy found in this study was analyzed in terms of three aspects. First, the data were insufficient. Excluding government-owned corporations such as Korea Land & Housing Corporation, private companies as well as their design sub-contractors hardly publish their architectural drawings and relevant data, which is adverse to the collection of floor plan data. Therefore, in this study, the pixel shifting was conducted for data augmentation as well as other applicable techniques such as flipping or rotation. Second, as for the size of the training data, larger images led to low accuracies. Subsequently, the re-training with the re-sized smaller images proved conducive to higher accuracies. This finding warrants the need for the additional pre-processing of limiting the sizes of images. Yet, when not only the geometry, but also the dimensionality on architectural drawings is to be used, the scales need be kept intact. Any random adjustment of the sizes of images makes it difficult to recognize the scales, which should be taken into account. Third, the accuracy was lower on the drawings where each space was unlabeled than those where the name of each space was present. This result seems attributable to the fact that the difference between the rooms and living rooms on the drawings is vague to the naked eye. To address the challenge, as aforementioned, large amounts of data with names unspecified may be used for training. Alternatively, the hybrid approach of incorporating the deep learning-based image segmentation and the rule-based coding is applicable as attempted in this study. The hybrid approach has already been documented and proved more accurate than the approach of using the deep learning only. In the case of rooms and living rooms that are not easy to distinguish based on their geometric forms, rules such as the number or geometry of openings and the correlation between rooms may be added to increase the accuracy.

Each of the two experimental categories proposed in this study is applicable in practice. First, the recognition of the drawing elements is applicable to the automatic generation of a 3D model for each object, combination of the elements, and future automation of 3D modeling. Also, the recognition of walls and openings is applicable to generating the evacuation paths and calculating the evacuation distances. Moreover, it may be applicable to the automatic calculation of the window and wall areas and the analysis of building energy ratings involving window area ratios. Second, the recognition of space enables the training with large quantities of architectural design plans and allows the generation of virtual drawing images using network models including GAN. If the rules necessary for constructing the architectural space are added to the process, some construction plans fit for specific situations or requirements can be proposed, which will lay the foundation for future AI-based architectural design techniques.

This study is a study to construct a learning data set essential for deep learning implementation as an early stage for developing artificial intelligence architectural design technology. Using the method proposed in this study, it is possible to generate a large amount of labeled data, and it can be used to implement artificial intelligence-based architectural design. If more data and more advanced network models are used in the future, compared to the existing design method that relies only on the knowledge and experience of experts, it is not only superior in terms of efficiency, but also in terms of accuracy because it is based on a large amount of quantitative data. It seems to be possible, This should be considered in future research projects.
