TiO2 Nanostructured Films for Electrochromic Paper Based-Devices

by
Daniela Nunes
1,*,
Tomas Freire
1,
Andrea Barranger
1,
João Vieira
1,
Mariana Matias
1,
Sonia Pereira
1,
Ana Pimentel
1,
Neusmar J. A. Cordeiro
1,2,
Elvira Fortunato
1 and
Rodrigo Martins
1,*
1
i3N/CENIMAT, Department of Materials Science, Faculty of Sciences and Technology, Universidade NOVA de Lisboa and CEMOP/UNINOVA, 2829-516 Campus de Caparica, Caparica, Portugal
2
Physics Department, Londrina State University, Rodovia Celso Garcia Cid, PR 445, km 380, Londrina 86057-970, Brazil
*
Authors to whom correspondence should be addressed.
Appl. Sci. 2020, 10(4), 1200; https://doi.org/10.3390/app10041200
Submission received: 15 January 2020 / Revised: 6 February 2020 / Accepted: 7 February 2020 / Published: 11 February 2020
(This article belongs to the Special Issue Metal-Oxide Nanostructures: From Photocatalysis to Energy)
Browse Figures
Versions Notes

Abstract

:
Electrochromic titanium dioxide (TiO2) nanostructured films were grown on gold coated papers using a microwave-assisted hydrothermal method at low temperature (80 °C). Uniform nanostructured films fully covered the paper substrate, while maintaining its flexibility. Three acids, i.e., acetic, hydrochloric and nitric acids, were tested during syntheses, which determined the final structure of the produced films, and consequently their electrochromic behavior. The structural characteristics of nanostructured films were correlated with electrochemical response and reflectance modulation when immersed in 1 M LiClO4-PC (lithium perchlorate with propylene carbonate) electrolyte, nevertheless the material synthesized with nitric acid resulted in highly porous anatase films with enhanced electrochromic performance. The TiO2 films revealed a notable contrast behavior, reaching for the nitric-based film optical modulations of 57%, 9% and 22% between colored and bleached states, at 250, 550 and 850 nm, respectively in reflectance mode. High cycling stability was also obtained performing up to 1500 cycles without significant loss of the electrochromic behavior for the nitric acid material. The approach developed in this work proves the high stability and durability of such devices, together with the use of paper as substrate that aggregates the environmentally friendly, lightweight, flexibility and recyclability characters of the substrate to the microwave synthesis features, i.e., simplicity, celerity and enhanced efficiency/cost balance.

Graphical Abstract

1. Introduction

Titanium dioxide (TiO2) is a versatile material being investigated for applications ranging from photocatalysis [1,2,3,4,5], dye-solar cells [6,7], sensors [8,9,10,11] to electrochromic devices (EC) [12,13,14]. In recent years, the use of TiO2 integrated on electrochromic devices has been increasing exponentially [15,16,17,18], also in association with tungsten oxide (WO3), which is the most widely studied electrochromic material [19,20,21,22,23,24].
A material is considered electrochromic when a reversible change on its optical properties (transmittance and reflectance) associated with an electrochemically induced oxidation-reduction reaction occurs under an applied voltage or current [25]. In that case, TiO2 appears as an appealing electro-active material due to its intrinsic characteristics, such as high EC activity, strong oxidation capability and enhanced chemical stability [26]. Moreover, TiO2 has a wide band gap (3.00 and 3.21 eV for rutile and anatase, respectively [27], and from 3.13 to 3.40 eV [27,28] for brookite) and presents a lattice structure that easily allows cation intercalation. This intercalation leads to additional electronic states in its bandgap causing the change in optical properties which results in light absorption in the visible range [15]. Indeed, TiO2 in the form of anatase is considered the most promising material for electrochromic devices [14].
The EC materials are largely integrated in smart windows, displays and mirrors, however the demand for flexible devices has been gradually growing in the recent years, especially due to their conformability characteristic to unlike surfaces and the need to reduce production costs [29]. In this sense, electronics on paper appears as an attractive option as cellulose is the most abundant biopolymer on earth, inexpensive and guarantee highly flexibility to the device, despite being environmentally friendly [30]. In fact, paper has been included in several optoelectronic devices, including solar cells, transistors, among others [30,31], and lately paper started to appear as a reliable alternative for EC devices, as previously reported in [30,32,33,34].
The production route of the electro-active materials is a key factor on the final cost of the EC device, moreover the production route selected must be in line with the limitations of the substrates. Several techniques have been reported to produce TiO2 EC films, including magnetron sputtering [35], spin-coating [36] and sol-gel methods [37], hydrothermal synthesis [14], and microwave synthesis [38]. This latter synthesis route is compatible with flexible substrates [3,39] and paper electronics [40], and it is reliable, inexpensive, simple and rapid. Moreover, the microwave synthesis guarantee precisely the control of synthesis parameters [41], and thus the produced material homogeneity and uniformity. In fact, the structure of the electro-active materials largely influences the final EC device performance, where nanostructured or nanoporous films are desired [13].
The present study reports the synthesis and characterization of TiO2 nanostructured films using paper as substrate, and produced with a hydrothermal method assisted by microwave irradiation. Low temperature synthesis was employed (80 °C) and the materials were tested as EC devices. The main goal is to produce TiO2 electrochromic nanostructured films with low-cost synthesis routes but also the fabrication of highly electro-active, stable, flexible, environmentally friendly, and cost effective EC devices. Moreover, to the best of the author’s knowledge, TiO2 nanostructured films grown with a microwave-assisted hydrothermal method and having gold coated-paper substrates to be employed as EC devices has never been reported before. Structural characterization of the TiO2 nanostructured films has been carried out by scanning electron microscopy (SEM) coupled with focused ion beam (FIB) and X-ray energy dispersive spectroscopy (EDS), and by Raman spectroscopy.

2. Experimental Details

2.1. Synthesis of TiO2 Films and Gold Deposition

Hydrothermal synthesis assisted by microwave irradiation has been used for the production of the TiO2 nanostructured films. For the TiO2 microwave synthesis, it has been used deionised water, titanium (IV) isopropoxide (Ti[OCH(CH3)2]4, TTIP, 97% from Sigma Aldrich), and three types of acid, i.e. nitric acid (HNO3, 65%), hydrochloric acid (HCl, 37%) and acetic acid glacial (CH3COOH, 99%). In each synthesis, 55 mL of water was added to 5 mL of each acid and stirred for 5 min. Then, 2 mL of TTIP was mixed, leaving the final solution under stirring for 10 min before synthesis.
Whatman chromatography paper grade two was used as substrate. This pure cellulose paper has been selected due to the lack of impurities or additives present together with its uniformly absorbent properties [42,43]. Prior to synthesis, the paper substrate was subjected to the conductive layer deposition. At this point, a gold film of 140 nm was deposited by e-beam evaporation in a homemade system and at room temperature. Gold is the most common thin-film conductor material, however its electrical properties are largely influenced by several parameters including the substrate used [44]. One important parameter that influences the EC performance is the sheet resistance of the contact, in fact the decrease of the sheet resistance has been reported to accelerate switching speeds of the EC devices [45]. Nevertheless, in the present study, the deposition parameters have been systematically maintained and highly reproducible thin films have been obtained, so the influence of Au sheet resistance is expected to be equivalent for all the devices produced.
Any seed layer has been used for assisting the TiO2 growth [10,43]. Afterwards, the gold coated paper substrate was cut (30.0 × 15.0 mm) and prepared for synthesis. A part of the substrate was covered on its edge (5.0 × 15.0 mm) to prevent the deposition of the TiO2 film on the conductive layer (Figure 1). The novel approach developed to protect the Au contacts was imperative to maintain the conductive character of the inner contact.
Microwave synthesis was carried out using a CEM Focused Microwave Synthesis System Discover SP. Time, power, temperature and pressure have been set at 120 min, 100 W, 80 °C and 200 Psi, respectively. Then 20 mL of the final solutions were transferred into capped quartz vessels of 35 mL, which were maintained sealed during the entire reaction. In the microwave vessel, a piece of the gold coated substrate was placed at an angle against it, with gold facing down.

2.2. Characterization Techniques

X-ray diffraction measurements were carried out using a PANalytical’s X’Pert PRO MPD diffractometer equipped with a X’Celerator 1D detector and using CuKα radiation. The XRD diffractograms were obtained in the 20–45° 2θ range with a step size of 0.05°. The powder diffractograms of rutile, anatase, brookite were simulated with PowderCell [46] using crystallographic data from reference [47] for comparison.
Raman spectroscopy experiments were performed with an inVia Qontor confocal Raman microscope from Renishaw. The measurements were obtained with a 17 mW He–Ne laser operating at 532 nm. Surface and cross-section SEM observations were carried out using a Carl Zeiss AURIGA CrossBeam FIB-SEM workstation equipped for EDS and FIB measurements. The FIB experiments were performed to observe the thickness of the TiO2 films. The Ga+ ions were accelerated to 30 kV at 20 pA and the etching depth was kept around 1 μm. The dimensions of individual nanoparticles and films have been determined from SEM micrographs using ImageJ software [48].

2.3. Electrochromic Measurements

The TiO2 nanostructured films had their electrochromic behavior investigated by cyclic voltammetry (CV) on a potentiostat (Gamry reference 600). All materials were electrochemically cycled in 1 M LiClO4–PC, at a scan rate of 500 mV/s, in a three-electrode arrangement, with Au paper with the TiO2 nanostructured films as the working electrode, platinum wire as counter electrode and Ag/AgCl as the reference electrode. It has been applied a voltage of −5 V and 5 V. The higher applied potential window tested in this study is associated to the porous substrate used.
The optical reflectance between 200 and 800 nm was measured using a UV–VIS-NIR spectrophotometer (SPEC STD UV/Vis, Sarspec, Vila Nova de Gaia, Portugal). For calibration, the measurements were performed considering the Au paper with the TiO2 nanostructured films plus the electrolyte (1 M LiClO4–PC) as 100%. The in-situ reflectance changes of the TiO2 electrochromic films were measured with the same spectrophotometer combined with the potentiostat at a wavelength of 550 nm, applying a voltage of −5 V and 5 V. The samples were immersed in the electrolyte contained in a glass cell, using a platinum wire as counter electrode.

3. Results and Discussion

TiO2 nanostructured films were synthesized using a microwave-assisted hydrothermal method and having paper as substrate with gold contacts to be used as electrochromic flexible devices. The syntheses were carried out using different acids, at low temperatures and without any seed layer. The TiO2 nanostructured films and final devices were systematically investigated including their electrochromic behaviors.

3.1. Structural Characterization

Figure 2 depicts the SEM images of pristine Au paper together with the TiO2 nanostructured films. As observed in analogous studies [10,43], the TiO2 nanostructured films were grown on the cellulose-based substrate without any seed layer and directly on the Au contact. It has been previously stated that the paper roughness facilitates nucleation and fixation of the TiO2 nanostructures [10]. The structure of the deposited Au film is presented in Figure 2a, and no similarity to the TiO2 films could be observed. The Au contacts appear as a uniform and homogeneous layer, without any visible porosity. The cellulose fibers of the Whatman paper could be observed after microwave synthesis, however with the magnified SEM image, it is clear that the substrates were uniformly covered, forming continuous TiO2 nanostructured films. Moreover, the structural differences observed comparing the acids are evident. The TiO2 film synthesized with nitric acid is composed by densely and closely packed nanoparticles joined to form spherical-like structures nanoaggregates, with ~30 nm of mean diameter (Figure 2b). From the cross-section, it can be seen that the nitric-based film is highly porous, with film thickness around 350 nm. When it turns to the hydrochronic-based TiO2 film (Figure 2c), it can be observed a rougher overall structure, but formed by fine densely agglomerated nanoparticles (~10 nm). From FIB measurements, it could also be observed nanoporosity, with a film thickness of 200 nm. In the case of the acetic acid, a compact and homogeneous film could be observed after synthesis. The nanostructured film was composed by nanoparticles with sizes around 10 nm, and thickness varying from 300 to 500 nm. Low porosity could be observed from the cross-section, in fact the acetic film revealed to be thicker than the other materials synthesized (Figure 2d). The expressive structure differences observed regarding the acid used are expected to be related to the microwave synthesis path. Figure S1 shows the microwave pressure profile associated to the acid used. It is clear the synthesis using nitric acid reached highest pressure values throughout the synthesis, followed by hydrochloric acid and then acetic acid. The microwave pressure/temperature relation to the outcome of nanoparticles has been previously reported. Li et al. [49] suggested the direct effect of applying higher microwave synthesis pressure to the morphology and size of the nanomaterials. It has been also demonstrated the influence of the solvent used during syntheses and the final synthesis temperature/pressure with a direct effect on the nanoparticle structure [39,50]. These effects are related to the microwave interactions to the reagents or precursors, and solution medium, that will influence the nucleation and crystallization rates [51].
EDS analyses were carried out on all films synthesized, confirming the homogeneous distribution of Ti along the substrates (Figure 3). Au comes from the contacts deposited, and no other impurities were detected. The significant presence of C and O is also related to the Whatman paper substrate used [43]. Moreover, it has been noticed that the Ti EDS map is more intense for the acetic-based film, with is expectable since this is the thicker film synthesized (Figure 3l).
Raman spectroscopy and X-Ray diffraction measurements were carried out for the TiO2 nanostructured films together with the pristine Au paper. A considerable contribution from the substrate was observed on XRD diffractograms, hindering the TiO2 signal (Figure 4a). The XRD characteristic peaks of native cellulosic fibers are clearly observed at 22.7° and 35°, in agreement to the literature [43,52]. Nevertheless, at ~25°, a slightly peak was detected, which can be associated to the presence of anatase. Raman spectroscopy was able to overcome the XRD limitation, allowing the precise identification of the TiO2 phases present [53] (Figure 4b). The pristine Au paper Raman spectrum is presented for comparison, and no contribution was detected. Raman spectra were recorded in the range of 100–700 cm−1 and confirmed the presence of anatase phase. The Raman bands associated to anatase can be assigned to 155 cm−1 (Eg), 205 cm−1 (Eg), 397 cm−1 (B1g), 510 cm−1 (B1g + A1g), and 636 cm−1 (Eg) for anatase [54,55,56]. This Raman band shift observed can be associated to the presence of structural defects in the TiO2 lattice [57] or minor deviations from stoichiometry of the TiO2 films [58]. Moreover, the smooth aspect of the TiO2 thin film spectra has been reported before [57,58], and detected especially for the films synthesized with nitric and hydrochloric acids.

3.2. Electrochromic and Electrochemical Behavior

The electrochromic behavior of the TiO2 nanostructured films grown on Au paper with different acids was investigated by measuring the reflectance variation between 200 to 800 nm. In order to get comparable results, the same active area (1 cm2) was defined for all EC devices. Figure 5 shows the data obtained after several coloration/bleaching cycles up a maximum of 1500 in 1 M LiClO4–PC and applying ±5 V in order to stabilize the redox reactions. The insertion/deinsertion of Li+ in the TiO2 nanostructured films is accompanied by a color change. The TiO2 nanostructured films change from dark blue, at the colored state, to transparent appearing the yellow coloration from the Au contact color, at the bleached state. The optical modulations of TiO2 films between colored and bleached states were: 57%, 9% and 22%, at 250, 550 and 800 nm, respectively, for the nitric-based material, while the hydrochloric film, it presented 13%, 8% and 20% at 250, 550 and 800 nm, respectively. The acetic-based TiO2 film, reached optical modulations of 10%, 3%, and 12% at 250, 550 and 800 nm, respectively. The increase of reflectance in the IR region has been reported previously for TiO2 [59]. The highest optical modulation was achieved for the nitric-based film, demonstrating a good contrast behavior with deep color change, as can be seen on Figure 5a. The enhanced electrochromic performance observed for the TiO2 film synthesized with nitric acid is expected to be related to the high porosity observed (Figure 2b). The higher EC performance with porous materials have been reported previously [60,61], and it has been attributed to the increment in charge density incorporated into porous layers (easier electrolyte penetration and Li+ diffusion) during the oxidation and reduction reactions [60,61]. The TiO2 film synthesized using hydrochloric acid also demonstrated the presence of porosity in its structure, however due to its lower thickness, it is expected a poorest EC performance when compared to nitric since thin layers are known to have less active mass [62]. The compact structure of the acetic-based TiO2 film is thought to be responsible for the worst EC performance observed.
The reflectance measurements also demonstrate the high durability of the EC device produced with TiO2 nanostructured films on paper substrates. As it has been previously said, to the author’s best knowledge, it has never been reported a fully flexible EC device using TiO2 on paper, and Figure 5 shows that this kind of substrates are reliable for at least 1500 cycles using a liquid electrolyte.
As previously described, the TiO2 coloration into dark blue is associated to the intercalation of Li+ in TiO2. Thus, it is assumed that Li+ insertion/extraction is responsible for the gradual optical change of the TiO2 nanostructured films, and so applying a negative potential causes the rapid accumulation of electrons on the TiO2, which is compensated by small ions located close to the TiO2-eletrolyte interface. The proposed mechanism is suggested to be based on the formation of Ti3+ ions and the presence of the electrons in the conduction band [63]. The coloration state is attributed to the formation of the compound LixTiO2 according to the cathodic Equation (1) [63,64]:
T i O 2 + x L i + + x   e − ↔ L i x T i O 2
where x is the total of Li+ intercalation and e− represents the charge-compensating electrons [65].
Cyclic voltammetry measurements were carried out for all the TiO2 nanostructured films synthesized (Figure 6). Moreover, in Figure S2, it is presented all the voltammograms (1500 cycles) obtained during the CV experiments for the three types of TiO2 films studied. The films’ anodic scan oxidation leads to the bleaching state, and the cathodic scan reduction is associated to their coloring states. The nitric-based film demonstrated to be highly stable during cycles, maintaining the consistence during measurements without significant loss of its EC performance with the increase of the number cycles. In fact, the nitric-based material continued to work as an EC device after the cycles limit imposed (results not shown). In the cases of the hydrochloric and acetic-based films, it is clear that the EC performance has decreased with the increase of cycles, until the deficient EC device operation, with possible loss of optical modulation (Figure S2). Despite the increase in anodic and cathodic currents observed for the material synthetized with hydrochloric acid, its EC performance was substantially lower than the nitric one. Generally, the increase of anodic and cathodic currents indicates that the amount of ions and electrons inserted into the film also increases resulting in enhanced EC reaction activities [62], however, this effect has not been observed, as it can be seen by the instability observed on the CV voltammograms and lower durability of the device, with intercalation and deintercalation up to 850 cycles. The TiO2 film synthetized with acetic acid demonstrated the poorest EC performance, reaching maximum of 800 cycles and lower currents (~±1 V), in agreement to what was observed in the optical measurements (Figure 5c).
The CV measurements attested the durability of TiO2 nanostructured films, and as previously mentioned, the porous and thick structure of the nitric-based material guaranteed an improved EC performance, when compared with the other acids. Considering this, lifetime cycles measurements were carried out for this material (Figure 7). In order to stabilize the reflectance, the switching time was fixed at 240 s. The switching between both states was observed, with coloration of 71 s and bleaching times of 58 s, calculated as the time required to reach 10% to 90% of the initial and final reflectance values, respectively. Despite the long bleaching and coloring times, from the video presented in supplementary information, the visual color turning is faster than what was measured.
Other studies also reported the switch behavior of paper EC devices. Lang et al. [30] demonstrated EC devices with paper-based substrates and printed poly-(3,4-ethylenedioxythiophene):poly(styrenesulfonate) (PEDOT:PSS) electrodes showing slower switching time when produced with a lateral device architecture. Tehrani et al. [32] reported PEDOT:PSS-based EC displays with an extra layer of dihexyl-substituted poly(3,4-propylenedioxythiophene) (PProDOT-Hx2) and using flexible paper substrates in roll-to-roll printing. It has been demonstrated slow switch to the OFF-state of the produced devices, which was attributed to the poor ionic conductivity of the PProDOT-Hx2 film in the aqueous electrolyte. Taking in consideration paper-based UV sensors from an analogous study [10], the contribution from the paper structure shown to be imperative to the final performance of the electronic devices, so following this line, it can be suggested that a similar effect can occur with the EC devices.
Nevertheless, the low time response does not limit the utilization of such devices in every-day life, since it can be perfectly integrated in disposable sensors, such as in signaling devices, for one-time response. Moreover, the approach developed decreases the time of production and the fabrication cost of related devices, since it joins the celerity and enhanced efficiency/cost balance of microwave synthesis to the inexpensive character of the cellulose-based substrate used. In fact, electronics on paper is proving to be an enabling technology for smart low-cost paper-based sensors, such as smart point-of-care biosensors and UV sensors, as photovoltaic devices [10,31,52], and as shown in this work, as electrochromic devices.

4. Conclusions

In this work, TiO2 nanostructured films grown on paper substrate and using different acids were produced under microwave irradiation at low temperature (80 °C) to be employed as EC devices. The final structure of the produced films and their electrochromic behavior was deeply related to the acid used, with enhanced electrochromic performance for the film synthesized with acid nitric due to its higher thickness and highly porous nanostructure. In fact, nitric-based films resulted in EC devices with high cycling stability, without significant loss of their electrochromic behavior after 1500 cycles. The present work demonstrated that the simple approach developed is an effective and attractive alternative for producing flexible devices for several commercial applications, and due to the characteristics of the production techniques and substrates used, next-generation of green, one-time use and inexpensive EC devices with TiO2 can be thought.

Supplementary Materials

The following are available online at https://www.mdpi.com/2076-3417/10/4/1200/s1, Figure S1: Microwave synthesis profiles for the different acids used. Figure S2: Cyclic voltammograms of TiO2 nanostructured films from −5 V to 5 V (versus Ag/AgCl), at a scan rate of 500 mV/s, in a 1 M LiClO4–PC electrolyte, after several cycles up to a maximum of 1500. Results for the TiO2 nanostructured films synthesized using (a) nitric, (b) hydrochloric. Video S1: Optical modulation of the paper-based TiO2 nanostructured devices.

Author Contributions

T.F., A.B., J.V. and M.M. synthesized the materials and carried out the cyclic voltammetry measurements; D.N. and A.P. wrote the manuscript and performed the structural characterizations. S.P. and N.J.A.C. helped with the optical characterizations and interpretation of results; and the work and paper was under the supervision of R.M. and E.F. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by FEDER funds, through the COMPETE 2020 Program, and national funds, through the Fundação para Ciência e Tecnologia (FCT), under the projects POCI-01-0145-FEDER-007688 (Reference UID/CTM/50025). The authors also acknowledge funding from the European Commission through the projects 1D-NEON (H2020-NMP-2015, grant 685758-21D), BET-EU (H2020-TWINN-2015, grant 692373) and DIGISMART (H2020 ERC AdG 787410). The work was also partially funded by the Nanomark collaborative project between INCM (Imprensa Nacional Casa da Moeda) and CENIMAT/i3N.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Nakata, K.; Fujishima, A. TiO2 photocatalysis: Design and applications. J. Photochem. Photobiol. C Photochem. Rev. 2012, 13, 169–189. [Google Scholar] [CrossRef]
  2. Nunes, D.; Pimentel, A.; Pinto, J.V.; Calmeiro, T.R.; Nandy, S.; Barquinha, P.; Pereira, L.; Carvalho, P.A.; Fortunato, E.; Martins, R. Photocatalytic behavior of TiO2 films synthesized by microwave irradiation. Catal. Today 2016, 278, 262–270. [Google Scholar] [CrossRef]
  3. Nunes, D.; Pimentel, A.; Santos, L.; Barquinha, P.; Fortunato, E.; Martins, R. Photocatalytic TiO2 nanorod spheres and arrays compatible with flexible applications. Catalysts 2017, 7, 60. [Google Scholar] [CrossRef] [Green Version]
  4. Nunes, D.; Santos, L.; Pimentel, A.; Barquinha, P.; Pereira, L.; Fortunato, E.; Martins, R. Metal Oxide Nanostructures: Synthesis, Properties and Applications; Elsevier Science: Amsterdam, The Netherlands, 2018. [Google Scholar]
  5. Schneider, J.; Matsuoka, M.; Takeuchi, M.; Zhang, J.; Horiuchi, Y.; Anpo, M.; Bahnemann, D.W. Understanding TiO2 photocatalysis: Mechanisms and materials. Chem. Rev. 2014, 114, 9919–9986. [Google Scholar] [CrossRef] [PubMed]
  6. Lin, J.; Heo, Y.-U.; Nattestad, A.; Sun, Z.; Wang, L.; Kim, J.H.; Dou, S.X. 3D hierarchical rutile TiO2 and metal-free organic sensitizer producing dye-sensitized solar cells 8.6% conversion efficiency. Sci. Rep. 2014, 4, 5769. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Park, N.-G.; van de Lagemaat, J.; Frank, A.J. Comparison of dye-sensitized rutile-and anatase-based TiO2 solar cells. J. Phys. Chem. B 2000, 104, 8989–8994. [Google Scholar] [CrossRef] [Green Version]
  8. Bernacka-Wojcik, I.; Senadeera, R.; Wojcik, P.J.; Silva, L.B.; Doria, G.; Baptista, P.; Aguas, H.; Fortunato, E.; Martins, R. Inkjet printed and “doctor blade” TiO2 photodetectors for DNA biosensors. Biosens. Bioelectron. 2010, 25, 1229–1234. [Google Scholar] [CrossRef] [PubMed]
  9. Bai, J.; Zhou, B. Titanium dioxide nanomaterials for sensor applications. Chem. Rev. 2014, 114, 10131–10176. [Google Scholar] [CrossRef] [PubMed]
  10. Nunes, D.; Pimentel, A.; Araujo, A.; Calmeiro, T.; Panigrahi, S.; Pinto, J.; Barquinha, P.; Gama, M.; Fortunato, E.; Martins, R. Enhanced UV flexible photodetectors and photocatalysts based on TiO2 nanoplatforms. Topics Catal. 2018, 61, 1591–1606. [Google Scholar] [CrossRef] [Green Version]
  11. Nunes, D.; Pimentel, A.; Gonçalves, A.; Pereira, S.; Branquinho, R.; Barquinha, P.; Fortunato, E.; Martins, R. Metal oxide nanostructures for sensor applications. Semicond. Sci. Technol. 2019, 34, 043001. [Google Scholar] [CrossRef] [Green Version]
  12. Diasanayake, M.A.K.L.; Senadeera, G.K.R.; Sarangika, H.N.M.; Ekanayake, P.M.P.C.; Thotawattage, C.A.; Divarathne, H.K.D.W.M.N.R.; Kumari, J.M.K.W. TiO2 as a low cost, multi functional material. Mater. Today Proc. 2016, 3, S40–S47. [Google Scholar] [CrossRef]
  13. Song, Y.-Y.; Gao, Z.-D.; Wang, J.-H.; Xia, X.-H.; Lynch, R. Multistage coloring electrochromic device based on TiO2 nanotube arrays modified with WO3 nanoparticles. Adv. Funct. Mater. 2011, 21, 1941–1946. [Google Scholar] [CrossRef]
  14. Chen, J.-Z.; Ko, W.-Y.; Yen, Y.-C.; Chen, P.-H.; Lin, K.-J. Hydrothermally processed TiO2 nanowire electrodes with antireflective and electrochromic properties. ACS Nano 2012, 6, 6633–6639. [Google Scholar] [CrossRef] [PubMed]
  15. Ghicov, A.; Albu, S.P.; Macak, J.M.; Schmuki, P. High-contrast electrochromic switching using transparent lift–off layers of self–organized TiO2 nanotubes. Small 2008, 4, 1063–1066. [Google Scholar] [CrossRef] [PubMed]
  16. Chen, Y.; Bi, Z.; Li, X.; Xu, X.; Zhang, S.; Hu, X. High-coloration efficiency electrochromic device based on novel porous TiO2@prussian blue core-shell nanostructures. Electrochim. Acta 2017, 224, 534–540. [Google Scholar] [CrossRef]
  17. Patil, R.A.; Devan, R.S.; Liou, Y.; Ma, Y.-R. Efficient electrochromic smart windows of one-dimensional pure brookite TiO2 nanoneedles. Sol. Energy Mater. Sol. Cells 2016, 147, 240–245. [Google Scholar] [CrossRef]
  18. Berger, S.; Ghicov, A.; Nah, Y.C.; Schmuki, P. Transparent TiO2 nanotube electrodes via thin layer anodization: Fabrication and use in electrochromic devices. Langmuir 2009, 25, 4841–4844. [Google Scholar] [CrossRef]
  19. Cai, G.; Zhou, D.; Xiong, Q.; Zhang, J.; Wang, X.; Gu, C.; Tu, J. Efficient electrochromic materials based on TiO2@ WO3 core/shell nanorod arrays. Sol. Energy Mater. Sol. Cells 2013, 117, 231–238. [Google Scholar] [CrossRef]
  20. Nah, Y.-C.; Ghicov, A.; Kim, D.; Berger, S.; Schmuki, P. TiO2-WO3 composite nanotubes by alloy anodization: Growth and enhanced electrochromic properties. J. Am. Chem. Soc. 2008, 130, 16154–16155. [Google Scholar] [CrossRef]
  21. Hashimoto, S.; Matsuoka, H. Prolonged lifetime of electrochromism of amorphous WO3–TiO2thin films. Surf. Interface Anal. 1992, 19, 464–468. [Google Scholar] [CrossRef]
  22. Reyes-Gil, K.R.; Stephens, Z.D.; Stavila, V.; Robinson, D.B. Composite WO3/TiO2 nanostructures for high electrochromic activity. ACS Appl. Mater. Interfaces 2015, 7, 2202–2213. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Marques, A.; Santos, L.; Pereira, S.; Emanuele, U.; Sinopoli, S.; Igreja, R.; Sales, G.; Martins, R.; Fortunato, E. A planar electrochromic device using WO3 nanoparticles and a modified paper-based electrolyte. Proceedings 2018, 2, 1065. [Google Scholar] [CrossRef] [Green Version]
  24. Wojcik, P.J.; Cruz, A.S.; Santos, L.; Pereira, L.; Martins, R.; Fortunato, E. Microstructure control of dual-phase inkjet-printed a-WO3/TiO2/WOX films for high-performance electrochromic applications. J. Mater. Chem. 2012, 22, 13268–13278. [Google Scholar] [CrossRef]
  25. Wang, J.M.; Sun, X.W.; Jiao, Z. Application of nanostructures in electrochromic materials and devices: Recent progress. Materials 2010, 3, 5029–5053. [Google Scholar] [CrossRef] [PubMed]
  26. Liu, S.; Zhang, X.; Sun, P.; Wang, C.; Wei, Y.; Liu, Y. Enhanced electrochromic properties of a TiO2 nanowire array via decoration with anatase nanoparticles. J. Mater. Chem. C 2014, 2, 7891–7896. [Google Scholar] [CrossRef]
  27. Reyes-Coronado, D.; Rodríguez-Gattorno, G.; Espinosa-Pesqueira, M.; Cab, C.; De Coss, R.; Oskam, G. Phase-pure TiO2 nanoparticles: Anatase, brookite and rutile. Nanotechnology 2008, 19, 145605. [Google Scholar] [CrossRef]
  28. Di Paola, A.; Bellardita, M.; Palmisano, L. Brookite, the least known TiO2 photocatalyst. Catalysts 2013, 3, 36–73. [Google Scholar] [CrossRef] [Green Version]
  29. Alesanco, Y.; Palenzuela, J.; Tena-Zaera, R.; Cabañero, G.; Grande, H.; Herbig, B.; Schmitt, A.; Schott, M.; Posset, U.; Guerfi, A.; et al. Plastic electrochromic devices based on viologen-modified TiO2 films prepared at low temperature. Sol. Energy Mater. Sol. Cells 2016, 157, 624–635. [Google Scholar] [CrossRef]
  30. Lang, A.W.; Österholm, A.M.; Reynolds, J.R. Paper-based electrochromic devices enabled by nanocellulose-coated substrates. Adv. Funct. Mater. 2019, 29, 1903487. [Google Scholar] [CrossRef]
  31. Vicente, A.; Araujo, A.; Mendes, M.J.; Nunes, D.; Oliveira, M.J.; Sanchez-Sobrado, O.; Ferreira, M.P.; Aguas, H.; Fortunato, E.; Martins, R. Multifunctional cellulose-paper for light harvesting and smart sensing applications. J. Mater. Chem. C 2018, 6, 3143–3181. [Google Scholar] [CrossRef]
  32. Tehrani, P.; Hennerdal, L.-O.; Dyer, A.L.; Reynolds, J.R.; Berggren, M. Improving the contrast of all-printed electrochromic polymer on paper displays. J. Mater. Chem. 2009, 19, 1799–1802. [Google Scholar] [CrossRef]
  33. Monk, P.M.; Delage, F.; Vieira, S.M.C. Electrochromic paper: Utility of electrochromes incorporated in paper. Electrochim. Acta 2001, 46, 2195–2202. [Google Scholar] [CrossRef]
  34. Brooke, R.; Edberg, J.; Crispin, X.; Berggren, M.; Engquist, I.; Jonsson, M.P. Greyscale and paper electrochromic polymer displays by UV patterning. Polymers 2019, 11, 267. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Yoshimura, K.; Miki, T.; Tanemura, S. TiO2 electrochromic thin films by reactive direct current magnetron sputtering. J. Vac. Sci. Technol. A Vac. Surf. Films 1997, 15, 2673–2676. [Google Scholar] [CrossRef]
  36. Weng, W.; Higuchi, T.; Suzuki, M.; Fukuoka, T.; Shimomura, T.; Ono, M.; Radhakrishnan, L.; Wang, H.; Suzuki, N.; Oveisi, H. A high-speed passive-matrix electrochromic display using a mesoporous TiO2 electrode with vertical porosity. Angew. Chem. Int. Edit. 2010, 49, 3956–3959. [Google Scholar] [CrossRef]
  37. Dinh, N.N.; Oanh, N.T.T.; Long, P.D.; Bernard, M.C.; Hugot-Le Goff, A. Electrochromic properties of TiO2 anatase thin films prepared by a dipping sol-gel method. Thin Solid Films 2003, 423, 70–76. [Google Scholar] [CrossRef]
  38. Pillai, S.; McCormack, D.; Periyat, P.; Leyland, N.; Corr, D.; Colreavy, J. Rapid microwave synthesis of mesoporous TiO2 for electrochromic displays. J. Mater. Chem. 2010, 20, 3650–3655. [Google Scholar]
  39. Pimentel, A.; Nunes, D.; Pereira, S.; Martins, R.; Fortunato, E. Photocatalytic activity of TiO2 nanostructured arrays prepared by microwave-assisted solvothermal method. In Semiconductor Photocatalysis—Materials, Mechanisms and Applications; InTech: Rijeka, Croatia, 2016. [Google Scholar]
  40. Araujo, A.; Pimentel, A.; Oliveira, M.J.; Mendes, M.J.; Franco, R.; Fortunato, E.; Águas, H.; Martins, R. Direct growth of plasmonic nanorod forests on paper substrates for low-cost flexible 3D SERS platforms. Flex. Print. Electron. 2017, 2, 014001. [Google Scholar] [CrossRef]
  41. Tsuji, M.; Hashimoto, M.; Nishizawa, Y.; Kubokawa, M.; Tsuji, T. Microwave-assisted synthesis of metallic nanostructures in solution. Chem. A Eur. J. 2005, 11, 440–452. [Google Scholar] [CrossRef]
  42. Joubert, T.; Bezuidenhout, P.; Chen, H.; Smith, S.; Land, K. Inkjet-printed silver tracks on different paper substrates. Mater. Today Proc. 2015, 2, 3891–3900. [Google Scholar] [CrossRef]
  43. Matias, M.L.; Nunes, D.; Pimentel, A.; Ferreira, S.H.; Agua, R.; Duarte, M.P.; Fortunato, E.; Martins, R. Paper-based nanoplatforms for multifunctional applications. J. Nanomater. 2019, 16. [Google Scholar] [CrossRef] [Green Version]
  44. Minges, M.L.; Committee, A.S.M.I.H. Electronic Materials Handbook: Packaging; Taylor & Francis: Oxfordshire, UK, 1989. [Google Scholar]
  45. Kim, K.-H.; Koo, B.-R.; Ahn, H.-J. Sheet resistance dependence of fluorine-doped tin oxide films for high-performance electrochromic devices. Ceram. Int. 2018, 44, 9408–9413. [Google Scholar] [CrossRef]
  46. Kraus, W.; Nolze, G. POWDER CELL—A program for the representation and manipulation of crystal structures and calculation of the resulting X-ray powder patterns. J. Appl. Crystallogr. 1996, 29, 301–303. [Google Scholar] [CrossRef]
  47. Pearson, W.B.; Villars, P.; Calvert, L.D. Pearson’s Handbook of Crystallographic Data for Intermetallic Phases; American Society for Metals: Cleveland, OH, USA, 1985. [Google Scholar]
  48. Schneider, C.A.; Rasband, W.S.; Eliceiri, K.W. NIH image to ImageJ: 25 years of image analysis. Nat. Methods 2012, 9, 671–675. [Google Scholar] [CrossRef]
  49. Li, L.; Qin, X.; Wang, G.; Qi, L.; Du, G.; Hu, Z. Synthesis of anatase TiO2 nanowires by modifying TiO2 nanoparticles using the microwave heating method. Appl. Surf. Sci. 2011, 257, 8006–8012. [Google Scholar] [CrossRef]
  50. Pimentel, A.; Rodrigues, J.; Duarte, P.; Nunes, D.; Costa, F.M.; Monteiro, T.; Martins, R.; Fortunato, E. Effect of solvents on ZnO nanostructures synthesized by solvothermal method assisted by microwave radiation: A photocatalytic study. J. Mater. Sci. 2015, 50, 5777–5787. [Google Scholar] [CrossRef]
  51. Bregadiolli, B.A.; Fernandes, S.L.; Graeff, C.F.O. Easy and fast preparation of TiO2-based nanostructures using microwave assisted hydrothermal synthesis. Mater. Res. 2017, 20, 912–919. [Google Scholar] [CrossRef] [Green Version]
  52. Pimentel, A.; Samouco, A.; Nunes, D.; Araújo, A.; Martins, R.; Fortunato, E. Ultra-fast microwave synthesis of ZnO nanorods on cellulose substrates for UV sensor applications. Materials 2017, 10, 1308. [Google Scholar] [CrossRef] [Green Version]
  53. Wang, Y.; Li, L.; Huang, X.; Li, Q.; Li, G. New insights into fluorinated TiO2 (brookite, anatase and rutile) nanoparticles as efficient photocatalytic redox catalysts. RSC Adv. 2015, 5, 34302–34313. [Google Scholar] [CrossRef]
  54. Stagi, L.; Carbonaro, C.M.; Corpino, R.; Chiriu, D.; Ricci, P.C. Light induced TiO2 phase transformation: Correlation with luminescent surface defects. Phys. Status Solidi (b) 2015, 252, 124–129. [Google Scholar] [CrossRef]
  55. Zhang, Q.; Ma, L.; Shao, M.; Huang, J.; Ding, M.; Deng, X.; Wei, X.; Xu, X. Anodic oxidation synthesis of one-dimensional TiO2 nanostructures for photocatalytic and field emission properties. J. Nanomater. 2014, 2014, 14. [Google Scholar] [CrossRef] [Green Version]
  56. Vásquez, G.C.; Peche-Herrero, M.A.; Maestre, D.; Alemán, B.; Ramírez-Castellanos, J.; Cremades, A.; González-Calbet, J.M.; Piqueras, J. Influence of Fe and Al doping on the stabilization of the anatase phase in TiO2 nanoparticles. J. Mater. Chem. C 2014, 2, 10377–10385. [Google Scholar] [CrossRef]
  57. Castellanos-Leal, E.L.; Acevedo-Peña, P.; Güiza-Argüello, V.R.; Córdoba-Tuta, E.M. N and F codoped TiO2 thin films on stainless steel for photoelectrocatalytic removal of cyanide ions in aqueous solutions. J. Mater. Res. 2017, 20, 487–495. [Google Scholar] [CrossRef]
  58. Nezar, S.; Saoula, N.; Sali, S.; Faiz, M.; Mekki, M.; Laoufi, N.; Tabet, N. Properties of TiO2 thin films deposited by rf reactive magnetron sputtering on biased substrates. Appl. Surf. Sci. 2017, 395, 172–179. [Google Scholar] [CrossRef]
  59. Bhandari, S.; Deepa, M.; Srivastava, A.K.; Lakshmikumar, S.T.; RamaKant. Electrochromic response, structure optimization and ion transfer behavior in viologen adsorbed titanium oxide films. Solid State Ion. 2009, 180, 41–49. [Google Scholar] [CrossRef]
  60. Nah, Y.-C.; Ghicov, A.; Kim, D.; Schmuki, P. Enhanced electrochromic properties of self-organized nanoporous WO3. Electrochem. Commun. 2008, 10, 1777–1780. [Google Scholar] [CrossRef]
  61. Mjejri, I.; Doherty, C.M.; Rubio-Martinez, M.; Drisko, G.L.; Rougier, A. Double-sided electrochromic device based on metal-organic frameworks. ACS Appl. Mater. Interfaces 2017, 9, 39930–39934. [Google Scholar] [CrossRef]
  62. Pereira, S.; Gonçalves, A.; Correia, N.; Pinto, J.; Pereira, L.; Martins, R.; Fortunato, E. Electrochromic behavior of NiO thin films deposited by e-beam evaporation at room temperature. Sol. Energy Mater. Sol. Cells 2014, 120, 109–115. [Google Scholar] [CrossRef]
  63. Ramamurthy, V.; Schanze, K.S. Semiconductor Photochemistry and Photophysics/Volume Ten; Taylor & Francis: Marcel Dekker, NY, USA, 2003. [Google Scholar]
  64. Barawi, M.; De Trizio, L.; Giannuzzi, R.; Veramonti, G.; Manna, L.; Manca, M. Dual band electrochromic devices based on Nb-doped TiO2 nanocrystalline electrodes. ACS Nano 2017, 11, 3576–3584. [Google Scholar] [CrossRef]
  65. Wen, R.-T.; Niklasson, G.A.; Granqvist, C.G. Eliminating electrochromic degradation in amorphous TiO2 through Li-Ion detrapping. ACS Appl. Mater. Interfaces 2016, 8, 5777–5782. [Google Scholar] [CrossRef] [Green Version]
Applsci 10 01200 g001 550

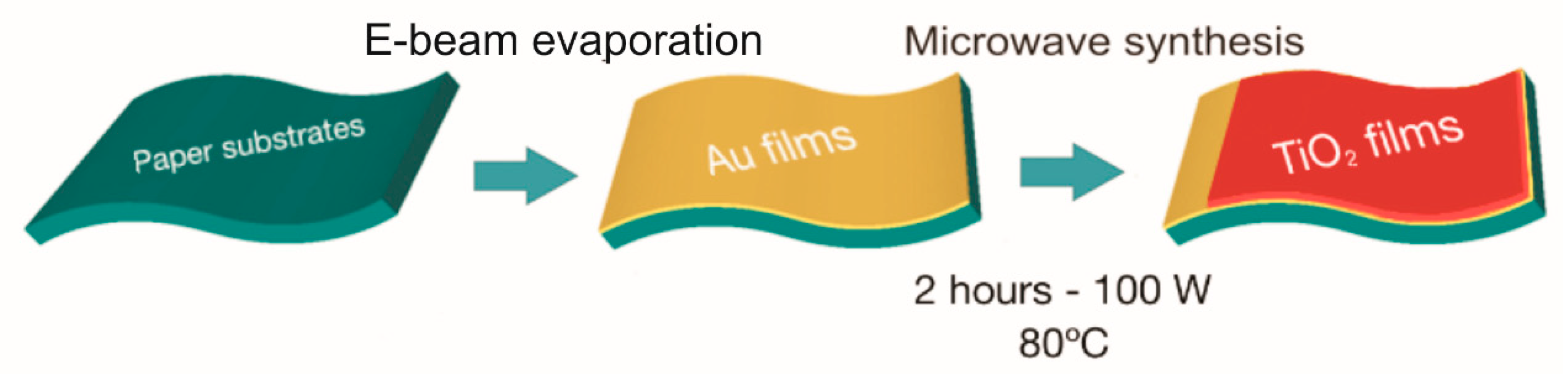

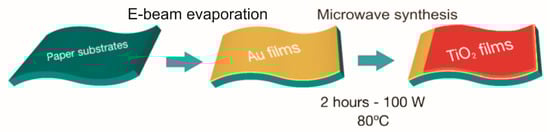

Figure 1. Scheme of the gold layer deposition followed by the titanium dioxide (TiO2) nanostructured film growth under microwave irradiation.
Figure 1. Scheme of the gold layer deposition followed by the titanium dioxide (TiO2) nanostructured film growth under microwave irradiation.
Applsci 10 01200 g001
Applsci 10 01200 g002 550

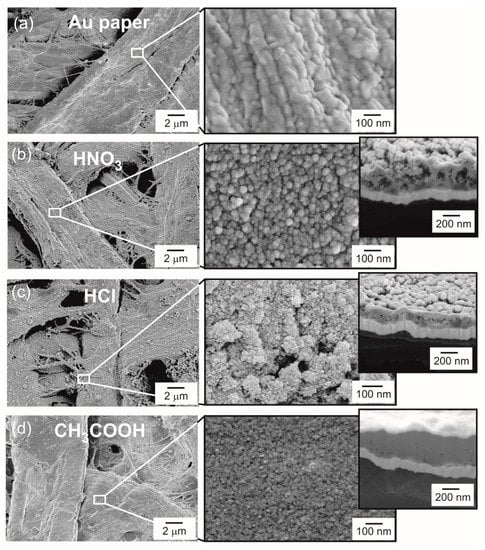

Figure 2. SEM images showing the Whatman paper with an Au film and the TiO2 nanostructured films grown under microwave irradiation. (a) Whatman paper with a 140 nm Au film deposited by ebeam to act as contact. (b) Synthesis of the TiO2 nanostructured films using nitric acid, (c) hydrochloric acid, and (d) acetic acid. The insets demonstrate the TiO2 film thicknesses. An Au/Pd sacrificial layer has been deposited on the top of the TiO2 films.
Figure 2. SEM images showing the Whatman paper with an Au film and the TiO2 nanostructured films grown under microwave irradiation. (a) Whatman paper with a 140 nm Au film deposited by ebeam to act as contact. (b) Synthesis of the TiO2 nanostructured films using nitric acid, (c) hydrochloric acid, and (d) acetic acid. The insets demonstrate the TiO2 film thicknesses. An Au/Pd sacrificial layer has been deposited on the top of the TiO2 films.
Applsci 10 01200 g002
Applsci 10 01200 g003 550

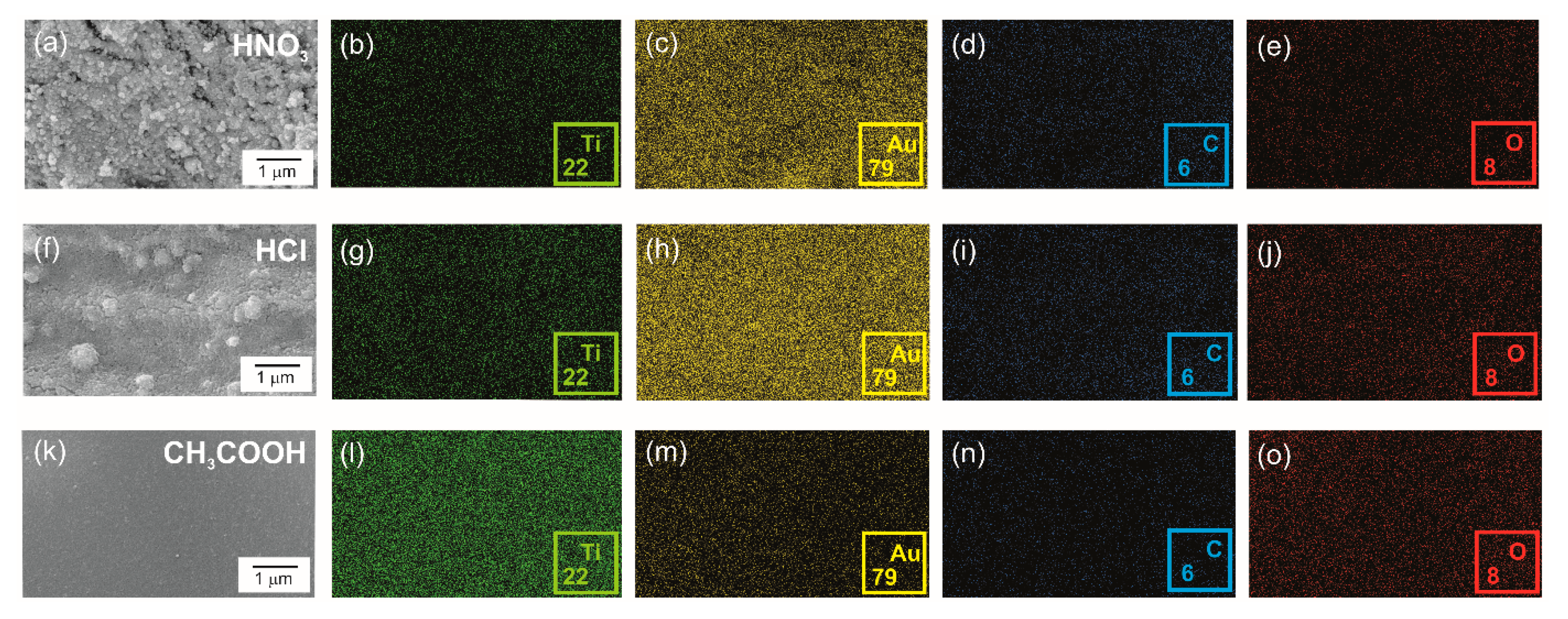

Figure 3. SEM images of the TiO2 nanostructured films produced using nitric acid (a), hydrochloric acid (f) and acetic acid (k) together with their corresponding energy dispersive spectroscopy (EDS) maps of Ti, (b,g,l), Au (c,h,m), C (d,I,n) and O (e,j,o).
Figure 3. SEM images of the TiO2 nanostructured films produced using nitric acid (a), hydrochloric acid (f) and acetic acid (k) together with their corresponding energy dispersive spectroscopy (EDS) maps of Ti, (b,g,l), Au (c,h,m), C (d,I,n) and O (e,j,o).
Applsci 10 01200 g003
Applsci 10 01200 g004 550

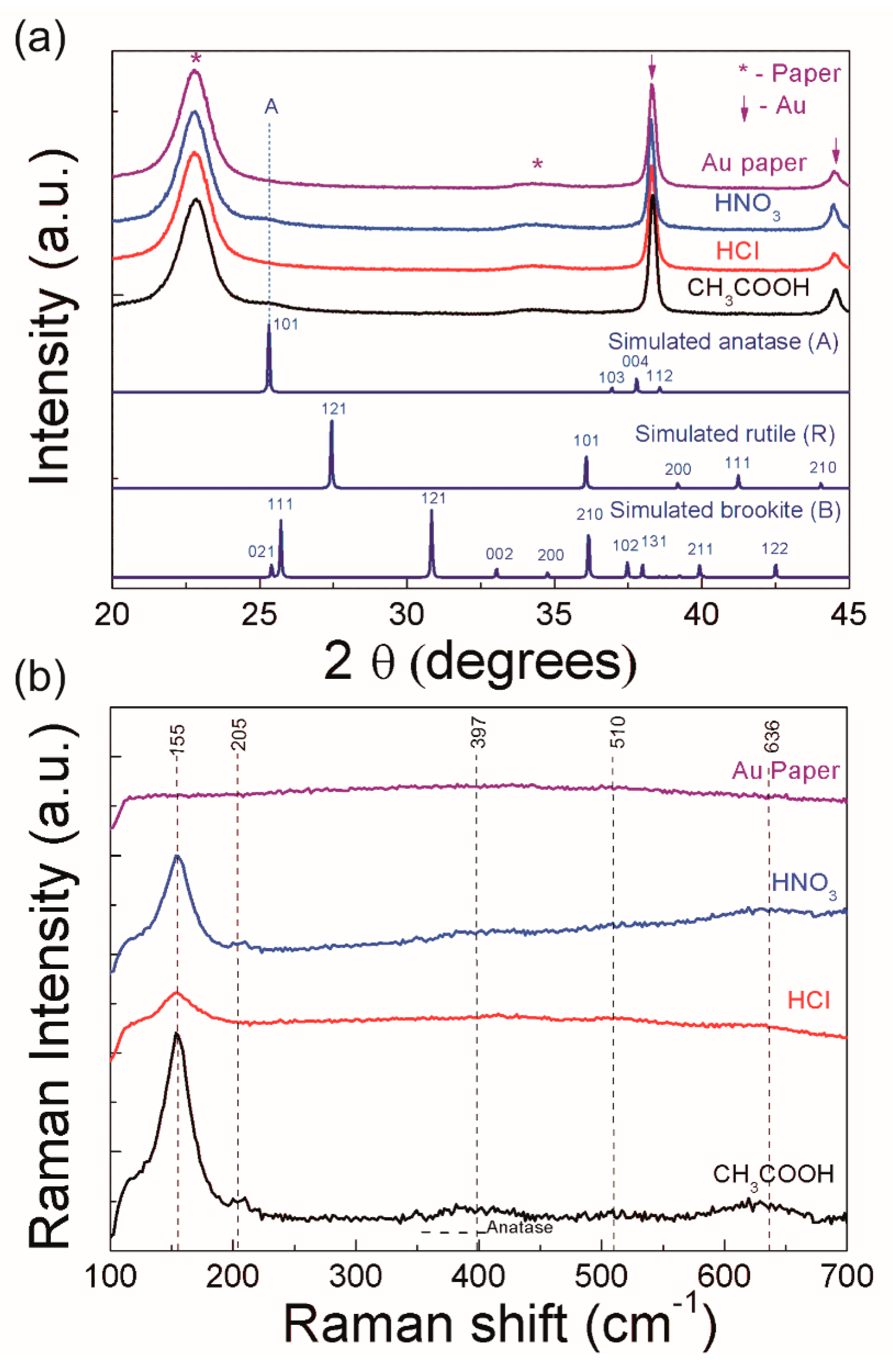

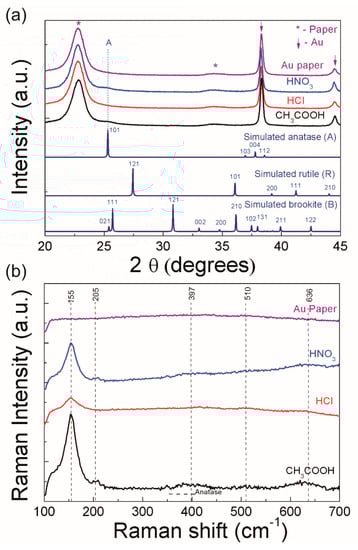

Figure 4. (a) XRD diffractograms of the TiO2 nanostructured films grown on Au paper together with the pristine Au paper. For comparison, the simulated XRD diffractograms of rutile, brookite and anatase are presented. (b) Raman spectra of the nanostructured films and the pristine Au paper. Dashed lines indicate the anatase bands.
Figure 4. (a) XRD diffractograms of the TiO2 nanostructured films grown on Au paper together with the pristine Au paper. For comparison, the simulated XRD diffractograms of rutile, brookite and anatase are presented. (b) Raman spectra of the nanostructured films and the pristine Au paper. Dashed lines indicate the anatase bands.
Applsci 10 01200 g004
Applsci 10 01200 g005 550

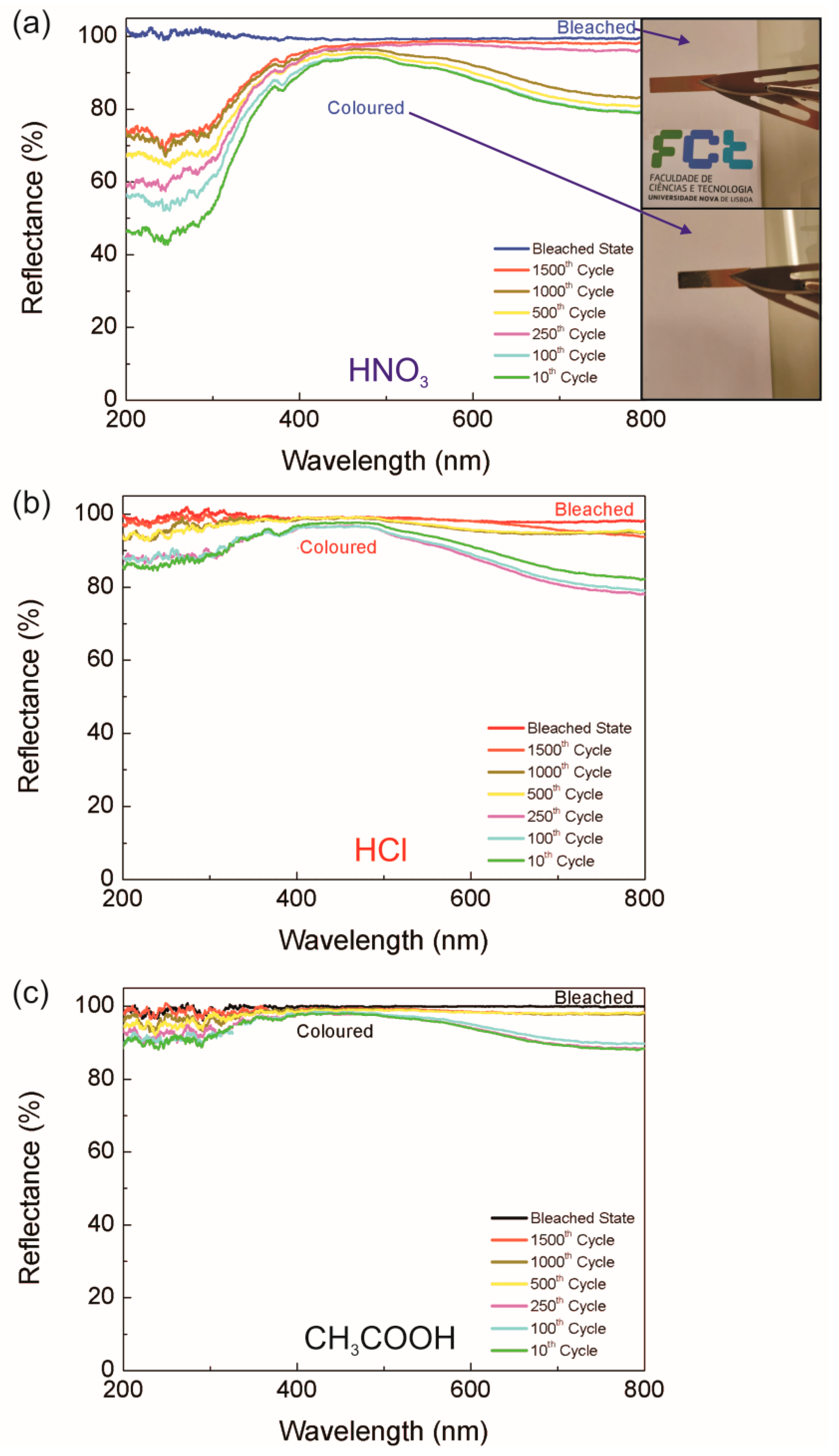

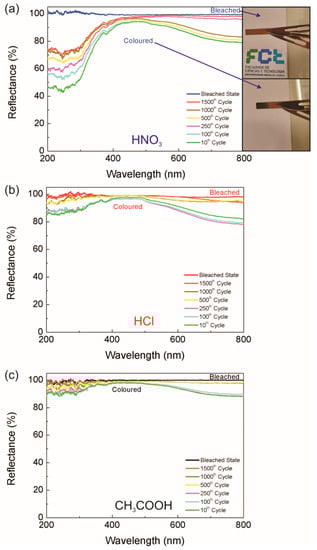

Figure 5. Reflectance spectra of the TiO2 nanostructured films for colored and bleached states obtained after 10, 100, 250, 500, 1000 and 1500 coloration/bleaching cycles, applying ±5 V. The bleached spectra presented was measured after 250 cycles. The results for TiO2 nanostructured films synthesized using nitric acid are presented in (a), hydrochloric acid in (b), and acetic acid in (c). It also presented an image of the nitric-based TiO2 film on the colored and bleached states carried out at room temperature.
Figure 5. Reflectance spectra of the TiO2 nanostructured films for colored and bleached states obtained after 10, 100, 250, 500, 1000 and 1500 coloration/bleaching cycles, applying ±5 V. The bleached spectra presented was measured after 250 cycles. The results for TiO2 nanostructured films synthesized using nitric acid are presented in (a), hydrochloric acid in (b), and acetic acid in (c). It also presented an image of the nitric-based TiO2 film on the colored and bleached states carried out at room temperature.
Applsci 10 01200 g005
Applsci 10 01200 g006 550

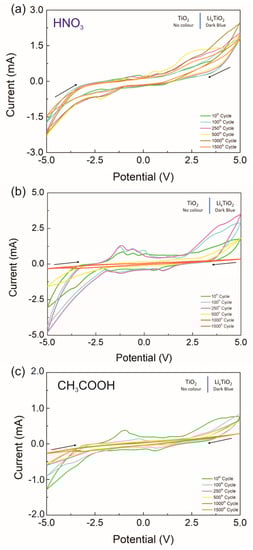

Figure 6. Cyclic voltammograms of TiO2 nanostructured films from −5 V to 5 V (versus Ag/AgCl), at a scan rate of 500 mV/s, in a 1 M LiClO4–PC electrolyte, after several cycles up to a maximum of 1500. Results for the TiO2 nanostructured films synthesized using (a) nitric, (b) hydrochloric, and (c) acetic acids.
Figure 6. Cyclic voltammograms of TiO2 nanostructured films from −5 V to 5 V (versus Ag/AgCl), at a scan rate of 500 mV/s, in a 1 M LiClO4–PC electrolyte, after several cycles up to a maximum of 1500. Results for the TiO2 nanostructured films synthesized using (a) nitric, (b) hydrochloric, and (c) acetic acids.
Applsci 10 01200 g006
Applsci 10 01200 g007 550

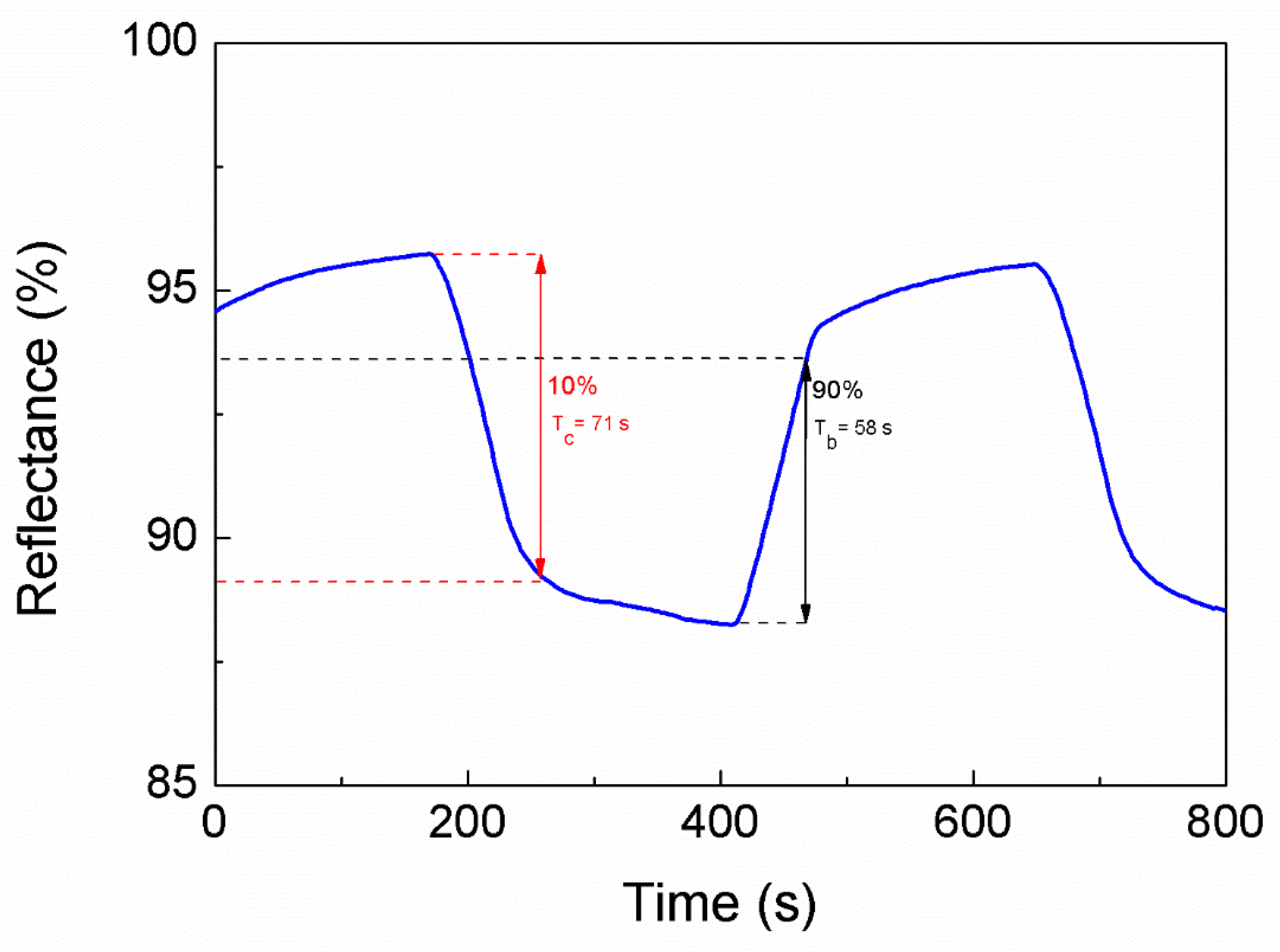

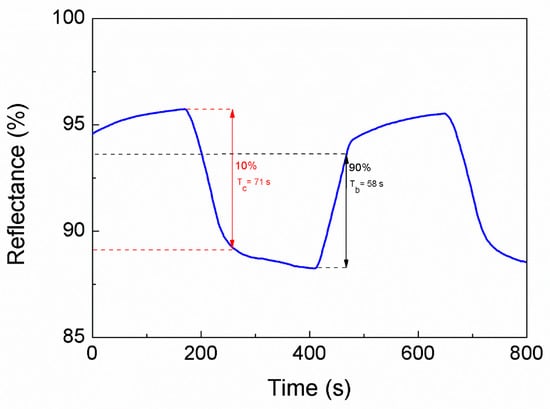

Figure 7. Lifetime cycles measurements for the TiO2 nanostructured films synthesized using nitric acid, for applied voltages of −5 and 5 V (hold time of 240 s), with an exposed area of 1 cm2 at 550 nm.
Figure 7. Lifetime cycles measurements for the TiO2 nanostructured films synthesized using nitric acid, for applied voltages of −5 and 5 V (hold time of 240 s), with an exposed area of 1 cm2 at 550 nm.
Applsci 10 01200 g007
