Serial Disulfide Polymers as Cathode Materials in Lithium-Sulfur Battery: Materials Optimization and Electrochemical Characterization

Abstract

Herein, a series of novel disulfide polymers were synthesized by using the raw materials of diallyl-o-phthalate, tung oil, peanut oil, and styrene. Four kinds of products: Poly (sulfur-diallyl-o-phthalate) copolymer, poly (sulfur-tung oil) copolymer, poly (sulfur-peanut oil) copolymer, and poly (sulfur-styrene-peanut oil) terpolymer were characterized, and their solubility was studied and compared. Among the four kinds of disulfide polymers, poly (sulfur-styrene-peanut oil) terpolymer had the best solubility in an organic solvent, and it was chosen to be the active cathode material in Li-S battery. Subsequently, two different conductive additives—conductive carbon black and graphene were separately blended with this terpolymer to prepare two battery systems. The electrochemical performances of the two batteries were compared and analyzed. The result showed that the initial specific capacity of poly (sulfur-styrene-peanut oil) terpolymer (blended with conductive carbon black) battery was 935.88 mAh/g, with the capacity retention rate about 43.5%. Comparingly, the initial specific capacity of poly (sulfur-styrene-peanut oil) terpolymer (blended with graphene) battery was 1008.35 mAh/g, with the capacity retention rate around 60.59%. Therefore, the battery system of poly (sulfur-styrene-peanut oil) terpolymer with graphene showed a more stable cycle performance and better rate performance. This optimized system had a simple and environmental-friendly synthesis procedure, which showed a great application value in constructing cathode materials for the Li-S battery.

1. Introduction

Compared with the present cathode materials, sulfur has a higher specific capacity (1675 mAh/g), and the theoretical energy density of lithium-sulfur (Li-S) battery is as high as 2600 wh/kg, which is 3–5 times larger than other traditional lithium-ion batteries [1]. However, the Li-S battery also has several disadvantages, for example, the conductivity of sulfur at room temperature is low (5.0 × 10⁻³⁰ S/cm) and the final products Li₂S₂ and Li₂S are nonconductive, which limits the rate performance of Li-S battery. Moreover, the intermediates of Li-S battery will dissolve in the organic electrolyte and diffuse across the membrane to the negative electrode, which results in the irreversible loss of the active substance and decay of battery cycle life, causing the “shuttle effect”. In addition, parts of lithium sulfide are removed from the conductive framework and cannot be converted into S₈ or other high-order polysulfides in the charge-discharge process, which greatly affects the specific capacity [2]. Therefore, it has become important to construct a suitable cathode material system to solve these problems.

The polymer cathode material with high sulfur content has a simple preparation process, low reaction temperature, and it has various molecular structures which are beneficial for material design. Yuzhong M. et al. [3] prepared the sulfur-containing composite based on linear polymer, in order to gather, fix, and connect the element sulfur with each other through a dynamic covalent bond [4]. During the charge-discharge process, the energy storage and release can be realized via the break and reconnection of sulfur-sulfur bond, which can reduce the generation of intermediates, and effectively protect the active substances from being dissolved in the electrolyte, and then improve the battery efficiency [5,6].

However, above 159 °C, the octasulfur ring will be opened, and the end groups are linear polysulfide chains with sulfur radical, which will be polymerized into the homopolysulfide with higher molecular weight. This kind of homopolysulfide has poor solubility and fusibility. To solve this problem, the inverse vulcanization [7,8,9,10] method was invented to prepare polymers with high sulfur content. In this process, molten sulfur was directly copolymerized with vinyl monomers, which not only increased the branching of sulfur chains, but also produced polysulfide rings. These changes effectively inhibited the depolymerization of homopolysulfides and enhanced the processability of the products [11,12].

Sun et al. [13] prepared a sulfur-based polymer via inverse vulcanization by using 1,3-diacetyrylbenzene (DEB) and sulfur. It was found that diyne or polydiyne in the polymer had crosslinked with sulfur, forming a semi-interpenetrating network structure. This special cage-like structure effectively inhibited the “shuttle effect” and enhanced battery performance. Arslan et al. [14] prepared a copolymer of sulfur-bismaleimide (BMI) via inverse vulcanization and used this copolymer as cathode material. The specific capacity of the battery after 50 cycles was about 400 mAh/g. Inaki et al. [15] synthesized copolymers of sulfur-divinylbenzene (DVB) via inverse vulcanization and utilized it as cathode material. The specific capacity of this product can match up with that of carbon/sulfur cathode material. Swapnil et al. [16] prepared the phenol benzoxazine monomer-sulfur random copolymer at 185 °C and found that the curing temperature decreased from 242 to 185 °C. When this copolymer was used as cathode material, the specific capacity of the battery kept at 1006 mAh/g after 75 cycles.

Though plenty of sulfur-based polymers have been prepared as cathode materials in Li-S battery, most reactants were aromatic hydrocarbons or compounds with relatively low polarity, which greatly limited the preparation and application of the Li-S battery.

Herein, to develop more reactants and to simplify the preparation process, a series of disulfide polymers was synthesized via the method of inverse vulcanization and dynamic covalent polymerization (DCP) [17,18,19]. Diallyl-o-phthalate, tung oil, peanut oil, and styrene were used as reactants and four kinds of sulfur-based polymers were synthesized. Among the products, the poly (sulfur-styrene-peanut oil) terpolymer showed the best solubility and electrode processability: It was viscous, and it can be completely soluble in the tetrahydrofuran solution at room temperature. Therefore, it was utilized both as an active substance of the cathode material and as a binder in Li-S batteries. In addition, this novel terpolymer was separately mixed with different conductive additives: Conductive carbon black and graphene. The properties of these two battery systems were compared and the result showed that the battery system of poly (sulfur-styrene-peanut oil) terpolymer with graphene had a more stable cycle performance and better rate performance than the battery system of poly (sulfur-styrene-peanut oil) terpolymer with conductive carbon black. The optimized battery system proved that the monomer without benzene ring can also react with molten sulfur and can be successfully utilized as the cathode material in Li-S battery.

2. Experiment

2.1. Material Preparation

2.1.1. Synthesis of Poly (sulfur-diallyl-o-phthalate) (Poly(S-DAP)) Copolymer

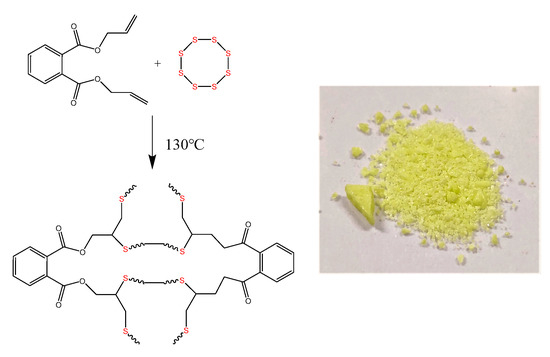

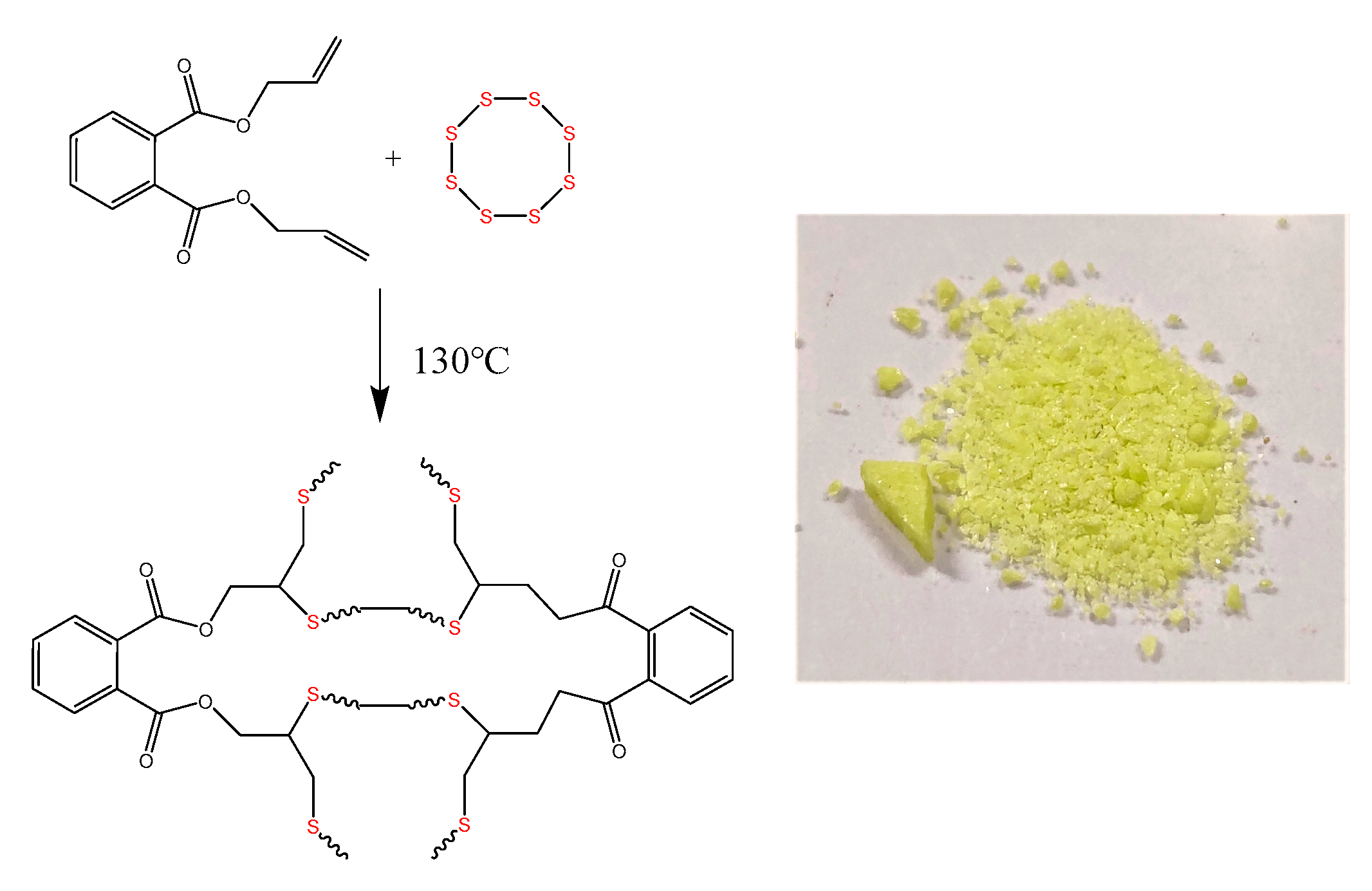

The poly (sulfur-diallyl-o-phthalate) copolymer was synthetized via inverse vulcanization. Firstly, diallyl-o-phthalate (DAP, 98%, Shanghai meiruier Chemical Technology Co., Ltd. (Shanghai China)) was injected into the molten sulfur (99.5+%, Acros Organics) at 120 °C at a mass ratio of 3:7 (sulfur: 70 wt%). The mixture was heated at 130 °C for 2.5 h. The yellow solid product, as shown in Figure 1, was washed with acetone (AR, Beijing chemical plant) and dried in the vacuum drier (DZF2001, Shanghai Yiheng Instrument Co., Ltd. (Shanghai China)).

2.1.2. Synthesis of Poly (sulfur-tung oil) (Poly(S-T)) Copolymer

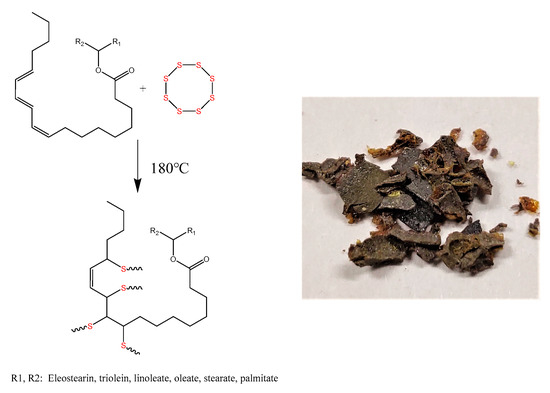

The poly (sulfur-tung oil) copolymer was synthetized via inverse vulcanization. Firstly, tung oil (Xisi chemical raw material store) was injected into the molten sulfur at 120 °C at a mass ratio of 4:6 (sulfur: 60 wt%). The mixture was heated at 170–180 °C for 30–40 min. The black solid product, as shown in Figure 2, was washed with acetone and dried in the vacuum drying oven.

2.1.3. Synthesis of Poly (sulfur-peanut oil) (Poly(S-P)) Copolymer

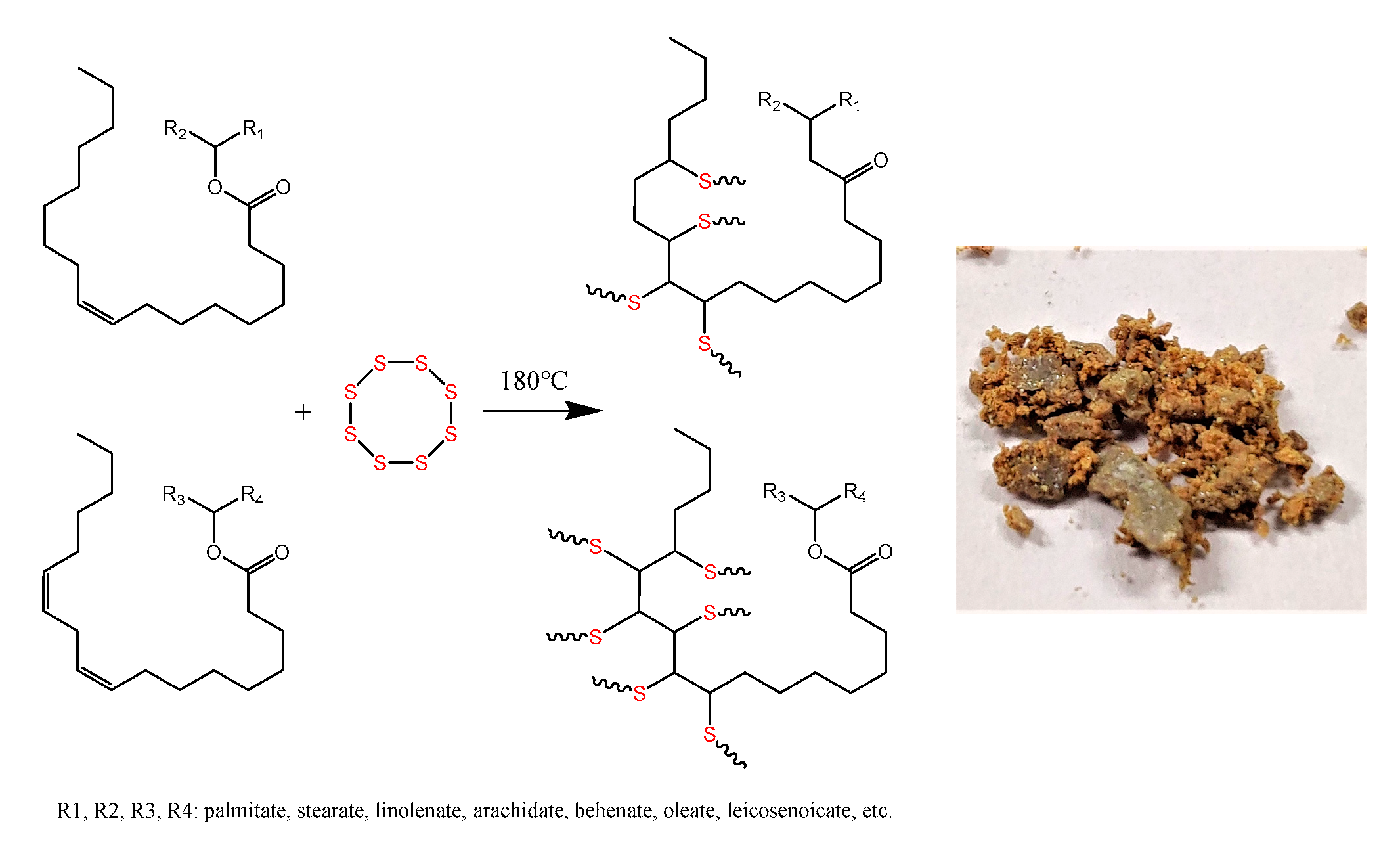

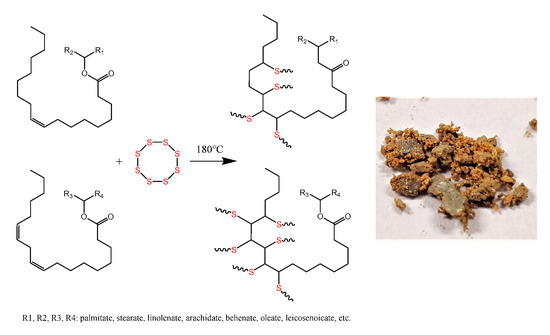

The poly (sulfur-peanut oil) copolymer was synthetized via inverse vulcanization. Firstly, peanut oil (roasted, Yangjiang Yangdong Food and Spice Co., Ltd. (Guangdong, China)) was injected into the molten sulfur at 120 °C at a mass ratio of 4:6 (sulfur: 60 wt%). The mixture was heated at 170–180 °C for 30–40 min to get the brown solid product, as shown in Figure 3.

2.1.4. Synthesis of Poly (sulfur-styrene-peanut oil) (Poly(S-Sty-P)) Terpolymer

Firstly, styrene (98%, Tianjin Fuchen Chemical Reagent Factory (Tianjin China)) was injected into the molten sulfur at 120 °C at a mass ratio of 4:6 (sulfur: 60 wt%). Then, the mixture was heated at 130–140 °C for 5–6 h to get a brown liquid. When the products cooled down, the intermediate product poly (sulfur-styrene) copolymer was synthetized. Then, peanut oil was injected into the molten poly (sulfur-styrene) copolymer (at 9:1 wt% feed ratios), and the mixture was heated at 170–180 °C for 5 h. After cooling down, the poly (sulfur-styrene-peanut oil) terpolymer was synthesized (calculated sulfur content: 54 wt%), which was viscous at room temperature, as shown in Figure 4.

2.2. Characterization

Infrared spectroscopy (IR, Nicolet-60SXB) was used to characterize the four products of poly(S-DAP) copolymer, poly(S-T) copolymer, poly(S-P) copolymer, and poly(S-Sty-P) terpolymer. Ultrasonic cleaners (KQ5200DB, Kun Shan) were used to test the solubility of these disulfide polymers. The element composition was tested by nuclear magnetic resonance (¹³C NMR) (Bruker Avance 400 MHz), and the surface topography of the products was observed by the scanning electron microscopy (Zooma 200, The Netherlands).

2.3. Electrochemical Measurement

According to the dissolution test, poly(S-Sty-P) terpolymer had the best solubility among the disulfide polymers and it was completely soluble in the tetrahydrofuran solution (AR, Beijing Chemical Plant) at room temperature. Therefore, poly(S-Sty-P) terpolymer was chosen to prepare the cathode material. Separately, conductive carbon black and graphene were blended with the terpolymer (at a mass ratio of 3:2). Then, the mixture was stirred for about 5 h until the uniform slurry was obtained. Then, the slurry was coated on an aluminum foil current collector by an applicator blade and was dried in the vacuum drier at 60 °C. After that, circular electrode pieces were punched at a diameter of 1 cm. These punched pieces were used as the positive electrode; the lithium pieces (16*0.6 mm, Jiangsu Taizhou) were used as the negative electrode; Celgard 2400 microporous films were used as the separator, and 1 mol/L LiTFSI (1,3-dioxolane/dimethoxyethane, volume ratio of 1:1) was used as the electrolyte. Finally, the button batteries were totally assembled in the glove box (Lab 2000). After 24 h, the batteries were electrochemically tested. The charge-discharge performance and the cycle performance of the batteries were tested in the LAND CT2001A blue test system (Wuhan). The cyclic voltammetry (CV) of the batteries was measured in the ARBIN electrochemical workstation (Suzhou Tianyi Science and Technology Co., Ltd. (Suzhou China)) at a scan rate of 0.05 mV/s and a voltage range of 1.2–3.0 V. The electrochemical impedance spectroscopy (EIS) of the cathode materials was measured in the ARBIN electrochemical workstation at the frequency range from 10⁵ to 10² Hz and all cells were charged to 3 V before the EIS test. The specific capacity and current multiplying ratio of the batteries were calculated according to the mass of sulfur: M_terpolymer/(M_terpolymer + M_{conductive agent}) × 54% (calculated sulfur content). Therefore, the active material amount in poly(S-Sty-P) terpolymer @ CCB cathode material was 43.67 wt%, while the active material amount in poly(S-Sty-P) terpolymer @ GF cathode material was 45.73 wt%.

3. Results and Discussion

3.1. Characterization of Serial Disulfide Polymer

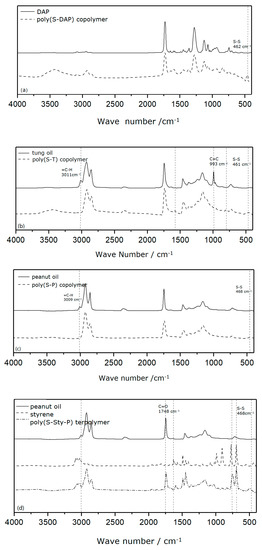

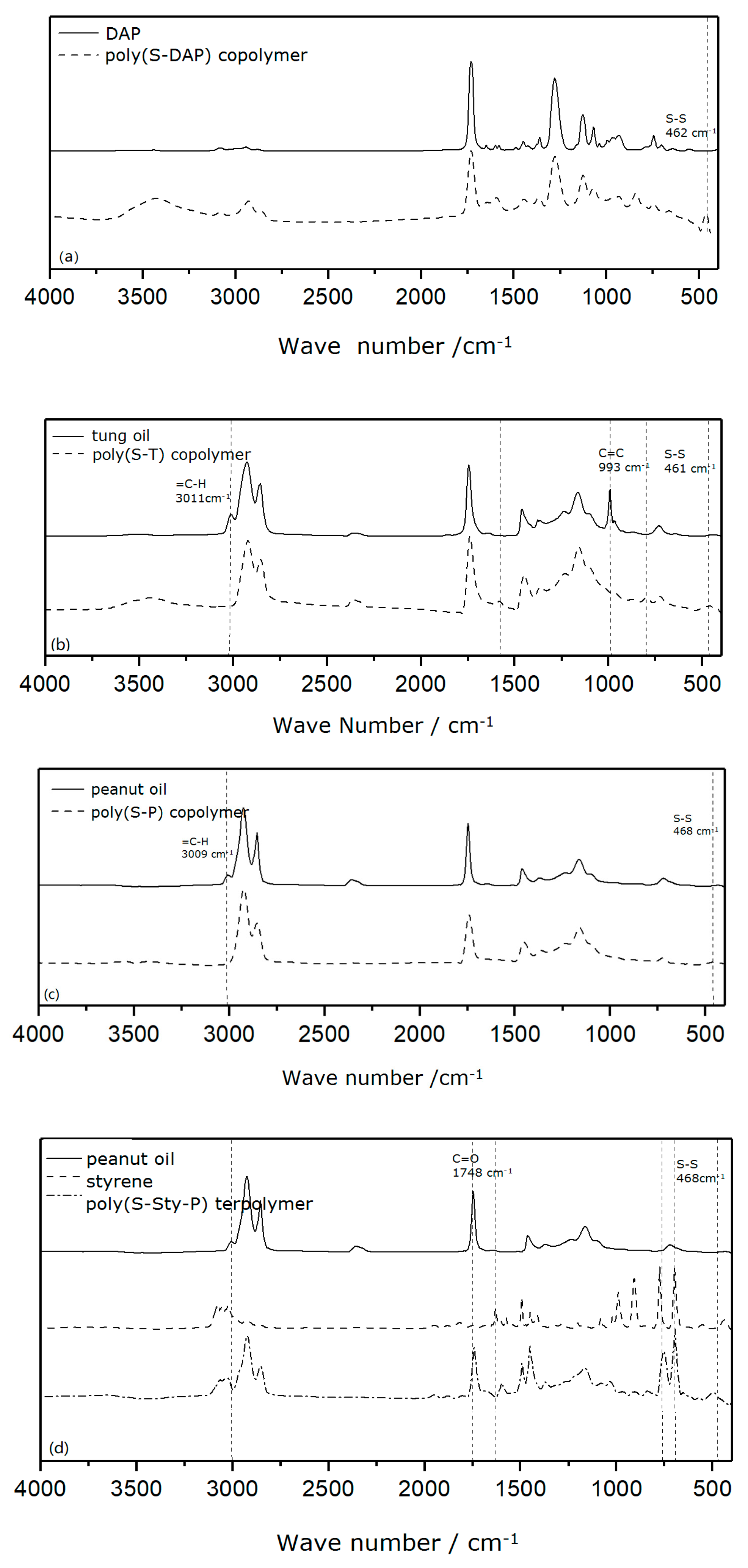

In the infrared spectrum of the poly(S-DAP) copolymer (Figure 5a), compared with the curve of DAP, the curve of poly(S-DAP) copolymer showed an extra signal at 462 cm⁻¹, which illustrated the existence of S-S bond. In Figure 5b, the curve of tung oil showed a signal at 3011 cm⁻¹, which was caused by the vibration of =C-H bond, and the signal at 993 cm⁻¹ was attributed by three conjugates C=C. In the curve of poly(S-T) copolymer, the signals at 1581 and 799 cm⁻¹ were caused by the vibration of C-H bond which was near the C-S bond, and there was also an indicator of S-S bond at 461 cm⁻¹. In Figure 5c, the curves of peanut oil and poly(S-P) copolymer resembled each other, but the signal at 3009 cm⁻¹ disappeared and a new signal at 468 cm⁻¹ appeared, which indicated that S had reacted with the C=C bond. In Figure 5d, compared with the curves of peanut oil and styrene, the curve of poly(S-Sty-P) terpolymer changed a lot: A new signal at 468 cm⁻¹ showed the existence of S-S bond; and the signals at 700, 776, and 3010 cm⁻¹ indicated that the styrene was participated in the reaction. The signal at 1748 cm⁻¹ was attributed by the vibration of C=O bond. However, the signal at 1630 cm⁻¹ disappeared, while the signal of the benzene ring still existed. It meant that the poly(S-Sty-P) terpolymer had been successfully synthesized.

In order to be fully blended with conductive additives and to be uniformly filled on the collector, the products were separately dissolved in different solvents to find out the most suitable system. The poly(S-DAP) copolymer, poly(S-T) copolymer, poly(S-P) copolymer, and poly(S-Sty-P) terpolymer were separately added into different solvents: Acetone, dichloromethane, trichloromethane, cyclohexane, toluene, and tetrahydrofuran. The mixture was separately put into ultrasonic cleaners for 25 min and stayed still for 24 h. The result showed that poly(S-Sty-P) terpolymer had the best solubility in tetrahydrofuran, as shown in

Table 1. The solubility of serial disulfide polymer in different solvents.

	Acetone	Dichloromethane	Trichloromethane	Cyclohexane	Toluene	Tetrahydrofuran
S-DAP	×	×	×	×	×	×
S-T	×	×	×	×	×	○
S-P	×	○	○	○	○	○
S-Sty-P	×	○	○	○	○	√

PS: ×—Insoluble; ○—Partially soluble; √—soluble.

. The solubility of this disulfide polymer was based on their molecular chain structure. Tung oil had three conjugated C=C bonds in the structure and DAP had two C=C bonds, which can easily form a cross-linking structure after reverse vulcanization [12,20]. Therefore, these two copolymers had worse solubility. Peanut oil contained many unsaturated glycerides. Though it had fewer C=C bonds, molecular crosslinking still existed [21]. Therefore, its solubility was still unsatisfactory. However, in the structure of poly(S-Sty-P) terpolymer, the benzene ring existed, so the internal crosslinking of the molecular chain was reduced by the larger steric hindrance [22]. Thus, its solubility was improved.

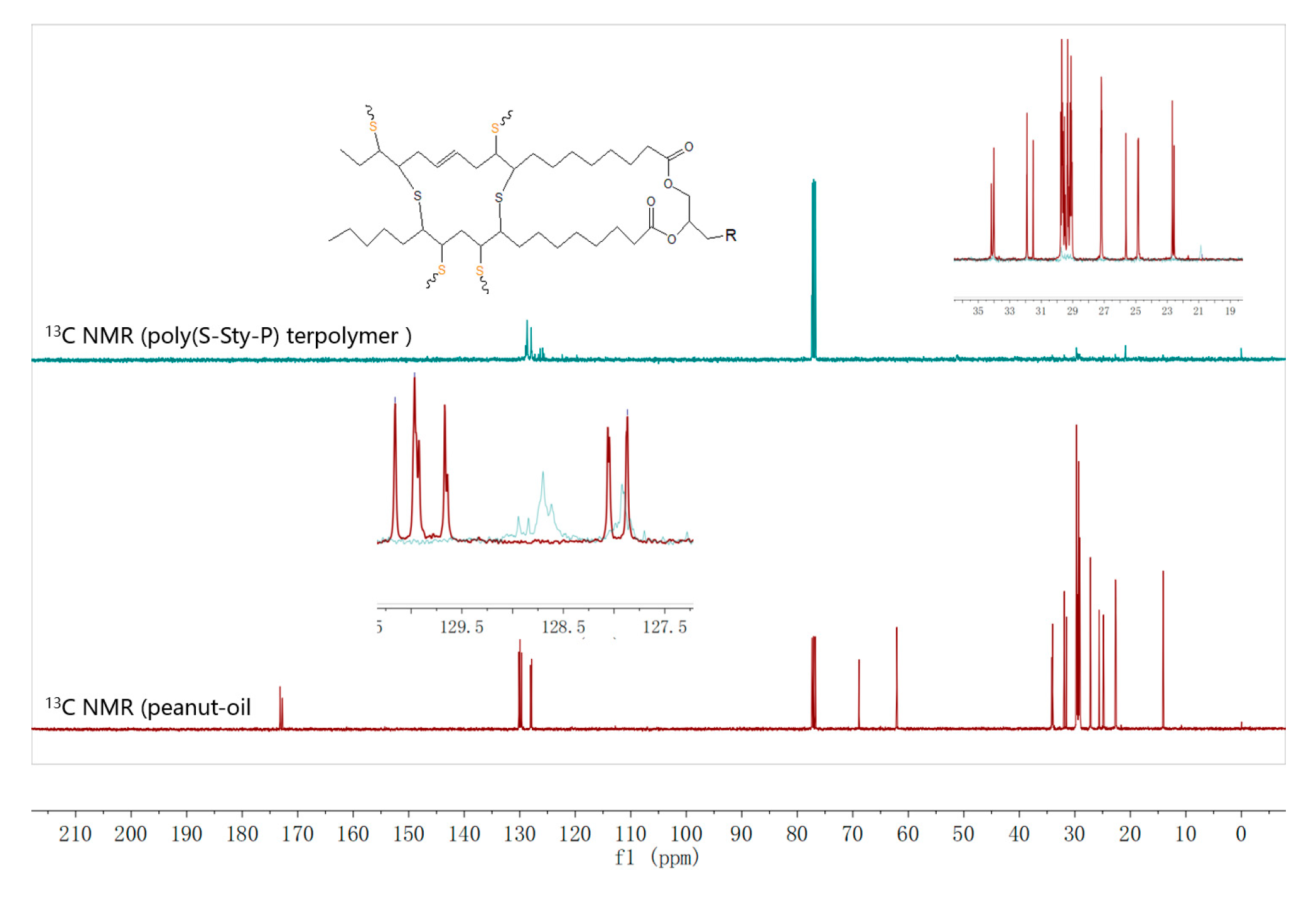

Furthermore, nuclear magnetic resonance carbon (¹³C NMR) characterization was used to demonstrate the terpolymer’s structure. In the ¹³C NMR spectra of poly(S-Sty-P) terpolymer (Figure 6), the signals at the range of 125–129 ppm were attributed by the C=C bond vibration. It meant that benzene ring existed in the molecular chain of the terpolymer. However, intramolecular crosslinks might also exist during the reaction, as shown in Figure 6. There were also new signals at 51 and 21 ppm, which indicated that carbon atoms were successfully attached to sulfur.

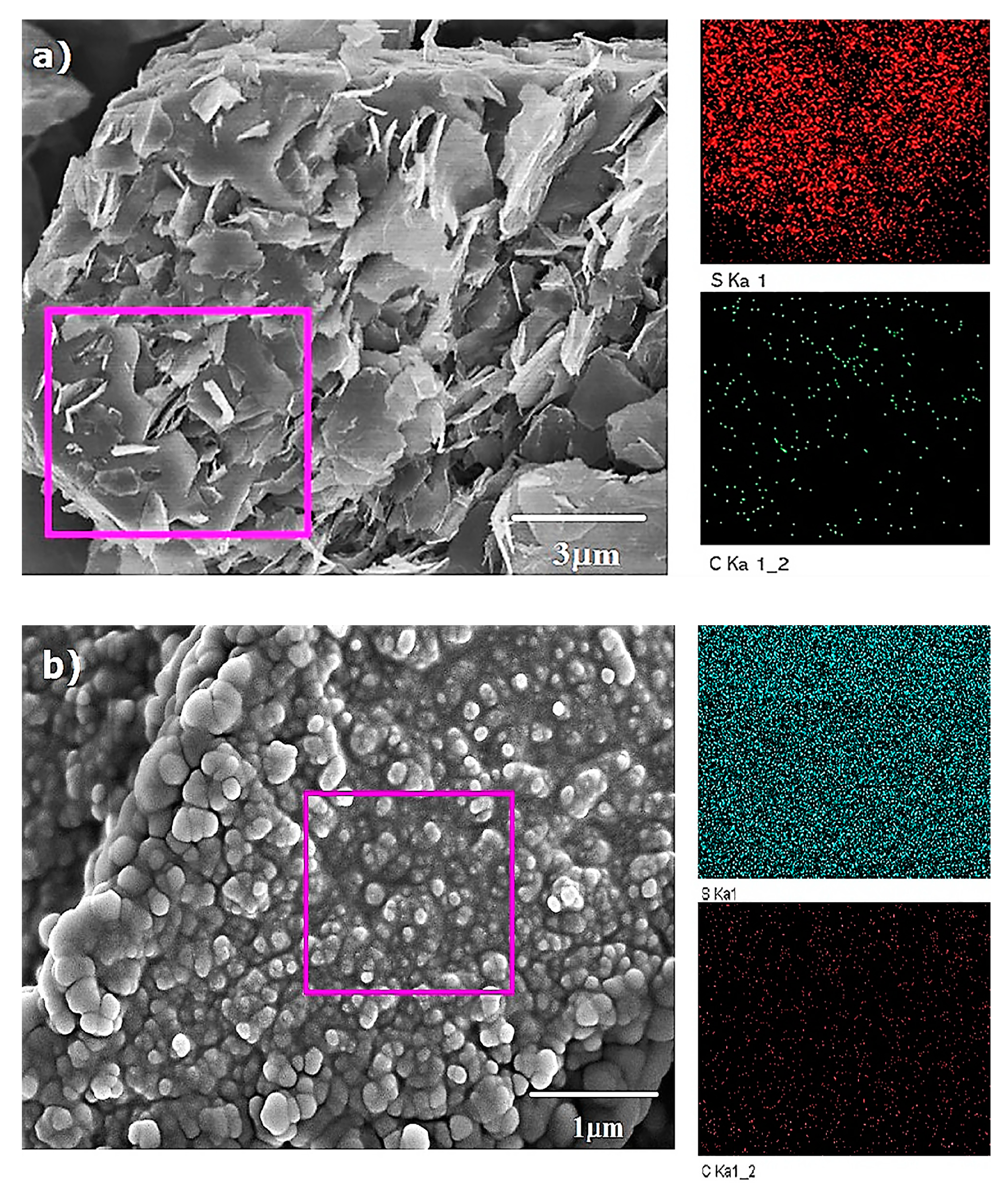

As poly(S-Sty-P) terpolymer had the best solubility compared with other disulfide polymers, it was chosen to be utilized as the cathode material in Li-S battery. Conductive carbon black and graphene were separately blended with it (poly(S-Sty-P) terpolymer blended with conductive carbon black—poly(S-Sty-P) terpolymer @ CCB; poly(S-Sty-P) terpolymer blended with graphene—poly(S-Sty-P) terpolymer @ GF), and SEM was utilized to investigate the morphologies of the compounds. As depicted in Figure 7a, poly(S-Sty-P) terpolymer @ GF showed a lamellar-like structure on the surface. In this structure, the active particles were attached to the graphene sheet, forming a large area of conductive network which provided a large number of conductive contact sites [23,24]. Additionally, Figure 7b showed the structure of poly(S-Sty-P) terpolymer @ CCB. The particles were clustered into a chain or grape structure, packed closely, which was advantageous to form a conductive chain structure in the electrode [25]. Elemental analysis showed that there was a large amount of S element in the two compounds.

3.2. Electrochemical Measurement

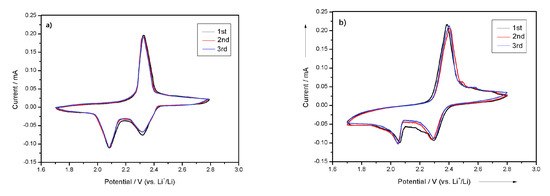

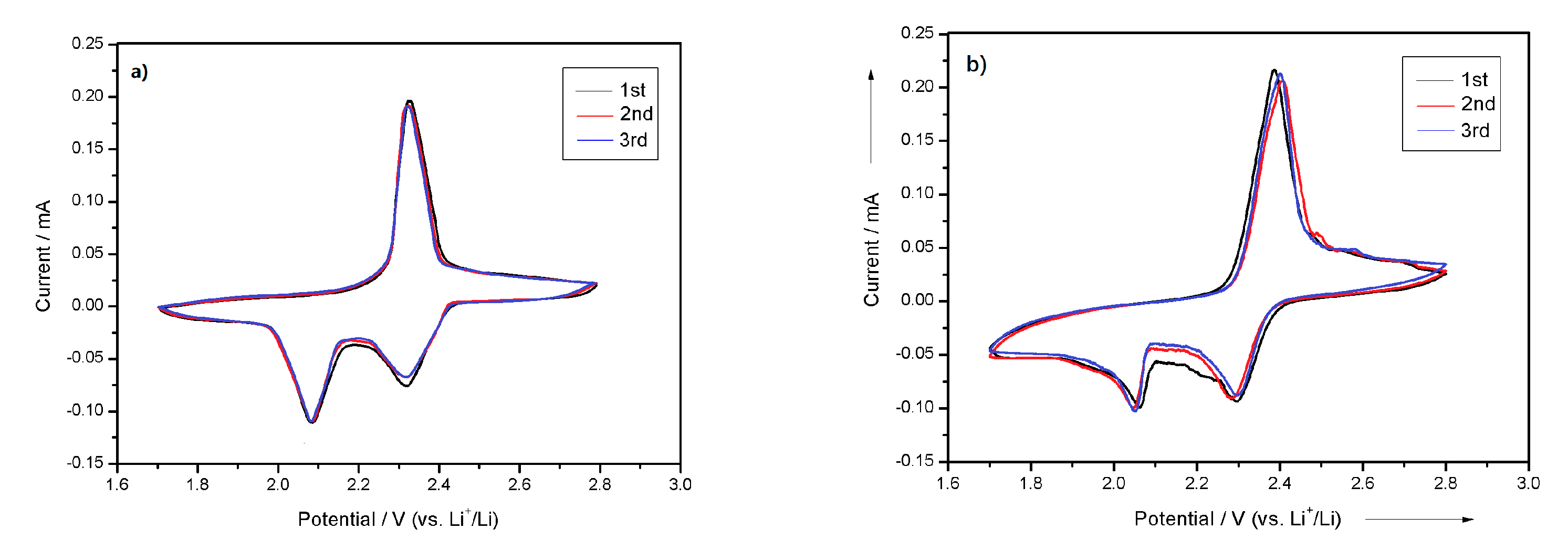

The poly(S-Sty-P) terpolymer @ GF and poly(S-Sty-P) terpolymer @ CCB were both successfully employed as cathode materials in Li-S battery. The first cycle of cyclic voltammetry (CV) curves of these two batteries were depicted in Figure 8. The CV curve of poly(S-Sty-P) terpolymer @ CCB resembled the curve of charge-discharge curves of poly(S-Sty-P) terpolymer @ GF. They both had two distinct reduction peaks at about 2.3 and 2.1 V, and one oxidation peak at 2.4 V. Both of the curves were characteristic of the CV curve of element sulfur [26].

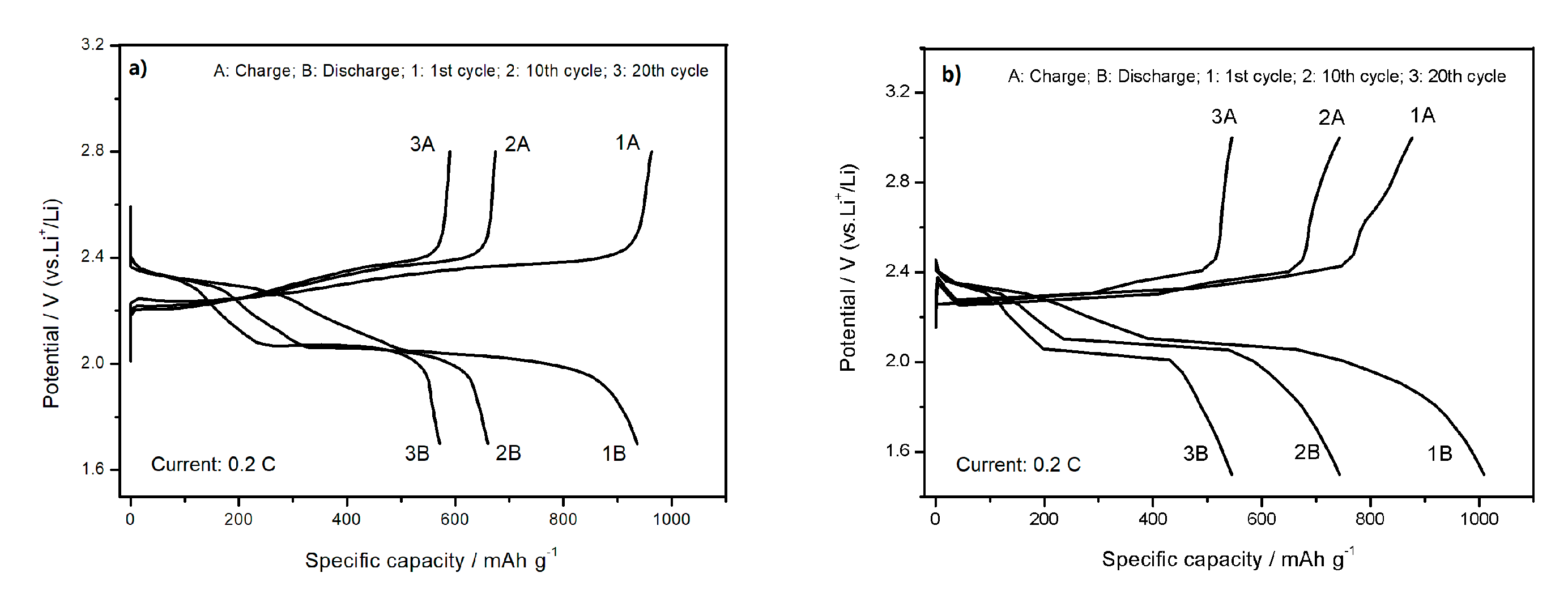

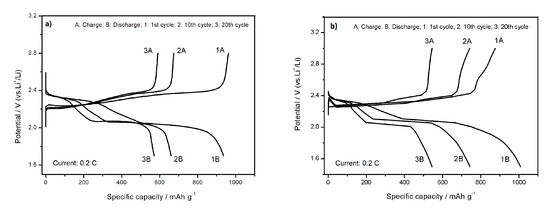

With the open circuit voltage of 3 V and current of 0.2 C, the charge-discharge curve of poly(S-Sty-P) @ CCB battery showed two plateaus (Figure 9a) at 2.35 and 2.05 V; and the charge-discharge curve of poly(S-Sty-P) @ GF battery showed two plateaus (Figure 9b) at 2.33 and 2.03 V. Both of the charge-discharge curves were in accordance with the characteristic curve of Li-S battery. This fact demonstrated that S-S and organosulfur moieties in the terpolymers were electroactive. The reactions involved during the charge and discharge process were shown in Figure 10.

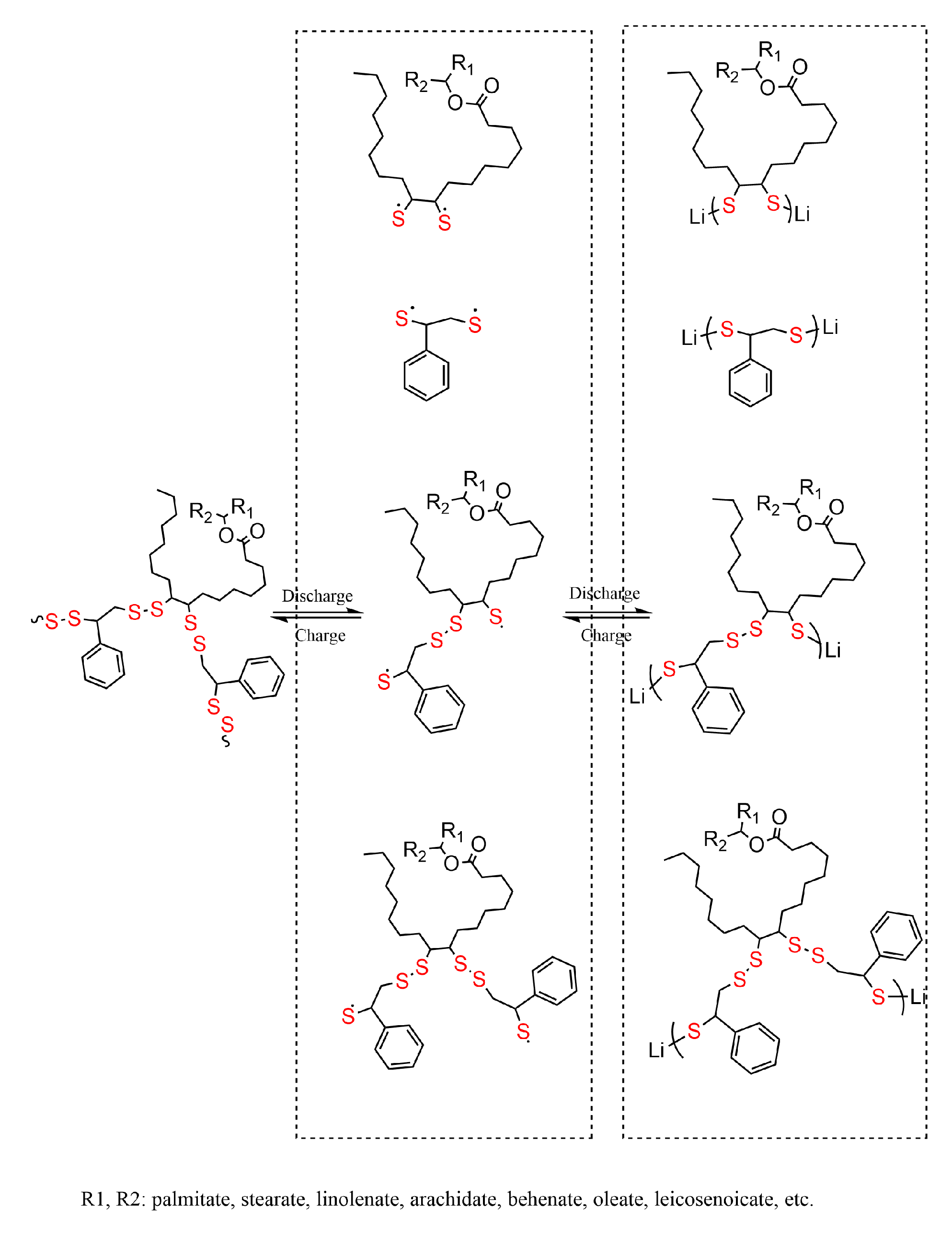

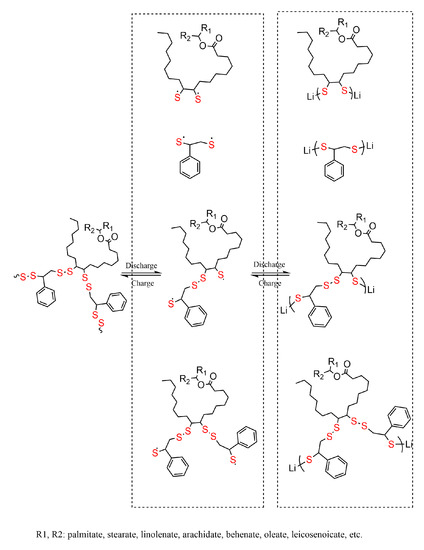

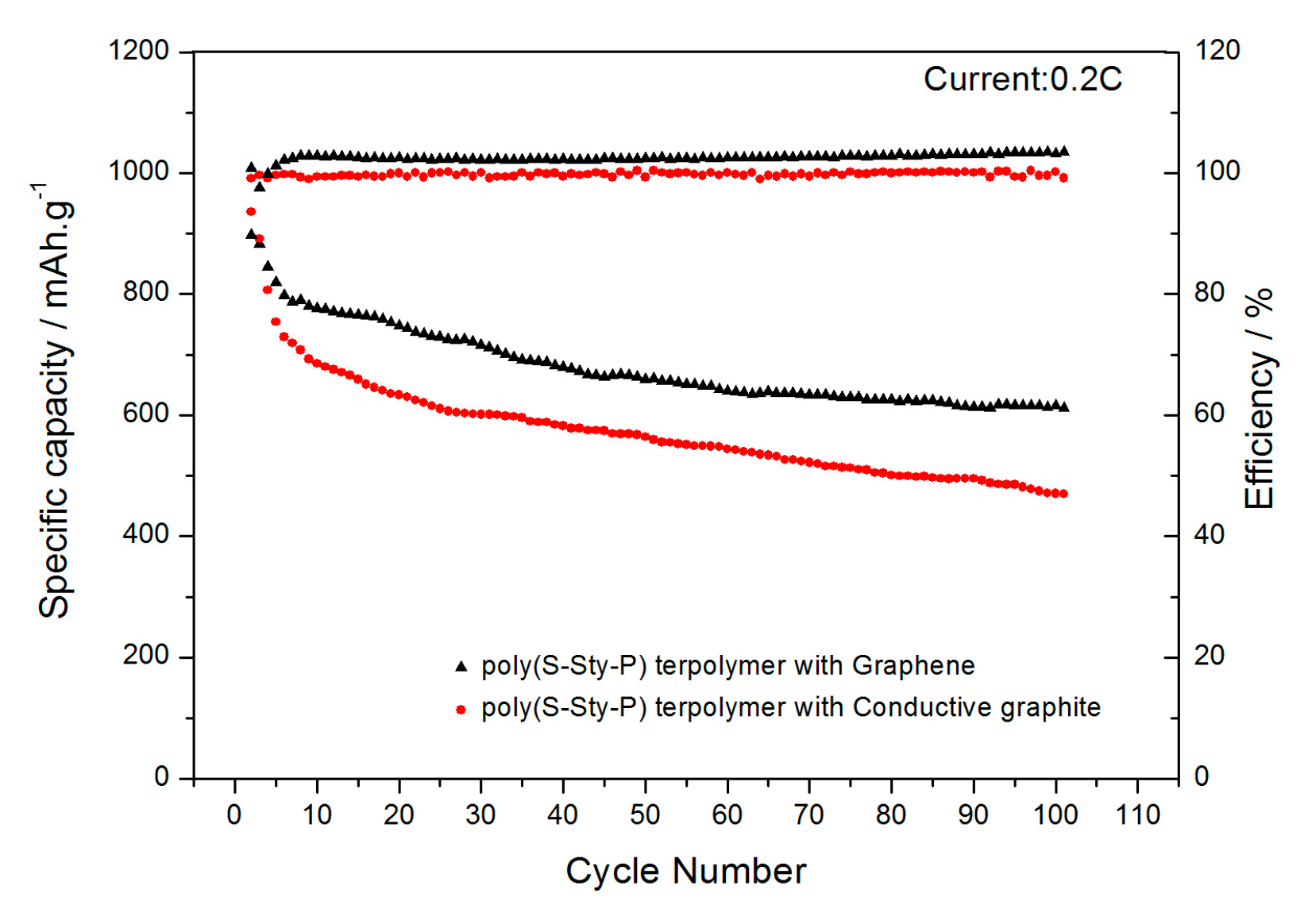

From Figure 11, it can be seen that the initial specific capacity of poly(S-Sty-P) terpolymer @ CCB battery was 935.88 mAh/g. After 60 cycles, the specific capacity gradually decreased to 542.71 mAh/g. After 100 cycles, the specific capacity stayed at 407 mAh/g, with the coulombic efficiency around 100% and the capacity retention rate about 43.5%. Comparatively, the initial specific capacity of poly(S-Sty-P) terpolymer @ GF battery was 1008.35 mAh/g, and the discharge specific capacity reduced to 639.03 mAh/g after 60 cycles, and maintained at 611 mAh/g after 100 cycles, with the capacity retention rate around 60.59%. Therefore, it had a better cycle stability. This was because the functional groups of poly(S-Sty-P) terpolymer can capture the intermediate polysulfides, and subsequently suppress polysulfide diffusion as a consequence of the embedment [5]. In addition, the S-S bonds in the terpolymer were involved with the π-π conjugation of graphene [27], expanding the conjugated system, which effectively enhanced the interaction on the positive electrode interface and limited the “shuttle effect” of polysulfides [28]. Therefore, the electrochemical performance of the Li-S battery was improved.

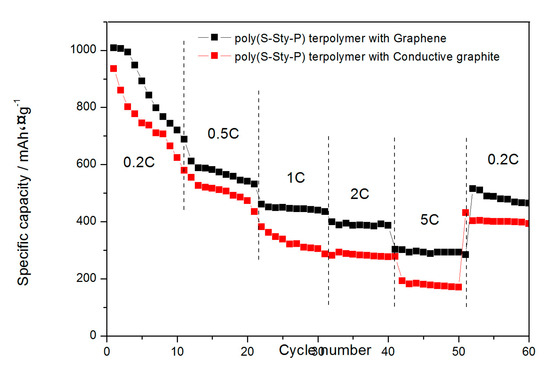

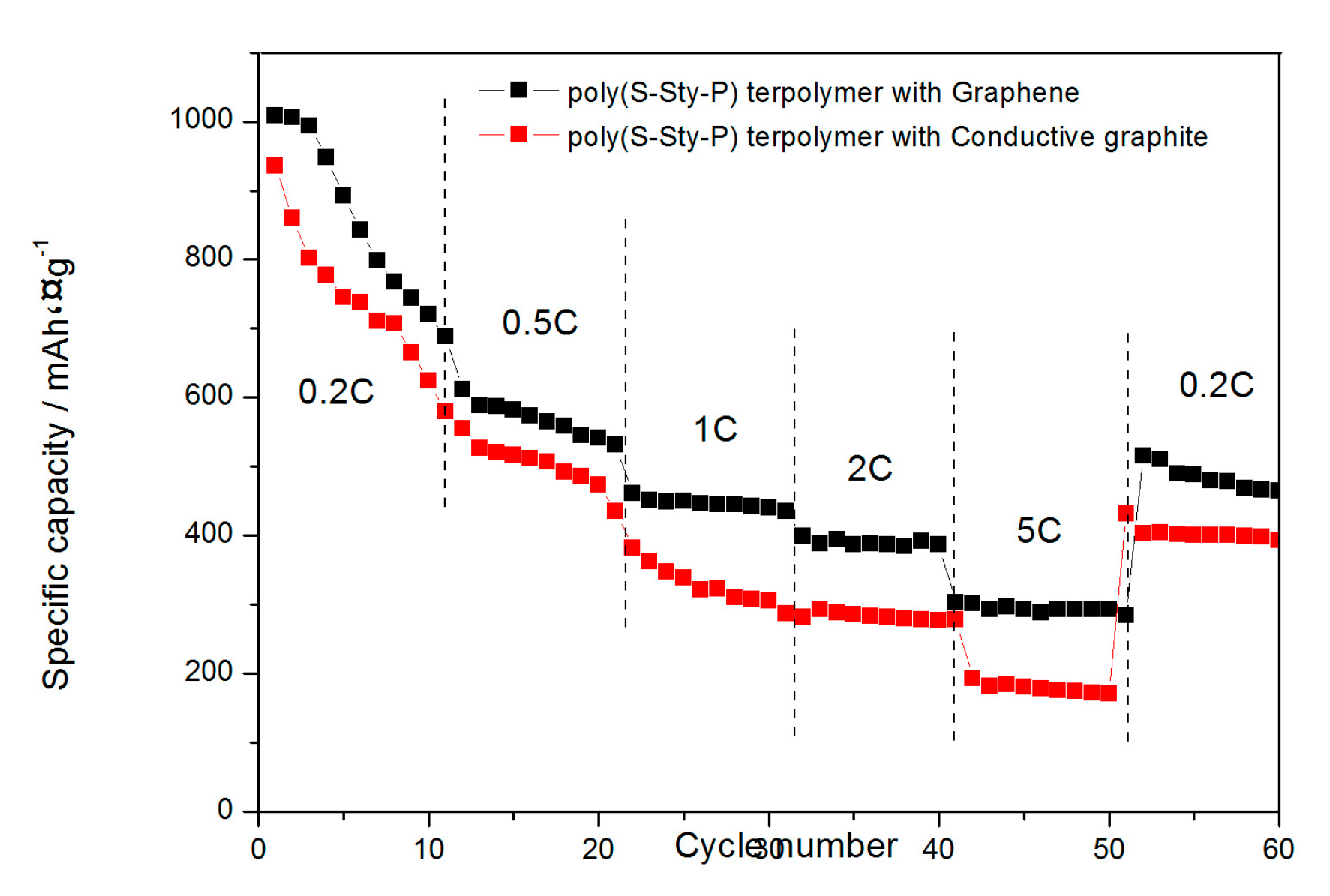

When the current densities were gradually increased from 0.2, 0.5, 1, 2, to 5 C, with 10 cycles at each current density, the rate performance of the batteries were obtained (Figure 12). At different current densities, the discharge specific capacities of poly(S-Sty-P) terpolymer @ CCB battery were 935.4, 580.04, 434.92, 286.32, and 277.68 mAh/g. When the current density was back to 0.2 C, the discharge specific capacity of this battery was about 431.12 mAh/g. Comparatively, the discharge specific capacities of poly(S-Sty-P) terpolymer @ GF battery were 1008, 688.68, 531.18, 435.42, and 302.90 mAh/g. When the current density was back to 0.2 C, the discharge specific capacity of this battery was about 515.52 mAh/g, suggesting better rate performance. Since, compared with the conductive carbon black particle’s structure, the graphene sheet had a larger specific surface area, higher stratified porosity, and more contact sites which can touch more active substances [29,30]. This structure was conducive to the infiltration of the electrolyte, resulting in the shorter diffusion path for lithium-ion. Under high current density, lithium-ion can easily transfer [31], so this battery had better rate performance.

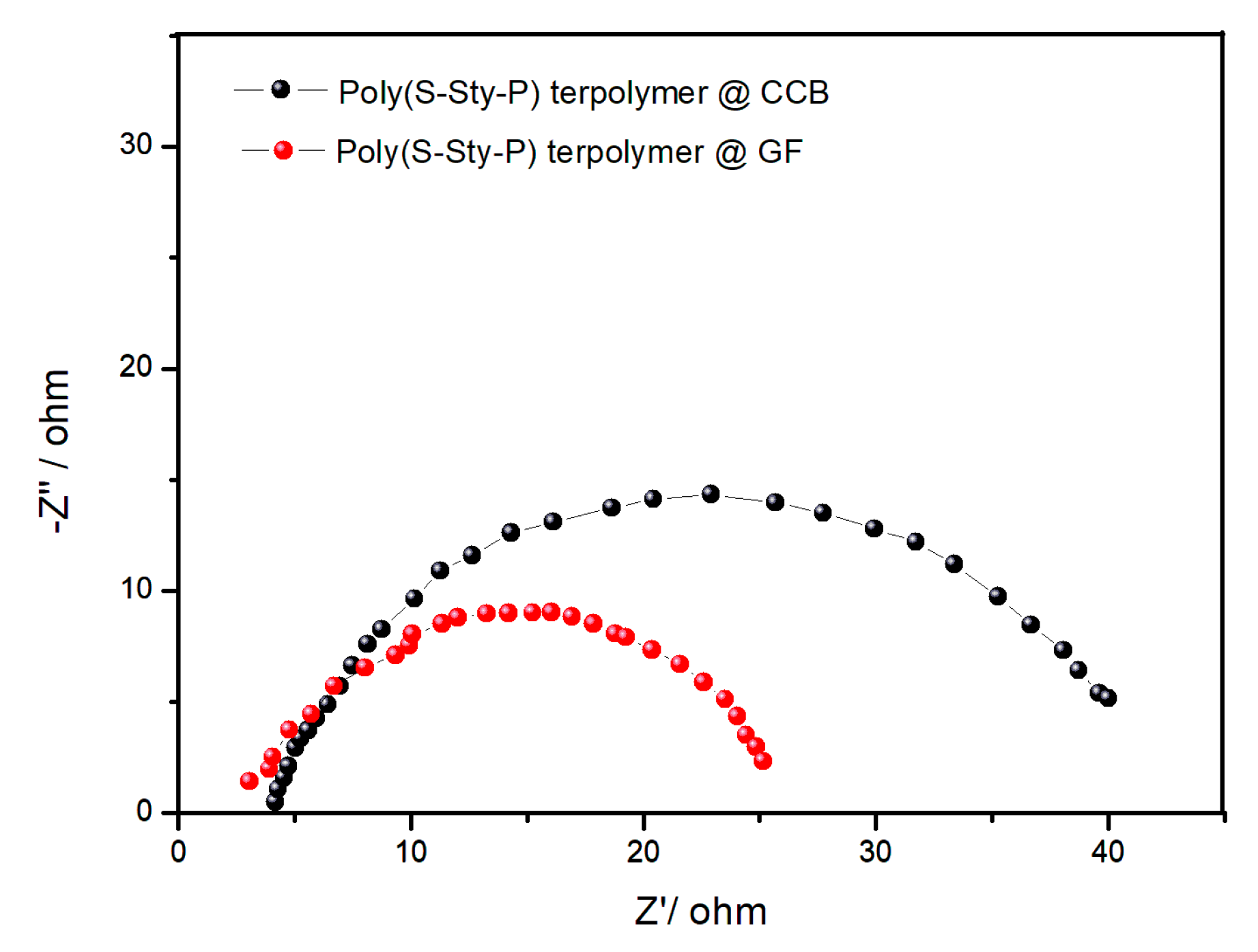

The electrochemical impedance spectroscopy (EIS) of the cathode material was also measured. From Figure 13, it can be seen that the poly (S-Sty-P) @ GF cathode material exhibited a relatively lower charge transfer impedance than the poly (S-Sty-P) @ CCB cathode material. Since graphene had a flake structure, the active material particles can be attached onto the sheet layers of graphene, which provided more conductive contact sites [24] and formed a large-area conductive network.

4. Conclusions

In this paper, a series of disulfide polymers were synthesized from lower-cost raw materials, such as diallyl-o-phthalate, tung oil, peanut oil, and styrene. Four products: Poly (sulfur-diallyl-o-phthalate) copolymer, poly (sulfur-tung oil) copolymer, poly (sulfur-peanut oil) copolymer, and poly (sulfur-styrene-peanut oil) terpolymer were prepared and characterized. After the solubility test, the result showed that disulfide poly(S-Sty-P) terpolymer had the best solubility and can be both utilized as an active cathode material and binder in Li-S battery.

The initial specific capacity of poly(S-Sty-P) terpolymer @ CCB battery was 935.88 mAh/g, with the capacity retention rate about 43.5%. Comparingly, the initial specific capacity of poly(S-Sty-P) terpolymer @ GF battery was 1008.35 mAh/g, with the capacity retention rate around 60.59%. Therefore, the poly(S-Sty-P) terpolymer @ GF battery showed a more stable cycle performance and better capacity retention abilities. In the rate test, the poly(S-Sty-P) terpolymer @ GF battery also showed a better rate performance, comparingly. It suggested that the S-S bonds of poly(S-Sty-P) terpolymer @ GF can enhance the interaction of the positive electrode interface, effectively control the “shuttle effect” of polysulfides, and greatly improve battery performances. This result not only showed the importance of material optimization and construction for the Li-S battery, but also provided the idea of preparing cathode materials by using environmental-friendly materials, which had a great value for modern battery research.
