Impact of Dental Model Height on Thermoformed PET-G Aligner Thickness—An In Vitro Micro-CT Study

Abstract

The aim of the present study was to investigate whether base height of 3D-printed dental models has an impact on local thickness values from polyethylene terephthalate glycol (PET-G) aligners. A total of 20 aligners were thermoformed on dental models from the upper jaw exhibiting either a 5 mm high (H) or narrow (N), i.e., 0 mm, base height. The aligners were digitized using micro-CT, segmented, and local thickness values were computed utilizing a 3D-distance transform. The mean thickness values and standard deviations were assessed for both groups, and local thickness values at pre-defined reference points were also recorded. The statistical analysis was performed using R. Aligners in group H were significantly thinner and more homogenous compared to group N (p < 0.001). Significant differences in thickness values were observed among tooth types between both groups. Whereas thickness values were comparable at cusp tips and occlusal/incisal/cervical measurement locations, facial and palatal surfaces were significantly thicker in group N compared to group H (p < 0.01). Within the limits of the study, the base height of 3D-printed models impacts on local thickness values of thermoformed aligners. The clinician should consider potential implication on exerted forces at the different tooth types, and at facial as well as palatal surfaces.

1. Introduction

Aligners, thermoformed from elastic polymers, gained widespread application in recent years [1,2] due to ease of use, patient comfort, aesthetics, ease of oral hygiene and a reduced risk for white spot lesions [3,4,5].

Despite their broad application, predictability of aligner treatment outcomes is still controversially discussed [6,7,8]. Discrepancies between the initial setup and final outcomes may owe to patient related factors (patient adherence, metabolic factors), and may also relate to inaccurate prediction of the force systems exerted on teeth [9]. Even though initially neglected, side effects from orthodontic treatment occur not only with fixed appliances, but also in aligner therapy [10,11]. Especially forces of higher magnitude and uncontrolled tipping of teeth have to be avoided in order to limit root resorption [12,13]. Thus, improving biomechanical understanding of exerted forces and moments is of crucial importance to enhance safety and predictability of aligner treatments.

In-vitro studies demonstrated that initial forces and moments of aligners can exceed recommended force levels up to the factor six [14,15,16,17]. As reported earlier, force magnitudes can be decreased by utilizing thinner aligner raw materials [18,19]. However, the final thicknesses of aligners depend on the thermoforming process and might be associated with geometric properties of the 3D-printed dental cast employed for manufacturing. Furthermore, as 3D-printed aligners are still rarely used, and as thermoforming is frequently manually conducted by a trained technician, aligners may not be perfectly homogenous even if they are fabricated on the same cast [20].

Few techniques exist to assess homogeneity and microstructure of thermoplastic materials. Micro-computed tomography (micro-CT), whose laboratory usage has been introduced in the 1990s for structural analysis of calcified tissues, provides high resolution three-dimensional images from various specimen [21]. Its applicability to assess aligner material properties has been demonstrated recently [22,23,24,25].

Therefore, the present study aimed at assessing the impact of dental model height on PET-G aligner thickness values, and at investigating the within-group variability of thickness values potentially arising from the manual fabrication process.

2. Materials and Methods

2.1. Study Design

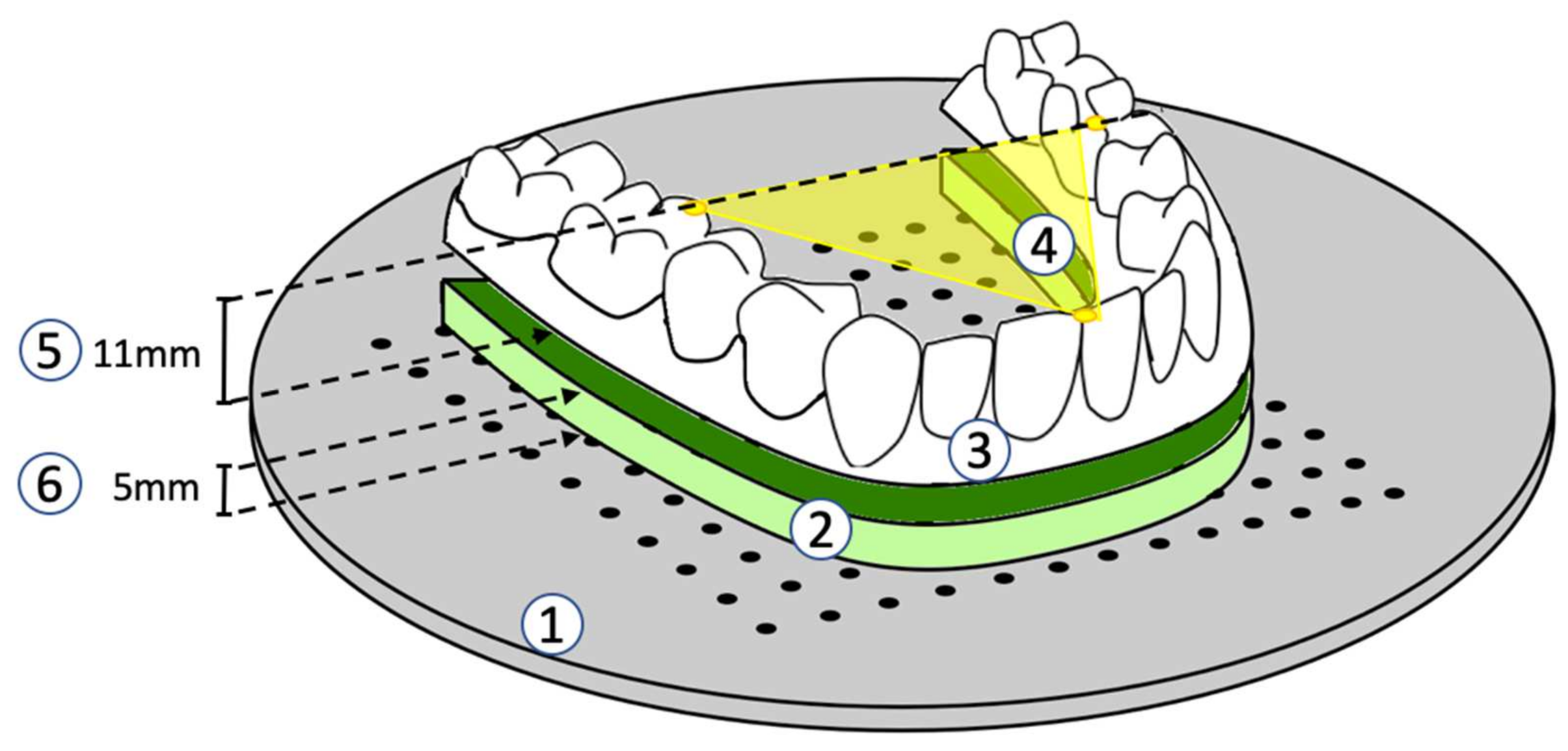

The present study reports on a sample of n = 20 polyethylene terephthalate glycol (PET-G) aligners. The aligners were thermoformed on a 3D-printed dental model of the upper jaw with either narrow (N) base height, or high (H) base height (achieved by placing a spacer of 5 mm height) (n = 10 aligners per group, respectively). The perpendicular distance between occlusal plane and model-tray were defined as model height and amounted to 11 mm (Figure 1). Consequently, model height in the N group was 11 mm, and 16 mm in the H group.

The 3d-printed model was fabricated using a SLA printer (Form 2, Formlabs Inc., Somerville, MA, USA) at 100 micron resolution (100% infill) and using the Draft Resin (Formlabs Inc.). The model was oriented in a nearly vertical position to minimize warping. The model was manually cleaned and cured according to manufacturer’s recommendations. After curing, the model base was manually grinded to compensate any warping and ensure full flat contact to the thermoforming tray. It was then stored at ambient air at 20 °C and 50% humidity.

2.2. Thermoforming

Thermoforming was achieved using a Biostar thermoforming machine (Biostar VII, Scheu Dental, Iserlohn, Germany) and a PET-G raw material of 0.5 mm thickness (CA Clear Aligner, Scheu Dental, Iserlohn, Germany). The dental model was placed in the center of the thermoforming chamber such that the mid palatal suture was located in 12 o’clock position. The occlusal plane was oriented parallel to a perforated custom model-tray (Figure 1). The dental model was held in place by 3 positioning pins to ensure constant localization and orientation for each thermoforming process.

Settings for heating and pressure forming were the same for all aligners (21 °C ambient air, 50% humidity, 20 s, 220 °C). The edges of all aligners were trimmed to a line 1 mm cervically of the gingival margin after thermoforming.

2.3. Micro-Computed Tomography and Image Processing

All aligners were scanned with a micro-CT scanner (VivaCT 80, Scanco Medical AG, Wangen-Brüttisellen, Switzerland). The scans were performed at 45 kVp, 88 μA, and 254 ms integration time and reconstructed to a nominal isotropic voxel size of 31.2 μm.

Image processing was performed using an in-house programmed script implemented with the Image Processing Language (IPL) (Scanco Medical AG, Wangen-Brüttisellen, Switzerland) which performed the following steps:

First, a cylindric volume of interest (VOI) was placed at the outer margin of the field of view. Then, a threshold of 4.2% was used to segment the aligners within VOI. Aligner thickness was then calculated by means of the 3D-Chamfer-Distance transform approach [26]. In brief, this approach calculates the outer contours of a segmented material and it assigns the Euclidean distance to its closest contour point as grey value to every point within the segmented structure. Hence, zero values represent contour points, whereas higher values represent greater thickness values. For visualization purposes, the calculated aligner thickness values were eventually rendered using a 3D-rendering program (uct_3d, Scanco Medical AG, Wangen-Brüttisellen, Switzerland) (Figure 2).

2.4. Thickness Measurements

To assess local aligner thickness values, a total of n = 29 reference points were utilized (

Table 1. Reference points for assessment of local aligner material thickness values. The column “aggregated location” specifies which values were aggregated per group (high/narrow) or tooth type (molar/premolar/canine/front), respectively. The right column specifies the teeth at which the thickness measurements were recorded.

Reference Point	Definition	Aggregated Location	Assessed at Teeth
MB	mesiobuccal cusp tip	Cusp tip	16, 26
DB	distobuccal cusp tip		16, 26
B	buccal cusp tip		15, 14, 25, 24
MP	mesiopalatal cusp tip		16, 26
DP	distopalatal cusp tip		16, 26
P	palatal cusp tip		15, 14, 25, 24
FIS	mesiodistal center of the central fissure	Occlusal	16, 15, 14, 26, 25, 24
I	most coronal, central point of the incisal edge	Incisal	11, 21, 12, 22, 13, 23
FLA	LA-Point of the facial surface	Facial	All teeth
FC	most cervical point of the vestibular surface	Facial-cervical	All teeth
PLA	LA-Point of the palatal surface	Palatal	All teeth
PC	most cervical point of the palatal surface	Palatal-cervical	All teeth

). At each reference point, the respective local thickness was recorded.

2.5. Statistical Analysis

The statistical analysis was performed using R 2021 [26]. To compare the mean thickness values and the respective standard deviations between N and H groups, the Mann-Whitney-U test was used.

For descriptive purposes, local thickness values at reference points were aggregated for the variables tooth type (molar/premolar/canine/front) and measurement location (Table 1) and presented as boxplots.

To assess the relationship between thickness values and the effects tooth type/measurement location, the lme4-package [27] was used to perform linear mixed effects models. As fixed effects, we entered tooth type and measurement location (with and without interaction term) into the model. As random effects, we had intercepts for aligners. Visual inspection of residual plots did not reveal any obvious deviations from homoscedasticity or normality. p-values were obtained by likelihood ratio tests of the full model with the effect in question against the model without the effect in question. Post-hoc tests were conducted using the emmeans-package [28], and the Tukey-method was utilized for p-value correction. The results were found significant at p < 0.05.

3. Results

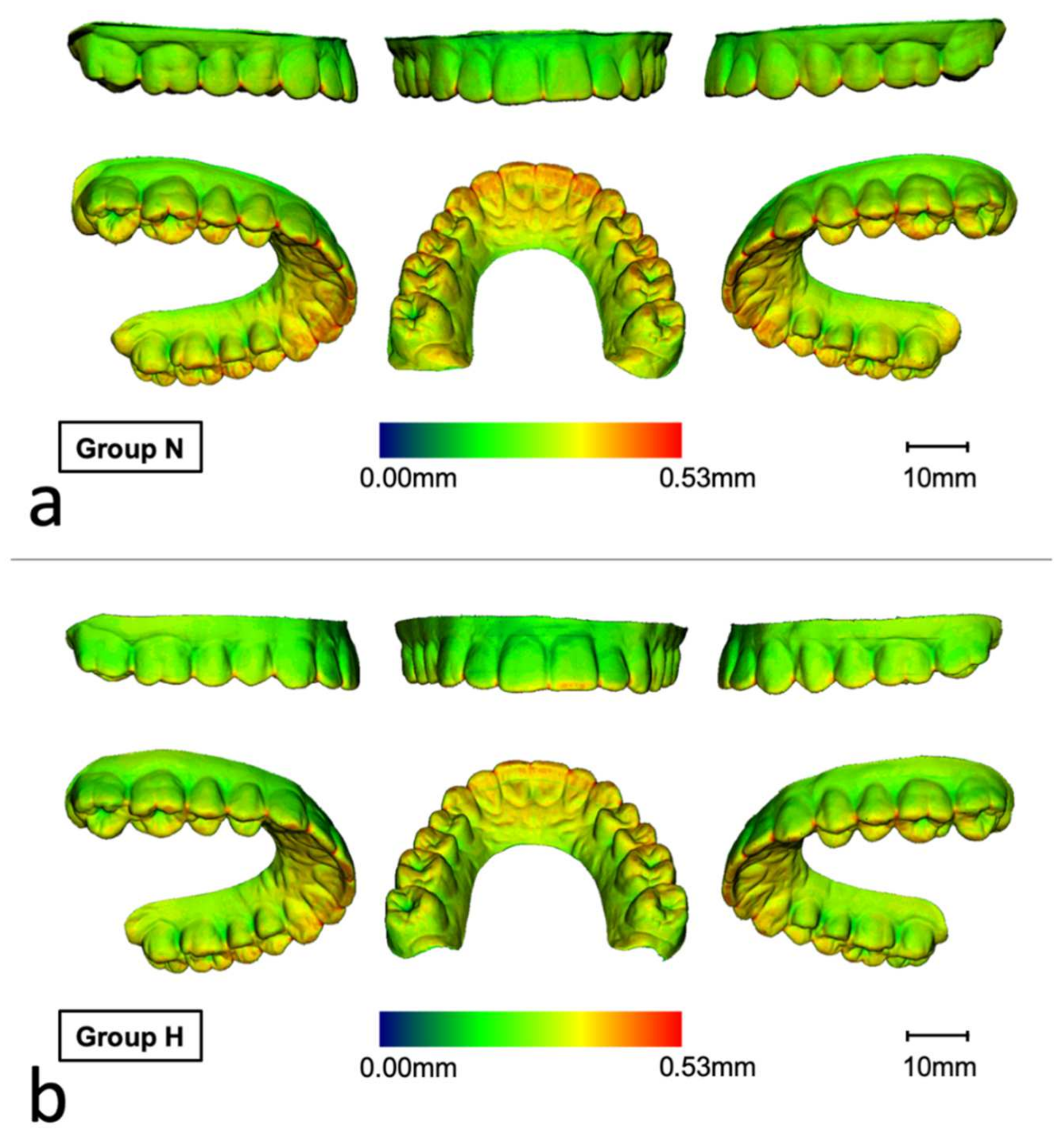

The in-house developed script enabled successful automated segmentation of the aligners. Calculation of the distance transform enabled assessment of thickness values (Figure 2).

3.1. Comparison of Thickness Values

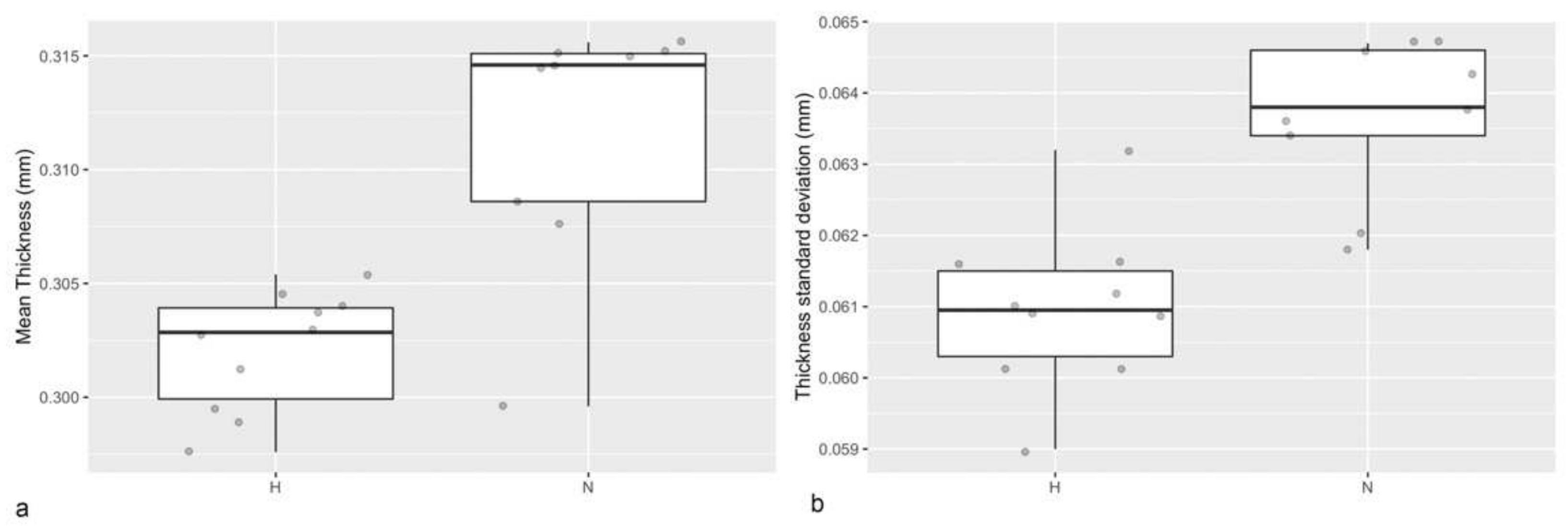

Mean thickness values were significantly lower in group H compared to N (median [quartile 1–3]: 0.30 [0.30–0.30] vs. 0.32 [0.31–0.32], p < 0.001). When comparing the standard deviations, which correspond to material homogeneity, values in group H were significantly lower compared to group N (median [1st–3rd quartile]: 0.064 [0.063–0.65] vs. 0.061 [0.060–0.062], p < 0.001) (Figure 3).

3.2. Comparison of Local Thickness Values at Selected Tooth Types

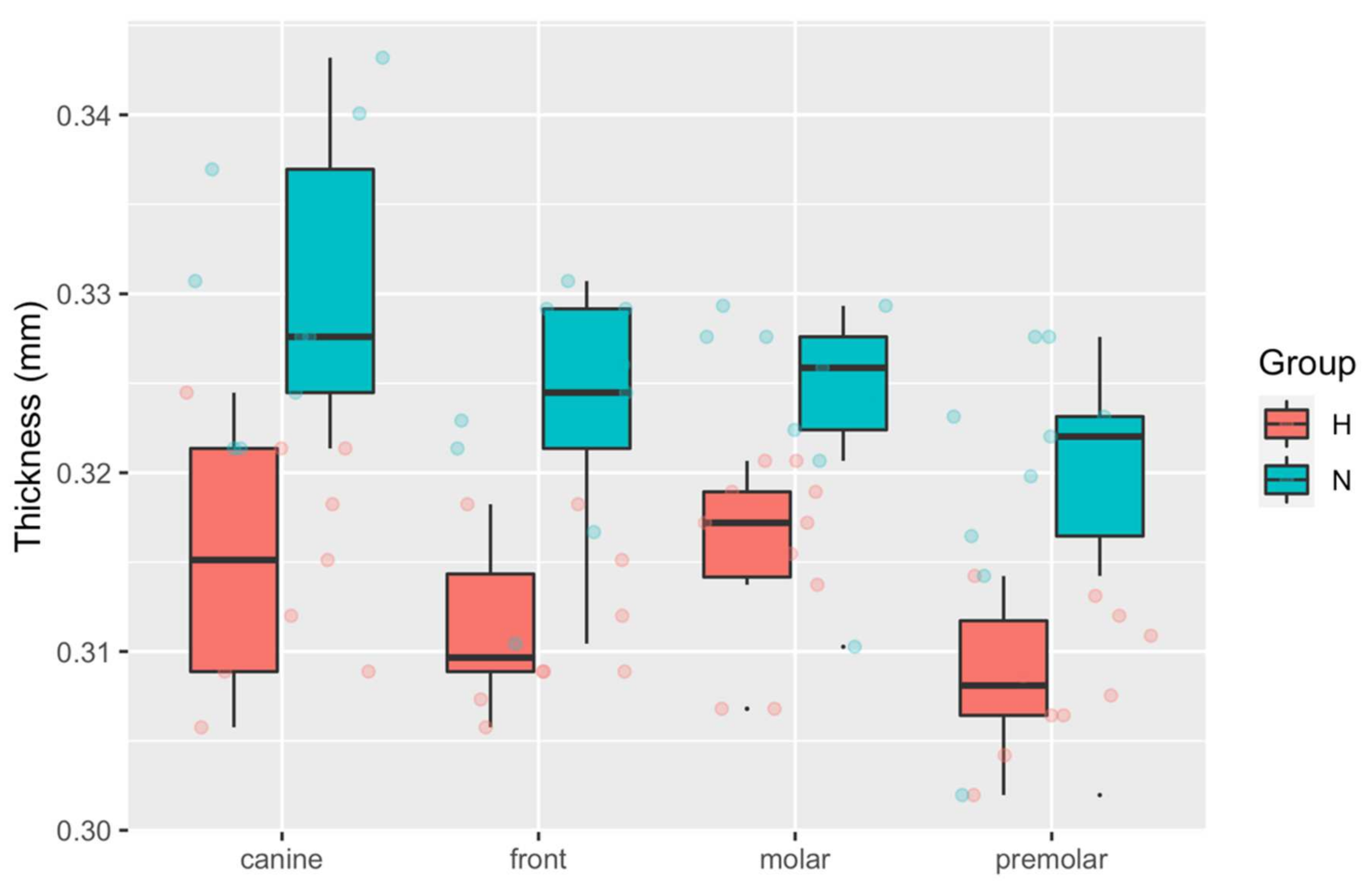

To assess whether the tooth type has an impact on the material thickness, a linear mixed effects model was used. A significant effect of the effects group and tooth type were found (p < 0.001, respectively), and also the interaction of group (high vs. narrow) and tooth type was found to be significant (p < 0.001). Thickness values were higher in N group, and differences between tooth types were also more pronounced in N group (Figure 4).

The post hoc test revealed significant differences between groups for each tooth type, and the estimated difference was greatest at canines (

Table 2. Estimated mean [standard error (SE)] for the local thickness values (mm) from group high (H) and narrow (N) aggregated by tooth type. Comparison was achieved using multiple comparison post hoc test with Tukey-method for p-value adjustment (family of 8 estimates). ** p < 0.01, *** p < 0.001.

	Estimate (SE) Group H	Estimate (SE) Group N	Est. Difference (SE)	p-Value
Molar	0.316 (0.002)	0.324 (0.002)	−0.003 (0.003)	0.077 **
Premolar	0.309 (0.002)	0.320 (0.002)	−0.011 (0.003)	0.007 **
Canine	0.315 (0.002)	0.330 (0.002)	−0.015 (0.003)	<0.001 ***
Front	0.311 (0.002)	0.323 (0.002)	−0.012 (0.003)	0.002 **

). Within-group multiple comparison revealed significant differences between premolars and canines or premolars in the H-group, and canine versus front teeth or premolars in the N-group (

Table 3. Within-group comparison of local thickness values (mm) for group high (H) and narrow (N) aggregated for tooth type. Comparison was achieved using multiple comparison post hoc test with Tukey-method for p-value adjustment (family of 4 estimates), respectively. * p < 0.05, ** p < 0.01, *** p < 0.001.

	Comparison	Estimated Difference (SE)	T-Ratio	p-Value
Group H	canine–front	0.003 (0.003)	1.903	0.251
	canine–molar	−0.001 (0.003)	−0.571	0.940
	canine–premolar	0.006 (0.003)	3.545	0.008 **
	front–molar	−0.004 (0.002)	−2.561	0.074
	front–premolar	0.003 (0.002)	1.700	0.344
	molar–premolar	0.007 (0.002)	4.261	0.001 **
Group N	canine–front	0.007 (0.003)	2.770	0.044 *
	canine–molar	0.006 (0.003)	2.493	0.081
	canine–premolar	0.011 (0.003)	4.323	<0.001 ***
	front–molar	−0.001 (0.003)	−0.277	0.992
	front–premolar	0.004 (0.003)	1.553	0.420
	molar–premolar	0.006 (0.003)	1.830	0.279

).

3.3. Comparison of Thickness Values at Measurement Locations

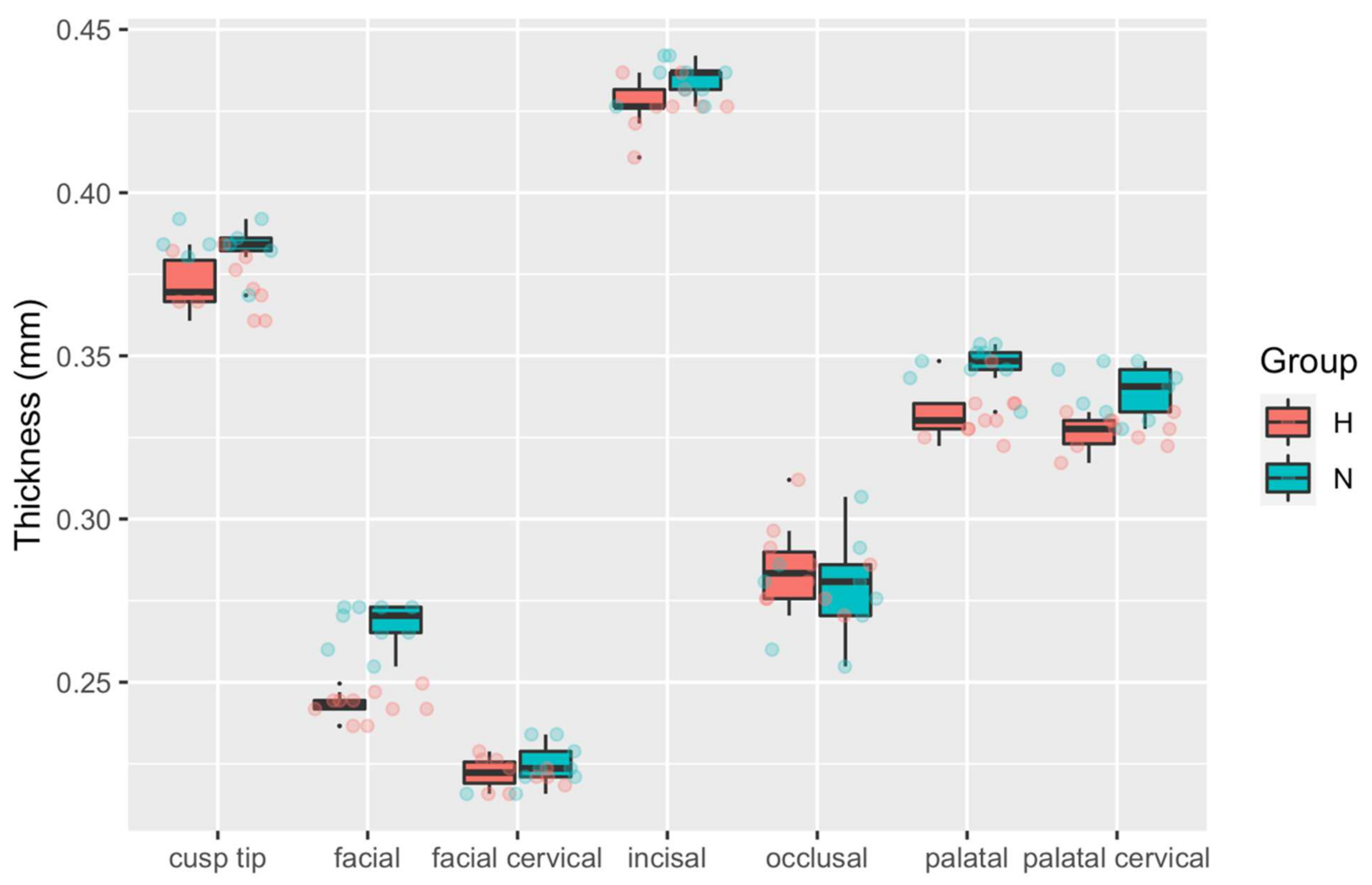

Linear mixed effects models revealed a significant effect of group and measurement location (p < 0.001, respectively), as well as for their interaction (p < 0.001). Thickness values were slightly higher in N group at most of the locations. With respect to the measurement location, thickness values were smallest at facial surfaces and highest at incisal faces. Thickness values were also higher at cusp tips compared to the fissures (occlusal surface), and within a medium range at palatal surfaces (Figure 5).

Post-hoc multiple comparison revealed significant differences at facial and palatal surfaces (

Table 4. Between-group comparison of local thickness values (mm) from group high (H) and narrow (N) aggregated for measurement location. Comparison was achieved using a multiple comparison post hoc test with Tukey-method for p-value adjustment (family of 14 estimates), respectively. ** p < 0.01, *** p < 0.001.

Comparison	Est. (SE) Group H	Est. (SE) Group N	Est. Difference (SE)	p-Value
Cusp tip	0.372 (0.003)	0.384 (0.003)	−0.012 (0.004)	0.090
Occlusal	0.285 (0.003)	0.278 (0.003)	0.007 (0.004)	0.902
Incisal	0.427 (0.003)	0.434 (0.003)	−0.008 (0.004)	0.751
Facial	0.243 (0.003)	0.268 (0.003)	−0.025 (0.004)	<0.001 ***
Facial-cervical	0.222 (0.003)	0.224 (0.003)	−0.002 (0.004)	1.000
Palatal	0.332 (0.003)	0.347 (0.003)	−0.015 (0.004)	0.005 **
Palatal-cervical	0.327 (0.003)	0.339 (0.003)	−0.012 (0.004)	0.073

). Within-group comparison revealed significant differences between all measurement locations except palatal and palatal-cervical, respectively (

Table 5. Within-group comparison of local thickness values (mm) for group high (H) and narrow (N) aggregated for measurement location. Comparison was achieved using multiple comparison post hoc test with Tukey-method for p-value adjustment (family of 7 estimates), respectively. * p < 0.05, *** p < 0.001.

	Comparison	Est. Difference (SE)	T-Ratio	p-Value
Group H	cusp tip–facial	0.129 (0.003)	38.735	<0.001 ***
	cusp tip–facial cervical	0.150 (0.003)	44.989	<0.001 ***
	cusp tip–incisal	−0.055 (0.003)	−16.118	<0.001 ***
	cusp tip–occlusal	0.087 (0.003)	26.071	<0.001 ***
	cusp tip–palatal	0.040 (0.003)	12.000	<0.001 ***
	cusp tip–palatal cervical	0.045 (0.003)	13.485	<0.001 ***
	facial–facial cervical	0.021 (0.003)	6.254	<0.001 ***
	facial–incisal	−0.184 (0.003)	−53.726	<0.001 ***
	facial–occlusal	−0.042 (0.003)	−12.664	<0.001 ***
	facial–palatal	−0.089 (0.003)	−26.735	<0.001 ***
	facial–palatal cervical	−0.084 (0.003)	−25.250	<0.001 ***
	facial cervical–incisal	−0.205 (0.003)	−59.798	<0.001 ***
	facial cervical–occlusal	−0.063 (0.003)	−18.918	<0.001 ***
	facial cervical–palatal	−0.110 (0.003)	−32.989	<0.001 ***
	facial cervical–palatal cervical	−0.105 (0.003)	−31.504	<0. 001 ***
	incisal–occlusal	0.142 (0.003)	41.431	<0.001 ***
	incisal–palatal	0.095 (0.003)	27.768	<0.001 ***
	incisal–palatal cervical	0.100 (0.003)	29.211	<0.001 ***
	occlusal–palatal	−0.047 (0.003)	−14.071	<0.001 ***
	occlusal–palatal cervical	−0.042 (0.003)	−12.586	<0.001 ***
	palatal–palatal cervical	0.005 (0.003)	1.485	0.752
Group N	cusp tip–facial	0.116 (0.003)	35.565	<0.001 ***
	cusp tip–facial cervical	0.160 (0.003)	48.827	<0.001 ***
	cusp tip–incisal	−0.051 (0.003)	−15.539	<0.001 ***
	cusp tip–occlusal	0.105 (0.003)	32.205	<0.001 ***
	cusp tip–palatal	0.037 (0.003)	11.162	<0.001 ***
	cusp tip–palatal cervical	0.045 (0.003)	13.638	<0.001 ***
	facial–facial cervical	0.043 (0.003)	13.262	<0.001 ***
	facial–incisal	−0.167 (0.003)	−51.103	<0.001 ***
	facial–occlusal	−0.011 (0.003)	−3.360	0.022 *
	facial–palatal	−0.080 (0.003)	−24.402	<0.001 ***
	facial–palatal cervical	−0.072 (0.003)	−21.927	<0.001 ***
	facial cervical–incisal	−0.210 (0.003)	−64.366	<0.001 ***
	facial cervical–occlusal	−0.054 (0.003)	−16.622	<0.001 ***
	facial cervical–palatal	−0.123 (0.003)	−37.664	<0.001 ***
	facial cervical–palatal cervical	−0.115 (0.003)	−35.189	<0.001 ***
	incisal–occlusal	0.156 (0.003)	47.744	<0.001 ***
	incisal–palatal	0.087 (0.003)	26.701	<0.001 ***
	incisal–palatal cervical	0.100 (0.003)	29.177	<0.001 ***
	occlusal–palatal	−0.06875	−21.043	<0.001 ***
	occlusal–palatal cervical	−0.06067	−18.567	<0.001 ***
	palatal–palatal cervical	0.00809	2.476	0.187

).

4. Discussion

Previous research revealed that predictability and accuracy of aligner treatments can be as low as 30–50% when compared with the initial setup [14,15,16,17,29]. Besides patient related factors, varying material thickness of aligners has been suspected to impact on predictability of aligner treatments [18]. Therefore, the present study aimed at evaluating homogeneity of thermoformed PET-G aligners, and whether base height of 3D-printed dental models also impacts on material thickness values at different measurement locations.

The present study identified that aligners formed on narrow (N) models exhibited higher thickness values compared to those produced on higher (H) dental models. Material homogeneity was greater in the H compared to the N group. Additionally, thickness values varied with respect to the tooth types, and the measurement locations. Highest values were found at incisal edges and cusp tips, followed by palatal surfaces, and lowest values were seen at the facial aspects. Comparison between N and H groups did not reach statistical significance at most measurement locations. At palatal and facial surfaces, however, aligners from group N were significantly thicker compared to group H.

According to literature, the area moment of inertia is calculated using the third power of material diameter in direction of the acting forces [30]. Therefore, a 10% reduction of aligner material thickness could in theory reduce exerted forces up to 30%. In the present study, facial surfaces showed the smallest thickness values (estimated mean thickness group H/N: 0.243 mm/0.268 mm), whereas palatal (0.332 mm/0.347 mm) and incisal surfaces (0.427 mm/0.434 mm) showed highest values. Therefore, thickness values were 38–43% higher at incisal and 20–25% higher at palatal compared to facial surfaces. Differences between the groups amounted to 9% at the facial and 4% at palatal faces. Thus, these differences appear to be in a clinically relevant range, potentially impacting on treatment predictability.

Nonetheless, it must be noted that force transmission patterns from aligners are complex and not yet fully understood [31,32]. This owes to the so called “half shell shapes” of aligners and differences in localization of contact areas to teeth and attachments. Additionally, material deformation when aligners are put on the teeth, and material swelling due to saliva exposure must be considered. Therefore, aligner thickness is not the only factor influencing resulting forces and moments.

Scientific disagreement persists concerning the capability of aligners to perform bodily tooth movement [29,31,33,34], which necessitates application of a counterbalancing moment for control of root position [35]. In the present study, aligner specimens were thinnest at the facial/facial-cervical aspects, which is in line with a recent study revealing a 50% reduction of layer thickness in buccal-gingival regions [36]. Previous research demonstrated that low thickness values can lead to aligner deformation at the gingival margin [15], eventually resulting in reduced root control. However, besides the rigidity of aligners, application of attachments and shape modification like power buttons or ridges are also relevant to control tooth movement [32,37]. Thus, the impact of the facial/facial-gingival thinning should be further explored in future investigations.

The impact of dental model height has not been addressed in previous studies, despite its potential association with aligner thickness values, and therefore, the resulting force systems. In the present investigation, aligners thermoformed on the higher model showed increased homogeneity of material thickness values, but also a decreased overall thickness. Therefore, it may be speculated that adopting raw material thickness and height of 3D-printed models may be advantageous to better control the material thickness properties of thermoformed aligners, and eventually the resulting force systems. Additionally, as crown height varies among patients [38], clinicians should also carefully consider that higher crowns may lead to reduced thickness values, and vice versa.

Posterior bite opening is one of the common adverse effects in aligner therapy. Also, perfect occlusal finishing is immanently complicated by the interposition of aligner material between occluding teeth [39,40,41]. The results of this study demonstrated that aligners were particularly thick at cusp tips, which constitutes the almost inevitable bite-lowering effect of aligners.

Manual fabrication of aligners inevitably leads to a certain degree of error: manual trimming of the aligner edges causes minor length discrepancies, and manual removal of the aligner from the thermoforming model may lead to shape deformations. Therefore, the thermoforming process was repeated 10-times for each group, and minor differences in thickness were seen at the various measurement locations. However, the quartile ranges were much smaller at the respective measurement points compared to the within-group variability among measurement locations, thus confirming the precise fabrication of aligners in the present investigation. To avoid deformation during micro-CT scanning, the aligners were held in place by polyurethane foam. Nonetheless, minor aligner deformations due to contact to the foam cannot be ruled out.

Despite these minor shortcomings, it could be demonstrated, that micro-CT-scanning is an effective method to assess aligner thickness three-dimensionally. In contrast to previous studies, thickness values were automatically computed upon successful segmentation by means of a 3D-distance transform [42]. This method has the advantage of being resistant against oblique measurements which may occur whenever the micro-CT slices are not orthogonal to aligner surfaces.

Limitations associated with the present analysis include that only upper models were utilized. Due to differences in arch- and tooth-shape, future studies should also investigate thickness homogeneity and the impact of model height for both dental arches. Additionally, only one raw material of the same thickness was utilized. Therefore, it remains unclear whether the results of the present study can be transferred to different aligner polymers and other material thicknesses. Eventually, no a-priori sample size calculation could be performed, as no eligible study could be identified at that time.

In the future, direct 3D-printing of aligners might overcome limitations associated with conventional thermoforming [43]. In 3D-printed aligners, material thickness values may be more homogenous, and unintentional thinning may not occur. Areas of high local stresses may even be specifically thickened to improve stiffness and optimize the resulting force systems.

5. Conclusions

• Micro-CT scanning of aligners followed by automated segmentation and computation material thickness is an eligible approach to analyze material homogeneity
• Manual thermoforming can produce aligners of high repetitious accuracy
• Aligners thermoformed over a higher model exhibited lower material thickness values, especially at facial and palatal surfaces
• Aligners thermoformed over a higher model showed greater homogeneity in material thickness
