Emotion Identification in Movies through Facial Expression Recognition

,
,
and
1
INESC TEC, 4200-465 Porto, Portugal
2
Faculty of Engineering, University of Porto, 4200-465 Porto, Portugal
3
School of Engineering, Polytechnic of Porto, 4200-072 Porto, Portugal
*
Author to whom correspondence should be addressed.
Appl. Sci.2021, 11(15), 6827;https://doi.org/10.3390/app11156827
This article belongs to the Special Issue Pattern Recognition in Multimedia Signal Analysis
Version Notes
Order Reprints

Abstract

Understanding how acting bridges the emotional bond between spectators and films is essential to depict how humans interact with this rapidly growing digital medium. In recent decades, the research community made promising progress in developing facial expression recognition (FER) methods. However, no emphasis has been put in cinematographic content, which is complex by nature due to the visual techniques used to convey the desired emotions. Our work represents a step towards emotion identification in cinema through facial expressions’ analysis. We presented a comprehensive overview of the most relevant datasets used for FER, highlighting problems caused by their heterogeneity and to the inexistence of a universal model of emotions. Built upon this understanding, we evaluated these datasets with a standard image classification models to analyze the feasibility of using facial expressions to determine the emotional charge of a film. To cope with the problem of lack of datasets for the scope under analysis, we demonstrated the feasibility of using a generic dataset for the training process and propose a new way to look at emotions by creating clusters of emotions based on the evidence obtained in the experiments.

1. Introduction

Films are rich means of communication produced for cultural and entertainment purposes. Audio, text, and image work together to tell a story, trying to transmit emotional experiences to the audience. The emotion dimension in movies is influenced by the filmmakers’ decisions in film production, but it is especially through acting that emotions are directly transmitted to the viewer. Characters transmit their emotions through the actors’ facial expressions, and the audience experiences an emotional response.
Understanding how this bond between represented emotion and perceived emotion is created can give us concrete information on human interaction with this rapidly growing digital medium. This can integrate large film streaming platforms and be used for information retrieval concerning viewer experience, quality review, and for the improvement of state-of-the-art recommendation systems. Additionally, this matter falls into the field of affective computing, which is an interdisciplinary field that studies and develops systems that can recognize, interpret, process and simulate human affection. Therefore, emotional film perception could also be a contributing factor for creating affective movie streaming platforms.
Specifically, the challenge lies in answering the following question: “What emotion does this particular content convey?” This is studied in detail in the subfield of emotion and sentiment analysis by analyzing different modalities of content. More specifically, text-based sentiment analysis has been the reference in this area, with the use of natural language processing (NLP) and text analysis techniques for the extraction of the sentiment that a text conveys. A common application of these techniques is social network text analysis and e-commerce online reviews analysis, due to the proven added value to companies and organizations. Advances in computer vision (CV) and machine learning (ML) have, however, shifted the focus of this field by starting to leverage visual and aural content instead of only considering unimodal text-based approaches. The advantage of analyzing the three media present in movies by only assessing text is the possibility of taking into account the character behavior context: it is possible to combine visual and sound cues to better identify the true affective state represented in a film.
When analyzing movies, other stylistic characteristics can be used to improve the accuracy of emotion recognition. For instance, it is common practice to use camera close-ups to evoke intense emotions in the audience. Although the research community has made promising progress in developing facial expression recognition methods, the application of current approaches on the complex nature of a film, where there is a strong variation in lighting and pose, is a problem far from being solved.
This work aimed to investigate the applicability of current automatic emotion identification solutions in the movie domain. We intended to gather a solid understanding of how emotions are addressed in the social and human sciences and discuss how emotional theories are adapted by classification models with deep learning (DL) and machine learning (ML). Taking into account the relevant available datasets, we selected two datasets for our experiments: one containing both posed (i.e., in controlled environments) and spontaneous (i.e., unplanned settings) image web samples, and another that contains images sampled from movies (i.e., with posed and spontaneous expressions). We benchmarked existing CNN architectures with both datasets, initializing them with pre-trained weights from ImageNet. Due to the inclusion of images in uncontrolled environments, the obtained results fall below what would be expected for this task. Hence, we discuss the reliability of multi-class classification models, their limitations, and possible adjustments to achieve improved outcomes. Based on the findings obtained in other multi-media domains that also explore affective analysis, we propose to reduce the number of discrete emotions based on the observation that overlap between classes exists and that clusters can be identified.
What remains of this article is structured as follows: Section 2 defines the problem this work intended to tackle and presents the related work regarding it; Section 3 provides a synthesis of the conducted study, including a detailed definition of the evaluation and analysis methodology with a description of the methods and datasets used to address it; Section 4 depicts and discusses the obtained results; Section 5 concludes by pointing out future paths to be pursued for automatic emotion identification.

3. Proposed Methodology

Based on the evidence discussed in Section 2.2, it becomes clear that there are no sufficient large-scale movie datasets with face-derived emotion annotations. As a direct consequence, there are not many studies that validate the use of FER deep learning models specifically for the movie domain. Therefore, the problem we investigate can be defined through the following research questions: Can current FER datasets and Deep Learning (DL) models for image classification lead to meaningful results? What are the main challenges and limitations of FER in the movie domain? How can current results on affective/emotional analysis with other media be translated to FER in the cinema domain? Are the current emotional models adequate to the cinema domain where expressions are more complex and rehearsed?
Based on these research questions, we defined the following steps as the experimental design:
  • From the list of available datasets provided in Section 2.2.1, we analyzed and selected a dataset for training the DL models and evaluated them in the movie domain;
  • We pre-processed the selected datasets through a facial detector to extract more refined (tightly cropped) facial regions;
  • We tested and benchmarked CNN architectures using accuracy as a performance metric. Furthermore, this first evaluation will also tackle the unbalance of the training dataset;
  • Following the findings reported in Section 2.1 to study an approach for dimensionality reduction which allows to compare our findings with other domains (e.g., audio and text). This final step is divided into two approaches:
    (a)
    Using only the top-N performing classes;
    (b)
    Clustering the classes using the emotion clusters found in other studies from the SoA.
Within the datasets introduced in Section 2.2, none fit perfectly the requirements since there is no large-scale FER database in the film domain. Thus, we propose using a cross-database scenario involving two in-the-wild settings that can unite the benefits of a large database with the benefits of a film-based database.
For that purpose, FER2013 [26] was selected based on its size and in the fact that it includes both posed and spontaneous samples. This dataset was created using the Google image search API with 184 different keywords related to emotions, collecting 1000 images for each search query. Images were then cropped in the face region and a face-alignment post-processing phase was conducted. Prior to the experiments, images were grouped by their corresponding emotions. Each image, represented in the 48x48 vector in pixels, is labeled with an encoded emotion.
The number of samples per class of the dataset is presented in Table 3. The imbalance of the dataset is fairly evident, especially between disgust (with only 547 samples) and happy (with 8989 samples) classes. This imbalance is justifiable as it is relatively easy to classify a smile as happiness, while perceiving anger, fear or sadness is a more complicated task for the annotator.
Table 3. The FER2013 number of samples per class.
SFEW [41] was also chosen for this analysis since the images were directly collected through film frames. Furthermore, the labels of SFEW are consistent with FER2013 dataset, making the aforementioned cross-database study possible. The original version of the dataset only contained movie stills, while the second version of the dataset comes with pre-processed and aligned faces, and with LPQ (Local Phase Quantization) and PHOG (Pyramid Histogram of Oriented Gradients) features descriptors used for image feature extraction). Table 4 presents the distribution of the images in the dataset. SFEW was built following a strictly person independent (SPI) protocol, meaning that the train and test datasets do not contain images of the same person.
Table 4. SFEW aligned face samples per class. The test set contains 372 unlabeled images.

4. Results

Following the experimental design referred in Section 3, to set a baseline for our work, we benchmarked several SoA CNN architectures that were initialized with pre-trained weights from ImageNet. The selected backbones were MobileNetV2, Xception, VGG16, VGG19, ResnetV2, InceptionV3 and DenseNet. These models were selected based on their solid performance in other image challenges, with the premise that they could also be applied to FER tasks.
FER2013 was separated into training and testing sets. The baseline models were optimized using cross-entropy and accuracy, for validation purposes, during 25 epochs with a mini batch size of 128. The initial learning rate was set to 0.1, being decreased by a factor of 10% if the validation accuracy did not improve for three epochs. Moreover, the dataset was also extended by applying data augmentation with a probability of 50% on every instance. The selected augmentation methods were horizontal flip and width/height shift (min 10%). Table 5 presents these results for each baseline architecture, while Figure 1, Figure 2, Figure 3, Figure 4, Figure 5 and Figure 6 illustrate their corresponding confusion matrices.
Table 5. Benchmark of CNN architectures.

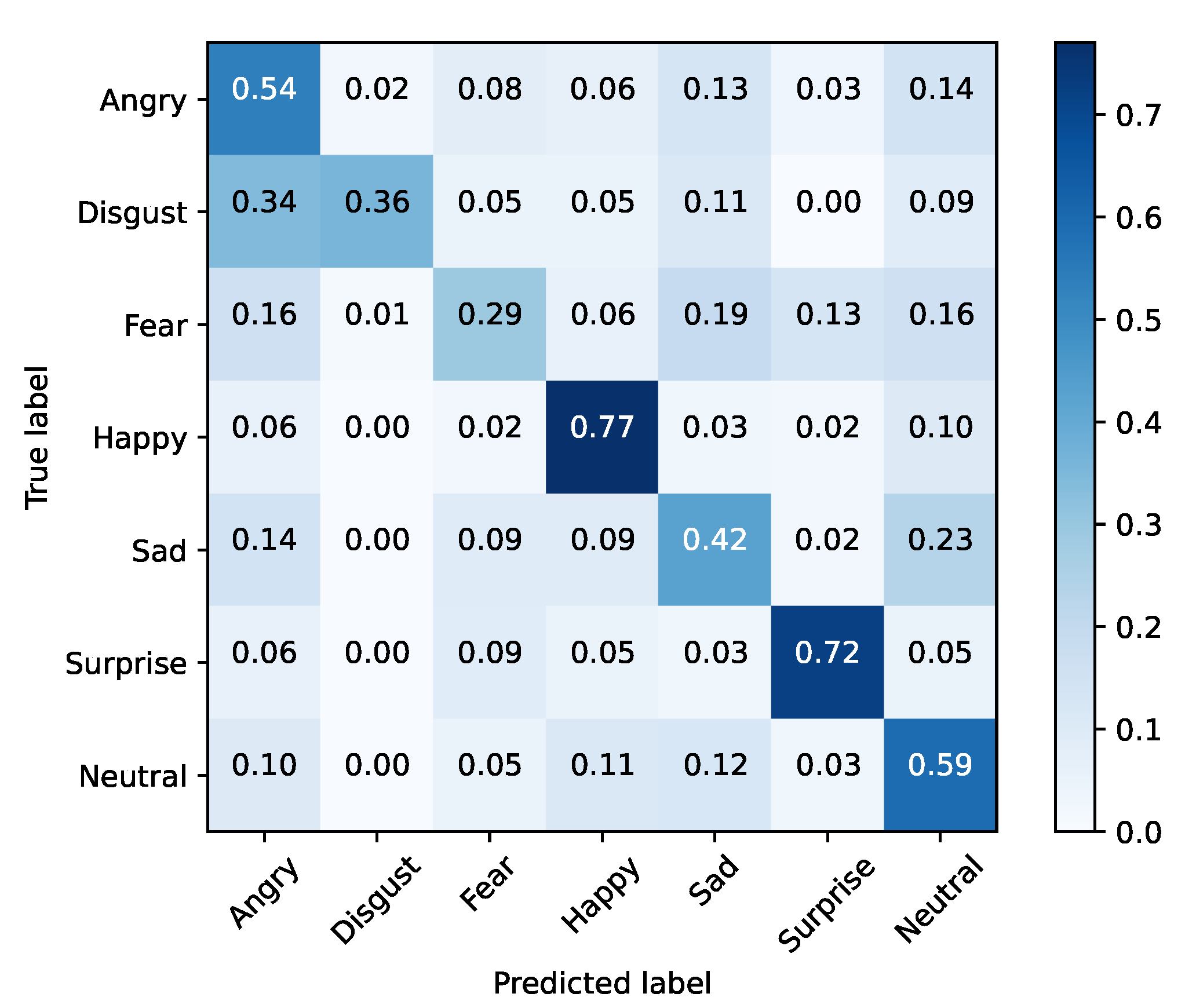

Figure 1. MobileNetV2—training set (FER2013).

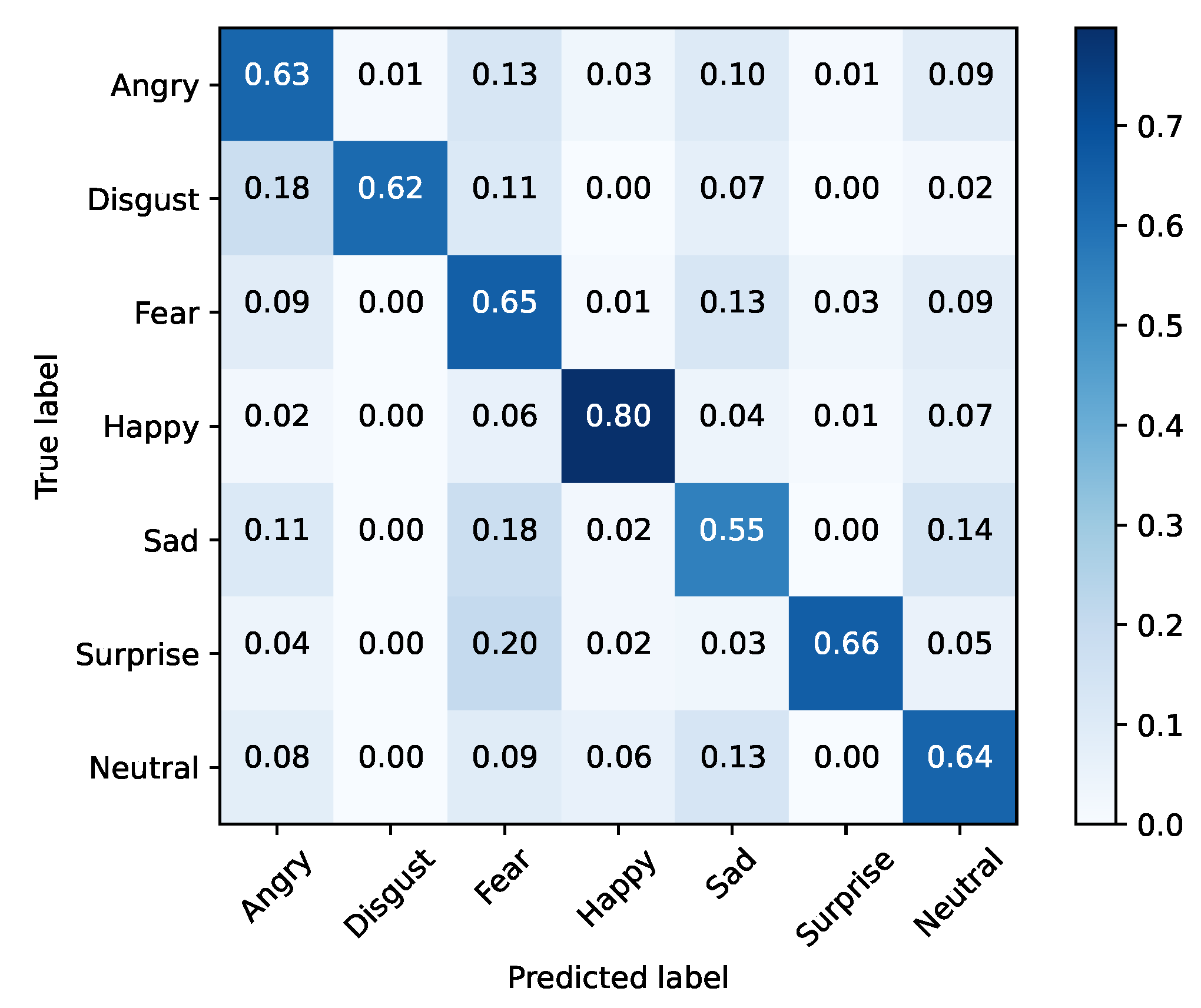

Figure 2. Xception—training set (FER2013).

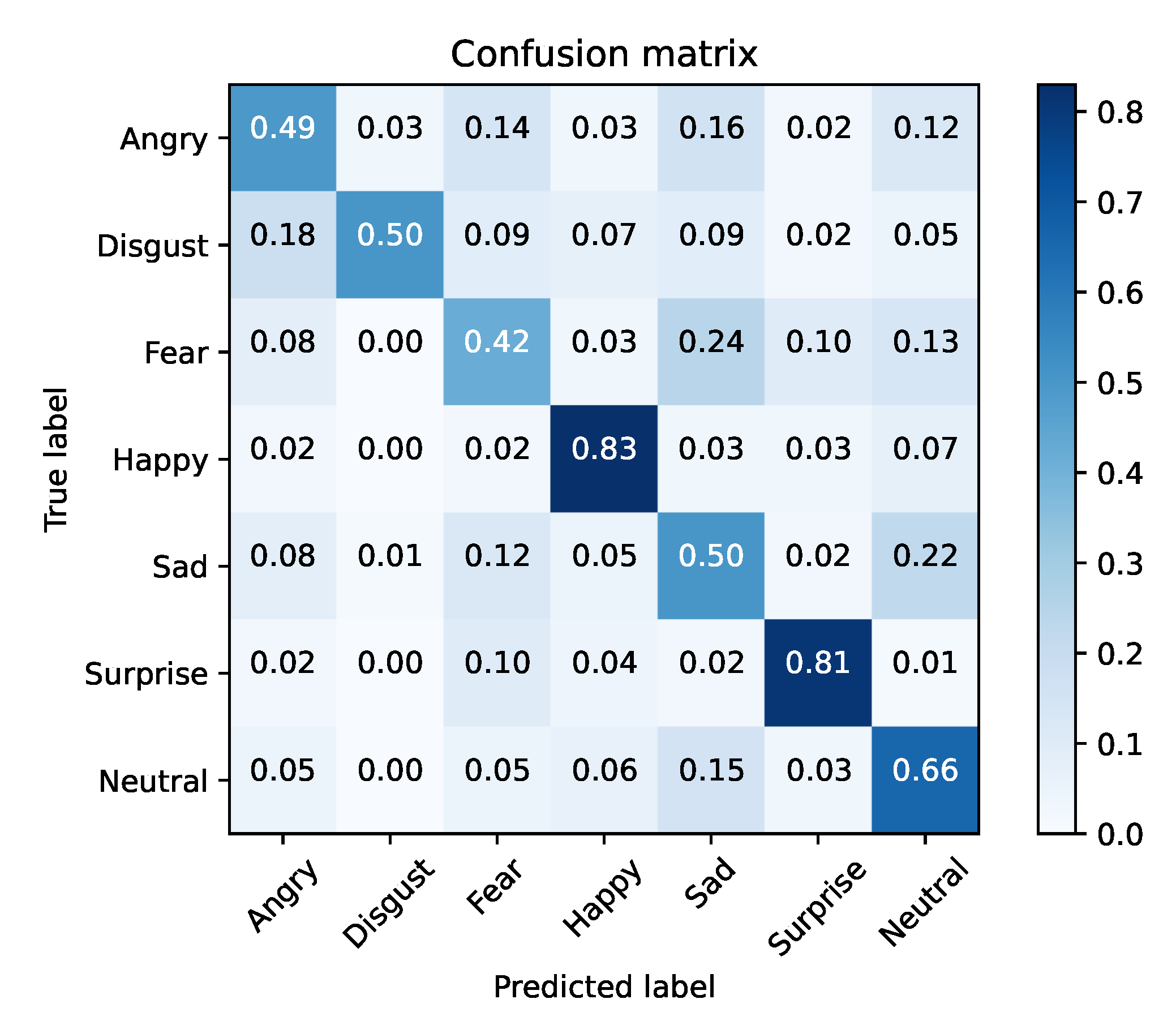

Figure 3. VGG16—training set (FER2013).

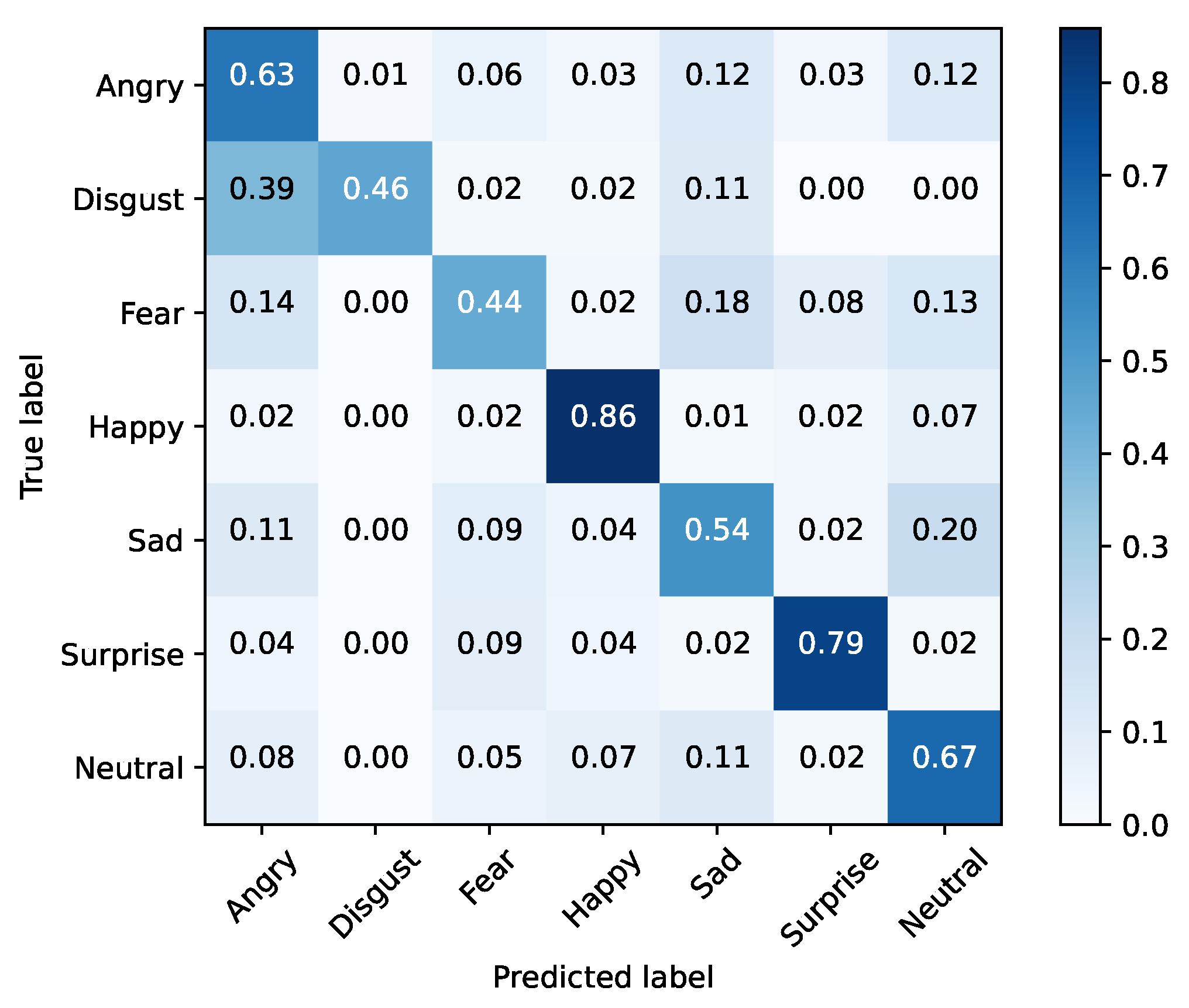

Figure 4. ResNetV2—training set (FER2013).

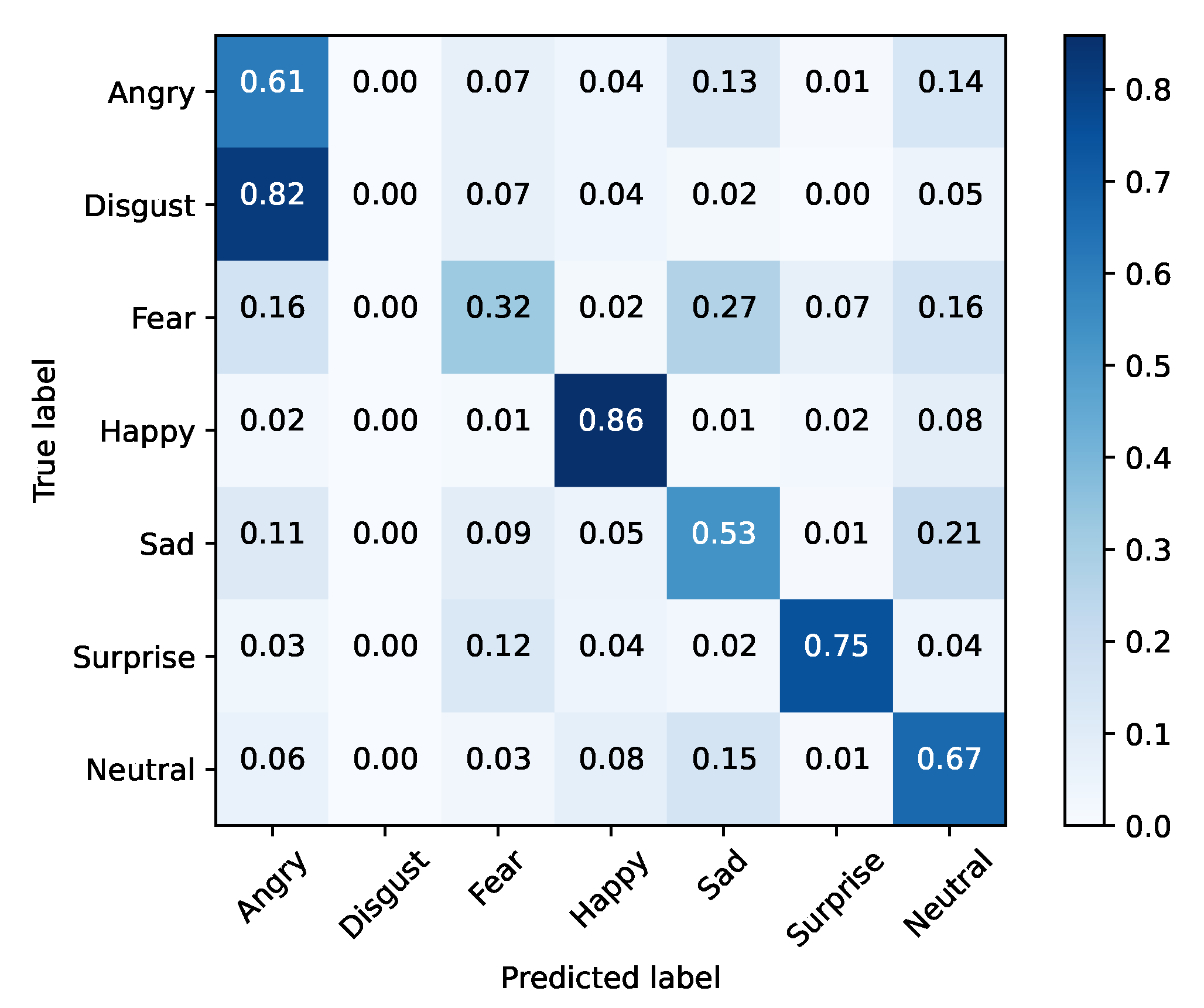

Figure 5. Inceptionv3—training set (FER2013).

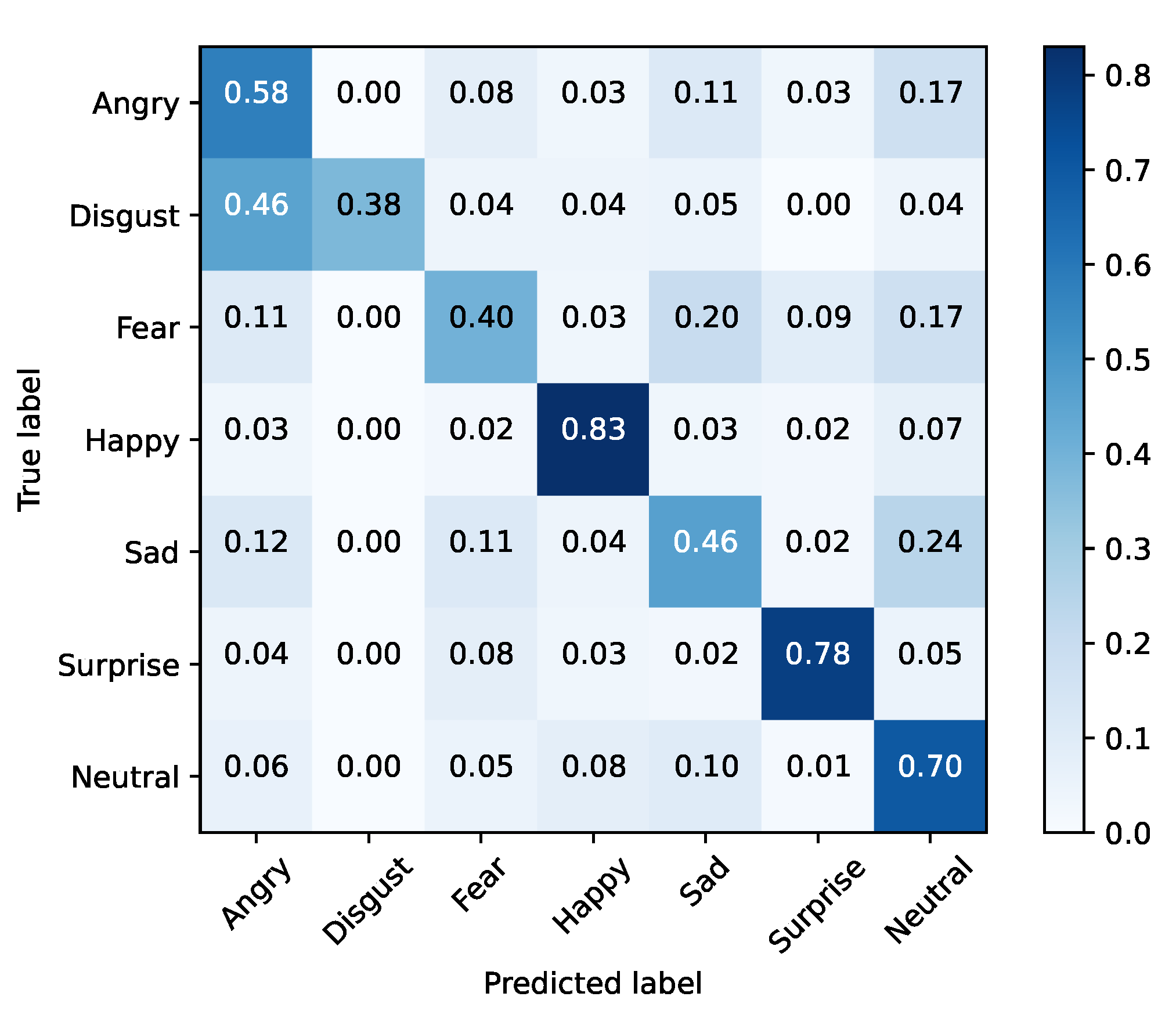

Figure 6. DenseNet—training set (FER2013).
From the results, it is clear that none of the vanilla models achieved SoA results. In contrast, Xception performed well in inference time, with the second fastest training time of our tests, and the best accuracy result. Taking into account this preliminary analysis, Xception was selected as the baseline model for the purpose of the study to be conducted next.
Since SFEW has few samples, FER2013 was used to train the selected model using a large in-the-wild database of facial expressions. The trained model was tested with SFEW since it contains faces of actors directly extracted from film frames. This enables understanding whether the developed model is robust enough to adapt to a new context. Results are shown in Table 6 and Figure 7 and Figure 8. From the presented numbers, we can conclude that Xception was able to achieve an overall accuracy of 68% in FER2013, which is within state-of-the-art values. Additionally, since FER2013 is a dataset built in a lab environment with a controlled image capturing conditions, these experiments will allow us to analyze whether a network trained in these conditions will have the ability to generalize to the film domain, by testing it with SFEW.
Table 6. Precision, recall and accuracy in FER2013 and SFEW.

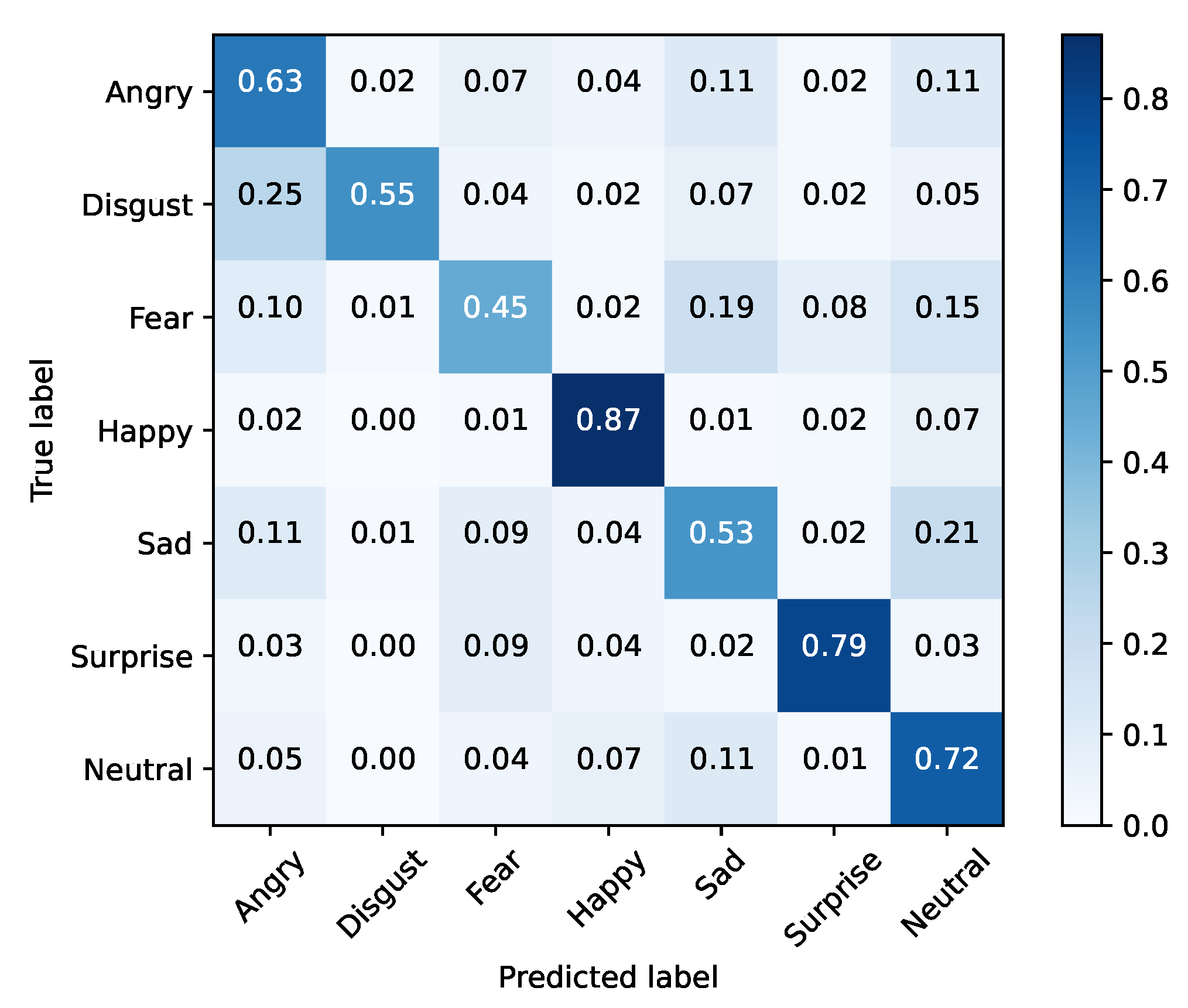

Figure 7. Baseline training set (FER2013).

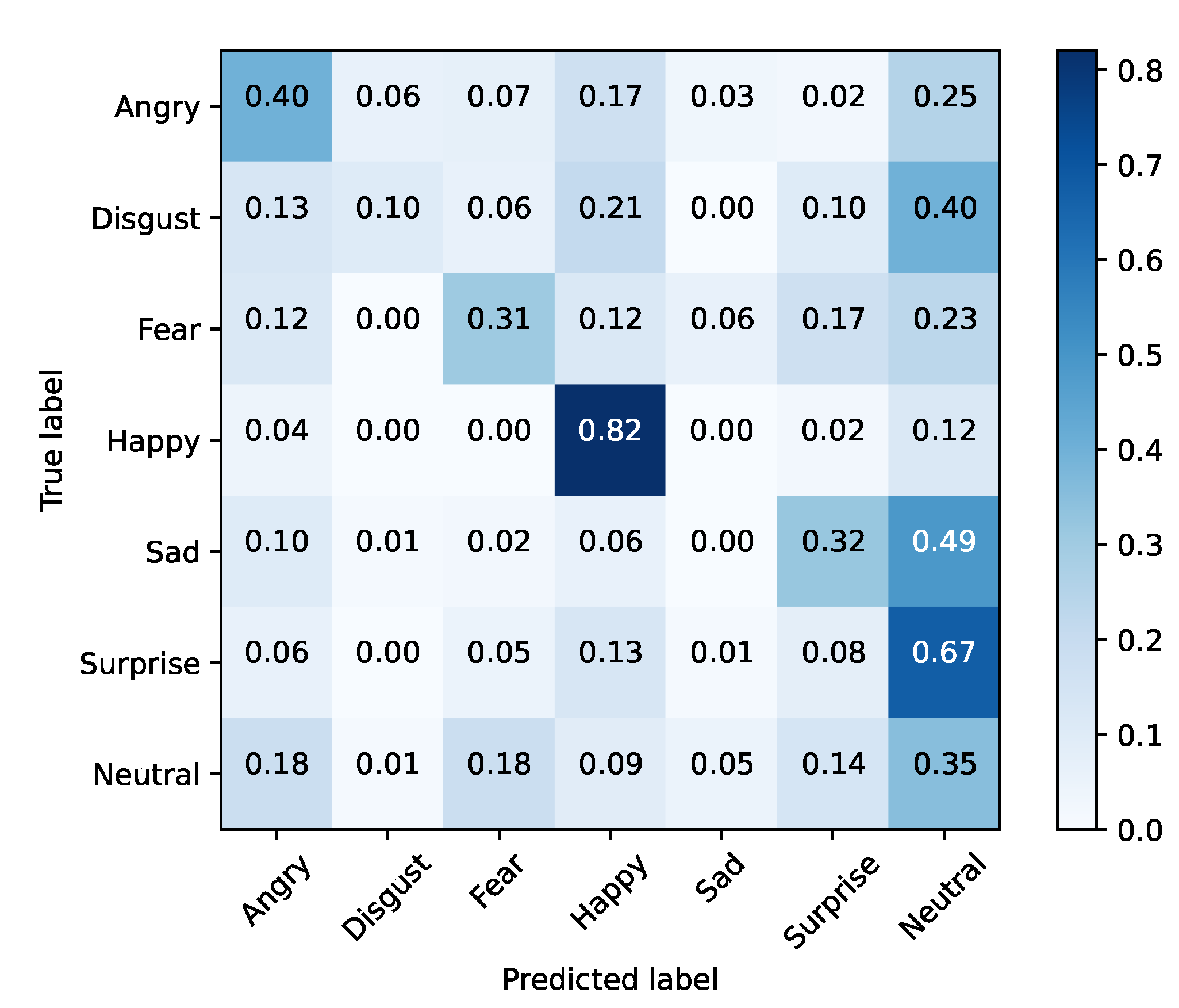

Figure 8. Baseline testing set (SFEW).
Having achieved the first objective, the next step was to simulate a real testing scenario of the network by submitting it to images taken from films. From a pool of 891 images, results were not satisfactory, reaching an overall accuracy of only 38%. Given this result, the next step was to address an already identified problem: the imbalance of FER2013.

4.1. FER2013 Dataset Balancing

To deal with the class imbalance issue, the model was retrained with different class weights which causes the model to “pay more attention” to the examples from an under-represented class. The values used were anger (1.026); disgust (9.407); fear (1.001); happy (0.568); sad (0.849); surprise (1.293); neutral (0.826). Results are illustrated in Table 7.
Table 7. Precision, recall and accuracy in the balanced FER2013 validation set.
Despite the overfit reduction, this approach did not lead to better accuracy results. When tested with SFEW dataset, the obtained results were similar to those already reported.

4.2. Reducing Dimensionality

The gathered evidence in Section 2 and the confusion matrices from the baseline results indicate that there is an overlap of emotions in the affective space. Thus, we propose a reduction in the dimensionality of the problem by reducing the number of emotions to be considered in affective analyses. We demonstrated the effectiveness of this approach firstly by selecting the top-four performing emotions in the previous experiments, and secondly, by selecting the clusters of emotions more clearly demarcated in the studies previously addressed.

4.2.1. Selecting the Top-Four Performing Emotions

The emotions that stood out in the previous tests were happy, surprise, neutral and angry, achieving a accuracy score of 87%, 80%, 71% and 62%, respectively. When training the model solely with these emotions, it was able to achieve an accuracy of 83%, as shown in Table 8. The confusion matrix for this testing scenario is shown in Figure 9.
Table 8. Precision, recall and accuracy for all the devised methodologies.

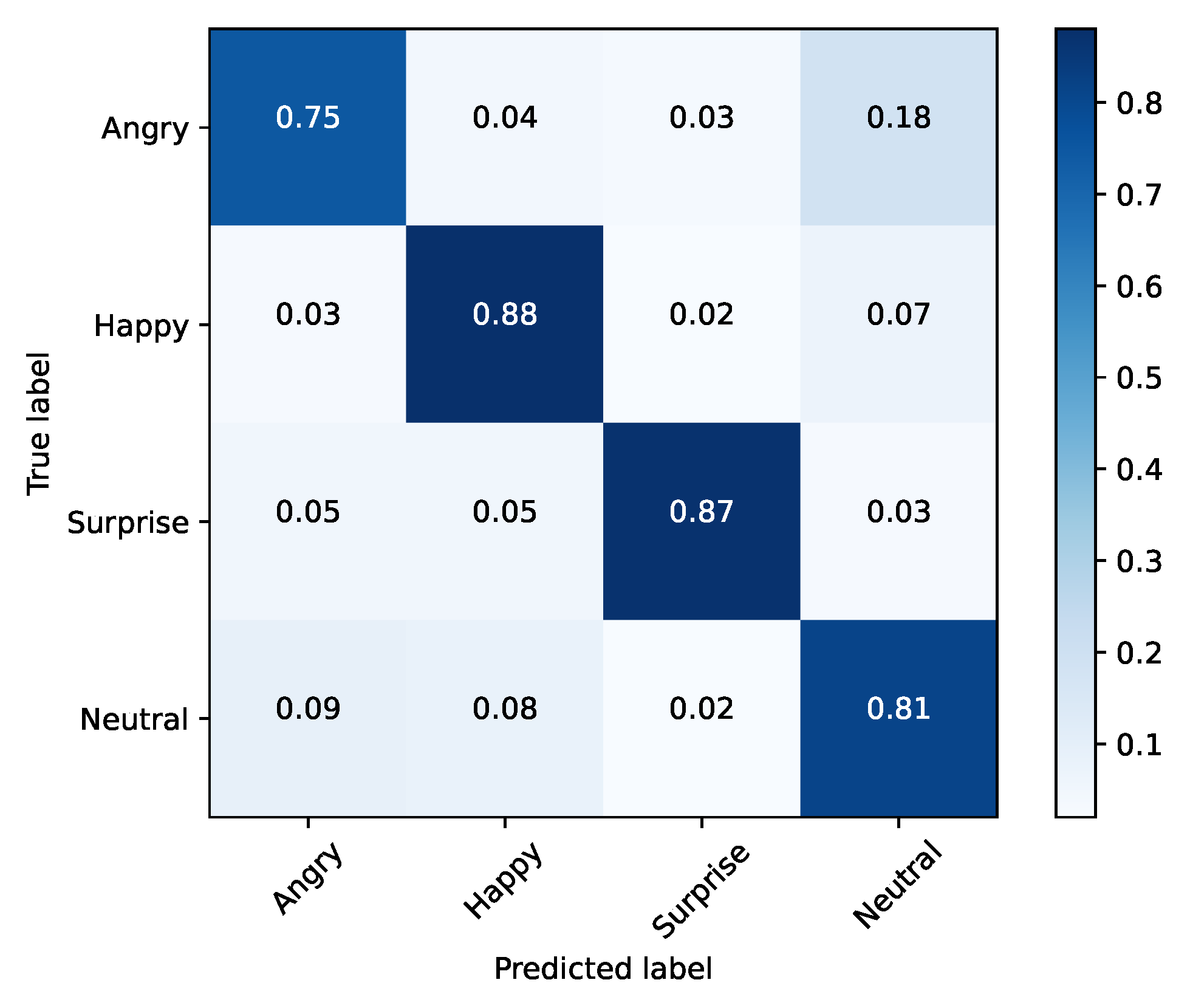

Figure 9. Training set (FER2013) and the top-4 performing emotions.
After analyzing each emotion, we can conclude that by decreasing the size of the problem, the network’s performance was improved. When applied to SFEW (Table 8 and Figure 10), the model also demonstrated some improvements with the reduction in dimensionality, going from 38% to 47% accuracy.

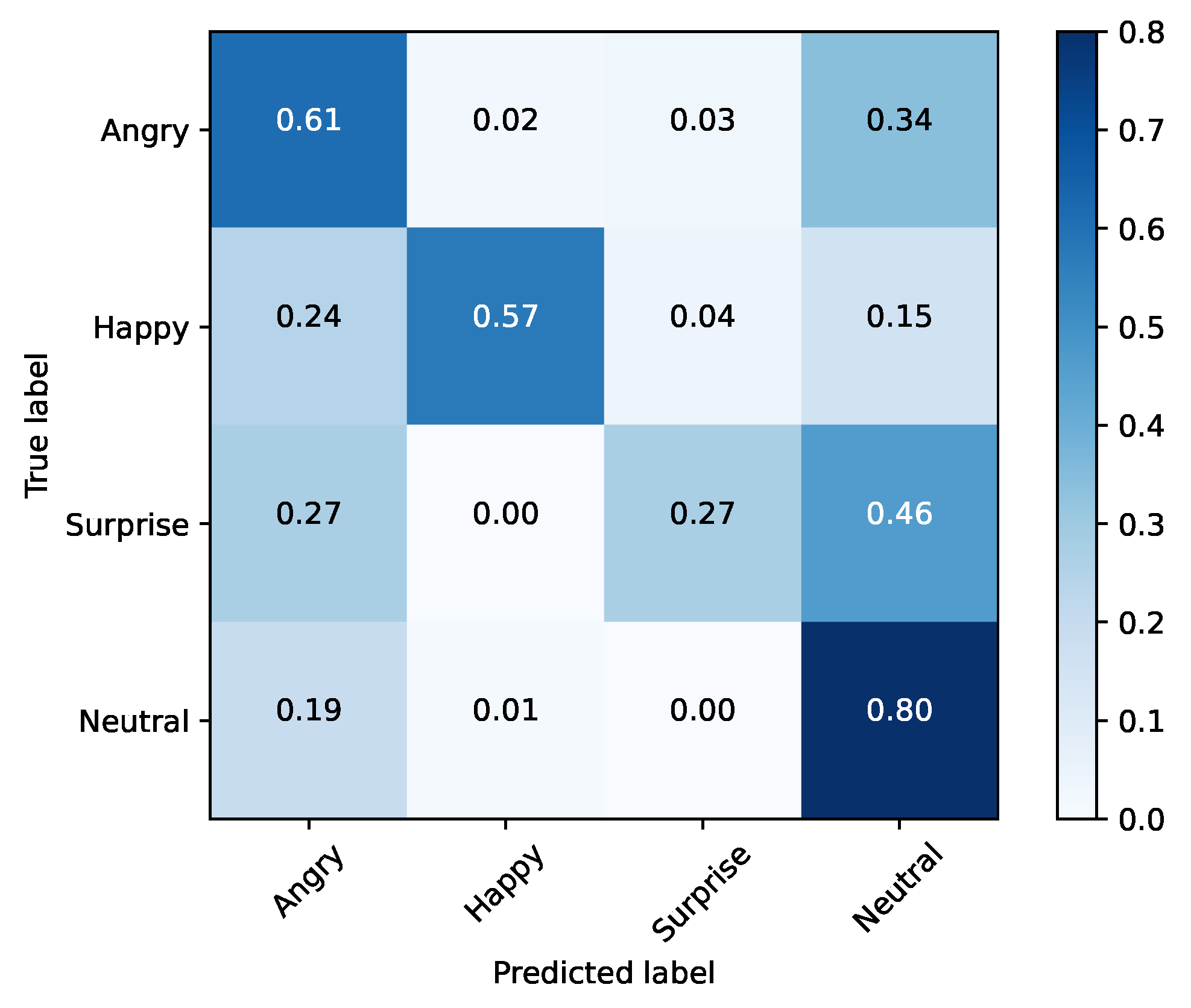

Figure 10. Testing set (SFEW) and the top-4 performing emotions.

4.2.2. Clustered Emotions

Based on the evidence collected in Section 2.1, there are three clearly demarcated emotional clusters: happy (hereafter titled positive), neutral and a third one composed of the angry, sad, fear and disgust (the emotions with a negative connotation—hereafter titled negative). Therefore, another test involving these three clusters was performed. By concentrating only on these three emotions, the network achieved an accuracy of 85%, as illustrated in Table 8. For this methodology, the confusion matrices for the training and testing sets were illustrated, respectively, in Figure 11 and Figure 12.

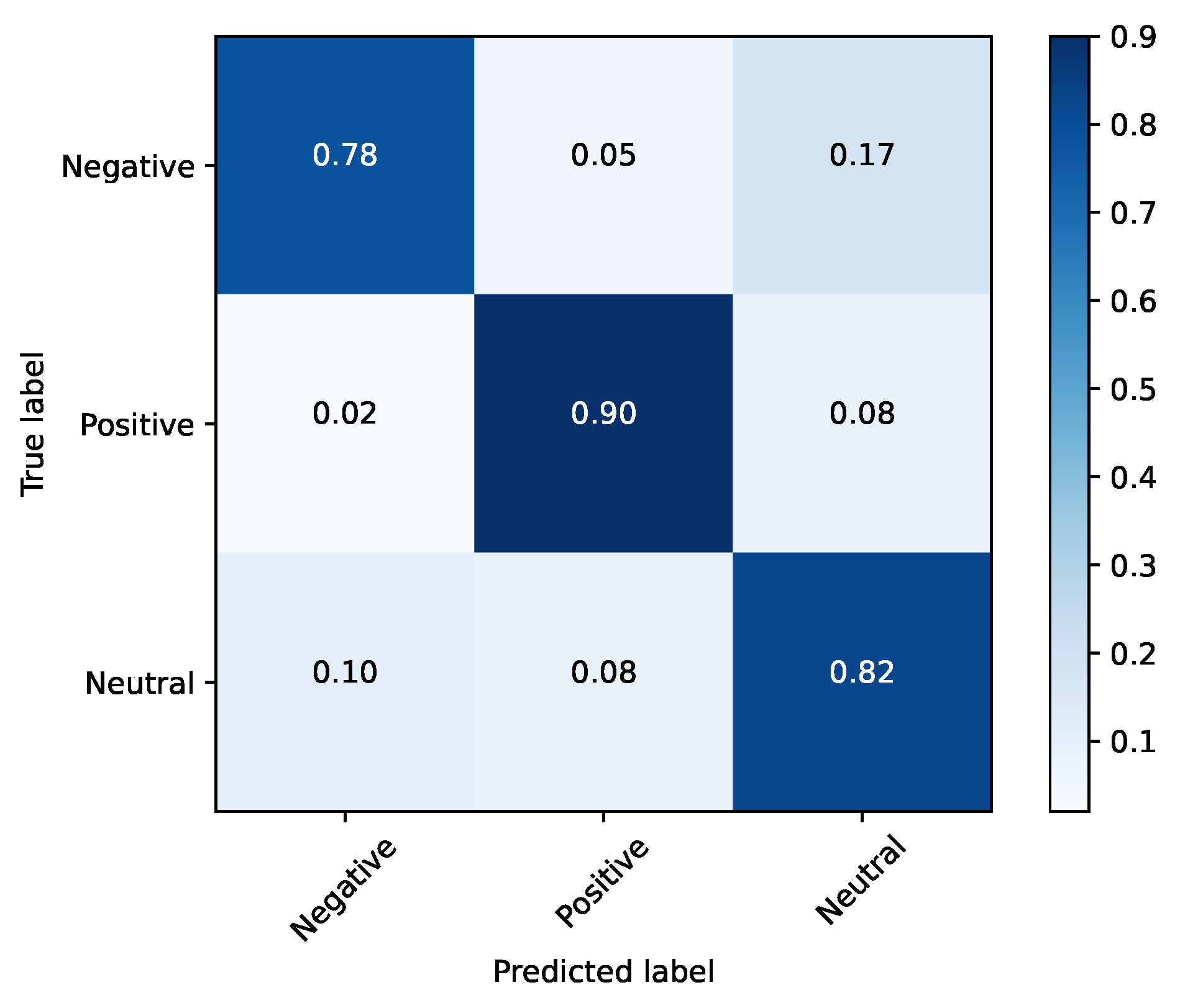

Figure 11. Training set (FER2013) and clustered emotions.

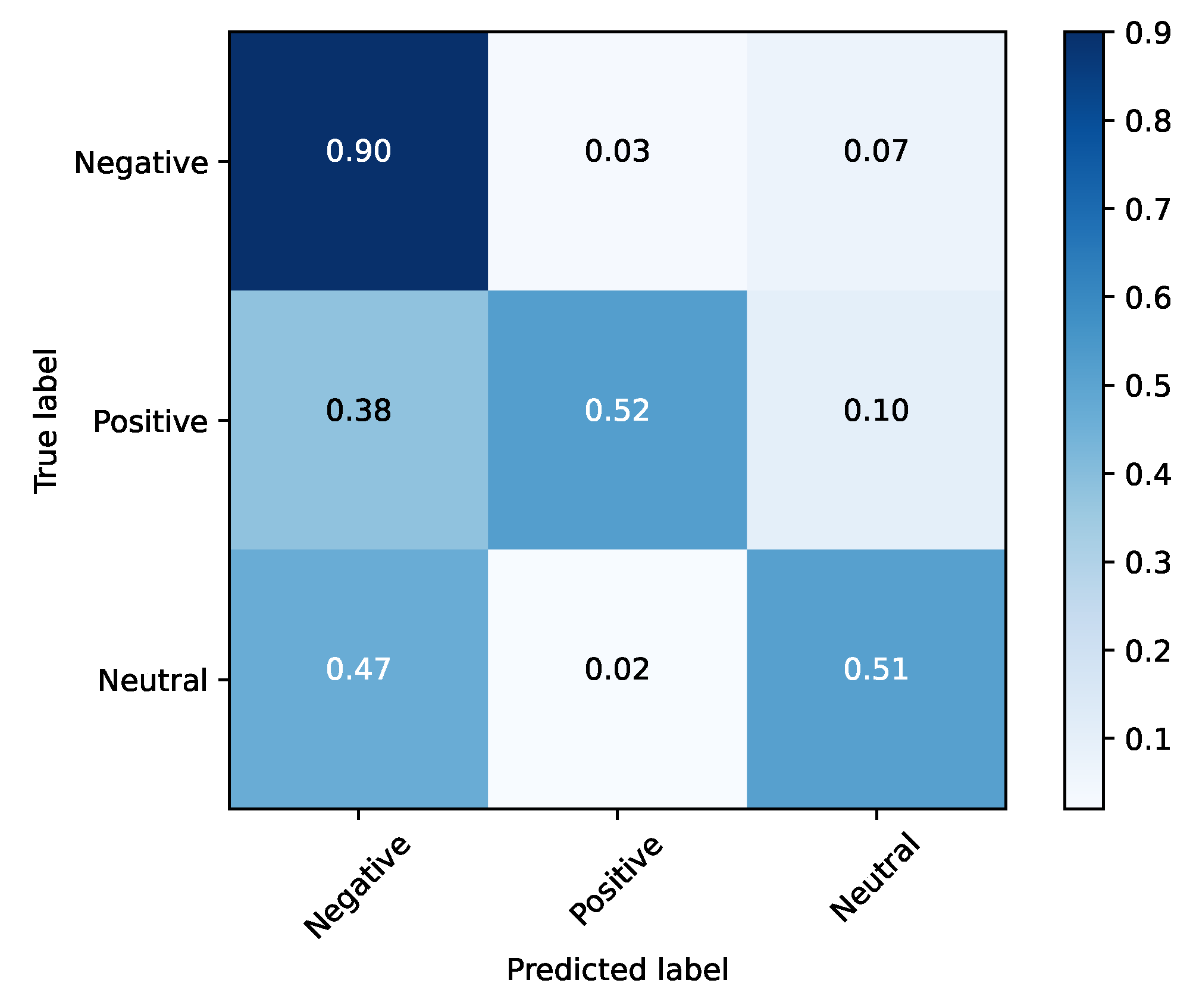

Figure 12. Testing set (SFEW) and clustered emotions.
Testing the “three emotional network” with the SFEW dataset, a score of 64% was achieved, as illustrated in Table 8. Unlike the validation set of FER2013, the emotion with the best performance in SFEW was negative, reaching an accuracy value of 90%.
The best results were obtained when the dimensional reduction took place, so this may be a suitable solution for emotional analysis systems at the cost of losing granularity within the emotions of negative connotation. These results also showed similar emotion clusters as the ones discussed in Section 2 for other domains, that can be depicted in the confusion matrices demonstrated along this section. In particular, they show intersections between the “negative” clusters/classes and the neutral class/cluster (Figure 11 and Figure 12), and within the negative connotation classes (Figure 7 and Figure 8).

5. Conclusions

The work described in this paper had as its main objective the definition of an approach for the automatic computation of video-induced emotions using actors’ facial expressions. It discusses the main models and theories for representing emotions, discrete and dimensional, along with their respective advantages and limitations. Then, we proceed with the exploration of a theoretical modeling approach from facial expressions to emotions, and discussed a possible approximation between these two very distinctive theories. The contextualization from human and social sciences allowed to foresee that the lack of unanimity in the classification of emotions would naturally have repercussions both in the databases and in the classification models, one of the major bottlenecks of affective analysis.
A systematic validation and benchmark analysis was performed to SoA FER approaches applied to the movie domain. After initial benchmarks, we fine-tuned the chosen model with FER2013, evaluating it with the movie-related dataset, SFEW. During this phase, we noticed several flaws and limitations in these datasets, ranging from class imbalance to even some blank images that do not contain faces. Additionally, we studied, through dimensionality reduction, the hypothesis that clustering observations from the valence–arousal space in other domains are transferable to this approach.
The obtained results show that even if there are still many open challenges related, among others, to the lack of data in the film domain and to the subjectiveness of emotions, the proposed methodology is capable of achieving relevant accuracy standards.
From the work developed and described in this article, several conclusions can be drawn. Firstly, there is a lack of training data both in terms of quantity and quality: there is no publicly available dataset that is large enough for the current deep learning standards. Additionally, within the available databases, there are several inconsistencies in the annotation (using different models of emotion, or even within the same theory of emotion) and image collection processes (illumination variation, occlusions, head-pose variation) that hinder progress in the FER field. Furthermore, the notion of ground truth applied to this context needs to be taken with a grain of salt, since classifying emotion is intrinsically biased in terms of the degree to which it reflects the perception of the emotional experience that the annotator is experiencing.
Paul Ekman’s basic emotions model is commonly used in current facial expression classification systems, since it tackles the definition of universal emotions and is widely accepted in the social sciences community. This model was designed by empirical experiences within people from different geographical areas, aiming to understand whether the same facial expressions translate a single emotion, without cultural variations. Hence, Ekman designed seven basic emotions used nowadays in the technological fields, to identify emotion through facial expressions. Current solutions are now quite accurate in this task for a variety of applications, with recent commercial uses, namely in the social networks. However, specifically in the cinema field, analyzing emotions from characters with existing frameworks proved to be an unsatisfying approach. On the one hand, actors are entitled to rehearse a facial expression of a character in a certain context. In this field, emotional representation is acted, thus using Ekman’s model might not be a valid solution for the analysis of cinematographic content. For example, by applying current FER approaches to a comedy movie, the results could be flawed because acted emotions in this context should not be translated literally to the exact emotion apparent in the facial expression. In this example, we could obtain a distribution of emotions mostly focused on sadness and surprise, although in the comedy context, the meaning of the character’s facial expressions should not be literal: thus, could we consider other basic emotions, with a more complex system that can distinguish an ironic sadness from a real sadness emotion, from a Drama movie? This could be a line of work for future implementations. On the other hand, the images captured in movies are cinematographic, i.e., they are taken in uncontrolled settings, where the environment varies in color, lightness exposure and camera angles. This content variety can be a clear struggle in the classification task, and concretely in the cinema field, it could have a large impact on research results.
Apart from facial expression, there are other characteristics in films that can be used to estimate their emotional charge, as discussed in Section 2. Therefore, as future work, we expect to use facial landmarks to obtain facial masks and, alongside the original image, use them as input to the model. This information might be leveraged as embedded regularization to weight faces’ information in the classification of the conveyed emotions of movies. Furthermore, temporal information regarding the evolution of visual features might also be worth exploring since they are commonly used to convey emotions in cinematographic pieces. Regarding the annotation subjectiveness, we also considered that designing intuitive user interfaces that enable the annotator to perceive the differences between discrete emotion classes is also a future path to enhance the annotation process and quality, and to reduce the amount of noise in the construction of new datasets for the field.

Author Contributions

Conceptualization, J.A., L.V., I.N.T. and P.V.; methodology, J.A., L.V., I.N.T. and P.V.; software, J.A; validation, J.A., L.V., I.N.T. and P.V.; formal analysis, J.A., L.V., I.N.T. and P.V.; investigation, J.A., L.V., I.N.T. and P.V.; resources, J.A., L.V., I.N.T. and P.V.; data curation, J.A., L.V., I.N.T. and P.V.; writing—original draft preparation, J.A., L.V., I.N.T. and P.V.; writing—review and editing, J.A., L.V., I.N.T. and P.V.; visualization, J.A., L.V., I.N.T. and P.V.; supervision, L.V., I.N.T. and P.V.; project administration, L.V., I.N.T. and P.V.; funding acquisition, P.V. All authors have read and agreed to the published version of the manuscript.

Funding

This research was partially financed by the ERDF—European Regional Development Fund—through the Norte Portugal Regional Operational Programme (NORTE 2020), under the PORTUGAL 2020 Partnership Agreement and through the Portuguese National Innovation Agency (ANI) as a part of project CHIC: NORTE-01-0247-FEDER-0224498; and by National Funds through the Portuguese funding agency, FCT—Fundação para a Ciência e a Tecnologia, within project UIDB/50014/2020.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.
