Article

Influence of Humic Acid on the Transport of Two Types of Synthesized Zinc Oxide Nanoparticles in Quartz Sand

Department of Mineral Resources and Energy Engineering, Jeonbuk National University, Jeonju 54896, Korea
*
Author to whom correspondence should be addressed.
Appl. Sci. 2021, 11(19), 8957; https://doi.org/10.3390/app11198957
Submission received: 2 September 2021 / Revised: 22 September 2021 / Accepted: 24 September 2021 / Published: 26 September 2021
(This article belongs to the Special Issue Nanotechnology Challenge: Safety and Safer Design of Nanomaterials)

Abstract

:
In this study, transport and retention behaviors of the two types of nZnO prepared with separate manufacturing methods were compared/analyzed according to the presence/absence of Suwannee River humic acid (SRHA) adsorbed into the sand surface and the SRHA suspended in bulk solution, and to changes in the solution ionic strength (0.1–10 mM) in sand-repacked water-saturated columns. In the absence of suspended SRHA, nZnO-1 breakthrough was observed only in SRHA-coated soil, and the breakthrough amount decreased with the increase in the ionic strength (23.8% to 17.2% at 0.1 mM to 10 mM, respectively). In contrast, nZnO-2 breakthrough was not observed over the entire ionic strength range, regardless of the SRHA sand coating. With the presence of suspended SRHA, neither nZnO-1 nor nZnO-2 showed a significant difference in the breakthrough amount regardless of sand coating or ionic strength. However, the breakthrough amount of nZnO-1 was higher than that of nZnO-2 (51.5% versus 37.7% at 10 mM with 1 mg/L SRHA). From confirming the difference in transport between the two types of nZnO, the amount of SRHA adsorbed into nZnO-1 was less than the amount adsorbed into nZnO-2 (0.29 mg/g versus 0.64 mg/g at 10 mM with 1 mg/L SRHA). This result was considered to be due to the larger nZnO-1 breakthrough amount than the nZnO-2 breakthrough amount, which was caused by the larger amount of suspended SRHA that could occupy the deposition sites in the nZnO-1 suspension. Because the rate of SRHA deposition on the sand surface was higher than on nZnO, nZnO transport improved in the presence of suspended SRHA, and changed according to the amount of suspended SRHA.

1. Introduction

Metal oxide nanomaterials are widely used in industrial settings [1,2,3,4]. In particular, zinc oxide nanoparticles (ZnO-NPs) are used widely in the fields of cosmetics, optics, and the chemical industry [5,6] due to their multifunctional properties, and also for nanocomposite development [7]. Adverse effects of ZnO-NPs on living organisms have been reported frequently, e.g., [8,9,10,11,12,13,14,15]. For example, the toxicity of ZnO-NPs in plants [10,11], bacteria [8,16], and rodents [17] has been reported. The environment has been exposed more and more to ZnO-NPs with the increase in the demand for and production of ZnO-NPs. For detailed and accurate analyses on the risk of ZnO-NPs, their exposure probability must be evaluated, and studies on their fate and transport must be conducted [1].
Studies on the fate and transport of ZnO-NPs have been conducted in various soil environment conditions, such as flow rate, ionic strength, pH, ion valence, and type of porous media, which have been shown to be important factors in nanoparticle transport behavior, e.g., [4,18,19,20,21,22,23,24]. Humic acid has been reported to improve the ZnO-NPs transport level in the soil environment [14,16], and one of the main mechanisms causing such trend was confirmed as deposition site competition between natural organic matter (NOM) and nanoparticles [25]. These studies on ZnO-NPs transport have targeted single particles. Although variously synthesized particles were used in previous studies on ZnO-NPs fate and transport, comparisons among their outcomes may not be appropriate due to the differences in the soil environment conditions, such as flow rate, ionic strength, pH, ion valence, and porous media. Although ZnO-NPs are known to be synthesized by various methods [26,27], no comparative studies on the fate and transport behavior of ZnO-NPs synthesized with diverse methods have been reported so far. In our recent comparative study [28], ZnO-NPs synthesis methods were confirmed to affect the physicochemical properties (particle size, surface functional groups, specific surface area, and particle shape) of ZnO-NPs. Significant differences in their properties, which affected the aggregation and dissolution tendencies of the two types of ZnO-NPs, were also confirmed [28].
It should be noted that the physicochemical properties of nanoparticles have been reported to be critical factors affecting their fate and transport [4,29,30]. Thus, it is reasonable to expect that the nanoparticles synthesized with different approaches could show different transport behavior, but no comparative studies on this issue have been reported; thus, the relevant study is required.
The first objective of this study was to compare/analyze the transport and retention behaviors of the two types of commercial ZnO-NPs, which were prepared with different methods, in saturated porous media as a function of the presence/absence of the SRHA that is present in the soil media surface and the SRHA that is present in the bulk solution, and to changes in the ionic strength. The second objective of this study was to reverify the deposition site competition that was reported as the mechanism of the coexistence of recently-reported suspended SRHA and NPs in the soil environment using two types of the ZnO-NPs that were synthesized by different methods, and eventually to enhance the reliability of the suggested mechanisms of ZnO-NPs.

2. Materials and Methods

2.1. ZnO-NPs Suspension Preparation

ZnO-NPs can be synthesized via various approaches (e.g., precipitation, spray pyrolysis, hydrothermal synthesis, solvothermal synthesis, electrochemical methods, sol–gel, microwave synthesis, and green synthesis) [31,32,33]. Among those, a chemical precipitation method with different synthesis conditions, which was modified from published procedures [26,27,34], was used to prepare ZnO-NPs in the present study. The synthesis processing of ZnO-NPs is described in the Supplementary Information. The synthesized ZnO-NP samples from synthesis 1 and synthesis 2 were designated as nZnO-1 and nZnO-2, respectively. The nZnO stock suspensions (100 mg L−1) were prepared by dispersing the nZnO in Milli-Q water (Q-Gard, Millipore Inc., Billerica, MA, USA). To enhance dispersibility, ultrasound (ultrasonic homogenizer, KNSN-RAB, KOEN, South Korea) was applied for 30 min. A stock suspension was prepared each time prior to an experiment and was diluted in the desired salt solution (NaCl, 0.1, 1, and 10 mM) to prepare the nZnO input suspension (20 mg L−1) that was necessary for column tests. Then, the nZnO suspension was stirred for 2 h at 200 rpm to adjust its pH to 9.0 using 0.1 M NaOH.

2.2. ZnO-NPs Characterization

X-ray diffraction (XRD) patterns were recorded with a Bruker D8 HRXRD X-ray diffractometer using Ni-filtered Cu Kα radiation (λ = 0.154606 nm, 40 kV, 40 mV). XRD patterns of the samples were collected in the range of 20–65° (2θ) with a step size of 0.02° and step time of 2 s. Transmission electron microscope (TEM) observations were conducted with JEOL-2010F microscope operated at 200 kV. The samples for TEM measurements were suspended in ethanol and dropped onto holey carbon films that were supported on Cu grids for imaging. The specific surface areas of the samples were determined via gas physisorption at −196 °C using a Micromeritics ASAP 2020M analyzer and assessed from nitrogen adsorption data in the partial relative pressure from 0.05 to 0.25 using the Brunauer–Emmett–Teller (BET) method [34,35]. The zeta potential and particle size of nZnO with the presence/absence of SRHA (1 and 5 mg L−1 as TOC concentration) in the NaCl (0.1, 1, and 10 mM) solution were measured using ELS-Z (Otsuka, Osaka, Japan); the measurements were conducted 10–15 times repeatedly and immediately prior to the column test at room temperature (25 °C). The zeta potential was converted from measured electrophoretic mobility values using the Smoluchowski equation, and the particle size was determined using a dynamic light scattering (DLS) method [36,37]. The zeta potential and particle size of the two types of nZnO, which were measured in NaCl in the presence/absence of SRHA and according to the ionic strength, are shown in Figure 1.

2.3. Suwannee River Humic Acid (SHRA) Solution Preparation

In this study, humic substances, which are abundant in the freshwater environment, were used as an NOM. SRHA (Cat. #2S101H, International Humic Substances Society), which is used frequently in colloid transport studies, was used as a humic substance. The SRHA stock solution was prepared according to a method reported previously [15,19]. First, 25 mg of dried SRHA was placed into 50 mL Milli-Q water (Q-Gard) and was stirred for 24 h. The solution was filtered using a 0.22 μm filter, and its pH was adjusted to 8.0 using 0.1 M NaOH. This filtered and pH-adjusted solution was kept in a darkroom at 4 °C to be used as the SRHA stock solution. The concentration of the SRHA stock solution was analyzed using a TOC meter (TOC-VCPH, Shimadzu Co., Kyoto, Japan), the median diameter of which was ~475 μm, and the uniformity factor 1.5. The porous media were cleansed to remove chemical heterogeneity using the method suggested in previous studies [38,39]; the soil media were placed into Milli-Q water and shaken to remove impurities, then soaked in 37% HCl at 1:1 ratio for 24 h. The media were cleaned again with Milli-Q water, and the above process was repeated one more time before baking them at 800 °C for 8 h. To rehydrate the baked soil media prior to the column test, they were placed into Milli-Q water and boiled for at least 1 h. The zeta potential was measured at the desired NaCl solution ionic strength after the soil media were ground.
Column experiments were conducted with NaCl as a salt at various ionic strengths, ranging from 0.1 mM to 10 mM. The transport and retention behaviors of the two types of nZnO were compared and analyzed. Cleansed sand was wet-packed in the cylindrical glass chromatography column (10 cm in length × 2.5 cm in inner diameter (Omnifit, UK)). The wet sand was packed little by little (at an interval of ~1 cm) with a slight wobble and layering or minimal air inflow. The porosity of the packed column was measured at 0.36.
After packing, deionized water (DI) was supplied for ~10 pore volumes (PV, defined as t/VQ; here, t, V, and Q represent time, column void volume, and volumetric flow rate) to remove impurities in the column, and the NaCl set at the desired ionic strength and pH was injected for at least 10 PV to reach an equilibrium prior to the experiment. Upon completion of equilibration, the nZnO suspension with or without SRHA was injected for 5 PV. Then, particle-free NaCl with the same ionic strength and pH was injected for 5 PV. The nZnO and salt solution were injected in up-flow mode using a peristaltic pump (Cole-Parmer, Thermo Fisher Scientific, Waltham, MA, USA). The concentration of the injected nZnO suspension was 20 mg L−1. All the flow rates in the experiments were set at 1.144 mL min−1. The nZnO released from the column were continuously (~8 mL) sampled in a 10 mL test tube. To investigate the distribution of the retained NPs in the column, the column was dissected at approximately every 1 cm after the transport experiment, and soil media were placed into 0.5 M HNO3 to dissolve nZnO. The concentrations of the nZnO released from the column and the nZnO retained in the column were analyzed using ICP. The areas below the breakthrough curves represent the relative concentration of the nZnO released from the column against the concentration of the nZnO that was injected initially. The obtained retention profiles represent the fraction (i.e., retained nZnO amount/total injected nZnO amount) of the nZnO retained in the unit mass of the soil media. The whole collected nZnO fraction obtained from the breakthrough curve and retention profile are shown in Table S2 (mass balance).

2.4. SRHA Adsorption Experiments for ZnO-NPs

Previous studies reported that SRHA can adsorb onto the surface of ZnO-NPs and alter the surface properties [15,28]. Based on the procedure described in the previous studies, the amounts of SRHA adsorbed into the two types of nZnO as a function of the ionic strengths (0.1 mM and 10 mM) were evaluated at pH 9. The initial SRHA concentrations were set at 1 mg L−1 and 5 mg L−1, and the added nZnO suspension concentration was set at 20 mg L−1. nZnO and SRHA were stirred for 30 min to facilitate adsorption. Upon completion of adsorption, the nZnO suspension was placed into a 50 mL tube to centrifuge (20 min, 15,000× g; 1580MGR, Gyrozen, South Korea). Then, 2 mL of supernatant was carefully collected from each tube. The collected samples were put in a 15 mL tube to centrifuge again (20 min, 15,000× g). nZnO and SRHA were separated completely. Initial and final SRHA concentrations were measured at 254 nm using a spectrophotometer [28] (HS-3300, Humas, South Korea). The results of the experiments in each condition were expressed as mg SRHA/g nZnO.

2.5. Derjaguin–Landau–Verwey–Overbeek (DLVO) Interaction Energy Calculation

To confirm the details of nZnO transport behaviors in the presence/absence of SRHA, through the column experiments, the total interaction energy of NPs–NPs and quartz–NPs according to the distance was calculated using the classic DLVO theory. As shown in Equation (1), the DLVO interaction energy was calculated as the sum of retarded van der Waals energies (ΦVDW) and electrostatic double layer energies (ΦEDL).
Φ T o t a l = Φ V D W + Φ E D L
In ΦVDW, a sphere–sphere equation was used for NPs–NPs, and a sphere–plate equation for NPs–sand. Each equation is expressed as Equations (2) and (3) [40].
Φ V D W S S = A 131 a p 1 a p 2 6 h ( a p 1 + a p 2 ) [ 1 5.32 h λ ln ( 1 + λ 5.32 h ) ] 1
Φ V D W S P = { A 131 a p 6 h } [ 1 + ( 14 h λ ) ] 1
where ap1 and ap2 in Equation (2) refer to the radii of the two interacting spherical NPs, whereas ap1 in Equation (3) refers to the radius of the NPs, h represents the distance between the two NPs (Equation (2)) or the distance between NPs and sand surface (Equation (3)), and A131 is the Hamaker constant. In the NPs–water–NPs system, 1.23 × 10−20 J was used in the absence of SRHA, and 6.09 × 10−22 J in the presence of SRHA. A132 is the Hamaker constant in the NPs–water–collector system; it was calculated at 6.96 × 10−21 J in the absence of SRHA, and 1.54 × 10−21 J in the presence of SRHA. The combined Hamaker constant NPs–water–NPs system (A131) and NPs–water–sand system (A132) were calculated through Equations (4) and (5), respectively.
A 132 = ( A 11 A 33 ) ( A 22 A 33 )
A 131 = ( A 11 A 33 ) 2
A11 is the Hamaker constant for nZnO, and 9.21 × 10−20 J was used [41]. In the presence of SRHA, 4.71 × 10−20 J was used for the Hamaker constant of nZnO with adsorbed SRHA [42]. A22 was the Hamaker constant for silica, and 6.50 × 10−20 J was used, from [43]. A33 was the Hamaker constant for water, and 3.70 × 10−20 J was used same as A22, considering [43]. λ was the characteristic wavelength adsorbed in the interaction, and 100 nm was typically used. Initial particle sizes measured prior to transport experiments were used in Equations (2) and (3). Adsorption of SRHA on the surface of nanoparticles could stabilize the nanoparticles in suspension and alter particles size of nanoparticles, obtaining a different ap used in Equation (3).
To calculate ΦEDL, NPs–NPs was assumed to have had a sphere–sphere form, and NPs–sand, a sphere–plate form. Each equation is shown as Equations (6) and (7) [44].
Φ E D L S S = 2 π a p 1 a p 2 n k T ( a p 1 + a p 2 ) κ 2 ( ϕ 2 p 1 + ϕ 2 p 2 ) { 2 ϕ p 1 ϕ p 2 ϕ 2 p 2 + ϕ 2 p 2 ln [ 1 + exp ( κ h ) 1 exp ( κ h ) ] + ln [ 1 exp ( 2 κ h ) ] }
Φ E D L S P = π ε 0 ε r a p { 2 ψ p ψ c ln [ 1 + exp ( κ h ) 1 exp ( κ h ) ] + ( ψ 2 p + ψ 2 c ) ln [ 1 exp ( 2 κ h ) ] }
κ = e 2 n i 0 z i 2 ε 0 ε r k T
n denotes the bulk number density of ions (N m−3, where N is the number), k is the Boltzmann constant (J K−1), T the absolute temperature of the system (K), φp1 and φp2 are the zeta potentials of NPs 1 and 2 (φ = zeψ/kT), and ψp and ψc are the zeta potentials of the nanoparticle and sand (V), respectively. ε0 represents the permittivity of a vacuum (C V−1 m−1), εr the dielectric constant or relative permittivity of water, κ represents the Debye–Hückel reciprocal length (m−1). zi is the ion valence, e is the electron charge (C), and ni0 represents the number concentration of the i ions in the bulk solution. The zeta potential and particle size values that were used for calculating DLVO interaction energies are shown in Table S1.

3. Results and Discussion

3.1. Characterization of Prepared Two Types of ZnO-NPs

The XRD and TEM analysis results for the nZnO prepared by two different synthesis methods are presented in Figure 1, and the key properties are also summarized in Table 1. Overall, two nZnO was observed to exhibit different physical properties, and the detailed information on all properties for two nZnO is provided in the Supplementary Information. Figure 2 shows the results of the zeta potential and DLS particle size of the two types of nZnO as a function of the change in SRHA concentration and ionic strength at pH 9. Note that zeta potential represents the electrical potential of a particle measured at slipping plane, and the value is affected by many variables (e.g., salt type, salt concentration, polymer sorption, pH) [45]. In the absence of SRHA (Figure 2a,b), the zeta potential of nZnO-1 was less negative than that of nZnO-2 over the whole ionic strength range (0.1–10 mM), showing no difference as a function of the change in the ionic strength (0.1–10 mM); and the zeta potential of nZnO-2 was formed at approximately the isoelectric point (IEP) in the whole ionic strength range (0.1–10 mM). In the presence of SRHA, the zeta potential for two types of nZnO was more negative than that in the absence of SRHA, showing a consistent tendency over the whole ionic strength range (0.1–10 mM), regardless of the SRHA concentration changes (1 and 5 mg L−1). With the presence of SRHA, no difference in the zeta potential was observed between the two types of nZnO. The reason for the more negative charge in the zeta potential in the presence of SRHA was that the small amount (1 and 5 mg L−1) of SHRA added in the solution was adsorbed into the nZnO to accelerate the change. This has been reported previously; SRHA was adsorbed onto metal oxide NPs to negatively increase the zeta potential [19,46,47,48,49].
In terms of the two types of nZnO size (Figure 2c,d), the nZnO-1 size in the absence of SRHA ranges from 190 to 220 nm over the whole ionic strength range, showing little difference as a function of change in ionic strength. This trend is consistent with the DLVO interaction energy calculation between particles, which shows the favorable interaction condition even at the lowest ionic strength tested (0.1 mM), and the same is expected at higher ionic strengths; this will be discussed in detail in the Section 3.2. In the presence of SRHA, the size was ~180 nm or smaller, showing little difference as a function of the change in ionic strength or SRHA concentration. In the absence of SRHA, the nZnO-2 size ranges from 220 to 330 nm over the whole ionic strength range, showing little difference as a function of the change in ionic strength. In the presence of SRHA, the size was ~260 nm or smaller, showing little difference as a function of the change in ionic strength or SRHA concentration. Eventually, the size of the two types of nZnO decreased slightly in the presence of SRHA. The reason was that SRHA further negatively changed the zeta potential of nZnO to increase the repulsive electrostatic force among the particles, and to decrease the nZnO aggregation level, resulting in a decrease in the nZnO size. These outcomes corresponded to those of the zeta potential. In previous studies, SRHA was reported to increase the stability of colloidal particles such as C60, TiO2, NPs, hematite, latex, and clay particles [50,51,52,53,54,55]. The size of nZnO-1 tended to be smaller than that of nZnO-2, regardless of the presence/absence of SRHA and the ionic strength.

3.2. Transport and Retention Behavior of ZnO-NPs without SRHA

To investigate the transport behavior of nZnO in the packed column, experiments were conducted in the general soil environment conditions of NaCl (0.1–10 mM) and at pH 9. Figure 3a,b, as well as Figure 4a,b, show the breakthrough curves and retention profiles of the two types of nZnO in the absence of SRHA. In the breakthrough curves of both type of nZnO (Figure 3a,b), no breakthrough was observed over the whole ionic strength range (0.1–10 mM). Because no breakthrough was observed with either type of nZnO, they were considered to have been deposited in the soil media, which corresponded to the results of mass balance (Table S2).
Because no breakthrough was observed with either type of nZnO from the column, it was difficult to compare the apparent transport behaviors. Accordingly, the distribution of the nZnO retained in quartz sand was investigated by confirming the nZnO retention profiles. As described, all the nZnO were retained on the column according to the mass balance confirmation (Table S2). According to the retention profiles (Figure 4) of the two types of nZnO, no difference in the deposition amount was observed as a function of change in ionic strength (0.1–10 mM) between the two types of nZnO, and the deposition of both type of nZnO was confirmed mainly near the column inlet. The similar graph pattern (i.e., large amount of deposition at the column inlet) was also observed from many previous studies [20,25,56,57,58,59,60], and they attributed this trend to the straining caused by the concurrent aggregation among nZnO.

3.3. Transport and Retention Behavior of ZnO-NPs with SRHA

To compare and analyze the transport behaviors of both types of the nZnO in the packed column in the presence of SRHA (1 and 5 mg L−1), experiments were conducted using NaCl (0.1–10 mM) and at pH 9. The breakthrough curves and retention profiles of both type of nZnO affected by SRHA (1 and 5 mg L−1) are shown in Figure 3a–f as well as Figure 4c–f, respectively. In the presence of SRHA (1 and 5 mg L−1), the nZnO-1 breakthrough curve showed a breakthrough over the whole ionic strength range (0.1–10 mM) unlike the case in the absence of SRHA, but no difference in the breakthrough amount was observed as a function of ionic strength or SRHA concentration (1 and 5 mg L−1). Similar to nZnO-1, nZnO-2 showed a breakthrough with the presence of SRHA (1 and 5 mg L−1), but there was no difference in the breakthrough amount as a function of change in ionic strength (0.1–10 mM) or SRHA concentration (1 and 5 mg L−1). The patterns of both types of nZnO breakthrough curves were flat breakthrough plateaus or non-ripening blocks. To further investigate the transport behavior of both types of nZnO, the profiles of nZnO retained in the column were analyzed. Unlike the case in the absence of SRHA, no large amount of deposition at the column inlet was observed in the presence of SRHA (1 and 5 mg L−1) as a function of the change in the nZnO-1 ionic strength (0.1–10 mM). No difference in retained nZnO was observed as a function of change in ionic strength (0.1–10 mM), and no difference as a function of the change in SRHA (1 and 5 mg L−1) was seen either. In the presence of SRHA (1 and 5 mg L−1), the retention profiles of nZnO-2 and nZnO-1 showed no difference in retained nZnO regardless of the change in ionic strength (0.1–10 mM), and no difference as a function of the change in SRHA (1 and 5 mg L−1) was seen either. The reasons for the increase in the transport of both types of nZnO in the presence of SRHA (1 and 5 mg L−1) include first that the suspended SRHA is adsorbed into the surface of nZnO, resulting in the nZnO zeta potential being more negative, and eventually, the repulsive electrostatic force between nZnO and the sand surface increases. Second, there is deposition site competition between NPs and suspended SRHA. These two reasons were verified as follows.
To verify the first point, DLVO interaction energy profiles were calculated; the results are shown in Figure 5a. Because the difference in transport as a function of the change in the ionic strength and SRHA content was not significant between the two types of nZnO, the results of representative conditions, such as 0.1 mM ionic strength and 5 mg L−1 SRHA, are shown. The interaction energy profiles for other conditions (1 mg L−1 SRHA in 1 and 10 mM NaCl) can also be found in the Supplementary Information (Figures S4 and S5). In Figure 5a, the energy barrier was observed in all conditions; the level was significantly low in the absence of SRHA, whereas the level was higher in the presence of 5 mg L−1 SRHA. In the absence of SRHA, the NPs–sand energy barrier was low, NPs could probably overcome the energy barrier, all the nZnO were deposited on the column, and consequently, no breakthrough occurred. In the presence of 5 mg L−1 SRHA, the NPs–sand energy barrier level was significantly higher, so nZnO could not deposit on the sand, due to the stronger repulsive force, and consequently, breakthrough occurred [19,21].
To verify the second point, SRHA was coated on the sand for the column test. If deposition site competition was the main mechanism, the column packed with SRHA-coated sand might show improved nZnO transport versus the column packed with bare sand. NaCl with a desired ionic strength was supplied to the column packed with sand to reach equilibrium; then, 5 mg L−1 SRHA was supplied in as much as 5 PV to coat the quartz sand. To remove the SRHA remaining in the column pores, NaCl with the same ionic strength was supplied at 2 PV. All the tests were conducted at pH 9 and two levels of ionic strength (0.1 and 10 mM NaCl). The transport and retention behaviors of both type of nZnO with the presence/absence of suspended SRHA (5 mg L−1) are shown in Figure 6. In the absence of suspended SRHA, nZnO-1 showed breakthrough with SRHA-coated quartz sand, and the breakthrough amount decreased with the increase in ionic strength (0.1 and 10 mM). The reason was that with the increase in ionic strength, the electrostatic repulsive force between NPs and SHRA-coated sand decreased, and more and more NPs were deposited, resulting in a low level of breakthrough. This corresponded to the results of previous studies that confirmed an increase in the deposition of various nanoparticles (C60, TiO2, and Fe0) with decreasing ionic strength [25,61,62]. The nZnO-1 breakthrough curves showed a ripening pattern due to the aggregation among NPs in the porous media. However, nZnO-2 showed no breakthrough at any ionic strength regardless of the SRHA coating. The reason for the difference in the transport behavior between the two NPs was due mainly to the difference in the zeta potential between nZnO-1 and nZnO-2. In the presence of suspended SRHA, no difference in the breakthrough amount of nZnO-1 was observed regardless of sand coating or ionic strength. In nZnO-2, no difference in the breakthrough amount was observed regardless of sand coating or change in the ionic strength either. The reason for the lack of difference regardless of SRHA coating was that the 5 mg L−1 suspended SRHA could be sufficiently adsorbed into the heterogeneous sites that were present in sand in a patch form. Based on these results, deposition site competition between nZnO and suspended SRHA was confirmed as the main retention mechanism of nZnO. In addition, because the rate of SRHA depositing to sand was higher than that of nZnO, the nZnO transport improved in the presence of suspended SRHA.
In the absence of SRHA, the nZnO was largely retained in the column inlet. To investigate the reason, the NPs–NPs DLVO interaction energy profiles were calculated, and the results are shown in Figure 5b. As a result of confirming the NPs–NPs interaction energy profiles, an active NP aggregation developed because the significantly low energy barrier in the absence of SHRA was overcome by nZnO Brownian motion or collision force [63]. The massive nZnO deposition in the column inlet area could be explained by NP aggregation. In the presence of SRHA, a high level of energy barrier was confirmed due to the NPs–NPs interaction energy (unfavorable conditions). The significantly strong repulsive force reduced NPs aggregation, resulting in no mass deposition in the column inlet area.
While no difference in breakthrough curves and retention profiles was observed between the two types of nZnO according to the change in ionic strength in the absence of SRHA, differences in the transport behavior were observed between nZnO-1 and nZnO-2 in the presence of 1 mg L−1 SRHA (Figure 7a,b). More specifically, the nZnO-1 breakthrough amount was confirmed at 47–52%, and nZnO-2, 34–40%. In the presence of 5 mg L−1 SRHA, the breakthrough amount of nZnO-1 was 48–53%, and that of nZnO-2, 41–48%. The transportability of nZnO-1 was confirmed to be higher than that of nZnO-2. To explain the difference in the transport of the two types of nZnO, the zeta potential of nZnO was investigated. No difference in the zeta potential was observed between the two types of nZnO according to the SRHA concentration and ionic strength in the presence of SRHA (1 and 5 mg L−1). As described, the zeta potential was not sufficient to explain the difference in the transport, so the NPs–sand DLVO interaction energy profiles were calculated to compare the NPs. As a result, the energy barrier of nZnO-1 was confirmed to be ~200 kT, and that of nZnO-2, ~400 kT. The NPs–sand DLVO interaction energy profiles were not enough to explain the difference because the energy barrier of both particles was quite high, and nZnO-2 showed a higher energy barrier but lower transportability than nZnO-1. Finally, the main mechanism of NP transport was confirmed in Section 3.3 to be deposition site competition between suspended SRHA and NPs in the presence of SRHA, so the amount of adsorption to each nZnO, according to the SRHA concentration level, was confirmed, and the results are shown in Figure 7c. nZnO-1 showed less adsorption of SRHA than nZnO-2 regardless of the SRHA concentration. This indicates that the amount of remaining SRHA (i.e., suspended SRHA) was larger than that adsorbed in the nZnO-1 suspension. Accordingly, in the case of nZnO-1, which had more suspended SRHA, more deposition sites on the sand surface were occupied by SRHA, and, consequently, the number of NPs deposition sites decreased to improve transport. These phenomena were supported by the absence of a difference in the adsorption amount between nZnO-1 and nZnO-2 regardless of the change in ionic strength, and by the lack of difference in transport. In previous studies, more suspended SRHA amount was confirmed to have resulted in more TiO2 transport amount [25,64].

4. Conclusions

Regarding the transport and retention behavior of nZnO, no breakthrough was observed in either type in the absence of suspended SRHA. The NPs–NPs concurrent aggregation resulted in a massive deposition of nZnO on the column inlet. In the presence of suspended SHRA, however, no massive deposition was observed. Specifically, 47.0–53.2% of injected nZnO-1 passed through the column, while 33.4–47.5% passed through for nZnO-2. These outcomes were based on the increase in the nZnO transport that was facilitated by the increase in the electrostatic repulsive force among nZnO, which was caused by the SHRA adsorbed into the nZnO surface.
The transportability of nZnO-1 was observed to be higher than that of nZnO-2, and in the absence of SRHA in the coated soil column, breakthrough was observed only with nZnO-1 (17.2–23.8%). To further investigate the nZnO transport behavior, tests determining the amount of SRHA adsorbed to nZnO were conducted. As a result, nZnO-1 showed less SRHA adsorption than nZnO-2 regardless of ionic strength. Eventually, with more remaining SHRA not adsorbed to nZnO, more nZnO transport was confirmed in the study. Based on the results above, deposition site competition between nZnO and suspended SHRA was confirmed as the major retention mechanism of nZnO transport. Furthermore, nZnO transport increased in the presence of abundant suspended SRHA because the deposition rate of SRHA to soil media was higher than that of nZnO.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/app11198957/s1, Additional Details on Materials and Methods, Additional Results and Discussion, Figure S1: TGA profiles for the prepared two types of nZnO by difference synthesis conditions, Figure S2: ATR-FTIR spectra of two types of nZnO obtained from synthesis conditions, Figure S3: Specific surface areas of two types of nZnO from Brunauer-Emmet-Teller (BET) method, Figure S4: DLVO interaction energy profiles of nZnO-1 for NPs–NPs (solid line) and NPs–sand (dashed line) surfaces in NaCl (1–10 mM) solutions in the absence/presence SRHA, Figure S5: DLVO interaction energy profiles of nZnO-2 for NPs–NPs (solid line) and NPs–sand (dashed line) surfaces in NaCl (1–10 mM) solutions in the absence/presence SRHA, Table S1: Parameters used to calculate DLVO interaction energy profiles, Table S2: Mass balance for two types of nZnO in column experiments.

Author Contributions

Writing—original draft preparation, methodology, investigation: D.K.; conceptualization, writing—original draft preparation, formal analysis, review and editing: G.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

This work was supported by the National Institute of Environmental Research, Ministry of the Environment.

Conflicts of Interest

The authors declare that there are no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

References

  1. Klaine, S.J.; Alvarez, P.; Batley, G.E.; Fernandes, T.; Handy, R.D.; Lyon, D.; Mahendra, S.; McLaughlin, M.J.; Lead, J.R. Nanomaterials in the environment: Behavior, fate, bioavailability, and effects. Environ. Toxicol. Chem. 2008, 27, 1825–1851. [Google Scholar] [CrossRef]
  2. Xu, N.; Cheng, X.; Wang, D.; Xu, X.; Huangfu, X.; Li, Z. Effects of Escherichia coli and phosphate on the transport of titanium dioxide nanoparticles in heterogeneous porous media. Water Res. 2018, 146, 264–274. [Google Scholar] [CrossRef]
  3. Nikolova, M.P.; Chavali, M.S. Metal Oxide Nanoparticles as Biomedical Materials. Biomimetics 2020, 5, 27. [Google Scholar] [CrossRef]
  4. Han, Y.; Hwang, G.; Kim, D.; Bradford, S.A.; Lee, B.; Eom, I.; Kim, P.J.; Choi, S.; Kim, H. Transport, retention, and long-term release behavior of ZnO nanoparticle aggregates in saturated quartz sand: Role of solution pH and biofilm coating. Water Res. 2016, 90, 247–257. [Google Scholar] [CrossRef]
  5. Mu, L.; Sprando, R.L. Application of Nanotechnology in Cosmetics. Pharm. Res. 2010, 27, 1746–1749. [Google Scholar] [CrossRef]
  6. Wang, Z.L.; Song, J. Piezoelectric nanogenerators based on zinc oxide nanowire arrays. Science 2006, 312, 242–246. [Google Scholar] [CrossRef]
  7. Sari, M.G.; Vahabi, H.; Gabrion, X.; Laheurte, P.; Zarintaj, P.; Formela, K.; Saeb, M.R. An attempt to mechanistically explain the viscoelastic behavior of transparent epoxy/starch-modified ZnO nanocomposite coatings. Prog. Org. Coat. 2018, 119, 171–182. [Google Scholar] [CrossRef]
  8. Adams, L.K.; Lyon, D.Y.; Alvarez, P.J. Comparative eco-toxicity of nanoscale TiO2, SiO2, and ZnO water suspensions. Water Res. 2006, 40, 3527–3532. [Google Scholar] [CrossRef] [PubMed]
  9. Gopalan, R.; Osman, I.F.; Amani, A.; De Matas, M.; Anderson, D. The effect of zinc oxide and titanium dioxide nanoparticles in the Comet assay with UVA photoactivation of human sperm and lymphocytes. Nanotoxicology 2009, 3, 33–39. [Google Scholar] [CrossRef]
  10. Lin, D.; Xing, B. Phytotoxicity of nanoparticles: Inhibition of seed germination and root growth. Environ. Pollut. 2007, 150, 243–250. [Google Scholar] [CrossRef]
  11. Lin, D.; Xing, B. Root Uptake and Phytotoxicity of ZnO Nanoparticles. Environ. Sci. Technol. 2008, 42, 5580–5585. [Google Scholar] [CrossRef]
  12. Osman, I.F.; Baumgartner, A.; Cemeli, E.; Fletcher, J.N.; Anderson, D. Genotoxicity and cytotoxicity of zinc oxide and titanium dioxide in HEp-2 cells. Nanomedicine 2010, 5, 1193–1203. [Google Scholar] [CrossRef] [Green Version]
  13. Simon-Deckers, A.; Loo, S.; Mayne-L’hermite, M.; Herlin-Boime, N.; Menguy, N.; Reynaud, C.; Gouget, B.; Carriere, M. Size-, composition-and shape-dependent toxicological impact of metal oxide nanoparticles and carbon nanotubes toward bacteria. Environ. Sci. Technol. 2009, 43, 8423–8429. [Google Scholar] [CrossRef] [PubMed]
  14. Xia, T.; Kovochich, M.; Liong, M.; Mädler, L.; Gilbert, B.; Shi, H.; Yeh, J.I.; Zink, J.I.; Nel, A.E. Comparison of the Mechanism of Toxicity of Zinc Oxide and Cerium Oxide Nanoparticles Based on Dissolution and Oxidative Stress Properties. ACS Nano 2008, 2, 2121–2134. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Lee, B.; Hong, G.; Lee, H.; Kim, P.; Seo, D.-Y.; Hwang, G.; Kim, G.; Kim, P. Influence of NOM on the stability of zinc oxide nanoparticles in ecotoxicity tests. Appl. Sci. 2020, 10, 6431. [Google Scholar] [CrossRef]
  16. Zhang, L.; Jiang, Y.; Ding, Y.; Povey, M.; York, D.W. Investigation into the antibacterial behaviour of suspensions of ZnO nanoparticles (ZnO nanofluids). J. Nanopart. Res. 2007, 9, 479–489. [Google Scholar] [CrossRef]
  17. Xia, T.; Zhao, Y.; Sager, T.; George, S.; Pokhrel, S.; Li, N.; Schoenfeld, D.; Meng, H.; Lin, S.; Wang, X.; et al. Decreased Dissolution of ZnO by Iron Doping Yields Nanoparticles with Reduced Toxicity in the Rodent Lung and Zebrafish Embryos. ACS Nano 2011, 5, 1223–1235. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Ben-Moshe, T.; Dror, I.; Berkowitz, B. Transport of metal oxide nanoparticles in saturated porous media. Chemosphere 2010, 81, 387–393. [Google Scholar] [CrossRef] [PubMed]
  19. Jiang, X.; Tong, M.; Kim, H. Influence of natural organic matter on the transport and deposition of zinc oxide nanoparticles in saturated porous media. J. Colloid Interface Sci. 2012, 386, 34–43. [Google Scholar] [CrossRef] [PubMed]
  20. Jiang, X.; Tong, M.; Lu, R.; Kim, H. Transport and deposition of ZnO nanoparticles in saturated porous media. Colloids Surf. A Physicochem. Eng. Asp. 2012, 401, 29–37. [Google Scholar] [CrossRef]
  21. Jones, E.H.; Su, C. Transport and retention of zinc oxide nanoparticles in porous media: Effects of natural organic matter versus natural organic ligands at circumneutral pH. J. Hazard. Mater. 2014, 275, 79–88. [Google Scholar] [CrossRef]
  22. Kanel, S.; Al-Abed, S.R. Influence of pH on the transport of nanoscale zinc oxide in saturated porous media. J. Nanopart. Res. 2011, 13, 4035–4047. [Google Scholar] [CrossRef]
  23. Kurlanda-Witek, H.; Ngwenya, B.; Butler, I. Transport of bare and capped zinc oxide nanoparticles is dependent on porous medium composition. J. Contam. Hydrol. 2014, 162, 17–26. [Google Scholar] [CrossRef]
  24. Petosa, A.R.; Brennan, S.J.; Rajput, F.; Tufenkji, N. Transport of two metal oxide nanoparticles in saturated granular porous media: Role of water chemistry and particle coating. Water Res. 2012, 46, 1273–1285. [Google Scholar] [CrossRef] [Green Version]
  25. Han, P.; Wang, X.; Cai, L.; Tong, M.; Kim, H. Transport and retention behaviors of titanium dioxide nanoparticles in iron oxide-coated quartz sand: Effects of pH, ionic strength, and humic acid. Colloids Surf. A Physicochem. Eng. Asp. 2014, 454, 119–127. [Google Scholar] [CrossRef]
  26. Becheri, A.; Dürr, M.; Nostro, P.L.; Baglioni, P. Synthesis and characterization of zinc oxide nanoparticles: Application to textiles as UV-absorbers. J. Nanopart. Res. 2008, 10, 679–689. [Google Scholar] [CrossRef]
  27. Wang, L.; Muhammed, M. Synthesis of zinc oxide nanoparticles with controlled morphology. J. Mater. Chem. 1999, 9, 2871–2878. [Google Scholar] [CrossRef]
  28. Han, Y.; Kim, D.; Hwang, G.; Lee, B.; Eom, I.; Kim, P.J.; Tong, M.; Kim, H. Aggregation and dissolution of ZnO nanoparticles synthesized by different methods: Influence of ionic strength and humic acid. Colloids Surf. A Physicochem. Eng. Asp. 2014, 451, 7–15. [Google Scholar] [CrossRef]
  29. Lim, M.; Hwang, G.; Bae, S.; Jang, M.-H.; Choi, S.; Kim, H.; Hwang, Y.S. Transport of citrate-coated silver nanoparticles in saturated porous media. Environ. Geochem. Health 2019, 42, 1753–1766. [Google Scholar] [CrossRef]
  30. Peng, S.; Wu, D.; Ge, Z.; Tong, M.; Kim, H. Influence of graphene oxide on the transport and deposition behaviors of colloids in saturated porous media. Environ. Pollut. 2017, 225, 141–149. [Google Scholar] [CrossRef] [PubMed]
  31. Noman, M.T.; Amor, N.; Petru, M. Synthesis and applications of ZnO nanostructures (ZONSs): A review. Crit. Rev. Solid State Mater. Sci. 2021, 1–43. [Google Scholar] [CrossRef]
  32. Wojnarowicz, J.; Chudoba, T.; Lojkowski, W. A Review of Microwave Synthesis of Zinc Oxide Nanomaterials: Reactants, Process Parameters and Morphologies. Nanomaterials 2020, 10, 1086. [Google Scholar] [CrossRef] [PubMed]
  33. Bandeira, M.; Giovanela, M.; Roesch-Ely, M.; Devine, D.M.; Crespo, J.D.S. Green synthesis of zinc oxide nanoparticles: A review of the synthesis methodology and mechanism of formation. Sustain. Chem. Pharm. 2020, 15, 100223. [Google Scholar] [CrossRef]
  34. Han, Y.; Choi, J.; Tong, M.; Kim, H. Synthesis and characterization of high-surface-area millimeter-sized silica beads with hierarchical multi-modal pore structure by the addition of agar. Mater. Charact. 2014, 90, 31–39. [Google Scholar] [CrossRef]
  35. Han, Y.; Kim, H.; Park, J.; Lee, S.-H.; Kim, J.-Y. Influence of Ti doping level on hydrogen adsorption of mesoporous Ti-SBA-15 materials prepared by direct synthesis. Int. J. Hydrogen Energy 2012, 37, 14240–14247. [Google Scholar] [CrossRef]
  36. Hwang, G.; Gomez-Flores, A.; Bradford, S.A.; Choi, S.; Jo, E.; Kim, S.B.; Tong, M.; Kim, H. Analysis of stability behavior of carbon black nanoparticles in ecotoxicological media: Hydrophobic and steric effects. Colloids Surf. A Physicochem. Eng. Asp. 2018, 554, 306–316. [Google Scholar] [CrossRef]
  37. Han, Y.; Hwang, G.; Park, S.; Flores, A.G.; Jo, E.; Eom, I.-C.; Tong, M.; Kim, H.-J.; Kim, H. Stability of carboxyl-functionalized carbon black nanoparticles: The role of solution chemistry and humic acid. Environ. Sci. Nano 2017, 4, 800–810. [Google Scholar] [CrossRef]
  38. Kim, H.; Walker, S.L.; Bradford, S.A. Coupled factors influencing the transport and retention of Cryptosporidium parvum oocysts in saturated porous media. Water Res. 2010, 44, 1213–1223. [Google Scholar] [CrossRef]
  39. Kim, H.; Walker, S.L.; Bradford, S.A. Macromolecule mediated transport and retention of Escherichia coli O157:H7 in saturated porous media. Water Res. 2010, 44, 1082–1093. [Google Scholar] [CrossRef]
  40. Gregory, J. Approximate expressions for retarded van der waals interaction. J. Colloid Interface Sci. 1981, 83, 138–145. [Google Scholar] [CrossRef]
  41. Bergström, L. Hamaker constants of inorganic materials. Adv. Colloid Interface Sci. 1997, 70, 125–169. [Google Scholar] [CrossRef]
  42. Hu, J.-D.; Zevi, Y.; Kou, X.-M.; Xiao, J.; Wang, X.-J.; Jin, Y. Effect of dissolved organic matter on the stability of magnetite nanoparticles under different pH and ionic strength conditions. Sci. Total Environ. 2010, 408, 3477–3489. [Google Scholar] [CrossRef] [PubMed]
  43. Israelachvili, J.N. Intermolecular and Surface Forces; Academic Press: Cambridge, MA, USA, 2015. [Google Scholar]
  44. Hogg, R.; Healy, T.W.; Fuerstenau, D.W. Mutual coagulation of colloidal dispersions. Trans. Faraday Soc. 1966, 62, 1638–1651. [Google Scholar] [CrossRef]
  45. Gregory, J. Particles in Water: Properties and Processes; CRC Press: Boca Raton, FL, USA, 2005. [Google Scholar]
  46. Bian, S.-W.; Mudunkotuwa, I.A.; Rupasinghe, T.; Grassian, V.H. Aggregation and Dissolution of 4 nm ZnO Nanoparticles in Aqueous Environments: Influence of pH, Ionic Strength, Size, and Adsorption of Humic Acid. Langmuir 2011, 27, 6059–6068. [Google Scholar] [CrossRef]
  47. Keller, A.A.; Wang, H.; Zhou, D.; Lenihan, H.S.; Cherr, G.; Cardinale, B.J.; Miller, R.; Ji, Z. Stability and Aggregation of Metal Oxide Nanoparticles in Natural Aqueous Matrices. Environ. Sci. Technol. 2010, 44, 1962–1967. [Google Scholar] [CrossRef] [PubMed]
  48. Yang, K.; Lin, D.; Xing, B. Interactions of Humic Acid with Nanosized Inorganic Oxides. Langmuir 2009, 25, 3571–3576. [Google Scholar] [CrossRef] [PubMed]
  49. Zhang, Y.; Chen, Y.; Westerhoff, P.; Crittenden, J. Impact of natural organic matter and divalent cations on the stability of aqueous nanoparticles. Water Res. 2009, 43, 4249–4257. [Google Scholar] [CrossRef] [PubMed]
  50. Chen, K.L.; Elimelech, M. Influence of humic acid on the aggregation kinetics of fullerene (C60) nanoparticles in monovalent and divalent electrolyte solutions. J. Colloid Interface Sci. 2007, 309, 126–134. [Google Scholar] [CrossRef]
  51. Deshiikan, S.R.; Eschenazi, E.; Papadopoulos, K.D. Transport of colloids through porous beds in the presence of natural organic matter. Colloids Surf. A Physicochem. Eng. Asp. 1998, 145, 93–100. [Google Scholar] [CrossRef]
  52. Heidmann, I.; Christl, I.; Kretzschmar, R. Aggregation Kinetics of Kaolinite−Fulvic Acid Colloids as Affected by the Sorption of Cu and Pb. Environ. Sci. Technol. 2005, 39, 807–813. [Google Scholar] [CrossRef]
  53. Illés, E.; Tombácz, E. The effect of humic acid adsorption on pH-dependent surface charging and aggregation of magnetite nanoparticles. J. Colloid Interface Sci. 2006, 295, 115–123. [Google Scholar] [CrossRef] [PubMed]
  54. Mylon, S.E.; Chen, K.L.; Elimelech, M. Influence of Natural Organic Matter and Ionic Composition on the Kinetics and Structure of Hematite Colloid Aggregation: Implications to Iron Depletion in Estuaries. Langmuir 2004, 20, 9000–9006. [Google Scholar] [CrossRef] [PubMed]
  55. Thio, B.J.R.; Zhou, D.; Keller, A.A. Influence of natural organic matter on the aggregation and deposition of titanium dioxide nanoparticles. J. Hazard. Mater. 2011, 189, 556–563. [Google Scholar] [CrossRef] [PubMed]
  56. Bradford, S.A.; Simunek, J.; Walker, S.L. Transport and straining of E. coli O157:H7 in saturated porous media. Water Resour. Res. 2006, 42, 42. [Google Scholar] [CrossRef] [Green Version]
  57. Cai, L.; Tong, M.; Wang, X.; Kim, H. Influence of Clay Particles on the Transport and Retention of Titanium Dioxide Nanoparticles in Quartz Sand. Environ. Sci. Technol. 2014, 48, 7323–7332. [Google Scholar] [CrossRef]
  58. Chen, G.; Liu, X.; Su, C. Transport and Retention of TiO2 Rutile Nanoparticles in Saturated Porous Media under Low-Ionic-Strength Conditions: Measurements and Mechanisms. Langmuir 2011, 27, 5393–5402. [Google Scholar] [CrossRef]
  59. Choy, C.C.; Wazne, M.; Meng, X. Application of an empirical transport model to simulate retention of nanocrystalline titanium dioxide in sand columns. Chemosphere 2008, 71, 1794–1801. [Google Scholar] [CrossRef]
  60. Solovitch, N.; Labille, J.; Rose, J.; Chaurand, P.; Borschneck, D.; Wiesner, M.R.; Bottero, J.-Y. Concurrent Aggregation and Deposition of TiO2 Nanoparticles in a Sandy Porous Media. Environ. Sci. Technol. 2010, 44, 4897–4902. [Google Scholar] [CrossRef]
  61. Vecchia, E.D.; Luna, M.; Sethi, R. Transport in Porous Media of Highly Concentrated Iron Micro- and Nanoparticles in the Presence of Xanthan Gum. Environ. Sci. Technol. 2009, 43, 8942–8947. [Google Scholar] [CrossRef]
  62. Wang, Y.; Li, Y.; Fortner, J.D.; Hughes, J.B.; Abriola, L.M.; Pennell, K.D. Transport and Retention of Nanoscale C60 Aggregates in Water-Saturated Porous Media. Environ. Sci. Technol. 2008, 42, 3588–3594. [Google Scholar] [CrossRef]
  63. Zeichner, G.; Schowalter, W. Effects of hydrodynamic and colloidal forces on the coagulation of dispersions. J. Colloid Interface Sci. 1979, 71, 237–253. [Google Scholar] [CrossRef]
  64. Wang, D.; Zhang, W.; Zhou, D. Antagonistic Effects of Humic Acid and Iron Oxyhydroxide Grain-Coating on Biochar Nanoparticle Transport in Saturated Sand. Environ. Sci. Technol. 2013, 47, 5154–5161. [Google Scholar] [CrossRef] [PubMed]

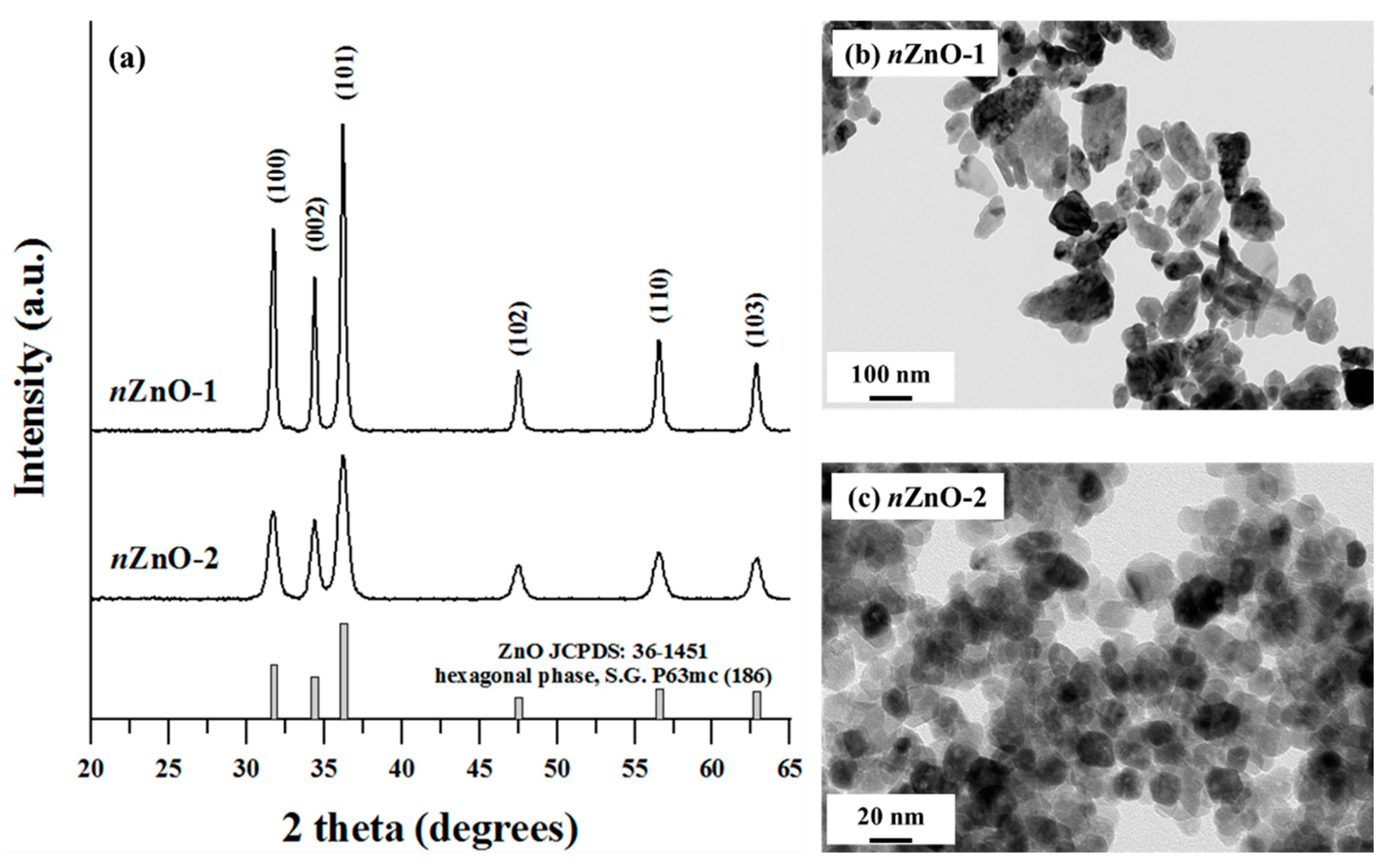

Figure 1. (a) XRD patterns of the synthesized nZnO obtained from synthesis 1 of nZnO-1 and synthesis 2 of nZnO-2. TEM images of the synthesized nZnO obtained from synthesis 1 (b) nZnO-1 and synthesis 2 (c) nZnO-2.
Figure 1. (a) XRD patterns of the synthesized nZnO obtained from synthesis 1 of nZnO-1 and synthesis 2 of nZnO-2. TEM images of the synthesized nZnO obtained from synthesis 1 (b) nZnO-1 and synthesis 2 (c) nZnO-2.
Applsci 11 08957 g001

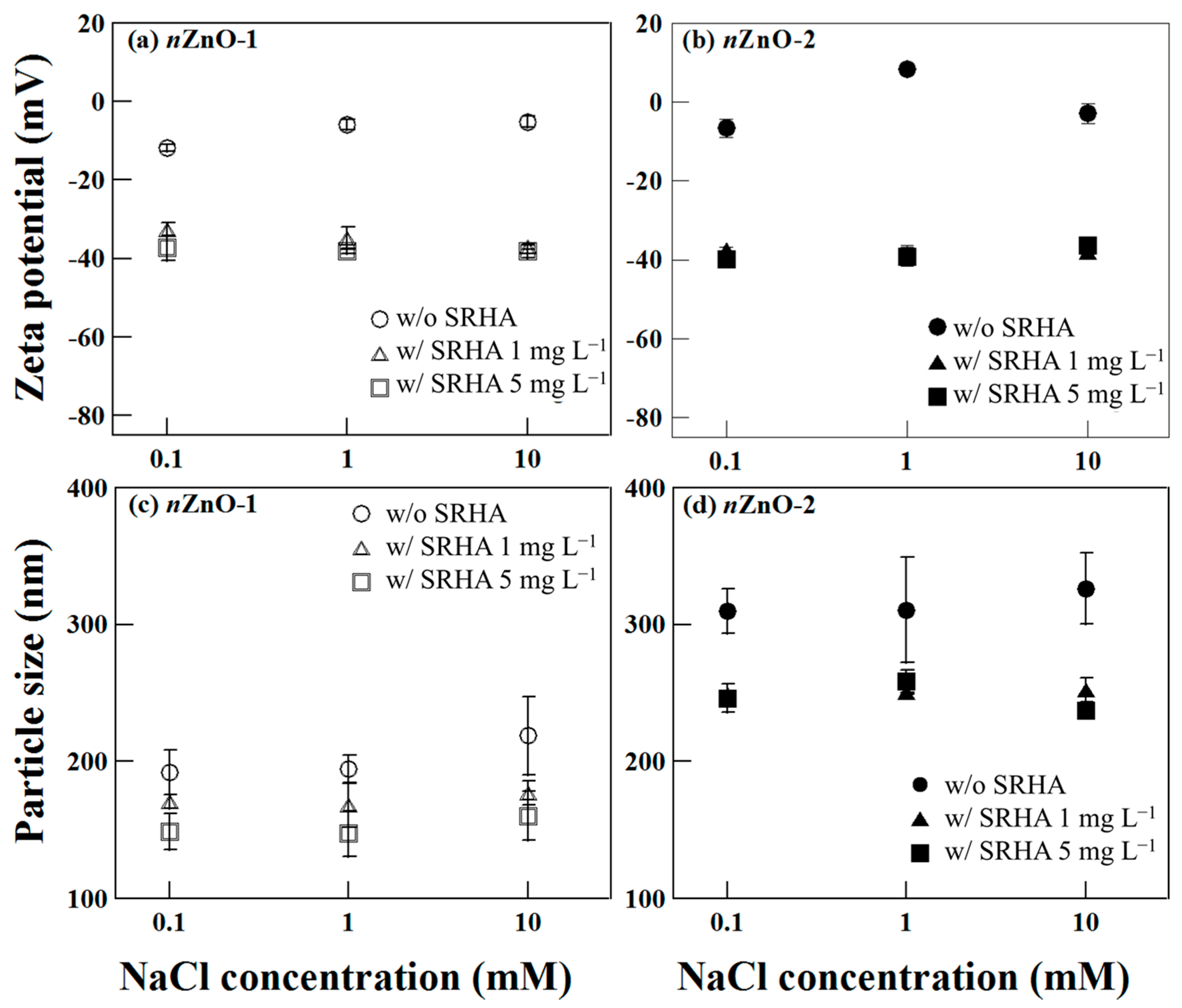

Figure 2. Zeta potentials (a,b) and DLS particle sizes (c,d) of nZnO in the absence (w/o SHRA) and presence (w/SRHA) of SRHA at different ionic strengths in both NaCl solutions at pH 9 (adjusted with 0.1 M NaOH).
Figure 2. Zeta potentials (a,b) and DLS particle sizes (c,d) of nZnO in the absence (w/o SHRA) and presence (w/SRHA) of SRHA at different ionic strengths in both NaCl solutions at pH 9 (adjusted with 0.1 M NaOH).
Applsci 11 08957 g002

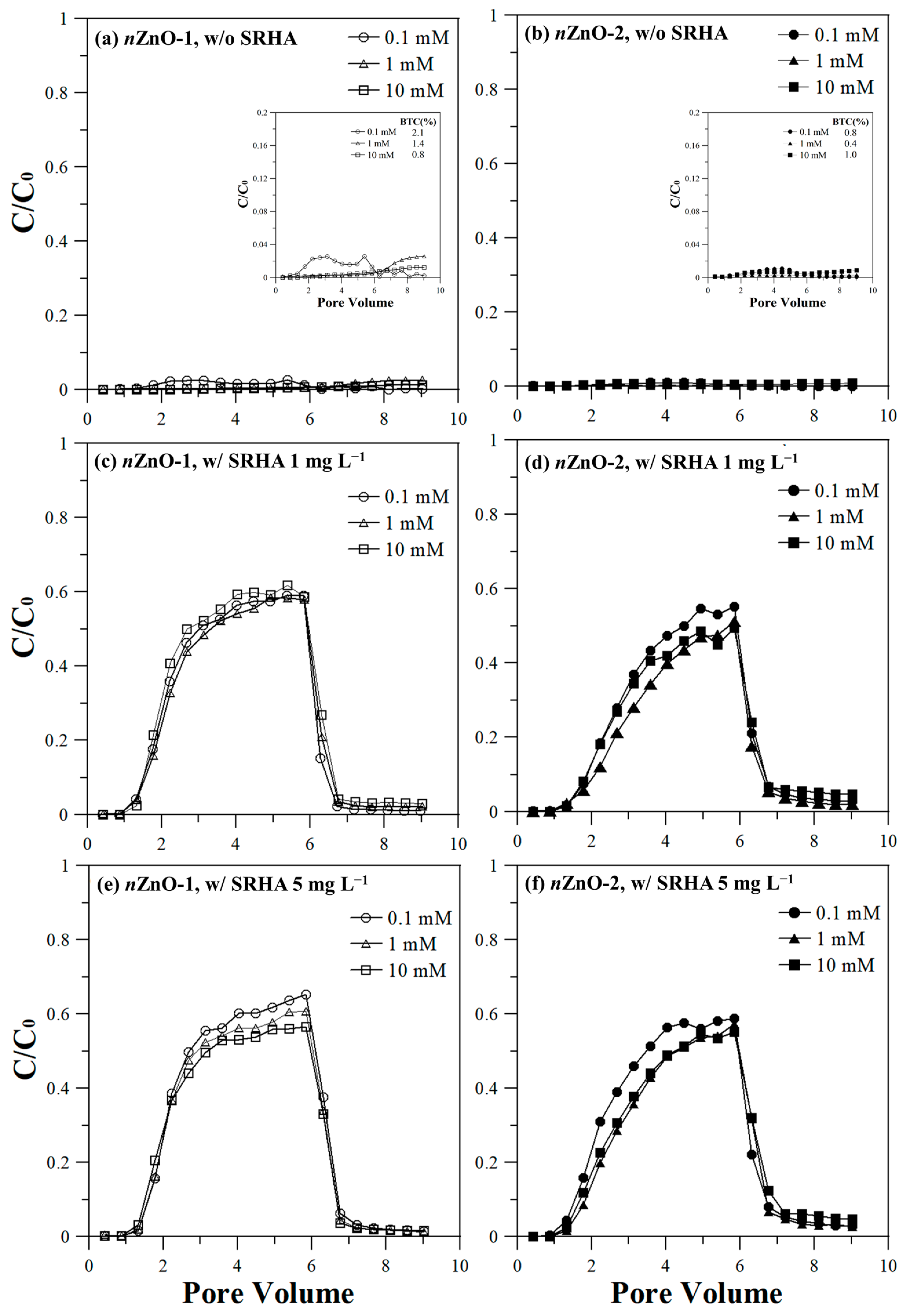

Figure 3. Breakthrough curves of nZnO-1 (open symbol) and nZnO-2 (solid symbol) in the absence (a,b) and presence (cf) of suspended SRHA at difference ionic strengths in NaCl solution (0.1–10 mM). The inset of (a,b) is the enlarged image of the BTC profiles for clarity; note that the BTC percent is ≤2% for all cases, which is considered negligible. C/C0 represents normalized concentration; here, C and C0 represent the concentration of NPs passing through the column at certain pore volume and of injected NPs suspension, respectively. The pore volume is defined as t/VQ; here, t, V, and Q represent time, column void volume, and volumetric flow rate.
Figure 3. Breakthrough curves of nZnO-1 (open symbol) and nZnO-2 (solid symbol) in the absence (a,b) and presence (cf) of suspended SRHA at difference ionic strengths in NaCl solution (0.1–10 mM). The inset of (a,b) is the enlarged image of the BTC profiles for clarity; note that the BTC percent is ≤2% for all cases, which is considered negligible. C/C0 represents normalized concentration; here, C and C0 represent the concentration of NPs passing through the column at certain pore volume and of injected NPs suspension, respectively. The pore volume is defined as t/VQ; here, t, V, and Q represent time, column void volume, and volumetric flow rate.
Applsci 11 08957 g003

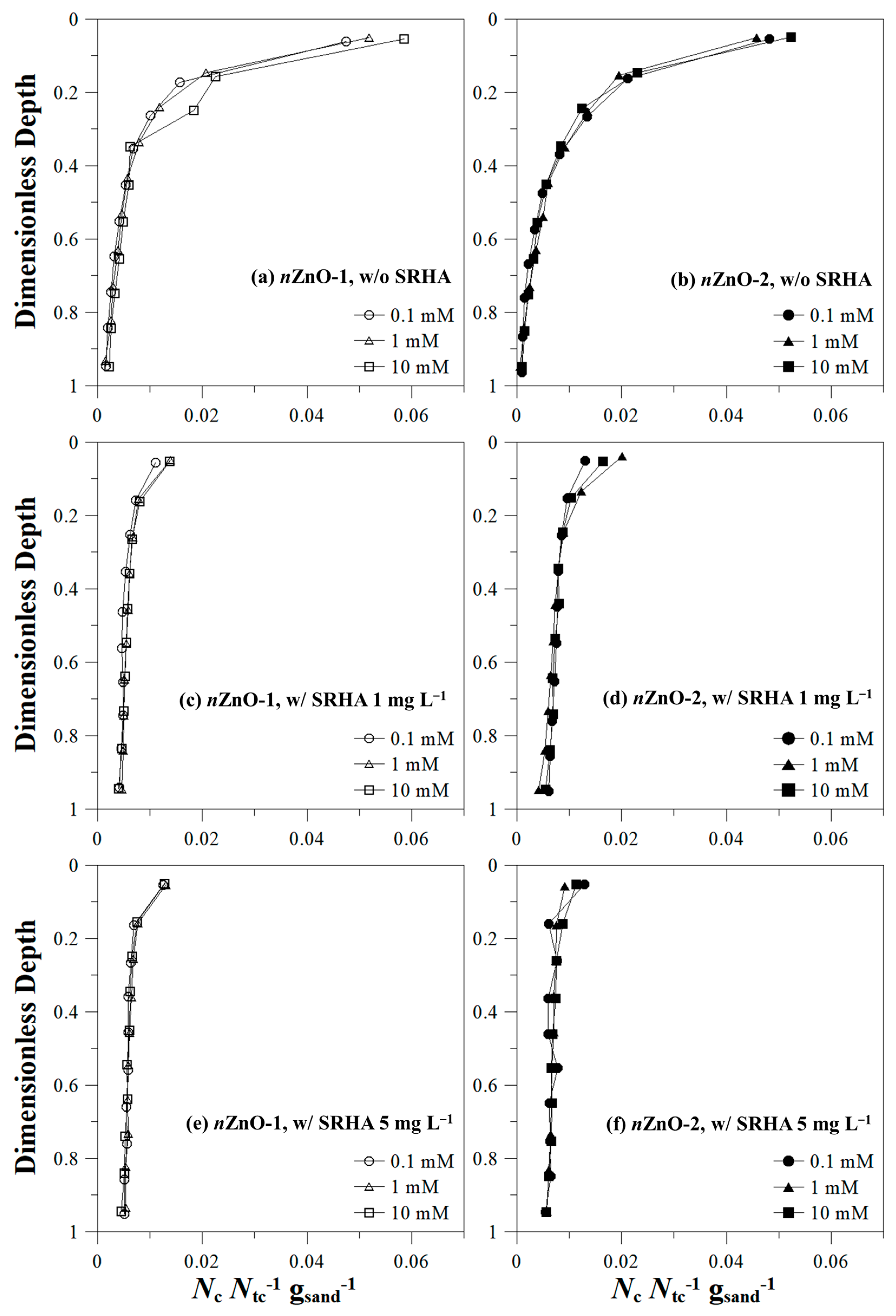

Figure 4. Retention profiles of nZnO-1 (open symbol) and nZnO-2 (solid symbol) in the absence (a,b) and presence (cf) of suspended SRHA and at difference ionic strengths in NaCl (0.1–10 mM). Here, the dimensionless depth represents the normalized column depth (i.e., column depth at certain position divided by total length of the column). The x-axis represents the normalized concentration of NPs deposited at a certain depth per unit sand mass; Nc, Ntc, and gsand represent the number of the deposited NPs, the number of total NPs injected to the column, and the sand weight at a certain depth, respectively.
Figure 4. Retention profiles of nZnO-1 (open symbol) and nZnO-2 (solid symbol) in the absence (a,b) and presence (cf) of suspended SRHA and at difference ionic strengths in NaCl (0.1–10 mM). Here, the dimensionless depth represents the normalized column depth (i.e., column depth at certain position divided by total length of the column). The x-axis represents the normalized concentration of NPs deposited at a certain depth per unit sand mass; Nc, Ntc, and gsand represent the number of the deposited NPs, the number of total NPs injected to the column, and the sand weight at a certain depth, respectively.
Applsci 11 08957 g004

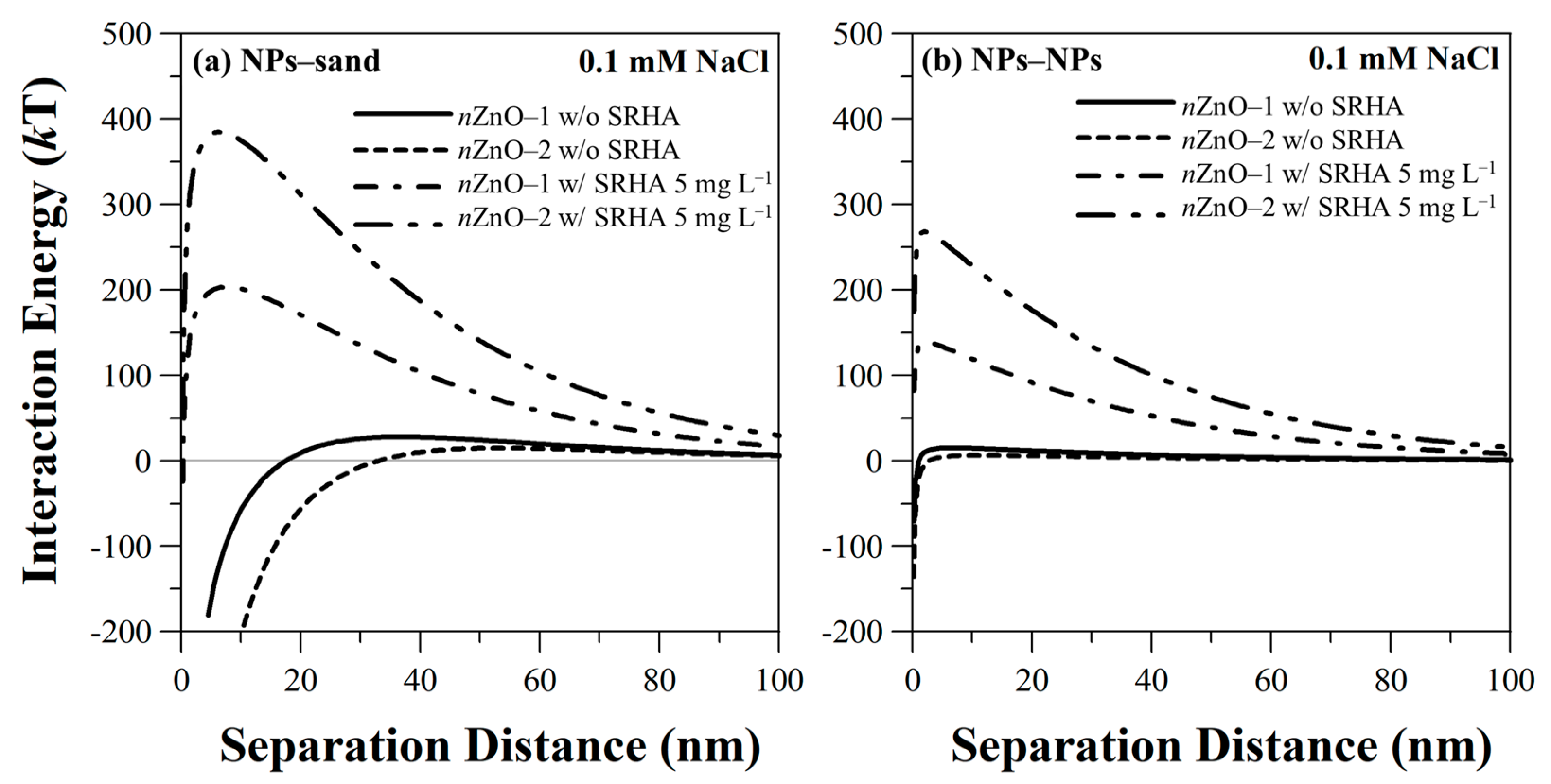

Figure 5. DLVO interaction forces of two types of nZnO for quartz sand surfaces–nanoparticle (a) and nanoparticle–nanoparticle (b) and in NaCl solution (0.1 mM).
Figure 5. DLVO interaction forces of two types of nZnO for quartz sand surfaces–nanoparticle (a) and nanoparticle–nanoparticle (b) and in NaCl solution (0.1 mM).
Applsci 11 08957 g005

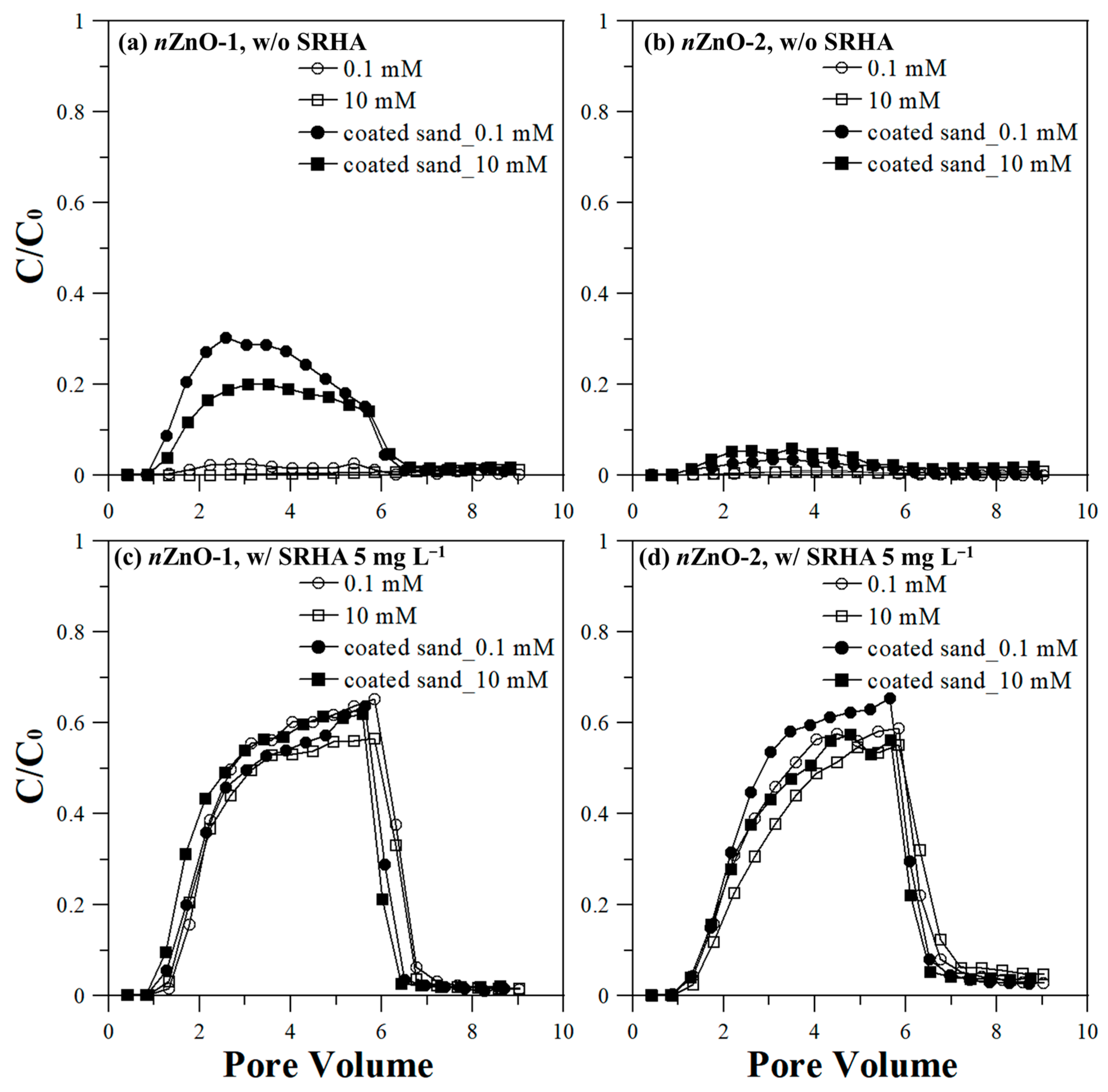

Figure 6. Breakthrough curves of nZnO-1 and nZnO-2 in the absence (a,b) and presence (c,d) of suspended SRHA (5 mg L−1) and in the presence (solid symbol) and absence (open symbol) of coated SRHA at difference ionic strengths in NaCl solution (0.1 and 10 mM).
Figure 6. Breakthrough curves of nZnO-1 and nZnO-2 in the absence (a,b) and presence (c,d) of suspended SRHA (5 mg L−1) and in the presence (solid symbol) and absence (open symbol) of coated SRHA at difference ionic strengths in NaCl solution (0.1 and 10 mM).
Applsci 11 08957 g006

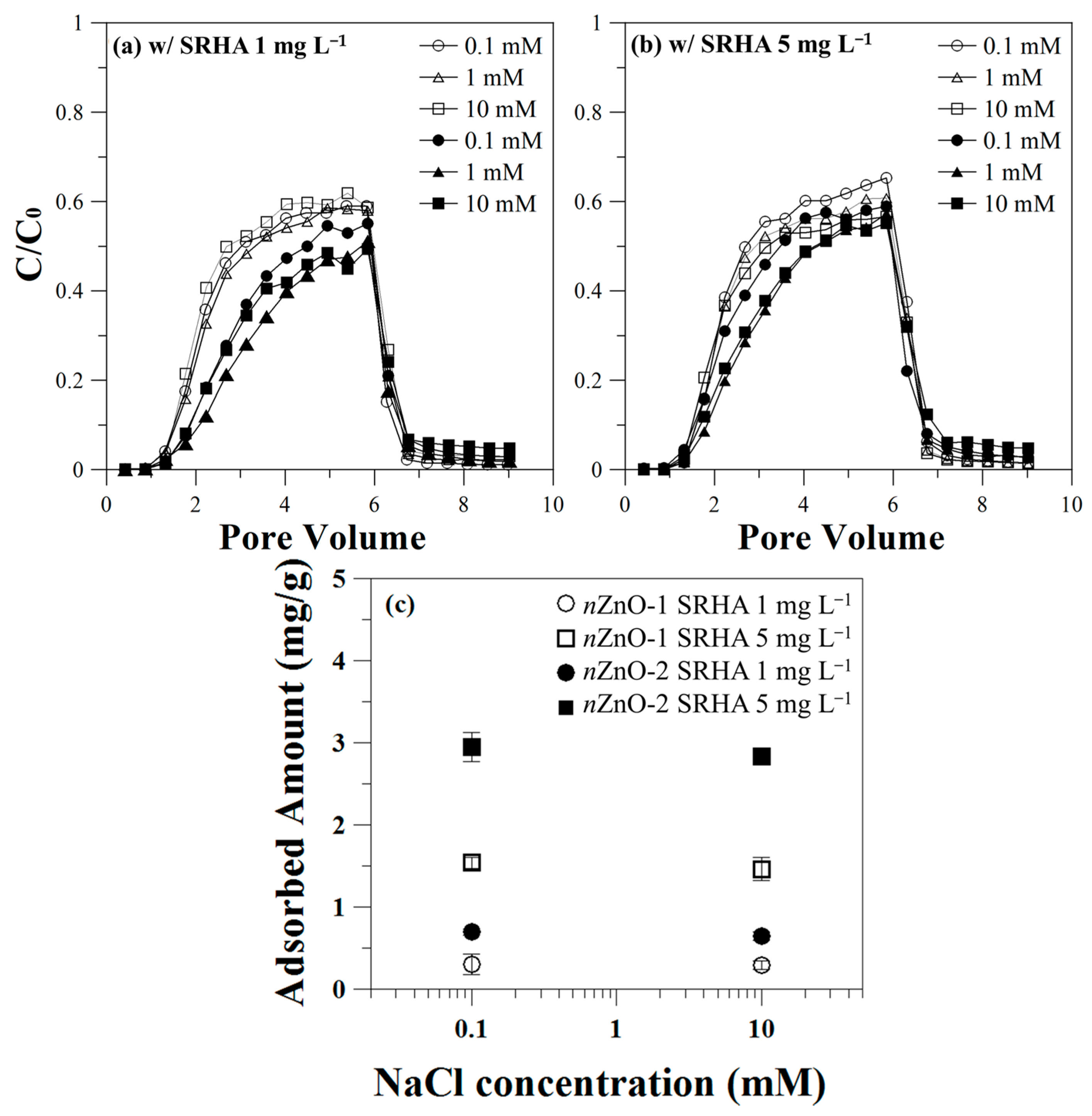

Figure 7. Breakthrough curves of nZnO-1 (open symbol) and nZnO-2 (solid symbol) in the presence of SRHA (1 and 5 mg L−1 for (a,b), respectively) at difference ionic strengths in NaCl solution (0.1–10 mM). (c) shows the amount of SRHA adsorbed on the nZnO-1 (open symbol) and nZnO-2 (solid symbol) surface as a function of solution ionic strength in the presence of an initial SRHA concentration of 1 and 5 mg L−1 at pH 9.
Figure 7. Breakthrough curves of nZnO-1 (open symbol) and nZnO-2 (solid symbol) in the presence of SRHA (1 and 5 mg L−1 for (a,b), respectively) at difference ionic strengths in NaCl solution (0.1–10 mM). (c) shows the amount of SRHA adsorbed on the nZnO-1 (open symbol) and nZnO-2 (solid symbol) surface as a function of solution ionic strength in the presence of an initial SRHA concentration of 1 and 5 mg L−1 at pH 9.
Applsci 11 08957 g007
Table 1. Physical properties of nZnO prepared by two different synthesis methods.
Table 1. Physical properties of nZnO prepared by two different synthesis methods.
Synthesis MethodSampleXRDTEMN2 Adsorption
Crystallite Size (nm) aCrystallite PhasePrimary Particle Size (nm) bSurface Area (m2 g−1) c
1nZnO-138.1wurtzite52.410.4
2nZnO-215.8wurtzite21.558.9
a Crystallite size calculated according to Scherrer equation from XRD data; b Primary particle size was determined by averaging more than 400 particles from TEM micrographs; c Specific surface area was measured using BET model based on N2 adsorption of isotherm.
