Piezoelectric Normally Open Microvalve with Multiple Valve Seat Trenches for Medical Applications

Abstract

Microfluidic systems for medical applications necessitate reliable, wide flow range, and low leakage microvalves for flow path control. High design complexity of microvalves increases the risk of possible malfunction. We present a normally open microvalve based on energy-efficient piezoelectric actuation for high closing forces and micromachined valve seat trenches for reliable valve operation. A comprehensive investigation of influencing parameters is performed by extensive fluidic 3D finite element simulation, derivation of an analytical closed state leakage rate model, as well as fabrication and test of the microvalve. Additional valve seat coating and a high force actuator are introduced for further leakage reduction. The microvalve has a wide-open flow range as well as good sealing abilities in closed state. Extensive fatigue tests of 1 × 10⁶ actuation cycles show that additional coating of the valve seat or increased actuator strength promote sealing performance stability. Analytical calculations of leakage are suitable to estimate experimentally obtained leakage rates and, along with computational fluidic dynamic (CFD) simulations, enable future microvalve design optimization. In conclusion, we demonstrate that the presented normally open microvalve is suitable for the design of safe and reliable microfluidic devices for medical applications.

1. Introduction

Microfluidic systems for lab-on-chip applications, implantable or wearable medical devices often necessitate active flow path control that is achieved by using microvalves [1,2]. While passive microvalves show diode-like fluid path opening at forward pressure and closing at backwards pressure [3] or serve as constant flow regulators [4], active microvalves based on piezoelectric [5,6], shape memory alloy [7,8], phase change [9,10], or other actuation mechanisms [3] allow for opening and closing of fluid paths in an arbitrary, hence flexible and dedicated manner. External control of active microvalves enables functionalities like controlled dosing of drugs [11,12], mixture of reagents [10,13], confinement of a high pressure fluid to other volumes [14,15], as well as handling of small fluid volumes in medical devices and implants [16,17,18,19,20]. Such active flow path control can be achieved by piezoelectrically actuated microvalves, which are either of normally open (NO) or normally closed type, defined by their function in a non-actuated state [3], and typically consist of a piezoactuator, a valve diaphragm, and a valve seat [2]. Key figures of a high-performance microvalve are low leakage in closed state, a high flow rate in an open state, low power consumption, high particle contamination tolerance, and high stability of performance over lifetime. Additionally, medical applications like wearable drug dosing devices or implants require hermetic sealing of the device, low risk of component failure, as well as biocompatibility of all wetted surfaces [21].

Most recently, we reported on the development of an NO microvalve for microfluidic implants [14], showing low leakage rates ((10.9 ± 28.1) µL/min) as well as high flow rates in open state ((27.5 ± 5.3) mL/min) at a water pressure of 20 kPa. Insufficiently low manufacturing precision of the integrated O-ring sealing led to large sample-to-sample variations and induced various failure mechanisms of the microfluidic device. Constant closing due to flow-induced lift of the O-ring resulted in obstruction of the flow path and, hence, in partial or full blockage of the valve.

In this work, we suggest and investigate different alternative sealing concepts in order to overcome such problems. To this end, we design a novel, metal-based microvalve for liquid applications using biocompatible materials to meet requirements for medical applications. We omit movable sealing components, therefore reducing the risk of device failure, and investigate features like sophisticated geometric design, coating of the valve seat, or a high force actuator to further reduce leakage rates. A comprehensive analysis of parameters governing the performance provides insight into the microvalve’s characteristics and allows for optimization and future design adaptation.

2. Materials and Methods

In order to investigate and optimize the presented piezoelectric NO valve concept, we manufacture various variants and evaluate them with a view to the resulting leakage rate, the open flow rate, and their performance stability. The fabrication process, the design variants as well as the methods to theoretically and experimentally evaluate their performance are described in this section.

2.1. Microvalve Design, Operation, and Fabrication

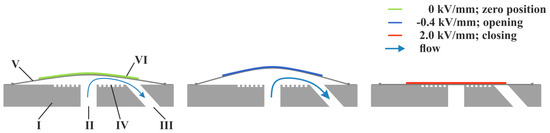

The design of the active diaphragm microvalve is depicted in Figure 1. It consists of a metal valve body (I) with an inlet (II) and an outlet (III), as well as a structured valve seat (IV). A metal diaphragm (V) is spanned over the valve seat with a piezoelectric ceramic layer (VI) bonded on top to create a bending actuator. In the initial state, the microvalve is normally open, as the diaphragm is bent in upward direction due to stresses imprinted by the manufacturing process described later. In non-actuated state, the NO microvalve allows for fluid flow from the inlet to the outlet. Using the inverse piezoelectric effect, the valve opens further when a negative electric field is applied. Under a positive electric field, closing of the valve is achieved when the actuator diaphragm is pressed tightly onto the valve seat. In this closed state, a low leakage rate of the microvalve is crucial for medical applications and can be drastically reduced by optimizing its sealing properties. To this end, we discuss impact parameters on sealing properties and introduce selected measures for low leakage in closed state: a concentric trench design, a high force actuator diaphragm, and additional coating on the valve seat.

In principle, tight sealing of a diaphragm-type microvalve is achieved by high contact pressure exerted by the actuator pressing the diaphragm onto a valve seat designed for low leakage. Therefore, both the piezoelectric bending actuator and the geometric design of the valve seat can be adapted to achieve optimal performance. Analogously to microvalves presented in research for low leakage gas applications [22,23,24], a valve seat design for low leakage can be realized by a concentric trench design (see Figure 2). In comparison to a flat valve seat, this design exhibits multiple beneficial effects towards leakage reduction. Firstly, a reduction in the contact area of the valve diaphragm and valve seat increases the contact pressure at the interface. A second effect results from increased surface friction of the fluid over the increased valve seat surface, eventually causing lower leakage flow. Finally, the fluid flowing over the valve seat exerts shear stress relative to the confined, resting fluid in the trenches, leading to a cascade of pressure losses across each trench.

To further enhance sealing, the contact pressure on the valve seat exerted by the valve diaphragm can be increased with a piezoelectric actuator that exhibits higher forces. For piezoelectric bulk material, this can be achieved by increasing the thickness of the actuator, resulting in a higher force when actuated by the same electric field.

Another method of modifying the leakage of two surfaces in contact is to use coatings to enhance their surface properties with a view to increased sealing behavior. A good candidate is Parylene-C, a chemically inert, biocompatible polymer with beneficial mechanical properties frequently used in medical applications [25]. As the Young’s modulus of Parylene-C is two orders of magnitude smaller than the Young’s modulus of steel [26,27], the polymer’s elasticity can be used to create a tight sealing in microvalves [22].

In order to evaluate the potential of each of the mentioned design measures and their impact on the performance of the microvalve, we design and manufacture them in different variants with respect to geometrical dimensions, structuring of the valve seat, and additional coating.

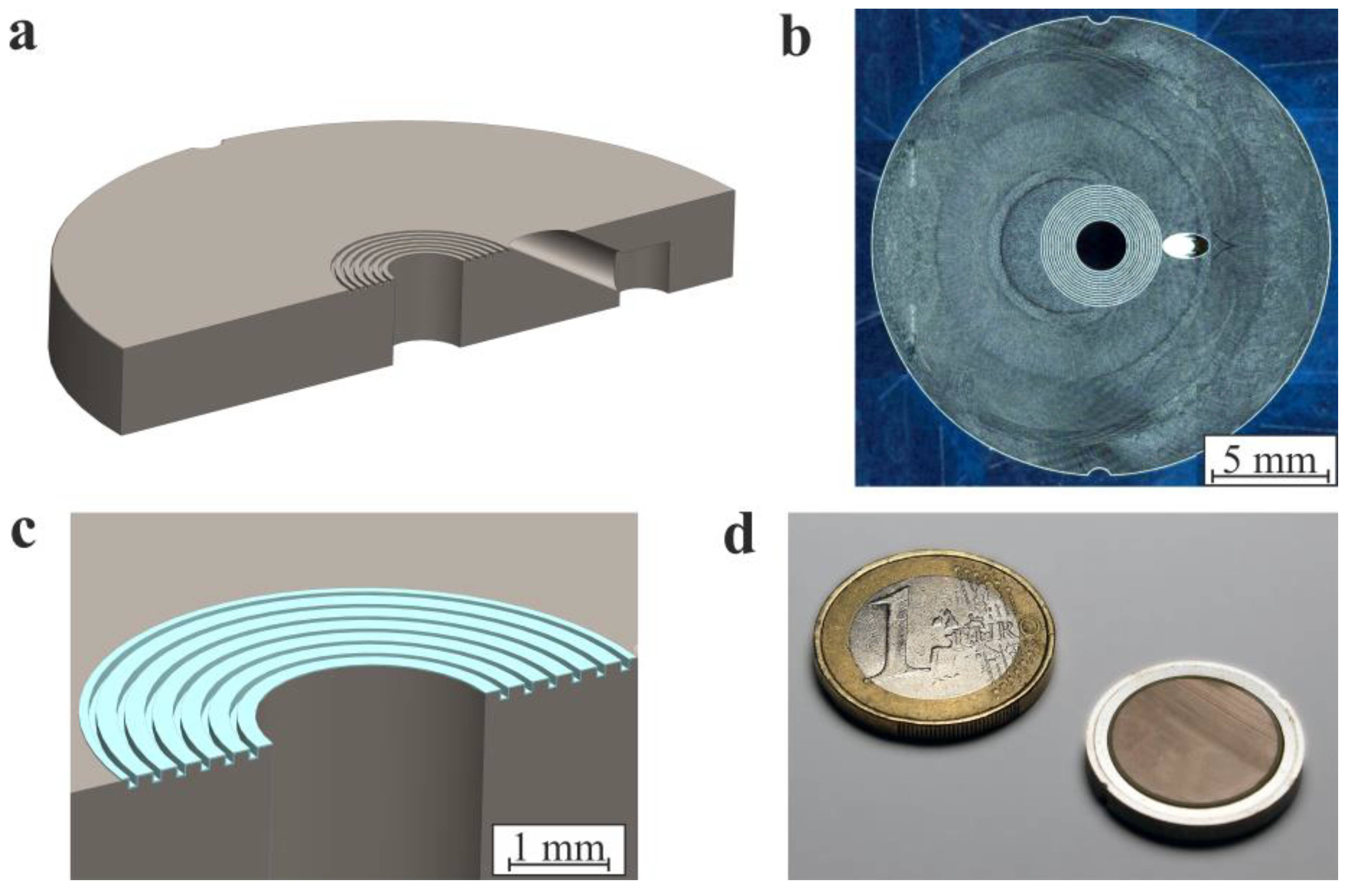

Figure 2a shows the basic design of the presented NO microvalve. A rigid metal body comprises two fluid ports and concentric trenches, creating the valve seat—both the width and depth of each trench amount to 100 µm. The diameter of the innermost trench is 2.5 mm, and all 6 trenches are evenly spaced concentrically with a distance of 150 µm from each other. The NO microvalve is manufactured from stainless steel, which offers high resistance to plastic deformation, high machinability, and biocompatible properties [28].

Structuring of the baseplate (see Figure 2b), including valve seat trenches, is achieved by high precision milling (Kern Evo, Kern Microtechnik GmbH), resulting in valve seat trench depths of (101.8 ± 3) µm. A metal actuator foil, etched from a cold-rolled stainless steel sheet material, is joined to the valve body by laser welding using a fiber laser (1070 nm wavelength ytterbium fiber laser YLR-1000 SM, IPG Laser GmbH). We ensure hermetic sealing of the valve chamber and high strength of the weld seam by firm clamping of the foil onto the baseplate and an overflow of the welding area with shielding gas (Argon 4.6) at room temperature. During laser welding, the actuator foil experiences a temperature gradient from the welding fusion zone to zones not affected by heat, and after the molten steel solidifies, residual stresses remain in the actuator foil. These residual stresses ultimately result in an initial deflection of the actuator foil in an upwards direction and establish the NO state of the microvalve. After laser welding, the piezoelectric bending actuator is created by gluing a lead zirconate titanate (PZT) disc actuator onto the metal actuator diaphragm using a two-component epoxy glue (EPO-TEK 353ND).

We investigate three variants of the microvalve with micromachined trenches. A basic design comprises a 0.1 mm thick steel diaphragm as well as a 0.2 mm thick PZT actuator and is fabricated in a quantity of 10. In the coated design, the effect of a 15 µm Parylene-C coating on the valve seat (see Figure 2c) is investigated with another 10 manufactured valves with the same bending actuator as the basic design. In a third high force design, 5 microvalves without coating on the valve seat are fabricated with a 0.15 mm thick steel diaphragm and a 0.3 mm thick PZT actuator in order to increase the contact pressure exerted to the valve seat by the actuator.

Table 1. Overview on fabricated NO microvalve variants.

Microvalve Design Variant	Number of Fabricated Valves	Valve Seat Coating	Piezoceramic Thickness	Metal Diaphragm Thickness
Basic design	n = 10	No coating	0.2 mm	0.1 mm
Coated design	n = 10	(15 ± 2.5) µm Parylene-C coating	0.2 mm	0.1 mm
High force design	n = 5	No coating	0.3 mm	0.15 mm

provides an overview of all three manufactured design variants of the NO microvalve.

For realizing the coating of the valve seat, we use chemical vapor deposition of Parylene-C. To this end, the steel bodies are masked using a structured semiconductor wafer processing tape (Nitto SWT 10+R), limiting the coated surface to the trench area of the microvalve. Coating via Gorham route [29] is achieved in a plasma coating system (Plasma Parylene LC 300 RW, Plasma Parylene Systems GmbH). Under vacuum conditions, the substrates are pretreated with Silane A-174 for in-situ silanization from the gas phase at room temperature. Subsequently, 25 g of Parylene-C dimer is sublimed at 130 °C followed by pyrolysis into reactive monomers at 740 °C, and final polymerization takes place in the coating chamber at room temperature. A coating process duration of approximately 4 h results in a (15 ± 2.5) µm thickness of the coating layer. Removal of the mask is enabled by laser ablation using an infrared ${\mathrm{CO}}_2$ laser (10.6 μm wavelength Speedy 360, TROTEC Laser GmbH), since mechanical stripping alone causes delamination of the coating. Finally, we proceed with the preparation of the coated steel bodies equivalently to the uncoated valves: we attach the steel actuator foil to the valve body by laser welding, followed by glue bonding of the PZT on top of the diaphragm (Figure 2d).

2.2. Parameter Studies of Valve Seat Design Using FEA

In order to investigate the impact of the geometrical dimensions of the circular trenches on the fluidic resistance of the valve seat and, hence, on the potential improvement with respect to its fluidic performance, we perform a finite element analysis (FEA). To this end, we compare the fluid flow through an axisymmetric, annular channel with concentric trenches to the flow between two unstructured flat and parallel discs. The used simulation model is shown in Figure 3 and neglects the inlet and outlet tubes. Instead, we assume a radially symmetric outflow in the direction of the trench cavities leaving along the outer rim of the annular channel, which resembles the valve chamber. As an additional simplification, we assume a constant height along the channel. These assumptions overestimate the total flow rate compared to the real geometry. However, as we are interested in the relative changes of the fluidic resistance due to geometrical changes in the trench geometries and compared to the trenchless disc geometry, this is deemed as an acceptable error.

Figure 3a shows the two-dimensional simulation domain, which represents the cross-section of the partially depicted axisymmetric model of the right part of Figure 3b. The inlet is located at x = 0. The boundary at x = 2.7 mm is an open boundary. All other boundaries are defined as walls with a no-slip condition. For the inflow, the velocity field is specified to be fully developed at an average pressure level of 20 kPa, and we solve for a stationary and laminar flow of water at room temperature.

To study the different effects of the geometry on the fluidic resistance of this arrangement when the microvalve is open, we vary the height of the valve chamber, as well as the height and width of the concentric trenches, and determine the fluidic resistance, which is calculated as the ratio of the pressure drop $\mathsf{\Delta }p$ and the flow rate $\dot{q}$. We use the resistance of two parallel discs as a reference in order to evaluate and quantify the relative changes due to the geometric variation of the valve seat trenches. This resistance is calculated analytically to:

$$\frac{\mathsf{\Delta }p}{\dot{q}}=\frac{6\mu }{\pi h^3}\ln \frac{r_1}{r_0},$$

(1)

where $r_0$ is the inner radius, $r_1$ the outer radius, $h$ the height of the valve chamber, and $\mu$ the viscosity of the fluid. A detailed derivation of this formula is given in Appendix A. The formula is valid for small Reynold’s numbers and Newtonian fluids and does not account for the trench geometry. The reason for the latter is that the presence of trenches leads to the formation of vortices, whose size and vorticity depend non-linearly on the surrounding conditions such as the fluid velocities above and below these vortices, the wall distances, as well as the viscosity of the fluid. As the incorporation of these dependencies is challenging, we deem a comparison between a trench geometry and two parallel discs to be sufficient to evaluate the effects caused by the trenches.

The FEA is carried out with the software package COMSOL Multiphysics. In addition to the above-mentioned approximations, we replace the right angles at the trenches with small circular arcs. This is motivated by a better convergence behavior and a smaller numerical error due to the smoother boundary and, additionally, reflects the real micromachined structure much better than a sharp right angle. In order to avoid significant changes in the results by introducing these radii, they are kept small enough.

Our FEA does not include the analysis of fluidic leakage of the microvalve in closed state. The leakage flow is caused by the imperfect contact between the diaphragm and the valve seat, which in turn is a result of the surface roughness of the solid bodies, as well as plastic deformations due to thermal stresses caused by laser welding. These specific values cannot be readily incorporated into an FEA. Moreover, when the diaphragm establishes or loses contact with the valve body, the topology of the fluidic domain between them changes, leading to node definition errors. A typical remedy to this problem is to introduce a small non-vanishing fluid domain between the diaphragm and the valve. As this adds artificial leakage to the overall results, such an approach would defeat the attempt to attain deeper and more sophisticated insights into the real fluidic leakage. Instead, we derive an analytical model to calculate the leakage rate in closed state, which is presented in the following section.

2.3. Analytical Modeling of Leakage Rates

In this section, an analytical model for the estimation of the leakage rates of the NO valves in closed state is presented. Leakage is the result of imperfect contact between the steel foil and the steel valve body due to surface roughness. In order to evaluate the leakage flow, we first determine the average separation between the steel diaphragm and the valve seat. This separation represents the height of the microchannel, determining the pressure-dependent flow rate. In order to solve this problem, we apply the approach of Persson [30], who studied the contact problem of two solids with surface roughness squeezed against each other. This leads to the average separation $u\left(p_{contact}\right)$ between the steel diaphragm and the valve body as a function of the contact pressure $p_{contact}$:

$$u\left(p_{contact}\right)=\gamma {\alpha }^{-1}{h}_{rms}\log \left(\beta ϵq_0{h}_{rms}\frac{E^{*}}{p_{contact}} \right)$$

(2)

where the constant γ is set to one, which means assuming perfectly elastic deformation, α and β are surface roughness constants, $h_{rms}$ is the root mean square of the surface roughness, $ϵ$ is a constant related to the power spectrum of the surface roughness $C\left(q\right)$ and the lower and upper cutoff wave vectors $q_0$ and $q_1$ of the surface, and E* the plane-strain modulus. The contact pressure $p_{contact}$ of the two bodies is equivalent to the maximum force exerted by the actuator diaphragm. The so-called blocking pressure $p_{block}$ of the actuator is scaled by the ratio of valve diaphragm surface to the contact area to achieve the contact pressure and can be calculated according to [31]:

$$p_{\mathrm{contact}}=\frac{A_{diaphragm}}{A_{\mathrm{contact}}} p_{\mathrm{block}}$$

(3)

Comprehensive derivations of Equations (2) and (3) are provided in Appendix B.

Applying Equation (2), we are now able to calculate the leakage flow rate depending on the pressure drop over the closed valve. To this end, an appropriate flow model of the leakage flow of water through microscale channels and openings must be developed. Since water can be considered as an incompressible fluid [32] and the Reynolds number is (as in almost all microfluidic applications) much smaller than 1 [33], the flow is modeled as a simple laminar Poiseuille flow driven by the pressure difference $∆p$ between the inlet and the outlet of the valve. The channel geometry is determined by the design of the sealing and the average surface separation due to surface roughness. The average separation height is on the order of some micrometers, whereas the sealing dimensions are 2–3 orders of magnitude higher. Therefore, the leakage channel is assumed to be a rectangular slit, whose width $w$ is much larger than its height $h=u\left(p\right)$, so that the side walls of the channel can be neglected, and the geometry can be regarded as a channel between two infinite plates [34]. Applying no-slip boundary conditions $v\left(z=0\right)=v\left(z=h\right)=0$, the velocity profile and resulting flow rate are given by:

$$v_x\left(z\right)=\frac{∆p}{2\mu L}\left(\left(h-z\right)z\right),$$

(4)

$$Q={{\displaystyle \mathsf{\int }}}_0^{w}dy{{\displaystyle \mathsf{\int }}}_0^{h}dz v_x=\frac{h^{3}w}{12\mu }\frac{∆p}{L},$$

(5)

where $\mu$ is the viscosity of water.

The above-described geometrical simplification leads to a worst-case scenario estimation of the leakage rate; therefore, it is expected that the analytical model overestimates the observable leakage rate and constitutes an upper limit for the evaluation of the manufacturing-induced imperfections of the valve and the hereof resulting potential issues in its reliability in the medical application.

2.4. Experimental Characterization

The mechanical and fluidic characteristics of the NO valve are extensively tested in order to assess its performance and to estimate its reliability in the field. Additionally, the measurements are used to extract parameters necessary for model calibration, theoretical design studies, and analytical calculations of the leakage rates.

The operation of the diaphragm microvalve is fundamentally defined by the piezoelectrically driven diaphragm movement. Free actuator movement is allowed in open state of the microvalve, whereas further actuator movement is restricted when the actuator sits down on the valve seat in closed state. The mechanical stroke of the actuator diaphragm is measured optically using a white light profilometer (Fries Research and Technology; sensor range of 3 mm, maximal resolution of 30 nm) with a quasi-static voltage actuation (amplifier SVR 500-3, piezosystem jena GmbH) ranging from −0.4 kV/mm to 2.0 kV/mm to detect field-dependent open and closed state. Repetitive measurements using this setup reveal a measurement accuracy of the total actuator stroke of 2 µm. Additionally, the profilometer is used for surface inspection of the microvalve steel diaphragms in order to determine the fractal dimension as well as the maximum and minimum wave vectors $q_0$ and $q_1$ of the surface, respectively, serving as input parameters for analytical leakage modeling (see Section 2.3).

Subsequently, all manufactured valves are characterized with a view to the fluidic performance using deionized water at room temperature. The instruments used for these investigations are Coriflow sensors of different ranges (Bronkhorst MINI CORI-FLOW M14: range 0.5 mL/min to 167 mL/min, accuracy: ±0.2% and ML120V00: range 0.8 µL/min to 500 µL/min, accuracy: ±0.2%) as well as a pressure controller (Mensor CPC3000; range −50 kPa to 200 kPa, accuracy: ±50 Pa).

Applying this measurement setup, the assembled microvalves undergo different fluidic tests. As an initial characterization, we measure their pressure-dependent NO flow rate, their quasi-static opening and closing flow characteristics, and the closed state leakage rate. NO flow rates are evaluated without electrical actuation of the piezoceramic and increasing water pressure at the inlet of the microvalve up to 100 kPa. Quasi-static opening and closing characterization of the microvalve at an inlet pressure of 20 kPa is achieved by sinusoidal actuation of the piezoceramic at a frequency of f = 0.01 Hz and electric fields between −0.4 kV/mm and 2.0 kV/mm. For evaluations of the pressure-dependent leakage rate, the valve’s inlet pressure is increased from 0 kPa to 20 kPa, while the piezoceramic is subjected to a constant electric field of 2.0 kV/mm.

Finally, a fatigue test of the microvalves is performed with 5 microvalves of each design variant. The valves are operated at a constant fluidic pressure load of 20 kPa, a sinusoidal electric signal of 100 Hz, and an electric field of −0.4 kV/mm to 2.0 kV/mm for 1 × 10⁶ actuation cycles. After this long-term excitation, the above-described fluidic characterization methods are repeated in order to evaluate the fatigue of the microvalves, e.g., in terms of increased leakage rates or piezoceramic material failure.

3. Results and Discussion

The variants of the NO microvalve without additional and moving sealing components listed in Table 1 are designed, manufactured, and investigated applying the methods described in Section 2. At first, the optimal geometric dimensions of the microstructured valve seat are investigated in an FEA parameter study in order to estimate the impact of the concentric trenches on the fluidic resistance and, hence, on the open state flow rates. Applying the analytical model of Section 2.3., the pressure-dependent leakage rates of the different valve geometries are calculated and compared to measurements, and finally, the performance and long-term operation of all variants are evaluated experimentally.

3.1. Parameter Study: Impact of Microstructured Valve Seat

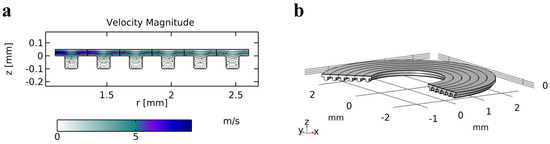

The impact of the trenches on the flow field is an essential element of the working principle of the NO microvalve. We perform a detailed FEA parameter study in order to evaluate the fluidic resistance of the valve comprising the valve seat trenches for varying channel height, trench width, and trench depth. Figure 4 provides an overview of the dependencies of the fluidic resistance on the varied geometric parameters.

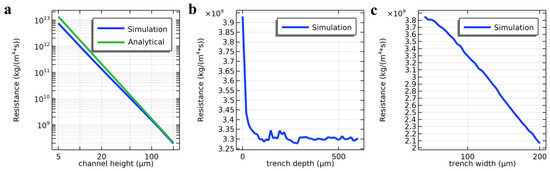

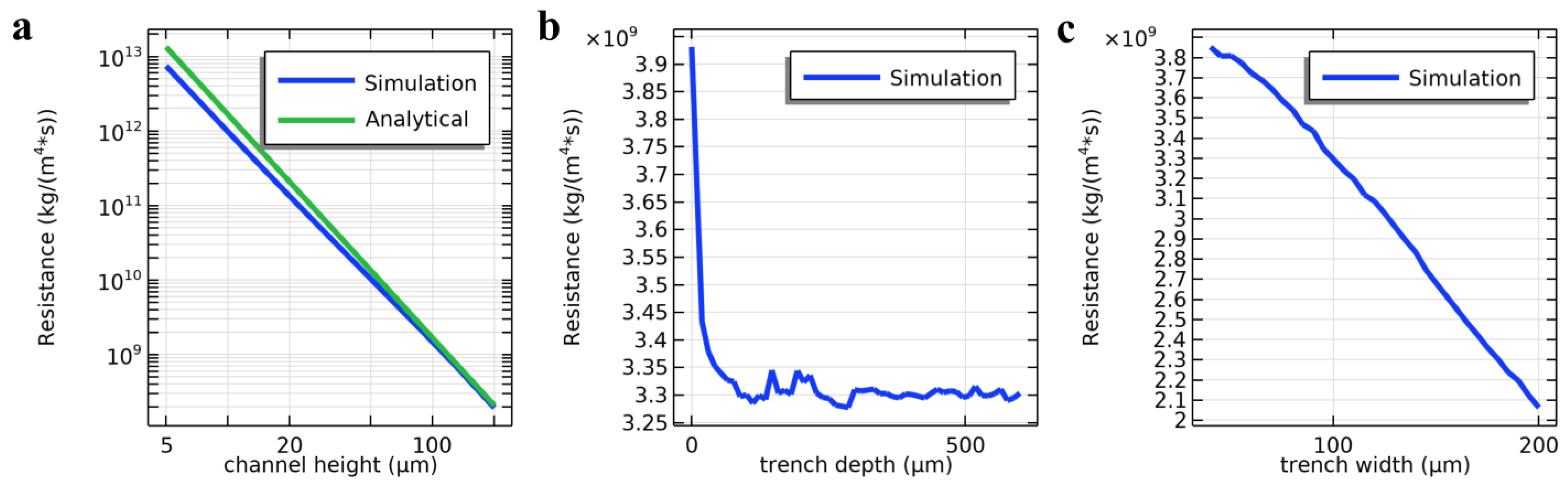

The dependency of the fluidic resistance on the channel height is presented in Figure 4a, which we obtain by varying the channel height from 5 µm to 200 µm, while other geometric parameters are set to the corresponding values of the manufactured design. For larger channel heights, the resistance converges against the analytically calculated resistance given in Equation (1). As shown in Figure 5, vortices develop inside the trenches, but their impact on the fluidic resistance becomes less relevant as the channel height increases.

The channel height itself is not a static design parameter of the valve but ultimately varies with the actuation of the piezoceramic actuator as well as with the inlet pressure depending on the elastic constants of the actuator diaphragm; hence, the simulations provide insight into the influences of the trenches in the microvalve’s open state. The results indicate that this sealing concept is suitable for functional open state flow through the valve, as this trench design does not impede open state flow by an eventually increased fluidic resistance.

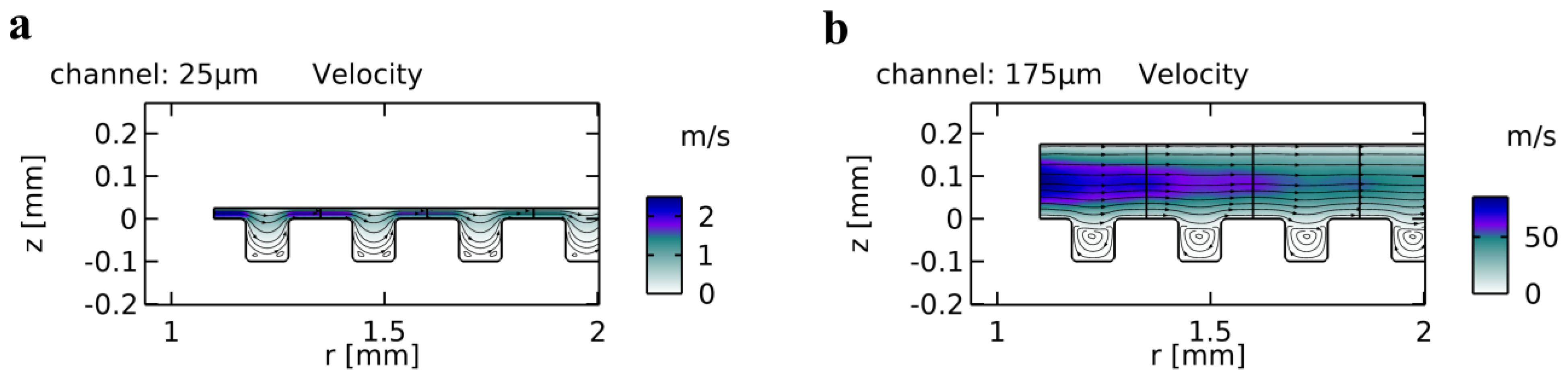

Figure 4b shows the dependency of the fluidic resistance on the depth of the trenches at a channel height of 75 µm. The width of the individual trench is 100 µm. It reveals that the width of 100 μm limits the size of the arising vortices contributing to the resistance. Figure 6a shows the typical flow for shallow trenches with a larger width than depth. In this case, small vortices arise only in the trench corners, and the flow is mostly uniform. Increasing the depth, the fluidic resistance decreases until a depth of the trenches of about 150 µm (c.f. Figure 4b). For this specific trench geometry, the first vortices are now fully developed. Increasing the depth even further leads to more vortices; however, these also affect each other and exert a shear-stress-based resistance towards the neighboring vortices, as can be seen in Figure 6b. The vortices become weaker the deeper they are located in the trench. Due to this, the resistance does not change much for larger trench depths and saturates at an about 20% lower value than the analytically calculated value for a channel between two parallel discs without trenches.

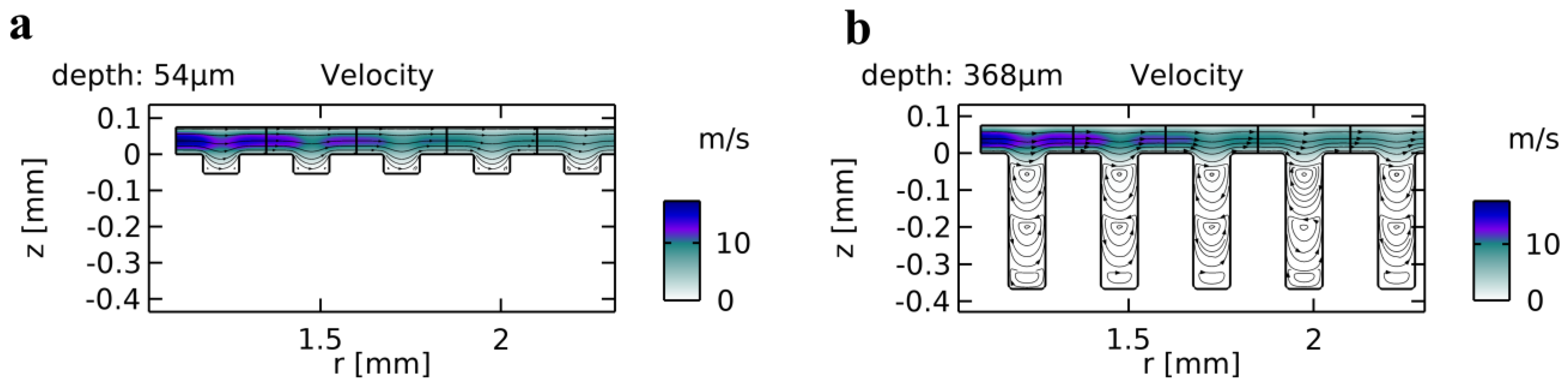

The oscillating behavior of the fluidic resistance in Figure 4b can be explained by the discrete nature of the vortices, as fractional vortices cannot exist. In the beginning, the resistance becomes smaller with deeper trenches, as the fluid experiences less friction with the walls and is less confined. Once the depth reaches the same value as the trench width, the first vortex is formed, causing an increase in resistance. Increasing the depth further leads to a smaller resistance at first until the next vortex establishes. However, the more vortices are created inside the trench, the less they contribute to the overall resistance, as they interact more and more with each other than with the main flow field.

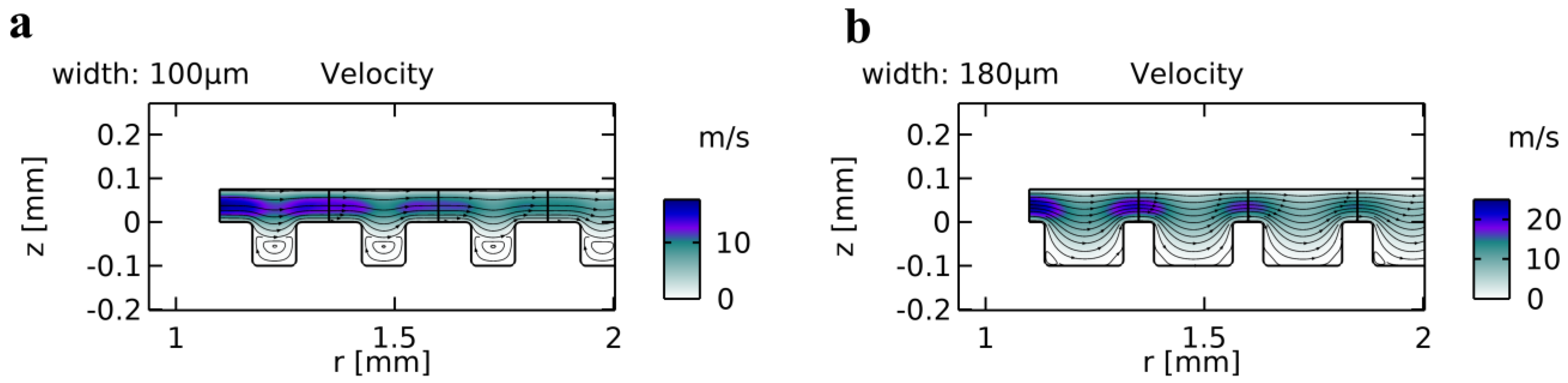

Finally, the effect of the trench width on the fluidic resistance is depicted in Figure 4c. The resistance decreases with the increasing width of the trenches as the individual fluid domains in those trenches become less restricted by the trench walls, ultimately leading to lower pressure losses due to the exerted shear stress. Figure 7a shows the flow field for a trench width of 100 µm and Figure 7b for 180 µm wide trenches and a trench depth of 100 µm. Only very small vortices arise in the corners with a negligible contribution to the fluidic resistance. The results suggest that for a smaller width of the individual trenches, the formation of large vortices causes higher fluidic resistance of the valve.

In conclusion, the FEA parameter study of the channel regions with integrated trenches of different geometrical dimensions shows a distinct and systematic impact on the fluidic resistance and, hence, on the open state flow behavior of the microvalves. The so-obtained deep understanding of their influence by flow-induced vortex generation enables to optimally design trenches with respect to width and depth of the individual trenches in order to create an appropriate flow resistance.

3.2. Modeling of Leakage Rate

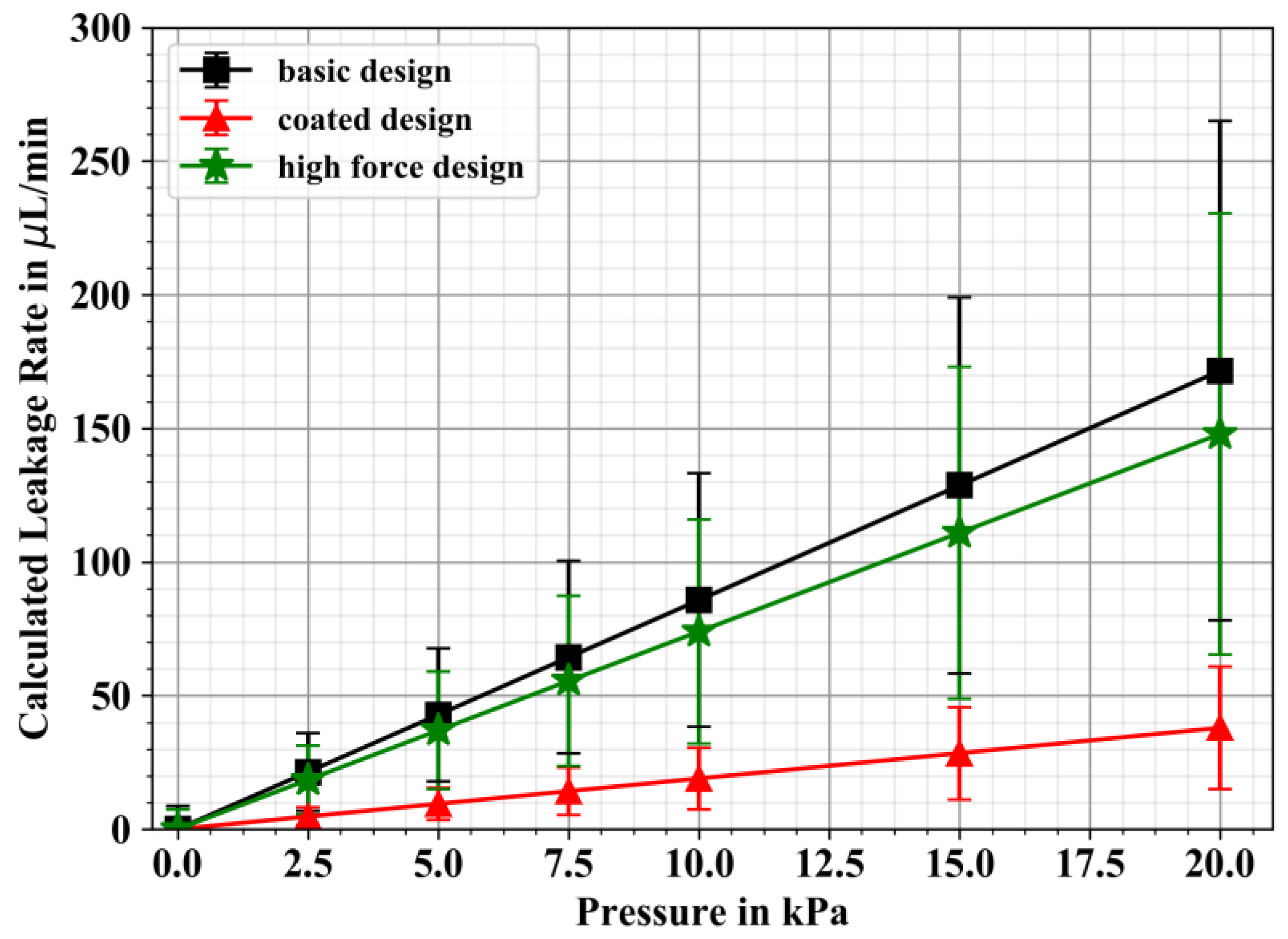

Figure 8 depicts the pressure-dependent leakage rates in closed state of the introduced microvalve designs based on the analytical leakage model derived in Section 2.3. The depicted standard deviation is a result of the calculated propagation of manufacturing tolerances and uncertainties in material properties.

The analytically calculated leakage rates show a clear linear dependency on the inlet pressure. The highest leakage of (171.5 ± 93.4) µL/min at 20 kPa is expected for the basic design. The high force design shows no significant change in leakage, where increased contact pressure of the valve diaphragm results only in a slightly reduced leakage of (147.9 ± 82.6) µL/min at the same fluidic pressure applied. All microvalve design variants exhibit large standard deviations of about 60% due to high manufacturing tolerances of the steel actuator foils, propagating to high relative uncertainty in the calculated leakage rates. Coated microvalves show significantly reduced absolute values of leakage rates. The effective Young’s modulus resulting from the Parylene-C-steel interface leads to a lower value of the average surface separation (see Equation (2)) and, consequently, leakage is expected to be as low as (37.9 ± 23) µL/min for an inlet pressure of 20 kPa, and, hence, is much lower than for the two other design variants. The theoretically determined leakage rates are compared to measured values of fabricated microvalves of the three designs; results are presented in Section 3.3.

3.3. Experimental Characterization

We investigate the characteristics and fluidic performance of the presented NO valve design variants (see Table 1). Out of the 5 manufactured high force design microvalves, one is excluded from the study due to insufficient glue bonding of the piezoceramic. The experimentally obtained actuator stroke, the open flow rates, and the results of the leakage measurements of all 24 tested microvalves are summarized in

Table 2. Overview of the experimental results for the three studied design variants of the NO microvalve.

Microvalve Design Variant	Tested Valves	Actuator Stroke, in µm	Max. Open Flow at 20 kPa, in mL/min	NO Flow at 100 kPa, in mL/min	Measured Leakage at 20 kPa, in µL/min	Calculated Leakage at 20 kPa, in µL/min
Basic design	10	56.4 ± 4.7	30.1 ± 3.4	122 ± 9	24.8 ± 9.6	171.5 ± 93.4
Coated design	10	51.6 ± 6.7	29.7 ± 4.5	119.1 ± 8.4	25.1 ± 7.9	37.9 ± 23
High force design	4	55.9 ± 2.6	24.9 ± 1.8	83.6 ± 4.8	19.8 ± 4.9	147.9 ± 82.6

. Additionally, the calculated leakage rates based on the derived analytical models are provided for comparison.

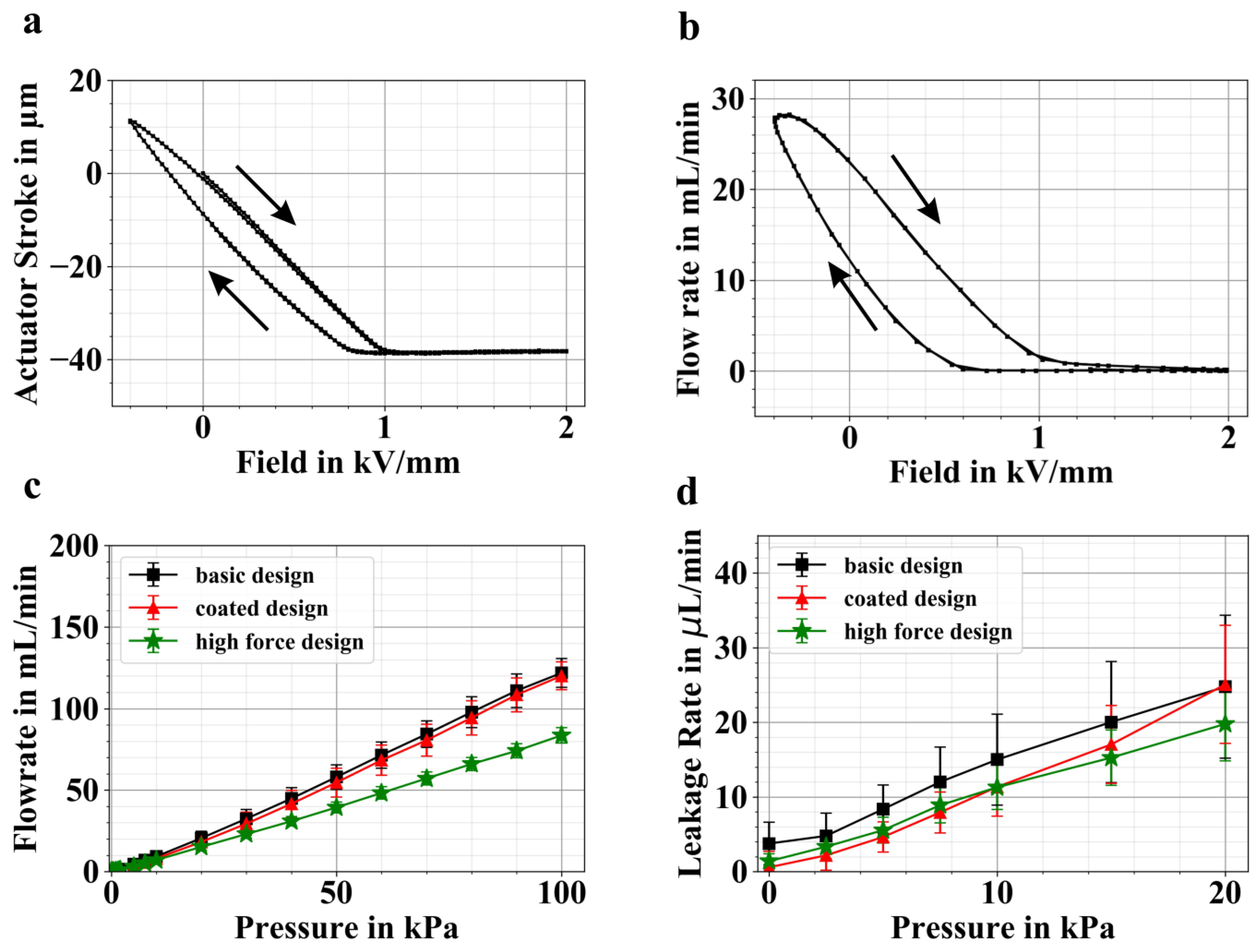

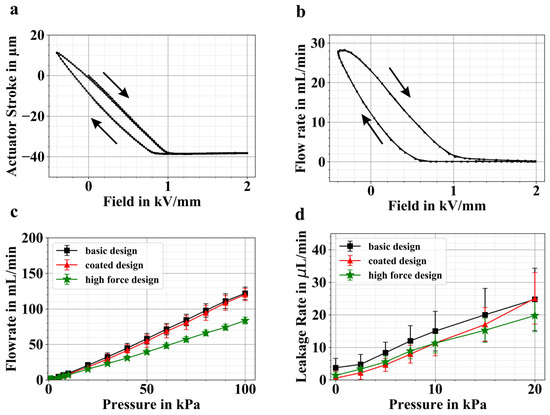

Figure 9a depicts an exemplary measurement of the microvalve actuator stroke. The change in slope at approximately 1 kV/mm shows the actuator touch down on the valve seat. For electric fields <1 kV/mm, open state actuator movement of more than 50 µm in total is achieved, and the occurrence of piezoelectric hysteresis becomes apparent. Closed state starts at electric fields beyond 1 kV/mm, where further downwards displacement is blocked, and the contact pressure of the valve diaphragm and the valve seat increases. Comparison of the three variants of the microvalve design reveals no significant difference in total actuator stroke (Table 2). The slight difference in the stroke of the coated microvalves could be explained by the reduced distance of the valve diaphragm to the valve seat by the added coating.

Figure 9b shows an exemplary measurement of the field-dependent flow rates with discernible open and closed states. Due to the influence of piezoelectric hysteresis of the actuator, closed state of the microvalve is achieved at approximately 1.6 kV/mm for increasing fields, whereas for decreasing fields, the microvalve remains closed until a field of approximately 0.6 kV/mm. Active opening of the valve is facilitated by further upwards movement of the diaphragm at negative fields, where maximal open flow rates are achieved. For microvalves with a 0.2 mm thick piezoelectric actuator, similar maximal open flow rates of (30.1 ± 3.4) mL/min (basic design) and (29.7 ± 4.5) mL/min (coated design) are measured. In contrast, the microvalves with a 0.3 mm thick piezoactuator show lower maximal open flow rates of (24.9 ± 1.8) mL/min, most likely due to increased stiffness of the valve diaphragm: The fluidic pressure acting on the valve diaphragm displaces it further upwards for the less stiff actuators with a 0.2 mm thick piezoceramic, enabling even higher flow rates due to the increased height of the valve chamber. The increased stiffness of the valve diaphragm for 0.3 mm piezoactuator valves impedes additional displacement of the diaphragm induced by fluid pressure, resulting in a lower maximum open flow.

Another important parameter of microvalves as fundamental components of microfluidic systems is their fluidic resistance in open state, which ideally should not impede the fluid flow. In order to investigate this parameter, we measure the flow rates through the NO valve in non-actuated state. As the inlet pressure increases, flow rates in NO state increase linearly for all microvalve designs, as shown in Figure 9c. Same as for active opening, a difference of the flow rate in NO state is observed when comparing the 0.2 mm piezoactuator valve variants ((122 ± 9) mL/min for the basic design and (119.1 ± 8.4) mL/min with coating) to the high force design ((83.6 ± 4.8) mL/min). Again, this difference can be explained by the dissimilar stiffnesses of the valve diaphragms and the effect of the fluid pressure influencing the height of the valve chamber.

Microvalve leakage is presented in Figure 9d. The pressure-dependent leakage characteristic of NO valves of the basic design seem to exhibit the highest of all measured leakage behaviors; however, the differences are not statistically significant (Table 2).

While microvalves of the high force actuator variant exhibit the lowest leakage rates at the lowest standard deviations, better statistics are needed to assess the significance of the observed differences in order to evaluate the effect of an increased contact pressure. Since experimental leakage rates of the coated microvalves do not differ from the basic design, beneficial sealing properties as a result of the Parylene-C coating cannot be derived to this date. However, the comparison of the measured leakage rates to former investigations of NO valves with soft sealing components [14] reveals that the microvalve variants presented here achieve similar leakage rates with significantly lower standard deviations. Therefore, the micromachined trenches are proven suitable for the fabrication of a microvalve with increased reliability with a view to sample-to-sample variation of the exhibited leakage rate due to higher manufacturing precision of the valve seat compared to microvalves comprising an O-ring soft sealing.

Comparison of the modeled values (see Figure 8) to experimentally collected data shows an overall overestimation of expected leakage rates, which, as already mentioned, constitutes an upper limit of the theoretically expected values. While leakages of both microvalve variants without coatings are overestimated approximately by a factor of 4 and 7 (high force design and basic design, respectively), the analytically calculated leakage rates of the coated microvalves differ from experimental data only by a factor of 1.5. Future work on analytical modeling of microvalve leakage rates should consequently involve a thorough investigation of contact pressure calculation accompanied by experimental investigation of the achieved forces of piezoceramics bonded to metal diaphragms.

3.4. Fatigue Test

A reliable and safe microfluidic device design is required in medical applications in order to minimize the risk of device failure. Hence, the stability of the microvalves’ performance is investigated by subjecting them to fatigue testing as described in Section 2.4.

Immediately after fatigue testing, we inspect the microvalve’s piezoceramic actuator optically and by measurement of its electric capacitance in order to detect critical failure in the form of cracks. Valves with piezoceramic actuator failure are excluded from subsequent fluidic characterization. The changes in maximum open flow, NO flow, and leakage after fatigue testing compared to observed performances after manufacturing are summarized in

Table 3. Results of 1 × 10⁶ actuation fatigue test. Listed as piezoceramic actuator failures are observed material failures of the PZT in form of cracks. Change in fluidic performance is given for valves with functional piezoceramic actuator.

Microvalve Design Variants	Fatigue Tested Valves	Piezoceramic Actuator Failures	Change of Max. Open Flow, 20 kPa	Change of NO Flow, 100 kPa	Change of Leakage, 20 kPa
Basic design	5	3	(−6 ± 3)%	(8 ± 4)%	(123 ± 62)%
Coated design	5	2	(−2 ± 2)%	(0 ± 11)%	(3 ± 13)%
High force design	4	0	(6 ± 4)%	(18 ± 8)%	(14 ± 15)%

.

None of the 4 high force design valves show failure of the piezoceramic actuator, but a total of 5 out of the 10 tested microvalves with a 0.2 mm thick piezoceramic actuator experience material cracking of the piezoceramic (three basic design valves and two coated valves). To confirm increased robustness of the actuator with increased actuator thickness, further investigations with an increased number of samples are needed and are planned for future work.

Characterization of the active open flow rate shows only small changes (Table 3). The average change of NO flow rates at 100 kPa is zero for microvalves with coating, and is increased slightly for the basic design; for the high force design valves, the flow rates increases notably. Microvalves with coating exhibit the lowest change in leakage after fatigue testing, whereas an increase of 14% of leakage rates is observed for high force design valves, and a strong increase of 123% is found for valves of the basic design.

Though standard deviations of the measured changes in leakage rates are high, a tendency of the stability of the tested designs can be deduced. Both design adaptions of the basic design, the coated as well as the high force design, show lower increase in leakage rates after the fatigue tests. The valve seat coated with Parylene-C seems to favor a good seal of the valve diaphragm to the seat even after fatigue. Comparing valves of the high force design to those of the basic design, the stiffer actuator capable of higher compression forces appears to exhibit higher robustness against fatigue testing regarding piezoceramic actuator failure as well as an increase in leakage rate. A larger number of samples for testing would be necessary for future studies to increase the statistical relevance of the results and further substantiate these findings.

4. Conclusions

This work provides a detailed investigation of NO microvalve development for medical applications, where many intricate requirements in flow performance, biocompatibility, hermetic sealing, and device reliability call for sophisticated solutions. We introduce a piezoelectric microvalve with multiple trenches serving as a valve seat and omit any movable soft sealing components in the valve chamber as an important step towards the reliable operation of the microfluidic device.

As alternatives for a soft sealing valve seat, we discuss different measures for optimized fluidic performance of the microvalve in closed state, provide insight into important influencing parameters of leakage rates, and propose three design variants of NO valves for fabrication and experimental characterization. Moreover, we derive an analytical model of the leakage rates and perform a dedicated FEA parameter study of the geometric dimensions of the trench design, enabling further NO valve optimization with a view to sealing performance as well as fluidic resistance.

The fabricated and tested microvalve variants with concentric trenches exhibit good leakage rates in closed state as low as (19.8 ± 4.9) µL/min. This is comparable to former investigations of NO valves with soft sealing components but with better controllability of geometric parameters, hence, a low sample-to-sample variation, which is substantiated by small standard deviations of the measured leakage. We show that flow rates in open state are as high as (30.1 ± 3.4) mL/min. Therefore, the presented sealing concept does not impede fluid flow, and malfunctions of the microvalve in open state are successfully avoided by the omittance of any additional movable components in the valve chamber. Fatigue testing of the microvalves reveals beneficial effects of Parylene-C coating or increased piezoelectric actuator force on leakage rate stability and indicates increased piezoceramic material stability with increased thickness.

Due to its simplistic design, energy-efficient piezoelectric actuation, and beneficial material properties, the microvalve with multiple valve seat trenches lays a valuable basis for microfluidic medical device development. The comprehensive investigation of microvalve design provided in this work enables well-founded further development of the microfluidic device. Potential future work on the development of microvalves for medical applications may include optimization of the piezoceramic disk actuator design for increased contact pressure, extended fatigue testing, as well as fluidic characterizations at human body temperature.
