Article

Durability and Abrasion Resistance of Innovative Recycled Pervious Concrete with Recycled Coarse Aggregate of Different Quality under Sulfate Attack

by
Minqi Hua
1,2,
Bo Chen
2,*,
Yun Liu
3,
Hui Liu
1,3,*,
Pinghua Zhu
3,
Chunhong Chen
3 and
Xinjie Wang
3
1
State Key Laboratory of Silicate Materials for Architectures, Wuhan University of Technology, Wuhan 430070, China
2
School of Civil Engineering and Architecture, Wuhan University of Technology, Wuhan 430070, China
3
Department of Civil Engineering, Changzhou University, Changzhou 213164, China
*
Authors to whom correspondence should be addressed.
Appl. Sci. 2021, 11(20), 9647; https://doi.org/10.3390/app11209647
Submission received: 18 September 2021 / Revised: 9 October 2021 / Accepted: 11 October 2021 / Published: 15 October 2021
(This article belongs to the Special Issue High-Performance of Eco-Efficient Concrete, Volume 3)
Browse Figures
Versions Notes

Abstract

:
Construction and demolition wastes (C&DWs) have raised a large number of ecological and environmental problems. Recycling C&DWs into arecycled concrete aggregate (RCA) will help save natural resources effectively and reduce the negative impact of C&DW on the environment. Innovative pervious concrete (IPC) can mitigate extreme weather disasters, such as rainstorms, and overcome the low strength and poor durability of traditional pervious concrete. In this study, innovative recycled pervious concrete (IRPC) is prepared by combining RCA with IPC, which has broad application prospects and ecological friendliness. This study investigates the effect of RCA quality grades and replacement rates on the mechanical property, permeability, sulfate resistance and abrasion resistance of IRPC. IRPC mixtures were prepared with three different quality grades (high, medium and low qualities) of aggregates named as NA, RCA1 and RCA2. Moreover, the replacement rate of RCA for NA varied as 0%, 25%, 50%, 75% and 100%. The IRPC specimens were tested for compressive strength, mass loss and abrasion resistance after different sulfate wetting-drying cycles of 0, 30 and 60. The results exhibited that the initial compressive strength of all types of IRPC was more than 40 MPa. The compressive strength and mass of most IRPC increased first and then decreased slightly with the passage of a number of sulfate wetting-drying cycles, indicating IRPC has good resistance to sulfate attack. Sulfate attack and the addition of RCA will reduce the abrasion resistance of IRPC. However, when the replacement rate is lower than 50%, and the RCA quality is better (attached mortar content < 25%), the abrasion resistance of IRPC will be improved under sulfate attack. The experimental results might be useful as a reference and design methodology for employing IRPC in pavement applications in the future.

1. Introduction

With the acceleration of urbanization, the whole world is facing with shortage of natural aggregate (NA) and increasing and haphazard piles of construction and demolition wastes (C&DWs) [1,2]. In order to deal with the continuous destruction and pollution to the environment caused by the above problems, one of the possible solutions is to recycle C&DWs into a recycled concrete aggregate (RCA) [3,4]. Using RCA instead of NA will help save natural resources effectively and reduce the negative impact of C&DWs on the environment [5,6]. Therefore, the utilization of RCA has been widely promoted all over the world [7]. On the other hand, extreme weather occurs frequently around the world, and extraordinary rainstorm brings serious waterlogging to cities, which affects economic development and social life [8]. Compared with traditional impervious pavement, pervious concrete pavement can reduce rainwater runoff, reduce noise, replenish groundwater, reduce the heat island effect and remove rainwater runoff pollutants [9,10]. However, the low strength, high likelihood for clogging and poor durability of traditional pervious concrete limit its potential use in structural applications [11,12]. In order to solve these defects, a kind of innovative pervious concrete with top-bottom interconnected pores was designed and prepared by our former research [13]. The results prove that innovative pervious concrete is superior to traditional pervious concrete in mechanical properties and frost resistance. The environmental friendliness of innovative pervious concrete can be further improved by replacing NA with RCA. However, whether it has adverse effects on mechanical properties and durability of innovative recycled pervious concrete (IRPC) remains to be studied.
In general, the utilization of RCA will contribute to the degradation of mechanical properties and the durability of recycled concrete [14,15,16]. Replacing NA with RCA will lead to a decrease in compressive strength of the concrete, which will continue to decrease with the increase of the replacement rate of RCA [17,18,19]. Moreover, the quality grades of RCA, such as water absorption, crushing index and attached mortar content, play an important role in the durability of recycled concrete [20]. Furthermore, the strength and durability of recycled concrete are affected by the interfacial transition zone (ITZ), as it owns many cracks and pores, low bonding strength and high permeability [21]. Especially for the traditional recycled pervious concrete, only the very thin layers of cement paste are used as the binder between its aggregates [22], which causes the mechanical properties to often depend approximately on the strength of ITZ. EL-Hassan et al. [23] found that the mechanical properties and abrasion resistance were negatively affected due to the poor ITZ in traditional recycled pervious concrete. Vieira et al. [17] observed the decrease of mechanical properties of pervious concrete with the increase of RCA replacement. These studies showed that the maximum compressive strength of traditional recycled pervious concrete was less than 10 MPa, and when the RCA replacement rate exceeded 70%, the compressive strength decreased sharply and approximately had no strength anymore. However, IRPC is prepared by reserving top-bottom interconnected pores in advance in the concrete matrix, which makes its initial compressive strength and durability much higher than traditional ones.
Various durability factors, such as chloride ion erosion, sulfate attack and vehicle abrasion, will occur in the practical use of IRPC. Coastal and inland saline regions are rich in caustic ions, such as sulfate ions [24], which will make IRPC exposed to corrosive environments and more susceptible to potential durability problems [25,26]. Sulfate attack is one of the most common types of corrosion and can lead to serious internal expansion failure, strength degradation and durability problems of concrete [26]. The external sulfate ions penetrate into the concrete and react with the dissolved calcium hydroxide to form gypsum, and further react with the hydration aluminate products of cement paste to form ettringite [27]. The volume of ettringite grows inside the pores of the concrete, and then the expansive stress is exerted on the pore wall, causing micro-cracking and damage to the concrete [27]. In addition, IRPC pavements are worn by passing vehicles, which could be exacerbated under sulfate attacks. Therefore, it is worth studying the durability and abrasion resistance of IRPC under sulfate attack, but it is not receiving enough attention right now.
This research aims to investigate the feasibility of using RCA with the innovative pervious concrete to prepare IRPC. Three different quality grades (high, medium and low qualities) and five different replacement rates (0%, 25%, 50%, 75% and 100%) of RCA were analyzed. The compressive strength, permeability coefficient and abrasion resistance of IRPC under different sulfate wetting-drying cycles (0, 30 and 60) were discussed. The variations of the ITZ of IRPC after sulfate attack were characterized by SEM. The obtained experimental results and data would be beneficial for future applications of the utilization of IRPC in pavement engineering.

2. Experimental

2.1. Materials

Ordinary Portland cement of type P.O 42.5 produced by Jiangsu Yangzi Cement Company, fly ash (FA) and silica fume (SF) were used as binding materials to prepare IRPC. The chemical compositions of these binding materials were listed in Table 1. Natural river sand with a fineness modulus of 2.4 was used as the fine aggregate. Polycarboxylate type superplasticizer (SP) was used as the water-reducing agent in the IRPC preparation process.
Since the different types of RCA for practical application varied in their quality. In order to explore the effect of RCA quality grades, three different quality grades of coarse aggregate were used in this study. Natural limestone aggregate, which can approximately be regarded as high-quality RCA, was used as the control group and compared to two other types of aggregate. Medium-quality RCA, marked as RCA1, was prepared by crushing and sieving the waste concrete samples from the laboratory. Low-quality RCA, marked as RCA2, was provided by Jiangsu lvhe Environmental Technology CO. LTD. The particle sizes of the three kinds of aggregates range from 4.75 to 9.5 mm. The physical properties and macro photographs of the three coarse aggregates were displayed in Table 2 and Figure 1, respectively. It is obvious that NA has the best performance in all aspects and can be regarded as the high-grade aggregate. The attached mortar can be clearly observed on the surface of RCA1. Due to the existence of attached mortar, its performance is slightly inferior to NA. RCA1 is regarded as the medium-grade aggregate. RCA2 not only possesses a large amount of attached mortar on the surface but also contains complex aggregate composition. It is evident that RCA2 is mixed with red bricks, which greatly affects its performance. Therefore, RCA2 has the worst performance and is regarded as the low-grade aggregate.

2.2. Preparation Process of IRPC

In this study, five different replacement rates, 0%, 25%, 50%, 75% and 100%, were used by replacing NA with RCA. The mix proportions of the used innovative pervious concrete specimens are listed in Table 3. Because the three types of aggregate used have different apparent densities and water absorptions, NA was replaced by RCA with the volume fraction under the same w/c ratio, and the additional water was added to ensure the workability of IRPC. Cube samples, with the dimensions 150 × 150 × 150 mm3, were cast for compressive strength, mass loss, abrasion resistance and sulfate wetting-drying tests. The preparation process of IRPC is shown in Figure 2. Firstly, IRPC was prepared by the two-stage mixing approach, which could improve its compressive strength and reduce its strength variability [28]. The coarse and fine aggregates and half of the water were mixed for 60 s and then the binding materials, composed of cement, FA and SF, were added and mixed for 30 s, and finally, the remaining half of the water and SP were added and mixed for 120 s. Then the concrete mixtures were poured into the special molds that were perforated beforehand and with steel rods inserted into the reserved holes. The detailed schematic diagram of the pore distribution is shown in Figure 3. The gray area in Figure 3 is the actual wear area, and all pores are ensured to be in the wear area. The diameter of the used steel rod is 3 mm, and these steel rods would be pulled out after the initial setting of the IRPC. Finally, the IRPC was demolded after 24 h and preserved in the standard curing room (20 ± 2 °C, RH ≥ 95%) for 28 d.

2.3. Testing Procedures

2.3.1. Coarse Aggregate Property

The properties of the three types of aggregate used were measured by ASTM C33 [29] and the Chinese standard GB/T 25177-2010 [30].

2.3.2. Permeability

The performance of pervious concrete was characterized by the permeability coefficient. The innovative pervious concrete used in the present study was measured by the constant-head method according to the Chinese standard CJJ/T 135-2009 [31]. The permeability coefficient was determined by the following Equation (1):
K   =   Q   ⋅   L A   ⋅   H   ⋅   t
where: K is the permeability coefficient, in mm/s; Q is the amount of water flowing out of the outlet in t seconds, in mm3; L is the thickness of test specimen, in mm; A is the area of the top surface of the test specimen, in mm2; H is the difference between the internal and external head, in mm.

2.3.3. Compressive Strength

The compressive strength test of INPC and IRPC was performed according to ASTM C109 [32].

2.3.4. Abrasion Resistance

The abrasion resistance was tested according to the Chinese standard JC/T 421-2004 [33]. The abrasion resistance of specimens is defined by abrasion loss per unit area. Abrasion loss per unit area is calculated according to the following Equation (2):
G   =   m 1   −   m 2 0.0125
where: G is the abrasion loss per unit area, in kg/m2; m1 is the mass of the specimen before abrasion, in kg; m2 is the mass of the specimen after abrasion, in kg; 0.0125 is the area of the abrasion area.

2.3.5. Sulfate Wetting-Drying Test

The sulfate wetting-drying test was carried out according to the Chinese standard GB/T 50082-2009 [34]. A wetting-drying cycle of 24 h consisted of the following four steps. The IRPC specimens were immersed in a 5% (by wt%) sodium sulfate (Na2SO4) solution for 15 h, followed by air drying for 1 h, drying for 6 h at 80 °C and finally by air cooling for 2 h. Sulfate wetting-drying cycles ranged from 0, to 30 to 60 days.

2.3.6. SEM Analysis

The microstructures of IRPC were characterized by SEM. SEM analysis was performed by a Zeiss SUPRA55 scanning electron microscope to focus on the ITZ of IRPC.

3. Results and Discussion

3.1. Compressive Strength

The compressive strength of IRPC with variable replacement rates (0%, 25%, 50%, 75% and 100%) after different sulfate wetting-drying cycles (0, 30 and 60) was displayed in Figure 4. It can be found that the initial compressive strength of IRPC was excellent. The compressive strength of all groups of IRPC before sulfate attack was more than 40 MPa. After 30 sulfate wetting-drying cycles, the compressive strength of most groups of IRPC increased slightly, except in the case of 100% replacement with RCA2. The possible reason for this phenomenon is that the hydration reaction of the IRPC matrix was still going on at the initial stage of the sulfate wetting-drying cycle [35]. The secondary hydration products improved the compactness and strength of the IRPC. In addition, the high-temperature drying of the wetting-drying cycles could also promote the hydration reaction of the IRPC matrix [36]. When sulfate enters the concrete, the erosion products, such as gypsum and ettringite, will be generated, and these erosion products will accumulate in the pores and cracks of IRPC, especially in its ITZ [37]. However, at the initial stage of sulfate wetting-drying cycles, the erosion products can fill up the pores and cracks and improve the compactness of IRPC. Therefore, the compressive strength of IRPC increased slightly after 30 sulfate wetting-drying cycles. However, due to the poor performance of RCA2 and its weak ITZ, the compressive strength of IRPC2 with a 100% replacement rate decreased slightly after 30 cycles, but the reduction was very small. This indicates that the reduction in strength due to the utilization of RCA is playing the leading role. On the whole, secondary hydration and filling of sulfate erosion products can slightly increase the compressive strength of IRPC at the early stage of sulfate wetting-drying cycles.
After 60 sulfate wetting-drying cycles, the compressive strength decreased compared with its initial compressive strength. It is worth noting that the decline of compressive strength increased with the growth of the replacement rate. This is because the positive effects mentioned above had peaked when the wetting-drying cycles increased. The volume of sulfate erosion products expanded further, and cracks occurred in the IRPC matrix, especially in ITZ, resulting in the decline of strength. To sum up, the change of compressive strength under sulfate attack can be divided into a strengthening stage and a degradation stage.
Another point of concern is that there was little difference between IRPC1-25 and INPC in sulfate resistance at the 25% RCA1 replacement rate. IRPC1-25 even had a slightly higher compressive strength than INPC. This might be on account of the good properties of RCA1, and appropriately attached mortar provided space for the accumulation of sulfate corrosion products. Therefore, the appropriate addition of high-quality RCA will have a positive effect on the sulfate resistance of concrete.

3.2. Permeability

According to our former research [13], the matrix of the innovative pervious concrete has a very low porosity; its permeability mainly depends on the reserved top-bottom interconnected pores. Therefore, its permeability coefficient is almost entirely determined by the size and distribution of the pores and has little relationship with the mix proportion. The advantage is that the permeability coefficient of IRPC is higher and more controllable than traditional pervious concrete. The permeability coefficients of IRPC under abrasion and sulfate attack were revealed in Figure 5. The permeability coefficients of all groups were about 7 mm/s, much higher than the minimum requirement of pervious concrete (0.5 mm/s). With the increase of sulfate wetting-drying cycles, the permeability coefficients of IRPC slightly reduced. This may be due to the slight expansion of IRPC’s volume after sulfate attack [38], leading to the reduction of its pore volume and permeability coefficients. Moreover, it can be found that the abrasion slightly reduced the permeability of IRPC. This is caused by the accumulation of debris in the pores from abrasion, but the reduction in the permeability coefficient is quite slight. Compared with the top-bottom interconnected pores of IRPC, the zigzag pores of traditional pervious concrete are more likely to be clogged by debris accumulation [39], resulting in the decline of permeability.
Traditional pervious concrete cannot guarantee both strength and permeability performance. Lu et al. [22] prepared recycled pervious concrete using waste glass and RCA. When NA was fully replaced by RCA, the compressive strength and permeability coefficient of recycled pervious concrete are about 20 MPa and 2.3 mm/s, respectively. When using 50% waste glass cullet and 50% RCA as aggregates, the compressive strength of recycled pervious concrete increased to 22 MPa, but the permeability coefficient was reduced to 1.2 mm/s. IRPC can possess the compressive strength of 40 MPa and the permeability coefficient of 7 mm/s even at a 100% replacement rate. Therefore, in terms of the strength and permeability performance, the combined use of innovative pervious concrete as the matrix and RCA as the aggregate is attractive and promising to produce IRPC with good strength and permeability.

3.3. Mass Loss

The mass-loss rates of INPC and IRPC specimens are revealed in Figure 6. It can be clearly observed that the mass of all specimens increased firstly and then gradually decreased with the increasing number of wetting-drying cycles. This is because the generation of sulfate erosion and hydration products increased the mass [40], and with the continuous accumulation of these products, a huge expansion force is generated inside of IRPC. Then micro-cracks and angle loss occurred in IRPC, which made the mass decrease [41]. These two stages correspond well with the two stages present in compressive strength. Moreover, the fluctuation range of mass change also becomes larger with the increase of wetting-drying cycles. The reason for this phenomenon is that with the growth of the replacement rate, there was more space for corrosion products to accumulate in IRPC, and the compactness of IRPC decreased, which accelerated the generation and accumulation of sulfate erosion products.

3.4. Abrasion Resistance

Since the surface layer of the concrete is made up almost entirely of cement mortar, only when the grinding is carried out to a certain extent, the aggregate inside will be ground. The purpose of this study is to explore the effect of aggregate grades and replacement rate on abrasion resistance. Therefore, abrasion resistance is divided into two parts, the surface layer and the internal layer, for analysis. First, IRPC was ground for 30 cycles to explore the abrasion resistance of the surface layer and then IRPC was continued to be ground for 40 cycles to explore the abrasion resistance of the internal layer.

3.4.1. Surface Layer

Figure 7 displays the abrasion loss per unit area on the surface layer of IRPC with five replacement rates under sulfate attack. It is clearly reflected in Figure 7 that the abrasion loss per unit area of the specimens decreased after 30 sulfate wetting-drying cycles but increased significantly after 60 wetting-drying cycles, except for the specimens with 75% and 100% RCA2 replacement rates. This is because the sulfate erosion products produced in the early stage of sulfate attack had the filling effect on the pores and cracks of the specimen [42]. In addition, the secondary hydration reaction occurred and improved the strength of the specimen [43]. Therefore, the compactness and abrasion resistance of the surface layer were enhanced. After 60 wetting-drying cycles, the volume of sulfate erosion products accumulated inside the specimens expanded, resulting in micro-cracks in the specimens. The expansion stress made the surface mortar become brittle, resulting in a decline in abrasion resistance.

3.4.2. Internal Layer

The abrasion loss per unit area on the internal layer of different IRPC under sulfate attack is shown in Figure 8. The abrasion resistance of the internal layer was different from that of the surface layer. When the replacement rate is greater than 25%, the abrasion loss per unit area of IRPC increases with the increase of the replacement rate and the number of wetting-drying cycles. Therefore, it can be seen that the influence of aggregate grades and replacement rate on the abrasion resistance of the internal layer of IRPC was more significant than that of the surface layer. This is because the surface layer was mainly the compact mortar layer on the specimen surface, while the inner layer contained weak links, such as RCA, attached mortar and ITZ. Sulfate erosion products mainly accumulated and expanded from the ITZ inside the specimen, which could easily affect the abrasion resistance of the internal layer.

3.5. SEM Analysis

To further investigate the effect of the aggregates’ quality grades on the sulfate attack mechanism of IRPC, an SEM analysis on the ITZ of IRPC was carried out. Figure 9 shows the SEM images of the IRPC prepared from three kinds of aggregates with different quality grades. First of all, Figure 9(a1,a2) displayed the ITZ of INPC before and after the sulfate attack. As can be seen in Figure 9(a1), the initial ITZ of INPC was relatively smooth, and no obvious cracks and pores were observed in the paste. After the sulfate attack, the ITZ of INPC expanded slightly and widened, as shown in Figure 9(a2). The little white spots on the ITZ were the erosion products, which were small in volume. NA possessed the best properties and was regarded as the high-quality RCA. Therefore, INPC prepared from NA possessed the best compressive strength, abrasion resistance and sulfate resistance, which was consistent with the results obtained in macroscopic experiments.
In addition, the SEM images of IRPC1 prepared from the medium quality of RCA1 were revealed in Figure 9(b1,b2). Figure 9(b1) showed that the initial ITZ of IRPC1 was slightly undulating and uneven, and there were some micro pores in the paste of IRPC1. After sulfate wetting-drying cycles, the short columnar crystals of gypsum [44] were observed in the ITZ of IRPC1 in Figure 9(b2). The formation of erosion products, such as gypsum, further expanded the volume of the ITZ and reduced its bonding strength [45], which had an adverse effect on the mechanical properties and abrasion resistance of IRPC.
Finally, Figure 9(c1,c2) showed the SEM images of IRPC2 prepared from the low quality of RCA2. As shown in Figure 9(c1), the initial ITZ of IRPC2 was rough and uneven on the surface with a straight crack in it. After sulfate attack, large columnar crystals of gypsum and needle-like phase crystals of ettringite [46] were observed in Figure 9(c2). The massive sulfate erosion products made the ITZ expand rapidly in volume and become loose. The ITZ of IRPC2 was the most cracked and loosest after the sulfate attack. The compressive strength and abrasion resistance of IRPC2 were the worst among all three types. This was because that the quality grade of RCA2 was the low-grade, indicating a large amount of attached mortar was attached to the surface of RCA2. The new ITZ formed between the old attached mortar and the new mortar had a low bonding strength and a large number of cracks and pores [47]. Therefore, after sulfate attack, erosion products tended to accumulate in these cracks and pores. The volume of sulfate erosion products gradually expanded and made the weak ITZ more fragmented [48], resulting in a further reduction in the strength of IRPC2.
However, the accumulation of these sulfate erosion products was not all negative. When the replacement rate of RCA was low, and the quality of RCA was better (attached mortar content of RCA is low), the sulfate erosion products could fill the micro pores and cracks in the ITZ and even in the attached mortar of RCA. This filling effect could improve the compactness of IRPC; thus, improving its strength and abrasion resistance. This phenomenon was consistent with what was observed in the macroscopic experiment.

4. Conclusions

In this study, the mechanical properties, permeability and abrasion resistance of innovative recycled pervious concrete (IRPC) with three RCA quality grades and five replacement rates under sulfate attack was investigated. Based on the experimental results and microscopic analysis, the following conclusions can be drawn:
  • IRPC can not only reach a higher compressive strength but also meet a higher permeability coefficient at the same time, even at a 100% replacement rate. After 60 sulfate wetting-drying cycles, the compressive strength and permeability coefficient of IRPC slightly decreased. With the increase of the replacement rate and the decrease of aggregate quality, their drops continued to increase. However, overall, the decline of compressive strength and permeability coefficient of IRPC was modest, representing the sulfate resistance of IRPC was fine.
  • The abrasion resistance of IRPC was mainly influenced by the RCA replacement rate. The abrasion loss of IRPC increased with the increase of the replacement rate. Yet, up to a 50% RCA replacement rate could be adopted without significantly affecting the abrasion resistance of IRPC. However, when the RCA quality grade was high (attached mortar content < 25%), this threshold replacement rate can be increased to 100%.
  • The influence of sulfate attack on the compressive strength and abrasion resistance of IRPC could be divided into two stages. The first stage was the enhancement or slow declining stage. In this stage, the sulfate erosion products could fill the micro pores and cracks in the ITZ and the attached mortar. This filling effect could improve the compactness of IRPC; thus, improving its strength and abrasion resistance. The next stage was the declining stage. In this stage, the volume of sulfate erosion products gradually expanded and made the ITZ and matrix of IRPC loose and fragmented, resulting in a reduction in the strength and abrasion resistance of IRPC.
The experimental results, in terms of compressive strength, permeability and abrasion resistance, show that IRPC made with even 100% RCA was acceptable under sulfate attack. When the replacement rate was less than 50%, the performance of IRPC was very close to that of INPC. With the improvement of RCA quality, this threshold replacement rate could be further increased. The existing traditional pervious concrete can only be used in applications with low abrasive forces. However, IRPC can be used for applications with medium or even high abrasive forces, which greatly expands the application range of pervious concrete.

Author Contributions

Conceptualization, M.H. and H.L.; Data curation, M.H. and B.C.; Formal analysis, B.C. and C.C.; Funding acquisition, H.L. and P.Z.; Investigation, B.C. and X.W.; Methodology, P.Z.; Project administration, B.C. and H.L.; Resources, Y.L. and H.L.; Supervision, P.Z.; Validation, M.H., Y.L. and H.L.; Visualization, M.H.; Writing—original draft, M.H.; Writing—review and editing, M.H. and H.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China, grant number 51878081.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

This research is also financial supported by State Key Laboratory of Silicate Materials for Architectures (Wuhan University of Technology), grant number SYSJJ2020-14.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zheng, Y.; Zhuo, J.; Zhang, P. A review on durability of nano-SiO2 and basalt fiber modified recycled aggregate concrete. Constr. Build. Mater. 2021, 304, 124659. [Google Scholar] [CrossRef]
  2. Chan, R.; Liu, X.; Galobardes, I. Parametric study of functionally graded concretes incorporating steel fibres and recycled aggregates. Constr. Build. Mater. 2020, 242, 118186. [Google Scholar] [CrossRef]
  3. Revilla-Cuesta, V.; Skaf, M.; Santamaría, A.; Ortega-López, V.; Manso, J.M. Assessment of longitudinal and transversal plastic behavior of recycled aggregate self-compacting concrete: A two-way study. Constr. Build. Mater. 2021, 292, 123426. [Google Scholar] [CrossRef]
  4. Sahraei Moghadam, A.; Omidinasab, F.; Abdalikia, M. The effect of initial strength of concrete wastes on the fresh and hardened properties of recycled concrete reinforced with recycled steel fibers. Constr. Build. Mater. 2021, 300, 124284. [Google Scholar] [CrossRef]
  5. Silva, R.V.; de Brito, J.; Dhir, R.K. Establishing a relationship between modulus of elasticity and compressive strength of recycled aggregate concrete. J. Clean. Prod. 2016, 112, 2171–2186. [Google Scholar] [CrossRef]
  6. Zhu, P.; Hua, M.; Liu, H.; Wang, X.; Chen, C. Interfacial evaluation of geopolymer mortar prepared with recycled geopolymer fine aggregates. Constr. Build. Mater. 2020, 259, 119849. [Google Scholar] [CrossRef]
  7. Rockson, C.; Tamanna, K.; Shahria Alam, M.; Rteil, A. Effect of rebar embedment length on the bond behavior of commercially produced recycled concrete using beam-end specimens. Constr. Build. Mater. 2021, 286, 122957. [Google Scholar] [CrossRef]
  8. Lo, F.-C.; Lee, M.-G.; Lo, S.-L. Effect of coal ash and rice husk ash partial replacement in ordinary Portland cement on pervious concrete. Constr. Build. Mater. 2021, 286, 122947. [Google Scholar] [CrossRef]
  9. Elizondo-Martínez, E.-J.; Andrés-Valeri, V.-C.; Jato-Espino, D.; Rodriguez-Hernandez, J. Review of porous concrete as multifunctional and sustainable pavement. J. Build. Eng. 2020, 27, 100967. [Google Scholar] [CrossRef]
  10. Shabalala, A.N.; Ekolu, S.O.; Diop, S.; Solomon, F. Pervious concrete reactive barrier for removal of heavy metals from acid mine drainage—Column study. J. Hazard. Mater. 2017, 323, 641–653. [Google Scholar] [CrossRef]
  11. Bhutta, M.A.R.; Tsuruta, K.; Mirza, J. Evaluation of high-performance porous concrete properties. Constr. Build. Mater. 2012, 31, 67–73. [Google Scholar] [CrossRef]
  12. Vázquez-Rivera, N.I.; Soto-Pérez, L.; St John, J.N.; Molina-Bas, O.I.; Hwang, S.S. Optimization of pervious concrete containing fly ash and iron oxide nanoparticles and its application for phosphorus removal. Constr. Build. Mater. 2015, 93, 22–28. [Google Scholar] [CrossRef] [Green Version]
  13. Feng, J.; Zong, N.; Zhu, P.; Liu, H.; Yao, L.; Geng, J. The Frost-resisting Durability of High Strength Self-Compacting Pervious Concrete in Deicing Salt Environment. J. Wuhan Univ. Technol. Sci. Ed. 2020, 35, 167–175. [Google Scholar] [CrossRef]
  14. Zhu, P.; Hao, Y.; Liu, H.; Wang, X.; Gu, L. Durability evaluation of recycled aggregate concrete in a complex environment. J. Clean. Prod. 2020, 273, 122569. [Google Scholar] [CrossRef]
  15. Saberian, M.; Li, J. Investigation of the mechanical properties and carbonation of construction and demolition materials together with rubber. J. Clean. Prod. 2018, 202, 553–560. [Google Scholar] [CrossRef]
  16. Kazmi, S.M.S.; Munir, M.J.; Wu, Y.-F.; Patnaikuni, I.; Zhou, Y.; Xing, F. Effect of different aggregate treatment techniques on the freeze-thaw and sulfate resistance of recycled aggregate concrete. Cold Reg. Sci. Technol. 2020, 178, 103126. [Google Scholar] [CrossRef]
  17. Vieira, G.L.; Schiavon, J.Z.; Borges, P.M.; da Silva, S.R.; de Oliveira Andrade, J.J. Influence of recycled aggregate replacement and fly ash content in performance of pervious concrete mixtures. J. Clean. Prod. 2020, 271, 122665. [Google Scholar] [CrossRef]
  18. Gonçalves, T.; Silva, R.V.; de Brito, J.; Fernández, J.M.; Esquinas, A.R. Mechanical and durability performance of mortars with fine recycled concrete aggregates and reactive magnesium oxide as partial cement replacement. Cem. Concr. Compos. 2020, 105, 103420. [Google Scholar] [CrossRef]
  19. Peng, Q.; Wang, L.; Lu, Q. Influence of recycled coarse aggregate replacement percentage on fatigue performance of recycled aggregate concrete. Constr. Build. Mater. 2018, 169, 347–353. [Google Scholar] [CrossRef]
  20. Zhu, P.; Hao, Y.; Liu, H.; Wei, D.; Liu, S.; Gu, L. Durability evaluation of three generations of 100% repeatedly recycled coarse aggregate concrete. Constr. Build. Mater. 2019, 210, 442–450. [Google Scholar] [CrossRef]
  21. Zhang, J.-Y.; Xing, Y.-Y.; Wang, Q.-W.; Zhang, N.; Deng, W.; Gao, E.-Q. Two new CuI compounds with zwitterionic tetrazolate ligand: In situ synthesis, crystal structures, luminescence and photocatalytic properties. J. Solid State Chem. 2015, 232, 19–25. [Google Scholar] [CrossRef]
  22. Lu, J.-X.; Yan, X.; He, P.; Poon, C.S. Sustainable design of pervious concrete using waste glass and recycled concrete aggregate. J. Clean. Prod. 2019, 234, 1102–1112. [Google Scholar] [CrossRef]
  23. El-Hassan, H.; Kianmehr, P.; Zouaoui, S. Properties of pervious concrete incorporating recycled concrete aggregates and slag. Constr. Build. Mater. 2019, 212, 164–175. [Google Scholar] [CrossRef]
  24. Ma, H.; Gong, W.; Yu, H.; Sun, W. Durability of concrete subjected to dry-wet cycles in various types of salt lake brines. Constr. Build. Mater. 2018, 193, 286–294. [Google Scholar] [CrossRef]
  25. Bagheri, A.; Ajam, A.; Zanganeh, H. Investigation of chloride ingress into concrete under very early age exposure conditions. Constr. Build. Mater. 2019, 225, 801–811. [Google Scholar] [CrossRef]
  26. Xie, F.; Li, J.; Zhao, G.; Wang, C.; Wang, Y.; Zhou, P. Experimental investigations on the durability and degradation mechanism of cast-in-situ recycled aggregate concrete under chemical sulfate attack. Constr. Build. Mater. 2021, 297, 123771. [Google Scholar] [CrossRef]
  27. Sarkar, S.; Mahadevan, S.; Meeussen, J.C.L.; van der Sloot, H.; Kosson, D.S. Numerical simulation of cementitious materials degradation under external sulfate attack. Cem. Concr. Compos. 2010, 32, 241–252. [Google Scholar] [CrossRef] [Green Version]
  28. Tam, V.W.Y.; Gao, X.F.; Tam, C.M. Microstructural analysis of recycled aggregate concrete produced from two-stage mixing approach. Cem. Concr. Res. 2005, 35, 1195–1203. [Google Scholar] [CrossRef] [Green Version]
  29. ASTM C33/C33M-18. Standard Specification for Concrete Aggregates; ASTM International: West Conshohocken, PA, USA, 2018. [Google Scholar]
  30. GB/T 25177-2010. Recycled Coarse Aggregate for Concrete. Beijing, China. 2010. Available online: http://codeofchina.com/standard/GBT25177-2010.html (accessed on 1 September 2021).
  31. CJJ/T 135-2009. Technical Specification for Pervious Cement Conerete Pavement. Beijing, China. 2009. Available online: https://www.chinesestandard.net/PDF/English.aspx/CJJT135-2009 (accessed on 1 September 2021).
  32. ASTM C109/C109M-20a. Standard Test. Method for Compressive Strength of Hydraulic Cement Mortars (Using 2-in. or [50-mm] Cube Specimens); ASTM International: West Conshohocken, PA, USA, 2020. [Google Scholar]
  33. JC/T 421-2004. Method of Wear Abrasion for Harden Mortar. Beijing, China. 2004. Available online: https://www.chinesestandard.net/PDF/English.aspx/JCT421-2004 (accessed on 1 September 2021).
  34. GB/T 50082-2009. Standard for Test. Methods of Long-Term Performance and Durability of Ordinary Concrete. Beijing, China. 2009. Available online: https://www.standardsofchina.com/standard/GBT50082-2009 (accessed on 1 September 2021).
  35. Yu, X.; Chen, D.; Feng, J.; Zhang, Y.; Liao, Y. Behavior of mortar exposed to different exposure conditions of sulfate attack. Ocean Eng. 2018, 157, 1–12. [Google Scholar] [CrossRef]
  36. Rozière, E.; Loukili, A.; El Hachem, R.; Grondin, F. Durability of concrete exposed to leaching and external sulphate attacks. Cem. Concr. Res. 2009, 39, 1188–1198. [Google Scholar] [CrossRef] [Green Version]
  37. Liu, K.; Deng, M.; Mo, L. Influence of pH on the formation of gypsum in cement materials during sulfate attack. Adv. Cem. Res. 2015, 27, 487–493. [Google Scholar] [CrossRef]
  38. Colman, C.; Bulteel, D.; Thiery, V.; Rémond, S.; Michel, F.; Courard, L. Internal sulfate attack in mortars containing contaminated fine recycled concrete aggregates. Constr. Build. Mater. 2021, 272, 121851. [Google Scholar] [CrossRef]
  39. Mata, L.A.; Leming, M.L. Vertical Distribution of Sediments in Pervious Concrete Pavement Systems. ACI Mater. J. 2012, 109, 149–155. [Google Scholar] [CrossRef]
  40. Tang, Z.; Li, W.; Ke, G.; Zhou, J.L.; Tam, V.W.Y. Sulfate attack resistance of sustainable concrete incorporating various industrial solid wastes. J. Clean. Prod. 2019, 218, 810–822. [Google Scholar] [CrossRef]
  41. Zhang, Z.; Jin, X.; Luo, W. Long-term behaviors of concrete under low-concentration sulfate attack subjected to natural variation of environmental climate conditions. Cem. Concr. Res. 2019, 116, 217–230. [Google Scholar] [CrossRef]
  42. Wei, Y.; Chai, J.; Qin, Y.; Li, Y.; Xu, Z.; Li, Y.; Ma, Y. Effect of fly ash on mechanical properties and microstructure of cellulose fiber-reinforced concrete under sulfate dry–wet cycle attack. Constr. Build. Mater. 2021, 302, 124207. [Google Scholar] [CrossRef]
  43. Hisseine, O.A.; Wilson, W.; Sorelli, L.; Tolnai, B.; Tagnit-Hamou, A. Nanocellulose for improved concrete performance: A macro-to-micro investigation for disclosing the effects of cellulose filaments on strength of cement systems. Constr. Build. Mater. 2019, 206, 84–96. [Google Scholar] [CrossRef]
  44. Onuaguluchi, O.; Banthia, N. Long-term sulfate resistance of cementitious composites containing fine crumb rubber. Cem. Concr. Compos. 2019, 104, 103354. [Google Scholar] [CrossRef]
  45. Çakır, Ö. Experimental analysis of properties of recycled coarse aggregate (RCA) concrete with mineral additives. Constr. Build. Mater. 2014, 68, 17–25. [Google Scholar] [CrossRef]
  46. Zhao, G.; Guo, M.; Cui, J.; Li, J.; Xu, L. Partially-exposed cast-in-situ concrete degradation induced by internal-external sulfate and magnesium multiple coupled attack. Constr. Build. Mater. 2021, 294, 123560. [Google Scholar] [CrossRef]
  47. Li, Y.; Yang, X.; Lou, P.; Wang, R.; Li, Y.; Si, Z. Sulfate attack resistance of recycled aggregate concrete with NaOH-solution-treated crumb rubber. Constr. Build. Mater. 2021, 287, 123044. [Google Scholar] [CrossRef]
  48. Dilbas, H.; Şimşek, M.; Çakır, Ö. An investigation on mechanical and physical properties of recycled aggregate concrete (RAC) with and without silica fume. Constr. Build. Mater. 2014, 61, 50–59. [Google Scholar] [CrossRef]
Applsci 11 09647 g001 550

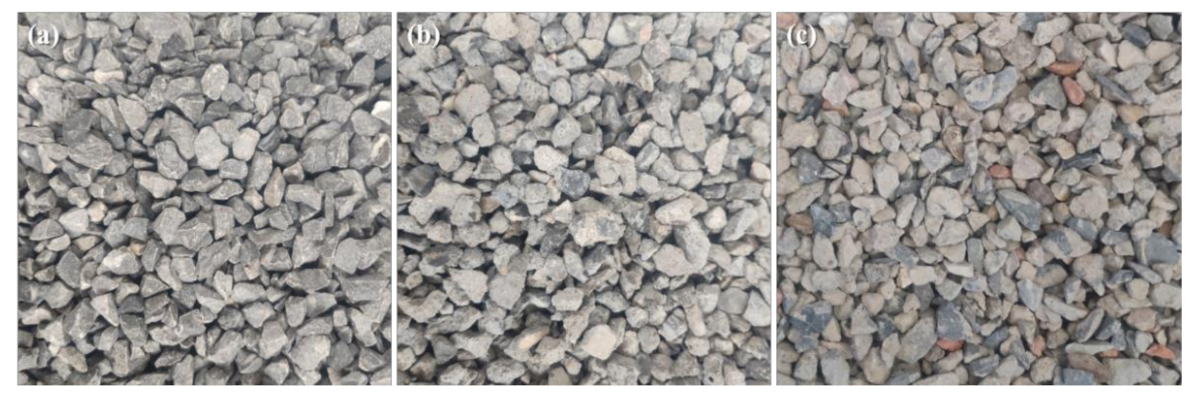

Figure 1. Macro photographs of three types of aggregate: (a) NA; (b) RCA1; and (c) RCA2.
Figure 1. Macro photographs of three types of aggregate: (a) NA; (b) RCA1; and (c) RCA2.
Applsci 11 09647 g001
Applsci 11 09647 g002 550

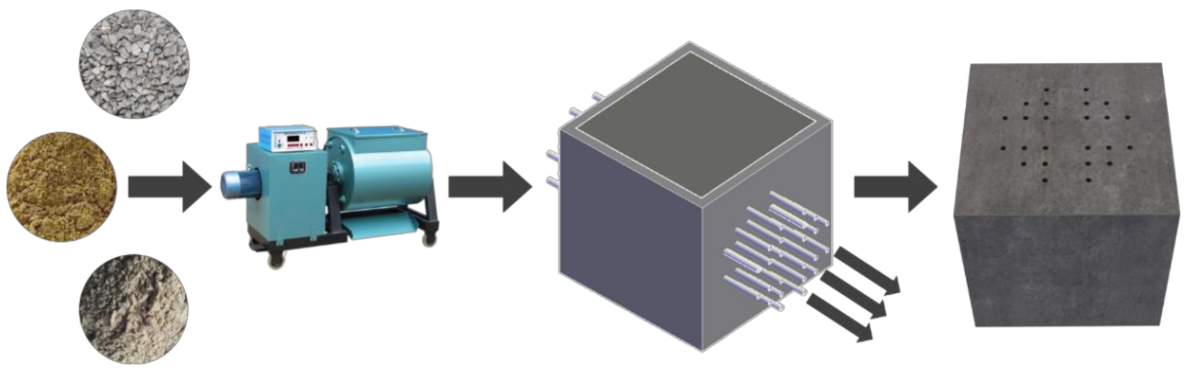

Figure 2. Schematic diagram of the preparation process of IRPC.
Figure 2. Schematic diagram of the preparation process of IRPC.
Applsci 11 09647 g002
Applsci 11 09647 g003 550

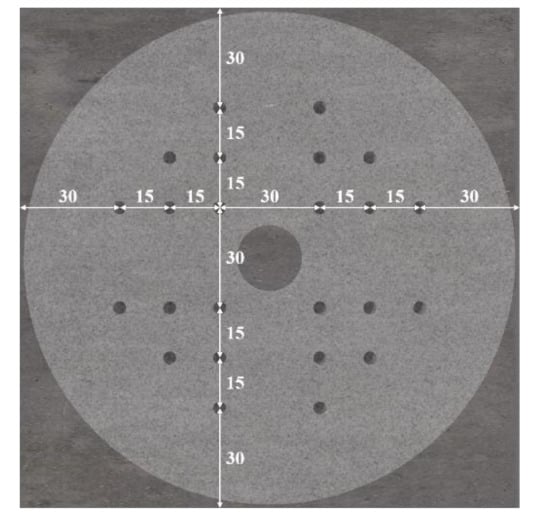

Figure 3. Schematic diagram of the pore distribution.
Figure 3. Schematic diagram of the pore distribution.
Applsci 11 09647 g003
Applsci 11 09647 g004 550

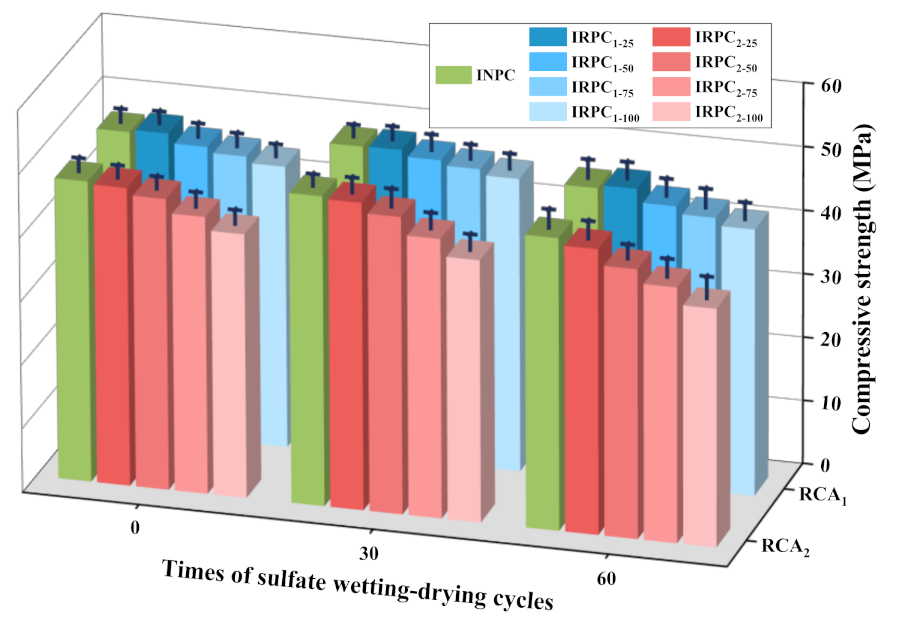

Figure 4. Compressive strength of IRPC with variable replacement rates after different sulfate wetting-drying cycles.
Figure 4. Compressive strength of IRPC with variable replacement rates after different sulfate wetting-drying cycles.
Applsci 11 09647 g004
Applsci 11 09647 g005 550
Figure 5. Permeability coefficients of IRPC before and after the abrasion after different sulfate wetting-drying cycles.
Figure 5. Permeability coefficients of IRPC before and after the abrasion after different sulfate wetting-drying cycles.
Applsci 11 09647 g005
Applsci 11 09647 g006 550

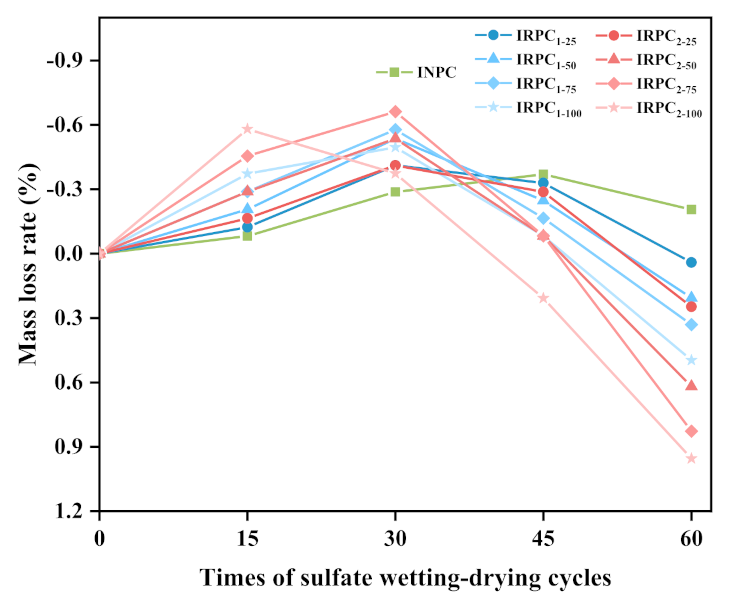

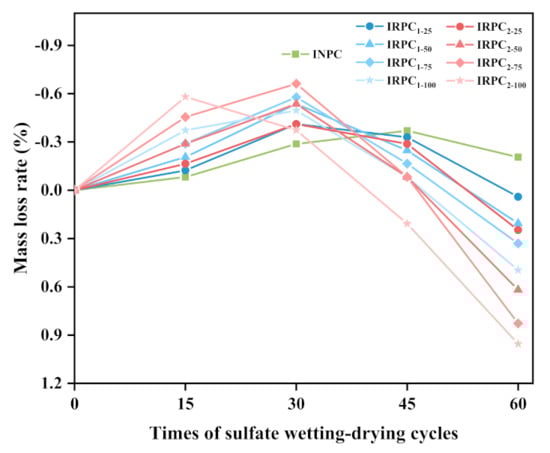

Figure 6. Mass-loss rate of IRPC with variable replacement rates after different sulfate wetting-drying cycles.
Figure 6. Mass-loss rate of IRPC with variable replacement rates after different sulfate wetting-drying cycles.
Applsci 11 09647 g006
Applsci 11 09647 g007 550

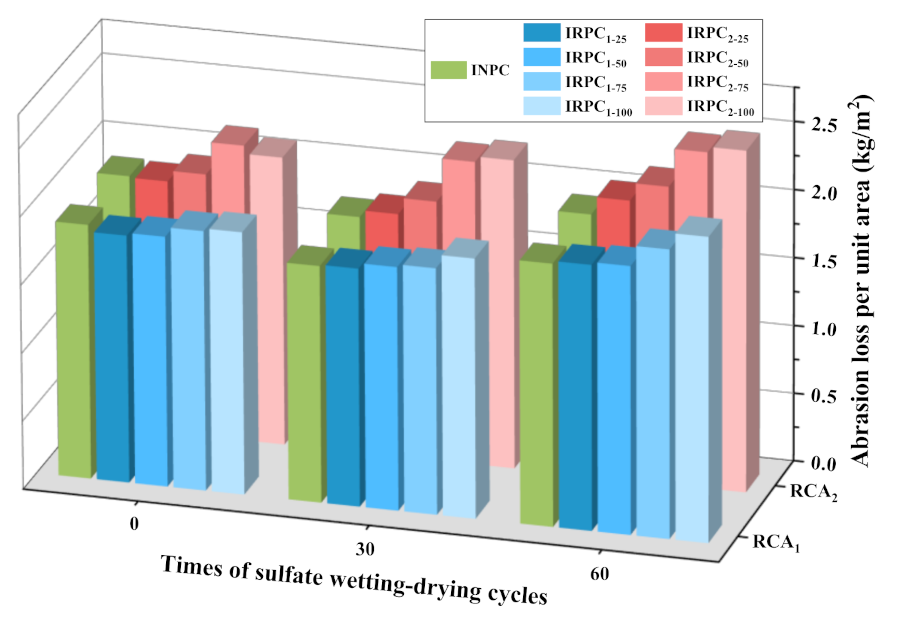

Figure 7. Abrasion loss per unit area on the surface layer of IRPC with variable replacement rates after different sulfate wetting-drying cycles.
Figure 7. Abrasion loss per unit area on the surface layer of IRPC with variable replacement rates after different sulfate wetting-drying cycles.
Applsci 11 09647 g007
Applsci 11 09647 g008 550

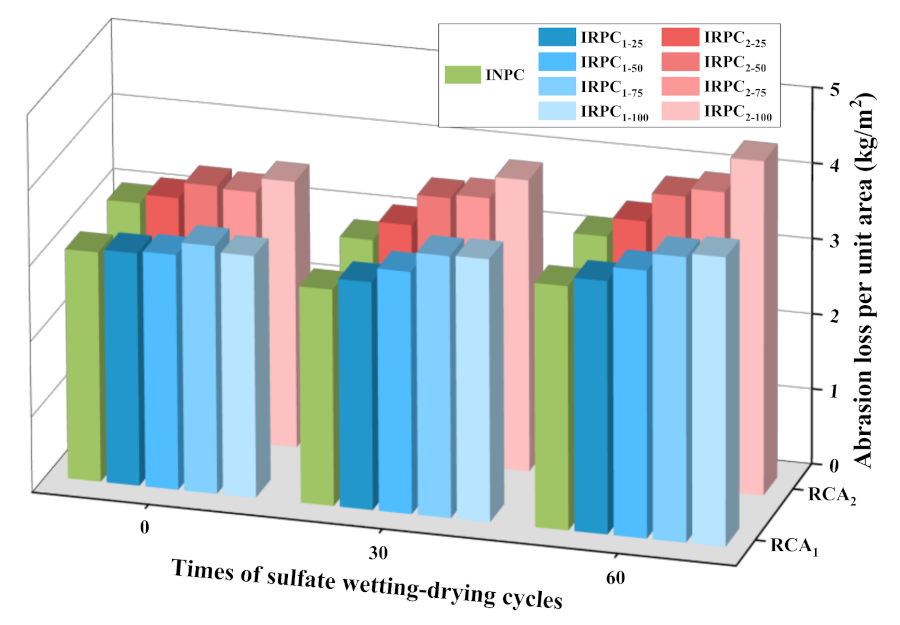

Figure 8. Abrasion loss per unit area on the internal layer of IRPC with variable replacement rates after different sulfate wetting-drying cycles.
Figure 8. Abrasion loss per unit area on the internal layer of IRPC with variable replacement rates after different sulfate wetting-drying cycles.
Applsci 11 09647 g008
Applsci 11 09647 g009 550

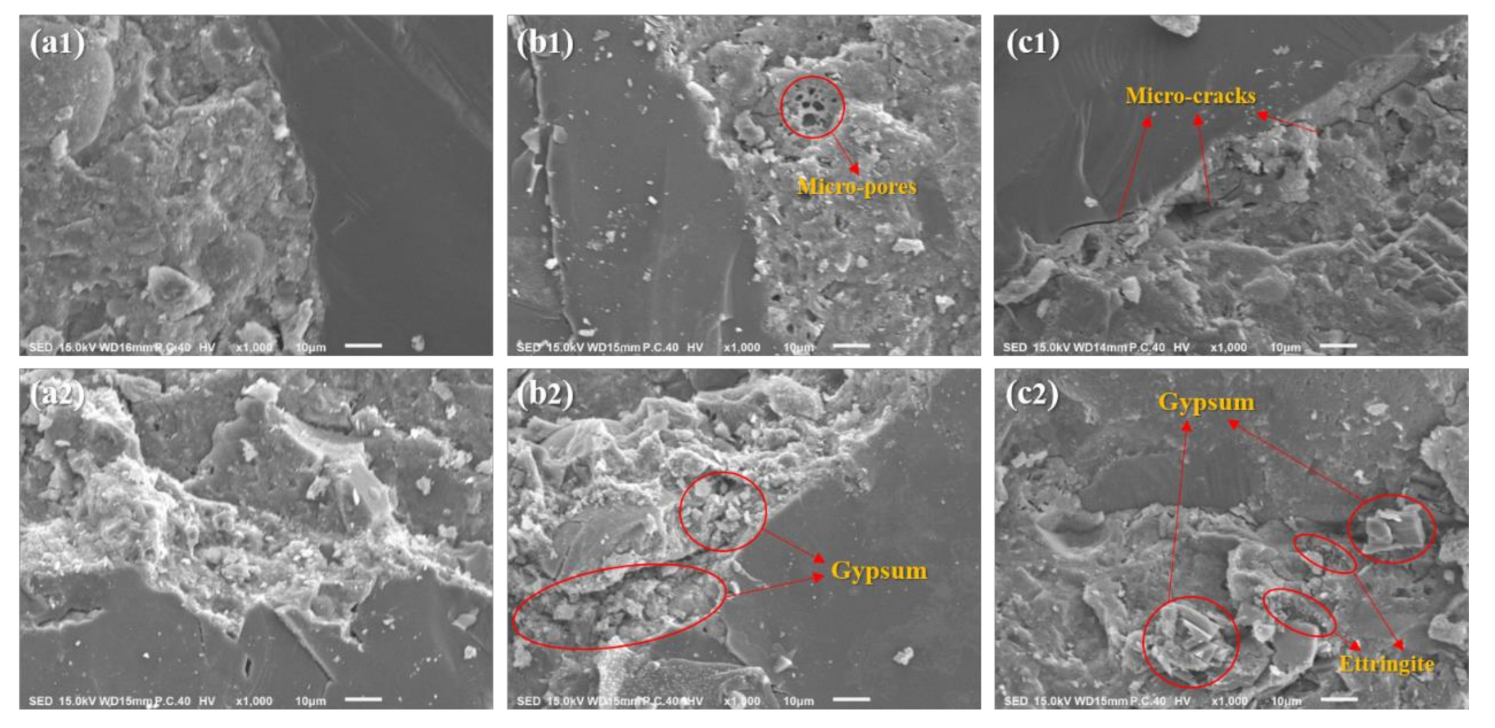

Figure 9. SEM images of (a1) INPC, (b1) IRPC1-100 and (c1) IRPC2-100 before sulfate attack, and (a2) INPC, (b2) IRPC1-100 and (c2) IRPC2-100 after 60 sulfate wetting-drying cycles.
Figure 9. SEM images of (a1) INPC, (b1) IRPC1-100 and (c1) IRPC2-100 before sulfate attack, and (a2) INPC, (b2) IRPC1-100 and (c2) IRPC2-100 after 60 sulfate wetting-drying cycles.
Applsci 11 09647 g009
Table
Table 1. Chemical compositions of binding materials. (wt.%).
Table 1. Chemical compositions of binding materials. (wt.%).
CaOSiO2Al2O3Fe2O3SO3MgOK2OTiO2MnOLOI a
Cement61.0320.417.423.742.061.260.750.280.151.39
FA3.7251.5029.333.771.691.161.700.981.161.18
SF0.2887.041.130.980.850.87--0.130.86
a LOI: Loss on ignition.
Table
Table 2. Physical properties of the coarse aggregates.
Table 2. Physical properties of the coarse aggregates.
Aggregate TypesApparent Density (kg/m3)Water Absorption at 24 h (%)Crushing Index (%)Attached Mortar Content (%)
NA27031.85.3-
RCA126213.112.424.2
RCA225436.616.141.6
Table
Table 3. Mixture proportions of innovative pervious concrete specimens (kg/m3).
Table 3. Mixture proportions of innovative pervious concrete specimens (kg/m3).
Concrete TypesNARCASandCementFASFSPWaterAdditional Water
INPC1102096242853535.32480
IRPC1-2582726796242853535.32483.5
IRPC1-5055153596242853535.32487.0
IRPC1-7527680296242853535.324810.4
IRPC1-1000106996242853535.324813.9
IRPC2-2582725996242853535.324812.5
IRPC2-5055151996242853535.324824.9
IRPC2-7527677896242853535.324837.4
IRPC2-1000103796242853535.324849.8
INPC: Innovative natural pervious concrete; IRPC: Innovative recycled pervious concrete; NA: Natural aggregate; RCA: Recycled coarse aggregate; FA: Fly ash; SF: Silica fume; SP: Polycarboxylate type superplasticizer.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Hua, M.; Chen, B.; Liu, Y.; Liu, H.; Zhu, P.; Chen, C.; Wang, X. Durability and Abrasion Resistance of Innovative Recycled Pervious Concrete with Recycled Coarse Aggregate of Different Quality under Sulfate Attack. Appl. Sci. 2021, 11, 9647. https://doi.org/10.3390/app11209647

AMA Style

Hua M, Chen B, Liu Y, Liu H, Zhu P, Chen C, Wang X. Durability and Abrasion Resistance of Innovative Recycled Pervious Concrete with Recycled Coarse Aggregate of Different Quality under Sulfate Attack. Applied Sciences. 2021; 11(20):9647. https://doi.org/10.3390/app11209647

Chicago/Turabian Style

Hua, Minqi, Bo Chen, Yun Liu, Hui Liu, Pinghua Zhu, Chunhong Chen, and Xinjie Wang. 2021. "Durability and Abrasion Resistance of Innovative Recycled Pervious Concrete with Recycled Coarse Aggregate of Different Quality under Sulfate Attack" Applied Sciences 11, no. 20: 9647. https://doi.org/10.3390/app11209647

APA Style

Hua, M., Chen, B., Liu, Y., Liu, H., Zhu, P., Chen, C., & Wang, X. (2021). Durability and Abrasion Resistance of Innovative Recycled Pervious Concrete with Recycled Coarse Aggregate of Different Quality under Sulfate Attack. Applied Sciences, 11(20), 9647. https://doi.org/10.3390/app11209647

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
