Assessment of a Discontinuous Galerkin Method for the Simulation of the Turbulent Flow around the DrivAer Car Model

Abstract

The turbulent flow over the DrivAer fastback model is here investigated with an order-adaptive discontinuous Galerkin (DG) method. The growing need of high-fidelity flow simulations for the accurate determination of problems, e.g., vehicle aerodynamics, promoted research on models and methods to improve the computational efficiency and to bring the practice of Scale Resolving Simulations (SRS), like the large-eddy simulation (LES), to an industrial level. An appealing choice for SRS is the Implicit LES (ILES) via a high-order DG method, where the favourable numerical dissipation of the space discretization scheme plays directly the role of a subgrid-scale model. Implicit time integration and the p-adaptive algorithm reduce the computational cost allowing a high-fidelity description of the physical phenomenon with very coarse mesh and moderate number of degrees of freedom. Two different models have been considered: (i) a simplified DrivAer fastback model, without the rear-view mirrors and the wheels, and a smooth underbody; ($ii$) the DrivAer fastback model, without rear-view mirrors and a smooth underbody. The predicted results have been compared with experimental data and CFD reference results, showing a good agreement.

1. Introduction

In the last decade, the Computational Fluid Dynamics (CFD) has received increasing attention from the research community and automotive industry, as it is considered an important design tool that can supplement the more expensive experiments in wind tunnels. The accurate prediction of the complex massively separated turbulent flow around a car is becoming of paramount importance to reduce noise level and improve fuel efficiency. As observed in [1], the aerodynamic drag is the main energy-consumption source over 80 km/h. Moreover, the effect of the aerodynamic drag on energy losses is amplified in electric vehicles, where losses are $4.4$ times larger than in vehicles with internal combustion engines [2]. The prediction of the lift and drag forces has been conventionally carried out with the Reynolds Averaged Navier Stokes (RANS) approach, which allows one to obtain reference values at a feasible computing cost for industry. However, the typical unsteady features of the flow around bluff and blunt ended bodies such as hatchback, estate and SUV type cars are difficult to predict with a RANS approach. Examples of reliable drag prediction by RANS can be found in literature, but they seem case dependent [3,4,5,6] and suggest avoiding RANS for an accurate aerodynamic development. To overcome these limitations, more accurate and costly turbulence approaches can be used, such as hybrid RANS-LES [6] or LES [7] methods, whose widespread diffusion in industry has been fostered by the ever increasing computational resources.

Realistic car models were not available for CFD simulations before 2012, and only simplified geometries such as the Ahmed [8] or the SAE [9] bodies could be used for validation and sensitivity studies. However, these models were often characterised by few aerodynamic features representative of a car. To fill the gap between a very simple bluff body and a fully detailed production car, TU Munich in collaboration with the Audi AG and the BMW Group designed and made public the so-called DrivAer car model [10]. The model is available with three different rear end configurations: fastback, estate back, and notchback. Each model is available with a smoothed and a detailed underbody, with/without the side mirrors and wheels.

Heft et al. [11] carried out for the first time simulations with k-$\omega$ SST and k-$\omega$ SAS SST turbulence models on the fastback geometry. These results predicted reasonably well the averaged flow field around the vehicle, while some limitations appear for the detached regions. These results strengthen the belief that Scale-Resolving Simulations (SRS) are needed to correctly describe unsteady flow phenomena around vehicles. Guilmineau et al. [4] in 2014 carried out RANS simulations with an anisotropic two-equation explicit algebraic Reynolds stress and DES models on the fastback geometry. DES guaranteed a higher accuracy than RANS simulations in the prediction of drag and lift coefficients and reproduced correctly the instantaneous vortical structures. Ashton et al. [6] compared different turbulence models for RANS simulation, e.g., k-$ϵ$, k-$\omega$ SST, Spalart–Allmaras, B-EVM and EB-RSM, and DES-type models, on the fastback and estate geometry. RANS simulations were not able to correctly predict force coefficients and pressure distribution around the cars. In particular, DDES (delayed detached-eddy) and IDDES (improved delayed detached-eddy) were also considered to investigate in depth the prediction capability of the most representative hybrid methods. They showed clear advantages over RANS in the prediction of the force coefficients and unsteady flow features. However, some limitations are still evident to correctly capture the pressure distribution and vortical structures in the rear end of the car. In 2018 Aljure et al. [12] investigated the potential of the wall modelled large-eddy (WMLES) in simulating unsteady flow features over a realistic car model. WMLES proved to be able to predict unsteady flow features, but a detailed analyses on the vortical structures around the car is not provided. Recently, Rüttgers et al. [13] adopted a LES (Large Eddy Simulation) approach to predict the turbulent flow around the fastback geometry, providing a detailed and systematic analysis of the unsteady flow features.

In the present study an efficient order-adaptive discontinuous Galerkin (DG) method [14] for incompressible flows is used to perform the implicit LES [15] around the DrivAer fastback model. High-order DG finite elements methods proved to be very well suited [16,17,18,19,20,21,22,23,24,25] for ILES, where the unfiltered incompressible Navier–Stokes equations are solved, and the numerical dissipation introduced by the discretizaton itself, e.g., by numerical fluxes and the viscous stabilisation, plays the role of an explicit subgrid-scale (SGS) model that dissipates the smallest scale eddies.

The DG solver is characterised by (i) the local adaptation of the polynomial degree of the solution over the mesh, ($ii$) a multi-constraint domain decomposition algorithm to ensure the computational balance over the processes, ($iii$) the adaptation of the degree of exactness for quadrature rules and ($iv$) a p-MG multilevel preconditioner for the linear solver on the implicit time integration. Moreover, the non-trivial task of the high-order mesh generation is strongly simplified with the p-adaptive algorithm, as the local mesh refinements related to a priori knowledge of the flow features are avoided.

In particular, the aim of this work is to assess the feasibility of the ILES approach in the accurate simulation of the high-Reynolds turbulent flow around a simplified car model with a moderate number of degrees of freedom (DoFs). Two different models have been considered: (i) a simplified DrivAer fastback model, where the handles, the rear-view mirrors and the wheels have been removed, the underbody has been smoothed, and the front radiator grid has been closed; ($ii$) the DrivAer fastback model, where the handles and the rear-view mirrors were removed, and a smoothed underbody and a closed front radiator grids were considered to reduce the complexity of the “original” DrivAer model. The first model has been used to investigate the effect of the Reynolds number and of the absence of the wheels on the aerodynamic performance. Two different Reynolds number have been considered, $R{e}_L=2.435\times {10}^6$ and $R{e}_L=4.87\times {10}^6$, based on the model length L and the freestream conditions ($u_{\infty }=8$ m/s and $u_{\infty }=16$ m/s, respectively). The second model has been used to assess the predicting capability of the proposed ILES approach with a moderate number of DoFs, comparing the results with experimental data and numerical results available in literature.

The paper is organised as follows. The present computational methodology is presented in Section 2.1 and Section 2.2, while Section 2.3 gives some information about the mesh generation process. Section 3.1 and Section 3.2 report the results for the two considered DrivAer geometries. Finally, the conclusions are given in Section 4.

2. The Numerical Framework

In this section the space and time discretizations of the incompressible Navier–Stokes equations and the main strategies used to speed-up the solution process are presented.

2.1. Discontinuous Galerkin Method

ILES simulations have been performed in this work, where the unfiltered Navier–Stokes equations are solved. As reported in literature [16,17,18,19,20,21,22,23,24], DG methods are well suited for ILES, due to their dissipation and dispersion properties. The numerical dissipation introduced by the discretizaton itself, e.g., by numerical fluxes and the viscous stabilization, mainly acts at the smallest under-resolved scales and resembles a high frequency filter that mimics the role of a sub-grid-scale model. The ILES of several canonical and complex flows have been performed with the present code and can be found in [14,26].

An efficient order-adaptive incompressible discontinuous Galerkin (DG) method [14] has been used in this work. The incompressible DG solver relies on a modified formulation for the inviscid interface numerical flux [27], computed as the exact solution of the Riemann problem relaxed by an artificial compressibility perturbation that guarantees the necessary coupling between the discrete incompressibility constraint and the rest of the governing equations. The nonlinear system of differential algebraic equations arising from the spatial discretization is advanced in time using a high-order time integration scheme, i.e., the linearly-implicit Rosenbrock-type Runge–Kutta scheme, which overcomes the severe timestep restriction proper of explicit methods. In particular, the three-stage, order three ROS3P method [28] has been used. For a comprehensive discussion on the benefits of a high-order time integration scheme adopted in this work, see [29,30,31].

The main features of the DG solver are (i) the local adaptation of the polynomial degree of the solution over the mesh, ($ii$) a multi-constraint domain decomposition algorithm to ensure the computational balance over the processes, ($iii$) the adaptation of the degree of exactness for quadrature rules, and ($iv$) a p-MG multilevel preconditioner for the linear solver included in the implicit time integration.

2.2. p-Adaptation Strategy

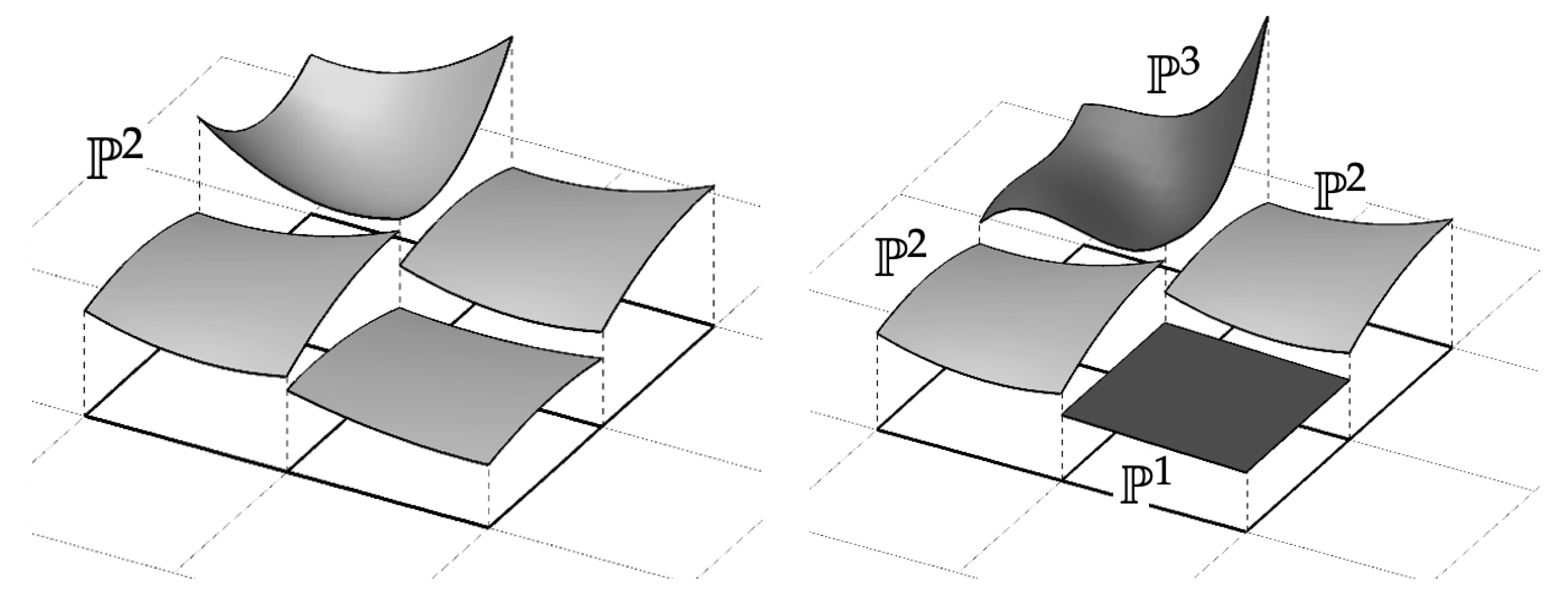

Polynomial functions are adopted in DG methods to represent the numerical solution inside the elements of the mesh with no continuity requirements at the cells interfaces. As a consequence, the order of accuracy can be varied locally by using a different degree of the polynomial representation (see Figure 1) according to some error indicator. In literature this approach is known as p-adaptation [32,33,34,35,36] and allows for the capture of the flow features by changing locally the solution accuracy.

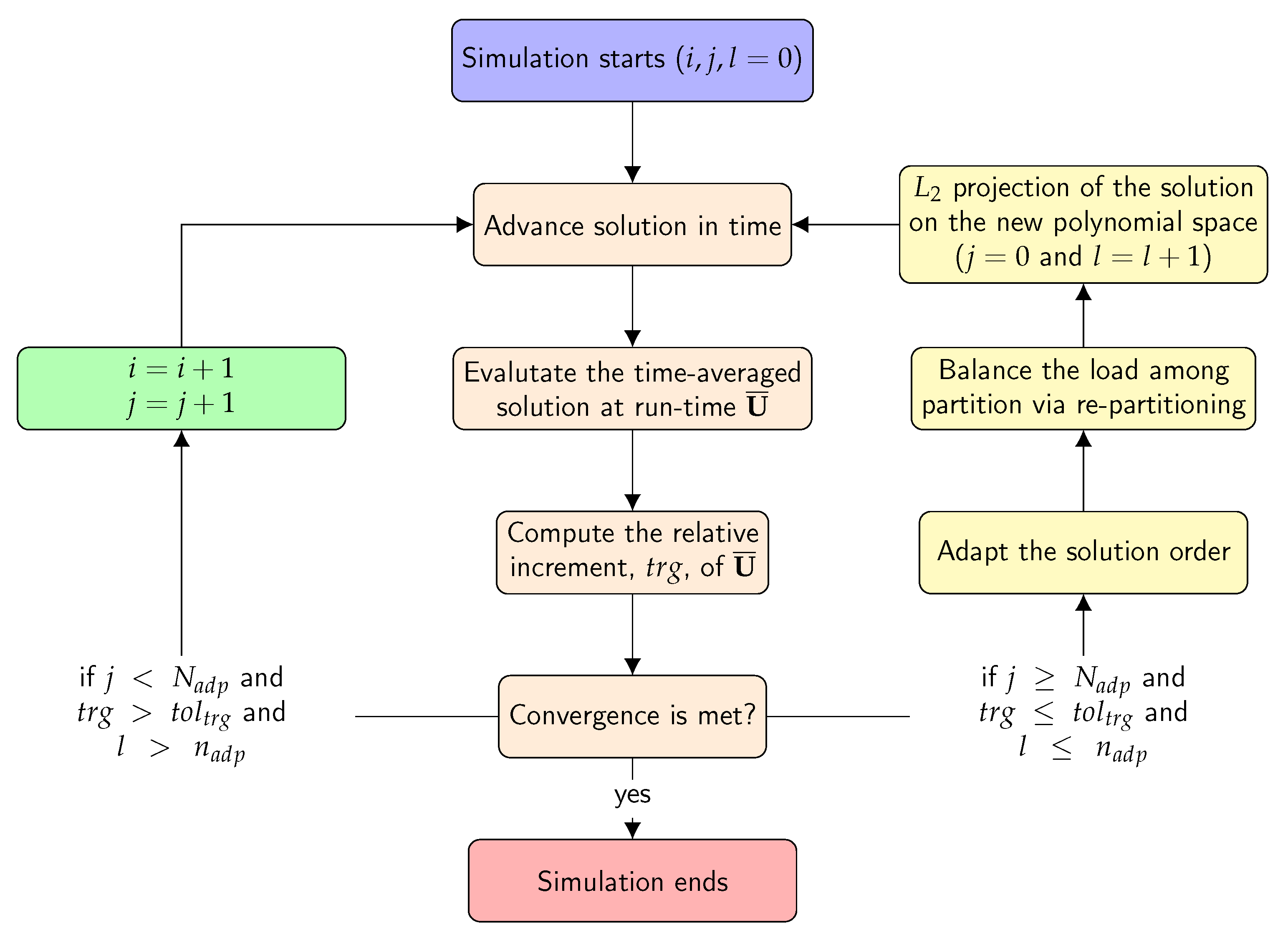

The time-averaged solution is used to compute the error estimator, as statistically stationary unsteady flow problems are the objective of this work. The estimator combines two contributions: (i) a measure of the solution jumps at grid cells interfaces [37,38]; ($ii$) the decay rate of the modal coefficients of the polynomial expansion [39]. Both indicators aim at revealing a lack/excess of spatial accuracy in the numerical discretization and are here applied to the pressure variable. For a comprehensive discussion on the error estimator implementation see [14]. This strategy can be used in parallel only with a balanced re-partitioning of the computational grid after each adaptation cycle, to overcome the natural imbalance of floating point operations per domain induced by the adaptation. The flow chart of the solution strategy is reported in Figure 2. The adaptation process is triggered by a simple indicator, $trg$, defined as the norm of the relative increment, computed at each time step, of the vector of the degrees of freedom of the time-averaged solution at run-time $\overline{\mathbf{U}}$. l is the index denoting the l-th adaptive cycle, i denotes the i-th time-step, while j denotes the j-th iteration between two adaptation cycles. The user-defined parameters for the simulation are: the number of adaptation cycles $n_{adp}$, the threshold tolerance for the activation of the adaptation process $to{l}_{trg}$ and the minimum number of time steps between two adaptation cycles ${\mathcal{N}}_{adp}$. At each adaptation cycle, only $20\%$ of elements with the higher estimated error are marked for refinement, while the coarsening is disabled. This choice is motivated by the use of coarse meshes for the simulations.

The p refinement allows also for the simplification of the mesh generation process, as the typical a priori mesh refinement required capturing the known flow features, such as wakes or detachments, is avoided. Moreover, in this work an approach to locally adapt the degree of exactness of quadrature rules according to the mesh characteristics is adopted, to avoid the over-integration of straight-sided elements, which appear in regions far from the walls. Finally, a multilevel preconditioner is used to strongly reduce the memory requirements and the operation count [26]. This preconditioner speeds up the linear systems solution, here performed via the memory-saving matrix-free FGMRES method, by solving coarse problems and moving along a given path, e.g., a V-cycle. These coarse problems are defined as a sequence of reduced polynomial degree discretizations and use GMRES as a smoother on each level. On each level, except the coarsest, the smoothers use a cheap matrix-based preconditioner built by a simply neglecting the off-diagonal blocks of the restricted implicit operator. All the details of this preconditioning technique and its use in the order adaptive framework are presented in [14,26].

2.3. High-Order Mesh Generation

An accurate treatment of curved boundaries is mandatory for the application of finite element methods such as DG methods to industrial CFD computations. In particular, high-order coarse meshes are needed to fully exploit the potential of high-order DG methods in delivering accurate solutions, while saving the overall number of cells needed to represent the geometry.

In this work, the generation of the curved high-order meshes, suitable for the DG method, is performed using the GridPro [40] software, GridPro software, 6.7 (2018), Newyork, NY, USA. Different structured meshes with high-order hexahedral elements are generated for each geometry. The software elevates the linear meshes into 2nd- (quadratic edges), 3rd- (cubic edges) or 4th- (quartic edges) order meshes. A cubic representation of the edges is adopted for the simulations presented in the following as a good trade-off between accuracy and computing time.

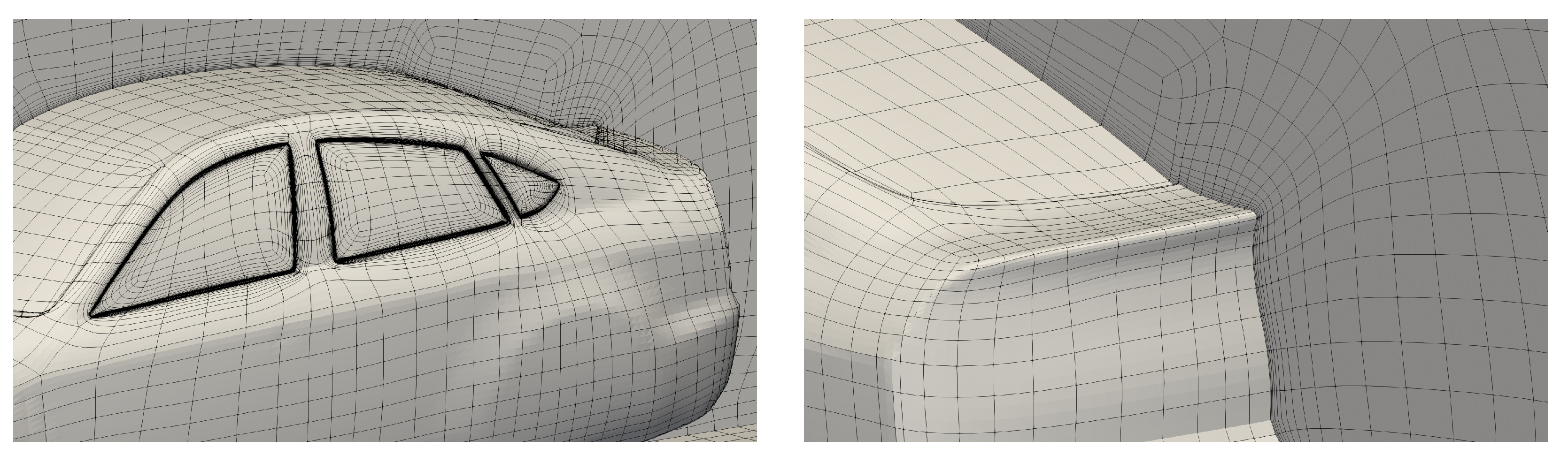

The “original” DrivAer fastback model [11] has been slightly simplified, removing the handles and the rear-view mirrors, smoothing the underbody and closing the front radiator grid. Figure 3 shows the geometry of the car body used for the simulations in Section 3.2, while Figure 4 and Figure 5 show the corresponding high-order mesh. The mesh consists of 406,304 cubic-edges hexahedral elements.

3. Results

In this section the results of the ILES for the following geometries are presented: (i) a simplified DrivAer fastback model to asses the influence of the Reynolds number and the absence of the wheels on the aerodynamic performance; ($ii$) the DrivAer fastback model to assess the capability of the proposed solver to deliver an accurate solution with a moderate number of DoFs. The accuracy of the results are assessed comparing the pressure and aerodynamic coefficients and the flow fields with experimental data [11] and reference CFD solutions [6,11,13,41]. The pressure coefficient is defined as

$$c_P=\frac{2\left(p-p_{\infty }\right)}{\rho U_{\infty }^2},$$

(1)

where $p_{\infty }$ and $U_{\infty }$ are the pressure and velocity at free stream conditions, $\rho$ the constant density and p the pressure. The drag and lift coefficients are defined as

$$c_D=\frac{2F_x}{\rho U_{\infty }^2{A}_{ref}},$$

(2)

$$c_L=\frac{2F_z}{\rho U_{\infty }^2{A}_{ref}},$$

(3)

where $F_x$ and $F_z$ are the forces acting on the vehicle along the x (streamwise) and z (normal to the ground) directions, and $A_{ref}$ is the vehicle frontal area.

The simulations are performed on a Linux cluster at the University of Bergamo (AMD EPYC 7501 at $2.0$ GHz) and on the MARCONI A-2 cluster at CINECA (Intel KNL at $1.4$ GHz).

3.1. Flow around a Simplified DrivAer Model

The simplified DrivAer model is considered to estimate the effect of the Reynolds number and of the absence of the wheels on the aerodynamics performance. Two different Reynolds number have been considered, $R{e}_L=4.87\times {10}^6$ [6,11,13,41] (high-Reynolds number case) and $R{e}_L=2.435\times {10}^6$ (low-Reynolds number case), based on the model length $L=4.6$ m and the freestream conditions ($u_{\infty }=8$ m/s and $u_{\infty }=16$ m/s for the lower and higher Reynolds number, respectively).

The wheelhouses are closed to compare the predicted results with the complete model investigated in Section 3.2 and the data available in literature. Experimental data [11] are available only for $R{e}_L=4.87\times {10}^6$ with a freestream turbulence intensity $T{u}_{\infty }<0.005$. The simulations presented in the following have been performed considering a laminar inlet.

The domain is a box of dimension $10.87L\times 2.17L\times 2.43L$, where x is the streamwise direction, y the spanwise direction and z the direction normal to the ground. The inlet section is at $2.67L$ from the car. A no-slip boundary conditions is applied to the model, while the ground moves at the same velocity as the free stream. According to [13], a symmetric half-body configuration has been considered for the simulations, and the symmetry condition is prescribed on the $y=0$ symmetry plane. All the simulations are performed with a very coarse mesh, consisting of 113,780 cubic-edges hexahedral elements. Figure 6 and Figure 7 show the mesh with details near the side pillars and the rear end of the model. The averaging time is $\sim T_C$ for the low-Reynolds number case and $\sim 3.2T_C$ for the high-Reynolds number case, where $T_C$ is a convective time computed according to the freestream velocity and the length of the model. The time step is set equal to $\Delta t=f{T}_C$, where $f=1\times {10}^{-3}$. The maximum polynomial degree of the solution is ${\mathbb{P}}^2$.

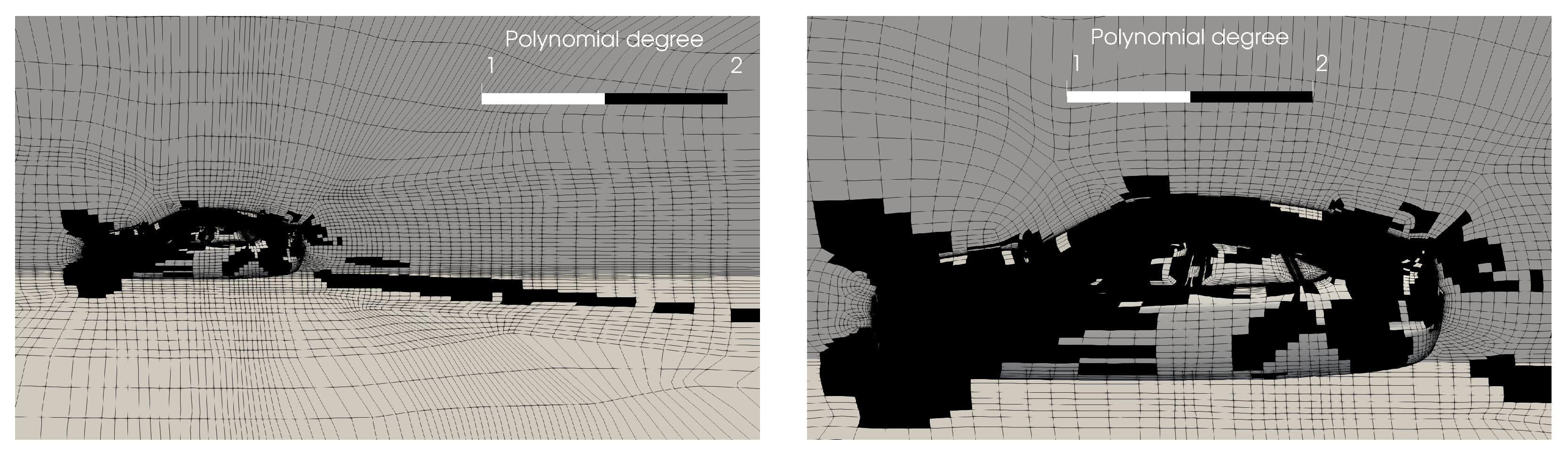

Figure 8 shows the polynomial degree distribution ${\mathbb{P}}^n$ of the solution, where the final number of DoFs per equation is 591,656 and 601,544 for the low- and high-Reynolds number case, respectively. The front part of the model, the cowl top, the windshield, the A-pillar and the rear part of the model are the regions with higher order elements. Figure 8 shows only the order distribution on the model surface, but high order elements are present also in the wake region. The polynomial degree distribution of the solution after the adaptation process is very similar between the low- and high-Reynolds number cases.

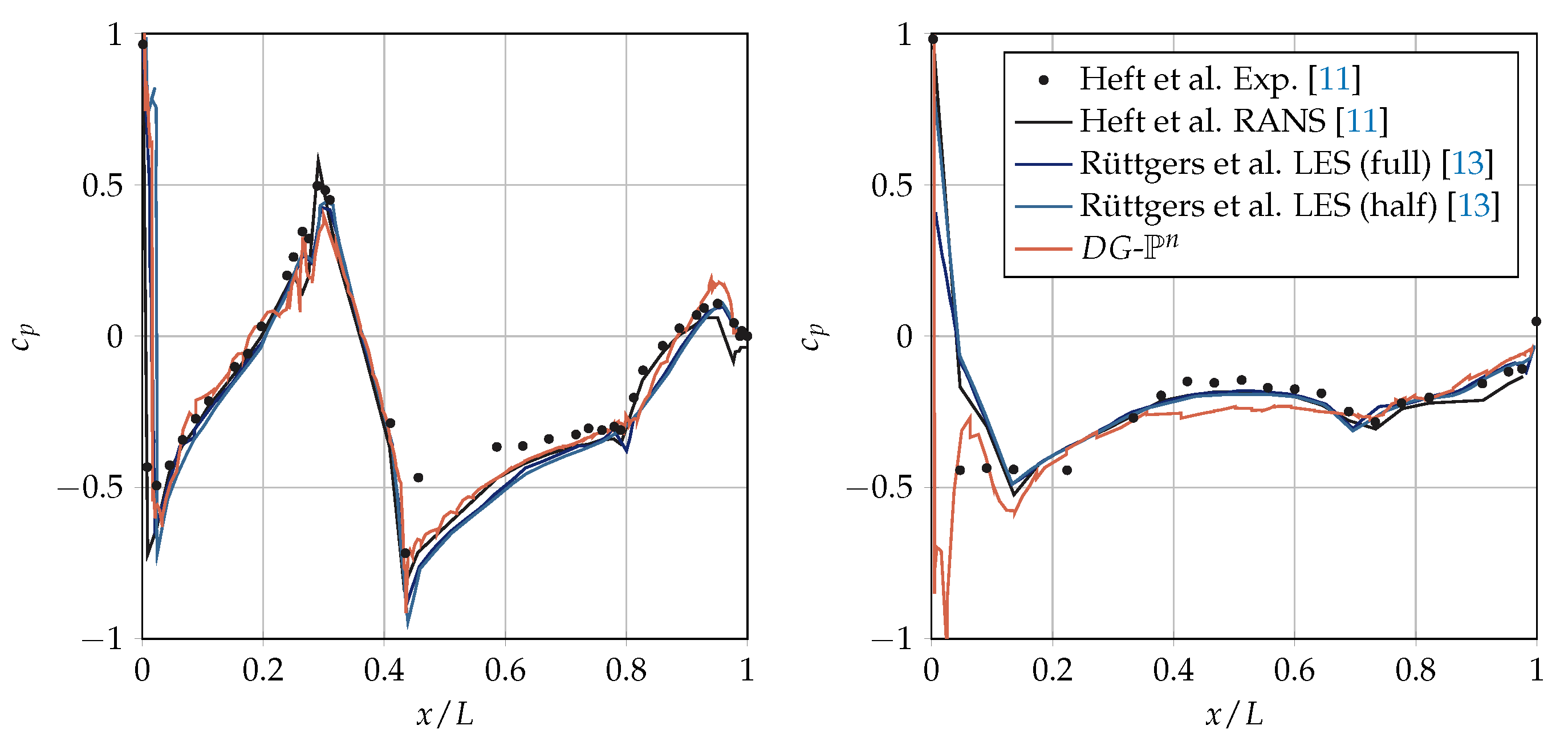

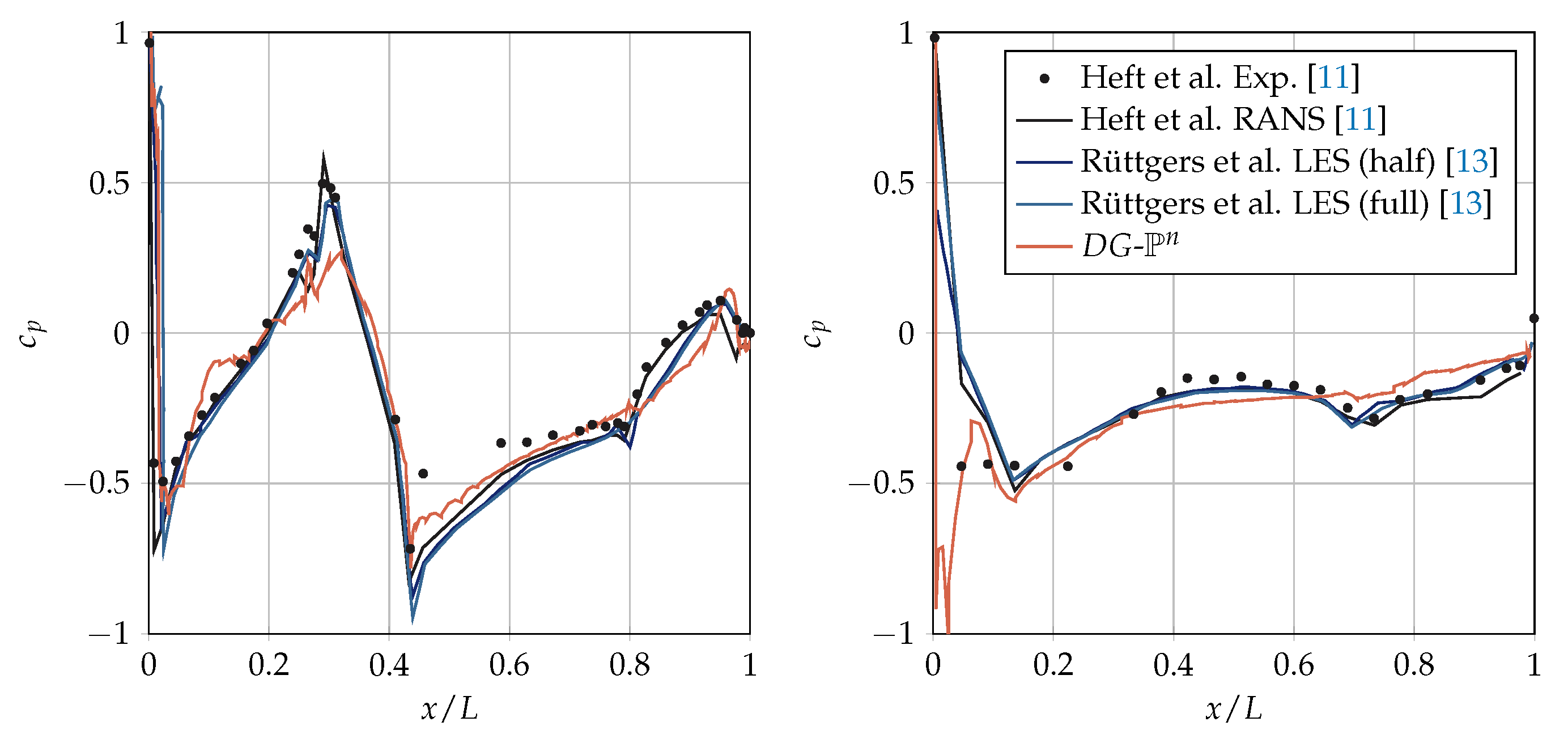

Figure 9 shows the pressure coefficient, $c_P$, distribution on the symmetry plane for the body (left) and underbody (right) of the car for the low Reynolds number case. The predicted results are in good agreement with the experimental results [11] and the LES results [13] (all references are for the $R{e}_L=4.87\times {10}^6$ and full model case). After the stagnation point on the front part of the model, flow accelerates and the pressure decreases. The minimum value is lower in the simulation. A first separation appears at the junction between the bonnet and the windshield ($x/L$∼$0.23$), while a second one appears at the cowl of the windshield ($x/L$∼$0.3$). The pressure decreases as the flow accelerates over the windshield. The flow passes on the roof, and the pressure slightly increases, while in the experiment it is almost constant. The different behaviour of the $c_P$ on the roof could be ascribed to the support that holds the model in the wind tunnel during the measurements. The pressure rises more steeply on the rear window. The rear part of the model, after the end of the rear window, shows widespread results. However, high-fidelity simulations, i.e., reference LES and the proposed ILES simulations, share a similar trend.

On the underbody (see left side of Figure 9) the flow separates after the front grid of the radiator and reattaches near the front wheels. The region between the wheelhouses is characterized by an almost constant $c_P$. The smooth underbody behaves like a diffuser, generating a downforce effect.

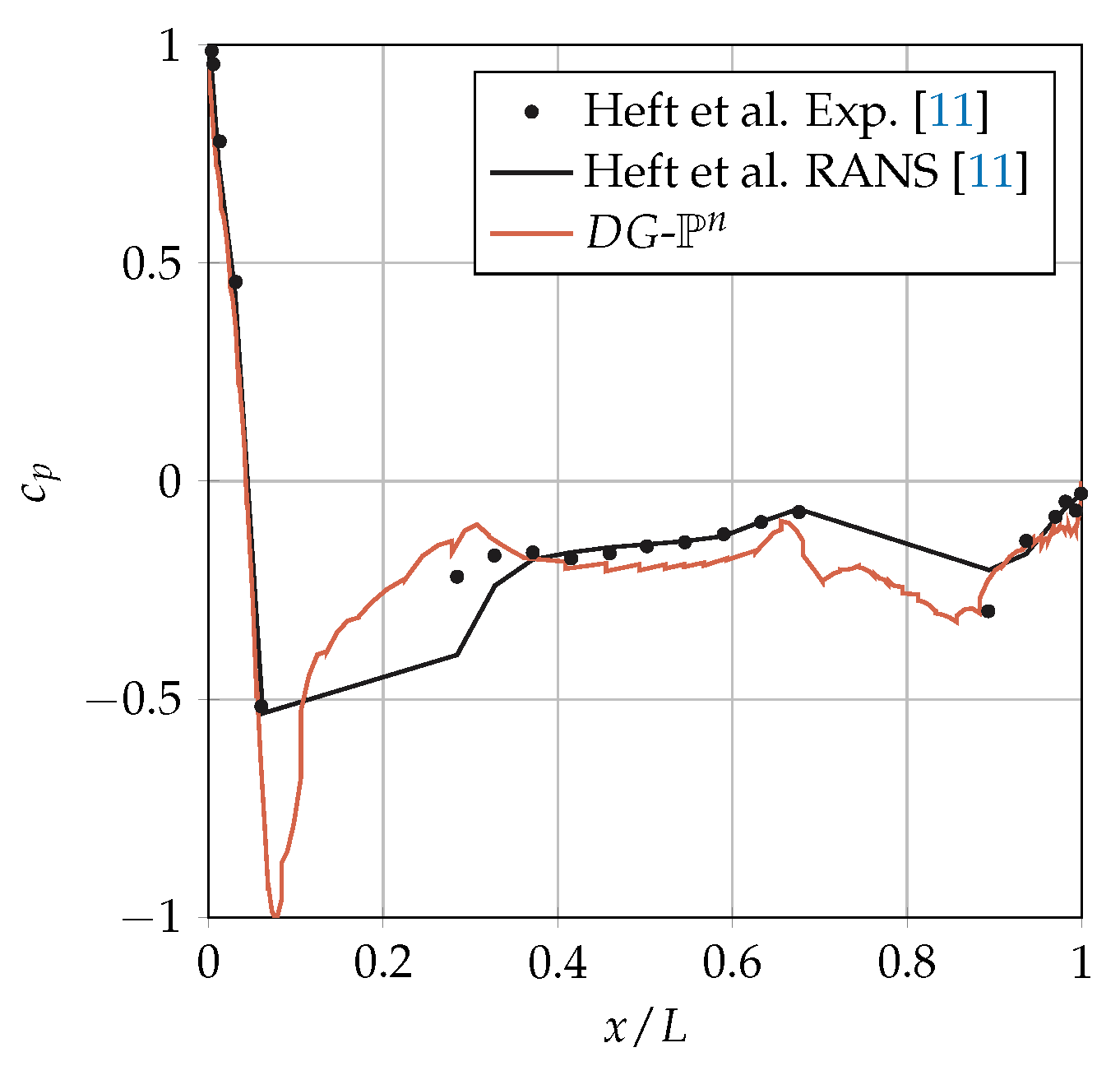

Figure 10 show the $c_P$ distribution on the plane $z=0.06$ for the low-Reynolds number case. The $c_P$ distribution shows some discrepancies with experimental data, motivated by the absence of the front rotating wheels, which alter the flowfield near the doors region. The rear part seems to be similar to the experimental data, suggesting a lower influence of the rear wheels, but the flow separation at the end of the model is more pronounced. Figure 11 and Figure 12 show the pressure coefficient distributions for the high-Reynolds number case at the same sections described above ($y=0$ and $z=0.06$). In addition, in this case the $c_P$ distribution is in good agreement with references, i.e., the experimental data of Heft et al. [11] and the LES results Rüttgers et al. [13].

An in depth comparison between low and high Reynolds results shows some differences. In particular, Figure 9 (left) shows at $x/L\simeq 0.15$ a pressure drop that corresponds to a laminar separation bubble. This difference can be explained by the lower Reynolds number, i.e., by the lower velocity approaching the car model. In fact, in the hood region, characterised by an adverse pressure gradient, the lower velocity of the flow promotes the onset of a laminar separation bubble. As expected, the predicted results for the higher Reynolds number on the symmetry plane for the body (see left side of Figure 11) are very similar to the reference data and demonstrate that the wheels do not influence significantly the pressure distribution. On the contrary, the results for the underbody (see right side of Figure 11) still show the detachment after the radiator grid and an underestimation of the $c_P$ in the doors region. However, starting from the rear wheels, the $c_P$ distribution is almost coincident with the experimental data, suggesting a lower influence of the rear wheels on the predicted flow field.

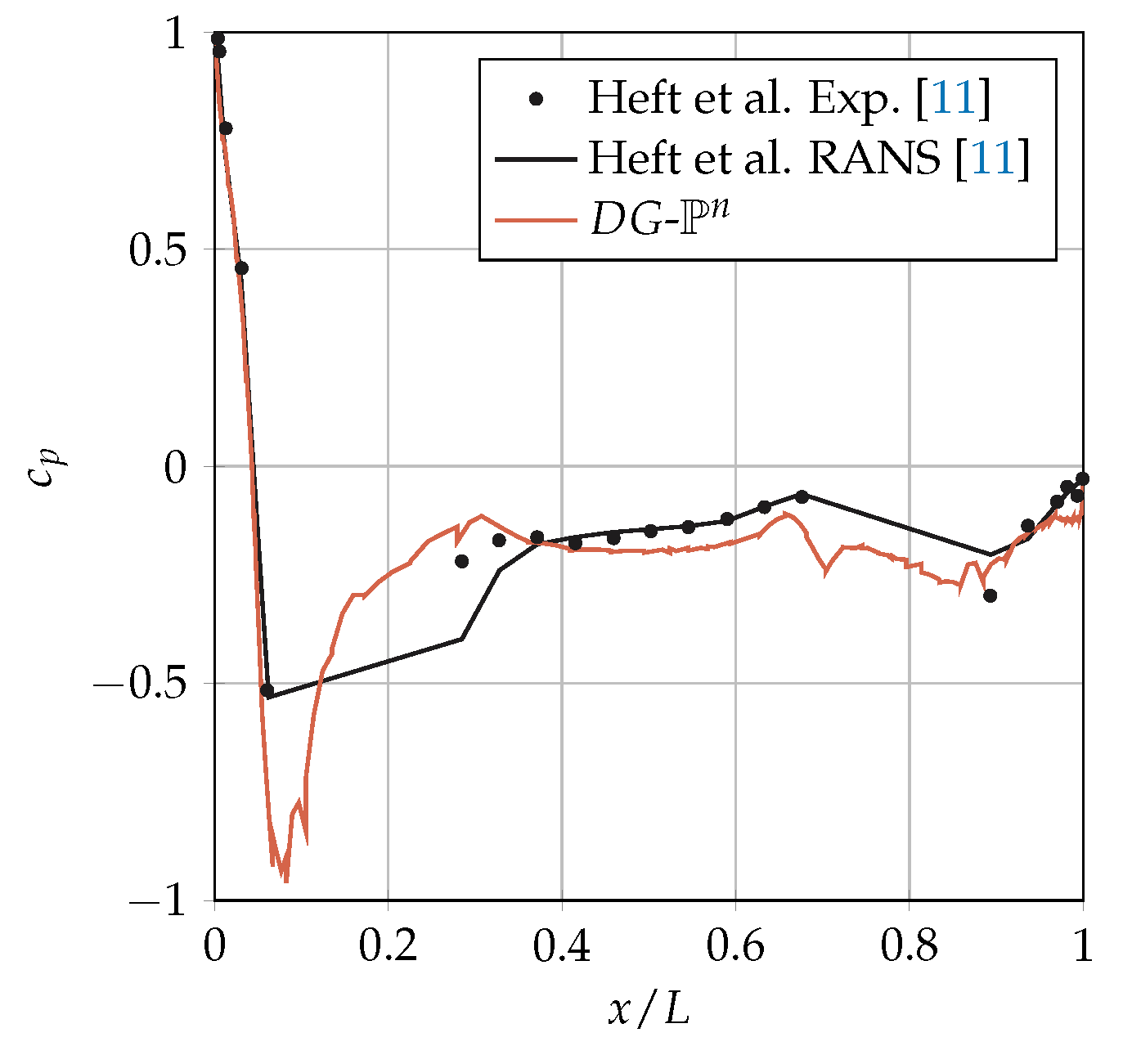

Finally, on the plane $z=0.06$ (see Figure 12) the discrepancy in the doors region is still evident, confirming also in this case the importance of considering the frontal wheels to preserve the simulation accuracy. After the rear wheel, the pressure increase is correctly predicted, but as for the low-Reynolds case, the final separation is larger.

Figure 13 show the time-averaged pressure contours (top-left), the time-averaged pressure coefficient distribution on the windshield (top-right), the front side window (bottom-left) and the back window (bottom-right) for the low-Reynolds number case. The views and the scales of the pressure coefficient contours are the same used by Heft et al. [11] to ease the comparison.

It can be observed that the pressure coefficient distribution on the windshield and back window are similar to the RANS simulations by Heft et al. [11], while some discrepancies are evident in the zone near the pillars. The side window shows a more pronounced low pressure region, probably due to a not correct prediciton of the A-pillar vortices. As demonstrated in Section 3.2, this difference can be ascribed to the absence of the wheels.

The predicted drag and lift coefficients for the low- and high-Reynolds number cases are summarised in

Table 1. Simplified DrivAer model—Predicted drag, $c_D$, and downforce, $c_L$, coefficients for low- and high-Reynolds number case. Results are compared with reference data.

	Method	${\mathit{c}}_{\mathit{D}}$	${\mathit{c}}_{\mathit{L}}$
Heft et al. [11]	RANS k-$\omega$ SST	0.124	-
	Experiment	0.125	-
$DG-{\mathbb{P}}^n$ (low Re)	ILES	0.1561	−0.1352
$DG-{\mathbb{P}}^n$ (high Re)	ILES	0.1605	−0.0753

and compared with experimental and numerical results of Heft et al. [11]. The negative value of $c_L$ confirms that the underbody acts like a diffuser. The $c_D$ slightly changes increasing the Reynolds number, confirming the experimental findings [11]. On the contrary, the $c_L$ shows a huge variation, which can be ascribed to the different distribution of the pressure on the roof of the car. The $c_D$ is slightly over-predicted and confirms the trend summarised in

Table 2. DrivAer model—Drag, $c_D$, and downforce, $c_L$, coefficients in comparison with other reference numerical results and experimental data. DoFs are the degrees of freedom, i.e., the unknown solutions. All the reference solvers are based on cell-centered finite-volume methods, i.e., the DOFs are equal to the mesh elements. DoFs of the simulations for half model are reported projected to the full model simulation in order to have an easy comparison.

	Method	Elements	DoFs	${\mathit{c}}_{\mathit{D}}$	${\mathit{c}}_{\mathit{L}}$
Rüttgers et al. [13]	LES	$24\times {10}^6$ (full)	$24\times {10}^6$	0.244	0.005
	LES	$80\times {10}^6$ (full)	$80\times {10}^6$	0.234	0.005
	LES	$130\times {10}^6$ (full)	$130\times {10}^6$	0.228	0.005
	LES	$55\times {10}^6$ (half)	$110\times {10}^6$	0.274	0.005
	LES	$65\times {10}^6$ (half)	$130\times {10}^6$	0.231	0.005
Aljure et al. [12]	WMLES	$9\times {10}^5$ (full)	$9\times {10}^5$	0.293	0.036
	WMLES	$6.5\times {10}^6$ (full)	$6.5\times {10}^6$	0.253	0.057
	WMLES	$53\times {10}^6$ (full)	$53\times {10}^6$	0.246	0.083
	WMLES	$79\times {10}^6$ (full)	$79\times {10}^6$	0.251	0.069
Ashton et al. [6]	RANS SA	$80\times {10}^6$ (full)	$80\times {10}^6$	0.260	0.136
	RANS k-$ϵ$	$80\times {10}^6$ (full)	$80\times {10}^6$	0.244	0.085
	RANS k-$\omega$ SST	$80\times {10}^6$ (full)	$80\times {10}^6$	0.260	0.124
	RANS k-$ϵ$ B-EVM	$80\times {10}^6$ (full)	$80\times {10}^6$	0.243	0.116
	RANS EB-ESM	$80\times {10}^6$ (full)	$80\times {10}^6$	0.248	0.075
	SST IDDES	$80\times {10}^6$ (full)	$80\times {10}^6$	0.268	0.011
	SST IDDES	$100\times {10}^6$ (full)	$100\times {10}^6$	0.261	0.024
Guilmineau et al. [4]	RANS EARSM	$38.6\times {10}^6$ (full)	$38.6\times {10}^6$	0.254	0.079
	SST DES	$38.6\times {10}^6$ (full)	$38.6\times {10}^6$	0.266	0.024
Heft et al. [11]	RANS k-$\omega$ SST	$19.8\times {10}^6$ (full)	$19.8\times {10}^6$	0.241	-
	Experiment	-	-	0.243	-
$DG-{\mathbb{P}}^n$	ILES	$406304$ (half)	$4.22\times {10}^6$	0.255	0.034

, where some numerical references, e.g., Aljure et al. [12], Ashton et al. [6] and Guilmineau et al. [4], predict a drag coefficient larger than $2.5$.

3.2. Flow around the DrivAer Model

The turbulent flow around the DrivAer model is presented in this section for a Reynolds number $R{e}_L=4.87\times {10}^6$ [6,11,13,41], based on the model length $L=4.6$ m and the freestream conditions. The rear mirrors are not considered and the underbody is smooth.

The domain is a box of dimension $10.87L\times 2.17L\times 2.43L$, where x is the streamwise direction, y the spanwise direction and z the direction normal to the ground. The inlet section is at $2.67L$ from the car.

A no-slip boundary condition is applied to the model, the wheels rotate with a prescribed angular velocity and the ground moves at the same velocity of the free stream. Computations with a symmetric half-body configuration are performed, and the symmetry condition is prescribed to the $y=0$ plane. All the simulations are performed with a very coarse mesh, consisting of 406,304 cubic-edges hexahedral elements. Figure 4 and Figure 5 show the computational domain and some details near the rear end and the front wheel. Notice the small amount of elements used to discretize the car, especially if compared to the references. In fact, Rüttgers et al. [13] carried out LES on the full and symmetric half-body geometry with meshes of 24, 80 and $130\times {10}^6$ elements for the full geometry and $65\times {10}^6$ elements for the symmetric half-body geometry. Heft et al. [11] and Frank et al. [41] carried out Reynolds-averaged Navier–Stokes (RANS) simulations, using k-$\omega$ SST and k-$\omega$ SAS SST models on a mesh made of $19.4\times {10}^6$ and $110\times {10}^6$ elements, respectively. Aljure et al. [12] carried out WMLES on the full geometry with meshes of $6.5$, 53 and $79\times {10}^6$ elements. Ashton et al. [6] performed RANS simulations with meshes of 18, 37 and $80\times {10}^6$ elements, while meshes of 80 and $100\times {10}^6$ elements were used for DES-type simulations.

Averaging time is $\sim T_C$, where $T_C$ is a convective time computed according to the freestream velocity and the length of the model. The time step has been set to $\Delta t=f{T}_C$, where $f=6\times {10}^{-4}$. The maximum polynomial degree of the solution is ${\mathbb{P}}^2$.

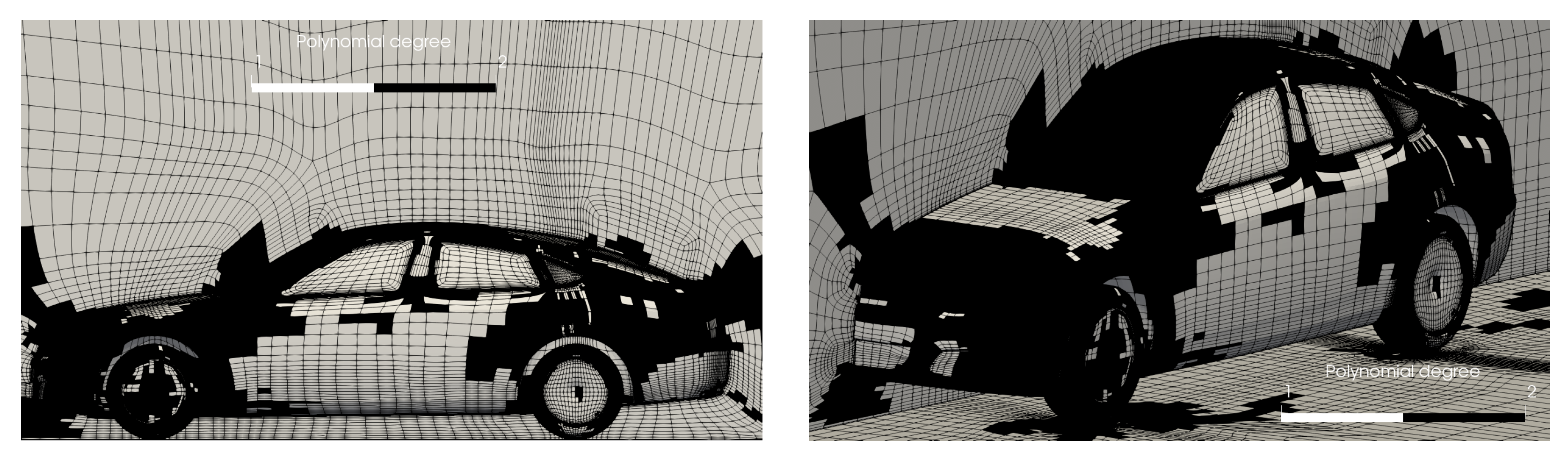

Figure 14 shows the polynomial degree distribution ${\mathbb{P}}^n$ of the solution on the surface of the car model. The front part of the model, the windshield, the A-pillar, the wheels and the rear part of the model require higher order elements. As expected, the comparison of the polynomial degree distribution between the present and the simplified (see Figure 8) DrivAer configuration shows that rotating wheels require high-order elements. The DoFs per equation are 2,112,776.

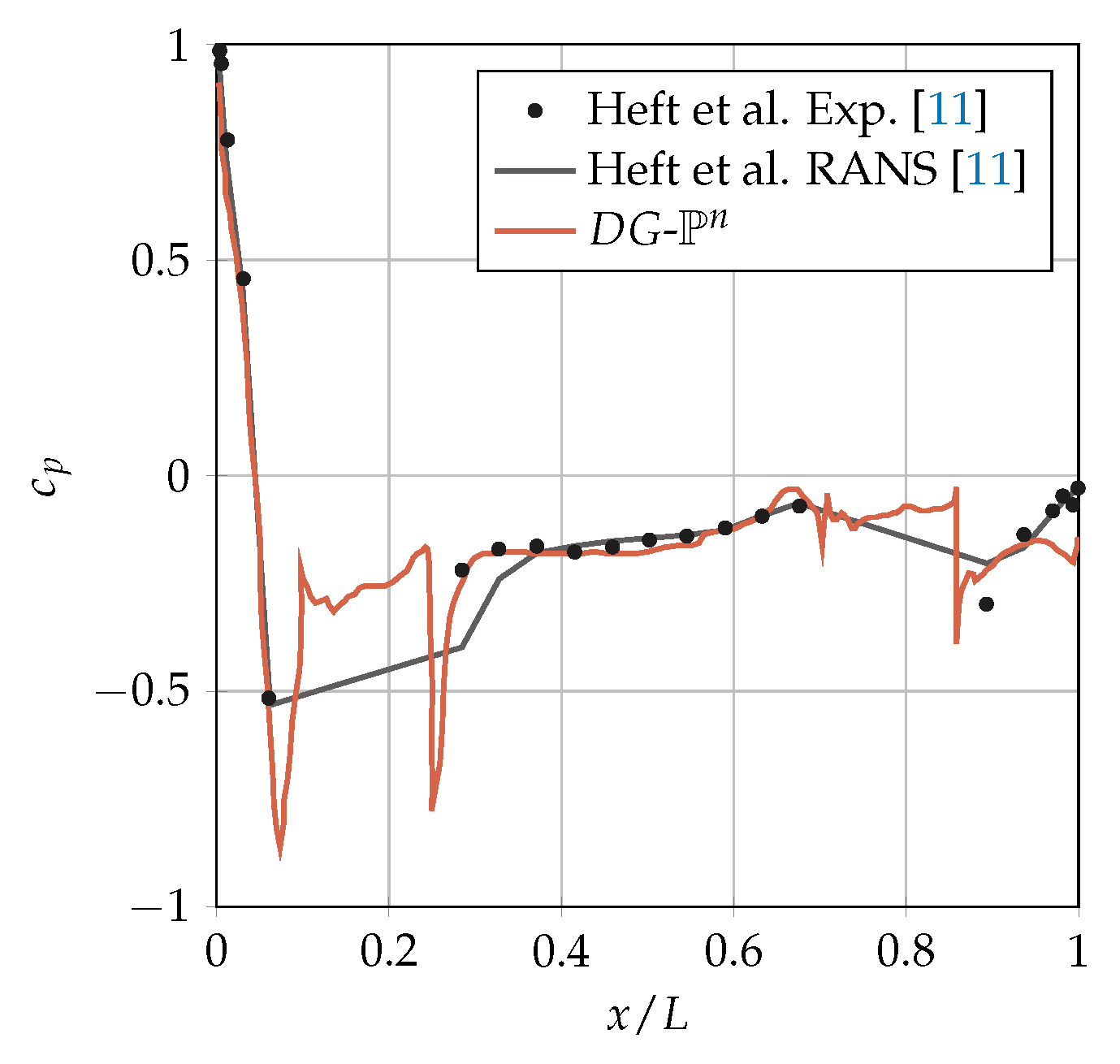

The pressure coefficient distribution on the symmetry plane $y=0$ shows the same behaviour of the simplified DrivAer model (see Figure 9). Differences are evident for the $c_P$ distribution on the plane $z=0.06$ that intersects the wheels, shown in Figure 15. The flow accelerates from the stagnation point and detaches near the front wheel. In the doors region the pressure recovers slowly. After the second flow separation at the rear wheel, there is a sudden pressure recovery in the rear part of the model. However, the simulation predicts a separation bubble that reattaches just before the end of the model. The predicted distribution is in good agreement with the WMLES simulations of Aljure et al. [12]. The comparison between the predicted results presented in this section and in Section 3.1 (see Figure 12 and Figure 15) puts in evidence the importance of the wheels in the prediction of the side flow field.

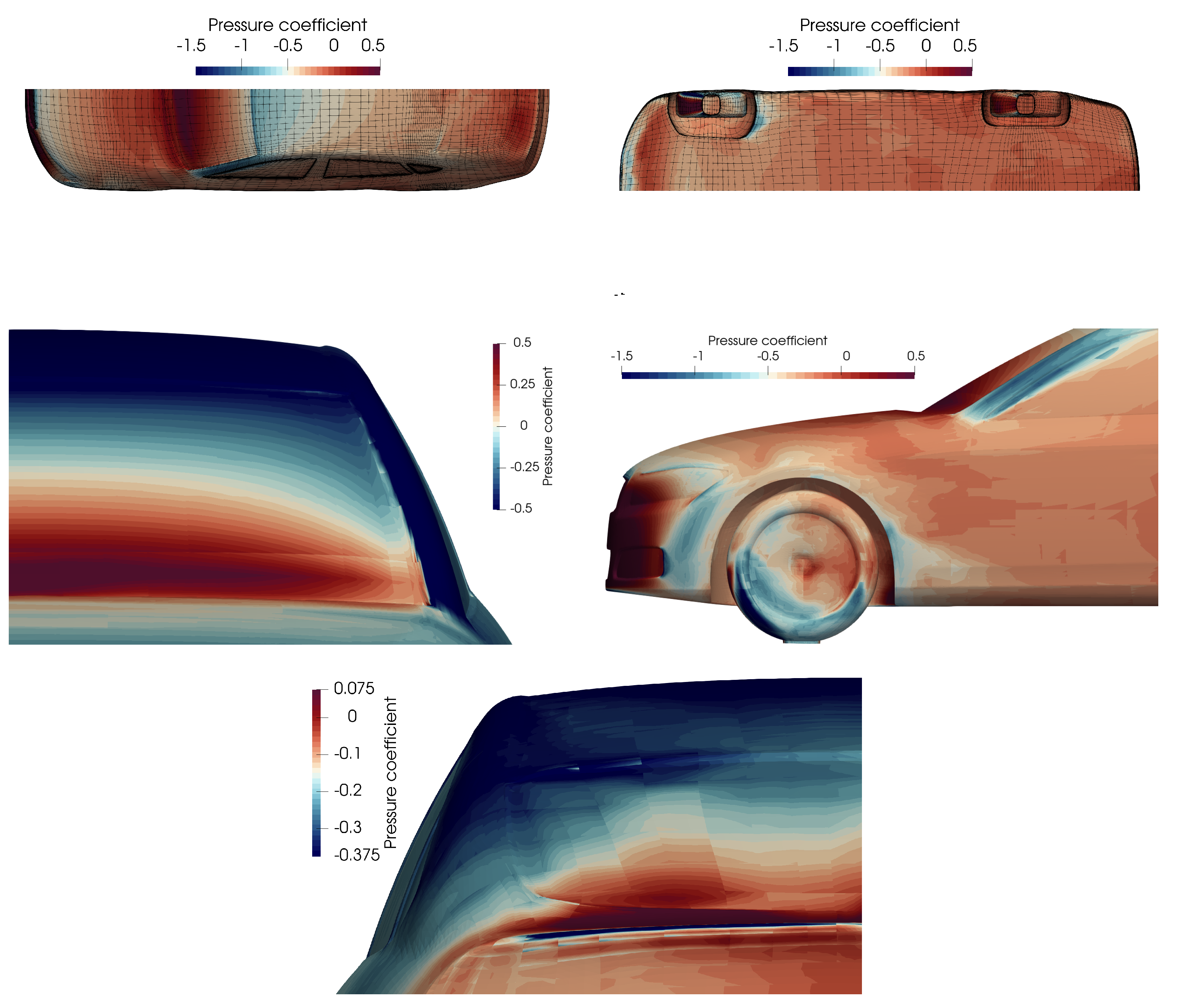

Figure 16 shows the time-averaged pressure coefficient contours on the body (top-left), underbody (top-right), the windshield (middle-left), the front side window (middle-right) and the back window (bottom). The views and the scales of the pressure coefficient contours for the windshield, the front side window and the back window are the same used by Heft et al. [11] to ease the comparison. The distribution on the top and bottom view can be compared with the LES results of Rüttgers et al. [13], showing a good agreement. A discrepancy can be observed in the front part of the bottom distribution, where the predicted results show a separation that generates a sudden decrease of the pressure. Moreover, near the A-pillar the low pressure region is less evident in the predicted results due to the absence of the rear mirrors.

The $c_P$ contours on the windshield and on the back window are very close to the reference. In the central zone of the back window there is a small low pressure region that is not present in the reference RANS simulations, which suggests the presence of a small detached zone at the junction between the roof and the back window. Moreover, in contrast to the simulation without the wheel, the location of vortex in the A-pillar zone is now in agreement with the references, even if the low pressure region is more widespread for the absence of the rear mirror.

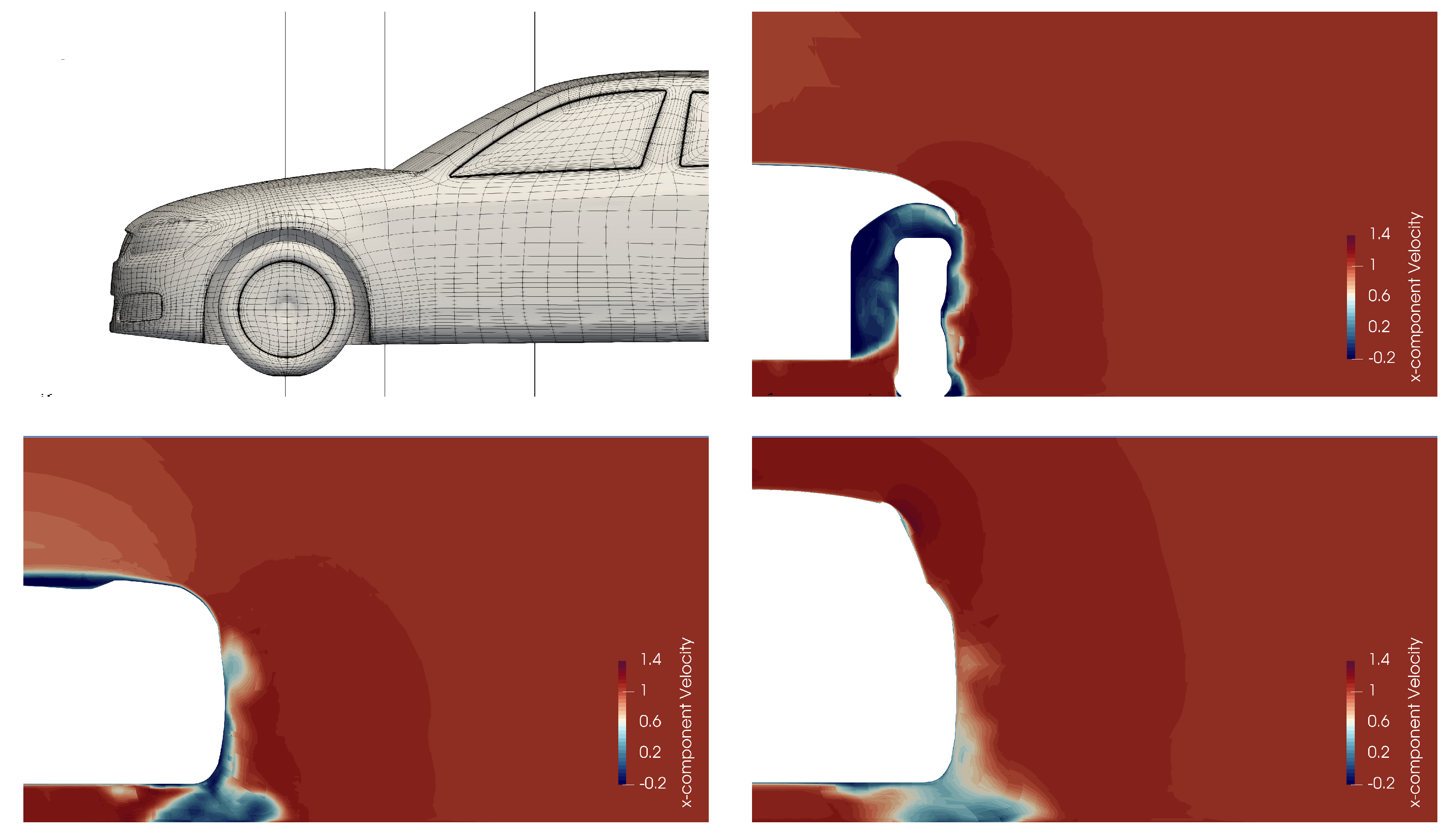

Figure 17 and Figure 18 show the time-averaged x-velocity contours on the slices $x/L=(0.173,0.273,0.423)$ and $x/L=(0.88,0.98,1.10)$, respectively. In particular, the slice at $x/L=0.173$ cuts the wheel, showing the flow field inside the wheel house, which is characterised by a negative x-velocity. In fact, the flow inside the wheel house follows the direction prescribed by the wheel angular velocity. Moreover, near the ground contact, two counter rotating vortices generated ahead of the wheel are observed. The slice at $x/L=0.273$ shows that vortical structures created by the wheel are convected downstream, influencing the side flow field. Finally, the slice at $x/L=0.423$ intersects the A-pillar and shows the A-pillar vortex that is convected downstream. The slices on the rear part of the model are the same used by Ashton et al. [6]. The contours are in agreement with the IDDES simulations. In particular, the slice at $x/L=0.88$ shows the vortical structures created by the rear wheel and the small separation on the back window. The slices at $x/L=0.98$ and $x/L=1.10$ show the development of the wake. In the lower part there is a region with positive x-velocity coming from the underbody that is not yes mixed with the wake.

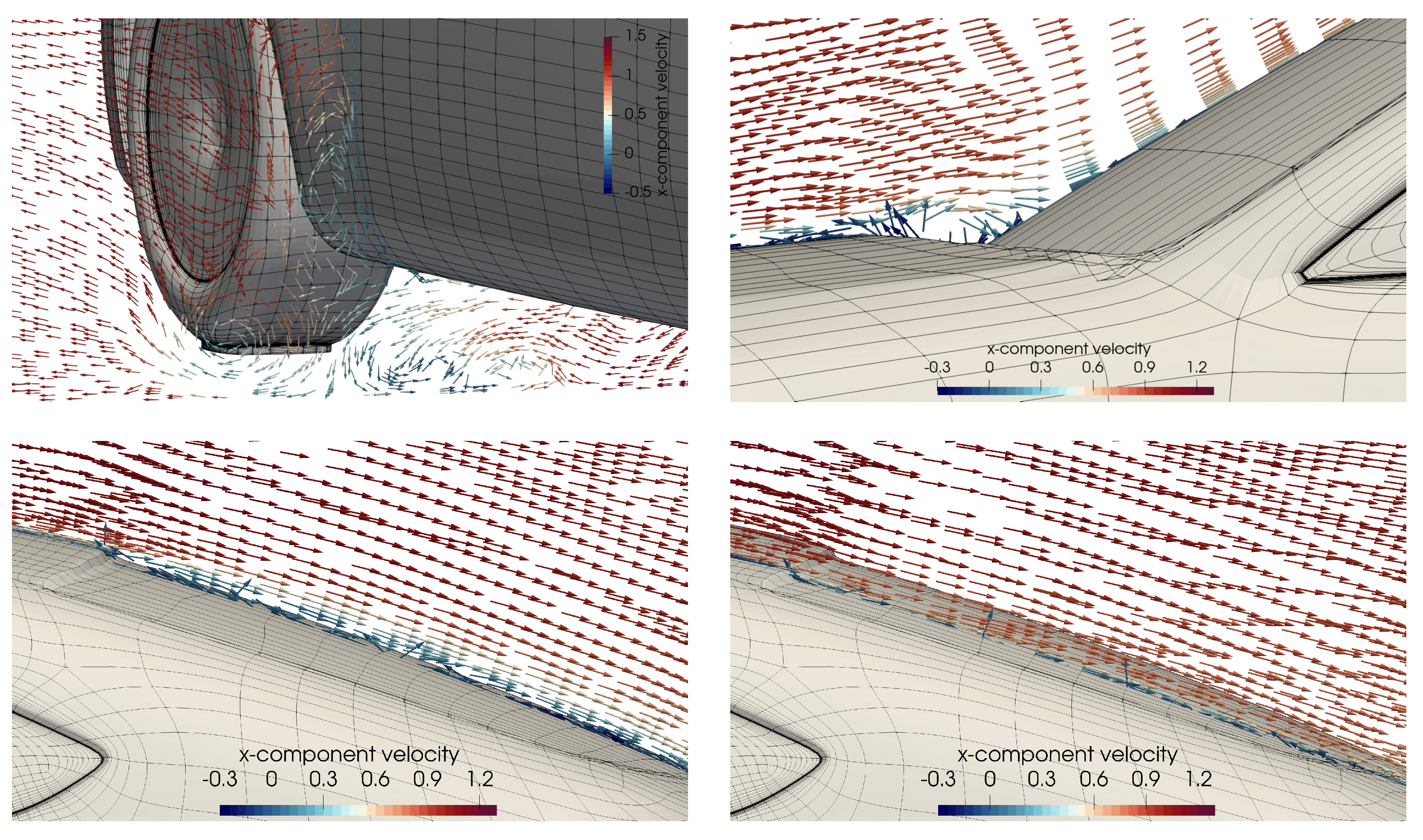

Figure 19 shows the details of the time-averaged velocity vectors behind the front wheels, in the gap between the cowl top and the windshield and on the rear slant. In the wheel region the horseshoe vortices are evident, which are created just ahead of the wheel and are convected downstream. The two counter rotating vortices can be observed also in the LES simulations of Rüttgers et al. [13]. Moreover, the recirculating zone in the gap between the cowl top and the windshield can be observed, while the recirculation on the rear slant can be noticed only near the symmetry plane, as shown in Figure 19 (bottom-left), where the discontinuity between the roof and the rear slant is higher. Moving towards the side, the discontinuity between roof and the rear slant is not enough to promote separation, as shown in Figure 19 (bottom-right).

The predicted drag coefficient is $c_D=c_{D,wheel}+c_{D,body}=0.2556$, where $c_{D,wheel}=0.0327$ and $c_{D,body}=0.2229$ are the wheels and the body contributions to the drag, respectively. The drag can be decomposed in the skin friction, $c_{D,v}=0.02c_D=0.0048$, and pressure, $c_{D,P}=0.98c_D=0.2505$ contributions. The results are in good agreement with the reference data, as reported in Table 2. In particular, the predicted $c_D$ value overestimates the experimental data, but this behaviour is confirmed also by most numerical references, e.g., Aljure et al. [12], Ashton et al. [6] and Guilmineau et al. [4], which predict a drag coefficient larger than $2.5$. As expected, the presence of the wheels heavily influences the aerodynamic performance of the car model. In fact, the down force predicted without the wheel becomes a lift force. The predicted lift coefficient is $c_L=c_{L,wheel}+c_{L,body}=0.0345$, where $c_{L,wheel}=-0.1560$ and $c_{L,body}=0.1912$ are the wheels and the body contributions to the lift, respectively. The lift can be decomposed again in the skin friction, $c_{L,v}=0.0011$, and pressure, $c_{L,P}=0.0334$, contributions.

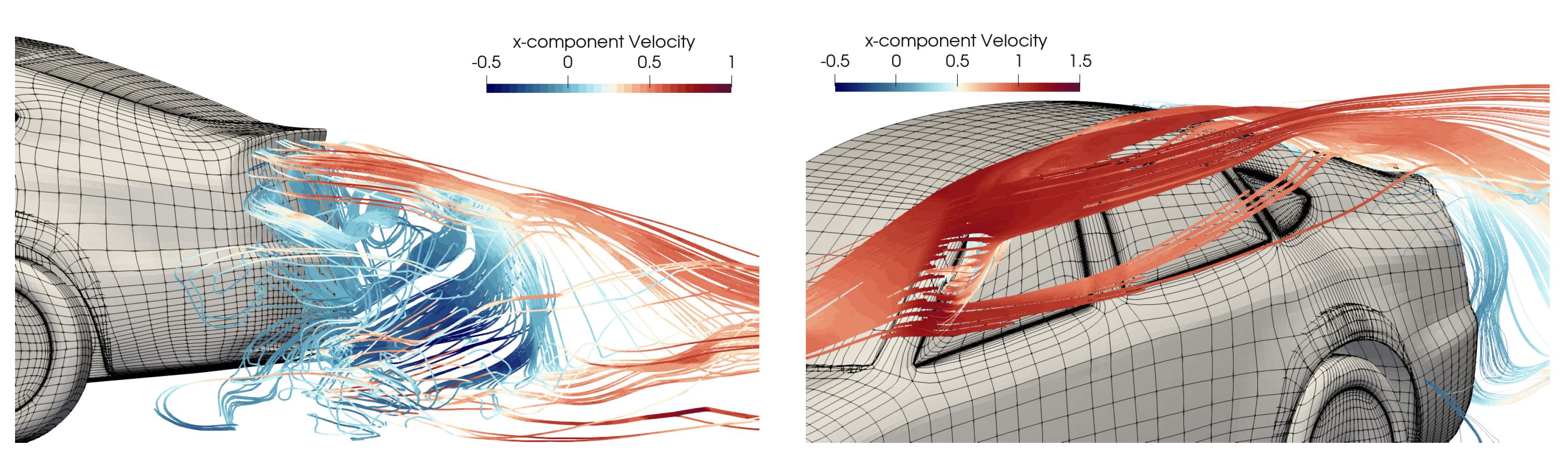

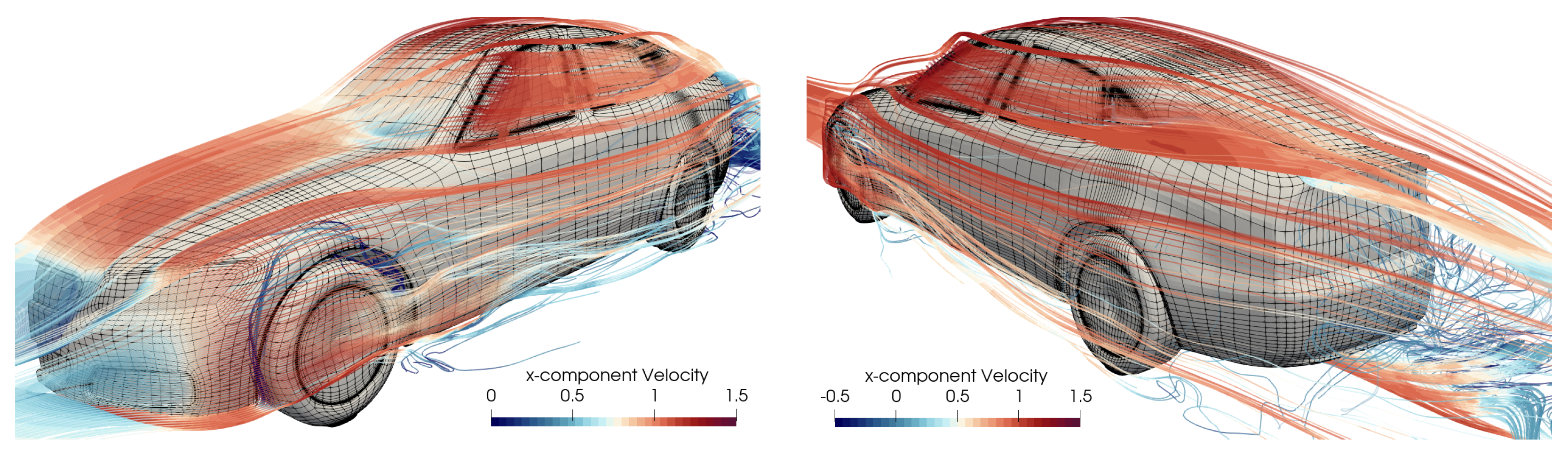

Figure 20 shows the A-pillar vortex (the streamlines are coloured with the x-component velocity for the time-averaged solution), which develops close to the root of the A-pillar and detaches before the roof. The vortex is convected downstream and merges with the C-pillar vortex.

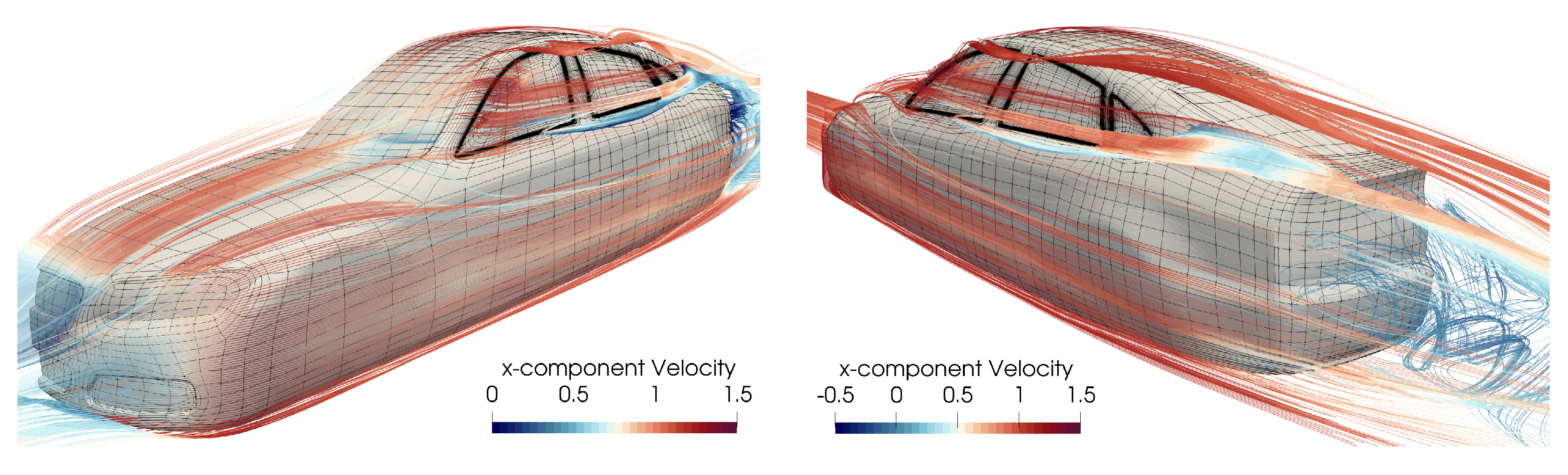

Figure 21 and Figure 22 compare the time-averaged streamlines coloured with the time-averaged x-component velocity contours obtained with the present and the simplified car model. In both cases the flow accelerates from the stagnation point in the front bump area and moves toward the bonnet and the wheel region. Along the sides of the bonnet, a high pressure region (see Figure 16) redirects the flow downward. Moreover, the high pressure zone on the windshield pushes the flow towards the A-pillar. The vortex created at the A-pillar root is convected downstream and merges into the wake. The presence of the wheels modifies the side flow field: (i) vortices are created at the wheelhouses discontinuities and convected downstream where they merge into the wake; ($ii$) the front-wheel influences the A-pillar region, as it modifies the direction of the A-pillar vortex (the low pressure region on the side window visible in Figure 13 disappears).

4. Conclusions

In the present study simulations have been performed around different geometries of the DrivAer fastback model with an order-adaptive discontinuous Galerkin method.

This work has to be considered as a proof of concept for the use of the present DG solver to capture the main features that characterise the flow around a car, using very coarse high-order meshes and a moderate number of DoFs.

A simplified DrivAer model has been first considered, i.e., without rear mirrors and wheels and with a smooth underbody, to assess the influence of the Reynolds number on the aerodynamic performance. As also shown in the literature, the effect of the Reynolds number (for $Re>2M$) on drag coefficient was found to be negligible, while a considerable difference is observed for the lift coefficient. Moreover, in this configuration the underbody promotes a downforce effect.

The second model also takes into account of the rotating wheels. Our computations have been compared with experimental data and CFD from the literature, showing a good agreement. When including wheels in the model, downforce vanishes due to the different flow evolution on the underbody and vortical structures flow on the car sides due to the discontinuities of the wheelhouses. Moreover, the A-pillar vortex is modified, as the orientation of its rotation axis is changed, generating a different pressure distribution on the pillar itself and the side window.

Ongoing work is devoted to further numerically investigate the DrivAer configuration to corroborate the findings of this paper and to contribute to the creation of a data-base for validation and comparison purposes.
