Mechanical Performance of Concrete Made with the Addition of Recycled Macro Plastic Fibres

by
Pietro A. Vaccaro
1,
Adela P. Galvín
2,
Jesús Ayuso
2,
Auxi Barbudo
2,* and
Antonio López-Uceda
3,*
1
Escuela Internacional de Doctorado, Universidad de Sevilla, Pabellón de México, Paseo de las Delicias S/N, E-41013 Sevilla, Spain
2
Área de Ingeniería de la Construcción, Universidad de Córdoba, Campus de Rabanales, Edificio Leonardo Da Vinci, E-14071 Córdoba, Spain
3
Departamento de Mecánica, Universidad de Córdoba, Campus de Rabanales, Edificio Leonardo Da Vinci, E-14071 Córdoba, Spain
*
Authors to whom correspondence should be addressed.
Appl. Sci. 2021, 11(21), 9862; https://doi.org/10.3390/app11219862
Submission received: 3 August 2021 / Revised: 16 October 2021 / Accepted: 20 October 2021 / Published: 22 October 2021
(This article belongs to the Special Issue Advances in Recycling of Construction Materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
For many decades, researchers have been working on finding innovative and sustainable solutions to address the enormous quantities of plastic waste that are produced every year which, after being collected, are transformed into energy, recycled, or sent to landfills. Giving a second life to plastic waste as a material to be incorporated, in the form of macro-fibres, into concrete, could be one such solution. The purpose of this study was to analyse the mechanical and physical behaviour of the hardened concrete reinforced with macro plastic fibres (RPFs) obtained from food packaging waste (FPW) discarded during the packaging phase. By varying the quantity of macro-fibres used, physical and mechanical properties such as compressive strength, modulus of elasticity, flexural strength, and toughness were evaluated. It was observed that, although the presence of macro plastic fibres reduced the mechanical resistance capacity compared to that of traditional concrete, their contribution proved to be of some importance in terms of toughness, bringing an improvement in the post-crack resistance of the composite material. This innovative mixture provides a further impulse to the circular economy.

1. Introduction

Concrete is a widely used construction material worldwide due to its great availability of raw materials and low cost [1]. Although concrete has good compressive behaviour, it does not respond adequately under high tensile stresses. To alleviate this, steel reinforcements have usually been used to improve its tensile and flexural strengths [2,3,4]. However, in recent years, natural (mainly vegetable), steel, glass, and synthetic fibres have also been used [1]. Synthetic fibres help to prevent plastic shrinkage cracks in fresh concrete [5], and improve concrete performance after cracking [6].
In recent years, the EU and its member states have endowed themselves with harmonized European standards regarding the production, classification, and use of FRC (fibre-reinforced concrete) (EN 14889-1 for steel fibres, and EN 14889-2 for polymer fibres). The current trend of international legislation, therefore, is to produce a fibre-reinforced concrete (FRC) that can be classified on the basis of its guaranteed performance, and not just the volumetric percentage of fibres contained within it (EN 206:2013 + A1:2016).
Plastic fibres are synthetic fibres that are known to help improve the ductility, crack resistance, and impact resistance of conventional concrete. However, the contribution of the addition of these fibres was found to be less significant with respect to compressive strength and flexural strength [1]. Kazmi et al. [7], for their part, after investigating the fracture behaviour, mechanical characteristics, and microstructure of recycled aggregate concrete, observed an increase in mechanical properties—particularly, split tensile strength and residual flexural tensile strength—with the increase in dosage of these synthetic fibres.
Plastic fibres can be in the form of micro plastic fibres or macro plastic fibres [1]. Micro plastic fibres refer to plastic fibres with diameters ranging from 5 to 100 µm and lengths ranging from 5 to 30 mm [8]; they are used to control plastic shrinkage cracking [9], which is caused by the shrinkage of fresh concrete during the first 24 h after placement due to excessive evaporation of bleed water [10]. Macro plastic fibres, which were used in this study, normally have a length of 30–60 mm and a cross-section of 0.6–1 mm2 [11]; these are used not only to control plastic shrinkage [12], but also to control drying shrinkage [6]. Another significant benefit is the post-cracking performance provided by the addition of macro plastic fibres [13,14].
On the other hand, world plastic production reached almost 368 million tons in 2019, of which approximately 58 million tons was generated in the EU (European Union). Of all the plastic produced in the EU in the year 2019, more than 20% was used in the building and construction sector, while almost 40% was used in packaging [15].
In the EU, in 2018, 24.9% of collected plastic waste was landfilled, 42.6% was transformed into energy (by incineration [16]), and the remaining 32.5% was intended for recycling [15]. According to a recent report [16], the target set by the new EU Directive 2019/852 provides for the achievement of a recycling percentage of plastic for packaging of 50% by 2025, and 55% by 2030. Hence, plastic wastes are universally considered to be a threat to the environment [17].
Among the various types of recycling management approaches, the reuse of waste and recycled plastic material in the construction industry is considered an ideal method for disposing of plastic waste [18]. A review has been published recently about current trends in plastic waste composites as construction materials [19], reporting diverse uses of the most common plastics, such as polypropylene (PP), polyethylene (PE), and polyethylene terephthalate (PET), after proper recycling treatment—for instance, in bricks, as aggregate or filler in concrete, or as reinforcement in concrete in paving tiles or slabs. Benefits and drawbacks are weighed, highlighting as benefits the fact that its use increases its value, so recycling is encouraged, and raw material consumption is reduced; meanwhile, as drawbacks, sorting and selection, and the lack of study of recycled plastic waste in construction materials, are cited. Other studies, such as the one carried out by Platon et al. [20], dealt with other uses, such as the production of composite materials for sound insulation purposes produced by thermocompacting mixed plastic waste, from the production process of sanitary wares, and thermoplastic polymers.
The use of recycled aggregates from plastic waste to replace natural aggregates has been previously studied. Mohammadinia et al. [21] showed the feasibility of substituting up to 50% of natural aggregates for a combination of recycled plastic and glass aggregates in the construction of concrete footpaths. Corbu et al. [22] found that a combination of recycled aggregates from waste plastic and waste glass can totally replace natural aggregates in precast concrete pieces. Thorneycroft et al. [23] proved the feasibility of substituting up to 10% by volume of sand for recycled plastics in the manufacture of concrete. Elsewhere, Merlo et al. [24] detected a lack of adhesion between recycled plastic and cementitious matrix, explaining the loss of mechanical properties as ratio incorporation increased.
In addition, authors such as Foti went even further, studying the use of PET plastic waste in strips of large size [25] or in grids of macro-strips [26] as reinforcements in concrete, suggesting the possibility of being considered for the reinforcement of concrete in place of steel. Within this sector, recycled plastic fibres can be used in FRC, which allows improvement of the concrete properties, in addition to the environmental benefits that this entails [4,18,27,28].
The global value of the packaging industry is around EUR 345 million, of which the EU accounts for one-third, and of which 50% is related to food packaging. Forecasts indicate that the sector will continue to grow both in size and in importance [29]. In terms of structure, monolayer and multilayer can be distinguished: monolayer films consist of a thermoplastic polymer sheet made mostly of PE, PP, or PET, with a range from 20 to 200 μm of thickness, while multilayer films are made up of a different number of sheets that can be polymeric (thermoplastics) or non-polymeric materials (paper or aluminium foils) [30]. Multilayer plastic waste used in food packaging does not enter the waste recycling stream due to the wide variety of materials, its multilayer composition [31], and the colours that make up the food packaging; hence, a call for a circular economy is proposed [32]. Currently, the technical feasibility of recycling this waste at low cost is not close to being achieved [31,33]. Indeed, due to the fact that it is not always managed properly, the recycling process is quite complex and, with the great environmental concern attached, the plastic sector is encouraged to participate in projects to deal with this issue [34,35].
This confirms the need to address studies such as the present work, which are essential in finding solutions that transform plastic waste from packaging into new resources, enabling not only contribution to the circular economy, but also the production of innovative materials for civil construction.
In particular, this study deals with the analysis of the mechanical behaviour of concrete with the addition of macro-fibres obtained by cutting plastic sheets; specifically, measurements such as crack mouth opening displacement (CMOD) and toughness were obtained. Three different levels of fibre addition were used in the production of concrete (2 kg/m3, 4 kg/m3, and 6 kg/m3), and two reference concretes were produced (one without fibre, and another with a commercial fibre). The main novelty of this research consists of having used not commercial plastic fibres, but waste material derived from the processing of plastic for food packaging. These multilayer plastic wastes are difficult to recycle due to their heterogeneous composition. Hence, this work aims to valorise this waste, contributing to a circular economy.

2. Materials and Methods

2.1. Recycled Plastic Fibres (RPFs) from Food Packaging Waste (FPW)

The recycled plastic waste (RPW) consisted of macro plastic fibres obtained from the waste derived from the production and processing of plastic, supplied in waste rolls by a local company that deals with the production of multilayer plastic for packaging. The plastic sheet was made of four overlapping layers of different materials: polyester, aluminium, biaxially oriented polyamide, and polypropylene (PET + ALU + OPA STE + PP G). The fibres used in the experimentation were obtained in the laboratory by cutting plastic sheets (Figure 1a,b). A commercial polypropylene fibre (CPF) was also used as a comparison (Figure 1c). The fibres were in compliance with the EN 14889-2:2006 standard. The dimensions and main properties of the plastic fibres used are summarised in Table 1.

2.2. Fibre-Reinforced Concrete (FRC) Specimens Made with RPF

Specimens of PFRC were prepared by adding recycled plastic fibres (RPFs) to the concrete mix at 2, 4, and 6 kg per m3 of concrete. The prepared mixtures were assigned the following codes: PFRC-2, PFRC-4, and PFRC-6, respectively. Two control specimens were also prepared: a control specimen of concrete without reinforcement (C-REF), and fibre-reinforced concrete made with a commercial polypropylene fibre (PFRC-REF; dosage of 2 kg per m3 of concrete).
The aggregates used for manufacturing the concrete mixes in the laboratory were coarse gravel (7–25 mm) at 960 kg per m3 and sand (0–7 mm) at 970 kg per m3, both with a siliceous nature. A total of 280 kg of CEM II 42.5 AV-R cement per m3 of concrete produced was used, reaching a water-to-cement ratio of 0.54. In order to improve the workability and avoid segregation of the mixture, along with having an S3 slump class according to UNE-EN 206:2013 + A1:2018, two different types of additives were used: the plasticizer Complast MR260 at 5 mL per kg of cement, and the superplasticizer Structuro 357 at 7.7 mL per kg of cement. The slump ranged between 15 cm for C-REF and 10 cm for PFRC-6 mix. Slump values decreased as macro-fibre content increased, in agreement with the findings of other authors [18]. The concrete produced for each single mixture was casted, resulting in nine cubic specimens with a length of 100 mm, three prismatic beams measuring 100 mm × 100 mm × 400 mm, and six cylindrical specimens with a diameter of 150 mm and a height of 300 mm, which were then cured in a climatic chamber (at 20 °C and 95% ± 5% relative humidity) and subjected to testing at various ages.

3. Experimental Methods

3.1. Physical Properties

The dry density and the open porosity of the concrete specimens were obtained following the standard UNE 83980:2014. The performance of the mix concrete in terms of capillarity was determined using the Fagerlund method, following the standard UNE 83982:2008. Both tests were carried out on three cubic specimens with a length of 100 mm.

3.2. Compressive Strength

The compressive strength test was performed in accordance with the UNE-EN 12350-2:2009 standard; it was carried out on three cubic specimens with a length of 100 mm after 7 and 28 days of curing, as well as on three cylindrical specimens with a height of 300 mm and a diameter of 150 mm after 28 days of curing.

3.3. Elastic Modulus

The elastic modulus was determined, in accordance with UNE-EN 12390-13:2014, after 28 days of curing on three cylindrical specimens (Ø150 × 300 mm).

3.4. Flexural Strength

The flexural strength was determined using three prismatic specimens (400 × 100 × 100 mm3 by length × width × height) after 28 days of curing. The tests were carried out using a four-point bending tensile testing machine, with notch-opening control, complying with the UNE 83509:2004 standard.

3.5. CMOD and Toughness

The toughness index and CMOD were determined for each mixture by subjecting three prismatic specimens (equal to the flexural strength ones), notched (5 mm in width and 20 mm in height) in the central part, to a four-point bending tensile test, after 28 days of curing, in accordance with the UNE 83510:2004 standard.
The measurement of the crack opening at the mouth of the notch of the specimen (CMOD) was performed using two linear variable displacement transducers (LVDTs) attached to the bottom of the concrete specimen. At the end of the test, the fissure was unique and corresponded to the notch. During the test, the applied loads and the corresponding opening of the notch made along the centre of the specimen were detected and recorded, thus obtaining, for each mix design, the load–CMOD curve. From the load–CMOD curve, the load and the relative resistance at the point of first cracking of the specimen were determined. The values of toughness T (N·m) were obtained by calculating the area under the load–deflection curve, from the point where the linear section of the diagram began, and up to the point where the arrow reached the value of 1/150 of the span between the supports of the specimen. The toughness index, I30, was obtained as the ratio between the area under the curve from the origin of the curve to the point where the deflection reached the value of 15.5 times the deflection corresponding to the formation of the first crack, and the area under the curve between the origin of the curve and the deflection related to the first crack.

4. Results and Discussion

4.1. Physical Properties

The results of the dry density and water absorption in concrete samples are depicted in Table 2. The dry density values ranged between 2.21 g/cm3 and 2.25 g/cm3 for mixtures with recycled fibres, and between 2.26 and 2.27 g/cm3 for reference concretes. Thus, owing to the small volume fraction of the plastic fibre added to the concrete, there was no significant reduction in the density of plastic FRC as compared to the density of conventional concrete, in accordance with the findings of de Oliveira and Castro-Gomes [36], Gu and Ozbakkaloglu [18], Han et al. [37], Karahan and Otis [38], and Richardson [39].
The open porosity (Table 2) of concretes with recycled fibres presented values between 12.17% and 13.34%, compared to between 11.84% and 14.15% for reference concretes. In all cases, the concretes made with fibres presented higher porosity values than the concrete made without them (C-REF). However, mixtures with recycled fibres presented lower values than those obtained for concrete made with commercial polypropylene fibres (PRFC-REF).
Even the effective porosity of concrete, with values ranging from 5.48 × 10−2 cm3/cm3 to 8.72 × 10−2 cm3/cm3 (corresponding to the reference mixture), did not undergo significant variation.
The resistance to water penetration by capillarity absorption, and the capillary absorption coefficient—with values ranging between 24.98 min/cm2 and 34.64 min/cm2 and between 9.51 × 10−2 kg/(m2·min1/2) and 14.81 × 10−2 kg/(m2·min1/2), respectively—highlighted a slight decline in resistance to water penetration by capillarity absorption, and a slight increase in the capillary absorption coefficient compared to the reference values. This is consistent with the studies carried out by other researchers [40,41], who reported that the addition of plastic fibres to concrete does not affect the properties studied, since the values obtained differ little from those of the fibre-free concrete mix.
Karahan and Atis [38], on the other hand, indicated that the water porosity and the water absorption capacity of concrete containing PP fibres (with concentrations lower than 0.20%) increased compared to the corresponding value for the control mix.

4.2. Compressive Strength

As can be seen from the graphs in Figure 2, the addition of RPF to the mixture reduced the compressive strength at 7 days and 28 days in the cubic specimens, as well as in the cylindrical specimens at 28 days. This reduction increased with the increase in the amount of fibre added. The percentage variations in the compressive strength, as a function of the type and quantity of fibre, compared to the control specimen (C-REF), exhibited, for the cubic specimens at 7 days of curing, decreases of 16.66% for PFRC-REF, 31.72% for PFRC-2, 32.68% for PFRC-4, and 31.62% for PFRC-6. For the cubic specimens, at 28 days of curing, the corresponding decreases were 15.95% for PFRC-REF, 20.73% for PFRC-2, 23.98% for PFRC-4, and 26.28% for PFCR-6. From these data, it can be seen that the compressive strength, in the cubic specimens, underwent a minor reduction compared to C-REF, with an increase in curing time. For the cylindrical specimens, at 28 days of curing, the corresponding decreases were 18.39% for PFRC-2, 36.78% for PFRC-2, 47.89% for PFRC-4, and 54.38% for PFRC-6.
For the cylindrical specimens, there was a greater reduction in compressive strength than recorded for the cubic specimens. This behaviour could be attributed to the different manufacturing methods of the two types of specimens, i.e., the vibrating method for cubic specimens and tamping with a steel rod for cylindrical specimens. Furthermore, the similar compressive strength performance presented by cubic specimens with RPF and CPF can be highlighted.
In general, a reduction in compressive strength with an increase in RPF content occurred, consistent with the investigations of Kim et al. [42] and Meddah and Bencheikh [29]. This could, according to some authors, have been due to the poor homogeneity and compactness of the mixture [43,44], or to other factors such as (1) the formation of zones inside the mixture where stress concentrations are created that favour the propagation of damage, (2) a weak connection at the concrete–plastic fibre interface, (3) an increase in air content [45], and (4) the presence of further voids due to the fibres [4,46].
However, other researchers—such as de Oliveira and Castro-Gomes [36], Han et al. [37], Hsie et al. [47], Gu and Ozbakkaloglu [18], and Kakooei et al. [48]—reported the opposite, i.e., that the compressive strength of the concrete improved upon the addition of plastic fibre.

4.3. Elastic Modulus

Figure 3 shows the variation in the values of elastic modulus (Ecm) with the quantity of recycled plastic fibres. There is no consensus in the literature with respect to this property. Kim et al. [42] reported that, for all mixtures containing recycled plastic fibres, a decrease in Ecm could be noted with respect to the values obtained in the control specimen. Other researchers observed an increase in Ecm with an increase in the percentage of plastic fibre [4,49], whereas others—such as Pelisser et al. [50], Karahan and Atis [38], and Mazaheripour et al. [51]—indicated that the Ecm of the plastic FRC did not differ significantly from that of conventional concrete. Our results (Figure 3) were consistent with this latter finding, since the mixtures made with plastic fibres showed very similar values, except for PFRC-2, which showed an increase of 31% with respect to its reference counterpart (PFRC-REF). This could be attributed to the greater modulus of elasticity presented by the FRP than the CPF, as seen in Table 1.

4.4. Flexural Strength

Most previous studies observed that the flexural strength of concrete increased upon the addition of PF [36,50,51,52,53,54].
However, as can be seen in Figure 4, the flexural strength recorded for non-notched prismatic specimens underwent a considerable reduction for mixtures made with fibres compared to the control concrete specimen (C-REF). The results also show that, as the percentage of fibre increased, a significant reduction in flexural strength followed. This is consistent with the findings of other authors [55,56], who stated that the flexural strength only improved when the concrete had a low fibre content, whereas, above a certain threshold, the flexural strength decreased (which coincides with our case).
With respect to the values of the control concrete specimen (C-REF), the decreases were 28.45% for PFRC-REF, 39.79% for PFRC-2, 45.03% for PFRC-4, and 49.04% for PFRC-6. According to other researchers, the reduction in flexural strength may have been due to the presence of voids inside the concrete matrix [46], which depends mainly on the strength of the mix, as seen in concrete specimens with fibres compared to C-REF.

4.5. Toughness

The experimental curves of the relationship between the applied load (F) and the CMOD as a function of the type and quantity of fibre used in the mixture are presented in Figure 5, where the punctual values of the crack opening are shown on the x-axis. After reaching the point of first cracking, there was a sudden drop in load, probably caused by both the failure of the anchoring of some fibres and the breakage of others. In correspondence with the broken surface of the specimen, slipped and broken fibres were present. The post-cracking phase followed, during which the plastic fibres began to make their contribution and the deformation energy was dissipated by the fibres with the consequent remaining load, which remained constant up to a CMOD of nearly 4.5 mm, as depicted in Figure 5. This same behaviour was observed by many other researchers using different types of commercial or recycled plastic, and with different amounts of plastic fibre [14,41,44,57].
Figure 6a shows the load–deflection graphs, while Figure 6b shows the initial segments of the graphs obtained by linearly interpolating the forces between the values of 20% and 60% of the peak force, where the first break occurred, as dictated by the UNE 83510: 2004 standard, which allowed us to calculate the toughness and the toughness index. The behaviour of the four mixtures was generally similar, wherein there was a first phase where the force increased until it reached its maximum value (peak value), and where the first crack occurred in the specimen. With regard to the mixture made with the addition of commercial plastic fibres, the graph displayed a value of peak force greater than that of the other three mixtures. Subsequently, there was a rapid decrease in strength, followed by a slight increase, which may have been due to the contribution of the plastic fibres contained within the mixture. Toward the end, the force gradually decreased until the specimen broke, showing a degrading type of post-cracking behaviour (softening behaviour). The same results were obtained by numerous other researchers who experimented with the addition of recycled plastic fibre to reinforce concrete, demonstrating that it is possible to obtain a concrete that has good mechanical characteristics in terms of toughness, as well as reduces environmental pollution by reusing material resources that would otherwise be disposed of in landfills [12,27,58,59]. In the post-cracking phase, the concrete mix with the highest fibre content (PFRC-6) exhibited a similar behaviour to the concrete mix with commercial fibre (PFRC-REF).
Figure 7 shows that the presence of plastic fibres inside the matrix increased both the ability of the concrete to resist the advancement of cracks, and its ability to absorb energy and deform plastically before breaking, giving the compound a certain residual tensile strength after the microcracking of the cement matrix. In Figure 7a, it can be seen how the toughness of the concrete with commercial fibre (PFRC-REF) was higher than that of the concrete with recycled fibre (PFRC-2) when using the same quantity of fibre. This was mainly due to the commercial fibre used in this study having a much rougher surface than the surface of the recycled fibre, which was practically smooth. The increase in toughness index (Figure 7b) resulted in the value of the strength index of the mixture with no fibre addition (C-REF) being equal to 1. An increase in the percentage of recycled fibre confirmed the stitching action of the fibres themselves inside the cement matrix, which was fundamentally dependent on the type of fibre and its quantity. Comparing the RPF concrete specimens with the reference (PFRC-REF), the toughness index increased with RPF dosage, reaching similar levels at 6 kg of RPF per m3 of concrete.

5. Conclusions

This study addressed the use of fibre from multilayer recycled plastic from food packaging plastic waste for reinforcement in concrete. Considering the results, the following conclusions can be drawn from this research:
  • The physical properties studied were not significantly affected by the addition of recycled plastic fibres;
  • The addition of RPF produces a certain decrease in compressive and flexural strength, but an improvement in the post-cracking properties of the concrete was achieved. The presence of plastic fibres inside the matrix increased both the ability of the concrete to resist the advancement of cracks, and its ability to deform plastically before breaking, giving the concrete matrix a certain residual tensile strength during the post-crack phase;
  • The increase in toughness index with an increase in the percentage of recycled plastic fibres confirmed their stitching action inside the cement matrix, which is fundamentally dependent on the type of fibre and its quantity;
  • The toughness index presented by the concrete with commercial fibres was greater than that with the same dosage of RPF, due to its rougher surface and greater adherence to the cementitious matrix. Furthermore, it should be noted that the toughness index relative to the mixture with 6 kg of recycled plastic fibres per cubic meter of concrete was comparable to that with commercial plastic fibre (PFRC-REF). This suggests that manufacturing RPF with a rougher surface could lead to a reduction in the amount needed to achieve similar toughness index levels to PFRC-REF.
In addition to the mechanical characteristics mentioned above, the use of recycled fibre from multilayer plastic waste derived from the packaging industry—which is currently difficult to recycle—in the production of this composite material could be an interesting approach to extend the life cycle of this material.

Author Contributions

Conceptualization, J.A. and A.P.G.; methodology, A.L.-U.; Software, A.L.-U. and P.A.V.; Validation, J.A. and A.P.G. formal analysis, P.A.V. and A.B.; investigation, P.A.V. and A.L.-U.; resources, A.P.G.; data curation, P.A.V. and A.L.-U.; writing—original draft preparation, P.A.V. and A.L.-U.; writing—review and editing, A.B. and J.A.; visualization, P.A.V.; supervision, A.L.-U., J.A. and A.B; project administration, J.A. and A.P.G.; funding acquisition, J.A. and A.P.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors would like to express their gratitude to the SP-Group CENTRAL CÓRDOBA—Plastienvase SL for their efficient service, professionalism, and support to the present study. The authors also thank the Votorantim Group for freely providing the cement used in this research.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yin, S.; Tuladhar, R.; Shi, F.; Combe, M.; Collister, T.; Sivakugan, N. Use of macro plastic fibres in concrete: A review. Constr. Build. Mater. 2015, 93, 180–188. [Google Scholar] [CrossRef]
  2. Beglarigale, A.; Yazıcı, H. Pull-out behavior of steel fiber embedded in flowable RPC and ordinary mortar. Constr. Build. Mater. 2015, 75, 255–265. [Google Scholar] [CrossRef]
  3. Buratti, N.; Ferracuti, B.; Savoia, M. Concrete crack reduction in tunnel linings by steel fibrereinforced concretes. Constr. Build. Mater. 2013, 44, 249–259. [Google Scholar] [CrossRef]
  4. Mohammed, A.A.; Rahim, A.A.F. Experimental behavior and analysis of high strength concrete beams reinforced with PET waste fiber. Constr. Build. Mater. 2020, 244, 118350. [Google Scholar] [CrossRef]
  5. Cao, M.; Zhang, C.; Lv, H. Mechanical response and shrinkage performance of cementitious composites with a new fiber hybridization. Constr. Build. Mater. 2014, 57, 45–52. [Google Scholar] [CrossRef]
  6. Pujadas, P.; Blanco, A.; Cavalaro, S.; de la Fuente, A.; Aguado, A. Fibre distribution in macro-plastic fibre reinforced concrete slab-panels. Constr. Build. Mater. 2014, 64, 496–503. [Google Scholar] [CrossRef]
  7. Kazmi, S.M.S.; Munir, M.J.; Wu, Y.F.; Patnaikuni, I. Effect of macro-synthetic fibers on the fracture energy and mechanical behavior of recycled aggregate concrete. Constr. Build. Mater. 2018, 189, 857–868. [Google Scholar] [CrossRef]
  8. Nili, M.; Afroughsabet, V. The effects of silica fume and polypropylene fibers on the impact resistance and mechanical properties of concrete. Constr. Build. Mater. 2010, 24, 927–933. [Google Scholar] [CrossRef]
  9. Soutsos, M.N.; Le, T.T.; Lampropoulos, A.P. Flexural performance of fibre reinforced concrete made with steel and synthetic fibres. Constr. Build. Mater. 2012, 36, 704–710. [Google Scholar] [CrossRef]
  10. Güneyisi, E.; Gesoğlu, M.; Mohamadameen, A.; Alzeebaree, R.; Algın, Z.; Mermerdaş, K. Enhancement of shrinkage behavior of lightweight aggregate concretes by shrinkage reducing admixture and fiber reinforcement. Constr. Build. Mater. 2014, 54, 91–98. [Google Scholar] [CrossRef]
  11. Yin, S.; Tuladhar, R.; Shanks, R.A.; Collister, T.; Combe, M.; Jacob, M.; Sivakugan, N. Fiber preparation and mechanical properties of recycled polypropylene for reinforcing concrete. J. Appl. Polym. Sci. 2015, 132. [Google Scholar] [CrossRef]
  12. Chavooshi, A.; Madhoushi, M. Mechanical and physical properties of aluminum powder/MDF dust/polypropylene composites. Constr. Build. Mater. 2013, 44, 214–220. [Google Scholar] [CrossRef]
  13. Buratti, N.; Mazzotti, C.; Savoia, M. Postcracking behaviour of steel and macrosynthetic fibrereinforced concretes. Constr. Build. Mater. 2011, 25, 2713–2722. [Google Scholar] [CrossRef]
  14. Nana, W.S.A.; Tran, H.V.; Goubin, T.; Kubisztal, G.; Bennani, A.; Bui, T.T.; Cardia, G.; Limam, A. Behaviour of macro-synthetic fibers reinforced concrete: Experimental, numerical and design code investigations. Proc. Struct. 2021, 32, 1271–1286. [Google Scholar] [CrossRef]
  15. Association of Plastic Manufacturers. Plastics—The Facts 2020; PlasticEurope: Brussels, Belgium, 2020. [Google Scholar]
  16. Siddique, R.; Khatib, J.; Kaur, I. Use of recycled plastic in concrete: A review. Waste Manag. 2008, 28, 1835–1852. [Google Scholar] [CrossRef]
  17. Alani, A.H.; Bunnori, N.M.; Noaman, A.T.; Majid, T.A. Durability performance of a novel ultra-high-performance PET green concrete (UHPPGC). Constr. Build. Mater. 2019, 209, 395–405. [Google Scholar] [CrossRef]
  18. Gu, L.; Ozbakkaloglu, T. Use of recycled plastics in concrete: A critical review. Waste Manag. 2016, 51, 19–42. [Google Scholar] [CrossRef]
  19. Mohan, H.T.; Jayanarayanan, K.; Mini, K.M. Recent trends in utilization of plastics waste composites as construction materials. Constr. Build. Mater. 2020, 271, 121520. [Google Scholar] [CrossRef]
  20. Platon, M.A.; Nemes, O.; Tiuc, A.E.; Vasile, O.; Paduretu, S. Phono-Absorbent Behavior of New Fiberglass Plates from Mixed Plastic Material Wastes. In Materials Design and Applications III; Springer: Berlin/Heidelberg, Germany, 2021; pp. 67–76. [Google Scholar] [CrossRef]
  21. Mohammadinia, A.; Wong, Y.C.; Arulrajah, A.; Horpibulsuk, S. Strength evaluation of utilizing recycled plastic waste and recycled crushed glass in concrete footpaths. Constr. Build. Mater. 2019, 197, 489–496. [Google Scholar] [CrossRef]
  22. Corbu, O.; Bompa, D.V.; Szilagyi, H. Eco-efficient cementitious composites with large amounts of waste glass and plastic. Proc. Inst. Civ. Eng. Eng. Sustain. 2021, 40, 1–11. [Google Scholar] [CrossRef]
  23. Thorneycroft, J.; Orr, J.; Savoikar, P.; Ball, R.J. Performance of structural concrete with recycled plastic waste as a partial replacement for sand. Constr. Build. Mater. 2018, 161, 63–69. [Google Scholar] [CrossRef]
  24. Merlo, A.; Lavagna, L.; Suarez-Riera, D.; Pavese, M. Mechanical properties of mortar containing waste plastic (PVC) as aggregate partial replacement. Case Stud. Constr. Mater. 2020, 13, e00467. [Google Scholar] [CrossRef]
  25. Foti, D. Use of recycled waste pet bottles fibers for the reinforcement of concrete. Compos. Struct. 2013, 96, 396–404. [Google Scholar] [CrossRef]
  26. Foti, D.; Paparella, F. Impact behavior of structural elements in concrete reinforced with PET grids. Mech. Res. Commun. 2014, 57, 57–66. [Google Scholar] [CrossRef]
  27. Tuladhar, R.; Yin, S. Sustainability of using recycled plastic fiber in concrete. In Use of Recycled Plastics in Eco-Efficient Concrete; Woodhead Publishing Series in Civil and Structural Engineering; Woodhead Publishing: Sawston, UK, 2019; pp. 441–460. [Google Scholar] [CrossRef]
  28. Meddah, M.S.; Bencheikh, M. Properties of concrete reinforced with different kinds of industrial waste fibre materials. Constr. Build. Mater. 2009, 23, 3196–3205. [Google Scholar] [CrossRef]
  29. Ahvenainen, R. Novel Food Packaging Techniques; CRC Press: Boca Raton, FL, USA; Woodhead Publishing: Sawston, UK, 2003. [Google Scholar]
  30. Horodytska, O.; Valdés, F.J.; Fullana, A. Plastic flexible films waste management—A state of art review. Waste Manag. 2018, 77, 413–425. [Google Scholar] [CrossRef] [PubMed]
  31. Mulakkal, M.C.; Castillo Castillo, A.; Taylor, A.C.; Blackman, B.R.K.; Balint, D.S.; Pimenta, S.; Charalambides, M.N. Advancing mechanical recycling of multilayer plastics through finite element modelling and environmental policy. Resour. Conserv. Recycl. 2021, 166, 105371. [Google Scholar] [CrossRef]
  32. Soares, C.T.d.M.; Ek, M.; Östmark, E.; Gällstedt, M.; Karlsson, S. Recycling of multi-material multilayer plastic packaging: Current trends and future scenarios. Resour. Conserv. Recycl. 2022, 176, 105905. [Google Scholar] [CrossRef]
  33. Kaiser, K.; Schmid, M.; Schlummer, M. Recycling of polymer-based multilayer packaging: A review. Recycling 2018, 3, 1. [Google Scholar] [CrossRef] [Green Version]
  34. SP GROUP Projects. Biobaractive. New Multi-Layer Biodegradable Packaging with High Gas-Barrier Properties and Anti-Microbial Properties for Increasing the Shelf Life of Processed Meats. JSIP-20150002. Available online: https://www.spg-pack.com/en/biobaractive-new-multi-layer-biodegradable-packaging-with-high-gas-barrier-properties-and-anti-microbial-properties-for-increasing-the-shelf-life-of-processed-meats/ (accessed on 15 October 2021).
  35. SP GROUP Projects. Project Reciclactive: “Delivering the Meat Industry New Sustainable, Recyclable Active Packaging Solutions”. Available online: https://www.spg-pack.com/en/project-reciclactive-delivering-the-meat-industry-new-sustainable-recyclable-active-packaging-solutions/ (accessed on 15 October 2021).
  36. De Oliveira, L.A.P.; Castro-Gomes, J.P. Physical and mechanical behaviour of recycled PET fibre reinforced mortar. Constr. Build. Mater. 2011, 25, 1712–1717. [Google Scholar] [CrossRef]
  37. Han, C.-G.; Hwang, Y.-S.; Yang, S.-H.; Gowripalan, N. Performance of spalling resistance of high performance concrete with polypropylene fiber contents and lateral confinement. Cem. Concr. Res. 2005, 35, 1747–1753. [Google Scholar] [CrossRef]
  38. Karahan, O.; Atiş, C.D. The durability properties of polypropylene fiber reinforced fly ash concrete. Mater. Des. 2011, 32, 1044–1049. [Google Scholar] [CrossRef]
  39. Richardson, A.E. Compressive strength of concrete with polypropylene fibre additions. Struct. Surv. 2006, 24, 138–153. [Google Scholar] [CrossRef]
  40. Alonso, M.C.; Sanchez, M.; Rodriguez, C.; Barragan, B. Durability of SCC reinforced with polymeric fibres: Interaction with environment and behaviour against high temperatures. In Proceedings of the 11th International Inorganic-Bonded Fibre Composites Conferences, Madrid, Spain, 5–7 November 2008; pp. 227–235. [Google Scholar]
  41. De Miguel, P.C.; Álvarez, A.P.; Jiménez, J.P.G. Diseño optimizado y caracterización de hormigones autocompactantes reforzados con fibra polimérica de alto módulo. In Proceedings of the 3rd Congreso Iberoamericano Sobre Hormigón Autocompactante Avances y Oportunidades, Madrid, Spain, 3–4 December 2012. [Google Scholar]
  42. Kim, S.B.; Yi, N.H.; Kim, H.Y.; Kim, J.-H.J.; Song, Y.C. Material and structural performance evaluation of recycled PET fiber reinforced concrete. Cem. Concr. Compos. 2010, 32, 232–240. [Google Scholar] [CrossRef]
  43. Ghernouti, Y.; Rabehi, B.; Bouziani, T.; Ghezraoui, H.; Makhloufi, A. Fresh and hardened properties of self-compacting concrete containing plastic bag waste fibers (WFSCC). Constr. Build. Mater. 2015, 82, 89–100. [Google Scholar] [CrossRef]
  44. Borg, R.P.; Baldacchino, O.; Ferrara, L. Early age performance and mechanical characteristics of recycled {PET} fibre reinforced concrete. Constr. Build. Mater. 2018, 108, 29–47. [Google Scholar] [CrossRef] [Green Version]
  45. Jacob-Vaillancourt, C.; Sorelli, L. Characterization of concrete composites with recycled plastic aggregates from postconsumer material streams. Constr. Build. Mater. 2018, 182, 561–572. [Google Scholar] [CrossRef]
  46. Ahmed, H.U.; Faraj, R.H.; Hilal, N.; Mohammed, A.A.; Sherwani, A.F.H. Use of recycled fibres in concrete composites: A systematic comprehensive review. Compos. B Eng. 2021, 215, 108769. [Google Scholar] [CrossRef]
  47. Hsie, M.; Tu, C.; Song, P.S. Mechanical properties of polypropylene hybrid fiber reinforced concrete. Mater. Sci. Eng. A 2008, 494, 153–157. [Google Scholar] [CrossRef]
  48. Kakooei, S.; Akil, H.M.; Jamshidi, M.; Rouhi, J. The effects of polypropylene fibers on the properties of reinforced concrete structures. Constr. Build. Mater. 2012, 27, 73–77. [Google Scholar] [CrossRef]
  49. Thomas, L.M.; Moosvi, S.A. Hardened properties of binary cement concrete with recycled PET bottle fiber: An experimental study. Mater. Today Proc. 2020, 32, 632–637. [Google Scholar] [CrossRef]
  50. Pelisser, F.; Montedo, O.R.K.; Gleize, P.J.P.; Roman, H.R. Mechanical properties of recycled PET fibers in concrete. Mater. Res. 2012, 15, 679–686. [Google Scholar] [CrossRef]
  51. Mazaheripour, H.; Ghanbarpour, S.; Mirmoradi, S.H.; Hosseinpour, I.I. The effect of polypropylene fibers on the properties of fresh and hardened lightweight self-compacting concrete. Constr. Build. Mater. 2011, 25, 351–358. [Google Scholar] [CrossRef]
  52. López-Buendía, A.M.; Romero-Sánchez, M.D.; Climent, V.; Guillem, C. Surface treated polypropylene (PP) fibres for reinforced concrete. Cem. Concr. Res. 2013, 54, 29–35. [Google Scholar] [CrossRef]
  53. Ochi, T.; Okubo, S.; Fukui, K. Development of recycled {PET} fiber and its application as concretereinforcing fiber. Cem. Concr. Compos. 2007, 29, 448–455. [Google Scholar] [CrossRef]
  54. Toutanji, H.A. Properties of polypropylene fiber reinforced silica fume expansive-cement concrete. Constr. Build. Mater. 1999, 13, 171–177. [Google Scholar] [CrossRef]
  55. Wang, Y.; Zureick, A.H.; Cho, B.S.; Scott, D. E Properties of fibre reinforced concrete using recycled fibres from carpet industrial waste. J. Mater. Sci. 1994, 29, 4191–4199. [Google Scholar] [CrossRef]
  56. Nibudey, R.N.; Nagarnaik, P.B.; Parbat, D.K.; Pande, A.M. Strength and fracture properties of post consumed waste plastic fiber reinforced concrete. Int. J. Civ. Struct. Environ. Infrastruct. Eng. Res. Dev. 2013, 3, 9–16. [Google Scholar]
  57. Yin, S.; Tuladhar, R.; Collister, T.; Combe, M.; Sivakugan, N.; Deng, Z. Post-cracking performance of recycled polypropylene fibre in concrete. Constr. Build. Mater. 2015, 101, 1069–1077. [Google Scholar] [CrossRef]
  58. Foti, D. Preliminary analysis of concrete reinforced with waste bottles PET fibers. Constr. Build. Mater. 2011, 25, 1906–1915. [Google Scholar] [CrossRef]
  59. Signorini, C.; Volpini, V. Mechanical Performance of Fiber Reinforced Cement Composites Including Fully-Recycled Plastic Fibers. Fibers 2021, 9, 16. [Google Scholar] [CrossRef]
Applsci 11 09862 g001 550

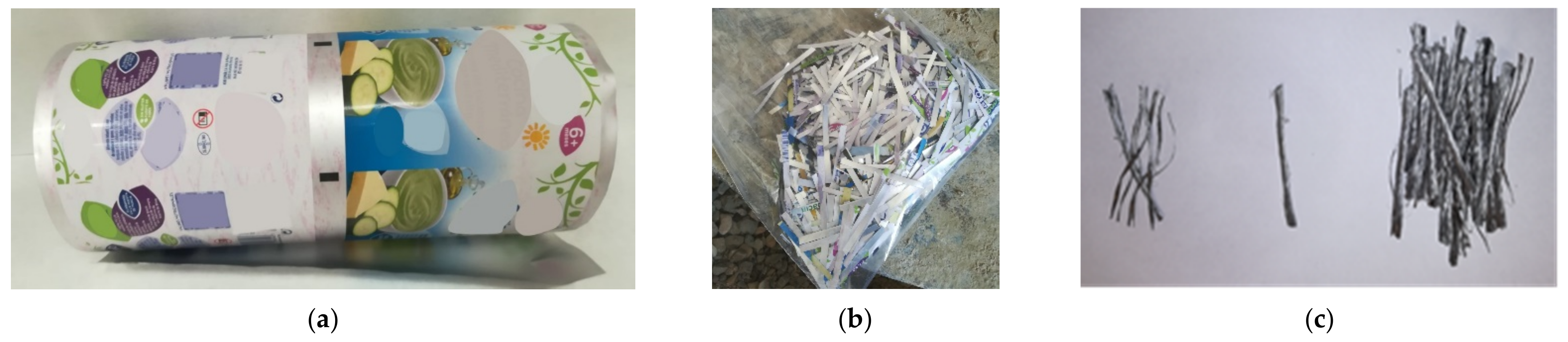

Figure 1. Plastic fibres: plastic waste rolls from food packaging (a); the prepared fibres (b); commercial polypropylene fibre (c).
Figure 1. Plastic fibres: plastic waste rolls from food packaging (a); the prepared fibres (b); commercial polypropylene fibre (c).
Applsci 11 09862 g001
Applsci 11 09862 g002 550

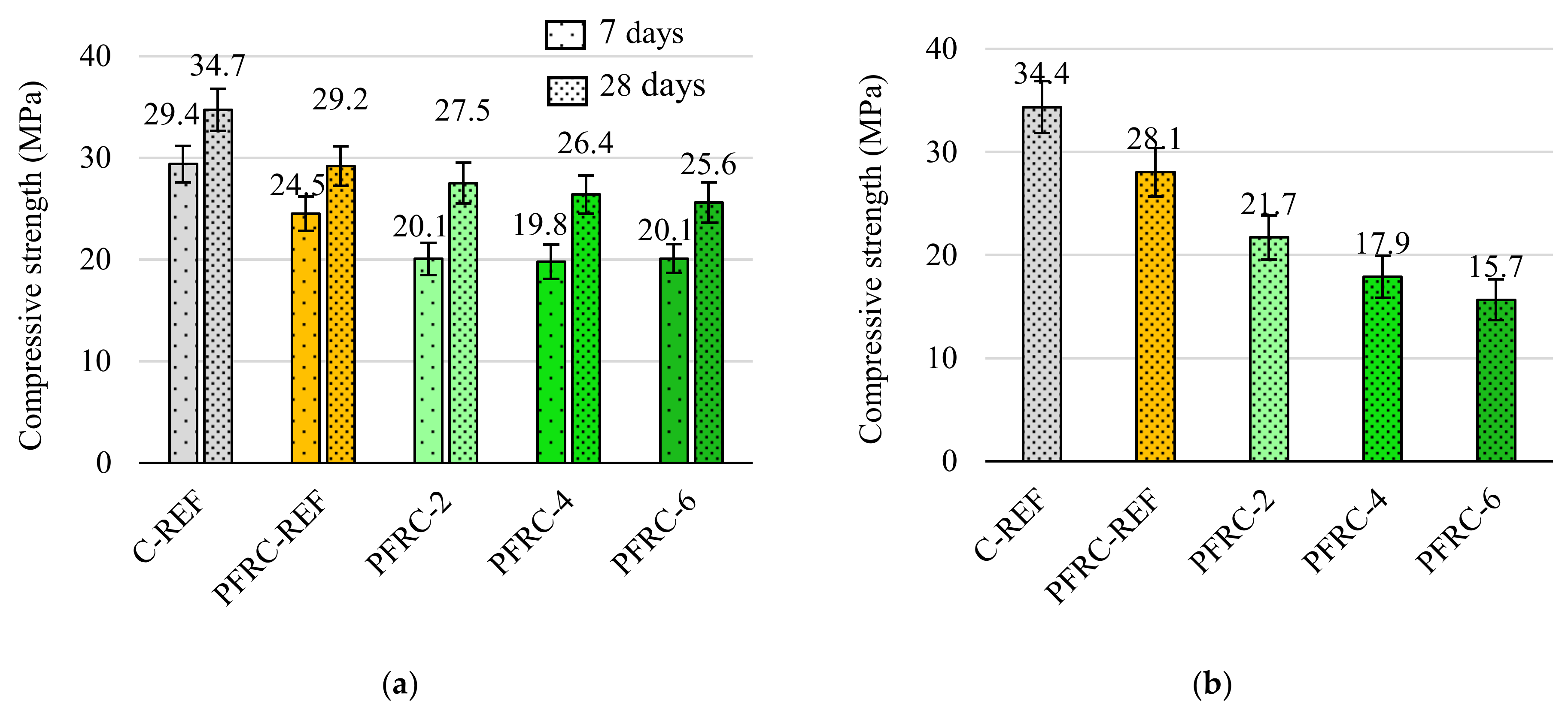

Figure 2. Compressive strength values for each mixture, along with the standard deviation bands: at 7 and 28 days (fck,cube) (a); at 28 days (fck,cyl) (b).
Figure 2. Compressive strength values for each mixture, along with the standard deviation bands: at 7 and 28 days (fck,cube) (a); at 28 days (fck,cyl) (b).
Applsci 11 09862 g002
Applsci 11 09862 g003 550

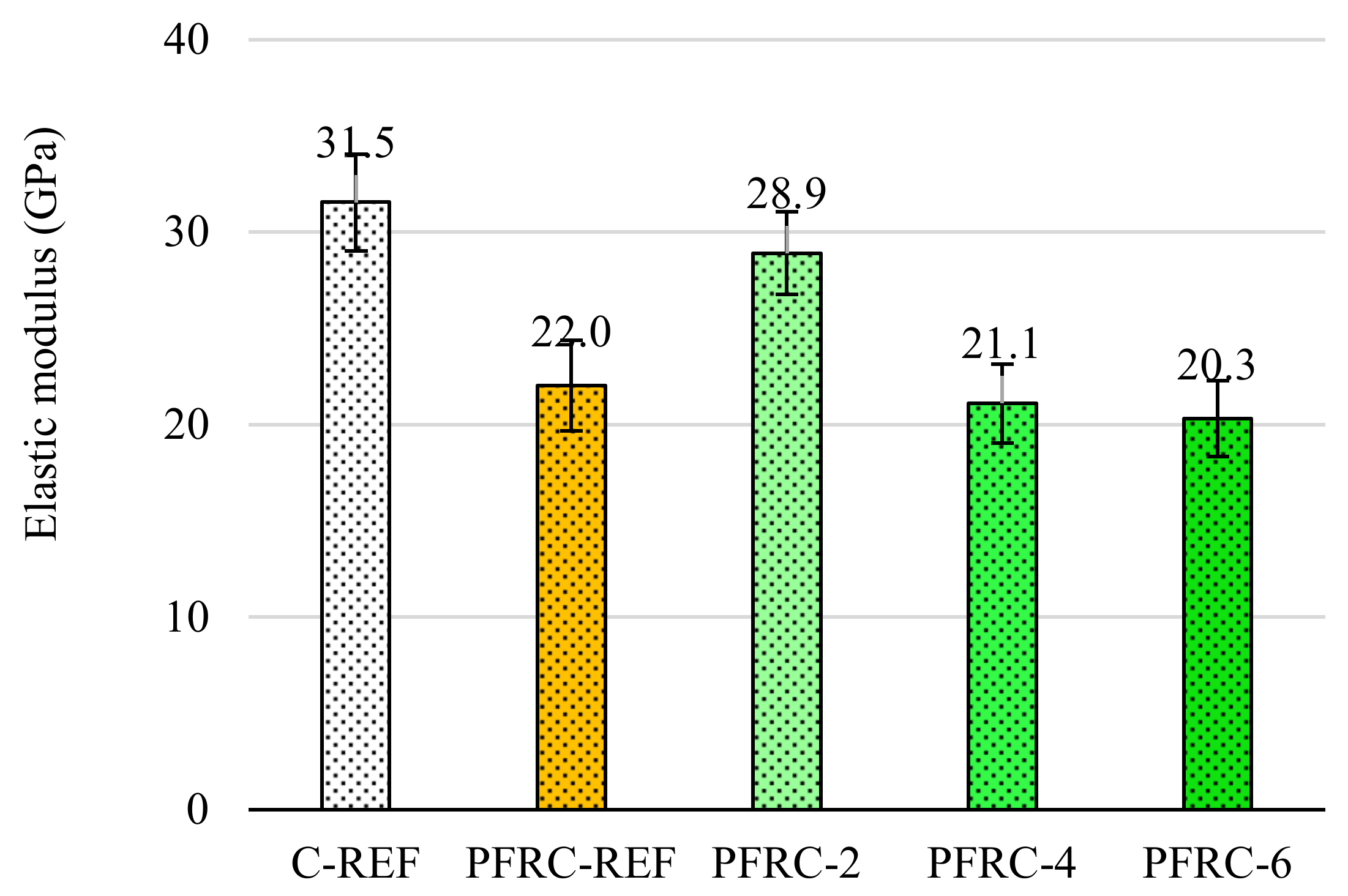

Figure 3. Elastic modulus (Ecm) values for all mixtures at 28 days, along with the standard deviation bands.
Figure 3. Elastic modulus (Ecm) values for all mixtures at 28 days, along with the standard deviation bands.
Applsci 11 09862 g003
Applsci 11 09862 g004 550

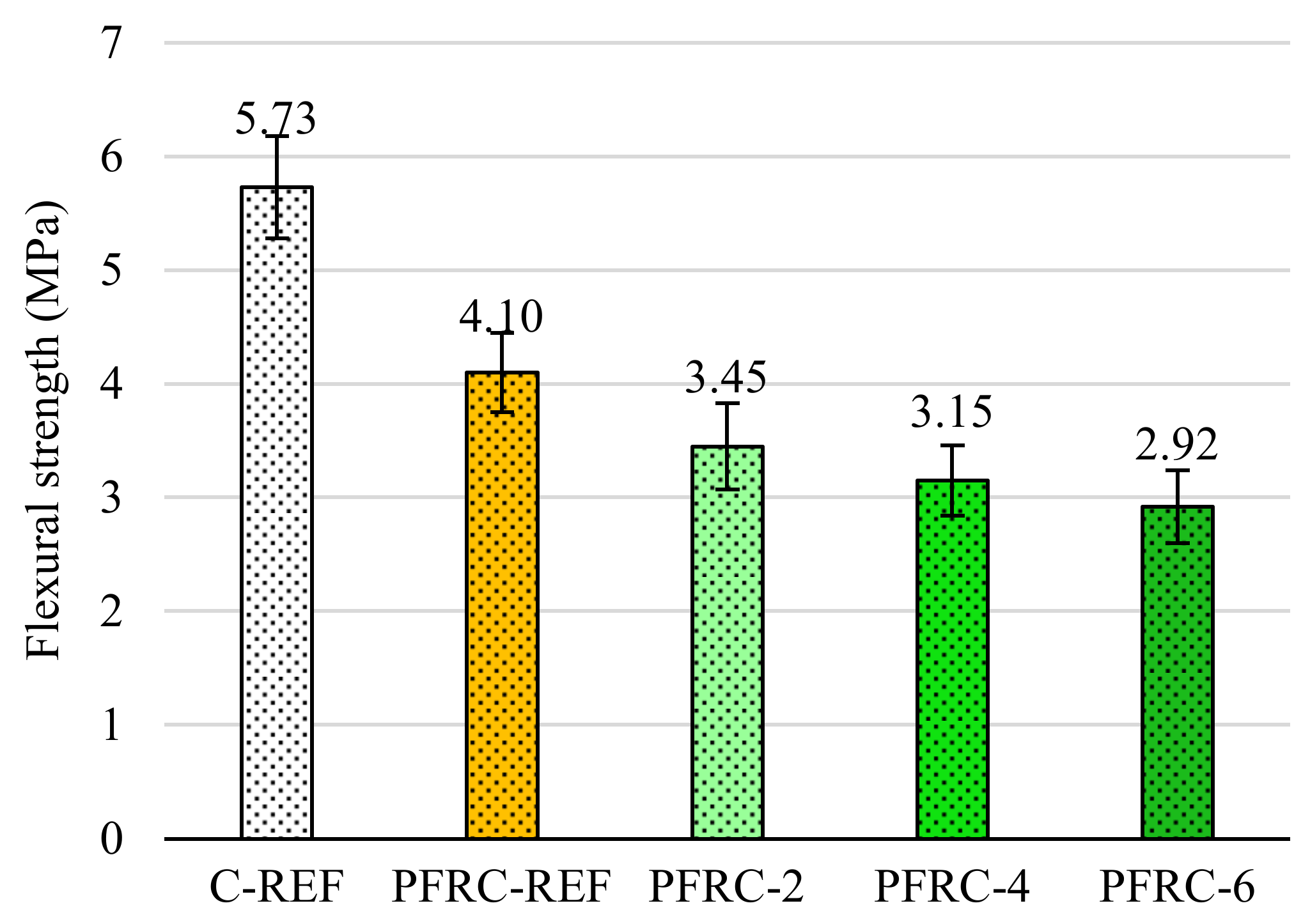

Figure 4. Flexural strength values for all mixtures, along with the standard deviation bands.
Figure 4. Flexural strength values for all mixtures, along with the standard deviation bands.
Applsci 11 09862 g004
Applsci 11 09862 g005 550

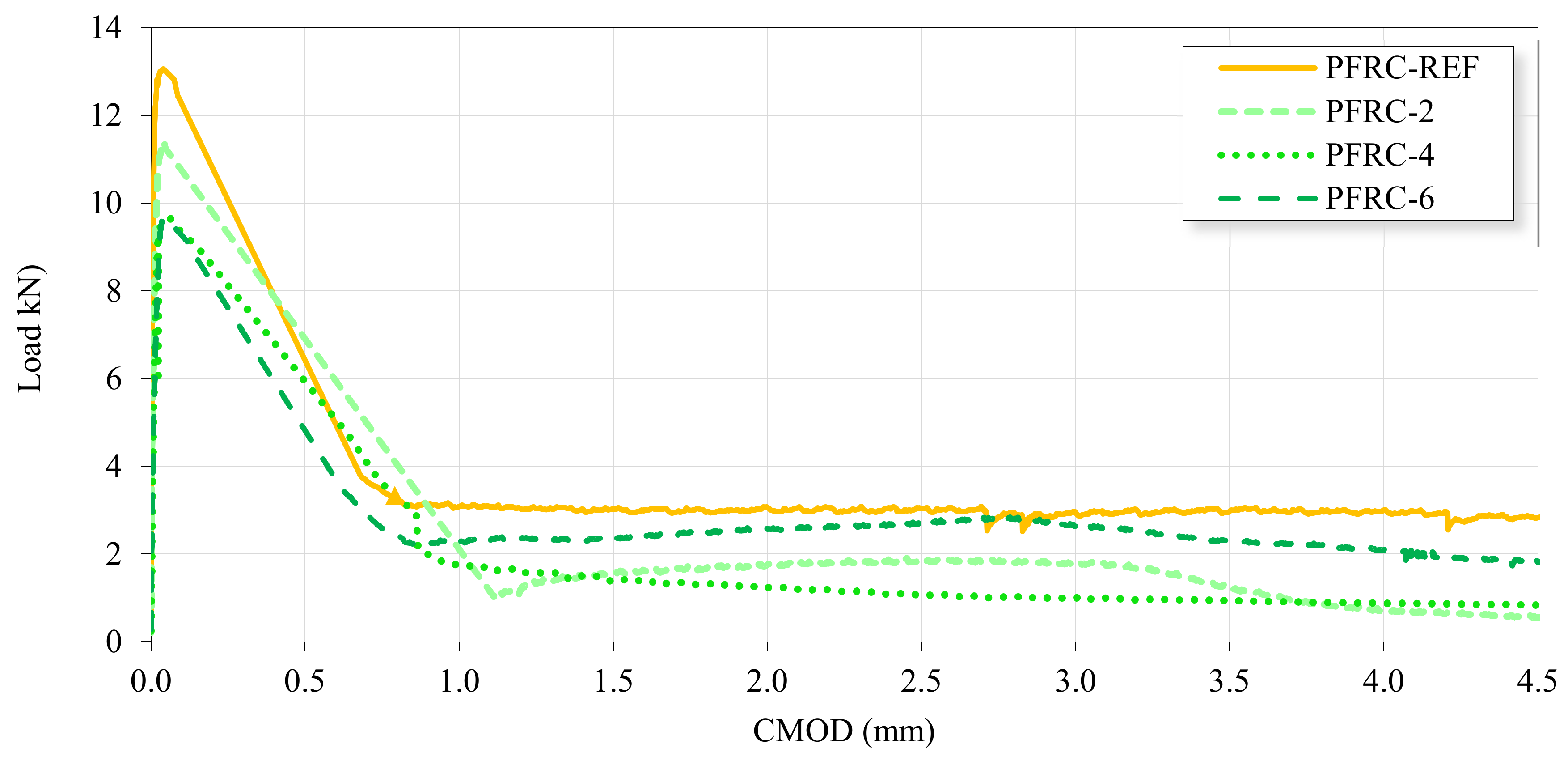

Figure 5. Average load–CMOD curves of three specimens of each concrete type.
Figure 5. Average load–CMOD curves of three specimens of each concrete type.
Applsci 11 09862 g005
Applsci 11 09862 g006 550

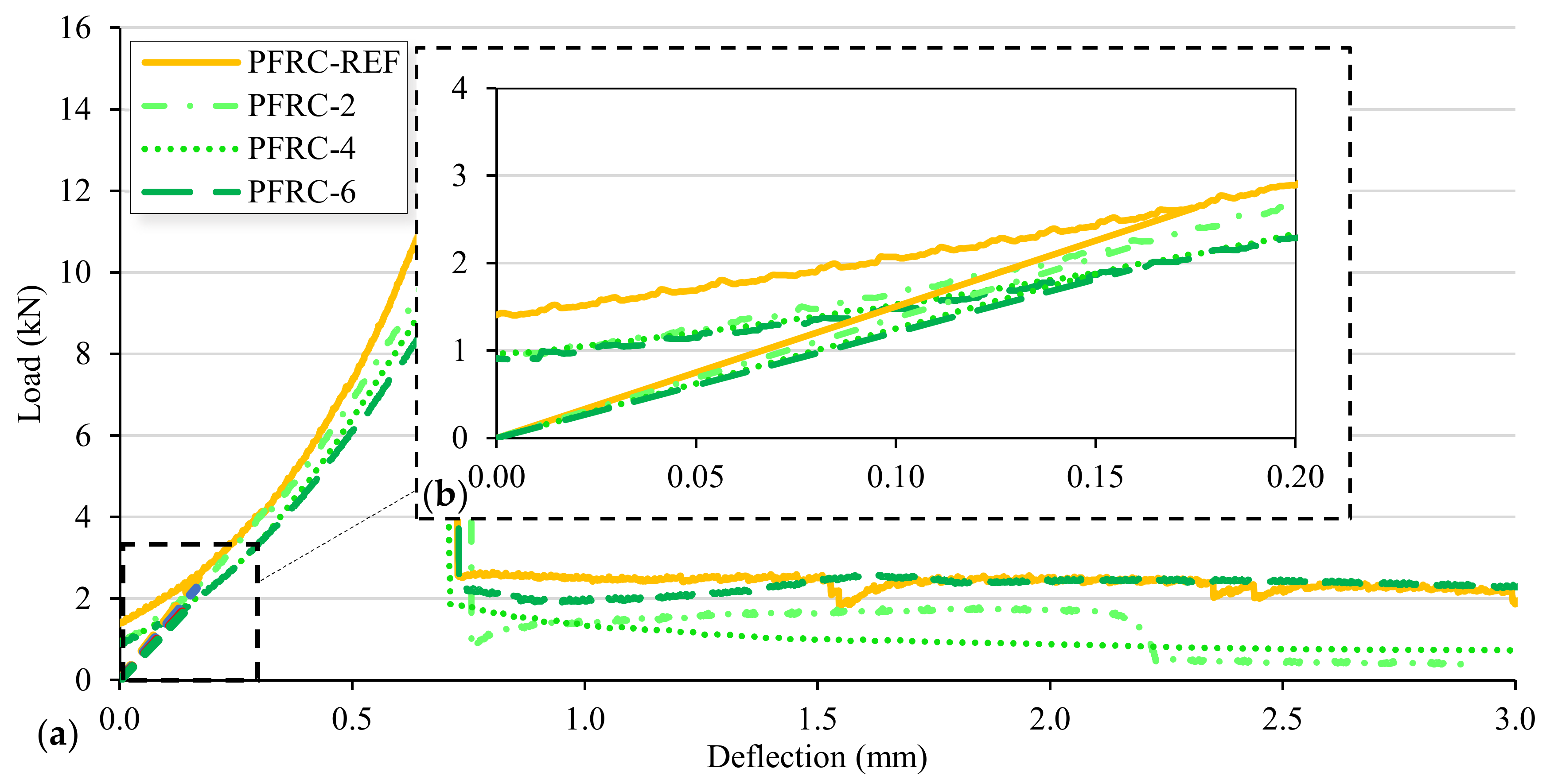

Figure 6. Load–deflection curves of each concrete type (a); detailed view of the initial section of the curve (b).
Figure 6. Load–deflection curves of each concrete type (a); detailed view of the initial section of the curve (b).
Applsci 11 09862 g006
Applsci 11 09862 g007 550

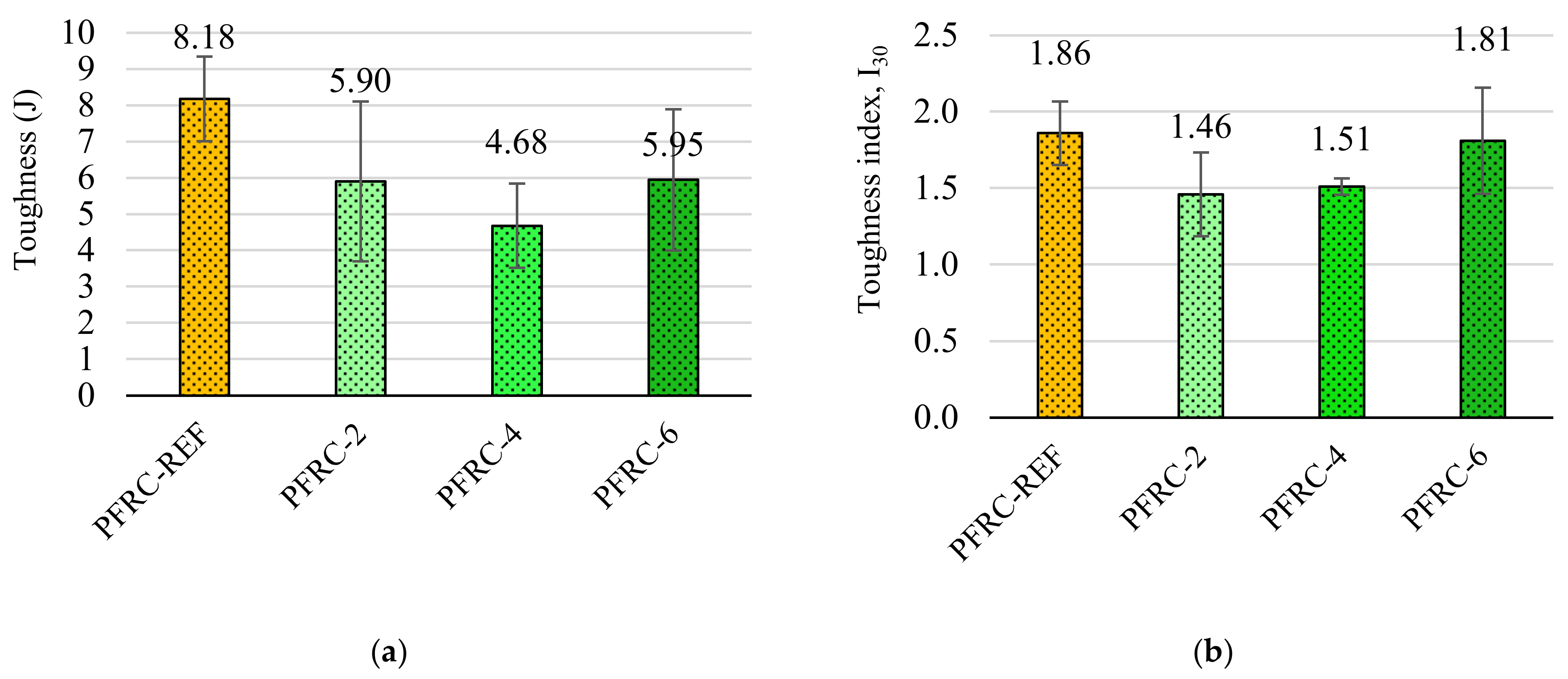

Figure 7. Values of toughness (a) and toughness index (b).
Figure 7. Values of toughness (a) and toughness index (b).
Applsci 11 09862 g007
Table
Table 1. Technical data of recycled plastic fibres (RPFs) and commercial polypropylene fibre (CPF).
Table 1. Technical data of recycled plastic fibres (RPFs) and commercial polypropylene fibre (CPF).
Technical DataUnitRPFCPF
Thicknessmm0.125-
Widthmm4-
Lengthmm5050
Diametermm-0.682
Aspect ratio-63.0073.53
Densityg/cm31.130.91
Tensile strengthMPa500530
Modulus of elasticityGPa9.07.4
Table
Table 2. Results of the test methods conducted on concrete samples, related to their physical properties.
Table 2. Results of the test methods conducted on concrete samples, related to their physical properties.
Test Methods\MixesC-REFPFRC-REFPFRC-2PFRC-4PFRC-6
Dry density (g/cm3)2.27 (0.01)2.26 (0.01)2.24 (0.01)2.25 (0.01)2.21 (0.02)
Open porosity (%)11.84 (0.24)14.15 (0.31)12.21 (0.20)12.17 (0.44)13.34 (0.49)
Effective porosity of concrete, εe
(×10−2 cm3/cm3)		5.48 (0.38)8.72 (0.65)6.30 (0.20)6.55 (0.08)6.53 (0.07)
Resistance to water penetration by capillarity absorption, m (min/cm2)33.22 (1.01)34.64 (4.70)27.62 (0.62)28.39 (1.79)24.98 (0.90)
Capillary absorption coefficient, K
(×10−2 kg/(m2·min1/2)		9.51 (0.50)14.81 (0.60)11.98 (0.44)12.30 (0.27)13.08 (0.37)
The standard deviation is shown in parentheses
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Vaccaro, P.A.; Galvín, A.P.; Ayuso, J.; Barbudo, A.; López-Uceda, A. Mechanical Performance of Concrete Made with the Addition of Recycled Macro Plastic Fibres. Appl. Sci. 2021, 11, 9862. https://doi.org/10.3390/app11219862

AMA Style

Vaccaro PA, Galvín AP, Ayuso J, Barbudo A, López-Uceda A. Mechanical Performance of Concrete Made with the Addition of Recycled Macro Plastic Fibres. Applied Sciences. 2021; 11(21):9862. https://doi.org/10.3390/app11219862

Chicago/Turabian Style

Vaccaro, Pietro A., Adela P. Galvín, Jesús Ayuso, Auxi Barbudo, and Antonio López-Uceda. 2021. "Mechanical Performance of Concrete Made with the Addition of Recycled Macro Plastic Fibres" Applied Sciences 11, no. 21: 9862. https://doi.org/10.3390/app11219862

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
