Analysis of Layered Geogrids–Sand–Clay Reinforced Structures under Triaxial Compression by Discrete Element Method

Abstract

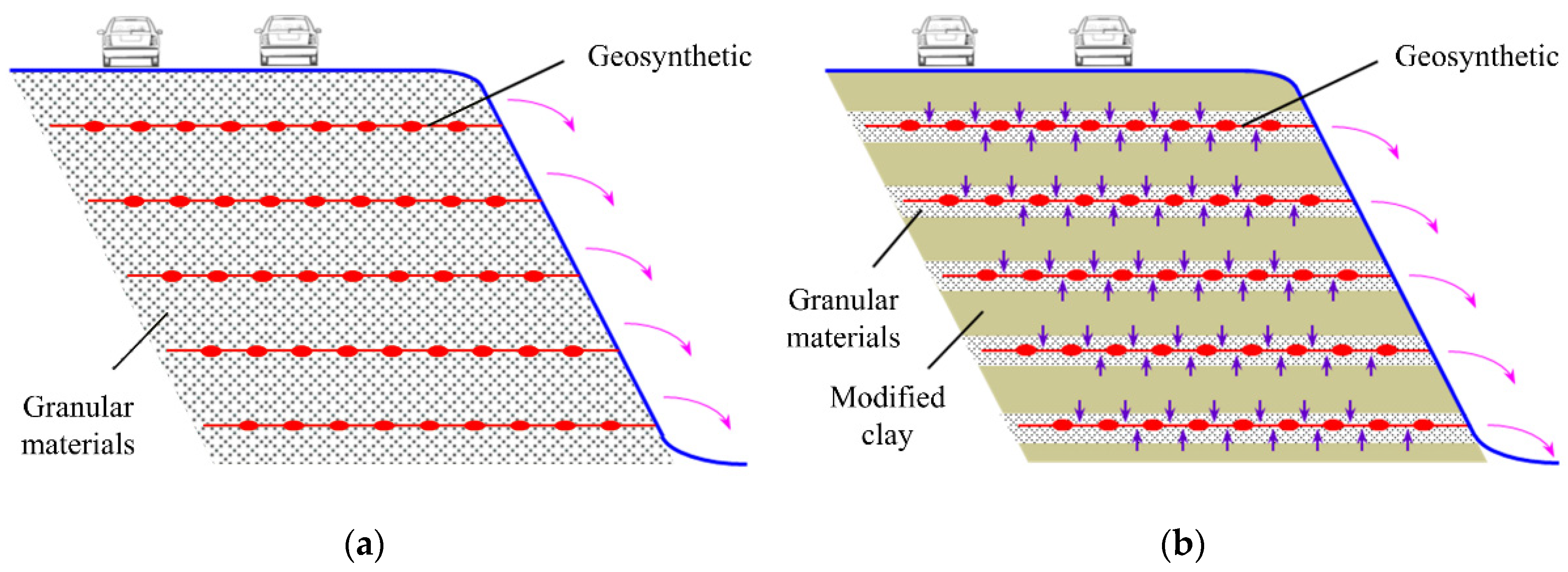

Compared with the commonest geosynthetics-reinforced soil structures, layered geogrids–sand–clay reinforced (LGSCR) structures (School of Architecture and Civil Engineering, Shenyang University of Technology, Shenyang 110870, China) can replace granular materials with clay as the primary backfill material. Up until now, the performance of LGSCR structures under triaxial compression has been unclear. In this paper, the discrete element method was used to simulate the triaxial compression test on the LGSCR samples. Based on the particle flow software PFC^3D, three types of cluster particle-simulated sand and the reinforced joints of the geogrid were constructed by secondary development. The effects of the geogrid embedment in sand layers, the number and thickness of sand layers in relation to the deviatoric stress, and the axial strain and the shear strength index of the LGSCR samples were analyzed. The results showed that laying the sand layers in the samples can improve their post-peak strain-softening characteristics and increase their peak strengths under a high confining pressure. A geogrid embedment in sand layers can further enhance the ductility and peak strength of the samples, and in terms of the shear strength index, there is a 41.6% to 54.8% increase in the apparent cohesion of the samples.

1. Introduction

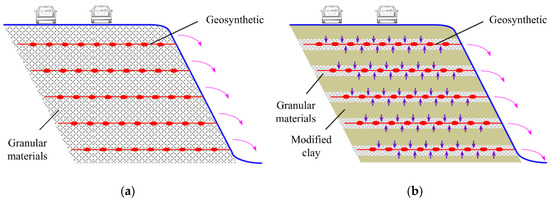

The commonest geosynthetics-reinforced soil (GRS) structures that embed geosynthetics in the soil have been widely used in practical engineering. The backfill material is one of the main components of GRS structures and accounts for 30–40% of their cost [1]. The existing design specifications generally consider free-draining granular substances as the backfill material in the reinforced region [2,3,4,5]. As clay is one of the most abundant and inexpensive building materials, if the modified clay available on-site can be used as the backfill material of GRS structures, then the cost can be reduced and the environmental impact associated with the disposal of the excavated soil can be lessened [6,7].

During the long-term operation of GRS structures, factors such as rainfall, the freeze–thaw cycle, and the change in the groundwater level can lead to a significant increase in the water content of fillers. When clay is used as the backfill material for the commonest GRS structures, the strength of the geosynthetics–clay interface decreases significantly with an increase in the water content of the clay [8], resulting in the instability of the structure. In order to solve this problem, the layered geosynthetics–granule–clay reinforced structure was proposed based on commonest geosynthetics-reinforced soil structures [9,10], as shown in Figure 1. The proposed structures adopt a sandwich technology by laying a thin layer of sand around the geosynthetics and use a clay filler outside the thin layer of the sand. By using clay as the primary filler, some experimental studies conducted on the proposed structures [10,11,12,13] demonstrate that they fully exploit the high-quality drainage performance of the granular material along with the superior friction between the geosynthetics and the granular material to ensure the long-term stability of structures.

Based on the equivalent confining stress concept [14] and the pseudo-cohesion concept [15], the triaxial compression test is commonly used to study the mechanical responses of the geosynthetics-reinforced soil structure. To date, there is a lack of research on layered geosynthetics–granule–clay reinforced structures under triaxial compression. The simulation technique using three-dimensional particle flow software can accurately realize the triaxial compression test [16,17,18,19]. This paper utilizes the three-dimensional particle flow software PFC^3D to carry out the triaxial compression test of the layered geosynthetics–granule–clay reinforced structure. The geogrids and sand are used as the geosynthetics and granular materials of a layered geosynthetics–granule–clay reinforced structure. Based on PFC^3D, three types of cluster particles were secondarily developed to simulate sand and to construct the reinforced joints of the geogrid. Thus, the numerical triaxial compression test model of the layered geogrids–sand–clay reinforced (LGSCR) structure is established. Furthermore, the influences of the laying parameters of the sand layer and the geogrid-reinforced sand layer on the numerical triaxial compression test results of the samples are examined, which can provide a frame of reference for the study of the physical and mechanical properties of LGSCR structures.

2. DEM Modeling

The confined space for the triaxial compression test of the LGSCR samples in PFC^3D is a frictionless, flexible cylinder with a height (H) of 80 mm and a diameter (D) of 40 mm and two frictionless rigid-loading plates. In the triaxial compression test process, the axial load is applied by setting the speed of the rigid-loading plates, and the servomechanism controls the radial movement of the cylinder to maintain the stability of the confining pressure. In order to reduce the boundary effect, a stiffness reduction factor of 0.5 was used to consider the flexible constraint of the cylindrical wall; however, a stiffness amplification factor of 5.0 was adopted for the two loading plates to realize the axial rigid loading.

2.1. Particle Flow Simulation of Filler and Geogrid

Since sand is a non-cohesive material, this paper employs the contact stiffness model to simulate its constitutive behavior. The contact-bonding constitutive model is used to simulate the mechanical behavior of clay [20,21,22]. The basic elements provided in PFC^3D are spherical particles. However, the spherical particles are unable to replicate the requirements of the actual sand layer in terms of the particle shape and arrangement; therefore, the excessive rotation during the particle interaction will lead to the underestimation of the shear strength of the sand layer. Given the shortcomings of the spherical particles in simulating the sand layer, three types of cluster particles, namely diamond-like, triangle-like, and square-like particles, are secondarily developed by using the “clump” command, as depicted in Figure 2. In each cluster particle, the sub-particles have the same radius. The lines connecting the sub-particles’ centers are coplanar and can form diamond, triangle and square shapes, respectively. The three types of cluster particles can effectively improve the diversity of the particle corner angles and particle arrangement, so that the excessive rotation will not occur during the particle interaction.

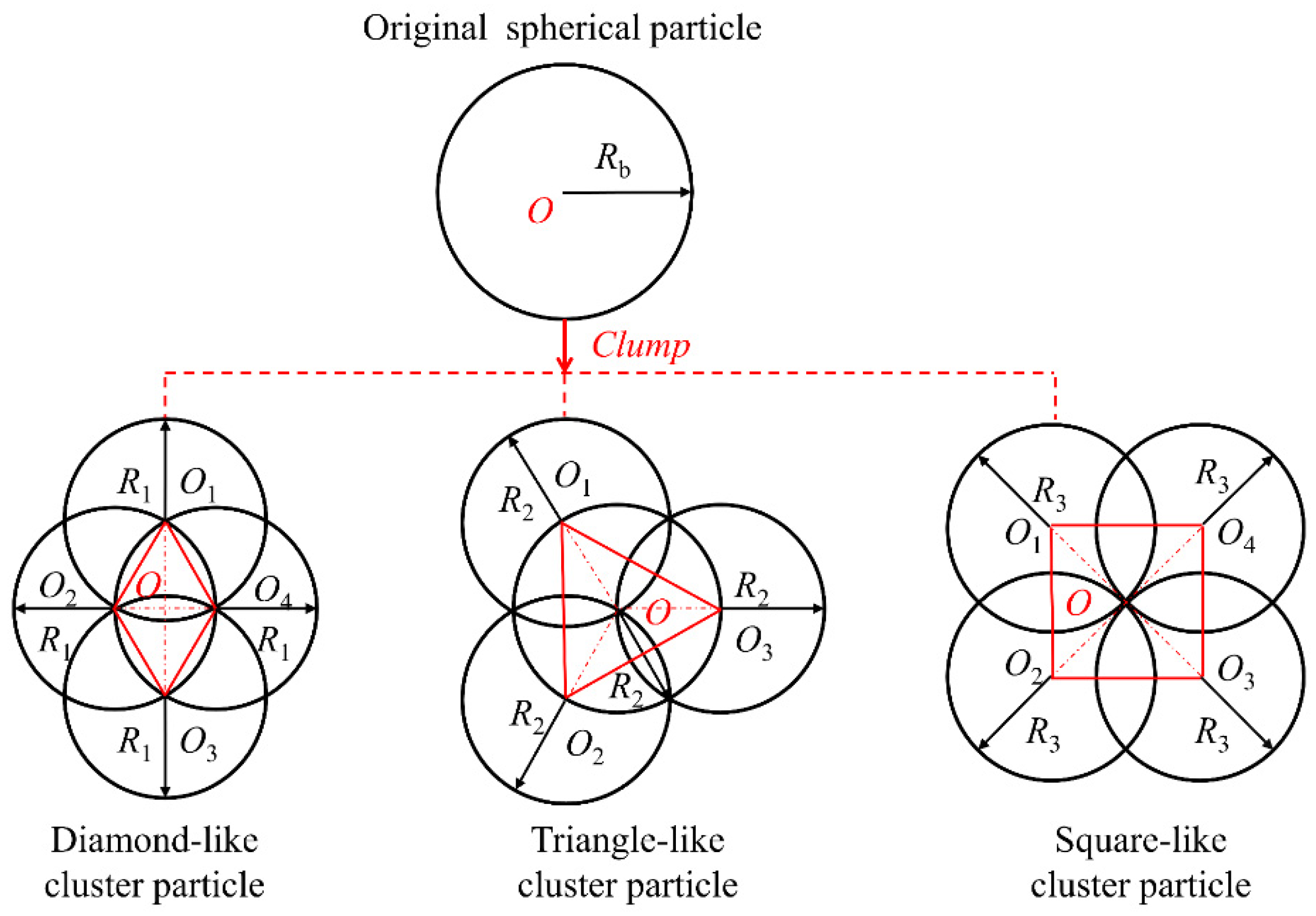

Based on the principle that the volume, mass, and center of gravity remain unchanged before and after conversion, the radius and density of the sub-particles of the three types of the cluster particles after conversion can be defined as:

$$\{\begin{array}{l}{R}_1=\sqrt[3]{\frac{16}{49+\left(7-4\sqrt{3}\right)\left(4+\sqrt{3}\right)}}\times R_{\mathrm{b}}\\ R_2=\sqrt[3]{\frac{16}{49}}\times R_{\mathrm{b}}\\ R_3=\sqrt[3]{\frac{4}{16-\left(6-4\sqrt{2}\right)\left(4+\sqrt{2}\right)}}\times R_{\mathrm{b}}\end{array}$$

(1)

$$\{\begin{array}{l}{d}_1=\frac{R_{\mathrm{b}}^3}{4R_1^3}\times d_{\mathrm{b}}\\ d_2=\frac{R_{\mathrm{b}}^3}{4R_2^3}\times d_{\mathrm{b}}\\ d_3=\frac{R_{\mathrm{b}}^3}{4R_3^3}\times d_{\mathrm{b}}\end{array}$$

(2)

where R_b and d_b indicate the radius and density of the original spherical particle, respectively; R₁, R₂, and R₃ are the radius of the diamond-like, triangle-like, and square-like sub-particles, respectively; d₁, d₂, and d₃ represent the density of the diamond-like, triangle-like, and square-like sub-particles, respectively. The long axes of the cluster particles are randomly oriented.

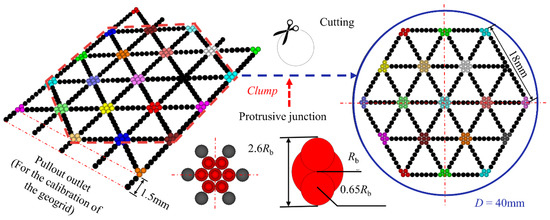

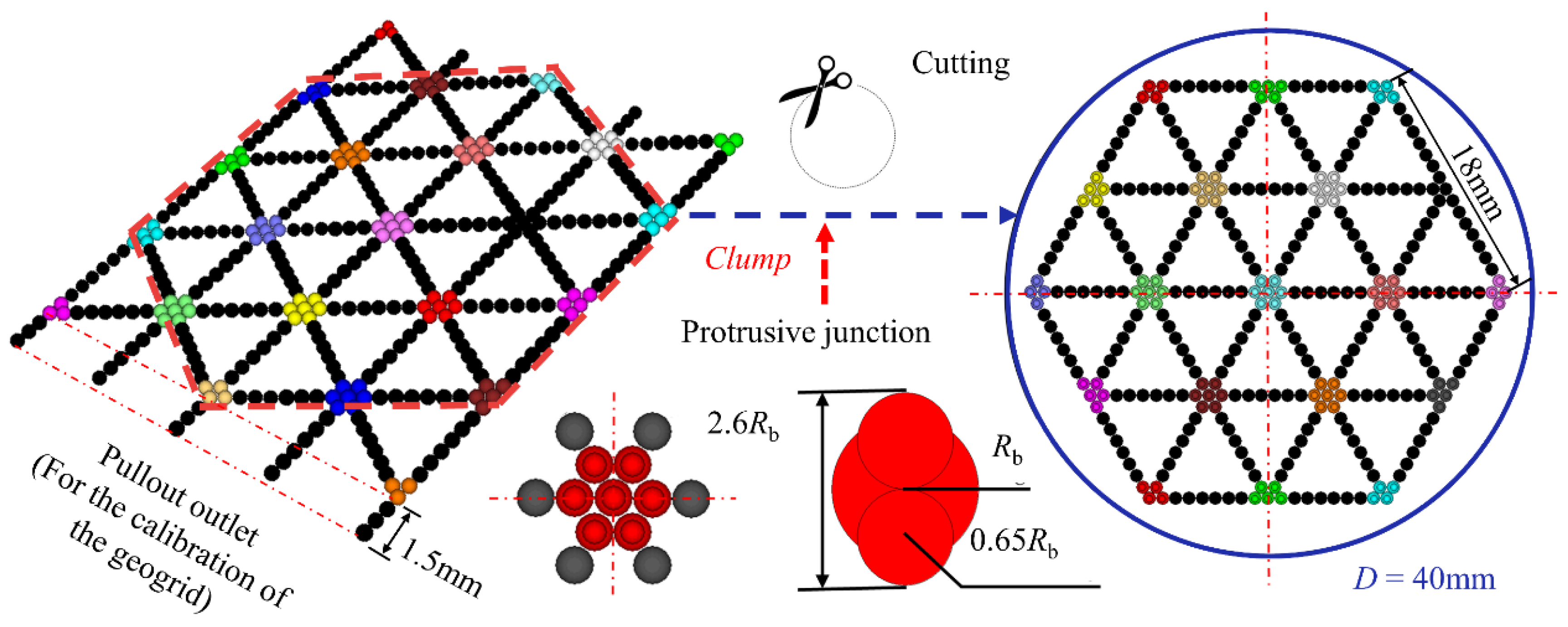

According to the transverse rib and mesh form of the geogrid, the parallel-bonding constitutive model is used to establish the triaxial geogrid numerical model, as shown in Figure 3. Particles with a radius of 0.5 mm (i.e., R_b = 0.5 mm) compose the longitudinal and transverse ribs of the geogrid. Reinforced joints are constructed to improve the restraint effect of the geogrid on the surrounding filler. The construction method is as follows. Based on the original joint, two sub-particles tangent to the center of the host particle are introduced. Then, the host particle and the sub-particles are bound by “clump” command to form an independent protrusive junction. After the protrusion is introduced, the height of the joint is 1.3 mm (i.e., 2.6R_b). In order to simulate the local strengthening effect at the geogrid joint, we utilize the “clump” command again and combine the concept of “coordination number” to bind each protrusion junction belonging to the same joint so as to ensure that the geogrid fracture does not occur at the joint. As the mesoparameters of the geogrid need to be calibrated in the following research, a length of 1.5 mm at one end of the geogrid model is reserved. After the calibration of the geogrid model is complete, it should be cut according to the test requirements. The shape of the final geogrid model for the triaxial compression test is a regular hexagon with an 18 mm edge length.

2.2. Selection of Mesoparameters

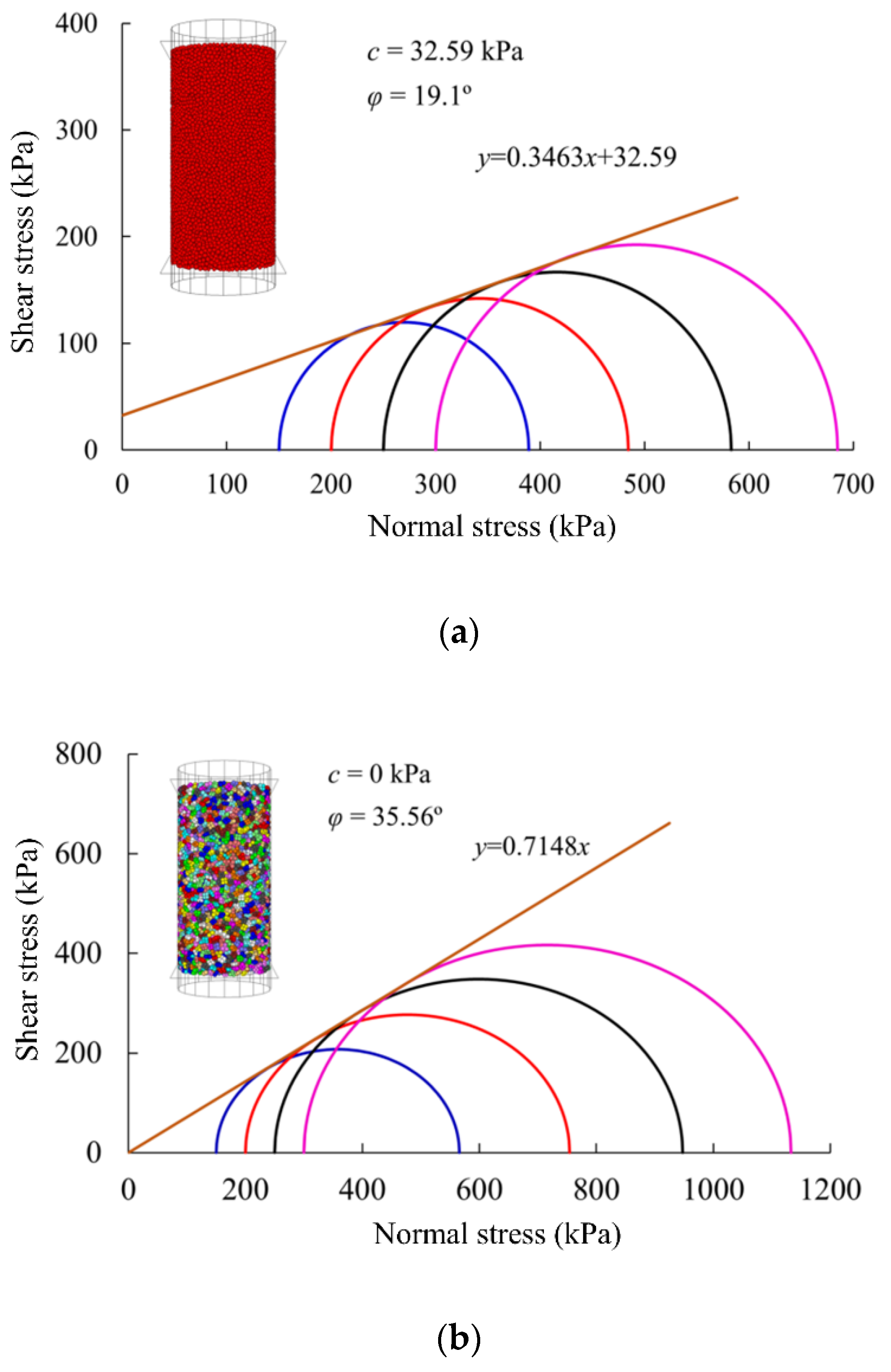

The mesoscopic mechanical parameters are obtained through numerical simulation tests, that is, parameter calibration. The numerical triaxial compression models of silty clay and medium sand are established, and the numerical tests are carried out under different confining pressures. The mesoparameters of the model are continuously adjusted to make the macroscopic mechanical performance of the numerical samples consistent with the indoor triaxial compression test. The Mohr strength criterion of the numerical triaxial compression test is illustrated in Figure 4. The mesoparameters of the geogrid are calibrated by the conventional tensile test [23]. Figure 5 compares the numerical tensile test results of the triaxial geogrid with the test results of Zheng et al. [24]. The specific mesoparameters of the particles are also presented in

Table 1. The mesoparameters of the particle flow model.

Material	Clay	Sand	Geogrid
Specific gravity of particle	2.00	2.63	1.00
Porosity of assembly	0.40	0.40
Minimum nominal radius of particle (mm)	0.70	0.75	0.50
Maximum nominal radius of particle (mm)	0.95	1.00	0.50
Contact normal stiffness (N/m)	6.00 × 104	8.00 × 104	4.00 × 104
Contact shear stiffness (N/m)	6.00 × 104	8.00 × 104	4.00 × 104
Coefficient of friction	0.30	0.60	0.60
Contact bond normal strength (N/m2)	1.00 × 105
Contact bond shear strength (N/m2)	1.00 × 105
Parallel bond normal stiffness (N/m3)			1.00 × 1016
Parallel bond shear stiffness (N/m3)			1.00 × 1016
Parallel bond normal strength (N/m2)			3.00 × 1015
Parallel bond shear strength (N/m2)			3.00 × 1015

.

3. Numerical Test Scheme

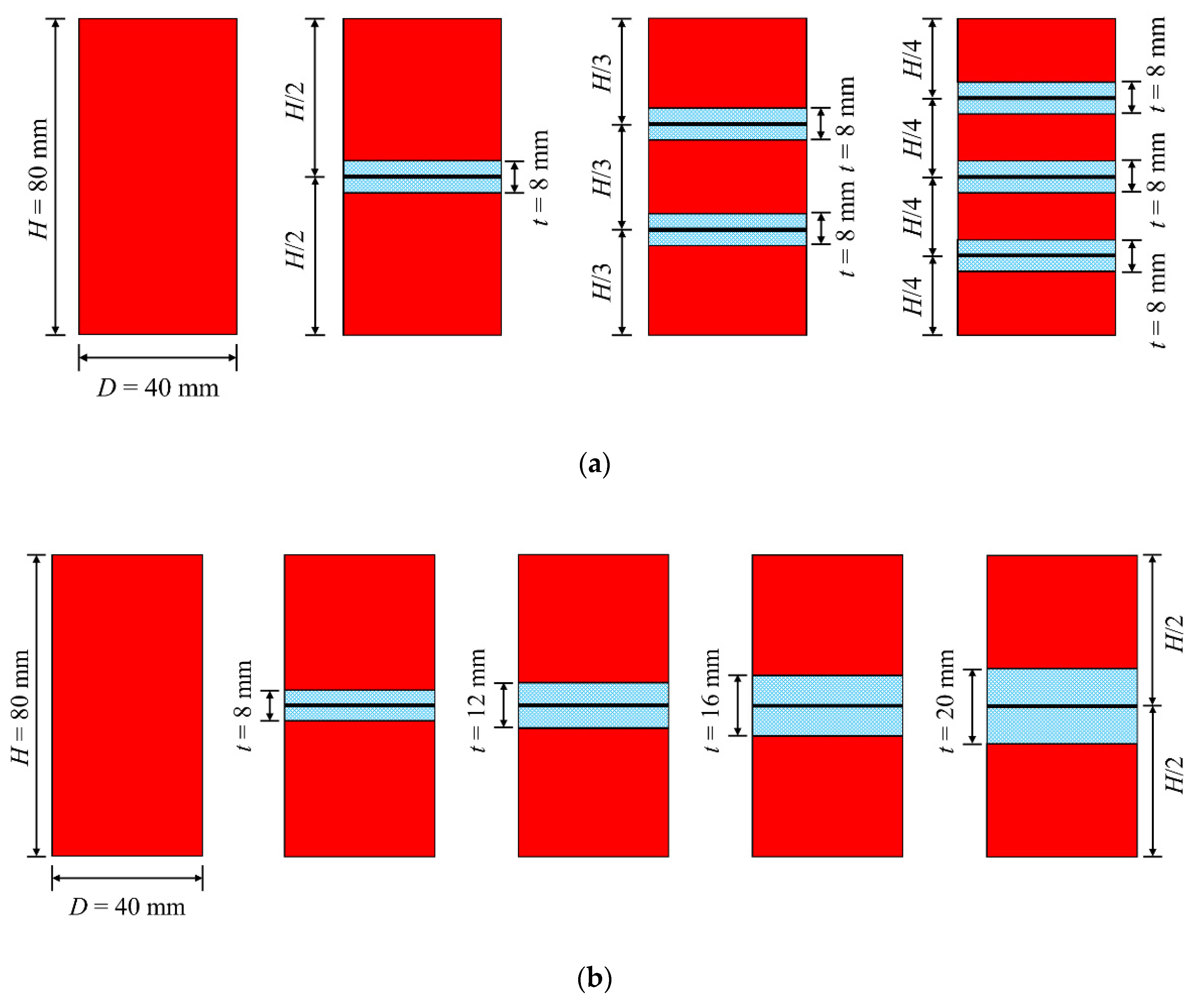

This work analyzes the influence of the number and thickness of sand layers, designated by n and t, respectively, on the deviatoric stress–axial strain relationship and the shear strength of the LGSCR samples. To this end, the effect of four sand layers (n = 0, 1, 2, and 3) on the triaxial compression test results of the LGSCR samples was examined. The geogrid-reinforced sand layers in the four samples were evenly laid vertically at equal intervals, and the thickness of each layer was 8 mm. Moreover, the effect of the five thicknesses of sand layers (t = 0, 8, 12, 16, and 20 mm) on the triaxial compression test results of the LGSCR samples was investigated. Only one layer of the reinforced sand (n = 1) was laid in the middle of the five samples. The numerical test scheme is displayed in Figure 6. In addition, the numerical model of the sand–clay–layered (SCL) structure is established by ensuring the sizes of the sand layer and the clay layer remain unchanged but removing the geogrid in the sand layer. The effect of laying the geogrid in the sand was also studied by comparing the test results of the SCL samples with those of the corresponding LGSCR specimens.

4. Results and Discussion

4.1. Relationship between Deviatoric Stress and Axial Strain

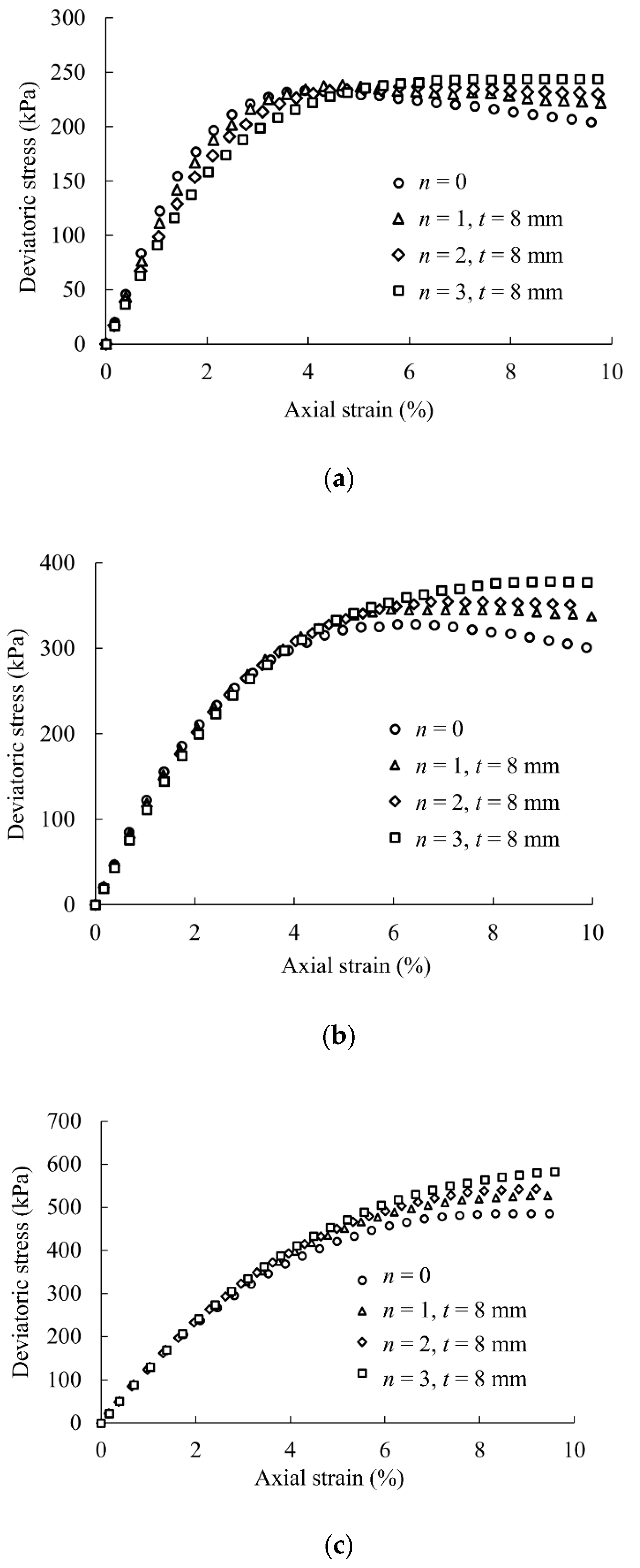

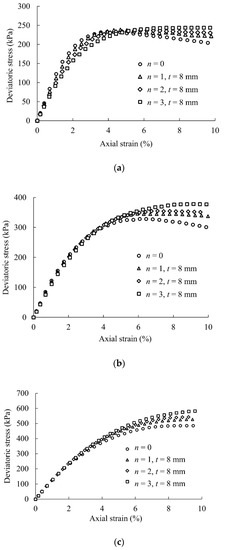

Figure 7 delineates the deviatoric stress–axial strain curves of the SCL samples at confining pressures of 150, 250, and 400 kPa and different numbers of sand layers. As can be seen in Figure 7, the SCL samples (n = 1, 2, 3) have a higher peak stress (σ_p) under specific confining pressures than the pure clay sample (n = 0). The σ_p of the samples also enlarges with an increase in the number of sand layers. It should be noted that increasing n gradually reduces the strain-softening degree of the samples but enlarges the axial strain (ε_n) corresponding to the σ_p. The smaller the confining pressure is, the more significant the increasing trend of the ε_n corresponding to the σ_p with n becomes. The above results demonstrate that laying the sand layers in the sample can significantly improve the post-peak characteristics of the samples; furthermore, the larger the number of sand layers is, the more pronounced the effect becomes. In practical engineering, the sand layers can be laid in the clay filler, which can effectively avoid the sudden damage to the soil structure caused by the rapid decrease in its strength during large deformations, thereby improving the safety of the soil structure.

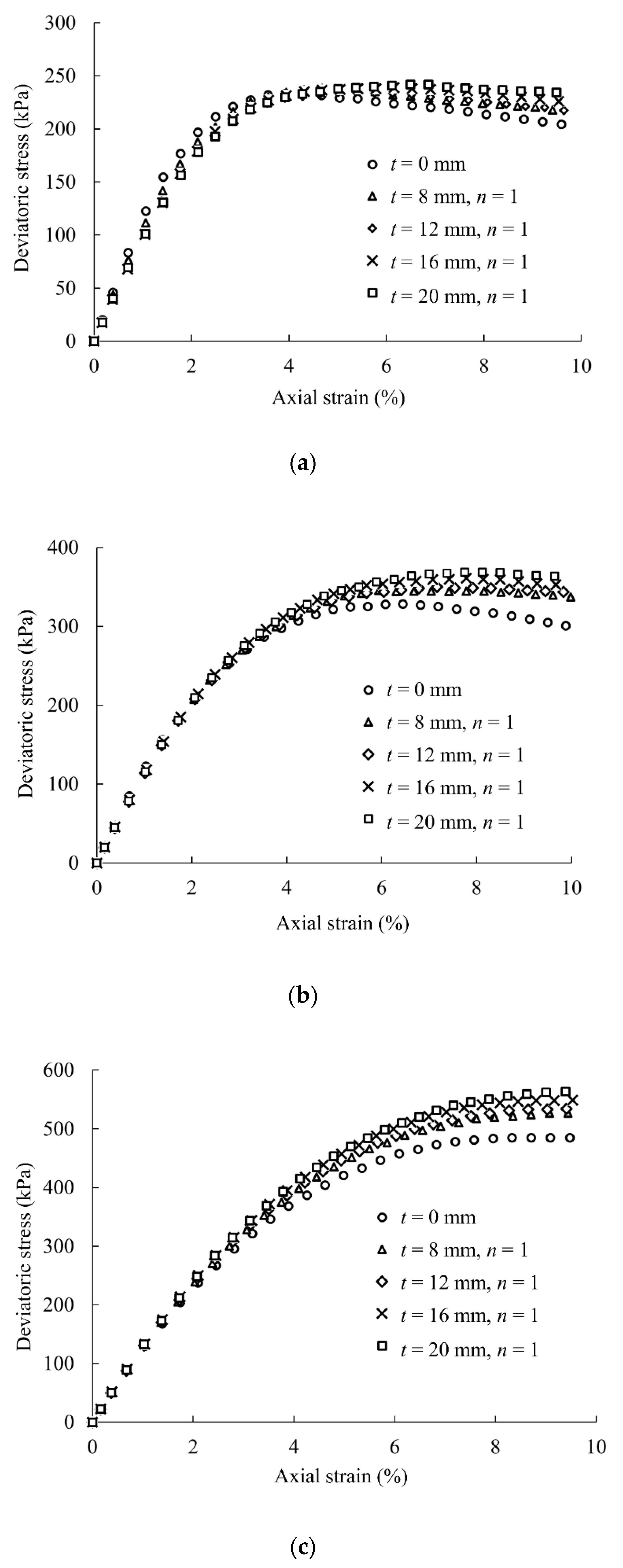

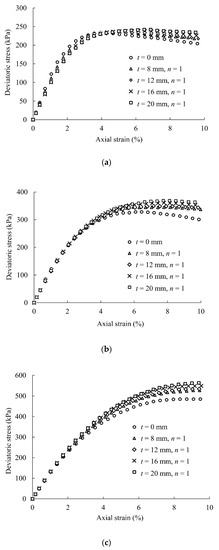

Figure 8 depicts the deviatoric stress–axial strain curves of the SCL samples at confining pressures of 150, 250, and 400 kPa and different thicknesses of sand layers. As can be seen from the figure, increasing the thickness of sand layers raises the σ_p of the SCL samples under a specific confining pressure but reduces their strain-softening degree. The ε_n corresponding to the σ_p also increases with t, but the increasing trend is not noticeable. The above results confirm that when only one layer of the sand is laid in the sample, increasing the thickness of the sand layer can only slightly reduce the post-peak, strain-softening degree of the samples and cannot effectively delay the occurrence of the peak stress. In actual projects, the laying method of thin multi-sand layers should be adopted.

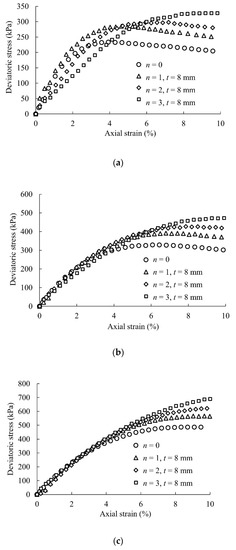

Figure 9 delineates the deviatoric stress–axial strain curves of the LGSCR samples at confining pressures of 150, 250, and 400 kPa and with different numbers of sand layers. As can be seen in this figure, the strength of the LGSCR samples under a specific confining pressure rises significantly with an increase in the number of sand layers. At the 150 kPa confining pressure, the elastic region behavior and the apparent initial tangent modulus of the four LGSCR samples have obvious differences. This phenomenon occur because the geogrid-reinforced sand layers have a negative dilatancy behavior, which is followed by a dilatancy behavior at a low confining pressure. Compared with the SCL samples, the LGSCR samples have a higher σ_p at the same n value. Raising the number of sand layers gradually declines the strain-softening degree of the LGSCR samples but further enlarges the ε_n corresponding to the σ_p compared with the SCL samples. The above results demonstrate that laying the geogrid in the sand layer can effectively improve the σ_p of the samples and further enhance their ductility. The larger the number of sand layers, the more remarkable the effect.

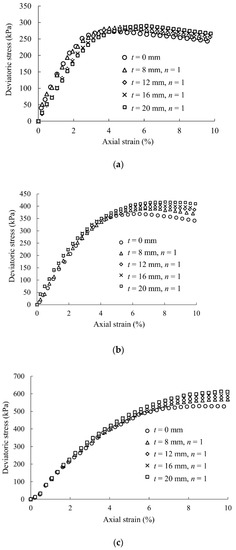

Figure 10 depicts the deviatoric stress–axial strain curves of the LGSCR samples at confining pressures of 150, 250, and 400 kPa and with different thicknesses of sand layers. As seen in this figure, the strength of the LGSCR samples under a specific confining pressure enlarges with an increase in the t value. Compared with the SCL samples, the LGSCR samples have a higher σ_p at the same thickness of sand layers. However, the trends of the strain-softening degree and the ε_n corresponding to the σ_p with the thickness of sand layers of the LGSCR samples are similar to those of the SCL samples. Therefore, the setting mode of thin multi-sand layers should also be adopted for the LGSCR structures in engineering applications.

Furthermore, the obtained deviatoric stress–axial strain curves are compared with those of the non-woven-geotextile-reinforced sand samples under triaxial compression [25]. The researchers conducted a series of laboratory triaxial compression tests with sand specimens reinforced with nonwoven geotextiles and the results showed that the deviatoric stress increased at an approximately linear rate and then tended to plateau. As displayed in Figure 7, Figure 8, Figure 9 and Figure 10, the SCL samples in this study have a similar trend with the non-woven-geotextile-reinforced sand samples.

4.2. Shear Strength

According to the confining pressure and the peak stress of the numerical triaxial compression test, the variation in the shear strength index of the samples can be determined by drawing the Mohr strength envelope. The three points in the legend represent the shear strength obtained by fitting the numerical test results under a confining pressure of 150, 200, and 250 kPa. The five points in the legend also indicate the shear strength obtained by fitting the numerical test results under confining pressures of 150, 200, 250, 300, and 400 kPa.

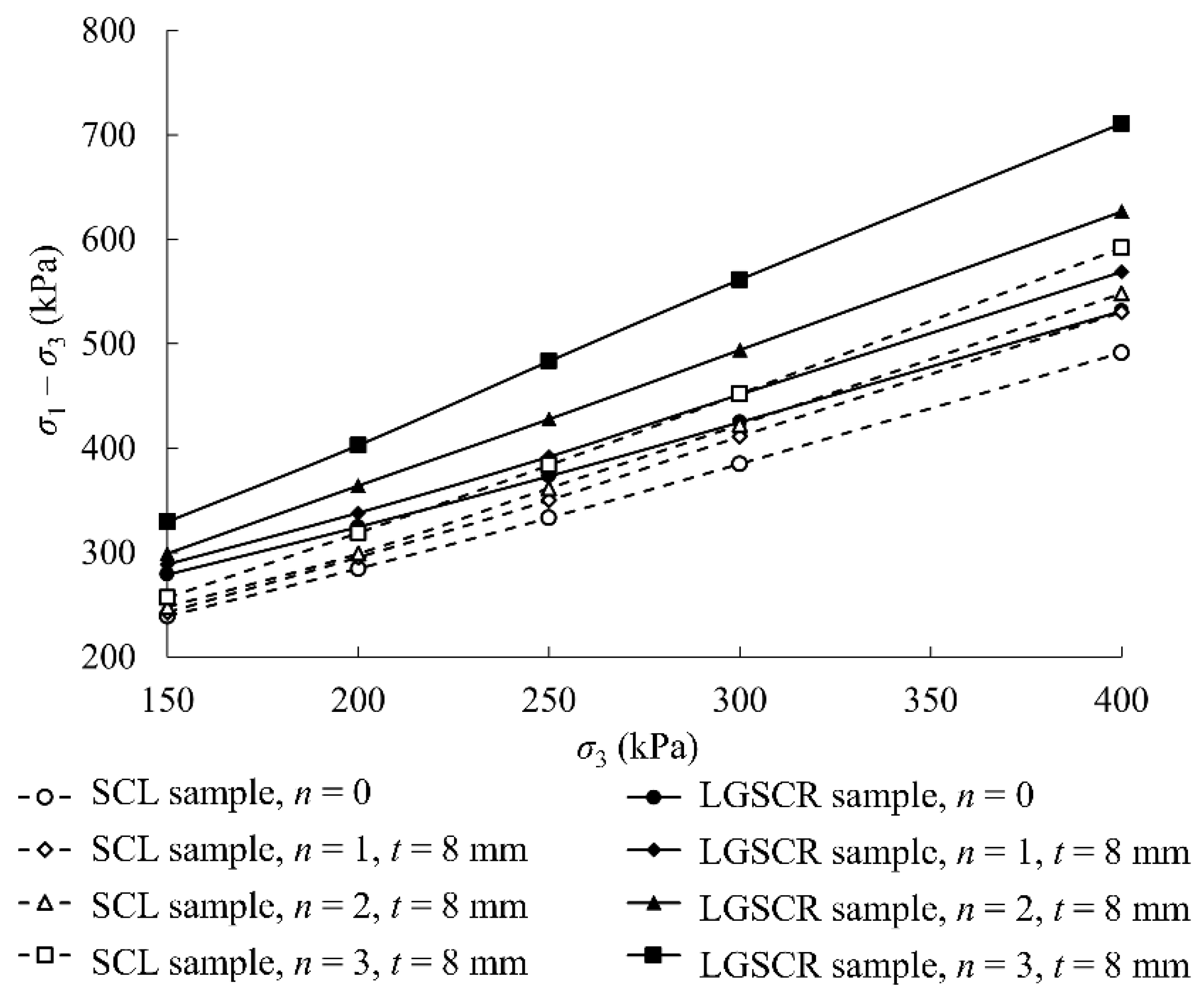

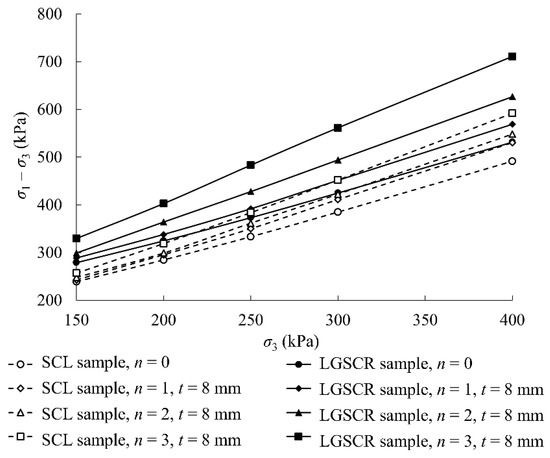

Figure 11 and Figure 12 present the peak stress–confining pressure curves and the shear strength index of the samples at different numbers of sand layers, respectively. Figure 11 shows that the σ_p of the samples enlarges with an increase in the confining pressure. At a constant confining pressure, the σ_p rises with an increase in the n value; the influence of n on the σ_p also continues to increase as the confining pressure enlarges. A higher confining pressure causes a greater difference in the σ_p of the samples with different numbers of sand layers, leading to a significant difference in the shear strength indices obtained by the two different fitting methods in Figure 12. According to the numerical triaxial compression test results, the fitted values of cohesion (c) obtained in a confining pressure range of 150–400 kPa are all lower than those obtained in a confining pressure range of 150–250 kPa. However, the variation in the regularity of the internal friction angle (φ) is precisely the opposite. Hence, a reasonable test pressure should be determined according to the actual stress state of the LGSCR structure in practical engineering.

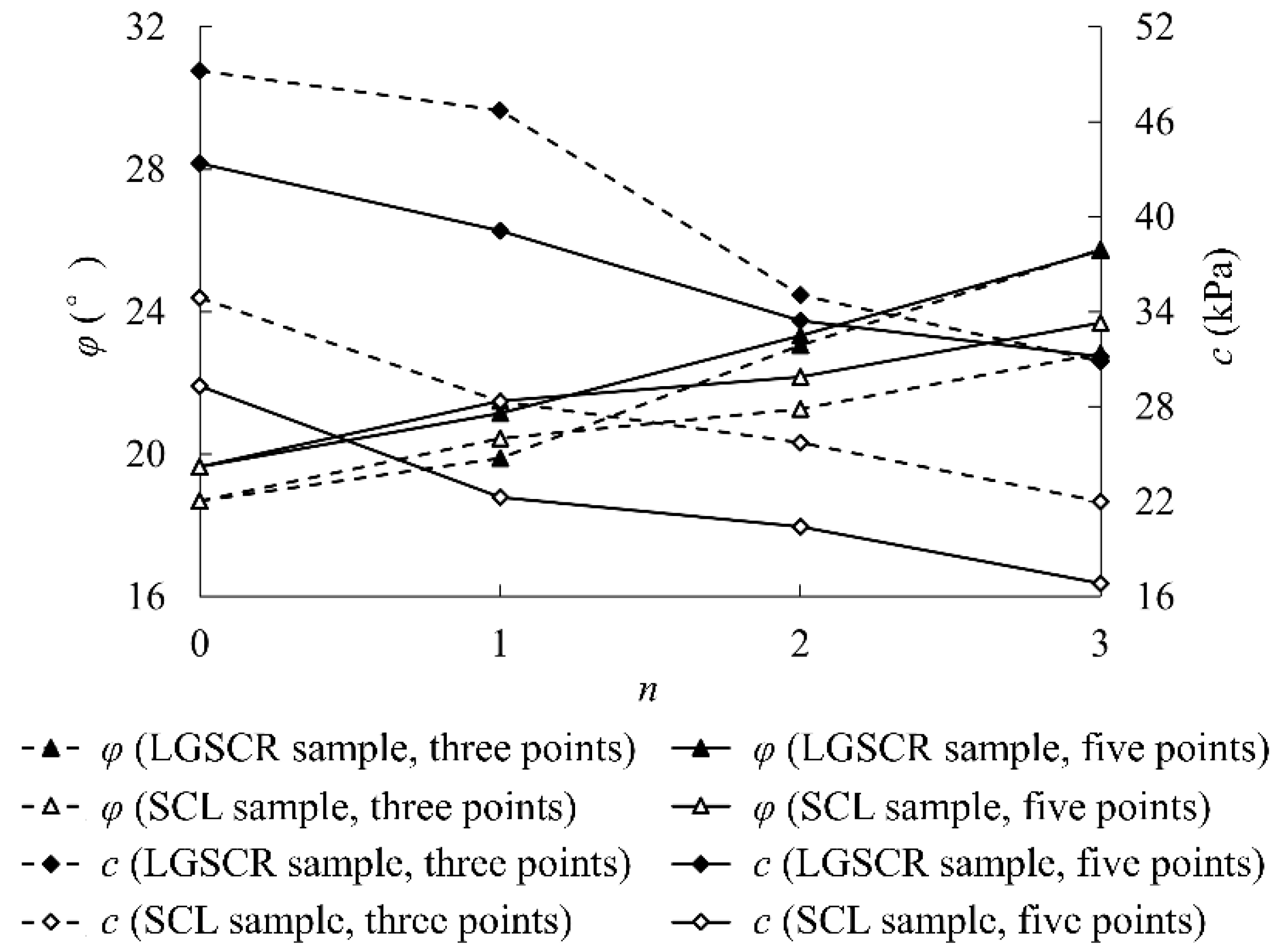

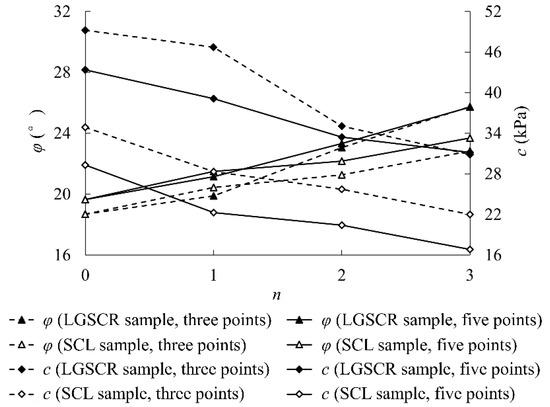

It can be seen in Figure 12 that increasing the number of sand layers reduces the cohesion of the samples significantly but enlarges the internal friction angle. After laying the geogrid in the sand layer of the SCL sample, the σ_p of the samples increases significantly. The higher the confining pressure, the greater the increasing degree of the σ_p. Comparing the shear strength indices of the LGSCR samples with those of the SCL samples demonstrates that the geogrid embedment improves the cohesion of the samples; the internal friction angle also rises when the number of sand layers is equal to or greater than two, that is, n ≥ 2.

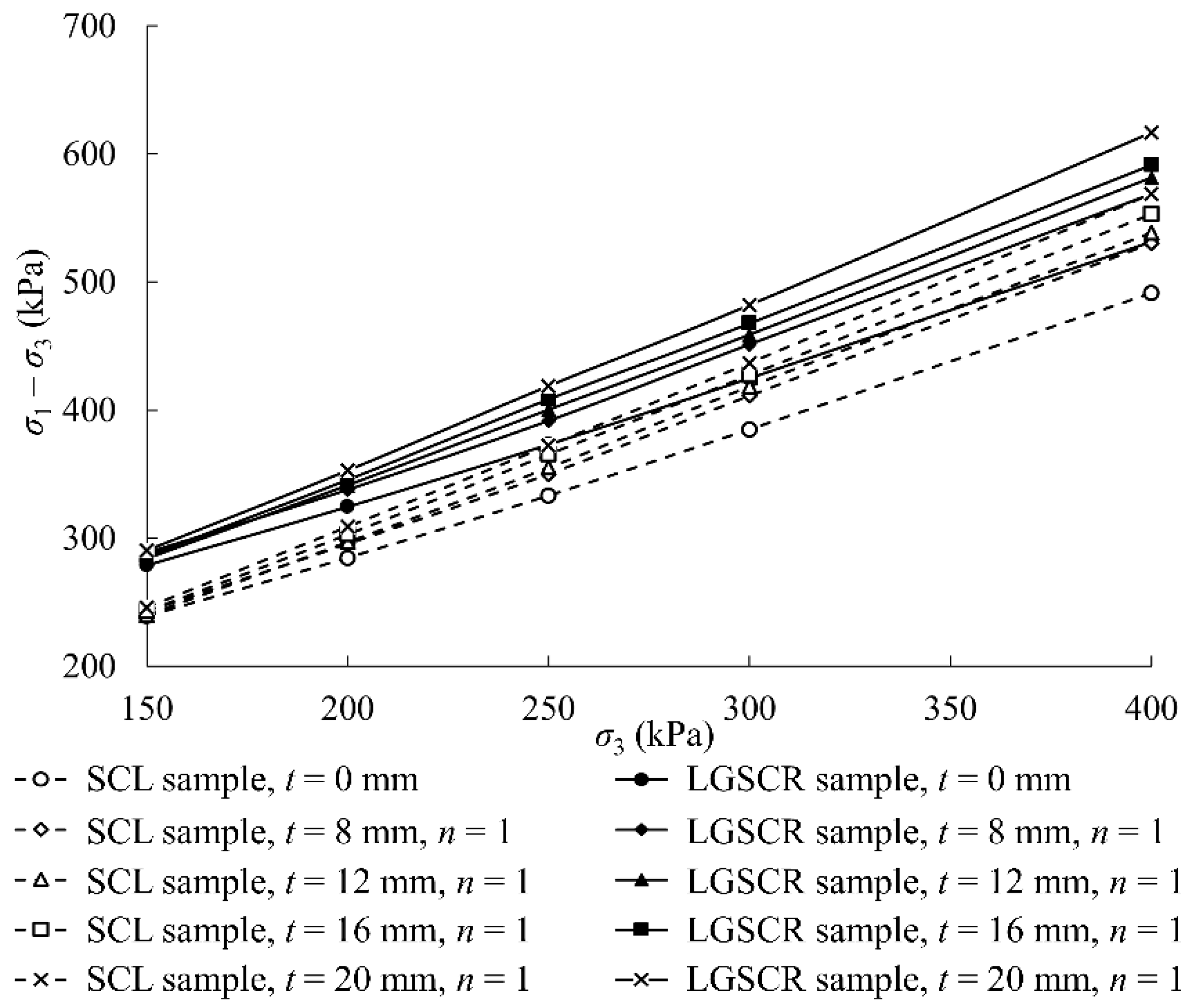

Figure 13 and Figure 14 delineate the peak stress–confining pressure curves and the shear strength index of the samples at different thicknesses of sand layers, respectively. Figure 13 shows that the σ_p of the samples enlarges with an increase in the confining pressure, and the influence of the thickness of sand layers on the σ_p improves continuously as the confining pressure rises. The higher the confining pressure, the more significant the difference in the σ_p of the samples at different thicknesses of sand layers. Therefore, there is also a marked difference in the shear strength calculated by the two different fitting methods. According to the numerical triaxial test results, the fitted values of cohesion obtained in a confining pressure range of 150–400 kPa are all lower than those obtained in a confining pressure range of 150–250 kPa. However, the internal friction angle shows an opposite variation trend.

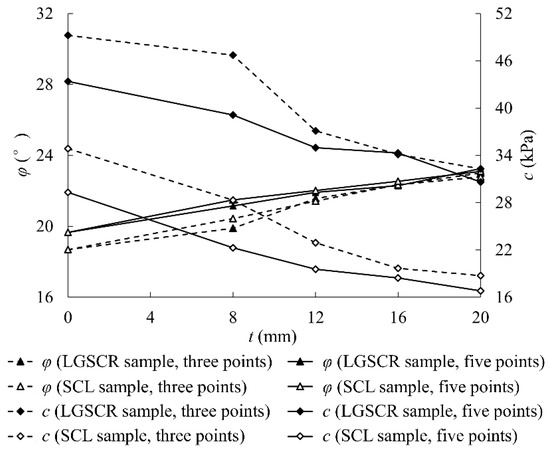

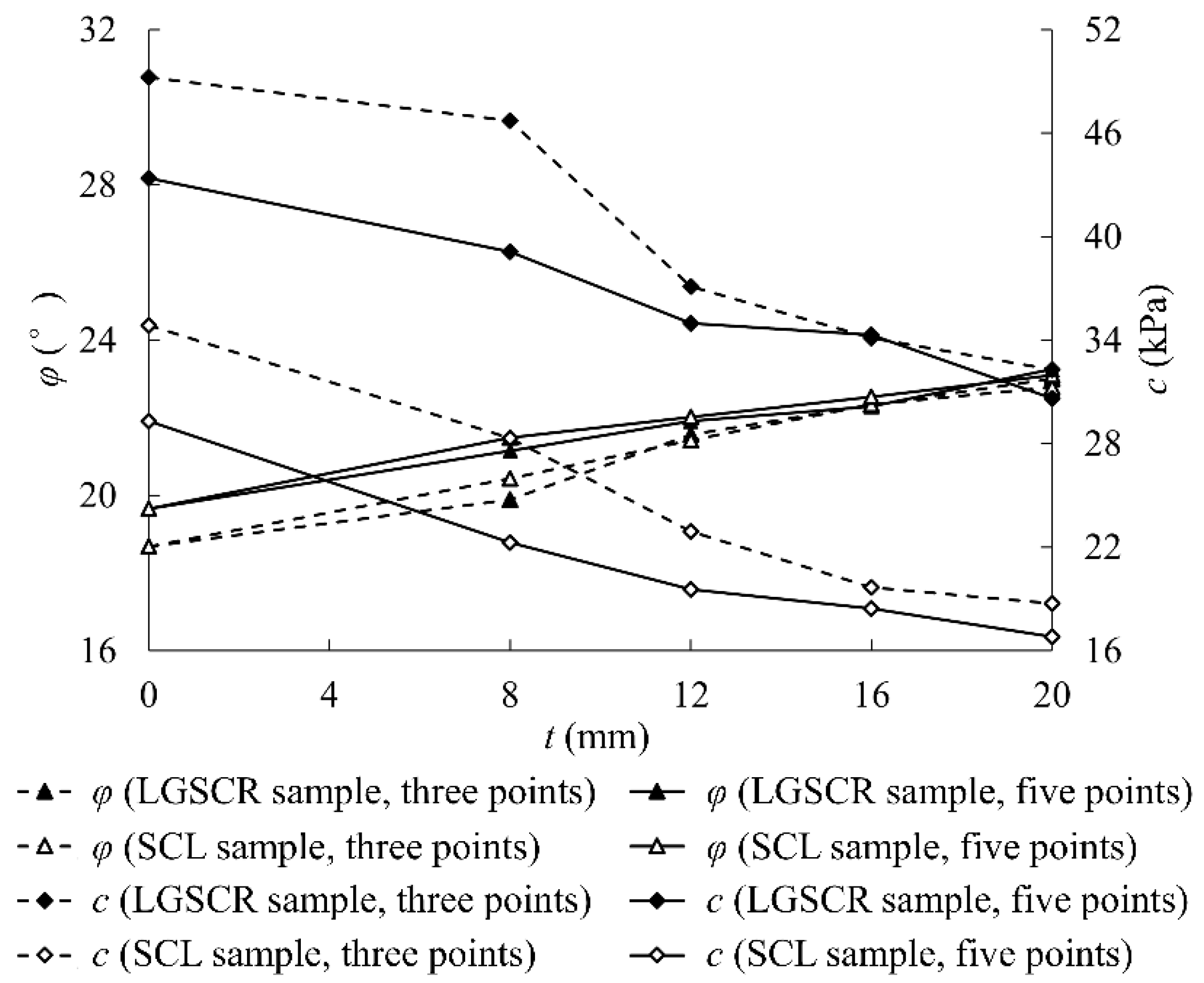

According to Figure 14, raising the thickness of sand layers reduces the fitted cohesion of the samples but enlarges the internal friction angle. Comparing the shear strength indices of the LGSCR samples with those of the SCL samples for the sample with one sand layer (n = 1) demonstrates that the geogrid embedment can improve the cohesion of the samples but does not visibly change their internal friction angles.

To summarize the improvement or deterioration percentages corresponding the effect of adding the sand layers and geogrid, the comparison between the shear strength index of the pure clay sample, the SCL sample, and the LGSCR sample is listed in

Table 2. The comparison between the shear strength index of the pure clay sample, the SCL sample, and the LGSCR sample.

Improvement or Deterioration Percentages	Addition of Sand Layers in Pure Clay Samples	Addition of Geogrids in SCL Samples	Addition of Geogrid-Reinforced Sand Layers in Pure Clay Samples
φ (three points)	22.6%	12.7%	38.2%
φ (five points)	20.9%	8.4%	31.1%
c (three points)	−37.2%	41.6%	−11.2%
c (five points)	−24.3%	54.8%	17.1%

. As the setting mode of thin multi-sand layers is recommended for the LGSCR structure, the SCL sample with n = 3 and t = 8 mm and the LGSCR sample with n = 3 and t = 8 mm are selected in the comparison. The φ value of the samples can be improved by 20.9% to 22.6% by adding the sand layers in the pure clay samples, and the c value of the samples can be improved by 41.6% to 54.8% by adding the geogrids in the SCL samples.

5. Conclusions

This paper conducts triaxial tests on LGSCR and SCL samples using the discrete element method and explores the effects of the number and thickness of sand layers and geogrid-reinforced sand layers on the numerical triaxial compression test results of the samples. The following conclusions can be drawn from the findings of the current work:

• Laying the sand layers in the samples can significantly improve their post-peak strain-softening characteristics. Moreover, the geogrid embedment can further enhance the ductility of the samples. The effect of increasing the thickness of sand layers alone on the behaviors of LGSCR and SCL samples is minimal. Thus, in practical engineering, the setting mode of thin multi-sand layers should be adopted to improve the safety of LGSCR structures.
• The influence of the sand layer on the peak stress of LGSCR and SCL samples improves with an increase in the confining pressure. Higher confining pressure causes a more significant difference in the peak stress on different LGSCR or SCL samples, which indicates that the effect of the sand layer on increasing the peak stress on the samples is more noticeable. Thus, raising the number of sand layers reduces the cohesion of the samples but increases their internal friction angles. Therefore, a reasonable test pressure should be determined according to the actual stress state of the LGSCR structure in engineering applications.
• Compared with the SCL samples, the LGSCR samples with geogrid embedment have a higher peak strength under specific confining pressure, and in terms of the shear strength index, the apparent cohesion of the LGSCR samples is larger than that of the SCL samples. Furthermore, the internal friction angle of the LGSCR samples is also larger than that of the SCL samples when the number of sand layers is equal to or greater than two.
