Article

Comparison of Three Approaches to Assess the Flavour Characteristics of Scotch Whisky Spirit

1
Division of Engineering and Food Science, Abertay University, Dundee DD1 1HG, UK
2
The Scotch Whisky Research Institute, Edinburgh EH14 4AH, UK
*
Author to whom correspondence should be addressed.
Appl. Sci. 2021, 11(4), 1410; https://doi.org/10.3390/app11041410
Submission received: 12 December 2020 / Revised: 25 January 2021 / Accepted: 29 January 2021 / Published: 4 February 2021

Abstract

:

Featured Application

In the highly competitive market of spirit drinks, distillers are interested in creating new and interesting products. It is important to be able to evaluate flavour during the product development process. There are several sensory and analytical approaches for doing this. This paper compares three such methods, QDA, Napping and GC-MS, providing a detailed comparison of each method for the evaluation of a set of unmatured whisky spirits.

Abstract

This study compared the use of three sensory and analytical techniques: Quantitative Descriptive Analysis (QDA), Napping, and Gas Chromatography-Mass Spectrometry (GC-MS) for the assessment of flavour in nine unmatured whisky spirits produced using different yeasts. Hierarchical Multiple Factor Analysis (HMFA) showed a similar pattern of sample discrimination (RV scores: 0.895–0.927) across the techniques: spirits were mostly separated by their Alcohol by Volume (ABV). Low ABV spirits tended to have heavier flavour characteristics (feinty, cereal, sour, oily, sulphury) than high ABV spirits, which were lighter in character (fruity, sweet, floral, solventy, soapy). QDA differentiated best between low ABV spirits and GC-MS between high ABV spirits, with Napping having the lowest resolution. QDA was time-consuming but provided quantitative flavour profiles of each spirit that could be readily compared. Napping, although quicker, gave an overview of the flavour differences of the spirits, while GC-MS provided semi-quantitative ratios of 96 flavour compounds for differentiating between spirits. Ester, arenes and certain alcohols were found in higher concentrations in high ABV spirits and other alcohols and aldehydes in low ABV spirits. The most comprehensive insights on spirit flavour differences produced by different yeast strains are obtained through the application of a combination of approaches.

Graphical Abstract

1. Introduction

Scotch whisky is one of the most important products for Scotland’s economy, with 133 operational distilleries adding a gross value of GBP 5.5 billion to the economy every year. This industry employs over 10,000 people in Scotland alone and attracts 2 million visitors to distilleries every year [1]. Scotch malt whiskies must be produced using malted barley, yeast and water, before being matured for at least three years in Scotland in oak casks [2]. This maintains the high standard of this spirit. Apart from caramel for colour standardisation, nothing can be added. So, the process steps and quality of the raw materials are essential to the final flavour.
The production of Scotch malt whisky includes several steps: malting, mashing, fermentation, distillation, and maturation. The choice of raw materials and process parameters dictates the final flavour. Malting allows for the amylolysis of barley starch for the conversion to fermentable sugars. Flavours originating from this process are malty, bready, chocolate-like, or damp-straw notes. Furfural is a compound responsible for a grainy/marzipan aroma and 2-and 3-methylbutanal responsible for malty aroma [3]. Other aldehydes, such as hexanal and 2,4-decadienal, give grassy and bean-like aromas. These are created during malting but are reduced by kilning, the subsequent drying of the malt [4].
Mashing uses hot water to breakdown the starch further into fermentable sugars. There is relatively little published research on mashing and flavour, though off-flavours related to oxidation during mashing have been analysed [4,5]. Yeast is added to the resulting wort and the alcoholic fermentation converts the sugars to ethanol and carbon dioxide. The focus of this study are the secondary metabolites produced by yeast. Esters and higher alcohols are produced during fermentation resulting in fruity and floral notes. Aldehydes originating from the malt can be reduced to their saturated counterparts [4]. Peppery/pungent notes during fermentation can occur due to other active microorganism like Lactobacillus spp. which can produce acrolein [3]. Distillation subsequently reduces sulphur and meaty notes due to interactions of sulphur compounds with copper in the still. These include dimethyl trisulphide, a compound responsible for rotten vegetable type flavours [6]. The cut point, the fraction of the spirit collected, also affects the composition and flavour. The distilled spirit is then filled into oak casks for at least 3 years to mature to become Scotch whisky. Desirable flavour compounds are extracted from oak, such as vanillin (vanilla aroma) and oak lactone (coconut). At the same time unpleasant flavours, such as dimethyl sulphide, are reduced [3,7].
In authenticity analysis for Scotch malt whisky, the concentrations of methanol, 1-propanol, methylpropan-1-ol and 2-methyl and 3-methyl butanol are used as markers [8]. Further important flavour compounds are acetaldehyde, ethyl acetate, acetal, isobutanol, fatty acids and fatty acid ethyl esters [3,9].
Most published research and data on Scotch whisky and its flavour composition are related to the maturation or the authenticity of the final product. However, new make spirit analysis and research are important to ensure a complementary pairing of the style and character of the spirit with the right cask. For mashing and fermentation, the focus to date has mainly been on high yields [7,9,10,11]. Recently there has been increasing interest in other areas, such as use of heritage barley varieties [12] and new yeast strains to enhance flavour diversity before maturation. The spirits examined in this paper were produced using a range of yeast strains. The metabolism of different yeast strains can vary, which alters the ratios of the secondary metabolites, i.e., flavour compounds, that they produce [13]. These strains had been used with the aim of exploring the impact of yeast on flavour. It is important that the whisky industry has a means of measuring flavour characteristics, so that these differences can be both described and quantified. In this study three different methods for assessing the flavour of new make (unmatured) Scotch whisky spirits were compared: two sensory methods (Quantitative Descriptive Analysis and Napping) and one instrumental method (Gas Chromatography-Mass Spectrometry).
Sensory evaluation is the assessment of samples by a panel of human assessors using controlled methods and conditions. In this paper, the use of Quantitative Descriptive Analysis (QDA) is considered as one of the most common approaches for profiling the flavour characteristics of a product. This technique was developed in the 1970s [14,15] and since then has been widely used in food and beverage applications. Panellists individually rate the intensities of a pre-selected set of flavour characteristics using a scaling system. In the case of whisky spirits, the vocabulary is already well established, being based on The Scotch Whisky Research Institute Flavour Wheel. This flavour wheel was firstly developed in the 1970s and is now widely used across the industry [3,16,17]. QDA is time consuming and requires a trained sensory panel. However, it has been shown to give informative and comprehensive results, highlighting subtle differences, and making it easy to compare samples [15,17,18].
In recent years, several rapid sensory methods have been developed and used for the evaluation of similar product categories, such as wine [19,20] and beer [21,22,23]. One of these rapid methods is Napping, also called projective mapping. Napping was first introduced in 1994, being further developed in the 2000s [24,25,26]. It gets its name from the word “nappé” which is the French word for tablecloth, on which the technique was first performed. Panellists are asked to arrange samples in a two-dimensional space based on similarities and differences between them, placing samples that are different far apart and samples which are alike close to each other [18]. Once placed on the nappé, the panellists give a short description of each sample or group of samples. Untrained panellists can be used for this approach, as they use their own criteria to sort and describe the samples. Previous studies, with no or low alcohol products have shown that QDA and Napping give similar product maps [18,27,28,29,30,31].
Gas Chromatography-Mass Spectrometry (GC-MS) is an analytical method that can be used to separate and identify compounds present in a complex mixture, such as whisky. In whisky spirit, many of these compounds are flavour active, so differences in their relative abundance contribute to flavour differences. GC-MS is used in the whisky industry for quality control purposes, product development and for product authentication [32,33]. However, due to equipment costs and the need for trained personnel, it is not a standard method, generally only being used in larger laboratories. GC-MS is also used for research purposes, often in combination with sensory techniques [34,35,36].
The aim of this study was to evaluate the information that each of the three techniques (QDA, Napping and GC-MS) provides on flavour differences across a set of unmatured whisky spirits, including how the spirits were grouped using the three methods, and the strengths and weaknesses of each approach.

2. Materials and Methods

2.1. Spirit Samples

Nine new make (unmatured) Scotch whisky spirits were examined in this study. These spirits had been produced in the laboratory under controlled fermentation and distillation conditions, each using a different strain of yeast. The different metabolic characteristics of the yeasts resulted in spirits with a range of compositions and flavours. The aim of this study was to focus on the differences between the measurement methods. Hence, the impact of individual yeast strains is not reported here but will be published elsewhere. Spirits were simply coded with A–I.
As a result of differences in fermentation performance, the spirits varied in their alcohol strength. The alcohol by volume (ABV) was determined with a density meter, DMA 35 (Anton Parr, Graz, Austria). Details of the ABVs of each spirit are shown in Table 1.

2.2. Sensory Evaluation

2.2.1. Panellists

The sensory assessments were carried out by The Scotch Whisky Research Institute (SWRI) sensory panel. This panel consisted of 17 panellists (mixed gender, over 18 years old), who were trained and experienced in the evaluation of Scotch whisky and other spirits. Panellists were preselected for the panel based on their performance in an odour recognition screening test, which evaluates their ability to identify and describe everyday aromas. Panellists were then trained in specific whisky related flavours, with training centred around the characteristics on the SWRI Flavour Wheel. They then undertook a period as trainee panellists, during which time they were introduced to a range of sensory techniques and familiarised with different spirit types. All panellists used in this study had been judged by the panel leader as having the suitable level of expertise based on their individual performances in relation to panel means. Regular participation in the FlavorActiv Whisky Sensory Proficiency Scheme (https://www.flavoractiv.com/ accessed on 29 January 2021) is used as a further check of panellist performance. The same group of 17 panellists carried out both the QDA and Napping procedures.

2.2.2. Spirit Preparation and Presentation

In accordance with standard industry practice, the spirits were diluted to a uniform alcohol strength of 20% ABV using water. Then, 20 mL portions were presented in 100 mL blue nosing glasses and covered with watch-glasses. Spirits were coded using three-digit random codes to hide their identities. Since the interest was in the volatile flavour compounds of the spirits, assessments were based only on aroma with no tasting being carried out. This is typical of standard industry practice for laboratory produced spirits.

2.2.3. Quantitative Descriptive Analysis

QDA was carried out in accordance with the procedures outlined by Lawless and Heymann [15] and Stone et al. [14]. Spirits were presented in a randomised order. Panellists scored the intensities of a range of pre-defined attributes using a line scale of 0 to 3. The attributes were selected based on previous experience of new make whisky spirit, being selected from descriptors on the SWRI Flavour Wheel: smoky, feinty, cereal, green, floral, fruity, solventy, soapy, sweet, oily, sour, sulphury, meaty, and stale. The panellists scored all spirits for each attribute before moving on to the next attribute. Data collection was split into three sessions to minimise sensory fatigue, with four or five attributes evaluated in each session. Tests were carried out in individual sensory booths under red light in the SWRI sensory laboratory. Data were collected using Compusense software (West Guelph, Canada). In addition to recording scores, the software also logged the time taken for panellists to complete each session.
Data were analysed using JMP 14.3.0 software (32-bit, SAS Institute Inc., Cary, NC, USA). A Two-Way ANOVA was carried out followed by multiple comparison Tukey–Kramer HSD test. In both cases, a p-value < 0.05 was taken as a statistically significant difference. Normality was assumed on the basis that a trained and regularly tested panel was used [15]. The mean panel scores for all 14 attributes were further summarised by Principal Component Analysis (PCA) and the correlation analysis used to create a product map using RStudio Version 1.3.103 (RStudio PBC, Boston, MA, USA) packages FactoMineR and ggplot2 [37]. For the purposes of comparing the measurement techniques, the first two dimensions of this analysis are presented in this paper.

2.2.4. Napping

Napping was carried out in accordance with the method described by Perrin et al. [38]. Panellists were presented with all nine spirits to assess and asked to arrange them on a piece of paper (A0; 841 × 1189 mm) with the instructions that spirits that were similar should be placed close to each other, while spirits which were most different placed furthest apart. Panellists could place the spirits freely on the paper, rearrange them as often as they liked, and reassess and regroup them based on their own criteria. Once the panellists had positioned the spirits, they were asked to note the dominant flavour characteristics next to each spirit or group. These tests were carried out individually in a well ventilated meeting room under ambient lighting. Due to room conditions, no red light was used. The time taken for each panellist to perform the task was recorded.
Once the panellist had completed the test, the position of the glasses was recorded by noting the X- and Y-coordinates of each spirit on the paper. The flavour descriptions were also noted. These descriptors were then categorised according to the flavour categories used in the QDA (Section 2.2.3). An extra category, nutty, was added as this was frequently mentioned by the panellists. RStudio Version 1.3.103 (RStudio PBC, Boston, MA, USA) and the packages FactoMineR and ggplot2 were used to carry out a Multiple Factor Analysis (MFA) based on the coordinates of each spirit to create a product map. Again, the first two dimensions are presented in this paper for the purposes of comparing the measurement techniques.
The number of times a flavour attribute (from the categorisation process) was noted for a spirit was totalled and used as supplementary data [39]. The RV coefficient was used to calculate the consensus between panellists. Scores > 0.5 to the Centroid were seen as acceptable [39].

2.3. Gas-Chromatography-Mass Spectrometry

Solid phase microextraction (SPME) gas-chromatography-mass spectrometry (GC-MS) was used to analyse the volatile compounds of the spirits. Then, 2.5 mL of the spirit were filled into 10 mL magnetic screw cap vials (Gerstel, Mühlheim an der Ruhr, Germany) and adjusted to 20% ABV with the addition of 7.5 mL of a water–ethanol mixture. Then, 50 µL of methyl-heptanoate (Sigma-Aldrich, St. Louis, MO, USA) at a concentration of 22 ppm was added as an internal standard to each spirit. Spirits were prepared at least 24 h prior to analysis.
A Trace GC with Finnigan Trace MS from ThermoQuest (Waltham, MA, USA), with a PAL system (CTC Analtyics, Zwingen, Switzerland) coupled to a Multi-Purpose Sampler MPS2-Twister autosampler (Gerstel, Mühlheim an der Ruhr, Germany) with a DB WAX-UI column 60 m, 0,32 mm, 0.50 µm (Agilent, Santa Clara, CA, USA) was used to analyse the spirits.
Spirits were incubated for 10 min at 35 °C. A DVB/CAR/PDMS 50/30 µm fibre (Supelco Inc., Bellefonte, PA, USA) was used to extract the volatiles and injected splitless to the column with an injector temperature of 250 °C, a split flow of 40 mL/min and a splitless time of 1 min. The temperature program of the oven was 2 min at 35 °C with a rate of 5 °C/min to 250 °C and holding this temperature for an additional 10 min with a flow rate of 1.4 mL/min. Four independent samples were taken from each spirit, these were measured in duplicate, giving a total of eight measurements per spirit. A full scan was done with a solvent delay of 1 min. m/z between 35 and 350 were scanned. Peaks were included where the minimum peak height of 3.0 signal to noise was exceeded and the mass spectra could be identified by the used library NIST Mass Spectral Sear Program and NIST/EPA/NIH Mass Spectral Library Version 1.7 (National Institute of Standards and Technology, Gaithersburg, MD, USA). Xcalibur software (Home page version 1.2, ThermoScientific, Waltham, MA, USA) was used to analyse the data.
Peak areas were determined for each compound and semi-quantitatively analysed: peak areas were measured and compared, but no standards and calibration lines were created. Compounds were assigned to groups based on both chemical structure and flavour. Flavour groupings were assigned based on the compound flavour descriptions given on the Good Scents Company website http://www.thegoodscentscompany.com/ accessed on 29 January 2021. The compounds were then grouped according to the flavour attributes used in the QDA evaluation described in Section 2.2.3. Compounds without listed descriptors (no aroma or not listed) were assigned as not described.
PCA based on correlation was used to summarise the data and produce a product map. This was carried out using RStudio Version 1.3.103 (RStudio PBC, Boston, MA, USA) and the packages FactoMineR and ggplot2. The first two dimensions of this analysis are presented in this paper.

2.4. Statistical Comparison of the Three Methods Using Hierarchical Multiple Factor Analysis

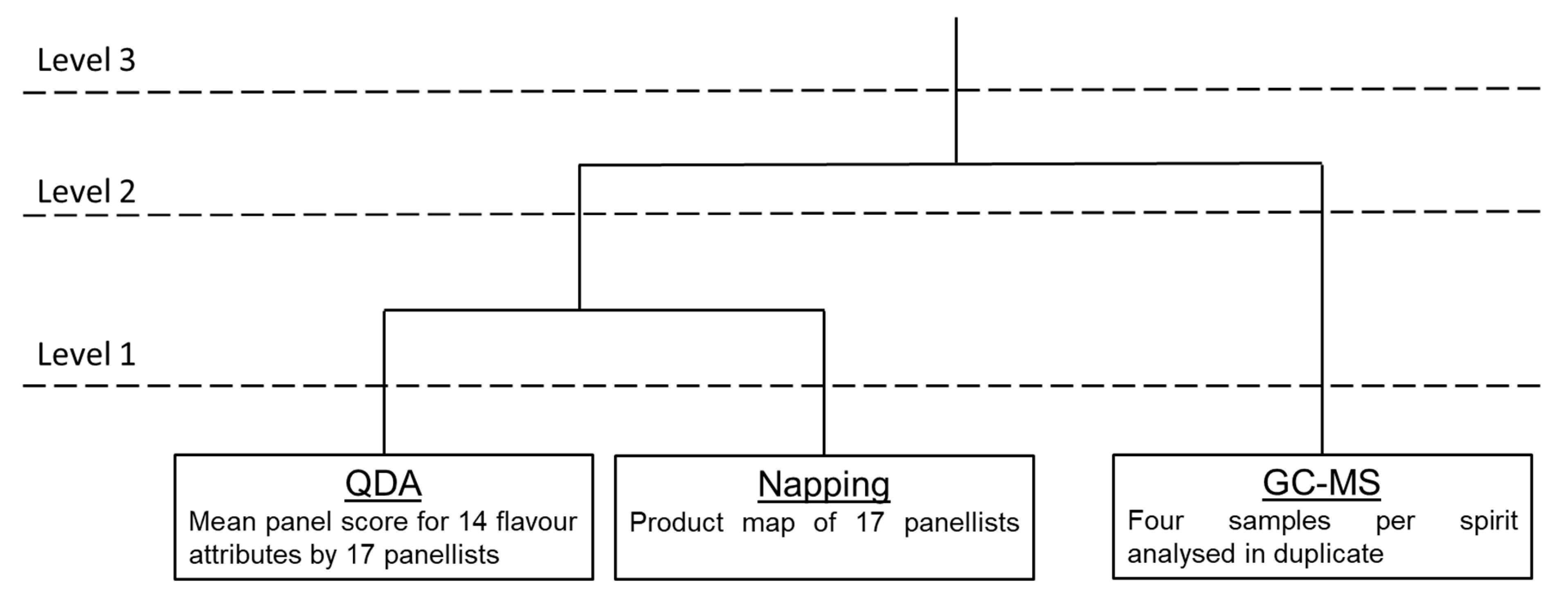

Hierarchical Multiple Factor Analysis (HMFA) was carried out in order to statistically compare the three methods [38,40,41]. The QDA data were entered in the form of mean panel scores, the same format used in the PCA analysis. The Napping coordinates from individual panellists were used, while the GC-MS data were the mean of the eight measurements per spirit. The data structure of the HMFA is displayed in Figure 1. For the data analysis, each row was allocated to a spirit, while the columns described the variables belonging to QDA, Napping and GC-MS. Each variable was normalised based on performing a PCA on each data set followed by dividing the elements by the square of the first eigenvalue obtained [42], allowing the comparison of all three methods in the same space. Data were balanced out at each level, which allowed firstly the analysis of three different techniques on Level 1, followed by comparing the two sensory approaches on Level 2 and finally the sensory approaches with GC-MS on Level 3. This was carried out using RStudio Version 1.3.103 (RStudio PBC, Boston, MA, USA) and the packages FactoMineR and ggplot2.

3. Results

3.1. Quantitative Descriptive Analysis

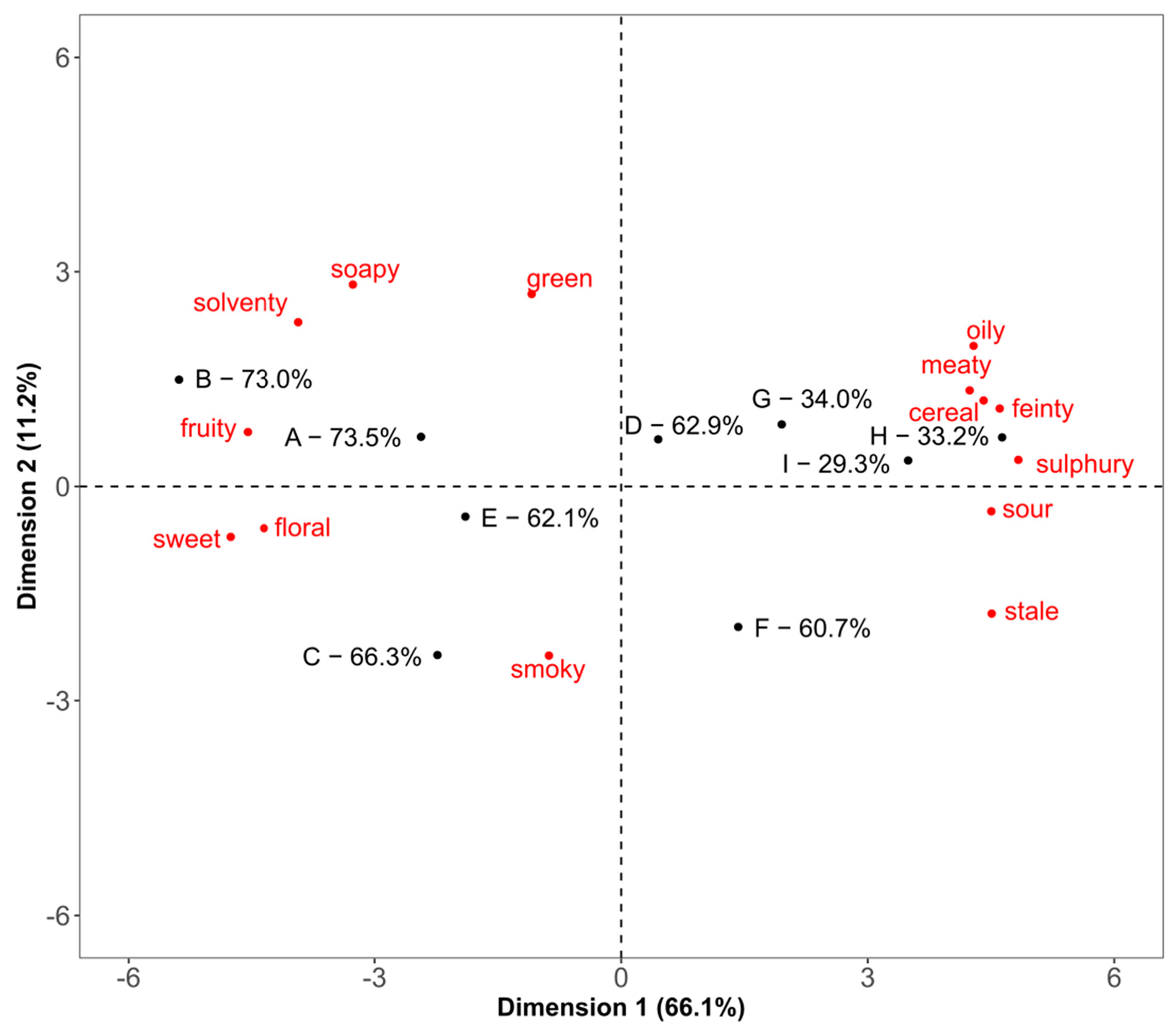

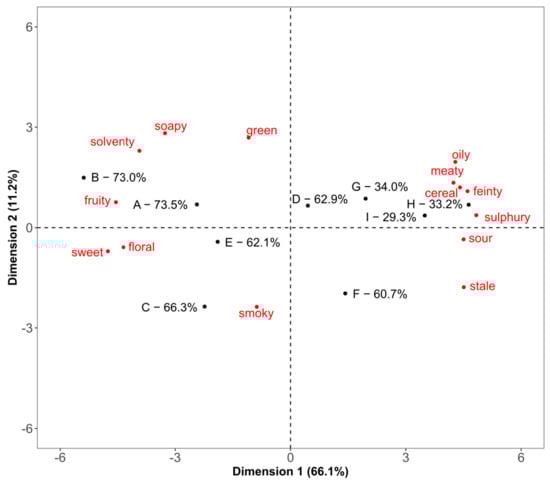

The first two dimensions from the PCA of the QDA data are shown in Figure 2. These two dimensions accounted for 77.3% of the variance in the data.
Dimension 1 separated fruity, solventy, sweet, floral, and soapy spirits (negative end) from feinty, cereal, sulphury, meaty, oily, stale, and sour spirits (positive end). This separation related to the ABV of the spirits, with the high ABV spirits (A, B, C) being fruity, solventy, sweet, floral, soapy, and green and the lower ABV spirits (G, H, I) having feinty, cereal, sulphury and other heavier notes. The intermediate ABV spirits were found in the middle of this dimension (D, E, F), though spirit E was located closer to the high ABV spirits and D and F closer to the low ABV spirits than might have been expected, based on their ABVs.
The separation across Dimension 2 did not relate to ABV. Spirits C and F, and to a lesser extent E, were on the negative end of this dimension, tending towards more smoky, stale aromas, as opposed to soapy, green, solventy notes.
In addition to the product map produced from the PCA of the data, QDA provides further information on the significance of differences between the spirits. Mean panel scores and the accompanying statistical analysis (Table A1, Appendix A) showed that all nine spirits had been given very low scores for stale, meaty and smoky attributes. This indicates that none of these are key attributes in any of the spirits, which in turn helps in the interpretation of Dimension 2 of the PCA. Five of the fourteen attributes—feinty, cereal, fruity, sulphury and solventy—showed statistically significant differences across the sample set, indicating that these attributes are the characteristics differentiating the spirits.
Mean panel scores from the QDA can be plotted in the form of flavour profiles in a spider diagram. An example is given in Figure A1 (Appendix A), which shows the flavour profiles of spirits B, D and H. This presentation of the data makes it easy to view the key characteristics of each spirit and quickly identify the main flavour differences between spirits.

3.2. Napping

Analysis of the Napping data showed that the RV values for all panellists were greater than 0.5, so all 17 data sets could be included in the MFA. The first two dimensions from the MFA are shown in Figure 3. These two dimensions accounted for 63.2% of the variance in the data.

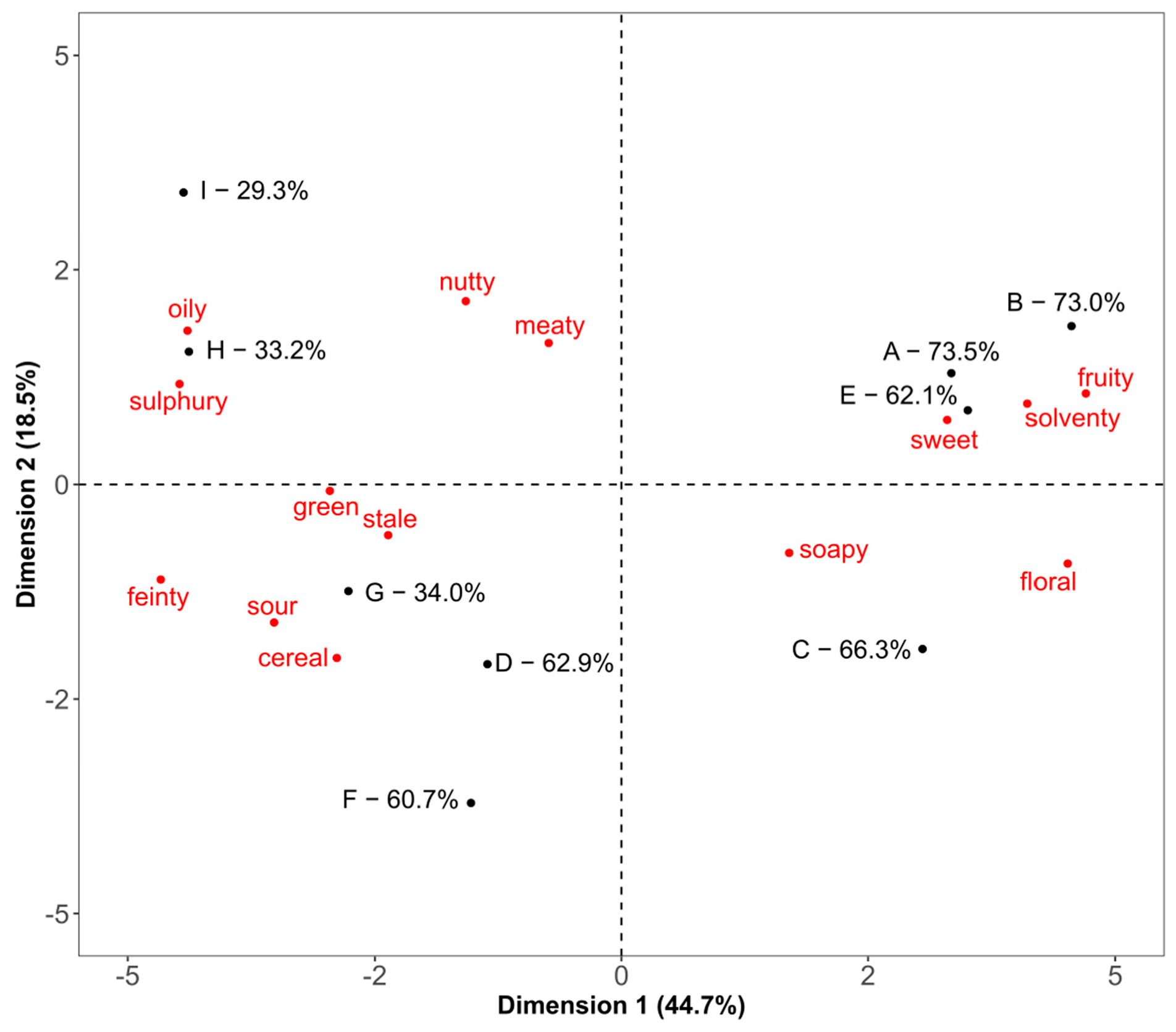

Dimension 1 separated fruity, sweet, floral, soapy and solventy spirits (positive end) from sulphury, feinty, stale, cereal and sour spirits (negative end). As observed in the QDA data (Section 3.1), this related to the ABV of the spirits. Again, as detected by QDA, the intermediate spirits did not fully follow this trend. While they were all located between the high and low ABV spirits, spirit E was located closer to the high ABV spirits and D and F close to the low ABV spirits.
The separation across Dimension 2 was not correlated with ABV. This dimension showed a separation of nutty, oily spirits (positive end) from those with cereal character (negative end), with spirits I and F separated out at the two extremes. This separation differed from the QDA mapping, where spirit I was close to the other low ABV spirits.
Using the Napping approach, it is not possible to plot the individual flavour profiles of the spirits.

3.3. Time Expenditure for QDA Versus Napping

The time taken for each panellist to carry out QDA and Napping on all nine spirits was noted and the mean calculated. While the Napping session took on average 7.7 ± 2.9 min, the QDA data analysis for all three sessions took on average 18.7 ± 4.6 min. In addition, the QDA was run over three sessions, so there was additional time required in terms of sample preparation for this approach. Napping required the manual measurement of spirits’ positions, approximately 5 min per sample set. Overall, Napping was less time consuming both for the panellists and panel leader.

3.4. Gas-Chromatography-Mass Spectrometry

GC-MS identified a total of 96 compounds in the spirits. A full list of the detected compounds, their typical aroma descriptors, chemical group, and the peak area in each of the spirits can be found in Table A2 (Appendix A). PCA of the peak area data is shown in Figure 4 and Figure 5. The first two dimensions accounted for 71.6% of the variance in the data.

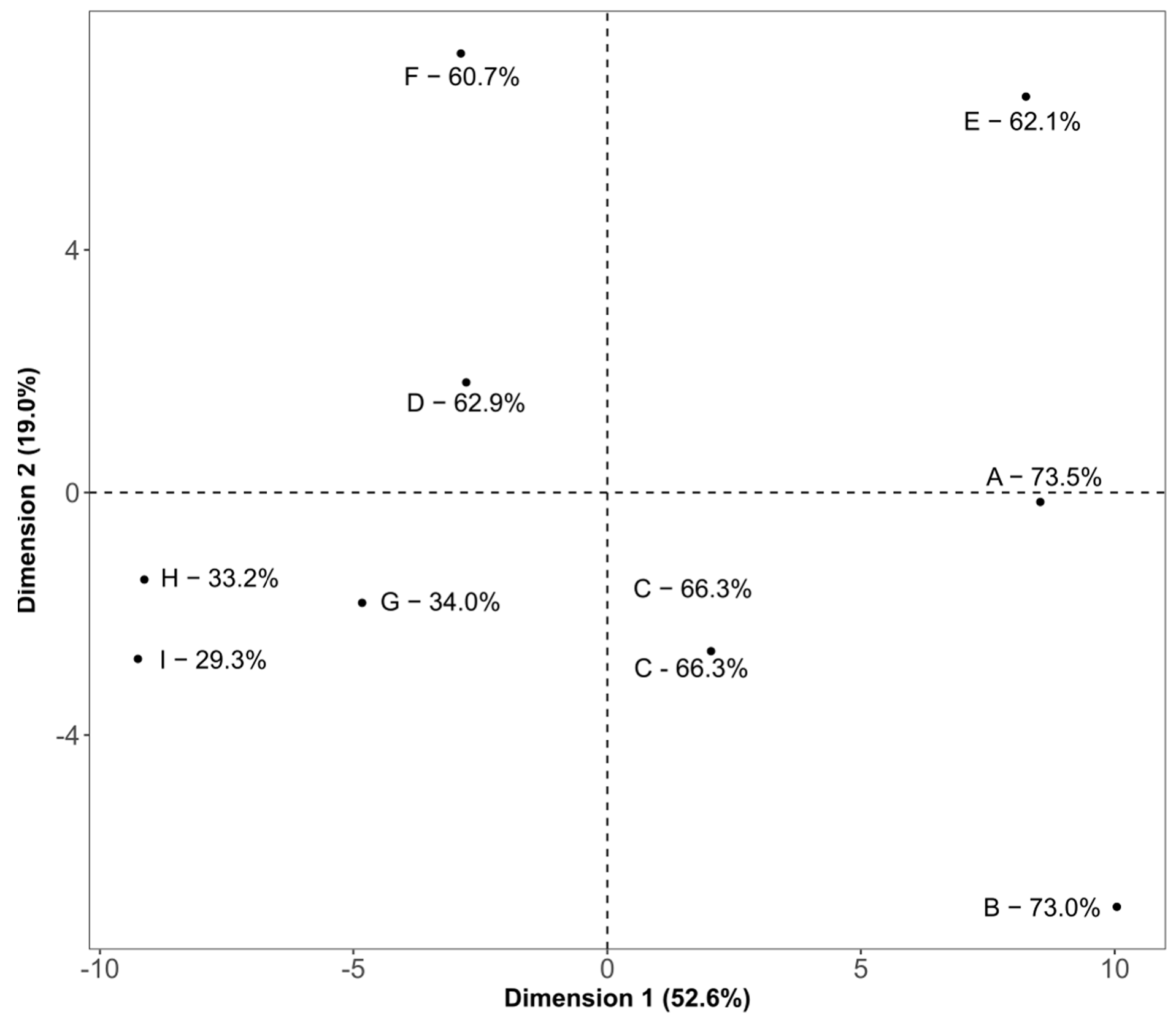

The separation of the spirits across Dimension 1, shown in the scores plot in Figure 4, was broadly related to ABV. High ABV spirits were located on the positive end of this dimension and low ABV spirits on the negative end. However, this tendency was not fully followed by the intermediate ABV spirits; spirits D and F were located close to the low ABV spirits, while E was located more towards the positive end, only being separated from the high ABV group by Dimension 2.

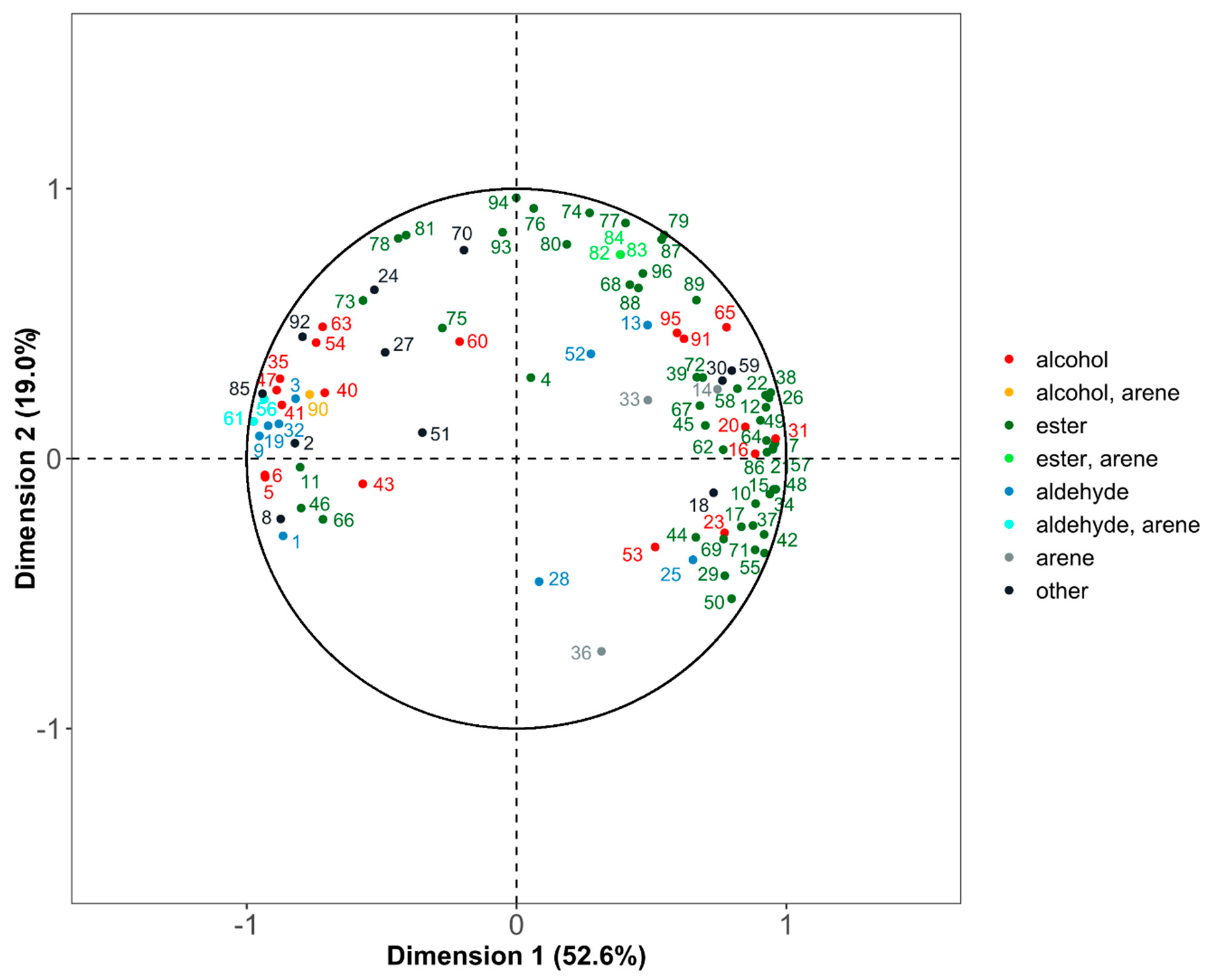

The associated loadings plot (Figure 5) showed that the spirits were separated by chemical groups. Most of the compounds on the positive end of Dimension 1 were esters, certain alcohols and arenes, while those on the negative end were mainly other alcohols and aldehydes. Looking in more detail at the different compounds, the low ABV spirits contained higher levels of compounds that eluted early in the GC-MS run and alcohols.
A further separation was observed across Dimension 2. Spirits E and B, which were both on the positive end of Dimension 1, were separated across Dimension 2. Spirit B was relatively high in propyl acetate, isobutyl acetate and pentyl acetate, while spirit E was rich in a variety of decanoate esters, such as isobutyl decanoate and isoamyl decanoate.
In addition to the product map produced from the PCA, further information can be extracted from the GC-MS data by looking in more detail at the flavour characteristics typically associated with the identified compounds (Table A2, Appendix A). Over half of the compounds were typically described as having fruity characteristics, while the next most prevalent flavour descriptions were oily, sweet, and green. Compounds with soapy, feinty, sour and sulphury flavours were least common. Roughly one-eighth of the compounds could not be described. This meant that there was either no flavour description, indicating that the flavour of this compounds had not previously been researched, or that it was simply not flavour active. Some of the key flavour attributes used in the QDA and mentioned by panellists during Napping, namely cereal, meaty, and smoky, were not directly linked to any of the compounds measured using GC-MS. This indicates that either the compounds responsible for these flavours are not being detected by the instrument, or that these flavours arise from a more complex interaction of compounds. Correlating sensory with the analytical data using statistical methods, such as Partial Least Squares, can help to understand these interactions.

3.5. Statistical Comparison of the Three Methods Using Hierarchical Multiple Factor Analysis

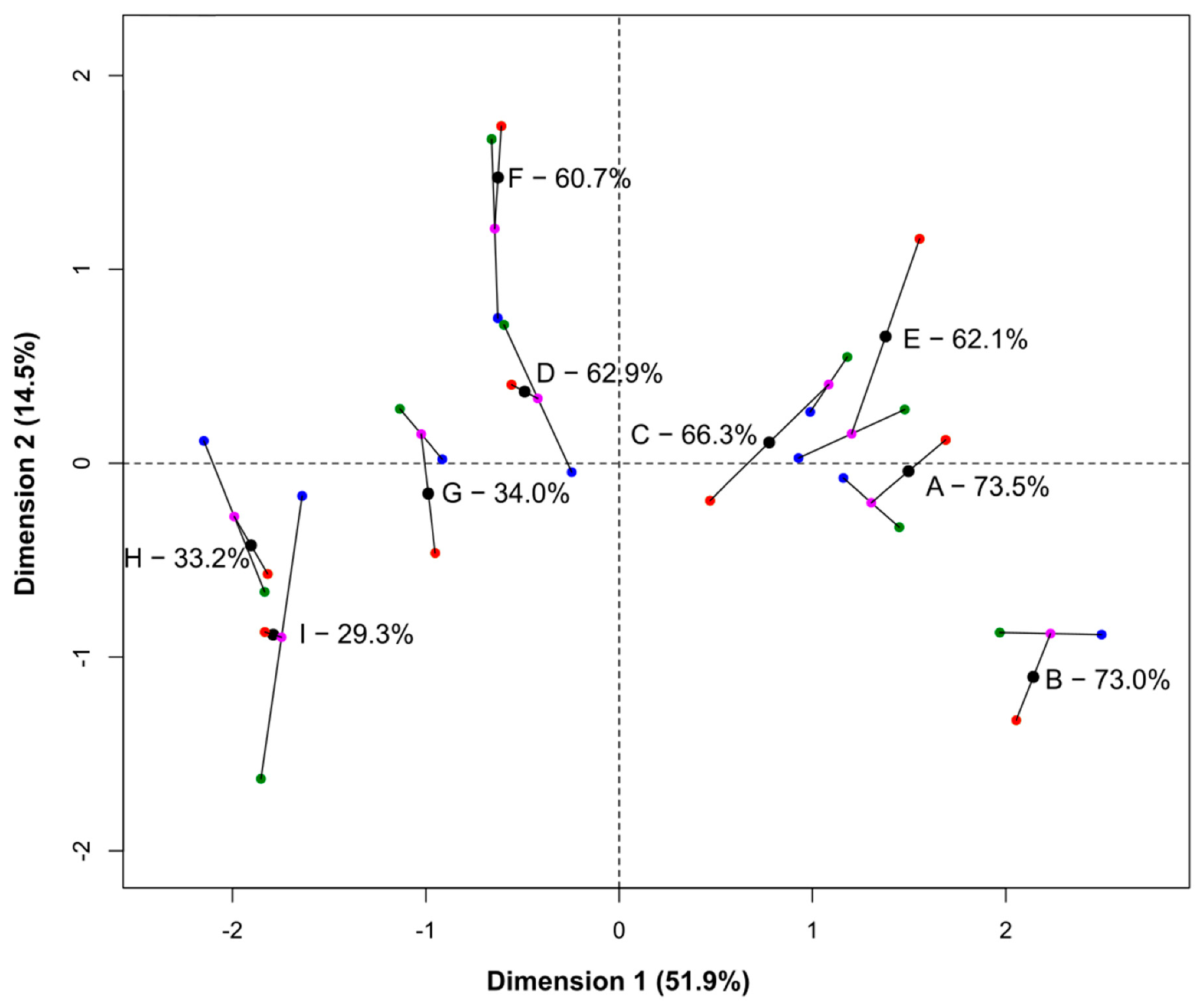

Results of the HMFA of the three data sets is shown in Figure 6. The first two dimensions of this analysis accounted for a total of 66.4% of the total variance. The grouping of the spirits across these dimensions show that all three methods largely discriminated between the spirits in the same way. This was further confirmed by comparing the RV scores (Table 2). High RV scores between methods mean that they produce similar product maps, with an RV > 0.8 considered as similar [43,44]. The RV scores in this study were all around 0.9. Some differences could be observed, however. For example, there were bigger differences between the QDA and Napping data for the lowest ABV spirits (H and I), than for the highest ABV spirits (A and B). Napping differentiated less between the spirits than QDA and GC-MS, resulting in the same product maps with a lower resolution for finer differences. GC-MS appeared to differentiate the high ABV spirits better, while the resolution for the low ABV spirits was better using QDA.

4. Discussion

The aim of this study was to compare two sensory approaches (QDA and Napping) and an analytical technique (GC-MS) for the evaluation of the flavour differences among a set of new make Scotch whisky spirits produced in the laboratory using different yeasts. The method of production and used yeast resulted in variable ABVs. HMFA was used to explore the relationships between the data produced using the three methods. The results of this analysis showed that the three techniques grouped the spirits in a similar way with RV scores between 0.895 to 0.927. QDA discriminated the low ABV spirits better while GC-MS discriminated the higher ABV spirits more effectively. All three techniques discriminated the spirits in the same way. However, Napping had a lower resolution for distinguishing spirits from each other. The three methods are not directly interchangeable, as the data from each provides a unique insight into how the spirits differ. There are also advantages and disadvantages associated with each method, which we have compiled based on existing knowledge and from experience gained from this study.
Sensory methods give a measure of human perceptions and hence are relevant to the consumer. However, sensory evaluation can be time consuming and even with trained panellists the data are noisy. QDA is an established sensory method, where spirits are evaluated in terms of perceived intensity of pre-selected flavour attributes. The advantage of this approach is that flavour profiles can be produced for each spirit. These data can be presented visually in a form that is easy to understand and allows spirits to be easily compared. Differences can be confirmed through statistical evaluation of the data. The main downsides of QDA are the requirement of trained and experienced panellists [15], and the time required to evaluate each individual flavour descriptor. Using a pre-selected vocabulary may result in important flavours being be overlooked. This is a particular concern when using QDA to evaluate novel products, such as the spirits produced from new yeast strains used in this study. The descriptor nutty was used frequently during Napping but had not been included in the QDA vocabulary. The solution to this would be to carry out a preliminary session to fine-tune the vocabulary. However, this would add to the time and volume required to carry out the QDA which are the main limiting factors when conducting sensory work.
This study showed that Napping was significantly less time consuming than QDA, taking around a third of the time to carry out although having a lower resolution in distinguishing the spirits. Similarly, in a study by Dehlholm et al. [43], the time was decreased to nearly one third. Although QDA requires trained panellists, this is not mandatory for Napping. This significantly reduces resource requirements, if no pre-trained panel is available, but the data are likely to be noisier. Although not studied here, familiarity with the products and their experience in describing flavours could also reduce the number of panellists required to analyse a sample set due to an increase in the quality of their evaluations [19,43,45,46,47,48,49].
Although considerably more rapid, Napping resulted in a similar product map to QDA. Other studies comparing Napping to descriptive techniques showed similar results in most cases [18,27,28,29,30,31,43,50,51,52]. With Napping the evaluation is based on the main characteristics of the sample, rather than full evaluation of single flavour descriptors, so subtle differences may be overlooked. This may depend on the nature of the samples. Some studies show that Napping is the best approach when the samples are very different, with QDA being more efficient for picking up more subtle differences between samples [53]. However, there have also been studies that have found a poor correlation between the techniques [54]. Unlike most of the previous research, our study used the same panel in both evaluations, so any differences in the product maps were due to the technique used rather than the panellists.
When using QDA, the evaluations were split over several sessions, while Napping was carried out in a single session. This reduces sample preparation time and the amount of spirit required. This can be particularly important in applications where there is a limited amount of sample available.
The data analysis used in Napping, MFA, gives a product map but does not provide information on the degree of difference in the sample set [18]. The nature of the data means that they can only be used to compare samples assessed in the same session, while with QDA data can be compared across sessions. The nine spirits used in this study was a manageable number, but there is a limit to the number of samples that can be compared using Napping.
Even when sensory tests are carried out under carefully controlled conditions by highly trained panellists, the data are subjective and unavoidably influenced by their sensitivities to individual flavour compounds. A panel of assessors is required to obtain meaningful results. Other researchers have observed that, with high alcohol strength spirits, only a limited number of spirits and attributes can be assessed during a session if you want to retain the quality of the data [55]. The alternative is to use an analytical method, which is more reproducible, less subjective and allows for the analysis of large sets of samples.
GC-MS is an established method which is used to understand how the chemical composition of a product influences flavour, to predict flavour, and to show which flavour compounds are important to create specific characteristics [34,52,56]. In this study, the GC-MS semi-quantitative analysis of 96 chemical compounds gave a similar product map showing the same spirit groupings as the two sensory approaches. The spirits which had high ABVs and lighter flavour characteristic (fruity, floral, solventy, and sweet) contained higher concentrations of esters, certain alcohols and arenes. The low ABV, which had heavier flavour characteristics (feinty, cereal, sour, oily, and sulphury) contained lower levels of these compounds and increased concentrations of other alcohols and aldehydes. This agrees with previous research, which shows that aldehydes originate from malt and can be reduced to their unsaturated counter parts during fermentation. Hence the degree of fermentation, final ABV, is important for the reduction. In the spirits with a low ABV, the fermentation was incomplete, leaving the higher level of aldehydes [4]. Additionally, furfural concentrations emanate from the grain [3].
While GC-MS gave rich information about the chemical composition, the abundance of compounds and their ratios, the link between this and perceived flavour is more difficult to interpret due to masking effects and compound interactions. For example, the most abundant compounds present in the spirits were esters, which have fruity flavours, but the spirits were not perceived as predominantly fruity. Previous research on American bourbon whiskey has suggested that a chemical recreation with a selection of compounds is possible but is not an easy task [57]. A disadvantage of chemical compositional analysis is that there is typically not an individual compound contributing to a single flavour. For example, the nutty character of malt whisky has been positively linked to 2,5-dimethylpyrazine, 2-furanmethanol and ethyl benzoate, while γ-nonalactone has a negative correlation [58]. In another study, the green flavour of malt whisky was linked to aldehydes and nonan-2-ol. However, even after extensive research the levels of these compounds only gave an indication and could not totally recreate the flavour [56]. This study showed that while there were a range of compounds contributing to certain flavour characteristics, other flavours did not appear to be linked to single compounds. A good example are cereal notes, which were perceived at relatively high levels in several of the spirits. None of the compounds measured in our GC-MS analysis were described as having this flavour. Either the compounds responsible were not detected, the flavour descriptors on the Good Scents Company website were too vague or, as previous research suggests, this cereal character is due to an interaction of several compounds.
Around one eighth of the compounds identified in the spirits could not be classified as there was no flavour description available in the literature. This may be because the compound is not flavour active, in which case it can be ignored. However, there may have been compounds that were detected in this analysis that had not previously been included in sensory studies. In this case, their potential flavour impact may have been overlooked. Gas chromatography-olfactometry-mass spectrometry (GC-O-MS), which combines an instrumental with a sensory analysis, could be applied to identify which compounds are flavour-active. Sensory thresholds are also important. Some compounds have much lower thresholds, having more of an impact at lower levels than compounds with higher thresholds. However, since there are no data available on threshold levels for many of these compounds, and they were not quantified, it was not possible to account for this factor in the analysis. Previous research conducted to determine the flavour threshold of single compounds showed that it is still difficult to calculate the overall flavour perception in mixtures of several compounds [34,52,56,57].
The final issue that causes problems when linking GC-MS data to flavour perception is that, although an appropriate method was selected for this analysis, SPME selectively extracts some compounds more efficiently than others. Less volatile compounds, in particular, are more difficult to detect using GC-MS. This makes it harder to identify all compounds that give heavier characteristics, such as phenols, fatty acids or arenes, which are likely to have been more prevalent in the lower ABV spirits. Nevertheless, the data can be semi-quantitatively compared. While a comparison on a quantitative level showed that strains with a high ABV had, in general, higher peak areas of compounds, the real flavour can only be determined through sensory evaluation.
Data collected across the three analyses revealed two main differences among the spirits. The biggest difference in both composition and sensory character was related to the ABV of the spirit, the level of alcohol that had been produced by the various yeast strains during fermentation. Higher alcohols, such as 2-methyl-1-propanol or isoamyl alcohols, distil later because their volatility increases with reducing alcohol concentration [59]. Solely based on the distillation effect, the opposite of what would be expected was observed, with these compounds being found in higher levels in the high ABV spirits. These compounds are fermentation products and are more prevalent in complete fermentations, resulting in higher ABVs. Most of the late eluting compounds detected by the chosen GC-MS method were linked to flavour descriptors such as sweet, oily, or fruity. This could indicate that heavier compounds linked to sulphury, feinty, cereal, or stale flavours were not detected by the chosen method, or that they were only produced in low levels which could be linked back to the yeast strains used.
All three analyses also revealed more subtle differences between the spirits. Spirit B was differentiated from the other spirits by all three methods, with GC-MS differentiating it most. While the sensory techniques could only highlight that this sample was different in flavour terms, GC-MS gave further insights. Spirit B was higher in propyl acetate, isobutyl acetate and pentyl acetate than the other spirits. GC-MS also differentiated spirit E, which was rich in a variety of decanoates, such as isobutyl decanoate and isoamyl decanoate, though this difference in composition did not appear to have a significant impact on flavour. Such differences between the spirits can be linked back to the metabolism of the yeast.

5. Conclusions

The three methods compared in this study each provided different insights into the differences among whisky spirits. QDA gave quantitative data on the perceived intensity of flavour attributes, which could be presented in an easily interpreted graphical format and allowed statistical significance to be determined between spirits. However, this method was time-consuming, and required a pre-determined vocabulary of attributes and a trained and experienced panel. In comparison, Napping required only around one third of the time taken for QDA. With Napping panellists provided their own descriptions of sample differences, so no pre-selected vocabulary was needed. Although in this case the same panel was used, it is possible to carry out this approach using less experienced assessors. With Napping, differences between samples can be mapped out using PCA, but flavour profiles of individual samples cannot be produced. GC-MS provides information on the compositional differences between samples. The results of this analysis can be link to flavour differences based on previous knowledge of the sensory impacts of the measured congeners. A detailed summary of the advantages and disadvantages of the three techniques are summarised in Table 3.
Overall, the study showed that the high ABV spirits contained relatively high concentrations of esters and certain alcohols which were linked to lighter flavour characteristics, such as fruity, floral, solventy, and sweet. The low ABV samples were richer in heavy flavour characteristics, such as feinty, cereal, sour, oily, and sulphury and contained more aldehydes, than certain other alcohols. The medium ABV spirits were more variable in terms of flavour and composition. It was concluded that the nature of these spirits was likely to be due to other differences in metabolism between the yeast strains that were not directly correlated with the amount of alcohol that they produce.
HMFA was used to statistically compare the three approaches. The results revealed that QDA showed a better resolution between the low ABV spirits, while GC-MS gave the best discrimination between the high ABV spirits. Napping showed the lowest resolution of the samples, though overall the product map was similar. When designing a study to determine the flavour characteristics of a set of food or drink samples, the researcher must select a method that best matches both the information that they want to obtain and the resources that they have available. Overall, this research has shown that the best understanding of the flavour differences in whisky spirits will be obtained through using a combination of sensory and compositional analyses.

Author Contributions

Conceptualization, M.D. and F.J.; methodology, M.D., F.J. and I.B.; formal analysis, M.D. and B.H.; investigation, M.D.; writing—original draft preparation, M.D.; writing—review and editing, F.J., I.B., B.H., J.G. and G.W.; supervision, F.J., J.G. and G.W.; funding acquisition, F.J. and G.W. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by a Collaborative Training Partnership PhD programme grant awarded to Martina Daute (BB/R505201/1) under the auspices of the Industrial Biotechnology Innovation Centre (IBioIC) and the Biotechnology & Biological Sciences Research Council (BBSRC), with additional support from The Scotch Whisky Research Institute.

Institutional Review Board Statement

The study was approved by the Ethics Committee of Abertay University (EMS3105; 16/10/20) and by SWRI’s Director of Research.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The authors confirm that the data supporting the findings of this study are available within the article.

Acknowledgments

This work was supported by IBioIC BBSRC. We thank our colleagues on The Scotch Whisky Research Institute sensory panel, not only for evaluating the spirits but also for their positive feedback throughout the study. We also thank Johanna Blomqvist, Volkmar Passoth (Swedish University of Agricultural Sciences), Lallemand Inc. and Ludwig Niessen (Technical University Munich) for supplying yeast cultures for this study.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

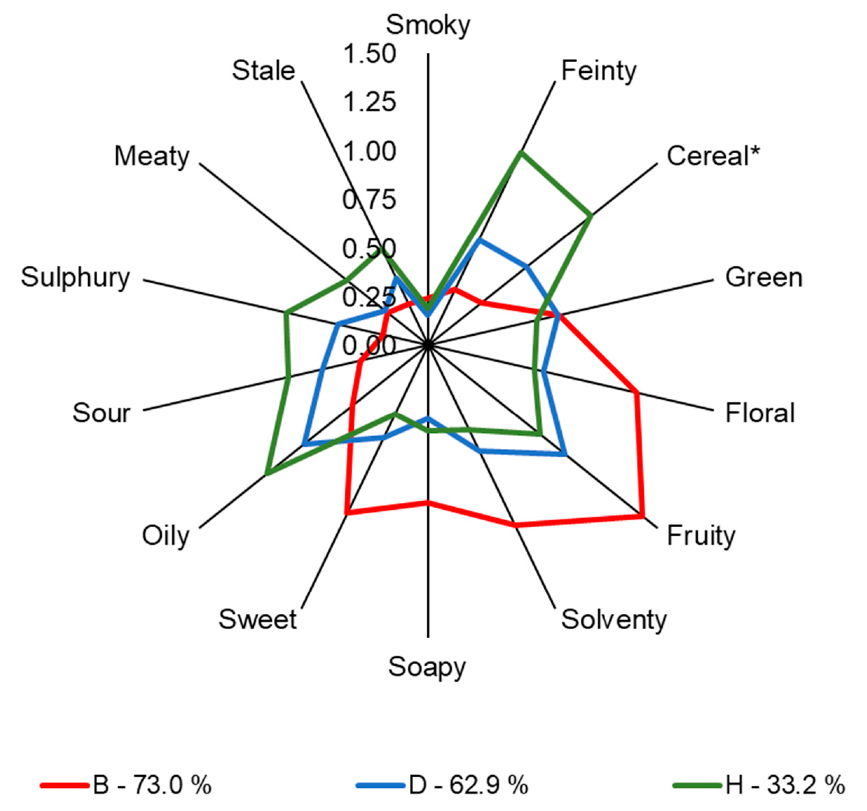

Figure A1. Typical presentation of QDA mean panel scores in a spider diagram for three selected spirits. * displays significant differences (p < 0.05).
Figure A1. Typical presentation of QDA mean panel scores in a spider diagram for three selected spirits. * displays significant differences (p < 0.05).
Applsci 11 01410 g0a1
Table A1. Results from the QDA of nine new make spirits showing mean panel scores, standard deviations, and Tukey’s groupings (a,b,c,d). * displays significant differences (p < 0.05).
Table A1. Results from the QDA of nine new make spirits showing mean panel scores, standard deviations, and Tukey’s groupings (a,b,c,d). * displays significant differences (p < 0.05).
Flavour AttributeA—73.5%B—73.0%C—66.3%D—62.9%E—62.1%F—60.7%G—34.0%H—33.2%I—29.3%
Smoky0.15 ± 0.3 a0.24 ± 0.42 a0.3 ± 0.5 a0.15 ± 0.28 a0.37 ± 0.44 a0.24 ± 0.36 a0.15 ± 0.23 a0.19 ± 0.29 a0.31 ± 0.36 a
Feinty *0.31 ± 0.31 c,d0.32 ± 0.29 c,d0.22 ± 0.28 d0.6 ± 0.47 a,b,c,d0.6 ± 0.47 b,c,d0.71 ± 0.53 a,b,c,d0.78 ± 0.39 a,b,c1.1 ± 0.62 a0.97 ± 0.67 a,b
Cereal *0.55 ± 0.59 a,b,c0.35 ± 0.45 c0.42 ± 0.46 b,c0.65 ± 0.51 a,b,c0.65 ± 0.51 a,b,c0.65 ± 0.45 a,b,c0.98 ± 0.8 a,b1.06 ± 0.55 a1.15 ± 0.57 a
Green0.56 ± 0.53 a0.69 ± 0.63 a0.61 ± 0.44 a0.68 ± 0.42 a0.58 ± 0.55 a0.49 ± 0.47 a0.61 ± 0.56 a0.57 ± 0.49 a0.67 ± 0.54 a
Floral0.73 ± 0.45 a1.09 ± 0.73 a1.02 ± 0.62 a0.61 ± 0.52 a0.72 ± 0.52 a0.6 ± 0.53 a0.63 ± 0.6 a0.56 ± 0.55 a0.49 ± 0.57 a
Fruity *1.32 ± 0.8 a,b1.4 ± 0.84 a1.03 ± 0.63 a,b,c0.89 ± 0.54 a,b,c0.89 ± 0.54 a,b,c0.7 ± 0.49 b,c0.62 ± 0.34 c0.73 ± 0.64 a,b,c0.61 ± 0.5 c
Solventy *0.73 ± 0.57 a,b1.02 ± 0.79 a0.53 ± 0.4 a,b0.6 ± 0.37 a,b0.6 ± 0.37 a,b0.49 ± 0.38 a,b0.67 ± 0.49 a,b0.48 ± 0.33 b0.51 ± 0.47 a,b
Soapy0.74 ± 0.68 a0.81 ± 0.73 a0.35 ± 0.38 a0.38 ± 0.36 a0.57 ± 0.5 a0.35 ± 0.4 a0.39 ± 0.41 a0.44 ± 0.42 a0.48 ± 0.54 a
Sweet0.65 ± 0.47 a0.95 ± 0.79 a0.78 ± 0.58 a0.52 ± 0.47 a0.72 ± 0.55 a0.56 ± 0.63 a0.39 ± 0.47 a0.39 ± 0.53 a0.38 ± 0.54 a
Oily0.66 ± 0.61 a0.49 ± 0.59 a0.49 ± 0.47 a0.81 ± 0.51 a0.63 ± 0.54 a0.66 ± 0.51 a0.89 ± 0.61 a1.05 ± 0.52 a0.77 ± 0.59 a
Sour0.46 ± 0.46 a0.36 ± 0.43 a0.51 ± 0.44 a0.56 ± 0.48 a0.56 ± 0.43 a0.54 ± 0.36 a0.54 ± 0.32 a0.74 ± 0.51 a0.63 ± 0.48 a
Sulphury *0.34 ± 0.36 a,b0.24 ± 0.3 b0.29 ± 0.35 a,b0.48 ± 0.47 a,b0.48 ± 0.47 a,b0.58 ± 0.52 a,b0.51 ± 0.51 a,b0.75 ± 0.62 a0.64 ± 0.54 a,b
Meaty0.23 ± 0.47 a0.27 ± 0.51 a0.24 ± 0.37 a0.28 ± 0.37 a0.2 ± 0.41 a0.32 ± 0.47 a0.38 ± 0.5 a0.53 ± 0.58 a0.5 ± 0.56 a
Stale0.32 ± 0.29 a0.24 ± 0.37 a0.44 ± 0.42 a0.38 ± 0.32 a0.35 ± 0.39 a0.51 ± 0.51 a0.43 ± 0.41 a0.55 ± 0.42 a0.56 ± 0.41 a
Table A2. Peak areas of detected compounds by GC-MS for nine different new make spirit (mean of four samples measured in duplicate per spirit), standard deviation and Tukey’s groupings (a,b,c,d,e,f). In addition, the chemical group and sensory descriptors of each compound are shown. Sensory descriptors were assigned based on the Good Scents Company websites descriptors and grouped according the SWRI flavour wheel.
Table A2. Peak areas of detected compounds by GC-MS for nine different new make spirit (mean of four samples measured in duplicate per spirit), standard deviation and Tukey’s groupings (a,b,c,d,e,f). In addition, the chemical group and sensory descriptors of each compound are shown. Sensory descriptors were assigned based on the Good Scents Company websites descriptors and grouped according the SWRI flavour wheel.
CompoundA 73.5%B 73.0%C 66.3%D 62.9%E 62.1%F 60.7%G 34.0%H 33.2%I 29.3%
1. Acetaldehydealdehyde
alcoholic, floral fruity
481,908 ± 54,424 c521,324 ± 52,570 c659,602 ± 64,200 c575,229 ± 159,495 c462,804 ± 25,557 c730,904 ± 67,474 c1,149,399 ± 263,756 b1,441,220 ± 115,373 a,b1,580,086 ± 255,833 a
2. Dimethyl sulfidedisulfide
sweet, sulphury, green
488,557 ± 147,809 b,c463,450 ± 59,197 c831,790 ± 47,118 a646,831 ± 334,386 a,b,c550,063 ± 29,253 a,b,c771,636 ± 56,293 a,b,c673,223 ± 66,403 a,b,c808,655 ± 142,510 a,b822,607 ± 111,136 a,b
3. Isobutyraldehydealdehyde
floral, green
56,538 ± 17,203 d50,548 ± 3244 d99,743 ± 3424 a,b,c76,706 ± 38,572 c,d68,910 ± 5008 c,d123,065 ± 14,296 a79,920 ± 11,498 b,c,d119,969 ± 10,856 a117,905 ± 11,806 a,b
4. Methyl acetateester
alcoholic, sweet, fruity
101,359 ± 20,659 a,b117,666 ± 11,182 a,b112,418 ± 26,146 a,b81,077 ± 29,053 b119,322 ± 21,799 a,b141,544 ± 21,077 a105,035 ± 31,487 a,b110,870 ± 11,829 a,b114,212 ± 27,776 a,b
5. trans-2-Methyl-4-hexen-3-olalcohol
not described
5979 ± 1587 d3202 ± 545 d12,643 ± 982 c,d27,021 ± 13,501 b,c9751 ± 2943 c,d39,575 ± 6681 b44,934 ± 13,128 b73,897 ± 8422 a83,902 ± 11,460 a
6. 2-Methyl-4-hexen-3-olalcohol
not described
31,077 ± 8052 c,d15,360 ± 2621 d54,540 ± 4627 c,d117,107 ± 60,489 b,c43,430 ± 12,407 c,d178,104 ± 37,429 b200,046 ± 61,292 b323,561 ± 44,658 a360,150 ± 54,919 a
7. Ethyl acetateester
alcoholic, sweet, green, fruity
18,382,122 ± 3,730,553 a22,321,690 ± 383,721 a11,053,271 ± 376,456 b9,781,320 ± 3,917,725 b19,020,913 ± 1,954,200 a10,743,941 ± 1,859,787 b2,508,092 ± 758,621 c3,973,210 ± 348,385 c3,723,184 ± 439,572 c
8. 1,1-Diethoxyethaneacetal
alcoholic, sweet, sulphury, green, nutty
395,771 ± 111,620 c303,824 ± 37,278 c625,277 ± 82,896 c676,984 ± 202,277 c435,590 ± 83,210 c925,422 ± 174,163 c1,965,337 ± 713,235 b2,308,725 ± 96,073 a,b2,876,673 ± 686,735 a
9. Isovaleraldehydealdehyde
alcoholic, floral, sweet, nutty, oily, fruity
267,053 ± 19,695 d224,790 ± 21,939 d453,132 ± 29,579 c,d680,272 ± 360,328 b,c312,757 ± 29,686 d945,977 ± 109,025 a,b694,170 ± 126,614 b,c1,204,443 ± 131,856 a1,174,573 ± 110,932 a
10. Propyl acetateester
alcoholic, sulphury, feinty, fruity
244,492 ± 90,151 b443,962 ± 33,857 a49,898 ± 2894 c48,993 ± 21,442 c270,535 ± 22,953 b70,599 ± 17,901 c14,271 ± 4554 c16,485 ± 1035 c16,312 ± 1821 c
11. Methyl 2-methylbutyrateester
alcoholic, green, oily, fruity
3223 ± 467 c,d,e2894 ± 391 d,e2247 ± 901 e4939 ± 1549 c3681 ± 208 c,d,e4473 ± 240 c,d4786 ± 259 c,d9666 ± 705 a7071 ± 1491 b
12. Isobutyl acetateester
alcoholic, sweet, fruity
1,975,886 ± 841,217 b2,418,168 ± 202,003 a,b513,693 ± 24,473 c546,970 ± 273,726 c3,159,200 ± 334,715 a434,861 ± 128,777 c164,831 ± 61,002 c85,453 ± 13,519 c85,611 ± 9792 c
13. 1-Pentene-3-onealdehyde
sulphury, meaty
13,664 ± 3088 a,b11,493 ± 796 b,c9690 ± 1076 c9415 ± 2079 c17,437 ± 1564 a12,077 ± 1578 b,c8968 ± 795 c11,236 ± 1219 b,c12,189 ± 1469 b,c
14. 2-Ethyl-5-methylfuranarene
green, meaty
78,998 ± 42,083 a63,287 ± 12,084 a75,955 ± 11,011 a49,306 ± 32,684 a63,610 ± 6642 a71,385 ± 16,008 a31,385 ± 3850 a38,328 ± 10,687 a35,159 ± 8913 a
15. Ethyl butyrateester
alcoholic, fruity
1,557,492 ± 548,733 a1,705,076 ± 133,103 a490,967 ± 31,338 b334,084 ± 173,138 b1,304,489 ± 112,516 a302,383 ± 87,024 b201,152 ± 62,397 b115,315 ± 15,095 b113,868 ± 13,781 b
16. 1-Propanolalcohol
alcoholic, sulphury, feinty, sour
666,958 ± 82,445 b866,202 ± 48,897 a229,968 ± 5890 e385,333 ± 46,031 d555,349 ± 26,746 c439,314 ± 56,070 d121,130 ± 29,508 f121,258 ± 12,576 f116,833 ± 15,323 f
17. Ethyl isovalerateester
sweet, fruity
69,540 ± 28,504 a,b81,615 ± 5173 a52,892 ± 1805 b,c18,450 ± 8870 d66,520 ± 8929 a,b27,107 ± 4546 c,d14,343 ± 3368 d37,112 ± 2914 c,d35,741 ± 7217 c,d
18. Dimethyl disulfidesulfide
sulphury
245,936 ± 47,623 a244,873 ± 23,530 a138,845 ± 37,223 b105,460 ± 70,434 b204,624 ± 13,460 a,b174,837 ± 58,260 a,b178,734 ± 42,061 a,b110,281 ± 17,298 b173,003 ± 50,611 a,b
19. Hexanalaldehyde
floral, green, oily, fruity
88,813 ± 34,412 c,d68,190 ± 6782 d109,882 ± 2099 a,b,c,d103,170 ± 53,972 b,c,d79,626 ± 10,708 c,d155,460 ± 13,097 a,b132,003 ± 18,382 a,b,c154,091 ± 15,653 a,b163,701 ± 16,008 a
20. 2-Methyl-1-propanolalcohol
alcoholic
10,587,847 ± 838,584 a,b9,884,785 ± 581,965 a,b,c7,826,962 ± 1,235,571 b,c,d7,834,439 ± 917,929 b,c,d11,496,815 ± 431,102 a5,988,978 ± 1,378,002 d,e4,205,263 ± 1,078,625 e7,248,326 ± 875,791 c,d5,314,747 ± 2,219,781 d,e
21. Isoamyl acetateester
alcoholic, sweet, fruity
35,620,257 ± 11,700,931 b53,609,891 ± 1,105,546 a18,204,837 ± 508,238 c14,049,416 ± 6,462,066 c,d50,960,037 ± 6,037,004 a15,717,204 ± 3,151,031 c,d7,460,715 ± 2,390,776 c,d3,628,765 ± 824,823 d3,663,686 ± 470,296 d
22. Ethyl valerateester
sweet, green, fruity
120,237 ± 23,133 a98,923 ± 4823 a,b,c63,994 ± 11,711 c,d,e47,432 ± 26,293 d,e111,105 ± 12,852 a,b77,297 ± 25,304 b,c,d40,686 ± 11,490 d,e38,253 ± 4028 e37,144 ± 4759 e
23. 1-Butanolalcohol
alcoholic, sweet, oily, feinty
221,621 ± 109,583 a159,773 ± 8053 a35,027 ± 1008 b26,833 ± 887 b47,278 ± 4203 b24,135 ± 4819 b11,233 ± 2224 b12,675 ± 974 b12,439 ± 1159 b
24. 5-methyl-5-hepten-3-oneketone
not described
18,090 ± 5096 c,d12,391 ± 1085 d19,517 ± 240 b,c24,516 ± 1901 a,b17,077 ± 1062 c,d26,453 ± 3632 a16,855 ± 2150 c,d19,557 ± 2739 b,c20,309 ± 1716 a,b,c
25. 5-Methyl-2,4-Hexenalaldehyde
not described
51,021 ± 12,868 b303,174 ± 127,475 a26,022 ± 8956 b24,214 ± 16,534 b65,551 ± 20,616 b60,221 ± 35,190 b8579 ± 3169 b4586 ± 1595 b5822 ± 5390 b
26. Pentyl acetateester
alcoholic, fruity
90,060 ± 17,714 a93,897 ± 7777 a40,028 ± 2711 b,c47,514 ± 25,183 b,c111,553 ± 8927 a50,758 ± 14,555 b36,333 ± 8528 b,c19,668 ± 4415 c19,475 ± 2242 c
27. 2-Heptanoneketone
green, nutty, meaty, sour, fruity
40,689 ± 3588 b,c18,150 ± 1673 d30,143 ± 809 c,d24,009 ± 7829 d49,723 ± 4798 a,b44,036 ± 4874 a,b43,271 ± 3644 a,b55,271 ± 10,628 a50,527 ± 2656 a,b
28. Heptanalaldehyde
alcoholic, floral, green, oily
19,474 ± 5909 a33,914 ± 39,102 a20,984 ± 2415 a15,534 ± 8230 a18,011 ± 4885 a26,753 ± 8272 a20,667 ± 3846 a23,720 ± 1445 a25,293 ± 2673 a
29. 1-Butanol, 3-methyl-, propanoateester
not described
93,842 ± 76,204 b179,940 ± 14,247 a10,327 ± 1670 c3297 ± 1265 c38,891 ± 4406 b,c10,242 ± 2928 c3490 ± 502 c3278 ± 243 c3886 ± 726 c
30. D-Limoneneterpene
sweet, green, fruity
76,550 ± 29,999 a54,222 ± 24,589 a,b55,420 ± 7020 a,b41,451 ± 31,326 a,b48,187 ± 4425 a,b64,299 ± 24,031 a14,922 ± 3397 b17,295 ± 7110 b12,526 ± 6172 b
31. 3-Methyl-1-butanol / 2-Methyl-1-butanolalcohol
alcoholic, feinty, sour, fruity
35,207,874 ± 4,630,155 b43,035,303 ± 882,122 a29,870,260 ± 846,324 c25,569,536 ± 1,433,457 c38,863,229 ± 3,081,251 a,b25,827,190 ± 1,670,510 c13,077,795 ± 1,721,053 d13,790,941 ± 868,228 d13,022,207 ± 801,278 d
32. 2-Hexenalaldehyde
sweet, sulphury, green, nutty
4399 ± 1364 d0 ± 0 e5583 ± 385 c,d7108 ± 750 a,b,c0 ± 0 e9039 ± 596 a6745 ± 1454 b,c8215 ± 1136 a,b8386 ± 875 a,b
33. 2-Pentylfuranarene
sulphury, green, nutty, fruity
601,438 ± 223,825 a,b536,551 ± 90,592 a,b784,789 ± 181,074 a511,350 ± 388,544 a,b430,067 ± 54,886 a,b723,665 ± 79,541 a281,067 ± 34,991 b303,600 ± 94,489 b265,816 ± 77,408 b
34. Ethyl hexanoateester
sweet, green, oily, fruity
21,361,104 ± 4,467,181 a21,754,800 ± 320,144 a20,696,226 ± 3,610,088 a9,072,237 ± 5,481,090 c19,791,349 ± 1,593,226 a,b10,575,207 ± 3,221,552 c12,879,040 ± 2,526,623 b,c6,048,507 ± 1,124,185 c5,907,996 ± 445,776 c
35. 1-Pentanolalcohol
sweet, oily, feinty
59,470 ± 21,837 b,c38,153 ± 2780 c65,040 ± 3961 b,c106,426 ± 15,577 a56,454 ± 6016 b,c110,575 ± 17,646 a70,278 ± 6796 b119,105 ± 19,147 a110,749 ± 9634 a
36. Styrenearene
floral, sweet
1,218,132 ± 888,865 a,b1,584,839 ± 282,254 a,b1,725,646 ± 382,468 a99,985 ± 72,226 c79,701 ± 20,940 c133,142 ± 56,968 c75,142 ± 15,304 c1,061,644 ± 354,016 a,b748,193 ± 176,825 b,c
37. Isoamyl butyrateester
green, fruity
84,318 ± 47,794 b131,369 ± 7041 a31,650 ± 3875 c6814 ± 4290 c85,595 ± 10,581 b17,430 ± 6634 c10,072 ± 3036 c19,193 ± 3709 c20,362 ± 1209 c
38. Hexyl acetateester
sweet, green, fruity
489,986 ± 125,749 a453,761 ± 43,030 a,b226,494 ± 20,254 c,d240,480 ± 137,346 c,d513,665 ± 37,021 a304,411 ± 95,689 b,c215,861 ± 58,764 c,d108,461 ± 28,101 d107,566 ± 12,342 d
39. Ethyl 3-hexenoateester
sweet, green, fruity
7667 ± 3510 a,b6417 ± 704 a,b,c8345 ± 1506 a6014 ± 2116 a,b,c6160 ± 336 a,b,c7958 ± 2260 a3693 ± 1328 b,c3357 ± 478 c2786 ± 411 c
40. Prenolalcohol
green, sour, fruity
2079 ± 1581 c,d478 ± 90 d4666 ± 158 a3635 ± 947 a,b,c2106 ± 473 c,d3984 ± 1004 a,b2300 ± 317 b,c,d4243 ± 642 a3997 ± 337 a,b
41. 2-Heptanolalcohol
sweet, green, fruity
33,288 ± 18,193 c,d25,143 ± 2093 d45,455 ± 1046 b,c,d48,723 ± 5772 a,b,c24,663 ± 2909 d67,250 ± 13,562 a43,599 ± 4313 b,c,d63,191 ± 9954 a,b57,734 ± 5064 a,b
42. Propyl hexanoateester
sweet, green, fruity
39,592 ± 15,104 b57,188 ± 1569 a17,122 ± 4462 c,d6222 ± 4376 d30,246 ± 4788 b,c9959 ± 3427 d8365 ± 2652 d3887 ± 705 d3834 ± 205 d
43. 7-Octen-2-onealcohol
not described
8349 ± 6150 b,c1360 ± 158 d1500 ± 489 d1428 ± 602 d11,224 ± 2137 b2713 ± 575 c,d11,783 ± 1149 b22,898 ± 3783 a19,904 ± 929 a
44. 2,4-Hexadienedioic acid, dimethyl esterester
not described
14,918 ± 5514 a12,934 ± 862 a,b11,247 ± 1268 a,b10,704 ± 2265 a,b8864 ± 1090 b10,124 ± 2775 a,b8339 ± 1222 b8798 ± 819 b9405 ± 770 a,b
45. Ethyl heptanoateester
alcoholic, sweet, green, nutty, fruity
1,130,004 ± 376,482 a923,846 ± 16,928 a1,179,993 ± 231,889 a832,334 ± 571,592 a898,959 ± 143,947 a980,882 ± 347,887 a752,067 ± 250,901 a665,463 ± 52,407 a639,422 ± 37,235 a
46. 2-Hydroxyethyl propionateester
sweet, oily, meaty, fruity
127,963 ± 64,010 b77,485 ± 2973 b208,029 ± 54,664 b209,560 ± 137,062 b100,126 ± 8933 b340,314 ± 48,466 b245,003 ± 74,830 b1,082,241 ± 247,838 a1,176,303 ± 229,384 a
47. 1-Hexanolalcohol
alcoholic, sweet, green, oily, feinty
127,988 ± 40,711 c,d88,862 ± 6286 d139,573 ± 3181 c,d200,877 ± 13,888 a,b113,253 ± 9525 c,d234,965 ± 38,079 a150,543 ± 13,001 b,c250,166 ± 39,329 a231,403 ± 15,459 a
48. Isobutyl hexanoateester
sweet, green, fruity
312,155 ± 157,080 a306,401 ± 27,847 a234,753 ± 63,284 a45,044 ± 33,334 b304,888 ± 71,109 a49,764 ± 18,255 b71,353 ± 26,067 b23,765 ± 4610 b22,920 ± 895 b
49. Heptyl acetateester
alcoholic, green, nutty, fruity
34,713 ± 10,593 a30,435 ± 2844 a,b14,052 ± 2177 c,d7986 ± 4892 d33,429 ± 2836 a20,138 ± 6954 b,c13,275 ± 3980 c,d5627 ± 1789 d5242 ± 254 d
50. Methyl octanoateester
sweet, sulphury, green, oily, fruity
120,997 ± 38,764 b,c171,994 ± 12,957 a137,223 ± 20,989 a,b39,251 ± 26,270 e91,125 ± 18,279 b,c,d49,606 ± 12,407 d,e77,193 ± 22,890 c,d,e51,048 ± 6883 d,e50,174 ± 5706 d,e
51. 2-Nonanoneketone
sweet, green, nutty, fruity
28,549 ± 13,708 a,b,c14,431 ± 1176 c,d25,227 ± 1525 a,b,c,d13,269 ± 5314 d18,449 ± 2299 b,c,d30,168 ± 8241 a,b36,125 ± 3001 a24,635 ± 4434 a,b,c,d24,440 ± 365 a,b,c,d
52. Nonanalaldehyde
floral, green, oily
2590 ± 1134 a2482 ± 307 a2539 ± 291 a1788 ± 526 a2417 ± 619 a3330 ± 1502 a2392 ± 541 a2157 ± 514 a2081 ± 113 a
53. 3,5-Octadien-2-olalcohol
not described
2968 ± 668 a,b4738 ± 745 a3710 ± 910 a,b2432 ± 695 b2780 ± 380 b3745 ± 1305 a,b2617 ± 878 b2673 ± 352 b2757 ± 134 b
54. (R)-(-)-2-Octanolalcohol
green, oily, sour
38,783 ± 13,899 b,c26,017 ± 1741 c44,156 ± 1294 a,b,c50,719 ± 12,475 a,b31,972 ± 3025 b,c60,976 ± 15,354 a40,962 ± 4199 a,b,c50,615 ± 8095 a,b47,893 ± 3902 a,b
55. Ethyl octanoateester
alcoholic, sweet, oily, fruity
92,505,435 ± 19,005,128 b121,187,111 ± 8,707,498 a88,065,236 ± 7,990,917 b30,061,202 ± 18,622,279 c73,315,080 ± 10,859,990 b29,630,811 ± 7,412,592 c38,817,582 ± 9,917,716 c20,086,095 ± 3,843,883 c19,176,119 ± 932,389 c
56. Furfuralaldehyde, arene
sweet, nutty
324,984 ± 233,569 d126,495 ± 18,722 d462,183 ± 87,303 d1,132,087 ± 146,477 b,c466,830 ± 121,216 d1,449,314 ± 237,701 a,b951,675 ± 149,006 c1,792,410 ± 304,014 a1,580,711 ± 160,346 a
57. Isopentyl hexanoateester
green, fruity
746,539 ± 351,540 a727,214 ± 46,122 a627,587 ± 171,197 a,b157,157 ± 117,441 c880,603 ± 83,331 a284,669 ± 96,362 b,c224,690 ± 81,035 c122,222 ± 24,065 c109,750 ± 9450 c
58. Octyl acetateester
floral, green, nutty, oily, fruity
47,978 ± 28,343 a22,687 ± 5789 b,c6414 ± 1534 c7420 ± 4217 c36,685 ± 6362 a,b14,623 ± 5039 b,c8923 ± 2890 c3468 ± 970 c3275 ± 392 c
59. 2-Methyldecan-3-oneketone
not described
647,645 ± 258,166 c1,059,357 ± 102,156 b155,332 ± 19,523 d,e418,000 ± 240,079 c,d,e1,619,000 ± 234,068 a445,728 ± 58,106 c,d166,035 ± 64,743 d,e81,845 ± 13,125 e87,047 ± 19,372 e
60. 2-Nonanolalcohol
green, oily, sour, fruity
28,739 ± 22,768 a,b,c9704 ± 2414 c32,115 ± 3349 a,b12,580 ± 4034 b,c17,353 ± 3351 b,c43,136 ± 10,736 a19,392 ± 1110 b,c24,715 ± 4144 a,b,c22,083 ± 1673 b,c
61. Benzaldehydearene, aldehyde
sweet, nutty, meaty, fruity
119,214 ± 62,943 b65,242 ± 9967 b282,004 ± 91,678 b718,428 ± 94,484 a205,568 ± 75,371 b799,130 ± 217,023 a723,093 ± 161,943 a919,547 ± 234,254 a1,007,765 ± 169,758 a
62. Ethyl nonanoateester
alcoholic, oily, fruity
1,926,162 ± 568,332 a1,051,770 ± 87,136 b,c1,221,447 ± 154,442 a,b788,277 ± 586,952 b,c926,694 ± 27,400 b,c893,458 ± 327,051 b,c479,690 ± 169,360 c498,155 ± 86,631 b,c410,091 ± 70,947 c
63. Linaloolalcohol
floral, sweet, green, nutty, oily
56,095 ± 42,410 b,c,d21,981 ± 4351 d75,726 ± 9786 b,c87,435 ± 18,664 b,c45,791 ± 9559 c,d135,643 ± 17,382 a64,661 ± 5776 b,c,d96,904 ± 15,112 a,b89,060 ± 5574 b
64. Octyl octanoateester
nutty, oily, fruity
1,600,274 ± 654,651 b1,705,887 ± 107,776 b1,379,790 ± 231,816 b341,077 ± 255,506 c2,413,979 ± 329,573 a321,637 ± 129,965 c304,044 ± 126,200 c150,270 ± 40,266 c135,021 ± 33,558 c
65. 3-Methylbutyl heptanoatealcohol
green, fruity
8481 ± 5136 a,b8144 ± 1023 a,b9547 ± 2469 a,b5795 ± 4775 b14,067 ± 2170 a8648 ± 3249 a,b3581 ± 1342 b3949 ± 834 b3494 ± 837 b
66. Isoamyl lactateester
nutty, fruity
30,090 ± 22,925 b14,295 ± 2080 b42,389 ± 12,843 b59,798 ± 18,494 b38,945 ± 11,941 b71,170 ± 7398 b36,082 ± 9195 b735,431 ± 132,659 a766,027 ± 110,054 a
67. Ethyl 3-nonanoateester
not described
46,814 ± 24,299 a30,506 ± 2140 a,b44,532 ± 7714 a14,860 ± 10,601 b38,884 ± 6130 a,b36,266 ± 11,194 a,b26,386 ± 7833 a,b23,247 ± 2992 a,b17,972 ± 672 b
68. Ethyl 8-nonenoateester
not described
9707 ± 3888 a6591 ± 358 a10,179 ± 914 a8619 ± 5824 a9157 ± 1852 a11,386 ± 3315 a6551 ± 1929 a5989 ± 1187 a5204 ± 171 a
69. Methyl decanoateester
alcoholic, floral, oily, fruity
136,805 ± 71,439 a,b151,708 ± 5522 a153,104 ± 15,713 a48,190 ± 35,636 c74,446 ± 3784 b,c90,924 ± 27,602 a,b,c59,963 ± 16,278 c43,801 ± 6568 c39,743 ± 8555 c
70. 2-Undecanoneketone
floral, oily, fruity
63,260 ± 72,561 b,c20,931 ± 20,419 b,c86,076 ± 73,537 b,c126,252 ± 67,766 b,c169,327 ± 46,660 a,b292,273 ± 117,557 a147,695 ± 67,327 a,b,c14,057 ± 1560 c139,823 ± 14,448 b,c
71. Ethyl decanoateester
alcoholic, sweet, oily, fruity
116,133,681 ± 19,769,284 b157,344,789 ± 15,847,183 a109,626,744 ± 6,589,724 b32,082,437 ± 22,333,847 d,e68,126,749 ± 8,045,711 c48,195,673 ± 13,593,134 c,d26,093,987 ± 6,329,905 d,e15,121,898 ± 4,628,880 e13,059,109 ± 3,307,716 e
72. Isopentyl octanoateester
sweet, green, nutty, oily, soapy, fruity
750,276 ± 539,105 c2,390,522 ± 311,955 b883,884 ± 243,086 c566,012 ± 434,133 c4,841,560 ± 1301,331 a585,569 ± 171,591 c409,120 ± 158,046 c238,795 ± 121,416 c193,168 ± 96,340 c
73. Ethyl trans-4-decanoateester
not described
5530 ± 6772 b3430 ± 1098 b3444 ± 1292 b5244 ± 3047 b7570 ± 2040 a,b14,705 ± 3104 a8804 ± 2638 a,b10,167 ± 2055 a,b8966 ± 1612 a,b
74. Decyl acetateester
green, oily, soapy
68,334 ± 48,626 b19,151 ± 1166 b10,976 ± 2962 b64,762 ± 45,846 b278,529 ± 102,001 a253,256 ± 65,939 a36,177 ± 13,494 b18,566 ± 10,300 b13,864 ± 4173 b
75. Ethyl-9-decanoateester
alcoholic, sweet, oily
388,165 ± 54,518 b,c505,882 ± 66,888 a,b,c213,146 ± 63,611 c960,037 ± 778,852 a,b311,145 ± 40,259 b,c1166,768 ± 304,610 b,c343,276 ± 332,721 b,c549,674 ± 153,802 a,b,c426,589 ± 64,466 b,c
76. Isopropyl decanoateester
sulphury, green, oily, fruity
45,054 ± 41,191 c,d13,577 ± 2929 d11,651 ± 4819 d112,823 ± 67,092 b,c148,479 ± 62,231 a,b217,807 ± 19,412 a34,228 ± 9661 c,d21,423 ± 7897 d20,051 ± 4339 d
77. Propyl decanoateester
sulphury, green, oily, fruity
24,992 ± 21,435 a,b,c8500 ± 2096 b,c7546 ± 2948 c16,487 ± 12,259 a,b,c30,868 ± 9152 a,b33,965 ± 10,246 a9534 ± 3354 b,c6276 ± 4365 c5280 ± 3413 c
78. Ethyl undecanoateester
nutty, oily, soapy
4349 ± 2662 a,b466 ± 158 b1482 ± 660 b5884 ± 4024 a,b5209 ± 1826 a,b7685 ± 2264 a4554 ± 1291 a,b5677 ± 3577 a,b3714 ± 2203 a,b
79. Isobutyl decanoateester
alcoholic, sweet, oily, fruity
300,289 ± 219,409 a,b,c129,725 ± 22,169 b,c172,082 ± 49,544 b,c247,318 ± 161,342 a,b,c497,603 ± 178,774 a346,599 ± 89,573 a,b113,646 ± 40,382 b,c81,469 ± 49,235 b,c65,083 ± 33,798 c
80. 3-Methylbutyl nonanoateester
floral, oily, fruity
7757 ± 5802 b,c5005 ± 4982 b,c5732 ± 2208 b,c22,249 ± 4020 a20,673 ± 8306 a15,663 ± 5277 a,b4363 ± 1372 b,c5941 ± 4496 b,c3654 ± 2475 c
81. Methyl dodecanoateester
nutty, oily, meaty, soapy
34,021 ± 24,736 a,b10,354 ± 472 c35,553 ± 9312 a,b102,217 ± 83,053 a,b100,946 ± 24,772 a,b163,632 ± 22,873 a100,405 ± 37,590 a,b78,447 ± 32,177 a,b,c54,590 ± 24,549 a,b
82. Phenethyl acetateester, arene
floral, sweet, fruity
683,823 ± 456,857 b,c161,435 ± 28,242 c239,346 ± 58,795 b,c734,898 ± 25,371 b,c2,329,105 ± 534,582 a767,940 ± 97,739 b402,793 ± 139,518 b,c305,361 ± 66,151 b,c292,177 ± 27,306 b,c
83. 2-Phenylethyl hexanoateester, arene
floral, sweet, sulphury, green, oily
683,805 ± 456,822 b,c161,435 ± 28,242 c239,346 ± 58,795 b,c734,870 ± 25,423 b,c2,329,100 ± 534,574 a767,931 ± 97,737 b402,789 ± 139,522 b,c305,353 ± 66,162 b,c292,166 ± 27,328 b,c
84. Phenethyl isobutyrateester, arene
floral, fruity
683,805 ± 456,822 b,c161,435 ± 28,242 c239,339 ± 58,795 b,c734,870 ± 25,423 b,c2,328,598 ± 534,482 a767,905 ± 97,689 b402,789 ± 139,522 b,c305,334 ± 66,173 b,c292,142 ± 27,330 b,c
85. Hexanoic acidcarboxylic acid
sulphury, oily, sour
1764 ± 1260 c,d0 ± 0 d22,336 ± 5937 b,c,d34,378 ± 8615 a,b,c21,026 ± 11,822 b,c,d56,916 ± 28,989 a43,045 ± 9235 a,b66,369 ± 7485 a60,122 ± 24,856 a
86. Ethyl dodecanoateester
floral, sweet, oily, soapy
39,313,957 ± 4,699,832 a,b37,292,487 ± 2,796,072 a,b40,693,658 ± 2,667,062 a23,549,146 ± 14,984,160 b,c37,069,182 ± 2,103,565 a,b23,900,201 ± 5,477,888 b,c19,616,178 ± 5,261,140 c13,204,315 ± 7,417,775 c9,534,318 ± 4,343,818 c
87. Isoamyl decanoateester
alcoholic, sweet, green, oily, fruity
43,540 ± 29,955 a,b,c36,563 ± 12,682 a,b,c35,040 ± 9967 a,b,c46,993 ± 30,979 a,b,c82,611 ± 36,874 a72,219 ± 17,665 a,b23,851 ± 10,901 b,c16,840 ± 14,118 c12,590 ± 9912 c
88. Ethyl isopentyl succinateester
not described
19,936 ± 4579 b7213 ± 1188 b11,089 ± 3307 b12,041 ± 7962 b101,223 ± 23,769 a19,158 ± 5798 b9027 ± 8100 b9783 ± 6009 b6090 ± 2075 b
89. Ethyl palmitateester
oily, sour, fruity
52,964 ± 6905 b36,174 ± 3559 b,c34,767 ± 4511 b,c27,736 ± 22,109 b,c106,991 ± 19,913 a41,298 ± 11,891 b,c22,407 ± 22,527 b,c24,279 ± 14,063 b,c15,228 ± 5218 c
90. Phenylethyl alcoholalcohol, arene
floral
313,498 ± 229,653 c,d,e75,354 ± 1845 e160,682 ± 37,998 d,e594,364 ± 232,741 c,d,e835,052 ± 481,591 b,c777,606 ± 403,726 c669,356 ± 99,565 c,d1,422,707 ± 104,397 a1,377,261 ± 113,270 a,b
91. 1-Dodecanolalcohol
sweet, nutty, oily, soapy
103,458 ± 48,322 a22,892 ± 3936 b16,404 ± 5358 b36,847 ± 17,654 b87,958 ± 24,496 a29,529 ± 5992 b16,758 ± 5634 b24,703 ± 10,875 b16,111 ± 6321 b
92. Octanoic acidcarboxylic acid
sulphury, oily, sour
35,646 ± 28,778 b,c4169 ± 1434 c202,987 ± 65,586 a,b,c169,648 ± 69,450 a,b,c180,250 ± 96,869 a,b,c395,738 ± 277,591 a198,817 ± 12,281 a,b,c332,090 ± 23,916 a303,876 ± 163,549 a,b
93. Ethyl tetradecanoateester
sweet, oily
330,543 ± 149,195 a,b102,320 ± 30,277 b300,722 ± 61,556 a,b571,487 ± 366,616 a582,094 ± 129,115 a493,222 ± 120,580 a,b453,966 ± 190,638 a,b318,223 ± 229,844 a,b181,455 ± 113,184 a,b
94. Ethyl 9-tetradecanoateester
sweet, oily
6089 ± 1960 a,b1450 ± 483 b3052 ± 915 b8286 ± 5556 a,b14,487 ± 4289 a13,359 ± 3371 a4789 ± 3125 b7726 ± 5965 a,b4042 ± 2405 b
95. 2-Dodecanolalcohol
not described
355,693 ± 105,182 a65,427 ± 11,207 c,d42,179 ± 10,385 d174,186 ± 68,697 b,c263,712 ± 32,928 a,b108,203 ± 28,715 c,d72,619 ± 34,477 c,d45,895 ± 17,641 d36,128 ± 12,572 d
96. Ethyl-9-hexanoateester
sweet, green, oily, fruity
173,174 ± 42,301 a,b96,397 ± 6544 c,d107,734 ± 27,922 b,c,d110,130 ± 54,113 b,c,d141,237 ± 14,123 a,b,c186,540 ± 16,840 a71,620 ± 26,218 c,d95,337 ± 38,507 c,d59,687 ± 28,428 d

References

  1. The Scotch Whisky Association. Facts & Figures. Available online: https://www.scotch-whisky.org.uk/insights/facts-figures/ (accessed on 26 August 2020).
  2. The Scotch Whisky Regulations. 2009. Available online: http://www.legislation.gov.uk/uksi/2009/2890/pdfs/uksi_20092890_en.pdf (accessed on 2 December 2020).
  3. Lee, K.-Y.M.; Paterson, A.; Piggott, J.R.; Richardson, G.D. Origins of Flavour in Whiskies and a Revised Flavour Wheel: A Review. J. Inst. Brew. 2001, 107, 287–313. [Google Scholar] [CrossRef] [Green Version]
  4. Olaniran, A.O.; Hiralal, L.; Mokoena, M.P.; Pillay, B. Flavour-Active Volatile Compounds in Beer: Production, Regulation and Control. J. Inst. Brew. 2017, 123, 13–23. [Google Scholar] [CrossRef] [Green Version]
  5. Depraetere, S.A.; Delvaux, F.; Schutter, D.D.; Williams, I.S.; Winderickx, J.; Delvaux, F.R. The Influence of Wort Aeration and Yeast Preoxygenation on Beer Staling Processes. Food Chem. 2008, 107, 242–249. [Google Scholar] [CrossRef]
  6. Harrison, B.; Fagnen, O.; Jack, F.; Brosnan, J. The Impact of Copper in Different Parts of Malt Whisky Pot Stills on New Make Spirit Composition and Aroma. J. Inst. Brew. 2012, 117, 106–112. [Google Scholar] [CrossRef]
  7. Wanikawa, A. Flavors in Malt Whisky: A Review. J. Am. Soc. Brew. Chem. 2020, 78, 260–278. [Google Scholar] [CrossRef]
  8. Aylott, R.I.; MacKenzie, W.M. Analytical Strategies to Confirm the Generic Authenticity of Scotch Whisky. J. Inst. Brew. 2010, 116, 215–229. [Google Scholar] [CrossRef]
  9. Neto, H.B.d.A.; Yohannan, B.K.; Bringhurst, T.A.; Brosnan, J.M.; Pearson, S.Y.; Walker, J.W.; Walker, G.M. Evaluation of a Brazilian Fuel Alcohol Yeast Strain for Scotch Whisky Fermentations. J. Inst. Brew. 2012. [Google Scholar] [CrossRef] [Green Version]
  10. Bathgate, G.N. A Review of Malting and Malt Processing for Whisky Distillation. J. Inst. Brew. 2016, 122, 197–211. [Google Scholar] [CrossRef]
  11. Walker, G.; Brosnan, J.; Bringhurst, T.; Jack, F. Selecting New Distilling Yeasts for Improved Fermentation and for Sustainability. Worldw. Distill. Spirits Conf. 2011, 1–11. [Google Scholar] [CrossRef]
  12. Martin, P.; Chang, X. Bere Whisky–Rediscovering the Spirit of an Old Barley. Brew. Distill. Int. 2008, 4, 41–43. [Google Scholar]
  13. Pires, E.J.; Teixeira, J.A.; Brányik, T.; Vicente, A.A. Yeast: The Soul of Beer’s Aroma—a Review of Flavour-Active Esters and Higher Alcohols Produced by the Brewing Yeast. Appl. Microbiol. Biotechnol. 2014, 98, 1937–1949. [Google Scholar] [CrossRef] [Green Version]
  14. Stone, H.; Sidel, J.; Oliver, S.; Woolsey, A.; Singleton, R.C. Sensory Evaluation by Quantitative Descriptive Analysis. Food Technol. 1974, 8, 24–32. [Google Scholar] [CrossRef]
  15. Lawless, H.T.; Heymann, H. Sensory Evaluation of Food. In Food Science Text Series, 2nd ed.; Heldman, D.R., Ed.; Springer: New York, NY, USA, 2010. [Google Scholar] [CrossRef]
  16. Shortreed, G.W.; Rickards, P.; Swan, J.; Burtles, S. The Flavour Terminology of Scotch Whisky. Brew. Guard. 1979, 108, 2–6. [Google Scholar]
  17. Piggott, J. Whiskies: Composition, Sensory Properties and Sensory Analysis. In Alcoholic Beverages; Piggott, J. Woodhead Publishing Limited: Cambridge, UK, 2012; pp. 379–392. [Google Scholar] [CrossRef]
  18. Holt, H.; Pearson, W. Napping–a Rapid Method for Sensory Analysis of Wines. Aust. Wine Res. Inst. Tech. Rev. 2014, 208, 10–14. [Google Scholar]
  19. Liu, J.; Grønbeck, M.S.; Di Monaco, R.; Giacalone, D.; Bredie, W.L.P. Performance of Flash Profile and Napping with and without Training for Describing Small Sensory Differences in a Model Wine. Food Qual. Prefer. 2016, 48, 41–49. [Google Scholar] [CrossRef]
  20. Liu, J.; Bredie, W.L.P.; Sherman, E.; Harbertson, J.F.; Heymann, H. Comparison of Rapid Descriptive Sensory Methodologies: Free-Choice Profiling, Flash Profile and Modified Flash Profile. Food Res. Int. 2018, 106, 892–900. [Google Scholar] [CrossRef] [PubMed]
  21. Giacalone, D.; Ribeiro, L.M.; Frøst, M.B. Consumer-Based Product Profiling: Application of Partial Napping ®® for Sensory Characterization of Specialty Beers by Novices and Experts. J. Food Prod. Mark. 2013, 19, 201–218. [Google Scholar] [CrossRef]
  22. Lelièvre, M.; Chollet, S.; Abdi, H.; Valentin, D. What Is the Validity of the Sorting Task for Describing Beers? A Study Using Trained and Untrained Assessors. Food Qual. Prefer. 2008, 19, 697–703. [Google Scholar] [CrossRef]
  23. Giacalone, D.; Bredie, W.L.P.; Frøst, M.B. “All-In-One Test” (AI1): A Rapid and Easily Applicable Approach to Consumer Product Testing. Food Qual. Prefer. 2013, 27, 108–119. [Google Scholar] [CrossRef]
  24. Risvik, E. Sensory Properties and Preferences. Meat Sci. 1994, 36, 67–77. [Google Scholar] [CrossRef]
  25. Pagès, J. Collection and Analysis of Perceived Product Inter-Distances Using Multiple Factor Analysis: Application to the Study of 10 White Wines from the Loire Valley. Food Qual. Prefer. 2005, 16, 642–649. [Google Scholar] [CrossRef]
  26. Pagès, J. Direct Collection of Sensory Distances: Application to the Evaluation of Ten White Wines of the Loire Valley. Sci. Aliment. 2003, 23, 679–688. [Google Scholar] [CrossRef]
  27. Valentin, D.; Chollet, S.; Lelièvre, M.; Abdi, H. Quick and Dirty but Still Pretty Good: A Review of New Descriptive Methods in Food Science. Int. J. Food Sci. Technol. 2012, 47, 1563–1578. [Google Scholar] [CrossRef]
  28. Albert, A.; Varela, P.; Salvador, A.; Hough, G.; Fiszman, S. Overcoming the Issues in the Sensory Description of Hot Served Food with a Complex Texture. Application of QDA ®®, Flash Profiling and Projective Mapping Using Panels with Different Degrees of Training. Food Qual. Prefer. 2011, 22, 463–473. [Google Scholar] [CrossRef]
  29. Aguiar, L.A.d.; Melo, L.; de Lacerda de Oliveira, L. Validation of Rapid Descriptive Sensory Methods against Conventional Descriptive Analyses: A Systematic Review. Crit. Rev. Food Sci. Nutr. 2019, 59, 2535–2552. [Google Scholar] [CrossRef] [PubMed]
  30. Cartier, R.; Rytz, A.; Lecomte, A.; Poblete, F.; Krystlik, J.; Belin, E.; Martin, N. Sorting Procedure as an Alternative to Quantitative Descriptive Analysis to Obtain a Product Sensory Map. Food Qual. Prefer. 2006, 17, 562–571. [Google Scholar] [CrossRef]
  31. Oliver, P.; Cicerale, S.; Pang, E.; Keast, R. Comparison of Quantitative Descriptive Analysis to the Napping Methodology with and without Product Training. J. Sens. Stud. 2018, 33, e12331. [Google Scholar] [CrossRef]
  32. Aylott, R. Whisky Analysis. In Whisky; Russell, I., Stewart, G., Eds.; Elsevier: Oxford, UK, 2014; pp. 243–270. [Google Scholar] [CrossRef]
  33. Stupak, M.; Goodall, I.; Tomaniova, M.; Pulkrabova, J.; Hajslova, J. A Novel Approach to Assess the Quality and Authenticity of Scotch Whisky Based on Gas Chromatography Coupled to High Resolution Mass Spectrometry. Anal. Chim. Acta 2018, 1042, 60–70. [Google Scholar] [CrossRef] [PubMed]
  34. Pryde, J.; Conner, J.; Jack, F.; Lancaster, M.; Meek, L.; Owen, C.; Paterson, R.; Steele, G.; Strang, F.; Woods, J. Sensory and Chemical Analysis of “Shackleton’s” Mackinlay Scotch Whisky. J. Inst. Brew. 2011, 117, 156–165. [Google Scholar] [CrossRef]
  35. Reid, S.J.; Speers, R.A.; Willoughby, N.; Lumsden, W.B.; Maskell, D.L. Pre-Fermentation of Malt Whisky Wort Using Lactobacillus Plantarum and Its Influence on New-Make Spirit Character. Food Chem. 2020, 320, 126605. [Google Scholar] [CrossRef]
  36. Zhao, Y.P.; Zheng, X.P.; Song, P.; Sun, Z.L.; Tian, T.T. Characterization of Volatiles in the Six Most Well-Known Distilled Spirits. J. Am. Soc. Brew. Chem. 2013, 71, 161–169. [Google Scholar] [CrossRef]
  37. Lê, S.; Josse, J.; Husson, F. FactoMineR: An R Package for Multivariate Analysis. J. Stat. Softw. 2008, 25, 1–18. [Google Scholar] [CrossRef] [Green Version]
  38. Perrin, L.; Symoneaux, R.; Maître, I.; Asselin, C.; Jourjon, F.; Pagès, J. Comparison of Three Sensory Methods for Use with the Napping ®® Procedure: Case of Ten Wines from Loire Valley. Food Qual. Prefer. 2008, 19, 1–11. [Google Scholar] [CrossRef]
  39. Louw, L.; Malherbe, S.; Naes, T.; Lambrechts, M.; van Rensburg, P.; Nieuwoudt, H. Validation of Two Napping®® Techniques as Rapid Sensory Screening Tools for High Alcohol Products. Food Qual. Prefer. 2013, 30, 192–201. [Google Scholar] [CrossRef]
  40. Le Dien, S.; Pagès, J. Hierarchical Multiple Factor Analysis: Application to the Comparison of Sensory Profiles. Food Qual. Prefer. 2003, 14, 397–403. [Google Scholar] [CrossRef]
  41. Pagès, J.; Cadoret, M.; Lê, S. The Sorted Napping: A New Holistic Approach in Sensory Evaluation. J. Sens. Stud. 2010, 25, 637–658. [Google Scholar] [CrossRef]
  42. Abdi, H.; Williams, L.J.; Valentin, D. Multiple Factor Analysis: Principal Component Analysis for Multitable and Multiblock Data Sets. Wiley Interdiscip. Rev. Comput. Stat. 2013, 5, 149–179. [Google Scholar] [CrossRef]
  43. Dehlholm, C.; Brockhoff, P.B.; Meinert, L.; Aaslyng, M.D.; Bredie, W.L.P. Rapid Descriptive Sensory Methods–Comparison of Free Multiple Sorting, Partial Napping, Napping, Flash Profiling and Conventional Profiling. Food Qual. Prefer. 2012, 26, 267–277. [Google Scholar] [CrossRef]
  44. Josse, J.; Pagès, J.; Husson, F. Testing the Significance of the RV Coefficient. Comput. Stat. Data Anal. 2008, 53, 82–91. [Google Scholar] [CrossRef]
  45. Torri, L.; Dinnella, C.; Recchia, A.; Naes, T.; Tuorila, H.; Monteleone, E. Projective Mapping for Interpreting Wine Aroma Differences as Perceived by Naïve and Experienced Assessors. Food Qual. Prefer. 2013, 29, 6–15. [Google Scholar] [CrossRef] [Green Version]
  46. Louw, L.; Oelofse, S.; Naes, T.; Lambrechts, M.; van Rensburg, P.; Nieuwoudt, H. Trained Sensory Panellists’ Response to Product Alcohol Content in the Projective Mapping Task: Observations on Alcohol Content, Product Complexity and Prior Knowledge. Food Qual. Prefer. 2014, 34, 37–44. [Google Scholar] [CrossRef] [Green Version]
  47. Barcenas, P.; Elortondo, F.J.P.; Albisu, M. Projective Mapping in Sensory Analysis of Ewes Milk Cheeses: A Study on Consumers and Trained Panel Performance. Food Res. Int. 2004, 37, 723–729. [Google Scholar] [CrossRef]
  48. Delarue, J. The Use of Rapid Sensory Methods in R&D and Research: An Introduction. In In Rapid Sensory Profiling Techniques and Related, Methods; Delarue, J., Lawlor, L.B., Rogeaux, M., Eds.; Woodhead Publishing: Cambridge, UK, 2015; pp. 3–25. [Google Scholar] [CrossRef]
  49. Gawel, R. The Use of Language by Trained and Untrained Experienced Wine Tasters. J. Sens. Stud. 1997, 12, 267–284. [Google Scholar] [CrossRef]
  50. Kennedy, J.; Heymann, H. Projective Mapping and Descriptive Analysis of Milk and Dark Chocolates. J. Sens. Stud. 2009, 24, 220–233. [Google Scholar] [CrossRef]
  51. Moelich, E.I.; Muller, M.; Joubert, E.; Næs, T.; Kidd, M. Validation of Projective Mapping as Potential Sensory Screening Tool for Application by the Honeybush Herbal Tea Industry. Food Res. Int. 2017, 99, 275–286. [Google Scholar] [CrossRef] [PubMed]
  52. Tang, K.; Tian, X.; Ma, Y.; Sun, Y.; Qi, X.; Miu, C.; Xu, Y. Aroma Characteristics of Cabernet Sauvignon Wines from Loess Plateau in China by QDA ®®, Napping ®® and GC–O Analysis. Eur. Food Res. Technol. 2020, 246, 821–832. [Google Scholar] [CrossRef]
  53. Mielby, L.H.; Hopfer, H.; Jensen, S.; Thybo, A.K.; Heymann, H. Comparison of Descriptive Analysis, Projective Mapping and Sorting Performed on Pictures of Fruit and Vegetable Mixes. Food Qual. Prefer. 2014, 35, 86–94. [Google Scholar] [CrossRef]
  54. Pickup, W.; Bremer, P.; Peng, M. Comparing Conventional Descriptive Analysis and Napping ®®-UFP against Physiochemical Measurements: A Case Study Using Apples. J. Sci. Food Agric. 2018, 98, 1476–1484. [Google Scholar] [CrossRef] [PubMed]
  55. Conner, J.M.; Birkmyre, L.; Paterson, A.; Piggott, J.R. Headspace Concentrations of Ethyl Esters at Different Alcoholic Strengths. J. Sci. Food Agric. 1998, 77, 121–126. [Google Scholar] [CrossRef]
  56. Wanikawa, A.; Hosoi, K.; Kato, T.; Nakagawa, K. Identification of Green Note Compounds in Malt Whisky Using Multidimensional Gas Chromatography. Flavour Fragr. J. 2002, 17, 207–211. [Google Scholar] [CrossRef]
  57. Poisson, L.; Schieberle, P. Characterization of the Key Aroma Compounds in an American Bourbon Whisky by Quantitative Measurements, Aroma Recombination, and Omission Studies. J. Agric. Food Chem. 2008, 56, 5820–5826. [Google Scholar] [CrossRef] [PubMed]
  58. Boothroyd, E.; Linforth, R.S.T.; Jack, F.; Cook, D.J. Origins of the Perceived Nutty Character of New-Make Malt Whisky Spirit. J. Inst. Brew. 2014, 120, 16–22. [Google Scholar] [CrossRef]
  59. Piggot, R. Chapter 17—From Pot Stills to Continuous Stills: Flavor Modification by Distillation. In The Alcohol Textbook 4 th Edition A Reference for the Beverage, Fuel and Industrial Alcohol Industries; Nottingham University Press: Nottingham, UK, 2003; pp. 255–266. [Google Scholar]
Figure 1. Levels of the HMFA grouping.
Figure 1. Levels of the HMFA grouping.
Applsci 11 01410 g001
Figure 2. PCA plot of the QDA data resulting from 17 panellists for nine new make spirits (percentage next to the sample codes indicate the ABV).
Figure 2. PCA plot of the QDA data resulting from 17 panellists for nine new make spirits (percentage next to the sample codes indicate the ABV).
Applsci 11 01410 g002
Figure 3. MFA biplot of the Napping data for nine new make spirits (percentages next to the sample codes indicate the ABV). Red descriptors depict supplementary flavour information.
Figure 3. MFA biplot of the Napping data for nine new make spirits (percentages next to the sample codes indicate the ABV). Red descriptors depict supplementary flavour information.
Applsci 11 01410 g003
Figure 4. PCA scores plot from the analysis of the peak areas of 96 compounds present in nine new make whisky spirits (percentages next to the sample codes indicate the ABV).
Figure 4. PCA scores plot from the analysis of the peak areas of 96 compounds present in nine new make whisky spirits (percentages next to the sample codes indicate the ABV).
Applsci 11 01410 g004
Figure 5. PCA loading plot from the analysis of the peak areas of 96 compounds present in nine new make whisky spirits. Loadings are shown in the form of chemical grouping of the compounds (numbering of the compounds is detailed in Table A2 (Appendix A)).
Figure 5. PCA loading plot from the analysis of the peak areas of 96 compounds present in nine new make whisky spirits. Loadings are shown in the form of chemical grouping of the compounds (numbering of the compounds is detailed in Table A2 (Appendix A)).
Applsci 11 01410 g005
Figure 6. Superimposed presentation of the HMFA results of QDA, Napping and GC-MS data: Black points represent the mean point of a spirit. The coloured plots represent the different methods: green—QDA, blue—Napping, and red—GC-MS. The purple points represent the overall partial point of the sensory results.
Figure 6. Superimposed presentation of the HMFA results of QDA, Napping and GC-MS data: Black points represent the mean point of a spirit. The coloured plots represent the different methods: green—QDA, blue—Napping, and red—GC-MS. The purple points represent the overall partial point of the sensory results.
Applsci 11 01410 g006
Table 1. Alcohol strengths of the nine new make spirits.
Table 1. Alcohol strengths of the nine new make spirits.
SpiritsAlcohol by Volume (ABV) [%]
A73.5
B73.0
C66.3
D62.9
E62.1
F60.7
G34.0
H33.2
I29.3
Table 2. RV coefficient from the HMFA comparison of the QDA, Napping and GC-MS data.
Table 2. RV coefficient from the HMFA comparison of the QDA, Napping and GC-MS data.
Methodology ComparisonRV Coefficient
QDA versus Napping0.906
QDA versus GC-MS0.895
Napping versus GC-MS0.927
Table 3. Overview of GC-MS, QDA and Napping.
Table 3. Overview of GC-MS, QDA and Napping.
GC-MSQDANapping
Nature of AnalysisAnalyticalSensorySensory
Costsmedium (after initial capital cost of the GC-MS): regular replacement of column, fibre, septa, no reuse of vials possible, internal standardlow: sensory glasseslow: sensory glasses, nappé
Preparation timemedium: diluting samples, preparing GC-MS (column, injector), runtime of the methodmedium: diluting samples for each session, pre-select vocabularylow: diluting samples
Sample volume required1 to 5 mL at 20% ABV20 mL 20% ABV multiplied by number of sessions20 mL at 20% ABV
Suitable sample set size1 to >1001 to 106 to 20
Comparison between sample setsyesyesno
Panellist requirementsnone>8 trained>15 more panellists needed if not trained
Time for data analysishigh: peaks can be automatically integrated but have to be manually checked before statistical analysislow: statistically analysis directly possiblemedium: measuring coordinates if recorded on paper, followed by statistical analysis
Panellist timenot applicable~7 min per session, analysis often split into several sessions~20 min
Nature of resultsquantitative or qualitativequantitativesemi-quantitative, qualitative
Form of resultsconcentrations of compounds and relation to each otherintensities of flavourscomparison plots, highlighting the differences
Difficulty of data interpretationhighlowmedium
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Daute, M.; Jack, F.; Baxter, I.; Harrison, B.; Grigor, J.; Walker, G. Comparison of Three Approaches to Assess the Flavour Characteristics of Scotch Whisky Spirit. Appl. Sci. 2021, 11, 1410. https://doi.org/10.3390/app11041410

AMA Style

Daute M, Jack F, Baxter I, Harrison B, Grigor J, Walker G. Comparison of Three Approaches to Assess the Flavour Characteristics of Scotch Whisky Spirit. Applied Sciences. 2021; 11(4):1410. https://doi.org/10.3390/app11041410

Chicago/Turabian Style

Daute, Martina, Frances Jack, Irene Baxter, Barry Harrison, John Grigor, and Graeme Walker. 2021. "Comparison of Three Approaches to Assess the Flavour Characteristics of Scotch Whisky Spirit" Applied Sciences 11, no. 4: 1410. https://doi.org/10.3390/app11041410

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
