Article

Direct Observation of Terahertz Frequency Comb Generation in Difference-Frequency Quantum Cascade Lasers

1
CNR-Istituto Nazionale di Ottica and LENS, Via N. Carrara 1, 50019 Sesto Fiorentino, Italy
2
Central Research Laboratory, Hamamatsu Photonics K.K., 5000 Hirakuchi, Hamakita-ku, Hamamatsu 434-8601, Japan
*
Author to whom correspondence should be addressed.
Appl. Sci. 2021, 11(4), 1416; https://doi.org/10.3390/app11041416
Submission received: 4 December 2020 / Revised: 22 January 2021 / Accepted: 29 January 2021 / Published: 4 February 2021
(This article belongs to the Special Issue Mid-Infrared and THz Spectroscopy: Innovative Tools and Applications)

Abstract

:
Terahertz quantum cascade laser sources based on intra-cavity difference frequency generation from mid-IR devices are an important asset for applications in rotational molecular spectroscopy and sensing, being the only electrically pumped device able to operate in the 0.6–6 THz range without the need of bulky and expensive liquid helium cooling. Here we present comb operation obtained by intra-cavity mixing of a distributed feedback laser at λ = 6.5 μm and a Fabry–Pérot device at around λ = 6.9 μm. The resulting ultra-broadband THz emission extends from 1.8 to 3.3 THz, with a total output power of 8 μW at 78 K. The THz emission has been characterized by multi-heterodyne detection with a primary frequency standard referenced THz comb, obtained by optical rectification of near infrared pulses. The down-converted beatnotes, simultaneously acquired, confirm an equally spaced THz emission down to 1 MHz accuracy. In the future, this setup can be used for Fourier transform based evaluation of the phase relation among the emitted THz modes, paving the way to room-temperature, compact, and field-deployable metrological grade THz frequency combs.

1. Introduction

In the field of frequency metrology, a paradigmatic shift has occurred with the invention of optical Frequency Combs [1,2,3] (optical FCs), whose emission is a superposition of a series of quasi-monochromatic electromagnetic waves (the FC modes) that can be fully controlled via two parameters, i.e., repetition rate and offset frequency. To this purpose, a necessary and non-trivial requirement is the existence of a fixed (i.e., constant over time) phase relation among all the modes, defining the overall coherence of the source. In this way, the modes of such lasers can be used as a precise ruler in the visible and near-infrared (IR) domain, providing a direct link between optical and microwave/radio frequencies [4]. Thanks to these outstanding features, FCs are nowadays key tools in many fields of fundamental and applied research [5]. Moreover, in recent years, FCs’ application possibilities have been migrated to less common spectral regions (mid- and far-IR, ultraviolet), while vigorous efforts have been spent trying to miniaturize these sources, achieving the most interesting results with mainly three different technologies: Microresonators [6,7], interband cascade lasers [8], and quantum cascade lasers frequency combs (QCL-FCs) [9]. However, among these, only QCL-FCs are able to access the THz portion of the electromagnetic spectrum [10,11].
This THz (or far-infrared) window, ranging from 0.1 to 10 THz, is a largely underexploited section of the electromagnetic spectrum, and it has been historically referred to as “THz gap”. However, in the latest years, high-precision molecular spectroscopy in this region has attracted a lot of attention from the scientific community, as many intriguing molecules present characteristic rotational and ro-vibrational THz transitions that, as a consequence, build up a novel fingerprint region [12]. For this reason, in order to be suitable for metrological-grade THz spectroscopic applications, a quest for high performance laser sources has been initiated [13]. These lasers sources should be ideally spectrally pure, broadband, or widely tunable, traceable against a primary frequency standard, emitting high-power, and—last but not least—compact and easy to operate for in situ or field operation.
In this respect, single-frequency THz QCLs might be ideal candidates. In fact, these current-driven semiconductor lasers rely on inter-sub-band transitions in quantum wells, and therefore their emission frequency can be quantum engineered. Moreover, they show relatively high optical power [14,15,16,17,18,19] and very high spectral purity [20,21,22]. These features have been exploited for high precision THz molecular spectroscopy [23,24] by phase referencing a QCL to a THz FC [25,26]. Unfortunately, this approach still shows two main limitations: Firstly, the limited mode-hop-free tunability range of the single device (few hundred MHz) is not suited for broadband spectroscopy; secondly, the need for cryogenic cooling has profoundly hampered QCLs’ widespread use. In fact, despite the extreme miniaturization of the sources, the need of a liquid helium cryostat, of the corresponding liquid helium dewar, or (alternatively) the need of expensive low mechanical noise pulse tube refrigerators, make the experimental setup bulky, unfriendly to operate, and unfit for field deployment, even if first attempts have been recently pioneered [17,27,28].
The first problem can be efficiently solved by replacing QCL single frequency devices with QCL-FCs based on broadband Fabry–Pérot (FP) devices with low group velocity dispersion [9,10]. In fact, thanks to degenerate and non-degenerate four wave mixing non-linear processes inside the device active region, the cavity longitudinal modes can be injection-locked, resulting in a coherent FC emission. In the THz range, two different techniques have been adopted to demonstrate the high level of coherence achieved by QCL-FC sources: Shifted wave interference Fourier transform spectroscopy (SWIFTS) [29] and, more recently, Fourier analysis of comb emission (FACE) [30,31]. Thanks to these properties, QCL-FCs can be employed in spectroscopic setups, such as dual-comb spectroscopy (DCS) setups, as proposed in 2016 with an etalon signal [32] (i.e., simulating a real, molecular absorption), with spectra of ammonia gas [33] and water vapor [34,35], and even exploiting frequency referencing in a hybrid DCS spectrometer [36].
The second huge limitation of THz QCLs is the need of cryogenic cooling, ultimately hindering the miniaturization of QCL-based setups, which can now be overcome with an alternative approach based on difference frequency generation (DFG) in mid-infrared QCLs [37], referred as THz DFG-QCLs [38,39,40]. Mid-infrared QCLs are engineered to provide mid-infrared gain for pumps and to possess giant second-order nonlinearity χ(2) for THz DFG in the QCL active region [38,39,40,41]. Since nonlinear processes, such as DFG, do not require any population inversion, THz DFG-QCLs are able to operate at room temperature, similar to other mid-infrared QCLs. As a consequence, these are currently the only electrically pumped, monolithic semiconductor THz sources operable at room temperature in the 0.6 to 6 THz frequency range [42,43]. This key operation mode has strongly motivated, in recent years, further research on DFG-based QCL lasers, although the achievable emitted power is lower than in directly THz emitting lasers. By adopting a strongly coupled upper-state (dual-upper-state: DAU) active region design approach [41,44], which does not need two stacked laser active regions for dual wavelength mid-IR pumps, continuous-wave (CW) performance of THz DFG-QCLs has considerably improved in the past few years [45,46].
In the initial research and development of THz DFG-QCLs, narrow-linewidth, widely tunable devices have been extensively developed. The potential use of single mode devices as a metrological grade reference for heterodyne detection has also been investigated [47]. This technology has been recently migrated to DFG QCL devices operating in multimode regime, in which broadband THz emission is generated via nonlinear mixing between a single mid-IR pump frequency selected by a largely detuned distributed feedback (DFB) grating, and FP modes of the second mid-IR pump selected by the laser cavity [48]. The potential operation of THz combs has been assessed for multimode THz DFG-QCL devices, initially at 78 K [40], and subsequently at room temperature [49]. However, these were evaluated against the spectral coherence of mid-IR emission spectra, and by retrieval of a single and narrow intermodal beatnote (IBN). However, this is a condition that is necessary, but not sufficient, to prove comb operation, as the difference between multimode operation and comb emission ultimately relies in the equal mode spacing, and a phase relation (binding the modes one another) being constant over time.
In this work, we demonstrate the detection of the modes emitted by a DFG QCL-FC with a multi-heterodyne technique, which eventually returns a resolution much higher than Fourier transform based spectrometers (in the order of few GHz). This enables a direct comparison of the mode spacing with the electrically detected IBN frequency, which results in a very good agreement. Unfortunately, the signal-to-noise ratio provided by the experimental setup, limited by the THz power-per-mode emitted by the DFG QCL device, does not allow for a characterization of the device phase relation, that will be attempted with next generation devices.

2. THz DFG-QCL Design and Characterization

The DAU active region structure is used for the present DFG-QCL, in which the inter-sub-band transitions for laser action occur from two anti-crossed upper sub-bands to lower miniband and these many transitions result in a broad-gain spectrum. In the active region designs, almost equal dipole matrix elements are designed for the inter-sub-band transitions from the two upper states to lower laser states in order to achieve the flat-top broad electroluminescence emission spectrum. In the DAU active region, several sets of states contribute to resonant χ(2) for DFG. These energy states relevant to the optical resonance were engineered to attain the second order optical nonlinearity in the DAU active region. For the active region of a THz-DFG device emitting around 3 THz, the estimated module of the nonlinear susceptibility is |χ(2)| = 7.8 nm/V.
The waveguide core in our CW devices consists of 40-staege active regions (sheet doping density in each active region stage: 1.0 × 1011 cm−2). The growth of all the semiconductor layer structures were done by metal organic vapor phase epitaxy method on an undoped InP substrate [50,51]. The waveguide structure was designed to achieve optical mode confinement for mid-infrared, and THz DFG emission at a Cherenkov phase matching angle of ~ 20 degrees into the undoped InP device substrate. A schematic of the device structure is shown in Figure 1a. The growth initiates with a 200 nm thick In0.53Ga0.47As current injection layer (Si, 1.0 × 1018 cm−3) and then a 5 μm thick n-InP (Si, 1.5 × 1016 cm−3) is formed as a lower cladding layer. The strain compensated InGaAs/InAlAs active region layers are sandwiched between n-In0.53Ga0.47As guide layers (Si, 1.5 × 1016 cm−3) where the thicknesses of 250 nm and 450 nm are used for lower and upper layers. A buried DFB grating (single-period) was defined by nanoimprint lithography for the single-mode laser emission and etched into upper n-In0.53Ga0.47As guide layers. A first-order grating period was Λ = 1.04 μm for the single mode DFB emission. The coupling coefficient κ was estimated to be ~7 cm−1. The wafer was processed into 12-μm-wide ridge structures and buried with a semi-insulating Fe doped InP layer. Subsequently, the upper cladding layer was grown with a 5 μm thick n-InP (Si, 1.5 × 1016 cm−3) and then followed by a 15 nm thick n+- InP (Si, ~1019 cm−3) cap contact layer. Finally, the top contacts (Ti/Au) was evaporated and followed by electroplating of a thick 5 μm Au layer on top of the laser structure.
The laser bars were equipped in an epitaxial side-up mounting configuration on a copper block and then cooled in open-loop liquid nitrogen cryostats for the initial device characterization, which was performed in the Hamamatsu laboratories in Japan. Figure 1b,c show the measured emission results for a THz DFG-QCL with 3-mm-long, 12-μm-wide buried-heterostructure waveguide, operated in CW mode at 78 K. Figure 1b shows the mid-infrared emission spectra, in which the rapid-scan measurements (a spectral resolution of 0.2 cm−1) were performed for the two mid-infrared pumps as well as the generated THz emission from the DFG-QCL. In this device, we adopted the DFB/FP pumping for generating broadband THz emission via nonlinear frequency mixing between a single mode due to the DFB grating and broadband multi-modes due to the FP cavity, as shown in Figure 1b. The position of DFB emission was considerably detuned (~90 cm−1) from the peak gain; it is important not to suppress the broadband emission due to FP cavity. Consequently, wide bandwidth of the FP modes and high mid-infrared output power are expected to generate broadband THz frequency. After the DFB laser operation at λDFB = 6.5 μm, the FP lasing takes place at around λFP~6.9 μm. The broad FP spectra were confirmed at the pump current above 500 mA and it could be attributed to broadband gain spectrum in the DAU structure. Figure 1c shows the THz emission spectra of the DFB device at different currents in linear scale; the ultra-broadband THz emission with many longitudinal modes ranges from 1.8 THz to 3.3 THz at 78 K, which is a consequence of the frequency down conversion of mid-infrared, multi-mode emission spectra due to the FP cavity.
Current–voltage and light–current characteristics of both mid-infrared and THz power outputs are depicted in Figure 2. The DFG-QCL demonstrates a mid-infrared CW power of 1.1 W as well as a CW THz power of over 8 μW at 78 K, exhibiting a broadband THz emission (Figure 1c). Figure 2 also shows the temperature dependence of THz CW light-current curves in the different temperatures of 78–170 K. A THz power output of approximately 0.5 μW at 170 K can be noticed. The maximum operating temperature of the present device is significantly lower than our previous papers [40,45], in which room temperature CW operation has been achieved using the epitaxial side-up mounting configuration [45]. This indicates that thermal management of the active region of DFG-QCLs is very difficult for the epitaxial side-up mounted THz DFG-QCLs and an epitaxial side-down mounting technique [39,46,49] is imperative for stable CW operation at room temperature.

3. THz Multi-Heterodyne Detection

A more accurate characterization of the spectral emission of the DFG-QCL has been performed at the CNR-INO laboratories in Italy, by mounting it on the cold finger of a liquid Helium cryostat. In order to perform the measurements at the same device operational temperature as the ones reported in the previous paragraph, we measured the resistance of the DFG-QCL device, which is temperature dependent. In fact, due to the different cryostat configurations, the temperature sensors distance from the device can be very different, leading to inconsistent temperature measurements. In the experiments, the QCL device has been driven by means of an ultra-low-noise current driver (ppqSense, QubeCL-P05) at 580 mA. Following the current–voltage curve of the QCL device in Figure 2, this corresponds, at 78 K, to a resistance of about 23.3 Ω. Therefore, we changed the operational temperature of the device to obtain, at I = 580 mA, an applied voltage of 13.5 V, and therefore the same QCL resistance of 23.3 Ω.
On the QCL mount, a bias-tee (Marki Microwave, BT-0024SMG) is connected so as to retrieve the radio-frequency (RF) beatings among the different modes emitted, named hereafter intermodal beatnotes (IBNs). These radio-frequency IBNs are acquired by a spectrum analyzer (Rohde-Schwarz, FSW 26.5 GHz). A frequency-comb operation of the FP mid-infrared QCL device requires the presence of a single IBN frequency (fIBN). For the selected driving current (IQCL = 580 mA) and device resistance (RQCL = 23.3 Ω), we notice the presence of a single IBN, as reported in Figure 3 (fIBN = 15.18 GHz) with different spans and resolution bandwidths. Yet, the information retrieved by the intermodal beatnote is not sufficient to confirm a comb-like emission from the FP mid-infrared laser QCL, and, as a consequence, whether the DFG device is emitting a frequency comb in the THz range. To these purposes, we implemented a multi-heterodyne detection setup, detecting the THz beating of the QCL-comb with a well-known reference frequency comb emitting in the THz range.
The THz spectral emission of the DFG-QCL comb is characterized in continuous-wave (CW) mode according to a standard multi-heterodyne detection procedure described in [30,31], with the experimental setup sketched in Figure 4. The reference comb is obtained through optical-rectification (OR) of an amplified mode-locked Erbium-doped fiber fs-laser (Menlo Systems, model FC1500) locked against a primary frequency standard, whose emission is focused in a single-mode Lithium Niobate waveguide. The resulting THz frequency comb, hereafter referred to as OR-comb, presents several advantages: It is very stable (6 Hz stability), it is offset-free, and it has a repetition rate frep continuously tunable from 248 to 252 MHz. This OR-comb radiation is mixed with the QCL emission on a Hot Electron Bolometer (HEB-Scontel RS0.3-3T1), realizing multi-heterodyne detection, and retrieving the down-converted beating RF-signal between the OR- and the QCL-combs, consisting of the beating of each optical mode effectively emitted by the QCL with each OR-comb mode.
These heterodyne beatnotes (HBNs) are particularly useful when the ratio between the mode spacings of the two parenting combs are close to an integer value, as illustrated in Figure 5. The HBNs are acquired on a spectrum analyzer (Tektronix, RSA5106A), and two sample spectra are presented in Figure 2. In particular, Figure 6a shows an acquisition with frep chosen as exact submultiple of fIBN. In this configuration, assuming the DFG-QCL behaves as a comb, the frequency differences between each QCL-comb mode and its closest neighboring OR-comb mode are exactly the same. As a consequence, in the down-converted RF spectrum, all the HBN have to collapse at the same frequency, which is exactly the case of Figure 6a, confirming the comb-like nature of the DFG device. In Figure 6b, frep is slightly detuned, and we can visualize five HBNs corresponding to five THz modes, equally spaced in the frequency domain, with a 40 MHz span and a 10 Hz resolution bandwidth (RBW). These HBNs correspond to the most intense THz modes emitted by the QCL device around 2.4 THz, as shown in Figure 1b. The HBNs signal levels are between 5 and 10 dBm, and these signal-to-noise ratios do not allow a characterization of the level of coherence of the emitted comb, i.e., application of the Fourier analysis of comb emission (FACE) technique. Yet, the realized experimental setup and the retrieval of the HBNs allow to measure frequencies of all the QCL modes with a very high precision. In fact, if we take into account the frequency of the most intense QCL mode N (fN), corresponding to the most intense HBN shown in Figure 6, we can write down the Equation (1)
f N = M · f rep ± f HBN
where fHBN is the frequency of the HBN signal between the Nth QCL mode and the Mth OR-comb mode.
By fixing constant values for IQCL and RQCL, the QCL mode frequency fM remains constant. Then, by modifying the OR-comb repetition rate frep and tracking the fHBN frequency, from a simple linear regression we can extrapolate the order M of the OR-comb mode, as shown in Figure 7. The linear regression of this dataset (green line) results in a precise estimation of the order M. In fact, since the retrieved value is 9705.01 with a 0.33 standard deviation, and since M is integer, we can round to 9705 as mode number M of the OR-comb. Therefore, the exact M order is used for the fN QCL mode frequency determination. Indeed, in Equation (1), where the QCL mode frequency is calculated, the only remaining sources of uncertainties are on the values of frep and fHBN. The latter, with the 1.0 MHz linewidth observed in Figure 6b, being predominant. As a consequence, the QCL frequency is determined as 2416068.1(1.0) MHz. We can then use the IBN value and the order of the various modes (as seen in Figure 6) to simultaneously measure the frequencies of all the emitted modes, confirming that these modes correspond to the most intense shown in Figure 1b, acquired with the FTIR spectrometer. With respect to those measurements, the multi-heterodyne technique permits to increase the accuracy in the retrieval of modes’ frequencies by more than 3 orders of magnitude and, more importantly, allows a simultaneous measurement for all the detected QCL comb modes. As a matter of fact, it can be noticed that by performing faster acquisitions on a smaller frequency window, the accuracy on the frequency of a single HBN can be further improved down to the kHz level, but this would compromise the simultaneous acquisition of all the emitted modes.

4. Conclusions

In conclusion, we have presented the first direct observation of the THz modes emitted by a DFG-QCL frequency comb by multiheterodyne detection with an optically rectified THz comb, referenced to the primary frequency standard, that is a 10-MHz quartz-oscillator disciplined by a Rb-GPS (Global Positioning System) clock (stability of 6 × 10−13 in 1 s and absolute accuracy of 2 × 10−12). Thanks to our setup, the THz QCL comb modes frequencies could be simultaneously retrieved with a 1 MHz accuracy, confirming that they are actually equally spaced in frequency, at this level of precision. Moreover, by tuning the ratio between the mode spacings of the two combs to an integer value, we observe the HBN collapsing, as expected from a frequency comb.
Unfortunately, due to the low emitted power-per-mode, only 7% of the total modes could be down-converted, and state-of-the-art techniques such as FACE could not be applied to the THz emission. This could have confirmed the existence of a fixed phase relation among the modes, that is ultimately the true frequency comb signature. However, further improvements in output power can be achieved by the adoption of an optimized device structure with a long-wavelength nonlinear active region [42] and silicon-based THz waveguide [52]. Once the power issues are overcome, not only can the FACE technique confirm phase coherence in the THz emitted modes, but also this technology can fully deploy its promising potential for broadband precision spectroscopy in the THz range, even without cryogenic cooling systems. The latter would pave the way for miniaturized precise metrology diagnostics in the THz range.

Author Contributions

L.C. supervised the OR comb based characterization experiments, M.N. and M.D.R. carried out the measurements and analyzed the data, L.C., F.C., S.B. and P.D.N. discussed the results. A.I. fabricated the DFB gratings and performed the buried heterostructure device processing. M.H. carried out the QCL growth. K.F. designed and characterized devices, and analyzed the data, T.E. and T.D. discussed the results. L.C. and K.F. conceived the concept of the experiment and supervised the research. All authors have read and agreed to the published version of the manuscript.

Funding

This research was founded by MIC/SCOPE #195006001, Qombs Project, EU-H2020-FET Flagship on Quantum Technologies grant no. 820419, the Italian ESFRI Roadmap (Extreme Light Infrastructure-ELI), EC–H2020 Laserlab-Europe grant agreement 871124.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of this study are available from the corresponding author upon reasonable request.

Acknowledgments

Authors at Hamamatsu Photonics thank Naota Akikusa for his helpful support and comments, K.F. expresses his thanks to M. A. Belkin of the Technical University of Munich, and S. Jung of TransWave Photonics, L.L.C. for helpful discussions.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hänsch, T.W. Nobel lecture: Passion for precision. Rev. Mod. Phys. 2006, 78, 1297–1309. [Google Scholar] [CrossRef] [Green Version]
  2. Reichert, J.; Holzwarth, R.; Udem, T.; Hänsch, T.W. Measuring the frequency of light with mode-locked lasers. Opt. Commun. 1999, 172, 59–68. [Google Scholar] [CrossRef]
  3. Udem, T.; Holzwarth, R.; Hänsch, T.W. Optical frequency metrology. Nature 2002, 416, 233–237. [Google Scholar] [CrossRef]
  4. Diddams, S.A.; Jones, D.J.; Ye, J.; Cundiff, S.T.; Hall, J.L.; Ranka, J.K.; Windeler, R.S.; Holzwarth, R.; Udem, T.; Hänsch, T.W. Direct link between microwave and optical frequencies with a 300 THz femtosecond laser comb. Phys. Rev. Lett. 2000, 84, 5102–5105. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Diddams, S.A. The evolving optical frequency comb [Invited]. J. Opt. Soc. Am. B 2010, 27, B51. [Google Scholar] [CrossRef]
  6. Kippenberg, T.J.; Holzwarth, R.; Diddams, S.A. Microresonator-based optical frequency combs. Science 2011, 332, 555–559. [Google Scholar] [CrossRef]
  7. Del’Haye, P.; Schliesser, A.; Arcizet, O.; Wilken, T.; Holzwarth, R.; Kippenberg, T.J. Optical frequency comb generation from a monolithic microresonator. Nature 2007, 450, 1214–1217. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Bagheri, M.; Frez, C.; Sterczewski, L.A.; Gruidin, I.; Fradet, M.; Vurgaftman, I.; Canedy, C.L.; Bewley, W.W.; Merritt, C.D.; Kim, C.S.; et al. Passively mode-locked interband cascade optical frequency combs. Sci. Rep. 2018, 8, 3322. [Google Scholar] [CrossRef] [Green Version]
  9. Hugi, A.; Villares, G.; Blaser, S.; Liu, H.C.; Faist, J. Mid-infrared frequency comb based on a quantum cascade laser. Nature 2012, 492, 229–233. [Google Scholar] [CrossRef]
  10. Burghoff, D.; Kao, T.-Y.Y.; Han, N.; Chan, C.W.I.; Cai, X.; Yang, Y.; Hayton, D.J.; Gao, J.-R.; Reno, J.L.; Hu, Q. Terahertz laser frequency combs. Nat. Photonics 2014, 8, 462–467. [Google Scholar] [CrossRef]
  11. Vitiello, M.S.; Consolino, L.; Inguscio, M.; de Natale, P. Toward new frontiers for terahertz quantum cascade laser frequency combs. Nanophotonics 2020, 10, 187–194. [Google Scholar] [CrossRef]
  12. Consolino, L.; Cappelli, F.; de Cumis, M.S.; de Natale, P. QCL-based frequency metrology from the mid-infrared to the THz range: A review. Nanophotonics 2018, 8, 181–204. [Google Scholar] [CrossRef]
  13. Consolino, L.; Bartalini, S.; de Natale, P. Terahertz Frequency Metrology for Spectroscopic Applications: A Review. J. Infrared Millim. Terahertz Waves 2017, 38, 1289–1315. [Google Scholar] [CrossRef]
  14. Brandstetter, M.; Deutsch, C.; Krall, M.; Detz, H.; Macfarland, D.C.; Zederbauer, T.; Andrews, A.M.; Schrenk, W.; Strasser, G.; Unterrainer, K. High power terahertz quantum cascade lasers with symmetric wafer bonded active regions. Appl. Phys. Lett. 2013, 103, 171113. [Google Scholar] [CrossRef] [Green Version]
  15. Wienold, M.; Röben, B.; Schrottke, L.; Sharma, R.; Tahraoui, A.; Biermann, K.; Grahn, H.T. High-temperature, continuous-wave operation of terahertz quantum-cascade lasers with metal-metal waveguides and third-order distributed feedback. Opt. Express 2014, 22, 3334. [Google Scholar] [CrossRef]
  16. Khalatpour, A.; Reno, J.L.; Kherani, N.P.; Hu, Q. Unidirectional photonic wire laser. Nat. Photonics 2017, 11, 555–559. [Google Scholar] [CrossRef]
  17. Khalatpour, A.; Paulsen, A.K.; Deimert, C.; Wasilewski, Z.R.; Hu, Q. High-power portable terahertz laser systems. Nat. Photonics 2021, 15, 16–20. [Google Scholar] [CrossRef]
  18. Biasco, S.; Ciavatti, A.; Li, L.; Davies, A.G.; Linfield, E.H.; Beere, H.; Ritchie, D.; Vitiello, M.S. Highly efficient surface-emitting semiconductor lasers exploiting quasi-crystalline distributed feedback photonic patterns. Light Sci. Appl. 2020, 9, 11. [Google Scholar] [CrossRef] [Green Version]
  19. Curwen, C.A.; Reno, J.L.; Williams, B.S. Terahertz quantum cascade VECSEL with watt-level output power. Appl. Phys. Lett. 2018, 113, 011104. [Google Scholar] [CrossRef] [Green Version]
  20. Vitiello, M.S.; Consolino, L.; Bartalini, S.; Taschin, A.; Tredicucci, A.; Inguscio, M.; de Natale, P. Quantum-limited frequency fluctuations in a terahertz laser. Nat. Photonics 2012, 6, 525–528. [Google Scholar] [CrossRef]
  21. Yamanishi, M. Theory of intrinsic linewidth based on fluctuation-dissipation balance for thermal photons in THz quantum-cascade lasers. Opt. Express 2012, 20, 28465. [Google Scholar] [CrossRef]
  22. Ravaro, M.; Barbieri, S.; Santarelli, G.; Jagtap, V.; Manquest, C.; Sirtori, C.; Khanna, S.P.; Linfield, E.H. Measurement of the intrinsic linewidth of terahertz quantum cascade lasers using a near-infrared frequency comb. Opt. Express 2012, 20, 25654. [Google Scholar] [CrossRef] [Green Version]
  23. Bartalini, S.; Consolino, L.; Cancio, P.; de Natale, P.; Bartolini, P.; Taschin, A.; de Pas, M.; Beere, H.; Ritchie, D.; Vitiello, M.S.; et al. Frequency-comb-assisted terahertz quantum cascade laser spectroscopy. Phys. Rev. X 2014, 4, 21006. [Google Scholar] [CrossRef]
  24. Hübers, H.W.; Richter, H.; Wienold, M. High-resolution terahertz spectroscopy with quantum-cascade lasers. J. Appl. Phys. 2019, 125, 151401. [Google Scholar] [CrossRef] [Green Version]
  25. Consolino, L.; Taschin, A.; Bartolini, P.; Bartalini, S.; Cancio, P.; Tredicucci, A.; Beere, H.E.; Ritchie, D.A.; Torre, R.; Vitiello, M.S.; et al. Phase-locking to a free-space terahertz comb for metrological-grade terahertz lasers. Nat. Commun. 2012, 3, 1040. [Google Scholar] [CrossRef] [PubMed]
  26. Ravaro, M.; Manquest, C.; Sirtori, C.; Barbieri, S.; Santarelli, G.; Blary, K.; Lampin, J.-F.; Khanna, S.P.; Linfield, E.H. Phase-locking of a 2.5 THz quantum cascade laser to a frequency comb using a GaAs photomixer. Opt. Lett. 2011, 36, 3969. [Google Scholar] [CrossRef]
  27. Consolino, L.; Bartalini, S.; Beere, H.E.; Ritchie, D.A.; Vitiello, M.S.; de Natale, P. THz QCL-based cryogen-free spectrometer for in Situ trace gas sensing. Sensors (Switzerland) 2013, 13, 3331–3340. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Bosco, L.; Franckié, M.; Scalari, G.; Beck, M.; Wacker, A.; Faist, J. Thermoelectrically cooled THz quantum cascade laser operating up to 210 K. Appl. Phys. Lett. 2019, 115, 010601. [Google Scholar] [CrossRef]
  29. Burghoff, D.; Yang, Y.; Hayton, D.J.; Gao, J.-R.; Reno, J.L.; Hu, Q. Evaluating the coherence and time-domain profile of quantum cascade laser frequency combs. Opt. Express 2015, 23, 1190. [Google Scholar] [CrossRef] [Green Version]
  30. Cappelli, F.; Consolino, L.; Campo, G.; Galli, I.; Mazzotti, D.; Campa, A.; de Cumis, M.S.; Pastor, P.C.; Eramo, R.; Rösch, M.; et al. Retrieval of phase relation and emission profile of quantum cascade laser frequency combs. Nat. Photonics 2019, 13, 562–568. [Google Scholar] [CrossRef]
  31. Consolino, L.; Nafa, M.; Cappelli, F.; Garrasi, K.; Mezzapesa, F.P.; Li, L.; Davies, A.G.; Linfield, E.H.; Vitiello, M.S.; de Natale, P.; et al. Fully phase-stabilized quantum cascade laser frequency comb. Nat. Commun. 2019, 10, 1–7. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Yang, Y.; Burghoff, D.; Hayton, D.J.; Gao, J.-R.; Reno, J.L.; Hu, Q. Terahertz multiheterodyne spectroscopy using laser frequency combs. Optica 2016, 3, 499–502. [Google Scholar] [CrossRef]
  33. Westberg, J.; Sterczewski, L.A.; Yang, Y.; Burghoff, D.; Reno, J.; Hu, Q.; Wysocki, G. Terahertz dual-comb spectroscopy using quantum cascade laser frequency combs. Paper Stu4D.2. In Proceedings of the 2018 Conference on Lasers and Electro-Optics (CLEO), San Jose, CA, USA, 13–18 May 2018. [Google Scholar]
  34. Sterczewski, L.A.; Westberg, J.; Yang, Y.; Burghoff, D.; Reno, J.; Hu, Q.; Wysocki, G. Terahertz hyperspectral imaging with dual chip-scale combs. Optica 2019, 6, 766. [Google Scholar] [CrossRef] [Green Version]
  35. Li, H.; Li, Z.; Wan, W.; Zhou, K.; Liao, X.; Yang, S.; Wang, C.; Cao, J.C.; Zeng, H. Toward Compact and Real-Time Terahertz Dual-Comb Spectroscopy Employing a Self-Detection Scheme. ACS Photonics 2020, 7, 49–56. [Google Scholar] [CrossRef] [Green Version]
  36. Consolino, L.; Nafa, M.; de Regis, M.; Cappelli, F.; Garrasi, K.; Mezzapesa, F.P.; Li, L.; Davies, A.G.; Linfield, E.H.; Vitiello, M.S.; et al. Quantum cascade laser based hybrid dual comb spectrometer. Commun. Phys. 2020, 3, 69. [Google Scholar] [CrossRef] [Green Version]
  37. Belkin, M.A.; Capasso, F.; Belyanin, A.; Sivco, D.L.; Cho, A.Y.; Oakley, D.C.; Vineis, C.J.; Turner, G.W. Terahertz quantum-cascade-laser source based on intracavity difference-frequency generation. Nat. Photonics 2007, 1, 288–292. [Google Scholar] [CrossRef]
  38. Belkin, M.A.; Capasso, F. New frontiers in quantum cascade lasers: High performance room temperature terahertz sources. Phys. Scr. 2015, 90, 118002. [Google Scholar] [CrossRef]
  39. Lu, Q.; Razeghi, M. Recent Advances in Room Temperature, High-Power Terahertz Quantum Cascade Laser Sources Based on Difference-Frequency Generation. Photonics 2016, 3, 42. [Google Scholar] [CrossRef]
  40. Fujita, K.; Jung, S.; Jiang, Y.; Kim, J.H.; Nakanishi, A.; Ito, A.; Hitaka, M.; Edamura, T.; Belkin, M.A. Recent progress in terahertz difference-frequency quantum cascade laser sources. Nanophotonics 2018, 7, 1795–1817. [Google Scholar] [CrossRef]
  41. Fujita, K.; Hitaka, M.; Ito, A.; Edamura, T.; Yamanishi, M.; Jung, S.; Belkin, M.A. Terahertz generation in mid-infrared quantum cascade lasers with a dual-upper-state active region. Appl. Phys. Lett. 2015, 106, 251104. [Google Scholar] [CrossRef]
  42. Fujita, K.; Hayashi, S.; Ito, A.; Hitaka, M.; Dougakiuchi, T. Sub-terahertz and terahertz generation in long-wavelength quantum cascade lasers. Nanophotonics 2019, 8, 2235–2241. [Google Scholar] [CrossRef]
  43. Jiang, Y.; Vijayraghavan, K.; Jung, S.; Demmerle, F.; Boehm, G.; Amann, M.C.; Belkin, M.A. External cavity terahertz quantum cascade laser sources based on intra-cavity frequency mixing with 1.2-5.9 THz tuning range. J. Opt. (UK) 2014, 16, 094002. [Google Scholar] [CrossRef] [Green Version]
  44. Fujita, K.; Edamura, T.; Furuta, S.; Yamanishi, M. High-performance, homogeneous broad-gain quantum cascade lasers based on dual-upper-state design. Appl. Phys. Lett. 2010, 96, 241107. [Google Scholar] [CrossRef]
  45. Fujita, K.; Ito, A.; Hitaka, M.; Dougakiuchi, T.; Edamura, T. Low-threshold room-temperature continuous-wave operation of a terahertz difference-frequency quantum cascade laser source. Appl. Phys. Express 2017, 10, 082102. [Google Scholar] [CrossRef]
  46. Lu, Q.; Wu, D.; Sengupta, S.; Slivken, S.; Razeghi, M. Room temperature continuous wave, monolithic tunable THz sources based on highly efficient mid-infrared quantum cascade lasers. Sci. Rep. 2016, 6, 23595. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Consolino, L.; Jung, S.; Campa, A.; de Regis, M.; Pal, S.; Kim, J.H.; Fujita, K.; Ito, A.; Hitaka, M.; Bartalini, S.; et al. Spectral purity and tunability of terahertz quantum cascade laser sources based on intracavity difference-frequency generation. Sci. Adv. 2017, 3, e1603317. [Google Scholar] [CrossRef] [Green Version]
  48. Fujita, K.; Hitaka, M.; Ito, A.; Yamanishi, M.; Dougakiuchi, T.; Edamura, T. Ultra-broadband room-temperature terahertz quantum cascade laser sources based on difference frequency generation. Opt. Express 2016, 24, 16357. [Google Scholar] [CrossRef]
  49. Lu, Q.; Wang, F.; Wu, D.; Slivken, S.; Razeghi, M. Room temperature terahertz semiconductor frequency comb. Nat. Commun. 2019, 10, 2403. [Google Scholar] [CrossRef]
  50. Diehl, L.; Bour, D.; Corzine, S.; Zhu, J.; Höfler, G.; Lončar, M.; Troccoli, M.; Capasso, F. High-power quantum cascade lasers grown by low-pressure metal organic vapor-phase epitaxy operating in continuous wave above 400 K. Appl. Phys. Lett. 2006, 88, 201115. [Google Scholar] [CrossRef]
  51. Fujita, K.; Furuta, S.; Sugiyama, A.; Ochiai, T.; Edamura, T.; Akikusa, N.; Yamanishi, M.; Kan, H. Room temperature, continuous-wave operation of quantum cascade lasers with single phonon resonance-continuum depopulation structures grown by metal organic vapor-phase epitaxy. Appl. Phys. Lett. 2007, 91, 141121. [Google Scholar] [CrossRef]
  52. Jung, S.; Kim, J.H.; Jiang, Y.; Vijayraghavan, K.; Belkin, M.A. Terahertz difference-frequency quantum cascade laser sources on silicon. Optica 2017, 4, 38. [Google Scholar] [CrossRef]

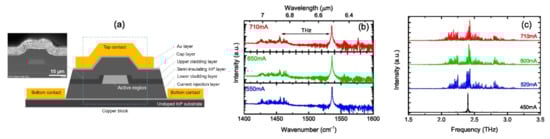

Figure 1. (a) Schematic of the THz difference frequency generation quantum cascade laser (DFG-QCL) and scanning electron microscope (SEM) image of the device. Mid-infrared (b) and THz (c) spectra at different currents of the DFG-QCL at the temperature of 78 K used in this study. The cavity length is 3 mm and the ridge width is 12 μm.
Figure 1. (a) Schematic of the THz difference frequency generation quantum cascade laser (DFG-QCL) and scanning electron microscope (SEM) image of the device. Mid-infrared (b) and THz (c) spectra at different currents of the DFG-QCL at the temperature of 78 K used in this study. The cavity length is 3 mm and the ridge width is 12 μm.
Applsci 11 01416 g001

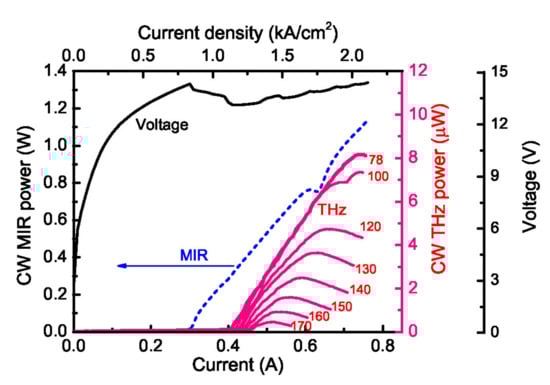

Figure 2. Current–voltage and light–current characteristics of the mid-infrared pumps at 78 K and THz DFG at various temperatures, for the device operated in continuous-wave (CW) mode.
Figure 2. Current–voltage and light–current characteristics of the mid-infrared pumps at 78 K and THz DFG at various temperatures, for the device operated in continuous-wave (CW) mode.
Applsci 11 01416 g002

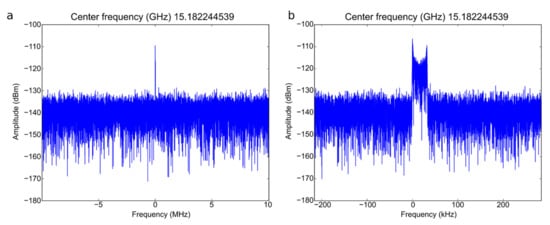

Figure 3. Observation on the spectrum analyzer of a single intemodal beatnote (IBN) for a 580-mA driving current and 23.3 Ω device resistance: (a) Span = 20 MHz, RBW = 100 Hz; (b) Span = 20 MHz, RBW = 50 Hz. RBW: Resolution bandwidth.
Figure 3. Observation on the spectrum analyzer of a single intemodal beatnote (IBN) for a 580-mA driving current and 23.3 Ω device resistance: (a) Span = 20 MHz, RBW = 100 Hz; (b) Span = 20 MHz, RBW = 50 Hz. RBW: Resolution bandwidth.
Applsci 11 01416 g003

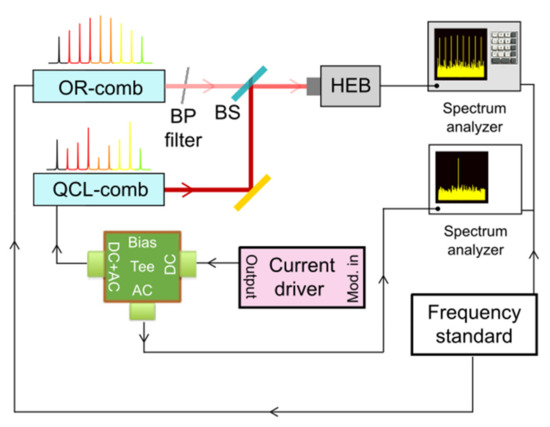

Figure 4. Experimental setup used for the characterization of the DFG QCL-comb. The beams of the optically rectified comb (OR-comb) and QCL-comb are superimposed by means of a beam splitter (BS) and then mixed on a fast detector (HEB: Hot-electron bolometer). The HEB signal is acquired on a spectrum analyzer (Tektronics RSA5106A), and the intermodal beatnote (IBN) is acquired on a second spectrum analyzer (Rohde Schwarz FSW 26.5 GHz). The OR-comb and both spectrum analyzers are frequency-referenced to the primary frequency standard. BP filter: Band-pass filter.
Figure 4. Experimental setup used for the characterization of the DFG QCL-comb. The beams of the optically rectified comb (OR-comb) and QCL-comb are superimposed by means of a beam splitter (BS) and then mixed on a fast detector (HEB: Hot-electron bolometer). The HEB signal is acquired on a spectrum analyzer (Tektronics RSA5106A), and the intermodal beatnote (IBN) is acquired on a second spectrum analyzer (Rohde Schwarz FSW 26.5 GHz). The OR-comb and both spectrum analyzers are frequency-referenced to the primary frequency standard. BP filter: Band-pass filter.
Applsci 11 01416 g004

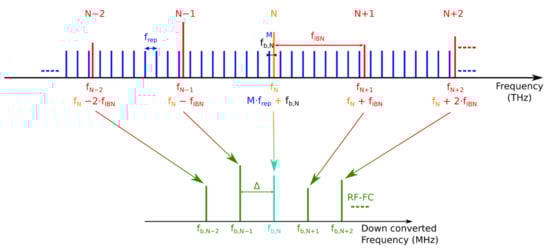

Figure 5. Illustration of the multi-heterodyne down-conversion process. Schematic representation of the quantum cascade laser (QCL-) (red) and optically rectified (OR-) frequency comb (FC) (blue), whose modes are respectively spaced by fIBN and frep. These two repetition frequencies are tuned close to an integer ratio, allowing an ordered and distinguishable down-conversion to radio frequencies (RF). In fact, the down-converted RF-FC modes (green) are equally spaced by Δ, and their easily measurable RF frequencies are used to calibrate the absolute frequency scale of the QCL-FC, as described in the main text. Reprint with permission from [36] Copyright Communications Physics.
Figure 5. Illustration of the multi-heterodyne down-conversion process. Schematic representation of the quantum cascade laser (QCL-) (red) and optically rectified (OR-) frequency comb (FC) (blue), whose modes are respectively spaced by fIBN and frep. These two repetition frequencies are tuned close to an integer ratio, allowing an ordered and distinguishable down-conversion to radio frequencies (RF). In fact, the down-converted RF-FC modes (green) are equally spaced by Δ, and their easily measurable RF frequencies are used to calibrate the absolute frequency scale of the QCL-FC, as described in the main text. Reprint with permission from [36] Copyright Communications Physics.
Applsci 11 01416 g005

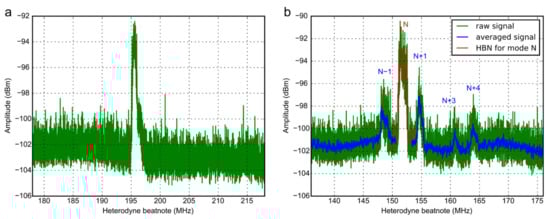

Figure 6. Acquisition of the heterodyne beatnotes signal (HBN) on the spectrum analyzer, resulting from the mixing of the OR- and QCL- frequency combs, characterized by their intermodal frequencies frep and fIBN, on the Hot-Electron Bolometer. The HBNs are: (a) Collapsed when frep = (frep)0, submultiple of fIBN; (b) corresponding to the optical modes when frep is slightly detuned from (frep)0, where modes are equally spaced by D. Resolution bandwidths = 10 Hz, blue: Averaged signal, red: Most intense mode M highlighted.
Figure 6. Acquisition of the heterodyne beatnotes signal (HBN) on the spectrum analyzer, resulting from the mixing of the OR- and QCL- frequency combs, characterized by their intermodal frequencies frep and fIBN, on the Hot-Electron Bolometer. The HBNs are: (a) Collapsed when frep = (frep)0, submultiple of fIBN; (b) corresponding to the optical modes when frep is slightly detuned from (frep)0, where modes are equally spaced by D. Resolution bandwidths = 10 Hz, blue: Averaged signal, red: Most intense mode M highlighted.
Applsci 11 01416 g006

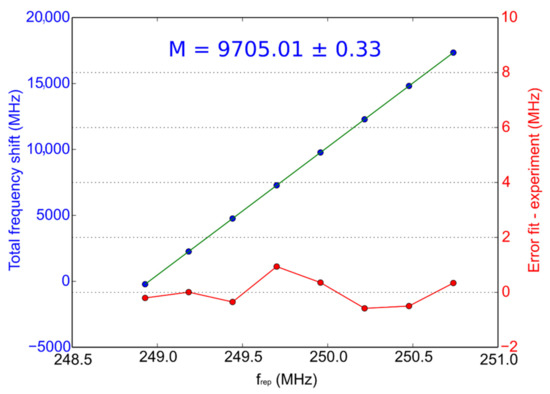

Figure 7. Retrieval of the optically rectified frequency comb (OR-comb) mode number M relative to Equation (1). The frequency of the QCL-comb mode involved in the beating is kept constant by fixing the device driving current and operational temperature. The frequency of the down converted beatnote HBN is acquired and plotted as a function of the optically rectified comb repetition rate (frep). As a consequence, the order M is extracted from the slope of the data linear regression, by rounding to the nearest integer, i.e., M = 9705. The fit residuals, plotted in red, confirm the 1 MHz uncertainty in the determination of the fHBN frequency.
Figure 7. Retrieval of the optically rectified frequency comb (OR-comb) mode number M relative to Equation (1). The frequency of the QCL-comb mode involved in the beating is kept constant by fixing the device driving current and operational temperature. The frequency of the down converted beatnote HBN is acquired and plotted as a function of the optically rectified comb repetition rate (frep). As a consequence, the order M is extracted from the slope of the data linear regression, by rounding to the nearest integer, i.e., M = 9705. The fit residuals, plotted in red, confirm the 1 MHz uncertainty in the determination of the fHBN frequency.
Applsci 11 01416 g007
