Review

Research Progress on Synergistic Technologies of Agricultural Multi-Robots

1
College of Mechanical and Electronic Engineering, Northwest A&F University, Yangling 712100, China
2
Scientific Observation and Experimental Station of Agricultural Equipment for the Northern China Ministry of Agriculture and Rural Affairs, Yangling 712100, China
3
Ministry of Agriculture and Rural Affairs Apple Full Mechanization Research Base, Yangling 712100, China
4
State Key Laboratory of Soil Erosion and Dryland Agriculture on Loess Plateau, Yangling 712100, China
*
Author to whom correspondence should be addressed.
Appl. Sci. 2021, 11(4), 1448; https://doi.org/10.3390/app11041448
Submission received: 31 December 2020 / Revised: 27 January 2021 / Accepted: 1 February 2021 / Published: 5 February 2021
(This article belongs to the Special Issue Trends and Challenges in Robotic Applications)

Abstract

:
Multi-robots have shown good application prospects in agricultural production. Studying the synergistic technologies of agricultural multi-robots can not only improve the efficiency of the overall robot system and meet the needs of precision farming but also solve the problems of decreasing effective labor supply and increasing labor costs in agriculture. Therefore, starting from the point of view of an agricultural multiple robot system architectures, this paper reviews the representative research results of five synergistic technologies of agricultural multi-robots in recent years, namely, environment perception, task allocation, path planning, formation control, and communication, and summarizes the technological progress and development characteristics of these five technologies. Finally, because of these development characteristics, it is shown that the trends and research focus for agricultural multi-robots are to optimize the existing technologies and apply them to a variety of agricultural multi-robots, such as building a hybrid architecture of multi-robot systems, SLAM (simultaneous localization and mapping), cooperation learning of robots, hybrid path planning and formation reconstruction. While synergistic technologies of agricultural multi-robots are extremely challenging in production, in combination with previous research results for real agricultural multi-robots and social development demand, we conclude that it is realistic to expect automated multi-robot systems in the future.

1. Introduction

With the constant progression of urbanization and industrialization, the mobility of rural young and middle-aged laborers has intensified [1]. The sustainable transfer of non-agricultural labor has led to a decline in agricultural labor, and the problem of aging of the agricultural labor force has become more serious [2]. For example, the proportion of agricultural production and management personnel aged 55 and over is as high as 33.6% according to the main data of the Third Agricultural Census Bulletin of China in 2017. Furthermore, as aging continues, the physical health of the elderly labor force continues to decline, which results in a significant reduction in the supply of effective rural labor and an adverse effect on agricultural output [3,4]. Most agricultural production tasks are labor-intensive and seasonally oriented projects that exacerbate the constraint of seasonal labor shortages [3,4,5] and increase the cost of agricultural labor. For example, according to a survey conducted by Zhen et al. [6], during the rural busy season, the labor cost of agricultural planting increased from 80 CNY per person per day in 2015 to 90 CNY in 2016 to 100 CNY per person per day in 2017, and the labor cost of technical agricultural labor is even higher [7]. Some statistics show that the agricultural unit labor cost in developed countries such as Germany, Japan, and the United States decreased by 30.17%, 44.22%, and 23.44%, respectively, while agricultural labor productivity increased by 64.78%, 81.22%, and 34.83%, respectively, from 2005 to 2014. On the contrary, China’s agricultural unit labor cost increased by 45.17%, and agricultural labor productivity, which is much smaller than that of developed countries, increased by 50.28% [8]. Therefore, the increasing cost of labor will lead to an increase in the cost of agriculture, which will result in a relative decrease in agricultural productivity and international competitiveness [9]. It is urgent to enhance the innovation of agricultural science and technology and replace extensive and expensive repetitive manual operations with intelligent agricultural machines or robots [10].
Due to the growing maturity of computer technology, sensor technology, and control theory, different types of agricultural robots have been developed based on characteristics of agronomy, such as fruit- or vegetable-picking robots, spraying robots, and harvesting robots. The agricultural robot can replace traditional human efforts to engage in all kinds of labor-intensive and complicated agricultural production activities and reduce the decline of output caused by improper human operation, negligence, inaccurate operation, and other reasons, as well as major physical injuries and even casualties of operators [11]. However, the operation efficiency of a single agricultural robot is too low and cannot meet the operation demand in busy seasons without coordination and cooperation by artificial auxiliary resources or other robots [12]. As early as 2009 and 2012, Johnson et al. [13], Moorehead et al. [14] and others in the United States replaced a single robot with a group of agricultural mobile robots to complete mud moss harvesting and orchard spraying successively with appropriate cooperative operation mechanism, which can reduce production costs and improve operational efficiency [15]. Therefore, to adapt to the increasing scale of production, meet the needs of social development, and narrow the gap with other international world powers with advanced scientific capabilities, it is necessary to research the relevant technology of agricultural multiple robot systems. This work focuses on the research progress of the cooperative operation, one of the key technologies of agricultural multiple robot systems.
There are many types of agricultural multi-robots, and this article mainly focuses on unmanned aerial vehicles (UAVs), unmanned ground vehicles (UGVs), and unmanned underwater vehicles (UUVs). This paper summarizes the research progress on synergistic technologies of cooperative operation of the abovementioned multiple robots and characterizes the expected research of related technologies.

2. Problems with Multi-Robot Applied to Agricultural Environments

Crops are fixed in cultivation season and time, which determines the labor demand pattern of agricultural production in a year, and agricultural operators need to make flexible responses and treatments according to the growth pattern of crops, such as plowing, planting, management, and harvesting [16]. At the same time, to adapt to the development of agricultural intensification, scale, and industrialization, and to reduce the economic losses caused by untimely processing, a collaboration of multiple farm machinery operated by people has widely appeared in agricultural production (as shown in Figure 1).
In Figure 1a multiple rotary tillers are being used to plow rice fields on sloping land to safeguard food production and mitigate the impact of the phenomena of lack of labor resources, which is brought about by the New Crown epidemic [17]. In Figure 1b, multiple corn planters are employed to sow seeds in a large field, which saves labor and ensures the quality of seeding, and directly improves the yield and quality of corn planting [18]. In Figure 1c, multiple drones are used to spray pesticides in cotton fields, which could be targeted according to the types of pests and diseases, and also prevented their rapid spread in the early stages of infestation [19]. In Figure 1d, it has become a trend to manually operate multiple combines simultaneously during the wheat harvesting season to avoid the effects of rainfall on wheat quality and yield [20].
By manually operating the machines, the quality of operation of the implements relies heavily on human experience, while the use of robots instead of manual operation can free up manpower and ensure the quality of operation. However, the topography, soil, light, and climate conditions of the crop growing environment are different from those of indoor and urban transportation environments, and these conditions pose a challenge to the application of multiple robots in agriculture.
Take the example of multiple harvesters harvesting grain in farmland. First, farmland is an unstructured environment, which means that the road conditions are undulating, there are various types of obstacles, and there are missing or blurred lane lines on the ground, and agricultural machines both share the same resource and interact with each other to become dynamic obstacles to each other. Secondly, agricultural operation tasks have strong requirements for operation time, such as harvesting grains in a fixed short time frame. Furthermore, the amount of grain output varies from plot to plot, and the number of agricultural machines needed and the number of operational tasks assigned to them is dynamically changing (such as harvesters with large loading capacity should match the plots with large grain output). Finally, even if the same type of farm machines work together, the characteristics of the machines are not the same (for example, the harvester with the same loading capacity, the fuel consumption is different, the harvester with high fuel consumption should be assigned the operation task more than its work cost, and its operation path should be as short as possible but the harvesting volume should be as large as possible). To ensure that multiple machines can cooperate, a multi-robot system is required to be able to organize multiple robots flexibly, quickly, and efficiently according to the changes in the environment and tasks, and to fully utilize the capabilities of each robot to finally complete the given task with high quality [21]. At the technical level, in addition to being accurately informed of the positioning information of the swarm and the environmental information of the operation, and solving collision and obstacle avoidance, it is also necessary to assign operational tasks to multiple machines, plan operational paths (such as in areas where multiple robots work together), coordinate the formation control of multiple robots, and maintain the information interaction between multiple robots.

3. Research Progress on Synergistic Technologies of Agricultural Multi-Robots

To solve the above problems, it is necessary to study technologies of collaborative operation, such as environment perception, task allocation, path planning, formation control, and communication-based on multi-robot architecture. Since each technology does not solve the same agricultural problems, this section first classifies the types of development of these technologies, then describes and reviews each of these cooperative technologies in terms of research methods or problem solving, and finally summarizes their research development status and characteristics.

3.1. Architecture of Agricultural Multiple Robot Systems

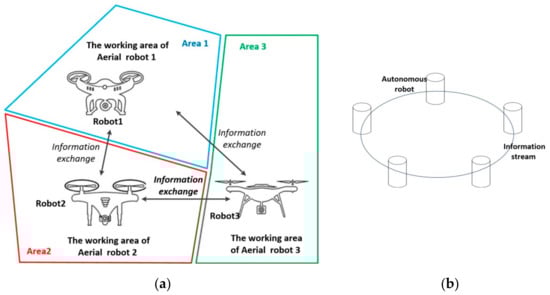

A reasonable architecture can guarantee information flow and control flow in the agricultural multi-robot system and make effective cooperation among multiple robots possible [22]. At present, the architecture of agricultural multi-robots can be divided into centralized architecture and distributed architecture. It is found that the earliest recorded structure of agricultural multiple robot systems comes from hay harvesting and transportation robots in farmland [23,24], for which these multi-robot systems were operated under the principle of centralized architecture. As shown in Figure 2a, in leader-follower mode, a relatively powerful robot is selected as the “leader” of the swarm robots, performing specific motion planning for the remaining robots after analyzing and processing the sensory information, but these remaining robots are just executors, without the ability to choose their actions or coordinate with each other. Alternatively, as shown in Figure 2b, in the central controller mode, each robot can perform tasks independently and is commanded by a central controller [25]. The advantage of this centralized architecture is that the theoretical background is clear, and the implementation is intuitive, but the flexibility, fault tolerance, and adaptability are poor [26].
Compared with the operating environment of UGVs, the operating area of UAVs has the advantage of no obstacles, so these systems generally adopt the distributed structure [28]. As shown in Figure 3, the three UAVs in the multi-robot system carry out agricultural situation monitoring in the individual workspaces independently; each robot of this system had a high degree of autonomous operation ability and can complete a given task according to its aims; robots can communicate with each other, exchange information, and coordinate their behaviors equally and independently to complete a given task [28]. This structure has strong scalability and certain advantages in real-time operation, fault tolerance, and reliability, etc. [29] and is suitable for handling tasks related to spatial states [30]. However, “it costs a lot in terms of the coordination mechanism, such as task allocation and motion planning” [29].

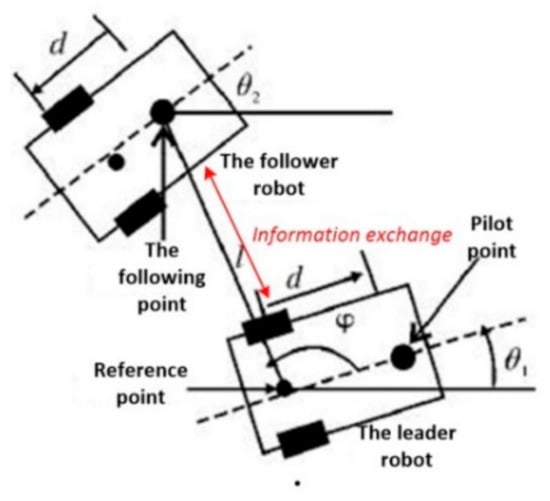

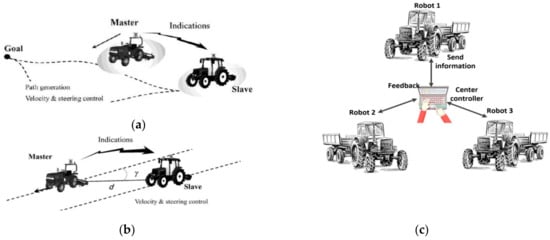

The centralized architecture that can be divided into a leader and follower robots is suitable for highly coordinated tasks and is advantageous in a fully known environment. The distributed architecture, in which there is no affiliation among robots, is suitable for weakly coordinated tasks and is advantageous in large-scale, complex, and varying environments.

3.2. Environment Perception

Environmental perception is the premise of the cooperative operation of multiple robots in agriculture. That is, the mobile carrier can use the sensors carried by itself (these sensors include internal sensors and external sensors [31], where the internal sensors include odometers, magnetic compasses, inertial navigation, and global positioning systems to determine the speed, position, and direction of the robot in the environment; external sensors include ultrasound, infrared, laser and vision, used to sense surrounding information [26]) to obtain the information of the surrounding environment, extract the effective feature information within the environment for processing and analysis, and finally establish the environment model [32]. This technology mainly involves collaborative positioning, data fusion, and environmental construction.

3.2.1. Co-Location Technology

The concept of co-location was originally proposed in 1994 by Kurazume and Nagata in Japan [33] The concept refers to a robot “sharing” its positioning results with other mobile robots and to other robots using this shared information to integrate their calculation results to improve the accuracy of positioning themselves and, in turn, sharing their positioning results with other mobile robots, repeatedly achieving the precise positioning of mobile robots [34]. According to the collaborative positioning method, this approach can be divided into active positioning, passive positioning, and interactive positioning [35]. However, no research on interactive localization has been reported in the literature of agricultural multi-robots.
  • Active positioning
In the absence of information exchange, the robot relies on its sensors to obtain relative distances and angles by observing the neighboring robots for self-positioning [35,36]. As shown in Figure 4, the leading robot guides the follower robot to steer along the leading robot reference route [37].

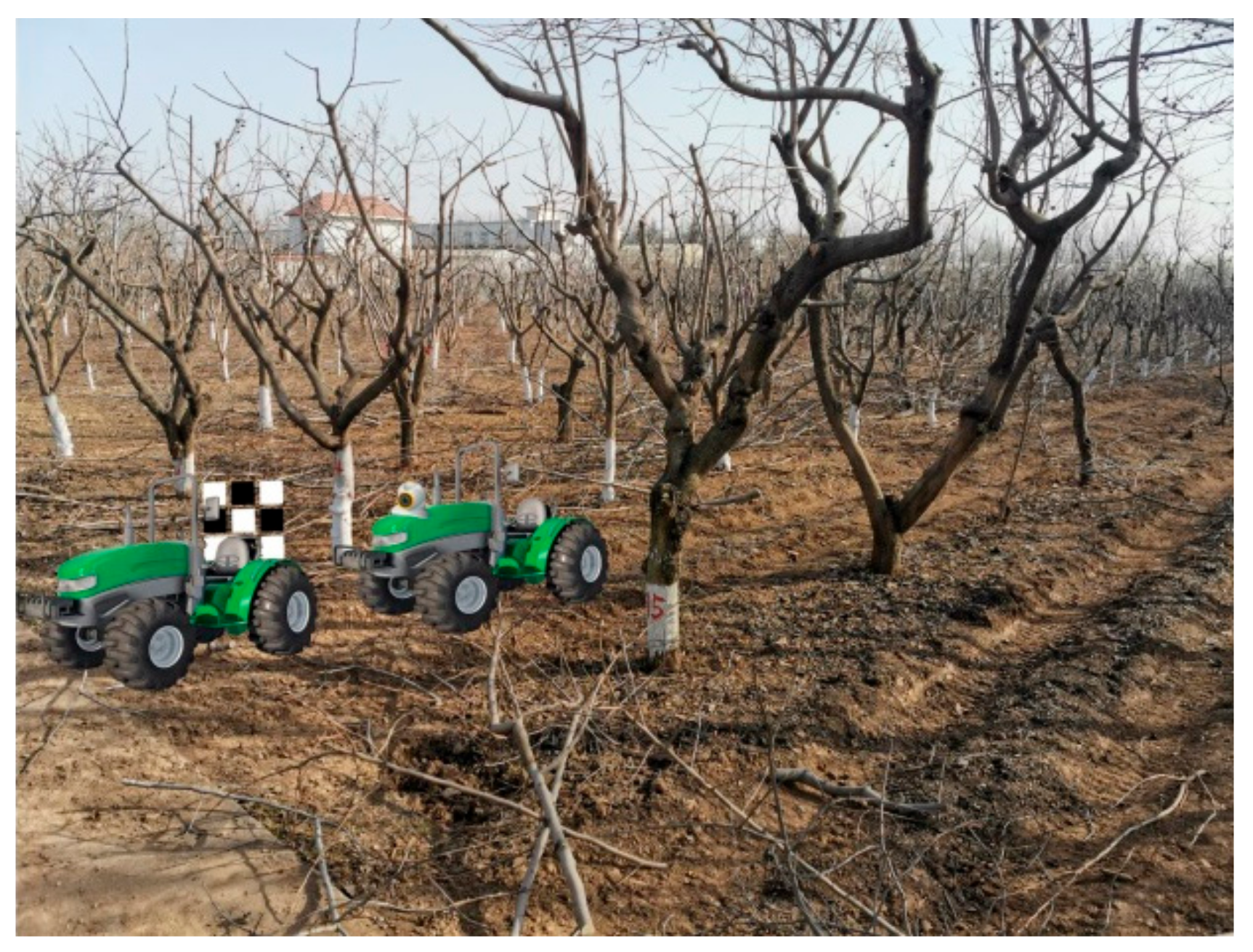

For example, the black-and-white checkerboard feature board was fixed to the leader robot as the following feature, and the 3D information of each corner point on the black-and-white checkerboard feature board was obtained by the binocular vision camera fixed to the following robot, and the information was analyzed to finally obtain the longitudinal spacing, lateral offset and heading declination of the following robot relative to the leader robot. Using this navigation information to realize the automatic following of the following vehicle, the following system of master-slave orchard operation vehicle is established [38].
  • Passive positioning
In an environment where information exchange exists, the robot indirectly obtains the relative distance and angle through the “observed” data provided by the friendly neighboring robot to perform its positioning [35]. As shown in Figure 5, the follower robot dynamically creates a reference heading for itself from the position point of the leading robot [39].
Passive positioning mode is usually used in combination with kinematic control models and is one of the most used in master-slave robots. For example, GPS positioning was used for multiple robots, and the travel trajectory of the pilot robot was the main one. Under the premise of communicable, the pilot robot estimated the motion trajectory of other robots using the kinematic model, and the difference between the sensor positioning and the estimated positioning value was calculated by the other robots or the pilot robot, and the lateral and longitudinal displacement of each robot was adjusted according to the difference [40].
However, the above positioning methods are highly dependent on the positioning accuracy of the leader robot, which requires good stability and robustness. When the leader robot fails, it is easy to cause the localization accuracy of the whole team to drop, or even the localization fails. In contrast, the interactive localization approach has an environment of information exchange, where robots achieve joint localization through these steps of mutual observation, data exchange, and information fusion [41]. In this case, the robots are in the same position in the team and there is no master-slave distinction, namely, they do not depend on the positioning accuracy of a fixed robot, and this type of phenomenon is reduced. The above co-location methods are summarized as shown in Table 1.
It can be seen from Table 1 that the cooperative localization technology for agricultural multi-robots mainly adopts active localization and passive localization, which are computationally small and easy to implement. The real concept of “co-location” should be interactive positioning; through communication among robots, information sharing can be realized, and then the robot’s positioning error can be corrected to achieve accurate positioning. However, this method incurs a large amount of calculation and a large complexity of the algorithm, making it difficult to implement. No examples have been found in the literature for agricultural multi-robots.
More practical applications indicate that the cooperative positioning of multiple robots in agriculture is replaced by a central controller or task manager coordination mechanism [49,50]. That is, the working area and travel path of each robot are planned by a task manager or central controller based on the established environment map. The work areas and work paths of these multiple robots usually do not intersect and each robot only needs to localize and navigate based on its sensors. For example [27], the vineyard area was divided into three UAV-monitored vineyard areas using the task manager according to set rules, and path planning was performed for the sub-areas of individual UAV operations, with each UAV flying at a different altitude to avoid collisions between the UAVs.

3.2.2. Data Fusion Technology

A single sensor has certain limitations. For positioning accuracy and reliability, it is necessary to utilize the advantageous features of each sensor, that is, data fusion of multiple sensors. Data fusion technology, also known as multi-sensor information fusion technology (MSIF), essentially involves the comprehensive processing of target information originating from different sensors at different times or multi-target information simultaneously, to obtain more accurate positioning, identification information of the measured environment or object, and comprehensive and timely assessment of the current situation [51,52], thus facilitating the subsequent planning and decision making of the robot. The strength of the data fusion capability directly affects whether the robot can effectively achieve mutual coordination and collaborative work.

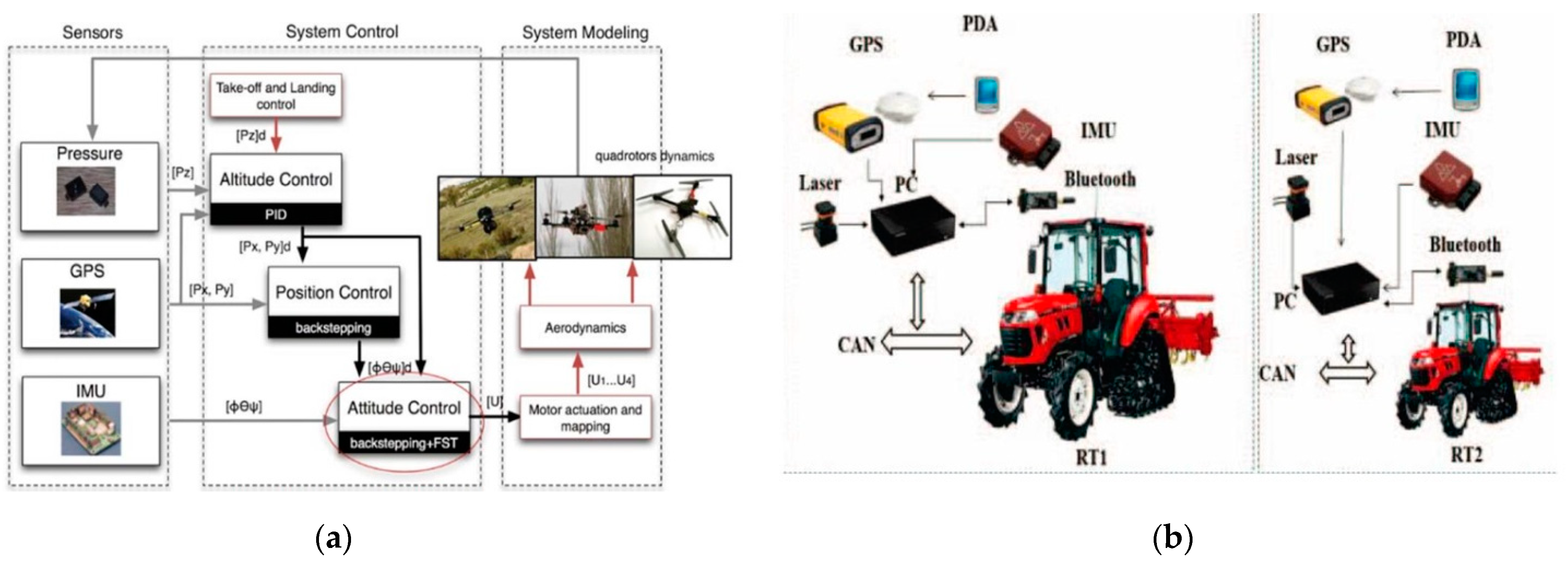

The internal sensors in the agricultural robot mainly include a global positioning system (GPS), inertial measurement unit (IMU), steering angle potentiometer, and encoder, which are used to provide the robot with the position, heading, and steering angle information; the external sensors mainly include various LIDAR and cameras, which are used to avoid obstacles and collect environmental information, as shown in Figure 6. Among them, GPS can provide a unified coordinate system and accurate position information for field robots and is used most frequently [53]. With the promotion of satellite positioning technology, agricultural robots equipped with GPS positioning and navigation systems will become increasingly popular. Take the automatic navigation system System150 researched by TOPCON company of Tokyo in Japan as an example [54], the system adopts GPS-based advanced inertial guidance and terrain compensation technology, which can realize navigation in complex terrain environments with ±2.5 cm accuracy for straight line and turn. However, data fusion techniques are still very important for robot localization when GPS cannot obtain accurate position information in greenhouses or forests [55], or when the robot is too small to install high-precision sensors.
For example, to obtain information on the ambient temperature, humidity, light, and CO2 concentration in a greenhouse [56], a human remotely operated UAV was first operated to obtain a map of the greenhouse environment, and then the ground robot fused IMU, GPS and odometer information to output the actual location information of the robot through the extended Kalman filter (EKF) algorithm. In practical applications, because of the poor GPS signal in the greenhouse, the EKF was used to fuse the odometer and IMU. EKF is used to linearize the nonlinear system at the reference point using Taylor expansions, and then Kalman filtering theory is used to achieve the prediction and correction of the system. But the EKF still cannot solve the global localization problem [57].
Another example is an agricultural spraying multi-robot [58] that used particle filtering to fuse information from multiple low-cost sensors of the odometer, IMU, wheel encoder sensors, and GPS, which incorporates the open-source library RTKLIB and correction signals. The particle filter could also determine robot attitude based on a series of particles in noisy environments and when the GPS was offline. Particle filtering [59] is a basic method based on Bayesian filtering theory (the robot can determine the poses with a certain degree of confidence based on all available information [60]) and differs from Kalman in using particle sets to describe the probability distribution. However, a large number of particles need to be maintained for higher localization accuracy, which will consume a large number of computational resources, especially as the walking distance gets farther, which will put greater pressure on the computing platform with limited memory resources.

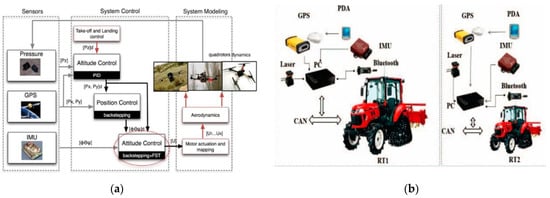

According to the sensor information fusion processing hierarchy, the technique is divided into three levels, namely the data layer, the feature layer, and the decision layer [61]. Their specific scopes, characteristics, and fusion algorithms are shown in Table 2.
From Table 2, it can be seen that information fusion in agricultural multi-robots is focused on multi-sensor information fusion of single robots, and there is almost no research on sensor information fusion between homogeneous or heterogeneous agricultural multi-robots. To obtain more information, the information collected by different types of sensors on a single robot is mostly different (e.g., GPS collects position information, IMU collects robot heading, odometer, etc.), but some information has a mutual transformation relationship (e.g., the integration of velocity from odometer can give distance), which can be regarded as the same kind of sensors at this time. The fusion algorithms are mainly based on classical EKF and particle filtering.

3.2.3. Mapping

Once the multi-robot has determined its position, it also needs to determine information about the multiple robots’ surrounding environment, for instance, the presence of obstacles. Mapping is the task of accurately describing the spatial position of the robot working environment and various objects (such as obstacles and road signs) in the environment, that is, to establish a spatial model (two-dimensional or three-dimensional) or map [26]. The purpose of creating this map is to provide path planning for the robot, so the map must be easy for the robot to understand and computationally manipulate and accommodate revision when new environmental information is detected [64].
At present, many methods have been developed for constructing environmental models for multiple robots, which are mainly summarized in the three types of grid-based model, geometric mode, and topological mode [22]. Probably due to the low environmental information of the topological model, no literature was found on the use of multiple robots in agriculture. On the contrary, the grid model and the geometric model provide abundant information about the agricultural environment, the purpose of multi-robot operations is clear, and more literature is applied to agricultural operations. And the detailed environment model facilitates the task allocation to multiple robots, real-time observation of multiple robots’ motion, effective coordination mechanisms, and detection of robot motion faults.
  • Grid model
The uniformly distributed grid represents the working environment of the robot, and each grid corresponds to the position of whether an obstacle exists or not [22]. For example, if a grid has an obstacle, it is marked as 1; otherwise, it is 0.

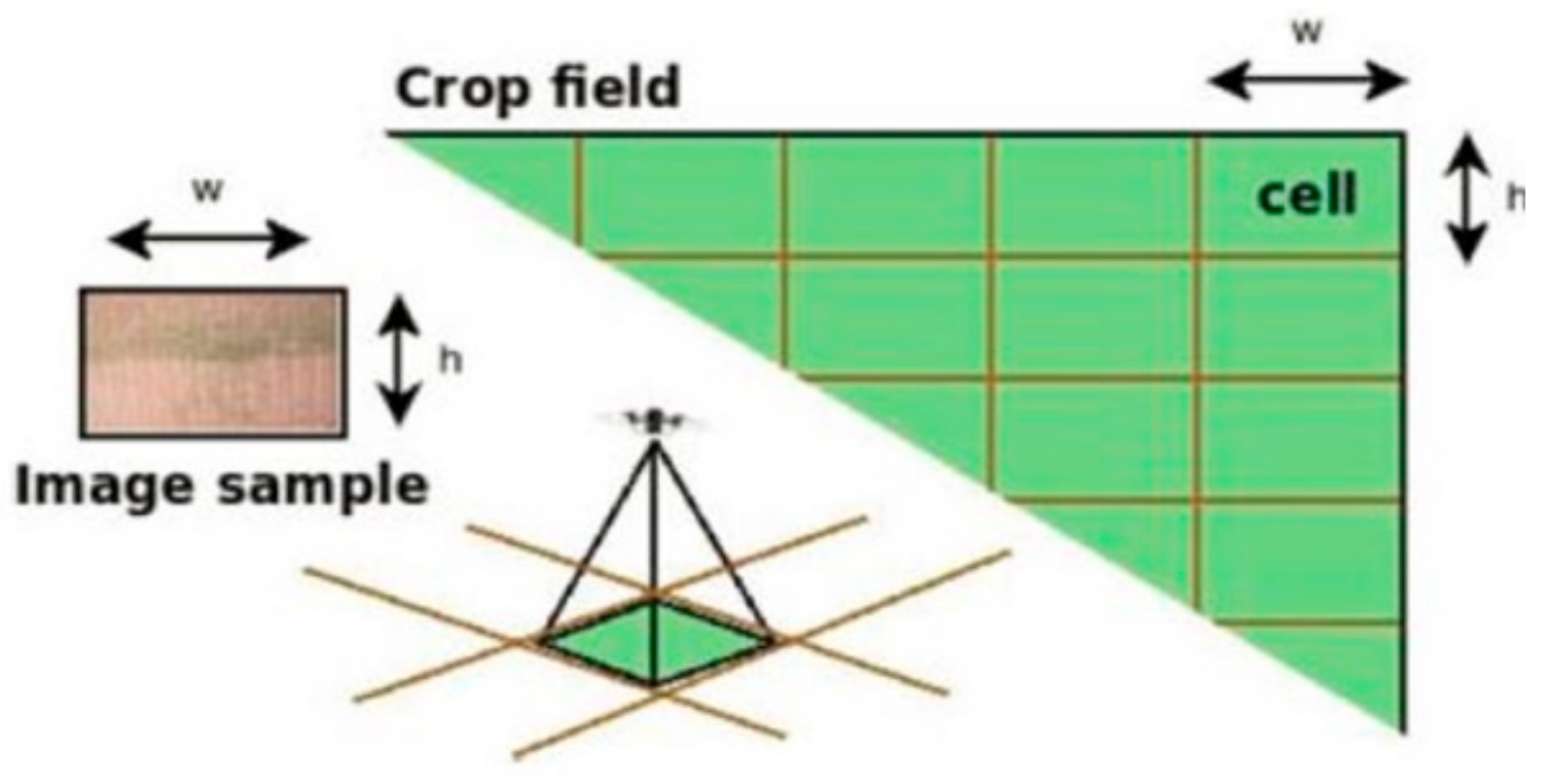

As shown in Figure 7, Bouzouita et al. [28] obtained georeferenced pictures through UAVs and then created a full map of a vineyard. The processing entails first dividing the UAV workspace into multiple regular grids and defined borders (line segments of workspace in the grid-based environment) using Bressenham’s linear algorithm (BLA). Then, the procedure to distinguish the subareas in the grid-based environment is a recursive flood-fill algorithm that picks an empty cell (not marked as occupied) and floods in four directions while there are empty cells, and each flooded cell is marked as occupied. This mapping procedure is repeated until all nodes of the grid are occupied by georeferenced pictures. However, the drawback of this mapping is a tradeoff between acquiring an equally sized set of images in cells and inefficient aerial sampling with UAVs.
  • Geometric model
Geometric features such as line segments or curves are extracted from the environmental perception information and used by robots to construct an environmental map [22]. As shown in Figure 8, Ball et al. [65] defined the boundary of a 55-hectare sorghum stubble field by manually selecting appropriate latitude and longitude coordinates but omitted the headland where the UGVs turned around at the end of each row. Besides, the positions of multiple robots and obstacle information (human, pole, vehicle, etc.) were periodically sent to the central controller through sensors of a real robot and 12 simulated robots. Finally, the central controller constructed a 2D map of the environment surrounding the robot.
A more scientific approach than manually labeling is the Voronoi diagram [66]. For example, a fruit tree on the robot’s driving path was taken as a point in the orchard map, and the two-dimensional coordinates of this point were found in the image acquired by the UAV. At the same time, the data of planting interval and density of fruit trees were learned from this image, and the two-dimensional coordinates of other fruit trees were obtained, and then the K-means clustering algorithm was used to find the center of clusters of multiple fruit trees, and the orchard was divided into multiple sub-regions for robot operation according to the principle that the fruit tree point is most adjacent to this center. But the experimental results after mapping are to be further validated on a real agricultural spraying multi-robot.
  • Topological model
The topological relationship among objects in the environment is represented by the environment model [21]. The topological model consists of multiple unrelated points and lines with a simple model. Some researchers proposed to use this model in agricultural multi-robot path planning, but it is only an idea and has not been applied [67].
The specific application scope and characteristics of the multi-robot environmental model are shown in Table 3.
Compared with 2D maps [14,73,74,75], 3D maps can provide more information. By fusing the original measurement or small local maps generated from multiple robots to construct global maps at the same time, or matching the 3D maps constructed by heterogeneous robots, more and more abundant data are obtained, which is a new research direction of mapping.
For example [71], the point clouds of the two images acquired by the UAVs and UGVs respectively were first represented by a grid model, and each cell stored excess vegetation index information and ground height information. After that, the relative displacement and rotation parameters between the two grid maps were extracted using the data provided by GPS and Attitude and Heading Reference Systems (AHRS), and the maps were matched by these parameters. Then the correspondence of point clouds between the matched maps was calculated using the Large Displacement Dense Optical Flow (LDOF) system and a voting scheme was used to select a coherent correspondence dataset with high data similarity to infer the initial conversion relationship between the maps, and a non-rigid alignment algorithm was used to eliminate orientation errors. Finally, the input point clouds were brought in for a point-to-point alignment, and non-vegetation points were removed to obtain the 3D maps. The experimental results showed that the constructed maps matched well, but the time taken to construct each such image was quite long.
As the farming environment is often dynamic, learning specific farming information while shortening the time to build maps will help improve the efficiency of multi-robot operations, which should be a direction for further research. For example, simultaneous localization and composition (SLAM) allows the robot to get information about the image while localizing it, and this technique is currently used more often for indoor multi-robots, especially for catastrophic search and rescue where high responsiveness and mobility are required [76]. In the literature [56] it was mentioned that this technique was used on a ground robot for heterogeneous multi-robot in a greenhouse and that the robot was motion controlled using an Augmented Monte Carlo Localization (AMCL) methods. The experimental results showed that the UGV using SLAM takes less time to construct the map than the remotely operated UAV. And based on the map, the ground robot can complete collision-free autonomous movement between the initial and target points. It is obvious that SLAM technology has great potential for multi-robot mapping [77], and the application of multi-SLAM on agricultural multi-robots will be one of the future research directions.

3.3. Multi-Robot Task Allocation

Multi-robot task allocation (MRTA) provides evaluation indicators of a multi-robot system, a task set, and system performance and finds a suitable robot for each subtask to perform, bringing the benefit of a robot system to perform mostly task collection. Thus, the quality of the MRTA results directly affects the efficiency of the entire system and whether each robot of the system can maximize its capabilities [78].
Solve the MRTA problem [79] involves many aspects, such as the capability attributes of the system members, the structural attributes of the tasks, the robot coordination mechanism, and the strategy of task allocation [80]. This approach divides the assignment of agricultural multi-robots into centralized components based on the decision of the central controller in this part.
  • Centralized Allocation
The centralized allocation means that the leading robot or control center of the system decomposes the global task and then sends the decomposed subtask to each robot according to the corresponding allocation method.
In 2012, reference [14] reported the work area division and task assignment of two UGVs by a person through remote monitoring based on a citrus orchard map. However, as the number of robots increased, manual task assignment stops when a robot hits a tree or fails to make a reliable turn. Some scholars [66] solved the manual assignment of tasks to multiple robots from the perspective of dividing maps, namely, as many sub-regions as there are robots needed. The edges of these sub-regions are generated from discrete fruit tree points and K-mean clustering points on the map boundary using an integer programming approach. However, this view is too ideal and does not consider the case where the number of robots is less or more than the total number of tasks.
A similar study on the number of robots over the number of tasks is multiple robots and a small number of refueling stations [81]. In this reference, an approximate arbitrary time algorithm based on the branch delimitation method was used to obtain the task sequence of multi-robot collaborative refueling. The limit value of the path length distance was first calculated and used as the upper and lower bounds of the algorithm nodes based on the rules for robots walking infield and the total time cost function of refueling and waiting in the queue. Then the optimal solution was obtained by deleting the sub-nodes whose lower limits were greater than or equal to the optimal upper limits during iteration. Simulation experiments showed that the optimal approximate solution on resource utilization can be found by this method, but it is difficult to apply the method to other aspects of agriculture, such as spraying.
A reinforcement learning-based method (Dyna-Q +) was used to find the optimal search path from the current point to the endpoint, that is, multiple robots randomly selected actions (front, back, left, right) and each action was recorded, and the optimal path was obtained by rewarding and punishing the actions selected by the robots according to the presence or absence of obstacles [62]. Then a weighted graph was used to represent the Gird model, including parameters such as the current position of the robot, the set of grids, and whether there is a path between the grids. The minimum cost time for the UAVs to fly at different speeds under the optimal path was calculated using Dijkstra’s algorithm, and finally, the search space was obtained based on the optimal path and time and allocated to multiple robots in proportion to the size of the space. A reinforcement learning [82] is a Markovian decision process where the basic idea is all about modeling or fitting a strategy using a function for more complex decision problems. However, the method requires a large number of samples and a long time when used.
Also, multiple robots working in an agricultural environment are often subject to resource-sharing conflicts. For predictable conflicts, relying only on a central task allocation approach to avoid conflicts, the adaptability of multiple robots is very limited, while adding a decision support system (DDS) to provide options for multi-robot collaboration, i.e., identifying problems and building or modifying decision models to avoid resource conflicts based on explicit goals. For example, as shown in Figure 9, in reference [58], the authors adopted a central entity (OptiVisor) to build a multi-robot seeding map based on inputs such as the location of static obstacles in a large field, the seeding method, the seed density, the location of the central controller, and the number of robots. Based on this map, the location and density of each seed are precisely located and the sowing task is assigned to multiple robots. When the robot finished the job, the path from the robot location to the Central Logistic Unit (CLU) was recorded and the robot was allowed to return to the CLU. Especially when one or more robots failed, the task of the failed robot was reassigned to the other robots of the failed robot, and the sowing path was updated for these replacement robots. OptiVisor could also stop a robot’s motion when a multi-robot collision is imminent, and define restricted motion areas for the faulty robot. However, this task assignment method was implemented in a simulation environment and needs to be further tested in real applications.
  • Distributed allocation
In general, the distributed task allocation method has the feature that each robot does not have global knowledge of the task but calculates and plans individually according to the local information obtained by the sensor. The performance of the whole system not only is closely related to the individual but also depends on the combined effects of individuals [83].
It was reported in the literature [84] that when the number of tasks is more than the number of farm machines, the ant colony algorithm can be used to find a suitable task sequence for multiple robots. First, the distance between plots was calculated based on the specified coordinate information of each plot, and the relevant parameters of the ant colony algorithm were set. Then randomly generated the starting points of multiple parcels, according to the state transfer probability formula for path selection, and put the generated path parcels into the forbidden table. Finally, the path distance of the plots was calculated, and the pheromones on the path were continuously updated according to the set rules, and iterations were repeated until the optimal task planning for multiple robots was found. The method is mainly used in simulated farmland environments and has not yet seen the practical application.

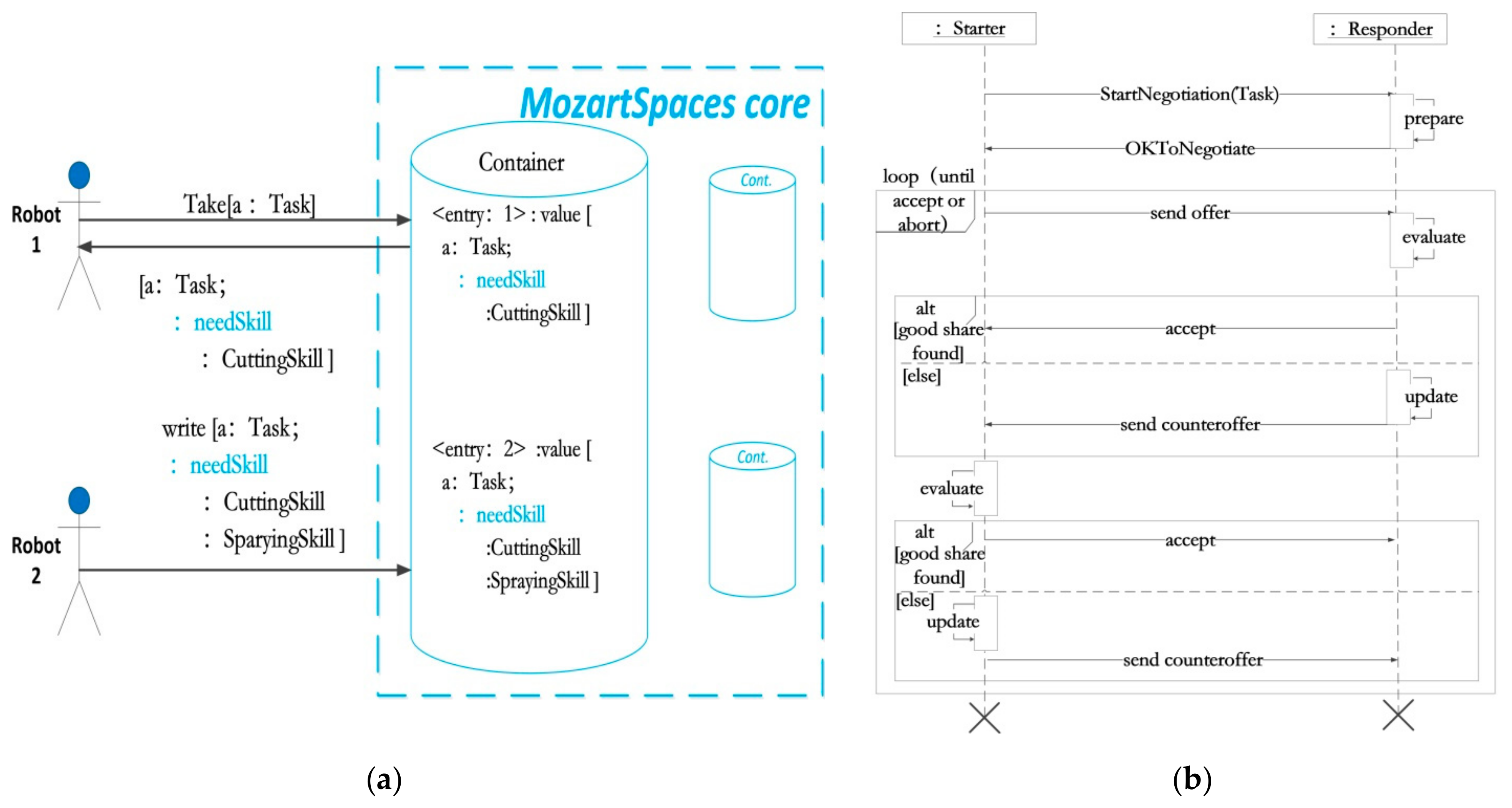

In reference [85], researchers adopted Semantic MozartSpaces to describe a task allocation data model based on a resource description framework (RDF) and SPARQL (a query language and data acquisition protocol developed by the RDF) in task storage where the RDF was used to construct nested blank nodes and SPARQL was used for querying, updating and interactions of the entry. As shown in Figure 10a, a task was mapped to a nested blank node to generate a semantic tuple (entry) in the task-allocation model. The entry was stored in the task storage with an internal ID that concluded the URL (uniform resource locator). Then, the entry could be selected with a URL according to the relationship between the robot’s function and the task requirement. The results of the simulation experiment suggested that the execution time increases correspondingly with an increasing number of tasks, followed by a gradual decrease in production efficiency. It would be necessary to add new robots temporarily to ensure productivity, but the production cost would also increase, so the tasks need to be set in advance.
As shown in Figure 10b, researchers developed market and auction-based approaches for task subdivision and allocation based on the Rubinstein negotiation protocol [28]. The advantage of such a protocol was that the auctioneer robot had to split the task into subtasks during the negotiation. In each round of negotiation, each robot initially started proposing the largest possible task allocation for itself and decreased its offers based on a negotiation of cost functions (discount factors) at each round until the other party indicated acceptance. With distributed task assignment under this protocol, each robot comes with a DDS, and each robot can dynamically adjust to the actual situation to get a suitable task. However, the task allocation result was generally an approximate optimal solution because of the discount factors, such as the area of the mission area, the distance of the robot from the goal, the area beyond the target, and the overlapping work area.
Combined with the above task allocation technology, the research progress of agricultural multi-robots in task allocation technology in the past 10 years is summarized in Table 4.
It can be seen from Table 5 that the current task allocation methods for agricultural multi-robots are mainly centralized, and most of them are implemented in the simulation experiment.
The centralized task allocation mainly adopts the integer programming method, which describes the nature of the task allocation problem by establishing the objective function and constraints. Integral programming (IP) and mixed-integer programming (MIP) problems are an important branch in the field of operations research, which includes branch and bound method [89], cutting plane algorithm [90], graph theory method, etc [91]. The idea is to determine the transfer method and transfer relationship from one search point to another, and the result is a unique optimal solution, which is suitable for small scale; when the scale is extended, the computation is considerable and the computation time will be greatly increased [92]. Thus, the computation of the algorithm grows exponentially with increases in the number of tasks and robots. In general, it is often difficult to meet real-time requirements in task allocation issues.
Distributed task allocation mainly uses a method based on behavioral motivation and a market-based approach. The former applies to multi-robot systems with strong autonomy, but the method has low system allocation efficiency; the latter has a wide range of applications based on the resource optimization configuration idea of economics, but the difficulty of this research method is how to design the negotiation mechanism and reasonably determine the cost-income models of the task [44].

3.4. Path Planning

Path planning is the fundamental guarantee for multiple robots to accomplish tasks together. This technology refers to using the known static environment information, or the dynamic environment information obtained by the sensor, to autonomously plan a collision-free optimal path for each robot from a known starting point to a target point, which requires not only a single robot to avoid obstacle but also a plan to satisfy collision avoidance among multiple robots [93]. The path planning methods for single robots to avoid obstacles mainly include traditional methods, intelligent methods, and other methods. The traditional methods include the construction space method, V-Graphic (visibility graph), Voronoi diagram, grid method, A* algorithm, and artificial potential field [94]. Intelligent methods include the ant colony algorithm, particle swarm algorithm (PSO), reinforcement learning algorithm, immune algorithm, genetic algorithm (GA), neural network, and fuzzy logic algorithm [95]. Other methods include dynamic programming (DP) and optimal control algorithms. Collision avoidance strategies among multiple robots include the priority method, rate adjustment method, traffic management rule, and consultation method.
The path planning method can be divided into centralized path planning and distributed path planning according to the ability classification of path planning [96].
  • Centralized path planning
The centralized path planning method uses a centralized control unit to plan the optimal path for swarm robots. This method can improve the ability of “close coordination and optimal coordination” among mobile robots [97]. However, it encounters other problems such as “dimensions”, “computational complexity”, and “non-deterministic polynomial problem (NP) difficulties” with the increase in the number of robots, task difficulty, and space complexity. In particular, the “NP difficulties” problem [98,99], in theory, has not yet received a simple or fast solution.
Connecting known path points into a line, which is simulated to a topological model, and letting multiple robots walk along their respective paths is one of the simplest and easiest path planning methods to implement. But, this method requires obtaining accurate known point information in advance, which is a large preliminary job and is not suitable for situations with a large number of robots or a large operating area. A method similar to the point-to-point method is the visible map method, which aims to reduce collisions. That is, the information of the edge projection points of each obstacle is obtained in advance, and the robot free walking path, path points that can be combined or disconnected are represented by edges and nodes, respectively. Then the starting node is connected to the target node, or the starting node is connected to the raised point of each obstacle edge until it reaches the target node, forming a multi-robot walking path. Finally, depending on the size of the robot, the path width is increased or decreased appropriately. Similarly, the workload of measuring points is larger and does not apply when there are more obstacles.

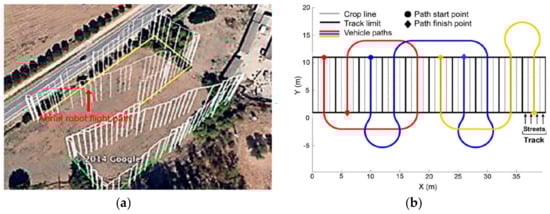

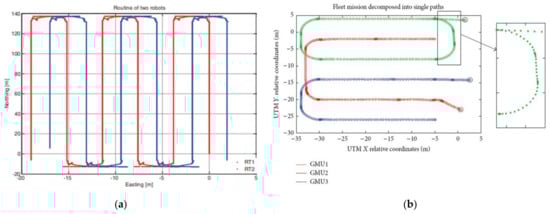

Planning multi-robot paths on mapping is another method of global path planning. For example, in the grid method, the map was divided into multiple grid cells, and the paths were extended in eight directions with each grid cell as the center, and the path segments were formed by connecting the center of the grid vertically and diagonally with the centers of other grid cells. To get the globally optimal path in the grid, the A* algorithm was used to search for the path segment with the lowest travel cost, in which the cost of the free space cell was set to 0, the cost of the cell with obstacles was set to the maximum, and the travel cost was the sum of all grid cells on the travel path segment, and the globally optimal path was set when the sum was the smallest.
Since information about the farmland changes dynamically, multiple robots operating with precision need to re-plan to create multiple paths each time based on different information. This multi-robot path planning problem with time windows has also been solved as a multi-objective optimization problem. As shown in Figure 11, where a multi-robot system including two aerial robots and three ground robots was jointly developed in Spain and other countries [49]. This system adopted a centralized control unit to provide global path planning for the multiple robots on a grid map with weed information, which divides the sequence of operations for the multiple robots in advance. The No dominated Sorting Genetic Algorithm II (NSGA-II) algorithm [100,101] was then used to coordinate the relationship between the distance of the robot travel path, the number of turns, the number of robots, the amount of weed killer used, and the capacity function to obtain an approximate optimal solution between the time and money spent by the multiple robots and the cost of weed treatment. It is a type of genetic algorithm, which mainly focuses on the simulation of crossover, variation, and hereditary phenomena occurring during natural selection and genetic inheritance, incorporating the natural law of superiority and inferiority, and deriving the candidate solutions for each generation based on the results, and finally deriving the optimal solution from the derived candidate solutions. However, this method is more computationally intensive and the experimental results are not suitable for fields that are unstructured or d fields without a fixed column or row lengths.
  • Distributed path planning
The distributed path planning method requires little calculation and is robust but exhibits low efficiency and can provide only a suboptimal solution [102,103]. In a fully known environment, it is necessary to consider each robot obstacle avoidance method and collision avoidance strategy among robots [104], that is, selecting a robot for path planning first, then broadcasting its path to other robots, and finally planning paths of other robots by themselves. However, this method is difficult to achieve [97] for large numbers of robots. In an unknown environment, the preferred method is to plan a path for each robot to avoid static obstacles based on neglecting the movement of other mobile robots in the environment and then using the multi-robot collision avoidance strategy to solve the conflict problem among mobile robots.
At present, there is little research on the distributed path planning of agricultural multi-robots. As shown in Figure 12, Bouzouita et al. [28] developed UAVs to monitor agricultural information in the vineyard. The path planning of the UAVs is based on the grid map and A*. On the map, the UAV path planning function is constructed according to constraint conditions, such as the number of UAV turns, the number of covered grid visits, and the time to complete the single partition. And using a heuristic algorithm like A*, the next best node to be expanded is obtained by partying the generation value of each node. Then, the breadth-first search (BFS) algorithm is used to find the local maximum of the function by the distance between the cells. The result is the path from any starting point in the environment to the target unit. The practice shows that the method can find the approximate optimal solution, reduce the possibility of repeated access to the same cell, and facilitate the avoidance of known obstacles. However, it needs to consider the local environmental conditions to find wide applicability.

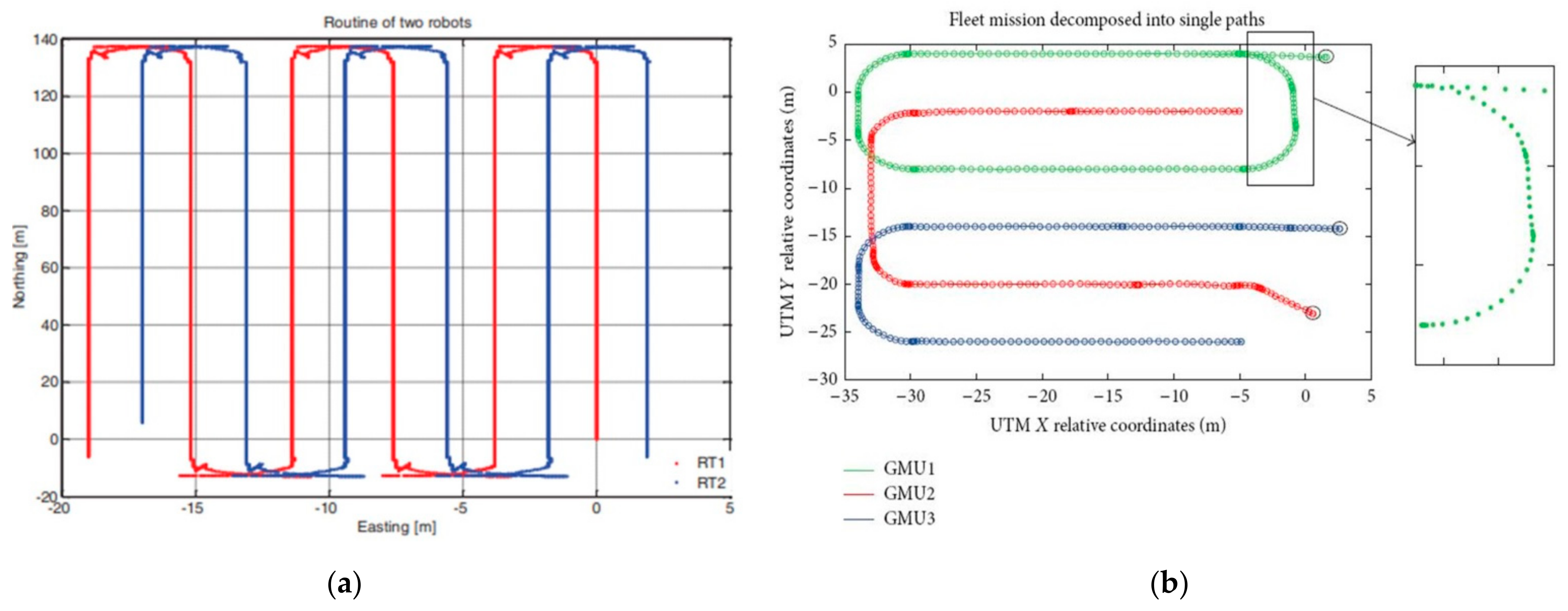

Combining the above path planning techniques, we summarize the research progress of agricultural multi-robots in path planning methods over the past 10 years, as shown in Table 5.
It can be seen from Table 5 that agricultural mobile robots mainly use ground robots in farmland, and the number of robots is no more than four. The path planning method of multi-robots is mainly conducted in fully known conditions, and the grid method and V-Graphic under centralized planning are the methods most commonly used.
The collision avoidance strategy between agriculture robots usually does not incorporate changes in the path [110], and the obstacle avoidance strategy of a single robot comprises mainly speed adjustment and the priority principle. The path planning of multi-robot generally does not consider the presence of obstacles in agricultural production.
When the UGVs turn around at the headland, they need to consider the relationship between the minimum turning radius and the headspace. The general head-turning method has a bulb shape (as shown in Figure 11b), zigzag or U-shape, etc. The U-shape predominates in practice. As shown in Figure 13, the zigzag (forward-reverse-forward) is used in smaller spaces; in contrast, the U-shape turn (turn-straight- turn) is used in larger spaces. However, the difficulty of robot control is increased with the zigzag turning shape, and the task allocation and path planning of the multi-robot are prepared for U-shape turning in advance.

3.5. Formation Control

Multi-robot formation control technology means that multiple robots maintain a certain formation to the target while still adapting to environmental constraints such as obstacle blocking or spatial physical limitations [111]. This technology can improve the robustness of the multi-robot system, and the robots can complete the task with higher efficiency and shorter time [112]. At present, the formation control technology of agricultural multi-robots is divided into forming formation and formation control.
  • Formation forming

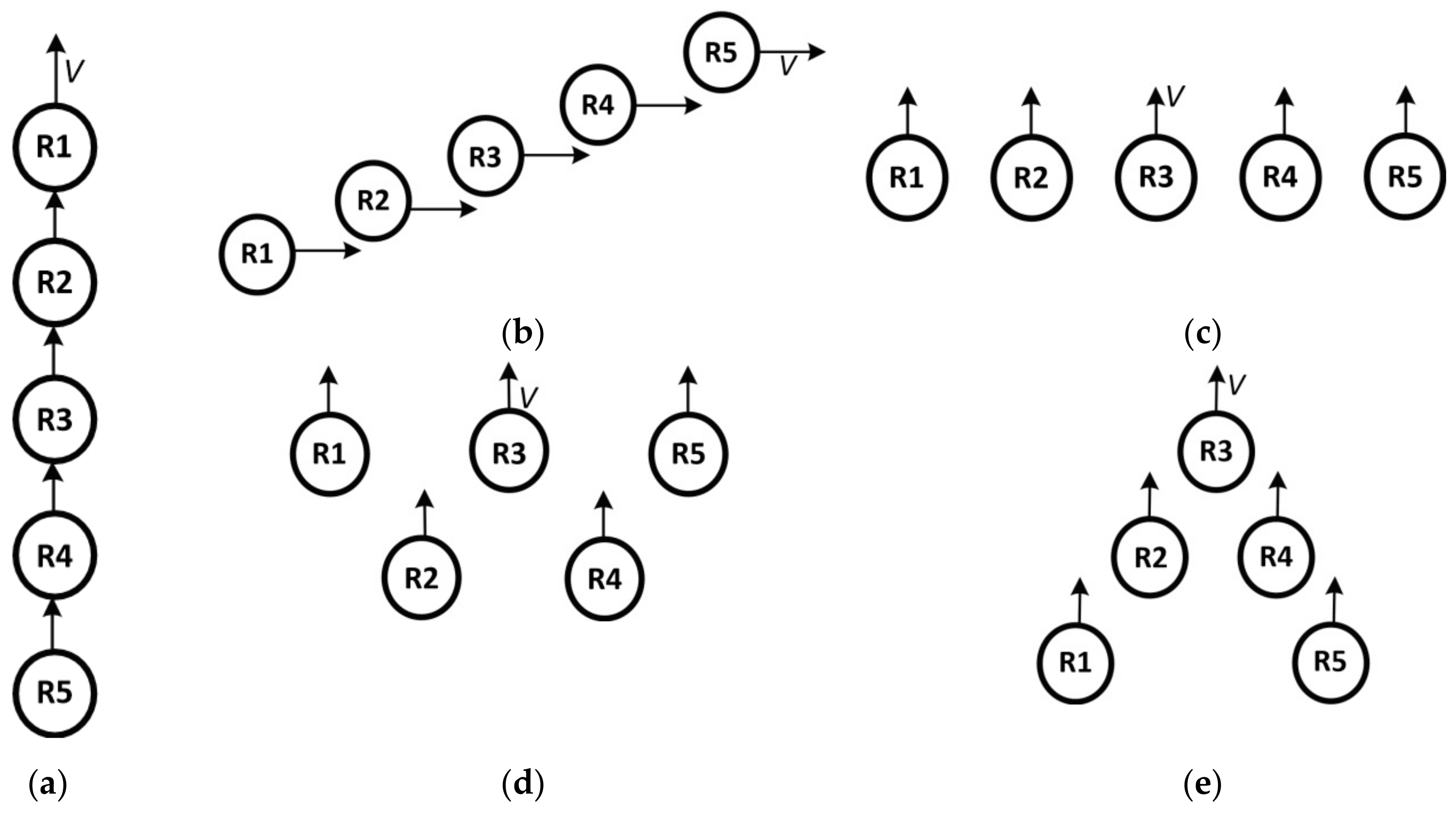

As shown in Figure 14, the formation of agricultural multi-robots generally has five types: column, I-shape, linear, V-shape, and W-shape, and the circular nodes in the formation structure represent robots. Each robot is represented by RID, such as R1 and R2, and the black arrow indicates the direction of robot movement.
It is necessary to achieve the desired formation by determining the formation position reference point after determining the root formation. There are usually three reference points: center, neighbors, and leading robot; as shown in Figure 15, the position of each root node is represented by PID, such as P1 and P2, and the arrows indicate the relationship between robot dependence and information transfer.
  • Formation control
From the perspective of a multi-robot system control framework, formation control is divided into two types: centralized control and distributed control. The former uses a centralized control unit to make decisions, optimize robot coordination, accommodate individual robot failures, and supervise the entire group of robots. The latter does not have a unified control unit, and a single robot makes decisions based on its local information [112,113].
At present, the method of centralized formation control of agricultural multi-robots includes the virtual structure, graph-theoretic approach [114], and model predictive control [115,116]. The method of distributing the formation control of agricultural multi-robots includes leader-follower [34,41,75,117] and the artificial potential field [113].

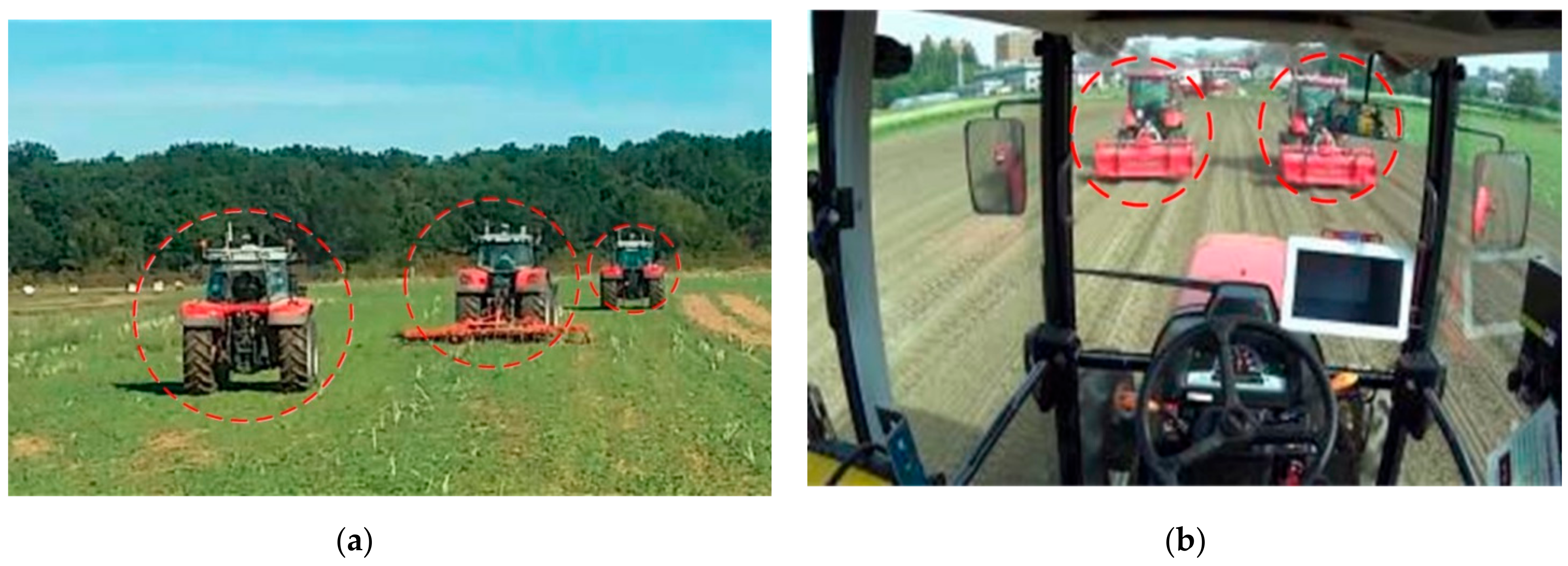

Guillet et al. in France [44] adopted the bidirectional control strategy based on the virtual structure method. As shown in Figure 16a, each robot of the whole queue is a fixed point on the virtual structure. In this structure, the queue also increases two virtual leaders’ interaction with the extreme robots and carries the desired global velocity for the whole fleet. The advantage of this method is simpler communication protocols and lower communication costs; however, the reaction of the robots is slower because of different acceleration performances.
Berman et al. in the USA adopted the graph theory approach in bee pollination [108]. When a beehive was opened, the swarm robot flew radially from a moving beacon at a constant speed. And once it encountered the edge of the graph, it flew eastward at a fixed speed. As the robot flies over the plant, it acquires at least one flower within its range through sensors and hovers over the flower with unit time probability to pollinate it and record the location of the pollinated flower, returning to the hive after pollination and starting the next flight until complete coverage of the whole field is achieved. However, this method takes a long time and the model used in the simulation is too idealized. Whether they can be used for practical production needs to be further explored.
Smith et al. in Korea adopted model predictive control (MPC) and nonlinear feedback control respectively in fish tracking (simulation) [117]. MPC is a finite-domain rolling optimal control strategy with three parts: model, prediction, and decision, sacrificing optimality to some extent [118]. The fish population location was first divided into discrete points, and the discrete points were clustered to get the vertices of fish population density, and the transition model was constructed by transforming the movement of the fish population into the movement between the vertices. The transition model and nonlinear feedback were used to obtain the transition matrix, and the underwater robot was guided to the vertices with high fish population density according to the transition matrix. The simulation results showed that the model-based control of the underwater robot could approach the nearest point, while the feedback control made the underwater robot approach the target point. However, in practice, the underwater robot movement speed is smaller than the fish population movement speed, and the method needs further improvement when applied in practice. The leader-follower method [48,105,117,119,120] is also another classic model and widely used in the formation control of agricultural multi-robots. Japan’s Zhang et al. [106] used the leader-follower method to control UGV formation. As shown in Figure 16b, the relative positional relationship between the leader and the follower is determined according to the lateral and longitudinal safety distances (l−l) between the robots first, and then the distances are dynamically adjusted with feedback linearization technology to assemble different formations. Based on the leader-follower model, Bai et al. in China also combined slide mode control with the harvester swarm [48]. The kinematic model of the farmland leader-follower harvester swarm was established first, and based on this model; the asymptotically stable path-following control law and the formation-keeping control law were designed by combining feedback linearization and sliding-mode control theory. The advantage of this leader-follower model is that the behavior of the fleets can be controlled through the determined trajectory of the leading robot. The method decouples the cooperative navigation control problem into lateral distance keeping control and longitudinal distance keeping control. The formation control is mainly accomplished by establishing the location and gesture of the following robot relative to the leading robot, such as (l−φ), (l−l) first, then obtaining the formation information through feedback linearization, and finally adjusting the formation according to the threshold value. The leader-follower test results show that the real paths of robots can achieve centimeter-level average error with the planned path based on the safe distance of the vehicle. But this method is only applicable for environments involving a single-tasking of agricultural production and a fixed site. The adaptability to the headland turns is not strong. The question of how to maintain robot formation in encountering static or dynamic obstacles is not considered. If the leading robot malfunctions, the formation of the fleets cannot be maintained. Once the leading robot fails, the multi-robot system is susceptible to deadlock, and the formation cannot be maintained. The “leader” replacement method was proposed [121] to overcome this shortcoming, but the method has not been applied to agricultural multi-robots.
Ju and Son in Korea adopted Ramadge-Wonham theory in supervisory control to solve the above deadlock problem [122]. Supervisory control is a feedback control theory for discrete-event systems, where the control goal is achieved by observing the occurrence of events or states and using allowable or prohibited controllable events. Finally, a time-driven system is combined with a low-level controller and an event-driven system with a high-level controller with the criterion of satisfying the behavior specification and maximizing the allowable events. Time-driven is used when there is no fault, and once the queue encounters a fault, the control outcome is selected based on event-driven. Simulation results demonstrate that the method can be used to control complex dynamic systems, but it has not been tested in practical applications.
The characteristics and formation process of the formation control methods are shown in Table 6.
From Table 6, it can be found that more complex or hybrid control methods are mostly used in simple or simulation environments, and the application in actual agricultural production is still dominated by the leader-follower method, and the research is also mainly focused on multiple machines traveling in a straight line in a fixed column. Further research should be conducted on how to continue driving, maintain the formation, or adjust the formation after multiple robots encounter obstacles.

3.6. Communication

Communication is the basis of information interaction and collaboration among multiple robots. In agricultural production, many factors affect the fine operation of agricultural robots, and to maintain coordination and cooperation among multiple robots and to gain a more comprehensive understanding of the environment in which multiple robots perform tasks, robots need to interact with each other through information to better perform a given task [29]. Balch and Arkin concluded that even a small amount of communication can improve the performance of multi-robot systems tremendously through experiments [125].
At present, the communication technology of agricultural multi-robots mainly involves three parts: multi-robot communication mode, communication network, and communication protocol.
  • Communication mode

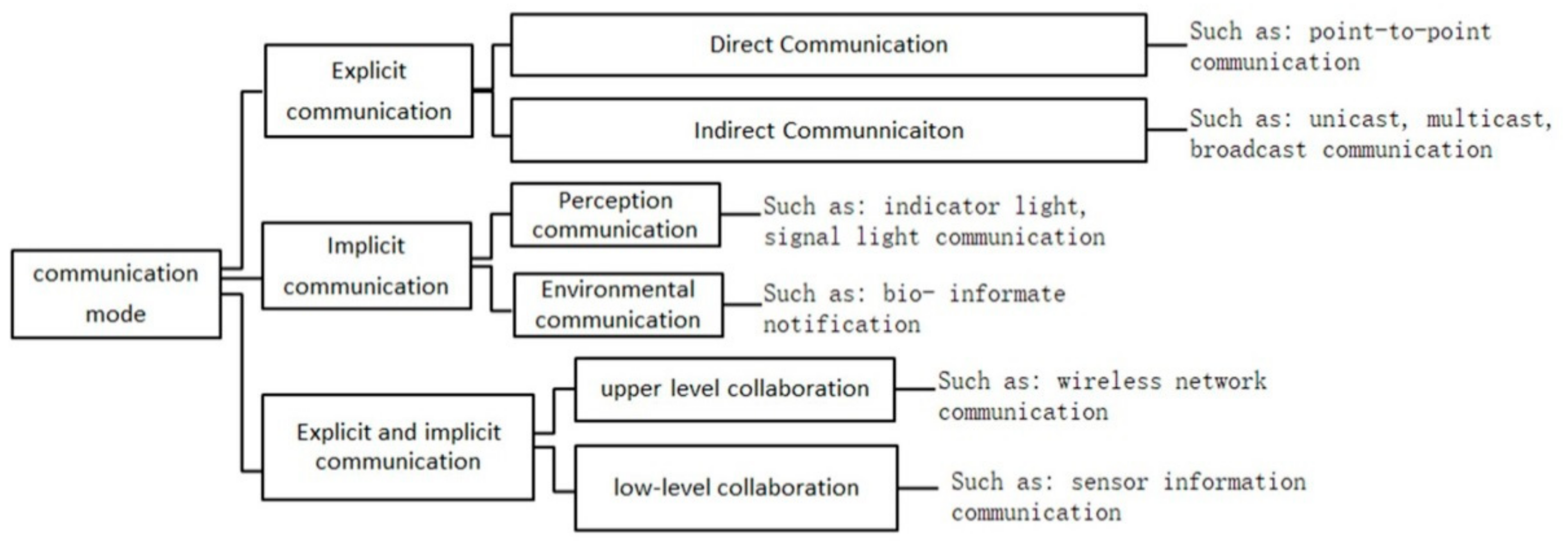

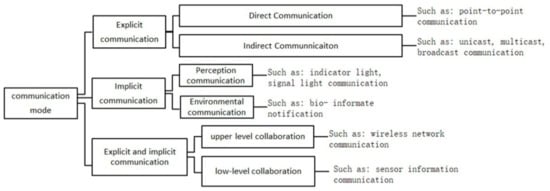

The multi-robot communication mode is divided into three categories from a macro perspective: explicit communication, implicit communication, and explicit and implicit communication, as shown in Figure 17. Explicit communication is an interactive mode through communication as a medium, requiring a clear communication protocol between interacting parties. This method is often used for concordant communication among robots, but it incurs fairly large costs. Implicit communication is the acquisition of the required information through the external environment and internal sensors without an explicit exchange of data, so some advanced coordination strategies cannot be used, which affects the capacity to perform certain complex tasks.
Since explicit communication and implicit communication have their advantages [120], explicit communication is used for the integrated control of robots in the upper layer, and implicit communication is used for integrated control of robots in the bottom level. Explicit communication means that the robot communicates directly or indirectly with other robots via wireless networks. For example, robot 1 sends a message to all robots in the communication range in broadcast communication, that is, without specifying a particular robot, robot 2, which does not need the message, receives the message. In implicit communication, the intermediary for inter-robot communication is often the surrounding environment. For example, the UAV can be informed about the farmland in advance and build a model of the farmland environment, and the ground robots operate on the ground based on this farmland model [122]. The combination of both communication modes can be used to develop their advantages, improve the flexibility to confront the various dynamic and unknown environments, and complete many complex tasks in agricultural production.
For the implicit communication of multiple robots, you can refer to Section 3.2 environment perceptions, here we focus on robot explicit communication techniques.
In literature [25], two aerial drones were equipped with GPS, visible and near-infrared spectral cameras, which took pictures of the farmland at a set series of ordered waypoints and uploaded them to the backend, which sends the processed information of weeds in the farmland to the ground robot. The ground robots were equipped with RTK-GPS, RGB camera, and LIDAR. RTK-GPS provided accurate heading for the ground robot, RGB camera detects weeds and crop rows, and LIDAR detects obstacles on the vehicle trajectory. While the ground robots were safely walking along their respective set paths, weeding operations start if the weeds detected by the cameras were the same as the weed information in the farmland. In this multi-robot system, the aerial drones and ground robots did not communicate directly but completed the cooperative operation through the interaction of environmental information.
  • Wireless communication net of multiple robots

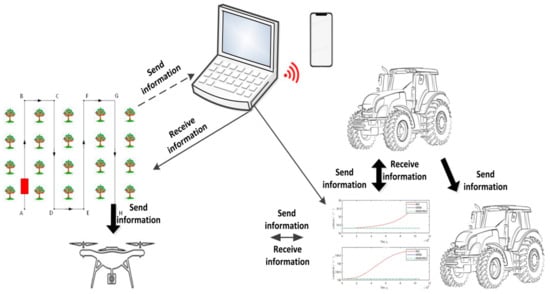

As shown in Figure 18, the agricultural multi-robots need to adjust their pose in real-time. Therefore, the data exchange of communication among multiple robots is mainly based on wireless communication technology in agricultural production. This technology mainly involves a wireless local area network (WLAN) and a wireless personal area network (WPAN), such as WI-FI, Bluetooth, ZigBee, and IRDA (infrared data association). Among them, WI-FI technology has been developed most rapidly in agricultural multi-robots.
  • The wireless communication protocol of multiple robots
The wireless communication protocols are primarily used based on wireless communication standards and the unlicensed band. Taking the WLAN as an example, the IEEE 802.11 series standards and the 2.4 GHz or 5 GHz bands are used in this communication. The IEEE 802.15 series of transmission technology protocols are selected in WPAN.
Combined with the above communication technology, the research progress of agricultural multi-robots in communication in the past 10 years is summarized, as shown in Table 7.
In addition to the above wireless communication technologies, Albani et al. adopted a mobile ad hoc (peer-to-peer) network [128,129], which regarded the UAV as a communication node in the network and used three communication strategies (simple, flooding, geo-aware) to solve the communication problem of UAVs flying in the field. The simplest communication strategy is a single broadcast mode, that is, the source node sends information to the nearest node. Flooding constitutes a multi broadcast mode, that is, the source node sends information to multiple agents. Geo-aware employs a source node with the highest utilization rate, and this node sends the messages. All three communication strategies ignore communication errors and focus on the impact of the communication range and protocol on work efficiency. The simulation results show that the effective information of weed monitoring can be transmitted with a minimum number of UAVs under the geo-aware approach. However, the communication strategy discards new information obtained by UAVs of the distributed architecture, and messages cannot be effectively transmitted with a wide range of communication (such as over wide areas of farmland). Agricultural multi-robots working in the farmland often encounter signal occlusion, atypical weather, etc.
Large agricultural multi-robots working in agricultural fields rarely encounter problems such as signal occlusion and atypical weather. However, in other agricultural products, such as greenhouse and orchard, when the size of the multi-robot is smaller than the height of the crop, its communication signal strength is extremely attenuated by factors such as crop planting, growth characteristics, planting scale, and weather (natural wind and rain). Previous references [126,127,130] showed that the test results of the WI-FI communication system of agricultural multi-robots suffered from WI-FI signal intensity attenuation largely because of the reflection and scattering effects of crops, and the effective communication distance was less than 50 m (far less than the theoretical communication distance of 300 m) in mature wheat fields, cornfields, and peach gardens. Therefore, it is a future research direction to select suitable multi-robot communication technology according to the characteristics of crops and to carry out research on multi-robot communication patterns based on crop shape characteristics.

4. Discussion

In general, in the past 10 years, the synergistic technologies of agricultural multi-robots have achieved some research results, and multi-robot collaborative operations have been realized in specific agricultural scenarios. But with the increasing demand for agricultural operations, the following challenges in the application of multi-robots in agriculture still exist to be solved:
  • Flexible agricultural multi-robot system architecture
Multi-robot architecture is the basis for collaborative operations of multi-robot systems. In the last decade, agricultural multi-robot systems have mainly focused on centralized or distributed architectures to accomplish collaborative operations under pre-defined conditions. Both architectures have their advantages and disadvantages, but as the number of robots increases (such as multiple aerial robots cooperating with multiple ground robots) and new agricultural operational needs increase (such as sampling in marine environments [131], cargo handling in hilly mountainous areas, pest control in orchards, etc.), it is clear that the scalability and flexibility of multi-robot systems relying on only one architecture are limited. The advantages of centralized and distributed architectures are combined to form a hybrid architecture, or the application architecture is dynamically selected according to the task attributes, which can overcome the low performance caused by the self-centeredness in the distributed architecture and reduce the lack of control flexibility in the centralized architecture.
  • Fast and precise environmental perception
In environmental awareness, positioning and sensor fusion answer the question of “where am I” and building a map answers the question of “what’s around me”, and the answers to these two questions are the prerequisites for robots to start their operations. The positioning and sensor fusion technologies of agricultural multi-robot are mostly used in large fields with unobstructed outdoor signals, where the communication between robots is normal and the robots can get accurate positioning, heading, speed, obstacles, and other information based on their sensors. However, considering the severe compaction of soil by large agricultural machines, the compression of application costs, and the promotion of this concept of refined agriculture, light, and small agricultural robots will be the trend of future development, which will make multi-robot positioning unable to continue to rely on the high-precision positioning of a particular robot or a particular sensor (e.g., GPS). Especially in case of robot failure or communication failure, how to ensure the accurate positioning of the remaining individuals and make the multi-robot system with good robustness is a problem that needs to be solved urgently.
Mapping not only can accurately learn the information of detailed agricultural information, static obstacles, and the location of other robots but also can assign tasks and plan paths for multiple robots. The more accurate the agricultural information, the more accurate the operation objects will be, but this contradicts agricultural tasks that urgently need a fast response, which means that the time spent on the subsequent processing of information data reduces the real-time and flexibility of multi-robot operations. How to obtain dynamic agricultural information quickly and accurately and match it with the precise location of the operation object is another urgent problem in environment sensing.
  • Reasonable task assignment in real-time
The task assignment is related to the multi-robot coordination and collaboration mechanism, and the simple zoning assignment of robots cannot adapt to the dynamically changing operational tasks. Also, the number of robots, operating time, and cost of robot operations need to be dynamically adjusted to the operating task. Even for the same type of robots, items such as fuel or electricity, fertilizers, herbicides, and pharmaceuticals can change differently depending on the target of the operation. It is impossible to obtain fast and reasonable response results based on the changes of these uncertainties even depending on a priori knowledge. How to enable multi-robots to timely self-adjust to dynamic task changes and obtain reasonable operational tasks or operational task sequences through real-time interaction with dynamic environments is an urgent problem for multi-robot task assignments in agriculture.
  • Dynamic and reliable path planning
The path of agricultural multi-robot operations is designed to accomplish dynamic operational tasks, and the robot’s travel rules are usually fixed. The global path of multi-robot offline planning only considers fixed travel rules, such as the point-to-point method and image method, which can avoid static obstacles smoothly, but cannot be extended to be applied to similar agricultural scenarios. In particular, if the dynamics of the agricultural environment change rapidly (e.g., weeds are growing in the field after the rainy season) and the agricultural information is not fully known (e.g., the constructed mapping usually does not contain dynamic obstacles), fixed path planning cannot meet the needs of complex tasks (e.g., weeds are not on the planned path). Therefore, how to perform reliable path planning for multiple robots based on operational tasks with distinct temporal characteristics is a problem that needs to be solved for multi-robot path planning in agriculture.
  • Flexible and robust formation control
Multi-robot formation control currently focuses mostly on robot swarms walking steadily along a straight line in a fixed formation. However, when a multi-robot system encounters unexpected events, such as robot failure, communication failure, or stopping travel due to dynamic obstacles, how to mitigate the impact on other robots, respond quickly, and adjust the robot formation shape to continue the task is a concern for agricultural multi-robot formations. Although some studies have shown that multiple robots can be selectively controlled based on time or event drivers, or by replacing the “leader” in the queue, none have been applied in real production.
  • Communication system based on plant characteristics
Communication is the basis of multi-robot collaboration in agriculture, whether it is multi-robot positioning, collaborative control, or remote supervision, communication is indispensable. The agricultural environment lacks communication infrastructure construction, and most of them directly used industrial communication systems do not consider the relationship between outdoor plant growth and communication signals, and their communication range and signals will be attenuated to different degrees in the agricultural environment. Therefore, the construction of a communication system adapted to the agricultural multi-robot operating environment is a problem that needs to be solved for multi-robot communication.

5. Conclusions

Given the current challenges in agricultural multi-robot research, this paper points out future research directions in six areas to enhance the application of agricultural multi-robots in practice. Firstly, to build a flexible and changeable agricultural multi-robot system architecture based on hybrid architecture so that the multi-robot system has good environmental adaptability and robustness. Secondly, to develop sensor information fusion technology among agricultural multi-robots based on mutual positioning methods to improve the positioning accuracy of multi-robots in agricultural environments without GPS. Meanwhile, SLAM technology for agricultural multi-robots is studied to rapidly build environment models to adapt to the dynamically changing agricultural information. Third, to introduce deep learning mechanisms in agricultural multi-robot task assignment enables multi-robots to self-identify, evaluate, compare, remember and adjust during their interaction with the environment, and adjust the way they interact with other individuals according to specific tasks so that the group as a whole is equipped with the ability to complete multiple types of tasks. Fourth, dynamic planning of multi-robot paths based on a combination of centralized and distributed path planning methods enables multi-robot systems to adapt to real-time changing operational tasks and avoid obstacles and other robots promptly. Fifth, to modify the reference points of multi-robot formations flexibly according to changing events, adjust the distance and direction between formation members, reduce the impact on other mobile robots, and complete operational tasks. Sixth, to study the relationship between plant growth characteristics and communication system, establish a communication signal attenuation model, and design an agricultural multi-robot communication protocol based on this model to build a communication system.
In summary, the multiple robot system represents the future of robot development. The synergistic technologies for the research of agricultural multi-robots have a great value and bright prospects but are also extremely challenging. Therefore, it requires participation by researchers to combine the former research results, recognize the developing trends, and use practicality as the ultimate goal to drive forward the coordination technology of agricultural multi-robots.

Author Contributions

Writing—review and editing, W.M.; supervision, H.L., Z.L., F.Y. and M.W.; project administration, F.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research received funding from the Major Science and Technology Project of Shaanxi Province of China (Program No. 2020zdzx03-04-01).

Institutional Review Board Statement

The study in the paper did not involve humans or animals. The project supporting the research of this paper is to study agricultural machinery and equipment for apple orchards, and the research does not involve humans or animals.

Informed Consent Statement

The study in the paper did not involve humans.

Data Availability Statement

This paper is a scientific review paper that provides a detailed analysis and summary of agricultural multi-robots, independent of the data.

Acknowledgments

Authors thank the funding received from the Major Science and Technology Project of Shaanxi Province of China (Program No. 2020zdzx03-04-01). We also thank the critical comments and suggestions from the anonymous reviewers for improving the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Xia, L.Y. Negative Effects of Labor Force Drain on Rural Economy. J. Nanjing Agric. Univ. (Soc. Sci. Ed.) 2009, 9, 14–19. [Google Scholar] [CrossRef]
  2. Wu, L.L.; Li, G.C.; Zhou, X.S. Change of Factor Endowments and China Agricultural Growth Path Selection. China Popul. Resour. Environ. 2015, 25, 144–152. [Google Scholar] [CrossRef]
  3. Chen, X.W.; Chen, Y.Y.; Zhang, J.J. A Quantitative Study on the Impact of the Aging of Rural Population on Agricultural Output in China. Chin. J. Popul. Sci. 2011, 26–39. Available online: http://www.cnki.com.cn/Article/CJFDTotal-ZKRK201102005.htm (accessed on 11 March 2019).
  4. Zhang, S.W.; Tian, X.; Wang, S.G. Impact of Aging Agricultural Labor on Mechanization and Technical Efficiency in Wheat Production: A prospective analysis based on landforms. J. China Agric. Univ. 2018, 23, 174–182. [Google Scholar]
  5. Hu, X.P.; Zhu, Y.; Ge, D.Q. Analysis on the Aging of the Agricultural Labor Force in China. 23 December 2011. Available online: http://www.chinanews.com/sh/2011/12-23/3554966_3.shtml (accessed on 11 March 2019).
  6. Chen, Z.; Li, C.Y.; Zou, X.J. Supportive Technologies and Research Progresses of Agricultural Multi-robot System. J. Hua Zhong Agric. Univ. 2007, 26, 914–919. [Google Scholar] [CrossRef]
  7. Zhang, Y.Z.; Chen, L.D.; Tang, T.Z. Analysis on the Causes and Effects of the Rising Labor Cost of Agricultural Planting. Mod. Agric. Sci. Technol. 2017, 259–261. [Google Scholar] [CrossRef]
  8. An International Comparative Study of Labor Productivity and Unit Labor Costs in Three Industries in China. Available online: https://www.sohu.com/a/274944214_481741 (accessed on 24 January 2021).
  9. Zhang, Y.H. The “High Cost” Era of Agriculture Needs to Improve Competitiveness. Finance Community 2017, 16, 74–77. [Google Scholar] [CrossRef]
  10. Zhou, X.S. Labor Migration, and Agricultural Mechanization. J. South China Agric. Univ. (Soc. Sci. Ed.) 2017, 3, 49–57. [Google Scholar] [CrossRef]
  11. Shamshiri, R.R.; Weltzien, C.; Hameed, I.A.; Yule, I.J.; Grift, T.E.; Balasundram, S.K.; Pitonakova, L.; Ahmad, D.; Chowdhary, G. Research and Development in Agricultural Robotics: A perspective of Digital Farming. Int. J. Agric. Biol. Eng. 2018, 11, 1–14. [Google Scholar] [CrossRef]
  12. Sun, F.K.; Xing, Z.B. Summary and Improvement Measures for Soil Compaction Caused by Machinery. Agric. Sci. Technol. 2014, 15, 205–206. [Google Scholar] [CrossRef]
  13. Johnson, D.A.; Naffin, D.J.; Puhalla, J.S.; Sanchez, J.; Wellington, C.K. Development and Implementation of A Team of Robotic Tractors for Autonomous Peat Moss Harvesting. J. Field Robot. 2010, 26, 549–571. [Google Scholar] [CrossRef] [Green Version]
  14. Moorehead, S.; Wellington, C.; Gilmore, B.; Vallespi, C. Automating Orchards: A System of Autonomous Tractors for Orchard Maintenance. In Proceedings of the 2012 IEEE/RSJ International Conference on Intelligent Robots & Systems (IROS), Vilamoura, Algarve, Portugal, 7–12 October 2012. [Google Scholar]
  15. Noreils, F.R. Toward a Robot Architecture Integrating Cooperation Between Mobile Robots. Appl. Indoor Environ. 1993, 12, 79–98. [Google Scholar] [CrossRef]
  16. Kun, S. Production Time and Labor Time of Agriculture: Academic Debate and Value Implication. J. China Agric. Univ. (Soc. Sci. Ed.) 2019, 36, 11–23. [Google Scholar] [CrossRef]
  17. This Spring Plowing, Modern Agricultural Machinery “Take the Big Beam” My City Spring Plowing Preparation Plows to Invest 149 Thousand Sets of Agricultural Machinery Tools. Available online: https://app.cqrb.cn/economic/2020-02-27/130410_pc.html (accessed on 30 November 2020).
  18. The Agricultural Machinery Plays the Leading Role, Helps the Farmer Spring Plows the Busy. Available online: http://baijiahao.baidu.com/s?id=1665918730118414764 (accessed on 30 November 2020).
  19. Xinjiang Plant Protection Drone Doubles Farmers’ Income. Available online: https://kuaibao.qq.com/s/20190903A01ZHK00?refer=spider (accessed on 30 November 2020).
  20. Summer Grain Harvest Nearly 80%, the Harvest Has Become a Foregone Conclusion. Available online: http://www.xinhuanet.com/fortune/2019-06/12/c_1124613101.htm (accessed on 30 November 2020).
  21. Yao, J.W.; Huang, C.S. Review on Multi-robot Coordination and Cooperation Control Technology. J. Huangshi Inst. Technol. 2007, 23, 1–6. [Google Scholar] [CrossRef]
  22. Zhang, Z.Y. Research on Multi-Robot Collaboration and Environmental Modeling. Ph.D. Thesis, Harbin Engineering University, Harbin, China, 2009. [Google Scholar]
  23. Hao, Y.; Laxton, B.; Agrawal, S.K.; Benson, E.R. Differential flatness-based formation following of a simulated autonomous small grain harvesting system. Trans. ASAE 2004, 47, 933–941. [Google Scholar] [CrossRef]
  24. Hao, Y.; Laxton, B.; Benson, E.R.; Agrawal, S.K. Robotic Simulation of the Docking and Path Following of an Autonomous Small Grain Harvesting System. In Proceedings of the 2003 ASAE Annual International Meeting, Las Vegas, NV, USA, 27–30 July 2003. [Google Scholar] [CrossRef] [Green Version]
  25. Emmi, L.; Gonzalez-de-Soto, M.; Pajares, G.; Gonzalez-de-Santos, P. New Trends in Robotics for Agriculture: Integration and Assessment of a Real Fleet of Robots. Sci. World J. 2014, 1–21. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Tan, M.; Wang, S.; Cao, Z.Q. Multi-Robot System; Tsinghua University Press: Beijing, China, 2005; p. 307. ISBN 978-7-3021-0095-9. [Google Scholar]
  27. Noguchi, N.; Will, J.; Reid, J.; Zhang, Q. Development of A Master-Slave RobotSystem for Farm Operations. Comput. Electron. Agric. 2004, 44, 1–19. [Google Scholar] [CrossRef]
  28. Bouzouita, A.; Larbi, H.; Cherif, M.; Selmi, M.S.; Belhadj, K.; Derouiche, A.; Ben Slama, M.R.; Chebil, M. Aerial Remote Sensing in Agriculture: A Practical Approach to Area Coverage And Path Planning For Fleets of Mini Aerial Robots. J. Field Robot. 2011, 28, 667–689. [Google Scholar] [CrossRef] [Green Version]
  29. Cai, Z.X.; Chen, B.F.; Liu, L.Y.; Yu, L.L. Cooperative Principle and Technology of Multi-Mobile Robot; National Defense Industry Press: Beijing, China, 2011; p. 286. ISBN 978-7-1180-6854-2. [Google Scholar]
  30. Şahin, E. Swarm Robotics: From Sources of Inspiration to Domains of Application. In Proceedings of the 2004 International Conference on Swarm Robotics, Berlin, Germany, 10–20 July 2004. [Google Scholar] [CrossRef]
  31. Fan, R.F.; Xie, G.M.; He, C.G. Robot Perception and Application; Harbin Engineering University Press: Harbin, China, 2013; p. 197. ISBN 978-7-5661-0688-9. [Google Scholar]
  32. Wang, D.S.; Wang, J. Research Review of Environmental Cognition Techniques of Mobile Robots in Unknown Environment. Mach. Tool Hydraul. 2013, 41, 187–191. [Google Scholar] [CrossRef]
  33. Jiang, H.Z. A Review of Collaborative Positioning Technology. Telecom. Power Technol. 2017, 34, 48–50. [Google Scholar] [CrossRef]
  34. Rekleitis, I.M.; Dudek, G.; Milios, E.E. Multi-robot cooperative localization: A study of trade-offs between efficiency and accuracy. In Proceedings of the 2002 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), EPFL, Lausanne, Switzerland, 30 September–4 October 2002; pp. 2690–2695. [Google Scholar] [CrossRef] [Green Version]
  35. Cai, Y.F. Research on Multiple Robots Cooperative Localization and the Architecture. Ph.D. Thesis, Nanjing University of Science & Technology, Nanjing, China, 2011. [Google Scholar]
  36. Stroupe, A.W.; Balch, T. Collaborative probabilistic constraint-based landmark localization. In Proceedings of the 2002 IEEE/RSJ International Conference on Intelligent Robots & Systems (IROS), EPFL, Lausanne, Switzerland, 30 September–4 October 2002; pp. 447–453. [Google Scholar] [CrossRef]
  37. Wang, Z.Q. Design and realization on the autonomous following control system of agricultural vehicles. Master’s Thesis, Nanjing Agricultural University, Nanjing, China, 2014. [Google Scholar]
  38. Bi, W.P.; Zhang, H.; Qu, Z.L.; Ding, Y.Q.; Yu, H.F.; Wang, B. Design of an autonomous following system for master-slave vehicles operating in orchard based on binocular stereo vision. J. Hunan Agric. Univ. (Nat. Sci.) 2016, 42, 344–348. [Google Scholar] [CrossRef]
  39. Zhao, M.; Lin, M.S.; Huang, Y.Q. Leader-following Formation Control of Multi-robots Based on Dynamic Value of φ. J. Southwest Univ. Sci. Technol. 2013, 28, 57–61. [Google Scholar] [CrossRef]
  40. Guillet, A.; Lenain, R.; Thuilot, B.; Martinet, P. Adaptable robot formation control: Adaptive and predictive formation control of autonomous vehicles. IEEE Robot. Autom. Mag. 2014, 21, 28–39. [Google Scholar] [CrossRef] [Green Version]
  41. Wu, X.; Jing, Y.; Sun, F.; Chen, H.; Huang, S. An approach to multi-robot cooperative SLAM. In Proceedings of the 2012 31st Chinese Control Conference (CCC), Hefei, China, 25–27 July 2012; pp. 4904–4913. [Google Scholar]
  42. Zhu, Z.; Takeda, J.-i.; Torisu, R.; Chen, J.; Song, Z.; Mao, E. Control system for tractor-platooning. Proceedings of 2007 International Conference on Mechatronics and Automation (ICMA), Harbin, China, 5–8 August 2007; pp. 3173–3178. [Google Scholar] [CrossRef]
  43. Zhu, Z.; Takeda, J.-I.; Xie, B.; Song, Z.; Torisu, R.; Mao, E. Tractor platooning system on sloping terrain at low speed. Trans. ASABE 2009, 52, 1385–1393. [Google Scholar] [CrossRef]
  44. Guillet, A.; Lenain, R.; Thuilot, B.; Rousseau, V. Formation Control of Agricultural Mobile Robots: A Bidirectional Weighted Constraints Approach. J. Field Robot. 2017, 34, 1260–1274. [Google Scholar] [CrossRef]
  45. Cartade, P.; Braconnier, J.-B.; Lenain, R.; Thuilot, B. Adaptive and predictive control of a mobile robots fleet: Application to off-road formation regulation. In Proceedings of the 2013 IEEE International Conference on Robotics and Automation (ICRA), Karlsruhe, Germany, 6–10 May 2013; pp. 1836–1842. [Google Scholar] [CrossRef]
  46. Xi, Z.; Marcus, G.; Patrick, O.N.; Ludwig, G. Development of an intelligent master-slave system between agricultural vehicles. In Proceedings of the 2010 Intelligent Vehicles Symposium(IV), La Jolla, CA, USA, 21–24 June 2010; pp. 250–255. [Google Scholar] [CrossRef] [Green Version]
  47. Chi, Z.; Noboru, N. Development of Leader-follower System for Field Work. In Proceedings of the 2015 IEEE/SICE International Symposium on System Integration (SII), Meijo University, Nagoya, Japan, 11–13 December 2015; pp. 364–368. [Google Scholar] [CrossRef]
  48. Bai, X.; Wang, Z.; Hu, J.; Gao, L.; Xiong, F. Harvester Group Corporative Navigation Method Based on Leader-Follower Structure. Trans. Chin. Soc. Agric. Mach. 2017, 48, 14–21. [Google Scholar] [CrossRef]
  49. Gonzalez-de-Santos, P.; Ribeiro, A.; Fernandez-Quintanilla, C.; Lopez-Granados, F.; Brandstoetter, M.; Tomic, S.; Pedrazzi, S.; Peruzzi, A.; Pajares, G.; Kaplanis, G.; et al. Fleets of robots for environmentally-safe pest control in agriculture. Precis. Agric. 2017, 18, 574–614. [Google Scholar] [CrossRef]
  50. Gonzalez-de-Soto, M.; Emmi, L.; Perez-Ruiz, M.; Aguera, J.; Gonzalez-de-Santos, P. Autonomous systems for precise spraying - Evaluation of a robotized patch sprayer. Biosyst. Eng. 2016, 146, 165–182. [Google Scholar] [CrossRef]
  51. Zhou, H.M.; Qian, Z. Intelligent Sensing Technology and System (11th Five-Year Plan); Beijing University of Aeronautics and Astronautics Press: Beijing, China, 2008; p. 301. ISBN 978-7-8112-4366-6. [Google Scholar]
  52. Qing, Z.Q. Data Fusion Technique and Its Application. Ordnance Industry Autom. 2003, 22, 25–28. [Google Scholar] [CrossRef]
  53. Perez-Ruiz, M.; Upadhyaya, S.K. GNSS in precision agricultural operation. In New Approach of Indoor and Outdoor Localization Systems; Intech: Brisbane, Australia, 2012; pp. 1–25. [Google Scholar] [CrossRef]
  54. High Precision TOPCON Autopilot System for Agricultural Seeding, Land Preparation and Spraying. Available online: http://www.app17.com/supply/offerdetail/9628838.html (accessed on 25 January 2021).
  55. Juan-Carlos, T.; Rodrigo, M.; Edmundo, G.; Antoni, G. Cooperative monocular-based SLAM for multi-UAV systems in GPS-denied environments. Sensors 2018, 18, 1351. [Google Scholar] [CrossRef] [Green Version]
  56. Roldán, J.J.; Garcia-Aunon, P.; Garzón, M.; León, J.D.; Cerro, J.D.; Barrientos, A. Heterogeneous Multi-Robot System for Mapping Environmental Variables of Greenhouses. Sensors 2016, 7, 1018. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Fang, Z.; Tong, G.; Xu, X. Study of Autonomous Robot Self-localization Methods Based on Bayesian Filter Theory. Control Decis. Mak. 2006, 21, 841. [Google Scholar]
  58. Blender, T.; Buchner, T.; Fernandez, B.; Pichlmaier, B.; Schlegel, C. Managing a Mobile Agricultural Robot Swarm for a seeding task. In Proceedings of the 2016 42nd Annual Conference of the IEEE Industrial Electronics Society (IES), Florence, Italy, 24–27 October 2016. [Google Scholar]
  59. Dellaert, F.; Fox, D.; Burgard, W.; Thrun, S. Monte Carlo localization for mobile robots. In Proceedings of the 1999 IEEE International Conference on Robotics and Automation, Detroit, MI, USA, 10–15 May 1999. [Google Scholar] [CrossRef] [Green Version]
  60. Thrun, S. Probabilistic Algorithms in Robotics. AI Mag. 2000, 21, 9–109. [Google Scholar] [CrossRef]
  61. Thrun, S.; Burgard, W.; Fox, D. Probabilistic Robotics (Intelligent Robotics and Autonomous Agents); MIT Press: Cambridge, MA, USA, 2005; p. 668. ISBN 978-0-2622-0162-9. [Google Scholar]
  62. Guan, Y.; Yang, X.J.; Jiang, T. Research Advances on the Multisensor Information Fusion of the Agricultural Robot. J. Anhui Agric. Sci. 2010, 25, 14127–14128. [Google Scholar]
  63. Yang, L.; Yu, H. Multi-Source Information Fusion Theory and Application; Beijing University of Posts and Telecommunications Press: Beijing, China, 2011; p. 234. ISBN 978-7-5635-2740-3. [Google Scholar]
  64. Wang, W.H.; Chen, W.D.; Xi, Y.G. Uncertain Information Based Map-Building Of Mobile Robots In Absolutely Unknown Environment. Robot 2001, 23, 563–568. [Google Scholar] [CrossRef]
  65. Ball, D.; Ross, P.; English, A.; Patten, T.; Upcroft, B.; Fitch, R.; Sukkarieh, S.; Wyeth, G.; Corke, P. Robotics for Sustainable Broad-Acre Agriculture. In Field and Service Robotics; Springer: Cham, Switzerland, 2015; pp. 439–453. [Google Scholar] [CrossRef] [Green Version]
  66. Kim, J.; Son, H.I. A Voronoi Diagram-Based Workspace Partition for Weak Cooperation of Multi-Robot System in Orchard. IEEE Access 2020, 8, 20676–20686. [Google Scholar] [CrossRef]
  67. Zhang, H. Research on path planning of multiple agricultural robots based on ant colony algorithm. Digital Technol. Appl. 2017, 6, 147–149. [Google Scholar] [CrossRef]
  68. Moravec, H. High Resolution Maps from Wide Angle Sonar. In Proceedings of the 1985 IEEE International Conference on Robotics and Automation, St. Louis, MO, USA, 25–28 March 1985. [Google Scholar] [CrossRef]
  69. Kortenkamp, D.; Weymouth, T.E. Topological Mapping for Mobile Robots Using a Combination of Sonar and Vision Sensing. In Proceedings of the 1994 12th National Conference on Artificial Intelligence (AAAI), Seattle, WA, USA, 31 July–4 August 1994; Volume 2, pp. 979–984. [Google Scholar]
  70. Mouaddib, E.M.; Marhic, B. Geometrical matching for mobile robot localization. IEEE Trans. Robot. Autom. 2000, 16, 542–552. [Google Scholar] [CrossRef]
  71. Potena, C.; Khanna, R.; Nieto, J.; Siegwart, R.; Nardi, D.; Pretto, A. AgriColMap: Aerial-Ground Collaborative 3D Mapping for Precision Farming. IEEE Robot. Autom. Lett. 2019, 4, 1085–1092. [Google Scholar] [CrossRef] [Green Version]
  72. Faryadi, S.; Mohammadpour Velni, J. A reinforcement learning-based approach for modeling and coverage of an unknown field using a team of autonomous ground vehicles. Int. J. Intell. Syst. 2020, 1–16. [Google Scholar] [CrossRef]
  73. Dong, W.; Zhu, K.; Liang, S.H.; Wen, W.S.; Guo, Y.; Tan, Y. Path planning algorithm of field robot based on topological map and robot control. China Sci. Paper 2016, 11, 2525–2530. [Google Scholar] [CrossRef]
  74. Shalal, N.; Low, T.; Mccarthy, C.; Hancock, N. A preliminary evaluation of vision and laser sensing for tree trunk detection and orchard mapping. In Proceedings of the 2013 Australasian Conference on Robotics and Automation (ACRA), UNSW, Sydney, Australia, 2–4 December 2013; pp. 1–10. [Google Scholar]
  75. Dos Santos, F.N.; Sobreira, H.M.P.; Campos, D.F.B.; Morais, R.; Moreira, A.P.G.M.; Contente, O.M.S. Towards a Reliable Monitoring Robot for Mountain Vineyards. In Proceedings of the 2015 IEEE International Conference on Autonomous Robot Systems & Competitions (IROS), Gateway to the Era of Robots, Hamburg, Germany, 28 September–2 October 2015; pp. 37–43. [Google Scholar] [CrossRef]
  76. Wang, H.L.; Zhang, C.J.; Song, Y.; Pang, B. Master-followed Multiple Robots Cooperation SLAM Adapted to Search and Rescue Environment. Int. J. Control Autom. Syst. 2018, 16, 2593–2608. [Google Scholar] [CrossRef]
  77. Schmuck, P.; Chli, M. CCM-SLAM: Robust and efficient centralized collaborative monocular simultaneous localization and mapping for robotic teams. J. Field Robot. 2019, 36, 763–781. [Google Scholar] [CrossRef] [Green Version]
  78. Zhang, Y.; Liu, S.H. Survey of multi-robot task allocation. CAAI Trans. Intell. Syst. 2008, 3, 115–120. [Google Scholar] [CrossRef]
  79. Gerkey, B.P.; Matarić, M.J. A Formal Analysis and Taxonomy of Task Allocation in. Int. J. Robot. Res. 2004, 23, 939–954. [Google Scholar] [CrossRef] [Green Version]
  80. Zan, J. Research On Key Technologies of Multiple Autonomous Mobile Robot Cooperation. Ph.D. Thesis, Chang’an University, Xi’an, China, 2014. [Google Scholar]
  81. D’Urso, G.; Smith, S.L.; Mettu, R.; Oksanen, T.; Fitch, R. Multi-vehicle refill scheduling with queueing. Comput. Electron. Agric. 2018, 144, 44–57. [Google Scholar] [CrossRef] [Green Version]
  82. Wan, L.P.; Lan, X.G.; Zhang, H.B.; Zheng, N.N. A Review of Deep Reinforcement Learning Theory and Application. Pattern Recognit. Artif. Intell. 2019, 32, 67–81. [Google Scholar]
  83. Zhou, J.; Mu, D.J. Study of multi-robot system on task allocation. J. Northwest Univ. (Nat. Sci. Ed.) 2014, 44, 403–410. [Google Scholar] [CrossRef]
  84. Ruyue, C.; Shichao, L.; Yuhan, J.; Hongzhen, X.; Man, Z.; Minzan, L. Multi-machine Cooperation Task Planning Based on Ant Colony Algorithm. J. Agric. Mach. 2019, 50, 34–39. [Google Scholar]
  85. Drenjanac, D.; Klausner, L.; Kühn, E.; Tomic, S.D.K. Semantic Shared Spaces for Task Allocation in a Robotic Fleet for Precision Agriculture. In Proceedings of the 2013 7th Research Conference on Metadata and Semantic Research Conference (MTSR), Thessaloniki, Greece, 19–22 November 2013; pp. 440–446. [Google Scholar] [CrossRef]
  86. Wamg, Y.F. Research on Task Allocation of a Multi-Robot System for Intelligent Manufacturing. Ph.D. Thesis, Nanjing University, Nanjing, China, 2016. [Google Scholar]
  87. Tang, S.Y.; Zhu, Y.F.; Li, Q.; Lei, Y.L. Survey of task allocation in multi Agent systems. Syst. Eng. Electron. 2010, 32, 2155–2161. [Google Scholar] [CrossRef]
  88. Song, Z.; Vaughan, R.T. Sustainable robot foraging: Adaptive fine-grained multi-robot task allocation for a maximum sustainable yield of biological resources. In Proceedings of the 2013 IEEE/RSJ International Conference on Intelligent Robots & Systems (IROS), Tokyo, Japan, 3–7 November 2013; pp. 3309–3316. [Google Scholar] [CrossRef]
  89. Sherali, H.D.; Driscoll, P.J. Evolution and state-of-the-art in integer programming. J. Comput. Appl. Math. 2000, 124, 319–340. [Google Scholar] [CrossRef]
  90. Gomory, R.E. Outline of an algorithm for integer solutions to linear programs. Bull. Am. Math. Soc. 1958, 64, 275–278. [Google Scholar] [CrossRef] [Green Version]
  91. Tan, S.W.; Zhang, D.L. Graphic solution for a type of integer programming. J. Pet. Univ. (Nat. Sci. Ed.) 2003, 27, 124–127. [Google Scholar]
  92. Zhao, Y. Survey on intelligent optimization algorithms for solving integer programming problems. Comput. Appl. Res. 2010, 27, 408–412. [Google Scholar]
  93. Fu, M.J.; You, X.M. A review of multi-robot systems and their path planning methods. Softw. Guide 2017, 16, 177–179. [Google Scholar] [CrossRef]
  94. Du, L.C.; Qian, H.; Xiao, A.P. Path Planning Technology and Its Application in Greenhouse Robot. Hubei Agric. Sci. 2010, 49, 1205–1208. [Google Scholar] [CrossRef]
  95. Liao, S.H.; Zhang, L.D. Present Situation and Developing Trend of Robot Path Planning Technology. Mech. Eng. 2007, 7, 13–16. [Google Scholar] [CrossRef]
  96. Lei, Y.M. Research on Dynamic Path Planning Method for Multi-Robot Systems. Ph.D. Thesis, Harbin Engineering University, Harbin, China, 2011. [Google Scholar]
  97. Ma, Y. Research on Path Planning Problems for Multiple Moblie Robots. Ph.D. Thesis, Huazhong University of Science & Technology, Wuhan, China, 2012. [Google Scholar]
  98. Kolendo, P.; Smierzchalski, R.; Jaworski, B. Fitness function scaling in the evolutionary method of path planning. In Proceedings of the 2011 16th International Conference on Methods & Models in Automation & Robotics (MMAR), Miedzyzdroje, Poland, 22–25 August 2011; pp. 1989–1994. [Google Scholar] [CrossRef]
  99. Chiddarwar, S.S.; Babu, N.R. Conflict free coordinated path planning for multiple robots using a dynamic path modification sequence. Robot. Auton. Syst. 2011, 59, 508–518. [Google Scholar] [CrossRef]
  100. Conesamuñoz, J.; Emmi, L.A.; Gonzálezdesoto, M.; Ribeiro Seijas, Á. Effective supervision of a tractor fleet. In Proceedings of the 2014 2nd International Conference on Robotics & Associated High-Technologies & Equipment for Agriculture and Forestry (RHEA), Madrid, Spain, 30–31 January 2014. [Google Scholar]
  101. Conesa-Munoz, J.; Ribeiro, A.; Andujar, D.; Fernandez-Quintanilla, C.; Dorado, J. Multi-path planning based on an NSGA-II for a fleet of robots to work on agricultural tasks. In Proceedings of the 2012 IEEE Congress on Evolutionary Computation (CEC), Brisbane, Australia, 10–15 June 2012; pp. 1–8. [Google Scholar] [CrossRef]
  102. Mudgal, C.; Vassileva, J. An influence diagram model for multi-agent negotiation. In Proceedings of the 2000 4th International Conference on Multiagent Systems (ICMAS), Washington, DC, USA, 10–12 July 2000; pp. 451–452. [Google Scholar] [CrossRef]
  103. Hasegawa, J.; Kurihara, K.; Nishiuchi, N. Collision-free path planning method for a mobile robot. In Proceedings of the 2002 IEEE International Conference on Systems, Man and Cybernetics (SMC), Yasmine Hammamet, Tunisia, 6–9 October 2002; Volume 3, pp. 323–327. [Google Scholar] [CrossRef]
  104. Kolushev, F.A.; Bogdanov, A.A. Multi-agent Optimal Path Planning for Mobile Robots in Environment with Obstacles. In Proceedings of the 1999 Perspectives of System Informatics—3rd International Andrei Ershov Memorial Conference, Akademgorodik, Novosibirsk, Russia, 6–9 July 1999; pp. 503–510. [Google Scholar] [CrossRef]
  105. Zhang, C.; Noguchi, N. Development of a multi-robot tractor system for agriculture field work. Comput. Electron. Agric. 2017, 142, 79–90. [Google Scholar] [CrossRef]
  106. Zhang, C.; Noguchi, N. Cooperation of Two Robot Tractors to Improve Work Efficiency. Adv. Robot. Autom. 2016, 5, 11. [Google Scholar] [CrossRef]
  107. Ball, D.; Ross, P.; English, A.; Patten, T.; Upcroft, B.; Fitch, R.; Sukkarieh, S.; Wyeth, G.; Corke, P. Robotics for Sustainable Broad-Acre Agriculture. In Proceedings of the 2013 9th International Conference on the Field and Service Robotics (FSR), Brisbane, Australia, 9–11 December 2013. [Google Scholar] [CrossRef]
  108. Berman, S.; Nagpal, R.; Halász, Á.M. Optimization of Stochastic Strategies for Spatially Inhomogeneous Robot Swarms: A Case Study in Commercial Pollination. In Proceedings of the 2011 IEEE/RSJ International Conference on Intelligent Robots & Systems(IROS), San Francisco, CA, USA, 25–30 September 2011; pp. 3923–3930. [Google Scholar] [CrossRef] [Green Version]
  109. Tamura, K.; Naruse, K. Unsmooth Field Sweeping by Balistic Random Walk of Multiple Robots in Unsmooth Terrain. In Proceedings of the 2014 Joint 7th International Conference on Soft Computing and Intelligent Systems (SCIS) and 15th International Symposium on Advanced Intelligent Systems (ISIS), Kita-Kyushu, Japan, 3–6 December 2014; pp. 585–589. [Google Scholar] [CrossRef]
  110. Noguchi, N.; Will, J.; Ishii, K.; Reid, J. Development of Master-slave Robot System—Obstacle avoidance algorithm. In Proceedings of the 2002 Automation Technology for Off-road Equipment Conference, Chicago, IL, USA, 26–27 July 2002; pp. 432–441. [Google Scholar] [CrossRef]
  111. Dong, S.L.; Chen, W.D.; Yugeng, X. An distributed control system for multi-mobile robot formation. Robot 2002, 22, 433–438. [Google Scholar] [CrossRef]
  112. Qing, Y.Q. Research on Motion Control of Multiple Mobile Robots System. Ph.D. Thesis, Huazhong University of Science and Technology, Wuhan, China, 2007. [Google Scholar]
  113. Liu, Y.P.; Yang, Y.M. Research review on formation control of multiple robots. Control Eng. 2010, S3, 182–186. [Google Scholar] [CrossRef]
  114. Zhang, Q.H. Graph Theory with Applications; Tsinghua University Press: Beijing, China, 2013; p. 184. ISBN 978-7-3023-2997-8. [Google Scholar]
  115. Gong, J.W.; Jiang, Y.; Xu, W. Model Predictive Control for Driverless Vehicles; Beijing Institute of Technology Press: Beijing, China, 2014; p. 196. ISBN 978-7-5640-9084-5. [Google Scholar]
  116. Wang, D.Z.; Wu, S.J. Model Tracking Control System Design; East China University of Science and Technology Press: Shanghai, China, 2016; p. 127. ISBN 978-7-5628-4703-8. [Google Scholar]
  117. Smith, K.D.; Hsiung, S.C.; White, C.; Lowe, C.G.; Clark, C.M. Stochastic modeling and control for tracking the periodic movement of marine animals via AUVs. In Proceedings of the IEEE/RSJ International Conference on Intelligent Robots & Systems (IROS), Daejeon, Korea, 9–14 October 2016; pp. 3101–3107. [Google Scholar] [CrossRef]
  118. Zhang, C.; Zhao, Y. Development and application of model-based predictive control theory. Electron. Technol. Softw. Eng. 2014, 4, 256–257. [Google Scholar]
  119. Guillet, A.; Lenain, R.; Thuilot, B. Off-road path tracking of a fleet of WMR with adaptive and predictive control. In Proceedings of the 2013 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), Tokyo, Japan, 3–7 November 2013; pp. 2855–2861. [Google Scholar] [CrossRef]
  120. Pitla, S.K.; Luck, J.D.; Shearer, S.A. Multi-Robot System Control Architecture (MRSCA) for Agricultural Production. Br. J. Learn. Disabil. 2010, 11, 68–69. [Google Scholar] [CrossRef]
  121. Chaimowicz, L.; Sugar, T.; Kumar, V.; Campos, M.F.M. An architecture for tightly coupled multi-robot cooperation. In Proceedings of the 2001 IEEE International Conference on Robotics & Automation (ICRA), Seoul, Korea, 21–26 May 2001; Volume 3, pp. 2992–2997. [Google Scholar] [CrossRef]
  122. Ju, C.; Son, H.I. Modeling and control of heterogeneous agricultural field robots based on ramadge-wonham theory. IEEE Robot. Autom. Lett. 2020, 5, 48–55. [Google Scholar] [CrossRef]
  123. Bochtis, D.D.; Sorensen, C.G. The vehicle routing problem in field logistics part I. Biosyst. Eng. 2009, 104, 447–457. [Google Scholar] [CrossRef]
  124. Bochtis, D.D.; Sorensen, C.G. The vehicle routing problem in field logistics: Part II. Biosyst. Eng. 2010, 105, 180–188. [Google Scholar] [CrossRef]
  125. Arkin, R.C.; Balch, T.; Nitz, E. Communication of Behavioral State in Multi-Agent Retrieval Tasks. In Proceedings of the 1993 IEEE International Conference on Robotics & Automation (ICRA), Atlanta, GA, USA, 2–6 May 1993; pp. 588–594. [Google Scholar] [CrossRef]
  126. Zhou, Y. Research of Wireless Communication Technology for Agricultural Multi-Robot Systems. Master’s Thesis, Northwest A&F University, Yangling, China, 2014. [Google Scholar]
  127. Zhu, H. Research and Design of Wireless Communication Platform For Agricultural Multi-Robot. Master’s Thesis, Northwest A&F University, Yangling, China, 2015. [Google Scholar]
  128. Albani, D.; Ijsselmuiden, J.; Haken, R.; Trianni, V. Monitoring, and Mapping With Robot Swarms for Agricultural Applications. In Proceedings of the 2017 14th IEEE International Conference on Advanced Video & Signal Based Surveillance (AVSS), Lecce, Italy, 29 August–1 September 2017; pp. 1–6. [Google Scholar] [CrossRef]
  129. Albani, D.; Nardi, D.; Trianni, V. Field Coverage and Weed Mapping by UAV Swarms. In Proceedings of the 2017 IEEE/RSJ International Conference on Intelligent Robots & Systems (IROS), Vancouver, BC, Canada, 24–28 September 2017; pp. 4319–4325. [Google Scholar] [CrossRef]
  130. Zhou, Y.; Yang, F.Z.; Zhu, H.; Wang, B.B.; Qing, H.W.; Wang, Z. Test of Propagation Performance of Wheat Field Wireless Channel based on Wi-Fi. Agric. Mech. Res. 2015, 2, 155–160. [Google Scholar] [CrossRef]
  131. Deusdado, P.; Pinto, E.; Guedes, M.; Marques, F.; Rodrigues, P.; Lourenco, A.; Mendonca, R.; Silva, A.; Santana, P.; Corisco, J.; et al. An Aerial-Ground Robotic Team For Systematic Soil and Biota Sampling in EstuarineMudflats. In Proceedings of the 2nd Iberian Robotics Conference, Lisbon, Portugal, 15–26 November 2015. [Google Scholar]
Figure 1. Man-operated farm machinery worked in a large field. (a) Multiple rotary tillers plowing rice fields in spring. (b) Multiple seeders sowing corn in spring. (c). Multiple drones spraying cotton fields in the summer. (d) Multiple harvesters harvesting wheat fields in summer.
Figure 1. Man-operated farm machinery worked in a large field. (a) Multiple rotary tillers plowing rice fields in spring. (b) Multiple seeders sowing corn in spring. (c). Multiple drones spraying cotton fields in the summer. (d) Multiple harvesters harvesting wheat fields in summer.
Applsci 11 01448 g001
Figure 2. The centralized architecture of an agricultural mobile multi-robot system. (a) One of the guided following modes, where the slave robot follows the travel path taken by the active robot [27]. (b) Another of the guided following modes, where the slave robot is ordered by the master robot to go the other way [27]. (c) The centralized control mode is usually a back-end computer that monitors, plans, and controls the robot’s tasks and operating paths.
Figure 2. The centralized architecture of an agricultural mobile multi-robot system. (a) One of the guided following modes, where the slave robot follows the travel path taken by the active robot [27]. (b) Another of the guided following modes, where the slave robot is ordered by the master robot to go the other way [27]. (c) The centralized control mode is usually a back-end computer that monitors, plans, and controls the robot’s tasks and operating paths.
Applsci 11 01448 g002
Figure 3. The distributed architecture of an agricultural mobile multi-robot system (a) Agricultural multi-robot agricultural condition monitoring in different areas of the vineyard [28]. And the robots exchange their information for autonomous work. (b) Distributed structure diagram of a multi-robot. Each robot can exchange information with other robots through communication and make decisions autonomously [26].
Figure 3. The distributed architecture of an agricultural mobile multi-robot system (a) Agricultural multi-robot agricultural condition monitoring in different areas of the vineyard [28]. And the robots exchange their information for autonomous work. (b) Distributed structure diagram of a multi-robot. Each robot can exchange information with other robots through communication and make decisions autonomously [26].
Applsci 11 01448 g003
Figure 4. Active positioning model.
Figure 4. Active positioning model.
Applsci 11 01448 g004
Figure 5. Passive positioning model [39].
Figure 5. Passive positioning model [39].
Applsci 11 01448 g005
Figure 6. Heterogeneous sensors carried by agricultural multi-robots. (a) Typical sensors for aerial robots: inertial measurement unit (IMU), Global Positioning System (GPS), and pressure gauge [28]. (b) Typical sensor for ground robots RT1 and RT2: GPS, Laser, and IMU [45].
Figure 6. Heterogeneous sensors carried by agricultural multi-robots. (a) Typical sensors for aerial robots: inertial measurement unit (IMU), Global Positioning System (GPS), and pressure gauge [28]. (b) Typical sensor for ground robots RT1 and RT2: GPS, Laser, and IMU [45].
Applsci 11 01448 g006
Figure 7. Grid model with rasterized areas [28].
Figure 7. Grid model with rasterized areas [28].
Applsci 11 01448 g007
Figure 8. Geometric models were constructed with points and lines [65].
Figure 8. Geometric models were constructed with points and lines [65].
Applsci 11 01448 g008

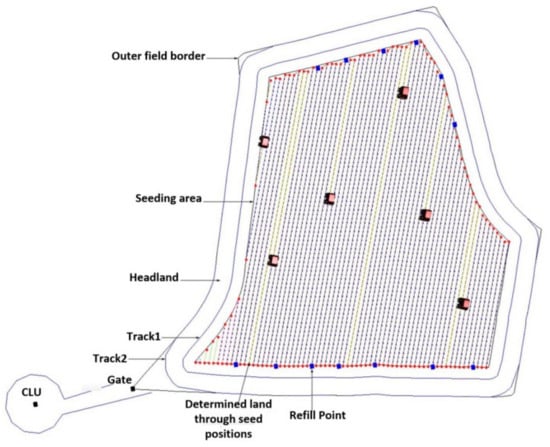

Figure 9. A centralized entity was used to plan the seeding task, seeding patterns, and seed densities for different robots in the simulation environment. At the same time, the centralized entities were used to monitor the whole seeding process to avoid collisions between robots [58]. The small blue dots are the locations of the seeds planned to be sown, the yellow dots are the seeds that have been successfully planted, and the larger red dots are the border seed sowing locations.
Figure 9. A centralized entity was used to plan the seeding task, seeding patterns, and seed densities for different robots in the simulation environment. At the same time, the centralized entities were used to monitor the whole seeding process to avoid collisions between robots [58]. The small blue dots are the locations of the seeds planned to be sown, the yellow dots are the seeds that have been successfully planted, and the larger red dots are the border seed sowing locations.
Applsci 11 01448 g009
Figure 10. Distributed task allocations: (a) An entry was stored in task storage with ID numbers. And robots could select ID to work according to the relationship between the robot’s function and the task requirement [85]; (b) A task was split into several subtasks. And each robot proposed the largest possible task allocation initially, then gradually decreased its offers based on negotiation mechanism until a deal was done [28].
Figure 10. Distributed task allocations: (a) An entry was stored in task storage with ID numbers. And robots could select ID to work according to the relationship between the robot’s function and the task requirement [85]; (b) A task was split into several subtasks. And each robot proposed the largest possible task allocation initially, then gradually decreased its offers based on negotiation mechanism until a deal was done [28].
Applsci 11 01448 g010
Figure 11. The central controller plans the driving path for the unmanned aerial vehicles (UAVs) and unmanned ground vehicles (UGVs) [49]: (a) The path planning of two UAVs; (b) The path planning of three UGVs.
Figure 11. The central controller plans the driving path for the unmanned aerial vehicles (UAVs) and unmanned ground vehicles (UGVs) [49]: (a) The path planning of two UAVs; (b) The path planning of three UGVs.
Applsci 11 01448 g011

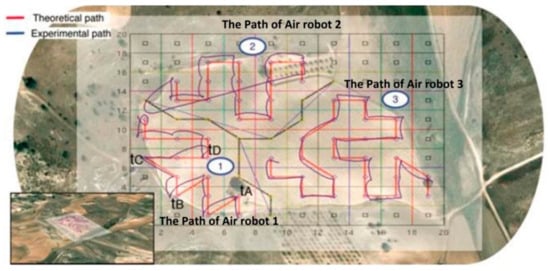

Figure 12. Distributed path planning [28], 1, 2, and 3 are the number of the UAVs, the red line is the planned path of the robot in the delimited area, and the blue line is the actual flight path of the robot.
Figure 12. Distributed path planning [28], 1, 2, and 3 are the number of the UAVs, the red line is the planned path of the robot in the delimited area, and the blue line is the actual flight path of the robot.
Applsci 11 01448 g012
Figure 13. Agricultural ground multiple robot head-turning mode: (a) Multi-robot turned on the ground with a zigzag way, that is, first forward, then backward, then forward again [47]. (b) Multi-robot turned on the ground with a U-shape (GMU is the abbreviation for Ground Mobile Unit) [25].
Figure 13. Agricultural ground multiple robot head-turning mode: (a) Multi-robot turned on the ground with a zigzag way, that is, first forward, then backward, then forward again [47]. (b) Multi-robot turned on the ground with a U-shape (GMU is the abbreviation for Ground Mobile Unit) [25].
Applsci 11 01448 g013
Figure 14. Multi-robot team arrangement, the arrow points to the direction of robot movement, and the circle represents the robot: (a) The robots of R1 to R5 formed a longitudinal linear queue. (b) The robots of R1 to R5 formed an I-shape queue. (c) The robots of R1 to R5 formed a transverse linear queue. (d) The robots of R1 to R5 formed a W-shape queue (e) The robots of R1 to R5 formed a V-shape queue.
Figure 14. Multi-robot team arrangement, the arrow points to the direction of robot movement, and the circle represents the robot: (a) The robots of R1 to R5 formed a longitudinal linear queue. (b) The robots of R1 to R5 formed an I-shape queue. (c) The robots of R1 to R5 formed a transverse linear queue. (d) The robots of R1 to R5 formed a W-shape queue (e) The robots of R1 to R5 formed a V-shape queue.
Applsci 11 01448 g014
Figure 15. Selection of formation reference points: (a) Take the green dot, in the center of P1 P2 P3, as a reference. (b) P1 and P3 take neighbor P2 as a reference, P2 takes the nearest neighbor P1 as a reference. (c) Take the leading robot P1 of P2 and P3 as a reference.
Figure 15. Selection of formation reference points: (a) Take the green dot, in the center of P1 P2 P3, as a reference. (b) P1 and P3 take neighbor P2 as a reference, P2 takes the nearest neighbor P1 as a reference. (c) Take the leading robot P1 of P2 and P3 as a reference.
Applsci 11 01448 g015
Figure 16. Formations of agricultural multi-robots: (a) the head and tail robots in the formation are used to guide UGVs in I-shape operation. And the robot in the middle of the formation plows with farming tools in the field [44]. (b) Leader-follower method to control the formation in V-shape operation [105]
Figure 16. Formations of agricultural multi-robots: (a) the head and tail robots in the formation are used to guide UGVs in I-shape operation. And the robot in the middle of the formation plows with farming tools in the field [44]. (b) Leader-follower method to control the formation in V-shape operation [105]
Applsci 11 01448 g016
Figure 17. Communication modes of multiple robots.
Figure 17. Communication modes of multiple robots.
Applsci 11 01448 g017
Figure 18. The computer as the center controller was used to send initial paths for UGVs and UAVs control units through communication. And perception data were exchanged between multi-robots and computers.UGV.
Figure 18. The computer as the center controller was used to send initial paths for UGVs and UAVs control units through communication. And perception data were exchanged between multi-robots and computers.UGV.
Applsci 11 01448 g018
Table 1. Comparison of co-location methods.
Table 1. Comparison of co-location methods.
Co-Location MethodsActive PositioningPassive PositioningInteractive Positioning [41]
Data measurement objectRobot itselfNeighborsThe robot itself; Neighbors
Observation reference objectNeighborsRobot itselfThe robot itself; Neighbors
Measuring objectSingleSingleMutual observation
Measurement dataThe distance and angle of the robot itself relative to the reference object
Data exchangeNoneExistsExists
Data FusionNoneNoneExists
AdvantagesLittle computationInformation interactionAlgorithm of high precision and robustness
DisadvantagesAffected by the environmentAffected by the environmentA huge amount of information
Lower algorithm accuracy and robustnessLower algorithm accuracy and robustnessLarge complexity of the algorithm
No information interaction
ApplicationsDrove in orchards [38]Drove on farmland [42]None
Drove on sloping land (11°) [43]
Plowing [44]
Lawn [45]
Drove in fields [46]
Plowed [47]
Harvested farmland [48]
Table 2. Comparison of multi-sensor information fusion processing levels [62,63].
Table 2. Comparison of multi-sensor information fusion processing levels [62,63].
Fusion LevelData LevelFeature LevelDecision Level
Processing levelBottom layerMiddle layerHigh level
Sensor typesHomogeneousHeterogeneousHomogeneous/Heterogeneous
Degree of dependence on the sensorMaximumMediumMinimum
AdvantagesLess information loss;Takes into account the advantages of data and decision;Less calculation;
Good fault tolerance;
Good anti-interference;
High precision;Low algorithm difficulty;
Fusion is more convenient;A small amount of communication data;
Wide range of applications;Good real-time performance;
DisadvantagesA large amount of calculation;Global decision;A large amount of information loss;
Poor fault tolerance;
Poor anti-interference;
The algorithm is complex;Strict requirements for sensor pretreatment;Low precision;
A large amount of communication data;Need to balance constraints (speed, reliability, cost, etc.);
Poor real-time performance;
Fusion algorithmWavelet transform;Kalman filter;Bayesian theory (Particle filter);
Artificial neural networks;
Weighted average;
Production rules, etc.Extended Kalman filter, etc;The statistical decision, etc.;
ApplicationsNoneDrove in a greenhouse [56]Seeded fields [58]
Table 3. Comparison of mapping methods [68,69,70].
Table 3. Comparison of mapping methods [68,69,70].
Mapping ModelGrid ModelGeometric Feature ModelTopological Model
AlgorithmBressenham’s linear algorithm, Bayesian; D-S theory, etc.Voronoi Diagram;Baum-Welch, etc.
Extended Kalman filter;
Particle filter, etc;
Scope of applicationSuitable for processing systems such as laser radar and sonar priority ranging;Local area modeling;Large-scale, simple environment;
Specific environment;
AdvantagesSimple and intuitive, easy to create and maintain;More compactness;Model is simple and easy to change, and motion planning is fast;
Good spatial consistency;Modeling in local areas can achieve higher accuracy;Better robustness against position errors;
Better robustness;Conducive to the estimation of the position of the robot and the identification of the target;A high degree of abstraction, easy to store;
DisadvantagesA large amount of calculation;Difficult to address and extract irregular geometric features;Less information;
Takes up substantial storage space;Image data are processed cumulatively;The topology network establishment process is complicated;
Long storage time;
ApplicationHarvested muddy moss in farmland [13]Plowed [47]None
Monitored vineyards [28]Drove in a greenhouse [56]
Environmental monitored [49,50]Harvested farmland [48]
Collected farmland information [71]Precision irrigation in the vineyards [72]
Sprayed in the Orchard [66]
Table 4. Task allocation classification comparison of agricultural multi-robots [86,87].
Table 4. Task allocation classification comparison of agricultural multi-robots [86,87].
ClassificationCentralized DistributionDistributed Distribution
AdvantagesAlgorithm design is simpler;Communication is more dispersed, which can avoid the situation that affects the efficiency of the algorithm due to communication congestion;
It has the potential to generate globally optimal solution;Good real-time performance;
DisadvantagesThe communication is concentrated and susceptible to congestion, affecting the algorithm efficiency;The solution result can easily fall into a local optimum;
Poor real-time performance;Consultation increases the communication burden of the system;
Scope of the applicationThe task is known and determined in a static environment;The task is unknown and uncertainly determined in the dynamic environment;
The environment model is fully known;The environmental model is partially known or unknown;
The scale of this system is relatively small;The scale of this system is medium or large
Allocation methodMixed integer programming (branch-and-bound);A method based on behavioral motivation;
Heuristic search algorithm (reinforcement learning);A market-based approach;
Group intelligence algorithm (greedy algorithm, ant colony algorithm [84]);
ApplicationSprayed and weeding in an orchard (manned) [14];Weeded farmland [85];
Seeded in a field [58];Agricultural monitored in vineyards [28];
Sprayed in the Orchard [66]Harvested fields (simulation) [88];
Refill scheduling [78]
Table 5. Research progress of path planning method for agricultural multi-robots.
Table 5. Research progress of path planning method for agricultural multi-robots.
Planning MethodEnvironmental CircumstancesHead-Turning ModeCoordination StrategyObstacleApplication
Point-to-point plannerFully knownRight-angle turn;NoneNoneDrove in farmland [42]
Plowed [105,106]
Seeded in farmland (simulation) [107]
Visibility graph (V-Graphic)Fully knownZigzag;Priority;VehicleHarvested muddy moss in the farmland [13];
U-shape;Rate adjustment;
Right-angle turnBee pollination (simulation) [108];
Grid methodPartially knownZigzag;OthersPoleSeeded in a field [58]
Fully knownU-shape;Rate adjustmentHumanHarvested muddy moss in the farmland [13];
Vehicle
A * algorithm 1Partially knownNoneOthersNoneMonitored in a vineyard [28]
Ballistic methodUnknownNoneOthersNoneWeeded in a rice field [109]
Breadth-first search algorithm (BFS)Partially knownNoneOthersNoneMonitored in a vineyard [28]
Genetic algorithm (GA)Partially knownU-shapeRate adjustmentNoneWeeded in farmland [101]
The light bulb shape
OthersFully knownRight-angle turn;Rate adjustmentNoneDrove in a greenhouse [56]
1 The A * algorithm is a direct search method for solving the shortest path in a road network.
Table 6. Comparison of formation control methods [34,41,75,86,104,106,109,110,111,113,114,117,123,124].
Table 6. Comparison of formation control methods [34,41,75,86,104,106,109,110,111,113,114,117,123,124].
Formation Control MethodAdvantagesDisadvantagesStepsApplication
Bidirectional Weighted Constraints ApproachSimplified description and assignment of tasks;Difficult to handle fault tolerance;Defining the dynamic model of the virtual structure;Plowed [44];
High formation control accuracy;Poor reliability;Transforming the overall movement of the structure into the motion of the robot;
No complicated communication protocols, low communication costs;Low mobility limits range of motion;Obtain the tracking control law of each robot;
Graph theory approachSuitable for large-scale robot formation;The implementation is more complicated, mainly limited to simulation research;Define the formation right map G = (set of points V, edge E, weight W);Bee pollination (simulation) [108];
Easy addition and deletion of robot nodes;Specify the ideal distance of each edge in the formation;
Easy to change between different formations;Seeded in a field (12 simulation robots) [107]
Artificial potential fieldLittle calculation;The design of the potential field function is difficult;Design artificial potential field (environment and constraints between robots in the formation);Precision irrigation in the vineyards [72]
Easy to implement real-time control;Problem with local extreme points;Establishing a potential field function;
Easy to handle collision avoidance problems in obstacle spaces;
Model predictive control (MPC)Has a strong theoretical foundation;A large amount of calculation, mostly used for simulation;Real-time planning formation retains the reference center and target control amount of each robot;Tracked fish (simulation) [117]
Adds multiple constraints in the control process, and optimizes the control sequence by online scrolling optimization combined with feedback correction of real-time information;Building a linear programming model with multiple constraints;Harvested farmland [48];
Leader-followerSimplified system control;The ability to adapt to a dynamic environment is not strong. If the leader fails, the entire system crashes;Identify leading robot and formations;Collaborative air-ground surveillance [122]
A follower follows the leaderDrove in a field [46];
Control the spacing between the leading robot and the following robot–angle ( l φ ) or lateral spacing-longitudinal spacing ( l l );Lawn [119];
Plowed [106];
Table 7. Comparison of wireless communication technologies of agricultural multi-robots in the past 10 years.
Table 7. Comparison of wireless communication technologies of agricultural multi-robots in the past 10 years.
Communication TechnologyWI-FIBluetoothZigBee
Transmission distance [m]10~30010~10010~75
Theoretical transmission speed [bps]54~300 M100 k10 k
Wireless communication networkWireless local area network (WLAN)Wireless personal area network (WPAN)WPAN
Working frequency [Hz]2.4~5.4 G2.4 G2.4 G (global); 868 M (Europe); 915 M (United States);
Communication protocolIEEE 802.11 a; 1IEEE 802.15IEEE 802.15.4
IEEE 802.11 b 2;
IEEE 802.11 g 3;
IEEE 802.11 p 4;
AdvantageFast transfer speed;High transmission rate;Low power consumption;
Low cost;
Strong anti-interference ability;Large transmission range;
Long effective distance;Flexible networking;Good scalability
Reliable connectionLow power consumption;Strong anti-interference ability;
Wide coverage;Small volume;Good security;
DisadvantagesHigh power consumption;Slow;Low transmission rate;
Expensive;Short distance;Short distance;
Weak networking abilityThe mobile phone cannot communicate directly;
Protocol coding complexity;Poor security and confidentiality;
ApplicationPlowed in wheat fields or orchards [126,127];Plowed [47,105,106];Monitored vineyards [28];
Plowed [44,48];Monitored and weeded farmland [49];
Plowed [46];
1 IEEE802.11a standard, operating in the 5 GHz band, has a data transmission rate of 54 Mb/s. 2 IEEE802.11b standard, operating in the 2.4 GHz band, has a data transmission rate of 11 Mb/s, and is not compatible with IEEE 802.11 a. 3 IEEE802.11g is a standard that increases the transmission speed of 802.11b from 11 Mb/s to 54 Mb/s. 4 IEEE 802.11p standard is a communication protocol expanded by IEEE 802.11 standard, which is mainly used in wireless communication of automotive electronics.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Mao, W.; Liu, Z.; Liu, H.; Yang, F.; Wang, M. Research Progress on Synergistic Technologies of Agricultural Multi-Robots. Appl. Sci. 2021, 11, 1448. https://doi.org/10.3390/app11041448

AMA Style

Mao W, Liu Z, Liu H, Yang F, Wang M. Research Progress on Synergistic Technologies of Agricultural Multi-Robots. Applied Sciences. 2021; 11(4):1448. https://doi.org/10.3390/app11041448

Chicago/Turabian Style

Mao, Wenju, Zhijie Liu, Heng Liu, Fuzeng Yang, and Meirong Wang. 2021. "Research Progress on Synergistic Technologies of Agricultural Multi-Robots" Applied Sciences 11, no. 4: 1448. https://doi.org/10.3390/app11041448

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
