Article

Inversion and Analysis of the Initial Ground Stress Field of the Deep-Buried Tunnel Area

1
Key Laboratory of Urban Underground Engineering of Ministry of Education, Beijing Jiaotong University, Beijing 100044, China
2
School of Civil Engineering, Beijing Jiaotong University, Beijing 100044, China
3
Power China Sichuan Electric Power Engineering Co., Ltd., Chengdu 610016, China
*
Author to whom correspondence should be addressed.
Appl. Sci. 2022, 12(18), 8986; https://doi.org/10.3390/app12188986
Submission received: 18 August 2022 / Revised: 2 September 2022 / Accepted: 4 September 2022 / Published: 7 September 2022
(This article belongs to the Special Issue Advances in Tunnel and Underground Construction)

Abstract

:
The detailed analysis of the initial ground stress distribution law is an important work for the safety of tunnel construction and operation. Especially, the high ground stress phenomenon in the deep-buried tunnel area is common, which has a great impact on the tunnel construction. Based on the on-site measured ground stress data, the analysis of the initial ground stress field by numerical simulation and multiple linear regression is mainly described in this study. Following the comparison and selection of three coefficient estimation methods for the regression equation, the best regression method is selected for inversion and verification. The distribution characteristic of the initial ground stress at different buried depths of the tunnel line is obtained. The inversion results of the initial ground stress in a tunnel area, in China, show that the lateral pressure coefficient gradually decreases with the buried depth increasing, while the overall lateral pressure coefficient is in the range of 1.0–2.0, showing a more significant horizontal tectonic. At the area where the tunnel passes through the fault, a small amount of horizontal tectonic stress is released. The ratio of horizontal principal stress to vertical principal stress is smaller than that on both sides, which is different from the distribution characteristic of lateral pressure coefficient without the impact of fault. It shows that faults have a great influence on ground stress. The lateral pressure coefficient in the area near the fault must be determined according to the on-site measured results.

1. Introduction

Ground stress is the inherent force that causes deformation and even breaking of surrounding rock during tunnel construction without proper design. It seriously affects the regional stability of strata. Many engineering geological disasters, such as large deformation of soft rock section and rockburst of hard rock section, are related to the initial ground stress of stratum rock mass [1]. Therefore, to ensure the safe construction of the tunnel, it is necessary to test the initial ground stress in the construction area before the construction of large-scale projects such as the tunnel. In most cases, on-site measuring methods, such as the mechanical and vibrating wire load sensors, the hydraulic fracturing and so on, are one of the most advanced and effective methods to obtain the initial ground stress [2,3,4,5,6,7,8,9,10].
Considering the input cost of economy and manpower, it is generally impossible to set up boreholes with sufficient density to fully determine the ground stress in the tunnel area, and the data of the measuring points are discrete and lack representativeness, so there are many limitations in the measurement of ground stress [11,12,13,14,15]. Therefore, under the limited on-site measuring data, through effective calculation and analysis methods, a more accurate ground stress and a wide range of ground stress distribution laws can be obtained, which plays an important guiding role in tunnel route selection, excavation, and construction.
For the limitations of in-situ initial ground stress measurement, many theoretical analysis methods have obtained good results of ground stress inversion. To date, the most widely used ground stress inversion calculation methods [16,17,18] are the lateral pressure coefficient method, neural network method, regression analysis method, and so on. The lateral pressure coefficient method is mainly suitable for areas where the geological tectonism is weak and the terrain is flat [19,20,21]. The neural network method is mainly used to solve nonlinear problems, which is in development. Some scholars have shown the feasibility of its application. Gao and Ge [22] proposed a new type of evolutionary neural network that the rock mass parameters and the initial ground stress can be determined at the same time. The on-site measuring data of the ground stress around the Longtan Tunnel in China were inversely analyzed. The stability of surrounding rock around the tunnel and the accuracy of the initial ground stress calculated by back analysis are verified by numerical calculation. Jin et al. [23,24] inversed the parameters of rock mass and the initial ground stress field in the calculated area with a radial basis function network and improved backpropagation network with a model under a finite difference software. Wang et al. [25] established a three-dimensional model of the underground powerhouse. The factors affecting the initial ground stress field are analyzed, and the results of numerical simulation are used as test set for training in the network model with radial basis function. Finally, the inversion results of the ground stress field in this area are obtained.
In the above-mentioned practical application, the neural network inverse analysis method shows some shortcomings, such as overtraining, slow convergence, and so on [26]. Therefore, the overall maneuverability of it is weak. The regression analysis method is a calculation method, that is, based on numerical analysis, according to existing data, the regression relationship between independent variables and dependent variables is established [27,28]. Combined with the principle of finite element method and regression analysis method, the rationality and accuracy of ground stress analysis are better. It has been widely used in the study of the initial ground stress field.
Regarding the measured stress data of the Lanjiayan highway tunnel, a multiple regression analysis for distribution characteristic of the initial ground stress field of the whole tunnel with numerical calculation was conducted by Dai et al. [29]. Based on the measured ground stress data, the multiple regression analysis of the initial ground stress field of Wushaoling tunnel is conducted by Zhao et al. [30], with a finite element software, and the complex ground stress state, the value and distribution of stress in the affected area are determined. The multiple regression analysis reported previously shows that the inversion result of the ground stress field has a good prediction effect compared with the lateral pressure coefficient method and neural network method. The above application studies are all about the accuracy of ground stress inversion and the analysis of the distribution characteristic of the initial ground stress field. However, in the construction area of a super deep-buried tunnel, the study of the following aspects, the comparison and selection of coefficient estimation methods for multiple linear regression equation of ground stress, and the analysis of the lateral pressure coefficient change are less. The inversion principle of the initial ground stress field, and the comparison, and selection of different coefficient estimation methods are mainly described in this study. Based on a tunnel project in China, the initial ground stress field of the tunnel area is only inverted to obtain the main characteristics of the initial ground stress field with super buried depth. The overall content has not been combined with the relevant references to discuss the possible problems and corresponding preventive measures of the tunnel under the condition of high ground stress caused by super buried depth.

2. Multiple Linear Regression Inversion Principle of Initial Ground Stress Field

Regarding conventional mountain tunnels, the designed depth of the tunnel is large. The surrounding rock of the tunnel area is weak. The geological conditions are complex, and the tectonic action is strong. The poor geology is developed. Especially when the whole tunnel axis passes through several large fault fracture zones, geological disasters, such as landslides and collapses, very easily occur [31,32]. For the comprehensive action of the above factors, the ground stress in the tunnel area is complex. To grasp the distribution law of the ground stress field of the tunnel area, understand the stratum environment where the tunnel structure is located, and ensure the safety of tunnel construction and operation, it is necessary to measure the ground stress in the tunnel area [33]. Due to the limitation of geological topography and the input of material resources and manpower, it is impossible to set up boreholes with sufficient density to fully measure the ground stress in the tunnel area. Through the regression inversion of the ground stress, the distribution law of the initial ground stress field can be grasped as a whole, which can provide some reference for the route selection and construction of the tunnel [34].
The multiple linear regression of the initial ground stress field is based on the multiple linear regression numerical analysis method, which decomposes the complex geological processes in the formation of ground stress into a variety of simple basic factors acting alone [35]. Using the superposition principle of elasticity, the results of many basic factors are regarded as independent variables and the ground stress at the corresponding points in the ground stress field is regarded as a dependent variable. Then, a linear relationship between the two variables will be established. The initial ground stress field analysis by using multiple linear regression method is only based on the on-site measured data. The differences of methods and technical operations in the process of obtaining on-site measured data are not taken into account. The main implementation method is shown in Figure 1.

2.1. Establishment of the Three-Dimensional Geological Model

2.1.1. Determination of the Model Range

In the process of initial ground stress regression inversion, two principles [35,36] are generally followed to determine the calculation range: (1) the model calculation range includes all the main areas of the tunnel area, and the main geological structures existing in the area, etc.; (2) the boundary of the model is clear and transparent, and it is best to choose in the ridge or river valley. The former is to make the model contain as much data as possible. The more abundant the measured ground stress data, the more accurate and reliable the curve fitting effect will be. The ground stress field inverted by the model is more consistent with the ground stress field in the actual stratum. The latter is for better positioning of the model, and it is easier to impose a single control condition in the process of numerical simulation.

2.1.2. Determination of Model Boundary Conditions

The formation of in-situ ground stress of rock mass is affected by rock mass density, geological tectonism, topography and geomorphology, groundwater action, crustal temperature, and the mechanical properties of the stratum [37]. The gravity stress of stratum and geological structures are chosen as the main factors affecting the initial ground stress in this study. The following five different stress fields are selected, and the stress state is simulated and calculated by applying displacement and stress conditions. The following different stress field models do not show the boundary constraints, and only the self-weight stress and tectonic displacement boundary conditions are shown. The boundary conditions that the model should have were added in the actual simulation calculation.
(1)
gravity stress: the required physical and mechanical parameters of surrounding rock such as unit weight, elastic modulus, Poisson’s ratio, cohesion, and internal friction angle can be extracted from the geological survey report, and the gravity stress field is simulated by applying gravity stress in the Z direction to the model (See Figure 2a).
(2)
horizontal tectonic stress in X direction: the horizontal tectonic stress in the X direction of rock mass in the model is simulated by applying normal unit horizontal displacement Ux to the model boundary parallel to the YOZ coordinate plane (See Figure 2b).
(3)
horizontal tectonic stress in the Y direction: the horizontal tectonic stress in the Y direction of rock mass in the model is simulated by applying normal unit horizontal displacement Uy to the model boundary parallel to the XOZ coordinate plane (See Figure 2c).
(4)
shear tectonic stress [38] in the horizontal plane: horizontal shear tectonic stress is simulated by the two implementations, applying a pair of horizontal displacements U’x parallel to the X-axis and opposite direction to the model boundary interface parallel to the XOZ coordinate plane and applying a pair of horizontal displacements U’y parallel to the Y-axis and opposite direction to the model boundary parallel to the YOZ coordinate plane (See Figure 2d).
(5)
vertical shear tectonic stress: vertical shear tectonic stress is simulated by applying a pair of vertical displacements Uz with opposite directions on both sides of the model boundary in the XOZ coordinate plane (See Figure 2e).

2.2. Multiple Linear Regression of Ground Stress Field

2.2.1. Coordinate Transformation of Ground Stress Measured Results

The geological survey results of the initial ground stress are expressed in the direction of East, West, South, and North and the corresponding dip angle, which do not correspond to the coordinate system of the three-dimensional geological model and cannot be directly substituted into the multiple linear regression model for calculation. Therefore, while using the measured ground stress to carry out multiple linear regression for the equivalent ground stress field of the tunnel, it is necessary to conduct coordinate transformation [39] on the measured ground stress of the on-site measuring points. The coordinates of the corresponding points in the coordinate system of the three-dimensional geological model can be obtained. Then, decomposing the measured ground stress, nine stress components in the three-dimensional spatial coordinate system are transformed and obtained. While the ground stress measurement is conducted with the hydraulic fracturing method, it is generally considered that the measured vertical stress is the vertical principal stress [40], that is, τ x z = τ z x = 0 and τ y z = τ z y = 0 . Therefore, the principal stress in the XOY coordinate plane is only needed to decompose in the plane coordinate system. σ x , σ y , τ x y and τ y x are accordingly obtained. Taking the due north direction as the polar coordinate X-axis direction, the transformation formula of stress component from polar coordinate to Cartesian coordinate is as follows.
σ x = σ r + σ θ 2 + σ r σ θ 2 cos 2 θ τ r θ sin 2 θ σ y = σ r + σ θ 2 σ r σ θ 2 cos 2 θ + τ r θ sin 2 θ τ x y = τ y x = σ r σ θ 2 sin 2 θ + τ r θ cos 2 θ
In the formula:
σ r —Radial stress value of initial ground stress at measuring point in polar coordinate system;
σ θ —Circumferential stress value of the initial ground stress at the measuring point in the polar coordinate system;
τ r θ —Shear stress value of initial ground stress at measuring point in polar coordinate system;
θ—The angle between the initial ground stress direction of the measuring point and the x-axis in the polar coordinate system;
σ x —x direction stress component of initial ground stress at measuring point in Cartesian coordinate system;
σ y —y direction stress component of initial ground stress at measuring point in Cartesian coordinate system;
τ x y , τ y x —Shear stress component of initial ground stress at measuring point in Cartesian coordinate system.

2.2.2. Multiple Linear Regression Equation

According to the principle of the multiple linear regression method [41], taking the calculated value of initial ground stress corresponding to the on-site point under different boundary conditions as the independent variable and the calculated value of ground stress regression as the dependent variable, the regression calculation equation is obtained as follows.
σ ^ j k = C 0 + i = 1 n C i σ j k i
In the formula:
σ ^ j k —initial ground stress calculation value of stress component j at measured point k;
C 0 , C i —undetermined coefficient in multiple linear regression equation;
n—number of boundary conditions, five working conditions are discussed in this study;
σ j k i —in-situ ground stress component caused by the gravity stress mode and each sub tectonic stress mode, respectively.
σ j k = σ ^ j k + ε
In the formula:
σ j k —initial ground stress measured value of stress component j at measured point k;
ε —the error between the in-situ value of initial ground stress and the calculated regression value, which obeys normal distribution and is independent of each other.
To maximize the fitting degree of the multiple linear regression curve and obtain the regression equation that can best reflect the actual ground stress field, it is necessary to minimize the sum of total deviation squares between the measured data and the regression calculation data while minimizing the sum of the regression squares. Assuming the number of on-site measured points is n, and the stress state of a point in the area is represented by 6 stress components. The following calculation equation for the sum of total deviation squares S T , the sum of regression squares S R , and the sum of residual squares S e can be obtained. See Equations (4)–(6):
S T = S R + S e = k = 1 n j = 1 6 s j k s j k ¯ 2
S R = k = 1 n j = 1 6 s ^ j k s j k ¯ 2
S e = k = 1 n j = 1 6 σ j k σ ^ j k 2 = k = 1 n j = 1 6 σ j k C 0 + i = 1 n C i σ j k i 2
Following calculating the partial derivative C i , its partial derivative is made equal to zero, and the normal Equation (7) for calculating the regression coefficient C i are obtained.
6 n k = 1 n j = 1 6 σ j k 1 k = 1 n j = 1 6 σ j k 2 k = 1 n j = 1 6 σ j k m k = 1 n j = 1 6 σ j k 1 2 k = 1 n j = 1 6 σ j k 1 σ j k 2 k = 1 n j = 1 6 σ j k 1 σ j k m k = 1 n j = 1 6 σ j k 2 2 k = 1 n j = 1 6 σ j k 2 σ j k m S y m m e t r y k = 1 n j = 1 6 σ j k m 2 × C 0 C 2 C 3 C m = k = 1 n j = 1 6 σ j k k = 1 n j = 1 6 σ j k 1 σ j k k = 1 n j = 1 6 σ j k 2 σ j k k = 1 n j = 1 6 σ j k m σ j k

2.2.3. Determination Method of the Regression Coefficient

Based on the diversity of coefficient estimation methods for multiple linear regression, the ordinary least square method (OLS), ridge regression (RR), and lasso regression (LR) are selected to estimate the coefficients of the regression equation. The regression fitting results are compared and selected. To achieve the best fitting effect, the coefficients of each fitting method are estimated based on minimizing the sum of residual squares of the fitting values, and the main principles are shown in Table 1.

2.2.4. Regression Effect Test

To judge the regression effect of the regression equation on the measured ground stress, it is necessary to test its significance, and to judge whether the calculated value of ground stress regression as a dependent variable has a significant multiple linear relationship with the calculated value of the initial ground stress corresponding to the measured points under different boundary conditions. The insignificant factors should be eliminated, and then the inversion calculation should be carried out again. For the comparison and selection of the subsequent regression equations of the initial ground stress field, the regression results using different coefficient estimation methods are compared. The test method used is shown in Table 2.

3. Case Study

3.1. Measured Results of In-Situ Stress in the Tunnel Area

The maximum burial depth of a tunnel in China is 1100 m. There are 8 tunnel sections with a buried depth of more than 500 m, a total of 10,055 m. Two sections with a buried depth of more than 800 m, is a total of 3885 m. During the measurement, the in-situ stress test was carried out on 13 holes along the tunnel line, and the test method was the hydraulic fracturing method. Each measuring point is tested at the bottom of the hole, and the test range of the hole depth is 91 m~946 m. The area that the tunnel passes through is dominated by V-class surrounding rocks with poor mechanical properties [44]. The relatively complete area is mixed with grade IV-class surrounding rocks [44].
The maximum horizontal principal stress is in the range of 8.08~35.25 MPa, the minimum horizontal principal stress range is in the range of 7.46~20.86 MPa, and the vertical principal stress range is in the range of 4.79~23.93 MPa. In hole 9, the maximum value of maximum horizontal principal stress (35.25 MPa) and the maximum value of minimum principal stress (20.86 MPa) are measured at the same time, and the vertical principal stress is 22.69 MPa. In hole 1, the minimum value of maximum horizontal principal stress (8.08 MPa) and the minimum value of minimum principal stress (7.46 MPa) are measured at the same time, and the vertical principal stress is 4.79 MPa. According to the analysis of the test results, the ground stress increases linearly with the increase of the hole depth. The magnitude relationship of the three principal stresses is as follows (from large to small): maximum horizontal principal stress, minimum horizontal principal stress, and vertical principal stress, indicating that the ground stress in the tunnel area is mainly horizontal tectonic stress.

3.2. Establishment of FLAC 3D Model

The length × width of the model is 21,000 m × 7600 m. The height of the highest point of the model is 5065 m from the bottom, and the trend of the tunnel is roughly parallel to the X-axis. The whole model is extended according to the actual contour map of the tunnel area, which can reflect its topographic and geomorphological features. The model includes the fault structural zone along the tunnel. Boundary condition of the numerical model is shown in Table 3. The physics and mechanical properties of rock mass are shown in Table 4. The fault is dominated by tectonic breccia. All parameters are determined by laboratory and field tests, all of which follow the relevant specification [45]. The FLAC 3D model is shown in Figure 3. The model uses Midas GTS/NX software to divide the grid, in which the maximum grid size is 100 m and the number of elements is 4087841. For the numerical simulation analysis with FLAC 3D software, the mechanical properties of the material follow the elastic constitutive model. The mechanical properties of materials are presented in terms of the mechanical properties of the rock mass from the site.

3.3. Coefficients Determination of Regression Equation

According to the selected five boundary constraint conditions and the distribution of 13 on-site measured points, the established three-dimensional geological model is numerically simulated, and the theoretical values of stress components at 13 corresponding measuring points of model are obtained. To verify the reliability of the inversion results of the ground stress by the multiple linear regression, the calculated data of measuring points 1 and 2 are retained not to participate in the regression fitting calculation. Based on the calculation results of the three-dimensional geological model under five boundary conditions, each component of the ground stress at the corresponding point of the model is taken as the regression target value. The application of three linear regression coefficient estimation methods is realized by using Python code, and the multiple linear regression coefficients of each group are obtained as shown in Table 5. The multiple linear regression equation of the initial ground stress field in the tunnel area is obtained as Equations (8)–(10).
The equations with different coefficient estimation methods are as follows.
OLS : σ m = 376.510 + 0.994 σ g   + 449.840 σ t 1   + 139.220 σ t 2   37.940 σ t 3   17.010 σ t 4
RR : σ   m   = 303.703 + 0.978 σ g   + 442.477 σ t 1   + 144.120 σ t 2   49.772 σ t 3   32.500 σ t 4
LR : σ   m   = 394.779 + 1.003 σ g   + 433.987 σ t 1   + 140.273 σ t 2   37.052 σ t 3   22.863 σ t 4
In the formula:
σ   m —the stress component of a point in the equivalent stress field calculated by the model;
σ g —the stress component of a point under the independent action of the gravity stress field calculated by the model;
σ t 1 —the stress component of a point under the independent action of horizontal squeezing stress in the X direction calculated by the model;
σ t 2 —the stress component of a point under the independent action of horizontal squeezing stress in the Y direction calculated by the model;
σ t 3 —the stress component of a point under the independent action of shear stress in the XOY coordinate plane calculated by the model;
σ t 4 —the stress component of a point under the independent action of shear stress in the XOZ coordinate plane calculated by the model.
It should be noted that the components represented by σ g , σ t 1 , σ t 2 , σ t 3 , and σ t 4 correspond to σ m , and the equation should be substituted into the calculation in kPa.

3.4. Regression Results Analysis of Initial Ground Stress

3.4.1. Significance Test of Regression Analysis

The significance test of the regression analysis results obtained by the three coefficient estimation methods is shown in Table 6.
As can be seen from Table 6, in the significance test results of the regression equation obtained by the three coefficient estimation methods, the multiple correlation coefficient is close to 1.0, and the fitting effect is good. According to the F test distribution table, F 0.05 5 , 60 = 2.37 . Compared with the results of the significance test, under the condition that the confidence degree of significance level reaches 95%, there is a very significant linear relationship between the dependent variable “ground stress component regression calculated value” and the independent variable “the calculated value of initial ground stress component corresponding to the measured point under different boundary conditions”. The fitting result of the multiple linear regression equation of the initial ground stress is reliable. It can be seen from D-W = 1.88 that there is only slight multicollinearity among the sample variables selected for regression analysis, while the statistics are close to 2.0, so it can be considered that the sample variables are independent of each other. The significance test results of OLS and LR analysis are the same. Therefore, considering the multicollinearity between variables and the unbiased estimation of regression fitting values, the coefficient estimation of the initial ground stress field regression equation is conducted and extended by the lasso regression method in the follow-up case.

3.4.2. Comparison between Regression Fitting Value and On-Site Measured Value

According to the multiple linear regression equation and the calculation results of the ground stress field of the three-dimensional geological model under each boundary condition, the regression calculation value of each stress component at each extracted point is obtained. The difference between the regression value and the measured value is called the relative error for the ground stress. The relative errors of ground stress inversion results at 13 measuring points are shown in Figure 4. The comparison of regression results of the three coefficient estimation methods is shown in Table 7.
From the analysis of Figure 4, it can be seen that, including the samples of point 1 and point 2 which are not involved in the regression calculation, under the three coefficient estimation methods, most of the absolute value of relative errors between the measured values and the regression values of initial ground stress are controlled within 10%. Among them, there are only 6 data exceeding 10% under the OLS method and only 5 data exceeding 10 % under the LR method, accounting for 6.4% of all statistics. Meanwhile, the fluctuation of the absolute value of relative error is small, and the average value of the ridge method is the largest, at 4.99%. The mean relative error of OLS is close to that of LR, and the minimum is 4.73% with the OLS method, which indicates that the values of regressed and measured are relatively close. The regression fitting result of the ground stress is reasonable and reliable, which can well reflect the distribution of the initial ground stress field in the tunnel area. To sum up, when considering the small relative error, the OLS method is very close to the LR method, and the relative error of the LR method is less regarding the larger data value, which shows that the LR method has a good effect on the regression fitting of the initial ground stress field.

3.5. The Inversion Results Analysis of Initial Ground Stress

Using the calculation results of each stress component of different stress states in the 3D geological model, combined with the multiple linear regression equation, the ground stress nephograms at different depths of the longitudinal section along the tunnel in China are finally calculated, as shown in Figure 5. To explore the distribution of the initial ground stress field of the surrounding rock around the tunnel, the initial ground stress data of 500 m, 800 m, and 1100 m were extracted from the mileage section DK872~DK880 with large depth fluctuations of the tunnel, respectively. Nine points were extracted for each type of buried depth, and the measuring point interval is 1000 m. Using the multiple linear regression equation of the initial ground stress field, the stress components of different stress states in the three-dimensional geological model were superimposed and calculated. The principal stress at the extraction point is obtained as shown in Table 8.
According to the analysis in Table 8, the lateral pressure coefficient of the tunnel line area gradually decreases with the tunnel buried depth increasing. The lateral pressure coefficient in the direction of large horizontal principal stress with a buried depth of 500 m ranges from 1.5 to 1.8, and the lateral pressure coefficient in the direction of small horizontal principal stress ranges from 1.1 to 1.5; The lateral pressure coefficient in the direction of large horizontal principal stress with a buried-depth of 800 m ranges from 1.3 to 1.5, and the lateral pressure coefficient in the direction of small horizontal principal stress ranges from 1.1 to 1.3; The lateral pressure coefficient in the direction of horizontal large principal stress with a buried depth of 1100 m ranges from 1.2 to 1.3, and the lateral pressure coefficient in the direction of horizontal small principal stress ranges from 1.0 to 1.1.
Further extracting the stress value, the relationship between the principal stress value and mileage at the tunnel axis is obtained, as shown in Figure 6.
From Figure 5 and Figure 6, it can be seen that the distribution characteristics of the stress field along the tunnel are closely related to the topographic. When the topographic relief increases, the stress isoline density increases, and the ground stress change gradient increases, which is consistent with the distribution characteristic of the actual ground stress field. The maximum vertical principal stress along the tunnel is 18.3 MPa, which is about at the mileage of DK874+000. The maximum value of the maximum horizontal principal stress is 26.8 MPa, which is about at the mileage of DK880+000; The maximum value of the minimum horizontal principal stress is 23.3 MPa, which is about at the mileage of DK880+000. The overall stress characteristics from large to small are as follows: the maximum horizontal principal stress, the minimum horizontal principal stress, and the vertical principal stress, which indicates that the horizontal tectonic stress is dominant in the tunnel area and the horizontal tectonic stress is significant. Compared with the uniaxial compressive strength of the rock mass in Table 4, the ratio of surrounding rock strength to the ground stress is less than 0.5, indicating that the ground stress is high and prone to large deformation [44]. There is F3 fault at the tunnel mileage of DK878+000. The horizontal tectonic stress is slightly released [32], and the ratio of horizontal principal stress to vertical principal stress is smaller than that of both sides. The reduction of the geo-tress at the fault makes the stress of the tunnel structure uneven, which is very disadvantageous to the tunnel structure. At this time, the structure needs to be strengthened, and the adaptive implementation of support becomes inevitable [46]. F2 fault also exists at the tunnel mileage of DK876+500, and the regional tectonic stress is partially released [32]. The ratio of horizontal principal stress to vertical principal stress of the adjacent area shows the same trend. The trend is different from the analysis results of the lateral pressure coefficient beyond the fault, indicating that the influence of fault fracture zone on ground stress is significant. It can be seen that the lateral pressure coefficient in the super deep and super high ground stress area must be determined only by a more thorough investigation and an on-site test. It can be seen that the inversion results of in-situ ground stress need to be verified by more on-site measured results, and the accuracy and precision of the inversion results have a large room for improvement. The algorithm solution of the analysis and inversion application for the corresponding in-situ ground stress field law is very meaningful.

4. Conclusions and Discussions

Combined with the results of hydraulic fracturing and the numerical simulation, the initial ground stress field in the tunnel area is in inversion according to the principle of multiple linear regression analysis with three coefficient estimation methods. The accuracy and rationality of the regression results are verified by comparing and analyzing with the measured data. The distribution law of ground stress and the change characteristics of lateral pressure coefficient at different buried depths and tunnel axis are obtained. The main conclusions with discussions are drawn as follows:
(1)
Through the comparison and selection of three coefficient estimation methods for regression equation, to ensure the minimum mean square error and consider the multicollinearity among variables, the significance test result of the regression equation obtained by the Lasso regression method is the best, which shows a good application effect in the inversion of the initial ground stress field. In addition, with more verification of on-site monitoring results, the predictive feasibility of regression analysis can be more assured.
(2)
The lateral pressure coefficient along the tunnel line decreases gradually with the tunnel depth increasing. While the buried depth of the tunnel increases by 300 m, the lateral pressure coefficients of horizontal large and small principal stresses decrease by 0.1~0.3. The overall lateral pressure coefficient is in the range of 1.0~2.0, showing a relatively significant horizontal tectonism.
(3)
At the area near the fault, the horizontal tectonic stress is slightly released, resulting in the ratio of horizontal principal stress to vertical principal stress gradually increasing with the increase of tunnel depth. This trend is different from the analysis results of lateral pressure coefficient law beyond the fault, indicating that the influence of fault fracture zone on ground stress has gradually become one of the more dominant factors. Therefore, the lateral pressure coefficient in the super deep area needs to be determined by an on-site test. The structure of the rock massif, the position of the layer surfaces, the direction of the natural movements, the width of the fragmentation zone, etc., also have a great influence on regional in-situ stress, and the discussion and analysis of these aspects are of great research significance.

Author Contributions

Conceptualization, Z.T. and J.Z.; methodology, Z.T., J.Z. and R.Y.; software, X.W. and J.G.; validation, X.W., J.G. and R.Y.; formal analysis, R.Y. and J.G.; investigation, R.Y.; data curation, J.G. and R.Y.; writing—original draft preparation, R.Y.; writing—review and editing, R.Y. and J.G.; visualization, X.W. and J.G.; supervision, Z.T. and X.W.; project administration, Z.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The participant’s personal identification information used in the study did not include personal information. Ethical review and approval were not required for the study.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data sharing is not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ding, J. Measurement and Research of Ground Stress; Earthquake Publishing House: Beijing, China, 1982. [Google Scholar]
  2. Bock, H.F. 16—Measuring in situ rock stress by borehole slotting. In Rock Testing and Site Characterization; Hudson, J.A., Ed.; Pergamon: Oxford, UK, 1993; pp. 433–443. [Google Scholar] [CrossRef]
  3. Fujii, Y.; Makasi, M.; Kodama, J.; Fukuda, D.; Goto, K.; Kumakura, S.; Kanaoka, M.; Dassanayake, A.B.N. Tangent modulus method—An original method to measure in-situ rock stress. Tunn. Undergr. Space Technol. 2018, 82, 148–155. [Google Scholar] [CrossRef]
  4. Guo, Z.; Jiang, Y.; Pang, J.; Liu, J. Distribution of ground stress on Puhe coal mine. Int. J. Min. Sci. Technol. 2013, 23, 139–143. [Google Scholar] [CrossRef]
  5. Scelsi, G.; De Bellis, M.L.; Pandolfi, A.; Musso, G.; Della Vecchia, G. A step-by-step analytical procedure to estimate the in-situ stress state from borehole data. J. Pet. Sci. Eng. 2019, 176, 994–1007. [Google Scholar] [CrossRef]
  6. Huang, M.; Wu, A.; Wang, Y.; Han, B. Geostress measurements near fault areas using borehole stress-relief method. Trans. Nonferrous Met. Soc. China 2014, 24, 3660–3665. [Google Scholar] [CrossRef]
  7. Zhou, H.; Chen, S.; Li, H.; Liu, T.; Wang, H. Rockburst prediction for hard rock and deep-lying long tunnels based on the entropy weight ideal point method and geostress field inversion: A case study of the Sangzhuling Tunnel. Bull. Eng. Geol. Environ. 2021, 80, 3885–3902. [Google Scholar] [CrossRef]
  8. Wei, Y.H.; Liu, F. Research on Risk Classification and Assessment Method for Tunnels Crossing under High-speed Railway Subgrade. Mod. Tunn. Technol. 2020, 57, 46–54, (In Chinese). [Google Scholar] [CrossRef]
  9. Seto, M.; Nag, D.K.; Vutukuri, V.S. In-situ rock stress measurement from rock cores using the acoustic emission method and deformation rate analysis. Geotech. Geol. Eng. 1999, 17, 241–266. [Google Scholar] [CrossRef]
  10. Skrzypkowski, K. Case Studies of Rock Bolt Support Loads and Rock Mass Monitoring for the Room and Pillar Method in the Legnica-Głogów Copper District in Poland. Energies 2020, 13, 2998. [Google Scholar] [CrossRef]
  11. Ito, T.; Igarashi, A.; Kato, H.; Ito, H.; Sano, O. Crucial effect of system compliance on the maximum stress estimation in the hydrofracturing method: Theoretical considerations and field-test verification. Earth Planets Space 2006, 58, 963–971. [Google Scholar] [CrossRef] [Green Version]
  12. Ju, W.; Jiang, B.; Qin, Y.; Wu, C.; Wang, G.; Qu, Z.; Li, M. The present-day in-situ stress field within coalbed methane reservoirs, Yuwang Block, Laochang Basin, south China. Mar. Pet. Geol. 2019, 102, 61–73. [Google Scholar] [CrossRef]
  13. Liu, W.D.; Li, F.; Wu, M.L.; Liao, C.T. The study on ground stress measurement and the stress distribution rule on E-W both sides of fault F17 of ore body II in Jingchuan orefield. Procedia Eng. 2011, 26, 1712–1719. [Google Scholar] [CrossRef]
  14. Yang, X.; Pang, J.; Lou, H.; Fan, L. Characteristics of in situ stress field at Qingshui coal mine. Int. J. Min. Sci. Technol. 2015, 25, 497–501. [Google Scholar] [CrossRef]
  15. Yuan, F.; Liu, J.; Li, P. Inversion and formation mechanism of high geostress field in the valley area of Laxiwa project. Rock Soil Mech. 2007, 28, 836–843. [Google Scholar]
  16. Zhao, C.; Xiao, M.; Chen, J.T. Inversion analysis method for in-situ stress field under complex geological conditions. J. Huazhong Univ. Sci. Technol. (Nat. Sci. Ed.) 2017, 45, 87–92. [Google Scholar] [CrossRef]
  17. Hou, M.X.; Ge, X.R. Study on fitting analysis of initial stress field in rock masses. Rock Soil Mech. 2007, 8, 1626–1630. [Google Scholar] [CrossRef]
  18. Zhang, S.-R.; Hu, A.-K.; Wang, C. Three-dimensional inversion analysis of an in situ stress field based on a two-stage optimization algorithm. J. Zhejiang Univ. Sci. A 2016, 17, 782–802. [Google Scholar] [CrossRef]
  19. Cheng, Y.M. Seismic lateral earth pressure coefficients for c–φ soils by slip line method. Comput. Geotech. 2003, 30, 661–670. [Google Scholar] [CrossRef]
  20. Bai-Quan, L.; Ting, L.; Quan-Le, Z.; Chuan-Jie, Z.; Fa-Zhi, Y.; Zhen, Z. Crack propagation patterns and energy evolution rules of coal within slotting disturbed zone under various lateral pressure coefficients. Arab. J. Geosci. 2015, 8, 6643–6654. [Google Scholar] [CrossRef]
  21. Long, Y.; Liu, J.; Lei, G.; Si, Y.; Zhang, C.; Wei, D.; Shi, H. Progressive fracture processes around tunnel triggered by blast disturbances under biaxial compression with different lateral pressure coefficients. Trans. Nonferrous Met. Soc. China 2020, 30, 2518–2535. [Google Scholar] [CrossRef]
  22. Gao, W.; Ge, M. Back analysis of rock mass parameters and initial stress for the Longtan tunnel in China. Eng. Comput. 2016, 32, 497–515. [Google Scholar] [CrossRef]
  23. Jin, C.; Ma, Z.; Zhang, Y. Application of neural network in rock mass mechanical parameters and ground stress field inversion. Rock Soil Mech. 2006, 8, 1263–1267. [Google Scholar]
  24. Jin, C.Y.; Ma, Z.Y.; Zhang, Y.L.; Sha, R.H.; Chen, Q.F. Application of neural network to back analysis of mechanical parameters and initial stress field of rock masses. Rock Soil Mechan. 2006, 27, 1263–1266. [Google Scholar] [CrossRef]
  25. Wang, Z.; Liu, H.; Jiang, T.; Wan, S. Back analysis of initial stress field based on neural network RBF model. In Proceedings of the 1st International Conference on Civil Engineering, Architecture and Building Materials, Haikou, China, 18–20 June 2011; pp. 3223–3228. [Google Scholar]
  26. Hao, Z.; James, J.S. Complex fracture network simulation and optimization in naturally fractured shale reservoir based on modified neural network algorithm. J. Nat. Gas Sci. Eng. 2021, 95, 104232. [Google Scholar] [CrossRef]
  27. Adeyemi, E.A.; Musa, A.I. Performance analysis of empirical models for predicting rock mass deformation modulus using regression and Bayesian methods. J. Rock Mech. Geotech. Eng. 2020, 12, 1263–1271. [Google Scholar] [CrossRef]
  28. Inna, N.P.; Vladislav, I.G.; Dmitriy, A.M. Operational method for determining bottom hole pressure in mechanized oil producing wells, based on the application of multivariate regression analysis. Pet. Res. 2021, 6, 351–360. [Google Scholar] [CrossRef]
  29. Dai, C.; He, C.; Chen, Z.Q.; Wang, Y.; Yang, W.B. Inverse analysis of initial ground stress field of deep embedded and extra long highway tunnel. Zhongguo Gonglu Xuebao/China J. Highway Transp. 2017, 30, 100–108. [Google Scholar] [CrossRef]
  30. Zhao, D.; Li, G.; Chen, Z.; Li, S.; Xia, W. Three-dimensional FE regression analysis of multivariate geostress field of Wushaoling Tunnel. Yanshilixue Yu Gongcheng Xuebao/China J. Rock Mechan. Eng. 2009, 28, 2687–2694. [Google Scholar]
  31. Li, X.; Chen, J.; Ma, C.; Huang, L.; Li, C.; Zhang, J.; Zhao, Y. A novel in-situ stress measurement method incorporating non-oriented core ground re-orientation and acoustic emission: A case study of a deep borehole. Int. J. Rock Mech. Min. Sci. 2022, 152, 105079. [Google Scholar] [CrossRef]
  32. Suo, L.; Xu, Z.X.; Feng, T.; Wang, Z.W.; Yin, X.J.; Lin, Z.H.; Li, W. Back-Calculation of In-situ Stress of Railway Tunnel in Xianshuihe Fault Belt. J. Southwest Jiaotong Univ. 2022, 57, 331–338. (In Chinese) [Google Scholar] [CrossRef]
  33. Zhou, Z.H.; He, C.; Meng, W.; Wang, B.; Kou, H.; Chen, Z.Q. Back Analysis of Initial Geostress Field in Tunnel Site of Granitic Intrusive Rock Stratum. J. Southwest Jiaotong Univ. 2022, 57, 322–330. (In Chinese) [Google Scholar] [CrossRef]
  34. Zhang, C.; Feng, X.T.; Zhou, H. Estimation of in situ stress along deep tunnels buried in complex geological conditions. Int. J. Rock Mech. Min. Sci. 2012, 52, 139–162. [Google Scholar] [CrossRef]
  35. Zhao, H.; Ma, F.; Xu, J.; Guo, J. In situ stress field inversion and its application in mining-induced rock mass movement. Int. J. Rock Mech. Min. Sci. 2012, 53, 120–128. [Google Scholar] [CrossRef]
  36. Ľuboš, S.; Rostislav, M.; Ivo, B. Present-day stress inversion from a single near-surface fault: A novel mathematical approach. J. Struct. Geol. 2018, 117, 163–167. [Google Scholar] [CrossRef]
  37. Van Loock, F.; Brassart, L.; Pardoen, T. Implementation and calibration of a mesoscale model for amorphous plasticity based on shear transformation dynamics. Int. J. Plast. 2021, 145, 103079. [Google Scholar] [CrossRef]
  38. Zhang, B.; Hu, H.; Liang, S.; Niu, T.; Guo, Z.; Song, G. Ground stress Characteristics of Schist of Erdaoya Tunnel and Physical Properties of Rock Masses. Geotech. Geol. Eng. 2017, 35, 2123–2135. [Google Scholar] [CrossRef]
  39. Roger, A.P. Coordinate Transformations. In International Geophysics; Academic Press: Cambridge, MA, USA, 2013; Volume 98, pp. 111–141. [Google Scholar] [CrossRef]
  40. You, M.Q. Study on the method of measuring in-situ stress by hydraulic fracturing method. Chin. J. Geotech. Eng. 2005, 27, 350–353, (In Chinese). [Google Scholar] [CrossRef]
  41. Howard, M.; Jerry, W. Chapter 4—Matrix Algebra and Multiple Linear Regression: Part 1—Quasi-Algebraic Operations, Multiple Linear Regression, The Least Squares Method. In Chemometrics in Spectroscopy, 2nd ed.; Academic Press: Cambridge, MA, USA, 2018; pp. 27–35. [Google Scholar] [CrossRef]
  42. David, J. Linear Regression; Academic Press: Cambridge, MA, USA, 2017. [Google Scholar] [CrossRef]
  43. Howard, M.; Jerry, W. Chapter 65—Linearity in Calibration, Act III Scene II: A Discussion of the Durbin-Watson Statistic, a Step in the Right Direction. In Chemometrics in Spectroscopy, 2nd ed.; Academic Press: Cambridge, MA, USA, 2018; pp. 433–440. [Google Scholar] [CrossRef]
  44. TB10003-2016; Professional Standards Compilation Group of People’s Republic of China. Code for Design of Railway Tunnel. China Railway Publishing House Co., Ltd.: Beijing, China, 2017.
  45. GB/T 50123-2019; Ministry of Water Resources of the People’s Republic of China. Standard for Geotechnical Testing Method. China Planning Press: Beijing, China, 2019.
  46. Skrzypkowski, K.; Zagórski, K.; Zagórska, A.; Apel, D.B.; Wang, J.; Xu, H.; Guo, L. Choice of the Arch Yielding Support for the Preparatory Roadway Located near the Fault. Energies 2022, 15, 3774. [Google Scholar] [CrossRef]

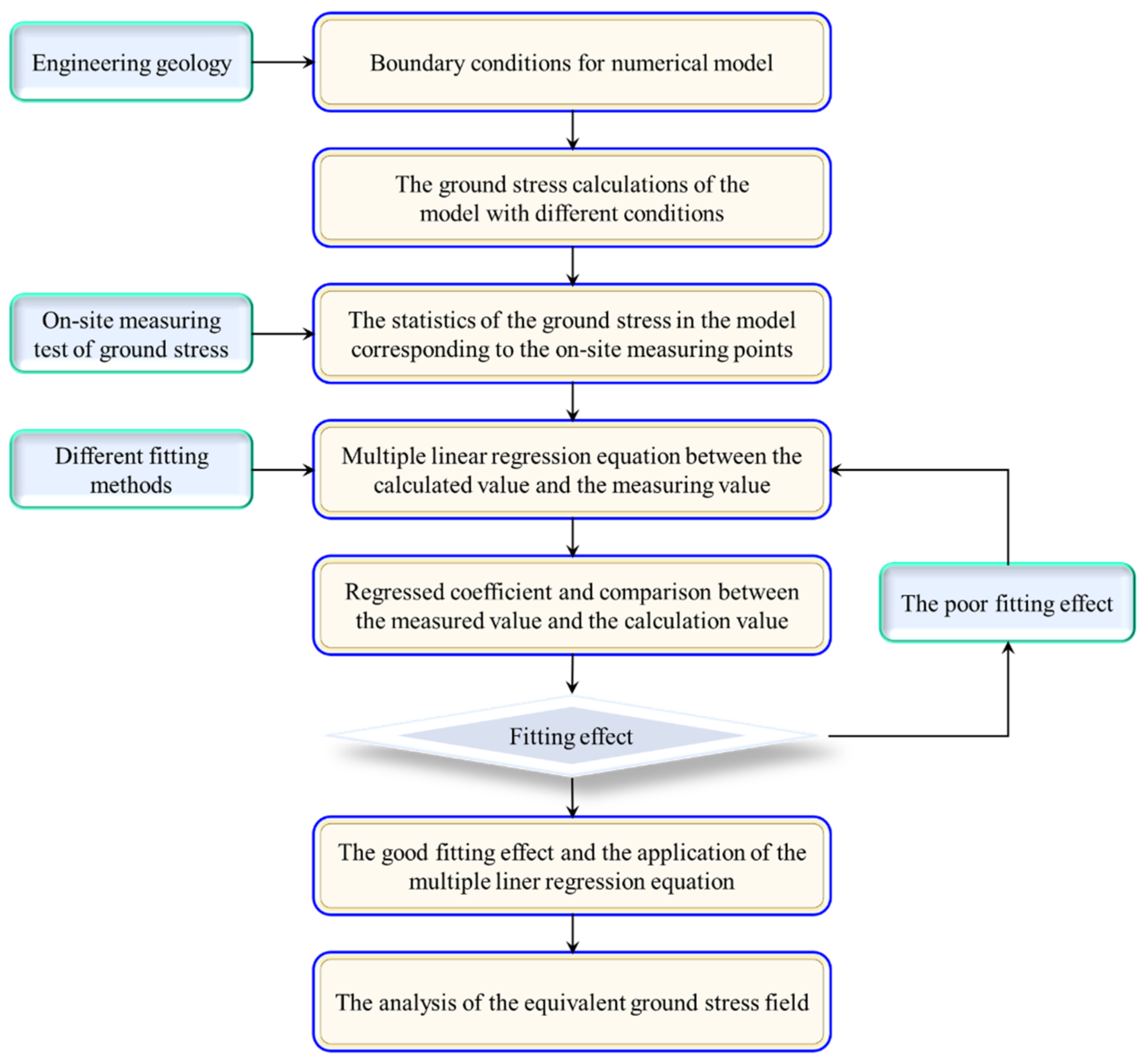

Figure 1. Principle of regression inversion of initial ground stress.
Figure 1. Principle of regression inversion of initial ground stress.
Applsci 12 08986 g001

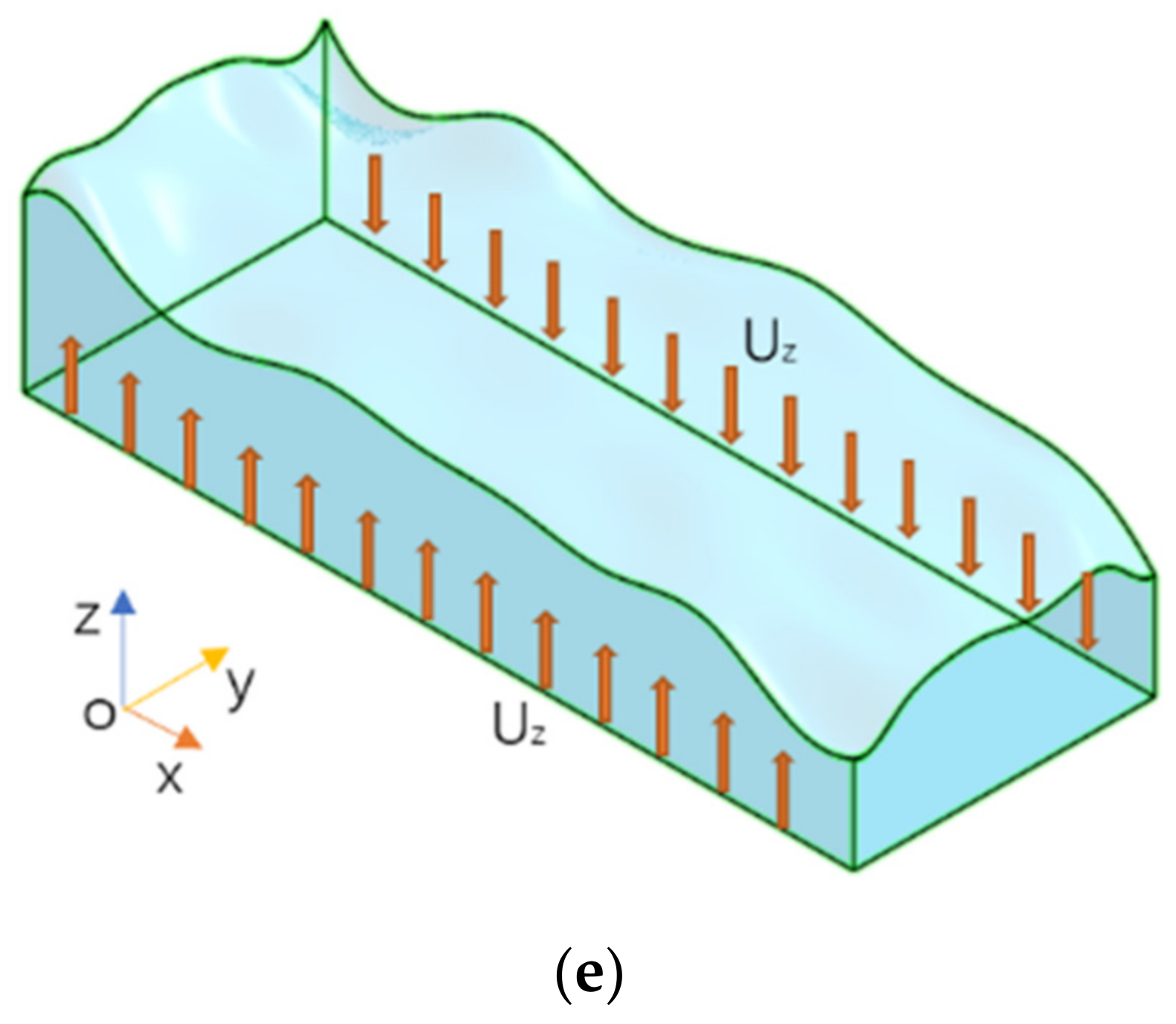

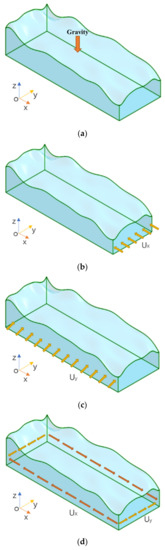

Figure 2. Different stress states. (a) Applying gravity stress; (b) Applying horizontal squeezing stress in the X direction; (c) Applying horizontal squeezing stress in the Y direction; (d) Applying shear stress in the XOY coordinate plane; (e) Applying shear stress in XOZ coordinate plane.
Figure 2. Different stress states. (a) Applying gravity stress; (b) Applying horizontal squeezing stress in the X direction; (c) Applying horizontal squeezing stress in the Y direction; (d) Applying shear stress in the XOY coordinate plane; (e) Applying shear stress in XOZ coordinate plane.
Applsci 12 08986 g002aApplsci 12 08986 g002b

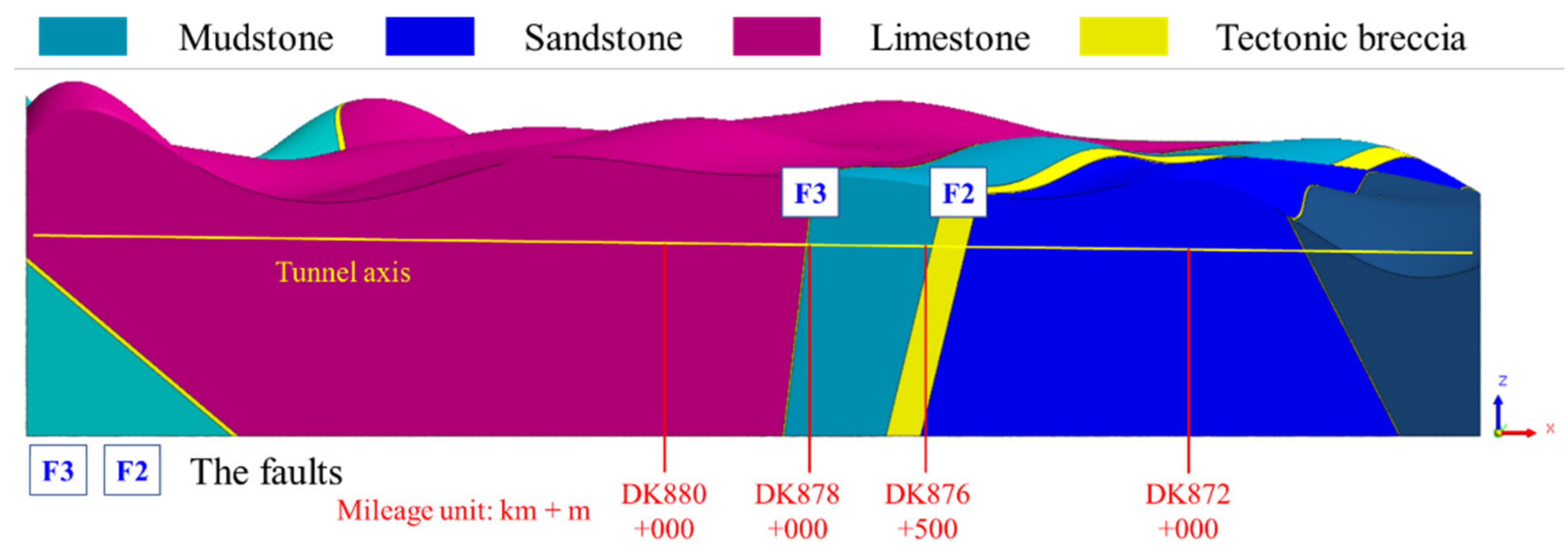

Figure 3. 3D geological model.
Figure 3. 3D geological model.
Applsci 12 08986 g003

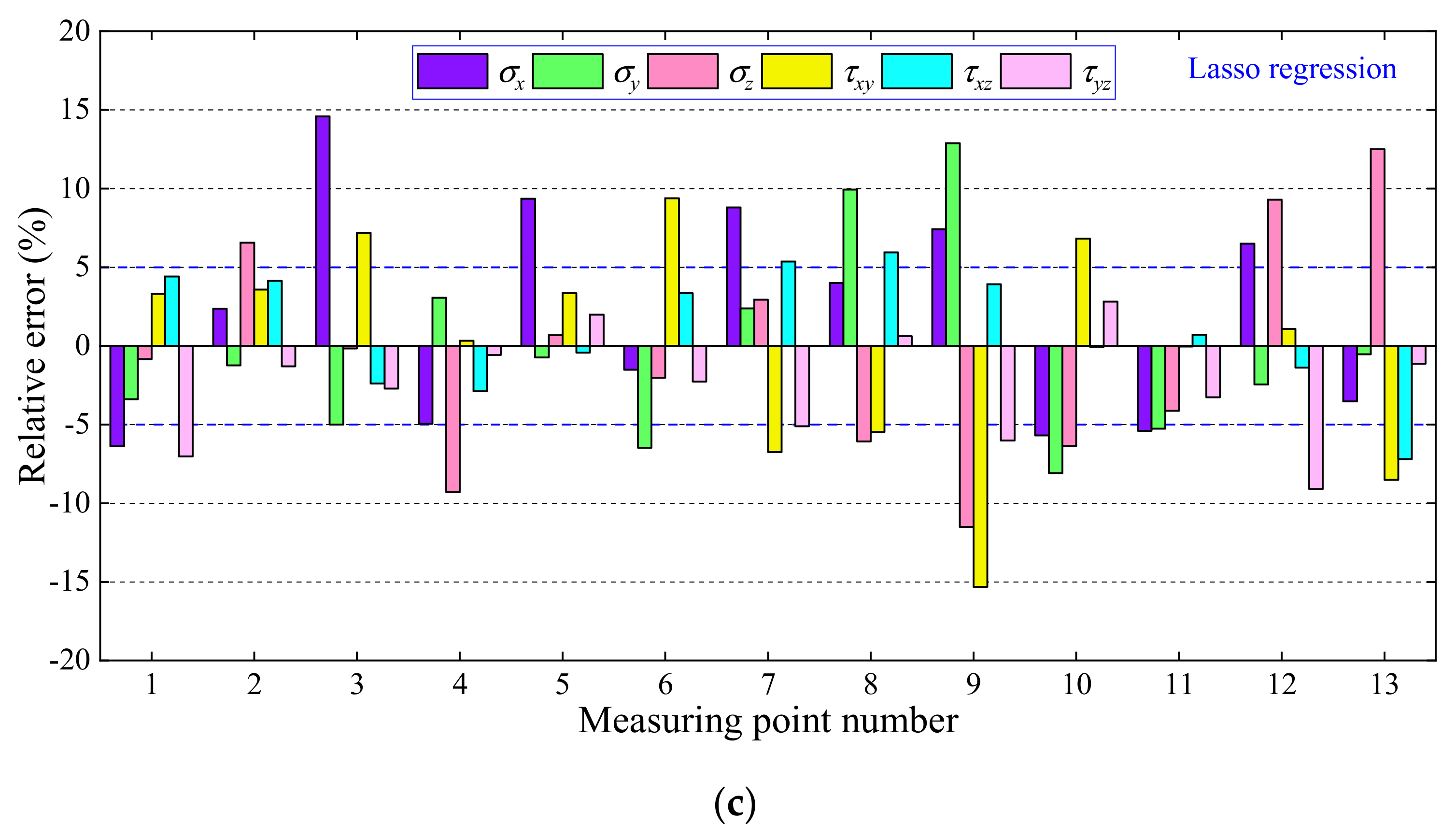

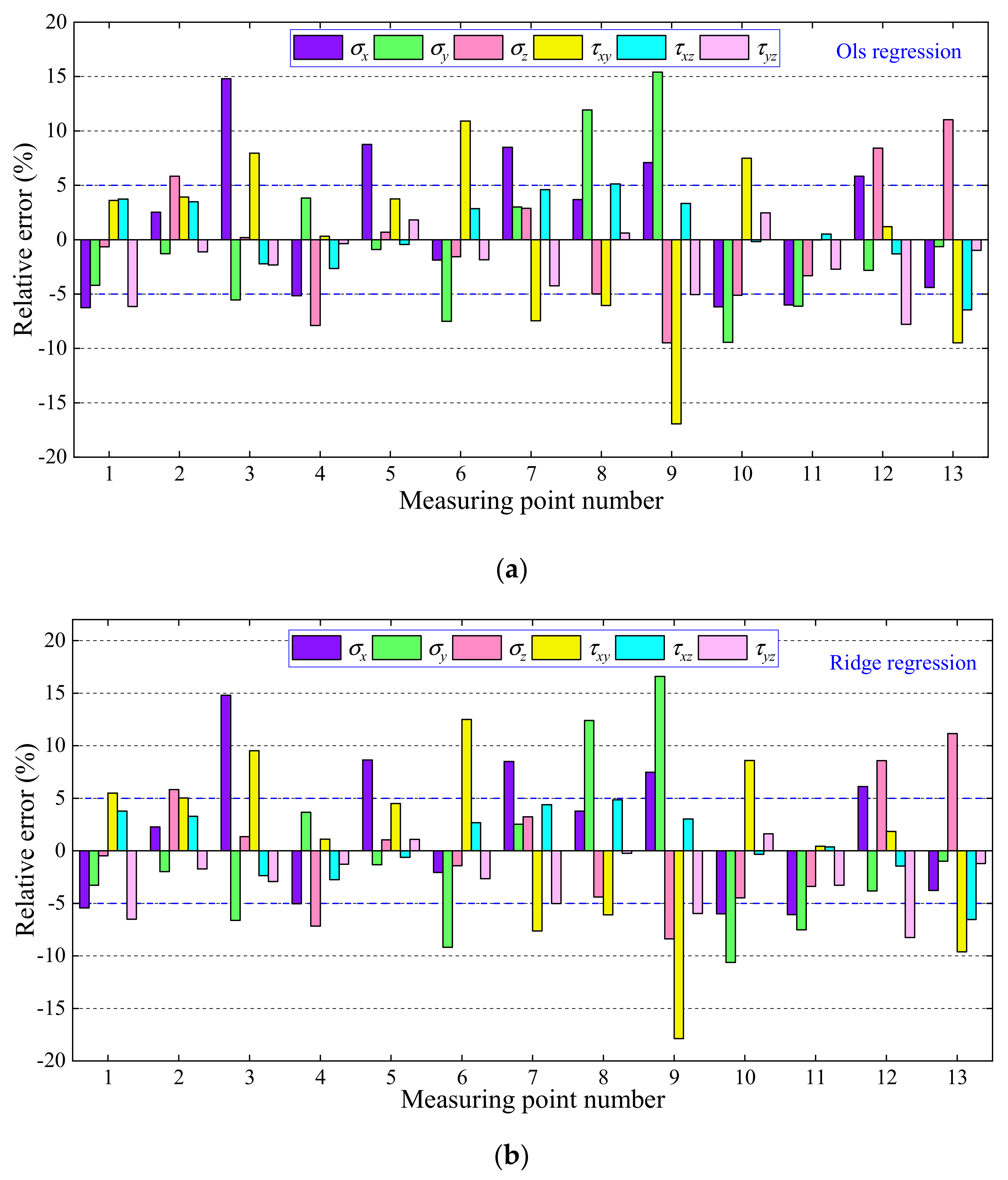

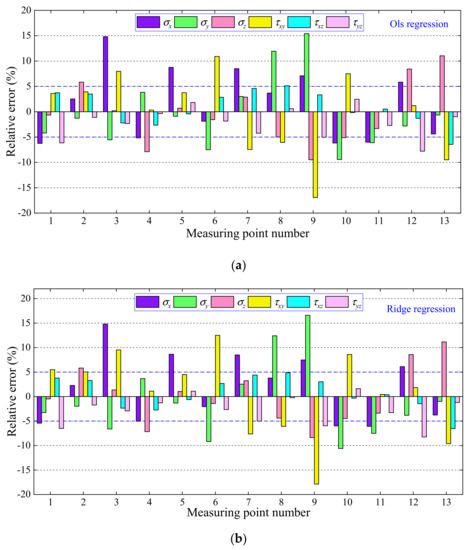

Figure 4. Relative error between the regression value and the measured value of different measuring points. (a) OLS; (b) RR; (c) LR.
Figure 4. Relative error between the regression value and the measured value of different measuring points. (a) OLS; (b) RR; (c) LR.
Applsci 12 08986 g004aApplsci 12 08986 g004b

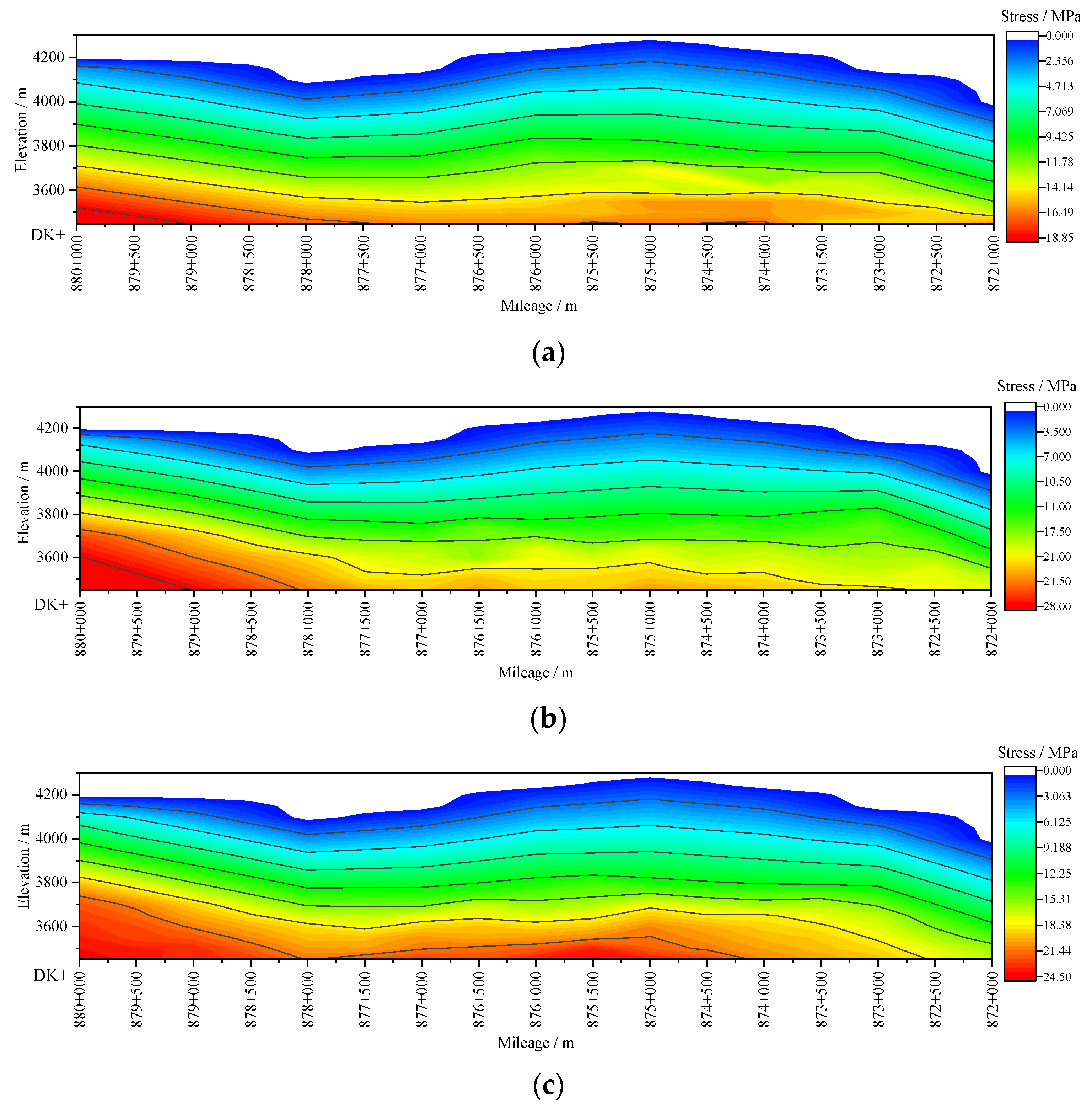

Figure 5. Principal stress nephogram. (a) Vertical principal stress nephogram; (b) Maximum horizontal principal stress nephogram; (c) Minimum horizontal principal stress nephogram.
Figure 5. Principal stress nephogram. (a) Vertical principal stress nephogram; (b) Maximum horizontal principal stress nephogram; (c) Minimum horizontal principal stress nephogram.
Applsci 12 08986 g005

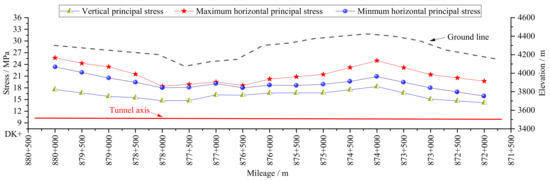

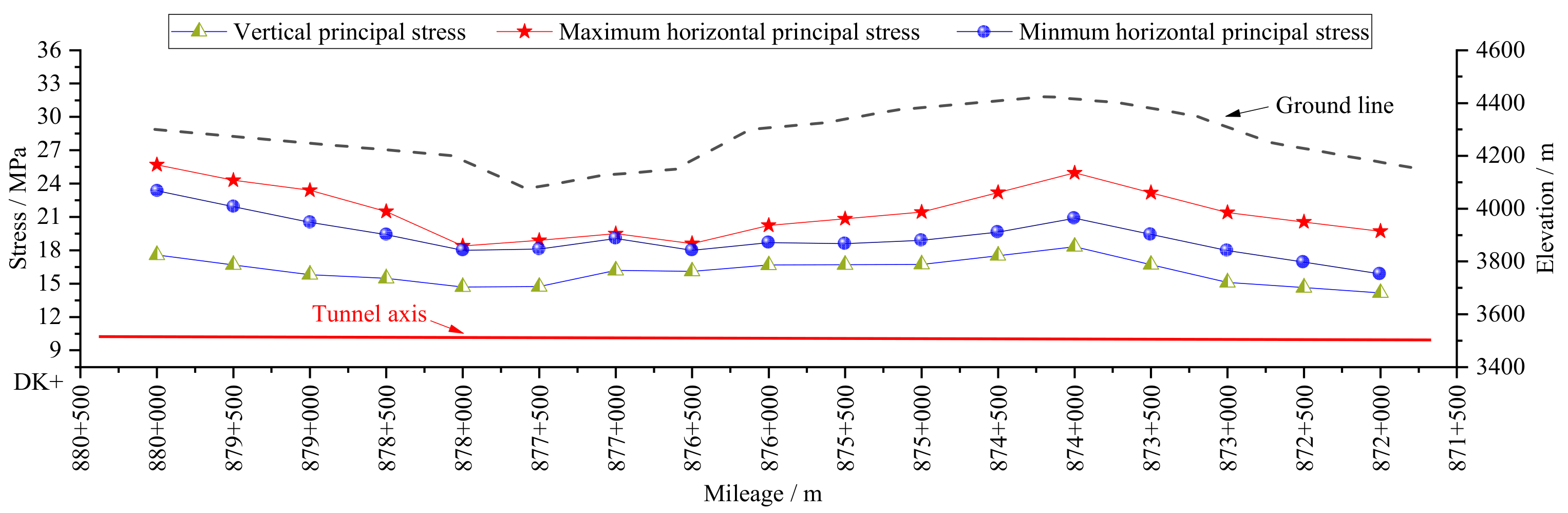

Figure 6. Principal stress distribution at different buried depths along the tunnel.
Figure 6. Principal stress distribution at different buried depths along the tunnel.
Applsci 12 08986 g006
Table 1. Coefficient estimation method principle for multiple linear regression [42].
Table 1. Coefficient estimation method principle for multiple linear regression [42].
Coefficient Estimation MethodConstraint FunctionPenalty ItemAdvantagesDisadvantages
OLS a r g m i n k = 1 n j = 1 m σ j k σ ^ j k 2 The fitting value can have a good unbiased estimationEasy to underfit or overfit, and unable to solve the problem of multicollinearity
RR a r g m i n k = 1 n j = 1 m σ j k σ ^ j k 2 + λ C i 2 2 Norm L2Solving the problem of multicollinearity, and preventing over-fitting, norm L2 has an analytical solutionGive up unbiased estimation, reduce accuracy, and it is difficult to eliminate variables with low correlation
LR a r g m i n k = 1 n j = 1 m σ j k σ ^ j k 2 + λ C i 1 Norm L1Solve the problem of multicollinearity, prevent over-fitting, produce sparsity, and eliminate variables with low correlationNorm L1 has no analytical solution.
Note: in the formula, λ is super-parameter and non-negative, Ci is the coefficient of the regression equation, and in Lasso regression, the coefficient whose absolute value is less than λ/2 will be forced to zero.
Table 2. Significance test method.
Table 2. Significance test method.
Test MethodsExpressionSignificance Analysis
Multiple correlation coefficient (R) R = S R S T The closer the R-value is to 1.0, the more significant the linear relationship between independent variables and dependent variables is.
Standard deviation consistency statistic (F) F = S R / m S e / n m 1 Under the specified significance level, the more significant the corresponding F statistics is less than the F value of variables, the more significant the linear relationship between independent variables and dependent variables is.
Durbin-Watson statistic (D-W) [43]The closer the D-W statistic is to 2.0, the weaker the multicollinearity among the independent variables and the stronger the independence of the independent variables.
Table 3. Boundary condition of the numerical model.
Table 3. Boundary condition of the numerical model.
Boundary ConditionUxUyU’xU’yUz
Displacement/m0.10.10.10.010.1
Table 4. Stratigraphic lithology and physical and mechanical parameters.
Table 4. Stratigraphic lithology and physical and mechanical parameters.
LithologyUnit Weight γ/kN·m−3Elastic Modulus E/GPaPoisson’s Ratio μInternal Friction Angle φCohesion c/kPaUniaxial Compressive Strength f/MPa
Mudstone23.01.30.352340011.2
Sandstone24.77.00.33580035.0
Limestone25.715.00.2543100041.4
Tectonic breccia22.50.810.325200
Test methodsDensitometer methodTriaxial compression testDirect shear testUnconfined compressive strength test
Table 5. Regression results of three coefficient estimation methods.
Table 5. Regression results of three coefficient estimation methods.
Coefficient Estimation MethodC0C1C2C3C4C5
OLS376.5100.994449.840139.220−37.940−17.010
RR303.7030.978442.477144.120−49.772−32.500
LR394.7791.003433.987140.273−37.052−22.863
Table 6. Significance test results of the regression equation.
Table 6. Significance test results of the regression equation.
Coefficient Estimation MethodsλoptRFDurbin-Watson Statistic (D-W)
OLS0.9630183.631.88
RR0.034890.9627182.13
LR17.575360.9629183.33
Table 7. Error comparison of regression results of three coefficient estimation methods.
Table 7. Error comparison of regression results of three coefficient estimation methods.
Coefficient Estimation MethodAbsolute Value of Mean Relative Error (AMRE)/%Number of AMRE > 10%
OLS4.736
RR4.997
LR4.765
Table 8. The principal stress of the extraction points of the model beyond the fault (Unit: MPa).
Table 8. The principal stress of the extraction points of the model beyond the fault (Unit: MPa).
Depth/mMeasuring Point Number123456789
500.0 σ V 12.613.411.911.49.99.912.413.113.5
σ M a x h 22.221.717.914.814.215.221.919.419.7
σ M i n h 19.118.916.514.312.813.316.716.015.4
800.0 σ V 20.120.718.416.114.715.720.220.419.0
σ M a x h 29.126.821.318.018.220.324.024.124.2
σ M i n h 25.523.920.217.616.017.021.120.920.5
1100.0 σ V 27.626.823.820.719.321.125.224.923.1
σ M a x h 34.832.026.623.523.525.428.929.730.7
σ M i n h 30.828.524.621.219.721.627.227.226.2
Surface elevation/m420041004150425043004250415040003950
Note: σ V represents vertical principal stress; σ M a x h represents maximum horizontal principal stress; σ M i n h represents minimum horizontal principal stress.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Yu, R.; Tan, Z.; Gao, J.; Wang, X.; Zhao, J. Inversion and Analysis of the Initial Ground Stress Field of the Deep-Buried Tunnel Area. Appl. Sci. 2022, 12, 8986. https://doi.org/10.3390/app12188986

AMA Style

Yu R, Tan Z, Gao J, Wang X, Zhao J. Inversion and Analysis of the Initial Ground Stress Field of the Deep-Buried Tunnel Area. Applied Sciences. 2022; 12(18):8986. https://doi.org/10.3390/app12188986

Chicago/Turabian Style

Yu, Rongsen, Zhongsheng Tan, Junpeng Gao, Xiuying Wang, and Jinpeng Zhao. 2022. "Inversion and Analysis of the Initial Ground Stress Field of the Deep-Buried Tunnel Area" Applied Sciences 12, no. 18: 8986. https://doi.org/10.3390/app12188986

APA Style

Yu, R., Tan, Z., Gao, J., Wang, X., & Zhao, J. (2022). Inversion and Analysis of the Initial Ground Stress Field of the Deep-Buried Tunnel Area. Applied Sciences, 12(18), 8986. https://doi.org/10.3390/app12188986

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
