A Survey of Photoplethysmography and Imaging Photoplethysmography Quality Assessment Methods

Abstract

Photoplethysmography is a method to visualize the variation in blood volume within tissues with light. The signal obtained has been used for the monitoring of patients, interpretation for diagnosis or for extracting other physiological variables (e.g., pulse rate and blood oxygen saturation). However, the photoplethysmography signal can be perturbed by external and physiological factors. Implementing methods to evaluate the quality of the signal allows one to avoid misinterpretation while maintaining the performance of its applications. This paper provides an overview on signal quality index algorithms applied to photoplethysmography. We try to provide a clear view on the role of a quality index and its design. Then, we discuss the challenges arising in the quality assessment of imaging photoplethysmography.

1. Introduction

A photoplethysmograph (also known as photoelectric plethysmograph, or PPG) is an instrument using light to measure blood volume changes in tissues [1,2]. A PPG signal can be extracted from several parts of the body (e.g., finger, ear, forehead, wrist) [2,3]. The conventional principle is called contact PPG (cPPG) and consists of a device in contact with the skin, emitting a controlled light beam. According to the Beer–Lambert law, this light will be transmitted, absorbed, or dispersed by the different elements constituting the tissues (e.g., blood components in capillaries or arterioles, keratin and melanin in epidermis [4,5]). Then, the output light is received by a photoreceptor [6]. The evolution with time of the light received by the receptor allows one to visualize the blood flow in a specific portion of tissue. The measurement of PPG can be based on the transmittance or reflectance mode. In transmittance mode, the source of light and the photoreceptor face each other and the receptor measures the light that has not been absorbed by the tissue. In reflectance mode, the light source and receptor are side by side and the receptor measures the light that is reflected from the tissue. PPG signals have applications in the monitoring of patients and extraction of vital signs [7].

The simplicity and low cost of the technology allow its integration in various devices, such as oximeters, smartwatches, or smartphones. It can be used in applications such as home monitoring, or in measurements performed during physical activities such as running.

Furthermore, the emergence of imaging photoplethysmography (iPPG) potentially allows the same applications using only the ambient light modulated and reflected by the blood from the skin and captured by a camera. The development of iPPG could allow physiological measurement during telemedicine, by using a webcam or a smartphone camera, to support the diagnosis of a clinician.

However, during a measurement, the signal obtained from a device can be corrupted by perturbations called artifacts. Consequently, the interpretation of the output signal is impossible or erroneous, which could lead to false diagnosis or to the rising of false alarms.

Thus, the discrimination between signals of high and low quality can help to detect the presence of perturbations. To avoid asking the opinion of an expert for each occurrence of an artifact and to maintain the high performance of the monitoring device, the field of quality assessment algorithms has been developed. Many algorithms have been suggested, evolving with the possibilities offered by devices, and depending on the application that the PPG signal is used for.

Several reviews have been presented on the topic of quality assessment of contact PPG signals. Nizami et al. [8] reviewed papers suggesting artifact detection algorithms for critical care units between 1989 and 2012. Orphanidou published a book [9] in 2018 addressing the quality assessment of contact PPG signals for rule-based and machine learning-based methods. Two smaller reviews have been recently published by Mejía-Mejía et al. [10] and Park et al. [11]. Mejía-Mejía et al. provided a definition of PPG signal quality and discussed methods used for its assessment. Park et al. published a review on PPG signal features, applications, and processing methods, including a section on signal quality indexes, in which they presented an overview of quality assessment algorithms oriented around feature-based methods and machine learning/deep learning-based methods. However, to the best of our knowledge, no survey has been done on the topic of quality assessment applied to iPPG. In this review, we try to provide an exhaustive view on the latest methods dedicated to quality assessment and discuss the methodology used for the creation of those algorithms for both cPPG and iPPG.

This paper presents an overview of the different methods used to assess the quality of a PPG signal and discuss the methodology in the design of those methods. Section 2 and Section 3 of this paper provide the background on quality assessment, physiological signals, and photoplethysmography. Section 4 reviews the methods used for the quality evaluation of contact PPG over two differentiating points, the features extracted and the classification method. We finish by discussing the role and signal quality indexes (SQI) existing in iPPG.

2. Background

2.1. PPG Signal and Its Application

A PPG signal reflects the variation with time of the blood volume in the tissue of a patient [5]. The obtained signal is dependent on the mode (transmittance or reflectance) and on the wavelength of the light source used. Indeed, the light penetration depth in the tissue is different according to the wavelength used. Green light can only reach capillaries and upper arterioles under the epidermis, whereas red and infrared light are able to penetrate further into the dermis and reach deeper and larger arterioles [5]. This penetration depth has an influence on the quality of the signal under perturbation. Maede et al. [12] and Jihyoung et al. [13] showed that red- and infrared-based PPG are more subject to motion artifacts than green-based PPG. The PPG signal is composed of a semi-periodic component (AC component) reflecting the modification of blood flow due to cardiac activity and a baseline (DC component) varying with low-frequency physiological changes (e.g., respiration or variations of the sympathetic and parasympathetic system of the patient). The measurement of a PPG signal allows several applications [14]:

• Extraction of physiological parameters, which can be illustrated by the extraction or estimation of physiological variables such as pulse rate, pulse rate variability, blood oxygen saturation [15], blood pressure [16], jugular venous pulse, respiration rate, cardiac output, arterial stiffness, left ventricular ejection time [10].
• Monitoring of patients by the screening PPG signals to follow their cardiovascular state. It allows the rise of alarms in case of the detection of abnormal situations such as fibrillation in intensive care units.
• Diagnosis: for example, by the detection of cardiovascular or peripheral vascular diseases [17] or arrhythmia, such as atrial fibrillation [18] or ventricular tachycardia [19].

2.2. Measurement Factors Influencing a PPG Signal

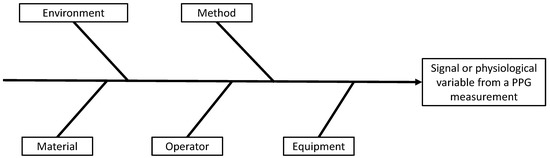

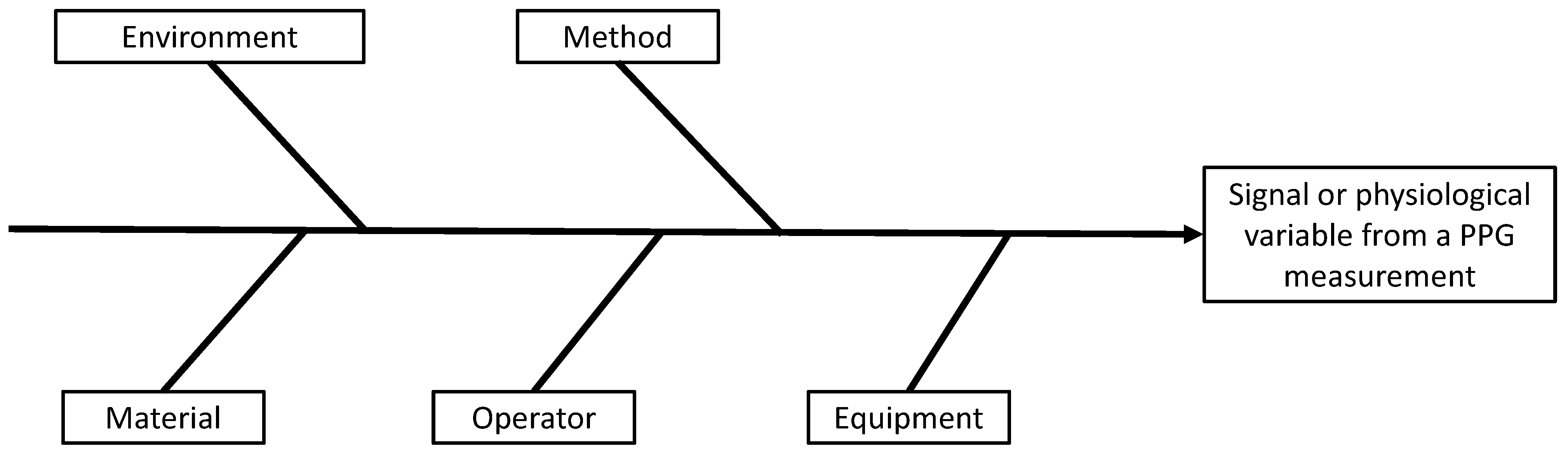

This measurement of a PPG signal is a process influenced by five factors (Figure 1):

• the environment: the external conditions in which the measurement is taken (e.g., temperature, pressure, ambient light, occurrence of a perturbation from the environment hiding the portion of skin in case of iPPG);
• the material: the portion of skin subjected to the measurement;
• the operator: the person performing the measurement;
• the equipment: the device used for the measurement (e.g., a pulse oximeter/smartwatch for PPG or a camera for iPPG);
• the methods: the physics behind the measurement and the algorithm dedicated to the extraction of the desired measurand and the protocol of measurement.

From each factor, perturbations can affect the quality of a PPG measurement (

Table 1. Non-exhaustive perturbations affecting a PPG measurement.

Measurement Factor	cPPG	iPPG
Means	Low resolution of the sensor
	Inadequate sampling frequency of the sensor
	Clipping
	Sensor’s noise
	Power source interference [1]	Automatic exposition
	Contact pressure [20]	Rolling shutter [21]
		Irregular frame rate [21]
Environment	Ambient light
	Temperature [22]
		Low luminosity
		Nonstable environment (varying luminosity)
Material	Motion artifacts
		Presence of makeup [23]
		Ballistocardiographic artifacts [24]

).

2.3. Physiological Factors Influencing a PPG Signal

In addition to measurement perturbations, several studies have highlighted the influence of physiological factors (e.g., skin tone, skin thickness, arterial thickness, venous return) and states of the patient (such as illness, age, weight, blood pressure) on the shape of a PPG signal (see

Table 2. Physiological factors affecting a PPG signal.

Physiological Factor	cPPG	iPPG
Measurement site	Impact on the shape of the PPG pulse [25]
Autonomic nervous system (sympathetic and parasympathetic)	Impact on the baseline of the signal [26]
	Impact on pulse amplitude [7,27,28]
Arterial stiffness	Impact on the waveform [29,30]
	Impact on pulse wave velocity [29,30]
Presence of disease (Arrythmia, premature ventricularcontraction, etc.)	Pulse to pulse interval [1,18] PPG waveform [7,18]	Pulse with multiple peaks (diabetes), incomplete pulses (arrythmia) [31]
Respiration	Baseline wandering Modification of the waveform shape [25] Modification of frequency and amplitude of the AC component [29]	Modification of the pulse rate [32]
Skin thickess	Lower PPG signal intensity and modification of the waveform [29]
Skin tone	Higher absorption of lower-wavelength light (green) [29]	Signal of lower amplitude and more subject to noise [33]
Venous return	Affects both low-frequency components and AC components [29]

).

3. Introduction to Signal Quality Index for Photoplethysmographic Signals

3.1. Definition of Quality

We distinguish between two types of quality for photoplethysmography, the metrological quality and the physiological quality.

3.1.1. Metrological Quality

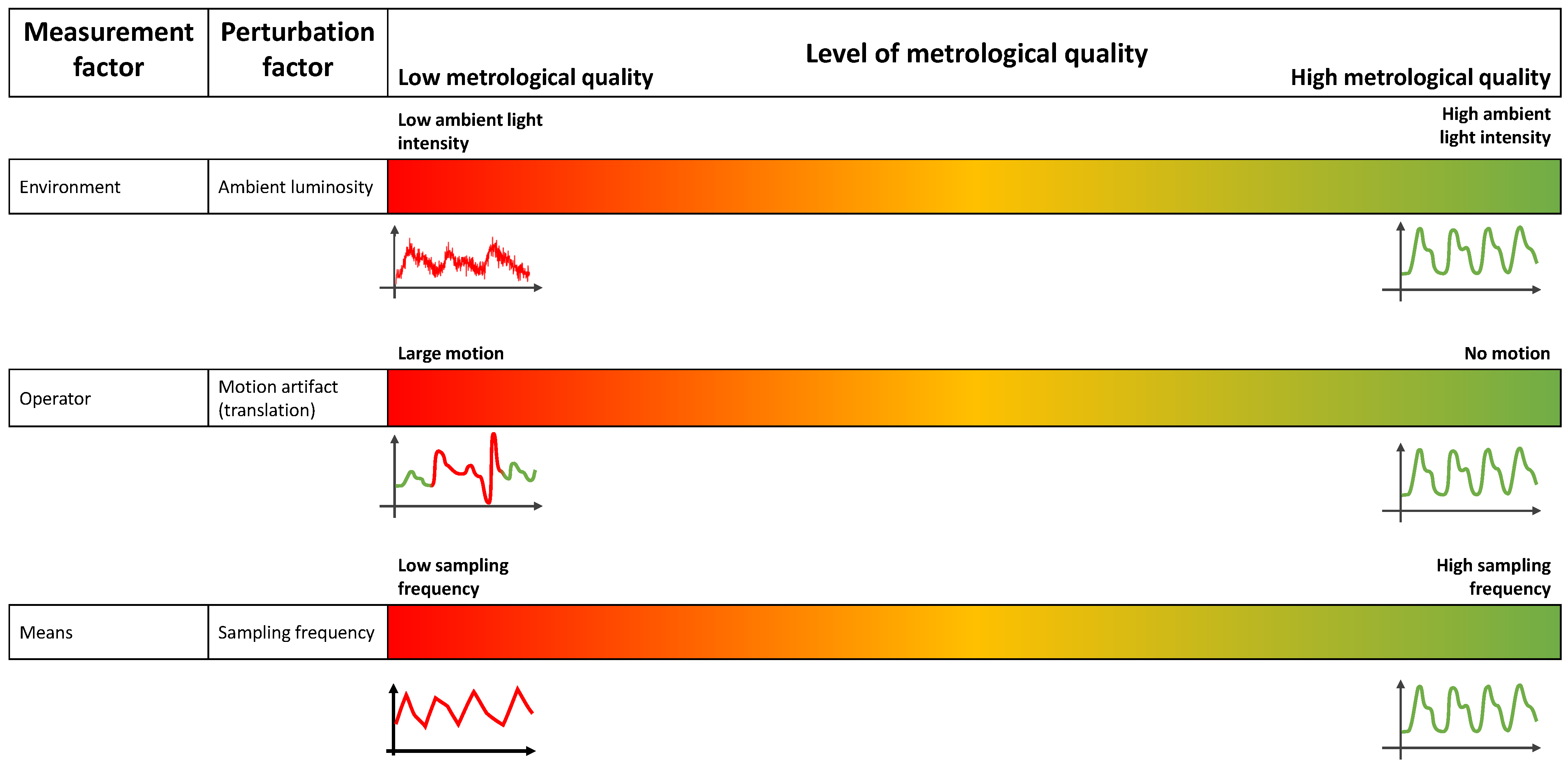

Metrological quality focuses on the measurement factors affecting both the photoplethysmographic signal retrieved and the physiological parameters extracted from it. This aspect of the signal quality is subject to perturbations (detailed in Table 1) arising from the environment, the operator (e.g., motion artifacts, poor installation of the sensor for contact PPG), the sensor (e.g., inadequate sampling frequency or resolution), or the mean. Different perturbations can occur and impact the signal with varying intensities, such as different amplitudes of a motion artifact or noise power of a sensor. Thus, we represent the notion of the quality of the signal with a continuous scale (Figure 2). This scale represents how much the quality of the retrieved signal is affected and depends on the method implemented to extract and process the signal, such as the performances of an algorithm of face tracking, signal extraction, and filtering for an iPPG measured from the face. For example, a smartwatch application dedicated to the measurement of photoplethysmographic signals during exercise may be more subject to motion artifact than a pulse oximeter device used at rest. However, the use of motion artifact reduction algorithms [34] allows one to recover a signal from some perturbations. This processed signal can ultimately be labelled as good-quality. Metrological quality focuses on the following question: given a measurement with a protocol and method, in a given condition of measurement, how well does the obtained signal reflect the variation in blood volume in the tissue?

3.1.2. Physiological Quality

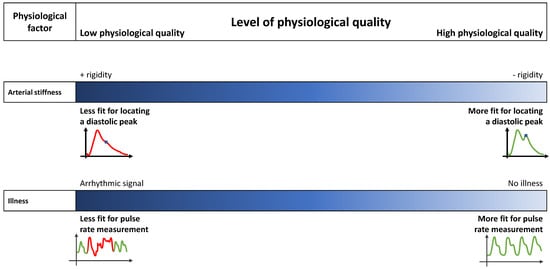

The notion of physiological quality is specific to the nature of the PPG signal. The measurement of PPG is done on living tissues. Consequently, the obtained signal is affected by physiological factors. For example, let us consider a PPG signal measured in optimal conditions with a perfect sensor and a proper processing algorithm, giving a signal whose variations are only due to blood volume changes in tissues, supposing also that we want to use this signal to measure the pulse rate. Then, the signal retrieved may still not be suitable for this application if the patient suffers from arrhythmia. Here, we want to highlight that, given some applications built upon the PPG signal (e.g., estimation of pulse rate, blood oxygenation, or pulse rate variability), the quality of the signal can be independent of metrological factors. Physiological factors can affect the PPG signal with different intensities. For example, an arteria can be more or less stiff or the respiration intensity of the patient can vary. Consequently, we also decided to represent physiological quality with a continuous scale (Figure 3). This notion of physiological quality is dependent on the application of the PPG signal and the algorithms implemented to achieve it (including the signal extraction process).

3.1.3. Annotation

From the above sections, quality has been defined as how well the signal translates the variation in the blood flow of a patient with the metrological quality and how well the signal can be used for the derived application with physiological quality using continuous scales. In practice, quality is commonly addressed as discrete. Most of the reviewed papers presented in this survey associate the quality of the PPG signal binarily (“good” or “bad” quality) or with intermediate discrete levels. Passing from two continuous notions of quality with respect to metrological and physiological factors to a discrete representation makes the annotation of a set of signals difficult. However, it is a necessary step for the evaluation of the performance of an SQI algorithm.

Automatic annotation

Automatic annotation processes refer to annotation methods without the intervention of a human operator.

A common method is to extract a physiological variable (e.g., PR, stroke volume) from the PPG signal and compare it to the value of the same physiological variable extracted from another device and/or another signal (e.g., electrocardiogram (ECG)) serving as a reference. If the difference between the values does not exceed a threshold, then the PPG signal is considered of good quality; otherwise, it is considered of low quality. In this case, the notion of quality is principally driven by the application.

Another method consists in annotating the signals with the help of an already existing SQI. This method is used for the case of papers wanting to deploy an SQI algorithm replacing one or several older SQI algorithms.

Manual annotation

Manual annotation involves human intervention in the process. As with any manual annotation, this process takes time and is difficult. It is also subject to errors from annotators (noise in labels).

The annotation of PPG signals differs from the annotation of objects in images [18] as follows.

• A PPG signal is a physiological signal, and evaluating its metrological quality needs the opinion of experts in the field. Consequently, the process of annotation can be expensive, and the annotation of large datasets is difficult.
• Because of its physiological nature, a PPG signal measured from a patient must be coherent with the physiological possibilities of the human body and with other physiological signals (e.g., ECG or continuous blood pressure). This coherence offers the possibility for the annotators to be guided

  –

  with a set of rules that the PPG signal must comply with;

  –

  with another physiological signal not affected by the perturbation.

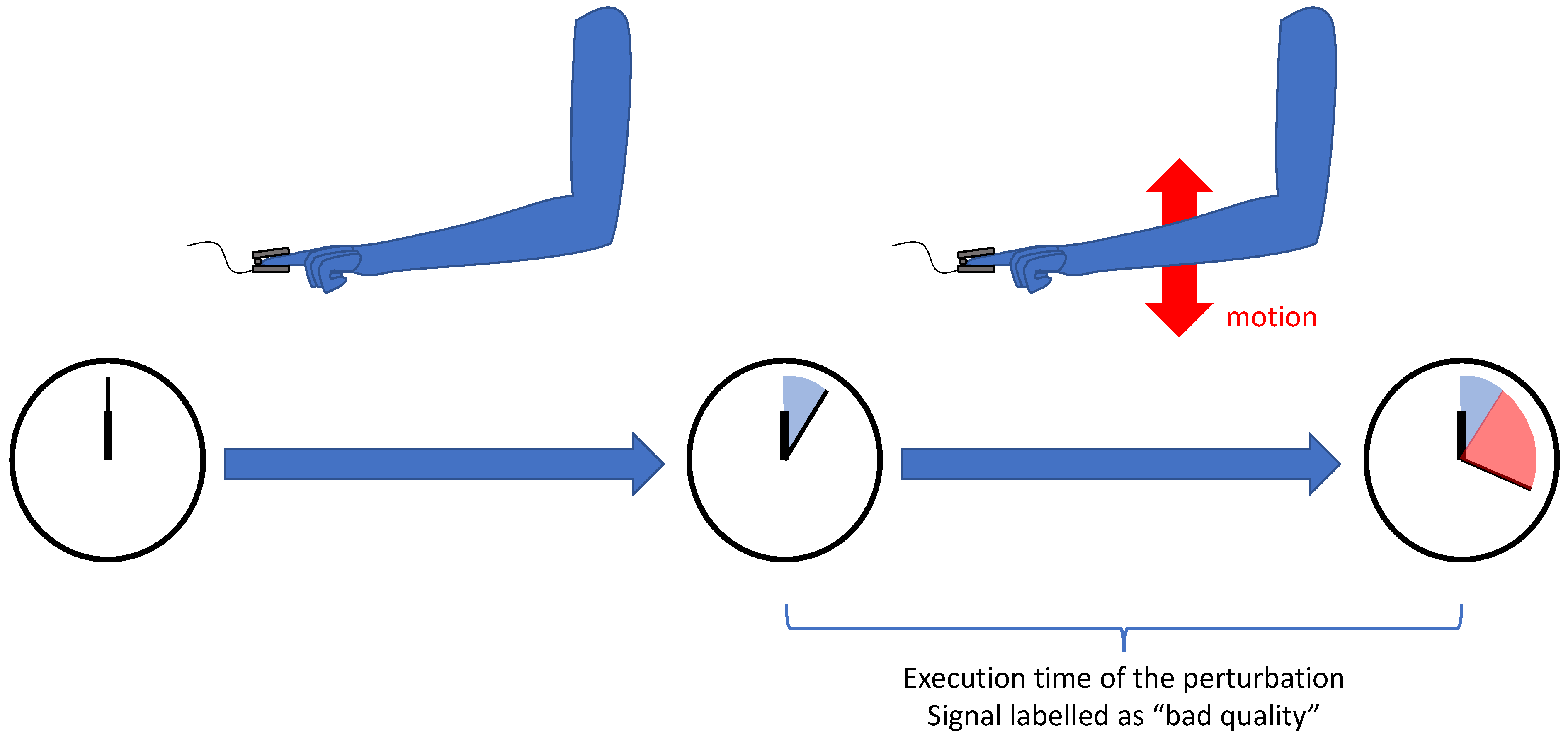

Other than subjective or guided annotation, a third way to manually annotate the quality has been proposed. This method consists in including artificial perturbations during the recording of the PPG. For example, the luminosity can be changed during the recording of an iPPG signal, or a patient may be asked to move his/her hand at a given time (Figure 4) during the recording of the cPPG. Then, the PPG signal corresponding to the occurrence of the perturbation is labelled as low-quality. The impact of the perturbation on the signal may still depend on the intensity of the artifact induced.

Table 3. Classification of papers addressing SQI according to the annotation type.

References	Details		Annotation Type
[35]	Evolution of PR between 2 pulses and sudden evolution of the value of the blood oxygenation.		Automatic annotation
[35,36,37,38]	Comparison between PR estimated from the PPG signal and the HR estimated from ECG.
[39,40]	Comparison between stroke volume measured from cPPG and a reference taken from impedance cardiography.
[40]	Comparison of left ventricular ejection time measured by a reference with the one measured by cPPG.
[41]	Labelling by computing already existing quality indicators.
[36,42,43,44,45,46,47,48,49,50]	Not Guided		Manual annotation
[51,52,53,54]	Guided	By rules
[55,56]		By reference signal
[35,57,58,59]	Perturbations artificially created during recording

PR = Pulse Rate, HR = Heart Rate, ECG = Electrocardiogram, cPPG = Contact Photoplethysmography.

proposes a summary of the different methods of annotation.

3.2. Applications

We define as a quality index an algorithm taking a PPG signal in entry and assigning it a score or label indicating its quality. A signal quality index can be used in several applications:

• Reducing false alarms during patient monitoring;
• Presenting clean signals for experts’ interpretation;
• Cleaning datasets for machine learning applications;
• Suppressing irrelevant signals to maintain performance of physiological variable predictions;
• Integrating the SQI into the signal processing algorithm to evaluate or improve its performance.

The general purpose of an SQI consists in increasing the reliability of the application in which it is implemented. We can distinguish two ways to use an SQI: as an indicator for keeping or removing a signal and as an indicator to improve the performance of the signal processing chain.

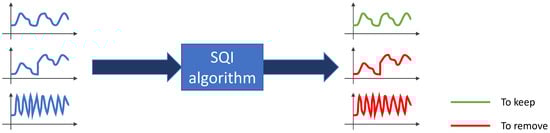

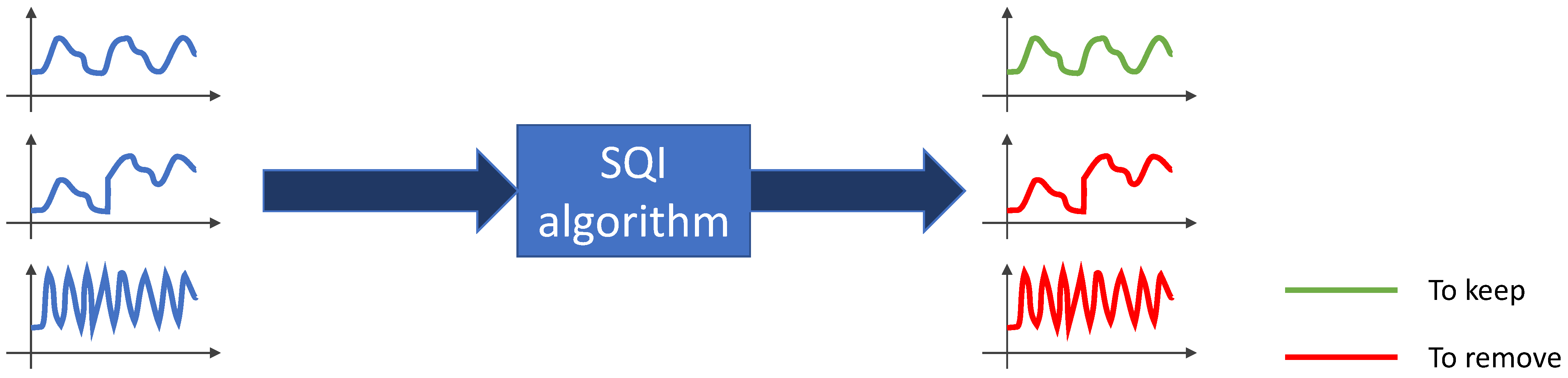

3.2.1. Keeping or Removing PPG Signals

The main reasons to remove a set of PPG signals are as follows:

• Avoiding misinterpretation and false alarms from corrupted signals;
• Maintaining the performance of an application by keeping only relevant signals;
• Preparing an artifact-free dataset for the training and testing of a machine/deep learning estimator to achieve good performance [60].

In the case of cleaning, a signal quality assessment algorithm can be used as a tool to indicate which signal should be kept and which should be suppressed (see Figure 5).

An SQI algorithm can be evaluated for its contribution to the performance of the estimation. This kind of evaluation is application-oriented. However, it may not represent accurately how the SQI algorithm behaves as it does not consider the proportion of good signals unnecessarily removed or the proportion of bad signals still present after cleaning.

Some applications need a more accurate evaluation of the signal. For example, in the case of false alarm reduction, it in necessary to separate a corrupted signal from an episode of arrhythmia. This second method relies on an annotated database. The performance of the SQI algorithm is evaluated by comparing the estimated signal quality with the annotated reference.

The SQI evaluation metrics are usually taken from a confusion matrix (accuracy, sensitivity, precision, positive predictive value (PPV), Area Under Curve–Receiver Operating Characteristic (AUC-ROC)). Accuracy gives the global performance of the SQI algorithm, while sensitivity and precision focus, respectively, on the proportion of signals well classified within the real bad-quality signals and on the proportion of correctly estimated samples in all estimated bad-quality signals. AUC-ROC is the area under the curve in the graph relating the sensitivity and false positive rate obtained by moving the threshold between the good and bad signals. An algorithm with an AUC close to 1 is able to separate the good from the bad signals.

3.2.2. Supporting the Signal Processing Chain

In this scenario, the algorithm can be integrated into the processing algorithm. For example, in [32,61], a remote iPPG signal is extracted from an image divided into several subregions. Each subregion provides an iPPG signal and these signals are evaluated by an SQI algorithm (signal to noise ratio (SNR) in this case). The score obtained for each signal is then used to weight the contribution of each subregion to form the final iPPG signal. An SQI algorithm can also be used to evaluate different signal extraction and processing methods. For example, Wang et al. [62] compared different methods of extraction of imaging PPG (PCA, ICA, CHROM [63], Spatial Subspace Rotation (SSR) [64], and Plane Orthogonal to Skin (POS) [62] by evaluating the quality of the signal extracted from a common database using an SNR quality index.

4. SQI for cPPG

We grouped quality assessment algorithms for cPPG into three categories: rule-based, machine learning-based, and deep learning-based method.

4.1. Rule-Based

In this section, we focus on the SQI algorithm as a set of criteria computed from the PPG signal. These criteria rely on the expected behavior or on specific properties (resulting from statistical analysis). These criteria reflect morphological features (see Section 4.1.1 and Figure 6). The SQI consists here in verifying if their values or variations are within a plausible physiological range. These physiological ranges are defined from a statistical study from the literature or datasets. They can also consist in the detection of events unlikely to have a physiological origin, such as clipping [44,45,65,66], i.e., truncation due to the saturation of the signal. The stability of the PPG waveform is also an important property of the signal, used as a criterion to evaluate its quality.

4.1.1. Criteria Based on Signal Features

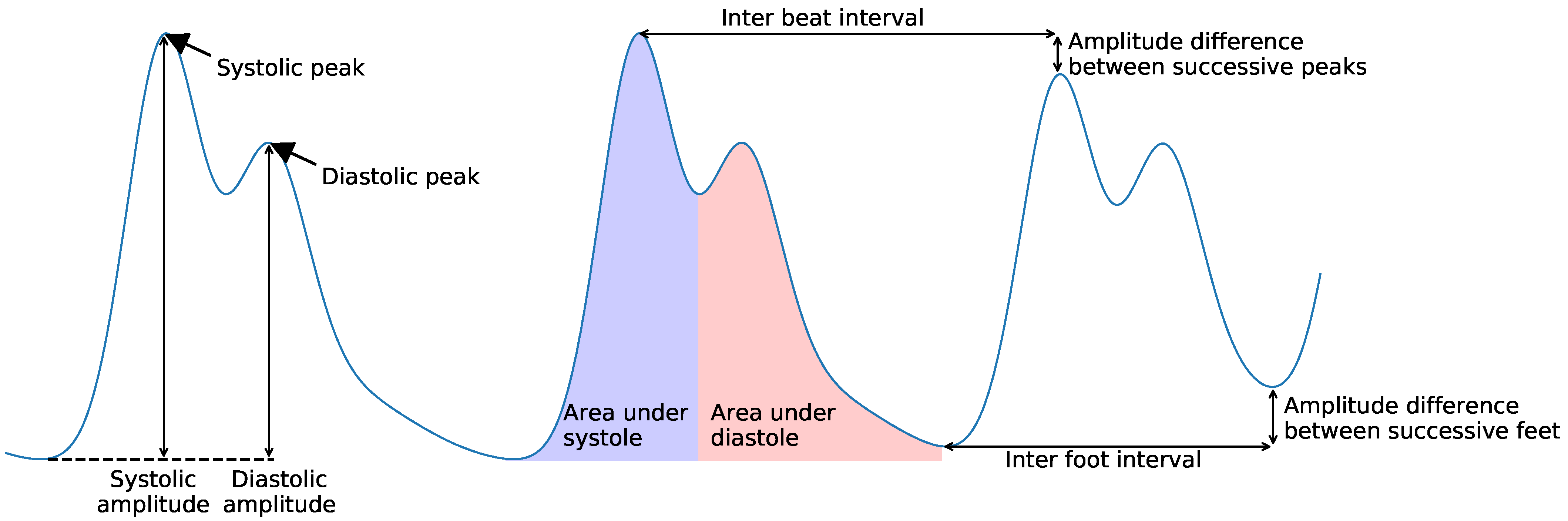

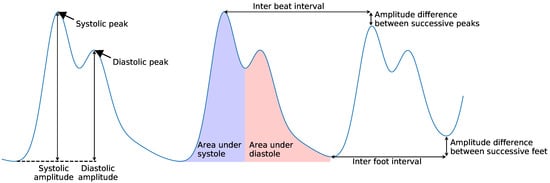

To address the different criteria reviewed in papers suggesting a rule-based SQI algorithm, we decided to group them within three scales. Signal scale criteria regroup conditions based on morphological and spectral statistics computed on an ensemble of successive pulses (see

Table 4. Enumeration of the different PPG signal features extracted for the assessment of its quality.

Scale	Domain	Features		References
Pulse	Temporal	Amplitude	Pulse amplitude	[44,45,68,69]
			Area under pulse	[44,45]
			Mean, std of pulse waveform	[35,37]
		Temporal	Pulse width	[44,45]
			Pulse rate	[36,70]
		Derivative	Ratio of maximum positive slope over minimum negative slope	[59]
	Spectral	Entropy		[51]
		Principal frequencies and residual noise		[69]
	Statistical	Skewness		[37,50,51,57,69]
		Kurtosis		[37,50,51,57,69]
Inter-beat	Temporal	IBI		[35,37,46,59,71]
		Successive IBI		[59]
		Inter-foot interval		[46]
		Amplitude difference between successive peaks (mean, std)		[35,37,44,45,46]
		Amplitude difference between successive feet		[46,69]
		Difference between pulse widths		[44,45]
		Difference between rising times		[44,45]
Signal	Temporal	Amplitude of the signal		[48,72]
		Difference between autocorrelation of PPG from red and infrared		[48]
		Ratio of oxygenated and deoxygenated blood measured		[48]
		Ratio between systolic and diastolic time		[35]
		Kurtosis		[58]
		Shannon entropy on signal amplitude distribution		[47,58]
		Shannon entropy on signal amplitude distribution		[47,58]
		Permutation and sample entropy		[73]
		Predictor (autoregressive model) coefficients fitted on 5 s signals		[66]
	Spectral	Variable-Frequency Complex Demodulation (VFCDM)	Residual noise	[36]
			Projected frequency modulation difference	[36]
			Difference between PR and IBI	[36]
			Energy and amplitude of dominant frequencies in PR range	[74,75]
			Energy of non-dominant frequencies in PR range	[74]
			Variation of dominant frequencies with time	[75]
		Power spectrum	Variation of dominant frequencies with time	[37]
		Spectral entropy		[73]
		Hjort parameters		[37]
	Statistics	SNR		[47,51]
		Variance of the signal		[37]
		2 first peaks of correlogram of the signal		[47]
		First peak amplitude and time and number of zero crossing of the auto-correlation of the signal		[72]
		Detrended Fluctuation Analysis, Fractal Dimension, and Higuchi Fractal Dimension		[73]

IBI = Inter-Beat Interval, PR = Pulse Rate, SNR = Signal to Noise Ratio, std = Standard Deviation.

). Pulse scale criteria regroup conditions based on morphological and spectral features computed for each pulse. Fischer et al. [44,45] suggested to evaluate the quality of a PPG pulsation based on the value taken by its morphological features (pulse width, rising time, pulse amplitude, area under the pulse, difference between autocorrelation of red and infrared signals). Each threshold separating good- from bad-quality signals has been designed from the literature and on statistical analysis. Among features computed on pulses, the skewness of the pulse is the most commonly used. This feature indicates the asymmetry of a PPG waveform and should be positive as the systolic peak is dominant in a normal pulse. Mohamed Elgendi demonstrated in [51] that skewness is the best indicator to separate excellent-quality from medium- and low-quality signals. The inter-beat scale regroups conditions based on the variation in features between successive beats. Within inter-beat features, the inter-beat interval (the time separating two successive pulse peaks) is the most commonly used feature and gives an idea of the stability of the signal from one beat to another.

In Table 4, we only enumerate features extracted from a PPG signal. However, if the device used to measure the PPG signal offers measurement from other sensors, such as the acceleration from a smartwatch accelerometer [67], the use of features from other signals is often observed to assess its quality. For example, Sappia et al. [48] used the red and infrared PPG signals offered by their sensor to deduce the variation in oxygenated and deoxygenated blood and build criteria based on it (ratio between oxygenated and deoxygenated pulse). These criteria are not applicable for smartwatches measuring PPG from green light.

4.1.2. Stability of the PPG Waveform

Among the reviewed papers, some suggest using the stability property of the waveform of the PPG signal to discriminate between good- and bad-quality signals. Instability of the waveform of a PPG signal’s pulsations is likely due to measurement perturbations such as motion artifacts or sensor clipping. To check the stability of a PPG pulse, a common process is to extract the pulses from the PPG signal. Then, each pulsation is compared to a reference, i.e., a model of pulsation built from the signal and called a template. If the pulse is different from the reference, the pulse is considered as low-quality. For example, Orphanidou et al. [70] computed a template as the mean pulsation of a portion of signal neighboring the pulsation to be evaluated, whereas Karlen et al. [43] used only the previous pulsation as the template. John et al. [76] built a template iteratively within the first few seconds of the signal. The authors first spot an interesting portion of a pulse (with points of interest) and take it to initialize the template. Then, they iteratively use the Toeplitz correlation matrix to find the next portions of pulse aligned with the template and add it to the current template. On this principle, several papers have suggested original methods to build a pulsation model and compare it with the PPG pulse to be evaluated. Building a template of a pulse as the average of detected pulses in the signal [43,46,65,70,77,78] or using neighbors [43,79] is a common method. The difference is based on how the pulses are selected for the building of the template (Li et al. [65] used all pulses in a 30 s windows, while Karlen et al. [43] preselected the pulses by performing normalized cross-correlation) and how the signals are aligned ([46,77,78] applied dynamic time warping (DTW) for the alignment of the pulses that [80] used to build the template; John et al. [76] first spotted a portion of signal presenting interest points and then iterated over the signal to find aligned portions of signals to add to the template). Comparing the template with new pulses is mainly done with the correlation [43,65,70,79] and the DTW distance [53,65,77,78]. Sabeti et al. [46] made a comparison using the Kullback–Leibler divergence, while John et al. [76] suggested a more original way to compare the signals by first computing a point-to-point difference between the template and the signal and then computing the variance of the obtained signal. If the variance is high, then the quality is low. Lim et al. [81] suggested a comparison with several pulses, in a model called the master template. These templates are obtained from the two first components of a PCA analysis performed on pulses of the MIMIC II dataset [82]. A pulse is then compared with the template maximizing normalized correlation. If the pulse and its neighbors are not labelled as artifacts, then it is used to update the template.

The rule-based methods present several limitations. As the different conditions are commonly designed manually, another statistical study may be needed when the SQI algorithm is applied to a PPG signal obtained by a different process of measurement (e.g., different device and conditions of measurement). Moreover, the performance of the algorithm of the SQI depends on the signal processing and feature extraction algorithms and should be evaluated along with the SQI algorithm [45]. The reviewed methods are summarized in

Table 5. Summary of the rule-based type of quality assessment algorithms.

Reference	Data	Performance
[68]	13 subjects	Cohen’s $\kappa$ = 0.64
	8 records of 1 min per subject	Sen = 0.89
		Spe = 0.77
		Acc = 0.83
[58]	24 subjects	Acc = 0.888
	>134 min of recording	Sen = 0.869
		Spe = 0.983
[43]	Capnobase [83]	90% of the signals with artifacts had a score
	Complex System Laboratory [84]	below 95/100
		14% of good-quality signals are labelled as
		artifacts for a score below 85/100
[65]	MIMIC II [82]	Evaluation by the impact on false alarm
		reduction with suppression
[70]	Physionet/CinC 2011	Sen = 0.91
	+ author-collected database	Spe = 0.95
[44,45]	63 subjects	Performance of extended algorithm:
	31.5 h of annotated signals	Acc = 0.984
		Sen = 0.995
		Spe = 0.916
		Pre = 0.986
[77]	Capnobase [83]	Performance on Capnobase
	Complex System Laboratory [84]	for a threshold of 0.8:
		Sen = 0.9664
		PPV = 0.9926
[81]	19 subjects (>5 min per record)	Mean performance (over authors’ dataset):
	+ PhysioNet MIMIC II	Acc = 0.935
		Sen = 0.869
		Spe = 0.902
[53]	3 subjects	Best performance:
	6 min records	Acc = 0.9258
		Sen = 0.9297
		Spe = 0.9218
		PPV = 0.9225
[48]	14 subjects	Classification performance:
	158 records of 10 s	Acc = 0.9268
		Sen = 0.9286
		Spe = 0.9245
		Pre = 0.6420
		F1-score = 0.9353
[79]	Capnobase [83]	Sen = 0.9466
	Complex System Laboratory	PPV = 0.9678
[66]	15,000 records of 5 s from 3 different devices	Acc = 0.9321
	+ MIMIC II [82] + Complex System	Sen = 0.9822
	Laboratory [84] + Wrist [85] + Cup [86]	Spe = 0.9071
[72]	19,700 segments of 4 s	Acc = 0.9989
		Sen = 0.9994
		Spe = 0.9939

Acc = Accuracy, Pre = Precision, Sen = Sensitivity, AUC = Area under Curve, PPV = Positive Predictive Value.

.

4.2. Machine Learning

As with rule-based algorithms, their performance is dependent on the features selected and the algorithms implemented to extract them. Selecting the features for quality level separation adaptable to PPG signals from different datasets needs further design effort.

Couceiro et al. [69] extracted 26 features from the period-domain short-time Fourier transform and performed feature selection via normalized mutual information. This technique shows how knowing the value of a feature reduces the uncertainty in the prediction of the quality of the signal while keeping only features independent from each other. In this study, they extracted four temporal and four periodic features. Sabeti et al. [46] focused their efforts on the computation of features that would not be affected by the change of PPG device. The authors first computed reference values of features and templates with the first few seconds of each record. Then, they used them to normalize the features computed from the signal and feed machine learning models to predict the quality.

Contrarily to rule-based techniques, the use of machine learning has the advantage of avoiding statistical studies to design the thresholds separating the different levels of quality. It also allows complex non-linear combination of the signal features. Support vector machine (SVM) is the most commonly used model among publications [36,46,69,87,88]. It has the ability to non-linearly project the extracted features to a higher-dimensional space to increase the probability of finding a hyperplane separating good from bad signals. The SVM algorithm has become a reference found in many of the comparisons described in SQI papers. Sabeti et al. [46] described a benchmark over several machine learning methods (SVM, classification and regression tree, ensemble decision tree, and threshold optimization) and found that SVM offers less overfitting and maintains high performance over several datasets. They also compared their method using SVM with two other algorithms [43,77] on the Capnobase dataset [83]. Pereira et al. [52] also found the best performance with their SVM classifier against seven representative methods [42,43,68,70,77,89,90]. Elgendi used the SVM algorithm to find the most discriminant feature to classify the quality of a PPG pulse [51]. Dao et al. [36] compared their method with a smaller SQI including an SVM using time-domain features. Pereira et al. [55] compared the performance of different classic deep learning architectures but included the SVM in their comparison.

Designing supervised learning methods for the quality assessment of a PPG signal makes the step of signal annotation necessary (whose issues are highlighted in Section 3.1.3) and adds the difficulty of hyperparameter tuning. For example, Li et al. [42] performed an ablation to find the best parameters of their network. The authors tested the use of either four inputs (three correlations with a template and clipping detection) or six inputs (four previous entries with number of detected pulses and a combination of the four previous entries) and the number of neurons in the hidden layer of a multi-layer perceptron (MLP). A summary of the different SQI based on machine learning methods is presented in

Table 6. Summary of machine learning methods dedicated to quality assessment.

Reference	Data	Machine Learning Method	Performance
[42]	104 subjects, 1055 pulsations	MLP	Acc = 0.952
			Sen = 0.990
			Spe = 0.806
			PPV = 0.952
[35]	33 subjects	SVM + temporal neighbor voting	Mean performance on 3 artefacts
			(finger motion, head motion, walking):
			Acc = 0.938
			Sen = 0.943
			Spe = 0.924
[69]	15 subjects	C-SVC	Mean performance:
	22 records of 1 min per subject		Acc = 0.885
			Sen = 0.843
			Spec = 0.915
[36]	5 different datasets	SVM	Precision in the detection of the
	(Chon Lab and UMass Medical center)		occurrence time of a MNA
			Difference in Transit Time = 0.91 ± 0.59 s
[52]	13 subjects	SVM	Acc = 0.9033
			Sen = 0.9505
			Spe = 0.9163
[37]	17 subjects	SVM	Acc = 0.984
	24 h record per subject		Sen = 0.8550
			Spe = 0.9184
[59]	40 subjects	Fuzzy neural network	Mean performance:
	records of 1.5 to 2 min		Acc = 0.8992
			Sen = 0.8421
			Spe = 0.9363
[46]	46 subjects	Test of 3 machine learning models:	Best score from SVM, mean performance:
	+ Capnobase dataset	Classification and regression tree, SVM,	Sen = 0.9576
		ensemble tree	Spe = 0.9190
			PPV = 1
[47]	26 subjects	Test of k-nearest neighbor,	Best score for random forest:
		multi-class SVM, Naïve Bayes,	Acc = 0.745
		decision tree, random forest
[39]	10 subjects	Fuzzy neural network	Performance on detection of
	3 min per record		bad-quality pulses :
			Acc = 0.86
			Pre = 0.97
			Sen = 0.84
[73]	30 subjects	Self-organizing map	Acc = 0.9201
	10 min per subject		Sen = 0.9580
[50]	5 subjects	Unsupervised elliptical envelope	Results of the leave-one-subject-out test
	12 min of recording per hour for	algorithm	in the classification of bad quality:
	each subject during 6 days		Pre = 0.85
			Sen = 0.98

Acc = Accuracy, MLP = Multi-Layer Perceptron, MNA = Motion Noise Artifact, Pre = Precision, Sen = Sensitivity, PPV = Positive Predictive Value, SVM = Support Vector Machine, C-SVC = C-Support Vector Classifier.

.

4.3. Deep Learning

Deep learning methods have been employed in the field of PPG signal quality assessment. Feature extraction is integrated in the architecture of a deep neural network (DNN) [38]. It allows one to regroup several quality assessment algorithms into one deep learning architecture [41,54,91] and gives higher freedom for the input passed to those networks [40,54,55,92].

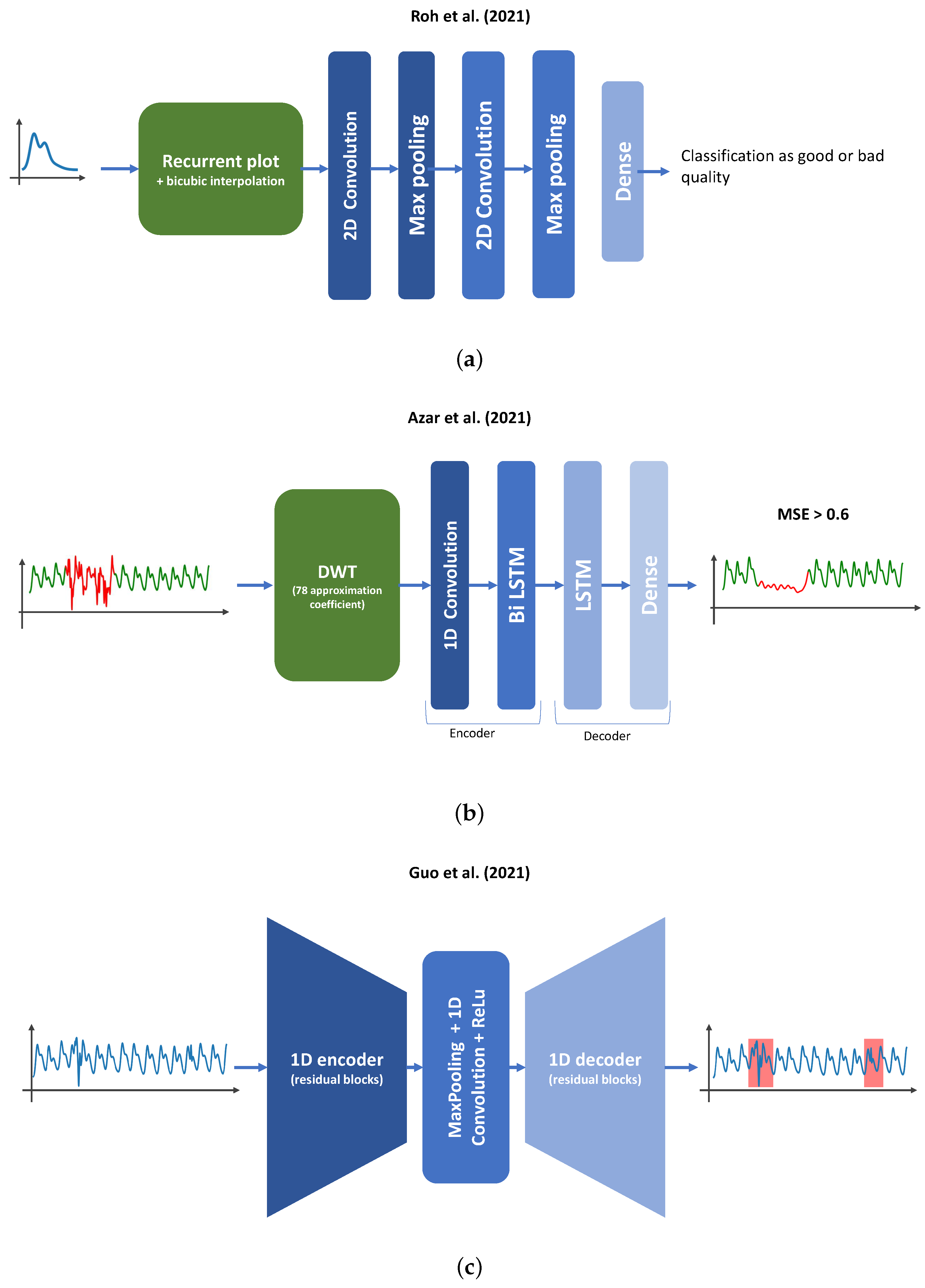

Figure 7 illustrates typical methods applied to the quality assessment. Roh et al. [54] converted PPG pulses into 2D images using a recurrent plot and then classified each pulse into good or bad quality using two 2D convolutional neural networks (CNNs) with max dropout and a dense layer with softmax activation (Figure 7a). Azar et al. [92] decomposed each 6 s PPG signal into 78 approximation coefficients using DWT. A 1D autoencoder (with CNN and bidirectional Long Short-Term Memory (LSTM) layers) is trained to reconstruct clean PPG signals. Because the network is only trained on clean signals, the reconstruction of the signal fails for PPG with bad quality and the mean square error between the input and the rebuilt signal is high. If this error is over a threshold, then the signal is considered as bad-quality (Figure 7b). Figure 7c illustrates the method implemented by Guo et al. [56]. The authors trained an autoencoder (UNet with residual blocks) to perform quality assessment as a segmentation task. They assign a score between 0 and 1 to each point of a 30 s PPG signal, which allows a precise estimation of the quality. Then, they evaluate the performance of their trained network with the DICE score (ratio between the intersection of portion of signal estimated and annotated as artifact over the portion of signal estimated or annotated as artifact).

Signal processing is still necessary for the generalization of deep neural networks over several datasets. Moreover, this kind of SQI algorithm needs a large dataset with annotated data for training, which is difficult and expensive in the case of manual annotation (see Section 3.1.3). Automatically annotating datasets with already existing SQI allows one to solve the problem of the number of samples but without any relevant increase in performance. Another main limitation of the use of deep learning is the lack of transparency in the features learned in the PPG signal fed to the DNN. To tackle this issue, Zhang et al. [93] suggested to evaluate the explicability of two DNN artifact detectors (a 1D Resnet-34 and a 2D Resnet-18) with the attention score offered by the DeepSHAP, Integrated Gradient and Guided Saliency. A summary of the different deep learning-based methods can be found in

Table 7. Summary of deep learning-based quality assessment algorithms.

Reference	Data	Entry	Deep Learning Architecture	Performance
[67]	19 subjects	30 s PPG signal + index	3 CNN + 2 dense layers	Acc = 0.9002
	1443 records of 30 s length	indicating motion detected by		AUC = 0.9521
		the smartwatch accelerometer
		injected into the dense part of
		the network
[38]	5 days data collection	60 s signal window	1 CNN + dense network	Best performance:
				AUC = 0.88
				Pre =0.7674
				Sen = 0.8354
[55]	2 private datasets	2 entries are tested:	1D entry:	Best performance (ResNet18):
		1D entry, 30 s of normalized	Attention LSTM ending with	Acc = 0.9851
		PPG signal	dense network	Spe = 0.9791
		2D entry, normalized RGB	Fully connected network	Sen = 0.9877
		plot image of the signal	2D entry:
			VGG19, Resnet18, Resnet50,
			Xception
[40]	14 subjects	2D images of the plot of	ResNet50; VGG19	Best performance (ResNet50):
		zero-padded PPG pulse and		Acc = 0.94
		its derivative		Pre = 0.96
				Sen = 0.92
[49]	183 subjects	Raw PPG signal	1 CNN + 1 shared CNN	-
			+ 2 separated CNN with
			dense layer
[91]	38 subjects	5 s of normalized PPG signal	13 layers 1D CNN	Acc = 0.945
	BIDMC and ICU dataset from			Sen = 0.967
	MIMIC			Spe = 0.904
[54]	76 subjects	PPG pulse signal converted to	2D CNN + 1 dense	Acc = 0.975
		recurrence plot		Sen = 0.964
				Spe = 0.987
[41]	PPG :	5 points window of 64Hz	3-unit LSTM + dense layer	Average Acc = 0.7973
	DaLiA dataset [94] and	PPG signal
	Cuffless Blood Pressure
	Estimation dataset [95]
	iPPG: 6 subjects
[92]	2 subjects	Discrete wavelet transform	Autoencoder used	Pre = 0.90
	+ data augmentation	(DWT) approximation	Encoder : 1D CNN	Sen = 0.95
		coefficients from second level	+ bidirectional LSTM layer
		of 6 s PPG signal	Decoder : LSTM layer
			+ dense layer
[56]	44 subjects	30 s bandpass-filtered signal	1D U-Net (5 residual encoder,	Mean performance
			5 residual decoder)	DICE score = 0.8734 ± 0.0018

Acc = Accuracy, CNN = Convolutional Neural Network, LSTM = Long Short-Term Memory, Pre = Precision, Sen = Sensitivity, AUC = Area under Curve, PPV = Positive Predictive Value.

.

5. Design of SQI for iPPG

5.1. Existing Studies

Imaging PPG is the photoplethysmography measurement using a camera. Several reasons motivate research in this technology:

• A camera is a widely used technology allowing remote and continuous monitoring of physiological variables (e.g., PR, PRV);
• This technology imposes less constraints on the patient as the signal can be taken remotely;
• Several potential applications exist for telemedicine (e.g., PR, blood pressure, blood oxygenation).

However, this kind of measurement is done in a less controlled environment [96] and is also subject to measurement perturbations (see Table 1). Even if iPPG is still an emerging technology, signal quality indexes have been used to guide the extraction methods implemented to retrieve the signal from the camera [63,97,98].

Botina-Monsalve et al. [99] compared the quality of their iPPG signal extracted using periodic variance maximization [97] after filtering it by a bandpass filter, a wavelet filter, or a deep learning architecture using SNR and a template matching method [70] as metrics. Gao et al. [41] designed a 1D signal quality index for PPG and iPPG using a deep LSTM architecture. They highlight the difficulty of designing deep learning methods for iPPG quality assessment as the proportion of bad-quality signals is important in iPPG, which unbalances their training dataset. Moreover, the training of deep learning architectures is difficult as the number of iPPG datasets available for research is limited. The authors augmented their initial dataset with artificial data to train their model.

Bobbia et al. [98] considered the idea that an iPPG signal extracted from different regions of the face may have different qualities. The authors introduced unsupervised superpixel segmentation, to segment the image of the face of a patient into different regions of interest. The final iPPG signal is obtained by summing the PPG signals extracted from each superpixel weighted by their respective SNR. Benezeth et al. [61] extended the work of Bobbia et al. [98] by lowering the SNR complexity. The authors first trained a Hidden Markov Model (HMM) to build a probabilistic distribution modeling the evolution of an iPPG signal. The authors also created a HMM to model the noise of the signal. The SNR is then computed as the ratio between the likelihood that the evolution of the signal is explained by the HMM modeling the iPPG signal and the likelihood that it is explained by the HMM modeling the noise. Fallet et al. [100] used the average value of the absolute difference between the tracked forehead pixel amplitude at frame n and $n-1$. The authors observe sudden increases in its value when a perturbation, such as motion or an illumination change, occurs. They also set different strategies of artifact detection according to the iPPG extraction method. The authors added an additional step for iPPG signals extracted by POS [62] and SSR [64] methods (as these methods are more resistant and react differently to perturbations) by detecting if a change in the amplitude of the signal (characteristic of a corrupted signal) happens in a suspicious portion of the signal.

Table 8. Features used for the evaluation of iPPG.

Scale	Domain	Features		References
Pulse	Temporal	Amplitude	Difference between systole and diastole (pulse amplitude)	[101]
			Amplitude before and after perturbation for iPPG extracted by POS or SSR	[100]
			Template matching [70]	[99]
Signal	Temporal	Std of the signal		[64,101]
	Spectral	SNR (from frequency spectrum)		[63,97,98,99,101,102]
		Relative difference between highest and second highest amplitude of the signal spectrum		[101]
		Maximum scalar product between PPG periodogram [103] and predefined filters		[104]
	Probabilistic	SNR (obtained using HMM models)		[61]

HMM = Hidden Markov Model.

and

Table 9. Papers dedicated to signal quality indices for iPPG.

Reference	Data	Algorithm Type	Performance
[100]	31 video records	Rule-based algorithm	Evaluated on contribution
			over HR estimation
[61]	UBFC-RPPG dataset [105]	Hidden Markov Model	Evaluated on contribution
			over HR estimation
[104]	200,000 smartphone PPG	Rule-based algorithm	-
	records
[36]	5 different datasets	SVM	Evaluated on contribution
	(Chon Lab and		over HR estimation
	UMass Medical Center)
[106]	226 subjects	Fitting each pulse to a	Evaluated on impact on
		sinusoidal model using	error between HRV
		non-linear least square	estimated from PPG and
		optimization. If the fitting	ECG
		fails (i.e., no convergence or
		error high) or the model
		parameters are outside a
		statistical range, the pulse is
		bad-quality.
[101]	Bingamton–Pittsburgh–RPI	Rule-based algorithm	Evaluated on contribution
	Multimodal Spontaneous		over HR estimation
	Emotion database [107]
[41]	6 subjects	3-unit LSTM + dense layer	Evaluated on contribution
	+ augmentation with PPG		over HR estimation
	DaLiA dataset

HR = Heart Rate; LSTM = Long Short-Term Memory, SVM = Support Vector Machine.

provide respectively a summary of the features used to design SQIs for imaging PPG and of the existing methods.

iPPG and cPPG share common properties such as semi-periodicity and the extractable features of their respective pulses. Some SQIs can be either used for cPPG or for iPPG. For example, approaches based on the signal to noise ratio [51,98] can either be applied to cPPG or iPPG signals. The difference lies in the threshold value separating good from bad signals. Some deep learning methods can either be applied to iPPG or cPPG. For example, Gao et al. [41] developed a single LSTM architecture for the assessment of cPPG and iPPG signals. Both types of signals can be analyzed with SQI developed for 1D signals. The case of iPPG is particular as the signal is computed from images. SQI applied to iPPG can be computed on two-dimensional matrices, thus allowing one to analyze subregions of the image [98].

5.2. Potential Developments in This Domain

The creation of SQI for the measurement of iPPG comes with new challenges. As mentioned above, iPPG presents significant potential for telemedicine-based applications. However, to democratize this technology, its measurement must be reliable despite the high diversity of uncontrolled measurement contexts and perturbations (see Table 1). To overcome these difficulties, the implementation of an SQI is a solution to maintain the performance of these applications.

In this regard, the use of a camera can be regarded as an opportunity in the design of an innovative SQI. This sensor allows one to extract information on the context of measurement and offers the possibility to design a more complete SQI. The exploitation of contextual information could allow one to distinguish perturbation factors linked to the metrological and physiological aspects of the quality of the signal. For example, Wang et al. [108] created a signal quality index for iPPG by first designing indices for the quality of the context of measurement and then for the quality of the signal extracted. Within the quality of the measurement context, the authors considered the environment of the measurement by computing indices related to the intensity of the light source, the light spectrum and direction, the type of light source (punctual or parallel source of light), and the quantity of skin exposed to the measurement. The authors also considered a physiological factor, the skin tone, in the study of their SQI. The use of camera also allows one to pass to a spatio-temporal notion of quality. Indeed, the quality of an iPPG signal extracted may be uneven over the different skin regions [109] and may also change with time. Only a few papers [61,98] take into account the spatial dimension of the quality. Thus, the field of SQI applied to iPPG has room for improvement and could be a sandbox for new signal quality algorithms.

6. Conclusions

In this review, we have presented an overview of the existing methods for contact photoplethysmography and imaging photoplethysmography. We have subdivided the different quality assessment algorithms according to their use of designed rules from statistical studies or from the use of machine learning/deep learning algorithms. We have also reviewed the new challenges set by the emerging iPPG and its potential applications. As we believe that iPPG will further develop, we have tried to encourage the development of new methods of quality estimation in this field by suggesting new lines of research to be explored in this field.
