Review

Energy Harvesting Methods for Transmission Lines: A Comprehensive Review

by
Jordi-Roger Riba
*,
Manuel Moreno-Eguilaz
and
Santiago Bogarra
Electrical Engineering Department, Universitat Politècnica de Catalunya, 08222 Terrassa, Spain
*
Author to whom correspondence should be addressed.
Appl. Sci. 2022, 12(21), 10699; https://doi.org/10.3390/app122110699
Submission received: 29 September 2022 / Revised: 13 October 2022 / Accepted: 20 October 2022 / Published: 22 October 2022
(This article belongs to the Special Issue Electric Power Applications)
Browse Figures
Versions Notes

Abstract

:
Humanity faces important challenges concerning the optimal use, security, and availability of energy systems, particularly electrical power systems and transmission lines. In this context, data-driven predictive maintenance plans make it possible to increase the safety, stability, reliability, and availability of electrical power systems. In contrast, strategies such as dynamic line rating (DLR) make it possible to optimize the use of power lines. However, these approaches require developing monitoring plans based on acquiring electrical data in real-time using different types of wireless sensors placed in strategic locations. Due to the specific conditions of the transmission lines, e.g., high electric and magnetic fields, this a challenging problem, aggravated by the harsh outdoor environments where power lines are built. Such sensors must also incorporate an energy harvesting (EH) unit that supplies the necessary electronics. Therefore, the EH unit plays a key role, so when designing such electronic systems, care must be taken to select the most suitable EH technology, which is currently evolving rapidly. This work reviews and analyzes the state-of-the-art technology for EH focused on transmission lines, as it is an area with enormous potential for expansion. In addition to recent advances, it also discusses the research needs and challenges that need to be addressed. Despite the importance of this topic, there is still much to investigate, as this area is still in its infancy. Although EH systems for transmission lines are reviewed, many other applications could potentially benefit from introducing wireless sensors with EH capabilities, such as power transformers, distribution switches, or low- and medium-voltage power lines, among others.

1. Introduction

Energy Harvesting (EH) refers to the process by which energy from ambient or other sources is converted into electrical energy to supply autonomous devices [1] as wireless sensors and to improve their effective lifetime and capability [2]. Although many of the existing EH systems generate limited power, on the order of μW/cm2 to mW/cm2 [3,4], EH is gaining popularity due to the development of very low-power sensors and wireless communication systems. Self and ubiquitous energy generation capability characterize EH, so it avoids battery replacement in many applications, allowing electronic sensors to be deployed in hostile or inaccessible places. EH also contributes to reducing carbon footprints, as in many cases, electrochemical batteries can be replaced by EH units in autonomous systems [5]. Although EH technologies often do not completely eliminate the use of storage batteries, they can maximize the duration of their use [6]. Ambient energy harvesting, e.g., wind, thermal, solar, vibration, or radio frequency (RF) [2] promises low-cost, small form factor, and an endless lifetime of low-power electronic wireless sensor nodes (WSNs) by minimizing or eliminating battery use, replacement, and related maintenance costs [7]. The finite lifetime of WNSs severely limits their ability to collect data because they are energy-constrained, as WSNs require energy to supply the sensors and transmit their data to external data collectors or gateways [2,8]. Energy Harvesting Strategies Address WSN’s limited lifetime challenge. However, different challenges related to the stochastic nature of the incoming energy [9] and the influence of environmental conditions have to be addressed to ensure the optimal performance of WSNs [10]. WSNs can be connected, forming a wireless sensor network comprising a network of numerous WSNs using a multi-hop communication arrangement that allows the expansion of the coverage area compared to a single WS while requiring very low power for operation [11].
After the digital revolutions due to the introduction of the computer and the Internet, the Internet of Things (IoT) is considered to be the third revolution, offering many potential advantages to smart grids, such as fault detection and prediction or disaster prevention and prediction, which are complex problems that transmission system operators have to deal with. Therefore, IoT technology can potentially improve power transmission stability, availability, and reliability [12]. Electric power lines are the arteries of today’s power systems; therefore, their efficiency, reliability, and stability profoundly impact daily life and the national economy. Transmission lines may operate in remote areas, making routine inspections complex and expensive. Environmental factors such as wind, rain, ice, or extreme temperatures affect the operation of transmission lines. Although the rate of failures in transmission systems is lower than in distribution systems, the first tends to affect more customers and generate higher outage costs. Therefore, the use of self-powered IoT sensors for real-time monitoring of transmission lines, as shown in Figure 1 [13], has great potential to solve the problems mentioned above [12].
Electrical grid reliability is a major challenge for utility companies, so solutions based on grid monitoring, diagnosis, and control are receiving special attention [14]. In countries with an important growth of renewable energy sources, grid balancing and congestion is an issue [15,16]. The safe and reliable operation of transmission lines must take into account the thermal rating to ensure that conductors do not exceed the maximum allowable temperature [17]. Today, dynamic line rating (DLR) approaches are gaining popularity because they offer a solution to the congestion problem since they are based on utilizing the maximum capacity of transmission lines. To this end, DLR approaches are based on measuring weather and line variables in order to dynamically determine the maximum allowable line current to ensure that the line operates within safe operation limits [18]. These solutions also warrant an increased return on investment due to more efficient asset utilization [11]. However, due to the geographical spread of power systems, monitoring power lines and assets outside the substation is challenging due to the harsh outdoor weather conditions, the vast distances to be covered, and the power requirements of the required electronic sensing devices [11].
In general, in indoor applications, there is no urgent need for EH devices due to easy access to a power supply and accessibility of sensor nodes, which reduces maintenance costs, so the need for EH systems is more typical of harsh outdoor applications [19]. Developing EH systems for high-voltage applications remains a big challenge, so most sensor nodes are still battery-powered, being inconvenient due to periodic replacements and unfavorable maintenance-free operations. As a result, many studies are focusing on self-powered wireless sensors [20].

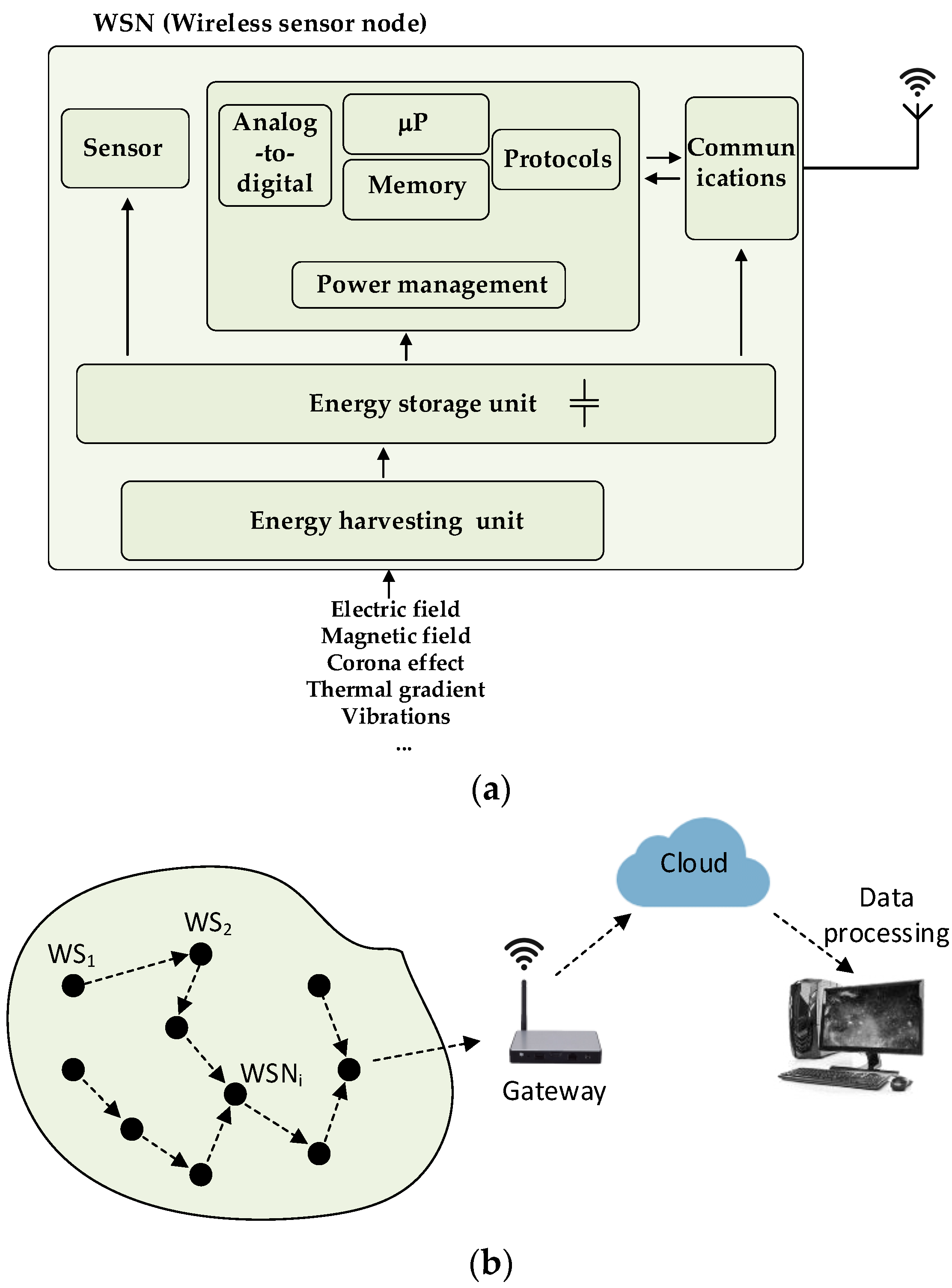

The basic architecture of a WSN includes the sensor or sensors that convert the measured variables (temperature, current, voltage, …) into electric signals, the power management module, the energy storage unit [21], the energy harvesting, and the communications module, which are represented in Figure 2.
This work reviews and analyzes the state-of-the-art and recent progress in EH systems for WSNs intended for transmission lines while identifying challenges and research needs. This topic has a huge impact and expansion potential, but this area is still in its infancy due to the specificities and complexities of transmission lines. The information condensed in this review paper can also be applied to other applications, such as power transformers, distribution switches, or medium- and low-voltage power lines. The knowledge presented in this work has been compiled from the latest technical and scientific literature, including journal papers, review articles, conference works, doctoral theses, technical reports, and white papers.
The rest of the article is organized as follows. Section 2 reviews ultra-low-power energy harvesting technology for wireless sensor networks. Section 3 reviews the state-of-the art batteryless energy harvesting systems. Section 4 reviews the state-of-the-art of energy harvesting methods for transmission lines. Section 5 discusses the main characteristics of the analyzed energy harvesting methods. Section 6 identifies the challenges and research needs related to this topic, and finally, Section 7 concludes this review paper.

2. Ultra-Low-Power Technology for Energy Harvesting Wireless Sensor Networks

Although there is no exact definition of ultra-low-power (ULP) in the field of wireless sensors, it usually refers to designs that consume, on average, in the order of fractions of μW to fractions of mW. Most EH sources fall within the ULP category because they can generate as few as tens of μW [23]. Batteryless WSNs require the harvesting of energy from ambient sources in their application volume. However, due to the small volume of EH systems, very little ambient energy is available, requiring ULP circuits. In [24], it is stated that micro-power EH from indoor small-size solar cells, piezoelectric, thermoelectric (gradient temperature 1–10 °C), or RF Wi-Fi harvesters can scavenge power at ULP levels (some μW). However, power at μW level is not enough to supply IoT using commercial integrated circuits, so in addition to increasing the amount of energy harvested, reducing system power consumption to ULP levels is also required [24]. For example, according to [25], WSNs typically require 1–5 μW in standby mode, 0.5–1 mW in active mode, and 50 mW while transmitting. Similar values are provided in [21].
ULP technology aims to extend the lifetime of WSNs through significant energy savings [26]. The basic diagram of a ULP WSN is the same as shown in Figure 2a. Since WSNs are constrained in terms of processing capacity, memory and energy, and power usage, energy management is one of the challenges that must be addressed for successful WSN deployment [27]. In particular, energy-efficient wireless communication modules play a critical role in developing battery-powered and batteryless WSNs. Different approaches can be applied to address these issues at both the physical and network levels without sacrificing important metrics, such as transmission range, latency, or immunity to interference [28]. By combining energy-efficient wireless protocols with low-power communication architectures, operation below 10−4 W can be achieved [28]. Communication modules typically operate discontinuously at low duty cycles, hibernating between consecutive active states to save energy [19]. This strategy, based on periodically alternating between sleep and active modes, allows a large reduction in the average power of the power-hungry radio [29]. In [23], it is reported that by combining different techniques, such as short frame sizes, optional and synchronous receptions, asynchronous transmissions, and a light architecture, it is possible to reduce power consumption by 1 to 2 orders of magnitude compared to Bluetooth Low Energy (BLE).

3. Batteryless Energy Harvesting Systems

Although many EH systems use supplementary batteries, they have a finite lifetime, require regular charging or replacement, and produce electronic waste [30]. Due to IoT devices’ fast deployment, millions of batteries probably need to be replaced daily [28], so battery replacement is impractical and has significant environmental impacts [3]. By reducing power consumption and voltage supply, WSNs could be self-powered, i.e., supplied directly from the EH source without using batteries [28,31]. The use of batteryless WSNs is directly related to the application of ULP devices and approaches [31].
Due to recent advances in low-power sensors, when combined with communication modules that operate in a discontinuous mode at low duty cycles hibernating between consecutive active states, they can, in some cases, be supplied directly from an independent source without using any battery [19]. Batteryless systems can use a variety of power sources, including vibration, solar power, temperature gradient, or wireless power transfer, among others, making them very attractive for applications where any intervention is challenging. In many cases, the energy collected by the EH unit is stored in small capacitors [3]. Due to the often stochastic nature of harvested energy and the restricted energy storage, associated WSNs typically operate in an intermittent on-off pattern [32]. However, in the case of power lines, this problem can be partially overcome due to the “predictability” of the energy flow, which allows better planning of the energy harvesting.
Instead of batteries, capacitors can be used to store energy, being smaller than batteries and offering lifetimes of more than a decade since they withstand a larger number of charge-discharge cycles [3,33]. However, the use of storage capacitors presents some disadvantages and challenges related to the stochastic nature of the energy transferred from the source to the energy harvester [34] and energy storage capacity, especially when using small capacitors. The WSN lacks a constant power supply so that power failure can last any duration, from seconds to hours. Further, depending on the WSN’s mode of operation, the amount of power consumed can vary considerably, for example, when switching from sleep to transmission modes or during the sensing period, causing voltage changes that affect the energy stored in the capacitor. Therefore, for effective use of batteryless WSNs, applications based on such devices must have the ability to handle this intermittent behavior [32].
Another possibility is to use supercapacitors, which deliver and accept charge much faster than batteries while tolerating many more charge-discharge cycles than rechargeable batteries [35], but having much lower energy densities and exhibiting higher self-discharge currents, so once fully charged, compared to batteries they discharge at a much faster rate. Therefore, supercapacitors are used in applications that require many rapid charge-discharge cycles rather than compact, long-term energy storage. Small supercapacitors are used in WSNs because they can boot and charge batteryless WSNs in a matter of seconds when the energy is available. However, the use of small supercapacitors does not allow the WSN to perform energy-intensive operations. On the other hand, using large capacitors implies long charging times, so for start-up, the node must wait for the capacitor to reach a minimum voltage level. Moreover, the energy stored in the supercapacitor is quickly dissipated as the energy scavenged is not enough to maintain a minimum voltage across the supercapacitor, so a design trade-off is required for irregularly powered batteryless systems. However, according to [36], this topic is not well-studied in the technical literature.
Communication technologies play a critical role in deploying reliable batteryless WSNs, as they have relatively high power requirements compared to the accompanying sensors. Different low-energy communication technologies have been applied in batteryless WSNs, such as Bluetooth Low Energy (BLE) [3] or LoRaWAN, probably the most popular technology within low-power wide-area networks (LPWAN) [32].

4. State-of-the-Art Energy Harvesting Methods for Transmission Lines

EH circuits are designed to collect energy from ambient sources to provide a stable supply to the other modules [37]. Continuous energy supply is an important research topic for IoT and WSNs applications [7] because the power supply is a bottleneck for developing autonomous transmission line monitoring systems [38]. Monitoring and maintenance of transmission lines can be performed by line robots or by using line-mounted distributed wireless sensors, which typically use batteries as the main power source, but as explained at the expense of environmental impacts and maintenance costs [38], and presenting significant maintenance difficulties in remote areas [39].
This section reviews the EH methods that can be effectively applied to transmission lines. However, some EH technologies are not included in this section, such as wind collectors that rely on moving parts due to insulation issues and sensor costs [38], because they cannot be effectively applied in power transmission lines.

4.1. Solar Energy Harvesting

Solar EH is a mature technology that is being applied in many areas. Solar energy is harnessed using a photovoltaic (PV) system that converts sunlight into useful electric power. For example, in [40], a temperature monitoring system for overhead transmission lines using two solar panels fixed at the top of the tower was analyzed.
The main disadvantage of solar panels is that, due to the stochastic nature of weather conditions, a stable energy supply cannot be guaranteed [41] because, in many places, it is possible to reliably generate solar power for less than 8 h a day [42]. Further, weather conditions, dust, sand, dirt, ice, or snow can significantly impact the availability of solar energy, increasing maintenance costs [43]. Since a constant electrical supply is not feasible [44], combining solar EH with an ultracapacitor or a rechargeable battery is necessary to provide a stable supply to the sensor system [11,45]. Due to the drawbacks mentioned above, recent developments point toward using hybrid solutions that combine solar EH with other sources, such as electromagnetic or RF. For example, in [41,46], a harvester combining solar and magnetic field EH is proposed for WSNs intended for smart grid applications, where the magnetic field harvester is based on a multi-turn coil surrounding a magnetic core. In [47], a hybrid solar-RF energy harvesting system combining a solar panel and an antenna is proposed.

4.2. Vibration Energy Harvesting

Vibration energy harvesting transforms mechanical vibrational energy into useful electric energy [21]. Therefore, mechanical vibrations in power lines or induced by them can be converted into electrical energy. Different energy extraction methods from vibrations are possible, such as piezoelectric [1,5,48,49], inductive [26], or electrostatic [25,50,51] approaches.
Piezoelectric EH is based on the use of piezoelectric materials, which generate electric charges, and thus voltage, when the material is subjected to mechanical stress [25]. Piezoelectric harvesters can be designed and manufactured at the scale of microelectromechanical systems (MEMS) to take advantage of ambient vibrations with a frequency usually less than 200 Hz [52]. In [53], a piezoelectric energy harvester was presented using a magnetic metal as the tip mass that vibrates due to the action of the AC magnetic field generated by a power conductor. The piezoelectric ceramic element is composed of Ba0.85Ca0.15Ti0.90Zr0.10O3 + CuO 0.3 wt%, which can produce an instantaneous maximum power of 8.2 mW in a weak magnetic field of 250 µT, and exhibits an energy density of 107.9 mW/cm3. In [54], a device for harvesting the energy of a galloping conductor was proposed, using a swinging piezoelectric cantilever beam collision structure and a pendulum with a swinging ball, whose motion was caused by the low-frequency vibration of the galloping conductor. Similarly, in [55], a linear Halbach array mounted on the free end of a piezoelectric cantilever beam is used to harvest the energy from the AC magnetic field generated by a power line. The presented results show that this harvester can generate 897 μW across a 212 kOhm resistor when mounted on a two-wire cable carrying opposite currents of 10 A. In [56], a cantilever (piezoelectric) beam was used together with a miniaturized permanent magnet attached to the tip, which vibrates due to the interaction with the magnetic field of the AC line, as shown in Figure 3a. In [57], a nickel–zinc ferrite ring-type core, with a piezoelectric ceramic toroidal solenoid wound around it, was presented. The nickel-zinc ferrite ring was required to convert the 50 Hz circumferential magnetic field into a 50 Hz circumferential strain, transmitted to the piezoelectric layer, generating a voltage.
Inductive EH from vibrations is based on the voltage generated due to the relative motion of a permanent magnet and a harvesting coil [26,58], as shown in Figure 3b. The amplitude of the induced voltage in the coil depends on the amplitude of the beam vibration, the number of turns, the line frequency, and the flux gradient. To increase the magnitude of the flux gradient and the flux density, [59] proposes the use of an array of tiny and powerful permanent magnets with opposite polarities attached to the vibrating beam.
The electrostatic method (see Figure 3c) is based on the capacitance change of a variable capacitor or electret due to relative motion between the two plates [11,25,50,60], although different methods can be combined to improve performance [61]. The main drawback of electrostatic EH is related to the need for an external voltage source during operation [25]. The energy produced by these harvesters increases with their volume [50]. In [51], an electrostatic energy harvester that produces 45 μW for an acceleration of 0.6 m/s2 at 50 Hz with a volume of 150 mm3 is presented.
Applsci 12 10699 g003 550

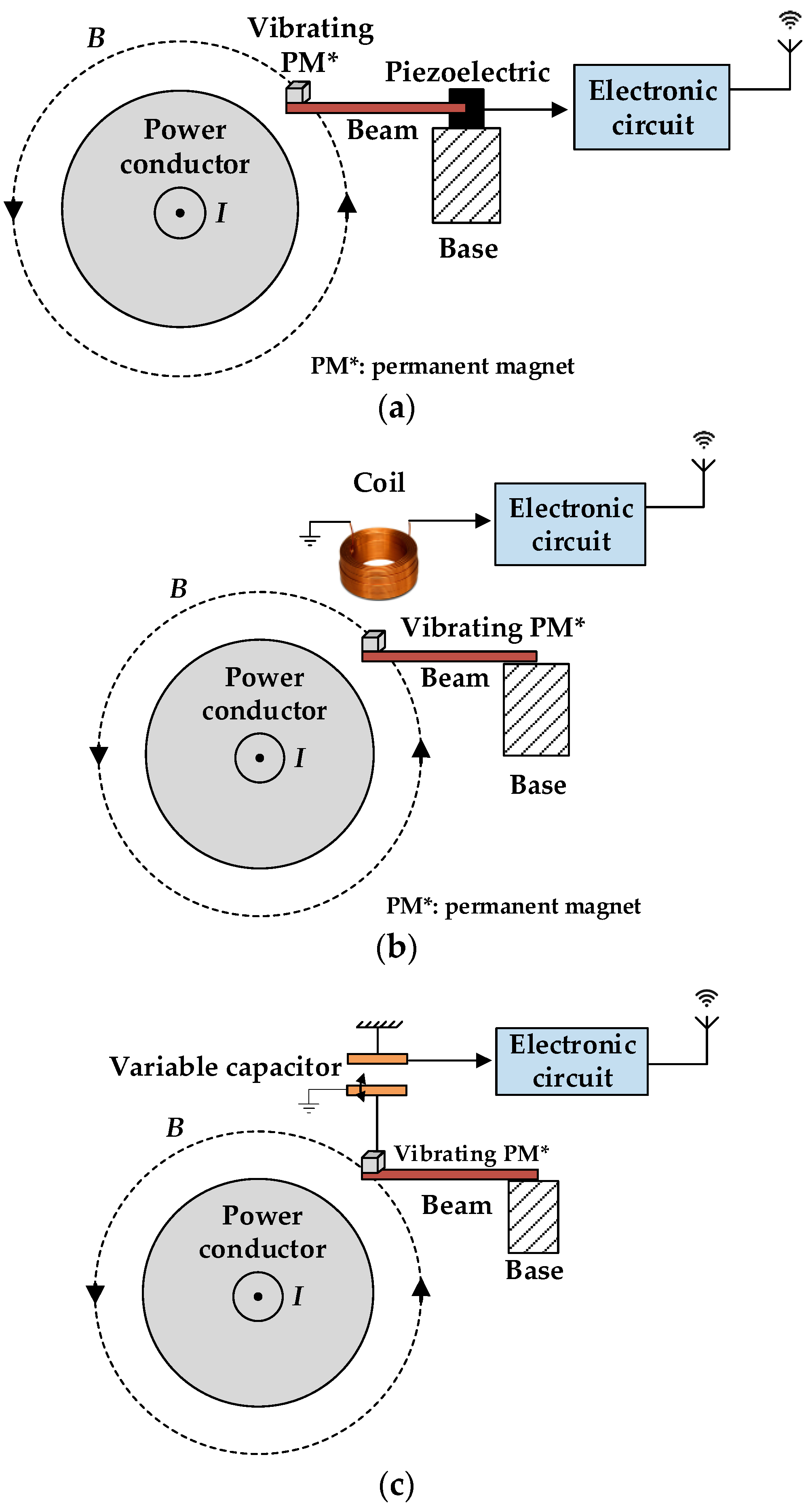

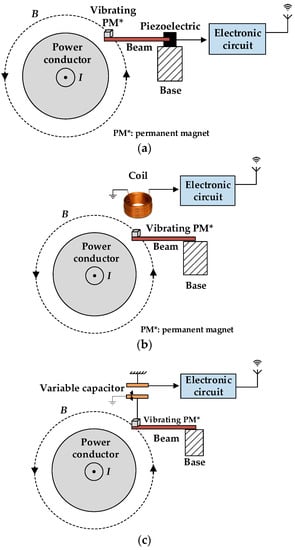

Figure 3. Hybrid magnetic–vibration EH using a permanent vibrating magnet due to the action of the AC magnetic field of the power line. (a) Piezoelectric energy harvesting adapted from [62]. (b) Inductive energy harvesting adapted from [63]. (c) Electrostatic energy harvesting.
Figure 3. Hybrid magnetic–vibration EH using a permanent vibrating magnet due to the action of the AC magnetic field of the power line. (a) Piezoelectric energy harvesting adapted from [62]. (b) Inductive energy harvesting adapted from [63]. (c) Electrostatic energy harvesting.
Applsci 12 10699 g003
Other methods, such as airflow energy harvesting, are not considered in this section due to the incompatibility of using rotating elements in power lines.

4.3. Thermoelectric Energy Harvesting

The action of an electric current heats any conductor due to the ohmic resistance, which produces a temperature gradient between the conductor and the environment [4] so that objects at different temperatures allow energy to be harvested through heat transfer [11]. Thermoelectric energy harvesting techniques are typically based on thermoelectric generators (TEGs); that is, devices that convert the temperature difference between their two sides into electrical energy [5,64], according to the Seebeck, Peltier, and Thomson effects. Thermoelectric energy harvesting converts the temperature difference between the environment and the power line into electric energy [2]. However, the efficiency of thermal EH is governed by the Carnot cycle, so for small temperature gradients, low efficiencies are expected [11]. In addition, similar to solar and wind, thermoelectric EH often cannot generate stable electric power since it depends on environmental variables [14], and in the case of power lines, it depends on the intensity of the line current, which largely determines the temperature of the conductor. When applied to transmission lines, the wide temperature swings of both ambient and line conductors make it necessary to take special care and apply specific energy management approaches to ensure reliable and stable thermoelectric generation [38]. In the case of low temperature gradients, thermoelectric energy harvesting is increasingly applied to supply wearable devices [65]. According to [65], a 900 mm2 TEG allows the extraction of between 5 and 50 μW with a few °C temperature difference, whereas in [66], it is shown that a 4-layer TEG with 5000 thermocouples can generate up to 200 μW with a temperature gradient of approximately 8 °C.
It is possible to harvest the energy of the heat flux between the conductor and the environment by wrapping a thermoelectric generator around it. A heat-transmitting paste is usually placed between the conductor and the thermoelectric generator to maximize the heat flux. A heat exchanger is often attached to the cold outer surface of the thermoelectric generator to maximize the temperature difference between the cold and hot surfaces of the thermoelectric generator [4].
In DC systems, due to the lack of a time-varying variable such as the electric or magnetic field, the development of EH systems becomes more difficult. Thermoelectric EH is especially appealing for DC systems since Joule losses are characteristic of both AC and DC systems [4]. Since AC transmission lines are much more common than DC transmission lines, few works apply thermoelectric generators for EH in DC transmission systems. In [67], thermoelectric EH was applied to supply a WSN that includes several sensors (temperature, current, and voltage drop) mounted on a cylindrical busbar for a substation connector. It was shown that the temperature gradient is a key parameter to determine the output power of the thermoelectric generator, which generated 155 μW for a temperature difference between the busbar and the ambient of 19 °C.

4.4. Magnetic Field Energy Harvesting

Magnetic field EH harvesting has been extensively discussed in the literature. The magnetic field generated by a line conductor is directly proportional to the intensity of the current and decreases with distance from the conductor as,
B = μ 0 I 2 π r
I being the intensity of the current, μ0 the magnetic permittivity of free air, and r the distance from the measuring point and the center of the conductor.
From (1), it is evident that the magnetic field strength of power lines is substantial only in their close proximity, which limits the possible locations of EHs close to AC conductors. Another limitation is that energy harvesters are based on transformer action, so usually, they have wound coils, with their internal resistance limiting the extraction of energy, so a highly efficient circuit is required [68]. For efficient use, they need to be clamped around the conductor, thus limiting their application because, in some cases, it is not practical [11].
Current transformers are typically used for this purpose (see Figure 4), although power availability is highly dependent on the current level of the transmission line, so a minimum current flow is required [14].
Figure 4 shows the basic principle for energy harvesting from the magnetic field generated by power lines. Similar designs are found in numerous scientific works [59,69,70,71,72,73,74].
Applsci 12 10699 g004 550

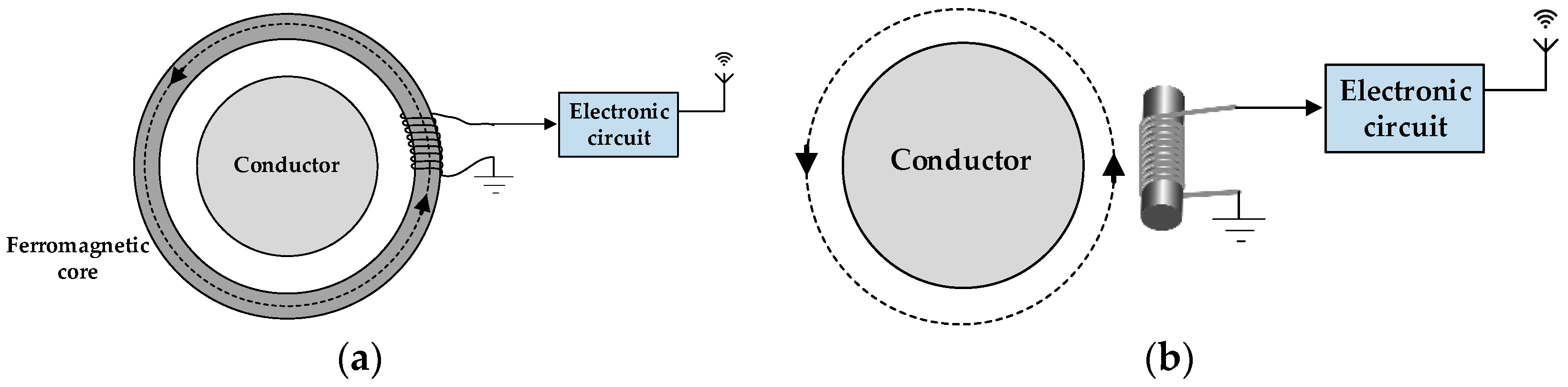

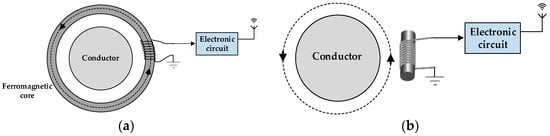

Figure 4. Magnetic field energy harvesting concept in power conductors, adapted from [75]. (a) Clamped topology. (b) Clampless topology.
Figure 4. Magnetic field energy harvesting concept in power conductors, adapted from [75]. (a) Clamped topology. (b) Clampless topology.
Applsci 12 10699 g004
In [39], it was shown that using a multi-winding up-conversion current transformer configuration is able to scavenge energy with a current as low as 1 A, thus providing enough power to supply wireless sensors. In [68], two inductors were placed between two parallel wires in opposite directions, carrying 8.4 A each, showing that depending on the configuration, up to 850 μW can be generated. In [76], it was shown that by using nano circular cut crystalline cores, high power densities could be achieved, around 100 mW/cm3, 50 times higher than using conventional cores. In [77], the material role of magnetic toroidal cores was evaluated, showing that nanocrystalline alloy cores increase the power density about four times compared to ferrite cores. In [78], the role of core size was analyzed, showing that it is essential to optimize the power output of the harvester.
A miniature wound multicore structure made of mu-metal was proposed in [79], showing that it is able to deliver 10 mW to a 50 Ohm load. A magnetic field EH device based on a double-ring core was proposed in [80], showing that 32.8 mW can be harvested when the line current is as low as 10 A. In [11], a wound flux concentrator core made of silicon steel stuck to the conductor was proposed, which allows the concentration of the nearby flux very efficiently. The proposed design was shown to generate up to 257 mW when 1000 A flowed through the conductor. The design proposed in [11] does not have to be clamped around the conductor, which limits practical applications. In [81], an annular cored current transformer with high power density was presented, showing that it can generate 350 mW for a line current of 10 A. In [75], a toroidal core design methodology considering the saturation effect was proposed.

4.5. Electric-Field Energy Harvesting

The electric field generated by a transmission line is independent of the current level since it only depends on the applied voltage. Therefore, electric field energy harvesting is the only method that can allow effective EH at any time the line is energized, even when not carrying any current. It makes electric-field EH the most feasible option to energize sensors from the point of view of predictability, availability, and controllability [14]. The idea of harvesting energy from the electric field is not new [11]. Electric-field energy harvesting does not depend on environmental variables, unlike many conventional harvesting methods [82], so it provides a more durable and reliable operation since it allows operation with any conductive material to which voltage is applied, making it ideal for applications requiring a certain quality of service. Since the frequency and voltage of transmission lines are tightly regulated, the electric field they generate is stable, allowing predictable amounts of energy to be harvested due to the constant rate of power harvested [14]. Electric-field EH is well suited for high-voltage transmission lines due to the strong associated electric fields, although different works have shown that it is also feasible in low-voltage applications [83,84] using low-power electronics and switches.
Any energized conductor generates a radial electric field. In the case of alternating current (AC) lines, the time-varying electric field produces a displacement current that can charge a nearby capacitor so that the energy stored in this capacitor EC can be expressed as,
E C = 1 2 C V 2
C being the capacitance, and V the voltage accumulated between the armatures of the capacitor terminals.

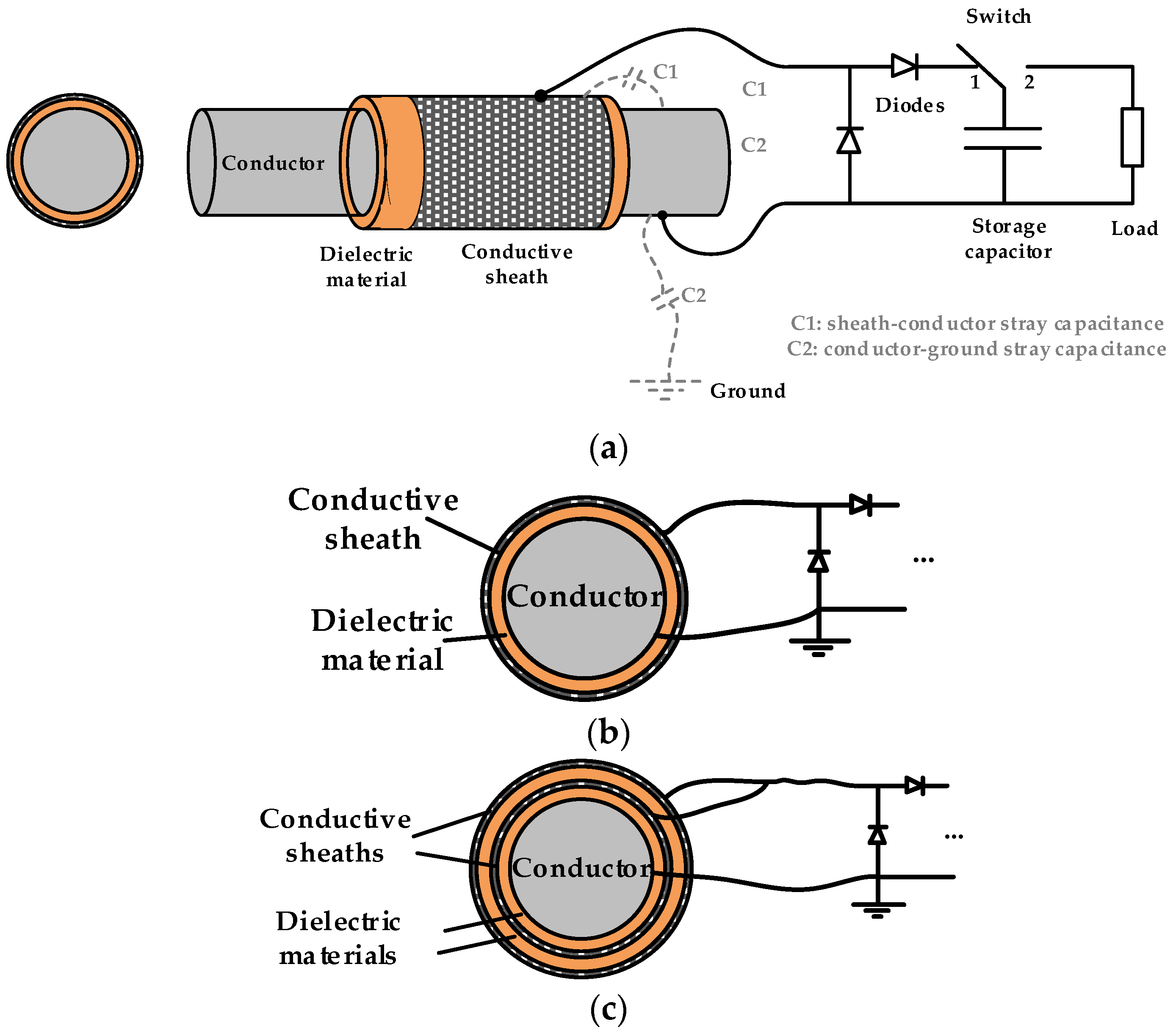

As shown in Figure 5, the EH unit includes diodes to rectify the generated voltage and prevent the scavenged energy from back feeding, capacitors or supercapacitors, and a controlled switch to regulate energy usage. The switch allows automatic charging of the capacitor (position 1) when the voltage is below a specific value and connects the capacitor to the load (position 2) when the stored energy is high enough for transmission. Therefore, it Is essential to use highly efficient rectifiers, microcontrollers, and regulators to optimize the overall efficiency of EH [14].

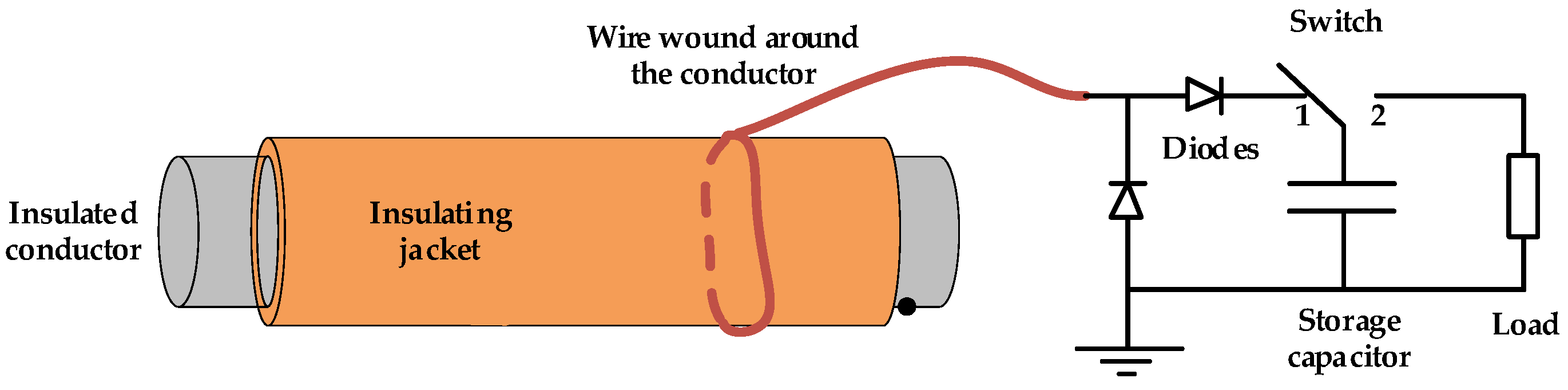

In [85], a wire wound around an insulated single-phase 3-wire 220 V cable was used to harvest energy from the stray electric field, generating 680 nW on average. A sketch of this EH system is shown in Figure 5.
In [14,86], an EH system is proposed using a dielectric layer and a conducting sheath wrapped around the conductor that generates a stray capacitance, which is used to harvest energy from the electric field generated by the conductor. A multi-layer structure is also possible, as shown in Figure 6. A similar approach, shown in Figure 6a, was applied in [84] using a 220 V power line as a reference, showing an average power extracted of about 47 µW. In [87], using a copper sheet wrapped around a 230 V power line, the authors harvested 367.5 μW. In [88], a similar EH method was applied using a power line insulator, the authors stating that a continuous power of up to 17 mW can be extracted from a 12.7 kV medium voltage power line. Similar circuits can be applied using metallic plates instead of wrapping a conductive sheath around the conductor [85,89]. In [90], it has been shown that 2.5 µW can be extracted from a 120 V power line using a metallic plate. A similar approach is proposed in [91], showing that a displacement current of fractions of mA can be induced.

4.6. Radio-Frequency (RF) Energy Harvesting

RF enables energy harvesting from RF sources such as base transceiver stations (BTS), TV towers, Wi-Fi, radio broadcast [93], or from dedicated RF transmitters [36] through the use of receiving antennas. These signals are then converted to DC power to supply sensor nodes [14]. RF power transmitters are broadly classified as dedicated units [94] and ambient RF power sources [95]. Ambient RF energy is found in a wide range of frequency bands, mainly in the MHz and GHz ranges [96]. Due to the widespread installation of communication systems, RF energy harvesting has become a widely analyzed technology, although it is still a challenge for low-power regions [7]. RF energy harvesting can provide a regular energy source in the presence of strong RF signals due to dedicated RF power transmitters.
Unlike wind and solar energy, local weather conditions do not affect RF sources [7]. RF EH presents notable features such as predictability, reliability, or the possibility of simultaneous power supply to different WSNs [96]. Additionally, RF signals can be found almost everywhere, 24 h a day, offering low-cost implementation, compactness, and a wireless nature [97,98].
The major drawback is related to the amount of power that can be harvested [99] due to the decay of the radiated power with the inverse square relationship with the distance to the radiation source [100]. The power density near powerful transmitters is relatively low, in the order of tens to hundreds nW/cm2 [95,101] to some few µW/cm2 [102,103,104], so power-dedicated transmitters are often required to supply WSns using inductive, capacitive, or radiative tag readers [11]. In addition, the input signal may not be permanently available due to random service usage or the duty cycle (mobile phones or Wi-Fi routers) or the size of the antenna required (AM radio waves) [105,106]. Therefore, automatic frequency tuning could be useful to maximize the output power [104].

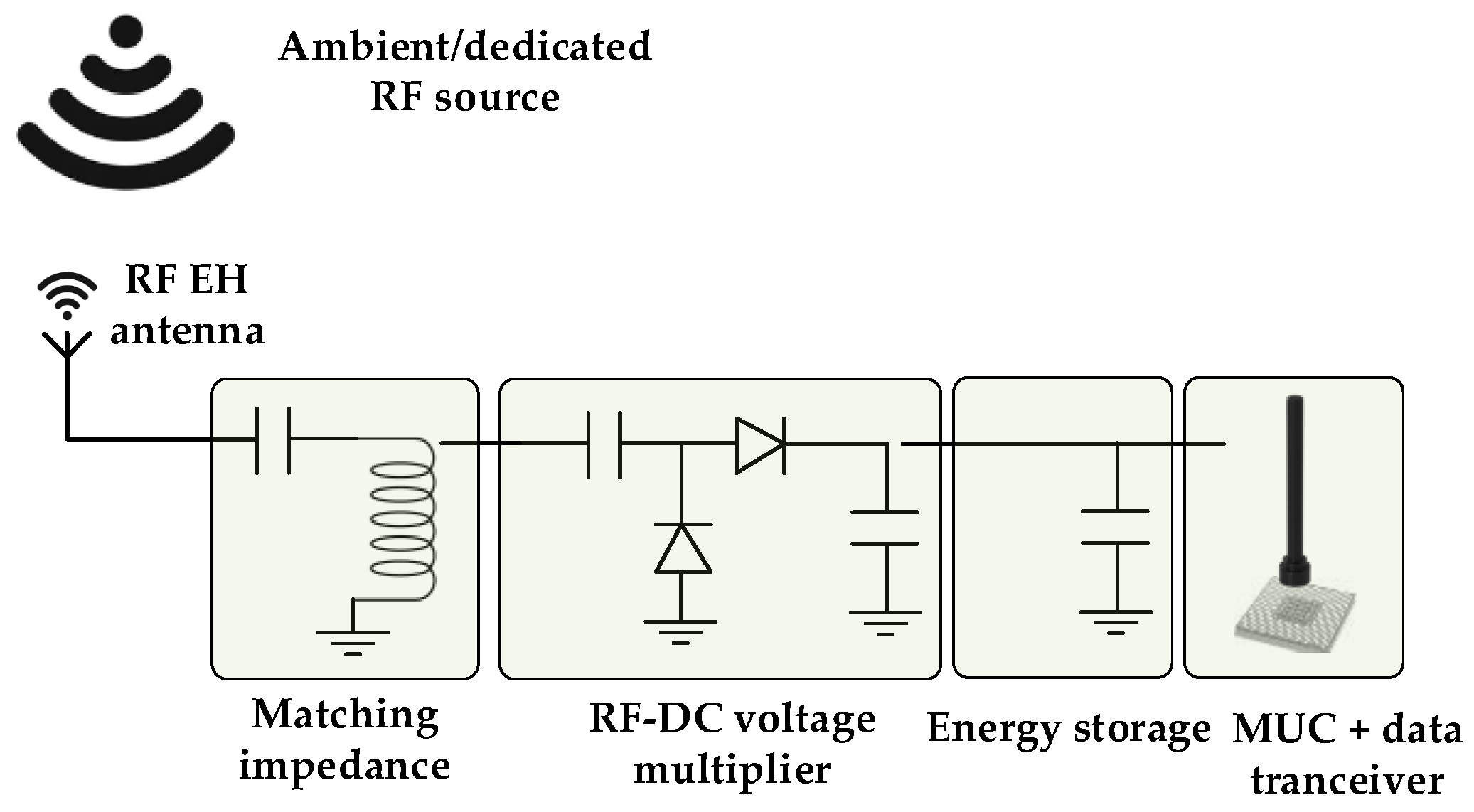

As shown in Figure 7, a conventional RF EH circuit includes an antenna to convert the incoming RF signal into a voltage difference or vice versa, a rectifier to convert the high-frequency signal to DC, a voltage multiplier that produces a higher DC output voltage, and an energy storage device, such as a battery or a supercapacitor [96].
In [108], a BLE device was combined with a wireless RF energy harvester equipped with a 50 mF capacitor, charged by a GSM mobile, while in [109], a WSN prototype using an RF EH system from Wi-Fi transmissions was proposed. In [110], an ultra-high-frequency (UHF) RF energy harvesting solution was proposed to supply the electronics to monitor power lines. A planar monopole antenna was used for better resonator frequency performance. In [102], a multi-hop displacement of an array of magnetic antennas was proposed to harvest ambient energy for power cord monitoring. A far-field RF EH approach was also proposed for the same purpose.
Batteryless operation of RF-powered WSNs can be achieved by integrating the sensor into a radio-frequency identification (RFID) tag using an external RFID transmitter receiver [111]. Batteryless RF sensors can receive a steady energy flow from a nearby RFID reader during the entire measurement cycle, sufficient to supply the sensing and communication tasks [36].
Wake-up radio (WuR) is an energy-saving technique being applied in WSNs based on saving power by transiting into a low-power sleeping mode and turning off their main radios [112]. Devices implementing WuR usually maintain a low-power Wake-up Receiver waiting for any incoming Wake-up Signal (WuS). They can also sometimes include a wake-up transmitter capable of sending WuSs. The WuS wakes up the receiver device, which connects its main radio, so it is ready to communicate with other nearby devices [113]. WuR power consumption falls in the µW domain, but the IoT device often consumes several mW [114], although fractions of mW can be achieved in some cases [28]. Different works have integrated the capabilities of WuR technology into BLE devices [115,116,117]. In [118], a passive RF WuR device for a batteryless WSN is proposed.

4.7. Corona Energy Harvesting

Electric-field and magnetic-field EH are appropriate for AC power systems, but they are not suitable for DC systems due to the lack of an alternating field. Therefore, in DC systems, other strategies are required. Corona energy harvesting overcomes this difficulty.
Corona is a type of electric discharge that occurs in gas insulation systems under a highly inhomogeneous AC or DC electric field [119,120]. It is generated at a lower voltage than required for complete breakdown [121]. Due to its ionization effect, the corona generates a space charge area, producing a flow of ions perceived as current pulses. In [122], it was shown that in the case of a single conductor energized at 100 kV-DC, the corona ion flow density is approximately 200 μA/m2.
In [20], an EH approach based on the current induced by corona discharges is proposed based on using the corona current pulses generated by a corona electrode and a simple energy-harvesting circuit, resulting in a stable output of approximately 10 mW in a 22 kV-DC system, which is sufficient for the discontinuous operation of most sensors.

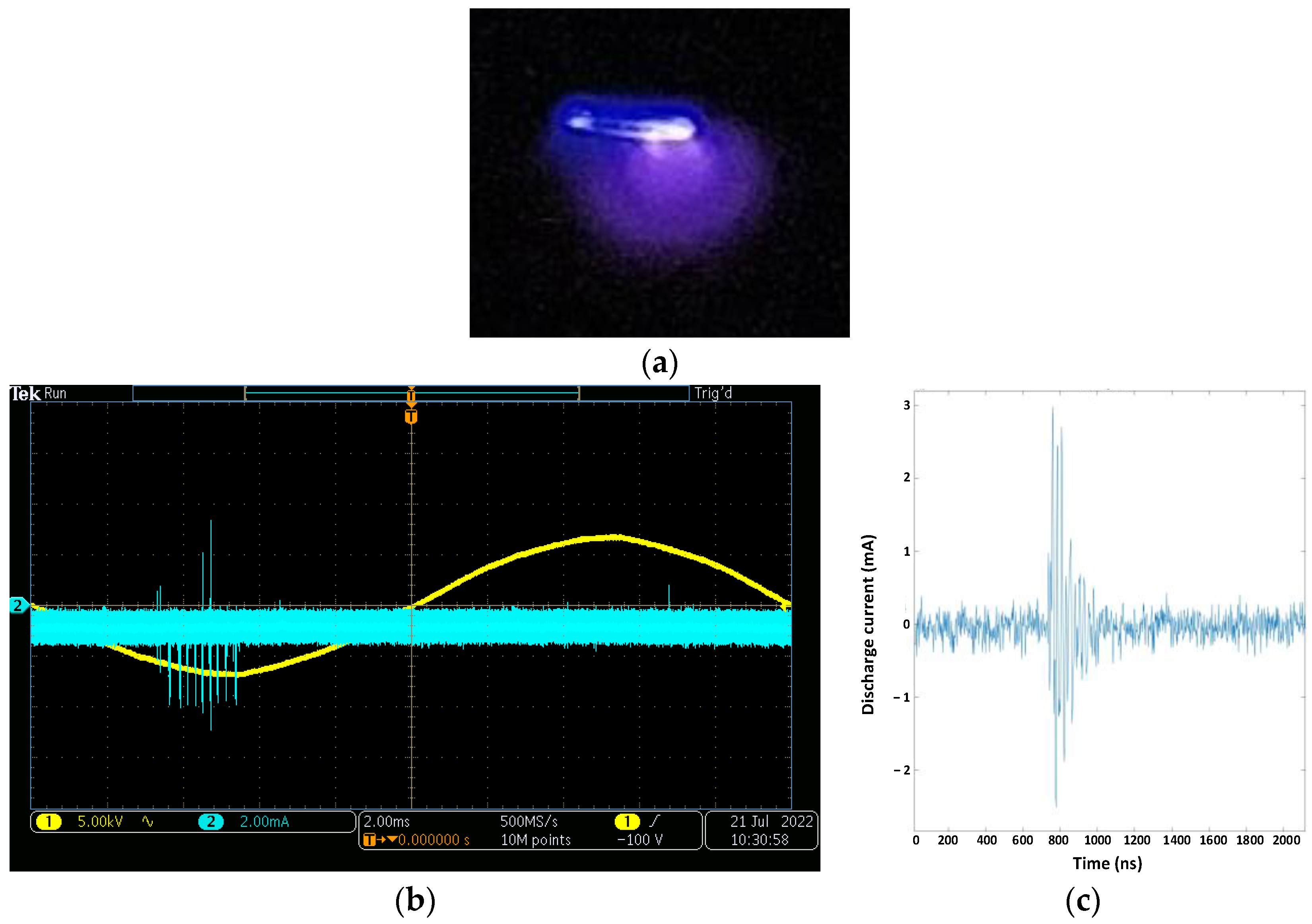

Figure 8 shows the main characteristics of a corona discharge taken by the authors of this work.

5. Summary of EH Methods for Power Lines

This section summarizes the state-of-the-art EH systems for transmission lines found in the technical literature, shown in Figure 9.
Table 1 summarizes the main characteristics of the EH methods for power lines reviewed in this section.
The results presented in Table 1 clearly show that solar is the EH system with the highest power density, and it can be applied to both AC and DC transmission lines, although this method presents two important drawbacks related to periodic maintenance requirements and the impossibility of a constant supply. Other EH methods compatible with AC and DC lines are thermoelectric, RF and corona. RF is probably the EH system with the lowest power density. Solar, thermoelectric, electric field, and RF EH allow for generating energy even when the line is not carrying any current, i.e., under no load conditions. The results show that there is not a clear winner or universal solution, so the most suitable EH system depends on the characteristics of each particular application. These characteristics include the geographical location (it defines dust, sand, dirt, ice. or snow conditions, solar resource, or ambient RF energy), the intensity of the current flowing in the line, or the line voltage, among others.
It is worth noting that WSNs in transmission lines are often enclosed inside a metallic box that acts as a Faraday cage to block the intense electric field. In such cases, the common ground of the electronic board is connected to the metallic box, which, in turn, is in contact with the line conductor.

6. Identified Challenges and Research Needs

WSNs are often supplied at low power and are energy constrained, resulting in low processing capabilities, reduced power storage, and limited operational lifetime, although they offer multifunctional abilities. WSNs randomly deactivate when their storage elements are drained, thus leading to reduced duty cycles and reliability or short-range transmission [125]. All of these limitations contribute to quickly draining their stored energy when operating for extended periods [22]. Therefore, different critical issues around EH circuits have to be addressed, which are listed below in no specific order.
−
WSNs must support hybrid EH configurations to extend communication frequency and range as well as onboard features. This area requires more research and development [124].
−
Batteryless systems require a true self-starting operation; that is, to start their operation from any amount of ambient power without needing any special arrangement [124].
−
Further developments in low-loss rectifiers, low-power micro-controllers, mV-range DC/DC converters, and highly efficient regulators are required to maximize system efficiency, thereby increasing communication reliability and system lifetime [14].
−
Efficiency and integration are key points for a widespread application of WSNs, specifically batteryless, so the harvesters, interface circuits, and sensors could be integrated into the same package and even into the same semiconductor component. These advances could lead to dramatic reductions in the size and costs of WSNs [124].
−
The use of improved materials with higher efficiency, such as better materials for solar cells, thermoelectric generators, piezoelectric cantilevers, magnetic components, or capacitors with loess leakage [124].
−
The minimum voltage and power levels at which the system can harvest energy must be reduced to the minimum levels possible to extract all available energy [24].
−
WSN devices operate a large portion of their time in sleep mode, which largely determines total power requirements, so to increase their lifespan, technologies that minimize power consumption in sleep mode need to be further optimized [24].
−
The entire system can only be turned on when the voltage on the storage capacitor is beyond a threshold level, so the system’s lifetime can be significantly extended by lowering the operating voltage [24].
−
Due to the energy requirements, energy-efficient wireless communication modules play a critical role in increasing the lifetime of WSNs. Therefore, to optimize power transmission efficiency, ultra-low-power (ULP) transceivers are needed, along with the development of simpler modulation techniques and optimized signal waveforms and bandwidth [14].
−
Multi-layer harvesting architectures allow more compact energy harvesters to be developed, which reduces storage needs, so much research is needed in this area [14].
−
Data collected by WSNs must be transmitted securely and protected from cyber-attacks. Therefore, future developments need to consider this aspect [104] since power grids are strategic and critical facilities.

7. Conclusions

Due to the continuous increase in energy consumption worldwide, power grids in general, and transmission lines in particular, face important challenges related to their optimal use, availability, and security aspects. Predictive maintenance plans that are based on network monitoring approaches are known to be useful in increasing the stability, reliability, availability, and security of power grids. Transmission lines are found everywhere, sometimes in remote and inaccessible areas, where routine inspections are complex and expensive. For this, monitoring strategies based on wireless sensors placed in strategic places that acquire and send data in rea time to a control center becomes essential. To maximize their lifetime, such sensors must incorporate an energy harvesting (EH) unit to supply all electronic components. Due to the specificities of transmission lines, this work has reviewed and analyzed the state-of-the-art of energy harvesting strategies for transmission lines in depth, an area with enormous potential for expansion. EH methods applicable to transmission lines include solar, thermoelectric, magnetic field (inductive, and different types of vibrations induced by the magnetic field), electric field (wound wire, dielectric layer, and corona), and RF. From the state-of-the-art, it has been shown that among the different existing energy harvesting methods, there is not a universal solution since the most suitable EH system depends on the characteristics of each particular application, characteristics such as the geographical location (it defines dust, sand, dirt, ice, or snow conditions, solar resource, or available ambient RF energy), the intensity of the current flowing in the line or the line voltage among others. This work has also identified the challenges and research that needs to be addressed for a successful application of this technology because, despite the importance of this topic, there is still a long way to go as this area is still in its early stages. There is a wide range of possible applications that could potentially benefit from the introduction of such energy harvesting systems, including power transformers, distribution switches, or medium- and low- voltage power lines, among others.

Author Contributions

Conceptualization, J.-R.R.; methodology, J.-R.R. and S.B.; formal analysis, J.-R.R., M.M.-E. and S.B.; investigation, J.-R.R.; writing—original draft preparation, J.-R.R.; writing—review and editing, J.-R.R. and M.M.-E.; funding acquisition, J.-R.R. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Ministerio de Ciencia e Innovación de España, grant number PID2020-114240RB-I00 and by the Generalitat de Catalunya, grant number 2017 SGR 967.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Eunice Akin-Ponnle, A.; Borges Carvalho, N.; Poniszewska-Maranda, A.; Maranda, W. Energy Harvesting Mechanisms in a Smart City—A Review. Smart Cities 2021, 4, 476–498. [Google Scholar] [CrossRef]
  2. Sudevalayam, S.; Kulkarni, P. Energy Harvesting Sensor Nodes: Survey and Implications. IEEE Commun. Surv. Tutor. 2011, 13, 443–461. [Google Scholar] [CrossRef] [Green Version]
  3. Sultania, A.K.; Delgado, C.; Famaey, J. Enabling Low-Latency Bluetooth Low Energy on Energy Harvesting Batteryless Devices Using Wake-Up Radios. Sensors 2020, 20, 5196. [Google Scholar] [CrossRef] [PubMed]
  4. Schlechter, T. Energy Harvesting Approaches for Wireless Sensor Nodes in High Voltage Direct Current Systems. In Proceedings of the IEEE 5th World Forum on Internet of Things (WF-IoT), Limerick, Ireland, 15–18 April 2019; pp. 243–246. [Google Scholar] [CrossRef]
  5. Prajwal, K.T.; Manickavasagam, K.; Suresh, R. A review on vibration energy harvesting technologies: Analysis and technologies. Eur. Phys. J. Spéc. Top. 2022, 231, 1359–1371. [Google Scholar] [CrossRef]
  6. Liu, Y.; Khanbareh, H.; Halim, M.A.; Feeney, A.; Zhang, X.; Heidari, H.; Ghannam, R.; Correspondence, R.; Ghannam, J. Piezoelectric energy harvesting for self-powered wearable upper limb applications. Nano Sel. 2021, 2, 1459–1479. [Google Scholar] [CrossRef]
  7. Verma, G.; Sharma, V. A Novel RF Energy Harvester for Event-Based Environmental Monitoring in Wireless Sensor Networks. IEEE Internet Things J. 2022, 9, 3189–3203. [Google Scholar] [CrossRef]
  8. Ang, K.L.-M.; Seng, J.K.P.; Zungeru, A.M. Optimizing Energy Consumption for Big Data Collection in Large-Scale Wireless Sensor Networks with Mobile Collectors. IEEE Syst. J. 2017, 12, 616–626. [Google Scholar] [CrossRef]
  9. Ijemaru, G.; Ang, K.; Seng, J. Mobile Collectors for Opportunistic Internet of Things in Smart City Environment with Wireless Power Transfer. Electronics 2021, 10, 697. [Google Scholar] [CrossRef]
  10. Hong, Y.-W.P.; Hsu, T.-C.; Chennakesavula, P. Wireless Power Transfer for Distributed Estimation in Wireless Passive Sensor Networks. IEEE Trans. Signal Process. 2016, 64, 5382–5395. [Google Scholar] [CrossRef]
  11. Moghe, R.; Yang, Y.; Lambert, F.; Divan, D. A Scoping Study of Electric and Magnetic Field Energy Harvesting for Wireless Sensor Networks in Power System Applications. In Proceedings of the 2009 IEEE Energy Conversion Congress and Exposition, San Jose, CA, USA, 20–24 September 2009; pp. 3550–3557. [Google Scholar]
  12. Chen, X.; Sun, L.; Zhu, H.; Zhen, Y.; Chen, H. Application of Internet of Things in Power-Line Monitoring. In Proceedings of the 2012 International Conference on Cyber-Enabled Distributed Computing and Knowledge Discovery, Sanya, China, 10–12 October 2012; pp. 423–426. [Google Scholar] [CrossRef]
  13. Qin, X.; Wu, G.; Lei, J.; Fan, F.; Ye, X.; Mei, Q. A Novel Method of Autonomous Inspection for Transmission Line based on Cable Inspection Robot LiDAR Data. Sensors 2018, 18, 596. [Google Scholar] [CrossRef] [Green Version]
  14. Cetinkaya, O.; Akan, O.B. Electric-Field Energy Harvesting in Wireless Networks. IEEE Wirel. Commun. 2017, 24, 34–41. [Google Scholar] [CrossRef] [Green Version]
  15. Zafeiropoulou, M.; Mentis, I.; Sijakovic, N.; Terzic, A.; Fotis, G.; Maris, T.I.; Vita, V.; Zoulias, E.; Ristic, V.; Ekonomou, L. Forecasting Transmission and Distribution System Flexibility Needs for Severe Weather Condition Resilience and Outage Management. Appl. Sci. 2022, 12, 7334. [Google Scholar] [CrossRef]
  16. Sijakovic, N.; Terzic, A.; Fotis, G.; Mentis, I.; Zafeiropoulou, M.; Maris, T.I.; Zoulias, E.; Elias, C.; Ristic, V.; Vita, V. Active System Management Approach for Flexibility Services to the Greek Transmission and Distribution System. Energies 2022, 15, 6134. [Google Scholar] [CrossRef]
  17. Zainuddin, N.M.; Rahman, M.S.A.; Kadir, M.Z.A.A.; Ali, N.H.N.; Ali, Z.; Osman, M.; Mansor, M.; Ariffin, A.M.; Nor, S.F.M.; Nasir, N.A.F.M. Review of Thermal Stress and Condition Monitoring Technologies for Overhead Transmission Lines: Issues and Challenges. IEEE Access 2020, 8, 120053–120081. [Google Scholar] [CrossRef]
  18. Liu, Y.; Riba, J.-R.; Moreno-Eguilaz, M.; Sanllehí, J. Analysis of a Smart Sensor Based Solution for Smart Grids Real-Time Dynamic Thermal Line Rating. Sensors 2021, 21, 7388. [Google Scholar] [CrossRef]
  19. Wang, Z.; Hu, J.; Han, J.; Zhao, G.; He, J.; Wang, S.X. A Novel High-Performance Energy Harvester Based on Nonlinear Resonance for Scavenging Power-Frequency Magnetic Energy. IEEE Trans. Ind. Electron. 2017, 64, 6556–6564. [Google Scholar] [CrossRef]
  20. Shi, Y.; Cui, X.; Qi, L.; Zhang, X.; Li, X.; Shen, H. A Novel Energy Harvesting Method for Online Monitoring Sensors in HVDC Overhead Line. IEEE Trans. Ind. Electron. 2022, 70, 2139–2143. [Google Scholar] [CrossRef]
  21. Kamruzzaman, S.M.; Fernando, X.; Jaseemuddin, M. Energy Harvesting Wireless Sensors for Smart Cities. In Proceedings of the 2017 IEEE Canada International Humanitarian Technology Conference (IHTC), Toronto, ON, Canada, 21–22 July 2017; pp. 218–222. [Google Scholar] [CrossRef]
  22. Ijemaru, G.K.; Ang, K.L.-M.; Seng, J.K. Wireless power transfer and energy harvesting in distributed sensor networks: Survey, opportunities, and challenges. Int. J. Distrib. Sens. Netw. 2022, 18, 15501477211067740. [Google Scholar] [CrossRef]
  23. Moreno-Cruz, F.; Toral-López, V.; Escobar-Molero, A.; Ruíz, V.; Rivadeneyra, A.; Morales, D. treNch: Ultra-Low Power Wireless Communication Protocol for IoT and Energy Harvesting. Sensors 2020, 20, 6156. [Google Scholar] [CrossRef] [PubMed]
  24. Shafiee, N.; Tewari, S.; Calhoun, B.; Shrivastava, A. Infrastructure Circuits for Lifetime Improvement of Ultra-Low Power IoT Devices. IEEE Trans. Circuits Syst. I Regul. Pap. 2017, 64, 2598–2610. [Google Scholar] [CrossRef]
  25. Khan, F.U.; Qadir, M.U. State-of-the-art in vibration-based electrostatic energy harvesting. J. Micromechanics Microengineering 2016, 26, 103001. [Google Scholar] [CrossRef]
  26. Mazunga, F.; Nechibvute, A. Ultra-low power techniques in energy harvesting wireless sensor networks: Recent advances and issues. Sci. Afr. 2021, 11, e00720. [Google Scholar] [CrossRef]
  27. Mallick, C.; Satpathy, S. Challenges and Design Goals of Wireless Sensor Networks: A Sate-of-the-art Review. Int. J. Comput. Appl. 2018, 179, 42–47. [Google Scholar] [CrossRef]
  28. Abdelatty, O.; Chen, X.; Alghaihab, A.; Wentzloff, D. Bluetooth Communication Leveraging Ultra-Low Power Radio Design. J. Sens. Actuator Netw. 2021, 10, 31. [Google Scholar] [CrossRef]
  29. Loo, M.H.-W.; Ramiah, H.; Lei, K.-M.; Lim, C.C.; Lai, N.S.; Mak, P.-I.; Martins, R.P. Fully-Integrated Timers for Ultra-Low-Power Internet-of-Things Nodes—Fundamentals and Design Techniques. IEEE Access 2022, 10, 65936–65950. [Google Scholar] [CrossRef]
  30. Jiang, C.; Li, X.; Lian, S.W.M.; Ying, Y.; Ho, J.S.; Ping, J. Wireless Technologies for Energy Harvesting and Transmission for Ambient Self-Powered Systems. ACS Nano 2021, 15, 9328–9354. [Google Scholar] [CrossRef]
  31. Vougioukas, G.; Dimitriou, A.; Bletsas, A.; Sahalos, J. Practical Energy Harvesting for Batteryless Ambient Backscatter Sensors. Electronics 2018, 7, 95. [Google Scholar] [CrossRef]
  32. Sabovic, A.; Delgado, C.; Subotic, D.; Jooris, B.; De Poorter, E.; Famaey, J. Energy-Aware Sensing on Battery-Less LoRaWAN Devices with Energy Harvesting. Electronics 2020, 9, 904. [Google Scholar] [CrossRef]
  33. Delgado, C.; Sanz, J.M.; Famaey, J. On the Feasibility of Battery-Less LoRaWAN Communications Using Energy Harvesting. In Proceedings of the 2019 IEEE Global Communications Conference (GLOBECOM), Waikoloa, HI, USA, 9–13 December 2019. [Google Scholar] [CrossRef]
  34. Altinel, D.; Kurt, G.K. Modeling of Multiple Energy Sources for Hybrid Energy Harvesting IoT Systems. IEEE Internet Things J. 2019, 6, 10846–10854. [Google Scholar] [CrossRef]
  35. Häggström, F.; Delsing, J. IoT Energy Storage—A Forecast. Energy Harvest. Syst. 2018, 5, 43–51. [Google Scholar] [CrossRef]
  36. Munir, B.; Dyo, V. On the Impact of Mobility on Battery-Less RF Energy Harvesting System Performance. Sensors 2018, 18, 3597. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Yang, C.-C.; Pandey, R.; Tu, T.-Y.; Cheng, Y.-P.; Chao, P.C.-P. An efficient energy harvesting circuit for batteryless IoT devices. Microsyst. Technol. 2019, 26, 195–207. [Google Scholar] [CrossRef]
  38. Guo, F.; Hayat, H.; Wang, J. Energy harvesting devices for high voltage transmission line monitoring. In Proceedings of the 2011 IEEE Power and Energy Society General Meeting, Detroit, MI, USA, 24–28 July 2011; pp. 1–8. [Google Scholar] [CrossRef]
  39. Li, P.; Wen, Y.; Zhang, Z.; Pan, S. A High-Efficiency Management Circuit Using Multiwinding Upconversion Current Transformer for Power-Line Energy Harvesting. IEEE Trans. Ind. Electron. 2015, 62, 6327–6335. [Google Scholar] [CrossRef]
  40. Bernauer, C.; Bohme, H.; Grossmann, S.; Hinrichsen, V.; Kornhuber, S.; Markalous, S.; Darmstadt, T.; Muhr, M.; Strehl, T.; Teminova, R. Temperature Measurement on Overhead Transmission Lines (OHTL) Utilizing Surface Acoustic Wave (SAW) Sensors. In 19th International Conference on Electricity Distribution; CIRED, Ed.; CIRED: Vienna, Austria, 2007; pp. 1–4. [Google Scholar]
  41. Yildiz, H.U.; Gungor, V.C.; Tavli, B. A Hybrid Energy Harvesting Framework for Energy Efficiency in Wireless Sensor Networks Based Smart Grid Applications. In Proceedings of the 2018 17th Annual Mediterranean Ad Hoc Networking Workshop (Med-Hoc-Net), Capri, Italy, 20–22 June 2018; pp. 1–6. [Google Scholar]
  42. Takshi, A.; Aljafari, B.; Kareri, T.; Stefanakos, E. A Critical Review on the Voltage Requirement in Hybrid Cells with Solar Energy Harvesting and Energy Storage Capability. Batter. Supercaps 2020, 4, 252–267. [Google Scholar] [CrossRef]
  43. Zhao, X.; Keutel, T.; Baldauf, M.; Kanoun, O. Energy harvesting for a wireless-monitoring system of overhead high-voltage power lines. IET Gener. Transm. Distrib. 2013, 7, 101–107. [Google Scholar] [CrossRef]
  44. Dondi, D.; Bertacchini, A.; Brunelli, D.; Larcher, L.; Benini, L. Modeling and Optimization of a Solar Energy Harvester System for Self-Powered Wireless Sensor Networks. IEEE Trans. Ind. Electron. 2008, 55, 2759–2766. [Google Scholar] [CrossRef]
  45. Antony, S.M.; Indu, S.; Pandey, R. An efficient solar energy harvesting system for wireless sensor network nodes. J. Inf. Optim. Sci. 2020, 41, 39–50. [Google Scholar] [CrossRef]
  46. Strzalkowski, B.; Mo, K. Solving Isolation- and Power Supply Problems for Current Monitoring in High Voltage Power Line Application. In Proceedings of the PCIM Europe 2018, International Exhibition and Conference for Power Electronics, Intelligent Motion, Renewable Energy and Energy Management, Nuremberg, Germany, 5–7 June 2018; 2018; pp. 1295–1297. [Google Scholar]
  47. Wang, T.; Huang, K.; Liu, W.; Hou, J.; Zhang, Z. A hybrid solar-RF energy harvesting system based on tree-shaped antenna array. Int. J. RF Microw. Comput. Eng. 2022, 32, e23301. [Google Scholar] [CrossRef]
  48. Yang, C.C.; Bin Rohimi, R.I.; Hanif, N.H.H.M.; Ibrahim, S.N. Non-intrusive Energy Harvesting from Vibration of Air Conditioning Condenser Unit Utilizing Piezoelectric Sensors. In Proceedings of the 8th International Conference on Computer and Communication Engineering (ICCCE), Kuala Lumpur, Malaysia, 22–23 June 2021; pp. 126–130. [Google Scholar] [CrossRef]
  49. Khaligh, A.; Zeng, P.; Zheng, C. Kinetic Energy Harvesting Using Piezoelectric and Electromagnetic Technologies—State of the Art. IEEE Trans. Ind. Electron. 2010, 57, 850–860. [Google Scholar] [CrossRef]
  50. Shaikh, F.K.; Zeadally, S. Energy harvesting in wireless sensor networks: A comprehensive review. Renew. Sustain. Energy Rev. 2016, 55, 1041–1054. [Google Scholar] [CrossRef]
  51. Beeby, S.P.; Torah, R.N.; Tudor, M.J.; Glynne-Jones, P.; O’Donnell, T.; Saha, C.R.; Roy, S. A micro electromagnetic generator for vibration energy harvesting. J. Micromech. Microeng. 2007, 17, 1257–1265. [Google Scholar] [CrossRef]
  52. Kanno, I. Piezoelectric MEMS for energy harvesting. J. Phys. Conf. Ser. 2015, 660, 012001. [Google Scholar] [CrossRef] [Green Version]
  53. Wang, Q.; Kim, K.-B.; Woo, S.; Sung, T. Magnetic Field Energy Harvesting with a Lead-Free Piezoelectric High Energy Conversion Material. Energies 2021, 14, 1346. [Google Scholar] [CrossRef]
  54. Gao, S.; Zeng, X.; Tao, B.; Ke, T.; Feng, S.; Chen, Y.; Zhou, J.; Lan, W. Self-powered sensing of power transmission lines galloping based on piezoelectric energy harvesting. Int. J. Electr. Power Energy Syst. 2023, 144, 108607. [Google Scholar] [CrossRef]
  55. He, W.; Li, P.; Wen, Y.; Zhang, J.; Lu, C.; Yang, A. Energy harvesting from electric power lines employing the Halbach arrays. Rev. Sci. Instrum. 2013, 84, 105004. [Google Scholar] [CrossRef]
  56. Abasian, A.; Tabesh, A.; Nezhad, A.Z.; Rezaei-Hosseinabadi, N. Design Optimization of an Energy Harvesting Platform for Self-Powered Wireless Devices in Monitoring of AC Power Lines. IEEE Trans. Power Electron. 2018, 33, 10308–10316. [Google Scholar] [CrossRef]
  57. Meng, Q.; Huo, F.; Teng, S.; Ding, Z.; Gu, T.; Cao, C. An Autonomous Vibration-Sensing System for Power Transmission Lines Monitoring. J. Phys. Conf. Ser. 2021, 2095, 012014. [Google Scholar] [CrossRef]
  58. Xiao, H.; Peng, H.; Yuan, J. A Coil Connection Switching Strategy for Maximum Power Delivery in Electromagnetic Vibration Energy Harvesting System. In Proceedings of the 2021 IEEE Energy Conversion Congress and Exposition (ECCE), Vancouver, BC, Canada, 10–14 October 2021; pp. 5867–5872. [Google Scholar] [CrossRef]
  59. Hosseinimehr, T.; Tabesh, A. Magnetic Field Energy Harvesting from AC Lines for Powering Wireless Sensor Nodes in Smart Grids. IEEE Trans. Ind. Electron. 2016, 63, 4947–4954. [Google Scholar] [CrossRef]
  60. Li, M.; Luo, A.; Luo, W.; Wang, F. Recent Progress on Mechanical Optimization of MEMS Electret-Based Electrostatic Vibration Energy Harvesters. J. Microelectromechanical Syst. 2022, 31, 726–740. [Google Scholar] [CrossRef]
  61. Chen, S.-M.; Hu, J.-H. Experimental Study of a Hybrid Vibration Energy Harvesting Mechanism. In Proceedings of the 2011 Symposium on Piezoelectricity, Acoustic Waves and Device Applications (SPAWDA), Shenzhen, China, 9–11 December 2011; pp. 56–59. [Google Scholar] [CrossRef]
  62. Wang, Q.; Kim, K.-B.; Woo, S.-B.; Song, Y.; Sung, T.-H. A Magneto-Mechanical Piezoelectric Energy Harvester Designed to Scavenge AC Magnetic Field from Thermal Power Plant with Power-Line Cables. Energies 2021, 14, 2387. [Google Scholar] [CrossRef]
  63. Muscat, A.; Bhattacharya, S.; Zhu, Y. Electromagnetic Vibrational Energy Harvesters: A Review. Sensors 2022, 22, 5555. [Google Scholar] [CrossRef] [PubMed]
  64. Becker, T.; Kluge, M.; Schalk, J.; Otterpohl, T.; Hilleringmann, U. Power Management for Thermal Energy Harvesting in Aircrafts. In Proceedings of the IEEE Sensors Conference, Lecce, Italy, 26–29 October 2008; pp. 681–684. [Google Scholar] [CrossRef]
  65. Proto, A.; Bibbo, D.; Cerny, M.; Vala, D.; Kasik, V.; Peter, L.; Conforto, S.; Schmid, M.; Penhaker, M. Thermal Energy Harvesting on the Bodily Surfaces of Arms and Legs through a Wearable Thermo-Electric Generator. Sensors 2018, 18, 1927. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Torfs, T.; Leonov, V.; Van Hoof, C.; Gyselinckx, B. Body-Heat Powered Autonomous Pulse Oximeter. In Proceedings of the 5th IEEE Sensors, Daegu, Korea, 22–25 October 2006; pp. 427–430. [Google Scholar] [CrossRef]
  67. Kadechkar, A.; Riba, J.-R.; Moreno-Eguilaz, M.; Perez, J. SmartConnector: A Self-Powered IoT Solution to Ease Predictive Maintenance in Substations. IEEE Sens. J. 2020, 20, 11632–11641. [Google Scholar] [CrossRef]
  68. Gupta, V.; Kandhalu, A.; Rajkumar, R. Energy Harvesting from Electromagnetic Energy Radiating from AC Power Lines. In Proceedings of the 6th Workshop on Hot Topics in Embedded Networked Sensors, Killarney, Ireland, 28–29 June 2010. [Google Scholar] [CrossRef]
  69. Wright, S.W.; Kiziroglou, M.E.; Spasic, S.; Radosevic, N.; Yeatman, E.M. Inductive Energy Harvesting from Current-Carrying Structures. IEEE Sens. Lett. 2019, 3, 1–4. [Google Scholar] [CrossRef] [Green Version]
  70. Toh, T.T.; Wright, S.; Kiziroglou, M.; Mueller, J.; Sessinghaus, M.; Yeatman, E.; Mitcheson, P.D. Inductive energy harvesting from variable frequency and amplitude aircraft power lines. J. Phys. Conf. Ser. 2014, 557, 012095. [Google Scholar] [CrossRef]
  71. Tashiro, K.; Wakiwaka, H.; Inoue, S.-I.; Uchiyama, Y. Energy Harvesting of Magnetic Power-Line Noise. IEEE Trans. Magn. 2011, 47, 4441–4444. [Google Scholar] [CrossRef] [Green Version]
  72. Wang, H.; Shi, G.; Han, C. A Free-Standing Electromagnetic Energy Harvester for Condition Monitoring in Smart Grid. Wirel. Power Transf. 2021, 2021, 6685308. [Google Scholar] [CrossRef]
  73. Kabakulak, M.; Arslan, S. An Electromagnetic Energy Harvester for Wireless Sensors from Power Lines: Modeling and Experiment Verification. GAZI Univ. J. Sci. 2020, 34, 786–806. [Google Scholar] [CrossRef]
  74. White, R.M.; Nguyen, D.-S.; Wu, Z.; Wright, P.K. Atmospheric Sensors and Energy Harvesters on Overhead Power Lines. Sensors 2018, 18, 114. [Google Scholar] [CrossRef]
  75. Park, B.; Kim, N.; Park, J.; Kim, K.; Koo, J.; Park, H.; Ahn, S. Optimization design of toroidal core for magnetic energy harvesting near power line by considering saturation effect. AIP Adv. 2018, 8, 056728. [Google Scholar] [CrossRef] [Green Version]
  76. Najafi, S.A.A.; Ali, A.A.; Sozer, Y.; De Abreu-Garcia, A. Energy Harvesting from Overhead Transmission Line Magnetic Fields. In Proceedings of the 2018 IEEE Energy Conversion Congress and Exposition (ECCE), Portland, OR, USA, 23–27 September 2018; pp. 7075–7082. [Google Scholar] [CrossRef]
  77. dos Santos, M.P.; Vieira, D.A.; Rodriguez, Y.P.; de Souza, C.P.; de Moraes, T.O.; Freire, R.C. Energy Harvesting Using Magnetic Induction Considering Different Core Materials. In Proceedings of the 2014 IEEE International Instrumentation and Measurement Technology Conference (I2MTC) Proceedings, Montevideo, Uruguay, 12–15 May 2014; pp. 942–944. [Google Scholar]
  78. Gaikwad, A.; Kulkarni, S. Evaluation of dimensional effect on electromagnetic energy harvesting. Procedia Comput. Sci. 2018, 143, 58–65. [Google Scholar] [CrossRef]
  79. Bhuiyan, R.H.; Dougal, R.A.; Ali, M. A Miniature Energy Harvesting Device for Wireless Sensors in Electric Power System. IEEE Sens. J. 2010, 10, 1249–1258. [Google Scholar] [CrossRef] [Green Version]
  80. Zhang, J.; Tian, X.; Li, J.; Yan, D. A Novel Electromagnetic Energy Harvester Based on Double-Ring Core for Power Line Energy Harvesting. J. Circuits Syst. Comput. 2020, 29, 2050265. [Google Scholar] [CrossRef]
  81. Liu, Y.; Xie, X.; Hu, Y.; Qian, Y.; Sheng, G.; Jiang, X.; Liu, Y. A novel high-density power energy harvesting methodology for transmission line online monitoring devices. Rev. Sci. Instrum. 2016, 87, 075119. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  82. Zangl, H.; Bretterklieber, T.; Brasseur, G. Energy Harvesting for Online Condition Monitoring of High Voltage Overhead Power Lines. In Proceedings of the 2008 IEEE Instrumentation and Measurement Technology Conference, Victoria, BC, Canada, 12–15 May 2008; pp. 1364–1369. [Google Scholar] [CrossRef]
  83. Kim, H.; Choi, D.; Gong, S.; Park, K. Stray electric field energy harvesting technology using MEMS switch from insulated AC power lines. Electron. Lett. 2014, 50, 1236–1238. [Google Scholar] [CrossRef]
  84. Chang, K.-S.; Kang, S.-M.; Park, K.-J.; Shin, S.-H.; Kim, H.-S.; Kim, H.-S. Electric Field Energy Harvesting Powered Wireless Sensors for Smart Grid. J. Electr. Eng. Technol. 2012, 7, 75–80. [Google Scholar] [CrossRef] [Green Version]
  85. Kang, S.; Yang, S.; Kim, H. Non-intrusive voltage measurement of ac power lines for smart grid system based on electric field energy harvesting. Electron. Lett. 2017, 53, 181–183. [Google Scholar] [CrossRef]
  86. Zhao, X.; Keutel, T.; Baldauf, M.; Kanoun, O. Energy Harvesting for Overhead Power Line Monitoring. In Proceedings of the International Multi-Conference on Systems, Signals & Devices, Chemnitz, Germany, 20–23 March 2012. [Google Scholar] [CrossRef]
  87. Zhou, J.; Zhang, J.; Xu, C.; Fang, L.; Wang, Y.; Zhuang, Y.; Jia, T.; Yi, H.; Han, C. On the Improvement of Electric Field Energy Harvesting from Domestic Power Lines. AEU-Int. J. Electron. Commun. 2022, 155, 154349. [Google Scholar] [CrossRef]
  88. Rodríguez, J.C.; Holmes, D.G.; McGrath, B.P.; Teixeira, C. Energy Harvesting from Medium Voltage Electric Fields Using Pulsed Flyback Conversion. In Proceedings of the 2016 IEEE 8th International Power Electronics and Motion Control Conference (IPEMC-ECCE Asia), Hefei, China, 22–26 May 2016; pp. 3591–3598. [Google Scholar] [CrossRef]
  89. Gulati, M.; Parizi, F.S.; Whitmire, E.; Gupta, S.; Ram, S.S.; Singh, A.; Patel, S.N. CapHarvester: A Stick-On Capacitive Energy Harvester Using Stray Electric Field from AC Power Lines. Proc. ACM Interact. Mob. Wearable Ubiquitous Technol. 2018, 2, 1–20. [Google Scholar] [CrossRef] [Green Version]
  90. Khan, M.R.; Islam, M.A.; Rana, M.M.; Haque, T.; Joy, S.I.I. A Circuit Model for Energy Harvesting from Fringing Electric Fields for Mobile Wearable Device Applications. Energies 2021, 14, 7016. [Google Scholar] [CrossRef]
  91. Moser, M.J.; Bretterklieber, T.; Zangl, H.; Brasseur, G. Strong and Weak Electric Field Interfering: Capacitive Icing Detection and Capacitive Energy Harvesting on a 220-kV High-Voltage Overhead Power Line. IEEE Trans. Ind. Electron. 2011, 58, 2597–2604. [Google Scholar] [CrossRef]
  92. Menéndez, O.; Romero, L.; Cheein, F.A. Serial Switch Only Rectifier as a Power Conditioning Circuit for Electric Field Energy Harvesting. Energies 2020, 13, 5279. [Google Scholar] [CrossRef]
  93. Alneyadi, F.; Alkaabi, M.; Alketbi, S.; Hajraf, S.; Ramzan, R. 2.4 GHz WLAN RF Energy Harvester for Passive Indoor Sensor Nodes. In Proceedings of the 2014 IEEE International Conference on Semiconductor Electronics (ICSE2014), Kuala Lumpur, Malaysia, 27–29 August 2014; pp. 471–474. [Google Scholar] [CrossRef]
  94. Mouapi, A.; Hakem, N.; Delisle, G.Y. A new approach to design of RF energy harvesting system to enslave wireless sensor networks. ICT Express 2018, 4, 228–233. [Google Scholar] [CrossRef]
  95. Pinuela, M.; Mitcheson, P.D.; Lucyszyn, S. Ambient RF Energy Harvesting in Urban and Semi-Urban Environments. IEEE Trans. Microw. Theory Tech. 2013, 61, 2715–2726. [Google Scholar] [CrossRef]
  96. Ibrahim, H.H.; Singh, M.J.; Al-Bawri, S.S.; Ibrahim, S.K.; Islam, M.T.; Alzamil, A.; Islam, S. Radio Frequency Energy Harvesting Technologies: A Comprehensive Review on Designing, Methodologies, and Potential Applications. Sensors 2022, 22, 4144. [Google Scholar] [CrossRef]
  97. Kamalinejad, P.; Mahapatra, C.; Sheng, Z.; Mirabbasi, S.; Leung, V.C.M.; Guan, Y.L. Wireless energy harvesting for the Internet of Things. IEEE Commun. Mag. 2015, 53, 102–108. [Google Scholar] [CrossRef] [Green Version]
  98. Lu, X.; Wang, P.; Niyato, D.; Kim, D.I.; Han, Z. Wireless Networks with RF Energy Harvesting: A Contemporary Survey. IEEE Commun. Surv. Tutor. 2015, 17, 757–789. [Google Scholar] [CrossRef] [Green Version]
  99. Cruz, F.M.; Molero, A.E.; Castillo, E.; Becherer, M.; Rivadeneyra, A.; Morales, D.P. Why Use RF Energy Harvesting in Smart Grids. In Proceedings of the IEEE 23rd International Workshop on Computer Aided Modeling and Design of Communication Links and Networks (CAMAD), Barcelona, Spain, 17–19 September 2018. [Google Scholar] [CrossRef]
  100. Nintanavongsa, P. A Survey on RF Energy Harvesting: Circuits and Protocols. Energy Procedia 2014, 56, 414–422. [Google Scholar] [CrossRef] [Green Version]
  101. Paradiso, J.; Starner, T. Energy Scavenging for Mobile and Wireless Electronics. IEEE Pervasive Comput. 2005, 4, 18–27. [Google Scholar] [CrossRef]
  102. Kawahara, Y.; Wei, W.; Narusue, Y.; Shigeta, R.; Asami, T.; Tentzeris, M. Virtualizing Power Cords by Wireless Power Transmission and Energy Harvesting. In Proceedings of the 2013 IEEE Radio and Wireless Symposium, Austin, TX, USA, 20–23 January 2013; pp. 37–39. [Google Scholar] [CrossRef]
  103. Sojan, S.; Kulkarni, R. A Comprehensive Review of Energy Harvesting Techniques and its Potential Applications. Int. J. Comput. Appl. 2016, 139, 14–19. [Google Scholar] [CrossRef]
  104. Jayasinghe, D.H.G.A.; Jayakody, D.N.K. Survey on Energy Harvesting in Smart Grid Networks. In International Research Conference of SLTC 2020—IRC 2020; Sri Lanka Technological Campus: Colombo, Sri Lanka, 2020; pp. 1–7. [Google Scholar]
  105. Liu, X.; Sanchez-Sinencio, E. A Highly Efficient Ultralow Photovoltaic Power Harvesting System with MPPT for Internet of Things Smart Nodes. IEEE Trans. Very Large Scale Integr. (VLSI) Syst. 2015, 23, 3065–3075. [Google Scholar] [CrossRef]
  106. Jayakumar, H.; Lee, K.; Lee, W.S.; Raha, A.; Kim, Y.; Raghunathan, V. Powering the Internet of Things. In Proceedings of the 2014 international Symposium Low Power Electronics and Design (ISLPED), La Jolla, CA, USA, 11–13 August 2014; pp. 375–380. [Google Scholar] [CrossRef]
  107. Muhammad, S.; Tiang, J.J.; Wong, S.K.; Iqbal, A.; Alibakhshikenari, M.; Limiti, E. Compact Rectifier Circuit Design for Harvesting GSM/900 Ambient Energy. Electronics 2020, 9, 1614. [Google Scholar] [CrossRef]
  108. Sanislav, T.; Zeadally, S.; Mois, G.D.; Folea, S.C. Wireless energy harvesting: Empirical results and practical considerations for Internet of Things. J. Netw. Comput. Appl. 2018, 121, 149–158. [Google Scholar] [CrossRef]
  109. Tran, V.H.; Misra, A.; Xiong, J.; Balan, R.K. WiWear: Wearable Sensing via Directional WiFi Energy Harvesting. In Proceedings of the 2019 IEEE International Conference on Pervasive Computing and Communications (PerCom), Kyoto, Japan, 11–15 March 2019. [Google Scholar] [CrossRef]
  110. Mahamat, Y.; Hussain, S.R.R.; Eroglu, A. Far-Field RF Energy Harvesting System for Distribution Power Lines. In Proceedings of the 2016 IEEE/ACES International Conference on Wireless Information Technology and Systems (ICWITS) and Applied Computational Electromagnetics (ACES), Honolulu, HI, USA, 13–18 March 2016; Institute of Electrical and Electronics Engineers Inc.: Piscataway, NJ, USA, 2016; pp. 1–2. [Google Scholar]
  111. Li, P.; Long, Z.; Yang, Z. RF Energy Harvesting for Batteryless and Maintenance-Free Condition Monitoring of Railway Tracks. IEEE Internet Things J. 2021, 8, 3512–3523. [Google Scholar] [CrossRef]
  112. Oller, J.; Demirkol, I.; Casademont, J.; Paradells, J.; Gamm, G.U.; Reindl, L. Has Time Come to Switch from Duty-Cycled MAC Protocols to Wake-Up Radio for Wireless Sensor Networks? IEEE/ACM Trans. Netw. 2016, 24, 674–687. [Google Scholar] [CrossRef] [Green Version]
  113. Caballe, M.C.; Auge, A.C.; Aspas, J.P. Wake-Up Radio: An Enabler of Wireless Convergence. IEEE Access 2021, 9, 3784–3797. [Google Scholar] [CrossRef]
  114. Mafi, Y.; Amirhosseini, F.; Hosseini, S.A.; Azari, A.; Masoudi, M.; Vaezi, M. Ultra-Low-Power IoT Communications: A Novel Address Decoding Approach for Wake-Up Receivers. IEEE Trans. Green Commun. Netw. 2022, 6, 1107–1121. [Google Scholar] [CrossRef]
  115. Ding, M.; Zhang, P.; Lu, C.; Zhang, Y.; Traferro, S.; van Schaik, G.-J.; Liu, Y.-H.; Huijts, J.; Bachmann, C.; Dolmans, G.; et al. A 2.4 GHz BLE-Compliant Fully-Integrated Wakeup Receiver for Latency-Critical IoT Applications Using a 2-dimensional Wakeup Pattern in 90 nm CMOS. In Proceedings of the 2017 IEEE Radio Frequency Integrated Circuits Symposium (RFIC), Honolulu, HI, USA, 4–6 June 2017; pp. 168–171. [Google Scholar] [CrossRef]
  116. Abdelhamid, M.R.; Paidimarri, A.; Chandrakasan, A.P. A −80 dBm BLE-Compliant, FSK Wake-Up Receiver with System and Within-Bit Dutycycling for Scalable Power and Latency. In Proceedings of the 2018 IEEE Custom Integrated Circuits Conference (CICC), San Diego, CA, USA, 8–11 April 2018; pp. 1–4. [Google Scholar] [CrossRef] [Green Version]
  117. Wang, P.-H.P.; Mercier, P.P. 28.2 A 220 μW −85 dBm Sensitivity BLE-Compliant Wake-up Receiver Achieving −60 dB SIR via Single-Die Multi- Channel FBAR-Based Filtering and a 4-Dimentional Wake-Up Signature. In Proceedings of the 2019 IEEE International Solid- State Circuits Conference—(ISSCC), San Francisco, CA, USA, 17–21 February 2019; pp. 440–442. [Google Scholar] [CrossRef]
  118. Liu, Q.; IJntema, W.; Drif, A.; Pawełczak, P.; Zuniga, M. BEH: Indoor Batteryless BLE Beacons using RF Energy Harvesting for Internet of Things. arXiv 2019, arXiv:1911.03381. [Google Scholar] [CrossRef]
  119. Borghei, M.; Ghassemi, M. Separation and Classification of Corona Discharges Under Low Pressures Based on Deep Learning Method. IEEE Trans. Dielectr. Electr. Insul. 2022, 29, 319–326. [Google Scholar] [CrossRef]
  120. Riba, J.-R. Application of Image Sensors to Detect and Locate Electrical Discharges: A Review. Sensors 2022, 22, 5886. [Google Scholar] [CrossRef] [PubMed]
  121. Anis, H.; Srivastava, K.D. Pre-Breakdown Discharges in Highly Non-uniform Fields in Relation to Gas-insulated Systems. IEEE Trans. Electr. Insul. 1982, 2, 131–142. [Google Scholar] [CrossRef]
  122. Zhou, X.; Cui, X.; Lu, T.; Fang, C.; Zhen, Y. Spatial Distribution of Ion Current Around HVDC Bundle Conductors. IEEE Trans. Power Deliv. 2012, 27, 380–390. [Google Scholar] [CrossRef]
  123. Muhtaroğlu, A. Micro-scale Energy Harvesting for Batteryless Information Technologies. In Lecture Notes in Energy; Springer: Berlin, Germany, 2017; Volume 37, pp. 63–85. [Google Scholar] [CrossRef]
  124. Pavana, H.; Deshpande, R. Energy Harvesting Techniques for Monitoring Devices in Smart Grid Application. In Proceedings of the 2020 Third International Conference on Advances in Electronics, Computers and Communications (ICAECC), Bengaluru, India, 11–12 December 2020. [Google Scholar] [CrossRef]
  125. Madhja, A.; Nikoletseas, S.; Raptis, T.P. Distributed wireless power transfer in sensor networks with multiple Mobile Chargers. Comput. Netw. 2015, 80, 89–108. [Google Scholar] [CrossRef]
Applsci 12 10699 g001 550

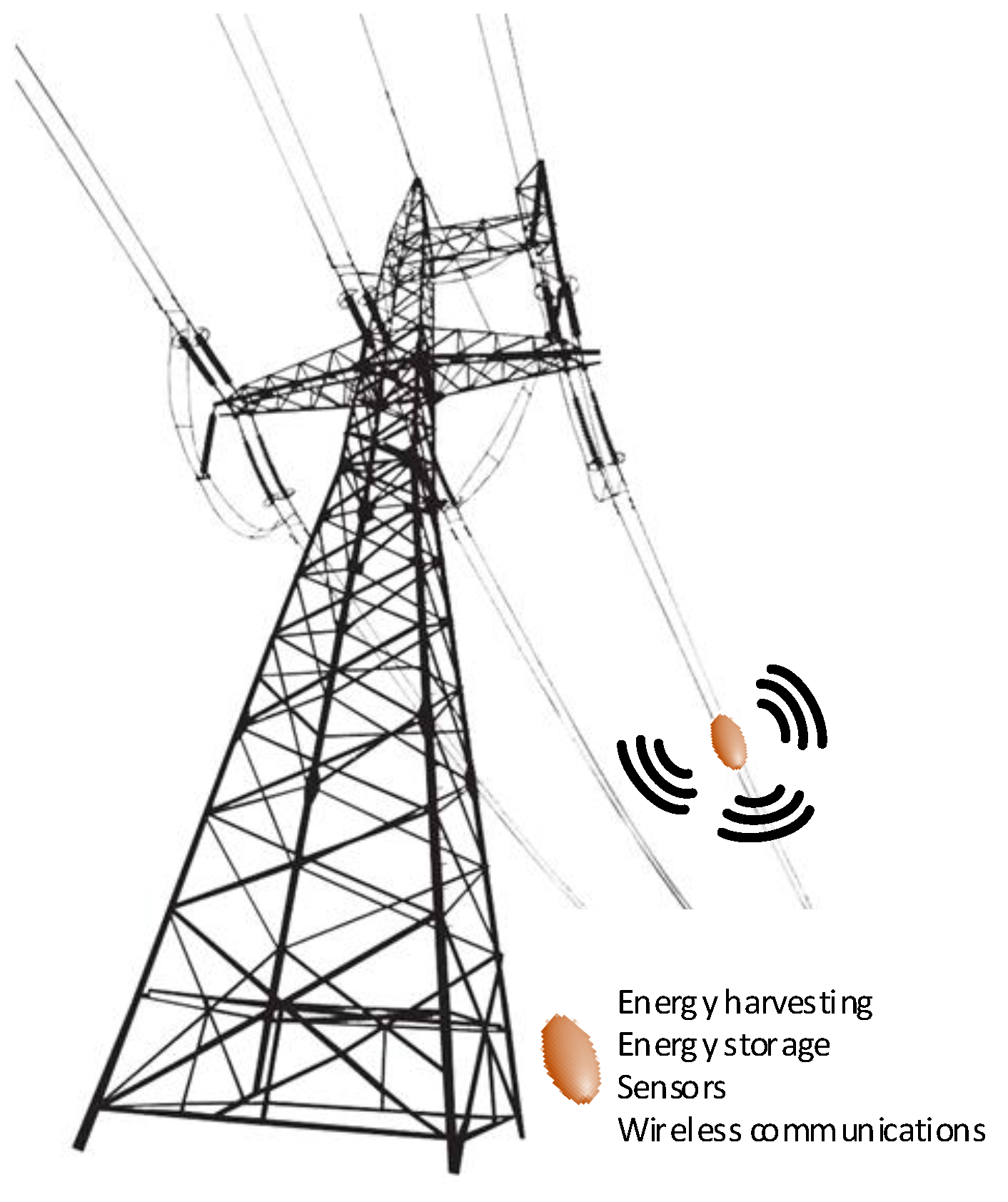

Figure 1. Schematic of wireless monitoring of transmission lines.
Figure 1. Schematic of wireless monitoring of transmission lines.
Applsci 12 10699 g001
Applsci 12 10699 g002 550
Figure 2. (a) Basic structure of a wireless sensor node (WSN). (b) Structure of a wireless sensor network, adapted from [22].
Figure 2. (a) Basic structure of a wireless sensor node (WSN). (b) Structure of a wireless sensor network, adapted from [22].
Applsci 12 10699 g002
Applsci 12 10699 g005 550
Figure 5. Electric-field energy harvesting using a wire wound around a conductor adapted [85].
Figure 5. Electric-field energy harvesting using a wire wound around a conductor adapted [85].
Applsci 12 10699 g005
Applsci 12 10699 g006 550
Figure 6. Electric-field energy harvesting concept in power conductors, adapted from [92]. (a) Schematics of the energy harvester. (b) Single-layer structure. (c) Two-layer structure.
Figure 6. Electric-field energy harvesting concept in power conductors, adapted from [92]. (a) Schematics of the energy harvester. (b) Single-layer structure. (c) Two-layer structure.
Applsci 12 10699 g006
Applsci 12 10699 g007 550
Figure 7. Basic structure of an RF EH node adapted from [107].
Figure 7. Basic structure of an RF EH node adapted from [107].
Applsci 12 10699 g007
Applsci 12 10699 g008 550
Figure 8. Corona discharges in a needle-plate geometry (needle diameter = 0.8 mm, needle tip-to-ground distance = 70 mm, 60 kPa, 3.6 kV, 50 Hz). (a) Photograph of the corona discharge in the tip of the needle. (b) Voltage (yellow) and current (blue) waveforms during the corona discharges. (c) Detail of a corona discharge as seen in the electrical current pattern.
Figure 8. Corona discharges in a needle-plate geometry (needle diameter = 0.8 mm, needle tip-to-ground distance = 70 mm, 60 kPa, 3.6 kV, 50 Hz). (a) Photograph of the corona discharge in the tip of the needle. (b) Voltage (yellow) and current (blue) waveforms during the corona discharges. (c) Detail of a corona discharge as seen in the electrical current pattern.
Applsci 12 10699 g008
Applsci 12 10699 g009 550

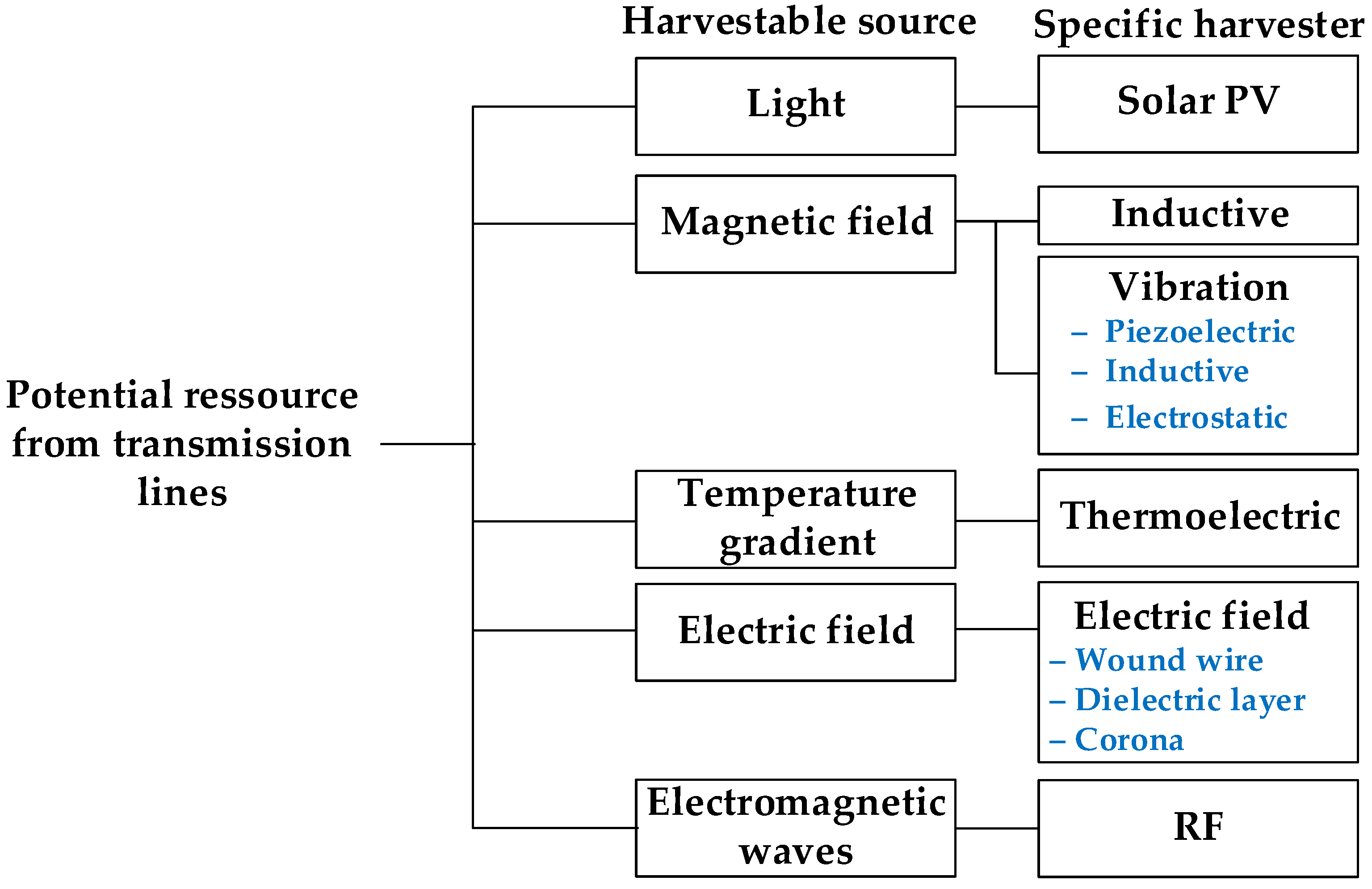

Figure 9. State-of-the-art EH systems for transmission lines.
Figure 9. State-of-the-art EH systems for transmission lines.
Applsci 12 10699 g009
Table
Table 1. EH methods comparison for power lines.
Table 1. EH methods comparison for power lines.
EH TypePower DensityAdvantagesDisadvantagesReferences
Solar<100 mW/cm2For AC and DC grids and high output powerNo constant supply and regular maintenance[14]
Vibration piezoelectric10–200 μW/cm3No external supply required and high voltage outputOnly for AC systems & Moving elements[123]
Vibration inductive1–2 μW/cm3No external supply requiredOnly for AC systems & Moving elements & low voltage output[123]
Thermoelectric50 μW/cm2 (ΔT = 5 °C)For AC and DC gridsRequires current flow and a heat sink[14]
Magnetic field280 μW/cm2Easy to implement in AC gridsDifficult in DC grids and requires current flow[14]
Electric field170 μW/cm2Available under no load conditionsDifficult in DC grids[124]
RF0.0002–1 μW/cm2Abundant in urban areas
For AC and DC grids		Low power density and scarce in remote areas[14]
CoronaNot availableFor AC and DC gridsRisk of overcurrent & requires more research[20]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Riba, J.-R.; Moreno-Eguilaz, M.; Bogarra, S. Energy Harvesting Methods for Transmission Lines: A Comprehensive Review. Appl. Sci. 2022, 12, 10699. https://doi.org/10.3390/app122110699

AMA Style

Riba J-R, Moreno-Eguilaz M, Bogarra S. Energy Harvesting Methods for Transmission Lines: A Comprehensive Review. Applied Sciences. 2022; 12(21):10699. https://doi.org/10.3390/app122110699

Chicago/Turabian Style

Riba, Jordi-Roger, Manuel Moreno-Eguilaz, and Santiago Bogarra. 2022. "Energy Harvesting Methods for Transmission Lines: A Comprehensive Review" Applied Sciences 12, no. 21: 10699. https://doi.org/10.3390/app122110699

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
