Path Loss Models for Cellular Mobile Networks Using Artificial Intelligence Technologies in Different Environments

Abstract

One of the most critical problems in a communication system is losing information between the transmitter and the receiver. WiMAX (Worldwide Interoperability of Microwave Access) technology is gaining popularity and recognition as a Broadband Wireless Access (BWA) solution. At frequencies below 11 GHz, WiMAX can operate in line-of-sight (LOS) and non-line-of-sight (NLOS) scenarios. The implementation of WiMAX networks are rushed worldwide. Estimating path loss is crucial in the early stages of wireless network deployment and cell design. To anticipate propagation loss, several path loss models are available (e.g., Okumura Model Hata Model), but they are all bound by particular parameters. In this paper, we propose an MLP neural network-based path loss model with a well-structured implementation network design and grid search-based hyperparameter tuning. The proposed model optimally approximates mobile and base station path losses. Therefore, neurons number, learning rate, and hidden layers number are investigated to obtain the best model in terms of prediction accuracy. Path loss data is collected based on 14 networks in different microcellular settings. Simulations under Matlab environment showed that prediction errors were lower than standard log-distance-based path loss models.

1. Introduction

During the evolution of cellular networks, several systems have been developed without being standardized, which poses many problems, particularly in terms of electromagnetic compatibility (frequency distribution). As a solution, GSM (Global System for Mobile communication) is the first 2G cellular telephony standard to have been standardized, and is today the global benchmark for mobile radio systems. Given the apparent importance of the mobile channel, it is essential to master the design and densification methods of a mobile channel network. It is also necessary to study the physical behavior of the channel signals and evaluate the resulting losses.

The mobile system is based on electric radio links located inside the troposphere, the seat of many meteorological and climatic phenomena (rain, snow, fog, etc.), or above the ground with many obstacles (buildings, vegetation, etc.) inside buildings. The budgets study of such links requires considering the different attenuations (loss in free space, attenuation due to the different effects of the environment: hydrometeors, buildings, vegetation, etc.) and the different reinforcements of the signal between the transmitter and the receiver (antenna gains), where different propagation mechanisms come into play such as reflection, refraction, transmission, scattering, etc.

With the rapid growth and need for high-quality throughput and capacity of cellular networks, increasingly accurate modeling of the propagation channel under various environmental conditions, frequency ranges, and bandwidths have become extremely important. This modeling improves radio interfaces in terms of performance, optimizing networks during their deployment (determination of coverage, frequency allocation, power definition, antenna gains, etc.), and determining unavoidable disturbances. The models are of different types: deterministic, empirical, and semi-empirical models. Deterministic models are based on reference models represented in known physical processes. The computation time is relatively high [1]. Experimental data only supports empirical models depending on frequency, distance, and antenna height (see Table 1). They are powerful, fast, and do not require geographic databases [1].

In the last decade, statistical learning algorithms have attracted much interest in academia and companies in various sectors. They have been successfully implemented to perform predictive tasks related to statistical processes. However, another approach to modeling a system is fascinating, namely artificial neural networks. They derive their modeling power from their ability to detect high-level interconnections, simultaneously involving several variables [2]. Today, neural networks are well established in several fields: in the financial world for the prediction of market fluctuations, in the pharmaceutical field (analysis of organic molecules), in the banking field for the detection of credit card fraud, and in the calculation of credit ratings, in aeronautics for the programming of autopilots, etc.

The applications are numerous, and all share a common point essential to the usefulness of neural networks: the processes for which one wishes to make predictions have many explanatory variables and, above all, there are possibly nonlinear dependencies between these variables which, if discovered and exploited, can be used to increase the predictability of the process. From the point of view of process prediction, the main advantage of neural networks over traditional statistical models is that they can automate the discovery of essential links. The main interest of these networks is their ability to react automatically to a complex environment such as telecommunication systems. This study evaluates signal losses in a physical channel as an example.

The rest of the paper is organized as follows: Section 2 discusses propagation models commonly used in path loss prediction. Related work is presented in Section 3, while Section 4 describes neural network architectures such as Multi-Layer Perceptron’s (MLP), selected neural network topologies and details of datasets processing. Section 5 presents our contribution. Section 6 presents the results obtained for loss prediction using neural network training, and compares the different neural network architectures. Section 7 compares our contribution with some empirical models. Section 8 is the conclusion.

2. Classification of Propagation Models

Propagation models design a radio interface to optimize performance and deploy systems in the field to determine radio coverage. The models will be used in engineering tools to predict various values that will benefit the deployment of radio telecommunications systems and radio coverage research (site selection, frequency allocation, power definition) and interference description. The models rely heavily on geographic datasets that include topography and land use types. This is because the way ultra-high frequency (UHF) radio waves propagate in a given space is intimately related to the obstacles (buildings, tree trunks, mountainsides, etc.) encountered along the propagation channel.

Therefore, the modeling of geographical objects is essential in any UHF wave propagation model [3]. Propagation models are then used to provide a mathematical prediction of wave propagation between the origin and destination service area. This allows a system receiver to assess whether a planned radio system will sufficiently serve the desired service area. The following subsections present the fundamental models studied and their classification, data requirements, and coverage notes.

Table 1. The empirical and semi-empirical model parameters.

Models	Frequencies	Mobile Station Antenna Height	Base Station Antenna Height	Distance	The Scope of the Application
Okumura-Hata model [4].	200 to 1900 MHz	30 to 200 m	1 to 10 m	1 km to 10 km	Weak Urban Dense Urban Rural
Free Space Path Loss (FSPL) model [5]	undefined	undefined	undefined	undefined	Urban Suburban Rural
Cost 231-Hata [6].	1500–2000 MHz	30 to 200 m	1 to 10 m	1 km to 20 km	Urban Suburban Rural
Walfisch-Ikegami (WI) model [7,8].	800–2000 MHz	1 to 3 m	4 to 50 m	0.02 to 5 km	Urban Suburban Rural
ECC-33 or extended Hata-Okumura model [9,10].	200 to 3500 MHz	30 to 200 m	1 to 10 m	1 km to 100 km	urban suburbs
Stanford University Interim (SUI) model [11].	To 11 GHz	2 to 10 m	10 to 80 m	0.1 and 8 km	urban suburbs Rural
Ericsson model [12,13].	200 to 3.5 GHz	30 to 200 m	1 to 10 m	1 km to 100 km	urban suburbs Rural

Table 1. The empirical and semi-empirical model parameters.

Models	Frequencies	Mobile Station Antenna Height	Base Station Antenna Height	Distance	The Scope of the Application
Okumura-Hata model [4].	200 to 1900 MHz	30 to 200 m	1 to 10 m	1 km to 10 km	Weak Urban Dense Urban Rural
Free Space Path Loss (FSPL) model [5]	undefined	undefined	undefined	undefined	Urban Suburban Rural
Cost 231-Hata [6].	1500–2000 MHz	30 to 200 m	1 to 10 m	1 km to 20 km	Urban Suburban Rural
Walfisch-Ikegami (WI) model [7,8].	800–2000 MHz	1 to 3 m	4 to 50 m	0.02 to 5 km	Urban Suburban Rural
ECC-33 or extended Hata-Okumura model [9,10].	200 to 3500 MHz	30 to 200 m	1 to 10 m	1 km to 100 km	urban suburbs
Stanford University Interim (SUI) model [11].	To 11 GHz	2 to 10 m	10 to 80 m	0.1 and 8 km	urban suburbs Rural
Ericsson model [12,13].	200 to 3.5 GHz	30 to 200 m	1 to 10 m	1 km to 100 km	urban suburbs Rural

3. Related Work

Artificial Intelligence (AI) is excellent for problems where existing solutions require a lot of hand-tuning or long lists of rules. It efficiently handles complex problems where there is no good solution at all using traditional methods. AI is used for adapting to changing environments, for getting insights about complex problems that use many data, and in general for noticing patterns that a human might miss. Hard-coded software can be a long list of complicated rules that are hard to keep up with, or it can be a system that automatically learns from past data, finds outliers, predicts what will happen in the future, etc. AI’s ability to learn, along with a large amount of sent data or wireless configuration datasets, can be used to solve these problems. In

Table 2. A comparison between AI models.

Authors	AI Technique	Training Model	Model Properties	Year
Sotiroudis et al. [14].	Supervised learning	Artificial Neural Networks (ANN) and Multi-Layer Perceptron’s (MLP).	It is used for modeling and estimations of link budget and propagation loss objective functions for wireless networks.	2013
Timoteo et al. [15].	Supervised learning	Support Vector Machines (SVM).	Model for forecasting path loss in urban areas.	2014
Liu et al. [16].	Supervised learning	Neural-Network-based approximation.	Channel Learning to deduce channel state information (CSI) that cannot be seen from a channel that can be seen.	2015
Bojovic et al. [17].	Supervised learning	statistical logistic regression techniques and Machine Learning.	It uses for Self-organized LTE high-density tiny cell implementation with dynamic frequency and bandwidth distribution.	2016
Sarigiannidis et al. [18].	Supervised learning	Supervised Machine Learning Frameworks.	Adjust the TDD Uplink-Downlink configuration in XG-PON-LTE Systems to enhance network performance in light of current traffic circumstances in the hybrid optical-wireless network.	2017
Song et al. [19].	Unsupervised learning	K-means clustering, Gaussian Mixture Model (GMM), and Expectation Maximization (EM).	It uses for the selection of relay nodes in vehicular networks.	2017
Parwez et al. [20].	Unsupervised learning	Hierarchical Clustering.	Wireless network anomalous, defect, and penetration testing.	2017
Dilranjan et al. [21].	Supervised learning	Recurrent Neural Network (RNN).	It obtains a remarkable 98% precision.	2017
Zhang et al. [22].	Supervised learning	Conditional random fields (CRFs).	It Obtains a remarkable 90% precision.	2017
Juan et al. [23].	Reinforcement learning	Q-Learning.	aids in maintaining a steady workload.	2017
Zappone et al. [24].	Supervised learning	Artificial neural network.	Simplicity gains in computation.	2018
Balevi et al. [25].	Unsupervised learning	Unsupervised Soft-Clustering MachineLearning Framework.	In heterogeneous cellular networks, latency may be reduced by using fog node clustering to automate the selection of low-power nodes (LPNs) for upgradation to high-power nodes (HPNs).	2018
Wang et al. [26].	Unsupervised learning	Affinity Propagation Clustering.	Resource Allocation in Highly Dense Small Cell Networks, Based on Data.	2018
Balapuwaduge et al. [27].	Supervised learning	Hidden Markov Model (HMM).	helps increase channel availability and dependability.	2019
Zhang et al. [28].	Supervised learning	convolutional neural network (U-Net).	It boosts processing speed and network reliability.	2020

, we summarize and compare some previous AI models.

4. Artificial Neural Networks

A neural network can be considered in its simplest form as a black box, equivalent to a function with multiple inputs and outputs. This black box has a vital characteristic called “learning”. This learning is done with the help of an algorithm and a dataset [29]. The outputs of the function are matched to the inputs. Each time, the function is adjusted according to the number of training samples that make up the dataset and the convergence speed to an optimal solution. This function is adjusted for each sample, implying that the dataset must be as rich as possible. At the end of the process, the black box produces outputs for any input, even outside the dataset, with optimal accuracy [30].

4.1. Architecture of Neural Networks

An ANN (Artificial Neural Network) combines several formal neurons to create a structure capable of solving mathematical problems of greater complexity than a single neuron can handle. Neural networks can be subdivided into two leading families: non-looped (static) and looped (dynamic) networks.

A neural network is designed with an input layer, one or more hidden layers, and an output layer. Each layer is a cluster of several neurons performing linear activation functions (see

Table 3. Some activation functions.

Function	Formula	Form
Threshold or Heaviside function	$f\left(x\right)=0 if x<0$ $f\left(x\right)=1 if x\ge 0$
Symmetrical threshold function	$f\left(x\right)=-1 if x<0$ $f\left(x\right)=+1 if x\ge 0$
Law	$f\left(x\right)=\alpha x+\beta$
‘Symmetric’ saturated linear	$f\left(x\right)=-1 if x<-1$ $f\left(x\right)=\alpha x+\beta if-1\le x\le 1$ $f\left(x\right)=1 if x>1$
Sigmoid	$f\left(x\right)=\frac{1}{1+e^{-x}}$

); the output layer is nonlinear for the other neurons [31].

4.2. MLP Architecture

In the general case, an MLP can have any number of layers. Still, to improve the performance of the MLP on the one hand, and to minimize the computation time on the other hand, an optimal architecture in terms of perspective should be sought. Number of layers and their corresponding number of neurons affects the neural network’s performance [2]. A multilayer MLP network with at least one input layer, one hidden layer, and one output layer is called a backpropagation network (Figure 1). The number of layers and neurons cannot be precisely determined because it depends on the complexity of the problem to be treated.

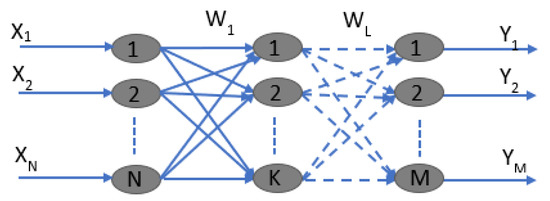

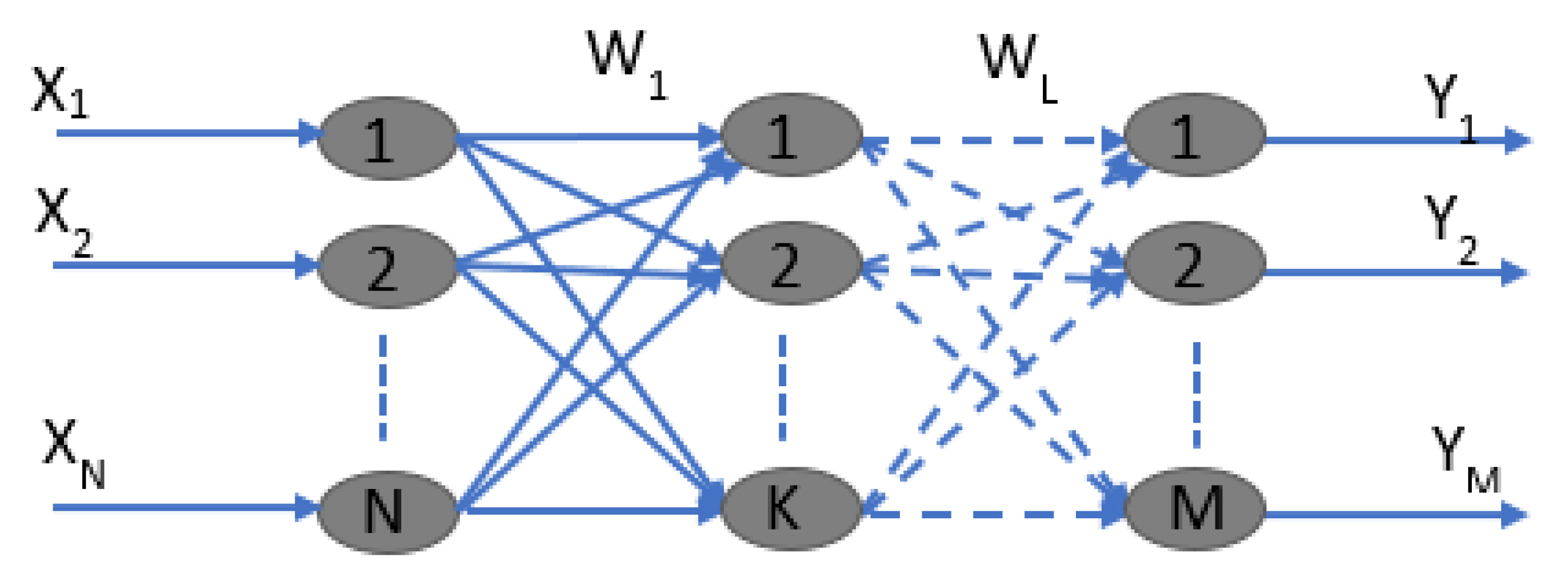

Figure 1 shows an MLP network of an input layer with N neurons (X₁, … X_N), L-1 hidden layers each with K neurons, and an output layer with M neurons (Y₁, … Y_M). Each neuron of a layer is connected to the neurons of the previous layer with certain weights (matrices W₁, … W_L).

5. Our Contribution

This work introduces machine learning approaches to efficient path loss prediction to address the issues related to empirical and deterministic models. Considering a multi-transmitter situation, we developed and validated models for estimating path losses using MLP. The inputs to the machine learning algorithms change from one dataset to another. The parameters we used in the outdoor environment were: longitude and latitude extracted from payload, received signal strength indicator, signal-to-noise ratio, transmission frequency, spreading factor, packet sequence number, transmission bandwidth, distance between the gateway and the end-device, and power received at the gateway. Every parameter has an impact on signal propagation, e.g., the terrain causes attenuation in the signal. We used longitude and latitude to define the nature of the environment where the model can be applied. The essential indoor parameters were the number of floors and walls between the gateway and the end device. These parameters enable us to test the model in a building similar to the studied building. The output layer is the path loss in both environments.

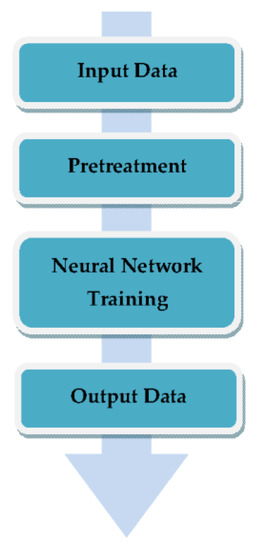

5.1. General Description of the Designed System

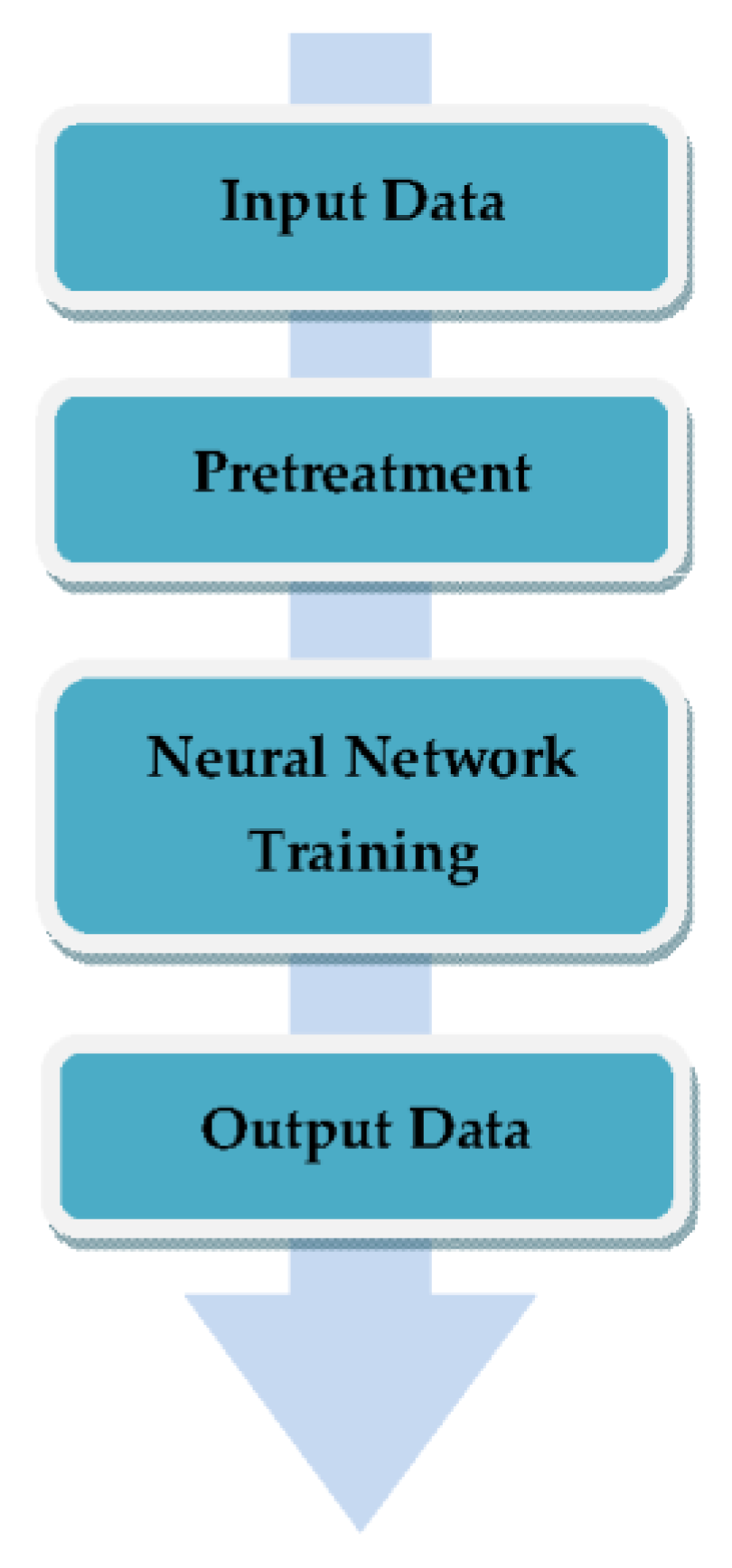

In the MLP, neurons are put in layers that go from the input to the output. The output of each layer node is the weighted sum of its input over a particular activation function. We create three MLPs using path loss (PL) as the output layer for the experimental data gathered across fourteen base stations. Figure 2 depicts the network topology of the MLP model with two hidden layers. We used this kind of network instead of a deep learning network because the aim was to achieve a higher computational speed.

Because it can be used for nonlinear functions and produces a smooth thresholding curve for the MLP, we chose the logistic sigmoid as the activation function. The standard output of the sigmoid function ranges from 0 to 1. When learning is performed in an MLP by repeatedly adjusting the weights, the feedforward approach comes first, followed by the backpropagation algorithm for excellent optimization. By updating MLP weights, the training aim is to minimize the loss function. The connections are joined together when the feedforward operation is finished. The backpropagation optimization approach is one of the essential hyperparameters for the MLP model. It starts by backpropagating to the weights of the first layer, moves on to the next iteration, and stops when the values of the weights reach a certain tolerance threshold.

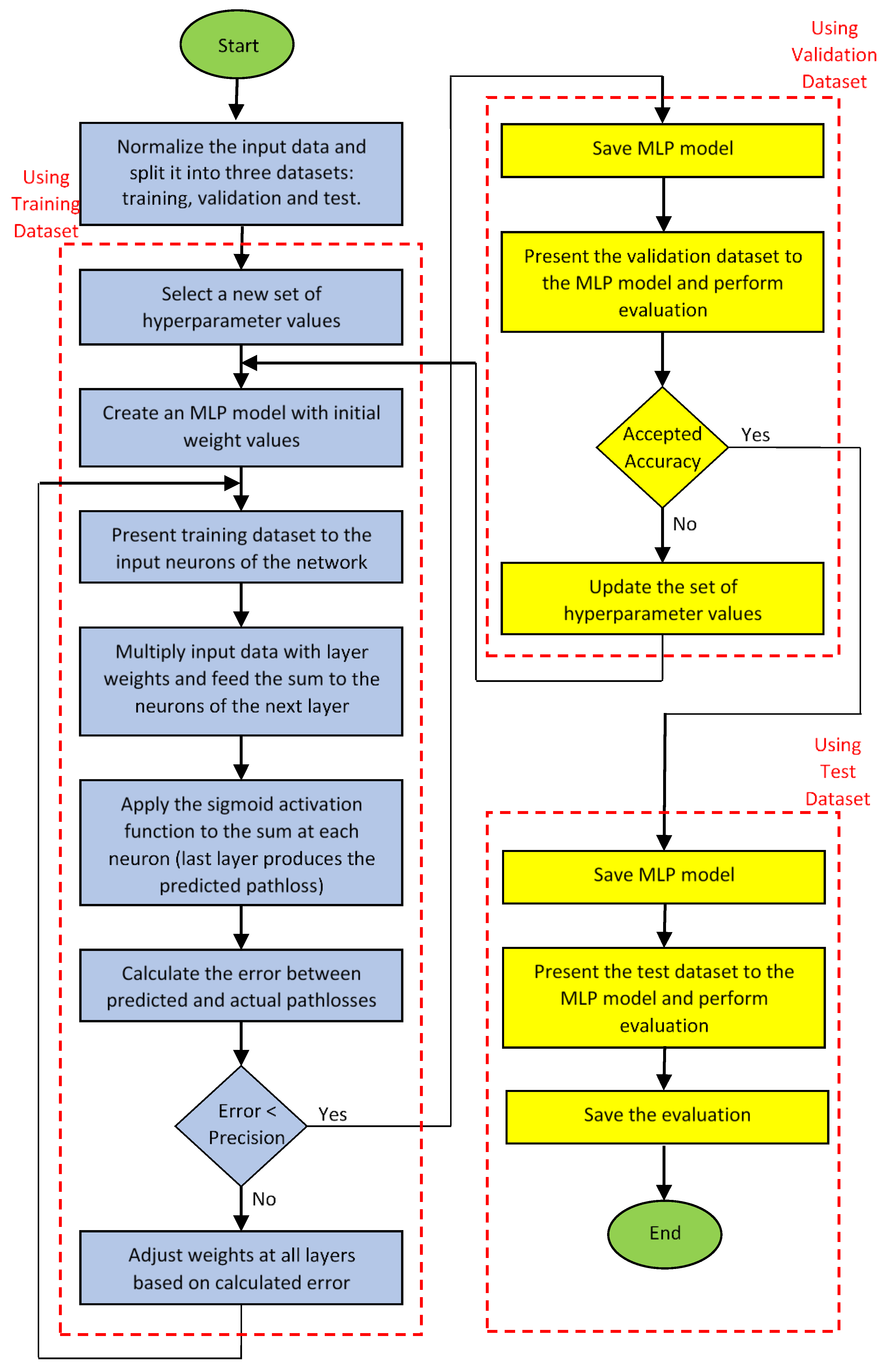

5.2. Our Training Algorithm

The MLP training was carried out in a supervised manner using a backpropagation algorithm, whose objective is to adjust the weights and minimize the amount of quadrature error between the network output and the target result. The quadrature error is:

$$E\left(x\right)=||d\left(n\right)-PL{||}^2$$

(1)

where d(n) is the target value, and $PL$ is the value of the network output. The backpropagation algorithm defines the error gradient in aim to achieve a minimum.

The error gradient E(x) is calculated for each weight as follows:

$$\frac{\partial E\left(n\right)}{\partial W_{ijk }\left(n\right)}=\frac{\partial E\left(n\right)}{\partial P{L}_{ik}}\frac{\partial P{L}_{ik}}{\partial W_{ijk}}=\frac{\partial E\left(n\right)}{\partial P{L}_{ik}}{x}_{i-1 j}$$

(2)

where

• i varies between 1 and 3.
• K varies from 1 to 50.
• X the number of inputs varies between 6 to 11 according to each dataset.

For the output layer i = L, the output error is denoted. δ_Lk is calculated as follows:

$${\delta }_{Lk}=\frac{\partial E\left(n\right)}{\partial P{L}_{ik}}=2f^{\prime }\left(P{L}_{Lk}\right)\left(d_k-x_{Lk}\right)$$

(3)

where f(x) is the activation function.

For hidden layers, the error ${\delta }_{ik}$ is given by:

$${\delta }_{ik}=f^{\prime }\left(P{L}_{ik}\right){\displaystyle \sum }_{j=1}^{N\left(j+1\right)}{\delta }_{i+1 j}{W}_{i+1 kj}$$

(4)

The modification of the weights W(n) and the biases b(n) is obtained by the following two equations:

$$W_{ijk}\left(n+1\right)=W_{ijk}\left(n\right)+0.7{\delta }_{ik}{x}_{i-1 j}+0.6(W_{ijk}\left(n\right)-W_{ijk}\left(n-1\right)$$

(5)

$$b_{ik}\left(n+1\right)=b_{ik}\left(n\right)+0.7{\delta }_{ik}$$

(6)

0.7 is the learning step determining the convergence speed, and 0.6 is the momentum or inertia term that prevents the algorithm from getting stuck on a local minimum.

Ojo et al. [32] designed the model with two hidden layers, while we tested three different architectures for the MLP models. However, their radial basis function (RBF) results were excellent. Isabona et al. [33] focused on developing the networks in the urban areas while we conducted our models in three different areas. Additionally, they used several training algorithms, while we used the same training algorithm in all cases (Figure 3).

5.3. Formatting of the Dataset Used in Training and Validation Sets

Network learning will be performed through a parallel learning model. It is necessary to build a learning base to develop network learning. Since the learning is supervised, the dataset must contain the network input and the desired output. To respond to the neural inputs and make the neural network training more efficient, the databases must go through a preprocessing step (Figure 4). Preprocessing is a typical technique to remove spurious discontinuities in the input function space and reduce the question inputs to manageable data. This is followed by appropriate normalization, taking into account the magnitude of the acceptable network values.

5.4. Data Collection Procedure

Table 4. Description of each dataset.

Dataset	Description
1	Smart campus environment within Covenant University, Ota, Ogun State, Nigeria [34]
2
3	The urban environment in the city of Fortaleza-CE, Brazil [15]
4	Indoor building in USJ-ESIB Campus in Beirut [35]
5	Outdoor around the USJ campus using three antennas heights [35]
6	Drive tests in Bekaa valley [35]
7	Drive tests in Beirut city [35]
8	ms = 1.5 m in Bekaa valley [35]
9	ms = 3 m in Bekaa valley [35]
10	ms = 20 cm in Bekaa valley [35]
11	ms = 1 m in Beirut city [35]
12	ms = 1.5 m in Beirut city [35]
13	ms = 3 m in Beirut city [35]
14	ms=20 cm in Beirut city [35]

,

Table 5. Parameters of each dataset.

Dataset	Parameters
1	Elv, Alt, Dist, Clut
2	Long, Lat, Elv, Alt, Dist, Clut
3	Long, Lat, Ter Elv, Dist, Hor Ang, Ver Ang, Hor Atn, Ver Atn
4	Long, Lat, RSSI, SNR, Freq, Floor, Wall, Dist, Prx
5–14	Long, Lat, RSSI, SNR, Freq, SF, Seq, BW, Dist, Prx

and

Table 6. Definition of parameters.

Parameters	Definition of Parameters
BW	bandwidth of transmission
Dist	distance between the gateway and the end-device
Floor	number of floors between gateway and end-device
Freq	the frequency used for transmission
Lat	latitude extracted from the Payload
Long	longitude extracted from the Payload
Prx	power received at the gateway
RSSI	received signal strength Indicator
Seq	the sequence of the packet
SF	spreading factor
SNR	signal-to-noise ratio
Wall	number of walls between gateway and end-device

summarize the description and parameters of each dataset.

5.5. MLP Network Learning

Fourteen datasets were used to optimize neuronal structures, which are composed of different numbers of samples. These datasets are further subdivided into a training set and a test set. The training datasets are composed of (60%), the test datasets are composed of (20%) items that are reserved for the final performance measurement, and the validation datasets of (20%) examples. The test, validation, and training samples must be different and be randomly selected from the original dataset.

The optimization process (learning, validation, and testing) was performed for many iterations for which error stabilization was obtained. The numbers of neurons in the first, second and third layers were changed, and the associated optimization error was recorded. In this study, the backpropagation algorithm was used. It is important to note that the end of the program can be caused by one of the following events:

• The Mean Squared Error (MSE), the average squared difference between the estimated and actual values [36]), is less than the minimum error.
• The maximum number of iterations is reached.

5.6. Architecture Optimization

The optimization method chosen to solve a particular problem not only depends on the nature of the parameters to be optimized but also on the given problem. Therefore, only some general optimization methods can solve all problems, but many methods are adapted for each case. Therefore, we have designed the models with three different architectures (one, two, and three hidden layers).

As the network design grows, i.e., the number of layers and neurons increase, and the network will include more connections, which implies slower learning and processing. These topologies were chosen using an optimization procedure illustrated in Figure 5. Once the neural network has been trained, it must be validated on a dataset that is not the same as the one used for the training. This validation allows us to evaluate the neural system’s performance and identify the data type that caused the problem. The network architecture will be modified if the performance is not achieved.

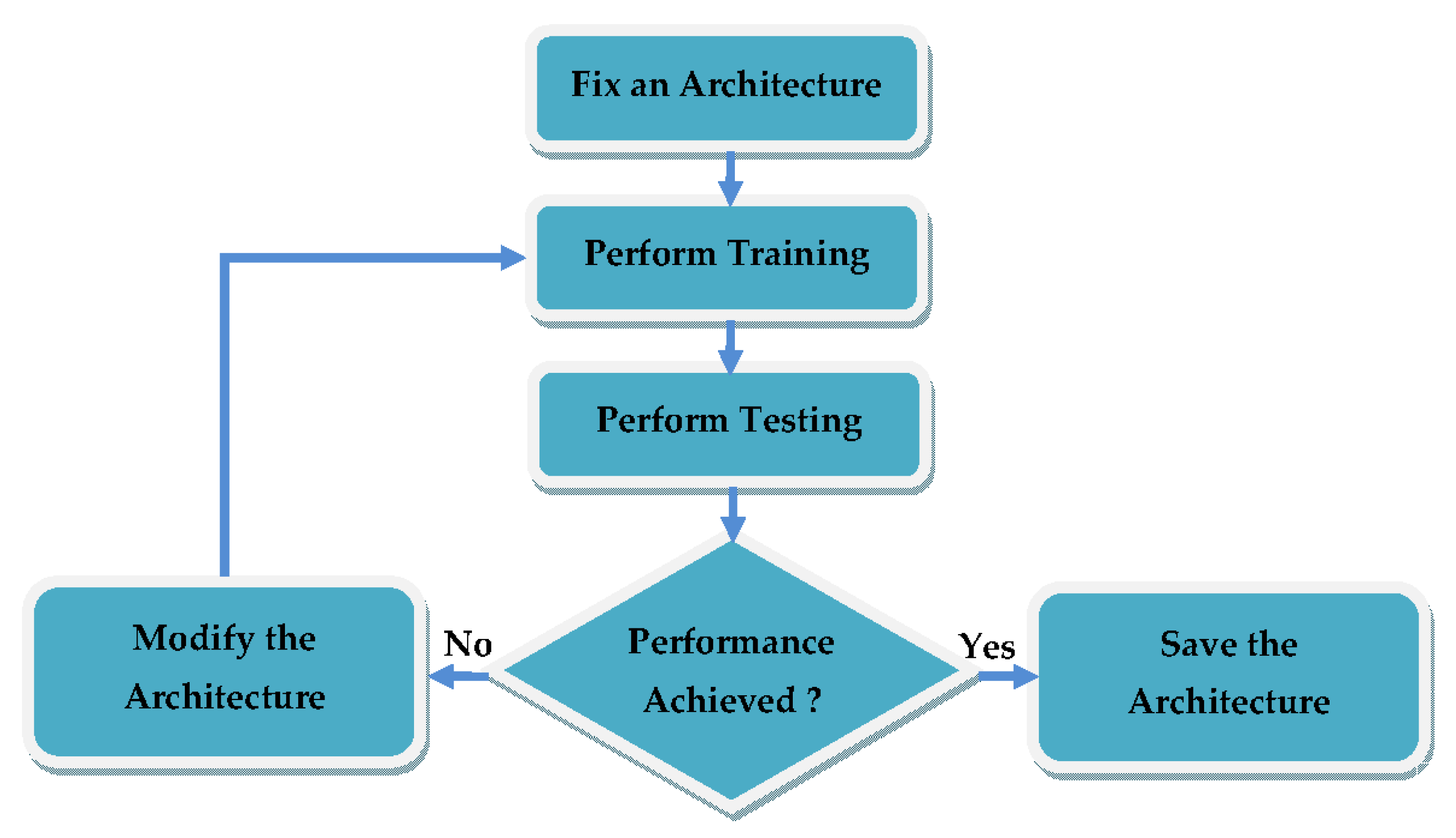

After testing several learning possibilities and measuring performance, we obtained the following architectures.

6. Designed Architectures

The R-Squared (R²) is a statistical metric that measures the proportion of the variance of a dependent variable in a regression model that is explained by one or more independent variables.

$$R^2=1-\frac{{{\displaystyle \sum }}_i\left(y_i-\widehat{y_i}\right)}{{{\displaystyle \sum }}_i\left(y_i-\overline{y}\right)}$$

(7)

where

• $y_i$: dataset values.
• $\widehat{y_i}$: predicted values.
• $\overline{y}$: mean of dataset values $y_i$.

In each example, there was a high agreement between the experimental and predicted outcomes. Therefore, the optimized structure can predict other combinations of input variables. The R-squared of the test set compares the results predicted by the neural model at different distances versus those measured.

6.1. Architecture 1 (One Hidden Layer)

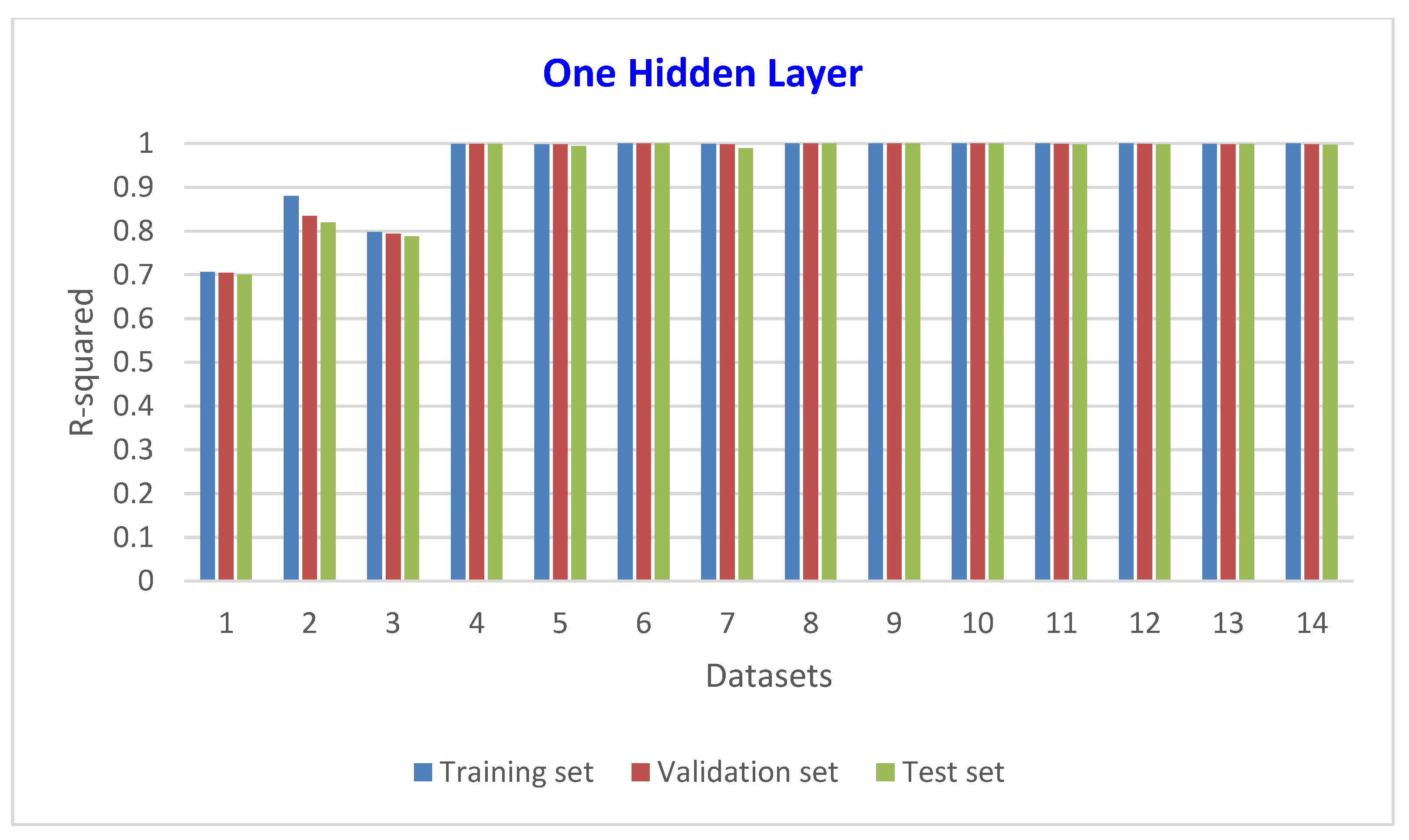

There is an agreement between all sets, as illustrated in Figure 6, which demonstrates the usefulness of artificial neural networks in mobile network loss analysis.

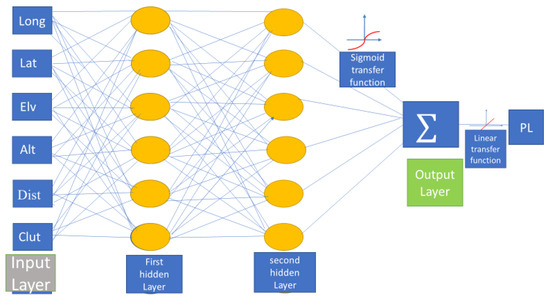

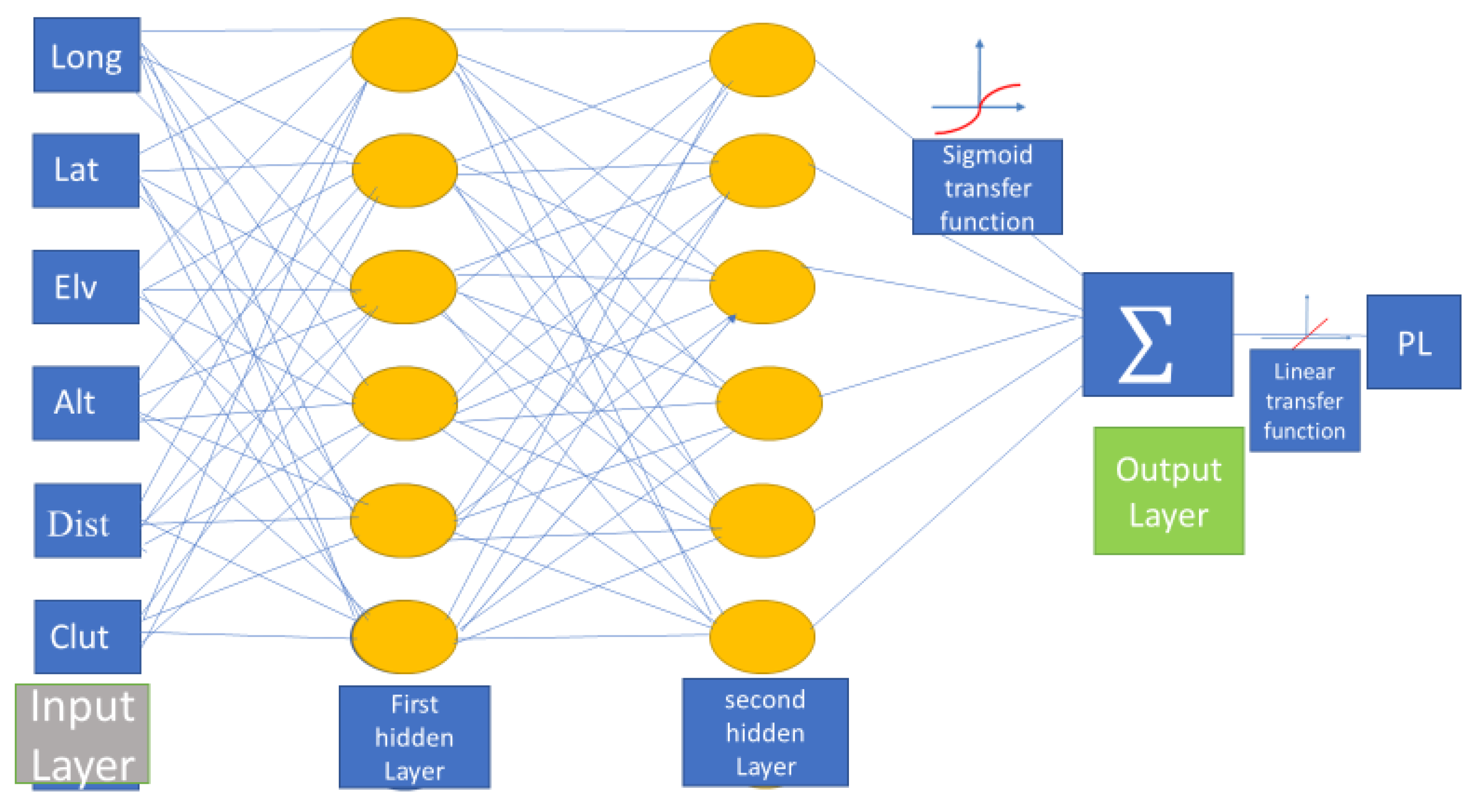

After modeling the MLP network as in Figure 2, and performing the necessary optimizations, we could choose the best structure for each dataset with one hidden layer, as represented in

Table 7. Optimized parameters for the final model of the single hidden layer MLP model.

Datasets	Numbers of Neurons			Number of Samples for Each Set
	Input Layer	1st Hidden Layer	Output Layer	Training Set	Validation Set	Test Set
1	4	96	1	2170	723	723
2	6	73	1	749	245	245
3	6	87	1	5586	1861	1861
4	9	46	1	791	263	263
5	11	11	1	473	157	157
6	10	83	1	1313	437	437
7	10	8	1	399	133	133
8	10	46	1	429	143	143
9	10	91	1	509	169	169
10	10	28	1	429	142	142
11	11	97	1	387	129	129
12	11	98	1	381	126	126
13	11	96	1	395	131	131
14	11	43	1	379	125	125

.

Figure 6 shows that Dataset 10 model is the best with R-squared almost equal to 1, while Dataset 1 has the worst with R-squared equal to 0.70. Table 7 shows that different model’s parameters that contributed to the model’s efficiency.

6.2. Architecture 2 (Two Hidden Layers)

There is a correlation between the desired and the predicted outputs. The performance of the optimized MLP network (with two hidden layers) was evaluated by comparing our results with actual measurements. Figure 7 shows the different results of the simulations compared to the actual measurements using trend curves.

We identified the optimal structure for each dataset with two hidden layers after modeling the MLP network and making the necessary adjustments.

Table 8. Optimized parameters for the final model for the MLP model with two hidden layers.

Dataset	Numbers of Neurons				Number of Samples for Each Set
	Input Layer	1st Hidden Layer	2nd Hidden Layer	Output Layer	Training Set	Validation Set	Test Set
1	4	16	18	1	2170	723	723
2	6	20	20	1	749	245	245
3	6	50	50	1	5586	1861	1861
4	9	11	16	1	791	263	263
5	11	16	29	1	473	157	157
6	10	27	25	1	1313	437	437
7	10	10	17	1	399	133	133
8	10	16	20	1	429	143	143
9	10	16	20	1	509	169	169
10	10	10	12	1	429	142	142
11	11	30	10	1	387	129	129
12	11	7	17	1	381	126	126
13	11	20	13	1	395	131	131
14	11	37	26	1	379	125	125

summarizes the obtained results.

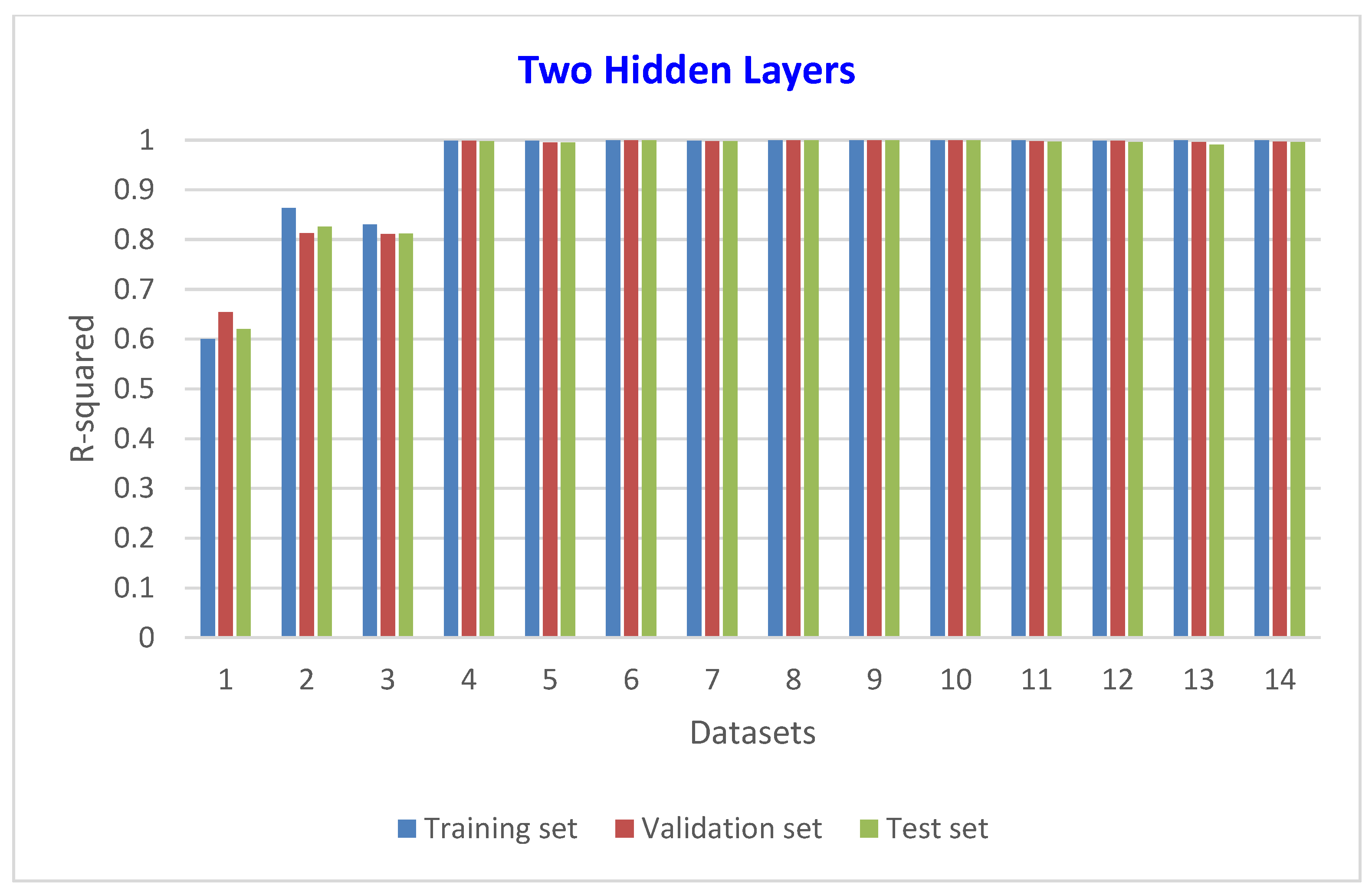

From the previous figure, we notice that the worse model was with Dataset 1 and two hidden layers, with R-squared equal to 0.6204. The best performance was with Dataset 9 and R-squared equal to 0.999.

6.3. Architecture 3 (Three Hidden Layers)

The training, validation, and testing sets were compared to the neural model response to confirm the predictive property of the optimized network structure with three hidden layers. The R-squared values are shown in Figure 8. There was a high agreement between the experimental and predicted results in each scenario. Therefore, the optimized structure can predict other combinations of input variables. Figure 8 compares the predicted data expected using three-hidden-layer neural model and those measured for different distances.

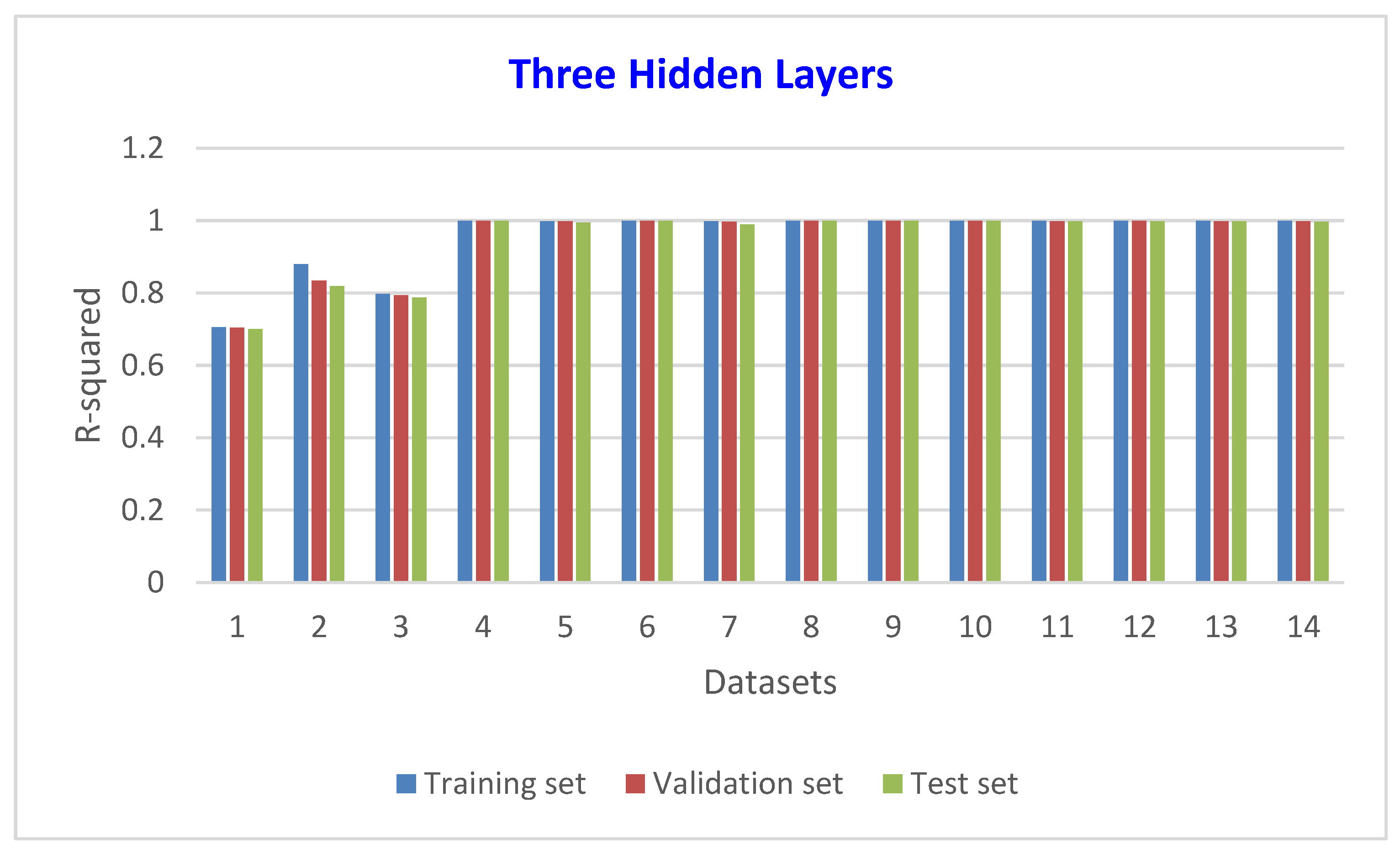

Figure 8 shows an improvement in Dataset 1 compared to one and two hidden layers with R-squared equal to 0.72. The best model with three hidden layers was the model of Dataset 14, with R-squared equal to 0.9998.

6.4. Comparison of the Three Architectures

The results in Table 7, Table 8 and

Table 9. Optimized parameters for the final model for three hidden layers.

Dataset	Numbers of Neurons				Number of Samples for Each Set
	Input Layer	1st Hidden Layer	2nd Hidden Layer	Output Layer	Training Set	Validation Set	Test Set
1	4	09	10	08	1	2170	723
2	6	10	15	22	1	749	245
3	6	10	16	40	1	5586	1861
4	9	05	16	35	1	791	263
5	11	05	18	06	1	473	157
6	10	12	20	36	1	1313	437
7	10	04	17	27	1	399	133
8	10	19	14	38	1	429	143
9	10	04	17	19	1	509	169
10	10	08	16	32	1	429	142
11	11	18	18	31	1	387	129
12	11	21	31	46	1	381	126
13	11	07	21	49	1	395	131
14	11	28	25	05	1	379	125

indicate that the number of neurons varies with the number of layers. The number of inputs plays a significant role in the accuracy and speed of the models. Figure 9 shows the MSE for the three chosen architectures.

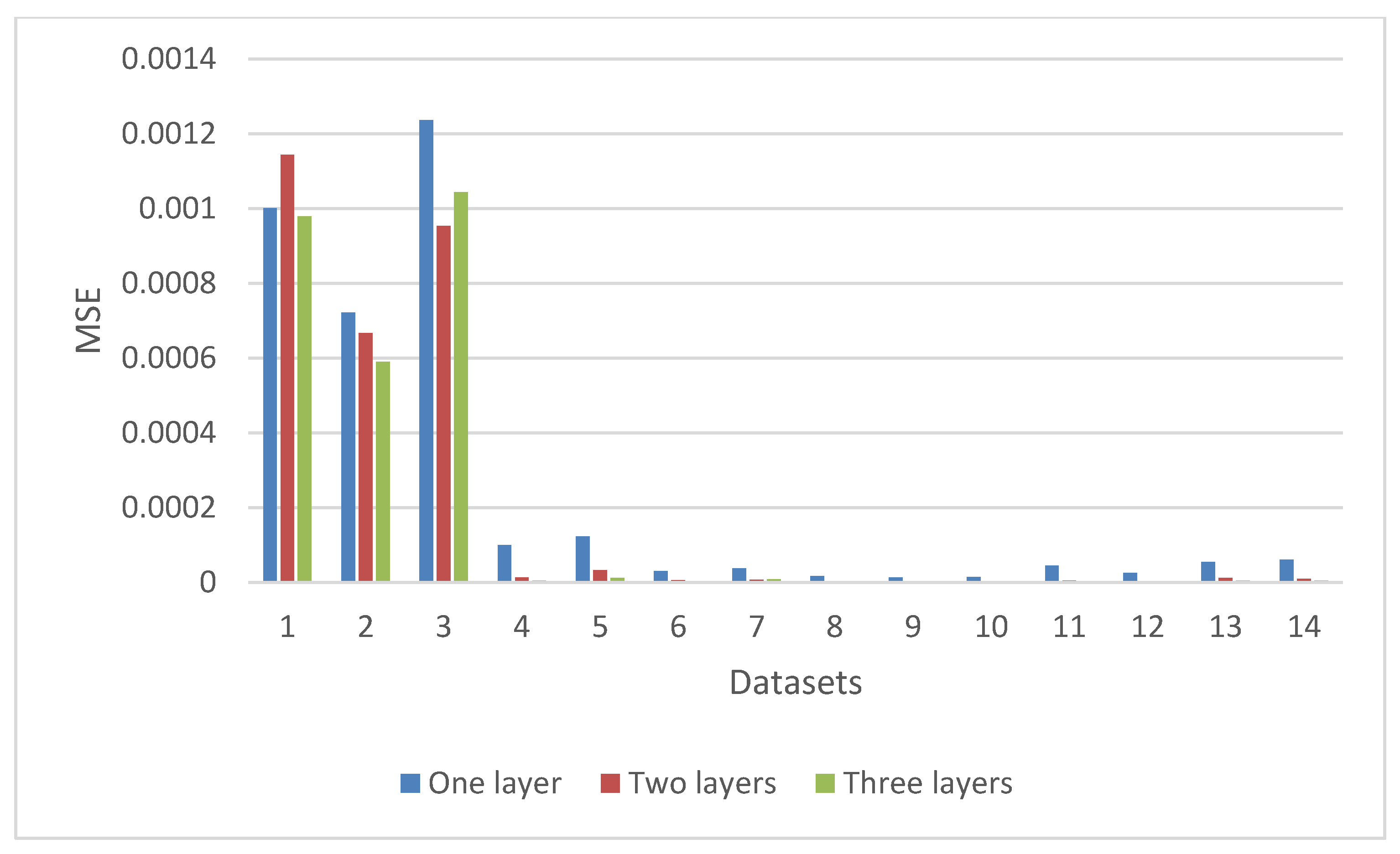

Based on Figure 9, we can note that the best architecture has three hidden layers. The error rate is directly proportional to the number of samples—the smaller the number of samples, the lower the error rate. The experiment determines the number of hidden layers and the number of neurons; for example, in Dataset 3, a structure with two hidden layers performs better than the one with three hidden layers. An increase in the number of neurons does not always imply an improvement in the model’s performance, as in Dataset 7 where we only needed seven neurons to get the best performance.

7. Comparison of our Models with Empirical Models

This section presents the results obtained for 14 different datasets with different path loss prediction techniques. The results obtained by our MLP were compared with those obtained by six empirical models: (Free Space Path Loss Model (FSPL), Walfisch-Ikegami model (WI), ECC-33 Model (ECC-33), COST 231-Hata model (PLCH), EricssonModel (PL999), Stanford University Interim Model (SUI)), and the type of model architecture. The results are shown in Figure 10, Figure 11, Figure 12, Figure 13, Figure 14, Figure 15, Figure 16, Figure 17, Figure 18 and Figure 19.

Analysis of the Simulation

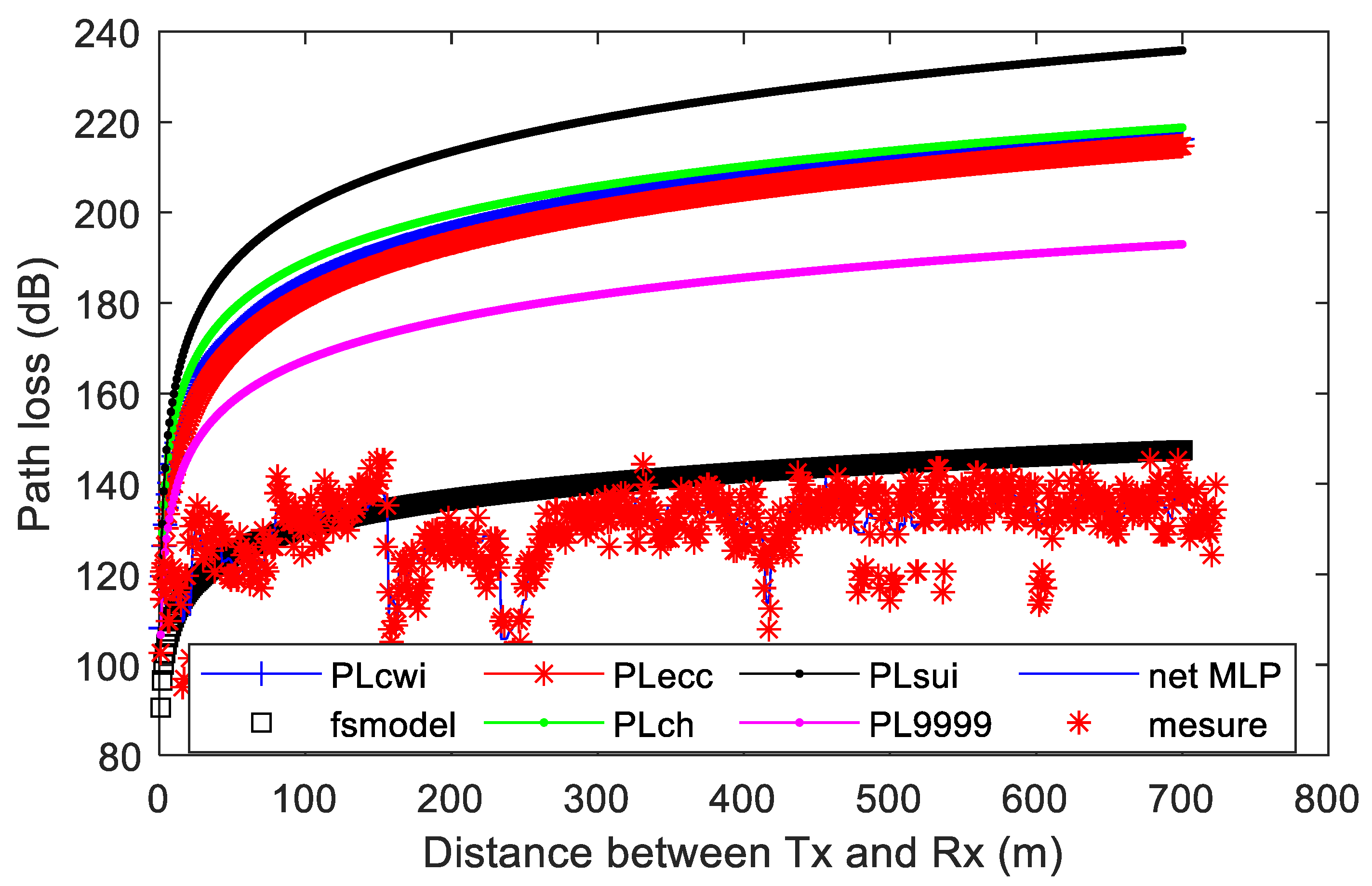

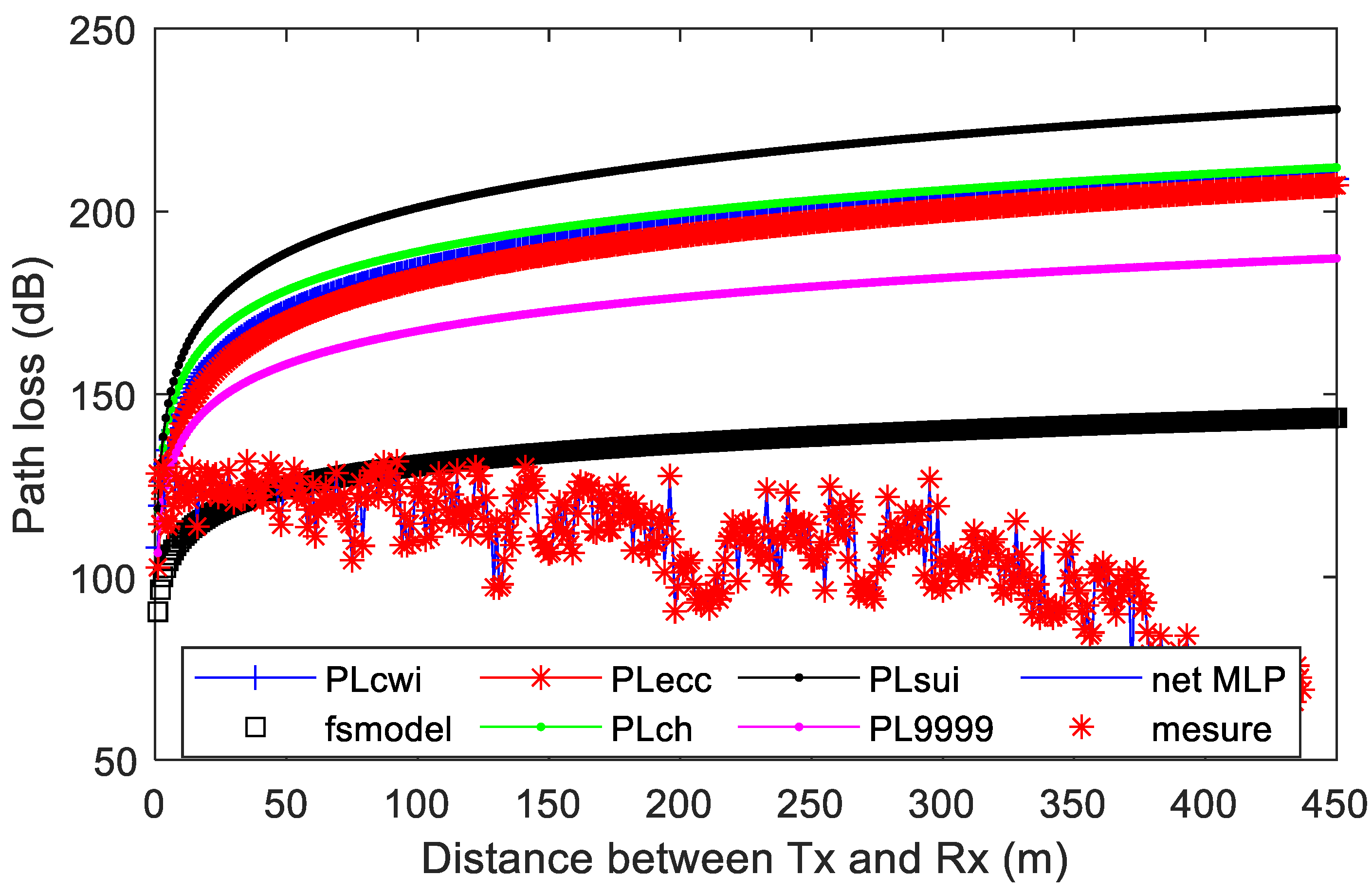

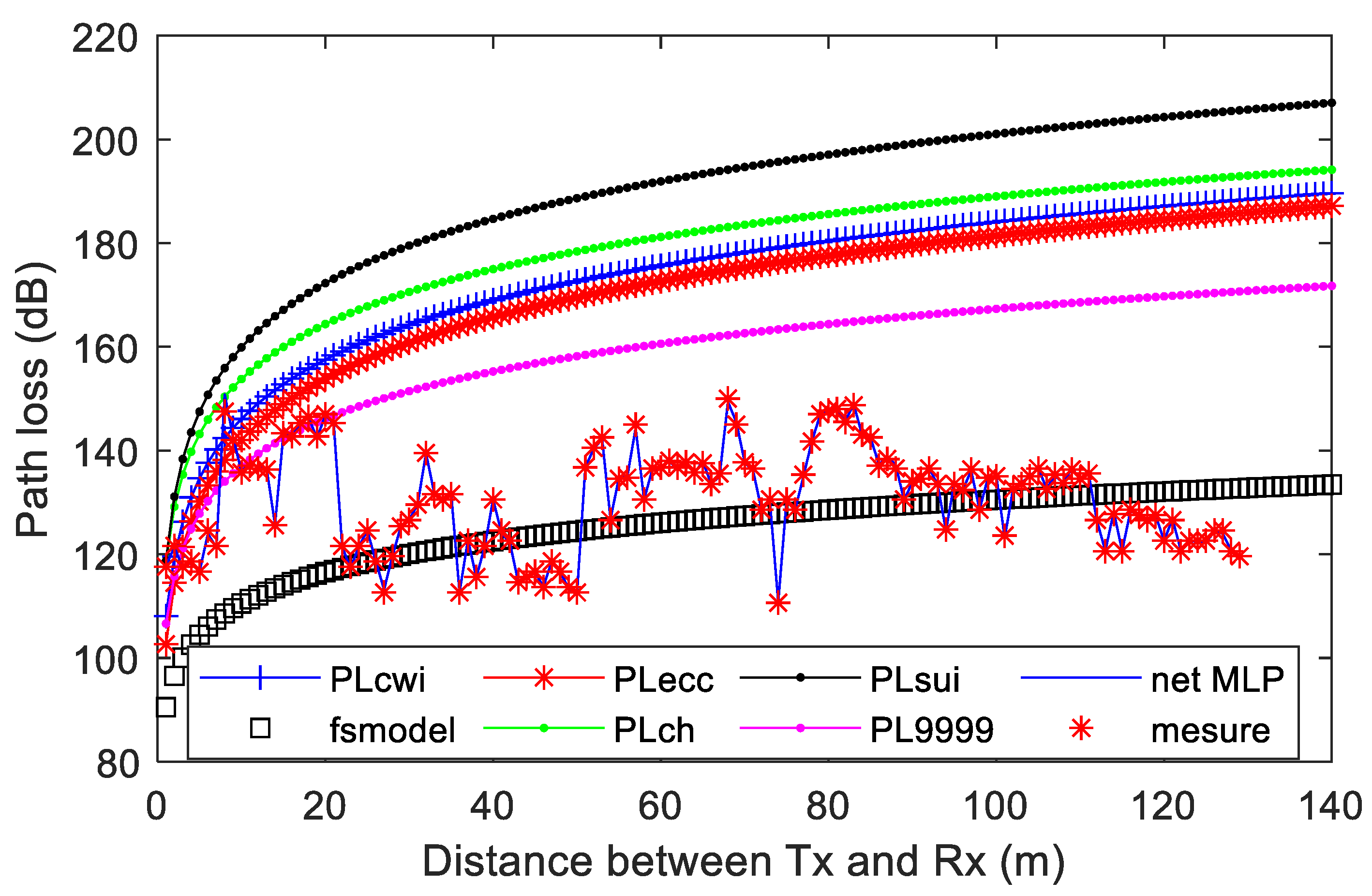

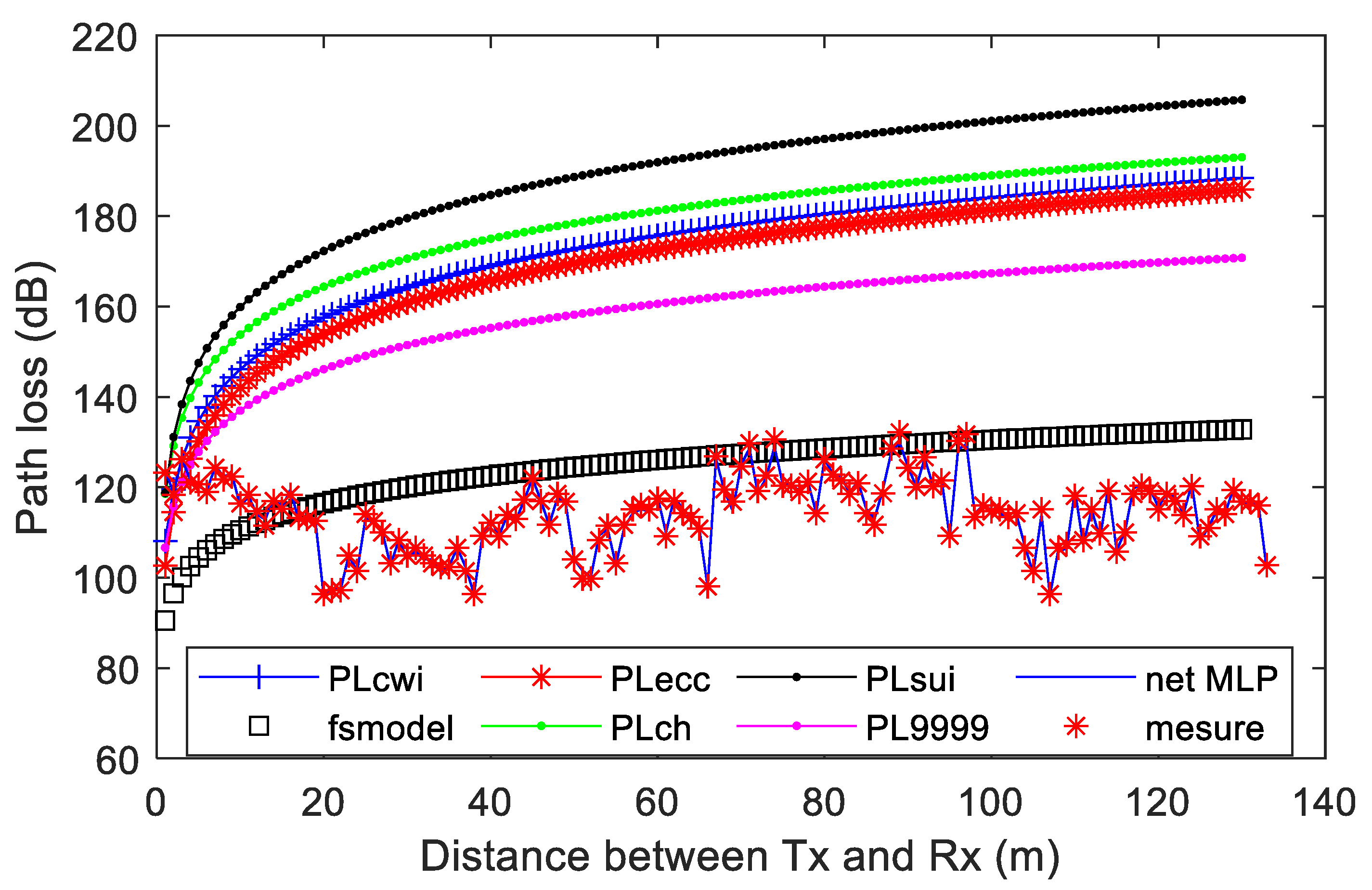

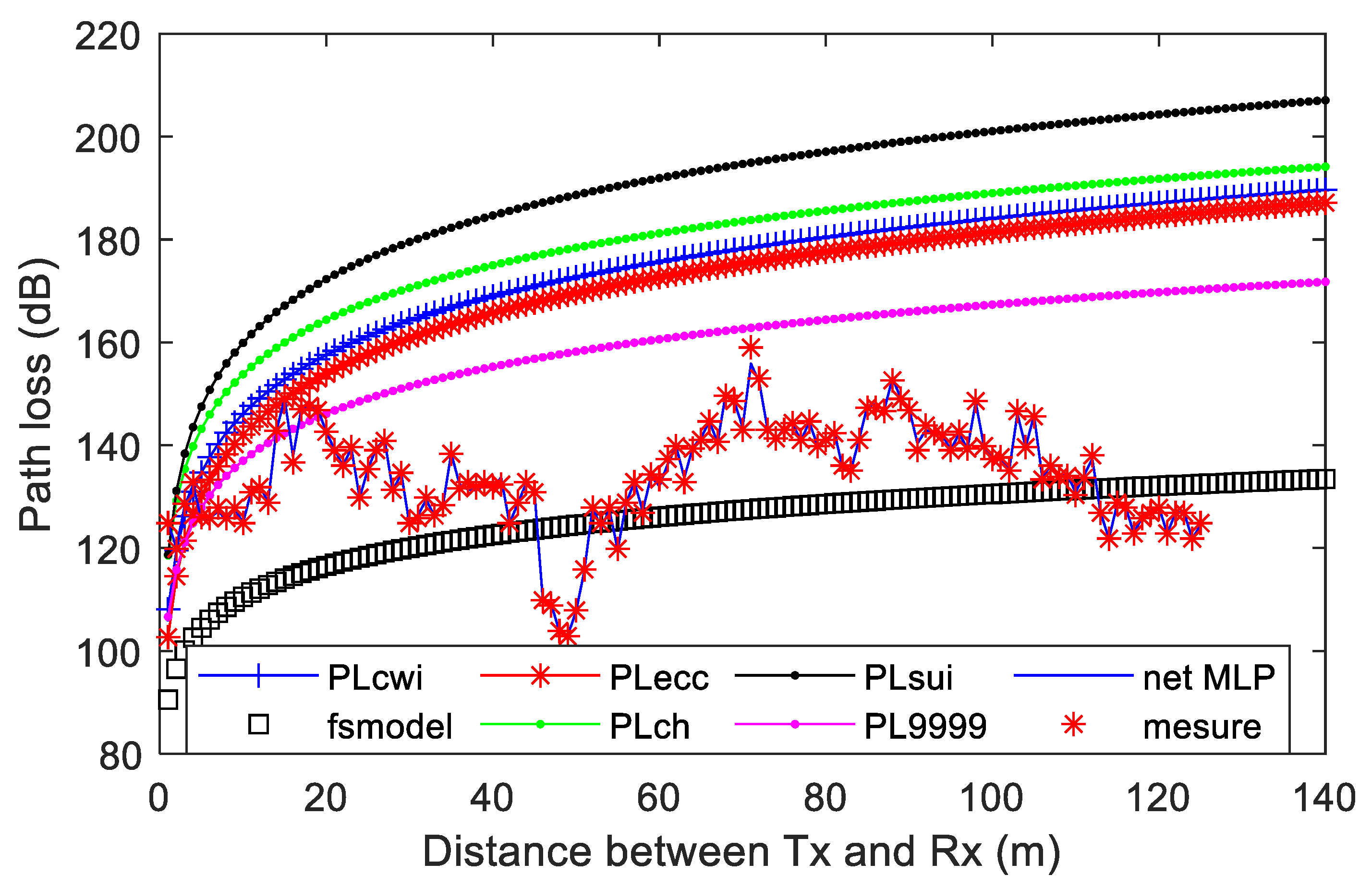

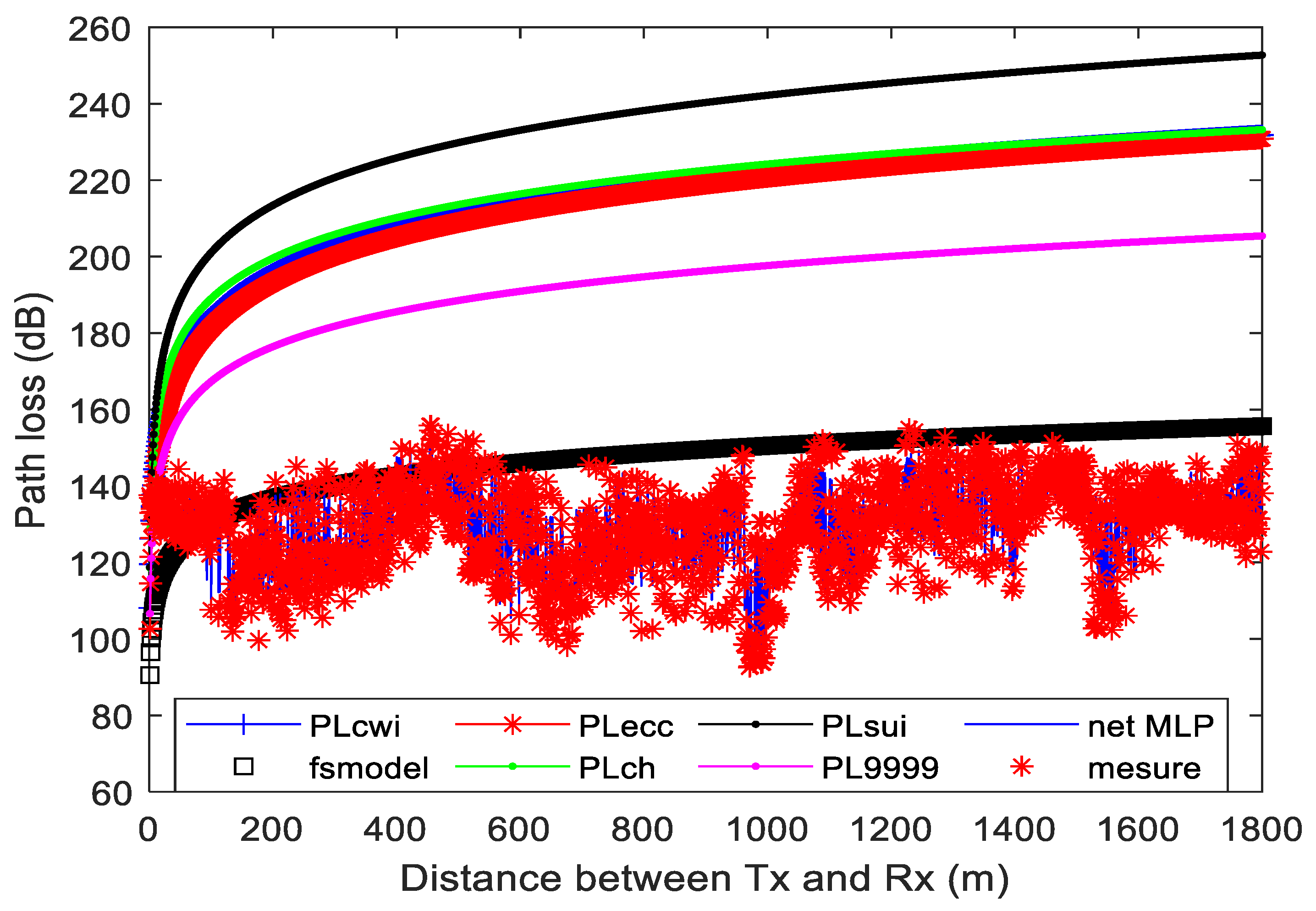

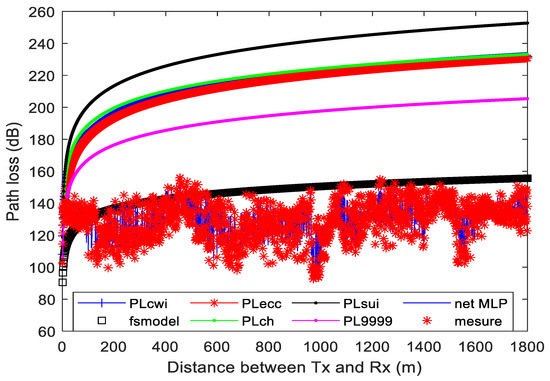

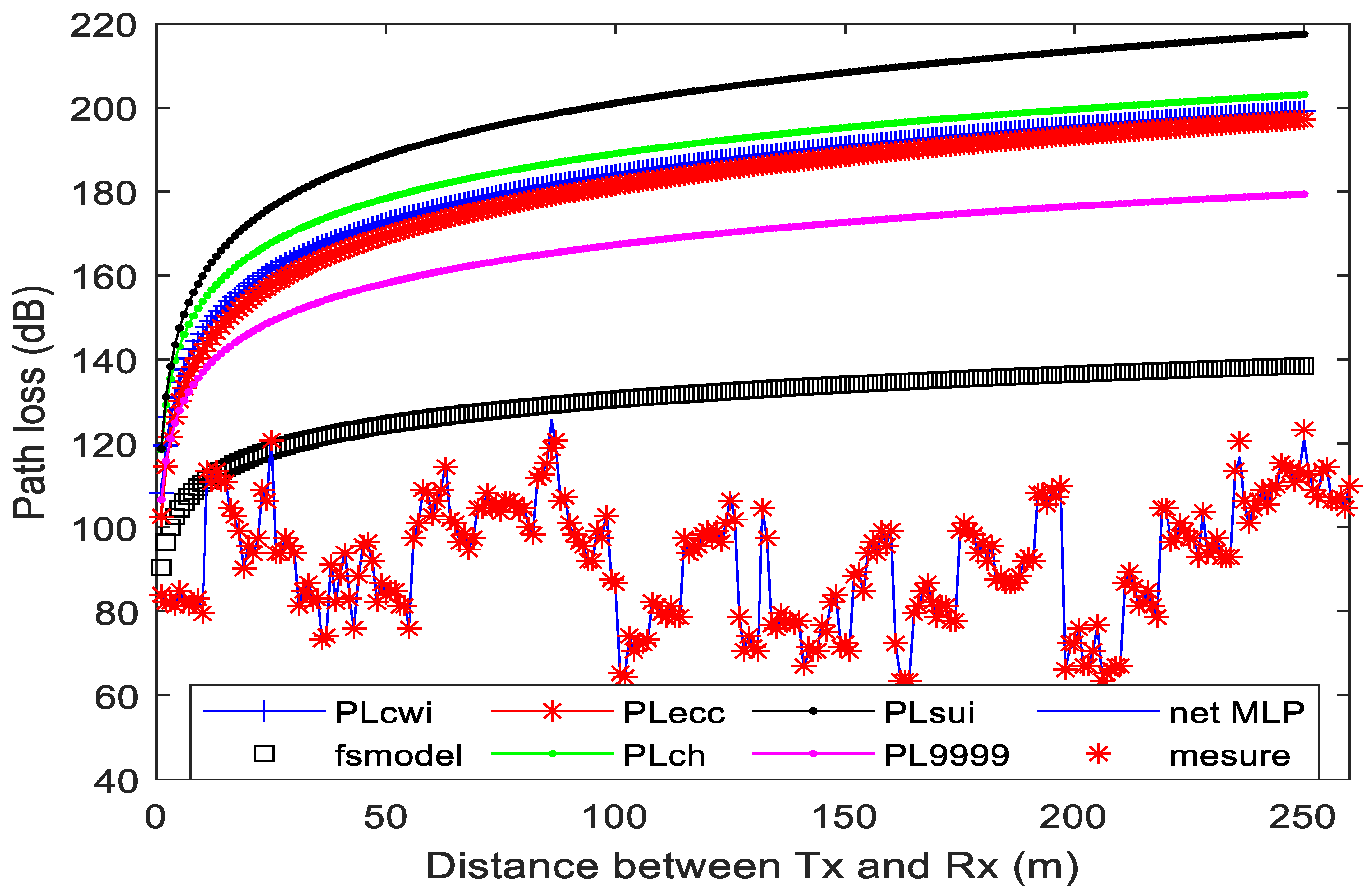

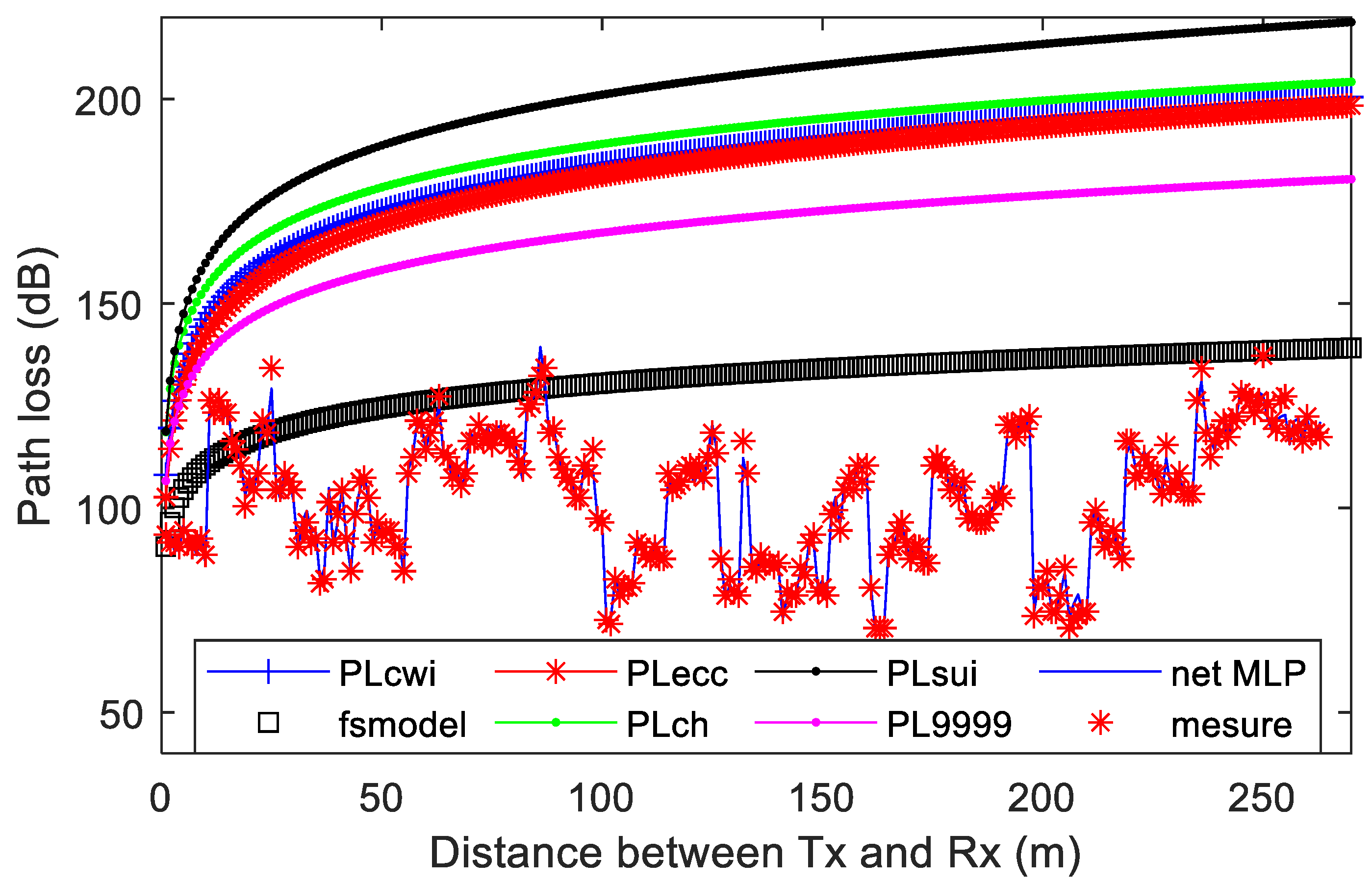

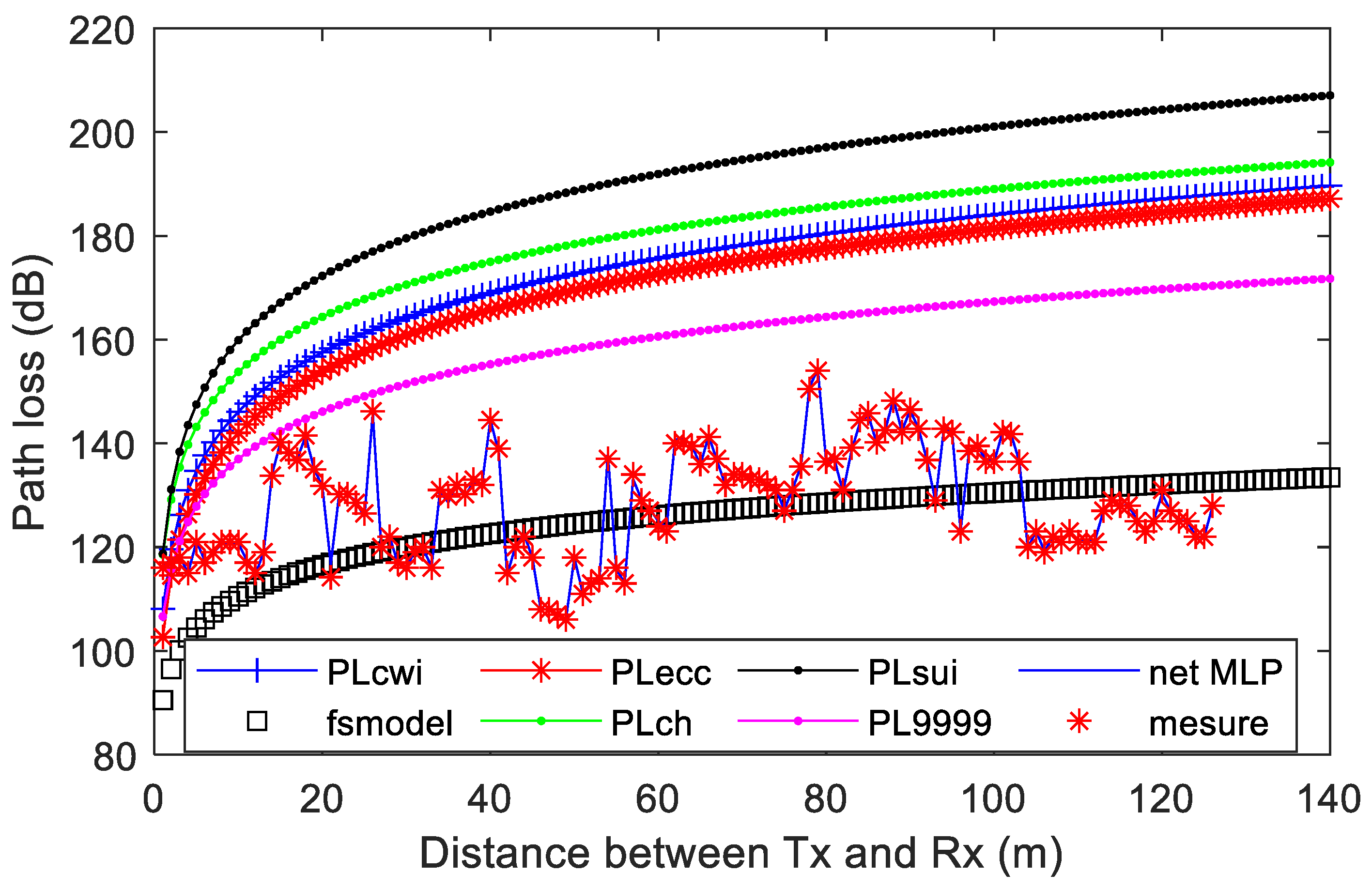

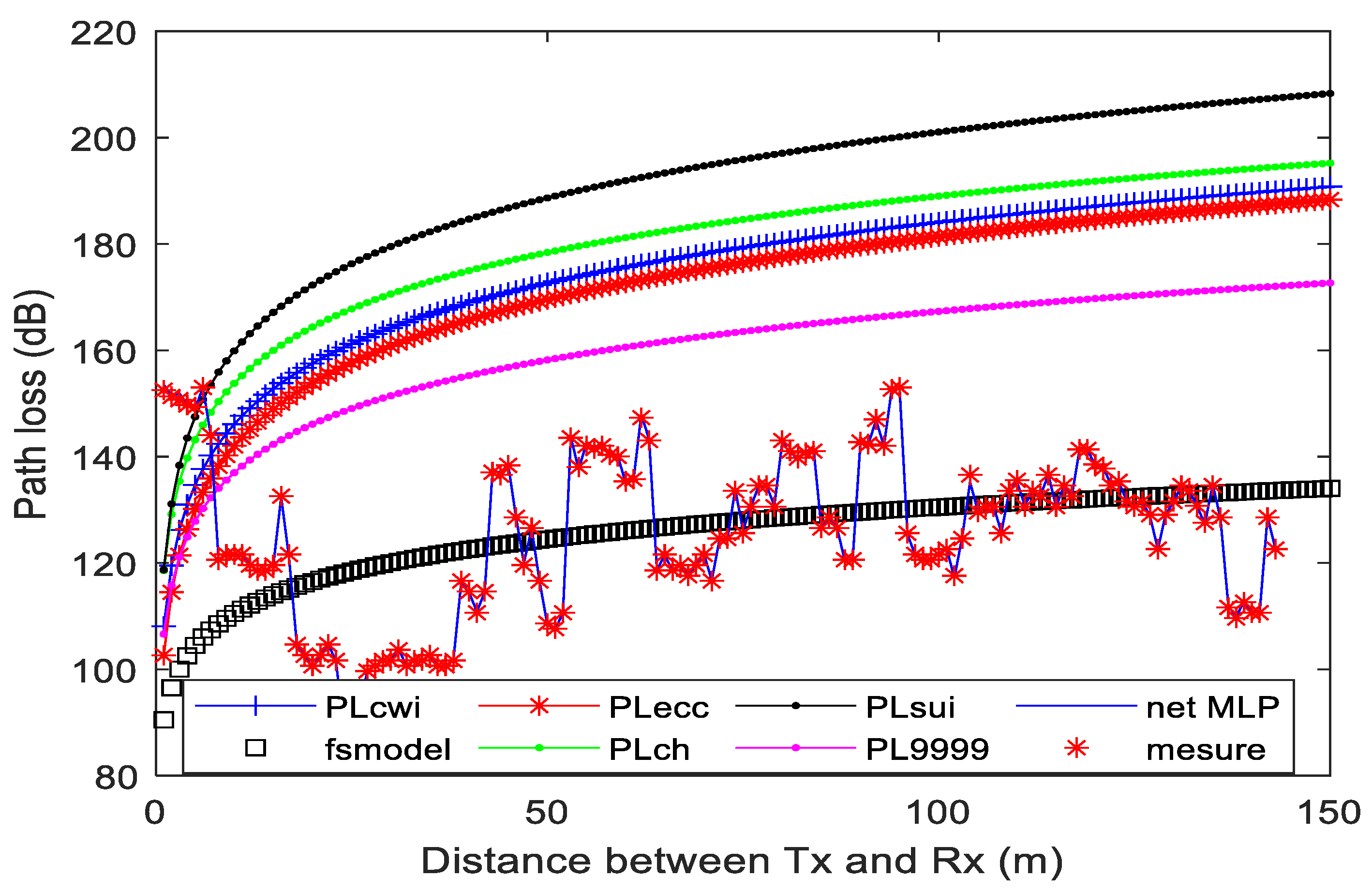

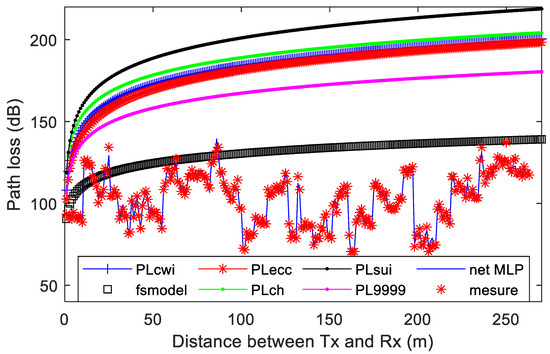

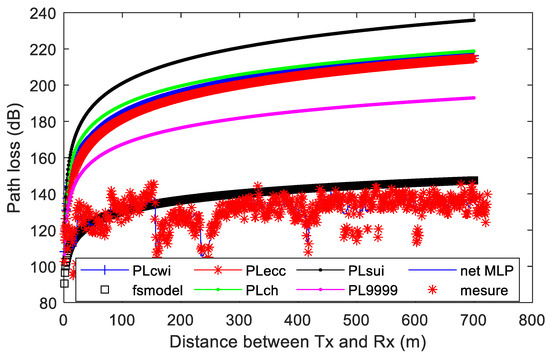

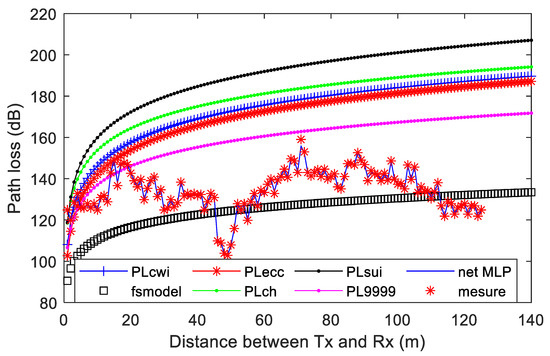

Figure 10, Figure 11, Figure 12, Figure 13, Figure 14, Figure 15, Figure 16, Figure 17, Figure 18 and Figure 19 shows that the MLP model has the lowest error when all measures are included. Still, the other six empirical models overestimated the path loss and are not suggested for use in the studied context. All observed datasets and alternative designs agree with the MLP model, which performs better than the empirical models.

The parameters were used in the simulation to improve the deployment of the MLP models outside the initial environment where they were built. Since the models were built outside the environment under consideration, these corrective variables were employed to estimate the empirical models. The parameters hr and hb represent the antenna height of the base station and the mobile station, respectively, which were also used in the experiment. These numerical values were obtained based on the taken measurements. We used different base station heights in our simulations and evaluations. The real data was obtained by controlling these correction variables and the specific properties of the model were used to design and test our models. We divided our datasets into four main environments (urban, suburban, rural, and indoor environments). Based on Figure 10, Figure 11, Figure 12, Figure 13, Figure 14, Figure 15, Figure 16, Figure 17, Figure 18 and Figure 19, the model proposed in this study gave the best performance compared to other empirical models:

• Free space model;
• Ericson model;
• ECC-33 model;
• Cost 231 (WI) model;
• Cost 231 Hata model;
• Stanford University Interim model.

The obtained result can be explained by the fact that these models were developed in a specific domain which was different from that of our datasets. To reach high accuracy, the path loss prediction should be close to the actual path loss value. Furthermore, these changes depend on the parameters of the dataset (distance, frequency, base station antenna height, mobile station antenna height). For example, in Datasets 11 to 14, the parameters were collected in an urban area with the same frequency, distance, and mobile station, but we noticed that the path loss value changed from one set to another because the height of the base station antenna changed; the longer the transmitter antenna, the lower the path loss. This also applies to Datasets 8 to 10, whose parameters were collected in the same situation, except for the base station antenna height.

On the other hand, the parameters of Dataset 4 were collected inside buildings. The path loss varies depending on the obstacles inside the building, such as wall thickness, room space, and number of windows. Our models showed to be the best in all cases because we used all possible parameters to make predictions almost identical to the actual path loss values.

8. Conclusions

This paper examined neural network methods for efficient path loss prediction to address the challenges associated with empirical and deterministic path loss prediction models. An MLP model for path loss prediction has been constructed and validated, considering multi-transmitter scenarios. The inputs to the neural network algorithm vary from a dataset to another, and path loss is the output layer. The MLP models were created to train 14 datasets, and compared to predictions given by six existing empirical models. Two well-known error measures were used to assess the created model: MSE and R-square. Interestingly, the presented MLP models outperformed the other six empirical models and showed the lowest error in various environments, which make them good fits for the measured data. It was found that increasing the number of MLP input variables increased the accuracy of the produced model, which can predict path loss measurements in wireless propagation situations. Therefore, the suggested MLP is quite effective in predicting path fading and is considered a generic data-driven model. Future research will focus on other neural network algorithms, like the radial basis function (RBF) algorithm, and compare it with our MLP models to improve the accuracy of signal loss prediction.
