Impact of Cleft Palate Anastomosis in Cleft Lip and Palate Patients with Coexisting Cleft Lip Anastomosis Scar Based on Cephalometric Measurements

Featured Application

This paper aims to indicate which cephalometric parameters should be specifically analyzed in patients with cleft lip and palate and with cleft lip and which ones should be targeted by orthodontic treatment.

Abstract

(1) Background: This article focuses on examining components affecting the overbite, overjet, and the effect of palate surgery on craniofacial morphology with a concomitant cleft lip fusion scar, and a comparison of patients who had only a cleft lip fusion scar. Patients with unilateral cleft lip (UCL) and patients with unilateral cleft lip and palate (UCLP) were included in the study. We aimed to find if cephalometric parameters were significantly different in these groups. (2) Material and methods: The study group consisted of a lateral cranial radiograph of patients with UCLP (n = 30) and UCL (n = 30). Cephalometric radiographs were saved electronically, and cephalometric analysis was performed using a computer program. (3) Results: We observed that a statistically significant higher degree of maxillary prognathism occurred in the UCL than in the UCLP. We observed the anterior position of the upper lip in relation to E-line in patients with cleft lip. (4) Conclusions: The results present the effect of cleft palate surgery on further forward growth of the maxilla. There was a decreased ANB angle present in the skeletal class II in patients with UCL and UCLP. The SNB angle was not increased, and the reverse overjet was due to the rectroclination of the upper incisors and protruded lower incisors.

1. Introduction

Orofacial clefts are the most common head and neck congenital malformation [1] and are the second most common congenital abnormality in children, after heart defects [2,3]. Unilateral cleft lip and palate (UCLP) accounts for 45% of all clefts; the second most frequent is unilateral cleft lip (UCL), which involves 25% of patients [4]. Both groups of patients require complex multidisciplinary care [5].

Lack of soft and hard tissue continuity contributes to craniofacial deformities. These include skeletal abnormalities, such as abnormal development of the maxillary bones, frontal, zygomatic, and orbital bones, as reported in a study conducted in Taiwan [6]. However, it is noteworthy that there was no statistical difference in the ossification time of the Spheno-Occipital Synchondrosis in patients with UCLP compared to patients without cleft [7].

Researchers from Japan have reported the occurrence of maxillary retrusion and a steeper mandible in patients with unoperated UCLP [8]. Moreover, the occurrence of hypodontia, hyperdontia, and disturbances in the size, shapes and position of the teeth have been confirmed within the dentition. The absence of permanent tooth buds concerns 24% of patients with clefts in the craniofacial area. Almost every patient in this cleft lip and palate group has a delayed eruption of permanent teeth, as described in the study by Polish researchers [9]. Authors from Sweden point out the occurrence of dental abnormalities, including infraocclusion of primary molars and transposition in patients with UCLP [10]. Another study, conducted in Italy, concerns the three-dimensional assessment of the jaw and palate of patients with UCLP. Attention is drawn to the reduced surface area and volume of the palate, the reduced intercanine width, and the insignificantly reduced intermolar dimension in the superior arch. Moreover, according to studies carried out in Finland, hypodontia of the lateral incisor in patients with UCLP delays the dental age [11].

The authors decided to conduct this study because of the discrepancy in previous results from other researchers.

It is widely believed that surgical treatment of cleft palate is the main cause of tissue scarring and the reason for reduced i.a. forward maxilla dimension [12]. This is also supported by studies conducted on patients of Caucasian origin with UCLP [13] and studies by Bin Ye and coauthors [14]. This is contradicted by the results of other authors who did not present reduced maxilla growth in patients with only cleft palate fusion [15]. Moreover, patients with unoperated cleft palate demonstrate reduced maxillary length and retruded maxillary position relative to the cranial base [16,17].

Further conflicting reports concern the substrate of the reverse overbite in operated UCLP patients. Some studies report anterior growth of the mandible as the cause of reverse overjet [18], while other authors report that individuals with cleft lip and palate had a significantly shorter maxillary length [19].

We aimed to perform a cephalometric analysis in patients with cleft lip and with cleft lip and palate. The article focuses mainly on examining components affecting the overbite, overjet, and the effect of palate surgery on craniofacial morphology with a concomitant cleft lip fusion scar and a comparison for patients who had only a cleft lip fusion scar. Patients with UCL and patients with UCLP were included in the study. Both groups were patients treated with surgery, which included cleft lip repair and cleft lip and palate repair, respectively.

The following statements were made as the research hypothesis:

(1)

SNA angle is smaller in UCLP patients than in UCL patients.

(2)

SNB angle reaches a similar value in patients with UCLP and UCL.

(3)

U1 to NA (mm) is smaller in UCLP patients than UCL patients.

(4)

Eversion of the upper lip is observed in UCL patients.

2. Materials and Methods

2.1. Materials

Sample size analysis was performed in Statistica 13 (TIBCO Software Inc.). Based on the available results, differences between the two groups (groups: UCL vs. UCLP) were evaluated. The mean and standard deviation of SNA scores in both groups were used in the sample size estimation analysis. The estimated sample size was calculated based on the t-test for means of two samples (t-test for independent samples). Parameters: the mean in the PW group was 79.45 (SD = 4.19); the mean in the W group was 83.62 (SD = 5.60); and the alpha level was set at 0.05 and the power of the test was set at 0.8. It was also assumed that there was no correlation of the variables evaluated and the two-sided null hypothesis was accepted. Based on the parameters, an estimated sample size of 30 patients in each group was obtained.

The study group consisted of a lateral cranial radiograph of patients with unilateral cleft lip and palate (n = 30) and patients with unilateral cleft lip (n = 30). All of them were patients of the Department of Maxillofacial Orthopaedics and Orthodontics, Division of Facial Abnormalities, Wroclaw Medical University in Poland. The inclusion criterion was the diagnosis of unilateral cleft hard palate with cleft lip (diagnosis code Q37.1 according to ICD10) who underwent anastomosis cleft lip and palate surgery in childhood. The second group comprised children with a diagnosis of unilateral cleft lip (diagnosis code Q36.9 according to ICD10) who underwent cleft lip anastomosis surgery. All patients were operated on in the same hospital. The cleft lip anastomosis procedure in UCL and UCLP patients was performed using the same method. Patients included in the study were between age 8 years 10 months to 10 years 7 months. The exclusion criteria were prior orthodontic intervention and non-operative UCL/UCLP patients. All patients with UCL and UCLP had upper lateral incisors.

The retrospective study included lateral cranial radiographs taken as standard for orthodontic diagnosis between 2016 and 2021.

2.2. Methods

All lateral cranial radiographs were analyzed by a single author of this study. The cephalometric radiographs were saved electronically, and cephalometric analysis of each radiograph performed using a Webceph software. All cephalometric points were applied manually. During the measurements, 33 measurement points were marked. The results of 10 angles, 3 reference lines, and 2 segments were included in the study. Example measurements are shown in Figure 1.

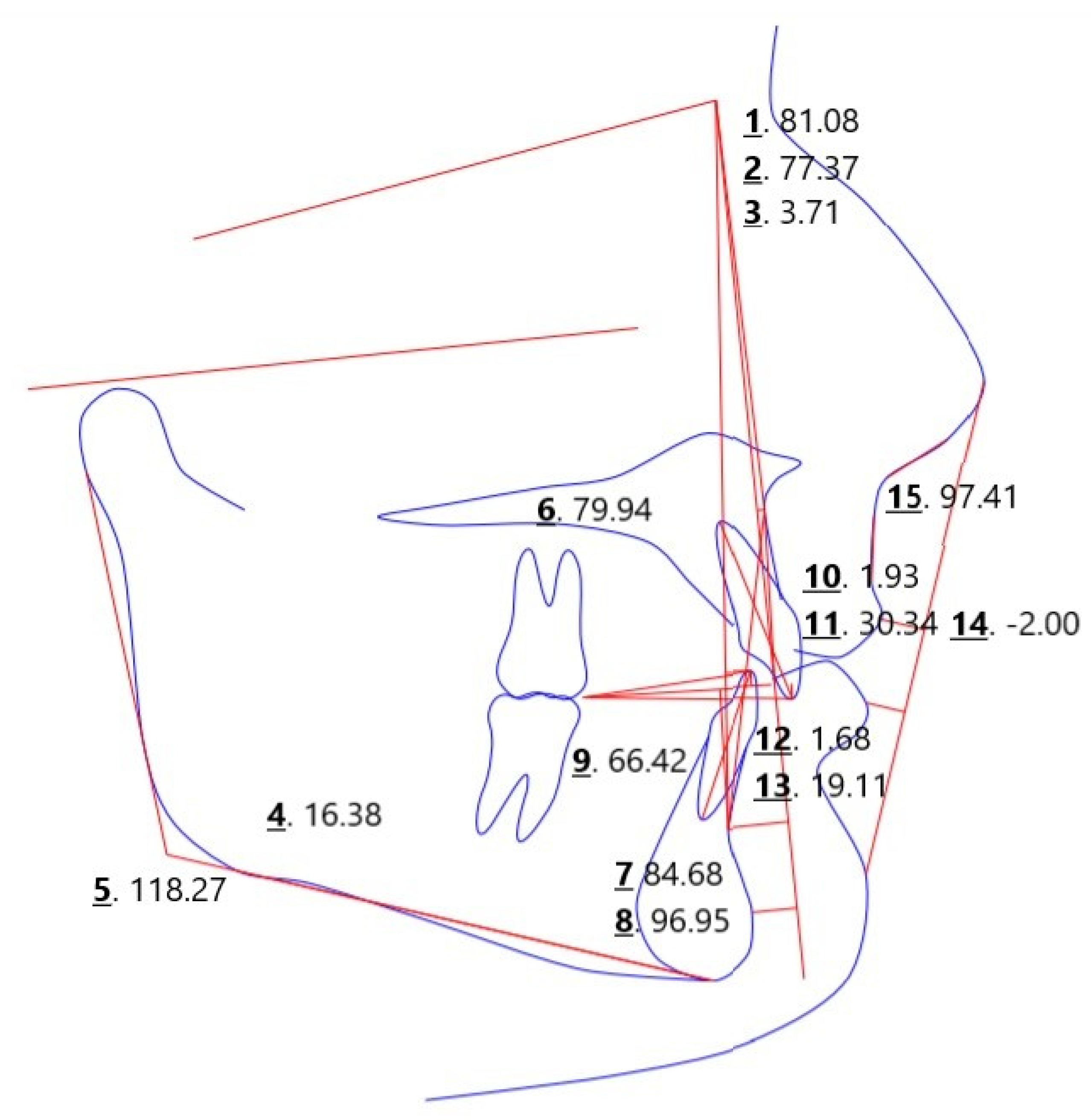

The analysis considered the following parameters: SNA describes the anterior–posterior position of point A (the point lying deepest on the anterior outline of the alveolar process) in relation to the anterior cranial fossa, SNB describes the anterior–posterior position of point B (the point lying deepest on the anterior outline of the alveolar portion of the mandible) in relation to the anterior cranial fossa, ANB describes the position of mandible in relation to maxilla, FMA included between lines FH (corresponds to Frankfurt horizontal plane—passes through points orbitale and tragion) and GoGn (line of mandibular body defined by points Gonion and Gnathion), Gonial angle, ODI stands for overbite depth indicator, APDI stands for anteroposterior dysplasia indicator, IMPA located between long axis of lower incisor tooth and GoGn line, U1 to NA (mm), and U1 to NA (deg) determines anteroposterior position of upper incisor teeth in relation to maxillary base, L1 to NB (mm) and L1 to NB (deg) are the anteroposterior positions of the lower incisors in relation to the base of the mandible, and L1 to LOP is the anteroposterior positions of the lower incisors in relation to the lower occlusal plane, the upper lip to E-plane is the location of the upper lip in relation to the aesthetic line that passes through the tip of the nose and chin (upper lip should be 3 mm apart), and the Nasolabial angle.

2.3. Statistical Analysis

Statistical analysis was performed using Statistica 13 software (TIBCO, 3307 Hillview Avenue Palo Alto, CA 94304, USA). Arithmetic means, medians, standard deviations, quartiles, and range of variability (extreme values) were calculated for measurable variables. All study variables of quantitative type were checked by Shapiro–Wilk test to determine the type of distribution. Comparison of results between the “cleft lip and palate” group and the “cleft lip” group was assessed using the t-test for independent samples or U-Mann–Whitney depending on the assumptions met. In addition, Spearman rank correlation analysis or Pearson correlation analysis was performed depending on the assumptions met. An α = 0.05 level was used for all comparisons.

3. Results

A comparison of the results obtained in the cleft lip and palate group and the cleft lip group for SNA, SNB, and ANB parameters is presented in

Table 1. Comparison of SNA, SNB, and ANB scores between cleft lip and palate and cleft lip groups.

	Group														p-Value
	Cleft Lip and Palate (n = 30)							Cleft Lip (n = 30)
	$\overline{\mathrm{x}}$	Me	Min	Max	Q1	Q3	SD	$\overline{\mathrm{x}}$	Me	Min	Max	Q1	Q3	SD
SNA	79.1	79.0	69.7	86.4	75.9	81.5	4.0	82.9	82.8	71.1	92.7	81.0	84.9	4.0	<0.001 *
SNB	76.9	76.7	69.5	86.8	74.6	79.2	4.3	78.9	78.8	74.1	86.3	76.7	81.0	3.1	0.053 **
ANB	2.13	2.56	−2.33	7.41	−0.11	4.07	2.7	4.03	4.30	−3.01	9.91	2.53	5.67	2.7	0.008 **

n—number of persons; $\overline{\mathrm{x}}$—mean; Me—median; Min—minimum value; Max—maximum value; Q1—lower quartile; Q3—upper quartile; SD—standard deviation; * U-Mann–Whitney test; ** independent samples t-test.

. It was observed that a statistically significant higher degree of maxillary prognathism (SNA) occurred in the cleft lip group ($\overline{\mathrm{x}}$ = 82.9 degrees; SD = 4.0 degrees) than in the cleft lip and palate group ($\overline{\mathrm{x}}$ = 79.1 degrees; SD = 4.0 degrees) (p < 0.001). In addition, there were statistically significant differences in mandibular versus maxillary (ANB) position between the study groups (p = 0.008). The mean ANB score for the lip and palate group was 2.13 degrees (SD = 2.7 degrees) and for the lip group was 4.03 degrees (SD = 2.7 degrees) (Table 1).

Table 2. Comparison of FMA, Gonial angle, APDI, and ODI scores between the lip and palate group and the lip group.

	Group														p-Value *
	Cleft Lip and Palate (n = 30)							Cleft Lip (n = 30)
	$\overline{\mathrm{x}}$	Me	Min	Max	Q1	Q3	SD	$\overline{\mathrm{x}}$	Me	Min	Max	Q1	Q3	SD
FMA	25.4	26.1	16.8	36.3	20.3	28.9	5.4	22.9	23.1	9.9	34.8	20.4	26.8	6.3	0.116
Gonial angle	124.2	124.1	111.1	135.8	118.9	129.7	7.0	121.0	121.3	109.5	134.4	116.4	125.3	6.5	0.069
APDI	82.0	82.0	71.9	92.2	77.0	86.7	5.9	79.7	79.8	68.0	93.0	75.6	83.3	5.5	0.121
ODI	74.0	74.5	57.8	98.0	69.4	79.7	8.8	78.2	78.5	65.7	95.8	73.0	82.1	7.0	0.046

n—number of persons; $\overline{\mathrm{x}}$—mean; Me—median; Min—minimum value; Max—maximum value; Q1—lower quartile; Q3—upper quartile; SD—standard deviation; * U-Mann–Whitney test.

presents the comparison of FMA, Gonial angle, APDI, and ODI scores between the study groups. Statistically significant differences were observed for the ODI parameter (p = 0.046), with the cleft lip and palate group having a mean score of 74.0 points (SD = 8.8 points) and the cleft lip group having a mean score of 78.2 points (SD = 7.0 points) (Table 2). Otherwise, no statistically significant differences were observed.

A comparison of IMPA, U1 to NA (mm), U1 to NA (deg), L1 to NB (mm), and L1 to NB (deg) scores relative to the study groups is presented in

Table 3. Comparison of IMPA, L1 to LOP, U1 to NA (mm), U1 to NA (deg), L1 to NB (mm), and L1 to NB (deg) scores between the cleft lip and palate group and the cleft lip group.

	Group														p-Value
	Cleft Lip and Palate (n = 30)							Cleft Lip (n = 30)
	$\overline{\mathrm{x}}$	Me	Min	Max	Q1	Q3	SD	$\overline{\mathrm{x}}$	Me	Min	Max	Q1	Q3	SD
IMPA	88.2	87.3	74.2	107.3	83.6	91.9	7.9	94.7	95.1	78.7	109.1	90.5	100.5	6.8	0.001 **
L1 to LOP	72.8	72.7	56.0	89.6	68.3	77.0	7.8	67.3	66.9	55.1	79.9	62.2	69.7	6.3	0.004 **
U1 to NA (mm)	1.49	1.26	0.04	5.33	0.61	2.06	1.2	1.69	1.55	0.05	4.23	0.92	2.59	1.0	0.274 *
U1 to NA (deg)	19.6	21.3	2.4	37.5	13.4	25.0	8.6	20.4	21.8	−2.4	33.5	15.5	29.8	10.1	0.530 *
L1 to NB (mm)	1.57	1.63	0.07	4.58	0.58	2.15	1.1	2.18	2.34	0.08	5.51	1.11	3.02	1.4	0.059 **
L1 to NB (deg)	18.1	17.2	8.3	31.9	13.1	22.5	6.6	23.1	24.0	8.9	33.1	17.7	27.8	6.5	0.004 **

n—number of persons; $\overline{\mathrm{x}}$—mean; Me—median; Min—minimum value; Max—maximum value; Q1—lower quartile; Q3—upper quartile; SD—standard deviation; * U-Mann–Whitney test; ** independent samples t-test.

. Statistically significant differences were observed for the IMPA parameter (p = 0.001), the mean score for the cleft lip and palate group was 88.2 points (SD = 7.9 points), and for the cleft lip group the mean score was 94.7 points (SD = 6.8 points). Additionally, statistically significant differences were observed for the parameter L1 to LOP (p = 0.004), the mean score in this case for the cleft lip and palate group was 72.8 points (SD = 7.8 points) and for the cleft lip group the mean was 67.3 points (SD = 6.3 points). The results were statistically significantly different for the parameter L1 to NB (deg) (p = 0.004), the mean score for the cleft lip and palate group was 18.1 deg (SD = 6.6 deg) and for the cleft lip group the mean score was 23.1 deg (SD = 6.5 deg). Otherwise, no statistically significant differences (p > 0.05) were observed (Table 3).

Table 4. Comparison of upper lip to E-plane and nasolabial angle scores between the cleft lip and palate group and the cleft lip group.

	Group														p-Value *
	Cleft Lip and Palate (n = 30)							Cleft Lip (n = 30)
	$\overline{\mathrm{x}}$	Me	Min	Max	Q1	Q3	SD	$\overline{\mathrm{x}}$	Me	Min	Max	Q1	Q3	SD
Upper lip to E-plane	−2.32	−2.28	−5.25	0.47	−3.17	−1.37	1.5	−1.17	−1.07	−3.88	0.98	−1.95	−0.14	1.3	0.002
Nasolabial angle	95.2	94.4	55.3	ca8.7	88.0	103.9	17.1	101.7	102.4	84.1	127.1	91.5	108.7	12.0	0.095

n—number of persons; $\overline{\mathrm{x}}$—mean; Me—median; Min—minimum value; Max—maximum value; Q1—lower quartile; Q3—upper quartile; SD—standard deviation; * U-Mann–Whitney test.

presents the comparison of the results obtained for Lip to E-plane and Nasolabial angle against the study groups. Statistically significant results were presented for Upper lip to E-plane (p = 0.002), where the mean score for the cleft lip and palate group was −2.32 points (SD = 1.5 points) and for the cleft lip group the mean score was −1.17 points (SD = 1.3 points). Otherwise, no statistically significant differences (p > 0.05) were observed (Table 4).

Table 5. Summary of correlations between SNA, SNB, and ANB scores in the cleft lip and palate group.

	SNA		SNB		ANB
	r	p-Value	r	p-Value	r	p-Value
SNA	-	-	0.721 **	<0.001	0.249 **	0.184
SNB	0.721 **	<0.001	-	-	−0.430 *	0.018
ANB	0.249 **	0.184	−0.430 *	0.018	-	-

r—correlation coefficient; * Pearson’s correlation coefficient; ** Spearman’s Rank correlation coefficient.

presents the correlations between SNA, SNB and ANB parameters in the cleft lip and palate group. A statistically significant positive correlation was observed between SNA and SNB scores. This indicates that subjects who have a greater degree of maxillary prognathism (SNA) also have a greater degree of mandibular prognathism (SNB). (Table 5).

Table 6. Summary of correlations between SNA, SNB, and ANB scores in the cleft lip group.

	SNA		SNB		ANB
	r	p-Value	r	p-Value	r	p-Value
SNA	-	-	0.736 **	<0.001	0.444 **	0.014
SNB	0.736 **	<0.001	-	-	−0.035 *	0.855
ANB	0.444 **	0.014	−0.035 *	0.855	-	-

r—correlation coefficient; * Pearson’s correlation coefficient; ** Spearman’s Rank correlation coefficient.

presents the correlations between SNA, SNB and ANB parameters in the cleft lip group. A statistically significant positive correlation was observed between SNA and SNB scores. This indicates that subjects who have a greater degree of maxillary prognathism (SNA) also have a greater degree of mandibular prognathism (SNB) (Table 6).

4. Discussion

Based on the above results, all the research hypotheses were confirmed.

The SNA angle is considered correct between 79–85 degrees [20]. Patients with UCLP after lip and palate fusion surgery had a mean score 79.1 degrees. This indicates a tendency towards a retrognathic maxilla. This was also confirmed by the results obtained by Corbo and coauthors [21]. Searching for the cause of reduced maxillary anterior growth in scientific reports, two positions are apparent. Some scientists describe the effect of cleft palate fusion surgery on reduced maxillary anterior growth [22,23]. Others indicate [24] that retrognathic upper jaw also occurs in patients with UCL, suggesting a primary disturbance of growth factors regardless of the surgery performed. Comparing the results obtained by the authors, in which the group of patients with UCL obtained a mean SNA angle value 3 degrees higher than a mean SNA volue in UCLP group, the authors tend to favor the first of these explanations. Moreover, the authors do not confirm the results of Alam [24] and coauthors regarding reduced maxillary anterior growth in UCL patients.

The SNB angle is considered correct in the range of 77–83 degrees [20]. The results present a tendency towards a retrognathic mandible in patients with UCL and UCLP. This is also confirmed by the results of Da Silva Filho and coauthors [25].

In patients with UCLP and UCL, the mean values of the ANB angle indicate the presence of a class II malocclusion. The same findings about patients with unilateral cleft lip and palate were obtained by Romanini and coauthors [26]. The group of patients without cleft—skeletal class II is also the most diagnosed malocclusion in the Polish population [27]. The causes of this abnormality are found, among others, in genetic factors, habits, but also in sagittal and vertical malocclusion disorders, which leads to skeletal compensation in the anterior–posterior plane [28]. With regard to the sagittal plane, crossbite is diagnosed in patients with UCL and UCLP [29,30]. In the vertical plane, the results obtained by the authors confirm the tendency of mandibular downward rotation in patients with UCLP [25]. In unoperated patients with unilateral cleft lip and palate the gonial angle presented a vertical growth pattern [31]. There were no differences regarding overjet between the UCL and UCLP groups. ADPI values were less than normal in both groups. Negative overjet was also described by Tindlund and coauthors [32] among UCLP patients before orthodontic treatment. The results obtained demonstrate the effect of cleft palate anastomosis in patients with UCLP on overbite, and the dental parameters are described below.

The mean value of the distance of U1 from the NA line was significantly reduced, similarly the angle contained between the NA line and U1 in both groups. Rectroclination of upper incisors in UCLP patients was also described by Burak [33]. The lower incisors were significantly more protruded in patients with cleft lip and palate. The parameters described above are an attempt of the dental compensation that often occurs in skeletal class II. Among patients without cleft, the position of the lower incisors and the inclination of the occlusal plane have been presented to be the most significant in relation to skeletal class II dental compensation [34]. It is also worth mentioning that the researcher cited above, Burak, in his study describes the occurrence of skeletal class III, which is contradicted by the results obtained by the authors.

The analysis of the position of the upper and lower lip in relation to the aesthetic E-line indicates a significant anterior position of the upper lip in patients with cleft lip compared to patients with cleft lip and palate. The E-line was also used in another study to assess the facial attractiveness of individuals with UCLP [35]. It was presented that laypeople, non-orthodontists, rated the face as less attractive if the position of the upper or lower lip was moved away from the E-line. Interestingly, these patients’ perceptions were not influenced by the parameters SNA, SNB, ANB, GoGn-SN, and nasolabial angle, which were analyzed by one researcher. Among orthodontists and surgeons-beyond the E-line described-the significance of SNA and GoGn-SN angle on facial perception were confirmed.

5. Conclusions

The results present the effect of cleft palate surgery on further forward growth of the maxilla. Decreased ANB angle was present in skeletal class II in patients with UCL and UCLP. The SNB angle was not increased, and the reverse overjet was due to the rectroclination of the upper incisors and protruded lower incisors. Cleft palate surgery affects overbite. Due to the distance of the upper lip from the E-line in UCL patients, they may be perceived as less attractive compared to the patients with cleft lip and palate.
