Ultrafast Time-of-Flight Method of Gasoline Contamination Detection Down to ppm Levels by Means of Terahertz Time-Domain Spectroscopy

Featured Application

Fast (picoseconds scale) and sensitive (ppm-level) detection of impurities in gasoline employing terahertz time-domain spectroscopy systems (THz-TDS) for petrochem-ical production lines or quality assessment and control facilities.

Abstract

In this article, we present the possibility of using terahertz time-domain spectroscopy to detect trace, ppm-level (%wt.) concentrations of admixtures in 95-octane lead-free gasoline in straightforward time-of-flight (pulse-delay) measurements performed directly in the liquid. The method was tested on samples containing 75–0.0125% of isopropanol and 0.3–0.0250% of water. The detection limits for isopropanol and water content were determined to be 125 ppm and 250 ppm, respectively, approaching the limits of much more complicated and time-consuming methods (like spectroscopy of the vapor phase). The measured pulse delays were compared with theoretical calculations using the modified Gladstone-Dale mixing rule for the solutions. The comparison demonstrated good agreement for gasoline-alcohol mixtures and large discrepancies for gasoline-water mixtures, suggesting that gasoline-water mixtures cannot be considered idealized binary mixtures. Our results clearly show that the pulse time delay measurement by THz-TDS is a fast and sensitive method of gasoline contamination detection and, as such, can be easily integrated with industrial online real-time quality control applications.

1. Introduction

Crude oil and its refined products, generally known as petrochemicals, are among the most important sources of energy, fuel and raw materials; without crude oil and petrochemicals, modern life would not be possible. Petrochemicals consist predominantly of solid, liquid and gaseous hydrocarbons which dissolve one another. The main components of petrochemicals are alkanes, cycloalkanes, aromatic hydrocarbons and, to a small extent, alkenes. The main contaminants are water, organic compounds containing oxygen, sulfur or nitrogen, as well as some inorganic compounds. In the fuel industry, both aviation fuels and motor fuels are obtained by refining crude oils. Thus, even in the final fuel, there are always some traces of different contaminants, including water [1].

Water is a particularly undesirable component of fuels, especially in the aviation industry. Due to its polar structure, it is almost immiscible with the organic compounds of which fuel is composed. In fuels, water is present in three forms: dissolved water, free water (a separate liquid phase) and fuel-water emulsions [2,3].

Dissolved water is not dangerous for the proper working of the engines, and it is regarded as a minor fuel constituent [3]. However, water is miscible in fuel only within a small concentration range, and its exact saturation concentration depends on the fuel’s composition. For example, in the case of hydrocarbon mixtures containing higher contents of aromatics, more water can be dissolved. This occurs because water is more soluble in benzene than in other hydrocarbons.

Above a certain concentration level and depending on external conditions (temperature, pressure), water begins to separate from the solution, forming free water [1,4]. If surfactants are present in a mixture, the water and fuel form an emulsion where droplets of water less than 100 µm in diameter are constantly dispersed in the fuel phase.

Both free water and emulsions are dangerous forms of water in fuels. There are many factors that make water in fuel undesirable, of which the most important are corrosion, lubrication loss and fuel flow obstruction.

Water can corrode fuel tanks, which creates a risk of contamination with solid particulates of rust or even fuel leakage. Water is less viscous than diesel and, therefore, provides a smaller “cushion” of lubrication between the opposing surfaces of the moving parts, leading to increased abrasive wear. Therefore, the presence of water deteriorates the lubricating properties of a fuel. Water will freeze at sub-zero Celsius temperatures, and the resulting ice crystals, like other solid particles, may clog fuel filters, cause mechanical damages and/or impede fuel flow. Water in the fuel may also facilitate the growth of microorganisms that can produce sludge and acids that contaminate the fuel and give rise to corrosion of the tank and fuel systems.

The multiple problems caused by water in fuels (partially those enumerated above) mean that new, cheap and quick methods to determine its exact content are constantly being sought [2,5]. One of the most intensively explored methods is terahertz time-domain spectroscopy (THz-TDS). THz-TDS is a rapidly developing spectroscopic technique often used for determining the properties of a material by probing it with short pulses of THz radiation [6]. THz-TDS is particularly attractive for analytical applications in a gas phase, where frequencies of molecular twisting or stretching or intramolecular or intermolecular hydrogen bonding often correspond to the THz range [7,8].

The possibility of detecting differences in molecular configuration and polarity of hydrocarbons and other polar species, such as water or isopropanol, is strictly related to the fact that nonpolar molecules are hardly visible in the THz spectral range in contrast to large-dipole-moment molecules [9,10,11]. Therefore, based on the pulse shape and its spectrum, the composition of a sample can be determined, and the parameters, such as the refractive index or absorption coefficient as a function of THz radiation frequency, can be calculated.

THz-TDS has also been used as a method of detecting water or other polar compounds in petrochemicals. The published research focuses only on crude oils and diesel fuels [12,13,14]. Generally, the obtained sensitivities oscillate around 1% [11,12]; however, the authors of [13] reported on extremely low detection limits of 0.01%wt. for their measurements. This result is rather difficult to verify because no absorption data for dehydrated samples were given in the paper as a reference. An interesting correlation between THz pulse delay and the amount of water contained in crude petroleum was reported in [14], but in this case, the reported water content in samples was rather high, i.e., ranging from 1.8% to 90.6%.

In this article, we study the limits of sensitivity of THz-TDS detection of contamination of gasoline. We study mixtures of gasoline with water and isopropanol and show that the lowest detection limits for isopropanol and water content that can be achieved by using one of the best commercial THz-TDS systems are 125 ppm and 250 ppm, respectively. These values approach those of much more complicated and time-consuming spectroscopic methods (like spectroscopy of the evaporated gasoline gas phase). The measured pulse delays are compared with theoretical calculations using the modified Gladstone-Dale mixing rule for the solutions. The comparison demonstrates good agreement for gasoline-alcohol mixtures and large discrepancies for gasoline-water mixtures, suggesting that gasoline-water mixtures cannot be considered as idealized binary mixtures.

Our work clearly shows that the pulse time delay measurement by THz-TDS is a sensitive and fast method of gasoline contamination detection and, as such, can be easily integrated with industrial real-time quality control applications.

2. Materials and Methods

2.1. Samples and Samples Preparation

Two-component mixtures consisting of gasoline and deionized and distilled water or isopropanol were prepared. The isopropanol (min. 99.7%, pure PA) was bought from the Chempur company, while deionized water was obtained directly from the laboratory supply line. The gasoline, 95-octane lead-free petrol (Orlen Eurosuper 95 lead-free), was purchased from a local petrol station. According to the specifications given by the producer, the maximum oxygenate content in 95-octane lead-free gasoline, which is comprised of isopropanol and water, is smaller than 2.7% (m/m) [15]. This clearly shows that there was a certain unknown amount of water and isopropanol in the samples during the measurements. The time-of-flight method is only capable of detecting an excess of water/isopropanol in relation to the base amount present in gasoline. However, we have paid special attention to keep this base amount unchanged and distributed equally among the samples with decreasing concentrations of admixtures: (i) pure gasoline was freshly bought and stored at low temperature in a special safe storage container to minimize any compositional changes and reduce the influence of external humidity on the water content in gasoline; (ii) the time needed to handle the solutions (weighing, mixing, pouring, etc.) was shortened to the minimum amount necessary and was comparable for each of the samples; (iii) the samples were freshly prepared before each experimental run under a fume hood with a constant flow of clean dry air, and they were measured within a maximum of 2 days after their preparation; (iv) each of the concentrations were obtained and measured at least twice to verify the self-consistence of the obtained results; (v) during the measurements, the cuvettes were tightly sealed with gasoline-resistive caps, so that their composition did not change at the time of measurement; (vi) all samples were stirred during the preparation for at least 30 min and again directly before the measurements to confirm their homogeneity based on visual observation.

During all measurements, the sample containing pure gasoline served as the reference. All solutions were prepared by diluting a solution of a higher concentration with freshly added gasoline to exclude a gross error. The stock solution was weighted on a laboratory scale and mixed with water/isopropanol in the right proportions to obtain a total mass of 20 g. The samples with lower admixture concentrations were obtained by dilution of the higher admixture concentrations. Such a procedure is well-established and commonly applied in chemistry to dissolve solutes at the ppm level of their concentration [16,17,18]. We are, therefore, sure that the concentrations that were obtained corresponded to the nominal concentrations.

The isopropanol-gasoline solutions were prepared over the concentration range of isopropanol from 75%wt. to 0.0125%wt. (detailed concentration data can be found in Section 3.3 and Section 3.4). Due to the much lower solubility of water in gasoline, the samples containing water were prepared in a smaller range of water concentrations from 0.3%wt. to 0.025%wt. The solubility of water in the gasoline type used for the sample preparation was tested before the measurements. We found that it was possible to dissolve about 0.31%wt. of water in the gasoline. The upper concentration limit of water, 0.3% wt., was decided based on this result.

During all measurements, the pure gasoline sample served as the reference. All solutions were prepared by diluting a solution of a higher concentration with freshly added gasoline. Each concentration was obtained at least twice and measured. All samples were stirred directly before measurements and confirmed to be homogeneous based on visual observation.

The admixture solutions were measured in cuvettes. Standard optical spectroscopy absorbance quartz cuvettes were sufficient for most of the measurements; however, to ensure a high enough amplitude of the signal over long optical paths, cuvettes made of polymethylpentene (TPX), which are characterized by their very low absorption of THz radiation, were used. The quartz cuvettes were the QS-type cuvettes produced by Hellma Optik GmbH. We used cuvettes with optical paths of l = 1.00 mm, 2.00 mm and 5.00 mm. The maximum accuracy of l specified by the producer was as low as ±0.003 mm. The wall thickness in all cuvettes was the same: 1.25 mm each. The TPX cuvette was manufactured by BATOP GmbH. It was made from TPX polymer (complex refractive index 1.46 + 0.85 × 10⁻³) and provided a low-loss optical path in liquid of l = 10.00 mm. The wall thickness of the TPX cuvette was 5.00 mm. We prepared separate caps for the two types of cuvettes and used them during the measurements in order to prevent the liquids from evaporating.

2.2. Experimental Setups

2.2.1. Terahertz Time-Domain Spectrometer

Times of flight (TOFs) of the THz pulses transmitted through gasoline samples were measured by means of a stand-alone commercial THz-TDS spectrometer from Toptica A.G. [19]. The two different quasi-optical beam delivery arrangements, 4f and 2f, were used with the spectrometer, as depicted in Figure 1. The differences between them are described in detail in the following Section 2.2.2.

A pair of THz transmitter (Tx) and receiver (Rx) photoconductive antennas operating on the principle of an Auston switch were used in the spectrometer [20,21]. They employed a state-of-the-art InAlAs/InGaAs multilayer structure technology [22,23]. The optopair was excited and subsequently probed by the Erbium fiber laser of 1.56 μm wavelength. The duration and repetition rate of the laser pulses were, respectively, 80 fs and 100 MHz. On the transmitter side, the laser delivered an average power of 20 mW, generating 30 μW average THz power. The duration of the individual THz pulses was approx. 2 ps.

The probe pulses of the laser were delayed with respect to the excitation pulses by means of the two-stage delay line. The first one (not shown in Figure 1), the long-travel delay line, introduced a constant time offset (up to 1 ns) of the pulses to compensate for the optical path length. The second delay line (shown in Figure 1), the fast delay line, provided time stamping for the precise sampling of the waveforms. Its readout was synchronized with the signal from the Rx receiver during a continuous forward and backward scan of the delay line mirror. In this way, the dead time of the system was reduced, allowing the THz pulse sampling to be completed in a twice shorter time. Sampling rates of approximately 12 pulses/s by time windows of 100 ps were achievable, allowing for less than 1.5 min acquisition times by applied averaging over 1,000 waveforms. Due to the high-precision position sensor of this delay line, which provided 1.3 fs and stable timing resolution, the system was characterized by the high accuracy of the time scale, resulting in a typical dynamic range of 98 dB when multiple traces were averaged [24]. Such a high dynamic range combined with the operational stability of the TDS spectrometer were crucial for obtaining low, ppm-level admixture detection limits during the measurements. An example of the time profiles and power spectra of the THz pulses registered with the spectrometer in ambient air is shown in Figure 2.

2.2.2. Quasi-Optical THz Beam Delivery Setups

As depicted in Figure 1, the two types of quasi-optical beam delivery setups were used to bring THz radiation to the gasoline samples and, next, onto the detector. In the 4f setup (Figure 1a), the measuring cuvette was positioned in the Fourier plane of the optical system at a midway distance between the transmitter and receiver. The relationship between the Tx transmitter-emitted beam waist, ω_trans, which is next collimated and focused down to the focused beam waist size, ω_focus, can be deduced from the Gaussian beam theory, which is explained in detail in Appendix A.

In short, away from its source, the THz beam appears to diverge from the central point of the Tx transmitter, with the half-divergence angle, θ_trans, being proportional to the wavelength of the radiation, λ, and inversely proportional to ω_trans. For the Tx transmitter, ω_trans can be approximated by the radius of the photoconductive antenna lens, which defines the final output aperture of the emitted THz pulse. A simple proportionality relation links ω_trans and ω_focus with the focal lengths of the collimating and focusing mirrors in the 4f-type beam delivery setup. The formal derivation of this relation, which is expressed by Equation (A8), is given in Appendix A.

Actually, ω_focus is independent of the wavelength or frequency of the radiation. This is a favorable situation from the point of view of TDS measurements, assuring comparable sizes of the irradiation spots focused on the sample. A tradeoff, in this case, is the frequency-dependent Rayleigh length, Z_R, which defines the distance along which the beam propagating through the cuvette can be considered parallel to the optical axis.

When Z_R is substantially shorter than the cuvette length, the paraxial beam approximation is no longer valid. The propagation paths of the spectral components of THz become not equal, becoming an additional source of errors contributing to measuring the TOF of the pulse. To minimize these errors, thin samples or short cuvettes with l $\ll$ Z_R should preferably be together with the 4f systems. However, shorter cuvettes mean shorter optical paths and faster TOFs through a cuvette and, in consequence, lower precision of the pulse time-of-flight determination. The Rayleigh lengths can be estimated by means of Equation (A9) from Appendix A. In the 4f setup from Figure 2a, large-aperture parabolic mirrors with 50.8 mm (2-inches) diameters and focal lengths f_trans = 76.2 mm (3-inches) and f_focus = 50.8 mm were used. Since the emitted beam waist ω_trans can be approximated by the radius of the Tx transmitter lens, which in our case was ω_trans = 2.5 mm, we can estimate 3 mm ≤ Z_R ≤ 175 mm. These boundary values are representative of the spectral bandwidth of the THz pulse (Figure 2b).

The longest Z_R = 175 mm is related to the highest frequency component of the THz pulse, ~6.0 THz, and the shortest wavelength, λ ~ 0.05 mm. It is nearly fivefold longer than the l = 5.00 mm, the longest quartz cuvette which was used in our measurements. However, for the lowest frequency, ~0.1 THz, corresponding to the longest wavelength, λ ~ 3.00 mm, Z_R is only a fraction of l and Z_R/l~0.6. This pushes the paraxial beam approximation to the limit. One cannot a priori neglect additional errors related to the unequal optical paths of the spectral components of the pulse. For the two shorter quartz cuvettes (l = 1.00 and 2.00 mm), the Rayleigh lengths are at least 1.5x longer than l. Therefore, one should not expect the measured TOFs to be significantly biased by non-paraxial beam propagation.

The second of the optical setups, the 2f quasi-optical setup (Figure 1b), exploited a different approach to the issue of unequal optical paths. Here, the cuvette with gasoline samples was exposed to a collimated THz beam, occupying a midpoint between the two off-axis parabolic mirrors. The cuvette was situated at the Fourier plane, shifted by one focal length distance from the coupling mirror (first mirror on the left-hand side in Figure 1b). Smaller diameter mirrors, 25.4 mm (1-inch), with equal focal lengths, f_trans = 50.8 mm, were used in the 2f configuration.

The Rayleigh lengths of the spectral components of the THz pulse were estimated using the method described in the second part of Appendix A. They differ at most by only ~1 mm for the whole bandwidth of the pulse, i.e., form 0.1–6.0 THz. More precisely, Z_R = 400 mm for the frequency of 0.1 THz and Z_R = 399 mm for the frequency of 6.0 THz. This is not surprising since, from a geometrical optics point of view, the 2f system forms a bunch of ideally parallel rays between the two mirrors.

The 2f quasi-optical setup is best suited for sensitive TOF measurements when the optical path in the cuvette is long. Small changes in the refractive index can be detected in this way, which, in turn, assures extremely low detection limits for the TDS time-of-flight method. The main limitations of this configuration are unequal beam diameters of the spectral components of the pulse; this means that only samples that are uniform over a large area can be investigated using the 2f setups. Gasoline solutions fulfill this requirement to a large extent, providing the saturation pressure of volatile fuel components inside a closed cuvette has been attained. This explains why the 2f optical arrangement could be used together with the longest quartz cuvette as well as the TPX cuvette providing an optical path of l = 10.00 mm.

As schematically indicated in Figure 2b, the size of the THz beam was intentionally larger than the transversal size of the cuvette. In this way, the part of the beam that passed freely through the air provided the “zero delay” time reference for pulses transmitted through gasoline samples. Any inaccuracy of the delay line position readout or temporal drift of a laser pulse could be corrected in this way. The THz waveforms were brought to the common starting point after their registration and before data analysis so that unbiased time of flights resulting exclusively from the compositional change of a mixture change could be measured.

Figure 3a depicts a digital camera photograph of the 2f setup. The inset of it shows the measurement cuvette photographed against an opened diaphragm of a diameter corresponding to the diameter of the THz beam. Below the photograph (Figure 3b), the waveforms of the pulses measured with the TDS spectrometer without (upper graph) and with (lower graph) the cuvette are shown. Note that by placing the cuvette, the amplitude of the reference pulse drops down while the peak amplitude position in time stays the same.

2.3. THz-TDS Time-of-Flight Method

As shown in Figure 2, a THz pulse propagating in a medium is a superposition of plane harmonic waves with frequencies defined by its spectrum. Mathematically, the spectrum of the pulse together with the phase of each spectral component can be calculated by means of the Fourier transform [25].

The time of flight of the pulse throughout a cuvette can be conveniently defined by a group velocity represented by the speed of the center of the mass of a wave packet. In the first and simplest approximation of negligible absorption and dispersion, the group velocity of a wave packet or pulse can be approximated by the phase velocity of its middle frequency [26]. A simple linear equation relates the TOF of the THz pulse in air, t_air, with the refractive index, n_air, and the length of the cuvette, l:

$$t_{air}=\frac{l}{c}{n}_{air}.$$

(1)

Here, c denotes the speed of light in vacuum. Analogically, the TOF of the pulse, t, sent through a cuvette filled with a substance of the refractive index, n, can be calculated as:

$$t=\frac{l}{c}n,$$

(2)

so that the difference between both times, t − t_air = Δt:

$$\Delta t=\frac{l}{c}\left(n-1\right),$$

(3)

provides the means to determine the refractive index of the substance. Note that in Equation (3), the approximation of n_air ≅ 1 was used. The accuracy of the determination of n depends on the accuracy of the measured Δt. A simple calculation shows that for the cuvette length l = 10.00 mm, corresponding to the longest of the cuvettes that were used, Δ(n − 1) ~ 10⁻⁵ if Δt ~ 10⁻¹⁵ s. This remarkable result proves that, in principle, very low concentrations of admixtures introducing ~10⁻⁵ changes in the refractive index can be detected by a straightforward THz-TDS TOF measurement. A prerequisite for such measurement is a stable position and shape of a THz pulse generated by a TDS spectrometer. In Section 3.1, we show that such accuracy was achieved with our measurement setup.

For the purpose of admixture detection in gasoline, it is more convenient to reference the time difference, Δt, to the TOF of the pulse through a cuvette filled with pure gasoline. This situation is schematically depicted in Figure 4b. According to Equation (3) the first of the TOFs, t_nD, is related to the refractive index of a mixture, n_D. The second TOF, the reference time-of-flight, t_nG, is related with the refractive index of gasoline and the difference between the times of flight, Δt, is calculated as:

$$\Delta t=t_{n_D}-t_{n_G}=\frac{l}{c}\left(n_D-1\right)-\frac{l}{c}\left(n_G-1\right)=\frac{l}{c}\left(n_D-n_G\right).$$

(4)

The equation above can be used to plot the measured Δt as a function of admixture concentration, providing that the model of the refractive index of the solution, n_D, is known. The refractive index of pure gasoline, n_G, can be determined, e.g., by performing the reference TOF measurement in the empty cuvette and then using Equation (3).

2.4. Theoretical Model of the Refractive Index of Gasoline Admixture Solutions

Since the composition of a mixture typically includes constituents belonging to different classes of compounds, a model suitable to adequately describe its refractive index must take into account a specific type of molecular interactions and specific mixing rules between the constituents. For example, it is known that a molar volume, V, of an idealized binary solution should follow the linear relation involving molar fractions of both elements, ϕ_1,2, their molar masses, m_1,2, and molar densities, ρ_1,2, [27]:

$$V=\frac{m_1}{{\rho }_1}{\varphi }_1+\frac{m_2}{{\rho }_2}{\varphi }_2.$$

(5)

Numerous other mixing rules can be found in the literature [28,29]. For example, the Lorentz-Lorenz mixing rule, given by Equation (7), is known to be particularly suitable for the description of binary solutions of organic solvents [27,30,31].

The refractive index of 95-octane gasoline pseudo-binary mixtures with isopropanol has recently been studied in [32,33]. Four different mixing rules, described by four equations, namely, the Eykman (Equation (6)), Lorentz-Lorenz (Equation (7)), Newton (Equation (8)) and Gladstone-Dale (Equation (9)):

$$\frac{n_D^2-1}{n_D^2+0.4}={\varphi }_1\left(\frac{n_{D1}^2-1}{n_{D1}^2+0.4}\right)+{\varphi }_2\left(\frac{n_{D2}^2-1}{n_{D2}^2+0.4}\right),$$

(6)

$$\frac{n_D^2-1}{n_D^2+2}={\varphi }_1\left(\frac{n_{D1}^2-1}{n_{D1}^2+2}\right)+{\varphi }_2\left(\frac{n_{D2}^2-1}{n_{D2}^2+2}\right),$$

(7)

$$n_D^2-1={\varphi }_1\left(n_{D1}^2-1\right)+{\varphi }_2\left(n_{D2}^2-1\right),$$

(8)

$$n_D-1={\varphi }_1\left(n_{D1}-1\right)+{\varphi }_2\left(n_{D2}-1\right).$$

(9)

Were tested in the quoted above publications in the temperature range from 293.15 K to 313.5 K. In Equations (6)–(9), the symbols n_D1 and n_D2 stand for the refractive index of the mixture components ϕ₁ and ϕ₂, respectively. Using these equations, the refractive index of isopropanol-gasoline mixtures was found to increase linearly from n_D1 to n_D2, with n_D2 belonging to the constituent of the larger absolute value of n [33]. The best correspondence was found for the Eykman and Lorentz-Lorenz model; however, the differences between the measured and calculated n_D using the Gladstone-Dale equation (Equation (9)) were also reasonably small with the absolute values Δn_D = |n_D,exp − (ϕ₁n_D1 − ϕ₂n_D2)| not larger than ~0.0016. They applied to the situation when the gasoline and isopropanol concentrations were approximately equal (ϕ_1,2 ≈ 0.5). With smaller solvent or admixture concentrations, the differences were even smaller, approaching Δn_D ≅ 0. The mixing rules were tested for the visible light of the wavelength λ = 589.3 nm (sodium D line).

In order to verify if the Gladstone-Dale mixing rule can be useful for modeling the measured pulse delays in the THz spectral range, we have employed Equation (9) using the mass fractions of isopropanol and gasoline, ϕ₁ and ϕ₂, respectively. With this new representation, the refractive index of the solution, n_D, is described by the relation:

$$n_D={\varphi }_1{n}_{D1}+{\varphi }_2{n}_{D2}.$$

(10)

Equation (10) defines the refractive index of a mixture as the weighted sum of the refractive indices of solvent and admixture with the weights ϕ_1,2, given as the mass fractions (%wt.) with respect to the total mass of the solution. By combining Equations (4) and (10), Δt can be calculated as:

$$\Delta t=t_{n_D}-t_{n_G}=\frac{l}{c}\left(n_{D1}-n_{D2}\right){\varphi }_1.$$

(11)

The parameters n_D1 and n_D2 denote the refractive index of pure isopropanol and gasoline, respectively. Additionally, the relationship ϕ₁ + ϕ₂ = 1 was used to derive the final form of Equation (11). Details of the derivation can be found in Appendix B.

The Gladstone-Dale mixing rule predicts a linear relationship between Δt and the admixture concentration ϕ₁.

3. Results

3.1. Time Stability Performance of the THz-TDS Setup

The stability performance of the THz-TDS spectrometer was verified with the beam delivery part and photoconductive antennas tightly closed in a plexiglass container, from which ambient air was removed by purging the container with purified clean dry air (CDA). The TOFs of the pulses were measured in a collimated beam geometry, i.e., with the 2f quasi-optical setup. At first, the waveforms of the THz pulses were measured in CDA. Then, the container air was mixed with a small amount of humid ambient air, and the registration of the waveforms was repeated. In both cases, the THz pulses were propagated along the same optical paths with and without the quartz cuvette.

The differences between the waveforms registered in both types of air are shown in Figure 5. The figure compares the average waveforms obtained by subsequent acquisition and averaging of 1,000 THz pulses. The dry and moist air time profiles are almost identical, and the differences between them can only be observed on a sub-ps time scale.

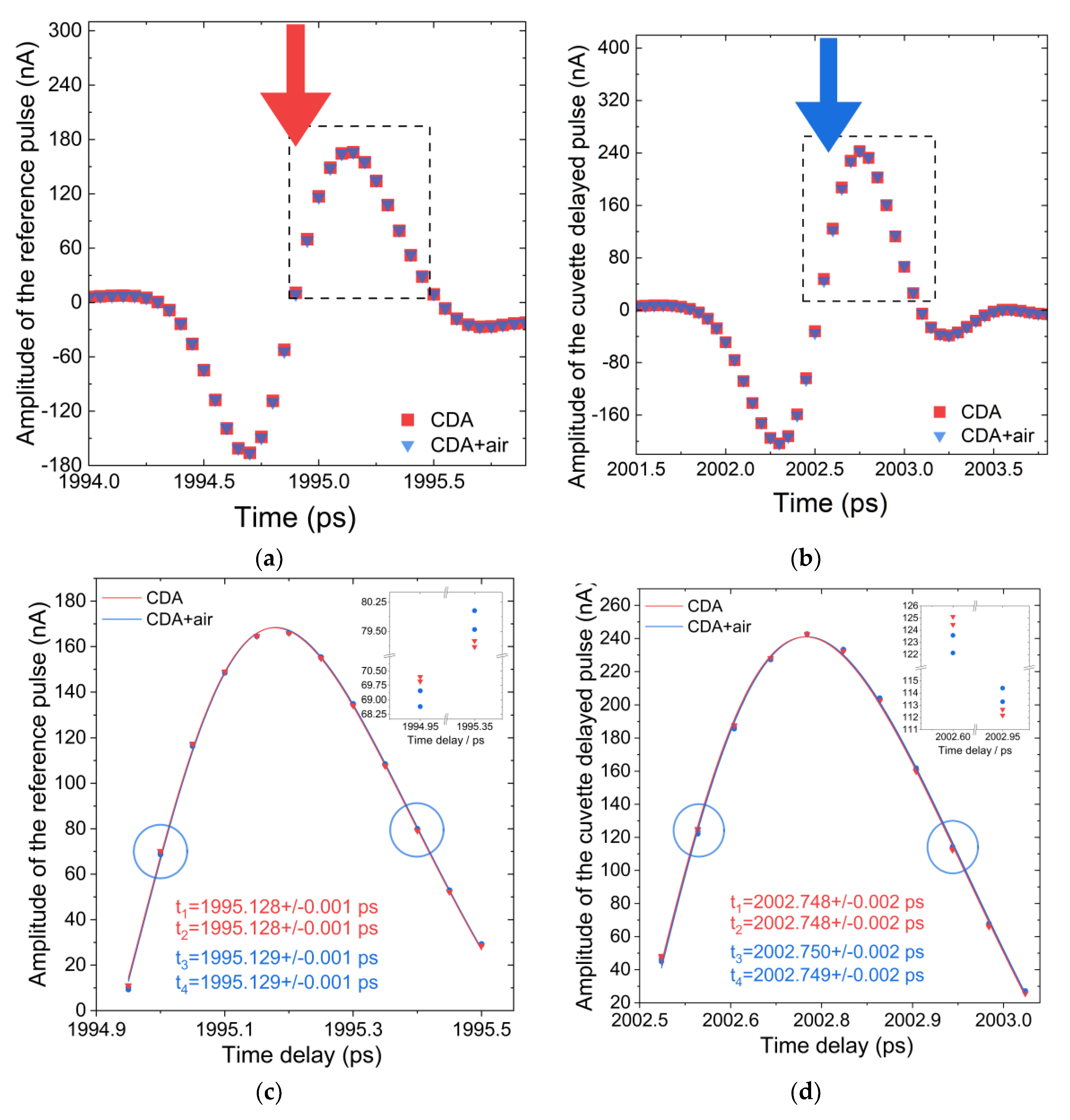

The fitted peak amplitudes of the pulses are shown by the graphs from the lower row of the figure. They have small fit errors of 1 and 2 fs, respectively, for the reference and the cuvette transmitted pulse. One can be sure that the time-shift between the pulses was not caused by numerical artifact but resulted from moisture in the plexiglass box. Such a conclusion is confirmed by a flawless systematical trend of the measured data points before and after the maximum of the pulse, as indicated by the insets of Figure 5c,d.

Apparently, the shift of the reference pulse in time corresponds inevitably to a similar shift of the quartz cuvette transmitted pulse. Note that in both cases, the measured time-of-flight difference was the same: ~1 fs. Somewhat larger fit errors for the cuvette transmitted pulses are likely caused by dispersion introduced by the input and output cuvette walls made of quartz glass. This confirms that the strategy of using an unobscured part of the beam as the reference is generally correct and that pulse instabilities caused by the TDS spectrometer can be compensated with up to an fs precision.

To test the time stability performance of the TDS spectrometer, we have continuously observed the peak amplitude position of the THz pulse over a ~2.5 h time (Figure 6). The system was running freely, and the waveforms of the pulses were registered in more or less equal time intervals of ~12 min. Over the whole period, the pulse shifted by maximally 31 fs towards shorter times and stabilized the position approx. 50 min after the spectrometer was turned on. Then, small-scale fluctuations with less than 1 fs deviation were observed over the next ~45 min. During the last hour of observations, the pulsed drifted again towards its initial position by ~9 fs.

A special procedure was applied to correct underperformances of the TDS system related to pulse position instabilities. The registered waveforms were always brought to the common “zero time delay” point before data analysis in the procedure, which is schematically depicted in Figure 6a,b. For each of the waveforms, the peak amplitude position of the reference pulse was determined by a numerical fit. Its numerical value was next subtracted from the time data, setting the reference “zero time” point for all the waveforms in the measurement series (Figure 6b). Since we have checked that the reference and cuvette transmitted pulses always shift simultaneously, we can consider that any pulse delays measured with the cuvettes filled with gasoline samples are likely caused by admixture concentration change and not the drift of the pulse itself.

While the absolute peak amplitude positions of the reference pulses could be determined in CDA with an accuracy of 1–2 fs, the instabilities of the THz pulse position measured with gasoline samples (or ambient air) were higher, ~10–100 fs. They were strongly dependent on admixture type, length of the cuvette and absorbance properties resulting from the admixture concentration in the solution. These instabilities were reasonably smaller than typically measured pulse TOFs and were most likely caused by inhomogeneity and density fluctuations of the liquids.

3.2. Determination of the Refractive Indices of Pure Isopropanol and Pure Gasoline

In order to quantitatively validate the THz-TDS TOF method, we completed a series of test measurements with pure gasoline and pure isopropanol used as the samples. The TOFs of pulses transmitted through all three quartz cuvettes of the lengths l = 1.00, 2.00 and 5.00 mm were measured. The pulse positions differences, Δt, were next calculated with respect to the positions of the pulses transmitted through empty cuvettes (reference pulses), as indicated in Figure 7.

The measurements were conducted in ambient air with the 4f system optical beam geometry, and no time correction of the peak amplitude positions was applied before data analysis. This was largely justified since no substantial pulse drift was expected in a single minute duration data acquisition time.

The registered waveforms of the THz pulses are shown in Figure 7. Each of the graphs represents measurements belonging to different cuvette lengths. The empty cuvette (reference)-, gasoline- and isopropanol-transmitted pulses are indicated by different colors of the lines. Additionally, the dashed line was used for individual marking of the reference pulses.

The amplitudes of the pulses decrease with the increasing cuvette lengths. Since gasoline has a weak absorption coefficient, resulting mostly from transient dipole moments induced by collisions [34], this decrease is much faster for isopropanol, which is a strongly polar molecule with a permanent dipole moment and a large THz radiation absorption coefficient [35,36]. A similar conclusion also applies to the measured pulse delays, which are longer for isopropanol than for gasoline. This observation is explained by the larger absolute value of the refractive index of isopropanol as compared to gasoline. Note also that for both isopropanol and gasoline, the pulse delays increase with the increasing length of the cuvette, as expected from Equation (3).

The results of numerical fits of peak amplitude positions of all pulses were summarized in

Table 1. The TOFs and refractive indices of pure isopropanol and gasoline measured by THz-TDS.

Cuvette Length	TOFQuartz cuvette ± δ 1 (ps)	TOFliquid ± δ (ps)	Δt ± δ (ps)	THz Ref. Index n ± δ
Isopropanol
l = 1.00 mm	2613.09 ± 0.05	2614.78 ± 0.05	1.69 ± 0.10	1.507 ± 0.030
l = 2.00 mm	2612.93 ± 0.05	2616.30 ± 0.07	3.37 ± 0.12	1.506 ± 0.020
l= 5.00 mm	2612.99 ± 0.05	2621.45 ± 0.10	8.46 ± 0.15	1.5076 ± 0.0090
				niso = <1.50687 ± 0.00081> 2
Gasoline
l = 1.00 mm	2613.07 ± 0.05	2614.51 ± 0.06	1.44 ± 0.11	1.432 ± 0.033
l = 2.00 mm	2612.94 ± 0.05	2615.80 ± 0.08	2.86 ± 0.13	1.429 ± 0.020
l = 5.00 mm	2612.98 ± 0.05	2620.17 ± 0.09	7.19 ± 0.14	1.4314 ± 0.0084
				ngas = <1.4308 ± 0.0016>

¹ δ Fit errors. ² <…> Average values of the refractive indices with standard deviations.

. Starting from the second column, this table indicates the fitted times of flight measured with the empty cuvettes and cuvettes with isopropanol or gasoline. The third column, Δt, indicates the calculated differences of the times of flight. The refractive indices, n, from the last column of the table were calculated by means of the

Equation (3). The error of n takes into account only the error of Δt, assuming that the other parameters from Equation (3) were known with the absolute accuracy (their errors were assumed to be zero).

The average refractive indices of isopropanol and gasoline, indicated in the table in the brackets, represent the average values calculated, taking into account all three cuvette lengths. Their numerical values were compared with the values reported in the literature by other authors [11,37,38,39]. The outcome of the comparison is summarized in

Table 2. Comparison between the measured and reference refractive indices of pure isopropanol and pure gasoline. The source of the references is indicated below the table.

Substance	TOF n	Reference n
Isopropanol	niso = 1.50687 ± 0.00081	n = 1.50 1
Gasoline	ngas = 1.4308 ± 0.0016	n = 1.415 − 1.441 2–4

¹ Huang et al. [37], average 0.2–1.4 THz. ² Arik et al. [11], average 0.1–1.1 THz. ³ Jin et al. [38], unspecified octane number, average 0.2–2 THz. ⁴ Al-Douseri et al. [39], @1 THz, 93-octane gasoline.

. Generally, we can state a good agreement between these data, as the measured refractive indices n_iso = <1.50687 ± 0.00081> and n_gas = <1.4308 ± 0.0016> place themselves within boundaries reported in the publications. This confirms that the THz-TDS time-of-flight method can provide accurate and valuable data regarding the refractive index of liquids.

Based on this conclusion, we have experimentally verified the appropriateness of our approach in the measurements of isopropanol solutions with systematically varied isopropanol concentrations.

3.3. Investigations of THz Pulse Time of Flights in Gasoline Solutions with Isopropanol

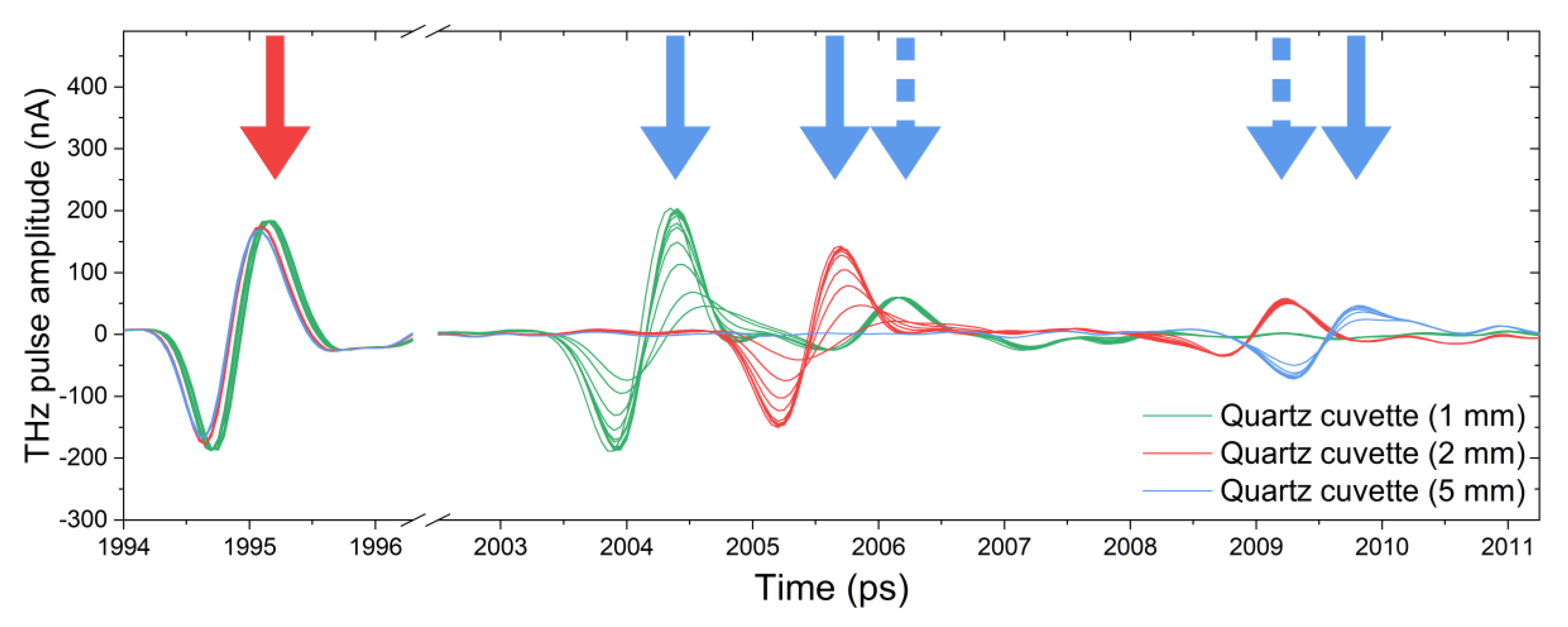

Figure 8 shows the uncorrected, raw data waveforms of THz pulses obtained after propagation in gasoline mixtures containing isopropanol alcohol. The registrations were taken in quartz cuvettes of all three lengths. The cuvettes were located in the Fourier plane of the 4f quasi-optical beam delivery setup. The pulses indicated by the red arrow served as a “zero-delay” time reference for the later applied pulse position correction procedure (Section 3.1). They had to be acquired in separate registrations directly before time-of-flight measurements because the size of the focused THz beam in the 4f system is incomparable with the transverse dimensions of the cuvette. Despite different methods of registration, the reference waveforms were used in the time correction procedure that was the same for the 4f and 2f systems.

The waveforms indicated by green, red and blue lines correspond to l = 1.00, 2.00 and 5.00 mm cuvettes, respectively. The actual isopropanol concentrations related to each of the series are summarized in

Table 3. Concentrations and mass fractions of isopropanol in gasoline mixtures.

Cuvette Length	Isopropanol Concentration (%wt.)	Isopropanol Mass Fraction, ϕ1 (ppm)
l = 1.00 mm	0.00	0
	0.05	500
	0.20	2000
	0.50	5000
	1.00	10,000
	2.00	20,000
	5.00	50,000
	6.25	62,500
	12.5	125,000
	25.00	250,000
	50.00	500,000
	75.00	750,000
l = 2.00 mm	0.00	0
	0.05	500
	0.20	2000
	0.50	5000
	1.00	10,000
	2.00	20,000
	6.25	62,500
	12.50	125,000
	25.00	250,000
	50.00	500,000
l = 5.00 mm 1	0.00	0
	0.05	500
	0.20	2000
	0.50	5000
	1.00	10,000
	2.00	20,000
	5.00	50,000

¹ Data of the 1st series only.

. It is necessary to understand that the chosen range of isopropanol concentration in gasoline had to be carefully adjusted to the lengths of the cuvettes because transmission of THz radiation could be very limited over long propagation paths in the cuvettes.

The blue arrows in the figure indicate the THz pulses after their interaction with gasoline samples and the dashed blue arrows–the pulses multiplied by the cuvettes after internal reflections.

The measured TOFs were compared with predictions of Equation (11). The results of the comparison are depicted in Figure 9. In the first graph (Figure 9a), the measured TOF differences, Δt, were plotted against the mass fractions of isopropanol, ϕ₁, from Table 1. The “zero-delay” time difference, Δt = 0, corresponds to the positions of pure gasoline pulses belonging to each of the series from Figure 8.

A common characteristic that is apparent in Figure 9a is that, independent of cuvette lengths, the measured Δt increases approximately linearly with the isopropanol concentration. Moreover, for the fixed absolute value ϕ₁, Δt is proportional to the length of the cuvette, l, and is manifested by increasing slopes of the measured points. Additionally, the time separation between them along the ordinate is visibly better when the optical lengths are longer, meaning that longer cuvettes are much better suited for sensitive measurements of trace concentrations of admixture in the solution.

Even if the broadest span of the investigated mass fractions of isopropanol was from 0 to 750,000 ppm, i.e., 0 to 75%wt., such a large range of concentrations could only be covered in the shortest 1.00 mm cuvette because in other cases, the limited transmission of THz radiation precluded the registrations of the pulse waveforms with sufficient accuracy.

The calculated theoretical dependence of Δt on the mass fraction ϕ₁ is shown in Figure 9b. It corresponds to the relation predicted by Equation (11). It is, therefore, not surprising that an overlap between the measured and theoretical data shown in Figure 9c is reasonably good.

The solid lines on this and the preceding figure (Figure 9b) resemble ab initio calculations with average values of the refractive indices from Table 2. While the correspondence seems better for l = 1.00 and 2.00 mm cuvettes, there seems to be a systematic difference towards longer measured Δt (as compared to the calculations) for the l = 5.00 mm cuvette. Since all of the points on this figure represent the time-corrected data, which to a large extent are free from the spectrometer pulse drift, we interpret this visible discrepancy in terms of unequal optical path lengths and longer propagation times of the low-frequency spectral components of THz pulse. As explained in Section 2.2.2, the Rayleigh lengths of the low-frequency components of the pulse can be considerably shorter than the 5.00 mm optical path of the cuvette, resulting in longer propagation distances and times of flight throughout the cuvette as compared to para-axially propagating high-frequency components.

As mentioned above, for all cuvette lengths, the ab initio calculations used the same average values of the refractive indices of isopropanol <n_iso> and gasoline <n_gas>. More precisely, the same constant value of Δn difference, Δn = n_iso − n_gas, was used according to the functional dependence resulting from the mathematical form of Equation (11). Since these average values do not necessarily represent an optimum, we have additionally fitted the lines to the experimentally measured Δt and calculated the optimal Δn from the slopes of the fits. The fitted functions are shown on the Figure 9c as dash-dotted lines and the fitted Δn determined in this way are: Δn ≅ 0.0576 for l = 1.00 mm, Δn ≅ 0.0660 for l =2 mm and Δn ≅ 0.1130 (1st run) and Δn ≅ 0.1452 (2nd run) for l = 5.00 mm.

3.4. Limits of Detection of Water and Isopropanol Admixtures in Gasoline Solutions

The sensitivity of admixture detection was further enhanced when the quartz glass cuvettes were replaced by the TPX cuvette offering the longest optical paths of l = 10.00 mm. We have verified in a separate measurement that despite its thicker 5 mm walls, as compared to the 1.25 mm walls of the quartz cuvettes (Section 2.1), the TPX cuvette was characterized by a much lower transmission loss of ~1–5 dB over the whole pulse bandwidth. The corresponding transmission loss of quartz cuvettes was ~14–45 dB. The 2f quasi-optical beam delivery setup was chosen because, only in this case, the Rayleigh lengths of all spectral components of the THz pulse could be sufficiently longer than the propagation lengths in the cuvette. The new set of gasoline samples containing only small concentrations of admixtures was prepared. The corresponding mass fractions of isopropanol and water were 0–2000 ppm and 0–3000 ppm, respectively. The results obtained in this experimental configuration are shown in Figure 10.

In agreement with previous observations, the measured pulse delays exhibited a linear dependence on both isopropanol and water mass fractions, ϕ₁. This is confirmed by numerical line fitting to the measured data points represented in Figure 10 by dash-dotted lines. The main difference was the agreement with the model of the refractive index of the mixture.

While a fairly good correspondence can be observed for isopropanol-gasoline samples, for which the measured pulse delays points are situated along the continuous red line, representing theoretical calculations, the agreement for water-containing samples cannot be confirmed. All measured points lay below the theoretical line and have substantially shorter TOFs than predicted by the calculations. Moreover, we have observed a reverse trend of decreasing pulse delays with an increasing water mass fraction above the 3000 ppm mass fraction of water. All this suggests that a simple, quasi-binary mixture model of the refractive index is not applicable in this case.

It is well known that water is not miscible with gasoline. These two fractions will tend to separate depending on their relative concentrations in a mixture and environmental conditions [4,40,41]. Water forms complexes with gasoline containing liquid phase water and gasoline-water emulsions. Both fractions tend to separate, and the heavier water fraction sediments at the bottom of the cuvette by the presence of pure gasoline. This is why gasoline becomes a dominant fraction in the remaining volume of the liquid. Eventually, this trend causes the THz pulse to reverse because the incident radiation is exposed to a lower refractive index of gasoline. It is important to note that similar conclusions were drawn for other petrochemicals like diesel or crude oils emulsions as reported in [13,14,42,43,44,45].

The fact that for water-gasoline mixtures, the delays of the THz pulses cannot be accurately predicted by ab initio calculations is of minor importance from the practical point of view of water detection. The empirically measured linear relation between Δt and ϕ₁ can still be used, providing an initial calibration with gasoline samples containing known concentrations of water is made before THz-TDS TOF measurements. We can, therefore, make use of this linearity and define the limits of detection of isopropanol and water admixtures in gasoline as the smallest measured mass fraction belonging to the linear trend of the measured data points. Based on this definition and looking at the graphs from Figure 10a,b, the detection limits of isopropanol and water were, respectively, 125 ppm and 250 ppm. This satisfactory result obtained in a liquid phase approaches the detection limits of spectroscopic THz detection in a gas phase [46,47].

4. Conclusions

We have shown that a conceptually simple THz-TDS time-of-flight method relying on a straightforward THz pulse delay measurement can be successfully used to detect very small, on an order of parts-per-million of mass fraction, concentrations of water (H₂O) or isopropanol (C₃H₈O) in quasi-binary gasoline solutions. The most important prerequisite for such sensitive detection is the stable time performance of a spectrometer and the femtosecond precision of the THz pulse time delay measurement.

The method is calibration-free, and ab initio calculations of the pulse delays resulting from its interaction with gasoline mixtures were possible, provided that a satisfactory model of the refractive index of a solution is known. We have found that this requirement is much better fulfilled for isopropanol-gasoline mixtures than for water-gasoline mixtures and attributed this fact to the good solubility of isopropanol in gasoline due to its alkyl group.

A modified model of the Gladstone-Dale mixing rule was used to represent the refractive index of gasoline mixtures. According to this model, the linear relation between the THz pulse propagation time and admixture mass fraction in a solution was found. This linear relation was qualitatively confirmed in the measurements. However, the quantitative agreement was found to be sufficiently satisfactory only in the case of isopropanol samples.

Based on the empirically measured linear relations between the pulse time of flight through the mixture and the mass fraction of water or isopropanol, we have determined the detection limits of these substances to be 250 ppm and 125 ppm, respectively. These determined limits of sensitivity values are approaching those obtained with the use of much more complicated and time-consuming spectroscopic methods (like spectroscopy of the evaporated gasoline gas phase).

Therefore, our work clearly shows that the pulse time delay measurement by THz-TDS is a sensitive and fast method of gasoline contamination detection and, as such, can be easily integrated with industrial online real-time quality control applications.
