Article

Intelligent Prediction of Nitrous Oxide Capture in Designable Ionic Liquids

School of Computer Sciences, Shenzhen Institute of Information Technology, Shenzhen 518172, China
*
Author to whom correspondence should be addressed.
Appl. Sci. 2023, 13(12), 6900; https://doi.org/10.3390/app13126900
Submission received: 21 April 2023 / Revised: 29 May 2023 / Accepted: 6 June 2023 / Published: 7 June 2023
(This article belongs to the Section Chemical and Molecular Sciences)

Abstract

:
As a greenhouse gas, nitrous oxide (N2O) is increasingly damaging the atmosphere and environment, and the capture of N2O using ionic liquids (ILs) has recently attracted wide attention. Machine learning can be utilized to rapidly screen ILs suitable for N2O removal. In this study, intelligent predictions of nitrous oxide capture in designable ionic liquids are proposed based on a series of machine learning methods, including linear regression, voting, and a two-layer feed-forward neural network (TLFFNN). The voting model can utilize various algorithms and is highly generalizable to various systems. The TLFFNN model produced the most accurate prediction, with an MSE of 0.00002 and R2 of 0.9981 on test sets. The acceptable performance of the TLFFNN model demonstrates its utility as an accurate and promising candidate model for the prediction of N2O solubility in ILs over other intelligent models. Based on the analysis of the thermodynamic and molecular properties of ionic liquids, in the low-pressure zone, components of [(OH)2IM] and [AC] perform best in capturing N2O, while in the high-pressure zone, components of [(ETO)2IM] and [SCN] are best. This finding will provide new chemical insights for the industrial synthesis of ionic liquids in capturing N2O.

1. Introduction

Nitrous oxide (N2O) is a greenhouse gas which can cause global warming. Although the concentration of N2O in the atmosphere is lower than that of CO2, N2O has a 298-fold higher single-molecule warming potential than carbon dioxide (CO2). N2O can also damage the ozone layer, cause the ozone hole to expand, and expose human beings to solar ultraviolet radiation [1]. The harm caused by N2O concerns researchers [2,3,4]. Different methods are used to capture and remove N2O from waste gases [5,6], among which the application of a suitable green solvent is crucial [7,8].
Ionic liquids (ILs) are green solvents which are widely applied in waste gas removal. Much research [9,10,11,12] has been carried out on gas removal using ionic liquids, such as CO2 and H2S. The solubilities of gases in ionic liquids [13,14,15,16,17] can be determined via experimental analysis. However, laboratory-based methods are usually associated with high costs and toxic exposure. In addition, theoretically, there could be up to 1 trillion types of ionic liquids, meaning that laboratory analyses are not comprehensive enough. A computer model is required for ionic liquid screening. In recent years, machine learning has proved promising in applications related to the environment and chemistry [18,19,20,21,22,23]. Ahmadi et al. [24] utilized a least square support vector machine (LSSVM) model to accurately estimate the efficiency of chemical flooding in an oil reservoir. Moosavi et al. [25] applied an artificial-neural-network-based (ANN-based) model to predict the performance of CO2-foam flooding on a laboratory scale, aiming to improve the oil recovery. In a study by Hamzehie et al. [26], an artificial neural network was used to forecast the capture of CO2 and H2S in 32 distinct types of ionic liquids. A “single decision tree” and an “ensemble random forest” were utilized by Venkatraman et al. [27] to forecast the solubility of CO2 in various ionic liquids. Numerous studies using machine learning have demonstrated precise predictions of CO2 and H2S capture in various ionic liquids [26,27,28,29,30,31,32].
Compared with CO2, much less modeling work has been carried out on N2O capture using ionic liquids. To estimate the solubility of N2O in various ionic liquids, Shaahmadi et al. [33] employed three machine learning algorithms; they found that the predictions derived from machine learning models were consistent with laboratory-based results. The support vector machine (SVM) method, in particular, performed better than the other two models. Four artificial intelligence (AI) strategies were also utilized by Amirkhani et al. [34] to forecast the solubility of acid gases in various ionic liquids. With an absolute relative deviation of 8.7%, the coupled simulated annealing–least squares support vector machine technique was shown to perform the best. In a study performed by Amar et al. [35], the solubility of N2O in 13 different types of ionic liquids was predicted using three intelligent computing methods. They discovered that the cascaded forward neural network (CFNN) model achieved the highest accuracy. Modeling work on N2O is still scarce; therefore, which model is superior? Are the models suitable for CO2 and H2S suitable for N2O? More work needs to be carried out to validate the performance of machine learning in the prediction of N2O capture in ionic liquids.
In this study, the solubility of N2O gas in seven different kinds of ionic liquids was modeled based on three machine learning methods. In our previous study [36], the solubility of CO2 and H2S in ionic liquids was predicted using twelve machine learning techniques. The voting method performed better in that study; therefore, we also transferred it onto the N2O–IL system to further validate the generalizability of the voting method in different systems. In addition, the linear regression method was applied to fit a function, and the two-layer feed-forward neural network (TLFFNN) was utilized for comparison in this study to achieve the most accurate model. Then, the solubility of N2O in various ionic liquids was predicted using models over a broad range of pressures and temperatures to determine the influence of the thermodynamic and molecular properties of ionic liquids on N2O capture. This article is presented as follows: Section 2 describes the details of the three models in this study; Section 3 depicts datasets and metrics in modeling; Section 4 discusses the accuracy of the models and the effects of the thermodynamic and molecular properties of ionic liquids; Section 5 presents the conclusions and recommendations for models and components of ionic liquids in capturing nitrous oxide.

2. Models

Our aim was to discover the best model for this purpose. The solubility of N2O in different ionic liquids was predicted by employing three machine learning techniques. These were linear regression, voting, and a two-layer feed-forward neural network. The formulation for the model training procedure was as follows:
S = f ( T c , P c , ω , T , P )
where Tc, Pc, ω, T, and P are input variables that denote temperature, pressure, critical temperature, critical pressure, and acentric factor, respectively. S represents the output variable solubility.

2.1. Linear Regression Method

For the case of the linear regression method, a linear model was trained, which denoted the correlation of variables, including T, P, Tc, Pc, and ω, with coefficients θ = (θ0, …, θ5). In this study, a linear model was expressed using the following function:
S = θ 0 + θ 1 T + θ 2 P + θ 3 T c + θ 4 P c + θ 5 ω
The modeling procedure used for the linear regression method in this study is summarized in Figure 1. This training procedure was used with the aim of learning the coefficients θ = (θ0, …, θ5), after which, the linear regression model could be acquired.

2.2. Voting Method

As an ensemble algorithm, the voting algorithm combines various machine learning methods to achieve a final prediction by averaging the individual predictions. In this study, five common algorithms—bagging [37], random forest [38,39], GradientBoosting [40], neural network multi-layer perceptron (NN-MLP) [41], and adaptive boosting (AdaBoost) [41]—were combined in the voting method as shown in Figure 2; in our previous research, we found that these five algorithms performed well in modeling the capture of acid gases in several ionic liquids [36]. Uniform weights were assigned over the five algorithms to balance out the weakness of each algorithm and achieve a more accurate result, which was finally obtained using a simple majority vote. The voting algorithm in our study can be mathematically illustrated as follows:
η = f i , i = 1 , k
f f ( x ) = i = 1 k [ h i ( x ) f i ( x ) ]
where a voting ensemble η comprises a set of predictors represented by f i . The ensemble predictor is represented as f f . The weighting function, h i ( x ) , will vary depending on the feature values, x .
In this voting combination, the base estimator of the bagging algorithm [37] was based on decision tree, which made it 1000. In the random forest algorithm [38,39], the parameter was the number of trees, which was 1000. In the GradientBoosting algorithm [40], the maximum depth in each regression predictor was set to 5, and the number of boosting stages was adjusted to 1000. The iteration epoch was modified to 5000 for the NN-MLP algorithm [41], the “lbfgs” solver was selected for weight optimization, and “relu” was chosen as the activation function in the hidden layer, which had a size of 100. The decision tree also functioned as the base_estimator with a value of 1000 for the Adaboost algorithm [42].

2.3. Two-Layer Feed-Forward Neural Networks (TLFFNNs)

Feed-forward neural networks are the oldest types of artificial neural networks. Information in this type of network only travels in one direction, from input node to output node, passing through the hidden node along the way. There is no loop in the network topology, and the neural network learns by modifying the threshold of each functional neuron and the weights between neurons based on training data.
In this study, the hidden layer and output layer of a two-layer network were selected. It also has the following equations for a single unit of a neural network.
Z = X 1 ω 1 + X 2 ω 2 + B
Y = σ ( Z ) = 1 1 + exp ( Z )
where Y is the output, Z is the weighted input, and σ(Z) is the activation function, which stands for the sigmoid function. The inputs are X1 and X2. The coefficient weights for each input are ω1 and ω2; B is the bias.
The transfer function sigmoid characterized the hidden layer, while the linear transfer function described the output layer. Five features (T, P, Tc, Pc, and ω) functioned as inputs, and solubility functioned as the output. “W1, b1” and “W2, b2” were weights and biases for the hidden layer and output layer, respectively. The size of the hidden layer was 10, which meant that the number of neurons was 10. The Levenberg–Marquardt algorithm was utilized to train the neural network, and the target epoch was 1000. An illustration of the two-layer feed-forward neural network is shown in Figure 3.

3. Datasets and Metrics

3.1. Datasets

In this study, there were 521 instances of N2O in seven various ionic liquids in the dataset. In the linear regression method and voting methods, the dataset was divided into a training set and a test set in an 80:20 ratio randomly. In the two-layer feed-forward neural network method, the dataset was randomly divided into a 70:15:15 ratio of training, validation, and test sets. During the training stage, the input variables comprised the acentric factor (ω), pressure (P), temperature (T), critical pressure (Pc), and critical temperature (Tc) of the solutions; the output variable was the solubility of N2O. The input variables were assigned as independent variables. We eliminated the duplicate instances, and deleted illegitimate and anomalous data, such as solubility negative data. Finally, we used SciKit-learn normalization for the dataset during training. A summary of the dataset in this research is detailed in Table 1, where N denotes the number of data points collected from the literature for N2O in each ionic liquid. Table 2 shows the acentric factor, critical temperature, and critical pressure of each ionic liquid.

3.2. Metrics

To assess the precision of the models, the mean square error (MSE), correlation coefficient (R2), mean absolute error (MAE), and root mean square error (RMSE) were introduced. The formulations of metrics are presented as follows:
M S E = 1 n i = 1 n ( e i p i ) 2
R M S E = 1 n i = 1 n ( e i p i ) 2
M A E = 1 n i = 1 | e i p i |
R 2 = i = 1 n ( e i e ¯ ) 2 i = 1 n ( e i p i ) 2 i = 1 n ( e i e ¯ ) 2
where n signifies the number of data points, ei denotes the laboratory value of gas solubility, pi denotes the predicted value of gas solubility using the models, and the average laboratory value of gas solubility is denoted by the letter e ¯ .

3.3. Modeling Procedure

The codes were written in Python language, parts of the algorithms were taken from SciKit-learn libraries [47], and the modeling was executed using Jupyter notebook. Baidu AI studio provided the computational resources. Each N2O–IL system was trained and tested separately.

4. Results and Discussion

4.1. The Learning Loss Curve during Training

The relationship between the number of samples and the empirical loss function is known as the learning curve. Through the learning curve, we determined the learning process and effect of the model, judged whether the training was over-fitting or under-fitting, and further tweaked the learning parameters to increase the model’s accuracy.
In this study, in the linear regression and voting methods, mean square error (MSE) functioned as the loss scoring. The learning curves for these methods are plotted in Figure 4a,b. From the fluctuation in the training loss curve and the tenfold cross-validation loss curve, it can be seen that the training loss decreased to a stable point.
The validation loss also dropped to a stable point, with a very small gap between the training loss. This shows that the models were trained well, without over-fitting and under-fitting.
Figure 4c depicts the learning curve for the two-layer feed-forward neural network. The MSEs during training, validation, and testing all descended gradually to a stable value, which indicates that the modeling process was sufficient.

4.2. Solubility Prediction of N2O in Ionic Liquids via the Linear Regression Method

A linear function could be fitted for each N2O−IL system after training using the linear regression method; this empirical correlation, which is expressed in Equation (2), has six coefficients. The coefficients for Equation (2) are presented in Table 3.
The proposed function was also evaluated for each N2O–IL system; the metrics during the testing stages are shown in Table 4. As can be seen, this model is accurate in predicting the solubility of N2O in some kinds of ionic liquids, such as [BMIM][Tf2N]; it had an MSE of 6.770 × 10−4, an RMSE of 2.602 × 10−2, an MAE of 2.296 × 10−2, and an R2 of 0.9541; this performance was determined to be acceptable. However, for some ionic liquids, the result was not satisfactory, such as for [(ETO)2IM][Tf2N]; the model had an MSE of 1.303 × 10−2, an RMSE of 1.142 × 10−1, an MAE of 8.233 × 10−2, and an R2 of 0.3349. The average metrics for the training sets, test sets, and all datasets are shown in the following section; the overall MSE, RMSE, MAE, and R2 were 3.397 × 10−3, 5.017 × 10−2, 3.934 × 10−2, and 0.7924, respectively. Overall, the linear regression method was shown to be weak in predicting N2O solubility.
In order to better understand the model, cross plots are presented in Figure 5. We took two ionic liquids as examples, and for both training and testing rounds, the predicted solubility of N2O was contrasted with the experimental data. As illustrated in Figure 5, most predicted data were similar to the experimental data. However, significant deviations were identified in both training and testing phases, which indicates the weak ability of the linear regression model in N2O solubility prediction. This result could have been due to the limited number of datasets for N2O solubility; only a few dozen can be collected from the available literature for most kinds of ionic liquids.

4.3. Solubility Prediction of N2O in Ionic Liquids via the Voting Method

The modeling results obtained via the voting method during the testing stages are presented in Table 5. As shown, the voting method achieved a more satisfactory result. For most of the ionic liquids, the solubility of N2O could be accurately predicted with the models developed using the voting technique. In particular, in [BMIM][Tf2N], it had a very small MSE value of 3.115 × 10−5, an RMSE of 5.581 × 10−3, an MAE of 4.042 × 10−3, and a high R2 value of 0.9979. These metrics are acceptable in intelligent model prediction. However, for the particular case of [DMIM][MP], the prediction was not accurate, with an MSE of 2.861 × 10−3, an RMSE of 5.349 × 10−2, an MAE of 4.962 × 10−2, and an R2 of 0.5697. Different algorithm combinations can avoid this kind of inaccuracy in particular cases.
The overall metrics for the training sets, test sets, and all datasets are shown in Table 6. The voting method had an average MSE of 6.582 × 10−4, an average RMSE of 1.873 × 10−2, an average MAE of 1.519 × 10−2, and an average R2 of 0.9405. This performance was better than that of the linear regression method.
Cross plots of the model prediction and experimental values derived via the voting method are shown in Figure 6. For the two ionic liquids we chose to use as examples, [BMIM][Tf2N] and [(ETO)2IM][Tf2N], the predictions of N2O solubility closely matched the experimental values in both the training and testing stages. From the visual results, we can also see that the voting method was a reliable method of determining how N2O could dissolve in the majority of ionic liquids. This algorithm can utilize the advantages of various algorithms to construct a more accurate model. In our previous research [36], we showed that the voting method also had satisfactory performance in the prediction of CO2 and H2S solubility, which indicates that this algorithm has good generalizability and could be applied to different systems in gas solubility prediction.

4.4. Solubility Prediction of N2O in Ionic Liquids via TLFFNN Method

The accuracy of the model trained using the TLFFNN method on test sets is presented in Table 7. As the table shows, the models exhibited superior performance. For example, for [BMIM][Tf2N], it had a very low MSE value of 5.06 × 10−6 and a very high R2 value of 0.9996. In the case of [DMIM][MP], the values of MSE and R2 were 3.46 × 10−5 and 0.9978, respectively. The averaged metrics for the training sets, test sets and all datasets are also shown in Table 6. The averaged values of MSE, RMSE, and R2 were 2.37 × 10−5, 4.23 × 10−3, and 0.9984, respectively, which were superior values. We showed that the model trained using the TLFFNN method could accurately predict N2O solubility in all the ionic liquids involved in this study, even with a very limited dataset. It was the most accurate method used in this research.
Comparisons of predicted solubility and experimental values are plotted in Figure 7, consisting of two ionic liquids, [(ETO)2IM][Tf2N] and [BMIM][Tf2N]. The laboratory value and forecast solubility were very consistent for both the training and testing stages. This visual evaluation clearly highlights the models’ outstanding accuracy and reliability levels. By adjusting the weights and biases, the TLFFNN method could effectively overcome the problem of insufficient datasets. It could also be used to forecast how soluble N2O would be in ionic liquids.
The discrepancy between the outputs and the objectives is visualized in the error histogram. Figure 8 shows the error between the model predictions and experimental values of N2O solubility in [BMIM][Tf2N] via the TLFFNN method. The abscissa “Errors” represents the D-value of experimental values and predictions; the ordinate represents the number of instances with corresponding errors. As shown in Figure 8, the errors were very small. In the histogram, most instances are gathered near the zero error line, and the histogram is distributed normally around the zero-error line. This error histogram proves that the TLFFNN model was highly coordinated with experimental values in determining how soluble N2O would be in various ionic liquids.

4.5. Trends and Comparisons of Different Models

Further analyses were carried out to validate the performances of the suggested models. The trends in N2O solubility versus input variables are plotted in Figure 9 for each model in this study; two ionic liquids, [BMIM][Tf2N] and [(ETO)2IM][Tf2N], were selected. As shown in Figure 9, in all the models in this study, N2O was more soluble in the two ionic liquids when the pressure was increased, but it was less soluble when the temperature was raised. Regarding the linear regression method, the data points and trends in model prediction exhibited obvious deviations with the experimental values. Meanwhile, when using the voting method, the prediction and experiment values were consistent in terms of both the data points and trends, with only a very tiny deviation. In the case of the TLFFNN method, the two trend curves of prediction and experiment were almost overlapping, which indicated the high reliability of the TLFFNN method.
The TLFFNN model was the most superior model in this study; the values derived using it were highly consistent with the laboratory values. It could accurately predict N2O capture in various ionic liquids against different temperatures and pressures.
Comparisons of previous research and our results are shown in Table 8. The MSE, RMSE, and R2 values of different models on test sets were compared. As seen in this table, the TLFFNN model had lower values of MSE and RMSE than other models from the recent literature, which means that it performed better in predicting N2O capture in various ionic liquids.

4.6. Effect of the Thermodynamic and Molecular Properties of Ionic Liquids

Based on the most accurate and validated model trained by the TLFFNN algorithm, the solubility of N2O in seven different ionic liquids was predicted over a large range of temperature and pressure values. As shown in Figure 10a,b, when the pressure was under 10 bar, the [(OH)2IM][Tf2N], [BMIM][Tf2N], and [BMIM][AC] ionic liquids performed better than other ionic liquids in absorbing N2O, but when the pressure was over 40 bar, the [(ETO)2IM][Tf2N] ionic liquid demonstrated an excellent ability to absorb N2O. The solubility of N2O in [(ETO)2IM][Tf2N] continued to grow as the pressure increased, while for other ionic liquids, after reaching their maximal values, the solubility did not increase with the pressure.
The effects of the anions and cations of the ionic liquids were also analyzed. As shown in Figure 10c,d, four ionic liquids had the same cations ([BMIM]) but different anions. As the pressure increased, the solubility curve of [BMIM][AC] first reached a peak and then remained unchanged; then, the curves of [BMIM][Tf2N] and [BMIM][BF4] reached a higher peak. Additionally, the curve of [BMIM][SCN] was stable at the highest peak. From these figures, we can see that anions of ionic liquids play an important role in capturing N2O, and the performance of anions in absorbing N2O was [AC] > [Tf2N] > [BF4] > [SCN] when the pressure was below 10 bar. However, when the pressure was over 80 bar, the results were reversed, and performance of anions became [SCN] > [Tf2N] > [BF4] > [AC].
Cations also play an important role in N2O capture. The solubility levels of N2O in three different ionic liquids with the same anion ([Tf2N]) are presented in Figure 10e,f. When the pressure was low, i.e., 10 bar, and performances of cations in absorbing N2O were [(OH)2IM] > [BMIM] > [(ETO)2IM]. However, as the pressure increased, the situation reversed; when the pressure was higher than 40 bar, and performance of the cations was [(ETO)2IM] > [(OH)2IM] > [BMIM].
According to our examination of thermodynamic and molecular properties, the solubility of N2O in ionic liquids will not always grow as the pressure increases. In most cases, it will be stable at a peak value and no longer increase. The question is how high the pressure should be raised to reach the peak solubility. In our case, in the low-pressure zone (under 10 bar), the cation [(OH)2IM] and anion [AC] were the best at absorbing N2O; in the high-pressure zone (over 80 bar), the best absorbents were the cation [(ETO)2IM] and anion [SCN]. Due to their enormous capacity for N2O capture with rising pressure, the [(ETO)2IM] cation and [SCN] anion are favored when synthesizing new ILs. Our model can also be used to estimate the solubility of N2O in a new IL at various pressures and temperatures so that its potential capability can be assessed before it is synthesized.

5. Conclusions

In this study, intelligent predictions of N2O capture in several different ionic liquids were proposed by implementing three machine learning algorithms: the linear regression, voting, and TLFFNN methods. T, P, ω, Tc, and Pc were considered as the inputs, while solubility functioned as the output. The models were assessed by employing R2, RMSE, MSE, and MAE. We showed that the voting model was able to precisely predict the solubility in most cases, with individual exceptions. However, by adjusting the combinations of different algorithms, the voting method could overcome the weakness of every model and achieve strong generalizability, which means it has a broadly promising future in gas solubility prediction for various systems. Among all three models in this study, the TLFFNN model was the most accurate; it could produce highly consistent predictions with experimental data for all kinds of ionic liquids involved in this study. The TLFFNN model had a much higher R2 of 0.9981 and a much lower MSE of 0.00002 compared with values reported in the literature. The TLFFNN technique may be trusted to accurately forecast N2O solubility in various ionic liquids at various pressures and temperatures. Then, the analysis of thermodynamic and molecular properties of ionic liquids showed that, under different pressure ranges, the anions and cations of ionic liquids differed greatly in their absorption of N2O. The [(OH)2IM] cation and [AC] anion performed best in capturing N2O in the low-pressure zone (under 10 bar), while the [(ETO)2IM] cation and [SCN] anion performed best in the high-pressure zone (over 80 bar). As far as we know, this is the first study to report this peculiar phenomenon, which will provide guidance for applications of ionic liquids in the removal of N2O. Due to their enormous capacity for N2O capture with rising pressure, the [(ETO)2IM] cation and [SCN] anion are favored when synthesizing new ILs.

Author Contributions

Conceptualization, H.F.; methodology, H.F.; software, H.F.; validation, H.W.; formal analysis, H.W.; investigation, W.Q.; resources, W.Q.; data curation, W.Q.; writing—original draft preparation, H.F.; writing—review and editing, G.H.; visualization, H.W.; supervision, G.H.; project administration, H.F.; funding acquisition, G.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by a Ph.D. scientific research project from Shenzhen Institute of Information Technology (SZIIT), grant number: SZIIT2021KJ012. This research was also partially supported by the Guangdong Basic and Applied Basic Research Foundation (No. 2022A1515010417); Key Project of Shenzhen Municipality (No. JSGG20211029095545002); School-enterprise Collaborative Innovation Project of SZIIT (XQ2021). The APC was funded by SZIIT.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zheng, M.S.; Zhou, N.; He, S.S.; Chang, F.; Zhong, J.; Xu, S.; Wang, Z.; Liu, T. Nitrous oxide (N2O) emissions from a pilot-scale oxidation ditch under different COD/N ratios, aeration rates and two shock-load conditions. J. Environ. Manag. 2021, 280, 111657. [Google Scholar] [CrossRef]
  2. Thwaites, B.J.; Stuetz, R.; Short, M.; Reeve, P.; Alvarez-Gaitan, J.-P.; Dinesh, N.; Philips, R.; van den Akker, B. Analysis of nitrous oxide emissions from aerobic granular sludge treating high saline municipal wastewater. Sci. Total. Environ. 2021, 756, 143653. [Google Scholar] [CrossRef] [PubMed]
  3. Lei, Z.G.; Dai, C.N.; Chen, B.H. Gas Solubility in Ionic Liquids. Chem. Rev. 2014, 114, 1289–1326. [Google Scholar] [CrossRef] [PubMed]
  4. Hamrani, A.; Akbarzadeh, A.; Madramootoo, C.A. Machine learning for predicting greenhouse gas emissions from agricultural soils. Sci. Total. Environ. 2020, 741, 140338. [Google Scholar] [CrossRef]
  5. Knuutila, H.; Juliussen, O.; Svendsen, H.F. Density and N2O solubility of sodium and potassium carbonate solutions in the temperature range 25 to 80 degrees C. Chem. Eng. Sci. 2010, 65, 2177–2182. [Google Scholar] [CrossRef]
  6. Pereira, L.; Martins, V.; Kurnia, K.A.; Oliveira, M.B.; Dias, A.; Llovell, F.; Vega, L.F.; Carvalho, P.J.; Coutinho, J. High pressure solubility of CH4, N2O and N-2 in 1-butyl-3-methylimidazolium dicyanamide: Solubilities, selectivities and soft-SAFT modeling. J. Supercrit. Fluid. 2016, 110, 56–64. [Google Scholar] [CrossRef]
  7. Almantariotis, D.; Stevanovic, S.; Fandiño, O.; Pensado, A.S.; Padua, A.; Coxam, J.-Y.; Gomes, M. Absorption of Carbon Dioxide, Nitrous Oxide, Ethane and Nitrogen by 1-Alkyl-3-methylimidazolium (Cnmim, n = 2,4,6) Tris(pentafluoroethyl)trifluorophosphate Ionic Liquids (eFAP). J. Phys. Chem. B 2012, 116, 7728–7738. [Google Scholar] [CrossRef]
  8. Pereira, L.; Oliveira, M.B.; Llovell, F.; Vega, L.F.; Coutinho, J. Assessing the N2O/CO2 high pressure separation using ionic liquids with the soft-SAFT EoS. J. Supercrit. Fluids 2014, 92, 231–241. [Google Scholar] [CrossRef]
  9. Aquino, A.S.; Vieira, M.O.; Ferreira, A.; Cabrita, E.J.; Einloft, S.; de Souza, M.O. Hybrid ionic Liquid-Silica xerogels applied in CO2 capture. Appl. Sci. 2019, 9, 2614. [Google Scholar] [CrossRef] [Green Version]
  10. Chen, Y.S.; Mutelet, F.; Jaubert, J.-N. Solubility of carbon dioxide, nitrous oxide and methane in ionic liquids at pressures close to atmospheric. Fluid Phase Equilib. 2014, 372, 26–33. [Google Scholar] [CrossRef]
  11. Nikolaeva, D.; Lois, S.; Dahl, P.I.; Sandru, M.; Jaschik, J.; Tanczyk, M.; Fuoco, A.; Jansen, J.C.; Vankelecom, I. Water vapour promotes CO2 transport in poly(ionic liquid)/Ionic Liquid-Based Thin-Film composite membranes containing zinc salt for flue gas treatment. Appl. Sci. 2020, 10, 3859. [Google Scholar] [CrossRef]
  12. Langham, J.V.; O’Brien, R.A.; Davis, J.H.; West, K.N. Solubility of CO2 and N2O in an Imidazolium-Based lipidic ionic liquid. J. Phys. Chem. B 2016, 120, 10524–10530. [Google Scholar] [CrossRef]
  13. Mellein, B.R.; Scurto, A.M.; Shiflett, M.B. Gas solubility in ionic liquids. Curr. Opin. Green Sustain. 2021, 28, 100425. [Google Scholar] [CrossRef]
  14. Kreivaitis, R.; Gumbytė, M.; Kupčinskas, A.; Treinytė, J.; Sendžikienė, E. Synthesis and Tribological Properties of Bis(2-hydroxyethyl)ammonium Erucate as a Potential Environmentally Friendly Lubricant and Lubricant Additive. Appl. Sci. 2023, 13, 3401. [Google Scholar] [CrossRef]
  15. Akbari, F.; Almutairi, F.D.; Alavianmehr, M.M. Solubility of gases in ionic liquids using PHTC equation of state. J. Mol. Liq. 2019, 276, 553–561. [Google Scholar] [CrossRef]
  16. Przypis, M.; Wawoczny, A.; Gillner, D. Biomass and Cellulose Dissolution—The Important Issue in Renewable Materials Treatment. Appl. Sci. 2023, 13, 1055. [Google Scholar] [CrossRef]
  17. Liu, Y.; Dai, Z.; Zhang, Z.; Zeng, S.; Li, F.; Zhang, X.; Nie, Y.; Zhang, L.; Zhang, S.; Ji, X. Ionic liquids/deep eutectic solvents for CO2 capture: Reviewing and evaluating. Green Energy Environ. 2021, 6, 314–328. [Google Scholar] [CrossRef]
  18. Ahmadi, M.; Chen, Z.; Clarke, M.; Fedutenko, E. Comparison of kriging, machine learning algorithms and classical thermodynamics for correlating the formation conditions for CO2 gas hydrates and semi-clathrates. J. Nat. Gas Sci. Eng. 2020, 84, 103659. [Google Scholar] [CrossRef]
  19. Ahmadi, M.A.; Chen, Z. Comparison of machine learning methods for estimating permeability and porosity of oil reservoirs via petro-physical logs. Petroleum 2019, 5, 271–284. [Google Scholar] [CrossRef]
  20. Ahmadi, M.A. Developing a Robust Surrogate Model of Chemical Flooding Based on the Artificial Neural Network for Enhanced Oil Recovery Implications. Math. Probl. Eng. 2015, 2015, 706897. [Google Scholar] [CrossRef]
  21. Ahmadi, M.A.; Ebadi, M.; Marghmaleki, P.S.; Fouladi, M.M. Evolving predictive model to determine condensate-to-gas ratio in retrograded condensate gas reservoirs. Fuel 2014, 124, 241–257. [Google Scholar] [CrossRef]
  22. Ahmadi, M.; Chen, Z. Machine learning-based models for predicting permeability impairment due to scale deposition. J. Pet. Explor. Prod. Technol. 2020, 10, 2873–2884. [Google Scholar] [CrossRef]
  23. Jalal, A.; Can, E.; Keskin, S.; Yildirim, R.; Uzun, A. Selection rules for estimating the solubility of C4-hydrocarbons in imidazolium ionic liquids determined by machine-learning tools. J. Mol. Liq. 2019, 284, 511–521. [Google Scholar] [CrossRef]
  24. Ahmadi, M.A. Toward reliable model for prediction Drilling Fluid Density at wellbore conditions: A LSSVM model. Neurocomputing 2016, 211, 143–149. [Google Scholar] [CrossRef]
  25. Moosavi, S.R.; Wood, D.A.; Ahmadi, M.A.; Choubineh, A. ANN-Based Prediction of Laboratory-Scale Performance of CO2-Foam Flooding for Improving Oil Recovery. Nat. Resour. Res. 2019, 28, 1619–1637. [Google Scholar] [CrossRef]
  26. Hamzehie, M.E.; Fattahi, M.; Najibi, H.; Van der Bruggen, B.; Mazinani, S. Application of artificial neural networks for estimation of solubility of acid gases (H2S and CO2) in 32 commonly ionic liquid and amine solutions. J. Nat. Gas Sci. Eng. 2015, 24, 106–114. [Google Scholar] [CrossRef]
  27. Venkatraman, V.; Alsberg, B.K. Predicting CO2 capture of ionic liquids using machine learning. J. CO2 Util. 2017, 21, 162–168. [Google Scholar] [CrossRef]
  28. Mesbah, M.; Shahsavari, S.; Soroush, E.; Rahaei, N.; Rezakazemi, M. Accurate prediction of miscibility of CO2 and supercritical CO2 in ionic liquids using machine learning. J. CO2 Util. 2018, 25, 99–107. [Google Scholar] [CrossRef]
  29. Amedi, H.R.; Baghban, A.; Ahmadi, M.A. Evolving machine learning models to predict hydrogen sulfide solubility in the presence of various ionic liquids. J. Mol. Liq. 2016, 216, 411–422. [Google Scholar] [CrossRef]
  30. Deng, T.; Liu, F.; Jia, G. Prediction carbon dioxide solubility in ionic liquids based on deep learning. Mol. Phys. 2020, 118, e1652367. [Google Scholar] [CrossRef]
  31. Ouaer, H.; Hosseini, A.H.; Amar, M.N.; Ben Seghier, M.E.; Ghriga, M.A.; Nabipour, N.; Andersen, P.O.; Mosavi, A.; Shamshirband, S. Rigorous Connectionist Models to Predict Carbon Dioxide Solubility in Various Ionic Liquids. Appl. Sci. 2020, 10, 304. [Google Scholar] [CrossRef] [Green Version]
  32. Sedghamiz, M.A.; Rasoolzadeh, A.; Rahimpour, M.R. The ability of artificial neural network in prediction of the acid gases solubility in different ionic liquids. J. CO2 Util. 2015, 9, 39–47. [Google Scholar] [CrossRef]
  33. Shaahmadi, F.; Anbaz, M.A.; Bazooyar, B. Analysis of intelligent models in prediction nitrous oxide (N2O) solubility in ionic liquids (ILs). J. Mol. Liq. 2017, 246, 48–57. [Google Scholar] [CrossRef]
  34. Amirkhani, F.; Dashti, A.; Abedsoltan, H.; Mohammadi, A.H.; Chau, K.-W. Towards estimating absorption of major air pollutant gasses in ionic liquids using soft computing methods. J. Taiwan Inst. Chem. Eng. 2021, 127, 109–118. [Google Scholar] [CrossRef]
  35. Amar, M.N.; Ghriga, M.A.; Ben Seghier, M.E.; Ouaer, H. Predicting solubility of nitrous oxide in ionic liquids using machine learning techniques and gene expression programming. J. Taiwan Inst. Chem. Eng. 2021, 128, 156–168. [Google Scholar] [CrossRef]
  36. Feng, H.; Zhang, P.; Qin, W.; Wang, W.; Wang, H. Estimation of solubility of acid gases in ionic liquids using different machine learning methods. J. Mol. Liq. 2022, 349, 118413. [Google Scholar] [CrossRef]
  37. Breiman, L. Bagging predictors. Mach. Learn. 1996, 24, 123–140. [Google Scholar] [CrossRef] [Green Version]
  38. Breiman, L. Random forests. Mach. Learn. 2001, 45, 5–32. [Google Scholar] [CrossRef] [Green Version]
  39. Geurts, P.; Ernst, D.; Wehenkel, L. Extremely randomized trees. Mach. Learn. 2006, 63, 3–42. [Google Scholar] [CrossRef] [Green Version]
  40. Friedman, J.H. Greedy function approximation: A gradient boosting machine. Ann. Stat. 2001, 29, 1189–1232. [Google Scholar] [CrossRef]
  41. Glorot, X.; Bengio, Y. Understanding the difficulty of training deep feedforward neural networks. In Proceedings of the JMLR Workshop and Conference Proceedings, Sardinia, Italy, 13–15 May 2010. [Google Scholar]
  42. Freund, Y.; Schapire, R.E. A Decision-Theoretic Generalization of On-Line Learning and an Application to Boosting. J. Comput. Syst. Sci. 1997, 55, 119–139. [Google Scholar] [CrossRef] [Green Version]
  43. Revelli, A.-L.; Mutelet, F.; Jaubert, J.-N. Reducing of Nitrous Oxide Emissions Using Ionic Liquids. J. Phys. Chem. B 2010, 114, 8199–8206. [Google Scholar] [CrossRef] [PubMed]
  44. Shiflett, M.B.; Niehaus, A.; Yokozeki, A. Separation of N2O and CO2 using Room-Temperature ionic liquid [bmim][BF4]. J. Phys. Chem. B 2011, 115, 3478–3487. [Google Scholar] [CrossRef] [PubMed]
  45. Shiflett, M.B.; Elliott, B.A.; Niehaus, A.; Yokozeki, A. Separation of N2O and CO2 using Room-Temperature Ionic Liquid [bmim][Ac]. Sep. Sci. Technol. 2012, 47, 411–421. [Google Scholar] [CrossRef]
  46. Anthony, J.L.; Anderson, J.L.; Maginn, E.J.; Brennecke, J.F. Anion Effects on Gas Solubility in Ionic Liquids. J. Phys. Chem. B 2005, 109, 6366–6374. [Google Scholar] [CrossRef] [Green Version]
  47. Pedregosa, F.; Varoquaux, G.; Gramfort, A.; Michel, V.; Thirion, B.; Grisel, O.; Blondel, M.; Prettenhofer, P.; Weiss, R.; Dubourg, V. Scikit-learn: Machine learning in Python. J. Mach. Learn. Res. 2011, 12, 2825–2830. [Google Scholar]

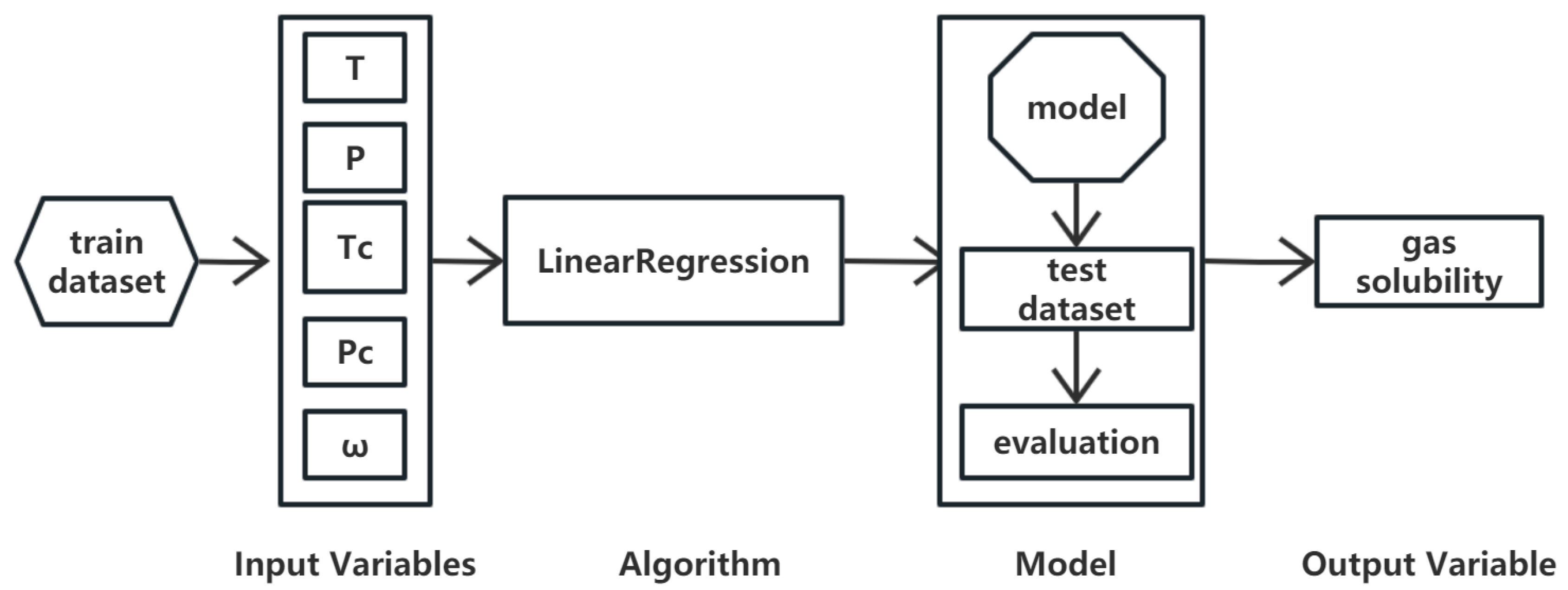

Figure 1. Flowchart of modeling via the linear regression method.
Figure 1. Flowchart of modeling via the linear regression method.
Applsci 13 06900 g001

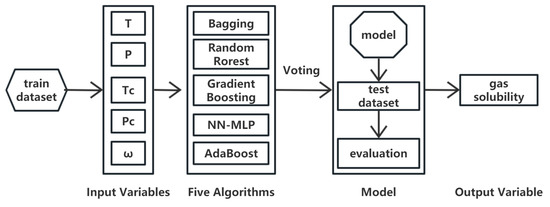

Figure 2. Flowchart of modeling via the voting method.
Figure 2. Flowchart of modeling via the voting method.
Applsci 13 06900 g002

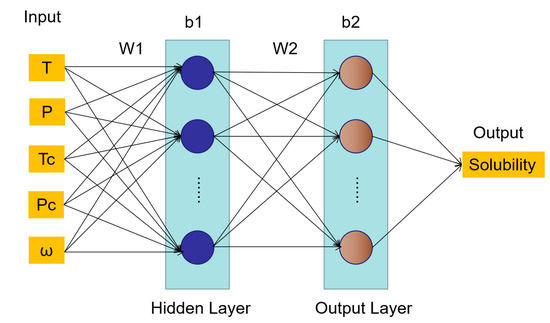

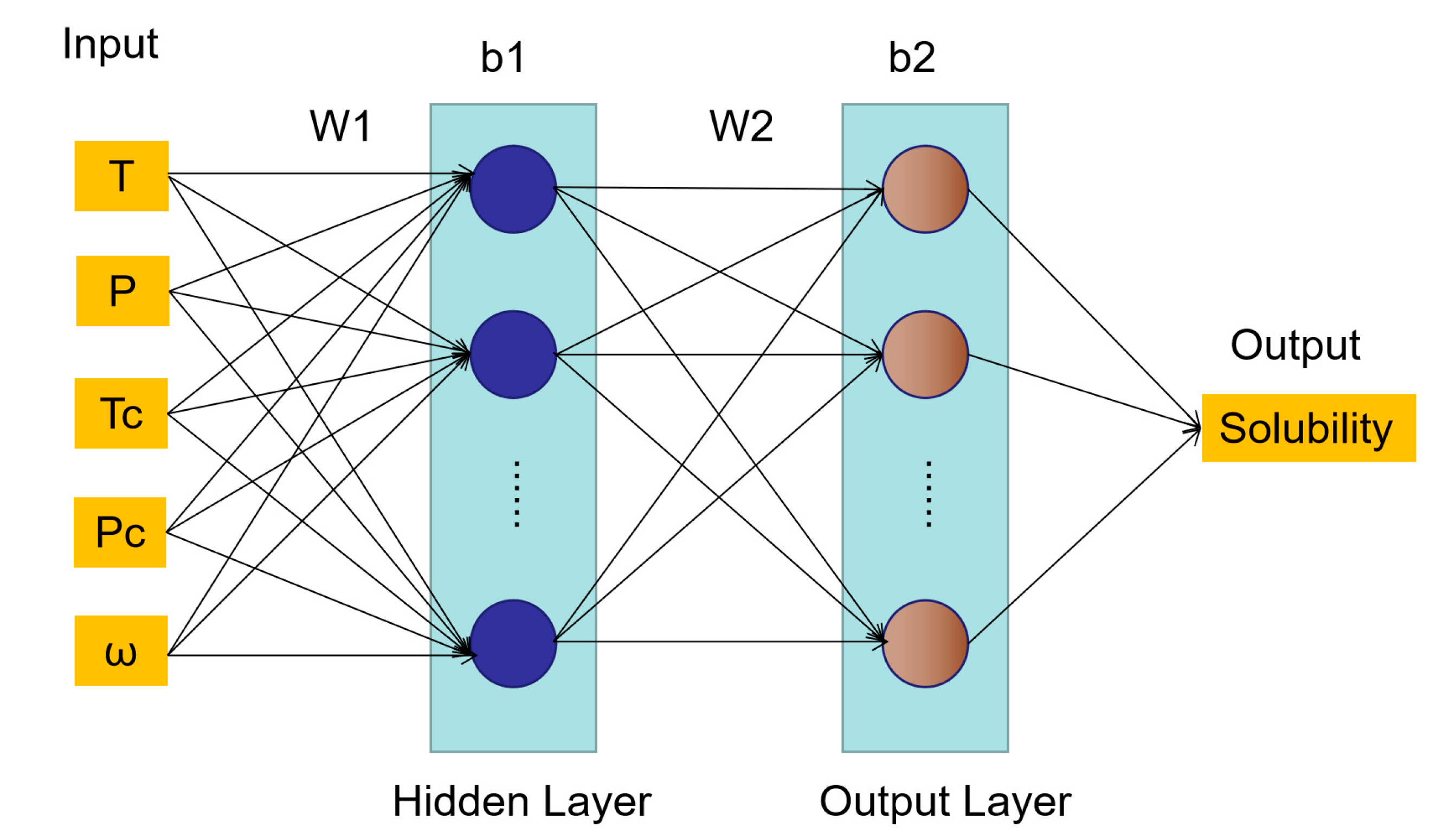

Figure 3. Flowchart of modeling via the two-layer feed-forward neural network. “W1, b1” and “W2, b2” were weights and biases for the hidden layer and output layer, respectively.
Figure 3. Flowchart of modeling via the two-layer feed-forward neural network. “W1, b1” and “W2, b2” were weights and biases for the hidden layer and output layer, respectively.
Applsci 13 06900 g003

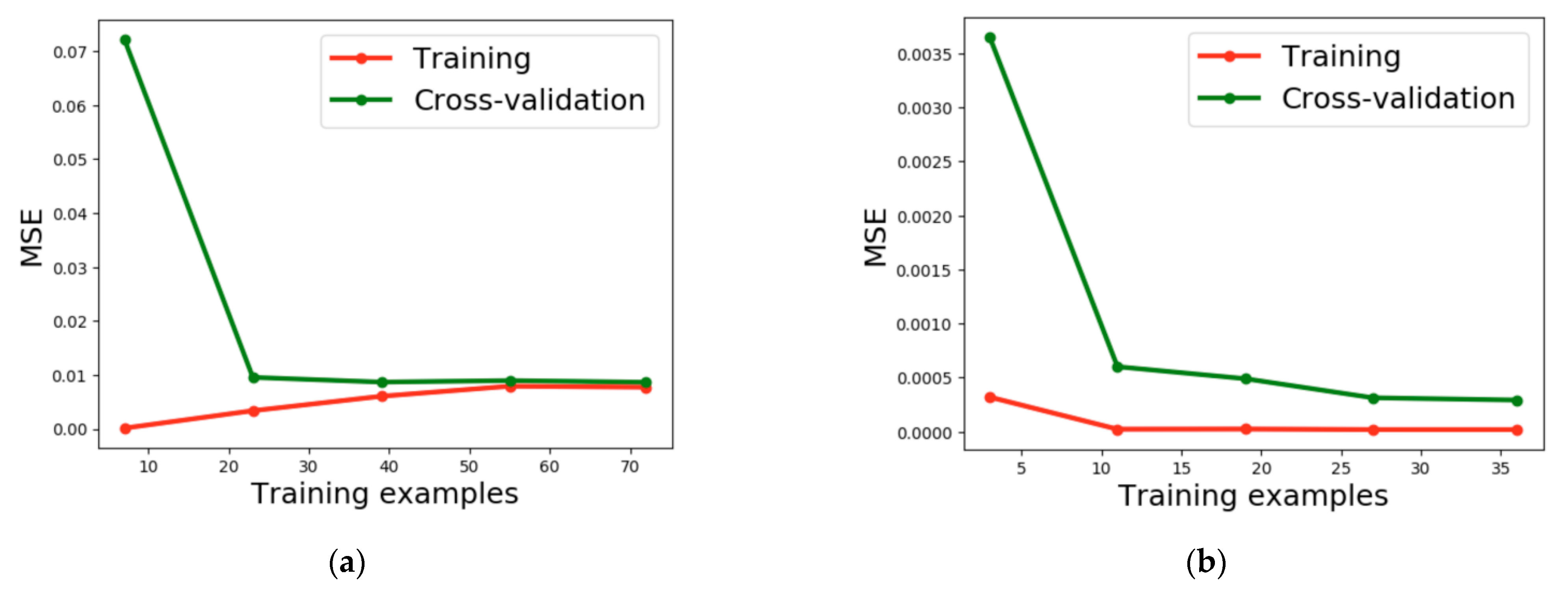

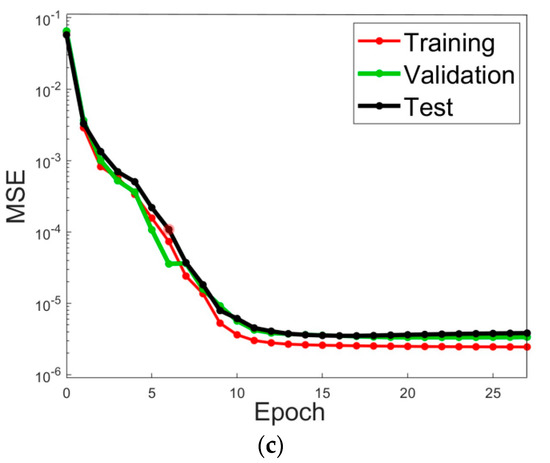

Figure 4. The learning loss curve of modeling (a) N2O in ionic liquid [(ETO)2IM][Tf2N] via the linear regression method, (b) N2O in ionic liquid [BMIM][AC] via the voting method, (c) and N2O in ionic liquid [BMIM][Tf2N] via the two−layer feed−forward neural network.
Figure 4. The learning loss curve of modeling (a) N2O in ionic liquid [(ETO)2IM][Tf2N] via the linear regression method, (b) N2O in ionic liquid [BMIM][AC] via the voting method, (c) and N2O in ionic liquid [BMIM][Tf2N] via the two−layer feed−forward neural network.
Applsci 13 06900 g004aApplsci 13 06900 g004b

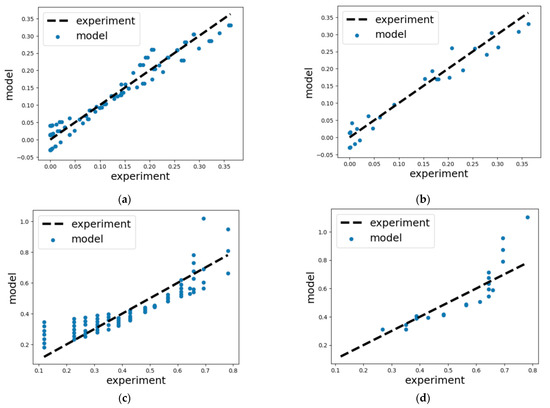

Figure 5. Plots for predicted solubility with experimental values via the linear regression method. (a) N2O in [BMIM][Tf2N] during training; (b) N2O in [BMIM][Tf2N] during testing; (c) N2O in [(ETO)2IM][Tf2N] during training; and (d) N2O in [(ETO)2IM][Tf2N] during testing.
Figure 5. Plots for predicted solubility with experimental values via the linear regression method. (a) N2O in [BMIM][Tf2N] during training; (b) N2O in [BMIM][Tf2N] during testing; (c) N2O in [(ETO)2IM][Tf2N] during training; and (d) N2O in [(ETO)2IM][Tf2N] during testing.
Applsci 13 06900 g005

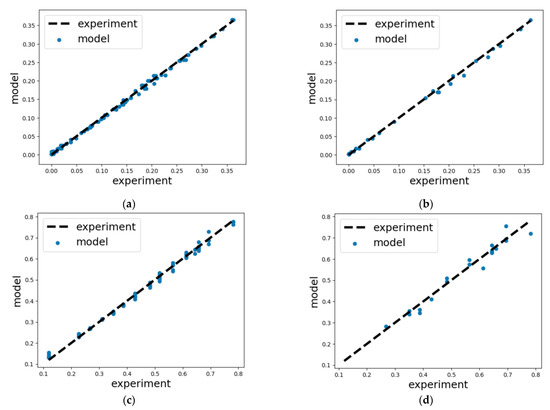

Figure 6. Plots for predicted solubility with experimental values via the voting method. (a) N2O in [BMIM][Tf2N] during training; (b) N2O in [BMIM][Tf2N] during testing; (c) N2O in [(ETO)2IM][Tf2N] during training; and (d) N2O in [(ETO)2IM][Tf2N] during testing.
Figure 6. Plots for predicted solubility with experimental values via the voting method. (a) N2O in [BMIM][Tf2N] during training; (b) N2O in [BMIM][Tf2N] during testing; (c) N2O in [(ETO)2IM][Tf2N] during training; and (d) N2O in [(ETO)2IM][Tf2N] during testing.
Applsci 13 06900 g006

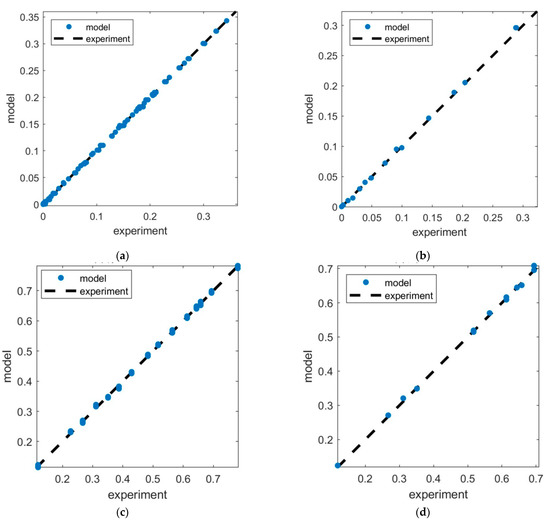

Figure 7. Plots for predicted solubility with experimental values via the TLFFNN method. (a) N2O in [BMIM][Tf2N] during training; (b) N2O in [BMIM][Tf2N] during testing; (c) N2O in [(ETO)2IM][Tf2N] during training; and (d) N2O in [(ETO)2IM][Tf2N] during testing.
Figure 7. Plots for predicted solubility with experimental values via the TLFFNN method. (a) N2O in [BMIM][Tf2N] during training; (b) N2O in [BMIM][Tf2N] during testing; (c) N2O in [(ETO)2IM][Tf2N] during training; and (d) N2O in [(ETO)2IM][Tf2N] during testing.
Applsci 13 06900 g007

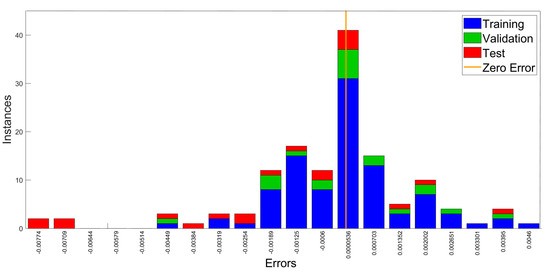

Figure 8. Error histogram for N2O in [BMIM][Tf2N] via the TLFFNN method.
Figure 8. Error histogram for N2O in [BMIM][Tf2N] via the TLFFNN method.
Applsci 13 06900 g008

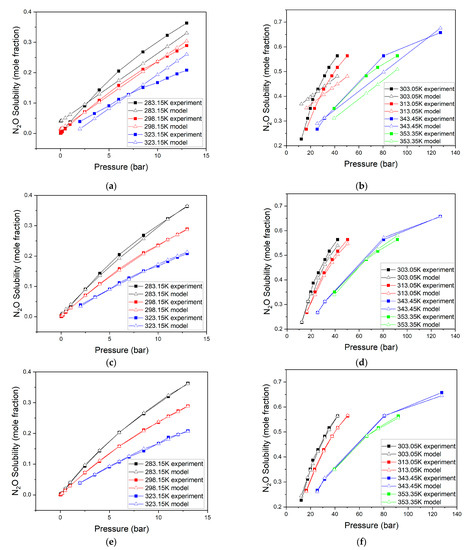

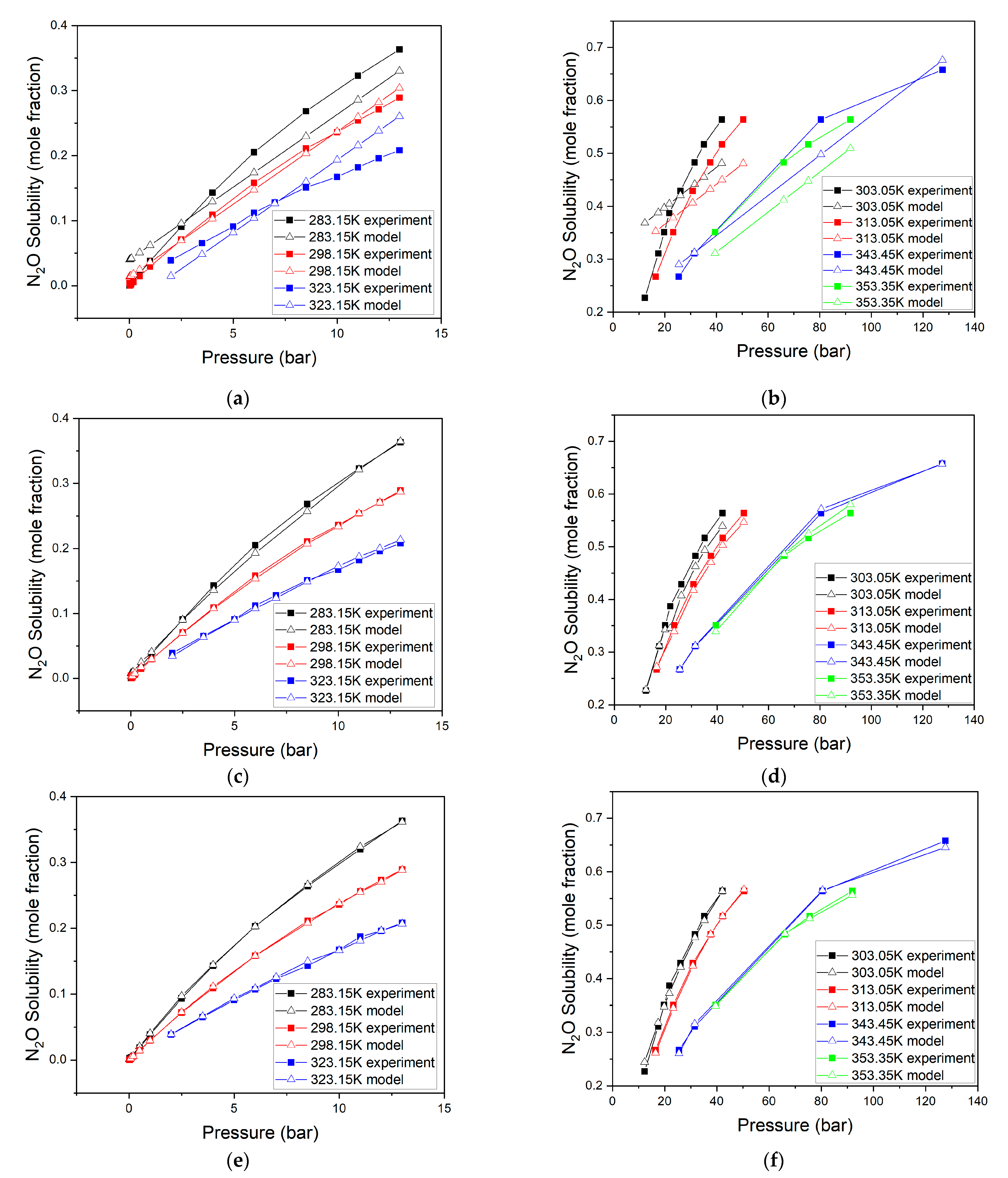

Figure 9. The trend in N2O solubility against different temperatures and pressures. (a) N2O in [BMIM][Tf2N] via the linear regression method; (b) N2O in [(ETO)2IM][Tf2N] via the linear regression method; (c) N2O in [BMIM][Tf2N] via the voting method; (d) N2O in [(ETO)2IM][Tf2N] via the voting method; (e) N2O in [BMIM][Tf2N] via the TLFFNN method; and (f) N2O in [(ETO)2IM][Tf2N] via the TLFFNN method.
Figure 9. The trend in N2O solubility against different temperatures and pressures. (a) N2O in [BMIM][Tf2N] via the linear regression method; (b) N2O in [(ETO)2IM][Tf2N] via the linear regression method; (c) N2O in [BMIM][Tf2N] via the voting method; (d) N2O in [(ETO)2IM][Tf2N] via the voting method; (e) N2O in [BMIM][Tf2N] via the TLFFNN method; and (f) N2O in [(ETO)2IM][Tf2N] via the TLFFNN method.
Applsci 13 06900 g009

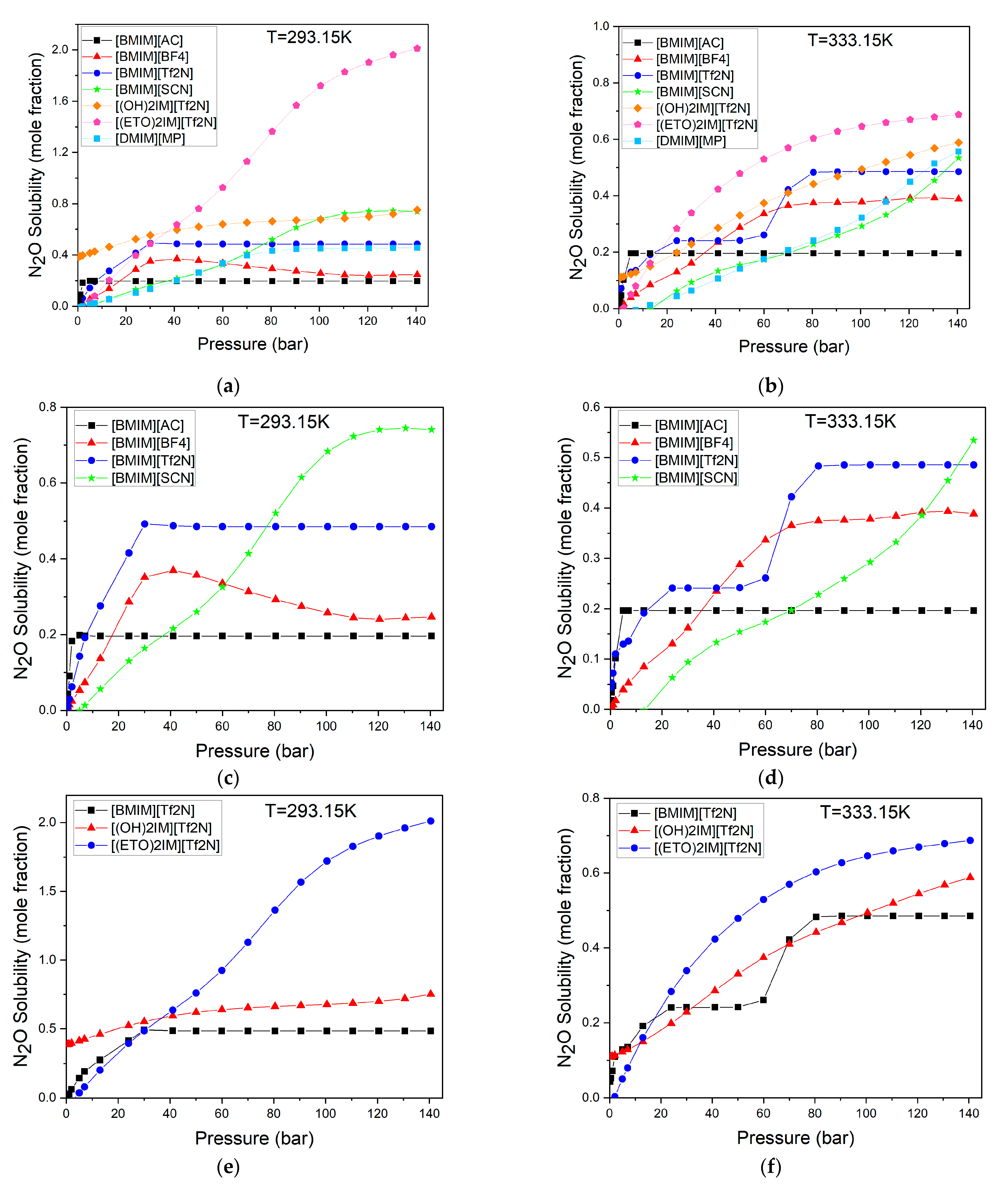

Figure 10. The solubility of N2O varies in various ionic liquids under various pressures and temperatures. (a) N2O in all kinds of ILs under 293.15 K; (b) N2O in all kinds of ILs under 333.15 K; (c) N2O in ILs with the same cations [BMIM] under 293.15 K; (d) N2O in ILs with the same cations [BMIM] under 333.15 K; (e) N2O in ILs with the same anions [TF2N] under 293.15 K; and (f) N2O in ILs with the same anions [TF2N] under 333.15 K.
Figure 10. The solubility of N2O varies in various ionic liquids under various pressures and temperatures. (a) N2O in all kinds of ILs under 293.15 K; (b) N2O in all kinds of ILs under 333.15 K; (c) N2O in ILs with the same cations [BMIM] under 293.15 K; (d) N2O in ILs with the same cations [BMIM] under 333.15 K; (e) N2O in ILs with the same anions [TF2N] under 293.15 K; and (f) N2O in ILs with the same anions [TF2N] under 333.15 K.
Applsci 13 06900 g010
Table 1. Characteristics of IL–N2O systems.
Table 1. Characteristics of IL–N2O systems.
No.Ionic LiquidsTemperature (K)Pressure (bar)Solubility (Mole Fraction)N
1[BMIM][BF4] [43,44]292.45–373.550.26–133.300.001–0.37187
2[BMIM][AC] [45]283.10–348.200.0252–2.00070.001–0.20750
3[BMIM][Tf2N] [3,46]283.15–323.150–13.000–0.363136
4[BMIM][SCN] [3,43]293.05–373.3010.30–184.900.029–0.29449
5[DMIM][MP] [43]292.35–373.1521.00–164.500.087–0.33642
6[(ETO)2IM][Tf2N] [3,43]302.05–363.456.10–240.400.119–0.781102
7[(OH)2IM][Tf2N] [3,43]302.85–363.1510.20–301.000.152–0.69155
Table 2. The acentric factor (ω), Tc, and Pc of ionic liquids studied here.
Table 2. The acentric factor (ω), Tc, and Pc of ionic liquids studied here.
No.Ionic LiquidsωTc (K)Pc (bar)
1[BMIM][BF4] [43,44]0.8489632.3020.40
2[BMIM][AC] [45]0.6681867.6829.42
3[BMIM][Tf2N] [46]1.2890831.3927.60
4[BMIM][SCN] [43]0.47811047.4019.40
5[DMIM][MP] [43]0.4714767.5032.60
6[(ETO)2IM][Tf2N] [43]0.28171310.8028.20
7[(OH)2IM][Tf2N] [43]0.72671314.1045.09
Table 3. The coefficients fitted for Equation (2) via the linear regression method.
Table 3. The coefficients fitted for Equation (2) via the linear regression method.
No.Ionic Liquidθ0θ1θ2θ3θ4θ5
1[BMIM][BF4]0.6233−0.00210.00480.00010.00000.0000
2[BMIM][AC]0.2340−0.00070.07350.00000.00000.0000
3[BMIM][Tf2N]0.5342−0.00170.02240.00000.00000.0000
4[BMIM][SCN]0.7933−0.00140.0022−0.00030.00000.0000
5[DMIM][MP]0.8816−0.00270.00270.00000.00000.0000
6[(ETO)2IM][Tf2N]1.287−0.00320.00380.00000.00000.0000
7[(OH)2IM][Tf2N]1.050−0.00260.00240.00000.00000.0000
Table 4. Performance of the models via the linear regression method.
Table 4. Performance of the models via the linear regression method.
No.Ionic LiquidMSERMSEMAER2
1[BMIM][BF4]3.160 × 10−35.622 × 10−23.598 × 10−20.7736
2[BMIM][AC]2.583 × 10−41.607 × 10−21.300 × 10−20.8323
3[BMIM][Tf2N]6.770 × 10−42.602 × 10−22.296 × 10−20.9541
4[BMIM][SCN]2.050 × 10−34.528 × 10−23.554 × 10−20.7303
5[DMIM][MP]1.319 × 10−33.632 × 10−22.780 × 10−20.8016
6[(ETO)2IM][Tf2N]1.303 × 10−21.142 × 10−18.233 × 10−20.3349
7[(OH)2IM][Tf2N]7.758 × 10−38.808 × 10−28.101 × 10−20.6743
Table 5. Performance of models via the voting method.
Table 5. Performance of models via the voting method.
No.Ionic LiquidMSERMSEMAER2
1[BMIM][BF4]5.456 × 10−57.387 × 10−36.416 × 10−30.9961
2[BMIM][AC]9.022 × 10−59.498 × 10−37.232 × 10−30.9414
3[BMIM][Tf2N]3.115 × 10−55.581 × 10−34.042 × 10−30.9979
4[BMIM][SCN]4.727 × 10−42.174 × 10−21.963 × 10−20.9378
5[DMIM][MP]2.861 × 10−35.349 × 10−24.962 × 10−20.5697
6[(ETO)2IM][Tf2N]8.046 × 10−42.837 × 10−22.194 × 10−20.9589
7[(OH)2IM][Tf2N]3.977 × 10−36.307 × 10−24.732 × 10−20.8330
Table 6. Average performance of the models.
Table 6. Average performance of the models.
AlgorithmsMSERMSEMAER2
Linear regression2.758 × 10−34.575 × 10−23.603 × 10−20.8560
Training setsVoting1.319 × 10−41.043 × 10−28.072 × 10−30.9904
TLFFNN2.468 × 10−53.924 × 10−3---0.9987
Linear regression4.037 × 10−35.459 × 10−24.266 × 10−20.7287
Test setsVoting1.185 × 10−32.702 × 10−22.231 × 10−20.8907
TLFFNN2.268 × 10−54.543 × 10−3---0.9981
Linear regression3.397 × 10−35.017 × 10−23.934 × 10−20.7924
All datasetsVoting6.582 × 10−41.873 × 10−21.519 × 10−20.9405
TLFFNN2.368 × 10−54.234 × 10−3---0.9984
Table 7. Performance of models via the TLFFNN method.
Table 7. Performance of models via the TLFFNN method.
No.Ionic LiquidMSERMSER2
1[BMIM][BF4]2.447 × 10−54.946 × 10−30.9988
2[BMIM][AC]6.109 × 10−62.472 × 10−30.9988
3[BMIM][Tf2N]5.055 × 10−62.248 × 10−30.9996
4[BMIM][SCN]3.366 × 10−55.801 × 10−30.9944
5[DMIM][MP]3.460 × 10−55.882 × 10−30.9978
6[(ETO)2IM][Tf2N]3.107 × 10−55.574 × 10−30.9990
7[(OH)2IM][Tf2N]2.381 × 10−54.880 × 10−30.9984
Table 8. Comparison of the performance of different models.
Table 8. Comparison of the performance of different models.
MethodDatasetMSERMSER2
LSSVM [33]Test--0.01200.9959
SVM [33]--0.01040.9970
ANN [33]--0.01150.9963
MLP-ANN [33]0.0003--0.9945
Hybrid-ANFIS [33]0.0020--0.9590
PSO-ANFIS [34]0.0026--0.9473
CSA-LSSVM0.0006--0.9888
CFNN-LM [35]--0.00740.9985
RBFNN-PSO [35]--0.00950.9978
GEP [35]--0.01790.991
TLFFNN [This work]0.000020.00450.9981
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Feng, H.; Qin, W.; Hu, G.; Wang, H. Intelligent Prediction of Nitrous Oxide Capture in Designable Ionic Liquids. Appl. Sci. 2023, 13, 6900. https://doi.org/10.3390/app13126900

AMA Style

Feng H, Qin W, Hu G, Wang H. Intelligent Prediction of Nitrous Oxide Capture in Designable Ionic Liquids. Applied Sciences. 2023; 13(12):6900. https://doi.org/10.3390/app13126900

Chicago/Turabian Style

Feng, Haijun, Wen Qin, Guangwu Hu, and Huijing Wang. 2023. "Intelligent Prediction of Nitrous Oxide Capture in Designable Ionic Liquids" Applied Sciences 13, no. 12: 6900. https://doi.org/10.3390/app13126900

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
