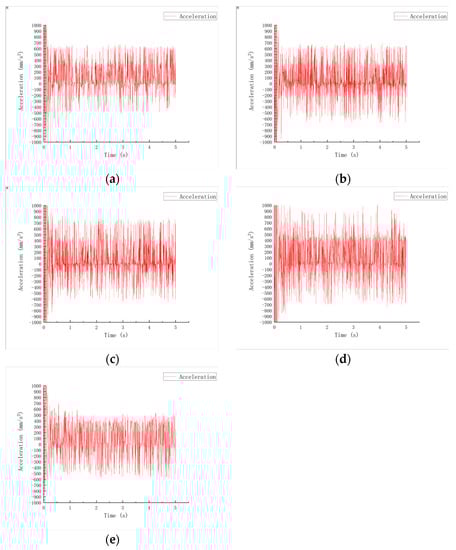

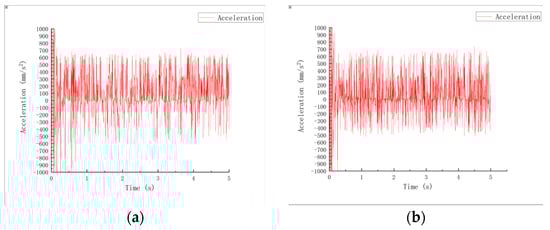

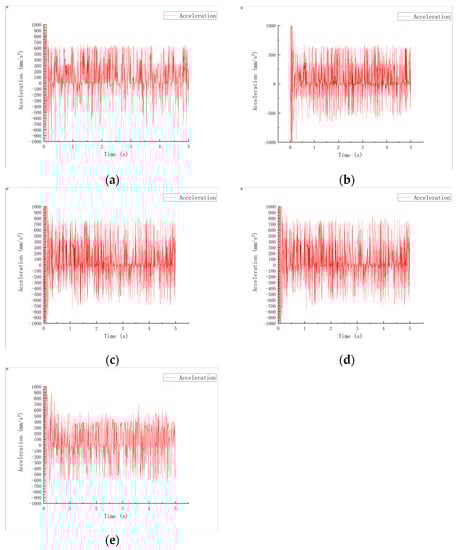

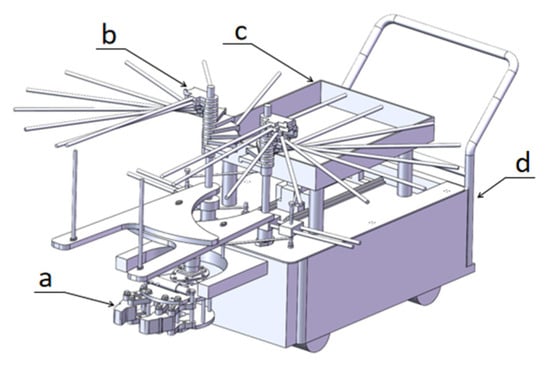

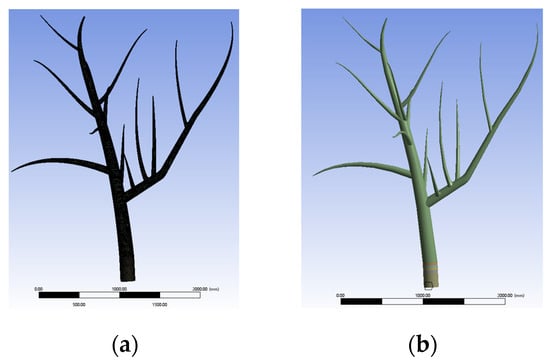

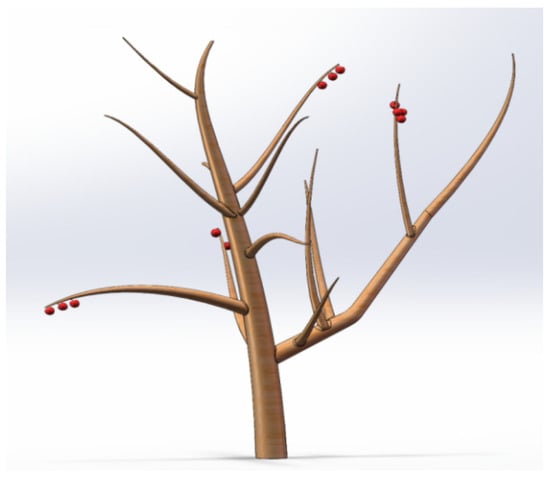

2.2.3. Vibratory Crab Apple Picker Excitation Device
Fruit picking operations need to be carried out outdoors. An inertial vibration device is used to generate centrifugal force by the circular motion of the eccentric block, which generates the vibration excitation force of the vibrating tree under the action of centrifugal force. Therefore, a vibration device with large excitation force, easy operation, and simple maintenance should be selected. The shapes of eccentric blocks are mainly fan-type and hammer-type blocks (semi-circular eccentric blocks are special fan-type eccentric blocks). In this section, it is shown that differences in their external structure, mass, and eccentricity lead to significant differences in the excitation force generated at the same excitation frequency.
Different eccentrics in operation: hammer eccentrics generate the highest excitation force; fan eccentrics are widely used and their excitation force is second only to that of hammer eccentrics; semi-circular eccentrics have all the characteristics of fan eccentrics since they are sector eccentrics with a 180° center of circle, and are easier to process than sector eccentrics with other degrees of centering, and their eccentrics generate a higher excitation force. Therefore, the semicircular eccentric block was selected for processing in this paper. At the same time, it is also possible to change the structure and number of eccentric blocks, or change the speed of the eccentric blocks, so as to change the size of the excitation force and to cope with different picking operations.
As shown in

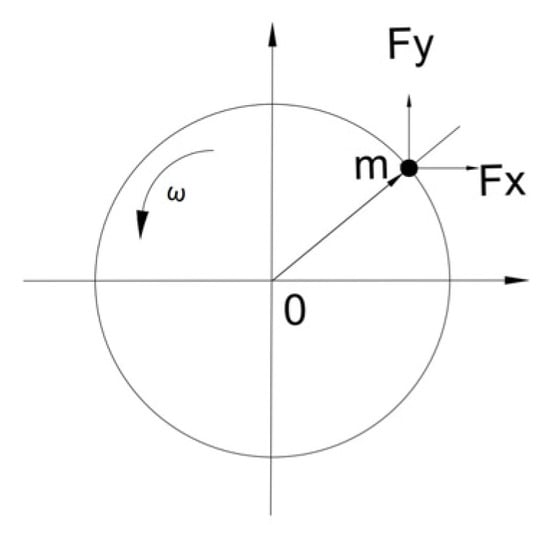

Figure 4, the single eccentric block generates a force Fx in the x-direction and a force Fy in the y-direction during rotation, which drives the excitation device to generate an excitation force, which is then transmitted to the trunk to vibrate it, where Fx is the longitudinal component of the excitation force and Fy is the transverse component.
In this paper, 45 steel was selected as the processing material. The density of the material is 7850 kg/m3. For the production of the eccentric block, multiple pieces of the same semicircular eccentric block were stacked and welded. The thickness of the eccentric block was determined as 90 mm. Additionally, the speed of the eccentric block was set at 750 r/min.
During the process of crab apple picking, different excitation forces and rotational speeds are utilized based on the specific fruit trees. Parameters such as the excitation force of the eccentric block can be calculated using the following formula:
In this equation, represents the excitation force; refers to the eccentric block mass; represents the angular velocity of the eccentric block; and represents the center of gravity.
The angular velocity relation of the eccentric block is given by:
In this equation, represents the eccentric wheel speed.
The mass relationship of the eccentric wheel is given by:
In this equation, represents the density of materials used for eccentric wheels; refers to the thickness of the eccentric wheel; and represents the angular velocity of the eccentric block.
The center of mass formula is:
From Equations (1)–(4), the excitation force is organized as:
Simplifying (5) yields the following equation for the radius of the eccentric wheel:

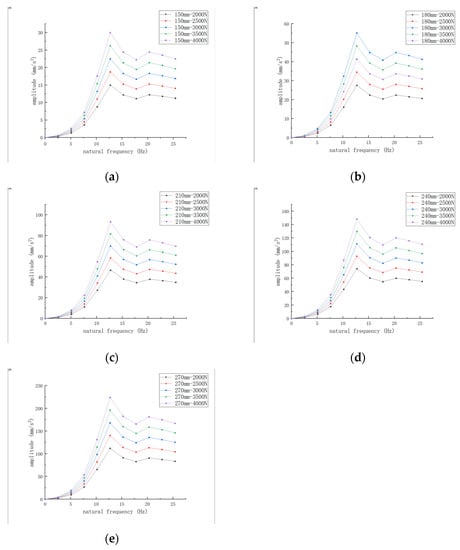

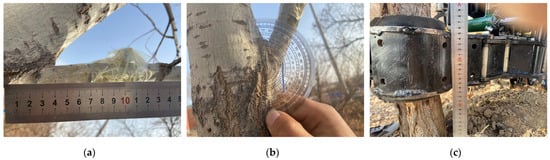

According to the given clamping height range of 150 mm to 270 mm and the excitation force range of 2000 N to 4000 N, Formula (6) can be used. Additionally, the radius of the eccentric wheel should be in the range of 111 mm to 190 mm. To determine the radius of the eccentric wheel, the middle value of 150 mm can be taken.
During the operation of the vibrating crab apple picker, the eccentric block plays a crucial role in generating the excitation force through high-speed rotation. Additionally, when selecting the eccentric shaft, it is important to consider reducing the friction caused by the rotation of the eccentric block. Therefore, the material chosen for the eccentric block support shaft is No. 45 steel.
Since the eccentric block has a circular motion under the control of the motor, it generates periodic motion on the eccentric block support shaft, so here we calculate and analyze the journey of the support shaft of the eccentric wheel. The relation equation of the shaft diameter of the eccentric block support shaft of the crab apple picker is:
In these equations, represents the motor starting torque; refers to the modern mechanical design manual fixed value; represents the diesel engine rated power; and refers to the rated motor speed.
The given values are as follows: = 92 Nm, = 118, = 6.6 kW, and = 750 r/min. By applying these values to Equation (8), the diameter of the eccentric wheel shaft is determined to be 25.108 mm.
According to modern mechanical design manuals [
42], for shafts with
d > 100 mm, the presence of one keyway increases the shaft diameter by 3%; the presence of two keyways increases the shaft diameter by 7%. For
d < 100 mm shafts, one keyway increases the shaft diameter by 5% to 7%, and two keyways increase it by 10% to 15%. Additionally, the calculated shaft diameter should be selected as the standard diameter.
Then, according to the above calculation principle, the minimum diameter
of the eccentric wheel support shaft is:
In this design, the minimum diameter of the eccentric block support shaft has been adjusted to 28 mm based on the specific requirements.

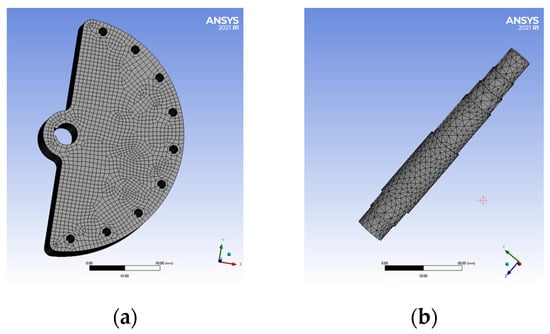

The eccentric block and eccentric shaft were designed using Solid Works 2021 3D software. The outer dimensions of the eccentric block are as follows:
R = 150 mm,
r = 30 mm, and
r0 = 30 mm. You can refer to

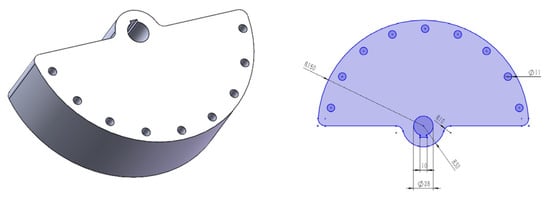

Figure 5 for a visual representation of the design.
Then, the theoretical eccentricity of the eccentric block is:
The material chosen for the eccentric block is 45-gauge steel with density
ρ = 7.85 × 10
3 and thickness
B = 95 mm; then, the mass of the eccentric block is:
where
represents the eccentric block radius;
refers to the outer diameter of the small circle of the eccentric block;
represents the eccentric shaft inner diameter;
refers to the eccentric block thickness; and
represents the eccentric block density.

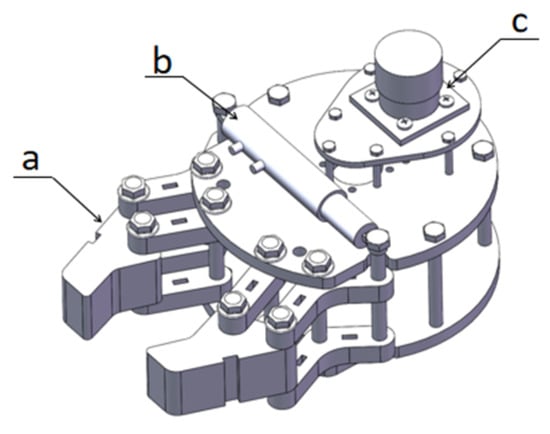

2.2.5. Vibratory Crab Apple Picker Drive
The driving device serves as the power source for the entire crab apple picking mechanism. The motor drive, gasoline engine drive, and diesel engine drive methods are the main methods used for mechanical vibration. In this paper, the crab apple picking operation being studied takes place in a field environment with harsh conditions. The chosen picking method involves trunk vibration picking, resulting in a higher defoliation rate and requiring a larger excitation force. During the working process of crab apple picking, power loss occurs due to the driving power of the eccentric block and the friction loss power of the eccentric block. Based on the design of the eccentric block mentioned earlier, it has an eccentric distance of 61.75 mm and a mass of 26.93 kg. Additionally, the phase difference angle of the picker is 175°. Then, the effective driving power of the eccentric block of the vibrating crab apple picker is:
where
represents the eccentric block mass;
refers to the eccentricity of the eccentric block; and
represents the phase difference angle of the picker.
There is friction between the shaft diameters as the eccentric block rotates, so the work done by the eccentric block to overcome the friction is:
The power required by the hydraulic motor is:
In this equation, represents the power required for hydraulic motors; refers to the eccentric block friction loss power; represents friction; refers to the coefficient of friction; represents the eccentric block shaft diameter; and represents the mechanical efficiency.

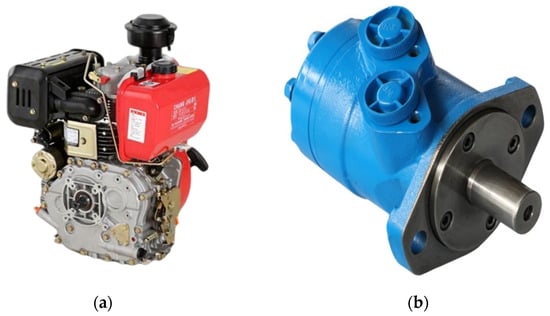

Therefore, this paper adopts the diesel engine drive, which can be better adapted to the field picking environment and has a relatively good stability and a high efficiency. By comparing different picker models, this paper chooses to use a CF186FS diesel engine to drive the picker, and at the same time chooses a BM2-50 hydraulic motor to drive the eccentric block. The shapes of the diesel engine and hydraulic motor are shown in
Figure 7; the main parameters are shown in
Table 3 and
Table 4.
