1. Introduction
Gas turbines are rotary engines, with internal combustion categorized as one of the power-generating cycle types. They have traditionally been used in a variety of applications from industrial processing to energy production and aerospace propulsion. The turbofan engine, a common type of gas turbine engine used in the aerospace industry, consists of a large fan at the inlet and propels the aircraft by mixing the fan output flow with the core gas generator output flow. Turbofans are categorized based on bypass ratios and the mixture of flows. The bypass ratio (BPR) is the ratio of the fan output flow to the core output flow. The majority of the propulsion in a low-BPR turbofan comes through the engine gas generator cycle and is typically used in the defense sector, whereas high-BPR turbofans propel the aircraft mainly through the fan output flow and are prevalent on the commercial side. Mixed- and unmixed-flow turbofans differ in the sense that the fan output flow and the core output flow may either be combined before exiting the nozzle or be exhausted separately.
Gas turbines are conventionally built to most efficiently run under typical operating circumstances and at a certain operating point known as the design point. The goal of parametric cycle analysis is to approximate variables that govern performance concerning design limitations, flying conditions, and engineering choices. Parametric analysis is needed since an engine performance study under conditions other than the base point, also known as “off-design” cycle evaluation, is not possible until a baseline and engine size are determined. Determining the design combinations that deliver the highest performance for every flight state provides behaviors that point towards the optimal answer. The appropriate limits of every model are bracketed after parametric evaluation.
Machine learning is an aspect of artificial intelligence (AI) that facilitates computer software to become more accurate at determining results, regardless of having to be comprehensively configured to do so. The way an algorithm learns to enhance its prediction accuracy is widely used to classify classical machine learning. Learning is divided into four categories: supervised learning, unsupervised learning, semi-supervised learning, and reinforcement learning. The method used by data scientists is governed through the type of data they intend to forecast.
The capability of computers to replicate intellectual human behavior is known as artificial intelligence (AI). Machine learning (ML) is a subset of AI that permits software to be trained while not being continuously programmed. Deep learning is an area of ML that uses algorithms that self-learn, known as artificial neural networks (ANNs), that are influenced by brain anatomy and functioning. Instead of being specifically instructed to approach a challenge, ANNs are trained to “learn” concepts and trends. The perceptron is a mathematical model of a biological neuron that serves as the building block of an ANN. It accepts inputs and produces a response in the same way as a true neuron does. Each input is assigned a weight. Each input is multiplied by its weight separately and then combined and fed into an activation function, which decides whether the neuron should produce a response. The training method involves providing a perceptron with a large amount of training data and computing the result for every one of them. The weights are revised following every run to decrease the resultant error, which is the deviation of the real result from the intended (target).
The significance of examining gas turbine engine research using various machine learning approaches, particularly the supervised learning method, can be found in publications. In this respect, several investigations have been conducted in the aerospace industry using intelligent systems.
Ahmet Cihangir and Turan [
1] conducted an off-design study of a turbofan engine. They attempted to demonstrate the difference in performance measures under ideal and practical conditions. The effects of efficiencies and pressure ratios of different components on engine output parameters were also investigated under various flight conditions. Various machine learning algorithms were used by Giorgi and Quarta to determine the dynamics of turbojet engines, particularly the Viper 632–43 engine, using the exhaust gas temperature as the fundamental variable [
2]. A neural network was developed that recognizes the provided information as a continuous sequence and anticipates the output in the following run. The one-step-ahead strategy, which determines the exhaust gas temperature in the following run, was assigned the prediction model. An artificial neural network (ANN) model for a micro-gas turbine was developed by Nikpey et al. [
3] that could accurately predict its characteristic performance. Subsequently, they employed the ANN to analyze the functionality and emissions of a recuperative micro-gas turbine that burned natural gas and biogas mixes. Comodi et al. [
4] analyzed a micro-gas turbine with an ANN to determine the effect of ambient conditions on its performance and estimate the pollution caused by it. A two-intercooler, two-reheater gas turbine was studied by Gonca [
5] for the parametric analysis of design variables and their effect on energy, energetic, and ecological performance using an ANN. ANNs have also been used in other gas turbine-based applications. Deep learning was used by Mohammadreza et al. [
6] to estimate the energy and exergy performance of the F135 PW100 turbofan engine. An intelligent model was implemented in their study to estimate output characteristics. Fentaye et al. [
7] devised a technique for detecting and isolating gas turbine malfunctions using modular convolutional neural networks. They analyzed the results of a single convolutional neural network architecture-based fault classification approach and a deep long short-term memory-assisted fault detection and isolation method. Talaat et al. [
8] suggested an artificial intelligence algorithm to estimate the degradation of power plant gas turbines for primary engine components using deep learning. The degradation data from the thermodynamic model was used to train the neural network model. The most effective framework was achieved through reducing the mean square error. In addition, thermodynamic analysis was used to assess the performance of the neural network using dissimilar degradation data as its testing data. Choi et al. [
9] predicted the functional parameters of an industrial gas turbine with an ANN. This model accurately predicted the performance paraments with real-time data as its input. Tian et al. [
10] used reinforcement learning to estimate the performance variables of a turbofan engine with minimum error. Orozco et al. [
11] presented an artificial neural network-based framework for the detection of externally fueled gas turbines to identify intrinsic flaws, as well as the influence of fuel. Zuming and Iftekhar [
12] devised a prediction model with supervised learning for gas turbine performance. The turbine and compressor’s functional features were determined using an artificial neural network. Zhou et al. [
13] diagnosed the faults in gas turbine engines using convolution and recurrent neural networks and compared their accuracy. They found optimized concurrent neural networks to be more precise and stable. Thakkar and Chaoui [
14] applied machine learning to develop a methodology for predicting an aircraft’s remaining useful life employing complete life cycle data and degradation parameter data. A deep layer recurrent neural network model was developed to estimate a turbofan engine’s durability. Sofyan et al. studied the turbojet engine’s parametric cycle using two simulation programs and differentiated their results. The optimum design characteristics that enhanced the engine’s performance were concluded through their research [
15]. Gray et al. coded a simulation program, pyCycle, to analyze novel gas turbine cycles [
16]. Gorji et al. [
17] conducted a thermodynamic cycle analysis of turbofan components under off-design conditions. Different design parameters were considered to determine the performance parameters and constraint functions of a reference engine. The thermodynamic analysis of a turbofan engine with pyCycle and numerical propulsion system simulation program was compared. The pyCycle code was found to be more computationally efficient. Various machine learning algorithms were used by Giorgi and Quarta to determine the dynamics of turbojet engines, particularly on the Viper 632–43 engine, using exhaust gas temperature as the fundamental variable [
18]. Aygun et al. analyzed the exergetic sustainability of a variable cycle engine. They analogized the results with the gas turbines used in fighter aircraft. Different variables were used for performance analysis with single and double bypass modes [
19]. Yao et al. diagnosed the faults in gas turbine engines using convolution and recurrent neural networks and compared their accuracy. They found optimized concurrent neural networks to be more precise and stable [
20]. Michal et al. employed Bayesian optimization and deep learning models to accurately predict the component failure of a turbofan engine [
21]. Fang et al. proposed a way to extend the acceleration controller of a small bypass ratio turbofan engine based on deep reinforcement learning to tackle the multidimensional constraint optimization issue in continuous action space [
22]. Advanced machine learning methods, such as Cond-LSTM, were found to give precise predictions for turbofan engine performance under specific flight conditions by Silva et al. [
23].
Previously, a transonic compressor instability prediction tool for the extensive modelling of axial compressor dynamics was developed by Sohail et al. Supervised learning was applied to estimate compressor performance at varied flow conditions relying on a dataset from CFD simulations. Sohail et al. analyzed the performance and stability of a low-bypass turbofan transonic axial compressor with swirl distortion. Furthermore, the non-uniform inflow swirl flow of the compressor rotor was also examined using the mathematical models based on the 1D mean-line code and Dynamic Turbine Engine Compressor Code (DYNTECC). The flow field in the transonic micro-axial flow compressor’s tip clearance zone was previously studied under non-uniform flow circumstances. The research focused on the negative effects of a steady-state distorted pattern of total pressure inlet flow conditions, both under-design and off-design RPM [
24,
25,
26].
This literature review indicates that, while a large body of literature studying the performance of gas turbine engines exists, it appears that a comprehensive investigation has not been considered on the F100-PW229 engine. Previously, researchers have applied machine learning algorithms on turbofan engines for their thermodynamic analysis and to predict their remaining useful life, among other topics. Professedly, this research is unprecedented as the use of supervised machine learning and deep learning for the prediction of parametric analysis of the aforementioned turbofan engine has not been researched before. Therefore, in the present study, the effects of various flight conditions on the F100-PW229 engine have been investigated. The effects of the Mach number, fan pressure ratio, altitude, turbine entry temperature, and bypass ratio on the specific thrust, propulsive efficiency, specific fuel consumption, and total fuel flow were examined. The regression learning models and deep neural networks were then programmed on this dataset to predict responses for new input data.
2. Materials and Methods

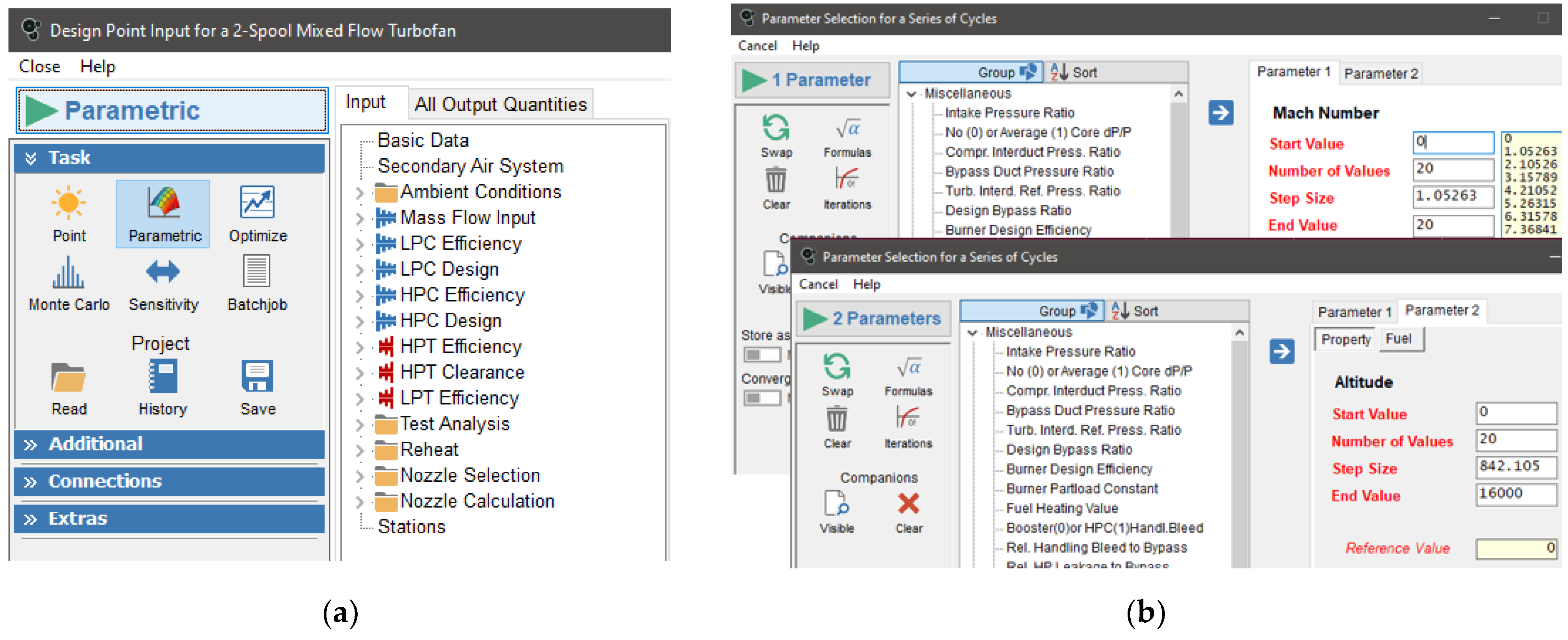

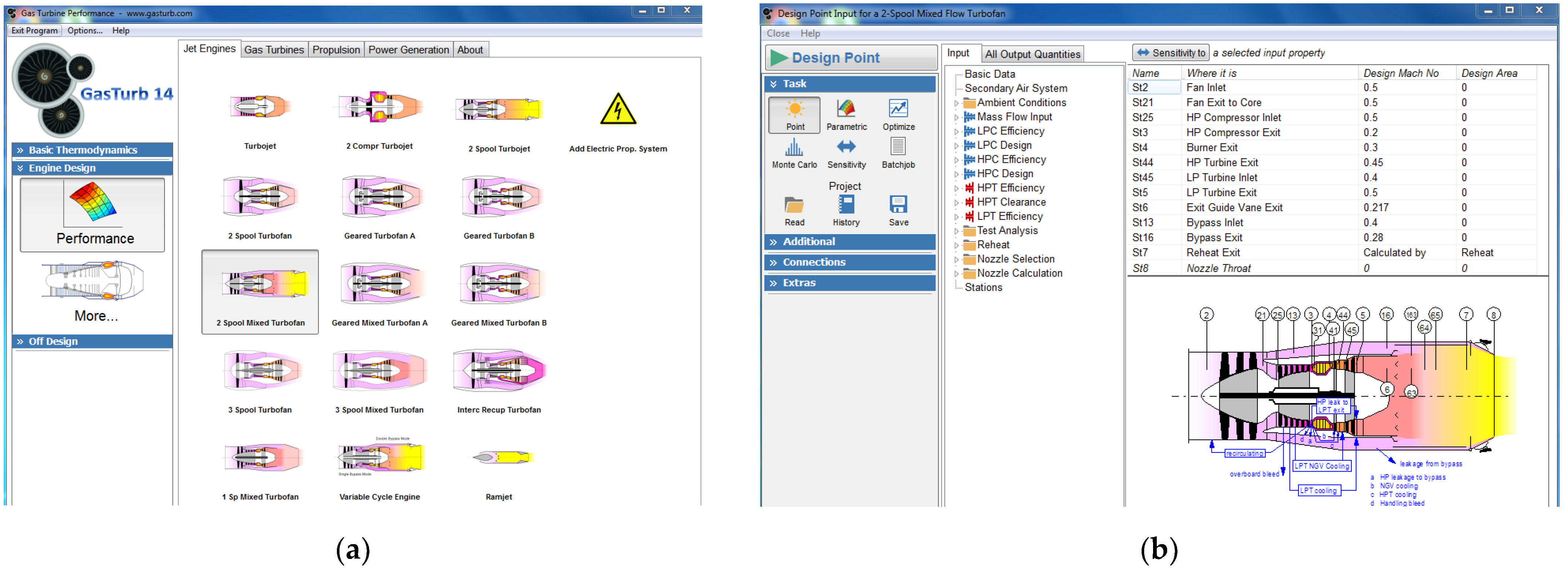

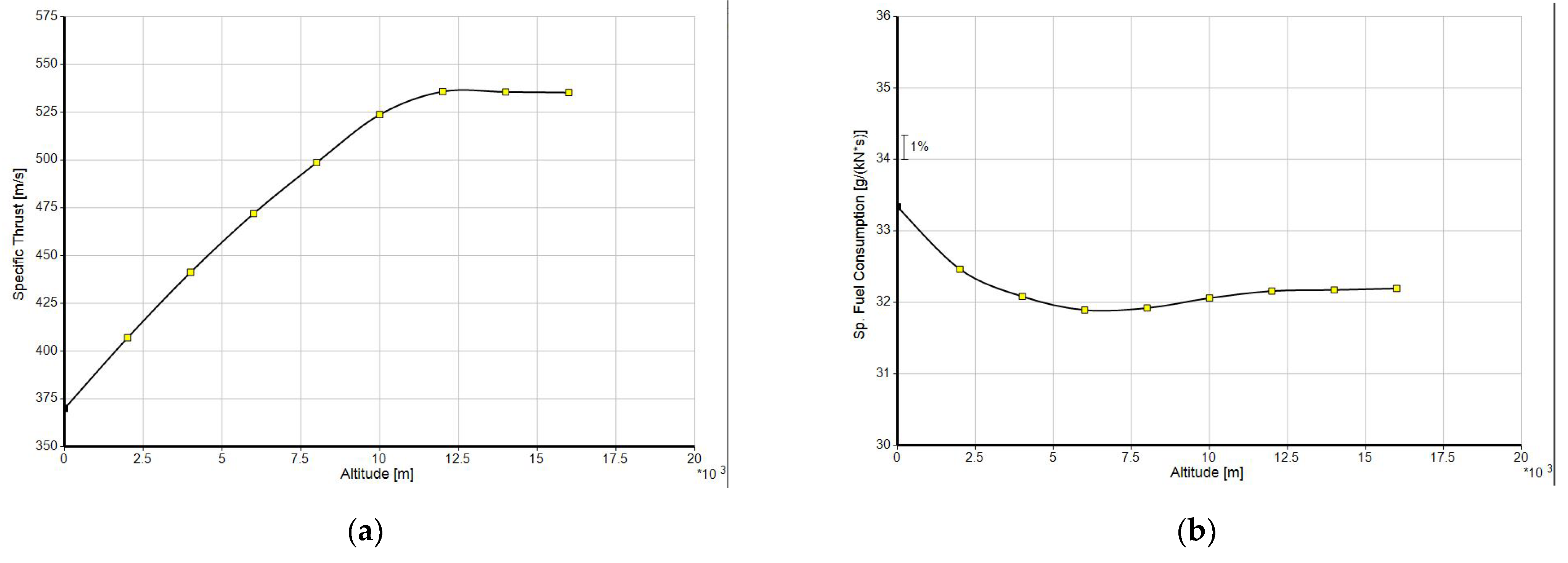

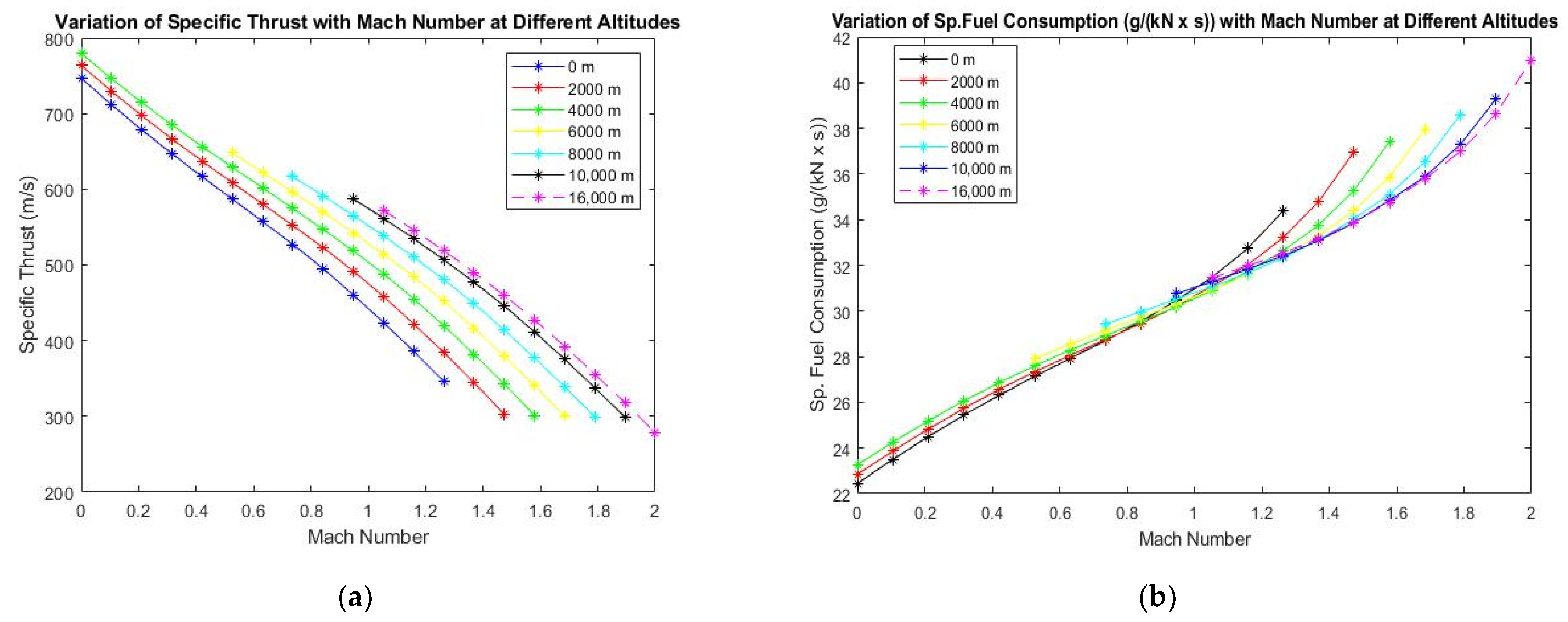

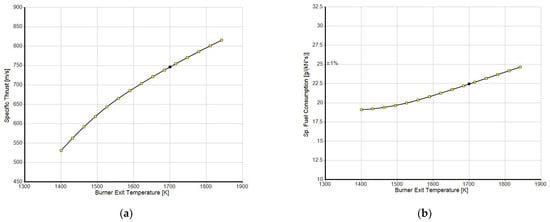

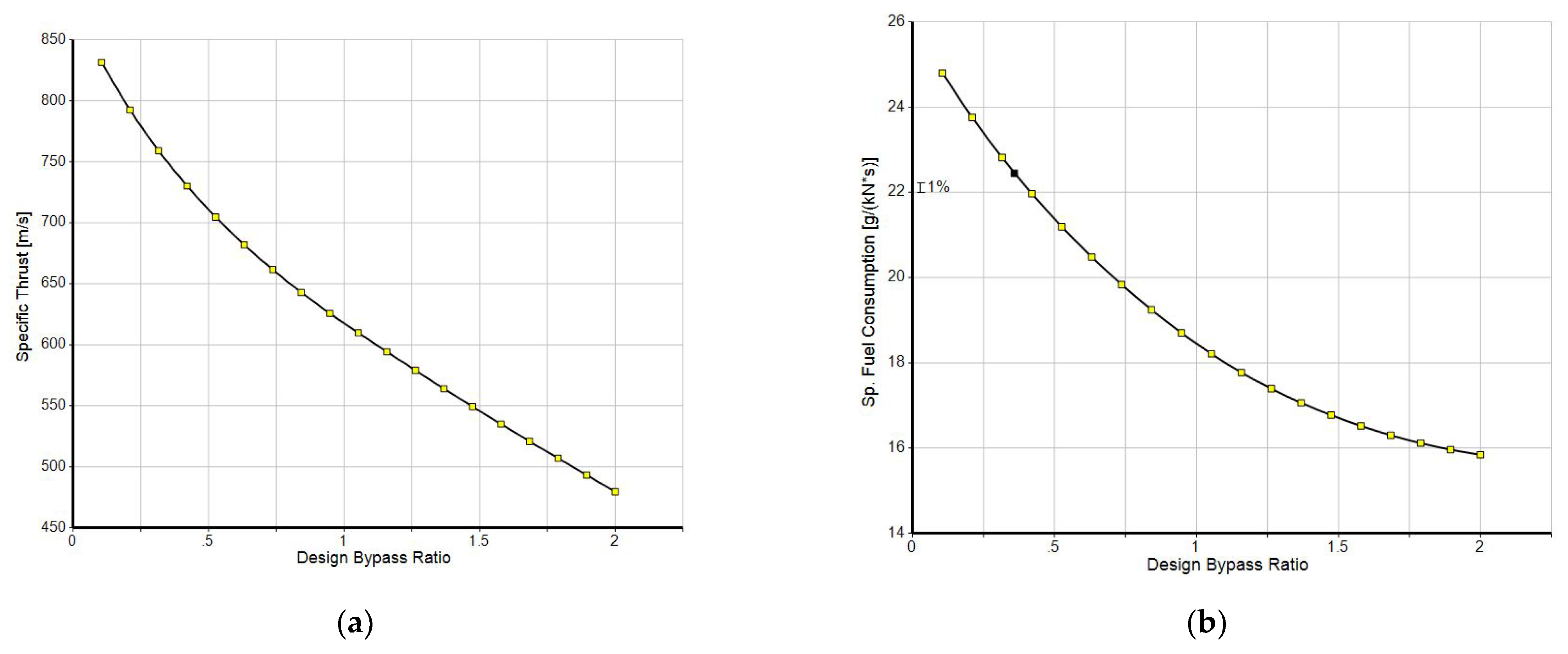

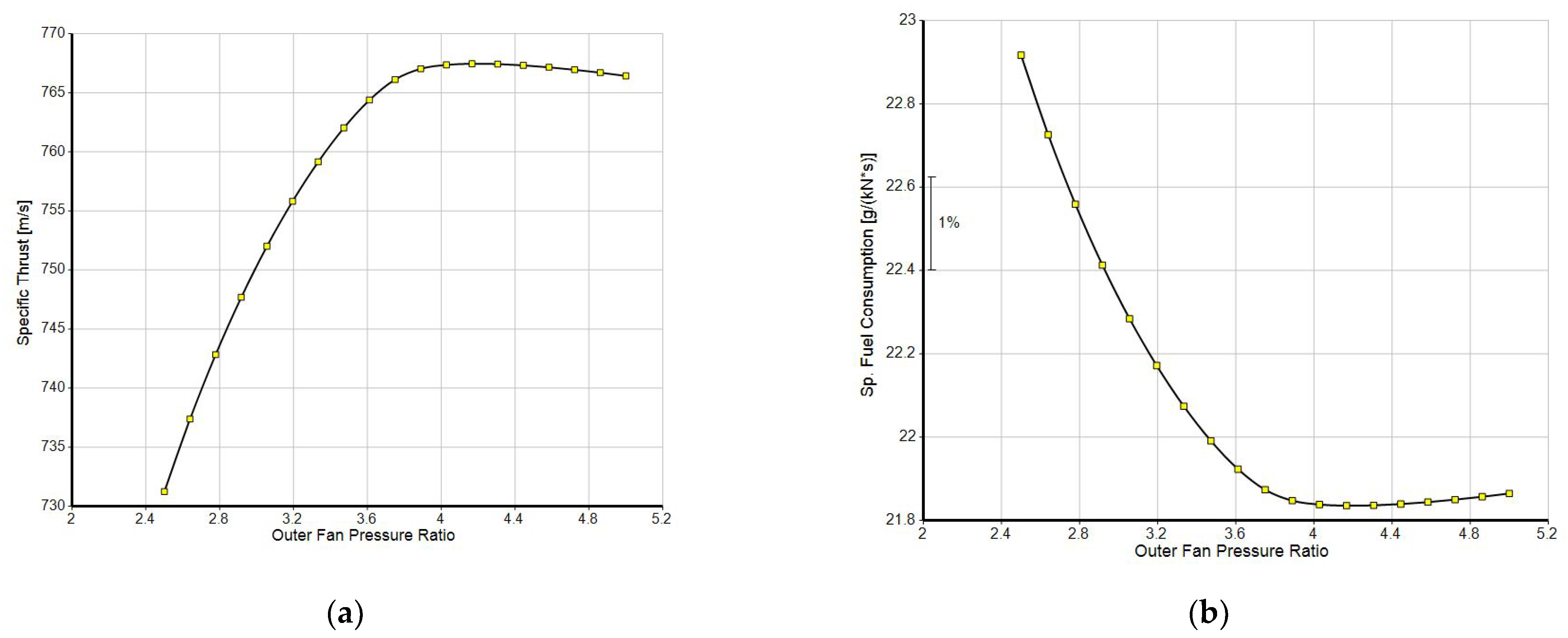

The Pratt & Whitney F100-PW229, a twin-spool, low BPR, afterburning turbofan engine that has powered combat planes, including the F-15 and F-16, was selected as the reference engine. A commercially available gas turbine simulation software, GasTurb 14, was used to create a dataset of engine performance response variables and input design parameters. After the validation of key performance parameters, like thrust and specific fuel consumption for afterburning and non-afterburning conditions, parametric analysis was carried out. Two parameters were simultaneously varied to generate a range of output variables. A total count of 24,636 data points was exported from the GasTurb 14 Parametric Studies module into Excel. The influence of every input parameter on the corresponding result parameter was visualized in graph form. The effects of the Mach number, fan pressure ratio, altitude, turbine entry temperature, and bypass ratio on the specific thrust, propulsive efficiency, specific fuel consumption, and total fuel flow were investigated. The regression learning models and deep neural networks were then programmed on this dataset to predict responses for new input data.
2.2. Machine Learning
Supervised learning involves data scientists feeding categorized training information to algorithms and indicates which programs have variables with relationships to explore. Both the algorithm’s input and output were supplied.

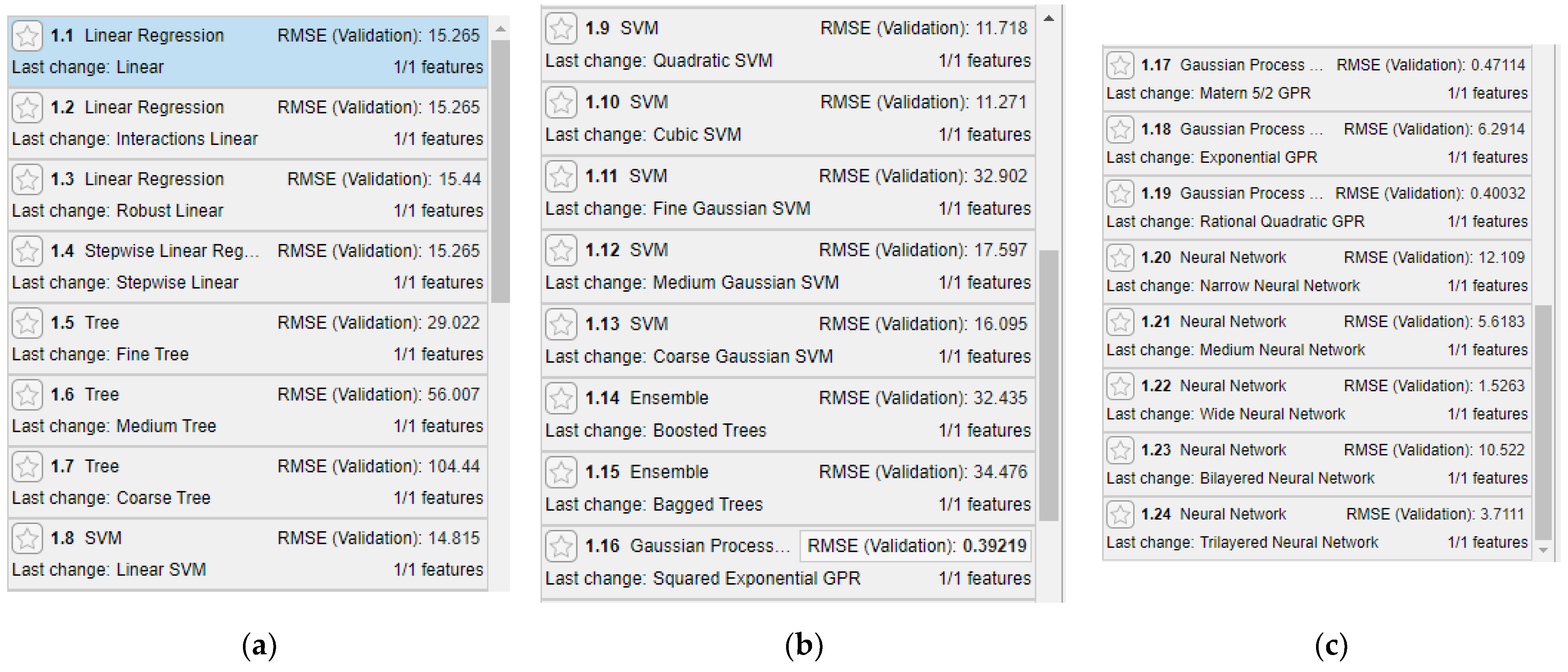

In MATLAB’s regression learner program, supervised machine learning is achieved through employing an established database (predictors) and responses. The regression model for each input variable is trained for the respective output parameters. Each dataset was trained using different regression models like linear regression, support vector machine (SVM), Gaussian process regression (GPR), etc. Consequently, four models were generated, with the basis of selection being the least root mean square error.
Cross-validation is a technique for determining how well the predictions of a machine learning model will apply to an independent data collection. Overfitting is when a model is unable to make generalizations and instead fits overly precisely to the training dataset. It can be avoided by splitting the data into folds and measuring the accuracy for every fold.

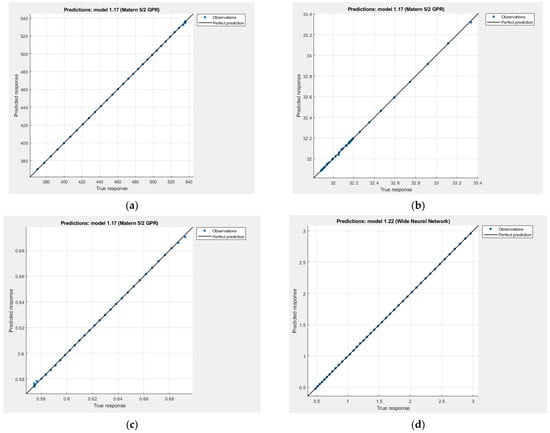

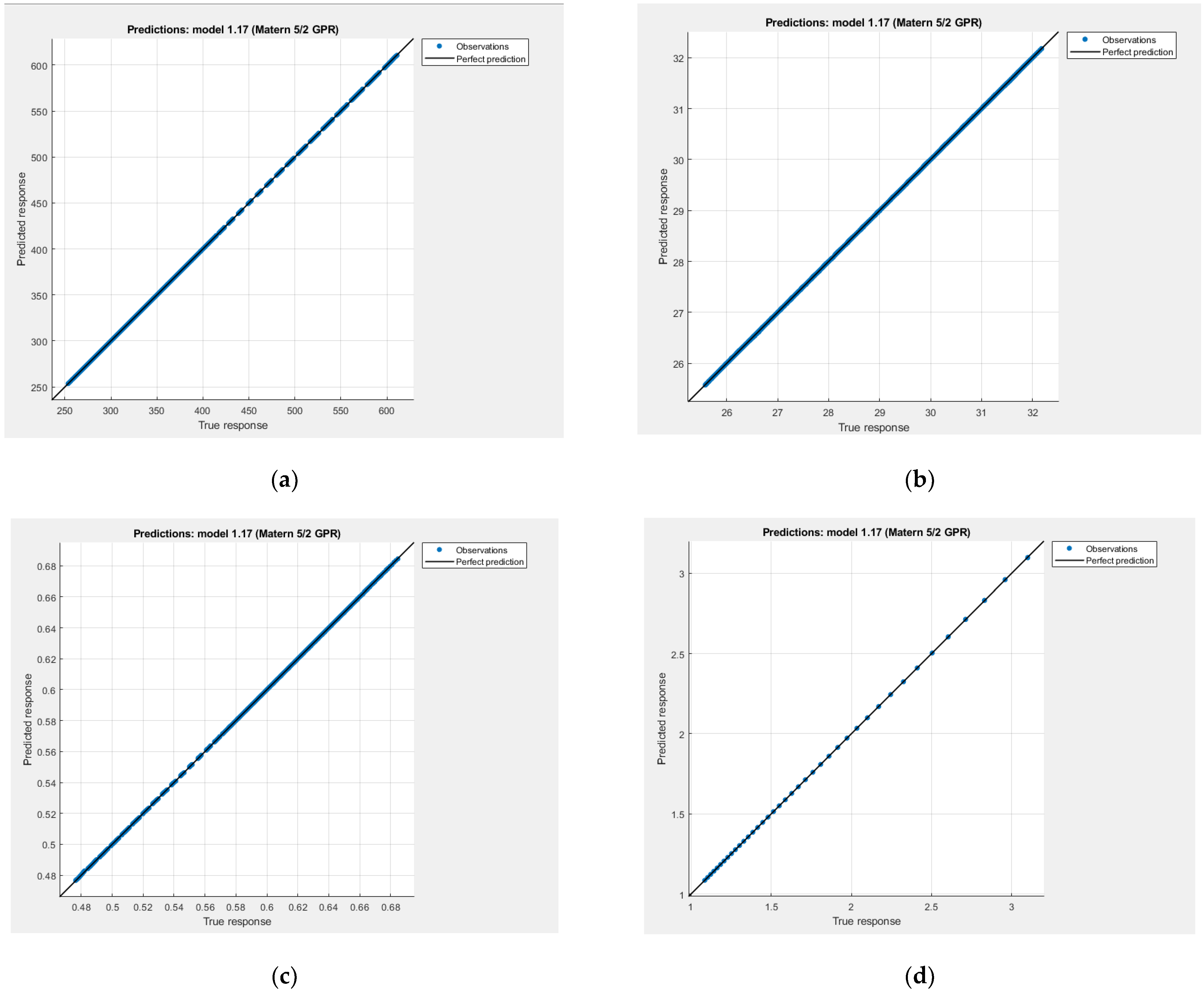

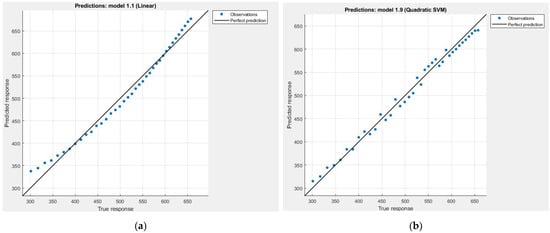

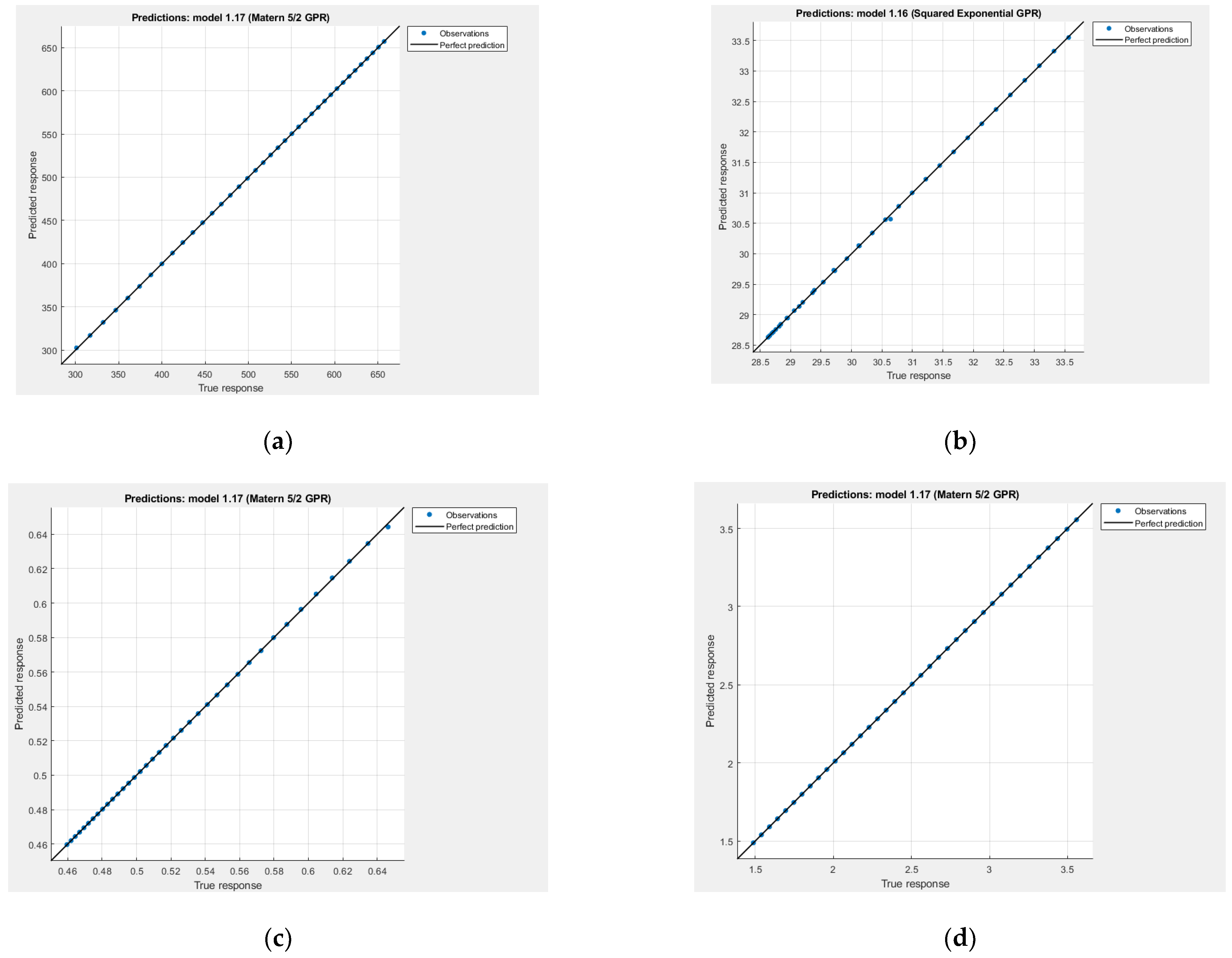

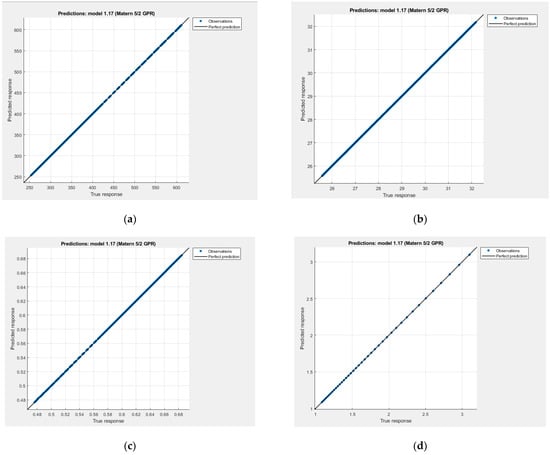

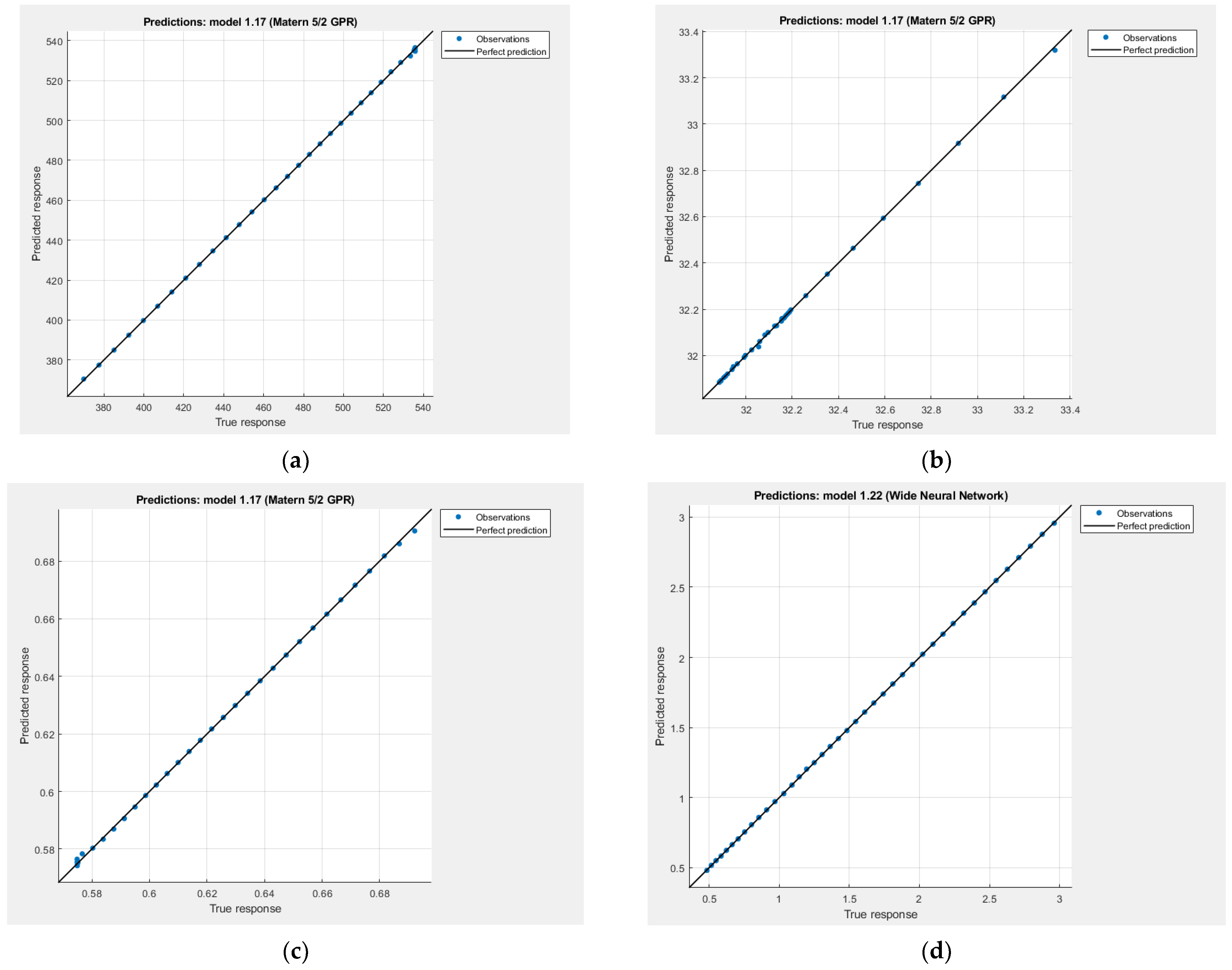

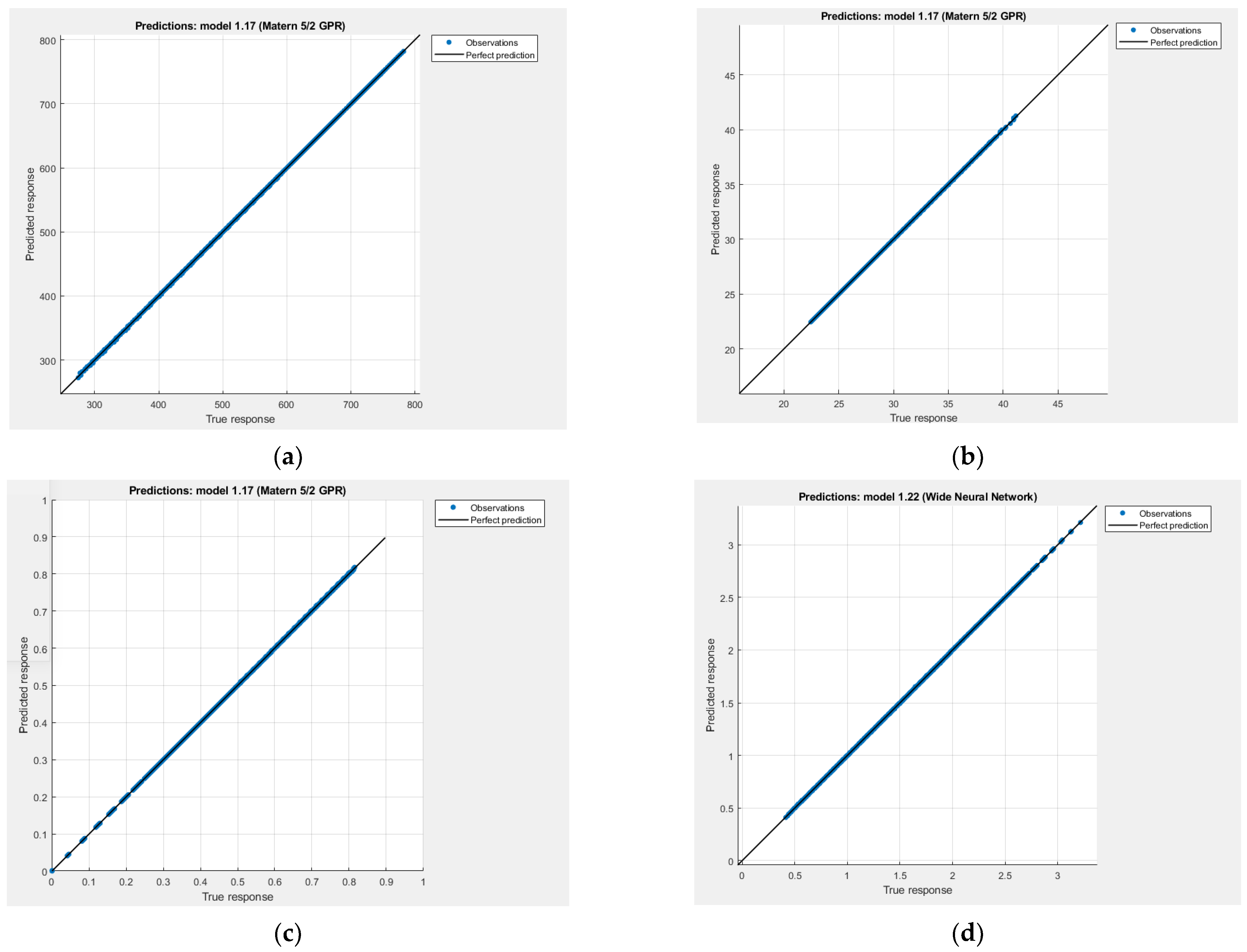

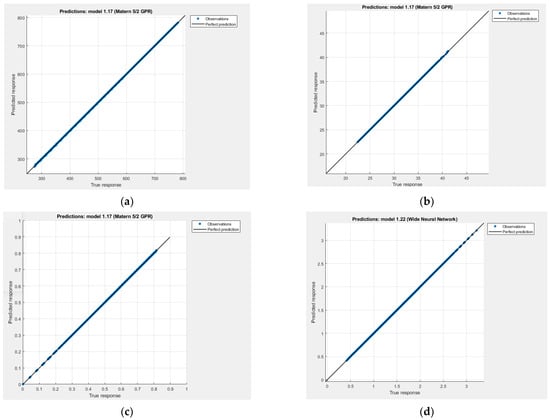

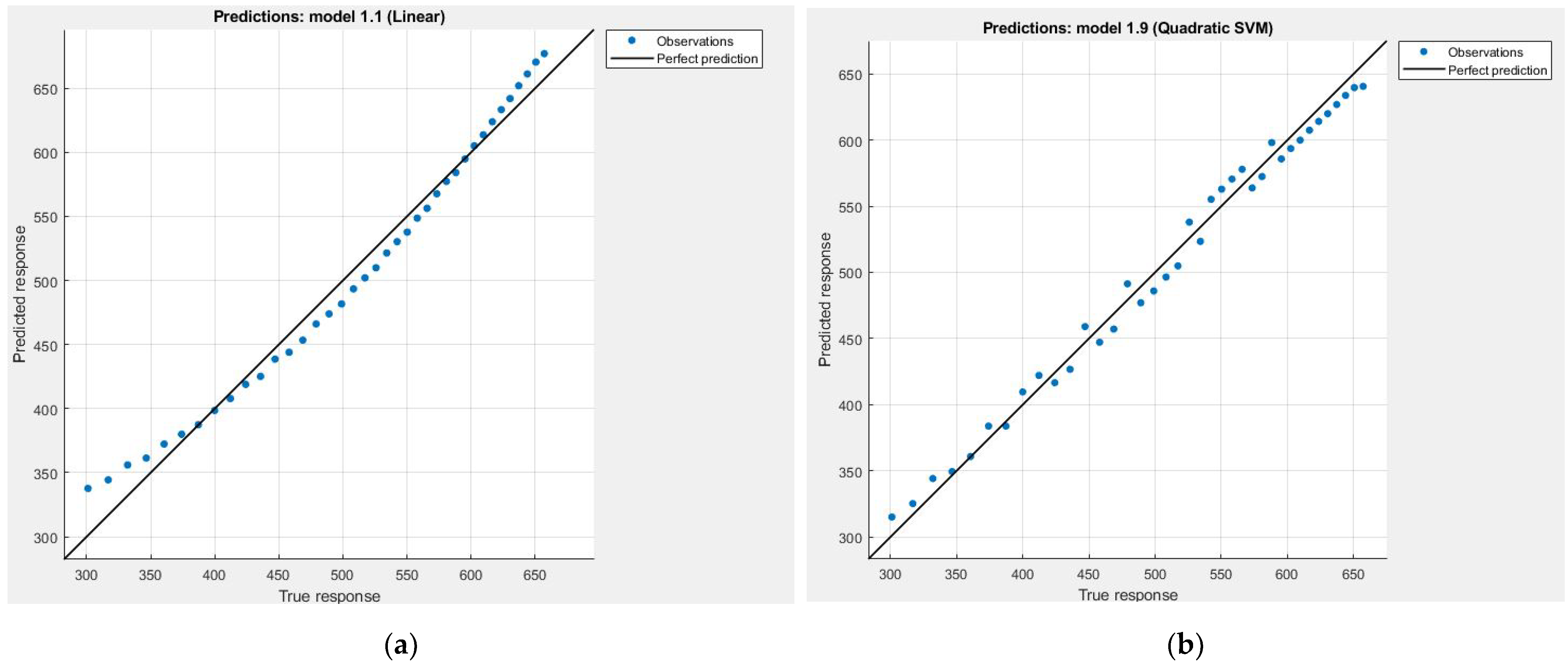

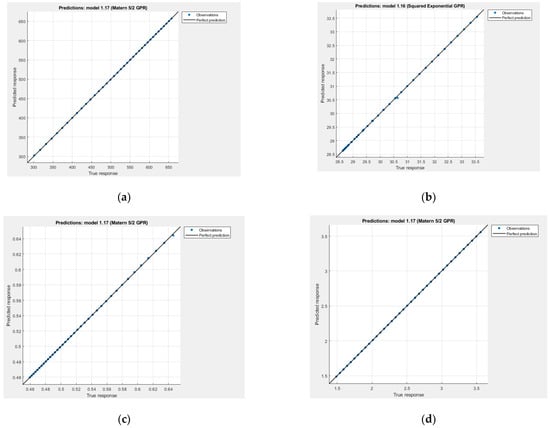

Following effective regression model training, the expected vs. actual response plot displays the regression algorithm. The predicted vs. actual plot evaluates the performance of the algorithm once it has been developed. This graphic shows the effectiveness of the model to estimate response. As the optimal model project response is equal to the real value, all of the points fall on a regression line. The deviations from the regression line are the prediction errors at that entry.
2.3. Deep Learning
An artificial neural network that has many layers of neurons connecting the input and the output is known as a multilayer perceptron (MLP). MLPs are often referred to as feedforward neural networks. Data transmission in one direction from the input to the output layer is known as feedforward. The output of each neuron is normally connected to the output of every neuron in the following layer. The hidden layers are found between the input and output layers. MLPs are suitable for supervised learning and were hence used for this problem. They are extremely adaptable and may be implemented to learn the relationship between variables and their responses. Since the dataset for the parametric analysis is tabularized with the input and output variables, MLPs can be easily trained to identify the mapping between them and predict their trends.

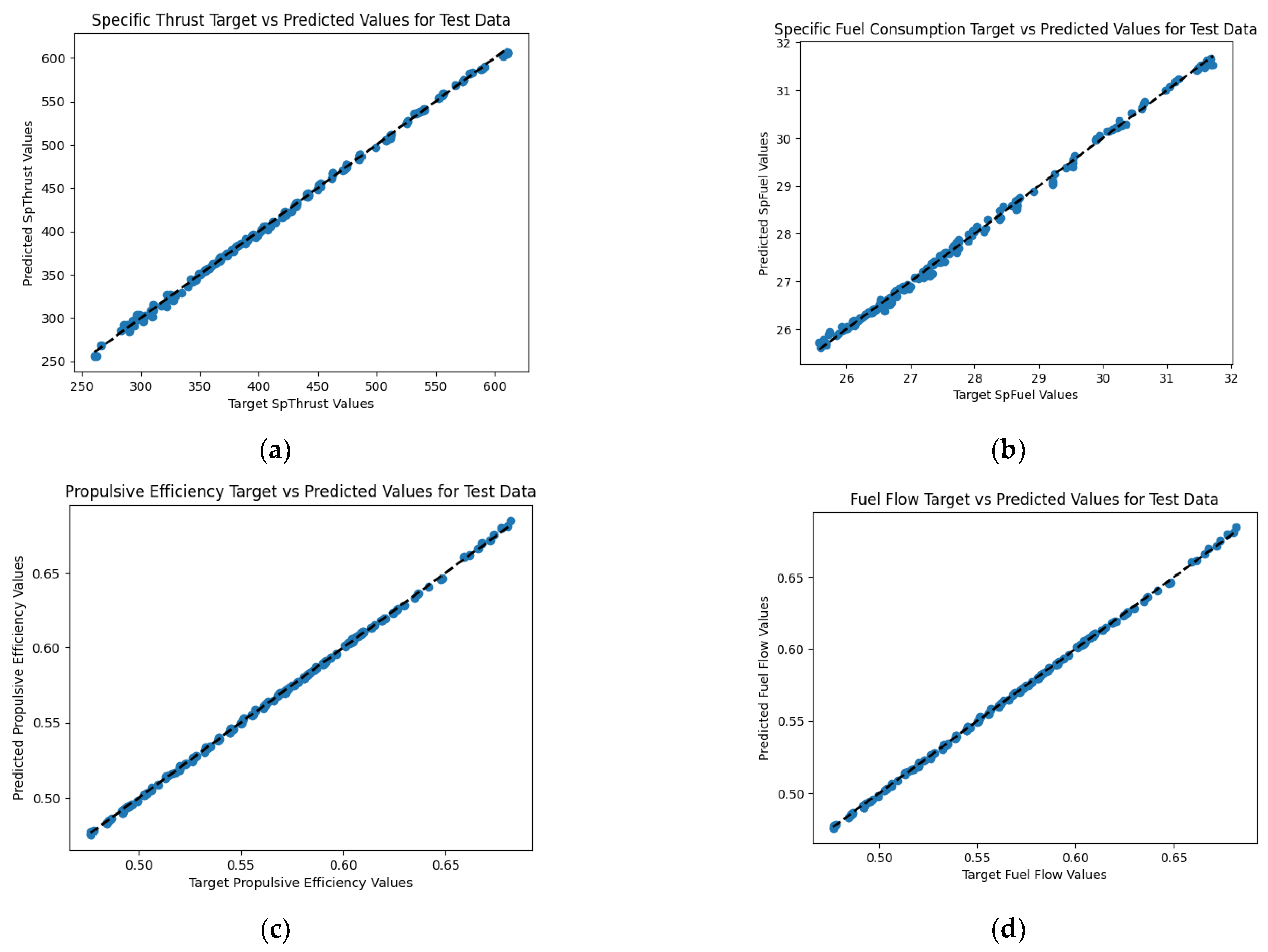

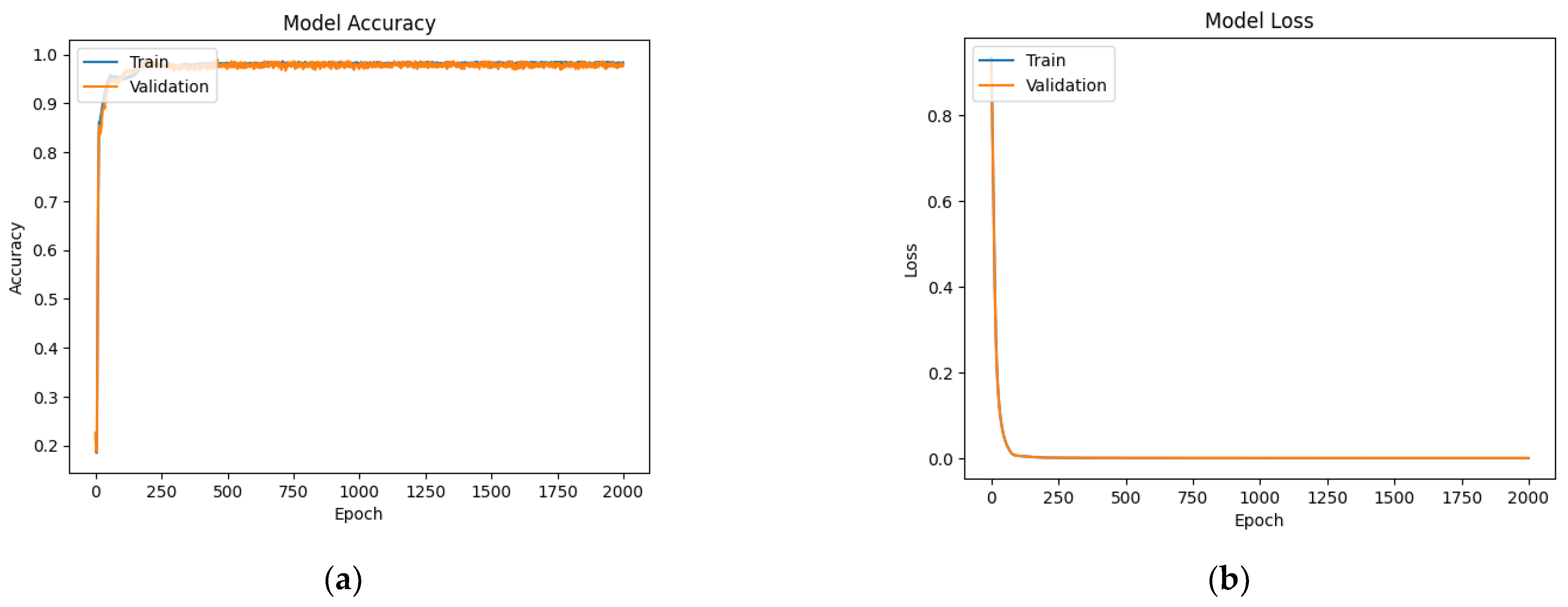

A deep neural network was developed in the Python programming language using Keras. The holdout technique is another type of cross-validation. The dataset was divided into two parts: the training set and the testing set. The key purpose behind separating the dataset into a validation set was to prevent our model from overfitting. Training data comprises 70% of the total data and 30% is used for the test data. The network’s hyperparameters include two hidden layers: the Adam optimizer and the ReLU activation function. The mean square error (MSE) cost function was minimized to be used as the evaluation metric. This is summarized in
Table 2.
5. Conclusions
Parametric cycle analysis distinguishes the most promising cycle type and highlights the range of options for each design option. It provides the optimal solution by determining the most effective range of feasible design choices for every target profile. In this study, five input parameters were considered to determine their relationship with the functional parameters of a mixed-flow two-spool turbofan.
The machine learning regression models showed definite results of the output parameters, with the least root mean square error being 9.076 × . Among the various regression models, Gaussian process regression, the quadratic support vector machine, and the wide neural network were found to be the most effective in predicting the performance parameters of a turbofan engine.

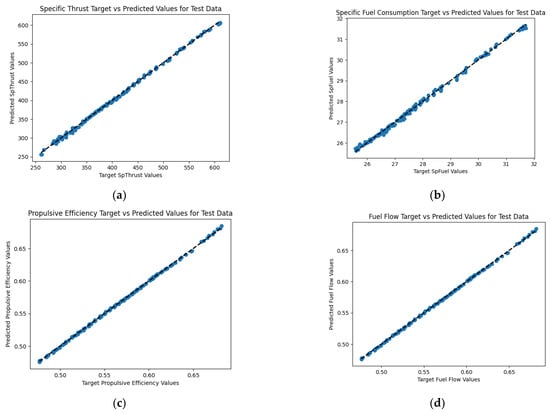

The deep neural network model also accurately predicted each output parameter, given a combination of input parameters. It is shown through this study that a neural network with two hidden layers is sufficient to precisely predict a turbofan engine’s performance parameters, with a mean square error value of 0.004.
In conclusion, machine learning and deep learning models are promising approaches to conducting the parametric analysis of turbofan engines as compared to computationally extensive digital simulations.
