A Modeling Design Method for Complex Products Based on LSTM Neural Network and Kansei Engineering

Featured Application

The proposed CP-KEDL system is supposed to evaluate and predict users’ perceptual preferences of complex products accurately and comprehensively and quickly generate a set of modeling feature elements that meet the perceptual needs of users to provide design inspiration for complex products for designers.

Abstract

Complex products (CPs) modeling design has a long development cycle and high cost, and it is difficult to accurately meet the needs of enterprises and users. At present, the Kansei Engineering (KE) method based on back-propagated (BP) neural networks is applied to solve the modeling design problem that meets users’ affective preferences for simple products quickly and effectively. However, the modeling feature data of CPs have a wide range of dimensions, long parameter codes, and the characteristics of time series. As a result, it is difficult for BP neural networks to recognize the affective preferences of CPs from an overall visual perception level as humans do. To address the problems above and assist designers with efficient and high-quality design, a CP modeling design method based on Long Short-Term Memory (LSTM) neural network and KE (CP-KEDL) was proposed. Firstly, the improved MA method was carried out to transform the product modeling features into feature codes with sequence characteristics. Secondly, the mapping model between perceptual images and modeling features was established based on the LSTM neural network to predict the evaluation value of the product’s perceptual images. Finally, the optimal feature sets were calculated by a Genetic Algorithm (GA). The experimental results show that the MSE of the LSTM model is only 0.02, whereas the MSE of the traditional Deep Neural Networks (DNN) and Convolutional Neural Networks (CNN) neural network models are 0.30 and 0.23, respectively. The results verified that the proposed method can effectively grapple with the CP modeling design problem with the timing factor, improve design satisfaction and shorten the R&D cycle of CP industrial design.

1. Introduction

Complex products (CPs), such as aircraft and automobiles, are products that involve complex structures and technologies and complex development, manufacturing and service processes [1,2]. It is necessary to meet the needs of specific users, the diversity of product structure, and product design innovation during the design process [3]. Currently, research on CP design mainly focuses on the mechanical structure. For example, Zhang et al. applied complex network theory and proposed an improved GN algorithm (crowd detection algorithm) to achieve the module division of complex mechanical products [4]. Xue et al. introduced a new CP optimization design framework based on three aspects, modeling, simulation, and optimization. This design framework can effectively determine the optimal design structure configuration and optimal functional parameter values of CPs [5]. Wang et al. proposed a design optimization method for CPs, which can improve the design optimization efficiency based on Multidisciplinary Design Optimization (MDO) technology [6]. Nevertheless, there are few studies on CP modeling design, which mainly focus on appearance design innovation. For example, Zhu et al. proposed a method for the appearance design of Numerical Control (NC) equipment based on product identification [7]. Chen et al. proposed a novel method for the appearance design of mechanical and electrical products based on entity pattern genes [8]. However, the above methods failed to take affective factors into account in the design process of CPs and are not suitable for the affective design of CPs.

As the economy evolves, customers pay more attention to affective experience than functional performance and usability when purchasing and using products [9]. Users’ affective experiences are closely related to their perceptual needs for CPs [10,11]. Compared with simple products, the design of CPs has a longer cycle [12] and a higher cost [13]. Moreover, it is difficult to effectively meet the perceptual needs of enterprises and users [14]. Therefore, it is a challenge for industrial designers to quickly and efficiently perform CP modeling design that meets the perceptual needs of enterprises and users.

Kansei Engineering (KE) [15] has been widely used as a quantitative analysis method for affective design and new product development. KE has three core modules: acquisition of perceptual requirements, the establishment of the mapping models between modeling features and perceptual images, and design execution [16]. Among them, the mapping model between the product modeling features and the perceptual images is the key to affective designs [17]. Based on these mapping models, GAs [18], Tabu search (TS) algorithm [19], NSGA-II [20], and other methods can be carried out to quickly and effectively obtain the recommendation strategy of innovative modeling design that meet the perceptual needs of enterprises and users. In addition, the mapping models are also the basis for building an emotion preference computing and recommendation systems [21]. For example, Hong et al. proposed a mapping models of Kansei knowledge and emotional color image words to help designers and consumers to obtain the most appropriate color ranges of consumer products [22]. Xue et al. established a user-personalized clothing-recommendation system through the relationship model between emotional vocabulary and clothing elements to improve the recommendation accuracy [23]. Zhang et al. proposed a new fashion evaluation method on the basis of the appearance to build a clothing-recommendation system with higher accuracy [24]. Using online product click data and offline product sales data to reflect customers’ online and offline preferences, Hwangbo et al. built a recommendation system to improve product sales and website click rates [25]. The above studies inspire us by building relationship mapping models between user emotional preferences and design elements, and user emotion-aware recommender systems can be established to estimate user emotional preferences, recommend satisfactory products to users, and provide product development strategies that meet the users’ preference to designers.

There are two different types of KE methods applied to established the mapping models. The first one includes methods based on statistical theory, such as polynomial regression (PR), support vector (SVR), etc. For example, Yu et al. evaluated the product perceptual value through PR [26]. Fan et al. applied SVR to establish the mapping models between user emotion and car contour and achieved good results in a specific dimension [27]. This type of method has good interoperability but still has the following shortcomings: poor model performance and low generalization when dealing with complex multi-dimensional features and ignoring the multi-dimensional variables and potential nonlinear relationships in product perceptual images [28]. Therefore, they were difficult to use to describe the multivariate mapping relationship between CP perceptual images and modeling parameters accurately.

The second type includes methods based on artificial intelligence (AI). By analyzing the features and structures of data, excavating the hidden information of data, and preserving the correlation among data, deep learning based on artificial neural networks can effectively solve the nonlinear problems among variables and deal with high-dimensional variables. For example, Guo et al. proposed an affective design method for a multi-dimensional variable based on the BP neural network, which can effectively grapple with the mapping relationship between short-sequence features and perceptual images [28]. Fu et al. constructed a Convolutional Neural Networks (CNN) neural network to establish the relationship mapping model between modeling features and perceptual images and achieve ideal results in processing a small number of feature data [29]. The above neural network can effectively establish the relationship model between perceptual images and the modeling features of simple products. However, CPs have complicated modeling features and a wide range of visual-influence factors [30], which are difficult to transform into deep learning data comprehensively and accurately. The methods above cannot recognize the affective preference of CPs from an overall visual perception level like human beings [31]. Therefore, establishing a mapping model between perceptual images and modeling features of CPs has become a challenge for designers.

A Long Short-Term Memory (LSTM) network is a variant of the cyclic neural network [32]. The connection among units of LSTM forms a directed cycle. The introduction of a gate structure enables the network to capture the long-term dependence and nonlinear modeling parameter characteristics between timing data points, which makes it excellent in processing timing characteristics [33]. Since users generate an overall perceptual cognition of CPs through continuous visual perception, it is crucial for computers to learn how to observe the continuous feature relationship of products like human eyes and establish an accurate correlation model between perceptual images and modeling features. To address the question mentioned above, regarding the acquisition of perceptual evaluation as a sequence problem based on the LSTM neural network and eye movement test, a modeling design method was proposed to establish a more comprehensive and effective relationship model between perceptual images and modeling features of CPs. This paper presents a proposed method that can meet users’ perceptual images more compressively and effectively based on the LSTM neural network and KE for the rapid modeling design of CPs (CP-KEDL).

The main contributions of this paper are summarized as follows:

(1) The CP-KEDL method is proposed, which combines KE and deep learning technology for innovative concept generation to effectively improve the affective design process of CPs. It has two core modules, the perceptual evaluation and recognition module of CPs based on an LSTM neural network and KE and a product-feature-optimization module based on a Genetic Algorithm (GA).

(2) Users’ perceptual image acquisition of CPs is regarded as a behavior with a visual sequence. It is proven that the user’s perceptual image acquisition of CPs is a continuous process, and the user’s visual tracking line of observing CPs is obtained through an eye-movement experiment. The modeling features of CPs are deconstructed by an improved morphological analysis (MA), which helps to solve the problem of the accurate extraction of modeling features.

(3) The proposed CP-KEDL method is applied to the design process of a truck crane to illustrate the method in detail and validate its feasibility and usefulness.

The rest of the paper is structured as follows. The overarching research framework is introduced in Section 2. The KE technique, the LSTM neural network, and the GA are discussed next. An empirical study of truck-crane affective design to demonstrate the feasibility and usefulness of the proposed method, as well as the relevant experimental data, is provided in Section 3. In Section 4, we introduced the DNN and CNN models to conduct comparative experiments, which verified that the proposed KE–LSTM model has better performance and reliability, and discussed the reasons. Finally, we present the research conclusions and contributions in Section 5 and pointed out the research limitations.

2. Methods

2.1. Research Framework

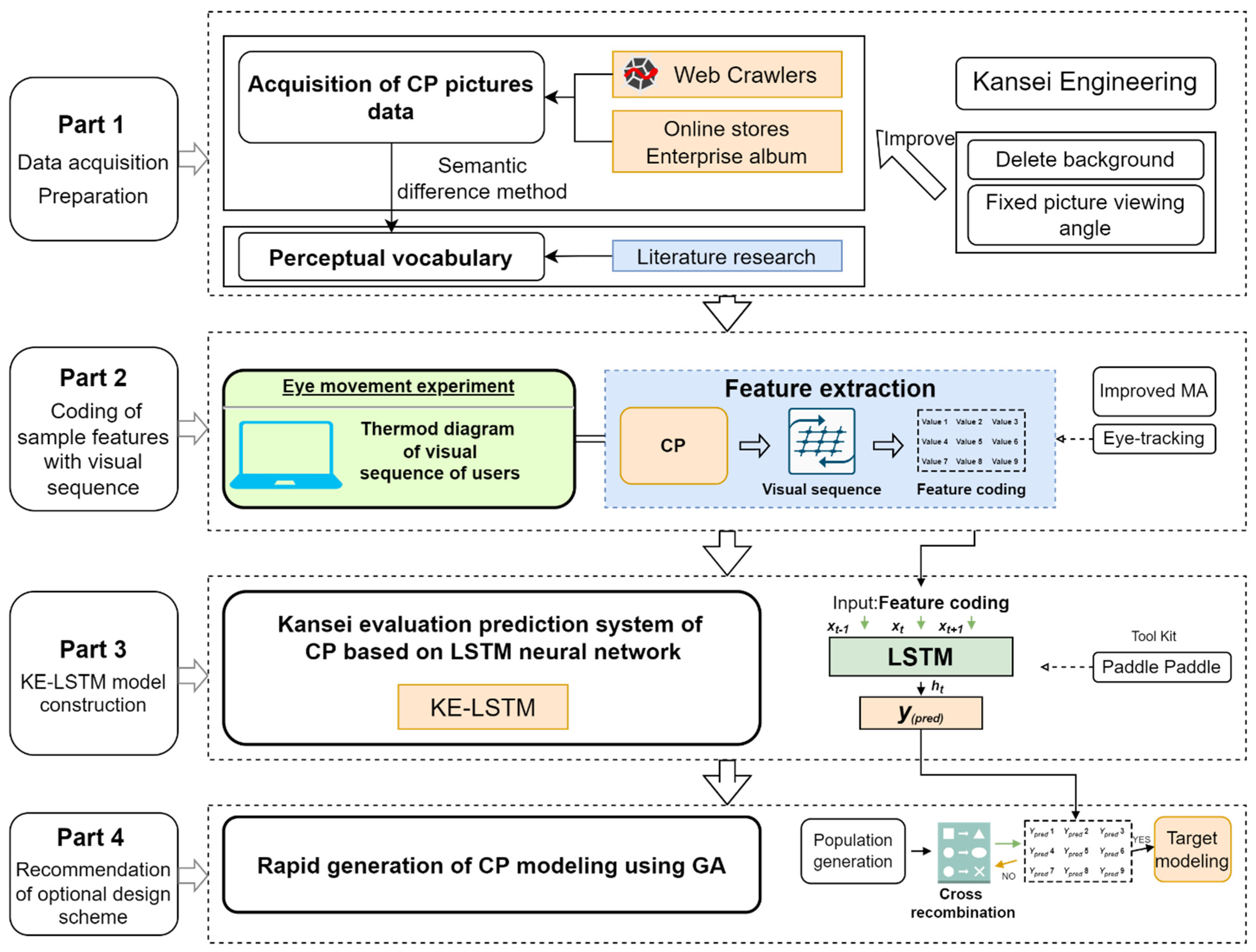

As shown in Figure 1, the proposed CP-KEDL method consists of four parts. The first part is data preparation, including the collection of product picture data and perceptual vocabulary pairs. The purpose is to achieve the original sample data of the target product and the user’s perceptual needs. At this step, product pictures are crawled from the target websites and the original data are preprocessed to obtain clean picture data. Based on this part, we can achieve clean and unified product images for perceptual evaluation and feature extraction. In the second part, aiming to obtain the appropriate data set, the user’s visual sequence when observing CPs is obtained through an eye-movement experiment, and the improved MA method is used to manually extract the sample features, including the sequence. In the third part, KE and LSTM neural networks are used construct the mapping model between the modeling features and the perceptual evaluations of CPs, which is named the KE–LSTM model. The model is trained with the perceptual evaluation data set to predict the perceptual evaluation value of CPs. In the fourth part, GA is applied to search the product-feature sets that meet the expected perceptual image evaluation value and to guide the modeling design practice for new products.

2.2. Acquisition of Sample Picture Data

Data is one of the three key components of artificial intelligence (big data, computing power, and algorithm). Moreover, KE needs a large number of samples to establish the mapping relationship models between modeling features and perceptual images. Previous works [28,34] have shown that extracting product features from high-quality picture data is more effective. However, few open-source datasets provide high-definition image data. To obtain high-quality image data, the original product pictures are collected from the target websites through web crawlers. In addition, the original pictures are processed by deleting the background and unifying the picture perspective with a 45-degree angle of view to avoid the influence of irrelevant features and to make it easier and more effective to extract product features.

2.3. Acquisition of Perceptual Evaluation Data

The acquisition of perceptual evaluation data has two key parts, namely perceptual vocabulary collection and perceptual evaluation values collection.

Perceptual vocabularies are the adjectives used to describe people’s perceptual feelings. Perceptual vocabularies can be collected through various channels, such as magazines, academic papers, product test reports, product manuals, expert comments, user online comments, and customer interviews, etc. [35]. In addition, representative perceptual vocabularies can also be collected from relevant academic literature and the Internet.

Firstly, perceptual vocabularies are collected. Next, all collected perceptual vocabularies are clustered to obtain the affective preference attributes. This process is called perceptual clustering. In current research, the perceptual clustering methods for affective design are relatively mature, mainly including the clustering method based on fuzzy equivalence [35], the clustering method based on a design structure matrix (DSM) [36], and the clustering method based on a rough set [37]. Among those methods, the clustering research on the perceptual vocabularies of truck cranes is relatively rich, so our research uses the collected vocabularies that have been clustered in the relevant studies.

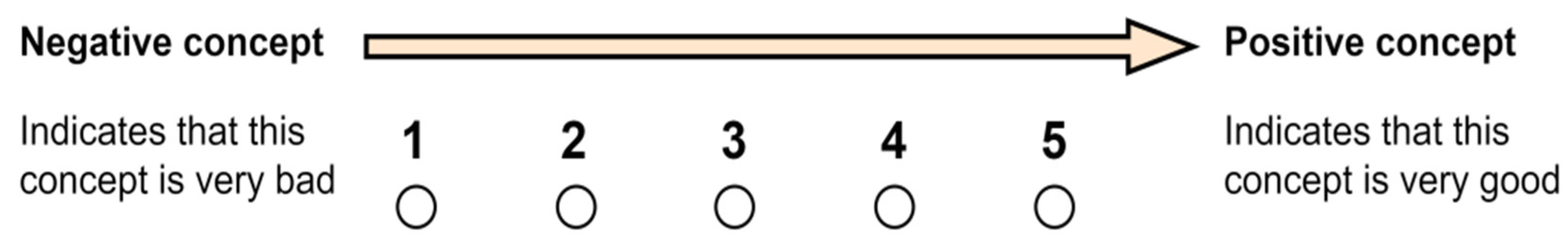

The semantic difference (SD) method [38] is applied to quantify users’ preference evaluations of CPs. As shown in Figure 2, a five-point semantic scale is used to quantify the affective preferences of participants: each point showing the preference level of customers and users, ranging from 1 to 5. For example, 1 and 5 represent a pair of bipolar adjectives, while 3 represents a medium level.

The Internet and smartphones have become indispensable parts of human lives. Distributing questionnaires via networks can greatly improve the efficiency and ensure the authenticity of the survey [31]. Based on the SD method, a questionnaire was constructed by combining the identified representative perceptual vocabulary pairs and the product representative pictures, and was distributed online. Finally, we obtain the users’ perceptual evaluation datasets.

2.4. Acquisition of Sample Feature Visual Sequence

MA is the most common method to parameterize product modeling in the manual extraction of product features. For example, Han et al. established the Unmanned Aerial Vehicle (UAV) model evaluation system using the KJ method (named for its inventor, Jiro Kawakita, and sometimes referred to as the affinity diagram method) and decomposed the UAV appearance, modeling it into three first-class indices: overall appearance, single piece, and detail [34]. Using MA, Wu et al. disassembled and encoded the form of an electric motorcycle and produced a product form design system based on a BP neural network [39]. However, there were complex relationships among the components of CPs [40]. Only using MA ignored the correlation between product morphological features and the relationship among product components.

To extract the modeling features of CPs more accurately and effectively, we propose an improved MA method based on an eye-movement experiment that is divided into two steps. In the first step, the users’ observation trace and thermal map of CPs are achieved, which proves that the user’s acquisition of perceptual images of CPs is a continuous visual behavior. Furthermore, the visual sequence is obtained through an analysis of the eye-movement tracking map. In the second step, the MA method is improved, and the product modeling feature data P = (P_A, P_C, P_C…), (P_A = P_a1, P_a2…) is combined with the visual sequence relationship obtained in the first step, as shown in Formulas (1) and (2).

$$P=(p^1,p^2,\mathrm{\dots }{p}^t,\mathrm{\dots }{p}^T)$$

(1)

In Formula (1). P is the overall set of product modeling features; p^t is the modeling feature set of a component, and t is the visual sequence number of the component when the user observing the CP.

$$p^t=(p_1^t,p_2^t,\mathrm{\dots },p_n^t)$$

(2)

In Formula (2), p_n^t is the specific modeling feature of p^t.

2.5. Coding of Samples’ Modeling Features

Based on the formulas in Section 2.4, we can define the coding principle of the CP modeling feature set including visual sequence, extract the modeling features, and obtain a high-quality training data set for the model establishment in the next stage. The modeling feature extraction work is conducted by experienced designers.

When extracting the modeling features, we found that some modeling features appear repeatedly, which strengthened the users’ visual experience and accelerated their visual perception process. This is in line with the law of rhythm in industrial design [41]. This discovery was exciting and gave us great confidence in the manual extraction of CP modeling features based on MA. In the proposed research, a method for the coding of modeling features with the visual sequence is proposed. Firstly, we identify the users’ visual sequence and key modeling features of CPs through eye-movement experiments and manual extraction to establish the model-features set. Each sample consists of the modeling features in the set. When a sample has repetitive features, we use the same feature code to represent the relationship. Secondly, according to Formulas (1) and (2), the modeling features of each sample are transformed into feature codes. An improved modeling feature set of CPs is constructed after the two steps, which is the basis of the product perceptual evaluation prediction and population generation in the following steps.

2.6. Construction of the LSTM Model

In order to quickly and effectively obtain the optimal CP modeling feature set that meet the needs of the target perceptual image, it is necessary to establish an effective perceptual evaluation and prediction model. As the modeling features of CPs are taken as a combination modeling feature set including visual sequence, the mapping relationship models between modeling features and perceptual images are established based on LSTM neural network. The LSTM neural network can transport information from one step to the next, precisely imitate the visual sequence tracking on CPs of human eyes, and deal with CP features successfully. The gate structure of LSTM allows information to pass through selectively, change the state each time in the cyclic neural network, and delete or add information to the cell state [42]. To safeguard and control the cell state, the LSTM has three gates, each has a sigmoid neural network layer and a point-wise multiplication operation.

The model construction includes data segmentation and LSTM neural network training process [43]. The training process attempts to establish a deep learning model between the modeling-feature data extracted by the experienced designers mentioned in Section 2.5 and the perceptual evaluation values of CPs by learning the training-set data. With the growth of data, the network is constantly updated. Finally, an affective preference recognition system based on LSTM is obtained to help designers predict users’ perceptual evaluation scores.

2.7. Construction of GA Model

GA is applied to quickly carry out CP modeling design to meet the target of perceptual images through the relationship model. GA is a classical global class optimization method [34]. It does not need the properties of the continuous differentiation of function, and can calculate the fitness in parallel easily. The GA calculating the optimal CP modeling feature set has five main components: initial population (chromosome), evaluation function, selection function, crossover function, and mutation function [44].

Firstly, the individuals in the initial population are randomly generated, and each represents a possible CP modeling feature set.

Secondly, the evaluation function executed the KE–LSTM model established in Section 2.6 to calculate the perceptual evaluation value of each individual.

Thirdly, the selection function is executed to select individuals with high fitness as alternatives and parents of the next-generation population.

Fourthly, the cross function is executed to calculate and generate the next-generation population. Individuals with high fitness are selected, and their codes are randomly exchanged at the same location to generate the next generation.

Finally, the variogram is executed to maintain the diversity of the next-generation population. The generated sample individuals are selected according to the set probability. The codes of their random location are changed, which can ensure the global search ability of GA.

3. Empirical Study

Truck cranes, as a kind of CPs, have many components and long lengths, and the head and the operation bin are set separately. Therefore, the modeling design of truck cranes was taken as an example to verify the feasibility and effectiveness of the proposed method. The research includes the following steps: (1) Data acquisition and preprocessing. To obtain high-quality sample data, a series of combined steps and methods were carried out to collect and process the original data through web crawlers. (2) Product-feature extraction. In order to accurately extract the modeling features of CPs, the eye-movement experiment and the improved MA method were applied to obtain the visual tracking of users when observing CPs. In addition, the representative samples were encoded into modeling feature sets including visual sequence. (3) The KE–LSTM model was constructed and trained to quickly predict the perceptual evaluation of different feature combinations of CPs. (4) GA was applied to quickly generate the optimal CP modeling feature set that meets the target perceptual images to assist designers in CP modeling design.

The proposed CP-KEDL method was developed with Python. The LSTM module is developed based on the Python PaddlePaddle framework. All experiments were run on AI studio (Baidu), equipped with Intel 4 cores 32 GB, Tesla V100 32 g, and Windows operating system.

3.1. Acquisition of Truck Cranes Picture Data

To ensure the validity of the samples, truck cranes currently on sale in the market were selected as the sample source. Sample pictures were collected based on the methods mentioned in Section 2.2. Firstly, truck-crane pictures were crawled from the construction machinery portal using web-crawler tools. The websites include D1CM, the China Road Machinery Network, and the official websites of construction machinery enterprises. Secondly, all collected pictures were manually checked, and the unnecessary and duplicate pictures were deleted. Thirdly, we selected the left 45-degree angle view pictures of each sample, removed the background of these pictures, and adjusted them to unified pixels to reduce the interference in the evaluation and to reduce errors. Finally, 206 product samples were preserved, and parts of them are shown in Figure 3.

3.2. Acquisition of the Perceptual Evaluation Data of Truck Cranes

We obtained the perceptual evaluation data by the method proposed in Section 2.3. In order to identify the customers’ perceptual needs for truck-crane modeling, we collected perceptual vocabulary related to the truck crane from the available literature. Wang D put forward the perceptual vocabularies of simple, atmospheric, full, and sporty [45]. Xiao synthesized the semantic vocabulary of lifting equipment perceptual images into six pairs: masculine–feminine, solemn–frivolous, future–past, solid–flimsy, technological–conservative, and rational–perceptual [46]. Wang et al. added three pairs of words: introverted–publicized, complete–fragmented, and dynamic–steady [47]. Based on the above research, six pairs of relative perceptual words: steady–light, integral–piecemeal, technological–traditional, safe–dangerous, simple–complex, and dynamic–static were summarized as representative perceptual vocabulary. Furthermore, steady–light, integral–piecemeal, and technological–traditional were randomly selected as three pairs of target perceptual vocabulary for the proposed research, as shown in

Table 1. The selected perceptual vocabularies of truck cranes.

Perceptual Vocabularies
Steady–light	Integral–piecemeal	Technological–traditional

.

3.3. Acquisition of Perceptual Evaluation Data

In order to obtain the perceptual evaluation value of the sample pictures, the selected three pairs of perceptual vocabulary were combined with 206 representative samples. To make the evaluation of focus groups obvious, the SD method was carried out to make the evaluation questionnaire shown in Figure 4.

A focus group was formed, including three designers with construction machinery design experience, two non-design professionals, one product manager of construction machinery enterprises, and three construction machinery operators. The participants were recruited from experts or expert users of truck cranes and varied from designers, managers, engineers and operators. This expert-recruitment method helps us to collect data from different perspectives; avoid the limitations of a single perspective; and enhance the comprehensiveness, efficiency and credibility of the research results.

First, the meaning of perceptual vocabularies was further explained to participants to promote for them a more consistent judgment standard of perceptual images. For example, steady refers to the visual sense of stability, heaviness, and the feeling of not tipping, while light is the opposite, representing lightness and thinness; integral refers to the visual integrity, completeness, and visual unity of the car crane, while piecemeal is the opposite, representing a sense of visual fragmentation and messiness. Technological refers to the image of future science and technology, while traditional is the opposite, representing a state of non-advanced technology. After that, each participant was invited to evaluate the sample picture in the given three perceptual dimensions according to his/her first impression. Finally, the evaluation mean values of each sample in each perceptual dimension were calculated, as shown in

Table 2. The result and analysis of the first experiment.

	Sample	Technological– Traditional	Steady–Light	Integral–Piecemeal
Mean Evaluation Values	X1	4	4.4	3.9
	X2	3.2	3.8	3.9
	X3	4.3	4.4	4
	X4	4.3	3.9	3.7
	X5	3.8	3.7	3.4
	…	…	…	…
	X206	4.3	4.3	4.3
Reliability and validity test	Kendall’s concordance coefficient (W)			0.608
	p			0.000

.

Although an expert evaluation method was used for data acquisition, there may be statistical reliability errors due to the limitation of the small size of participants and the large energy and time cost of the questionnaires. Therefore, a reliability test and retest method were applied to validate the reliability of the collected data. Kendall’s concordance coefficient (W) is an expert evaluation indicator of question reliability [48] and is commonly used to measure the degree of concordance of designers in ranking design goals [49]. Relevant studies have used Kendall’s concordance coefficient (W) to test the scoring reliability of data with a small size of experts [50,51,52]. The data in Table 2 was imported to SPSS to calculate Kendall’s concordance coefficient (W) [53]. As shown in

Table 3. The result and analysis of the retest experiment.

	Sample	Technological- Traditional	Steady–Light	Integral–piecemeal
Mean Evaluation Values	X1	4.1	4.2	4
	X2	2.8	3.9	3.8
	X3	4.2	4.6	4.4
	X4	4.2	3.9	3.8
	X5	3.7	3.8	3.6
	…	…	…	…
	X206	4.4	4.2	4.8
Reliability and validity test	Kendall’s concordance coefficient (W)			0.603
	p			0.000
Pearson correlation coefficient of the two experiment results				0.917

, the Kendall’s concordance coefficient test showed significance (p = 0.000 < 0.05), implying that the evaluations of the invited experts were highly correlated, i.e., indicating that the evaluations are consistent; Kendall’s W coefficient is 0.608, which is between 0.6 and 0.8, indicating a strong consistency. Therefore, the collected data is verified as reliable and valid.

In the meanwhile, test–retest reliability has been used for reliability testing in some studies with a small number of participants [54,55]. To further test the reliability and validity and avoid the possible errors in a small sample size, the same group of experts was invited for a second experiment with the same questionnaire [56]. The retest was carried out two months after the first experiment, which ensured that the participants were less interfered with by the previous test and could use the first impression to evaluate the perceptual image of the samples again. The mean evaluation values of the second experiment results were calculated and imported to SPSS to test the reliability. Results show that the Kendall’s W coefficient is 0.603, and p is 0.000, which indicates that the results of the second experiment passed the reliability and validity test and are reliable and effective data. In addition, the Pearson correlation coefficient of the two experiment results is 0.917, i.e., indicating that the two experiments’ results are highly correlated [57]. Therefore, the retest experiment verified that the data in Table 2 have good reliability and validity. As the evaluation data in Table 2 was verified to be reliable and valid and was collected by the first evaluation experiment, it was considered to be closer to the participants’ first intuition and impression than the retest result. Therefore, the data in Table 2 was used to establish the perceptual evaluation dataset in Section 3.6.

3.4. Acquisition of Sample Feature Visual Sequence

To obtain the visual sequence of user perceptual evaluation, an eye-movement experiment was conducted. A thermal map area and the observation sequence of user observation forklift samples were obtained through experiments.

The experiment was designed as follows.

(1)

Samples

According to the scores in Table 2, the samples were divided into three groups in each perceptual dimension: high score, middle score, and low score. A sample picture was randomly selected from each group, and a total of nine sample pictures were collected, as shown in

Table 4. Eye-movement experiment samples.

	Technological–Traditional	Integral–Piecemeal	Steady–Light
High score
	4.3 points	4.3 points	4.0 points
Middle score
	3.0 points	3.5 points	3.4 points
Low score
	2.8 points	2.7 points	2.7 points

. Furthermore, in order to obtain the process of users’ observing and evaluating the perceptual image of samples, the product sample pictures were combined with three pairs of perceptual vocabularies to design the observation object of the experiment.

(2)

Participants

Twelve graduate students (6 males, 6 females) majoring in design at Tianjin University were invited as participants. Neither the shape of the truck crane nor the relevant text prompts were given before and during the test to avoid affecting participants’ subjective feelings.

(3)

Devices

The devices include a Tobii Pro Nano eye tracker, a 21-inch computer monitor, and a game controller with three selection buttons.

(4)

Experiment procedure

(1) When the participant entered the laboratory, he/she was informed of the experimental procedures and precautions. After becoming familiar with the environment, the participant sat about 64 cm away from the display, with eyes staring toward the center of the screen and head keeping still.

(2) The equipment calibration and pre-test were conducted to ensure the accuracy of the experimental data.

(3) Participants began the experiment by pressing the confirmation button on the game controller while looking at the center of the screen. First, a description page appeared, telling the user which image dimension to evaluate and the evaluation options. Second, a sample picture of the truck crane in the figure appeared randomly in the center of the screen for 30 s. At this time, the participant determined the score range (high, middle, low) of the sample picture in the specific perceptual image dimension and pressed the corresponding button on the game controller.

(4) A blank gray screen appeared, and the experiment was repeated a total of nine times (As shown in Figure 5).

(5)

Results and analysis

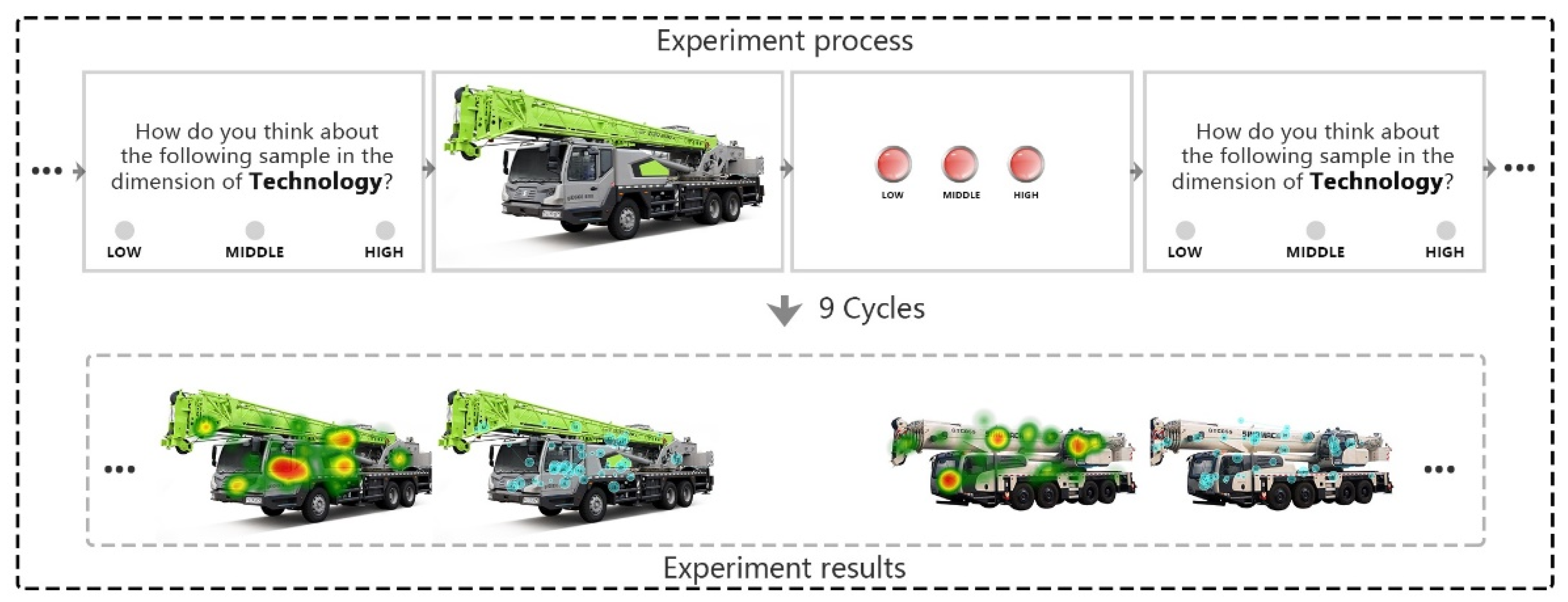

The visual thermal diagram and the visual trace of the truck crane were obtained through eye-movement experiments, as shown in Figure 6.

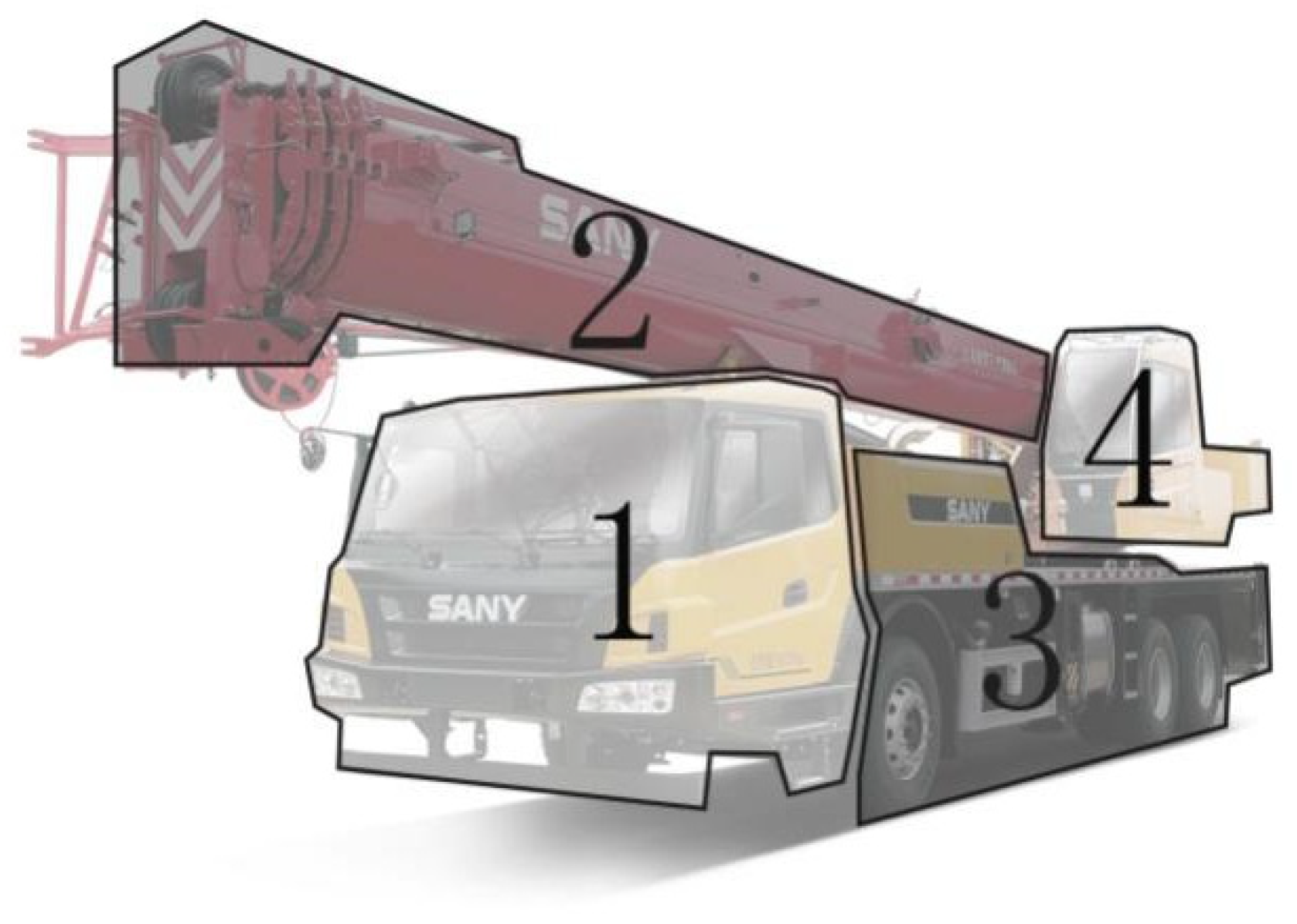

Based on the analysis of the visual thermal diagrams and the discussion with the designers of the focus group, the truck crane was finally divided into five components: the head, body, boom, chassis, and operation cabin. Each sample picture was divided into corresponding five visual-interest regions.

The visual trace of each participant observing different samples was analyzed. The first visual-interest region that the participant observed and stayed for more than 1 s was recorded and scored five points, four points for the second region, three points for the third region, and so on. In addition, the mean score of each region was calculated, as shown in

Table 5. The mean score of each visual-interest region.

Visual-Interest Region	Mean Score
Head	4.75
Body	3.08
Boom	3.09
Operation bin	2.58
Chassis	1.5

.

According to Table 5, the visual sequence was determined as P = (Head (P¹), Boom (P²), Body–Chassis (P³), Operation bin (P⁴)).

Most participants observed the head of the truck crane at first sight, followed by the body, boom, operation bin, and chassis. We interviewed the participants after the test and found that the users’ vision become used to moving from left to right. What is more, the observers’ attention to the base is low, and the body is closely connected with the chassis, so we combined the body and the chassis as one area. Therefore, the users’ general visual trace when observing the truck crane was summarized, as shown in Figure 7.

3.5. Coding of Sample’s Modeling Features

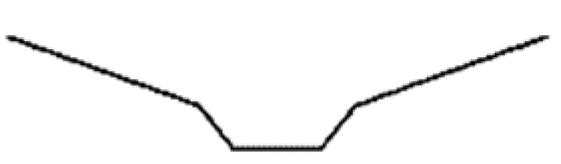

Using the coding method of modeling feature proposed in Section 2.5, five designers formed a focus group, including three designers with five years of design experience and two construction-machinery-design decision-makers. Name each part that affects the perceptual image of a component as an item and each modeling feature of items as a +category. The improved MA method and aesthetic principles were applied to reconstruct and analyze the items, enumerate the design feature of each item, and establish the modeling-feature category set of truck crane.

Each category represents a feature index, and the repetitive categories use the same location index. As shown in

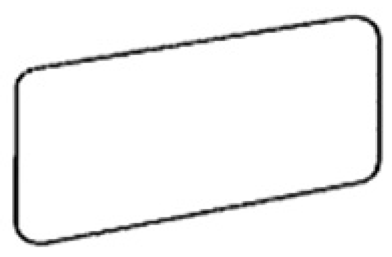

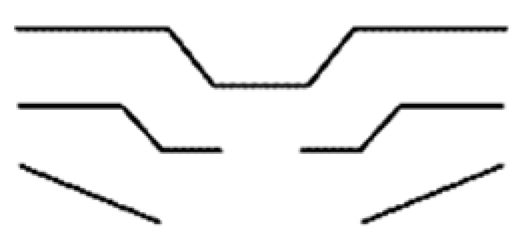

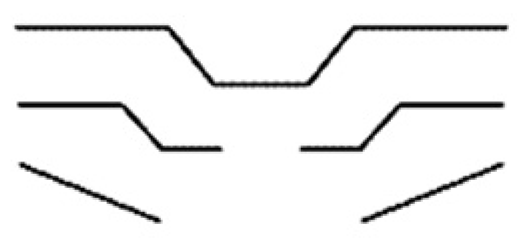

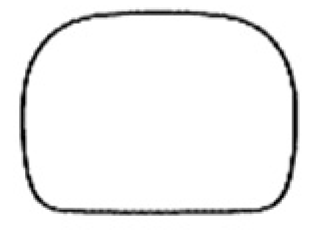

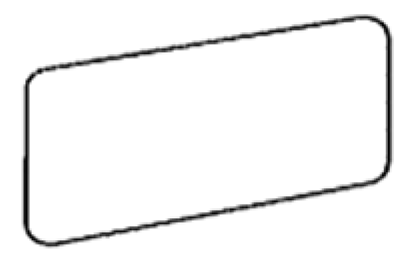

Table 6. The modeling-feature-category set of truck crane.

Component	Item		Category
	Code	Name
Head (P1)	P11	Front face line	None
			01		02	03	04	05		06		07
	P12	Window type
			08			09		10		11
	P13	Front window line
			12			13				14
	P14	Window line
			15	16	17	18	19	20	21	22	23	24
	P15	Skirt line
			15	16	17	18	19	20	21	22	23	24
	P16	Bumper	Hidden					Exposed
			25					26
	P17	Main color matching	Yellow		Green	Black	Gray	White		Red		Blue
			52		53	54	55	56		57		58
	P18	Auxiliary color matching	Yellow		Green	Black	Gray	White		Red		Blue
			52		53	54	55	56		57		58
Boom (P2)	P21	Steel frame	With steel frame					Without steel frame
			27					28
	P22	Shape
			29			30				31
	P23	Size	Large			Medium				Small
			32			33				34
	P24	Decorate	Structure			Sign				None
			45			46				47
	P25	Color matching 1	Yellow		Green	Black	Gray	White		Red		Blue
			52		53	54	55	56		57		58
	P26	Color matching 2	Yellow		Green	Black	Gray	White		Red		Blue
			52		53	54	55	56		57		58
	P27	Color matching 3	Yellow		Green	Black	Gray	White		Red		Blue
			52		53	54	55	56		57		58
Body-Chassis (P3)	P31	Hub color	Black					White
			54					56
	P32	Chassis package type	Chassis bread wrapping			Chassis line wrapping		Chassis warning line wrapping		Chassis all tires
			37			38		39		40
	P33	Body	Yes					No
			41					42
	P34	Body decoration	Color division			Structure division		Mark/logo Division		No decoration
			45			46		47		48
	P35	Main body color matching	Yellow		Green	Black	Gray	White		Red		Blue
			52		53	54	55	56		57		58
	P36	Body auxiliary color	Yellow		Green	Black	Gray	White		Red		Blue
			52		53	54	55	56		57		58
	P37	Empty area	Yes					No
			43					44
	P38	Tail status	Regular tail			Messy tail				No tail
			49			50				51
Operation bin (P4)	P41	Cockpit front face line	None
			01		02	03	04	05		06		07
	P42	Cockpit window type
			08			09		10		11
	P43	Cockpit front window line
			12			13				14
	P44	Window line
			15	16	17	18	19	20	21	22	23	24
	P45	Skirt line
			15	16	17	18	19	20	21	22	23	24
	P46	Main color matching	Yellow		Green	Black	Gray	White		Red		Blue
			52		53	54	55	56		57		58
	P47	Auxiliary color	Yellow		Green	Black	Gray	White		Red		Blue
			52		53	54	55	56		57		58

, each component has several items wherein category features have occurred repeatedly.

Based on Table 6, each sample was deconstructed into the modeling feature category set and encoded into the feature vector, as shown in

Table 7. Modeling-feature-category coding of truck cranes with visual sequence.

Sample	Head (P1)	Boom (P2)	Body–Chassis (P3)	Operation bin (P4)
X1	[1,11,13,15,15,25,54,55]	[28,31,34,45,53,53,54]	[36,39,42,0,0,0,44,50]	[1,11,14,15,15,55,54]
X2	[1,8,14,19,15,26,52,54]	[28,31,33,47,52,52,52]	[36,39,41,47,54,52,44,49]	[4,8,14,19,15,54,52]
X3	[1,8,14,19,23,26,56,58]	[28,30,32,47,57,56,56]	[35,37,41,46,58,56,44,49]	[1,8,14,19,23,56,58]
X4	[3,11,13,15,16,26,56,54]	[27,31,34,45,53,53,54]	[36,38,41,46,56,53,44,50]	[1,11,14,15,15,56,54]
X5	[1,9,13,15,23,26,55,54]	[27,31,33,45,53,53,54]	[36,38,41,46,55,53,44,49]	[1,9,14,15,15,55,54]
…	…	…	…	…
X206	[5,8,14,21,22,26,56,54]	[28,30,32,47,57,56,56]	[36,37,41,46,56,54,43,49]	[1,8,14,21,22,56,54]

. During this process, we found that the visual relationships among items are further demonstrated by the fact that some different components have the same categories. Finally, as shown in Table 7, we translated the product categories into 4 × 8 feature matrices as neural network input codes. For vectors less than 8 bits, fill in 0 at the empty bit.

3.6. Model Construction and Perceptual Evaluation

After the feature-category coding and perceptual evaluation, a dataset of truck crane modeling evaluation was established, which includes modeling-feature-category coding with visual sequence (Table 7) and the mean perceptual evaluation values (Table 2).

The modeling-feature-category coding data in Table 7 was used as the input layer, and the user’s mean perceptual evaluation values on the perceptual dimension of the sense of technological–traditional, steady–Light, and integral–piecemeal in Table 2 were used as the output layer to train the KE–LSTM model.

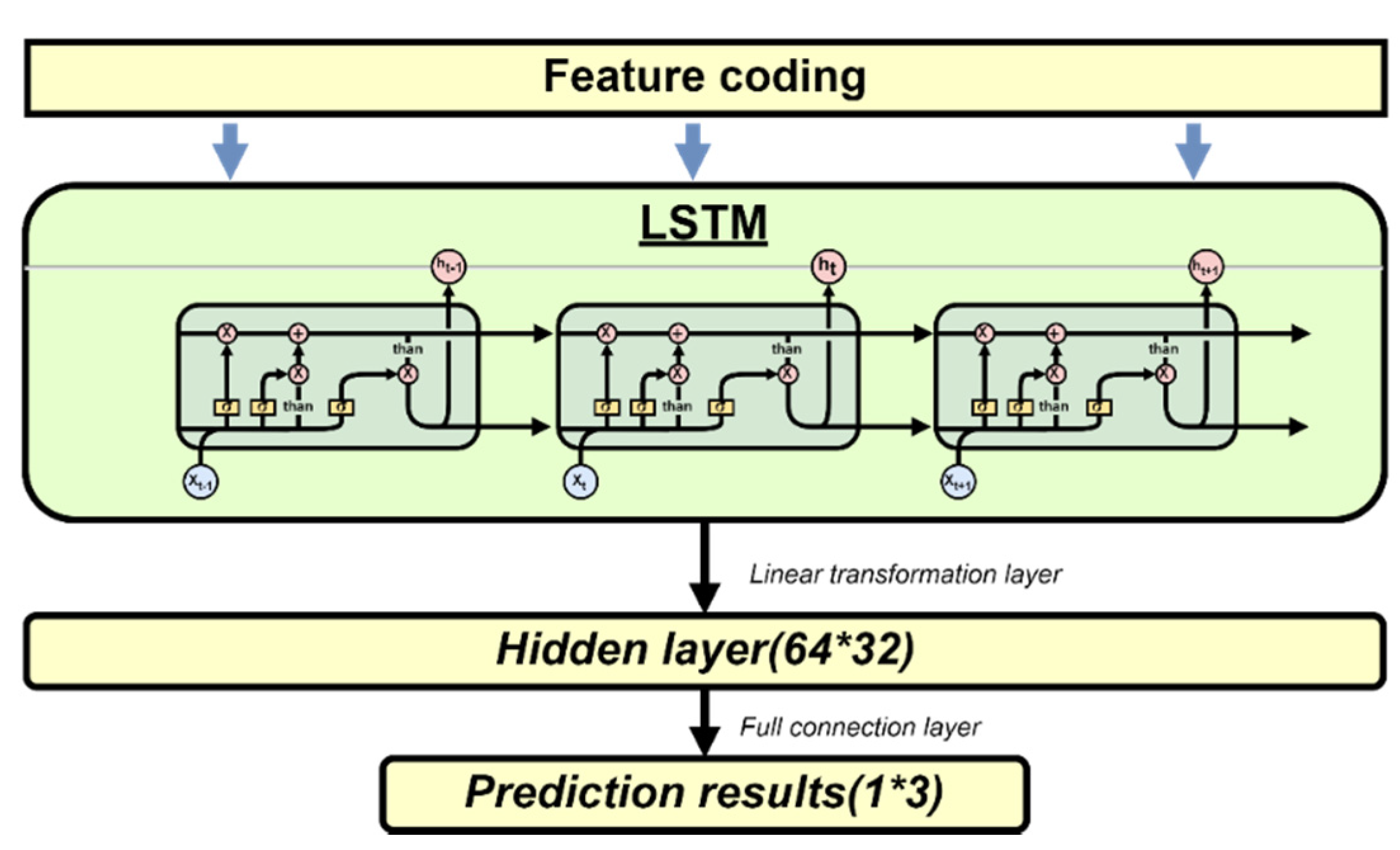

The structure of the LSTM neural network was shown in Figure 8. In the data processing stage, it was found that the dimension of a CP sequence encoded by one-hot was enormous. In order to enable the computer to accurately understand the meaning of the features extracted manually, we referred to a skip-gram to convert the CP sequence features $p_n^{(t)}=(p_n^t,p_n^{t+1},\mathrm{\dots },p_n^{t+l-1})\in {\mathrm{R}}^{l\times m}$ into low-dimensional vectors.

In the encoding stage, the vector with dimension (l, m) is received as the input, $p_n^{(t)}=(p_n^t,p_n^{t+1},\mathrm{\dots },p_n^{t+l-1})\in {\mathrm{R}}^{l\times m}$, and the number of LSTM neurons in the hidden layer is determined by L. According to the structure shown in Figure 8, the inputs of a single LSTM neuron are the $p_n^t$ of the current observation time and the hidden representation ${\mathrm{h}}_E^{t-1}$ of the previous moment input vector encoded by the LSTM neurons. After encoding, the hidden representation ${\mathrm{h}}_E^t$ at this time is obtained as one of the inputs of LSTM neurons at the next moment.

Training performance was assessed using the mean square error (MSE) [43], as shown in Formula (3).

$$\mathrm{loss}=\frac{1}{n}{\Vert y-y_p\Vert }^2$$

(3)

The data were divided into the training set and test set, accounting for 80% and 20%, respectively. MSE was reduced continuously during the training process. The parameters of the KE–LSTM model were as follows: network structure is two layers; LSTM neuron hidden state size was 32; target error was less than 0.03; the optimizer was Adam; the learning rate was 0.001; dropout was 0.2; model metrics were the loss function shown as Formula (3), and the remaining parameters were set as default values [58].

Model training was implemented through the PaddlePaddle package of Python 3.8 (64-bit).

The experimental results are shown in Figure 9. When the number of iterations exceeded 100, the error curves of the training set and the testing set tended to be flat, which met the accuracy requirements of the model. Therefore, the KE–LSTM model can be used for the prediction of the perceptual evaluation score of truck cranes.

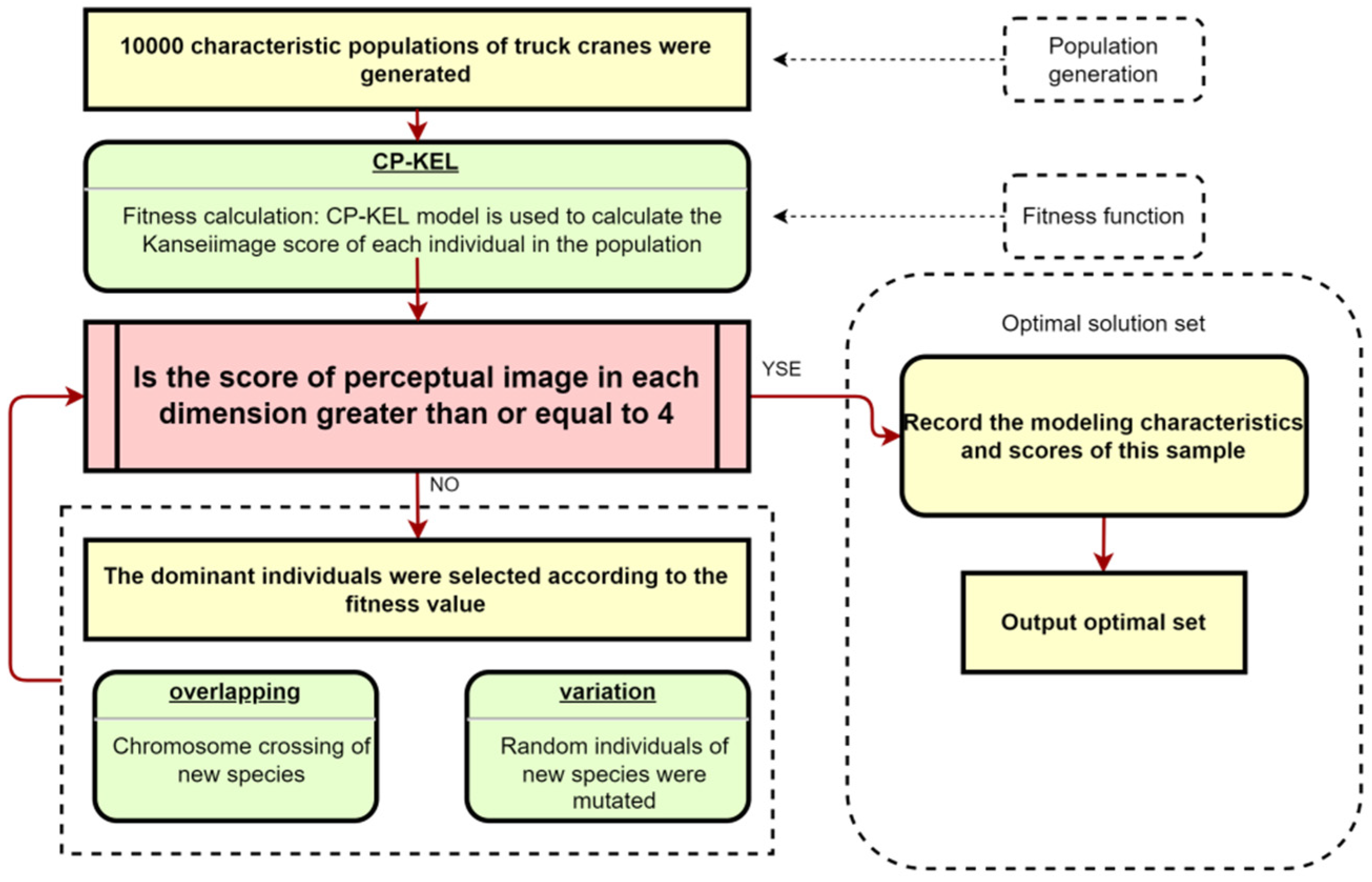

3.7. Establishment of the GA Model

Based on the KE–LSTM model, the GA model described in Section 2.7 was established to optimize the schemes. The experimental process is shown in Figure 10. Firstly, 10,000 original feature-combination populations were generated according to the feature set in Table 6 through the population generation function. Secondly, the KE–LSTM model was executed as a fitness function to evaluate and predict the score of each individual in the population to solve the individual fitness problem. Finally, the dominant population was chosen for hybrid recombination using the roulette method. Different modeling-feature-category codes belonging to the same part of the truck crane were hybridized to generate a new generation. In the process of population generation, the variation ratio was controlled to 0.01. The target fitness was set as 4 points; that is, the sum of the 3 perceptual dimension scores was more than 12 points. If the target fitness was not satisfied, the model will be cycled in the same way.

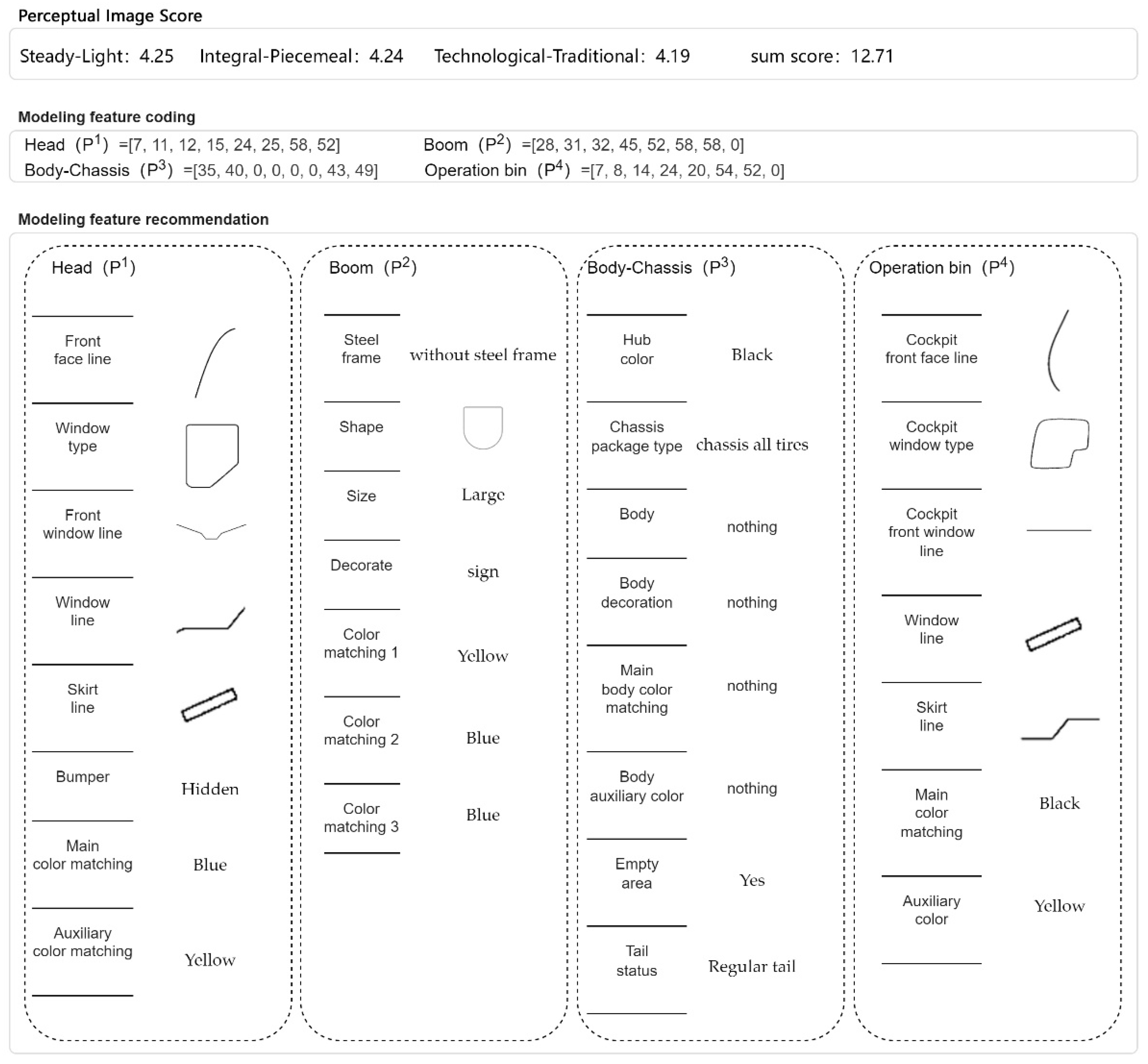

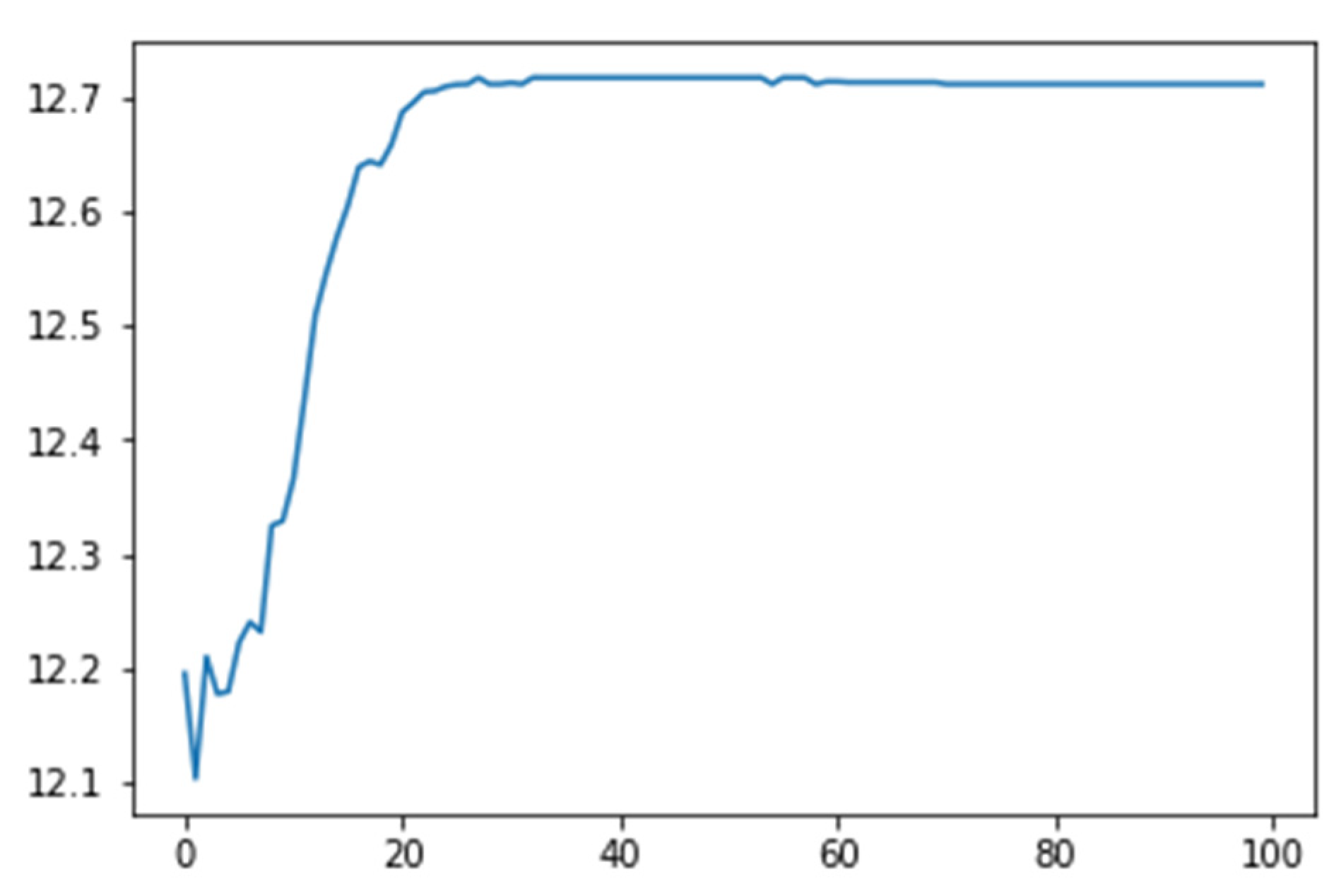

As shown in Figure 11, after 20 rounds of iteration, the design scheme that met the perceptual evaluation target was optimized. According to Table 2, the mean values of the collected samples in the perceptual dimension of steady–Light, integral–piecemeal, and technological–traditional are 3.15, 3.42, and 2.91 respectively. As shown in Figure 12, the evaluations of optimal design schemes are all higher than four points in three perceptual dimensions, which are also far higher than the mean values of the collected samples. Therefore, based on the KE–LSTM model, the GA model can quickly push the modeling-feature-category set in line with the target perceptual images, assist designers to conduct creative design practice of CPs quickly and effectively, and improve design quality and satisfaction.

4. Discussion

The perceptual evaluation model based on the LSTM neural network (KE–LSTM) is the basis of the proposed CP modeling design method (CP-KEDL). In order to verify the validity of the LSTM neural network, two kinds of neural networks were built as controlled experiments to compare the evaluation results. As a well-known basic traditional machine learning tool [59], Deep Neural Networks (DNNs) have been applied in many controlled experiments to validate the efficiency of research [59,60,61]. In addition, CNNs were reported that have good performance in processing data that come in the form of multiple arrays [62]; for example, many data modalities are in the form of multiple arrays: 1D for signals and sequences, including language [63,64]; 2D for images or audio spectrograms [65]; and 3D for video or volumetric images [66]. Therefore, DNN and CNN were chosen to be the compared models. The structures of the two networks were set as follows:

(1) DNN, a two-layer network structure, has 32, 24, and 3 neurons in the input, hidden and output layers, respectively.

(2) CNN has two convolution layers and two pooling layers and finally outputs the results through the full connection layer.

During training and testing, both DNN and CNN used the same coded number data in Table 7 as LSTM, and the training set and test set of each model are consistent with LSTM. Both of them used Formula (3) in Section 3.6 as the performance evaluation index.

In order to quantitatively evaluate the performance of the above models, the root mean square error (RMSE) [67] and MSE were used to evaluate the error between the model output and the measured value. The smaller RMSE and MSE, the smaller the model deviation and the better effect of performance evaluation. The formulas of RMSE and MSE are as follows:

$$RMSE=\sqrt{\frac{1}{m}{\displaystyle \sum }_{i=1}^m{\left(y_i-{\widehat{y}}_i\right)}^2}$$

(4)

$$MSE=\frac{1}{m}{\displaystyle \sum }_{i=1}^m{\left(y_i-{\widehat{y}}_i\right)}^2$$

(5)

where ${\widehat{y}}_i$ and $y_i$ are the output value and the actual value of model, respectively. The evaluation results of the testing set are shown in

Table 8. Evaluation results of LSTM, CNN, and DNN models.

Model Structure	MSE	RMSE
LSTM	0.02	0.14
CNN	0.23	0.48
DNN	0.30	0.55

.

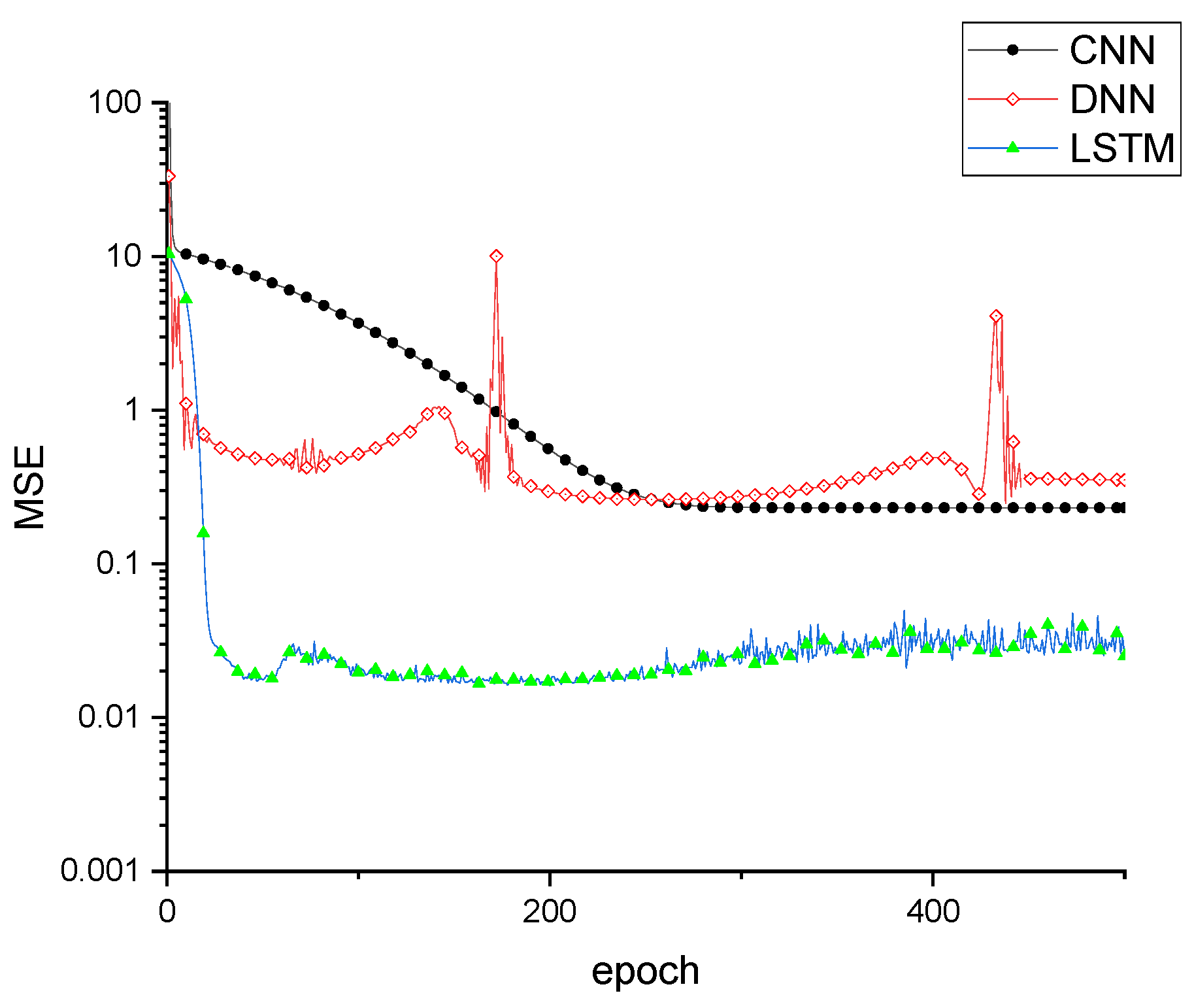

According to Table 8 and Figure 13, the LSTM neural network performs best in evaluating and predicting the users’ perceptual preference of CPs, followed by the CNN, and DNN is the worst. We suppose the reason is that, compared with CNN and DNN models, LSTM model takes more product modeling features into account when modeling and adds an observation time sequence so that the product-feature-coding set can be more comprehensive and multi-dimensional. Therefore, the results show that, after adding users’ visual observation sequence features of CPs to product-modeling-feature data, the neural network can better grasp product-modeling features, showing better accuracy and efficiency. In addition, the results also verified the necessity of adding the visual sequence to the feature processing of CPs.

5. Conclusions

This paper presents a CP-modeling design method (CP-KEDL) based on the LSTM neural network and KE. Compared with the traditional KE methods or neural networks, CP-KEDL regards the user’s observation behaviors of CPs as a visual process, which can be obtained through eye-movement experiments, so that CPs can be decomposed into modeling-feature sets, including visual observation sequence data. The experiment results show that adding the visual sequence to neural-network modeling makes the input features more comprehensive and more consistent with the objective laws of user observation and perception, so as to obtain a more comprehensive and accurate sample-modeling feature coding. It can more effectively solve the problem of the mapping model of CP perceptual images and modeling features and generate the optimal recommended modeling feature set. With this method, designers can be assisted in meeting users’ perceptual image needs more accurately and conduct the modeling design of CPs more quickly and effectively. The main contributions of the article are as follows:

(1)

We argue that users’ visual sequence will affect their perception and evaluation when observing CPs, and the user’s observation sequence should be taken into account when establishing the mapping relationship model between the product modeling features and the perceptual images.

(2)

The neural network of LSTM was applied to construct a perceptual evaluation model (KE–LSTM) in order to effectively handle the timing data. It could simulate the visual sequence of CPs observed by human eyes, effectively process the modeling information of CPs with temporal characteristics, and improve the robustness of the model. Moreover, KE–LSTM has a higher model accuracy than DNN and CNN.

(3)

To deconstruct the modeling features of CPs, we propose an improved MA method based on the temporal-association function. It encodes the representative samples into a modeling feature set including visual sequence data and facilitate the input of the LSTM neural network to mine its timing information and improve the accuracy of the model.

The modeling design of CPs is always restricted by its functions, so the establishment of perceptual evaluation models can only be applied to a variable range of modeling features. Future research can be the construction of a mapping model between function modeling and perceptual evaluation based on the actual needs of customers. In the meanwhile, as the accuracy of machine learning always depends on the size of samples to be evaluated, the participants have to spend great energy and time scanning and evaluating the large number of samples, which limit inviting more experts to participate in the evaluation experiment. The authors guess that the evaluation data may be more accurate and appropriate if we could invite more experts as our participants. This will be our future direction and motivation.
