Bird Detection on Power Transmission Lines Based on Improved YOLOv7
Abstract
:1. Introduction
1.1. Motivation
1.2. Related Work

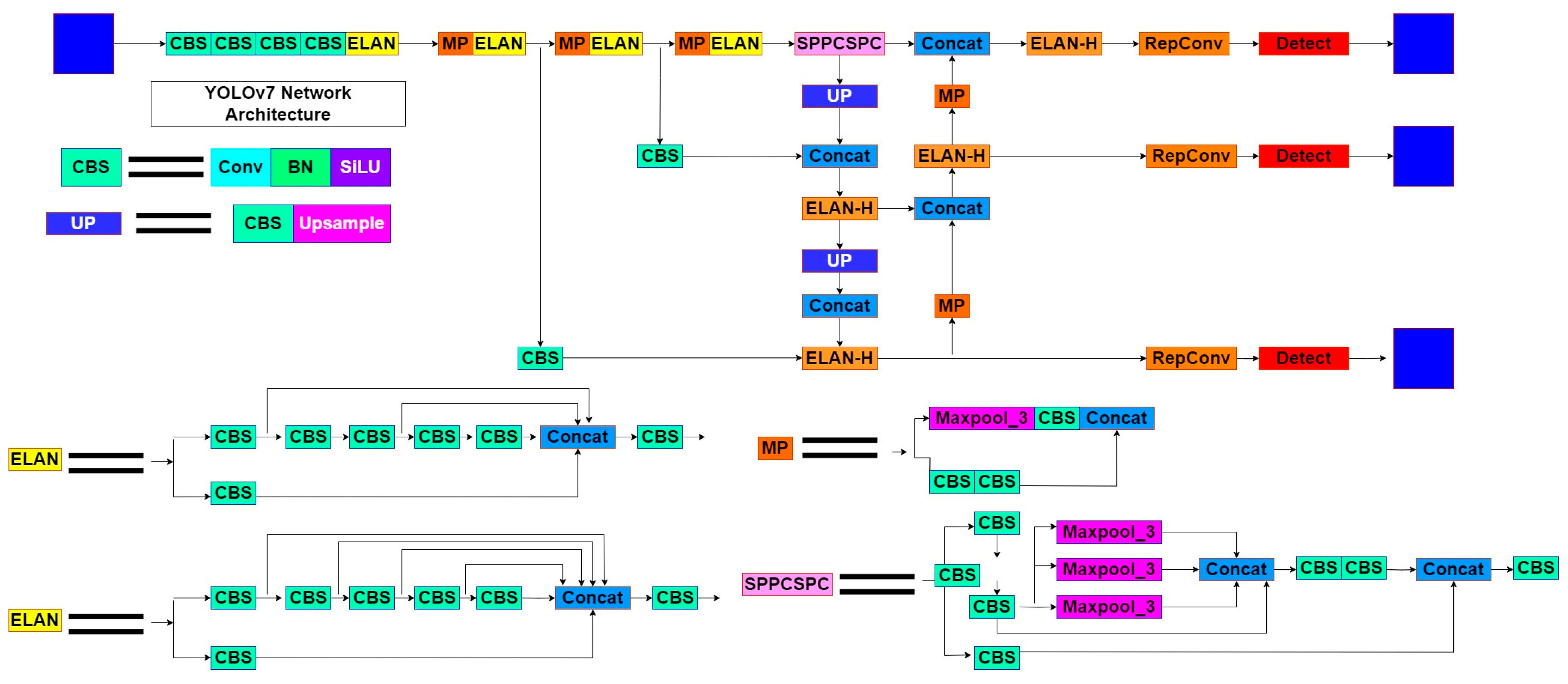

2. YOLOv7 Model
3. Enhanced YOLO v7 Model
3.1. Our Work

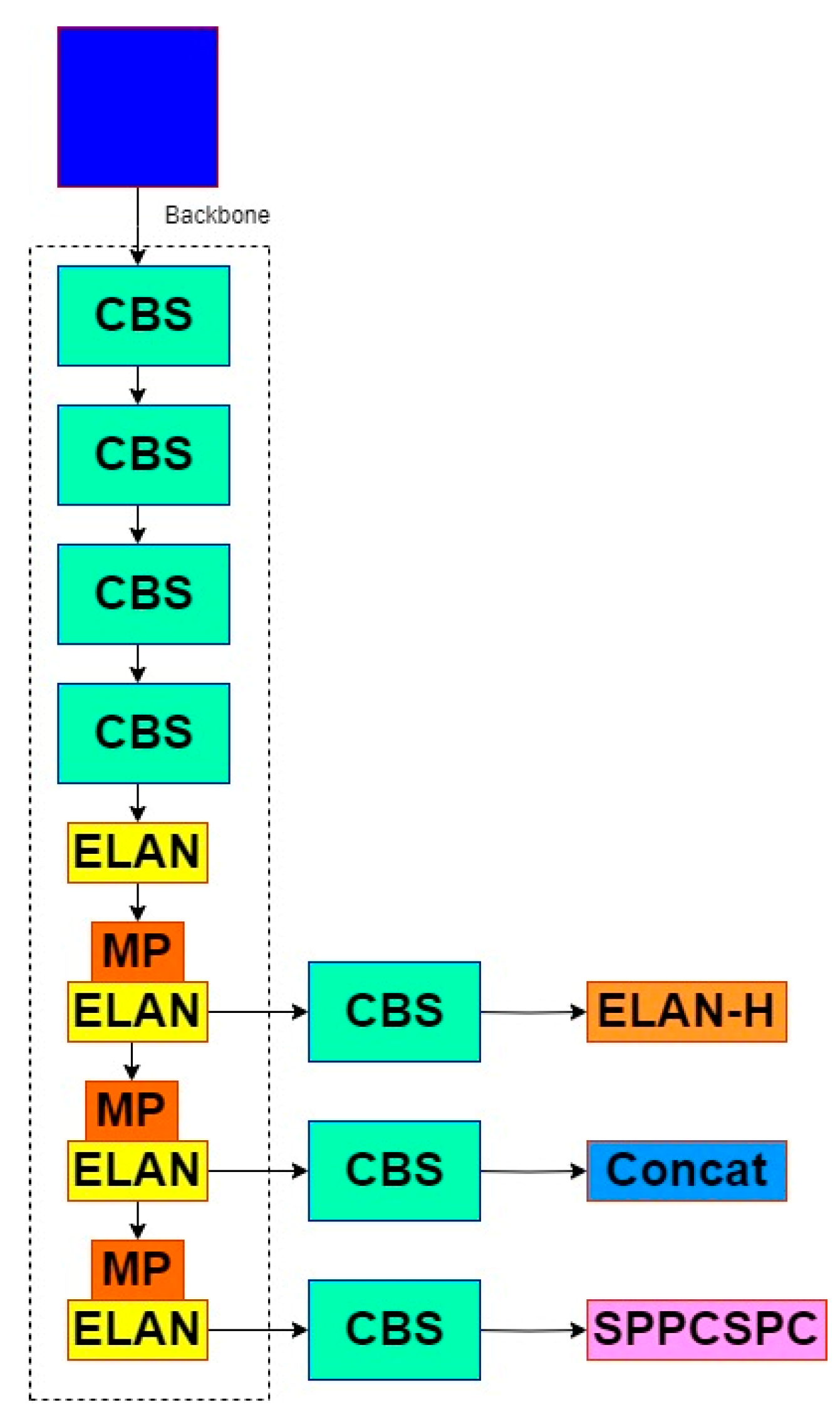

- We introduce the ODConv in the backbone of YOLOv7. This method retains a substantial portion of spatial information, thereby enhancing the network’s sensitivity to small-scale targets without inflating the model’s parameter size. The ODConv module also helps mitigate the impact of noise.
- Additionally, to address the issue of unstable loss function convergence during small object detection, this paper adopts the Alpha_GIoU function, thereby improving the network’s robustness concerning target sizes.

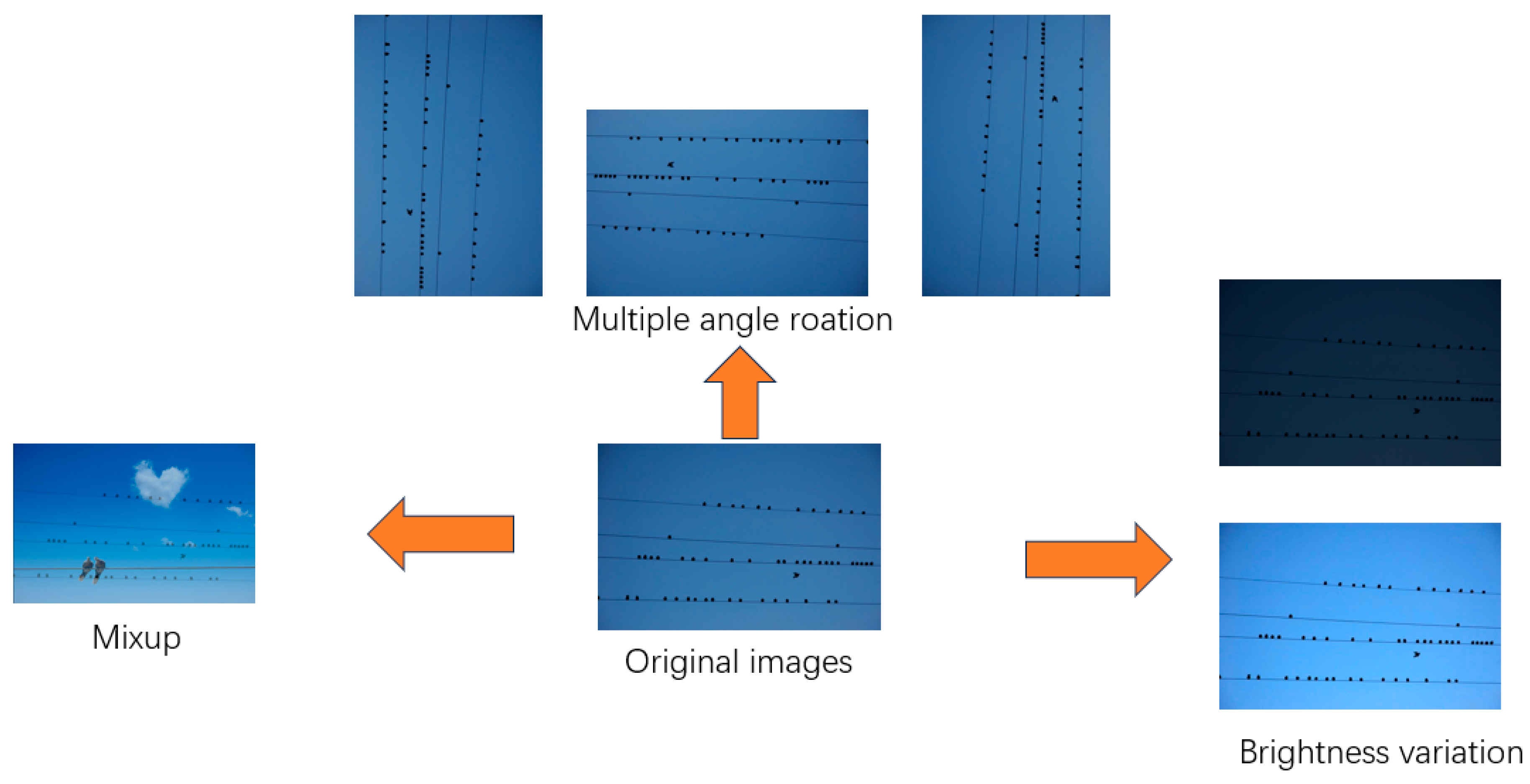

- Finally, a series of data augmentation such as mixup and multi-angle rotation are added to the dataset for model training to mitigate the impact of insufficient data.

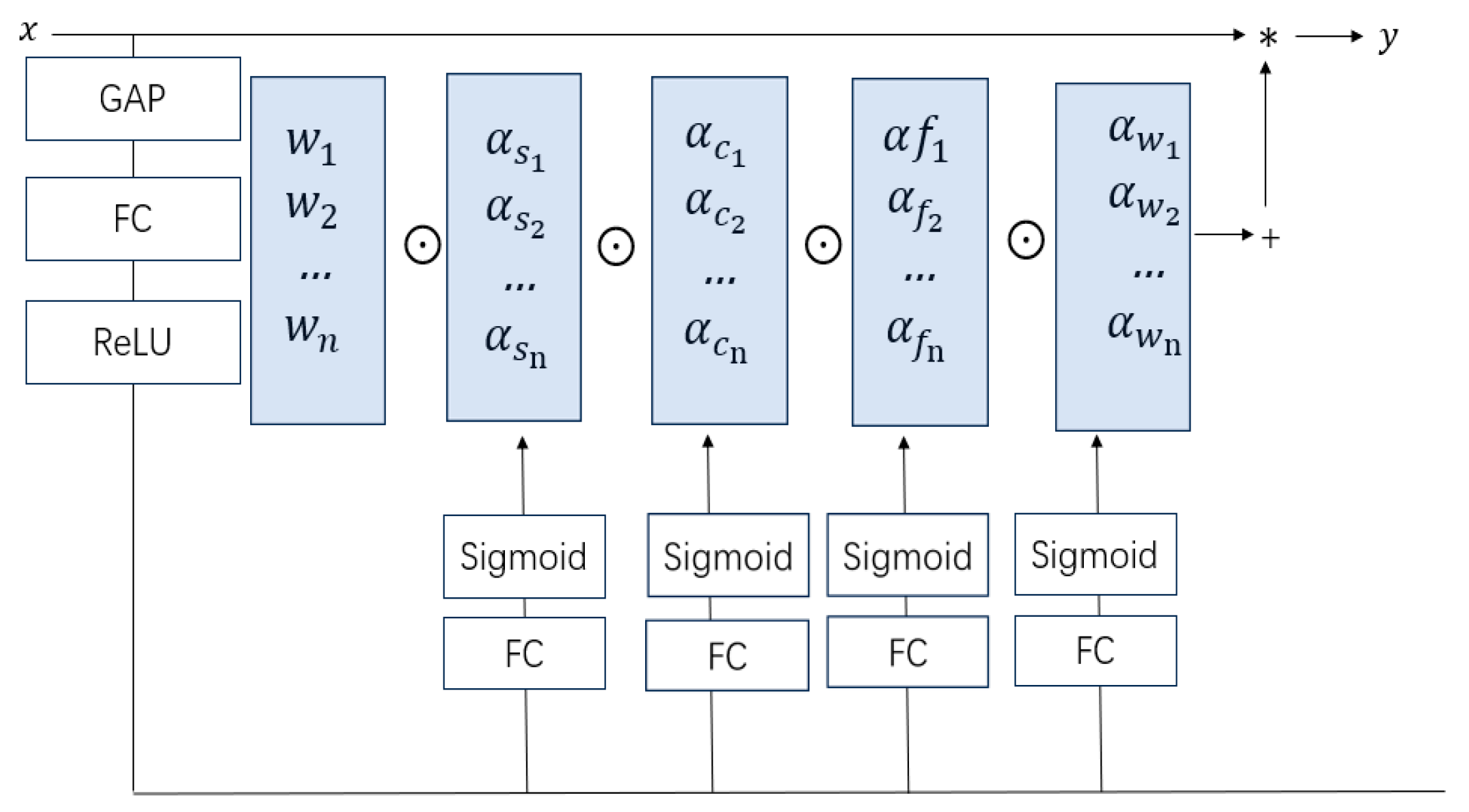

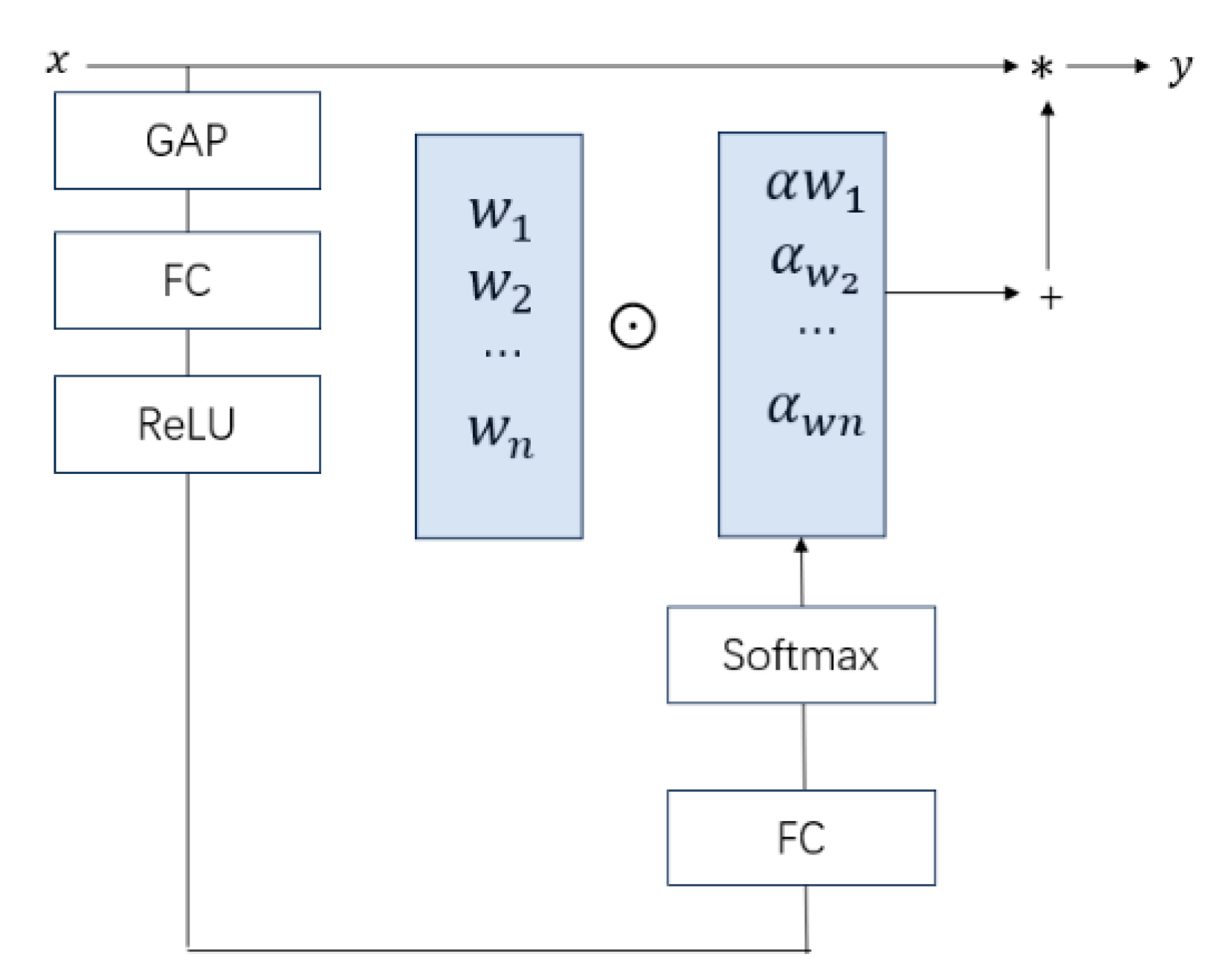

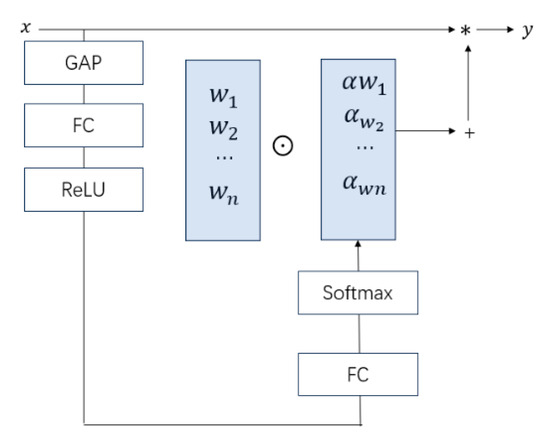

3.2. A New Dynamic Convolutional Kernels of ODConv

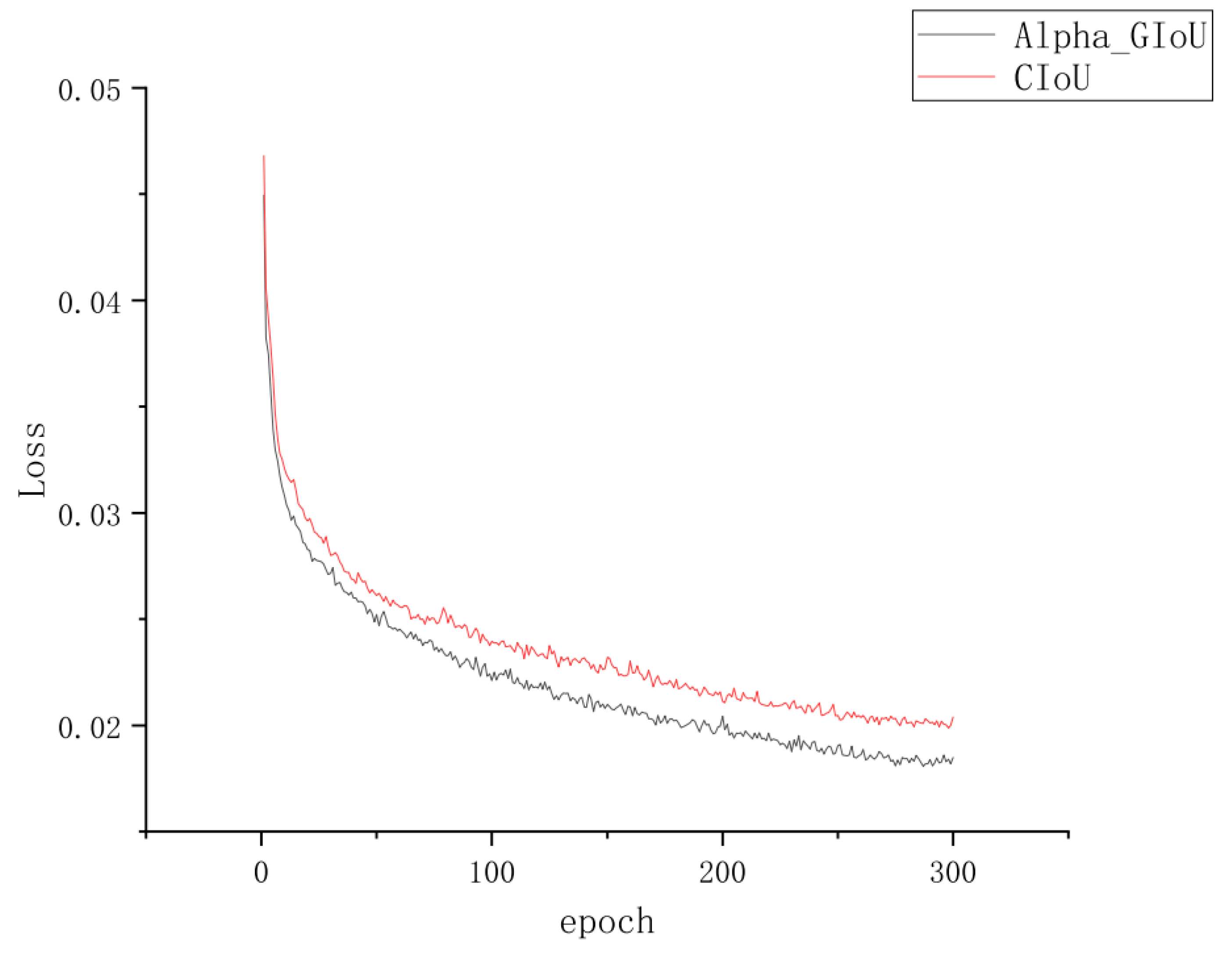

3.3. Alpha_GIoU Loss Function
- -
- quantifies the relationship between the predicted bounding box and the target bounding box by typically representing the ratio of the intersection area of these bounding boxes to their union area.
- -
- represents the area of the smallest convex polygon encompassing both bounding boxes.
- -
- denotes the area encompassed by the union of the two bounding boxes.
- -
- signifies the value of the loss function.
4. Experimentation and Analysis
4.1. Experimental Environment and Hyperparameters
4.2. Experimental Dataset
4.3. Evaluation Metrics
- -
- [email protected] signifies the average detection accuracy at an Intersection over Union (IOU) [13] threshold of 0.5 for all object categories. It reflects the algorithm’s accuracy in detecting various object categories.
- -
- [email protected]:0.95 represents the mean average precision over a range of 10 IOU thresholds, spanning from 0.5 to 0.95, with intervals of 0.05. This metric provides a comprehensive assessment of detection accuracy across various IOU thresholds.
- -
- Precision (P) represents the ratio of true positive detections to the total number of detections, indicating the algorithm’s precision in correctly identifying bird objects.
4.4. Introduce the ODConv in the Backbone of YOLOv7
4.5. Evaluate the Impact of ODConv on Model Accuracy
4.5.1. Comparing Results from Experiments Introducing Attention Mechanism
4.5.2. Contrast Experiment Results of IoU
5. Ablation Experiment

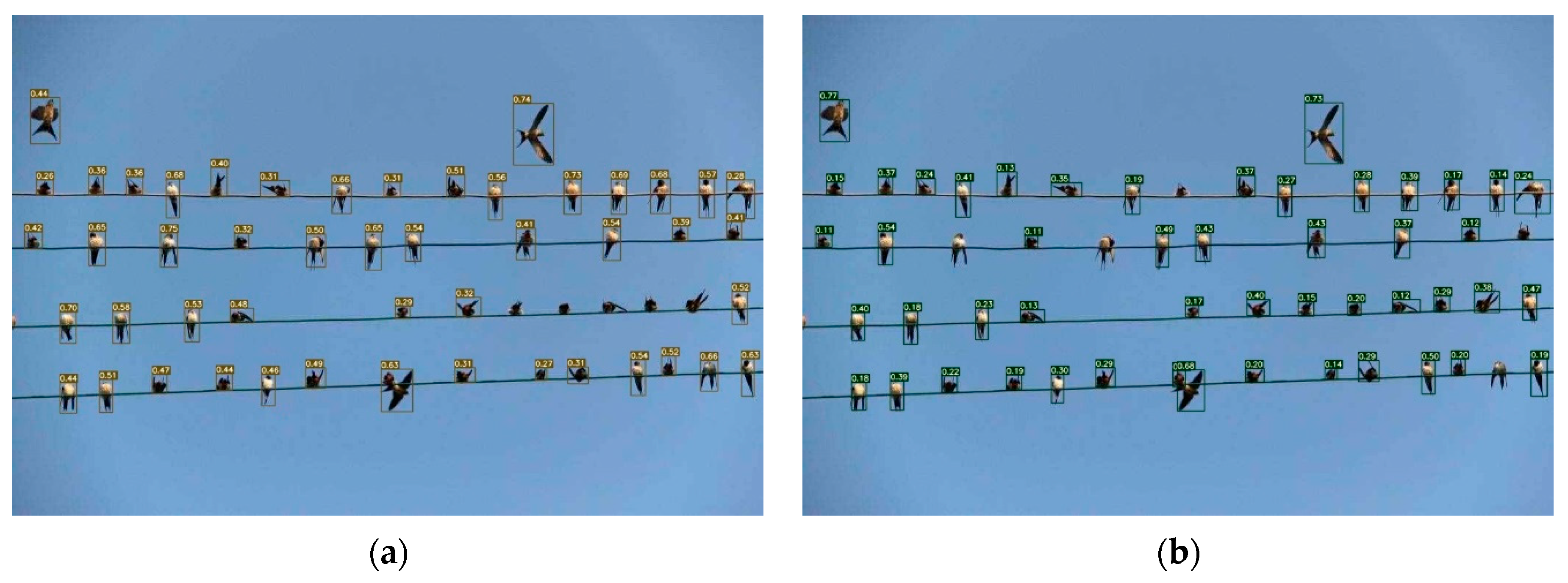

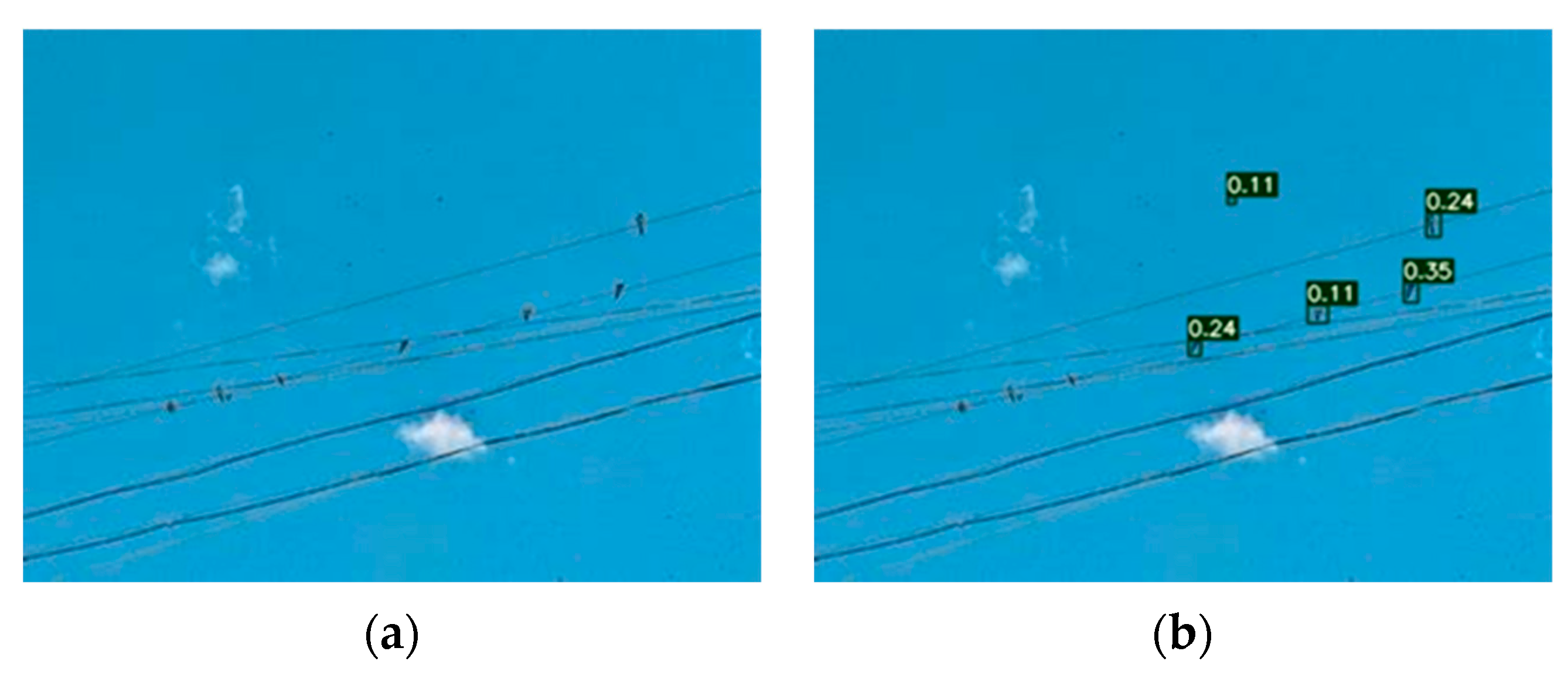

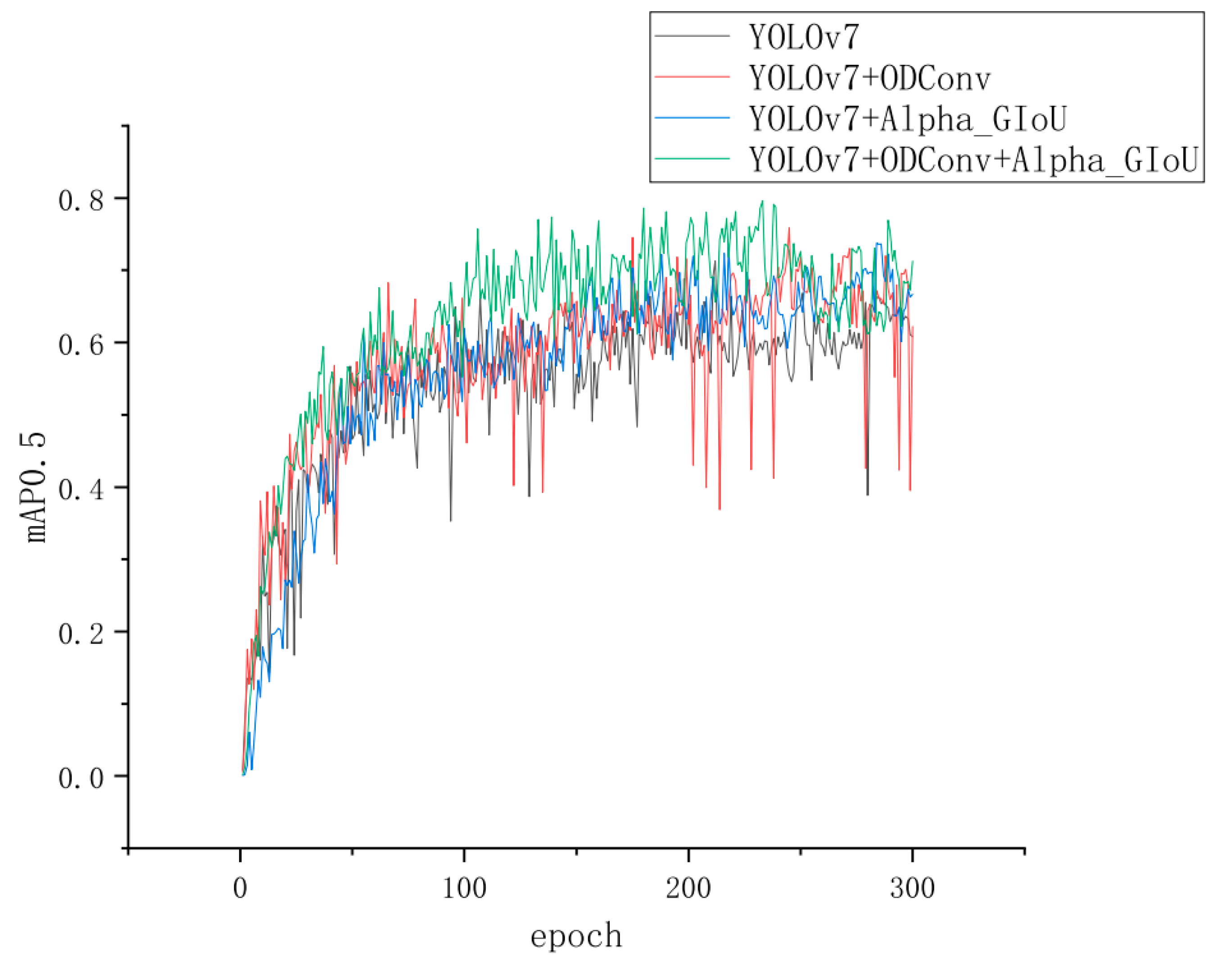

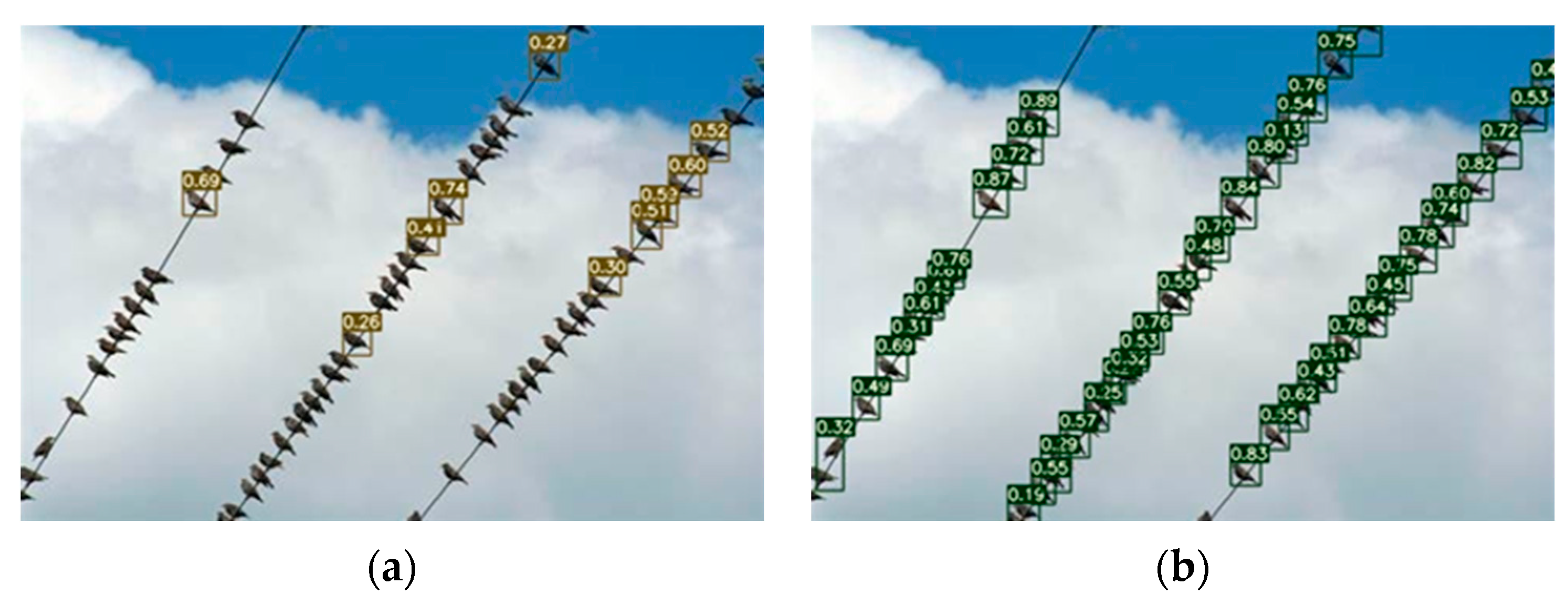

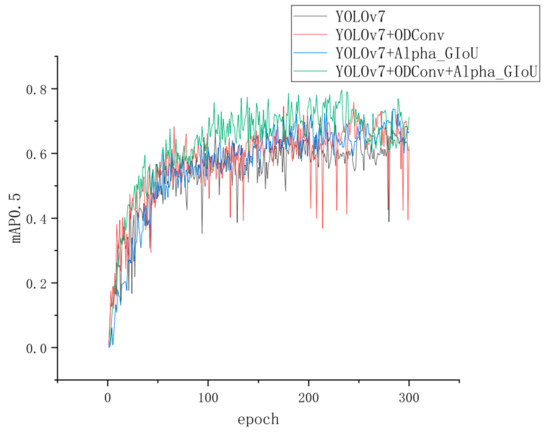

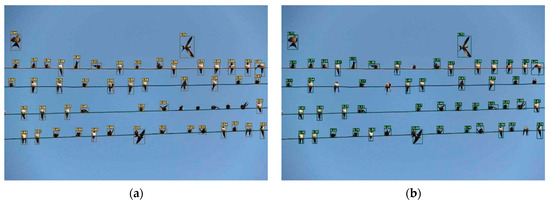

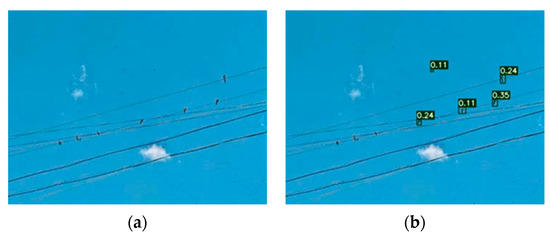

5.1. Experimental Comparison between YOLOv7 and the Improved Network Model
5.2. Comparative Analysis of the Improved YOLOv7 Network Model with Other Network Models
6. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
