A Novel Batch Streaming Pipeline for Radar Emitter Classification

Abstract

In electronic warfare, radar emitter classification plays a crucial role in identifying threats in complex radar signal environments. Traditionally, this has been achieved using heuristic-based methods and handcrafted features. However, these methods struggle to adapt to the complexities of modern combat environments and varying radar signal characteristics. To address these challenges, this paper introduces a novel batch streaming pipeline for radar emitter classification. Our pipeline consists of two key components: radar deinterleaving and radar pattern recognition. We leveraged the DBSCAN algorithm and an RNN encoder, which are relatively light and simple models, considering the limited hardware resource environment of a military weapon system. Although we chose to utilize lightweight machine learning and deep learning models, we designed our pipeline to perform optimally through hyperparameter optimization of each component. We demonstrate the effectiveness of our proposed model and pipeline through experimental validation and analysis. Overall, this paper provides background knowledge on each model, introduces the proposed pipeline, and presents experimental results.

1. Introduction

Electronic warfare (EW) is a modern form of combat that utilizes various electronic devices, such as electronic sensors, signal jammers, radar systems, and communication networks, as well as electromagnetic waves and telecommunications. It can be broadly divided into three categories: electronic support, electronic attack, and electronic protection [1]. The process of radar emitter classification falls under the domain of electronic support and plays a significant role in analyzing and identifying threats in complex radar signal environments in electronic warfare [2]. When an EW system receives radar signals, it analyzes their features, such as the frequency pattern and pulse repetition interval (PRI) pattern of the signals. These analyzed results are then matched with the threat library of the EW systems, to perform threat identification [3].

However, as electronic countermeasures become sophisticated and new types of complex radar systems are developed and deployed, the classification of these radar emitters has become more challenging [4,5,6]. Modern radar emitters often employ a variety of frequency and PRI modulation, which increases the complexity and diversity of radar signals [7]. Consequently, there is a need to develop and implement new methods for classification of these radar emitters. Developing new classification methods could provide a significant advantage in the complex and fast-paced arena of modern electronic warfare.

In electronic warfare, classification of the radar emitters involves several steps [8]. First, pulse descriptor words (PDWs) are generated from the received radar signals. Each PDW includes details about a specific radar pulse, such as TOA (time of arrival), AOA (angle of arrival), frequency, PW (pulse width), PA (pulse amplitude), etc. [9]. Second, the generated PDWs are deinterleaved. Deinterleaving is the process of separating jumbled PDWs back into individual sequences of pulses, which are referred to as PDW trains, each one corresponding to a different emitter [10,11]. Figure 1 illustrates the radar deinterleaving process.

Third, we extract the PRI from each of them, using TOA information, as in [11,12,13]:

$$PR{I}_i=TO{A}_i-TO{A}_{i-1}.$$

The PRI is the time interval between consecutive pulses, and is one of the key features that helps us classify the emitter [7,13]. With this calculated PRI and frequency information, we proceed to the final step, which is the radar pattern recognition process. Each radar emitter has a significant pattern, like a fingerprint, which allows us to recognize it among others [14]. Therefore, by recognizing the frequency pattern and PRI pattern, we can classify the radar emitter of the received signals. The crucial components in the entire radar emitter classification process are radar deinterleaving and radar pattern recognition. These two components have been actively researched and developed, to improve their effectiveness and efficiency.

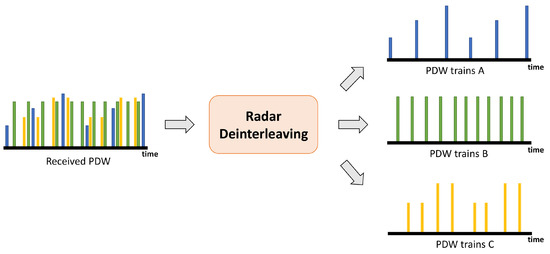

The radar deinterleaving process has traditionally been approached using heuristic-based methods. These methods rely on predefined rules and thresholds to deinterleave the received radar signal. However, these conventional techniques often face limitations in handling complex signal environments and adapting to varying radar signal characteristics [15]. In recent years, machine learning techniques have been gaining significant attention as an effective approach for radar deinterleaving. By utilizing data-driven algorithms, these methods can learn to recognize and separate different radar signals, based on the intricate relationships of radar pulse data. Guo et al. [15] and Li et al. [16] performed radar deinterleaving by fusing support vector clustering and data field theory, respectively, with the K-means clustering technique. Stefan et al. [17] conducted radar deinterleaving using the incremental DBSCAN algorithm, whose performance was experimentally validated by simulated radar data. In addition, machine learning algorithms that can be considered for application in the radar deinterleaving process include OPTICS (ordering points to identify the clustering structure) [18], HDBSCAN (hierarchical DBSCAN) [19], mean shift [20], and agglomerative [21], etc.

In the conventional radar pattern recognition approach, which also relies on handcrafted features and rule-based methods, similar issues to those encountered in traditional radar deinterleaving are present. To address these issues, recent research has been focusing on the application of deep learning techniques in radar pattern recognition. These methods leverage the power of neural networks to automatically learn relevant features and patterns from PDW trains, allowing for more accurate and robust recognition of radar patterns. Nguyen et al. [22] performed radar pattern recognition, using a fully connected layer-based MLP (multi-layer perceptron) classifier. Li et al. [23] and Sun et al. [24] used a 1D CNN (convolutional neural network) to effectively extract features from radar signals and use them to improve classification performance. Li et al. [25] demonstrated excellent performance by an attention-based multi-recurrent neural network, which was effective for sequential data processing, compared to existing MLP- and CNN-based radar classification models. Following current research trends, we can consider utilizing recurrent neural networks or attention-mechanism-based transformers [26] for sequential data processing problems like radar pattern recognition.

Although extensive research has been conducted on each of these processes individually, to the best of the authors’ knowledge a comprehensive pipeline that encompasses both of these processes remains challenging to find. For this paper, we used a modified DBSCAN method for radar deinterleaving and an RNN-based classifier for radar pattern recognition for batch streaming radar data. By combining these two ingredients, we propose a comprehensive radar emitter classification pipeline. While some methods perform better than the DBSCAN algorithm and RNN-based classifiers at each step, the reason why we designed the pipeline based on these two models was to consider the limited hardware resources of real military weapon systems. Even though we adopted machine learning and deep learning models with a simple architecture, it was designed to achieve optimal performance in the proposed pipeline by performing hyperparameter optimization.

This paper is structured as follows: In Section 2, we provide background knowledge on DBSCAN, RNN encoder, and Bayesian optimization, which is essential for understanding our proposed radar emitter classification pipeline. In Section 3, we introduce our proposed radar deinterleaving model and radar pattern recognition model, utilizing the background knowledge from Section 2. Moreover, we present our complete radar emitter classification pipeline, which includes both of the components. In Section 4, we set up our proposed models in the pipeline, we experimentally validate the functionality, and we analyze the results. Lastly, in Section 5, we provide a comprehensive conclusion and outline future work.

2. Background Knowledge

In this section, we discuss three fundamental algorithms, DBSCAN, RNN encoder, and Bayesian optimization, which are needed for understanding our proposed pipeline’s radar deinterleaving and radar pattern recognition model, respectively.

2.1. DBSCAN

DBSCAN is a popular density-based clustering algorithm introduced by Martin Ester et al. in 1996 [27]. Unlike other clustering algorithms, such as K-means or hierarchical clustering, DBSCAN does not require the number of clusters to be specified beforehand, making it particularly suitable for scenarios where the number of clusters is unknown or varying. The key idea behind DBSCAN is to group data points that are closely packed together, while also identifying noise points that do not belong to any cluster. DBSCAN employs the following core concepts. All concepts are defined with regard to two parameters denoted by $ϵ$ and $MinPts$.

In DBSCAN, a core point is a data point in domain D that has at least a minimum number of neighboring data points ($MinPts$) within its $ϵ$-neighborhood. The $ϵ$-neighborhood of a point, denoted by $N_{ϵ}\left(p\right)$, is defined as

$$N_{ϵ}\left(p\right)=\left\{q\in D\mid \sqrt{\sum _{i=1}^n{(p_i-q_i)}^2}\le ϵ\right\}.$$

(1)

Border points, on the other hand, do not meet the $MinPts$ requirement but are reachable from a core point within the distance of $ϵ$.

A point p is said to be directly density reachable from a point q if:

$$\begin{array}{cc}\hfill \left(1\right)& p\in N_{ϵ}\left(q\right)\left(reachability\right);\hfill \\ \hfill \left(2\right)& |N_{ϵ}\left(q\right)|\ge MinPts\left(corepointcondition\right).\hfill \end{array}$$

We can expand the concept of density reachability. A point p is density reachable from a point q if there is a chain of points $p_1,p_2,\cdots ,p_n$ with $p_1=q$ and $p_n=p$, such that $p_{i+1}$ is directly density reachable from $p_i$ for all $1<i<n-1$.

The clustering process in DBSCAN involves iteratively exploring the entire dataset and determining core points, border points, and noise points. The algorithm proceeds as follows:

• DBSCAN starts by selecting an unvisited data point and checks its type.
• If the selected point is a core point, create a new cluster, and expand the cluster by iteratively adding density-reachable core points.
• If the selected point is a border point, assign it to the cluster of a reachable core point.
• If the selected point is neither a core point nor a border point, it is considered as a noise point, which means it does not belong to any cluster.
• Repeat steps 1–4 until all points have been visited.

Due to its many advantages, DBSCAN continues to be widely used in various clustering problems to this day. However, the performance of the DBSCAN model heavily relies on how the parameters ($ϵ,MinPts$) are set [28]. Thus, selecting optimal parameter values is still an ongoing task for researchers and engineers, to achieve optimal clustering performance with DBSCAN.

2.2. RNN Encoder

RNN is a type of neural network that is designed to process sequential data by considering the temporal dependencies within the input sequences [29]. However, initial vanilla RNNs have limitations in capturing long-term dependencies, due to the vanishing gradient problem. As the gradients back-propagate through time, they can become exponentially small, causing the network to struggle in preserving information over long sequences. To address this issue, LSTM (long short-term memory) was introduced.

LSTM is a variant of RNN that incorporates memory cells to selectively store and forget information over time [30]. It consists of different gates, including input, forget, and output gates, which control the flow of information within the cells. These gates enable LSTM to capture long-term dependencies more effectively and to alleviate the vanishing gradient problem. Another variant of RNN that addresses the vanishing gradient problem is GRU (gated recurrent unit). GRU simplifies the architecture compared to LSTM by combining the memory update and reset operations into a single gate. This results in a more computationally efficient model while still maintaining the ability to capture long-term dependencies [31].

The RNN encoder is used when we need to transform an input sequence into a fixed-length vector representation [32,33]. The operation of the RNN encoder can be described as follows. Starting from the first step of the input sequence, it receives an input and updates its hidden state. Then, it moves on to the next step, combining the previous hidden state with the current input, to compute a new hidden state. This process is repeated for each step of the sequence, gradually encoding the information into the hidden states. At the end of this process, the final hidden state serves as the context vector. This context vector representation summarizes the input sequence with the shape of the fixed-length vector. The RNN encoder has been widely used in various tasks, such as natural language processing, speech recognition, and action recognition, demonstrating its effectiveness in encoding sequential data and extracting meaningful features.

2.3. Bayesian Optimization

In machine learning and deep learning, model performance is often dependent on a set of hyperparameters that need to be carefully tuned, to achieve optimal results. Bayesian optimization [34] is a powerful and efficient method for the hyperparameter tuning process. Bayesian optimization is a global optimization technique that aims to find the maximum (or minimum) of an unknown, expensive-to-evaluate, and possibly noisy objective function. In the context of machine learning or deep learning, this objective function is typically the performance score of the model (e.g., accuracy, loss, or F1-score) on a validation dataset. The objective is to find the best set of hyperparameters that maximize the model’s performance. The key idea behind Bayesian optimization is to build a probabilistic surrogate model that approximates the true objective function. This surrogate model is typically a Gaussian process or other probabilistic models. The surrogate model helps in modeling the uncertainty of the objective function and guides the search for the optimal hyperparameters.

The Bayesian optimization process can be summarized as follows:

• An acquisition function, often based on the surrogate model, is used to determine the next set of hyperparameters to evaluate. Common acquisition functions include expected improvement, probability of improvement, and upper confidence bound.
• The acquisition function suggests a set of hyperparameters for evaluation, and the true objective function is queried, to obtain its performance on the validation dataset.
• The surrogate model is updated with the new data point, which improves its approximation of the objective function.
• Steps 1 to 3 are repeated for a predefined number of iterations, and the process converges to the optimal set of hyperparameters.

Bayesian optimization offers several advantages, including its ability to handle noisy objective functions, make efficient use of limited computational resources, and focus on promising regions of the hyperparameter space. By incorporating Bayesian optimization into machine learning or a deep learning workflow, we can streamline the process of hyperparameter tuning and achieve State-of-the-Art results with less manual trial and error.

3. The Pipeline

In this section, we introduce our radar emitter classification pipeline. The pipeline is primarily divided into two stages: radar deinterleaving and radar pattern recognition. As radar emitters used in electronic warfare have the values of AOA, frequency, PW, and PA in each unique band, we use these four features to deinterleave the radar data to PDW trains. Following the formation of these PDW trains, we proceed to the radar pattern recognition stage. At this stage, we analyze the frequency and PRI patterns within each PDW train set. By analyzing these patterns, we identify the specific modulation technique deployed by the emitter. The models used in each stage are designed based on the background techniques introduced in the previous section. Our pipeline operates under the assumption that the input PDW data has been preprocessed to remove noise. The radar recognition pipeline diagram we propose is shown in Figure 2.

3.1. Radar Deinterleaving Model

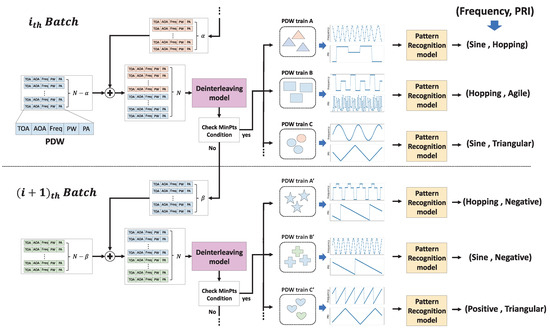

Given the batch streaming processing approach, the DBSCAN algorithm introduced in Section 2.1 is well suited to our radar deinterleaving model. This is because in a batch streaming environment, the number of radar emitters we seek to deinterleave can vary from batch to batch. However, directly applying the DBSCAN algorithm from [27] presents two significant challenges. Firstly, finding an appropriate value of $ϵ$ is challenging. When we select AOA, Frequency, PW, and PA as our feature vectors for implementing DBSCAN, it is not straightforward to set an appropriate value of $ϵ$ in Equation (1). This is because the distance to define neighborhood is calculated by weighting each vector element equally, even though all of them have different variances and scales. Secondly, we may encounter issues related to $MinPts$. In the context of our task, despite the fact that the data have been pre-filtered for noise, if one emitter has a low frequency, the number of pulses within a given batch may not meet the $MinPts$ threshold. In this case, DBSCAN will fail to cluster these pulses into a PDW train, incorrectly identifying them as noise.

To solve the first problem, we propose modifying Equation (1), used in DBSCAN, as follows:

$$N_{\mathit{thres}}\left(p\right)=\{q\in D|\parallel p-q\parallel \le \mathit{thres}\},$$

(2)

where $p\in R^4,q\in R^4$ denote the $(AOA,frequency,PW,PA)\in D$ of each PDW;

$$\mathit{thres}=(AO{A}_{thres},Fre{q}_{thres},P{W}_{thres},P{A}_{thres})$$

is a threshold vector, and the norm $\parallel x\parallel$ is defined as

$$\parallel x\parallel \le r\iff |x_i|\le r_i,i=1,\dots ,4$$

for $x\in {\mathbb{R}}^4$ and $r\in {\left({\mathbb{R}}_{\ge 0}\right)}^4$. To account for the different variances and scales of each vector element, the distance calculation of the two vectors to define the neighborhood data is performed independently for each element, and the corresponding thresholds ($\mathit{thres}$) are set separately. The process of defining thresholds in Equation (2) has the advantage of enabling radar engineers to more intuitively determine the thresholds for each component based on the characteristics of each physical value.

The second problem can be solved by increasing the batch size, to avoid data situations where the $MinPts$ condition is not met, but larger batch sizes result in longer computation times and less memory efficiency. Therefore, rather than increasing the batch size, we should focus more on how to handle data that do not meet $Minpts$ conditions when they occur. As illustrated in the deinterleaving model in Figure 2, we propose carrying over data with fewer numbers of PDWs than $MinPts$ to the next batch, instead of classifying them as noise. This approach stems from our assumption that the PDW data in our pipeline have already been pre-filtered for noise. Thus, rather than treating unclustered pulses as noise, we consider them as insufficient data and forward them to the next batch. The unclustered data from the previous batch are combined with new data from the next batch so that there can be enough data in that batch to satisfy the $MinPts$ condition. In other words, they can be deinterleaved into PDW trains.

3.2. Radar Recognition Model

Following the deinterleaving step, the next task in our pipeline is the pattern recognition process. Our radar pattern recognition model is designed to accommodate varying sizes of input data—in this case, the PDW trains produced by the previous deinterleaving step. The lengths of the PDW trains within a single batch can vary, due to the different time interval of radar emitters [35]. To handle these varying-sized inputs, we propose using the RNN encoder introduced in Section 2.2, which converts them into a fixed-length vector.

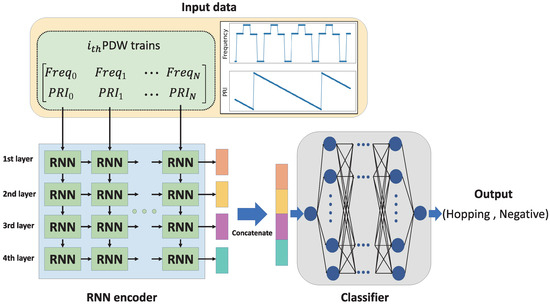

The structure of our RNN encoder is multi-layered. The reason for choosing a multi-layered RNN is to allow the model to learn a richer representation of the input data sequence. Each layer in the RNN encoder is capable of capturing different aspects of the input sequence. Therefore, we do not solely rely on the top layer’s hidden state as our context vector, like a general RNN encoder. Instead, we concatenate the hidden states from all the layers, to create a composite representation. This enhances the model’s ability to understand the data better, incorporating various features at different levels of complexity into the context vector. Finally, this context vector passes through a fully connected (FC) layer, leading to the final classification of frequency and PRI patterns. Figure 3 shows an example of the radar recognition model structure. The RNN encoder in the example is structured in four layers.

4. Experiment

For this section, we conducted experiments, to evaluate the performance of our proposed radar emitter classification pipeline, which consisted of the radar deinterleaving and radar pattern recognition models introduced in Section 3. The primary focus of this section was to examine the experimental dataset, the configuration of the two models, and the analysis of the experimental results. The pipeline in this paper was performed with batch size 3000 samples.

4.1. Dataset

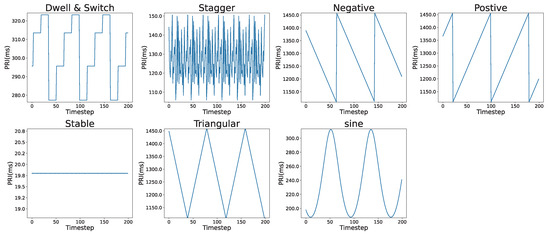

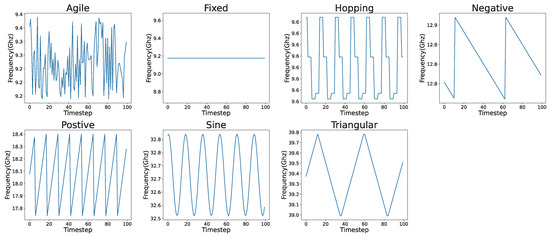

For the experiment in this paper, 500 episodes of radar signals were generated, using a simulated signal generator. Among these episodes, 400 episodes were utilized as train data, while the remaining 100 episodes were used as test data. The radar data were episode-wise alike but had different values of AOA, Frequency, PW, and PA within the margin of errors, and they were organized in different TOA order. Thus, by validating the model, which was designed based on train data, with test data, we could check whether the generalization performance was guaranteed. Within each episode, 43 different radar emitters were active, emitting a total of 1500 pulses. These pulses were captured and stored as PDWs, serving as the input for the subsequent deinterleaving and recognition stages. The PDW dataset consisted of a wide range of radar emitter classes, each characterized by distinct PRI patterns and frequency patterns. The frequency patterns encompassed agile, fixed, hopping, negative, positive, sine, and triangular, while the PRI patterns included options such as dwell and switch, stagger, negative, positive, stable, triangular, and sine. Figure 4 and Figure 5 illustrate examples of these frequency patterns and PRI patterns, respectively. We performed one-hot encoding on the class information, yielding a total of 43 classes used as experimental data.

4.2. Deinterleaving Model Setup

To set up the deinterleaving model, we needed to set the $MinPts$ and threshold values for AOA, Frequency, PW, and PA. We set the $MinPts$ to 64 and configured the model to forward to the next batch the PDW data that did not meet the $MinPts$ condition. In other words, the minimum sample length of detected PDW trains was then 64. As the accuracy and computational speed of the deinterleaving model depended on how the threshold values were set, we used the Bayesian optimization technique to find a good set of threshold values. Unlike the threshold values, the $MinPts$ affected the entire pipeline, not just within the deinterleaving model, so we kept its value fixed and only tuned the threshold values. Within the search space shown in

Table 1. Search space for Bayesian optimization for the deinterleaving model.

Hyperparameter	Search Space
$AO{A}_{thres}$ (${}^{\circ }$)	[1, 5]
$Fre{q}_{thres}$ (kHz)	[100,000, 1,000,000]
$P{W}_{thres}$ (ms)	[1, 1000]
$P{A}_{thres}$ (db)	[1, 10]

, a total of 16 threshold value sets were found during the Bayesian optimization process, as shown in

Table 2. Bayesian optimization result for deinterleaving model.

AOA (${}^{\circ }$)	Frequency (kHz)	PW (ms)	PA (db)	Score
3.7454	4,756,035.8167	2993.2924	14.9079	81.8952
7.7518	4,416,538.1391	1862.1235	5.3162	92.3387
8.8703	2,678,465.3465	2655.9410	5.8810	93.7143
1.9605	1,071,099.6430	3491.7165	1.1764	95.4718
6.0112	3,554,959.2601	4849.5493	1.3911	95.4718
3.8239	1,135,701.5285	4002.3206	5.5540	95.4718
6.9129	1,212,423.3194	3500.1928	14.2985	95.4718
5.1407	1,211,903.6938	2839.4390	15.1432	95.4718
2.6256	1,124,927.1818	4329.3377	11.2010	95.4718
7.6594	1,082,501.6882	2062.7617	1.8047	95.4718
1.5602	822,172.8757	4330.8807	2.1036	95.4983
7.1875	1,101,082.8165	928.2235	11.0920	105.7289
7.4260	2,649,166.9935	98.3829	6.7065	105.7543
0.0630	2,323,468.2073	2633.7424	19.5565	105.7915
8.9805	1,065,441.2204	182.7483	4.6231	105.8310
8.3244	1,101,078.5979	917.0225	4.4547	106.8509

. The score in Bayesian optimization for the deinterleaving model was based on the deinterleaving accuracy on the training episode data, and when the accuracy reached 100%, the reciprocal of the average time to complete deinterleaving in each batch was added as an extra point. The model with the best score was selected as the final model.

4.3. Pattern Recognition Model Setup

We performed data preprocessing, model training, and hyperparameter optimization for the pattern recognition model, to process the PDW train output from the deinterleaving model. For the preprocessing step, we structured the frequency information and we calculated the PRI information from each PDW train into a multivariate time series data vector, $x\in R^{2\times samples}$. We applied a modified minmax normalization, to accommodate different scales of frequencies and PRI values, as follows:

$$x_{\mathrm{normalized}}=\frac{x-\min \left(x\right)+\alpha }{\max \left(x\right)-\min \left(x\right)+2\alpha },$$

where

$$\alpha =\frac{1000}{\mathrm{std}\left(x\right)}.$$

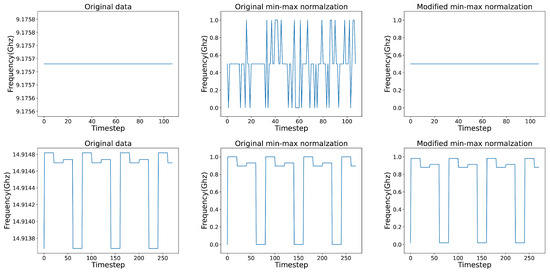

We here added $\alpha$ to the min–max normalization process, to effectively deal with the case of fixed frequency patterns and stable PRI patterns. As shown in Figure 6, without the $\alpha$, even slight noise could be amplified, making it difficult to discern fixed or stable patterns.

The preprocessed data was divided into train and validation sets, in a ratio of 9:1. The reason why we divided the dataset into training and validation sets was to assess the model’s generalization performance, ensuring it did not overfit to the train set. The train set was used to train the radar pattern recognition model. We adopted different types of RNN encoder, such as vanilla RNN, LSTM, and GRU, while keeping all the other conditions fixed. Initially, we set the dimension of the hidden state in the RNN encoder to 8. The final context vector obtained from the RNN encoder with four layers was of dimension 4 × 8 = 32. The number of three fully connected layers nodes that made up the classifier was set to 1024, 512, and 256 in that order. The model architecture is presented in

Table 3. The overall model architecture.

	Layer Type	Input–Output Shape
RNN encoder	4-layered RNN encoder	2 $\times samples$ → 32
	$\left[\begin{array}{c}\mathrm{Fully}\mathrm{connected}\\ \mathrm{Batch}\mathrm{normalization}\\ \mathrm{ReLU}\end{array}\right]$	32 → 1024
Classifier	$\left[\begin{array}{c}\mathrm{Fully}\mathrm{connected}\\ \mathrm{Batch}\mathrm{normalization}\\ \mathrm{ReLU}\end{array}\right]$	1024 → 512
	$\left[\begin{array}{c}\mathrm{Fully}\mathrm{connected}\\ \mathrm{Batch}\mathrm{normalization}\\ \mathrm{ReLU}\end{array}\right]$	512 → 256
	$\left[\begin{array}{c}\mathrm{Fully}\mathrm{connected}\\ \mathrm{Softmax}\end{array}\right]$	256 → 43 1

¹ The final model output was the predicted radar pattern class corresponding to the highest value among the softmax outputs.

.

The optimizer used was Adam, with a learning rate of 0.00001, and the batch size was set to 128. We chose the loss function of the model as the categorical cross-entropy loss, defined as

$$\mathrm{Categorical}\mathrm{Cross-Entropy}=-\sum _{i=1}^C{y}_{i}log\left(p_i\right).$$

The training was conducted with the train set for 1000 epochs. At each epoch, the accuracy on the validation set was computed, and if it surpassed the previous best accuracy, the model was saved. After training, the model with the highest validation accuracy was selected as the final model. This allowed us to select a final model that was not overfitted to the train set. The model validation accuracy for each RNN encoder type is presented in

Table 4. Radar pattern recognition model result for validation dataset.

RNN Encoder Type	Vanilla RNN	LSTM	GRU
Pattern recognition accuracy	87.80%	97.55%	97.80%

. In the experimental results, both LSTM and GRU outperformed the vanilla RNN, achieving an impressive accuracy of approximately 97%. This superiority can be attributed to the advanced architecture, such as the memory cells and gates of the LSTM and GRU models, as discussed in Section 2.2. Unlike the vanilla RNN, LSTM and GRU were equipped with mechanisms such as memory cells and gates, allowing them to capture and retain long-term dependencies in the input sequence.

We compared the experimental results between the LSTM and GRU models in Figure 7 and

Table 5. Radar pattern recognition model result.

RNN Encoder Type	LSTM	GRU
Number of parameters	2112	1584
Epoch to reach 90% accuracy.	174	65
Epoch to reach 95% accuracy.	536	387

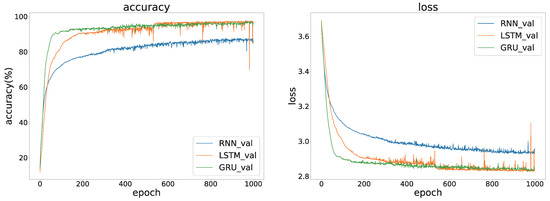

. Figure 7 shows the accuracy and loss graphs on the validation set during the training process. As evident from the graph, the GRU model demonstrated faster learning compared to the LSTM model. This can be attributed to the fact that the GRU model was a simplified version of the LSTM model, with fewer parameters to learn, resulting in faster training. Table 5 provides information on the parameter counts for each encoder and indicates the epoch at which they first reached 90% and 95% accuracy. While there was not a significant difference in performance between the LSTM and GRU models, given sufficient training time, if we had constraints on available resources or time, opting for the GRU model would be a reasonable choice.

As shown in Section 4.2, the pattern recognition model could be further improved by optimizing the hyperparameters. The hyperparameters used in the pattern recognition model were the context vector dimension (context_vec_dim), the number of RNN layers (rnn_layers), the number of fully connected layer nodes (fc_1, fc_2, fc_3), and the learning rate (lr). For the LSTM and GRU units, we found 16 sets of hyperparameters in the search space in

Table 6. Search space for Bayesian optimization in pattern recognition model.

Hyperparameter	Search Space
context_vec_dim	[2, 32]
rnn_layers	[1, 8]
fc_1	[256, 1024]
fc_2	[256, 1024]
fc_3	[256, 1024]
lr	[0.000005, 0.00005]

Hyperparameters in integer form were used after rounding up the searched values and changing them to integer form.

, using Bayesian optimization.

The scores in Bayesian optimization for the pattern recognition model were computed based on pattern recognition accuracy and on validation data. The results of the Bayesian optimization for the deinterleaving model are shown in

Table 7. Bayesian optimization result for pattern recognition model (LSTM).

context_vec_dim	n_layers	fc_1	fc_2	fc_3	lr	Score
3	6	807	281	1000	$2.615\times {10}^{-5}$	50.1031
24	6	768	786	668	$6.291\times {10}^{-6}$	53.1601
6	6	376	743	936	$3.707\times {10}^{-5}$	62.2538
15	3	659	473	695	$4.915\times {10}^{-5}$	83.7921
15	2	257	1022	665	$1.226\times {10}^{-5}$	83.8592
15	5	363	480	537	$1.811\times {10}^{-5}$	88.1225
13	6	716	376	376	$4.778\times {10}^{-5}$	88.6277
12	4	326	268	426	$3.549\times {10}^{-5}$	91.1847
3	5	800	272	1001	$4.398\times {10}^{-5}$	92.0817
8	6	804	270	989	$3.103\times {10}^{-5}$	92.7828
21	5	510	986	684	$4.416\times {10}^{-5}$	95.5356
22	8	399	488	644	$2.112\times {10}^{-5}$	95.5872
24	5	556	696	313	$4.062\times {10}^{-5}$	96.4275
26	2	397	490	659	$1.456\times {10}^{-5}$	96.8141
28	3	979	677	428	$2.006\times {10}^{-5}$	97.9637
14	5	826	316	281	$3.764\times {10}^{-5}$	98.6442

and

Table 8. Bayesian optimization result for pattern recognition model (GRU).

context_vec_dim	n_layers	fc_1	fc_2	fc_3	lr	Score
2	1	1024	433	1024	$2.910\times {10}^{-5}$	15.7387
2	1	1024	432	1024	$4.900\times {10}^{-5}$	17.8266
15	4	359	487	545	$1.017\times {10}^{-5}$	77.2090
6	6	376	743	936	$3.707\times {10}^{-5}$	77.7451
13	6	716	376	376	$4.778\times {10}^{-5}$	78.4101
9	4	820	294	999	$7.085\times {10}^{-6}$	79.7196
15	2	257	1022	665	$1.226\times {10}^{-5}$	82.7147
15	5	363	480	537	$1.811\times {10}^{-5}$	86.2460
27	2	398	490	659	$1.455\times {10}^{-5}$	86.3491
18	1	724	367	378	$1.711\times {10}^{-5}$	87.4884
3	5	789	269	997	$4.641\times {10}^{-5}$	89.5969
3	6	807	281	1000	$2.615\times {10}^{-5}$	89.9010
12	1	815	294	995	$4.367\times {10}^{-5}$	91.1434
4	5	800	272	1001	$4.398\times {10}^{-5}$	98.0823
5	7	667	256	980	$4.639\times {10}^{-5}$	98.2472
8	6	372	745	942	$2.506\times {10}^{-5}$	98.9587

. It is shown that the pattern recognition accuracy of the model with the hyperparameter setting that scored the best in each Bayesian optimization was higher than the result of the model with initial hyperparameter values in Table 4. Therefore, we selected the model with the best hyperparameter values from the Bayesian optimization as our final pattern recognition model.

4.4. Radar Emitter Classification Pipeline Test

Finally, we conducted tests with the test dataset on our entire pipeline, which included the radar deinterleaving model and the radar pattern recognition model with each optimized hyperparameter set. The experimental results are summarized in

Table 9. Radar emitter classification pipeline test for test data.

RNN Encoder Type	LSTM	GRU
Radar emitter classification pipeline accuracy	98.715%	98.717%

. We verified that our proposed pipeline could handle all the test dataset in batch streaming without any problem. In other words, we demonstrated that our radar emitter classification pipeline showed excellent performance.

5. Conclusions

In this paper, we presented a novel batch streaming radar emitter classification pipeline. The proposed pipeline addresses the challenges of radar deinterleaving and radar pattern recognition, both of which are essential components of radar emitter classification. By designing machine learning and deep learning models, we achieved 100% deinterleaving accuracy and up to 98% pattern recognition accuracy on the test dataset in our pipeline.

We propose three directions for future work. First, we can improve the pipeline, so as to handle noisy data by adding a noise filter appropriate for radar data at the front of the pipeline. Second, the hyperparameter optimization technique can be improved with a variety of tuning scheduler, which can produce faster and better hyperparameter optimization results. Lastly, we can validate the generalization performance of our model by deploying the proposed pipeline on a real military weapon system and processing real radar data.
